Do you think Node is asynchronous because it uses a thread pool for network interactions? Do you there is a relationship between "event emitters" and the "event loop"? I will be working through these misaprehensions as well as others, showing how the Node.js event loop really works. There are many, many pictures and blogs on this topic, but many of them are subtly wrong, or outright misleading. Despite that its event loop that is key to Node's scalability and performance, it remains a misunderstood black box to many. I will show how it works - C code may be seen! - talk about why it works that way, and what some of the implications are for Node developers, as well as briefly describe some changes that the Node core team are considering with respect to how Node uses libuv.

2. The event loop from
the inside out
Sam Roberts <rsam@ca.ibm.com>, IBM
github: @sam-github, twitter: @octetcloud

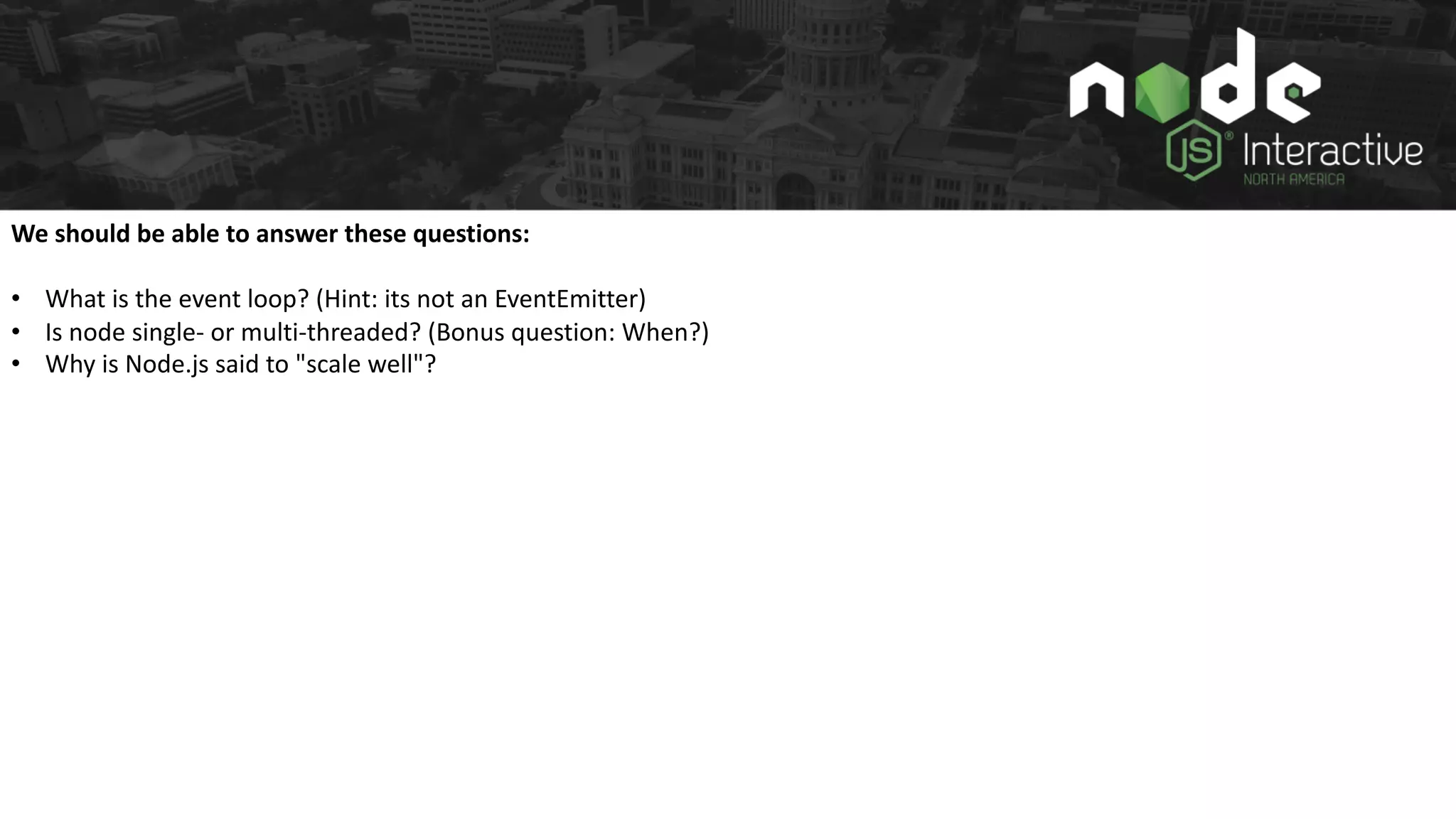

3. We should be able to answer these questions:
• What is the event loop? (Hint: its not an EventEmitter)
• Is node single- or multi-threaded? (Bonus question: When?)
• Why is Node.js said to "scale well"?

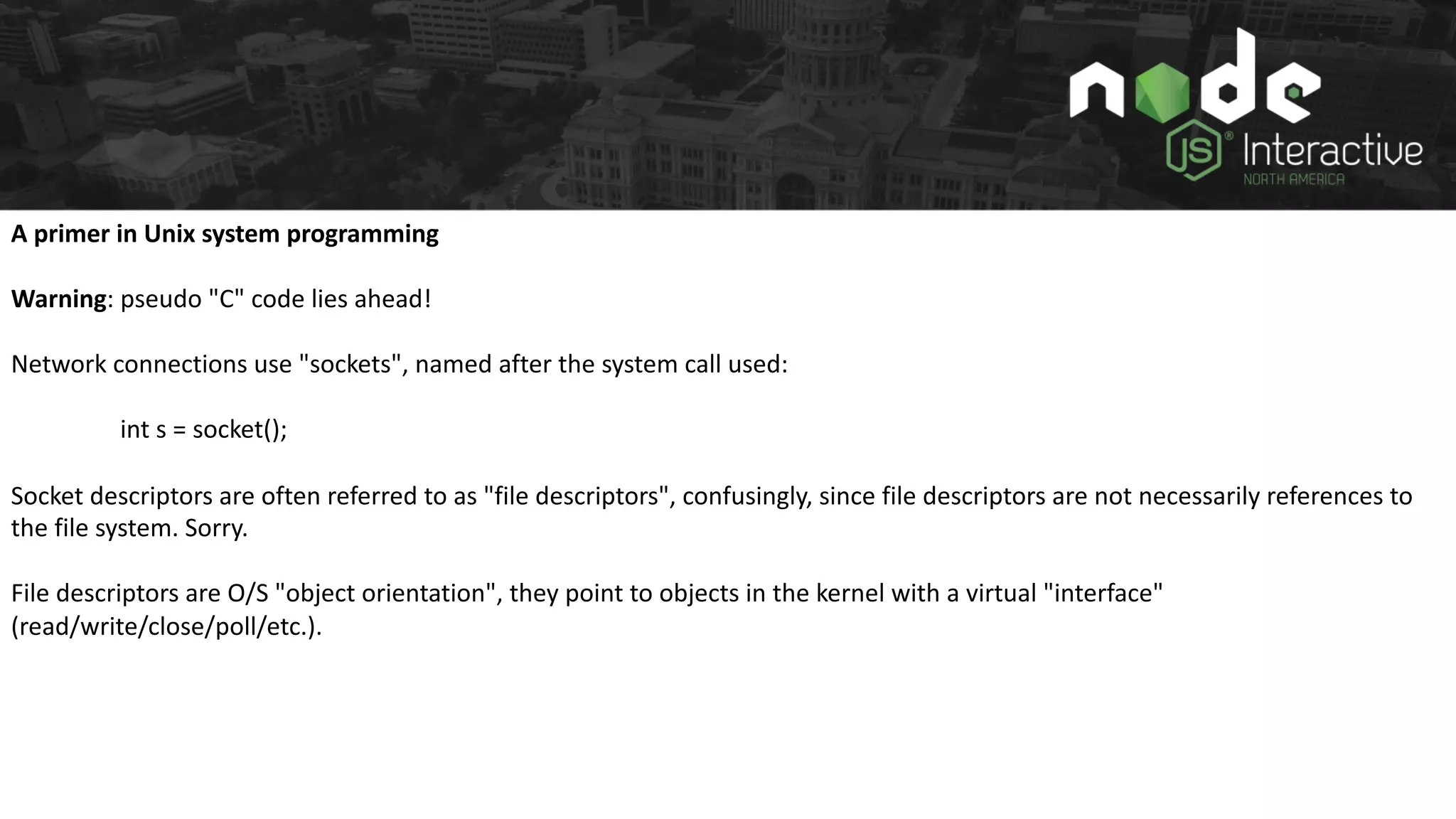

4. A primer in Unix system programming
Warning: pseudo "C" code lies ahead!
Network connections use "sockets", named after the system call used:
int s = socket();
Socket descriptors are often referred to as "file descriptors", confusingly, since file descriptors are not necessarily references to
the file system. Sorry.
File descriptors are O/S "object orientation", they point to objects in the kernel with a virtual "interface"
(read/write/close/poll/etc.).

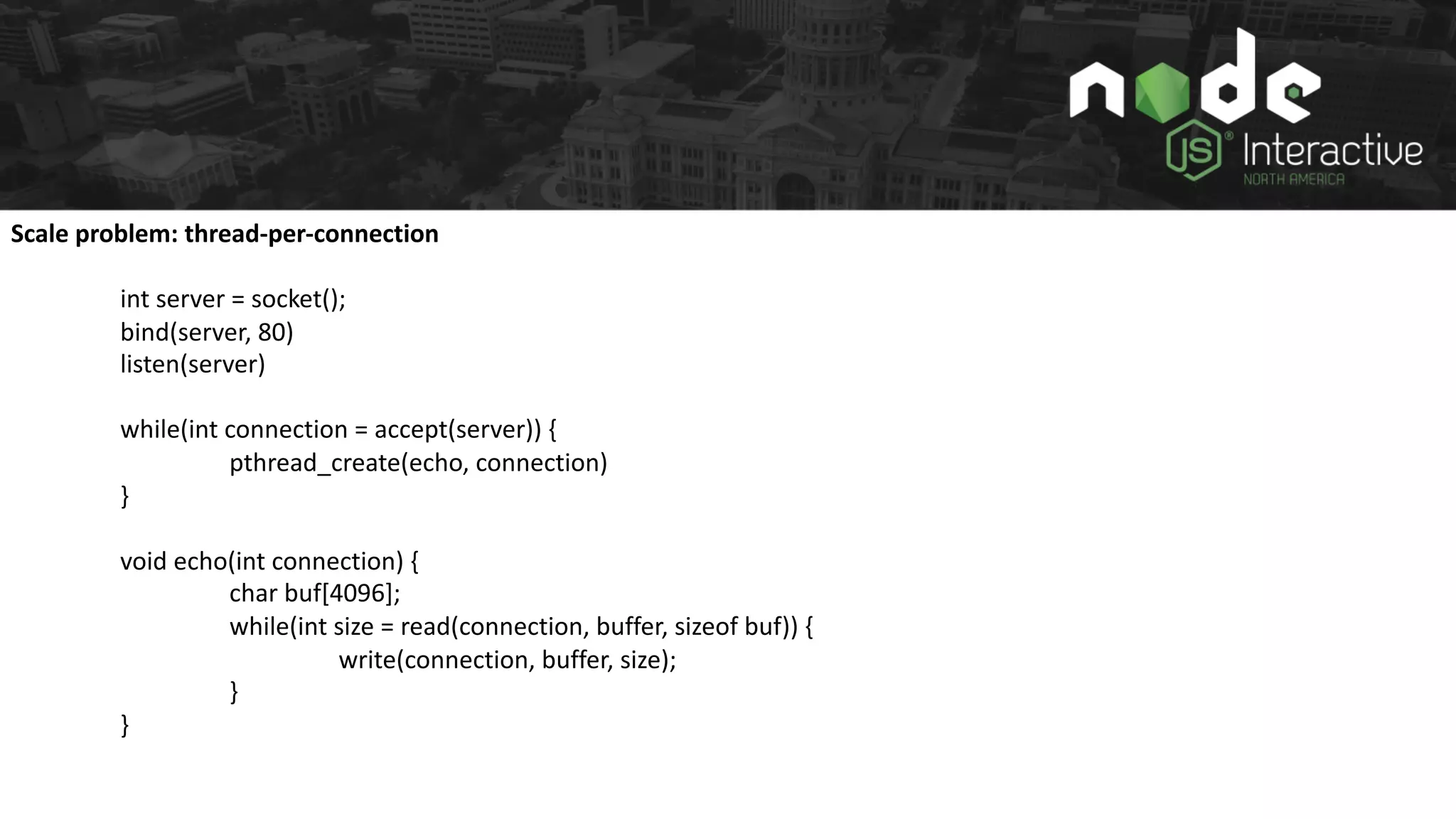

5. Scale problem: thread-per-connection
int server = socket();
bind(server, 80)
listen(server)
while(int connection = accept(server)) {
pthread_create(echo, connection)
}
void echo(int connection) {
char buf[4096];
while(int size = read(connection, buffer, sizeof buf)) {
write(connection, buffer, size);
}
}

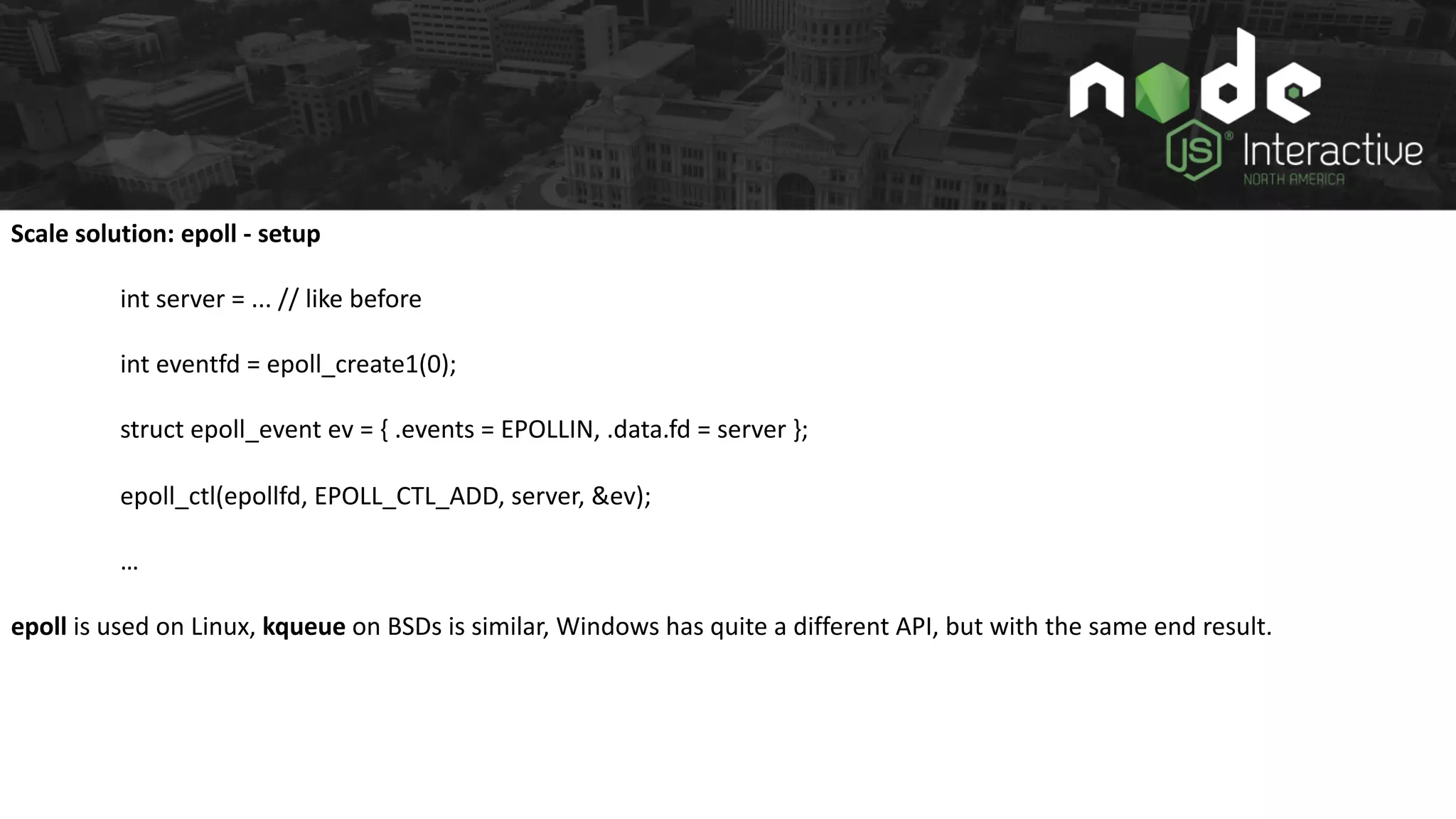

6. Scale solution: epoll - setup
int server = ... // like before
int eventfd = epoll_create1(0);
struct epoll_event ev = { .events = EPOLLIN, .data.fd = server };
epoll_ctl(epollfd, EPOLL_CTL_ADD, server, &ev);
…
epoll is used on Linux, kqueue on BSDs is similar, Windows has quite a different API, but with the same end result.

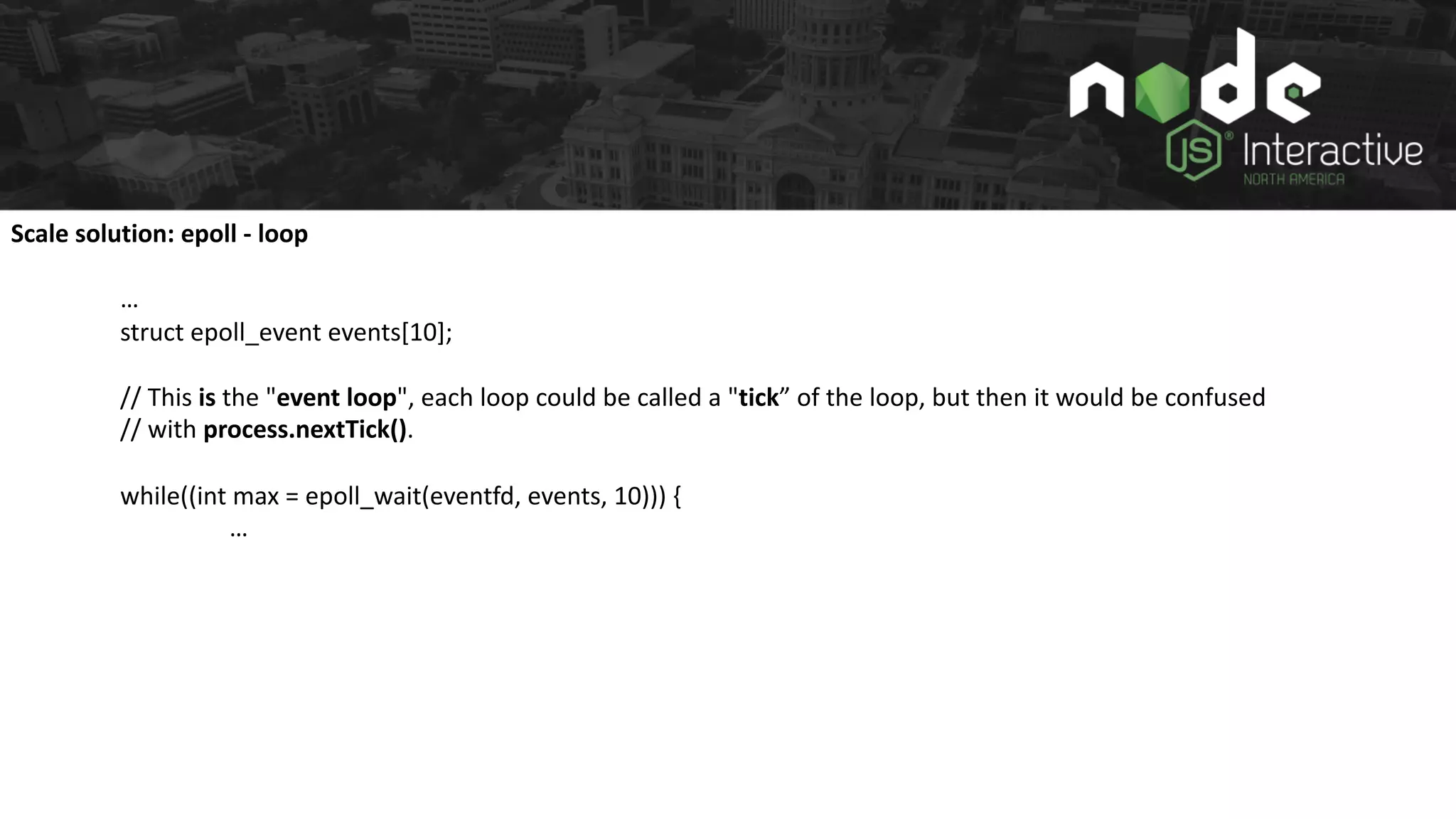

7. Scale solution: epoll - loop
…
struct epoll_event events[10];
// This is the "event loop", each loop could be called a "tick” of the loop, but then it would be confused
// with process.nextTick().
while((int max = epoll_wait(eventfd, events, 10))) {
…

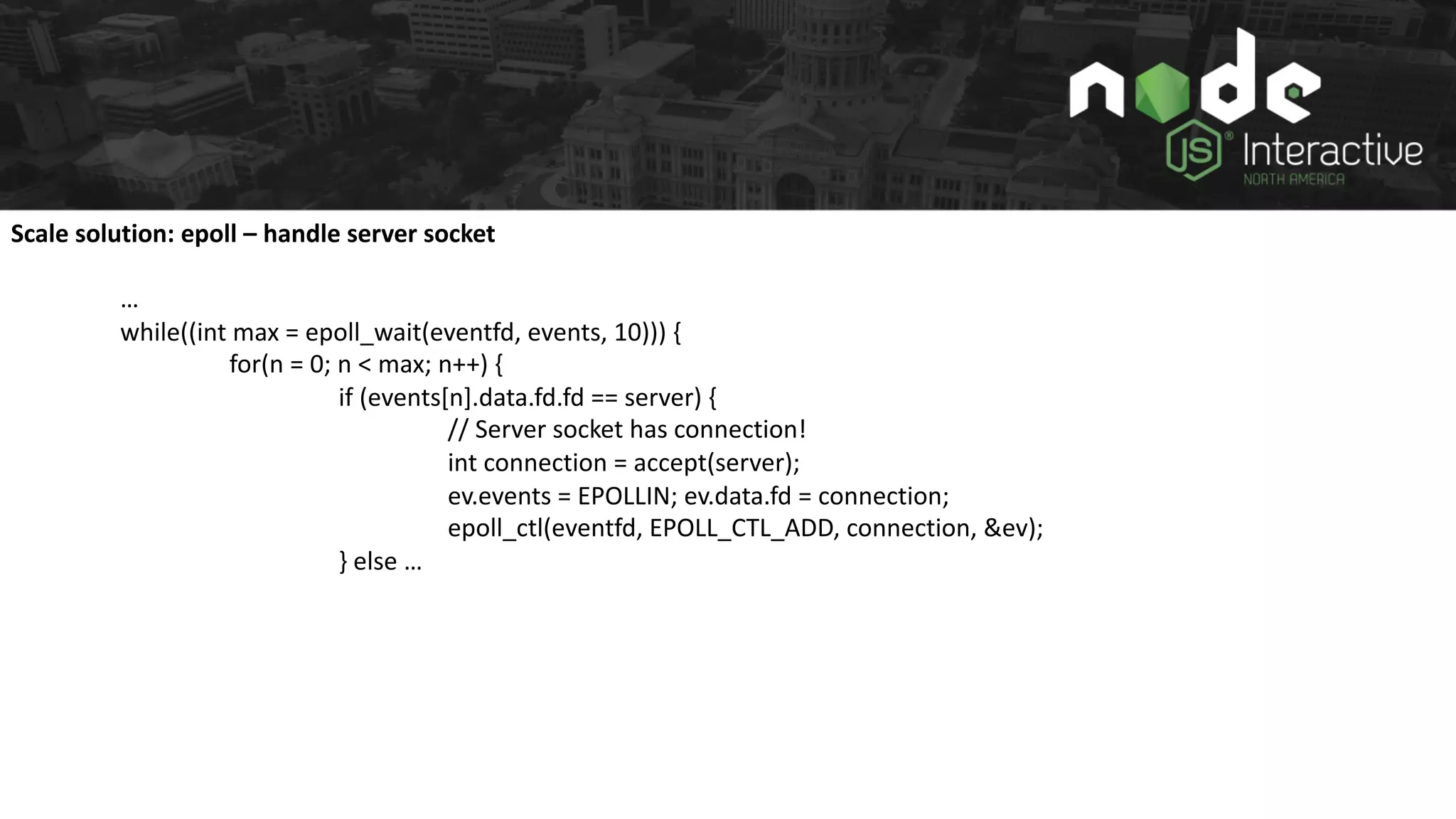

8. Scale solution: epoll – handle server socket
…
while((int max = epoll_wait(eventfd, events, 10))) {
for(n = 0; n < max; n++) {
if (events[n].data.fd.fd == server) {
// Server socket has connection!
int connection = accept(server);
ev.events = EPOLLIN; ev.data.fd = connection;
epoll_ctl(eventfd, EPOLL_CTL_ADD, connection, &ev);
} else …

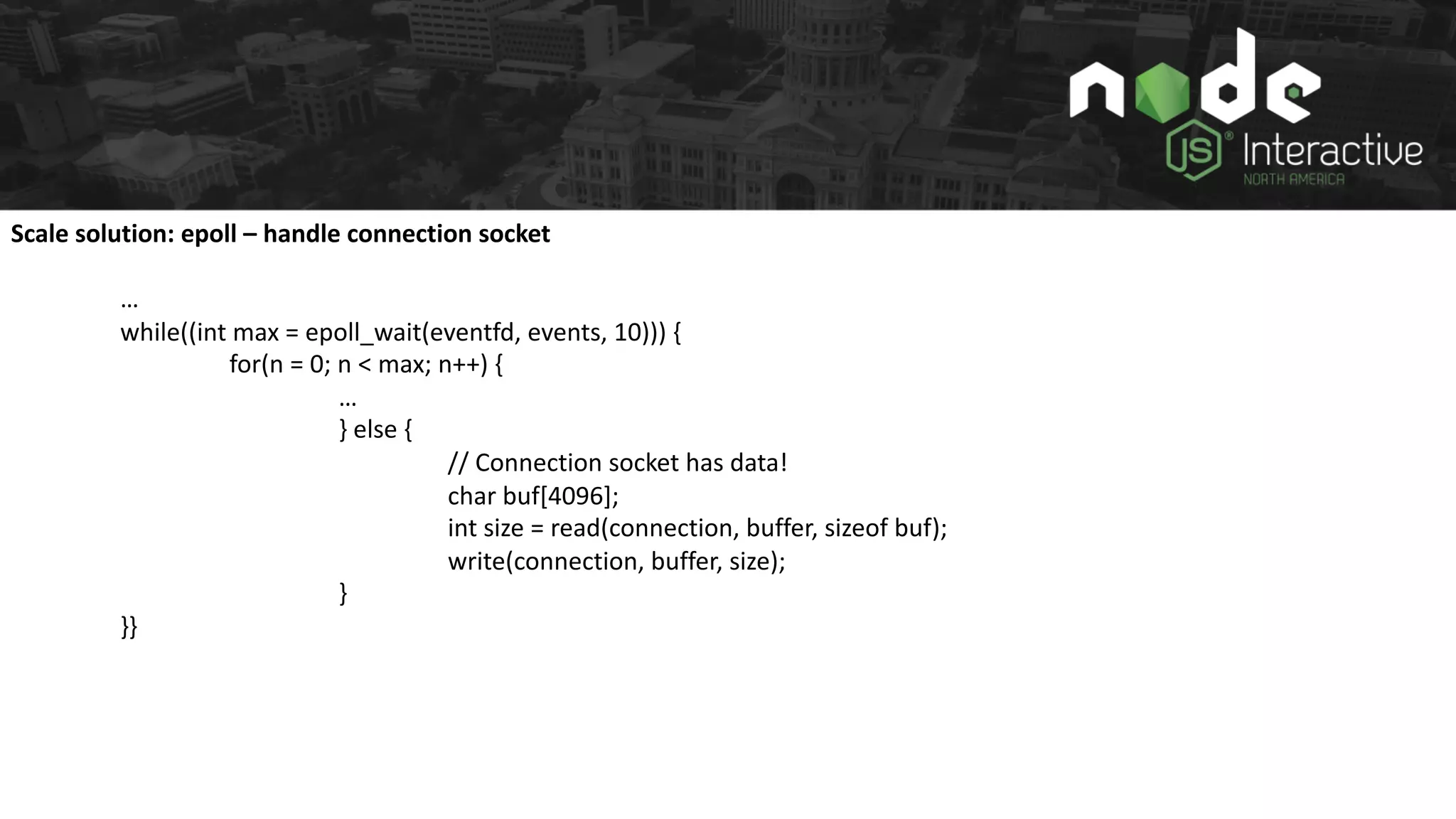

9. Scale solution: epoll – handle connection socket
…
while((int max = epoll_wait(eventfd, events, 10))) {
for(n = 0; n < max; n++) {
…
} else {
// Connection socket has data!
char buf[4096];
int size = read(connection, buffer, sizeof buf);
write(connection, buffer, size);
}
}}

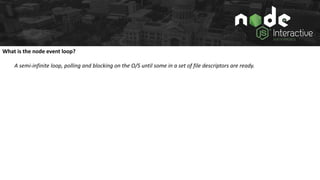

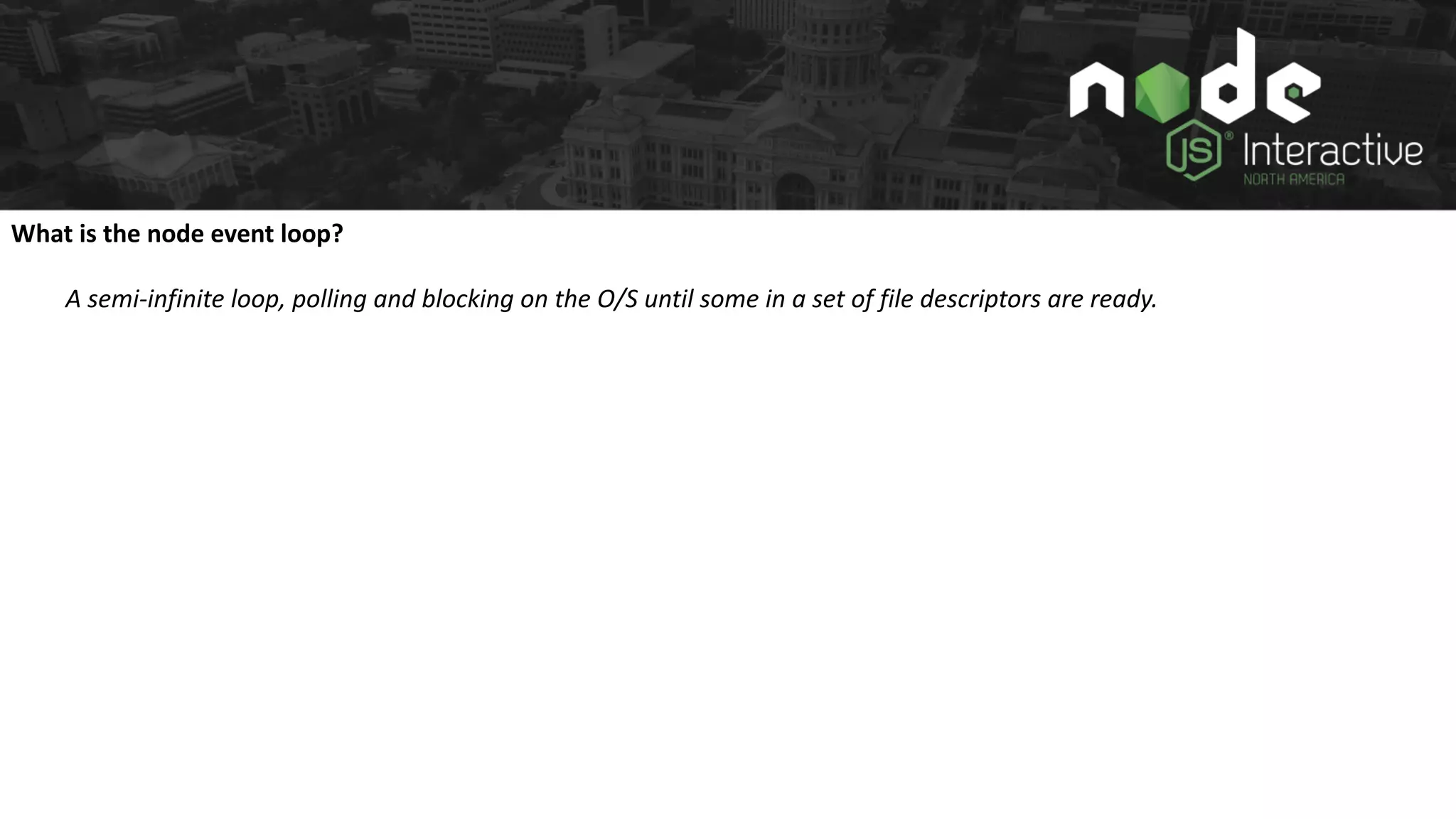

10. What is the node event loop?
A semi-infinite loop, polling and blocking on the O/S until some in a set of file descriptors are ready.

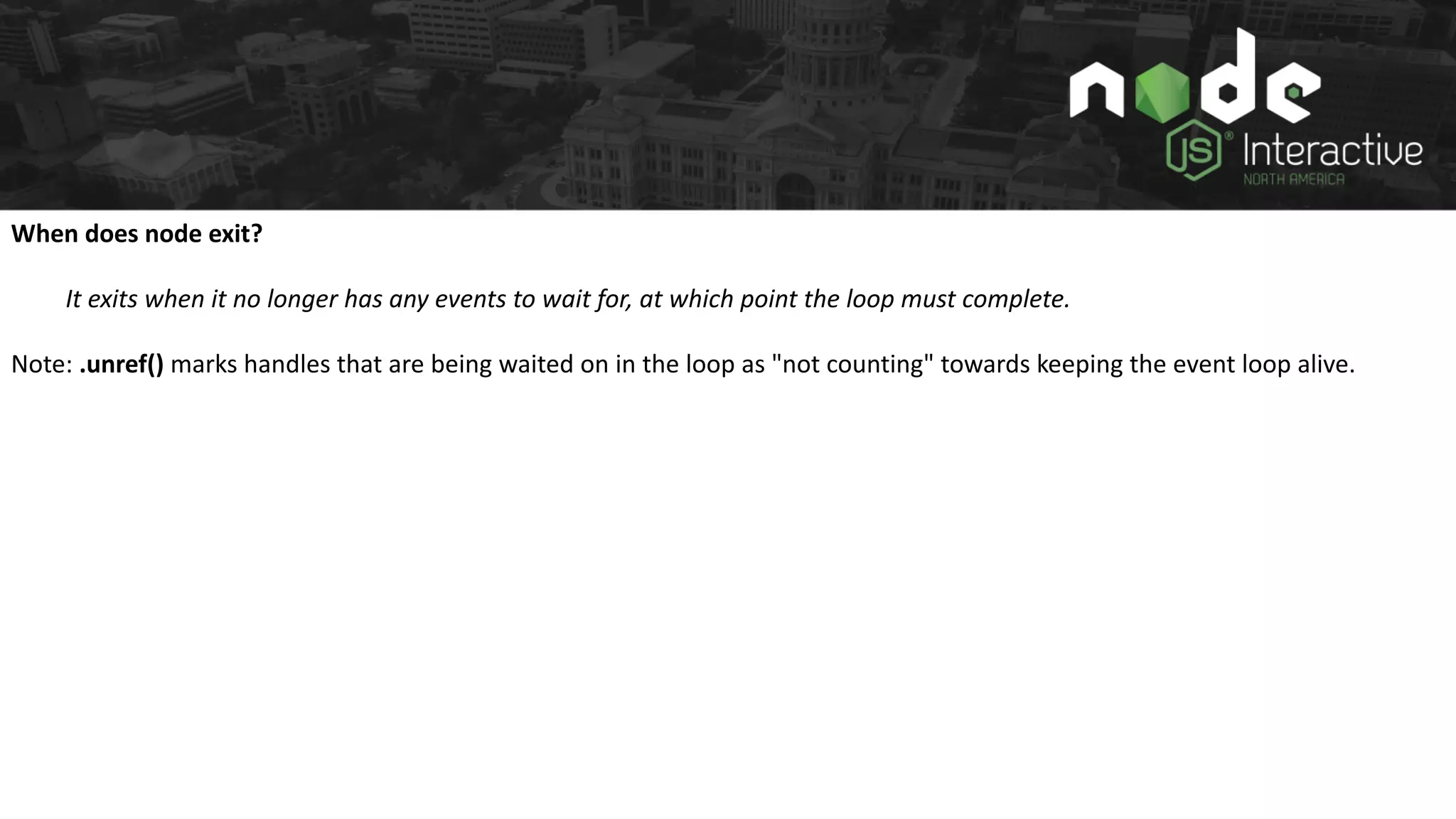

11. When does node exit?
It exits when it no longer has any events to wait for, at which point the loop must complete.
Note: .unref() marks handles that are being waited on in the loop as "not counting" towards keeping the event loop alive.

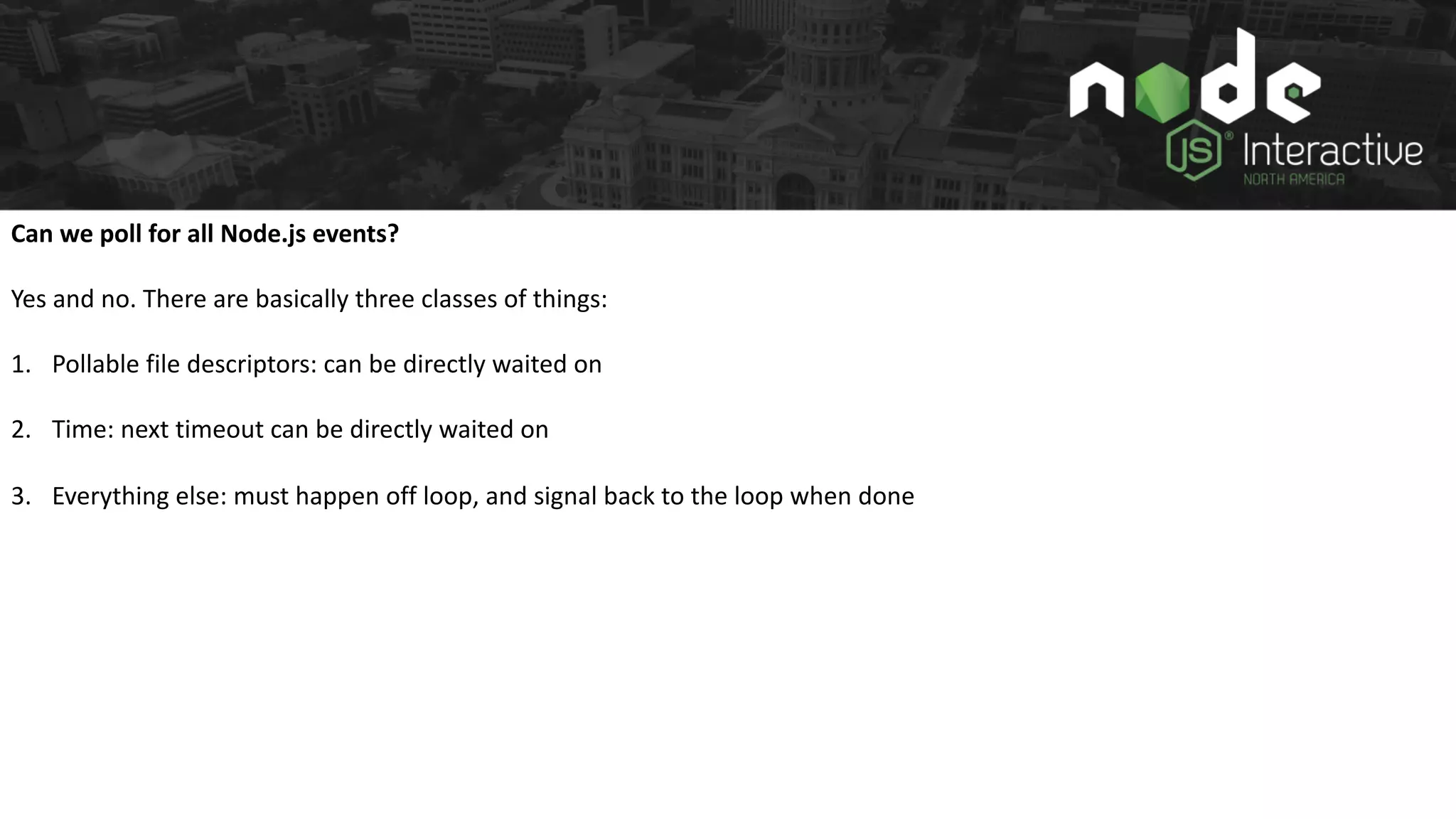

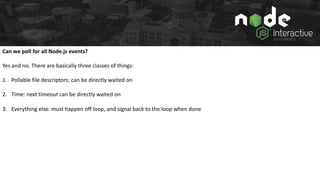

12. Can we poll for all Node.js events?
Yes and no. There are basically three classes of things:
1. Pollable file descriptors: can be directly waited on
2. Time: next timeout can be directly waited on
3. Everything else: must happen off loop, and signal back to the loop when done

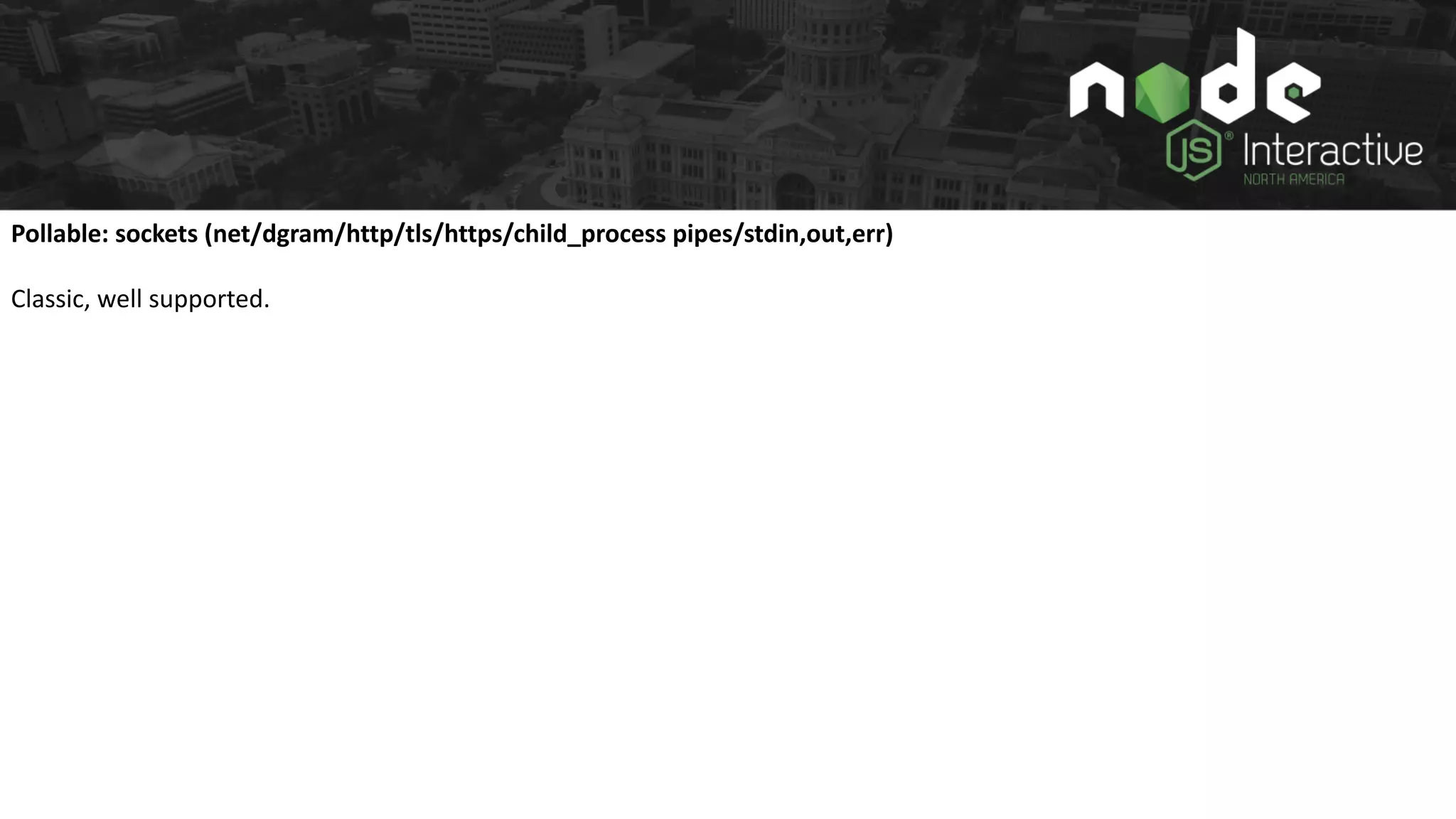

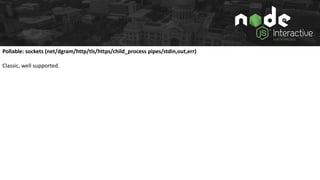

13. Pollable: sockets (net/dgram/http/tls/https/child_process pipes/stdin,out,err)
Classic, well supported.

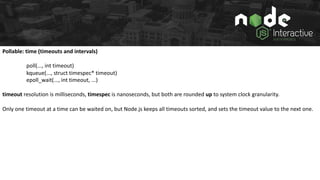

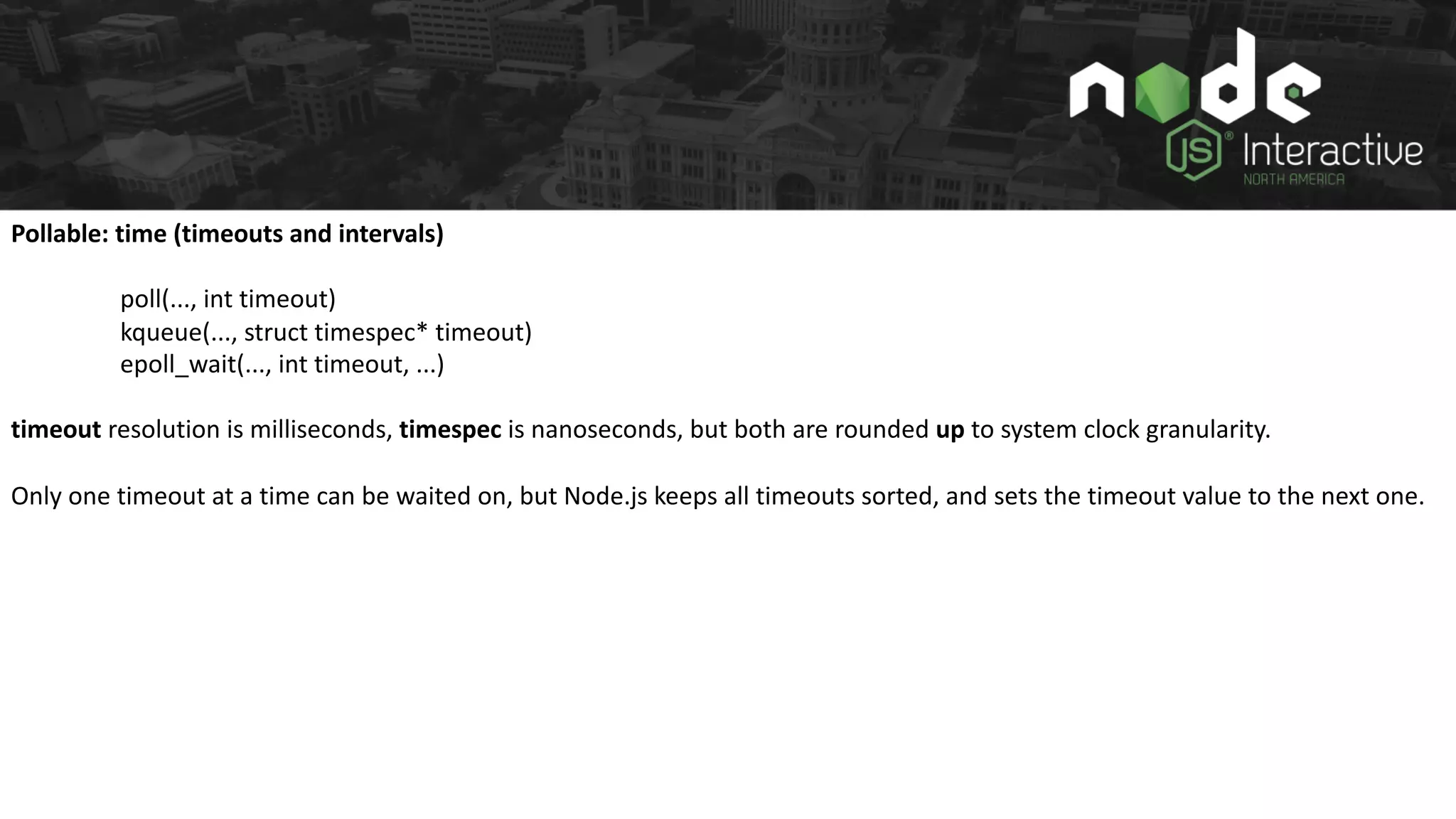

14. Pollable: time (timeouts and intervals)
poll(..., int timeout)
kqueue(..., struct timespec* timeout)
epoll_wait(..., int timeout, ...)
timeout resolution is milliseconds, timespec is nanoseconds, but both are rounded up to system clock granularity.
Only one timeout at a time can be waited on, but Node.js keeps all timeouts sorted, and sets the timeout value to the next one.

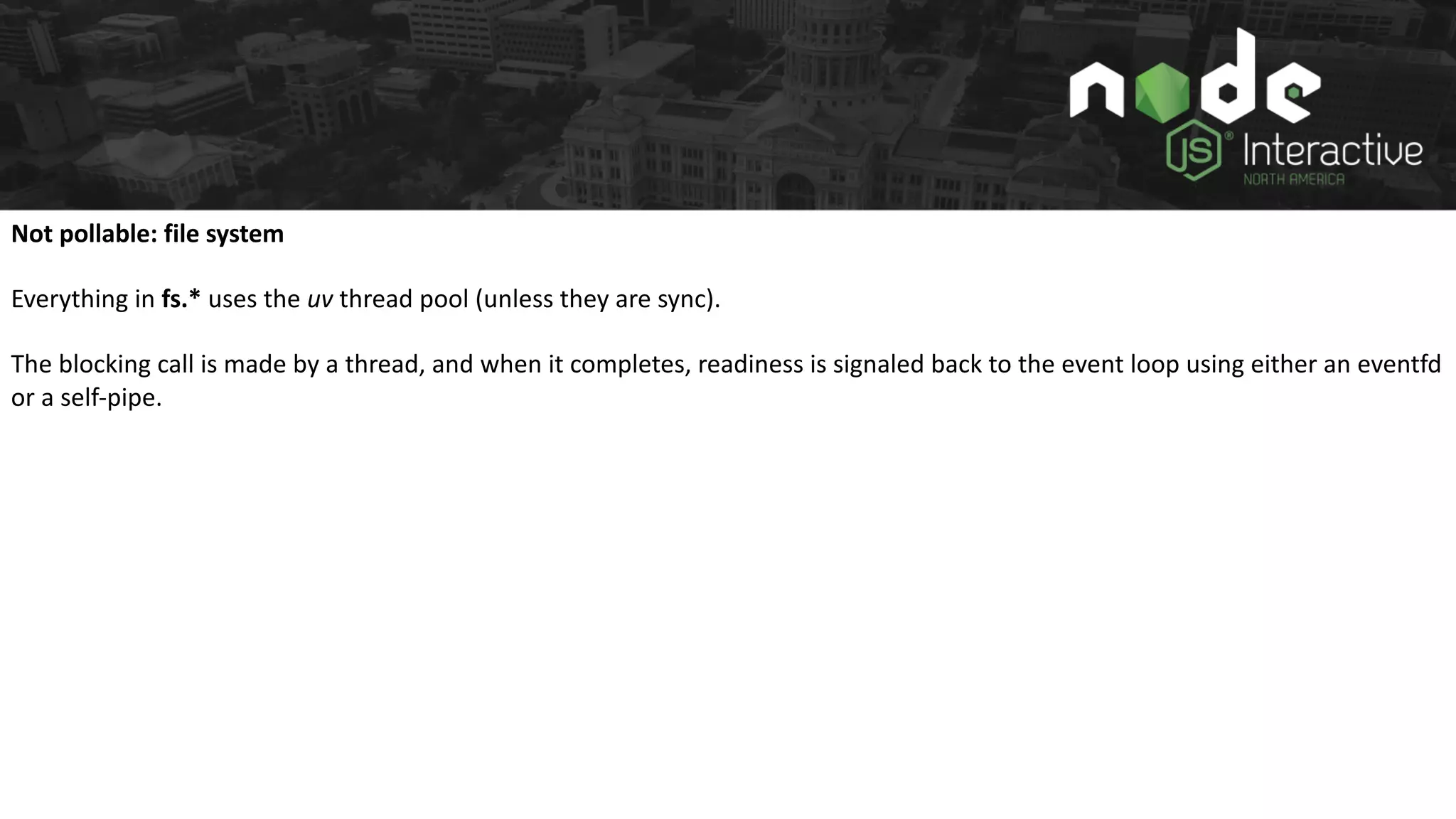

15. Not pollable: file system
Everything in fs.* uses the uv thread pool (unless they are sync).
The blocking call is made by a thread, and when it completes, readiness is signaled back to the event loop using either an eventfd
or a self-pipe.

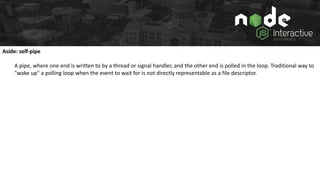

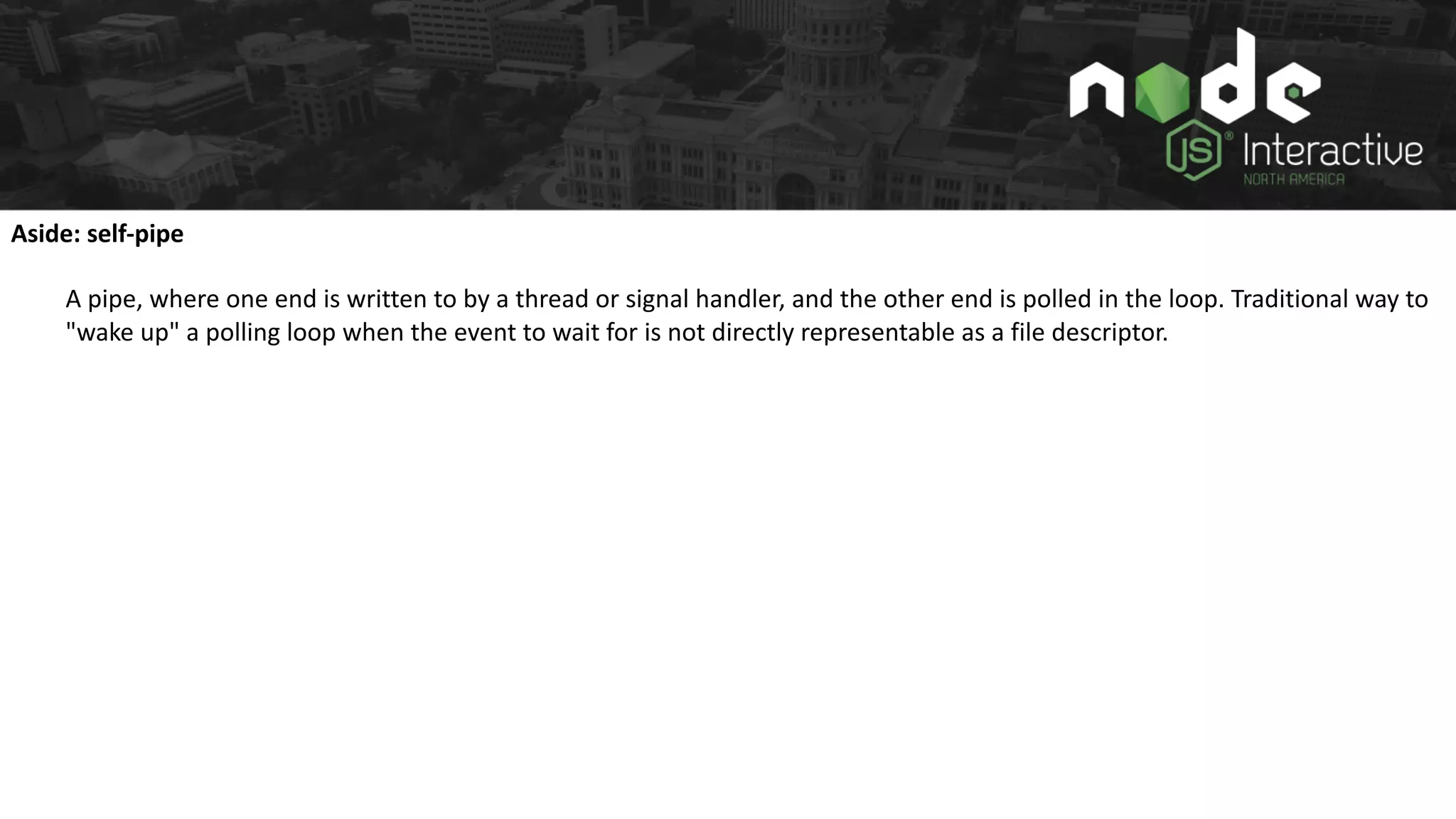

16. Aside: self-pipe
A pipe, where one end is written to by a thread or signal handler, and the other end is polled in the loop. Traditional way to
"wake up" a polling loop when the event to wait for is not directly representable as a file descriptor.

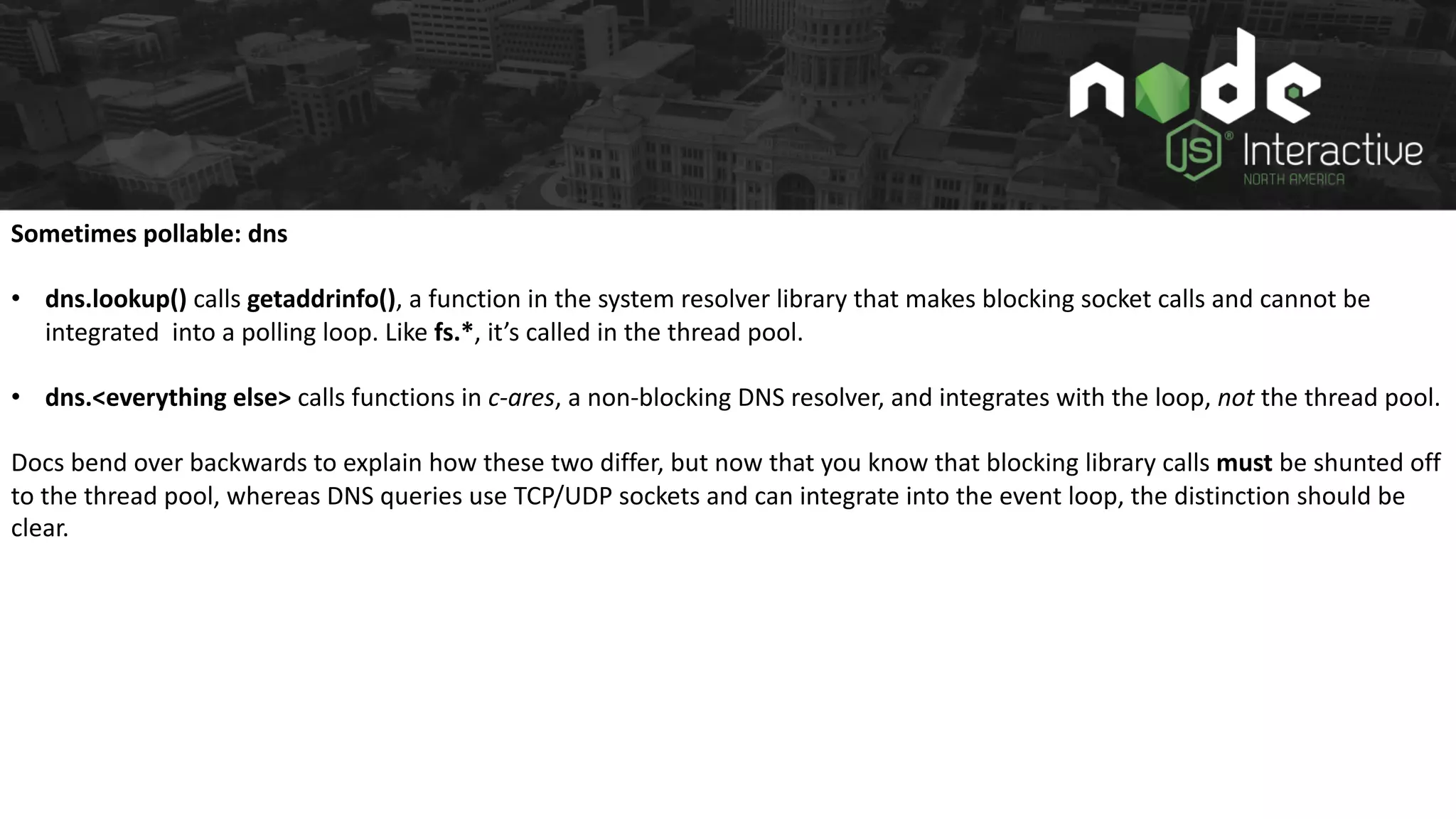

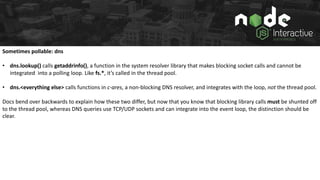

17. Sometimes pollable: dns
• dns.lookup() calls getaddrinfo(), a function in the system resolver library that makes blocking socket calls and cannot be
integrated into a polling loop. Like fs.*, it’s called in the thread pool.
• dns.<everything else> calls functions in c-ares, a non-blocking DNS resolver, and integrates with the loop, not the thread pool.
Docs bend over backwards to explain how these two differ, but now that you know that blocking library calls must be shunted off
to the thread pool, whereas DNS queries use TCP/UDP sockets and can integrate into the event loop, the distinction should be
clear.

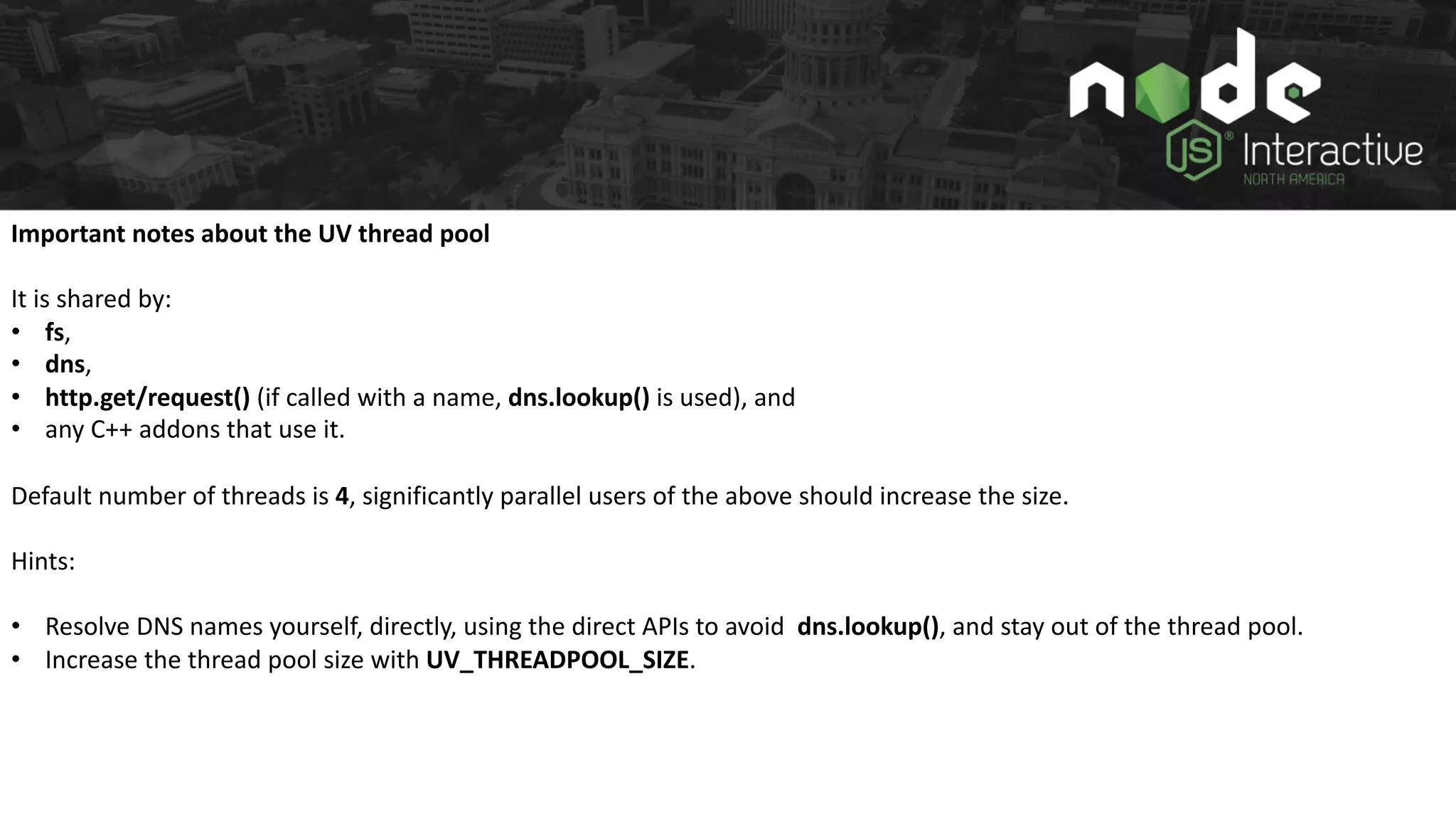

18. Important notes about the UV thread pool
It is shared by:
• fs,
• dns,
• http.get/request() (if called with a name, dns.lookup() is used), and
• any C++ addons that use it.
Default number of threads is 4, significantly parallel users of the above should increase the size.
Hints:
• Resolve DNS names yourself, directly, using the direct APIs to avoid dns.lookup(), and stay out of the thread pool.
• Increase the thread pool size with UV_THREADPOOL_SIZE.

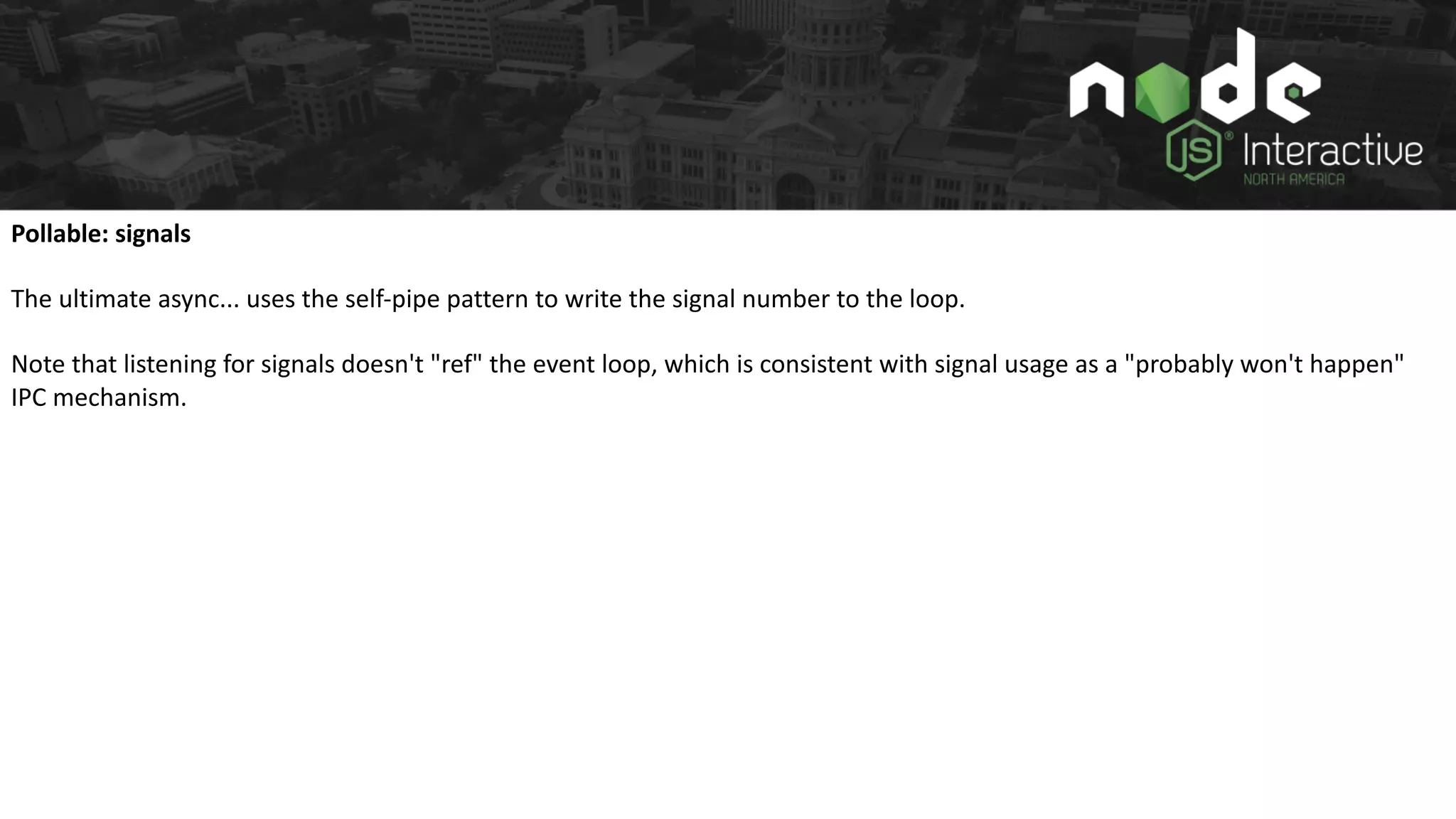

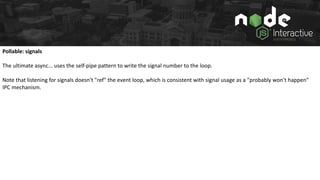

19. Pollable: signals
The ultimate async... uses the self-pipe pattern to write the signal number to the loop.
Note that listening for signals doesn't "ref" the event loop, which is consistent with signal usage as a "probably won't happen"
IPC mechanism.

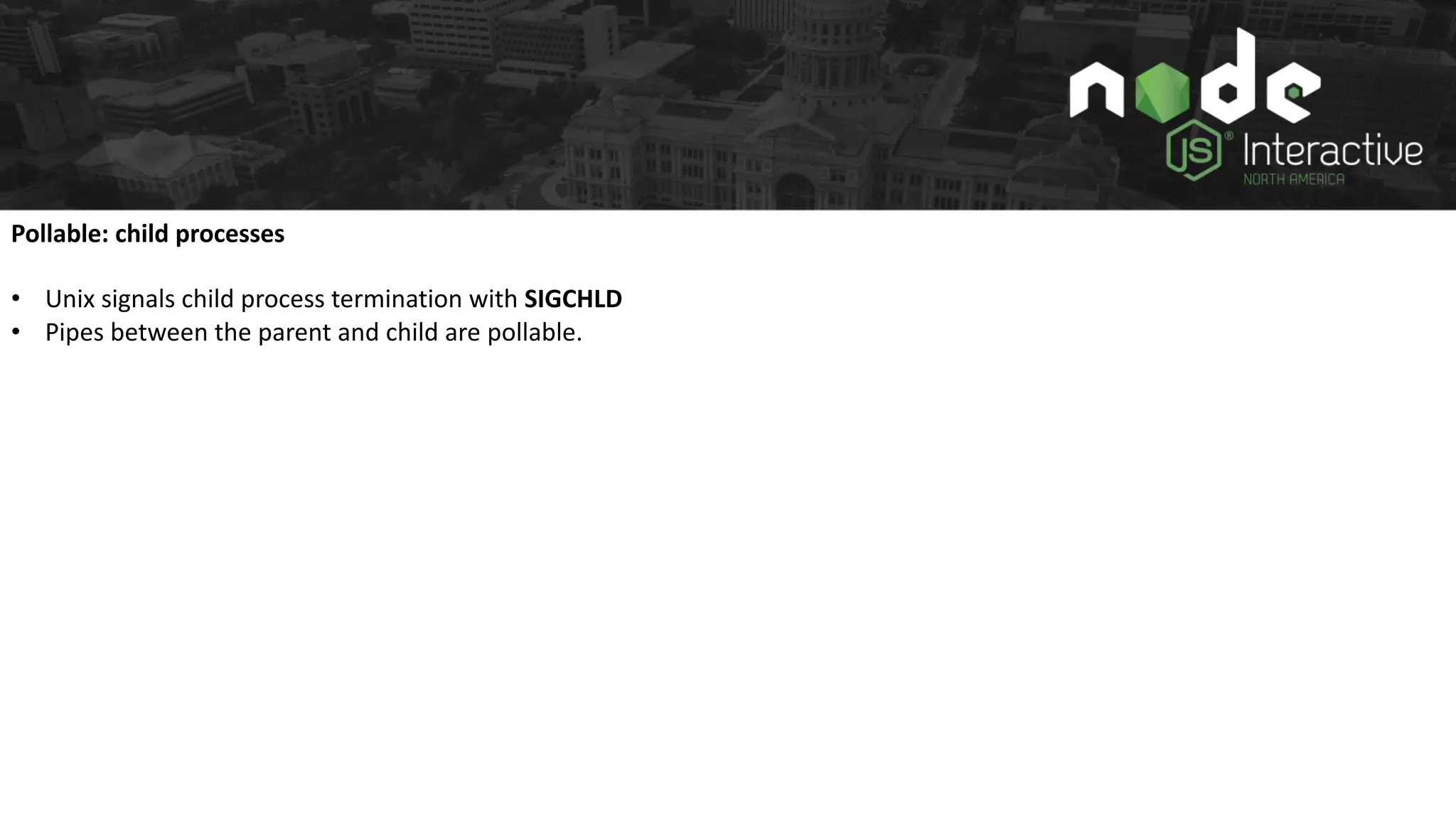

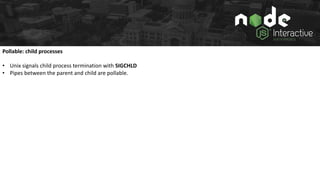

20. Pollable: child processes
• Unix signals child process termination with SIGCHLD
• Pipes between the parent and child are pollable.

21. Sometimes pollable: C++ addons
Addons should use the UV thread pool or integrate with the loop, but can do anything, including making loop-blocking system
calls (perhaps unintentionally).
Hints:
• Review addon code
• Track loop metrics

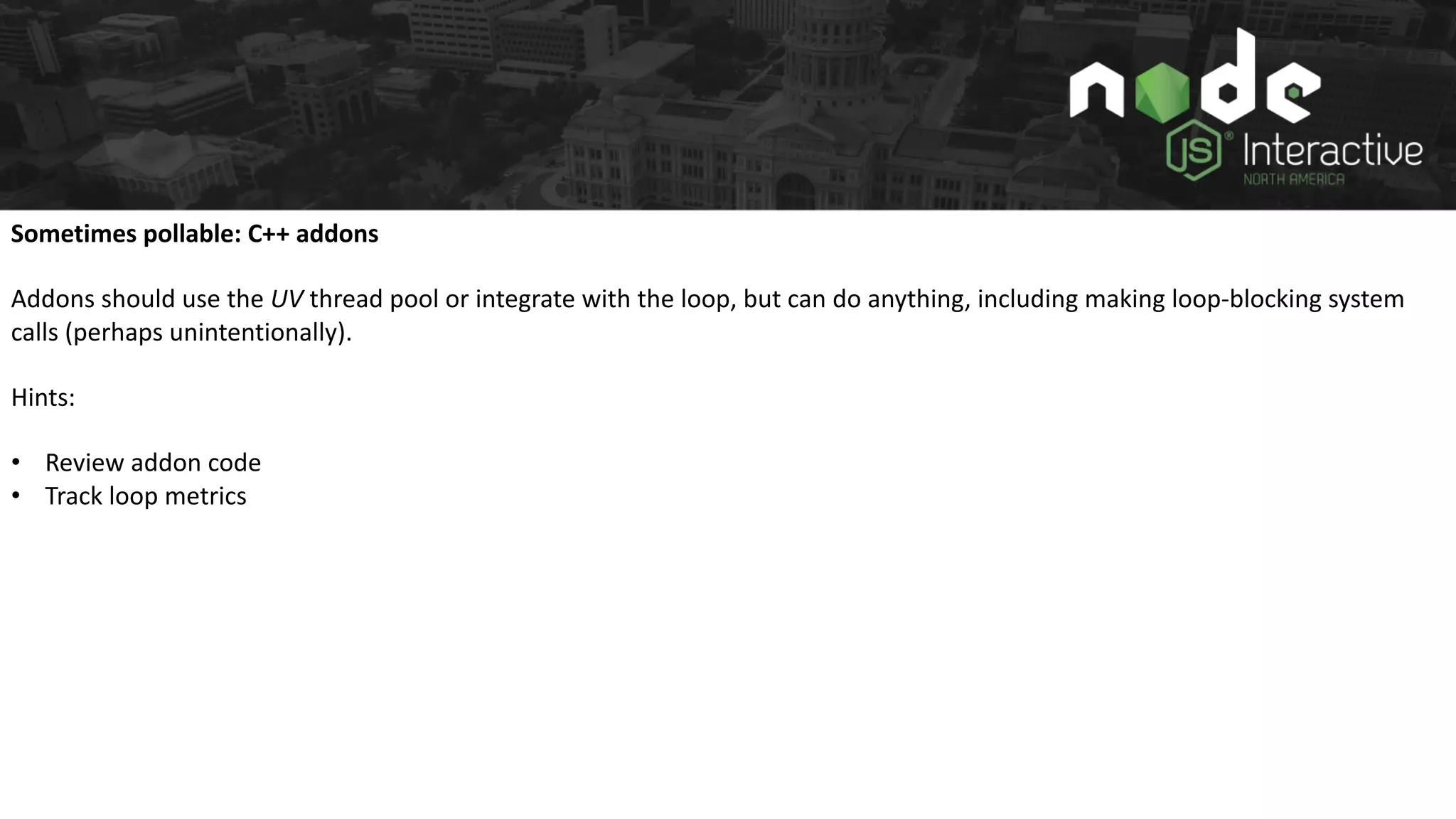

22. Sometimes pollable: C++ addons
Addons should use the UV thread pool or integrate with the loop, but can do anything, including making loop-blocking system
calls (perhaps unintentionally).
Hints:
• Review addon code
• Track loop metrics

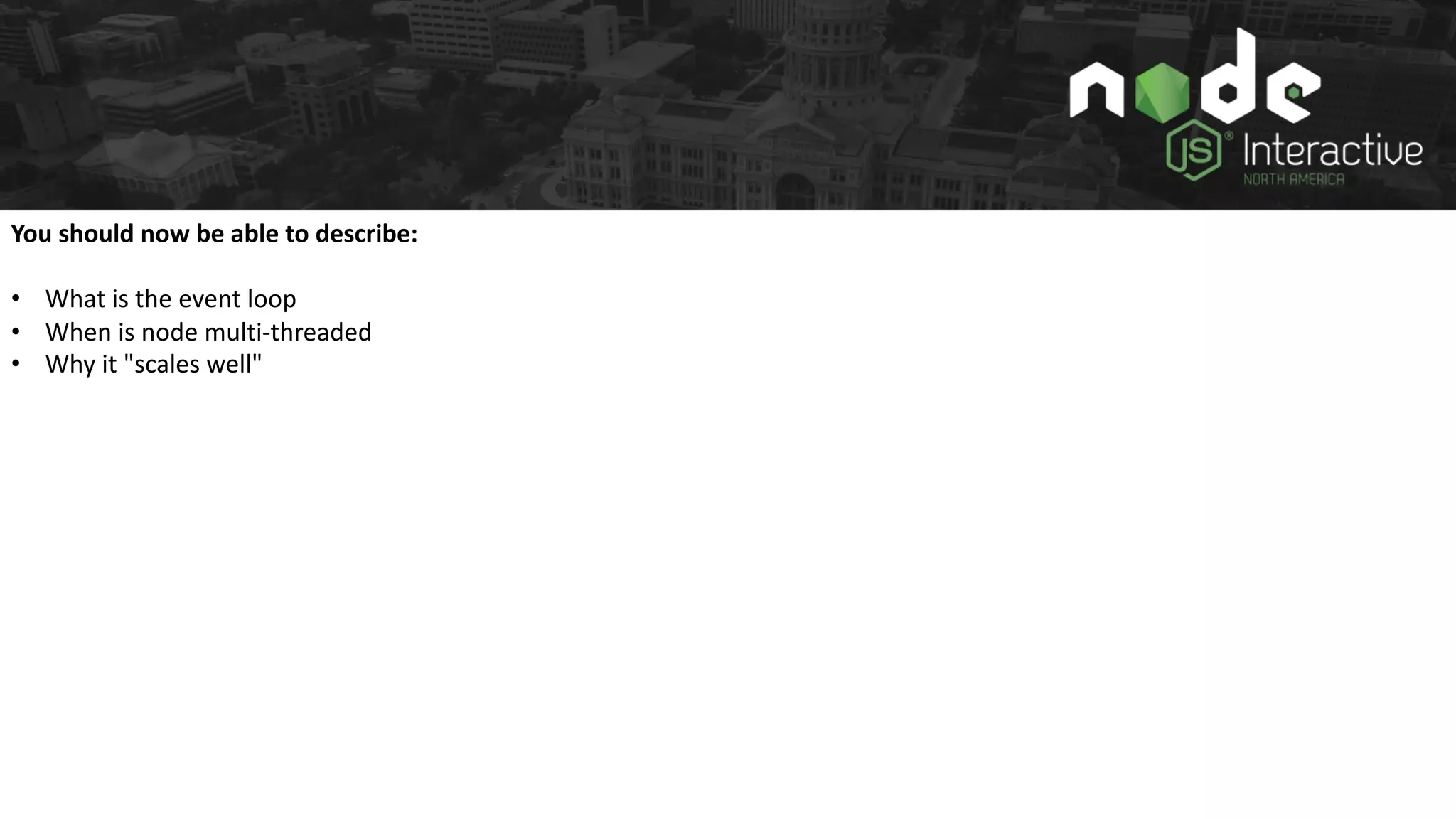

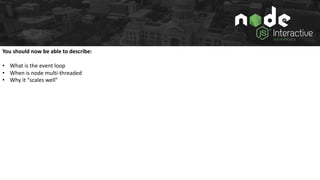

23. You should now be able to describe:
• What is the event loop
• When is node multi-threaded
• Why it "scales well"

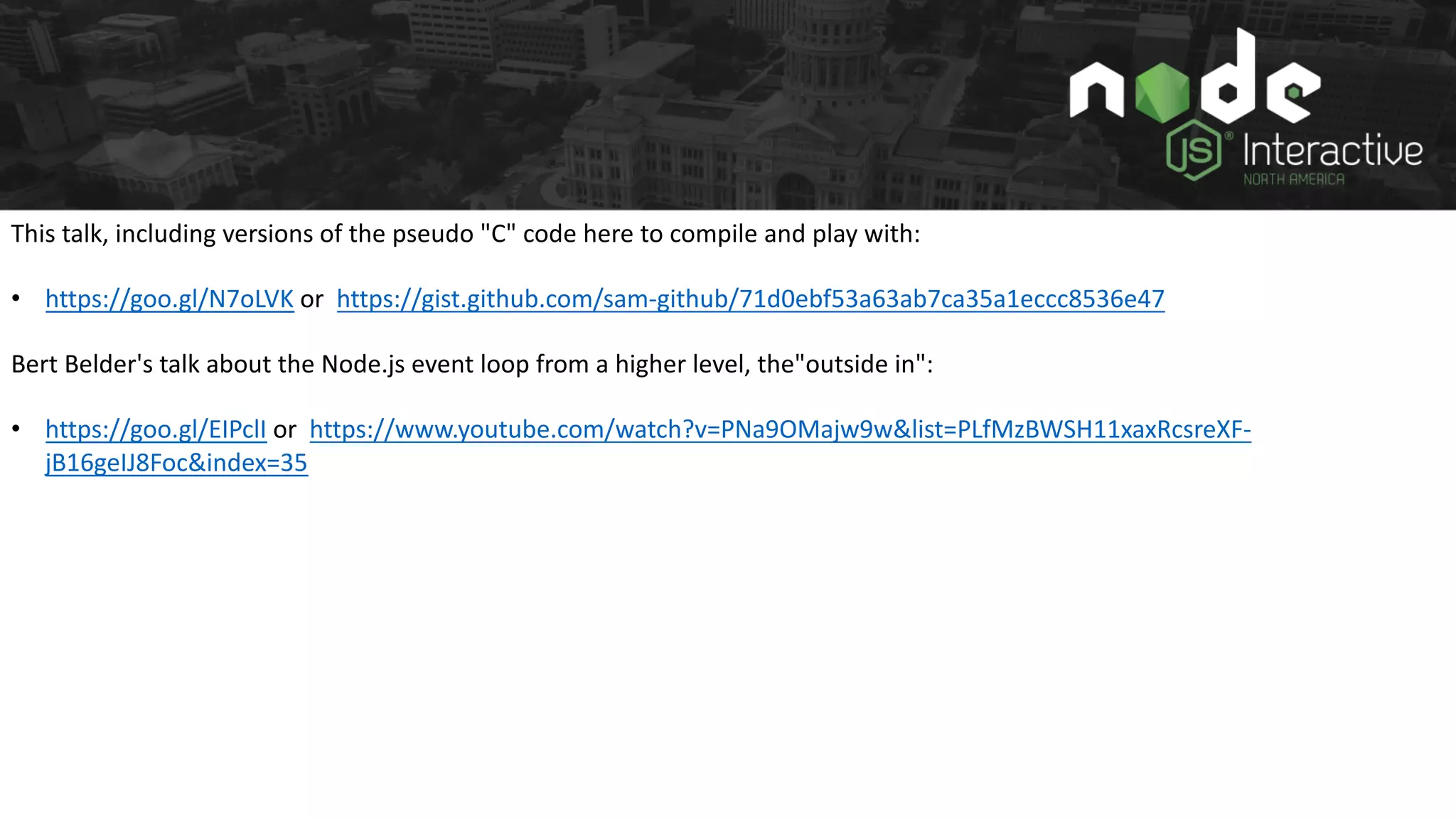

24. This talk, including versions of the pseudo "C" code here to compile and play with:
• https://goo.gl/N7oLVK or https://gist.github.com/sam-github/71d0ebf53a63ab7ca35a1eccc8536e47
Bert Belder's talk about the Node.js event loop from a higher level, the"outside in":
• https://goo.gl/EIPclI or https://www.youtube.com/watch?v=PNa9OMajw9w&list=PLfMzBWSH11xaxRcsreXF-
jB16geIJ8Foc&index=35
