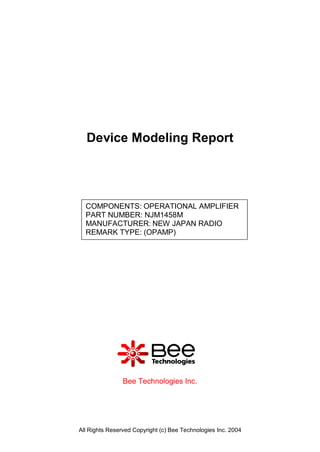

1. Device Modeling Report
COMPONENTS: OPERATIONAL AMPLIFIER
PART NUMBER: NJM1458M
MANUFACTURER: NEW JAPAN RADIO
REMARK TYPE: (OPAMP)
Bee Technologies Inc.
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

2. Spice Model
U13
OUT1 VCC
-IN1 OUT2
+IN1 -IN2
VEE +IN2
NJM1458_SUB
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

3. Output Voltage Swing, +Vout and –Vout
Simulation result
These simulation results are compared with +Vout
Evaluation circuit
Rload U13
10k Vout
OUT1 VCC
-IN1 OUT2
+IN1 -IN2
V1
0Vdc VEE +IN2
V+
Rload2
NJM1458_SUB V2
15Vdc 0Vdc 10k 15Vdc
V-
0 0
Output Voltage Swing Data sheet Simulation %Error
+Vout(V) +12 +11.994 0.05
-Vout(V) -12 -11.994 0.05
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

4. Input Offset Voltage
Simulation result
Evaluation circuit
U13
Vout
OUT1 VCC
-IN1 OUT2
+IN1 -IN2
VEE +IN2
Vi V+
Vin VOFF = 0 NJM1458_SUB Vi2 Vin2 Rload2
VOFF = 0 VAMPL = 0 VOFF = 0 VOFF = 0
VAMPL = 0 FREQ = 0 -15Vdc VAMPL = 0 VAMPL = 0 10k 15Vdc
FREQ = 0 AC = 0 FREQ = 0 FREQ = 0
AC = 0 DC = 0 V- AC = 0 AC = 0
DC = 0 DC = 0 DC = 0
0
Measurement Simulation Error
Vos
6 mV 6.0259 mV 0.431 %
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

5. Slew Rate, +SR, -SR
Simulation result
Evaluation circuit
Rload U13
2k Vout
OUT1 VCC
-IN1 OUT2
+IN1 -IN2
V1 = 0 Vi
V2 = 15 VEE +IN2
TD = 0 Vin V1 = 0 Vi2 V+
TR = 10n VOFF = 0 Vin2 V2 = 14 Rload2
NJM1458_SUB
TF = 10n VAMPL = 0 VOFF = 0 TD = 0
PW = 5u FREQ = 0 V- VAMPL = 0 TR = 10n 2k 15Vdc
PER = 500u V2AC = 0 -15Vdc FREQ = 0 TF = 10n V22
-6.0259m DC = 0 AC = 0 PW = 5u
DC = 0 PER = 500u
-6.0259m
0 0
Data sheet Simulation %Error
Slew Rate(v/us)
0.5V/us 0.524V/us 4.8
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

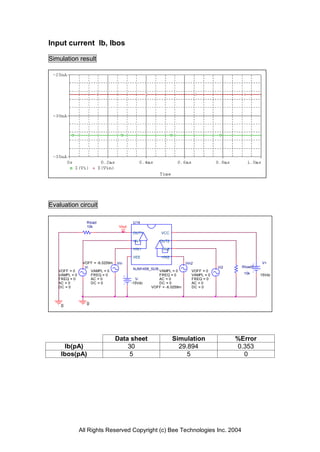

6. Input current Ib, Ibos
Simulation result
Evaluation circuit
Rload U14
10k Vout
OUT1 VCC
-IN1 OUT2
+IN1 -IN2
VEE +IN2
VOFF = -6.0259m Vin Vin2 V+
Vi Vi2 Rload2
NJM1458_SUB
VOFF = 0 VAMPL = 0 VAMPL = 0 VOFF = 0
VAMPL = 0 FREQ = 0 FREQ = 0 VAMPL = 0 10k 15Vdc
FREQ = 0 AC = 0 V- AC = 0 FREQ = 0
AC = 0 DC = 0 -15Vdc DC = 0 AC = 0
DC = 0 VOFF = -6.0259m DC = 0
0 0
Data sheet Simulation %Error
Ib(pA) 30 29.894 0.353
Ibos(pA) 5 5 0
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

7. Open Loop Voltage Gain vs. Frequency , Av-dc, f-0dB
Simulation result
Evaluation circuit
U13
R1 Vout
OUT1 VCC
2k
-IN1 OUT2
+IN1 -IN2
VEE +IN2
Vi Vin V+
VOFF = 0 VOFF = 0 Vin2 Vi2
NJM1458_SUB
VAMPL = 0 VAMPL = 0 VOFF = 0 VOFF = 0
FREQ = 0 FREQ = 0 V- VAMPL = 0 VAMPL = 0 15Vdc
AC = 0 AC = 1m FREQ = 0 FREQ = 0
DC = 0 DC = -6.0259m -15Vdc AC = 1m AC = 0
DC = -6.0259m DC = 0
0 0
Data sheet Simulation %Error
f-0dB(MHz) 1 0.982 1.8
Av-dc 106 106.32 0.301
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

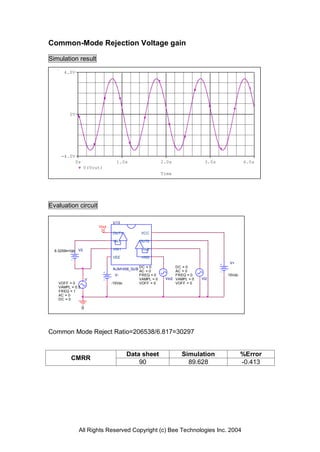

8. Common-Mode Rejection Voltage gain
Simulation result
4.0V
0V
-4.0V
0s 1.0s 2.0s 3.0s 4.0s
V(Vout)
Time
Evaluation circuit
U13
Vout
OUT1 VCC
-IN1 OUT2
6.0259mVdc V2 +IN1 -IN2
VEE +IN2
V+
DC = 0 DC = 0
NJM1458_SUB
AC = 0 AC = 0
V- FREQ = 0 FREQ = 0 15Vdc
V VAMPL = 0 Vin2 VAMPL = 0 Vi2
VOFF = 0 -15Vdc VOFF = 0 VOFF = 0
VAMPL = 0.5
FREQ = 1
AC = 0
DC = 0
0
Common Mode Reject Ratio=206538/6.817=30297
Data sheet Simulation %Error
CMRR
90 89.628 -0.413
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004
