This document provides a device modeling report for an operational amplifier with part number NJM4559M from manufacturer New Japan Radio. It includes Spice simulation results that characterize the operational amplifier's performance metrics like output voltage swing, input offset voltage, slew rate, input bias current, open loop gain, output short circuit current, and common mode rejection ratio. The simulations are compared to the manufacturer's datasheet specifications and show good agreement with less than 5% error on most metrics.

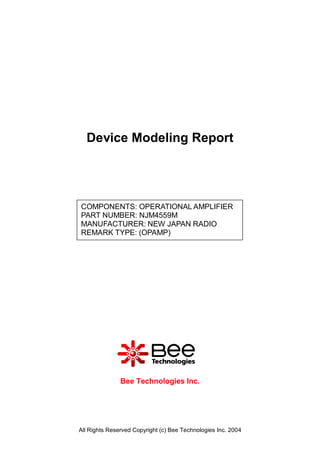

1. Device Modeling Report
COMPONENTS: OPERATIONAL AMPLIFIER
PART NUMBER: NJM4559M
MANUFACTURER: NEW JAPAN RADIO
REMARK TYPE: (OPAMP)
Bee Technologies Inc.
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

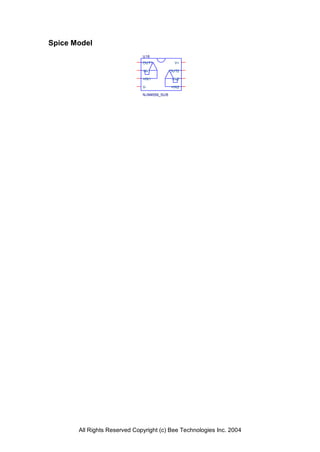

2. Spice Model
U16
OUT1 V+
-IN1 OUT2
+IN1 -IN2
V- +IN2
NJM4559_SUB
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

3. Output Voltage Swing, +Vout and –Vout
Simulation result
These simulation results are compared with +Vout
Evaluation circuit
Rload
10K Vout U16
OUT1 V+
-IN1 OUT2
V1 +IN1 -IN2
0Vdc
V- +IN2
V+
NJM4559_SUB V2 Rload2
V- 0Vdc
10k 15Vdc
-15Vdc
0 0
Output Voltage Swing Data sheet Simulation %Error
+Vout(V) +14 13.993 0.05
-Vout(V) -14 -13.993 0.05
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

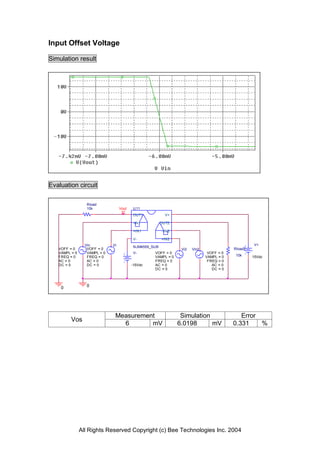

4. Input Offset Voltage
Simulation result
Evaluation circuit
Rload
10k Vout U11
OUT1 V+
-IN1 OUT2
+IN1 -IN2
V- +IN2
Vin Vi V+
NJM4559_SUB
VOFF = 0 VOFF = 0 Vi2 Vin2 Rload2
VAMPL = 0 VAMPL = 0 V- VOFF = 0 VOFF = 0
FREQ = 0 FREQ = 0 VAMPL = 0 VAMPL = 0 10k 15Vdc
AC = 0 AC = 0 FREQ = 0 FREQ = 0
DC = 0 DC = 0 -15Vdc AC = 0 AC = 0
DC = 0 DC = 0
0 0
Measurement Simulation Error
Vos
6 mV 6.0198 mV 0.331 %
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

5. Slew Rate, +SR, -SR
Simulation result
Evaluation circuit
Rload
2k Vout U16
OUT1 V+
-IN1 OUT2
+IN1 -IN2
V1 = 0 Vi
V2 = 10
TD = 0 V- +IN2
TR = 10n Vin Vi2 V1 = 0 V+
NJM4559_SUB
TF = 10n VOFF = 0 V2 = 14 Rload2
PW = 5u VAMPL = 0 V- Vin2 TD = 0
PER = 500u FREQ = 0 VOFF = 0 TR = 10n 10k 15Vdc
V2 AC = 0 VAMPL = 0 TF = 10n
-6.0198m DC = 0 -15Vdc FREQ = 0 PW = 5u
AC = 0 PER = 500u
DC = 0 V22
-6.0198m
0 0
Data sheet Simulation %Error
Slew Rate(v/us)
2V/us 2.09V/us 4.5
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

6. Input current Ib, Ibos
Simulation result
Evaluation circuit
Rload
2k Vout U15
OUT1 V+
-IN1 OUT2
+IN1 -IN2
V- +IN2
Vi Vin Rload2 V+
NJM4559_SUB
VOFF = 0 VOFF = -6.0198m Vin2 Vi2
VAMPL = 0 VAMPL = 0 V- VOFF = -6.0198m VOFF = 0
FREQ = 0 FREQ = 0 VAMPL = 0 VAMPL = 0 2k 15Vdc
AC = 0 AC = 0 FREQ = 0 FREQ = 0
DC = 0 DC = 0 -15Vdc AC = 0 AC = 0
DC = 0 DC = 0
0 0
Data sheet Simulation %Error
Ib(nA) 25 24.9 0.4
Ibos(nA) 5 5.0038 0.076
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

7. Open Loop Voltage Gain vs. Frequency , Av-dc, f-0dB
Simulation result
Evaluation circuit
Vout U16
OUT1 V+
-IN1 OUT2
+IN1 -IN2
V- +IN2
V+
NJM4559_SUB
Vin Vi V- Vi2 Vin2
VOFF = 0 VOFF = 0 VOFF = 0 VOFF = 0 15Vdc
VAMPL = 0 VAMPL = 0 VAMPL = 0 VAMPL = 0
FREQ = 0 FREQ = 0 -15Vdc FREQ = 0 FREQ = 0
AC = 1m AC = 0 AC = 0 AC = 1m
DC = -6.0198m DC = 0 DC = 0 DC = -6.0198m
0
Data sheet Simulation %Error
f-0dB(MHz) 6 5.89 1.83
Av-dc(dB) 100 99.8 0.2
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

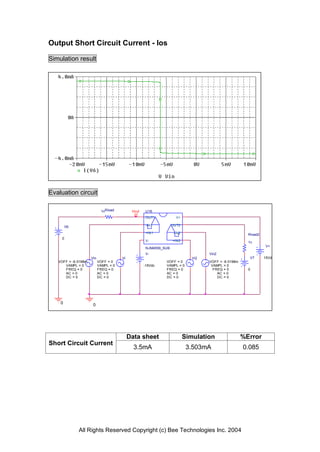

8. Output Short Circuit Current - Ios
Simulation result
Evaluation circuit
1nRload Vout U16
OUT1 V+
V6 -IN1 OUT2
+IN1 -IN2 Rload2
0
V- +IN2 1n
V+
NJM4559_SUB
V- Vin2
Vin Vi Vi2 V7 15Vdc
VOFF = -6.0198m VOFF = 0 VOFF = 0 VOFF = -6.0198m
VAMPL = 0 VAMPL = 0 -15Vdc VAMPL = 0 VAMPL = 0
FREQ = 0 FREQ = 0 FREQ = 0 FREQ = 0 0
AC = 0 AC = 0 AC = 0 AC = 0
DC = 0 DC = 0 DC = 0 DC = 0
0 0
Data sheet Simulation %Error
Short Circuit Current
3.5mA 3.503mA 0.085
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

9. Common-Mode Rejection Voltage gain
Simulation result
Evaluation circuit
Vout U15
OUT1 V+
-IN1 OUT2
+IN1 -IN2
DC = 0 DC = 0
AC = 0 AC = 0 V- +IN2
FREQ = 0 FREQ = 0 V+
NJM4559_SUB
VAMPL = 0 VAMPL = 0 DC = 0 DC = 0
VOFF = 0 VOFF = 0 V- AC = 0 AC = 0
Vin Vi FREQ = 0 FREQ = 0 15Vdc
VAMPL = 0 VAMPL = 0
-15Vdc VOFF = 0 VOFF = 0
Vi2 Vin2
V
VOFF = 0
VAMPL = 0.5
FREQ = 1
AC = 0
DC = -6.0198m
0
Common mode gain=3.162/1
Common Mode Reject Ratio=97723/3.162=30905
Data sheet Simulation %Error
CMRR
31622 31567 2.32
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004
