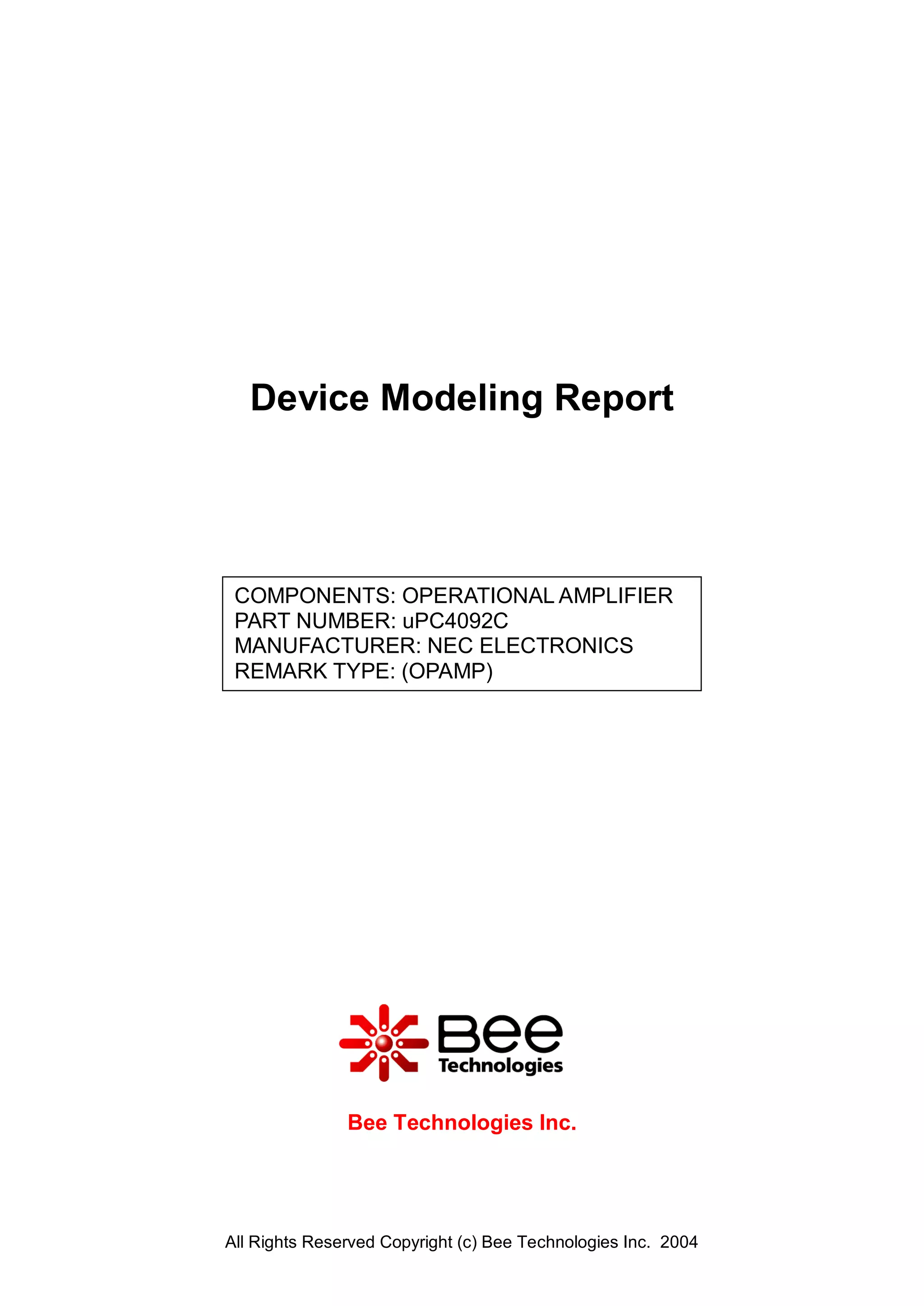

1. Device Modeling Report
COMPONENTS: OPERATIONAL AMPLIFIER
PART NUMBER: uPC4092C
MANUFACTURER: NEC ELECTRONICS
REMARK TYPE: (OPAMP)
Bee Technologies Inc.
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

2. Spice Model
U11
OUT1 VCC
-IN1 OUT2
+IN1 -IN2
VEE +IN2
UPC4092_SUB
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

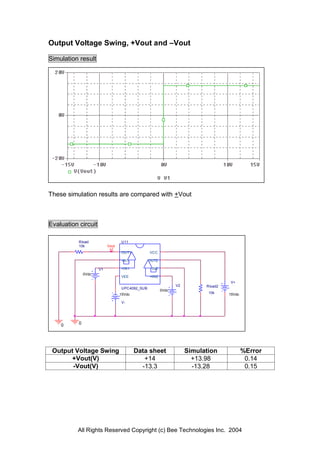

3. Output Voltage Swing, +Vout and –Vout
Simulation result
These simulation results are compared with +Vout
Evaluation circuit
Rload U11
10k Vout
OUT1 VCC
-IN1 OUT2
V1 +IN1 -IN2
0Vdc
VEE +IN2
V+
V2 Rload2
UPC4092_SUB
0Vdc
15Vdc 10k 15Vdc
V-
0 0
Output Voltage Swing Data sheet Simulation %Error
+Vout(V) +14 +13.98 0.14
-Vout(V) -13.3 -13.28 0.15
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

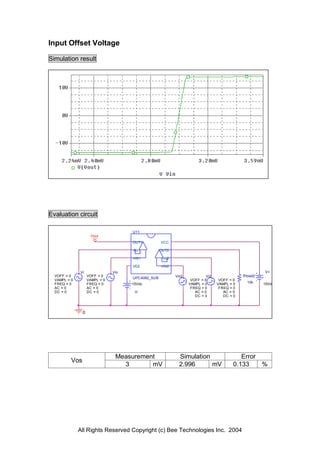

4. Input Offset Voltage
Simulation result
Evaluation circuit
U11
Vout
OUT1 VCC
-IN1 OUT2
+IN1 -IN2
VEE +IN2
Vi Vin V+
VOFF = 0 VOFF = 0 Vin2 Vi2 Rload2
UPC4092_SUB
VAMPL = 0 VAMPL = 0 VOFF = 0 VOFF = 0
FREQ = 0 FREQ = 0 -15Vdc VAMPL = 0 VAMPL = 0 10k 15Vdc
AC = 0 AC = 0 FREQ = 0 FREQ = 0
DC = 0 DC = 0 V- AC = 0 AC = 0
DC = 0 DC = 0
0
Measurement Simulation Error
Vos
3 mV 2.996 mV 0.133 %
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

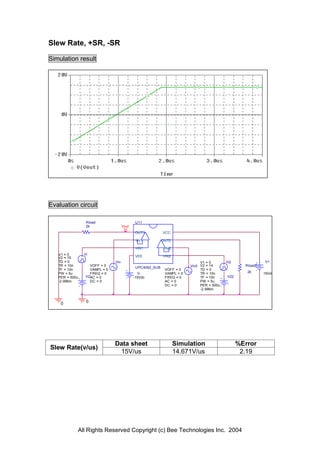

5. Slew Rate, +SR, -SR
Simulation result
Evaluation circuit
Rload U11
2k Vout
OUT1 VCC
-IN1 OUT2
+IN1 -IN2
V1 = 0 Vi
V2 = 15 VEE +IN2
TD = 0 Vin V1 = 0 Vi2 V+
TR = 10n VOFF = 0 Vin2 V2 = 14 Rload2
UPC4092_SUB
TF = 10n VAMPL = 0 VOFF = 0 TD = 0
PW = 5u FREQ = 0 V- VAMPL = 0 TR = 10n 2k 15Vdc
PER = 500u V2AC = 0 -15Vdc FREQ = 0 TF = 10n V22
-2.996m DC = 0 AC = 0 PW = 5u
DC = 0 PER = 500u
-2.996m
0 0
Data sheet Simulation %Error
Slew Rate(v/us)
15V/us 14.671V/us 2.19
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

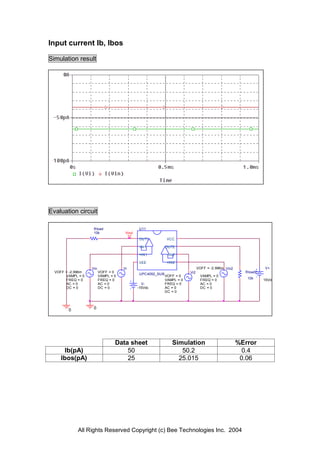

6. Input current Ib, Ibos
Simulation result
Evaluation circuit
Rload U11
10k Vout
OUT1 VCC
-IN1 OUT2
+IN1 -IN2
VEE +IN2
Vin Vi VOFF = -2.996m Vin2 V+
VOFF = -2.996m VOFF = 0 Vi2 Rload2
UPC4092_SUB
VAMPL = 0 VAMPL = 0 VOFF = 0 VAMPL = 0
FREQ = 0 FREQ = 0 VAMPL = 0 FREQ = 0 10k 15Vdc
AC = 0 AC = 0 V- FREQ = 0 AC = 0
DC = 0 DC = 0 -15Vdc AC = 0 DC = 0
DC = 0
0 0
Data sheet Simulation %Error
Ib(pA) 50 50.2 0.4
Ibos(pA) 25 25.015 0.06
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

7. Open Loop Voltage Gain vs. Frequency, Av-dc, f-0dB
Simulation result
Evaluation circuit
U11
R1 Vout
OUT1 VCC
2k
-IN1 OUT2
+IN1 -IN2
VEE +IN2
Vin Vi V+
VOFF = 0 VOFF = 0 Vi2 Vin2
UPC4092_SUB
VAMPL = 0 VAMPL = 0 VOFF = 0 VOFF = 0
FREQ = 0 FREQ = 0 V- VAMPL = 0 VAMPL = 0 15Vdc
AC = 1m AC = 0 FREQ = 0 FREQ = 0
DC = -2.996m DC = 0 -15Vdc AC = 0 AC = 1m
DC = 0 DC = -2.996m
0 0
Data sheet Simulation %Error
f-0dB(MHz) 4 3.8 5
Av-dc(dB) 200000 208929 4.46
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

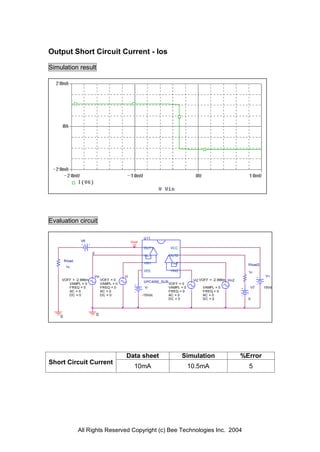

8. Output Short Circuit Current - Ios
Simulation result
Evaluation circuit
U11
V6 Vout
OUT1 VCC
0
-IN1 OUT2
Rload
+IN1 -IN2 Rload2
1n
VEE +IN2 1n
Vin Vi V+
VOFF = -2.996m VOFF = 0 Vi2 VOFF = -2.996m Vin2
UPC4092_SUB
VAMPL = 0 VAMPL = 0 VOFF = 0
FREQ = 0 FREQ = 0 V- VAMPL = 0 VAMPL = 0 V7 15Vdc
AC = 0 AC = 0 FREQ = 0 FREQ = 0
DC = 0 DC = 0 -15Vdc AC = 0 AC = 0
DC = 0 DC = 0 0
0 0
Data sheet Simulation %Error
Short Circuit Current
10mA 10.5mA 5
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

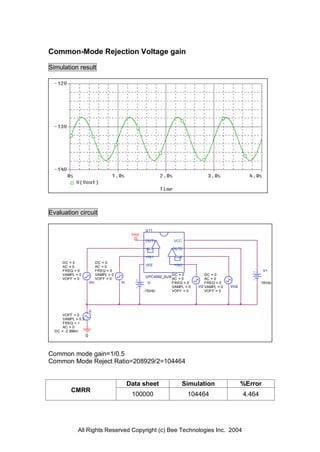

9. Common-Mode Rejection Voltage gain
Simulation result
Evaluation circuit
U11
Vout
OUT1 VCC
-IN1 OUT2
+IN1 -IN2
DC = 0 DC = 0
AC = 0 AC = 0 VEE +IN2
FREQ = 0 FREQ = 0 V+
VAMPL = 0 VAMPL = 0 DC = 0 DC = 0
UPC4092_SUB
VOFF = 0 VOFF = 0 AC = 0 AC = 0
Vin Vi V- FREQ = 0 FREQ = 0 15Vdc
VAMPL = 0 Vi2 VAMPL = 0 Vin2
-15Vdc VOFF = 0 VOFF = 0
V
VOFF = 0
VAMPL = 0.5
FREQ = 1
AC = 0
DC = -2.996m
0
Common mode gain=1/0.5
Common Mode Reject Ratio=208929/2=104464
Data sheet Simulation %Error
CMRR
100000 104464 4.464
