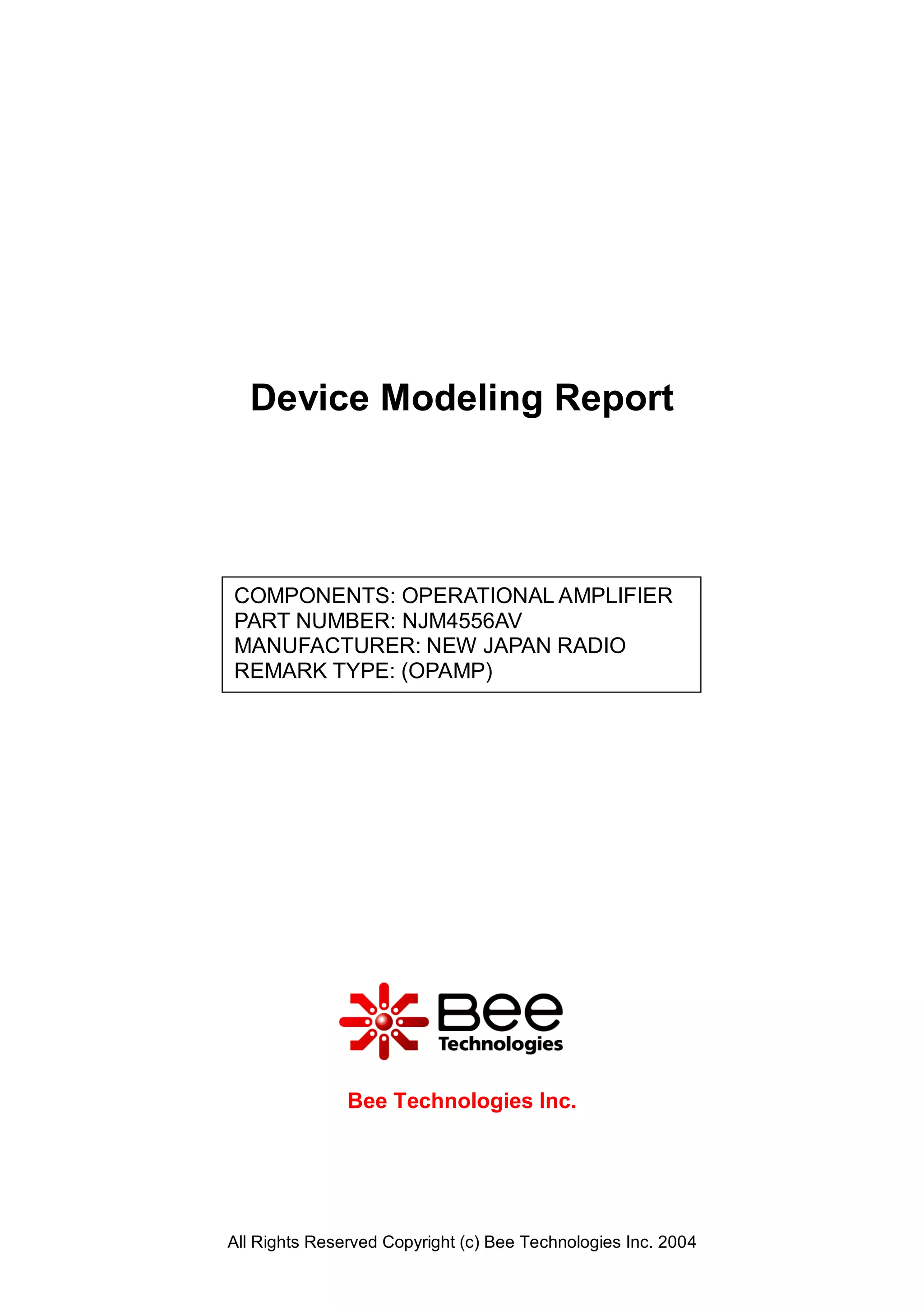

1. Device Modeling Report
COMPONENTS: OPERATIONAL AMPLIFIER
PART NUMBER: NJM4556AV
MANUFACTURER: NEW JAPAN RADIO
REMARK TYPE: (OPAMP)
Bee Technologies Inc.
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

2. Spice Model

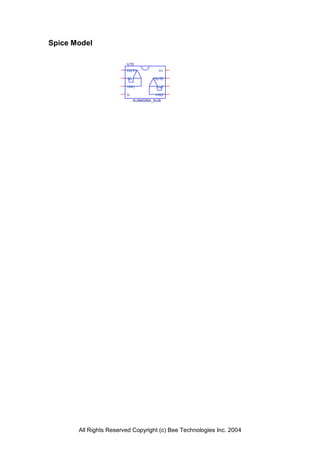

U15
OUT1 V+
-IN1 OUT2
+IN1 -IN2
V- +IN2
NJM4556A_SUB
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

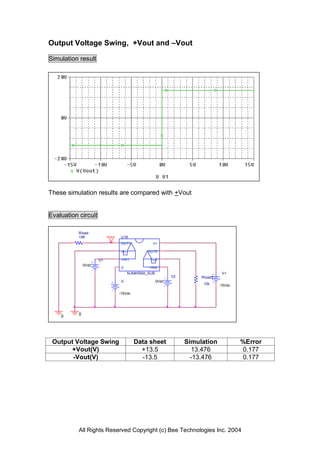

3. Output Voltage Swing, +Vout and –Vout
Simulation result
These simulation results are compared with +Vout
Evaluation circuit
Rload
10K Vout U16
OUT1 V+
-IN1 OUT2
V1 +IN1 -IN2
0Vdc
V- +IN2
NJM4556A_SUB V+
V2 Rload2
V- 0Vdc
10k 15Vdc
-15Vdc
0 0
Output Voltage Swing Data sheet Simulation %Error
+Vout(V) +13.5 13.476 0.177
-Vout(V) -13.5 -13.476 0.177
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

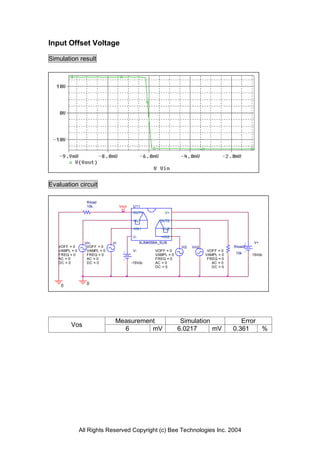

4. Input Offset Voltage
Simulation result
Evaluation circuit
Rload
10k Vout U11
OUT1 V+
-IN1 OUT2
+IN1 -IN2
V- +IN2
Vin Vi NJM4556A_SUB V+
VOFF = 0 VOFF = 0 Vi2 Vin2 Rload2
VAMPL = 0 VAMPL = 0 V- VOFF = 0 VOFF = 0
FREQ = 0 FREQ = 0 VAMPL = 0 VAMPL = 0 10k 15Vdc
AC = 0 AC = 0 FREQ = 0 FREQ = 0
DC = 0 DC = 0 -15Vdc AC = 0 AC = 0
DC = 0 DC = 0
0 0
Measurement Simulation Error
Vos
6 mV 6.0217 mV 0.361 %
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

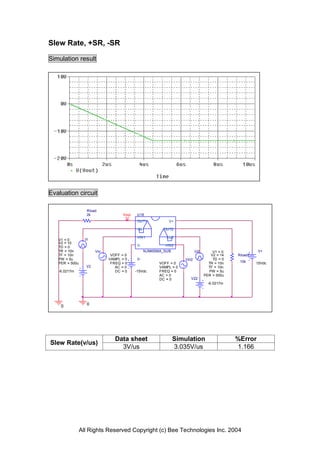

5. Slew Rate, +SR, -SR
Simulation result
Evaluation circuit
Rload
2k Vout U16
OUT1 V+
-IN1 OUT2
+IN1 -IN2
V1 = 0 Vi
V2 = 10
TD = 0 V- +IN2
TR = 10n Vin NJM4556A_SUB Vi2 V1 = 0 V+
TF = 10n VOFF = 0 V2 = 14 Rload2
PW = 5u VAMPL = 0 V- Vin2 TD = 0
PER = 500u FREQ = 0 VOFF = 0 TR = 10n 10k 15Vdc
V2 AC = 0 VAMPL = 0 TF = 10n
-6.0217m DC = 0 -15Vdc FREQ = 0 PW = 5u
AC = 0 PER = 500u
DC = 0 V22
-6.0217m
0 0
Data sheet Simulation %Error
Slew Rate(v/us)
3V/us 3.035V/us 1.166
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

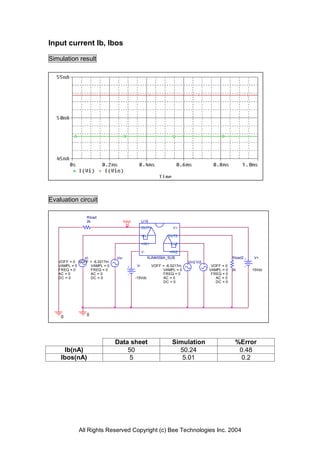

6. Input current Ib, Ibos
Simulation result
Evaluation circuit
Rload
2k Vout U15
OUT1 V+
-IN1 OUT2
+IN1 -IN2
V- +IN2
Vi Vin NJM4556A_SUB Rload2 V+
VOFF = 0 VOFF = -6.0217m Vin2 Vi2
VAMPL = 0 VAMPL = 0 V- VOFF = -6.0217m VOFF = 0
FREQ = 0 FREQ = 0 VAMPL = 0 VAMPL = 0 2k 15Vdc
AC = 0 AC = 0 FREQ = 0 FREQ = 0
DC = 0 DC = 0 -15Vdc AC = 0 AC = 0
DC = 0 DC = 0
0 0
Data sheet Simulation %Error
Ib(nA) 50 50.24 0.48
Ibos(nA) 5 5.01 0.2
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

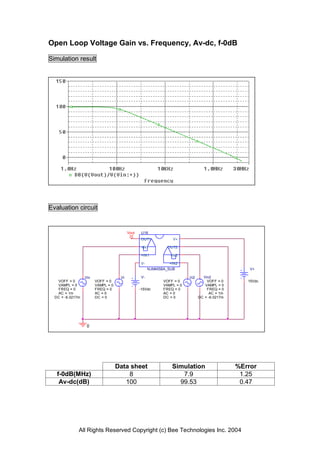

7. Open Loop Voltage Gain vs. Frequency, Av-dc, f-0dB
Simulation result
Evaluation circuit
Vout U16
OUT1 V+
-IN1 OUT2
+IN1 -IN2
V- +IN2
NJM4556A_SUB V+
Vin Vi V- Vi2 Vin2
VOFF = 0 VOFF = 0 VOFF = 0 VOFF = 0 15Vdc
VAMPL = 0 VAMPL = 0 VAMPL = 0 VAMPL = 0
FREQ = 0 FREQ = 0 -15Vdc FREQ = 0 FREQ = 0
AC = 1m AC = 0 AC = 0 AC = 1m
DC = -6.0217m DC = 0 DC = 0 DC = -6.0217m
0
Data sheet Simulation %Error
f-0dB(MHz) 8 7.9 1.25
Av-dc(dB) 100 99.53 0.47
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

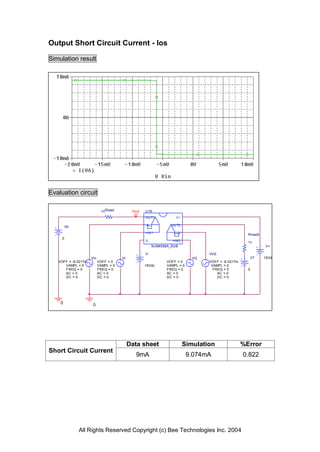

8. Output Short Circuit Current - Ios
Simulation result
Evaluation circuit
1nRload Vout U16
OUT1 V+
V6 -IN1 OUT2
+IN1 -IN2 Rload2
0
V- +IN2 1n
NJM4556A_SUB V+
V- Vin2
Vin Vi Vi2 V7 15Vdc
VOFF = -6.0217m VOFF = 0 VOFF = 0 VOFF = -6.0217m
VAMPL = 0 VAMPL = 0 -15Vdc VAMPL = 0 VAMPL = 0
FREQ = 0 FREQ = 0 FREQ = 0 FREQ = 0 0
AC = 0 AC = 0 AC = 0 AC = 0
DC = 0 DC = 0 DC = 0 DC = 0
0 0
Data sheet Simulation %Error
Short Circuit Current
9mA 9.074mA 0.822
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

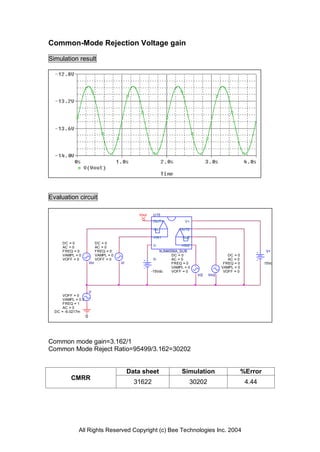

9. Common-Mode Rejection Voltage gain
Simulation result
Evaluation circuit
Vout U15
OUT1 V+
-IN1 OUT2
+IN1 -IN2
DC = 0 DC = 0
AC = 0 AC = 0 V- +IN2
FREQ = 0 FREQ = 0 NJM4556A_SUB V+
VAMPL = 0 VAMPL = 0 DC = 0 DC = 0
VOFF = 0 VOFF = 0 V- AC = 0 AC = 0
Vin Vi FREQ = 0 FREQ = 0 15Vdc
VAMPL = 0 VAMPL = 0
-15Vdc VOFF = 0 VOFF = 0
Vi2 Vin2
V
VOFF = 0
VAMPL = 0.5
FREQ = 1
AC = 0
DC = -6.0217m
0
Common mode gain=3.162/1
Common Mode Reject Ratio=95499/3.162=30202
Data sheet Simulation %Error
CMRR
31622 30202 4.44
