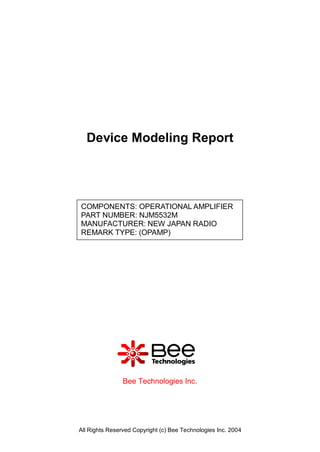

1. Device Modeling Report
COMPONENTS: OPERATIONAL AMPLIFIER
PART NUMBER: NJM5532M
MANUFACTURER: NEW JAPAN RADIO
REMARK TYPE: (OPAMP)
Bee Technologies Inc.
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

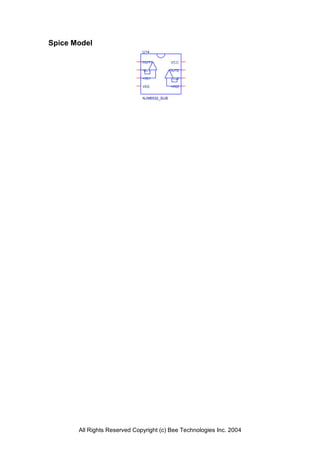

2. Spice Model
U14
OUT1 VCC
-IN1 OUT2
+IN1 -IN2
VEE +IN2
NJM5532_SUB
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

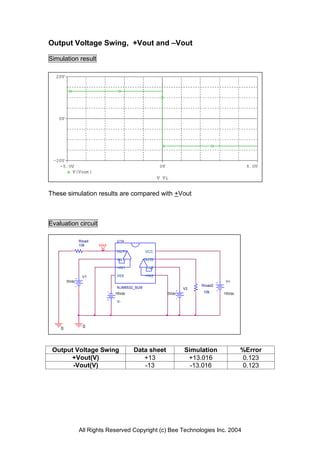

3. Output Voltage Swing, +Vout and –Vout
Simulation result
These simulation results are compared with +Vout
Evaluation circuit
Rload U14
10k Vout
OUT1 VCC
-IN1 OUT2
+IN1 -IN2
V1 VEE +IN2
0Vdc V+
Rload2
NJM5532_SUB V2
15Vdc 0Vdc 10k 15Vdc
V-
0 0
Output Voltage Swing Data sheet Simulation %Error
+Vout(V) +13 +13.016 0.123
-Vout(V) -13 -13.016 0.123
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

4. Input Offset Voltage
Simulation result
Evaluation circuit
U14
Vout
OUT1 VCC
-IN1 OUT2
+IN1 -IN2
VEE +IN2
Vi V+
Vin VOFF = 0 NJM5532_SUB Vi2 Vin2 Rload2
VOFF = 0 VAMPL = 0 VOFF = 0 VOFF = 0
VAMPL = 0 FREQ = 0 -15Vdc VAMPL = 0 VAMPL = 0 10k 15Vdc
FREQ = 0 AC = 0 FREQ = 0 FREQ = 0
AC = 0 DC = 0 V- AC = 0 AC = 0
DC = 0 DC = 0 DC = 0
0
Measurement Simulation Error
Vos
4 mV 4.01 mV 0.25 %
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

5. Slew Rate, +SR, -SR
Simulation result
Evaluation circuit
Rload U14
2k Vout
OUT1 VCC
-IN1 OUT2
+IN1 -IN2
V1 = 0 Vi
V2 = 15 VEE +IN2
TD = 0 Vin V1 = 0 Vi2 V+
TR = 10n VOFF = 0 Vin2 V2 = 14 Rload2
NJM5532_SUB
TF = 10n VAMPL = 0 VOFF = 0 TD = 0
PW = 5u FREQ = 0 V- VAMPL = 0 TR = 10n 2k 15Vdc
PER = 500u V2AC = 0 -15Vdc FREQ = 0 TF = 10n V22
-4.01m DC = 0 AC = 0 PW = 5u
DC = 0 PER = 500u
-4.01m
0 0
Data sheet Simulation %Error
Slew Rate(v/us)
8V/us 8.2V/us 2.5
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

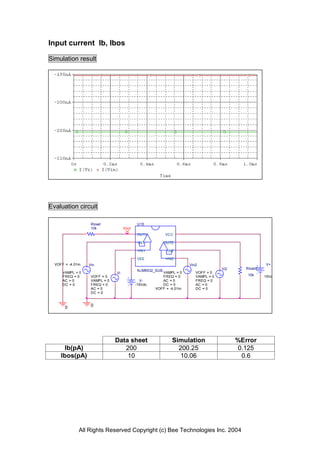

6. Input current Ib, Ibos
Simulation result
Evaluation circuit
Rload U15
10k Vout
OUT1 VCC
-IN1 OUT2
+IN1 -IN2
VEE +IN2
VOFF = -4.01m Vin Vin2 V+
Vi2 Rload2
NJM5532_SUB
VAMPL = 0 Vi VAMPL = 0 VOFF = 0
FREQ = 0 VOFF = 0 FREQ = 0 VAMPL = 0 10k 15Vdc
AC = 0 VAMPL = 0 V- AC = 0 FREQ = 0
DC = 0 FREQ = 0 -15Vdc DC = 0 AC = 0
AC = 0 VOFF = -4.01m DC = 0
DC = 0
0 0
Data sheet Simulation %Error
Ib(pA) 200 200.25 0.125
Ibos(pA) 10 10.06 0.6
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

7. Open Loop Voltage Gain vs. Frequency , Av-dc, f-0dB
Simulation result
Evaluation circuit
U14
R1 Vout
OUT1 VCC
2k
-IN1 OUT2
+IN1 -IN2
VEE +IN2
Vi Vin V+
VOFF = 0 VOFF = 0 Vin2 Vi2
NJM5532_SUB
VAMPL = 0 VAMPL = 0 VOFF = 0 VOFF = 0
FREQ = 0 FREQ = 0 V- VAMPL = 0 VAMPL = 0 15Vdc
AC = 0 AC = 1m FREQ = 0 FREQ = 0
DC = 0 DC = -4.01m -15Vdc AC = 1m AC = 0
DC = -4.01m DC = 0
0 0
Data sheet Simulation %Error
f-0dB(MHz) 10 9.985 0.15
Av-dc 100 99.66 0.34
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

8. Output Short Circuit Current - Ios
Simulation result
Evaluation circuit
U14
V6 Vout
OUT1 VCC
0
-IN1 OUT2
Rload
+IN1 -IN2 Rload2
1n
VOFF = -4.01m VEE +IN2 1n
Vin V+
Vi NJM5532_SUB Vin2 Vi2
VOFF = 0 VAMPL = 0 VOFF = -4.01m VOFF = 0
VAMPL = 0 FREQ = 0 V- VAMPL = 0 VAMPL = 0 V7 15Vdc
FREQ = 0 AC = 0 FREQ = 0 FREQ = 0
AC = 0 DC = 0 -15Vdc AC = 0 AC = 0
DC = 0 DC = 0 DC = 0 0
0 0
Data sheet Simulation %Error
Short Circuit Current
38mA 38.1mA 0.263
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

9. Common-Mode Rejection Voltage gain
Simulation result
Evaluation circuit
U14
Vout
OUT1 VCC
-IN1 OUT2
+IN1 -IN2
DC = 0
DC = 0 AC = 0 VEE +IN2
AC = 0 FREQ = 0 V+
FREQ = 0 VAMPL = 0 DC = 0 DC = 0
NJM5532_SUB
VAMPL = 0 VOFF = 0 AC = 0 AC = 0
VOFF = 0 Vin V- FREQ = 0 FREQ = 0 15Vdc
Vi VAMPL = 0 Vin2 VAMPL = 0 Vi2
-15Vdc VOFF = 0 VOFF = 0
V
VOFF = 0
VAMPL = 0.5
FREQ = 1
AC = 0
DC = -4.01m
0
Common mode gain=1/1=1
Common Mode Reject Ratio=96161/1=96161
Data sheet Simulation %Error
CMRR
100 99.66 0.34
