Chaithra M G Software engineer MySQL, Oracle October 17, 2014
MySQL 5.7: What’s New in the Parser and the Optimizer?

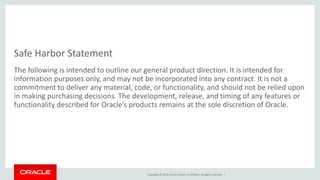

Safe Harbor Statement
The following is intended to outline our general product direction. It is intended for information purposes only, and may not be incorporated into any contract. It is not a commitment to deliver any material, code, or functionality, and should not be relied upon in making purchasing decisions. The development, release, and timing of any features or functionality described for Oracle’s products remains at the sole discretion of Oracle.

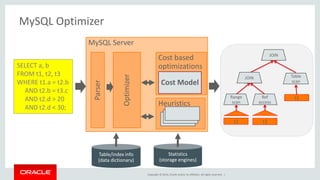

MySQL Optimizer
SELECT a, b
FROM t1, t2, t3
WHERE t1.a = t2.b
AND t2.b = t3.c
AND t2.d > 20
AND t2.d < 30;
MySQL Server
Cost based optimizations
Heuristics
Cost Model
Optimizer
Table/index info
(data dictionary)
Statistics
(storage engines)
t2
t3
t1
Table
scan
Range
scan
Ref access
JOIN
JOIN
Parser

MySQL Optimizer: Design Principles
•Best out of the box performance
•Easy to use, minimum tuning needed
•When you need to understand: explain and trace
•Flexibility through optimizer switches, hints and plugins
•Fast evolving

MySQL 5.7 Parser and Optimizer Improvements
•Parser and optimizer refactoring
•Improved cost model: better record estimation for JOIN
•Improved cost model: configurable cost constants
•Query rewrite plugin
•Explain on a running query

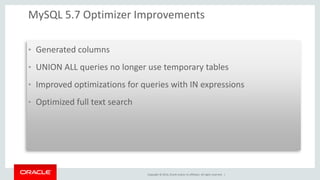

MySQL 5.7 Optimizer Improvements
•Generated columns
•UNION ALL queries no longer use temporary tables
•Improved optimizations for queries with IN expressions
•Optimized full text search

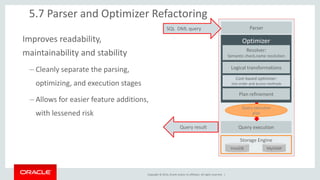

5.7 Parser and Optimizer Refactoring
Optimizer
Logical transformations
Cost-based optimizer:
Join order and access methods
Plan refinement
Query execution plan
Query execution
Parser
Resolver:
Semantic check,name resolution
SQL DML query
Query result
Storage Engine
InnoDB
MyISAM
Improves readability, maintainability and stability
–Cleanly separate the parsing, optimizing, and execution stages
–Allows for easier feature additions, with lessened risk

MySQL 5.7: Parser Refactoring
•Challenge:
–Overly complex, hard to add new syntax
•Solution:
–Create an internal parse tree bottom-up
–Create an AST (Abstract Syntax Tree) from the parse tree and the user's context.
–Have syntax rules that are more precisely defined and are closer to the SQL standard.
–More precise error messages
–Better support for larger syntax rules in the future
Resolver
Optimizer
SE
Lexical Scanner (lexer)
GNU Bison-generated Parser
(bottom-up parsing style)
Contextualization
Parser (new)
Executor
AST

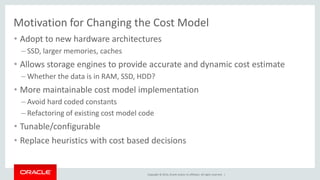

Motivation for Changing the Cost Model
•Adopt to new hardware architectures
–SSD, larger memories, caches
•Allows storage engines to provide accurate and dynamic cost estimate
–Whether the data is in RAM, SSD, HDD?
•More maintainable cost model implementation
–Avoid hard coded constants
–Refactoring of existing cost model code
•Tunable/configurable
•Replace heuristics with cost based decisions

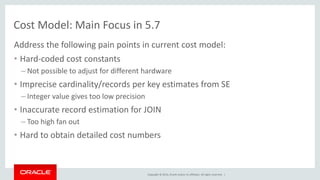

Cost Model: Main Focus in 5.7
Address the following pain points in current cost model:
•Hard-coded cost constants
–Not possible to adjust for different hardware
•Imprecise cardinality/records per key estimates from SE
–Integer value gives too low precision
•Inaccurate record estimation for JOIN
–Too high fan out
•Hard to obtain detailed cost numbers

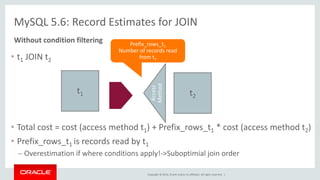

MySQL 5.6: Record Estimates for JOIN
•t1 JOIN t2
•Total cost = cost (access method t1) + Prefix_rows_t1 * cost (access method t2)
•Prefix_rows_t1 is records read by t1
–Overestimation if where conditions apply!->Suboptimial join order
Without condition filtering
t1
t2
Access
Method
Prefix_rows_t1
Number of records read from t1

MySQL 5.7 Improved Record Estimates for JOIN
•t1 JOIN t2
•Prefix_rows_t1 Takes into account the entire query condition
–More accurate record estimate -> improved JOIN order
Condition filter
t1
t2
Access Method
Number of records read from t1
Condition filter
Prefix_rows_t1 Records passing the table conditions on t1

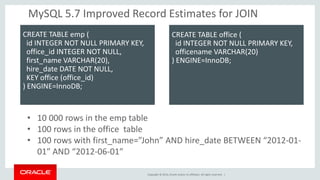

•10 000 rows in the emp table
•100 rows in the office table
•100 rows with first_name=”John” AND hire_date BETWEEN “2012-01- 01″ AND “2012-06-01″
CREATE TABLE emp ( id INTEGER NOT NULL PRIMARY KEY, office_id INTEGER NOT NULL, first_name VARCHAR(20), hire_date DATE NOT NULL, KEY office (office_id) ) ENGINE=InnoDB;
CREATE TABLE office ( id INTEGER NOT NULL PRIMARY KEY, officename VARCHAR(20) ) ENGINE=InnoDB;

Table
Type
Possible keys
Key
Ref
Rows
Filtered
Extra
office
ALL
PRIMARY
NULL
NULL
100
100.00
NULL
employee
ref
office
office
office.id
99
100.00
Using where
Explain for 5.6: Total Cost = cost(scan office) + 100 * cost(ref_access emp)
SELECT office_name FROM office JOIN employee ON office.id = employee.office WHERE employee.name LIKE “John” AND hire_date BETWEEN “2014-01-01” AND “2014-06-01”;
Table
Type
Possible keys
Key
Ref
Rows
Filtered
Extra
employee
ALL
NULL
NULL
NULL
9991
1.23
NULL
office
eq_ref
PRIMARY
PRIMARY
employee.office
1
100.00
Using where
JOIN ORDER HAS CHANGED!
Explain for 5.7: Total Cost = cost(scan emp) + 9991*1.23% * cost(eq_ref_access office)

MySQL 5.7 Improved Record Estimation for JOIN Performance Improvements: DBT-3 (SF 10)
0
20
40
60
80
100
120
Q3
Q7
Q8
Q9
Q12
Execution Time Relative to 5.6 in Percentage
5 out of 22 queries get an improved query plan
5.6
5.7

MySQL 5.7 Additional Cost Data in JSON Explain
JSON
s
mysql> EXPLAIN FORMAT=JSON SELECT SUM(o_totalprice) FROM orders WHERE o_orderdate BETWEEN '1994-01-01' AND '1994-12-31';
{ "query_block": { "select_id": 1, "cost_info": { "query_cost": "3118848.00" }, "table": { "table_name": "orders", "access_type": "ALL", "possible_keys": [ "i_o_orderdate" ], "rows_examined_per_scan": 15000000, "rows_produced_per_join": 4489990, "filtered": 29.933, "cost_info": { "read_cost": "2220850.00", "eval_cost": "897998.00", "prefix_cost": "3118848.00", "data_read_per_join": "582M" }, "used_columns": [ "o_totalprice", "o_orderDATE" ], "attached_condition": "(`dbt3`.`orders`.`o_orderDATE` between '1994-01-01' and '1994-12-31')" } } }
Total query cost of a query block
Cost per table
Cost of sorting operation
Cost of reading data
Cost of evaluating conditions
Cost of prefix join
Rows examined/produced per join
Used columns
Data read per join –
(# of rows)*(record width) in byte

MySQL 5.7 Visual Explain in MySQL Workbench

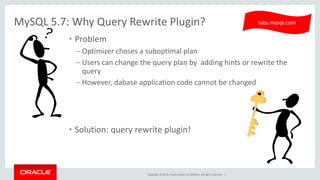

MySQL 5.7: Why Query Rewrite Plugin?
• Problem
– Optimizer choses a suboptimal plan
– Users can change the query plan by adding hints or rewrite the
query
– However, dabase application code cannot be changed
• Solution: query rewrite plugin!
labs.mysql.com

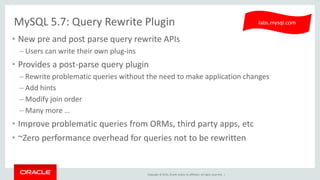

MySQL 5.7: Query Rewrite Plugin
•New pre and post parse query rewrite APIs
–Users can write their own plug-ins
•Provides a post-parse query plugin
–Rewrite problematic queries without the need to make application changes
–Add hints
–Modify join order
–Many more …
•Improve problematic queries from ORMs, third party apps, etc
•~Zero performance overhead for queries not to be rewritten
labs.mysql.com

MySQL 5.7 How Rewrites Happen?
For query
SELECT * FROM t1 JOIN t2 ON t1.keycol = t2.keycol WHERE col1 = 42 AND col2 = 2
Replace parameter markers in Replacement with actual literals:
Pattern is:
SELECT *
FROM t1 JOIN t2 ON t1.keycol = t2.keycol
WHERE col1 = ? AND col2 = ?
Replacement is:
SELECT *
FROM t1 STRAIGHT_JOIN t2 FORCE INDEX (col1)
ON t1.keycol = t2.keycol
WHERE col1 = ? AND col2 = ?
SELECT *
FROM t1 STRAIGHT_JOIN t2 FORCE INDEX (col1)
ON t1.keycol = t2.keycol WHERE col1 = 42 AND col2 = 2

MySQL 5.7 How Matching of Rules Happen?
Match and execute rule in three steps:
1.Hash lookup using query digest computed during parsing
– Finds patterns with same digest.
2.Parse tree structure comparison
– To filter out hash collision
– Will not detect differences in literals
3.Compare literal constants
–In practice done during rewrite

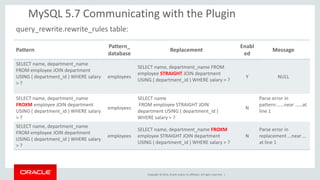

MySQL 5.7 Communicating with the Plugin
query_rewrite.rewrite_rules table:
Pattern
Pattern_
database
Replacement
Enabled
Message
SELECT name, department_name FROM employee JOIN department USING ( department_id ) WHERE salary > ?
employees
SELECT name, department_name FROM employee STRAIGHT JOIN department USING ( department_id ) WHERE salary > ?
Y
NULL
SELECT name, department_name FROXM employee JOIN department USING ( department_id ) WHERE salary > ?
employees
SELECT name
FROM employee STRAIGHT JOIN department USING ( department_id ) WHERE salary > ?
N
Parse error in pattern:……near ……at line 1
SELECT name, department_name FROM employee JOIN department USING ( department_id ) WHERE salary > ?
employees
SELECT name, department_name FROXM employee STRAIGHT JOIN department USING ( department_id ) WHERE salary > ?
N
Parse error in replacement …near … at line 1

MySQL 5.7 Query Rewrite Plug-in: Server’s POV
•Query comes in
–Plugin(s) is asked if it wants digests (It does)
•Query is parsed
•Plugin is invoked
•In case rules table has changed, refresh rules
•Pattern matching
•In case match, the query is rewritten. Server raises SQL note.

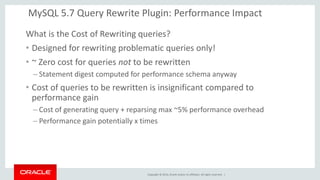

MySQL 5.7 Query Rewrite Plugin: Performance Impact
What is the Cost of Rewriting queries?
•Designed for rewriting problematic queries only!
•~ Zero cost for queries not to be rewritten
–Statement digest computed for performance schema anyway
•Cost of queries to be rewritten is insignificant compared to performance gain
–Cost of generating query + reparsing max ~5% performance overhead
–Performance gain potentially x times

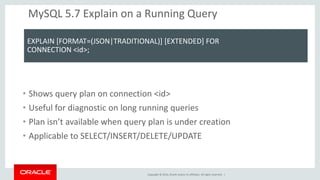

MySQL 5.7 Explain on a Running Query
EXPLAIN [FORMAT=(JSON|TRADITIONAL)] [EXTENDED] FOR
CONNECTION <id>;
•Shows query plan on connection <id>
•Useful for diagnostic on long running queries
•Plan isn’t available when query plan is under creation
•Applicable to SELECT/INSERT/DELETE/UPDATE

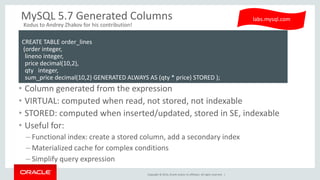

MySQL 5.7 Generated Columns
•Column generated from the expression
•VIRTUAL: computed when read, not stored, not indexable
•STORED: computed when inserted/updated, stored in SE, indexable
•Useful for:
–Functional index: create a stored column, add a secondary index
–Materialized cache for complex conditions
–Simplify query expression
labs.mysql.com
CREATE TABLE order_lines (order integer, lineno integer, price decimal(10,2), qty integer, sum_price decimal(10,2) GENERATED ALWAYS AS (qty * price) STORED );
Kodus to Andrey Zhakov for his contribution!

MySQL 5.7: Avoid Creating Temporary Table for UNION ALL
SELECT * FROM table_a UNION ALL SELECT * FROM table_b;
•5.6: Always materialize results of UNION ALL in temporary tables
•5.7: Do not materialize in temporary tables unless used for sorting, rows are sent directly to client
•5.7: Less memory and disk consumption

MySQL 5.7: Optimizations for IN Expressions
•5.6: Certain queries with IN predicates can’t use index scans or range scans even though all the columns in the query are indexed.
•5.6: Range optimizer ignores lists of rows
•5.6: Needs to rewrite to De-normalized form
SELECT a, b FROM t1 WHERE ( a = 0 AND b = 0 ) OR ( a = 1 AND b = 1 )
•5.7: IN queries with row value expressions executed using range scans.
•5.7: Explain output: Index/table scans changes to range scans
CREATE TABLE t1 (a INT, b INT, c INT, KEY x(a, b));
SELECT a, b FROM t1 WHERE (a, b) IN ((0, 0), (1, 1));

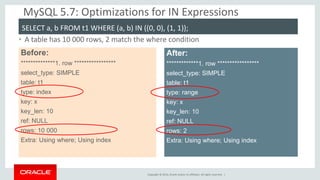

MySQL 5.7: Optimizations for IN Expressions
•A table has 10 000 rows, 2 match the where condition
Before:
**************1. row *****************
select_type: SIMPLE
table: t1
type: index
key: x
key_len: 10
ref: NULL
rows: 10 000
Extra: Using where; Using index
After:
*************1. row *****************
select_type: SIMPLE
table: t1
type: range
key: x
key_len: 10
ref: NULL
rows: 2
Extra: Using where; Using index
SELECT a, b FROM t1 WHERE (a, b) IN ((0, 0), (1, 1));

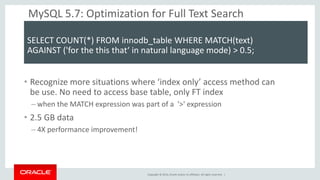

MySQL 5.7: Optimization for Full Text Search
SELECT COUNT(*) FROM innodb_table WHERE MATCH(text)
AGAINST ('for the this that‘ in natural language mode) > 0.5;
•Recognize more situations where ‘index only’ access method can be use. No need to access base table, only FT index
–when the MATCH expression was part of a '>' expression
•2.5 GB data
–4X performance improvement!

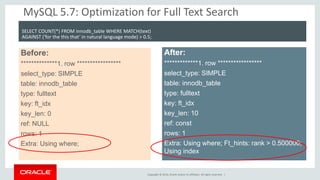

MySQL 5.7: Optimization for Full Text Search
Before:
**************1. row *****************
select_type: SIMPLE
table: innodb_table
type: fulltext
key: ft_idx
key_len: 0
ref: NULL
rows: 1
Extra: Using where;
After:
*************1. row *****************
select_type: SIMPLE
table: innodb_table
type: fulltext
key: ft_idx
key_len: 10
ref: const
rows: 1
Extra: Using where; Ft_hints: rank > 0.500000; Using index
SELECT COUNT(*) FROM innodb_table WHERE MATCH(text)
AGAINST ('for the this that‘ in natural language mode) > 0.5;

Optimizer overviewoow2014

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Viewers also liked

Viewers also liked (16)

Similar to Optimizer overviewoow2014

Similar to Optimizer overviewoow2014 (20)

More from Mysql User Camp

More from Mysql User Camp (8)

Recently uploaded

Recently uploaded (13)

Optimizer overviewoow2014
