This document provides an overview of Netty, an asynchronous event-driven network application framework for Java. It discusses key Netty concepts like the event loop, channels, pipelines and handlers. It also provides examples of building an echo server and client with Netty. Additionally, it mentions several large companies that use Netty in production and open-source projects built with Netty. Finally, it discusses some alternative solutions to Netty like ServiceTalk, Armeria and Reactor Netty that provide additional features on top of the Netty core.

1. Jackson Oliveira
Marcelo Serpa

2. About me
❏ Software Architect at ilegra
❏ AWS & GCP
❏ Google Cloud Architect Certified
❏ Microservices / DevOPS
❏ Mortal Kombat Player :D
❏ https://github.com/marceloserpa/
❏ https://www.linkedin.com/in/marceloserpa/

3. About me
❏ Father
❏ Software Architect at ilegra
❏ Devops Engineer Specialist
❏ Google Cloud Architect Certified
❏ SOA Specialist
❏ Football fun
❏ Github
❏ Twitter
❏ Blog

4. Exercise 1
● Create a TCP server using socket API. Use the template available here.
● It needs to be able to process more than one request at time (use threads)

5. Let's review what we did and think about It

6. How works the traditional way
● thread per request model
● One thread for the entire request flow
● limitations 1 thread == 1MB (around it)

7. Blocking and synchronous
● Sequential
● Unnecessary waiting time
● Total time is high

8. Expectations for modern applications
● high throughput
● scalability
● lower cost (BE CAREFUL)

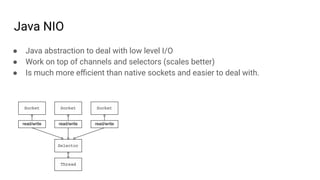

9. Java NIO
● Java abstraction to deal with low level I/O
● Work on top of channels and selectors (scales better)
● Is much more efficient than native sockets and easier to deal with.

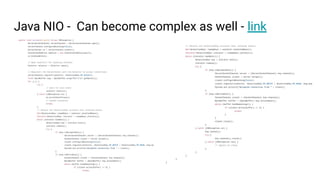

10. Java NIO - Can become complex as well - link

11. Networking programing
● Is inhirintanly complex
○ It’s more than programming languages or algorithms
○ Requires specific skills
○ Network programs have their own performance requirements
○ Needs to be efficient, otherwise they won't attend the current market requirements.

12. What is Netty
“Netty is a NIO client server framework which enables quick and easy development
of network applications such as protocol servers and clients. It greatly simplifies
and streamlines network programming such as TCP and UDP socket server.”
● A networking programming server
● open source and written in Java
● Asynchronous and event driven
● Enforces a better design. Decouples business logic from network programming details.
● Configurable
● Extensible

13. Companies using Netty
● Apple
● Twitter
○ using Finagle their Netty-basead framework in inter-system communication
● Facebook
○ uses Netty in Nifty - Thrift service
● Google
● Square
● Instagram
● Netflix

14. Companies using Netty - Netflix

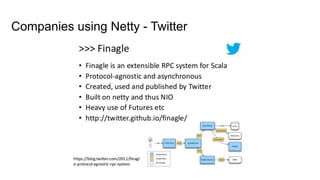

15. Companies using Netty - Twitter

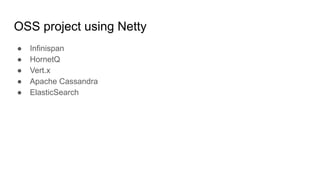

16. OSS project using Netty
● Infinispan
● HornetQ
● Vert.x
● Apache Cassandra
● ElasticSearch

17. Cassandra - More nodes, worst the performance

18. Cassandra - Streaming data between nodes - Before

19. Cassandra - Streaming data between nodes

20. Cassandra - Streaming data between nodes - Before

21. Cassandra - Streaming data between nodes - Before

22. Cassandra - Streaming data between nodes - Before

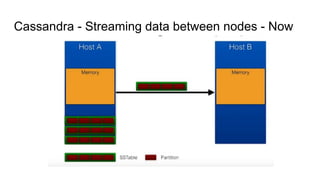

23. Cassandra - Streaming data between nodes - Now

24. Cassandra - Streaming data between nodes - Now

25. Startups using Netty
● Firebase
● Urban Airship

26. Non-Blocking and asynchronous
● Initialize something now
● Using Threads Efficiently
● Scalability
● More efficient (doing more with less resources)
● concurrency

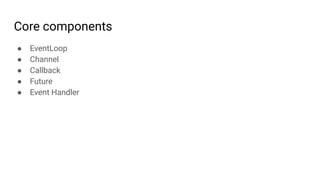

27. Core components
● EventLoop
● Channel
● Callback
● Future
● Event Handler

28. Netty - High level arch

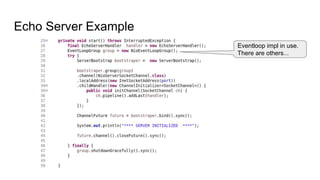

29. Echo Server Example

30. Echo Server Example
Eventloop impl in use.
There are others...

31. Echo Server Example
Utility that helps glue
all pieces

32. Echo Server Example
Transport type defined
for the channel

33. Echo Server Example
Setting handler on the
pipeline chain

34. Echo Server Example
Bind the server and
channel and wait this
process complete

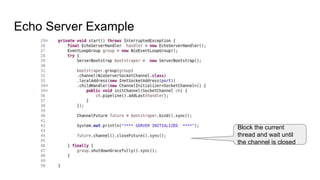

35. Echo Server Example
Block the current
thread and wait until
the channel is closed

36. Echo Client - Example

37. Echo Client - Example

38. What is EventLoop? How it works?
● Threading model
● Control flow
● Dispatching events to ChannelHandlers

39. EventLoop -Task Scheduling - run later
scheduling task to run
after 10 seconds

40. EventLoop -Task Scheduling - periodically
scheduling task to run
every 10 seconds
staring in 10 seconds

41. What is EventLoop group?
● Allocate EventLoop for a Channel
● Uses round-robin to distribute load
● An application needs a
least 1 EventLoopGroup

42. Channel
● Socket
● Receive events
● Transport layer
● Notify Channel Handlers

43. ChannelHandler
● Decoupled business from networking
● Implements the logic
● React to event notification
● ChannelInboundHandlerAdapter
○ channelRead()
○ channelReadComplete()
○ exceptionCaught()
● ChannelHandler are invoke for different events
● Hook lifecycle

44. ChannelPipeline
● chain of ChannelHandler
● propagation flow
● order to execute channel handlers
● ChannelHandler is installed as follow:
○ a Channelnitializaer is registered to server bootstrap
○ when Channelnitializaer.init() is called it install the channels handlers in the pipeline

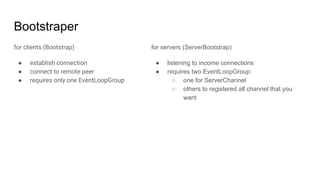

45. Bootstraper
for clients (Bootstrap)
● establish connection
● connect to remote peer
● requires only one EventLoopGroup
for servers (ServerBootstrap)
● listening to income connections
● requires two EventLoopGroup:
○ one for ServerChannel
○ others to registered all channel that you
want

46. Bytebuf
● Byte container
● Alternative for NIO ByteBuffer
● Used to data

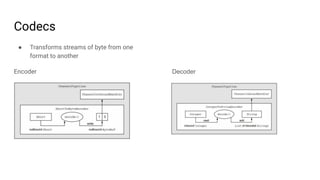

47. Codecs
● Transforms streams of byte from one
format to another
Encoder Decoder

48. Codec Example - Bootstrap
Creating a
ServerBootstrap and
registered
EventLoopGroup

49. Codec Example - Bootstrap
Registered Initializer
to configure Pipeline

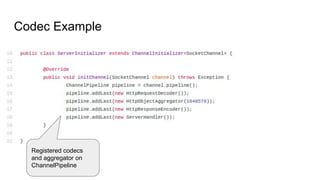

50. Codec Example
Registered codecs
and aggregator on
ChannelPipeline

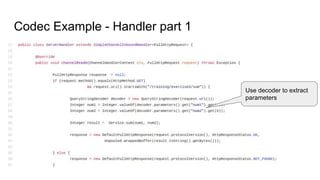

51. Codec Example - Handler part 1
Use decoder to extract
parameters

52. Codec Example - Handler part 1
Call service to handle
business rules

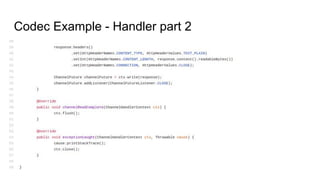

53. Codec Example - Handler part 2

54. Solution based Netty - ServiceTalk
https://github.com/diegopacheco/java-pocs/tree/master/pocs/servicetalk-fun

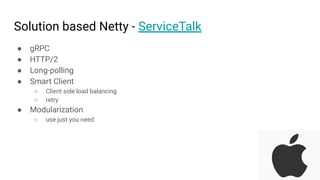

55. Solution based Netty - ServiceTalk
● gRPC
● HTTP/2
● Long-polling
● Smart Client
○ Client side load balancing
○ retry
● Modularization
○ use just you need

56. Solution based Netty - Armeria
https://github.com/diegopacheco/java-pocs/tree/master/pocs/armerica-fun/src/main/java

57. Solution based Netty - Armeria
● HTTP/2
● Integration with gRPC and Thrift
● Metrics
● Circuit breaker
● Client-side health-check, retries and client side load balancing
● Distributed Tracing with Zipkin
● Service discovery (DNS and Zookeeper)
● Built on top of Reactive Streams and Java 8 CompletableFuture

58. Solution based Netty - Reactor Netty
https://github.com/diegopacheco/java-pocs/tree/master/pocs/reactor-netty-simple

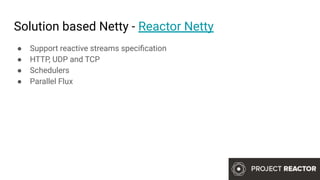

59. Solution based Netty - Reactor Netty
● Support reactive streams specification
● HTTP, UDP and TCP
● Schedulers
● Parallel Flux

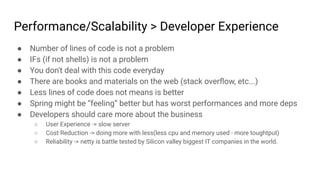

60. Performance/Scalability > Developer Experience
● Number of lines of code is not a problem
● IFs (if not shells) is not a problem
● You don't deal with this code everyday
● There are books and materials on the web (stack overflow, etc...)
● Less lines of code does not means is better
● Spring might be “feeling” better but has worst performances and more deps
● Developers should care more about the business
○ User Experience -> slow server
○ Cost Reduction -> doing more with less(less cpu and memory used - more toughtput)
○ Reliability -> netty is battle tested by Silicon valley biggest IT companies in the world.

61. Netty
Thank you!

62. Exercise 2
● Change the code made on exercise 1, this time using Netty as a a server
implementation and client.
● Use this template in order to get started.

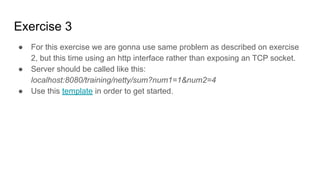

63. Exercise 3
● For this exercise we are gonna use same problem as described on exercise
2, but this time using an http interface rather than exposing an TCP socket.
● Server should be called like this:
localhost:8080/training/netty/sum?num1=1&num2=4
● Use this template in order to get started.

64. Exercise 4
● Do the same implementation of exercise 3 using ServiceTalk with JaxRS
● Use this template in order to get started.
