Netezza Deep Dive
Rush Shah – Product Director
Premier Connect Enterprise
2016.08.14

2 PROPRIETARY & CONFIDENTIAL – © 2013 PREMIER INC.

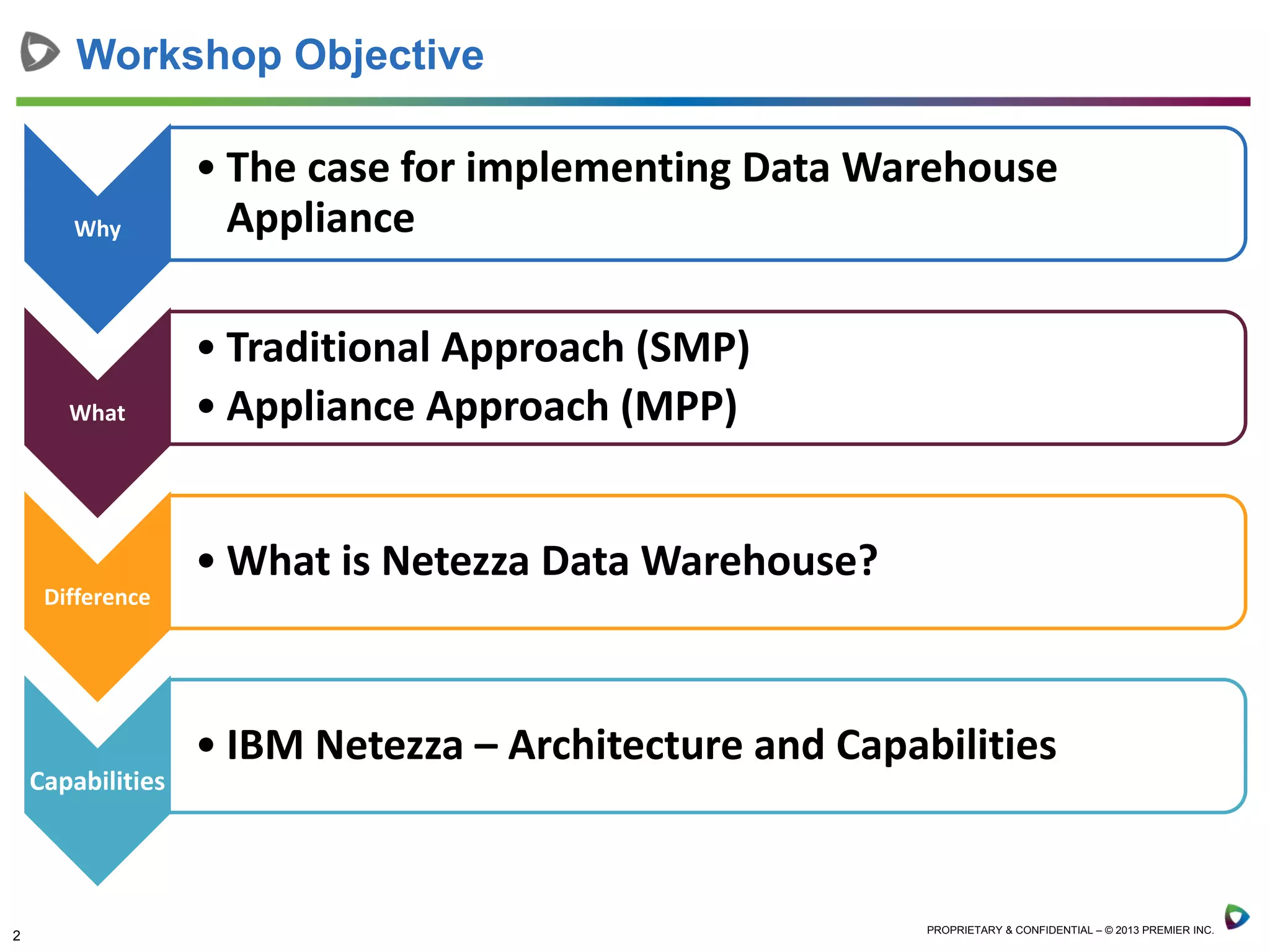

Workshop Objective
Why
• The case for implementing Data Warehouse
Appliance
What
• Traditional Approach (SMP)
• Appliance Approach (MPP)
Difference
• What is Netezza Data Warehouse?
Capabilities
• IBM Netezza – Architecture and Capabilities

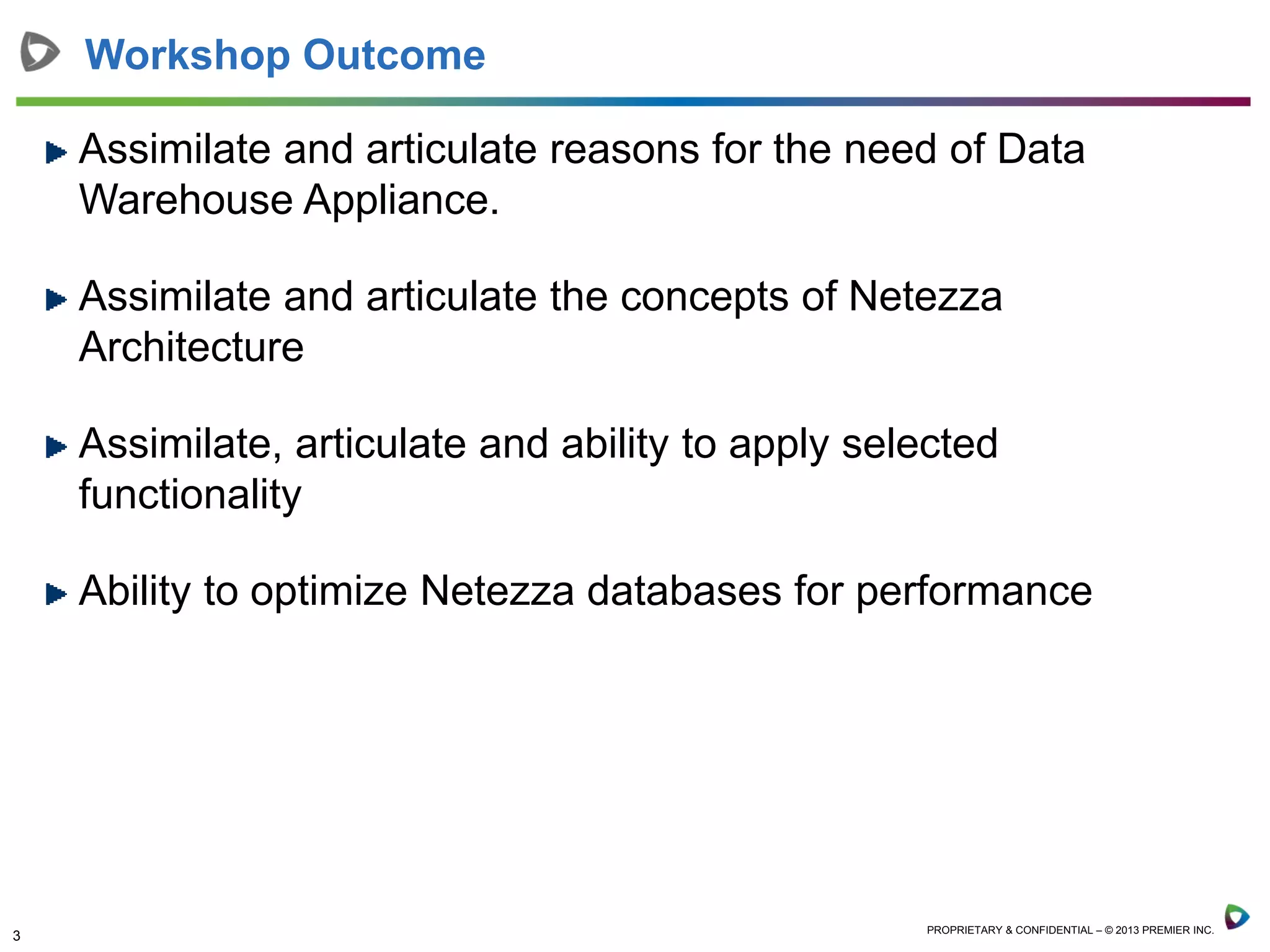

Workshop Outcome
Assimilate and articulate reasons for the need of Data
Warehouse Appliance.
Assimilate and articulate the concepts of Netezza
Architecture
Assimilate, articulate and ability to apply selected
functionality
Ability to optimize Netezza databases for performance

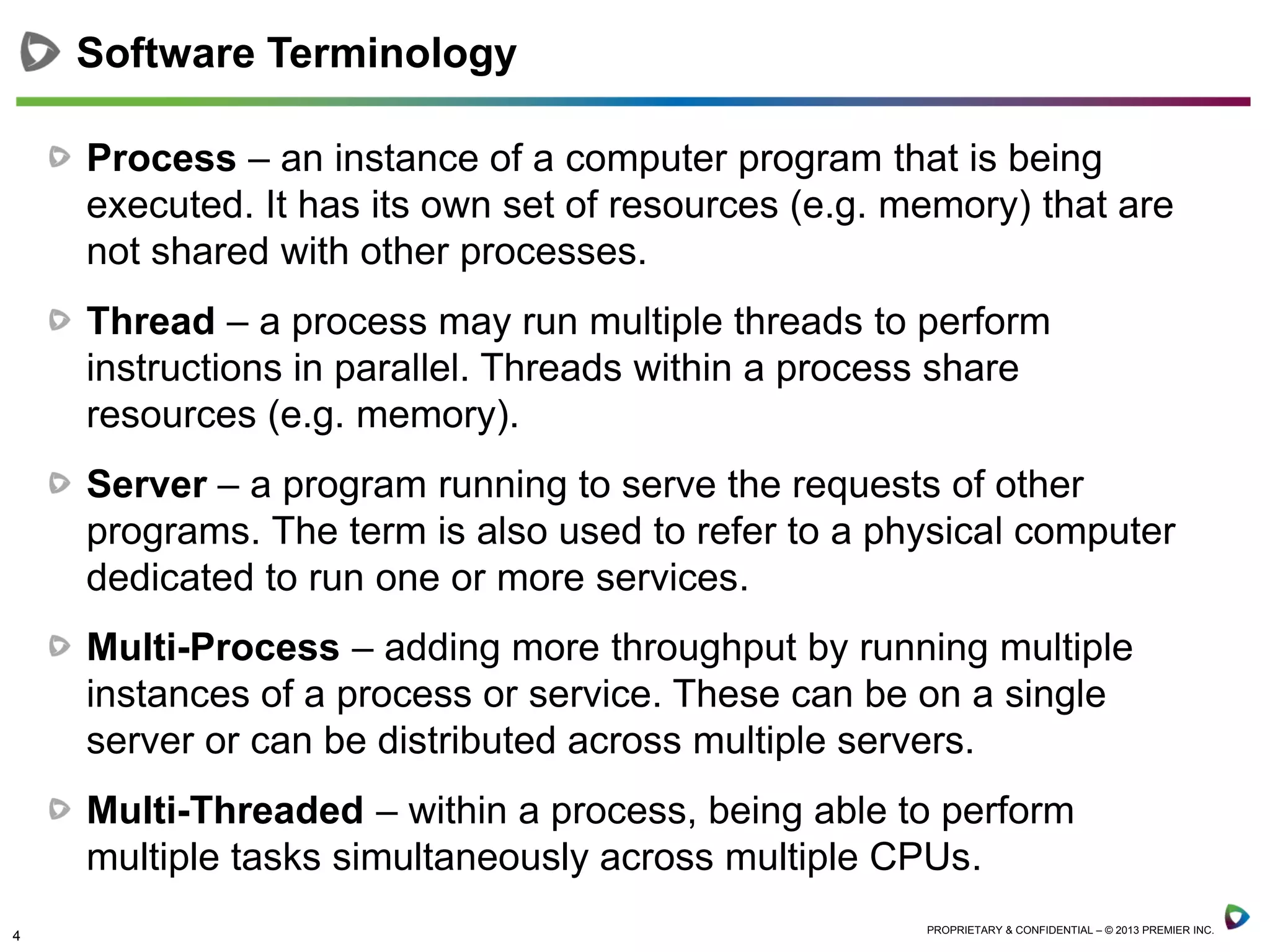

Process – an instance of a computer program that is being
executed. It has its own set of resources (e.g. memory) that are
not shared with other processes.
Thread – a process may run multiple threads to perform
instructions in parallel. Threads within a process share
resources (e.g. memory).
Server – a program running to serve the requests of other
programs. The term is also used to refer to a physical computer
dedicated to run one or more services.
Multi-Process – adding more throughput by running multiple
instances of a process or service. These can be on a single
server or can be distributed across multiple servers.
Multi-Threaded – within a process, being able to perform
multiple tasks simultaneously across multiple CPUs.
Software Terminology

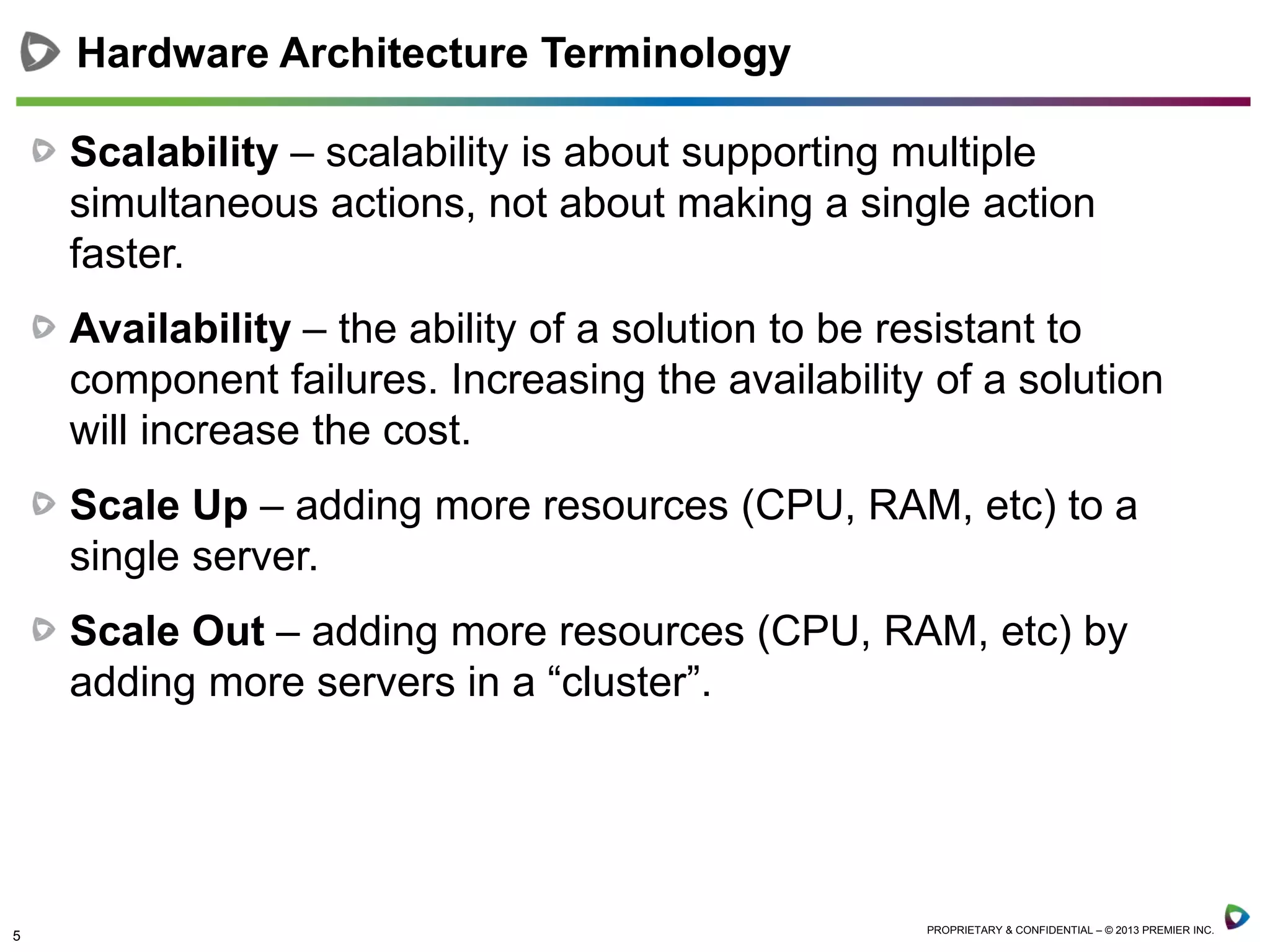

Scalability – scalability is about supporting multiple
simultaneous actions, not about making a single action
faster.
Availability – the ability of a solution to be resistant to
component failures. Increasing the availability of a solution
will increase the cost.
Scale Up – adding more resources (CPU, RAM, etc) to a
single server.
Scale Out – adding more resources (CPU, RAM, etc) by
adding more servers in a “cluster”.
Hardware Architecture Terminology

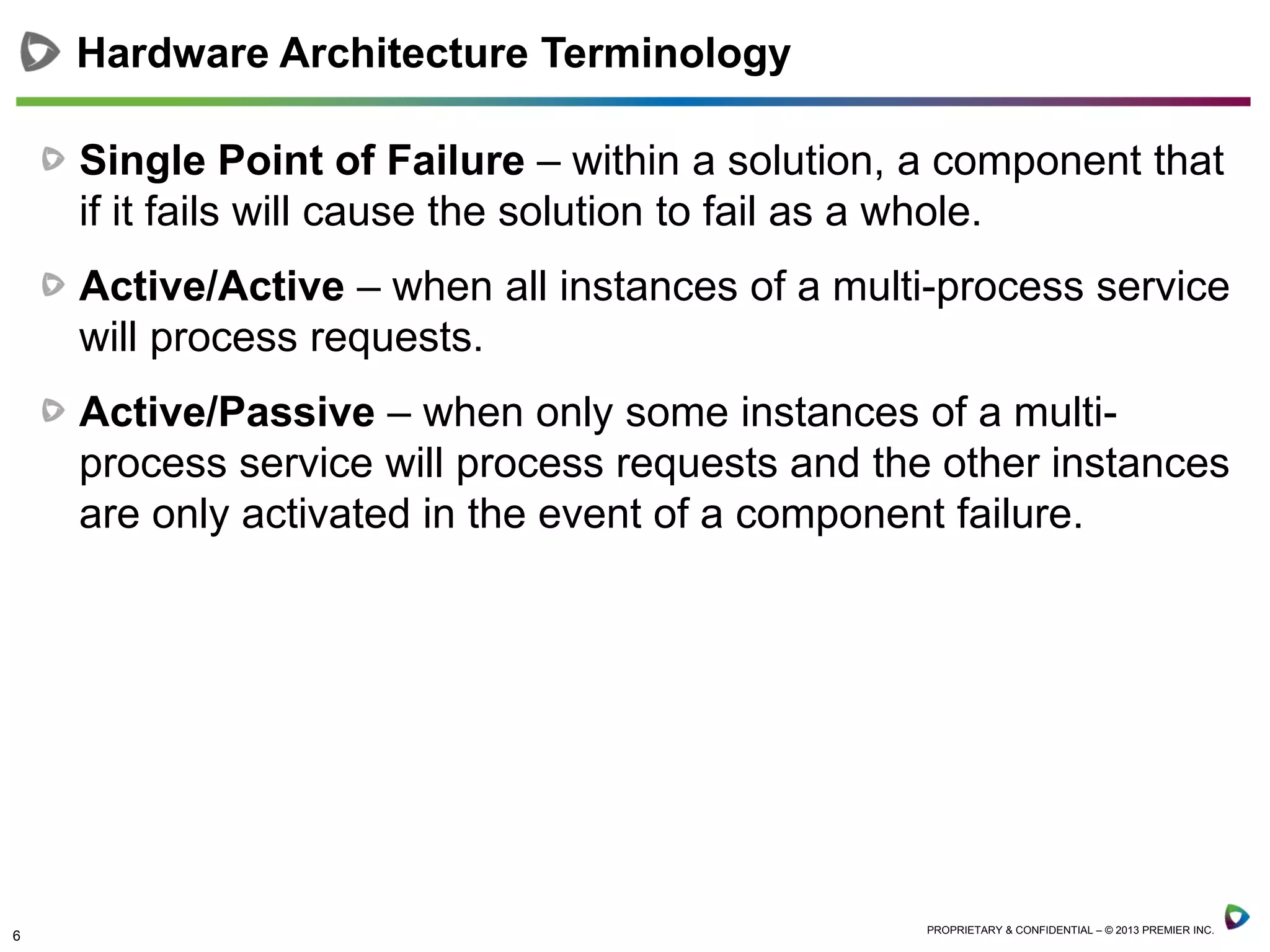

Single Point of Failure – within a solution, a component that
if it fails will cause the solution to fail as a whole.
Active/Active – when all instances of a multi-process service
will process requests.
Active/Passive – when only some instances of a multi-
process service will process requests and the other instances
are only activated in the event of a component failure.
Hardware Architecture Terminology

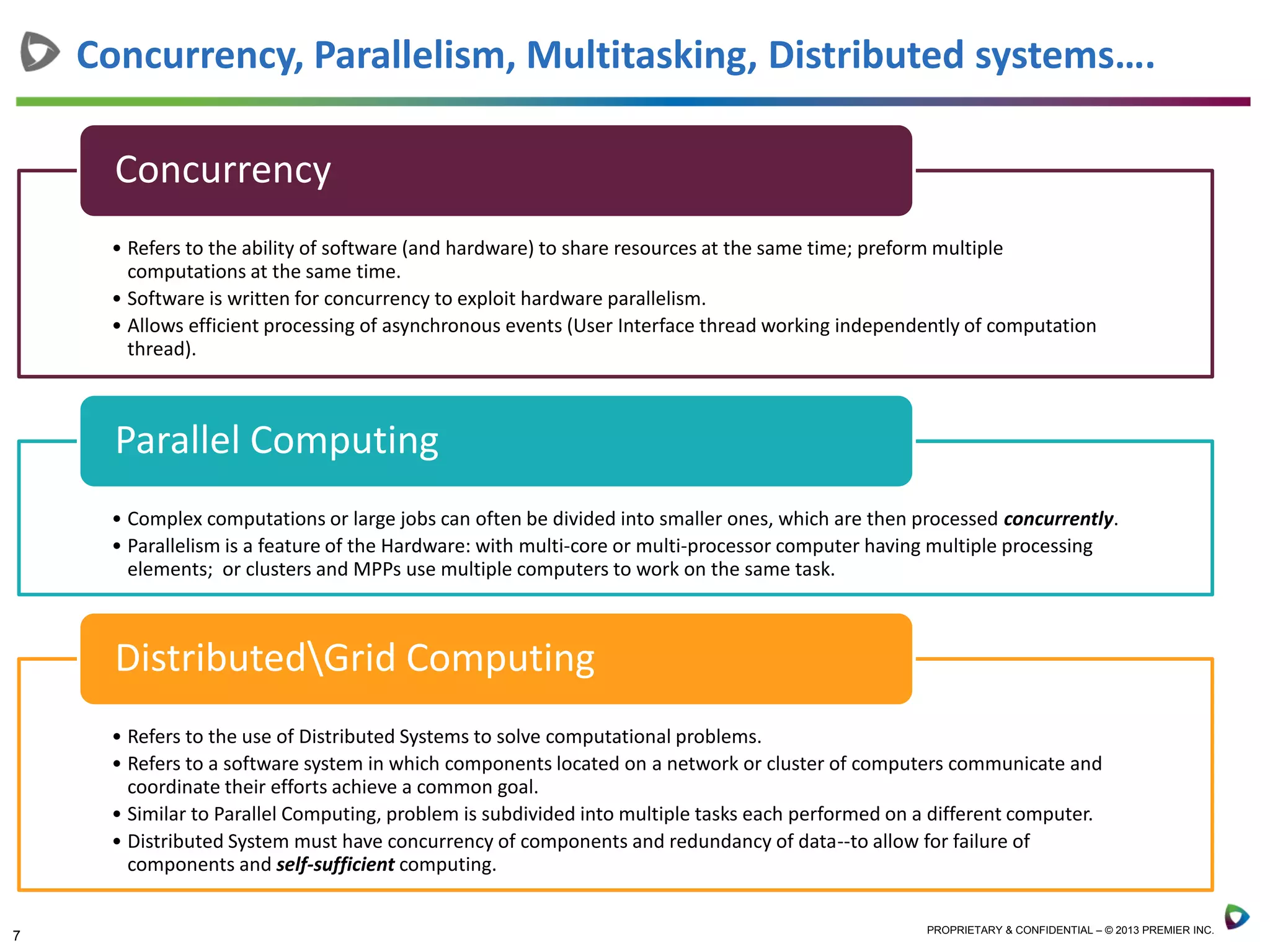

Concurrency, Parallelism, Multitasking, Distributed systems….
• Refers to the ability of software (and hardware) to share resources at the same time; preform multiple
computations at the same time.
• Software is written for concurrency to exploit hardware parallelism.
• Allows efficient processing of asynchronous events (User Interface thread working independently of computation
thread).
Concurrency
• Complex computations or large jobs can often be divided into smaller ones, which are then processed concurrently.
• Parallelism is a feature of the Hardware: with multi-core or multi-processor computer having multiple processing
elements; or clusters and MPPs use multiple computers to work on the same task.
Parallel Computing
• Refers to the use of Distributed Systems to solve computational problems.
• Refers to a software system in which components located on a network or cluster of computers communicate and
coordinate their efforts achieve a common goal.
• Similar to Parallel Computing, problem is subdivided into multiple tasks each performed on a different computer.
• Distributed System must have concurrency of components and redundancy of data--to allow for failure of
components and self-sufficient computing.
DistributedGrid Computing

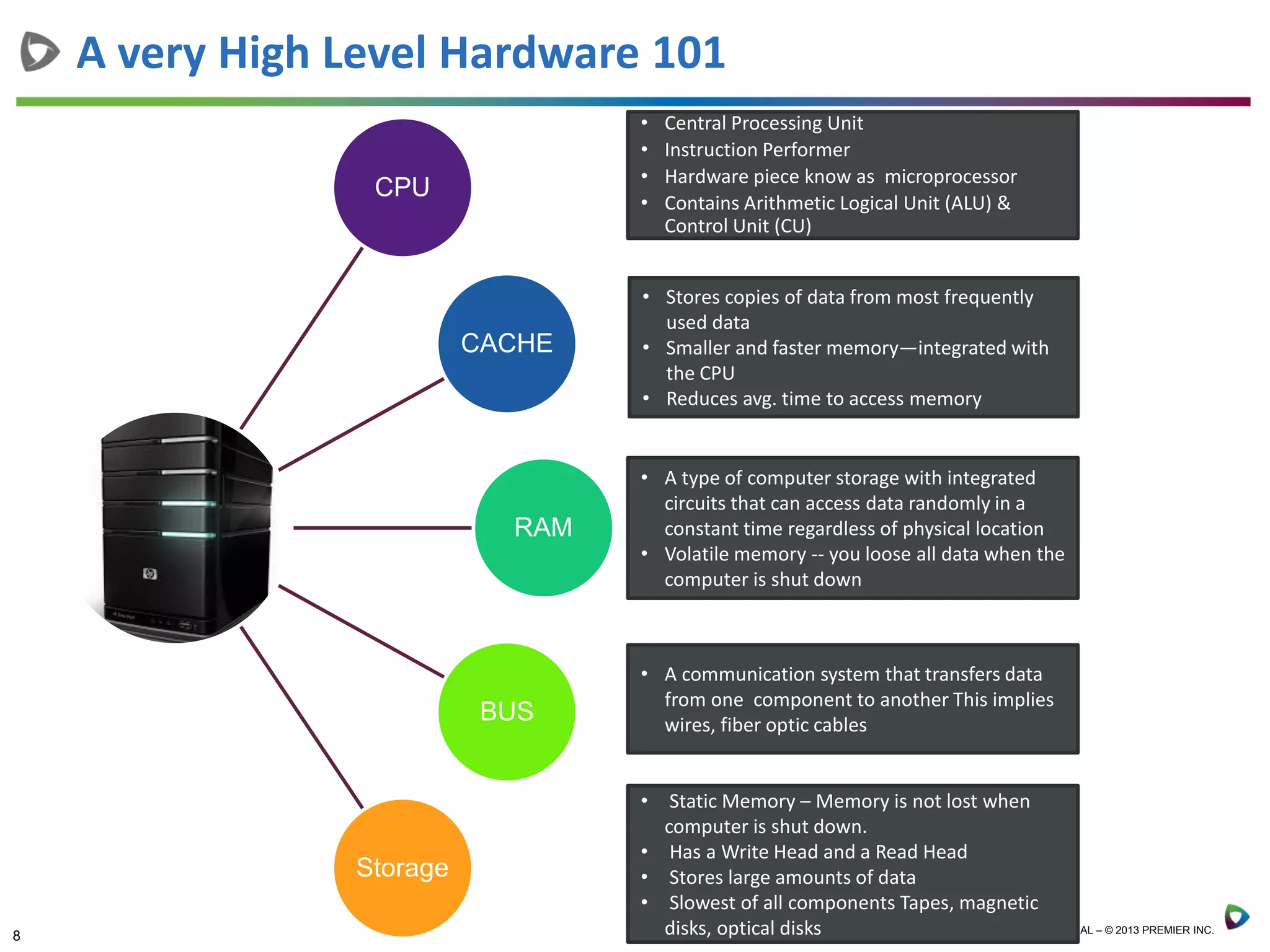

CPU
CACHE
RAM
BUS
Storage
A very High Level Hardware 101
• Central Processing Unit
• Instruction Performer
• Hardware piece know as microprocessor
• Contains Arithmetic Logical Unit (ALU) &
Control Unit (CU)
• Stores copies of data from most frequently
used data
• Smaller and faster memory—integrated with
the CPU
• Reduces avg. time to access memory
• A type of computer storage with integrated
circuits that can access data randomly in a
constant time regardless of physical location
• Volatile memory -- you loose all data when the
computer is shut down
• A communication system that transfers data
from one component to another This implies
wires, fiber optic cables
• Static Memory – Memory is not lost when
computer is shut down.
• Has a Write Head and a Read Head
• Stores large amounts of data
• Slowest of all components Tapes, magnetic
disks, optical disks

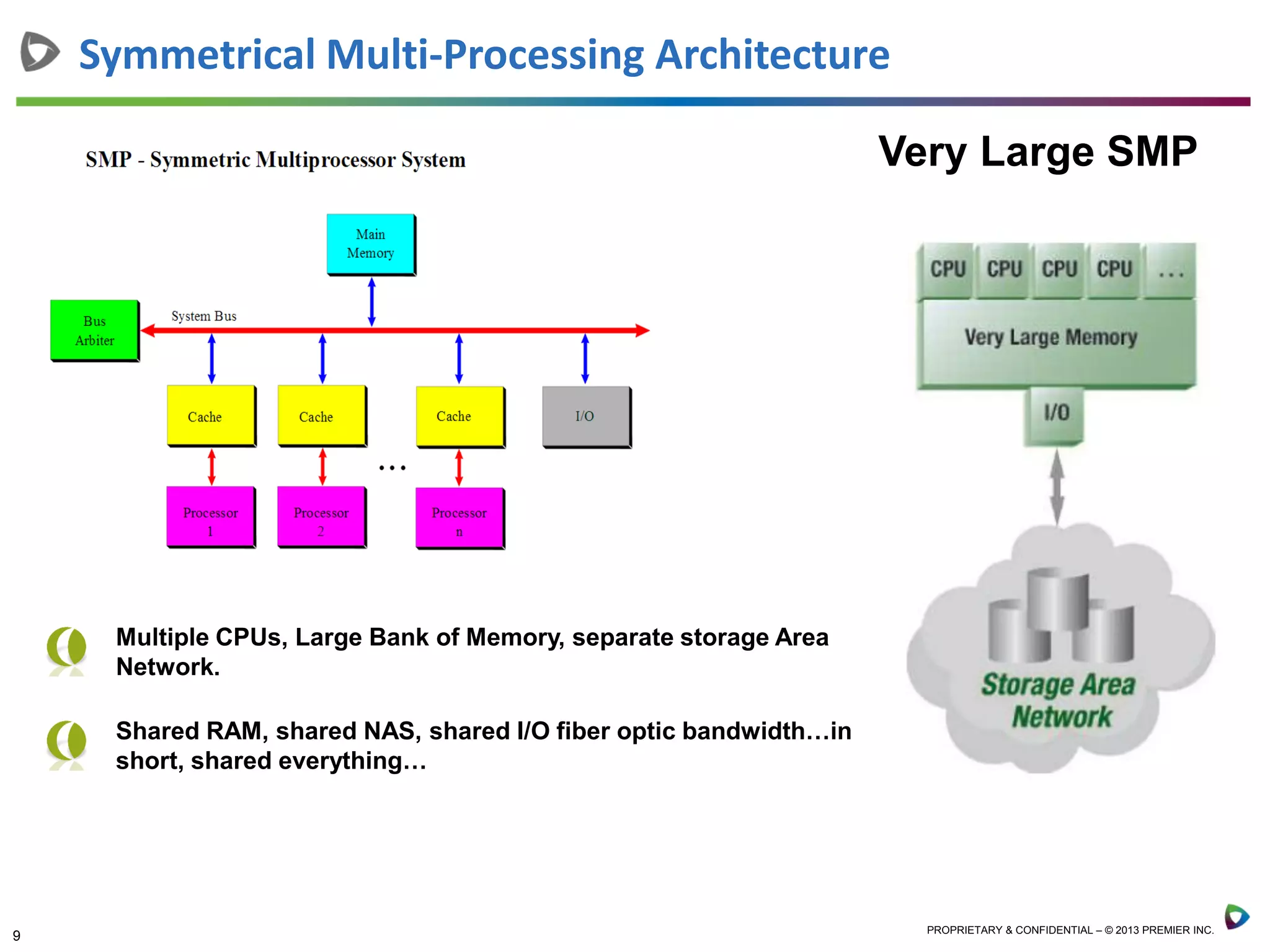

Symmetrical Multi-Processing Architecture
Very Large SMP
Multiple CPUs, Large Bank of Memory, separate storage Area
Network.
Shared RAM, shared NAS, shared I/O fiber optic bandwidth…in
short, shared everything…

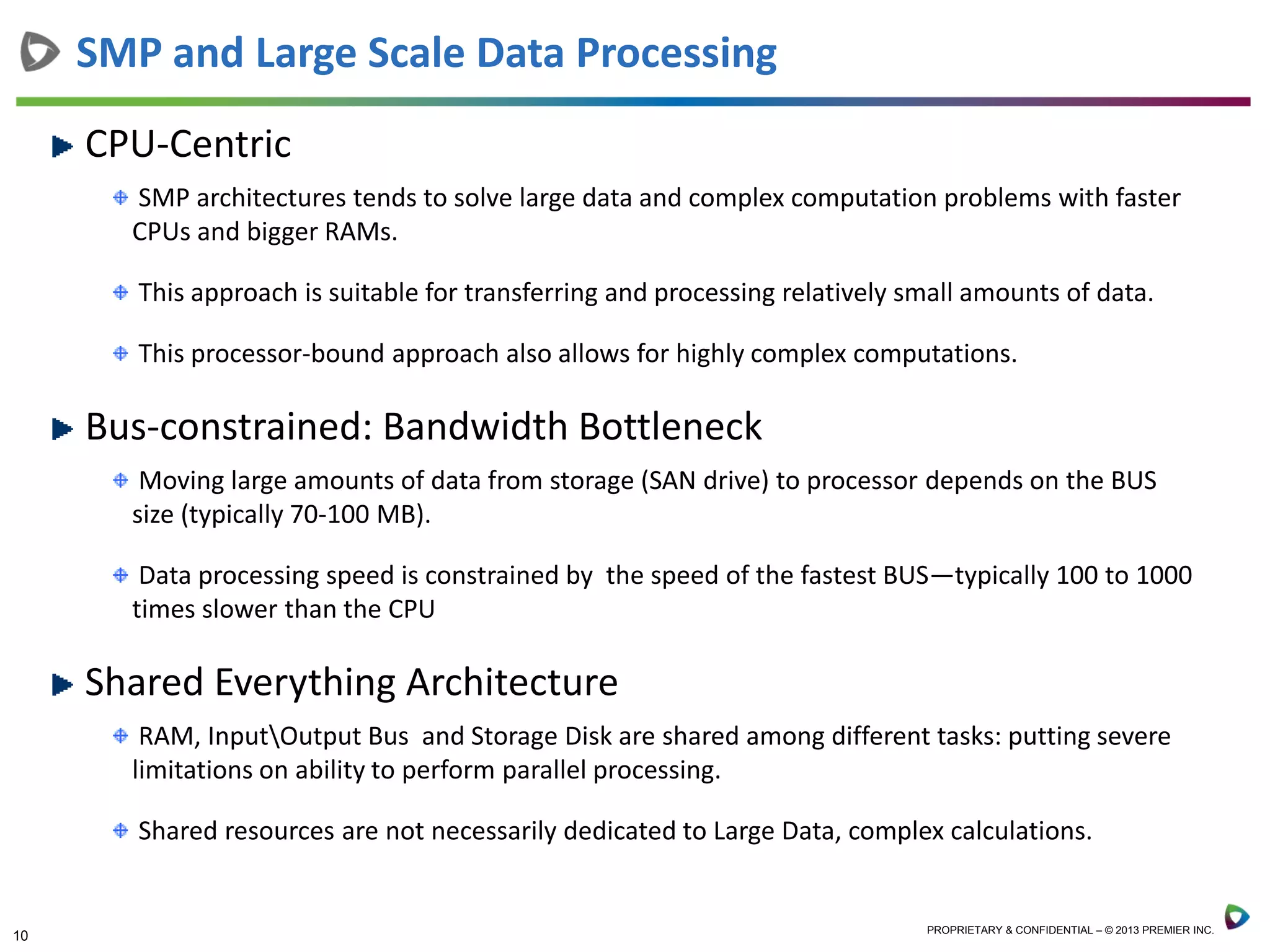

CPU-Centric
SMP architectures tends to solve large data and complex computation problems with faster
CPUs and bigger RAMs.
This approach is suitable for transferring and processing relatively small amounts of data.
This processor-bound approach also allows for highly complex computations.
Bus-constrained: Bandwidth Bottleneck
Moving large amounts of data from storage (SAN drive) to processor depends on the BUS
size (typically 70-100 MB).
Data processing speed is constrained by the speed of the fastest BUS—typically 100 to 1000
times slower than the CPU
Shared Everything Architecture
RAM, InputOutput Bus and Storage Disk are shared among different tasks: putting severe
limitations on ability to perform parallel processing.
Shared resources are not necessarily dedicated to Large Data, complex calculations.
SMP and Large Scale Data Processing

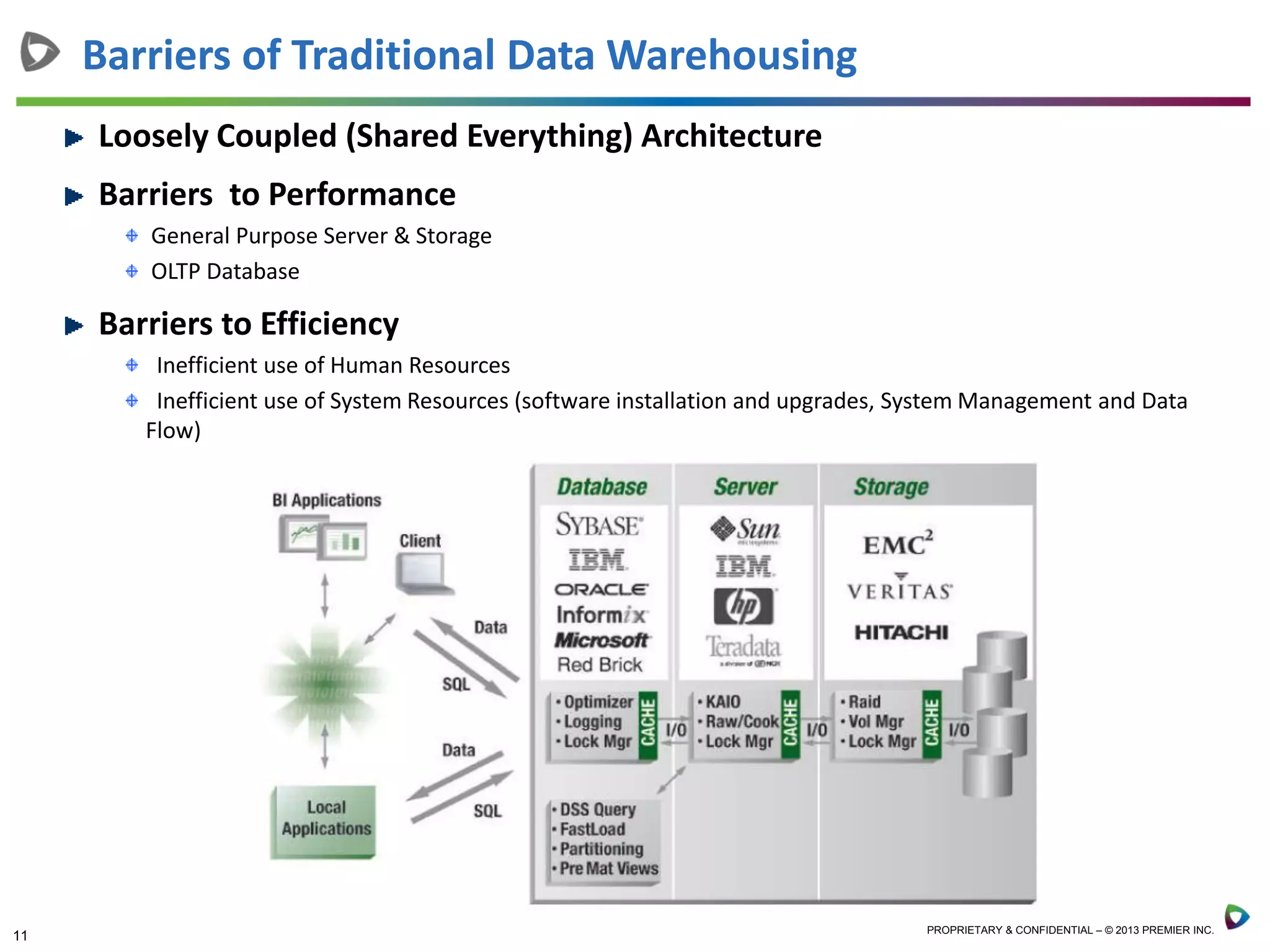

Barriers of Traditional Data Warehousing
Loosely Coupled (Shared Everything) Architecture
Barriers to Performance
General Purpose Server & Storage
OLTP Database
Barriers to Efficiency
Inefficient use of Human Resources
Inefficient use of System Resources (software installation and upgrades, System Management and Data
Flow)

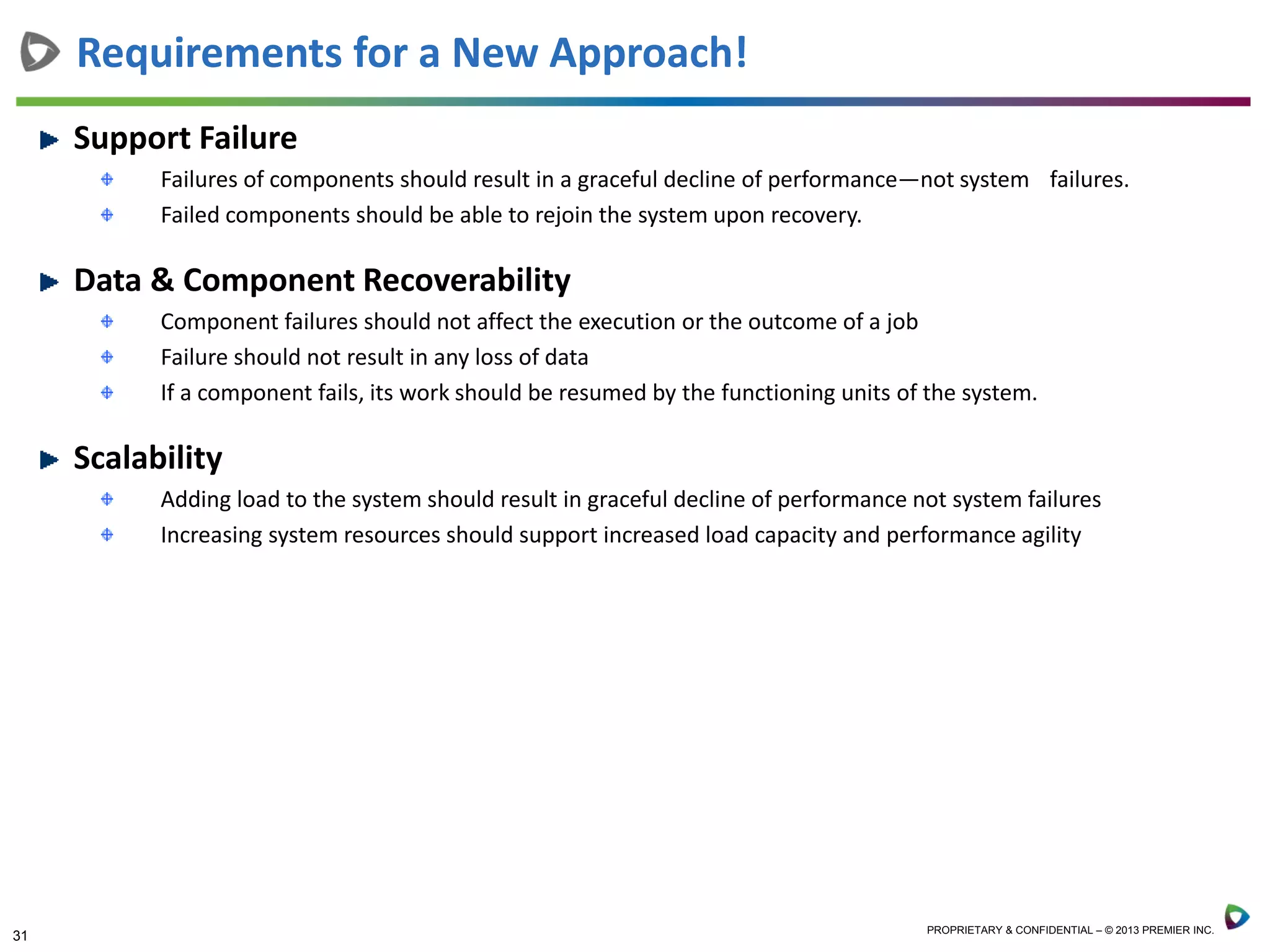

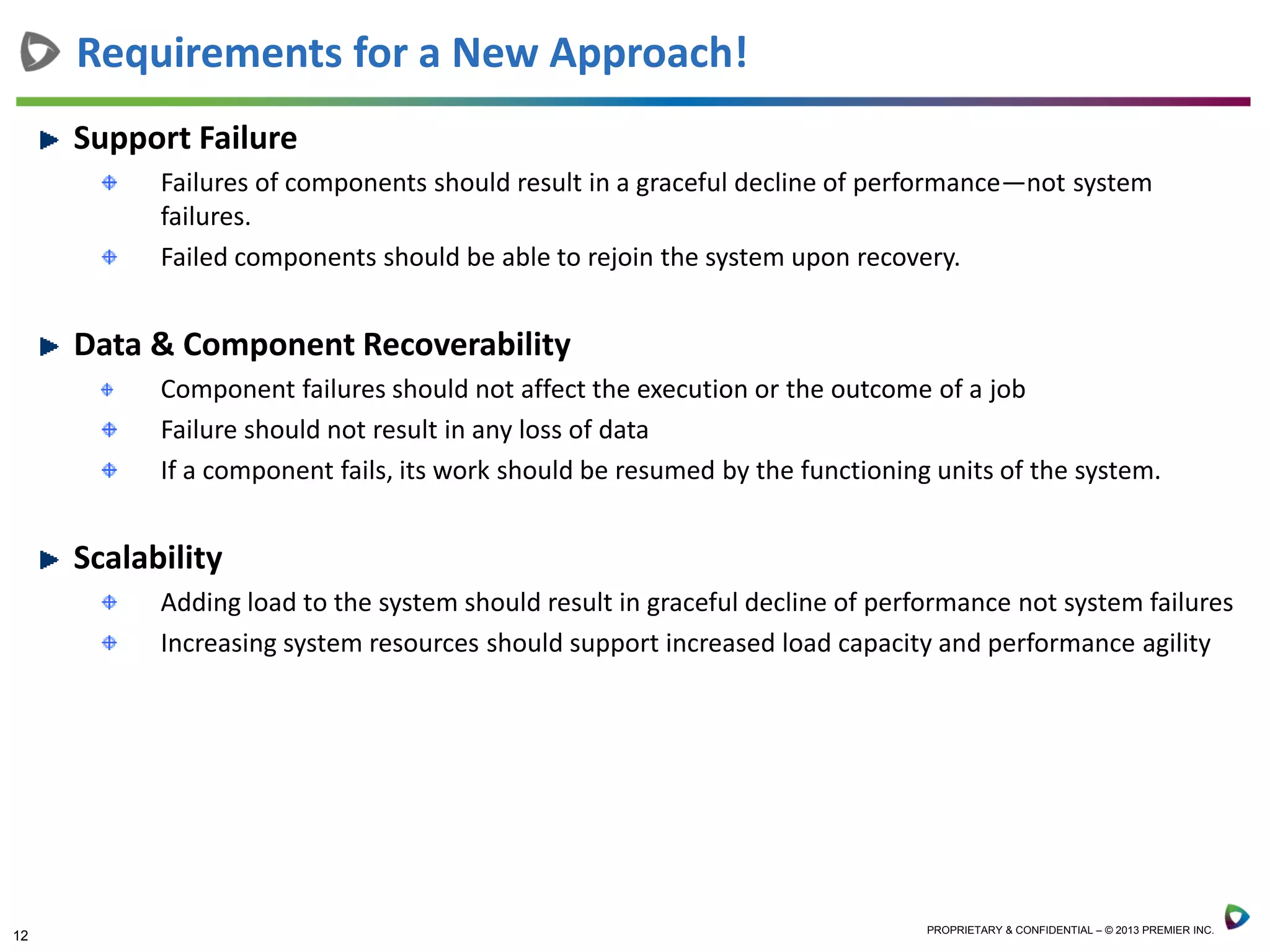

Requirements for a New Approach!
Support Failure
Failures of components should result in a graceful decline of performance—not system
failures.
Failed components should be able to rejoin the system upon recovery.
Data & Component Recoverability
Component failures should not affect the execution or the outcome of a job
Failure should not result in any loss of data
If a component fails, its work should be resumed by the functioning units of the system.
Scalability
Adding load to the system should result in graceful decline of performance not system failures
Increasing system resources should support increased load capacity and performance agility

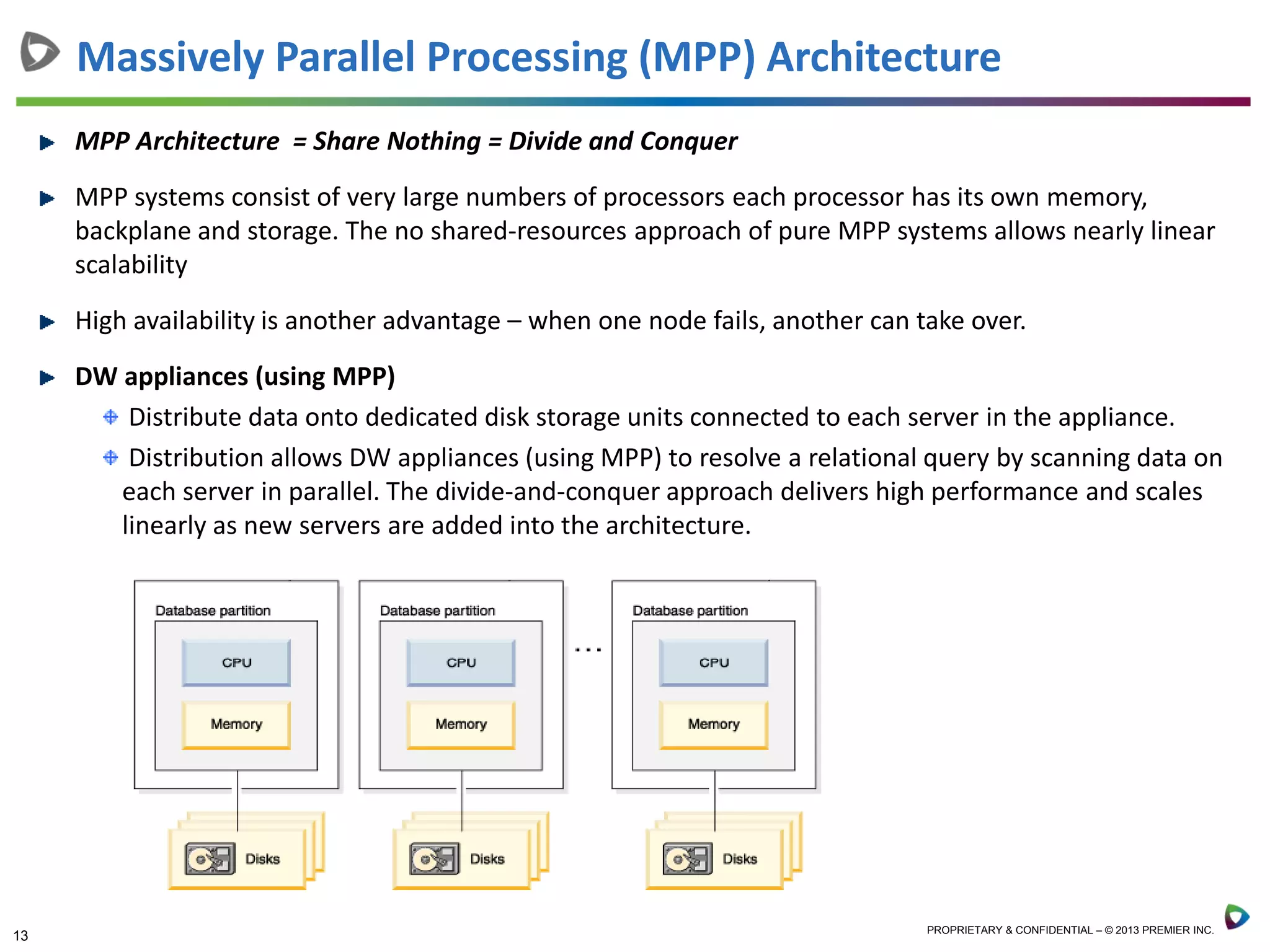

MPP Architecture = Share Nothing = Divide and Conquer
MPP systems consist of very large numbers of processors each processor has its own memory,
backplane and storage. The no shared-resources approach of pure MPP systems allows nearly linear
scalability
High availability is another advantage – when one node fails, another can take over.
DW appliances (using MPP)
Distribute data onto dedicated disk storage units connected to each server in the appliance.
Distribution allows DW appliances (using MPP) to resolve a relational query by scanning data on
each server in parallel. The divide-and-conquer approach delivers high performance and scales
linearly as new servers are added into the architecture.
Massively Parallel Processing (MPP) Architecture

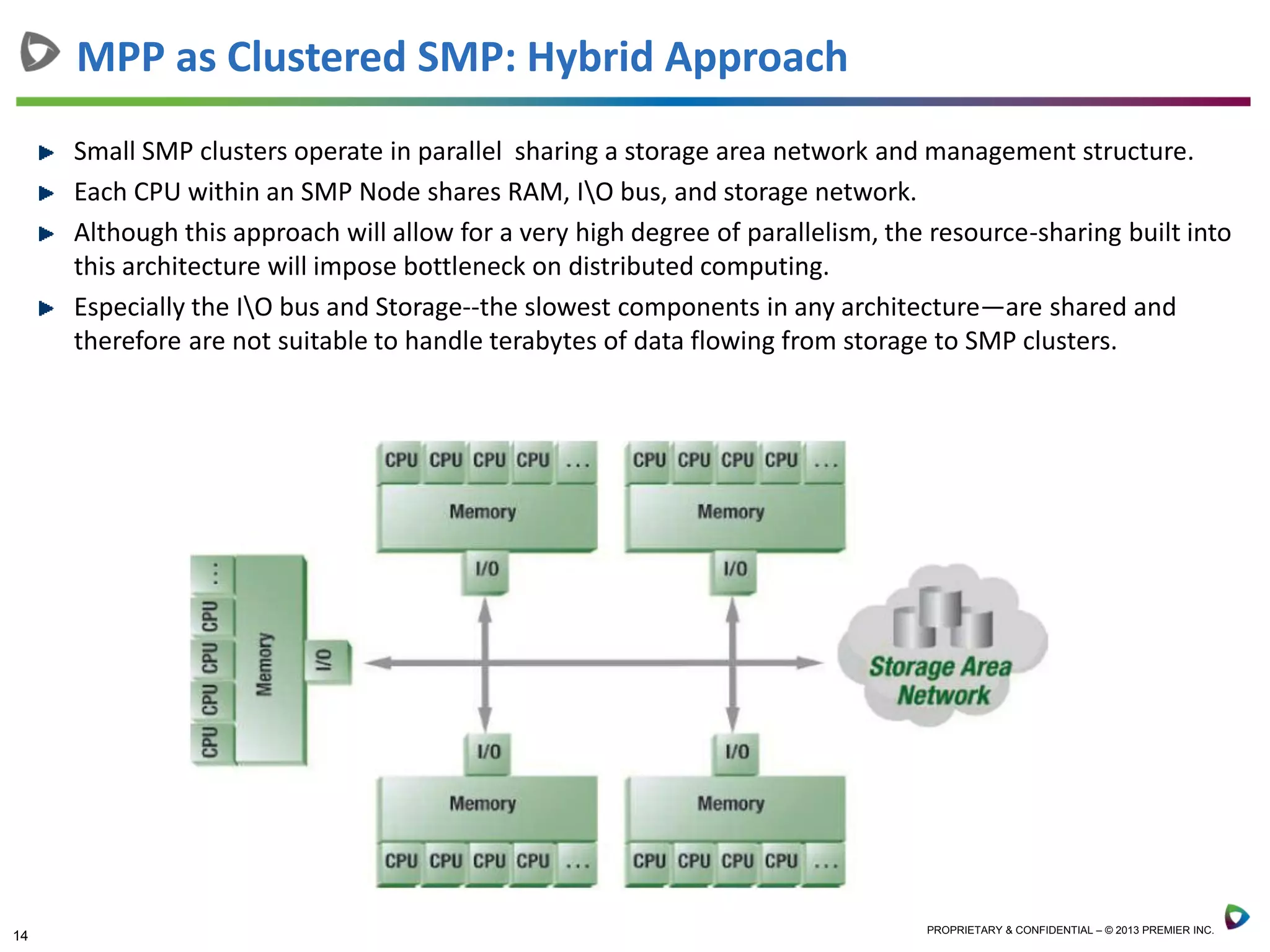

Small SMP clusters operate in parallel sharing a storage area network and management structure.
Each CPU within an SMP Node shares RAM, IO bus, and storage network.
Although this approach will allow for a very high degree of parallelism, the resource-sharing built into
this architecture will impose bottleneck on distributed computing.
Especially the IO bus and Storage--the slowest components in any architecture—are shared and
therefore are not suitable to handle terabytes of data flowing from storage to SMP clusters.
MPP as Clustered SMP: Hybrid Approach

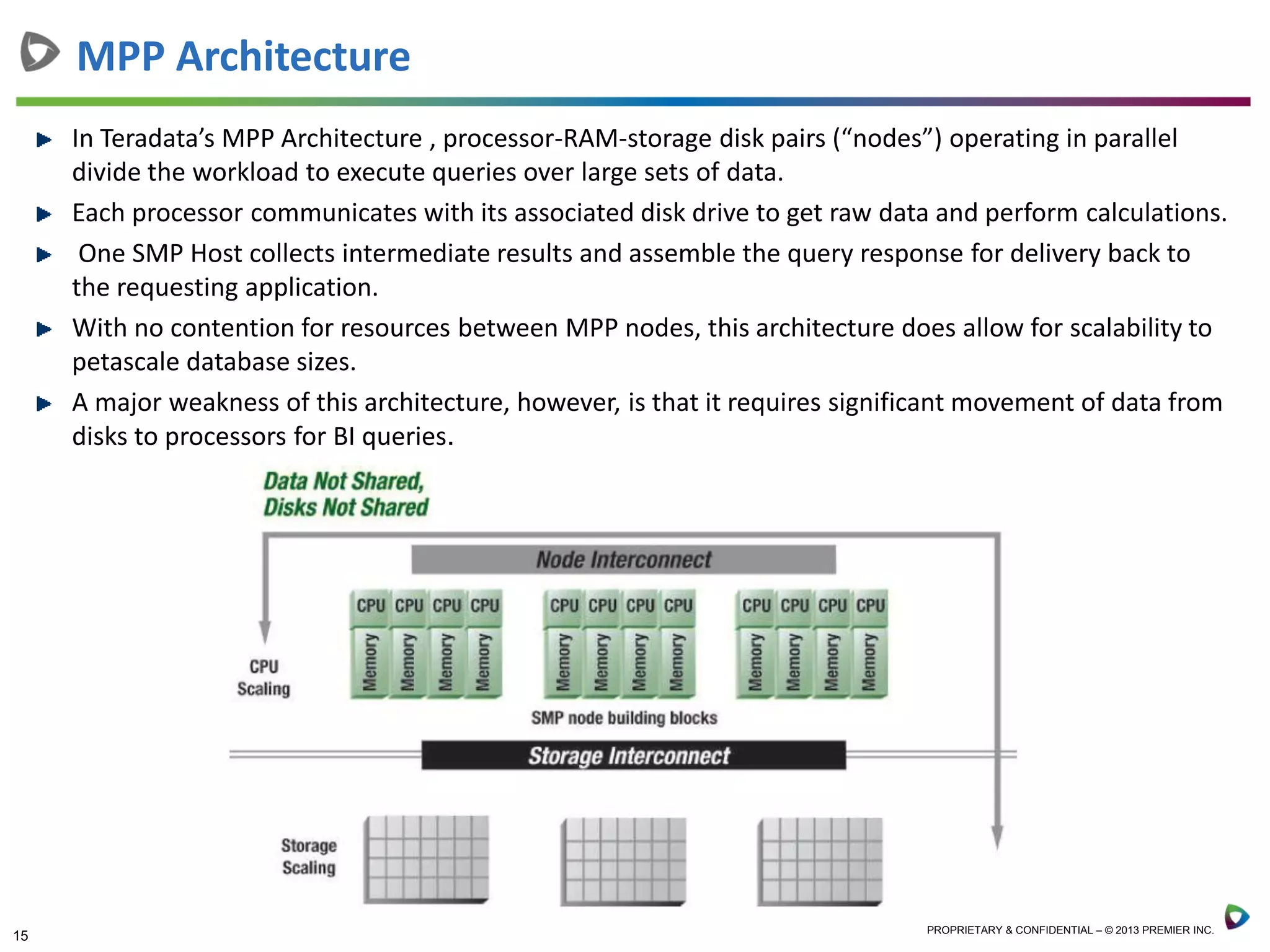

In Teradata’s MPP Architecture , processor-RAM-storage disk pairs (“nodes”) operating in parallel
divide the workload to execute queries over large sets of data.
Each processor communicates with its associated disk drive to get raw data and perform calculations.
One SMP Host collects intermediate results and assemble the query response for delivery back to
the requesting application.
With no contention for resources between MPP nodes, this architecture does allow for scalability to
petascale database sizes.
A major weakness of this architecture, however, is that it requires significant movement of data from
disks to processors for BI queries.
MPP Architecture

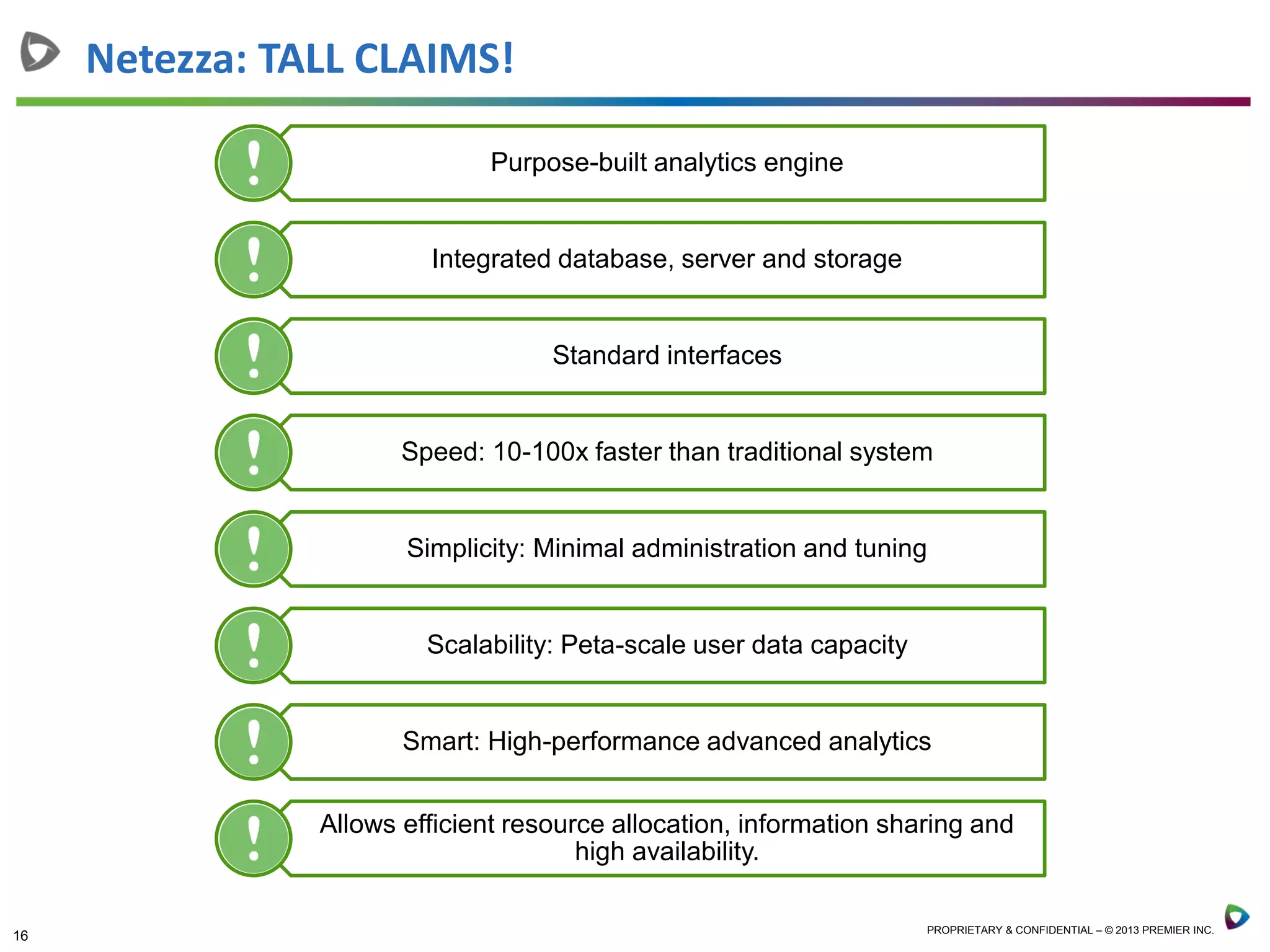

Purpose-built analytics engine
Integrated database, server and storage
Standard interfaces
Speed: 10-100x faster than traditional system
Simplicity: Minimal administration and tuning
Scalability: Peta-scale user data capacity
Smart: High-performance advanced analytics
Allows efficient resource allocation, information sharing and
high availability.
Netezza: TALL CLAIMS!

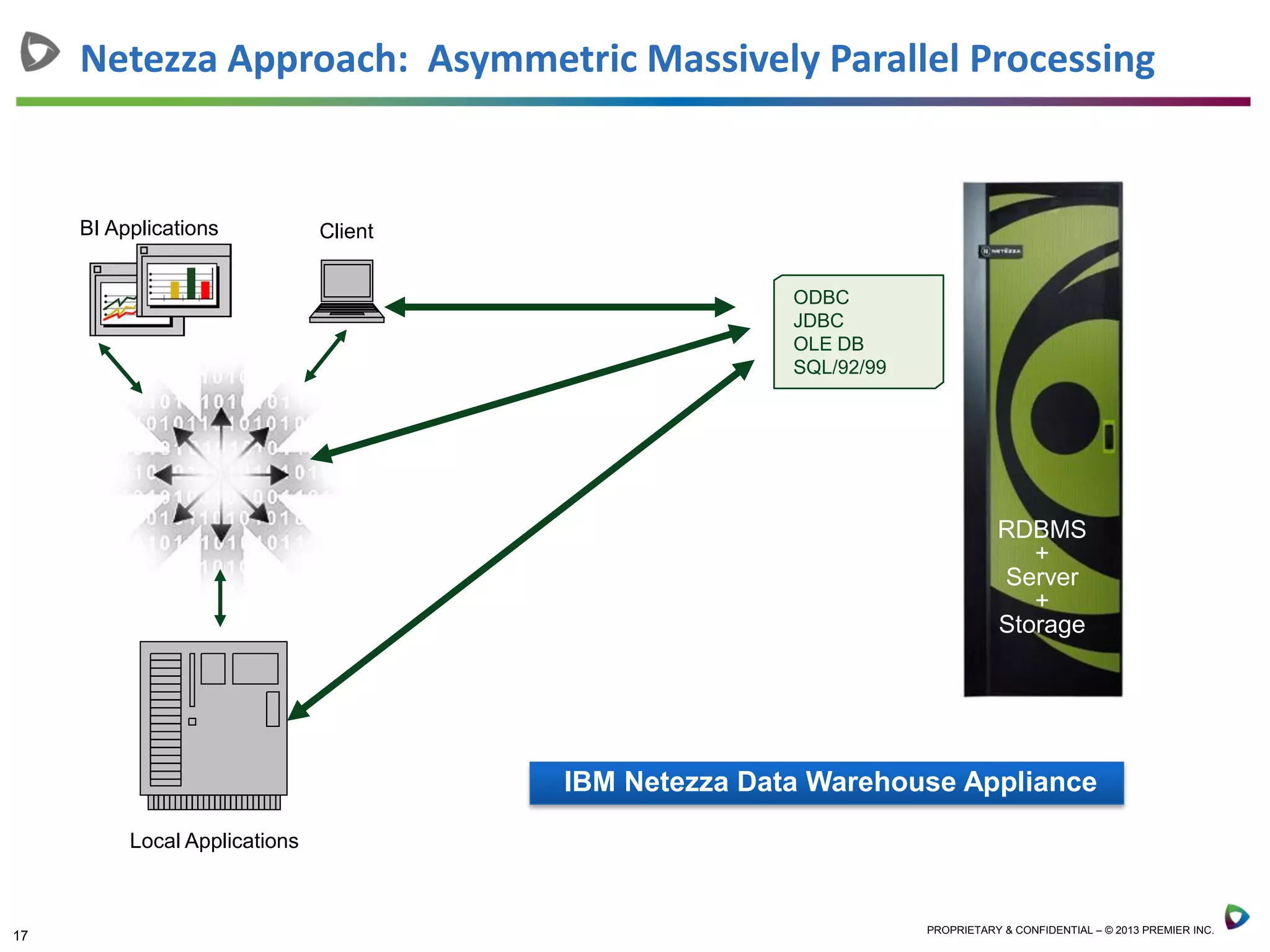

Netezza Approach: Asymmetric Massively Parallel Processing
ClientBI Applications
Local Applications
ODBC
JDBC
OLE DB
SQL/92/99
IBM Netezza Data Warehouse Appliance
RDBMS
Server
Storage
+
+
8150
RDBMS
+
Server
+
Storage

Moore’s Law: over the history of computing hardware, the number of transistors on integrated circuits doubles
approximately every two years.
TGMLC: The great Moore's law compensator (TGMLC), referred to as bloat or Wirth's law, is the principle that
successive generations of computer software acquire enough bloat to offset the performance gains predicted by
Moore's law.
In Netezza’ s AMPP architecture most processing is handled by the massively parallel snippet processing units (SPU),
as early in the data flow as possible. This approach of “bringing the query to the data” eliminates extraneous traffic
from storage to the CPU and the resulting delays.
Bringing Query to the Data
Demand for I/O is
outpacing CPU
Performance gains

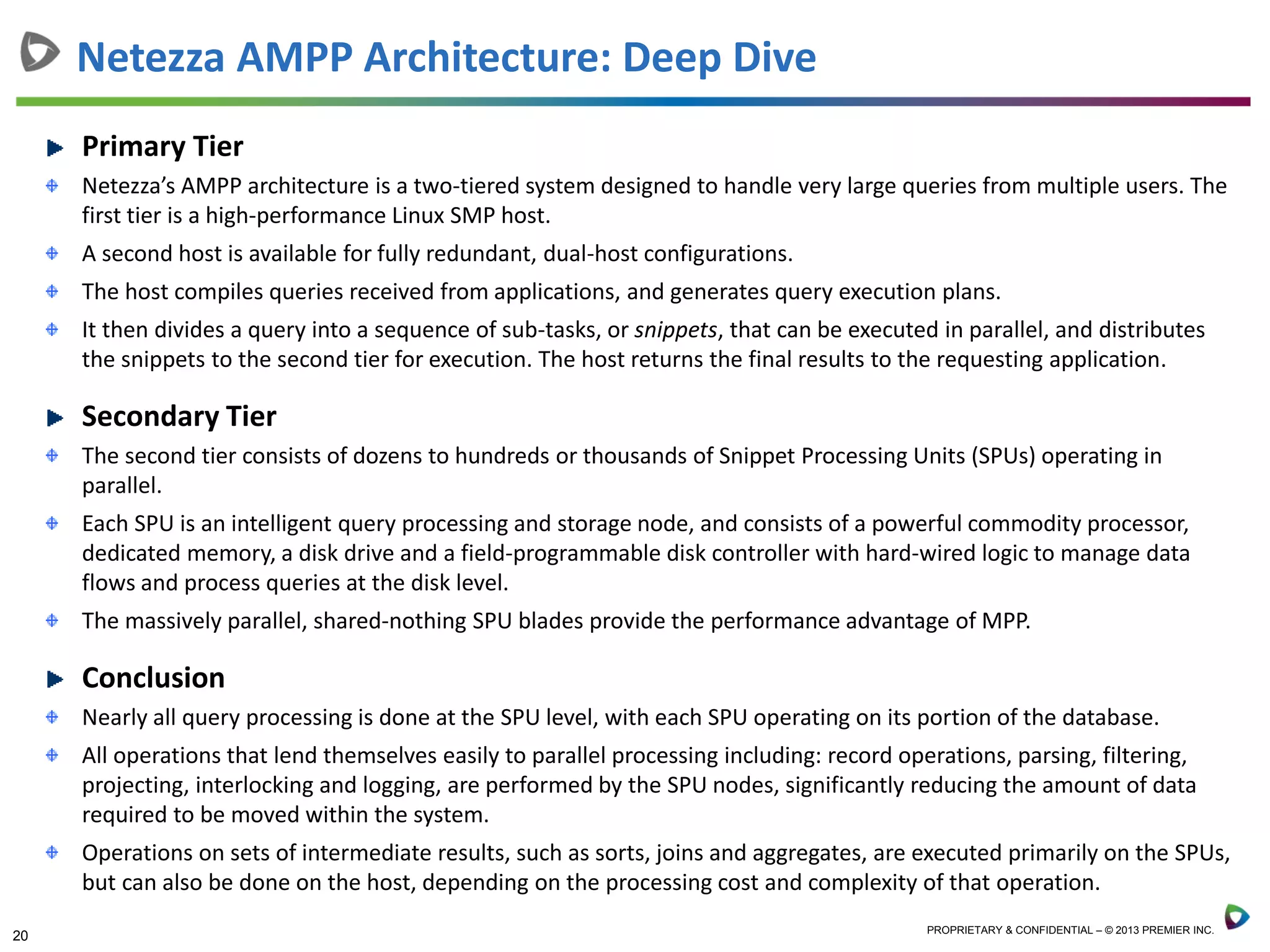

Netezza AMPP Architecture: Deep Dive

Primary Tier
Netezza’s AMPP architecture is a two-tiered system designed to handle very large queries from multiple users. The
first tier is a high-performance Linux SMP host.
A second host is available for fully redundant, dual-host configurations.
The host compiles queries received from applications, and generates query execution plans.
It then divides a query into a sequence of sub-tasks, or snippets, that can be executed in parallel, and distributes
the snippets to the second tier for execution. The host returns the final results to the requesting application.
Secondary Tier
The second tier consists of dozens to hundreds or thousands of Snippet Processing Units (SPUs) operating in
parallel.
Each SPU is an intelligent query processing and storage node, and consists of a powerful commodity processor,
dedicated memory, a disk drive and a field-programmable disk controller with hard-wired logic to manage data
flows and process queries at the disk level.
The massively parallel, shared-nothing SPU blades provide the performance advantage of MPP.
Conclusion
Nearly all query processing is done at the SPU level, with each SPU operating on its portion of the database.
All operations that lend themselves easily to parallel processing including: record operations, parsing, filtering,
projecting, interlocking and logging, are performed by the SPU nodes, significantly reducing the amount of data
required to be moved within the system.
Operations on sets of intermediate results, such as sorts, joins and aggregates, are executed primarily on the SPUs,
but can also be done on the host, depending on the processing cost and complexity of that operation.
Netezza AMPP Architecture: Deep Dive

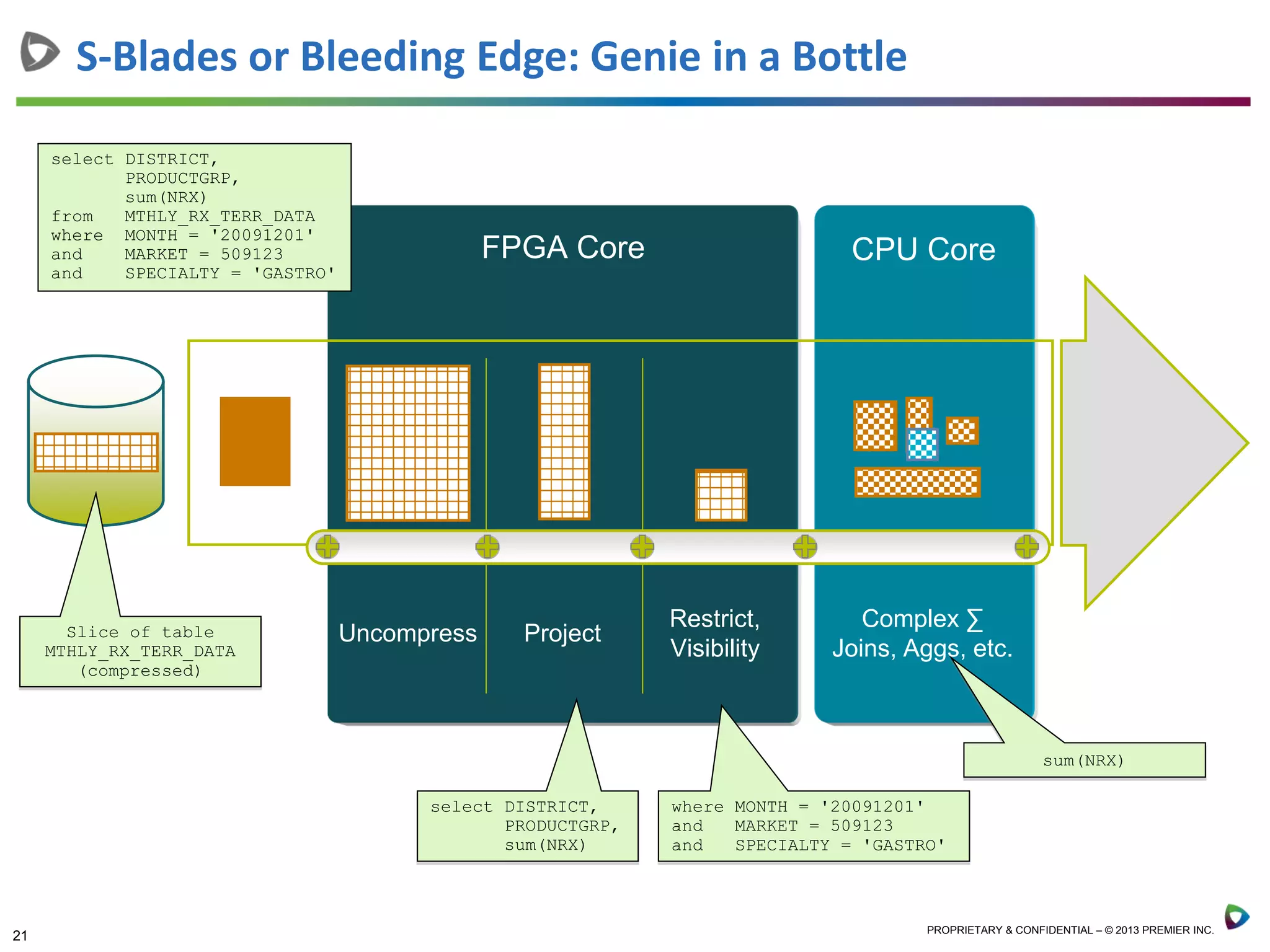

S-Blades or Bleeding Edge: Genie in a Bottle
FPGA Core CPU Core
Uncompress Project
Restrict,
Visibility
Complex ∑
Joins, Aggs, etc.
select DISTRICT,
PRODUCTGRP,
sum(NRX)
from MTHLY_RX_TERR_DATA
where MONTH = '20091201'
and MARKET = 509123
and SPECIALTY = 'GASTRO'
Slice of table
MTHLY_RX_TERR_DATA
(compressed)
where MONTH = '20091201'
and MARKET = 509123
and SPECIALTY = 'GASTRO'
sum(NRX)
select DISTRICT,
PRODUCTGRP,
sum(NRX)

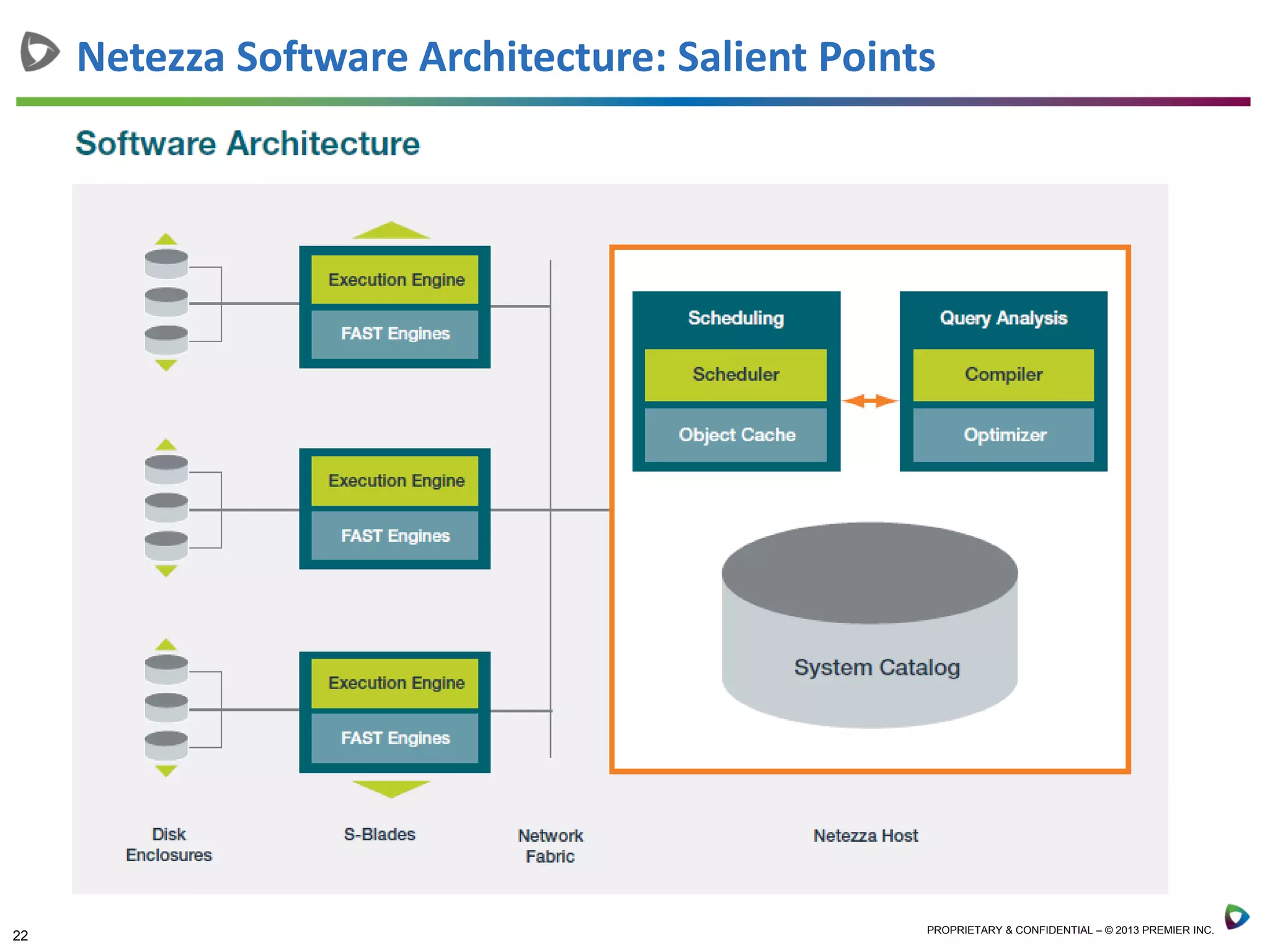

Netezza Software Architecture: Salient Points

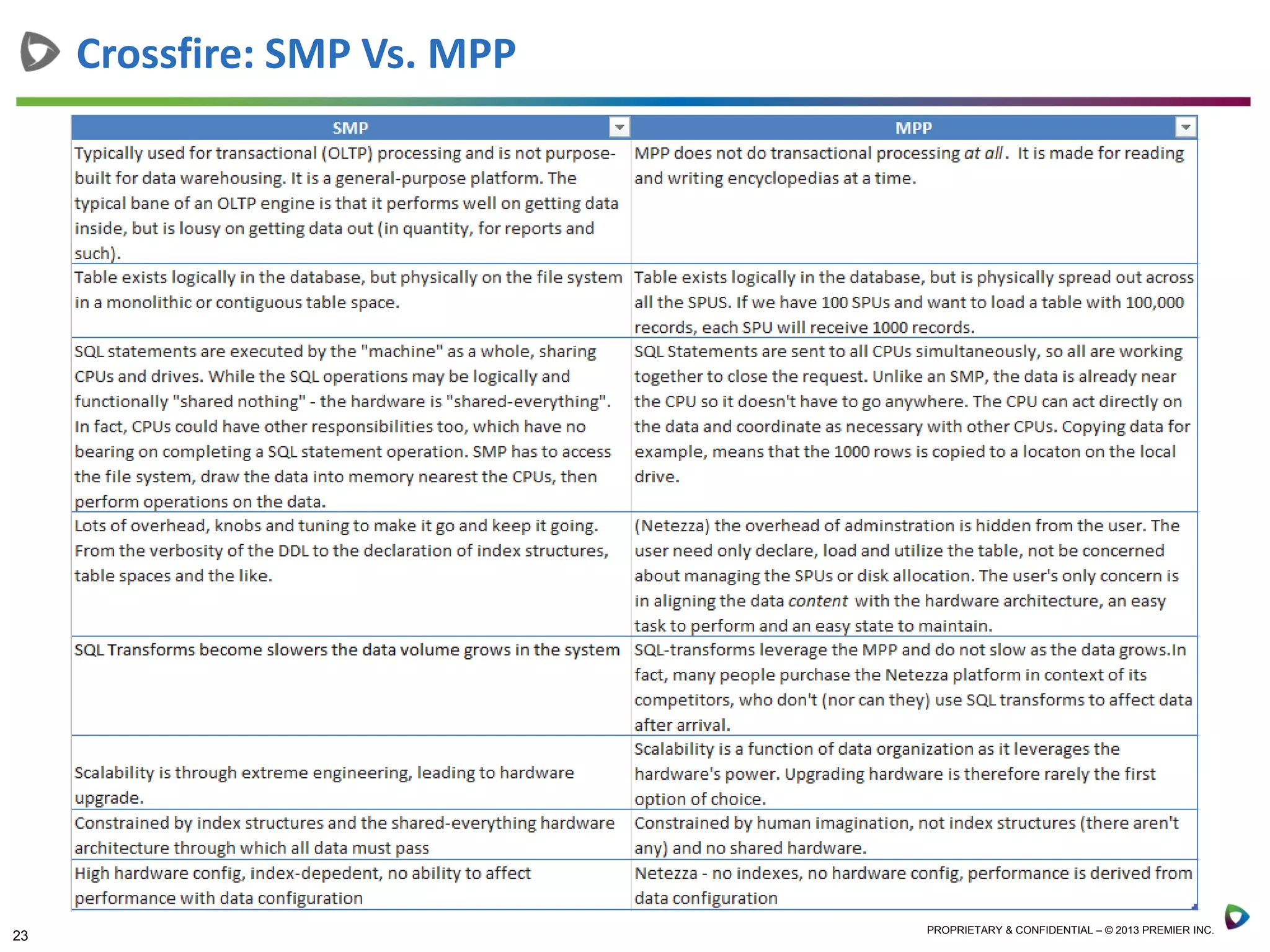

Crossfire: SMP Vs. MPP

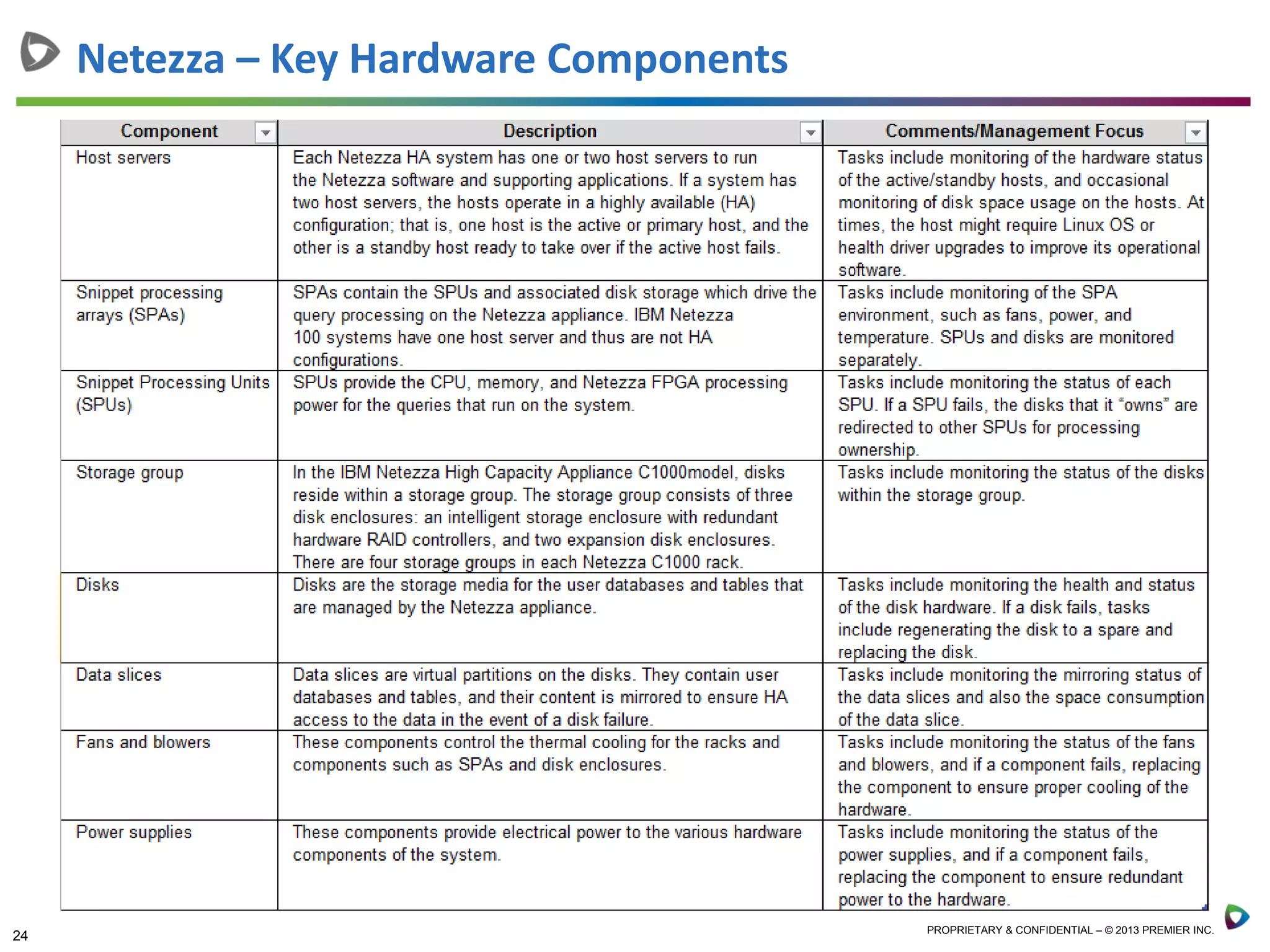

Netezza – Key Hardware Components

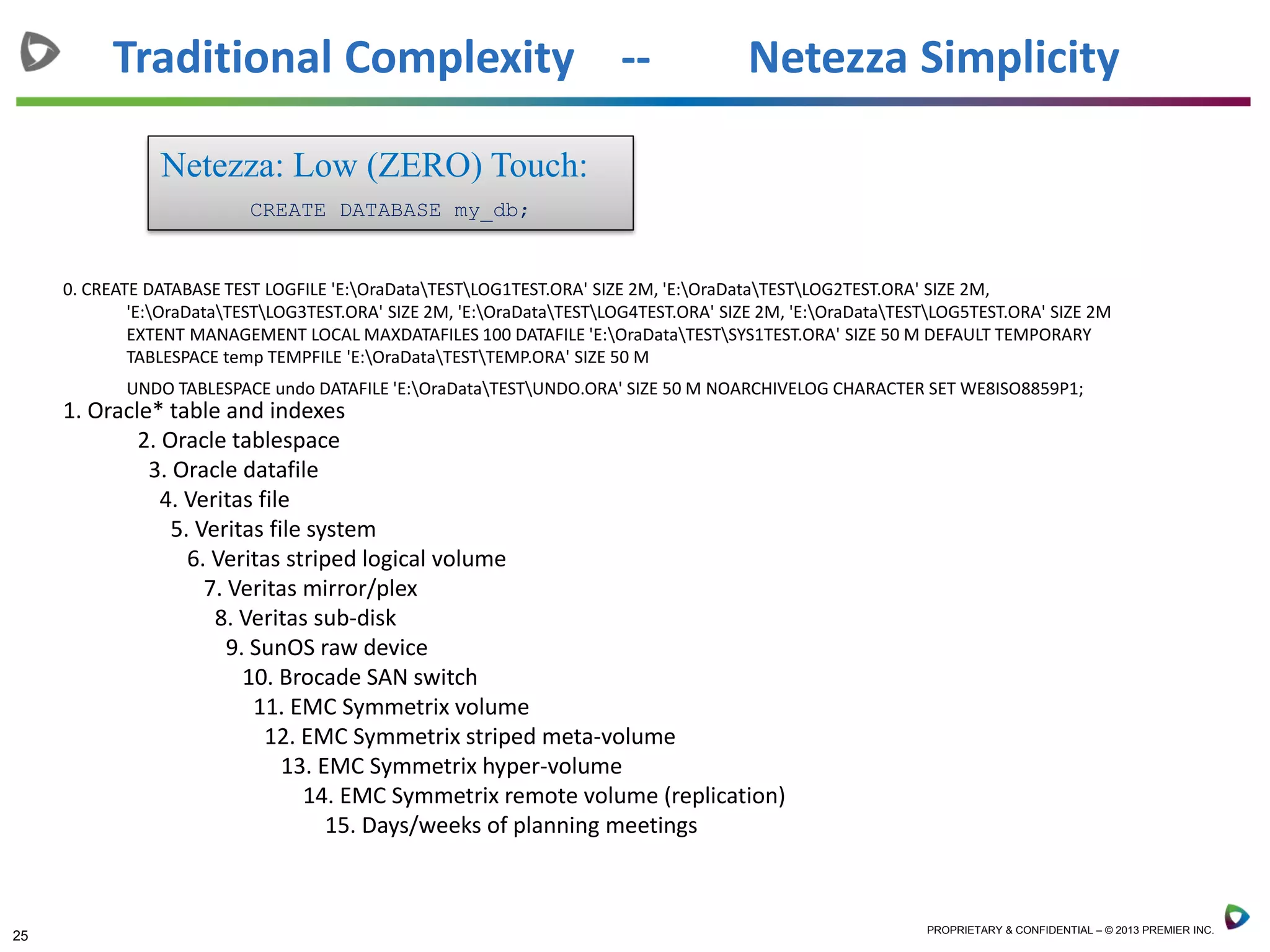

Traditional Complexity -- Netezza Simplicity
0. CREATE DATABASE TEST LOGFILE 'E:OraDataTESTLOG1TEST.ORA' SIZE 2M, 'E:OraDataTESTLOG2TEST.ORA' SIZE 2M,
'E:OraDataTESTLOG3TEST.ORA' SIZE 2M, 'E:OraDataTESTLOG4TEST.ORA' SIZE 2M, 'E:OraDataTESTLOG5TEST.ORA' SIZE 2M
EXTENT MANAGEMENT LOCAL MAXDATAFILES 100 DATAFILE 'E:OraDataTESTSYS1TEST.ORA' SIZE 50 M DEFAULT TEMPORARY
TABLESPACE temp TEMPFILE 'E:OraDataTESTTEMP.ORA' SIZE 50 M
UNDO TABLESPACE undo DATAFILE 'E:OraDataTESTUNDO.ORA' SIZE 50 M NOARCHIVELOG CHARACTER SET WE8ISO8859P1;
1. Oracle* table and indexes
2. Oracle tablespace
3. Oracle datafile
4. Veritas file
5. Veritas file system
6. Veritas striped logical volume
7. Veritas mirror/plex
8. Veritas sub-disk
9. SunOS raw device
10. Brocade SAN switch
11. EMC Symmetrix volume
12. EMC Symmetrix striped meta-volume
13. EMC Symmetrix hyper-volume
14. EMC Symmetrix remote volume (replication)
15. Days/weeks of planning meetings
Netezza: Low (ZERO) Touch:
CREATE DATABASE my_db;

Oracle (Existing DDL)
Oracle Create Table - Logical Model
CREATE TABLE MTHLY_RX_TERR_DATA
(
TERR_HIER_SK INTEGER,
CAL_DT_SK INTEGER,
CUST_INCTV_GEO_SK INTEGER,
PROD_SK INTEGER,
DIST_CHAN_SK INTEGER,
PSCRBR_CUST_SK INTEGER,
PLAN_CUST_SK INTEGER,
SRC_SYS_SK INTEGER,
NRX_COUNT NUMBER(15,3),
XY_PROD_ID NUMBER(10),
NRX_UNITS_QTY NUMBER(15,3),
XY_TERR_ID NUMBER,
NRX_DOL_AMT NUMBER(15,3),
TRX_COUNT NUMBER(15,3),
TRX_UNITS_QTY NUMBER(15,3),
TRX_DOL_AMT NUMBER(15,3),
ADS_ROW_LOAD_DT DATE,
PSCRBR_XY_CUST_ID VARCHAR2(30 BYTE),
PLAN_XY_CUST_ID VARCHAR2(30 BYTE),
ADS_ROW_LAST_UPDT_DT DATE,
PROD_LEVEL VARCHAR2(30 BYTE),
MONTH_NUM INTEGER,
XY_HCP_INCTV_ZIP_CD VARCHAR2(20 BYTE),
IMS_PLAN_ID VARCHAR2(20 BYTE),
MKT_SPEC_GROUP_ID VARCHAR2(20 BYTE),
ALGN_TYPE_FLAG VARCHAR2(10 BYTE)
)
Oracle Create Tablespaces, Partitions
TABLESPACE ADS1_DATA
PCTUSED 0
PCTFREE 10
INITRANS 1
MAXTRANS 255
NOLOGGING
PARTITION BY RANGE (MONTH_NUM)
SUBPARTITION BY LIST (PROD_LEVEL)
SUBPARTITION TEMPLATE
(SUBPARTITION BRAND VALUES ('BRAND'),
SUBPARTITION PRODGROUP VALUES ('PRODGROUP'),
SUBPARTITION PFS VALUES ('PFS'),
SUBPARTITION OTHERS VALUES (DEFAULT)
)
(
PARTITION P_DEFAULT_LL VALUES LESS THAN (1)
NOLOGGING
TABLESPACE ADS1_DATA
PCTFREE 10
INITRANS 1
MAXTRANS 255
STORAGE (
BUFFER_POOL DEFAULT
). . .
Oracle Create Indexes –
CREATE INDEX MRT_PLAN_XY_CUST_ID ON MTHLY_RX_TERR_DATA
(PLAN_XY_CUST_ID)
NOLOGGING
TABLESPACE ADS1_INDEX
PCTFREE 10
INITRANS 2
MAXTRANS 255
STORAGE (
INITIAL 64K
MINEXTENTS 1
MAXEXTENTS 2147483645
PCTINCREASE 0
BUFFER_POOL DEFAULT
)
PARALLEL ( DEGREE DEFAULT INSTANCES DEFAULT );
Netezza DDL
Create Table - Logical Model
CREATE TABLE MTHLY_RX_TERR_DATA
(
TERR_HIER_SK INTEGER,
CAL_DT_SK INTEGER,
CUST_INCTV_GEO_SK INTEGER,
PROD_SK INTEGER,
DIST_CHAN_SK INTEGER,
PSCRBR_CUST_SK INTEGER,
PLAN_CUST_SK INTEGER,
SRC_SYS_SK INTEGER,
NRX_COUNT NUMERIC(15,3),
XY_PROD_ID BIGINT,
NRX_UNITS_QTY NUMERIC(15,3),
XY_TERR_ID BIGINT,
NRX_DOL_AMT NUMERIC(15,3),
TRX_COUNT NUMERIC(15,3),
TRX_UNITS_QTY NUMERIC(15,3),
TRX_DOL_AMT NUMERIC(15,3),
ADS_ROW_LOAD_DT TIMESTAMP,
PSCRBR_XY_CUST_ID VARCHAR(30),
PLAN_XY_CUST_ID VARCHAR(30),
ADS_ROW_LAST_UPDT_DT TIMESTAMP,
PROD_LEVEL VARCHAR(30),
MONTH_NUM INTEGER,
XY_HCP_INCTV_ZIP_CD VARCHAR(20),
IMS_PLAN_ID VARCHAR(20),
MKT_SPEC_GROUP_ID VARCHAR(20),
ALGN_TYPE_FLAG VARCHAR(10)
)
DISTRIBUTE ON (PSCRBR_XY_CUST_ID);
• Logical Model Only
• No indexes
• No Physical Tuning /
Admin
• Distribute Data by
Columns or round robin
Netezza eliminates
indexes, and their
associated storage
space, and re-build times
currently required by
Oracle, DB2, SQL Server
Data Model Migration and Simplification

The KISS Principle – Yes, its that simple!….
 No dbspace/tablespace sizing and configuration
 No redo/physical/Logical log sizing and configuration
 No page/block sizing and configuration for tables
 No extent sizing and configuration for tables
 No Temp space allocation and monitoring
 No RAID level decisions for dbspaces
 No logical volume creations of files
 No integration of OS kernel recommendations
 No maintenance of OS recommended patch levels
 No JAD sessions to configure host/network/storage
No storage administration
No indexes and tuning
No software installation
Resources become Data
Managers instead of
Database Administrators

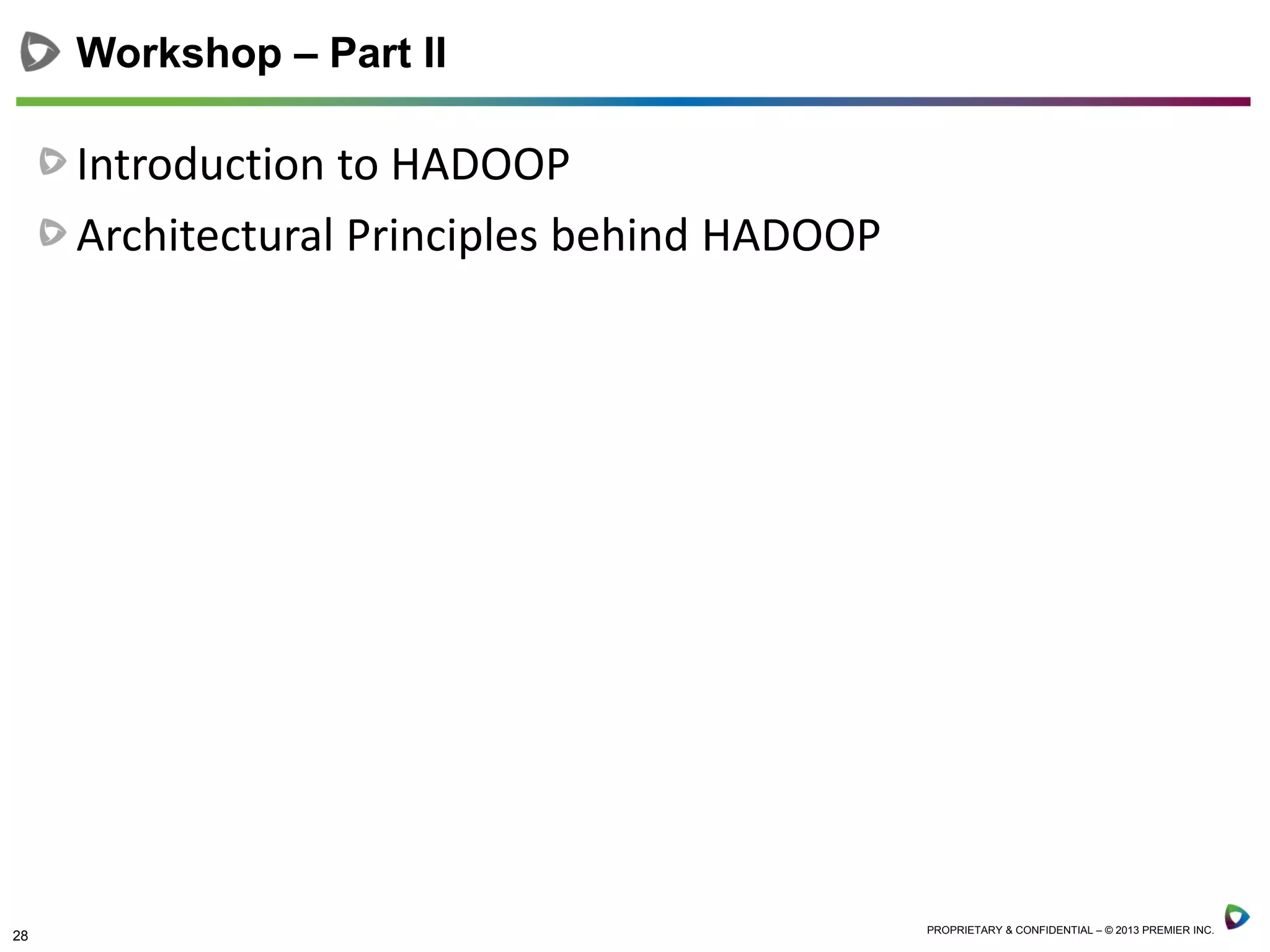

Introduction to HADOOP
Architectural Principles behind HADOOP
Workshop – Part II

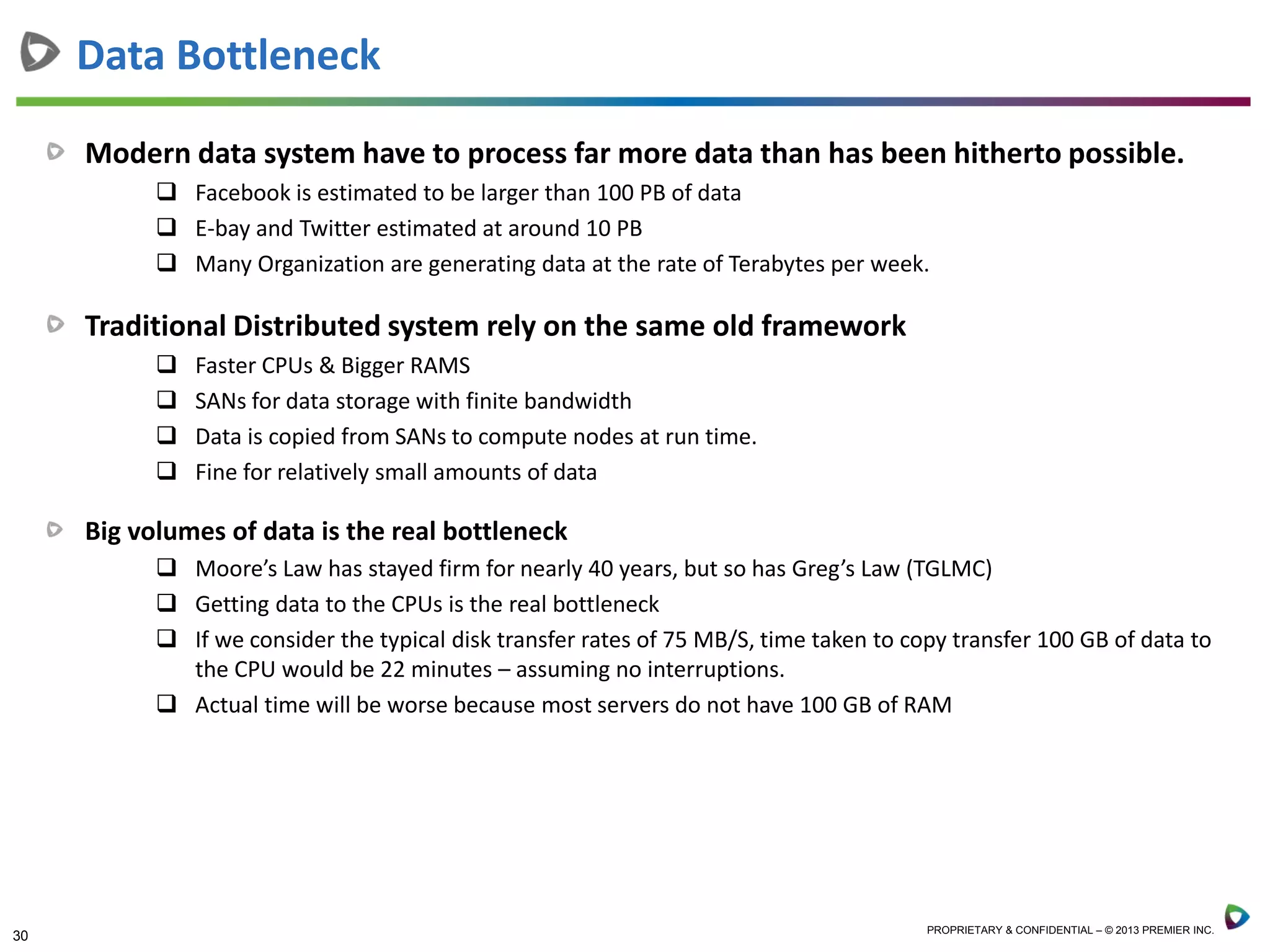

The Specter of Big Data!

Modern data system have to process far more data than has been hitherto possible.
 Facebook is estimated to be larger than 100 PB of data
 E-bay and Twitter estimated at around 10 PB
 Many Organization are generating data at the rate of Terabytes per week.
Traditional Distributed system rely on the same old framework
 Faster CPUs & Bigger RAMS
 SANs for data storage with finite bandwidth
 Data is copied from SANs to compute nodes at run time.
 Fine for relatively small amounts of data
Big volumes of data is the real bottleneck
 Moore’s Law has stayed firm for nearly 40 years, but so has Greg’s Law (TGLMC)
 Getting data to the CPUs is the real bottleneck
 If we consider the typical disk transfer rates of 75 MB/S, time taken to copy transfer 100 GB of data to
the CPU would be 22 minutes – assuming no interruptions.
 Actual time will be worse because most servers do not have 100 GB of RAM
Data Bottleneck

Requirements for a New Approach!
Support Failure
Failures of components should result in a graceful decline of performance—not system failures.
Failed components should be able to rejoin the system upon recovery.
Data & Component Recoverability
Component failures should not affect the execution or the outcome of a job
Failure should not result in any loss of data
If a component fails, its work should be resumed by the functioning units of the system.
Scalability
Adding load to the system should result in graceful decline of performance not system failures
Increasing system resources should support increased load capacity and performance agility

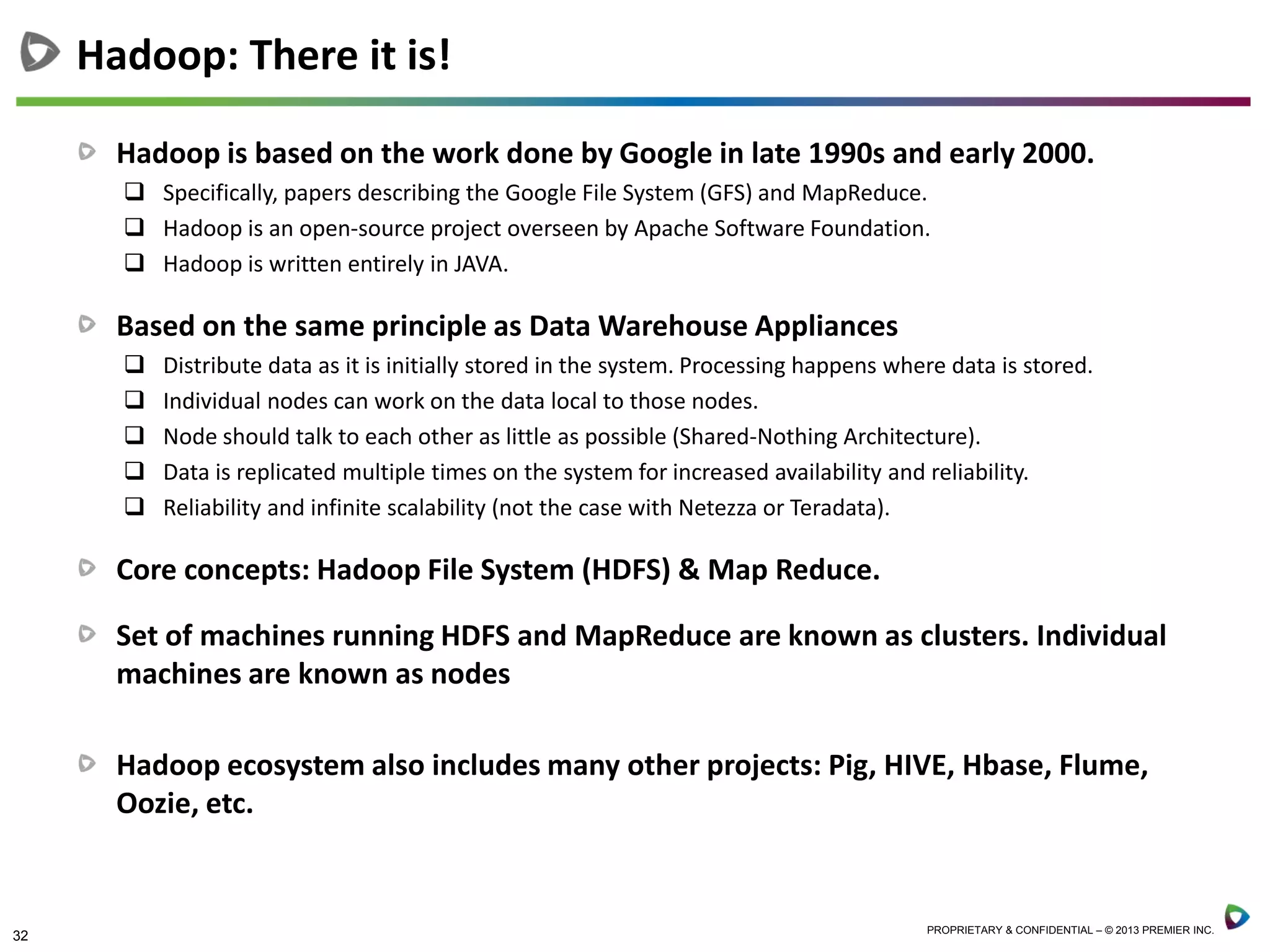

Hadoop is based on the work done by Google in late 1990s and early 2000.
 Specifically, papers describing the Google File System (GFS) and MapReduce.
 Hadoop is an open-source project overseen by Apache Software Foundation.
 Hadoop is written entirely in JAVA.
Based on the same principle as Data Warehouse Appliances
 Distribute data as it is initially stored in the system. Processing happens where data is stored.
 Individual nodes can work on the data local to those nodes.
 Node should talk to each other as little as possible (Shared-Nothing Architecture).
 Data is replicated multiple times on the system for increased availability and reliability.
 Reliability and infinite scalability (not the case with Netezza or Teradata).
Core concepts: Hadoop File System (HDFS) & Map Reduce.
Set of machines running HDFS and MapReduce are known as clusters. Individual
machines are known as nodes
Hadoop ecosystem also includes many other projects: Pig, HIVE, Hbase, Flume,
Oozie, etc.
Hadoop: There it is!

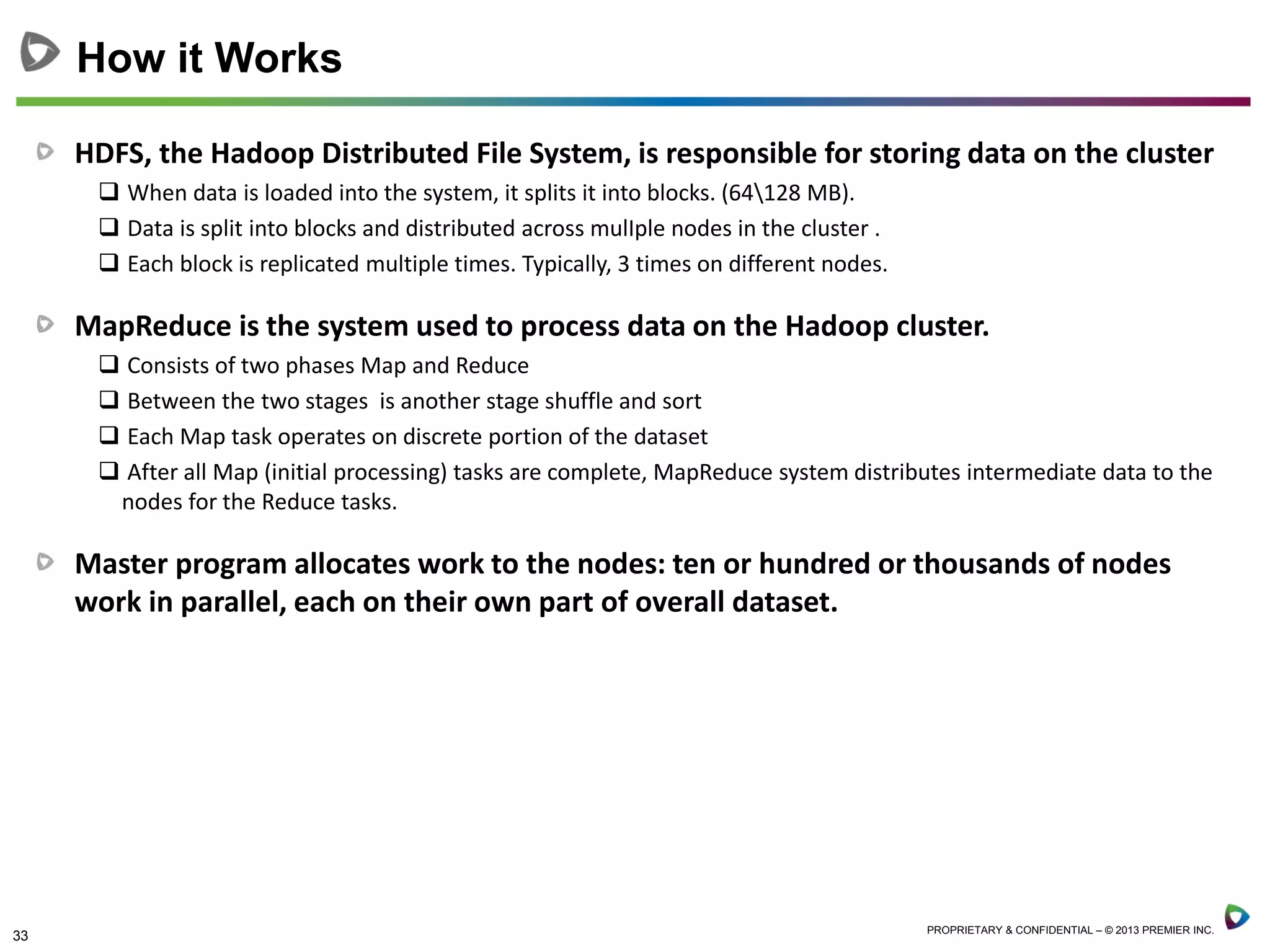

HDFS, the Hadoop Distributed File System, is responsible for storing data on the cluster
 When data is loaded into the system, it splits it into blocks. (64128 MB).
 Data is split into blocks and distributed across mulIple nodes in the cluster .
 Each block is replicated multiple times. Typically, 3 times on different nodes.
MapReduce is the system used to process data on the Hadoop cluster.
 Consists of two phases Map and Reduce
 Between the two stages is another stage shuffle and sort
 Each Map task operates on discrete portion of the dataset
 After all Map (initial processing) tasks are complete, MapReduce system distributes intermediate data to the
nodes for the Reduce tasks.
Master program allocates work to the nodes: ten or hundred or thousands of nodes
work in parallel, each on their own part of overall dataset.

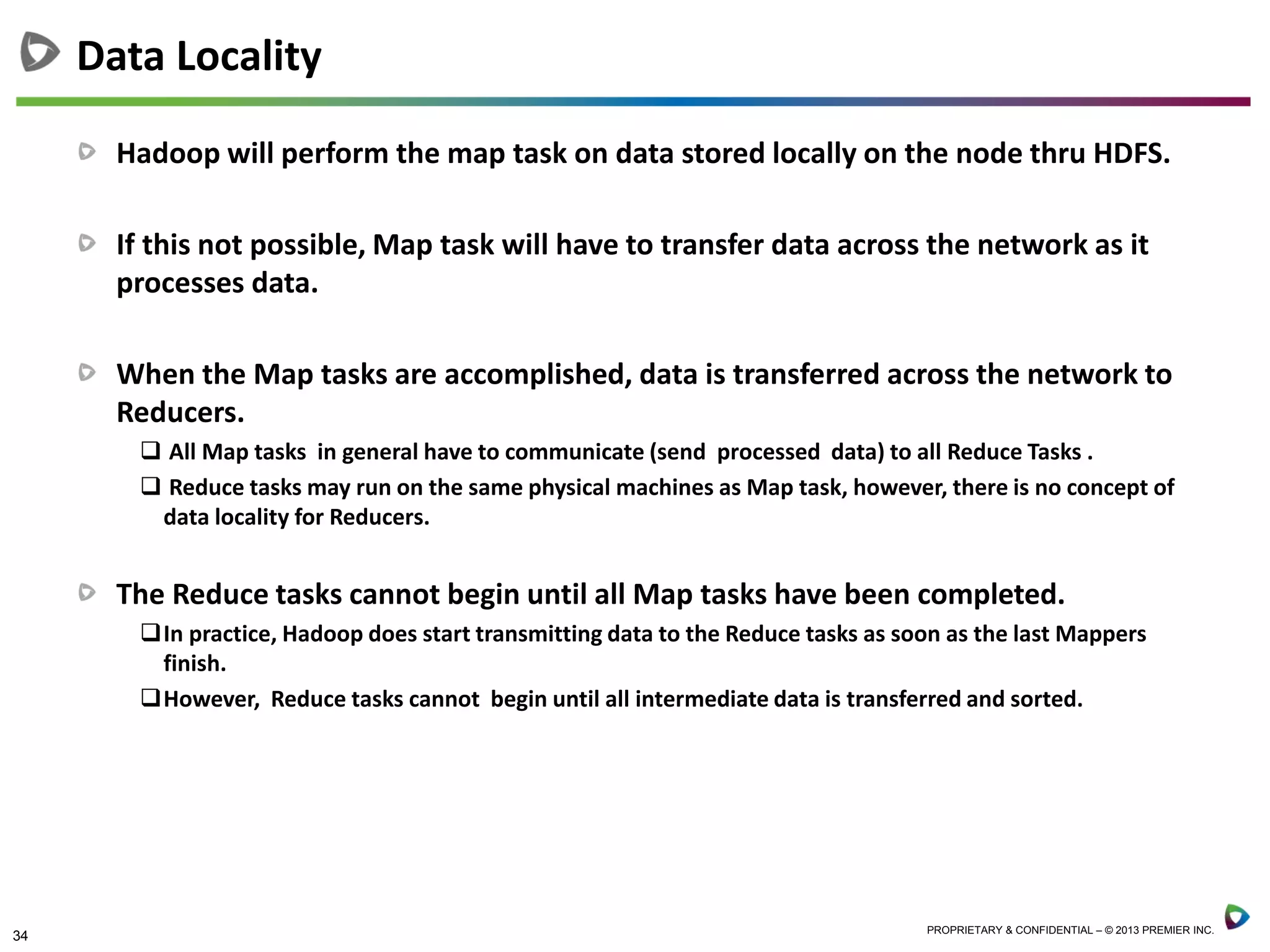

How it Works

Hadoop will perform the map task on data stored locally on the node thru HDFS.
If this not possible, Map task will have to transfer data across the network as it
processes data.
When the Map tasks are accomplished, data is transferred across the network to
Reducers.
 All Map tasks in general have to communicate (send processed data) to all Reduce Tasks .
 Reduce tasks may run on the same physical machines as Map task, however, there is no concept of
data locality for Reducers.
The Reduce tasks cannot begin until all Map tasks have been completed.
In practice, Hadoop does start transmitting data to the Reduce tasks as soon as the last Mappers
finish.
However, Reduce tasks cannot begin until all intermediate data is transferred and sorted.
Data Locality

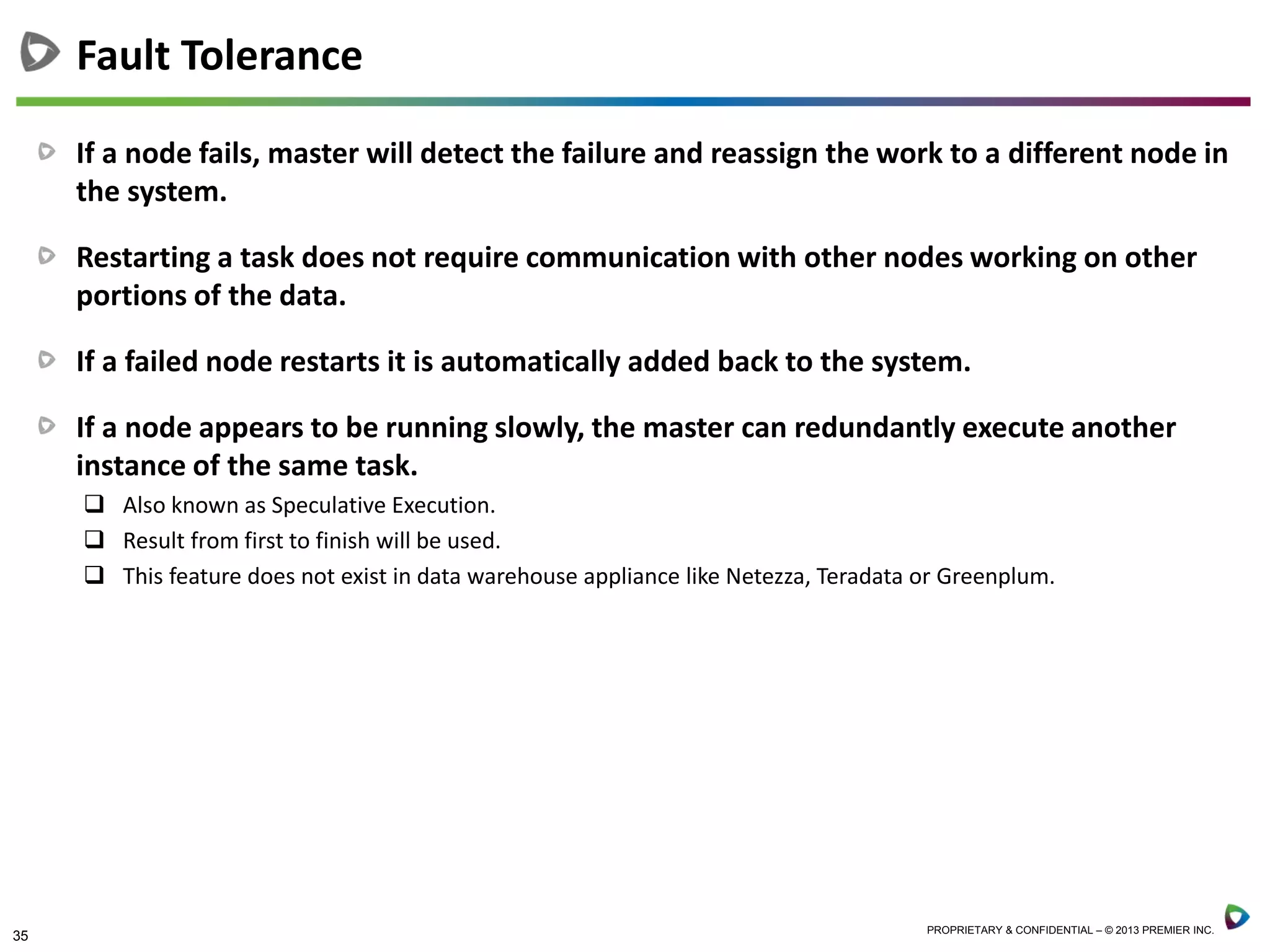

If a node fails, master will detect the failure and reassign the work to a different node in
the system.
Restarting a task does not require communication with other nodes working on other
portions of the data.
If a failed node restarts it is automatically added back to the system.
If a node appears to be running slowly, the master can redundantly execute another
instance of the same task.
 Also known as Speculative Execution.
 Result from first to finish will be used.
 This feature does not exist in data warehouse appliance like Netezza, Teradata or Greenplum.
Fault Tolerance

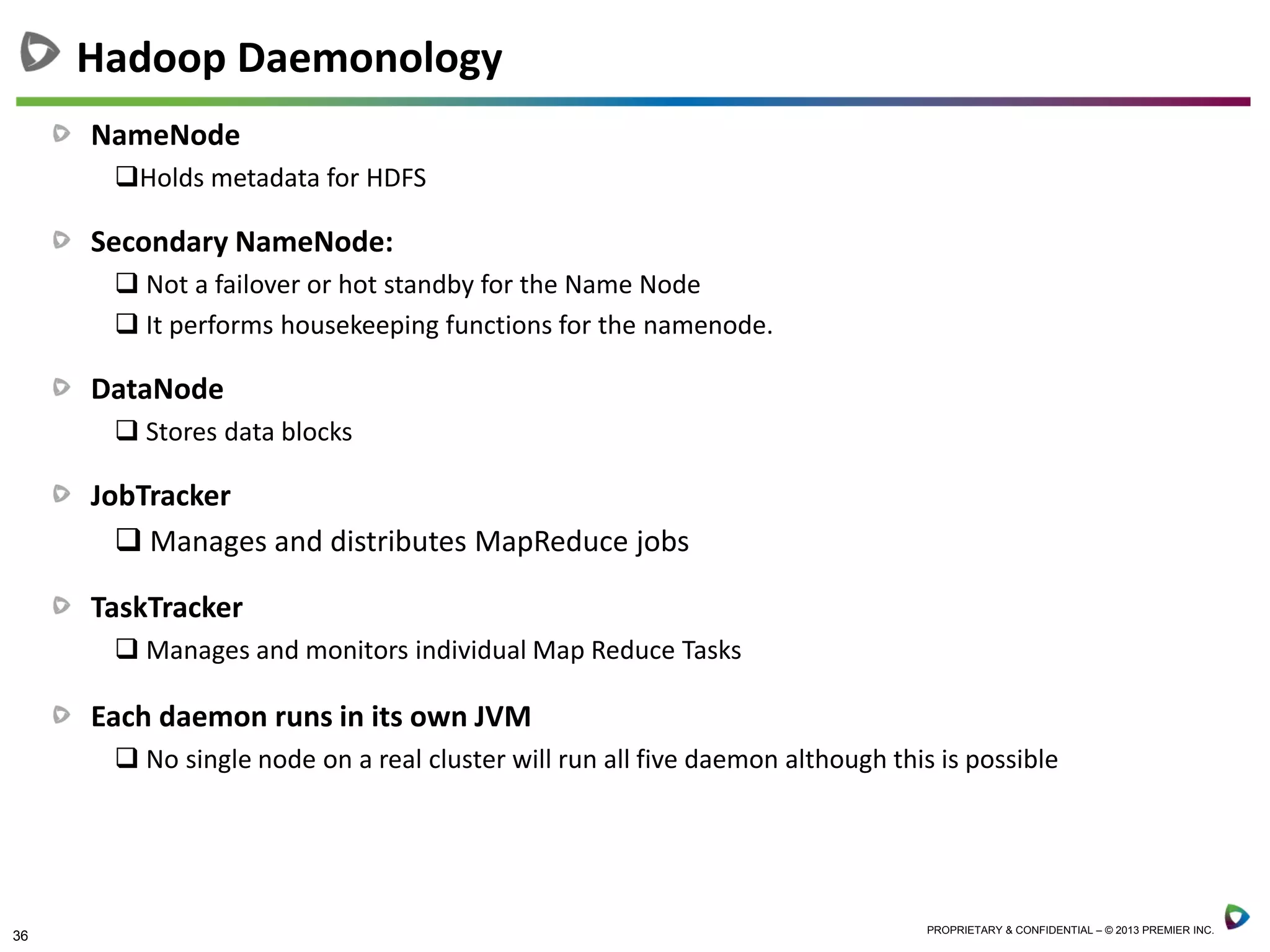

NameNode
Holds metadata for HDFS
Secondary NameNode:
 Not a failover or hot standby for the Name Node
 It performs housekeeping functions for the namenode.
DataNode
 Stores data blocks
JobTracker
 Manages and distributes MapReduce jobs
TaskTracker
 Manages and monitors individual Map Reduce Tasks
Each daemon runs in its own JVM
 No single node on a real cluster will run all five daemon although this is possible
Hadoop Daemonology

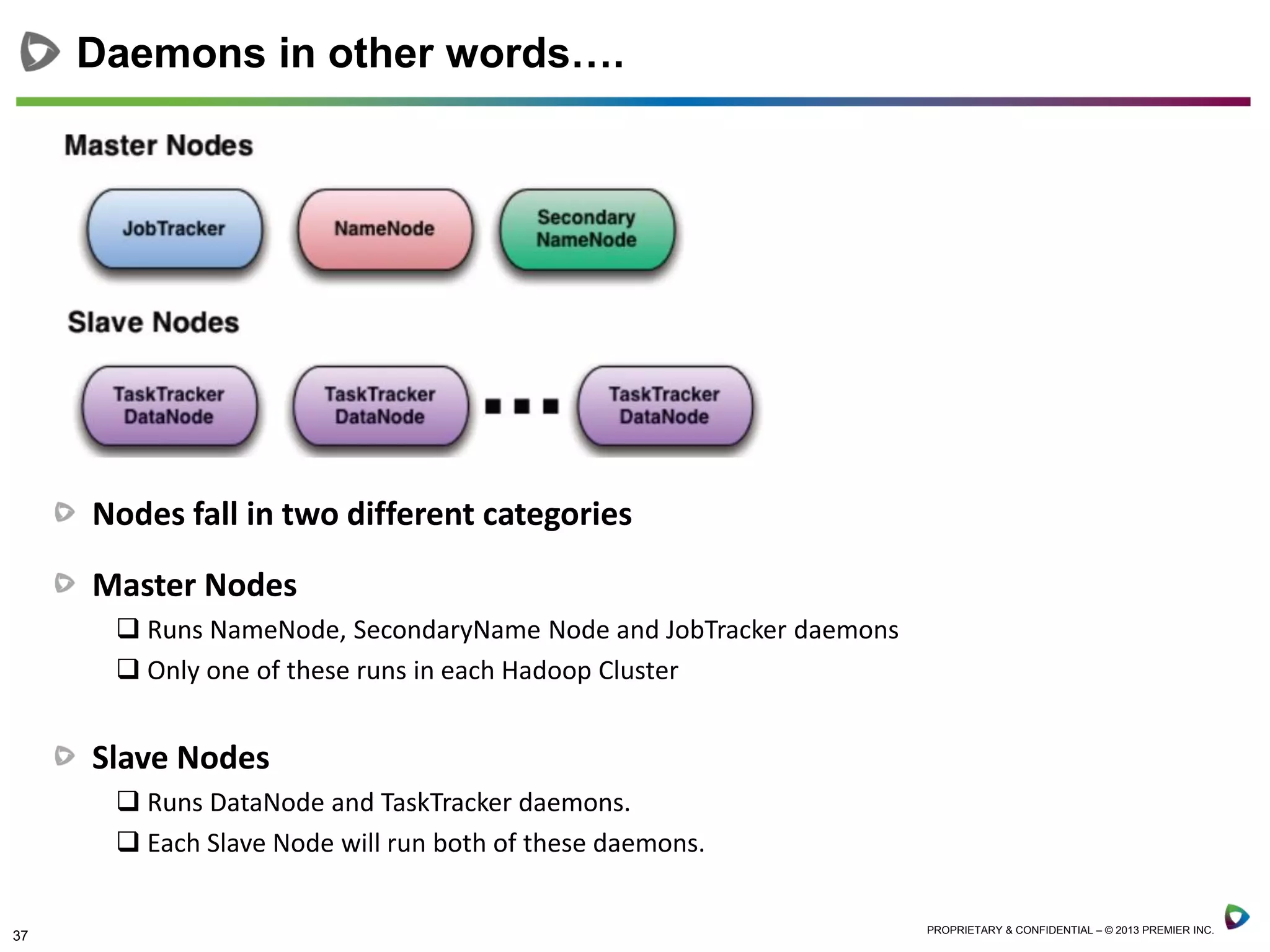

Nodes fall in two different categories
Master Nodes
 Runs NameNode, SecondaryName Node and JobTracker daemons
 Only one of these runs in each Hadoop Cluster
Slave Nodes
 Runs DataNode and TaskTracker daemons.
 Each Slave Node will run both of these daemons.
Daemons in other words….

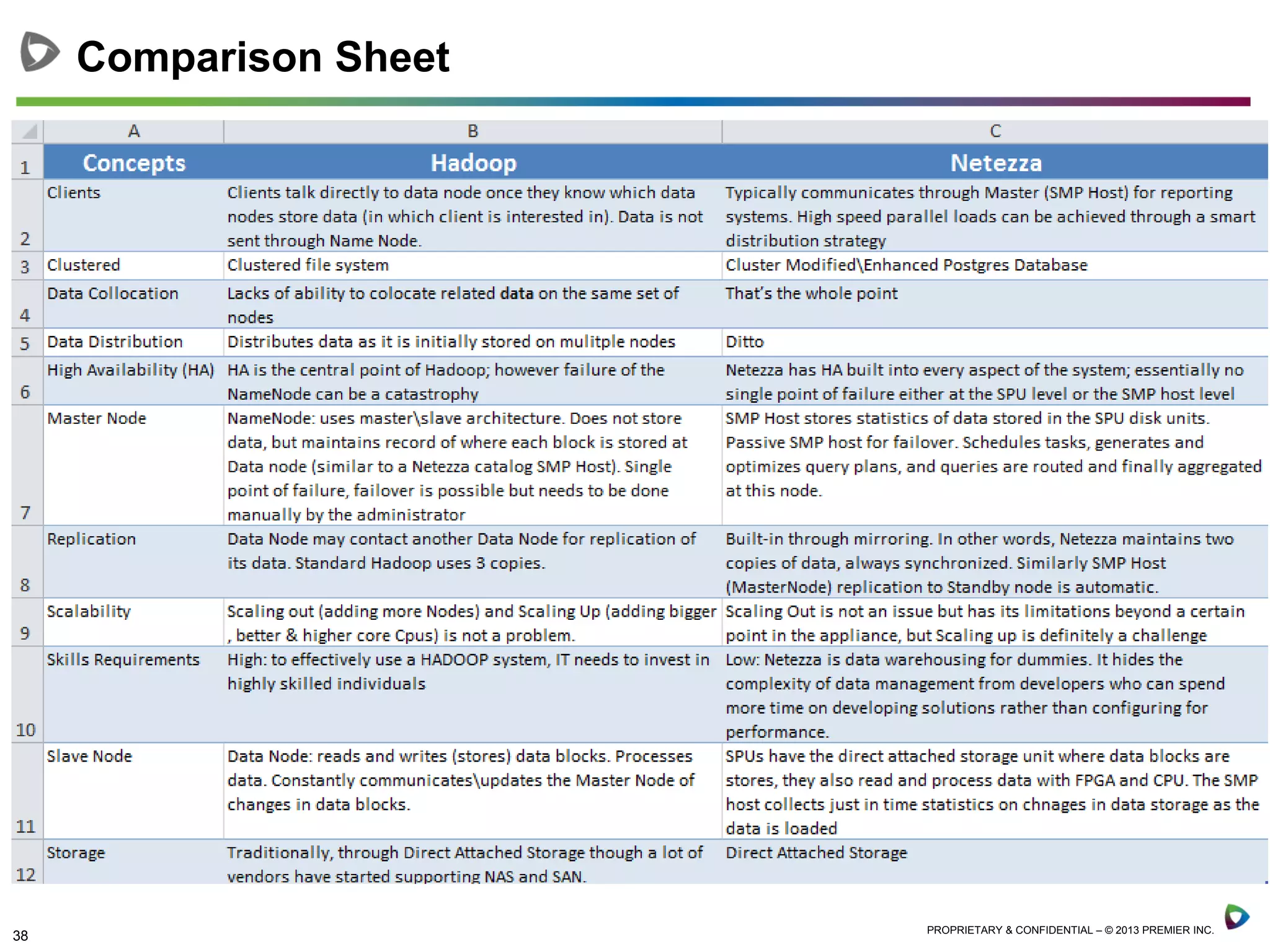

Comparison Sheet

Using Netezza for Optimal Performance
• Distribution (including scenarios for selecting the right candidate)

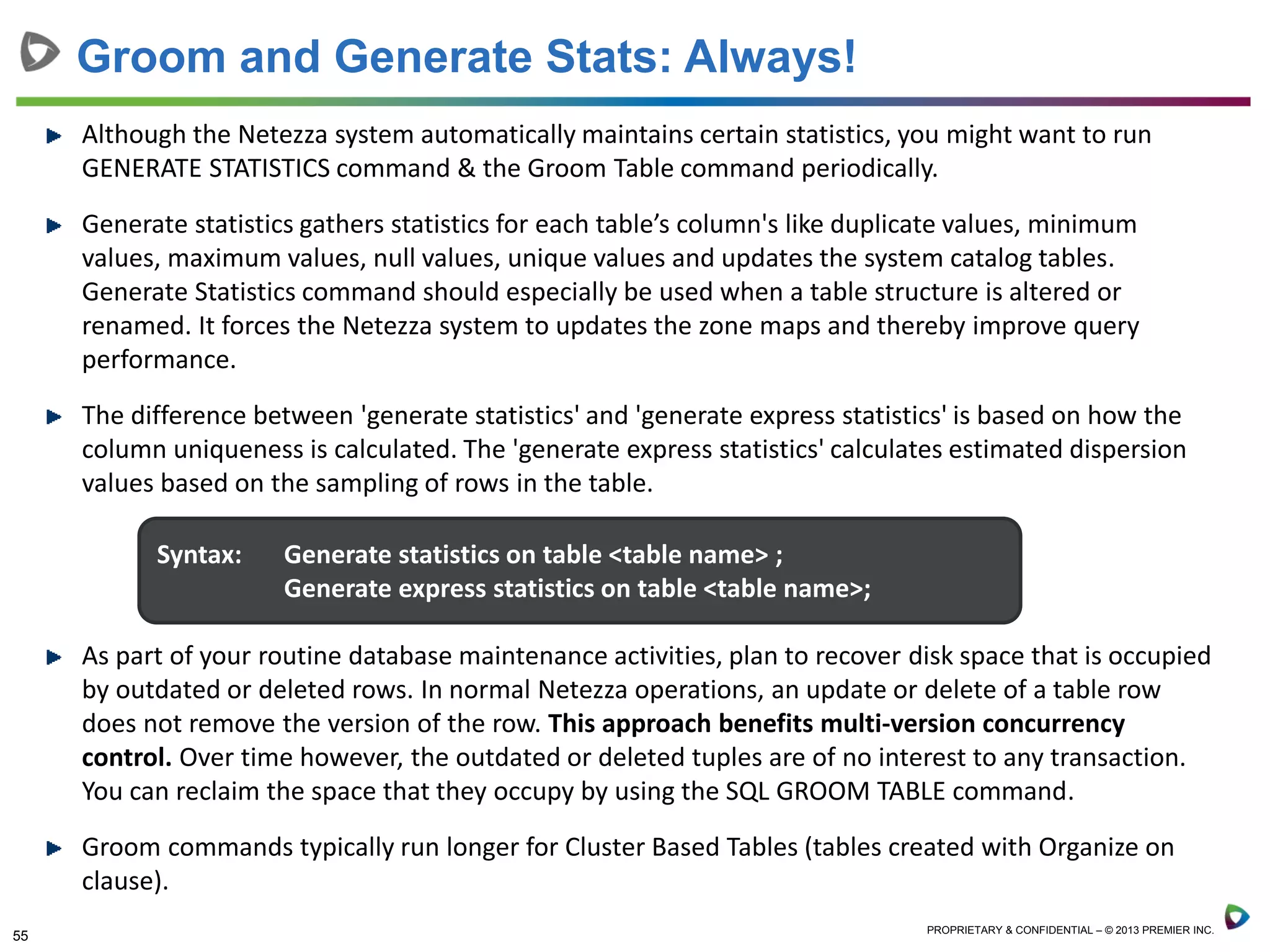

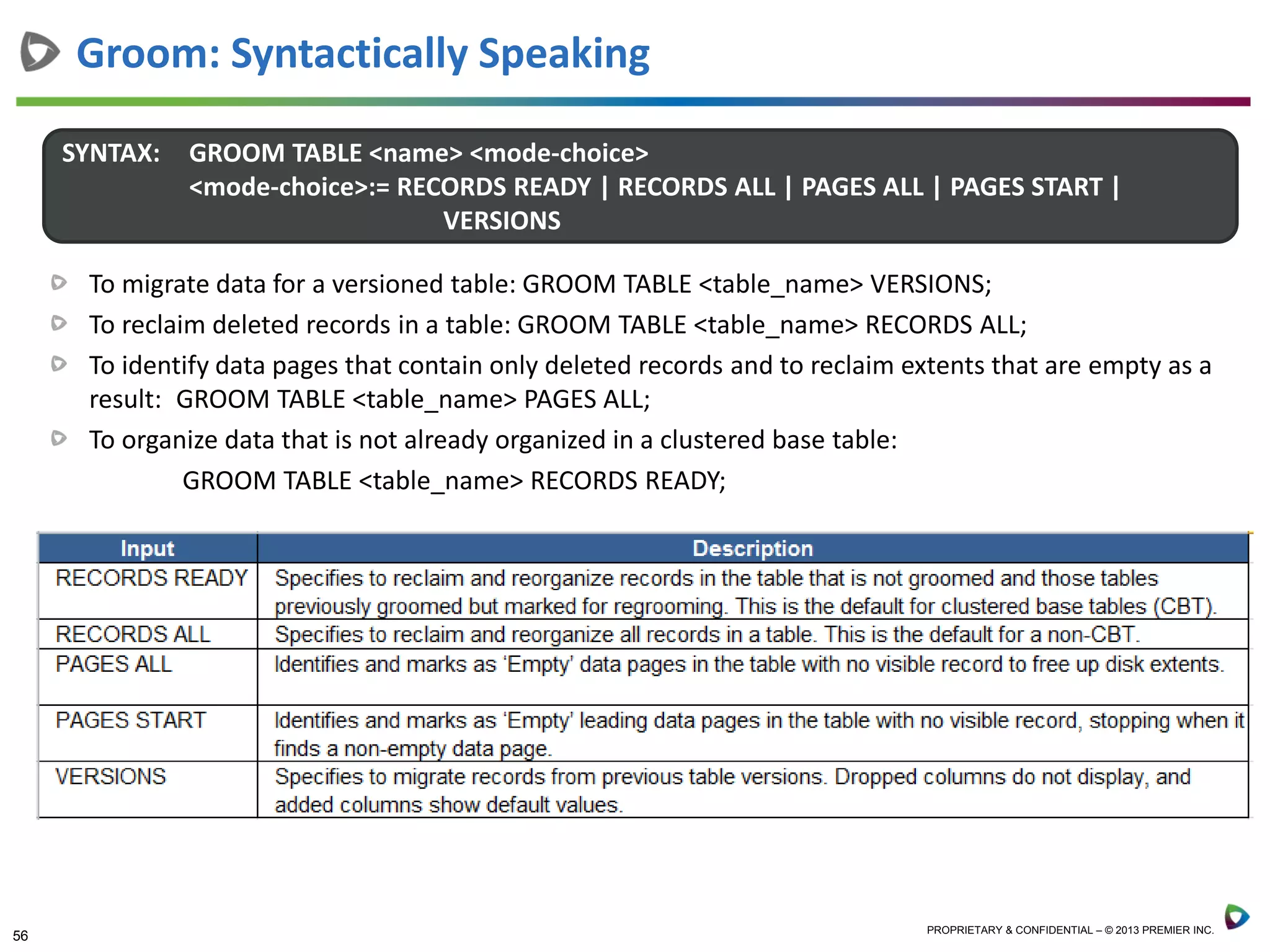

• Grooming
• Generate Stats
• Zone Maps
• Materialized Views

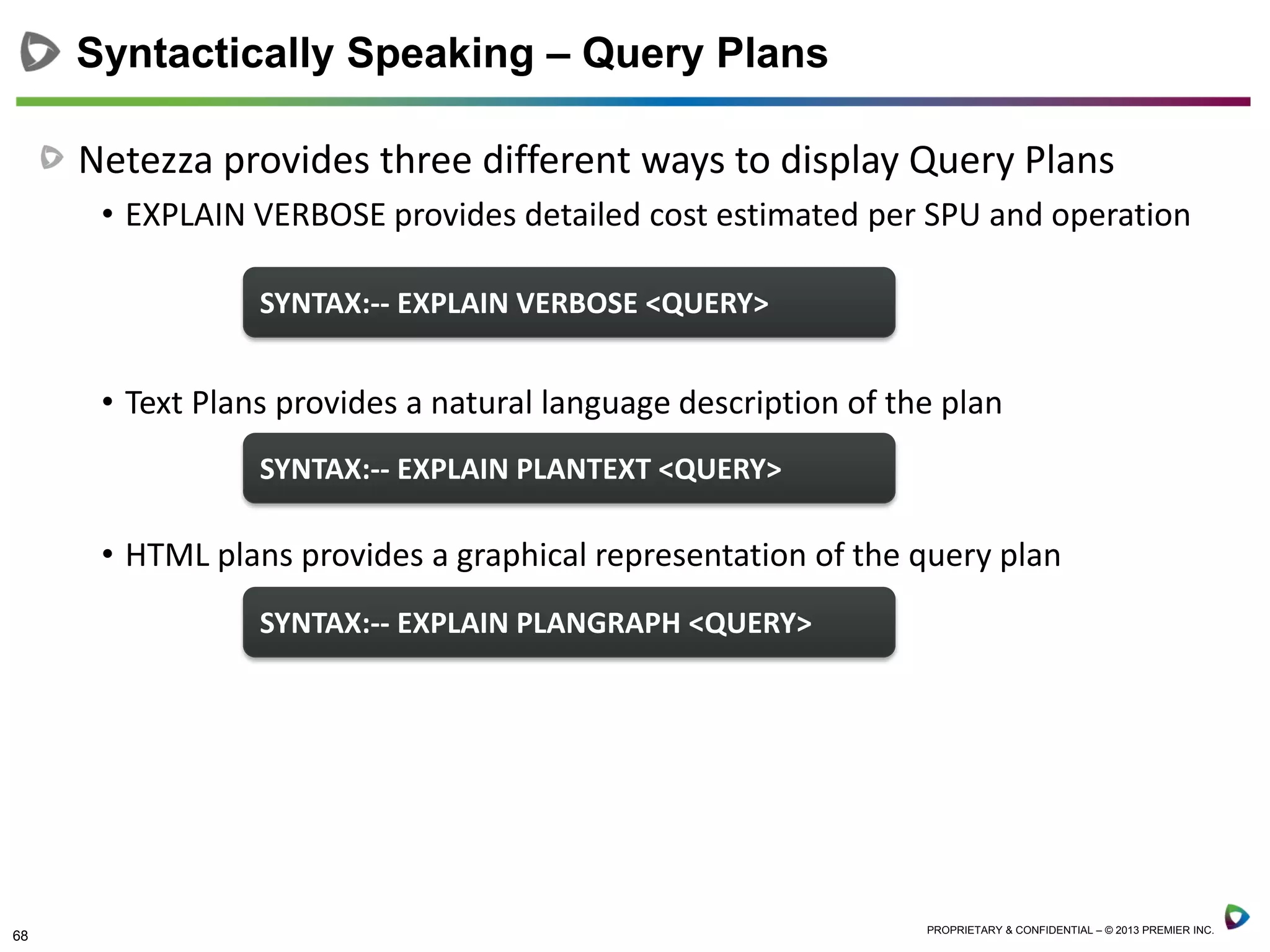

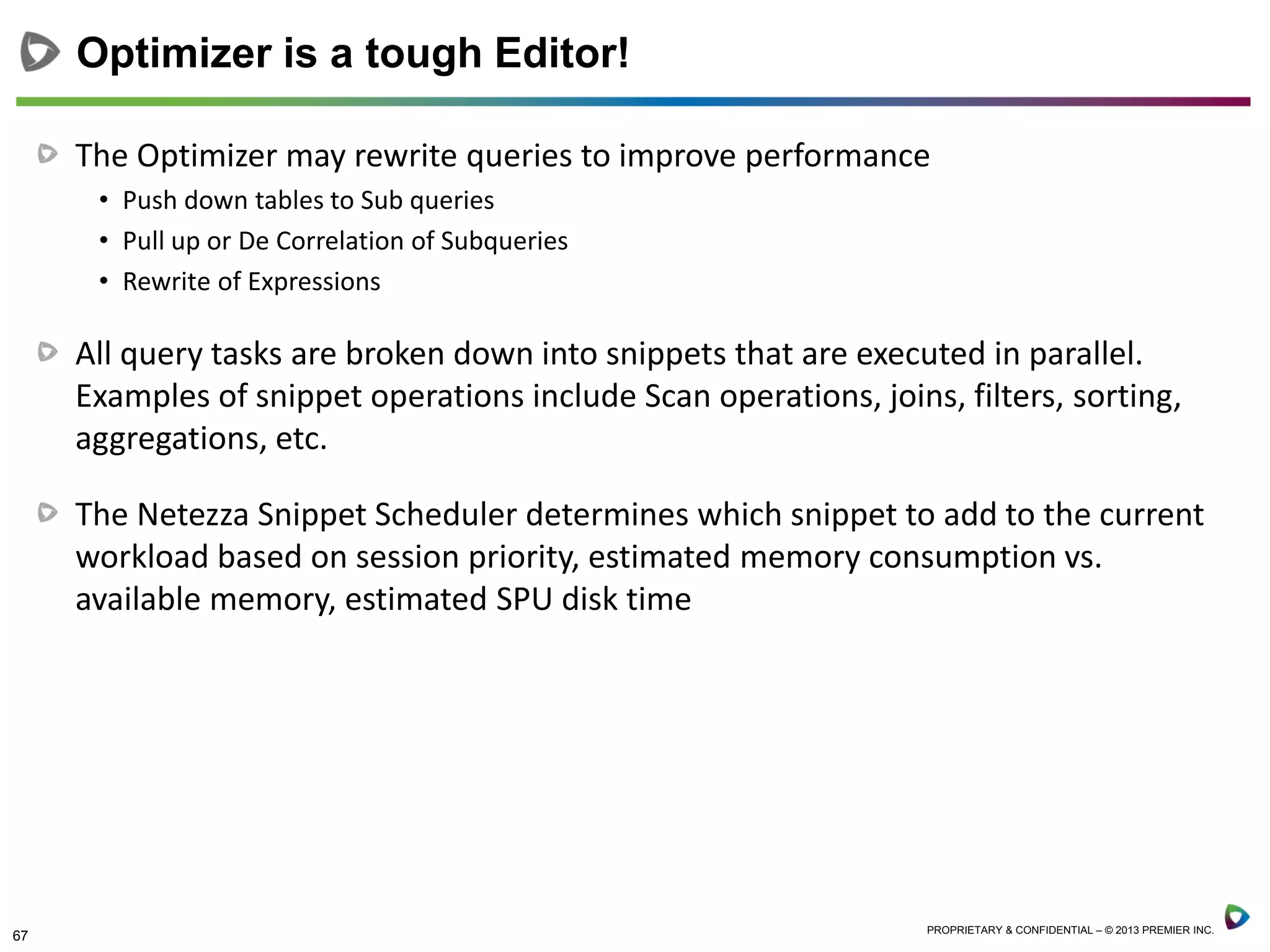

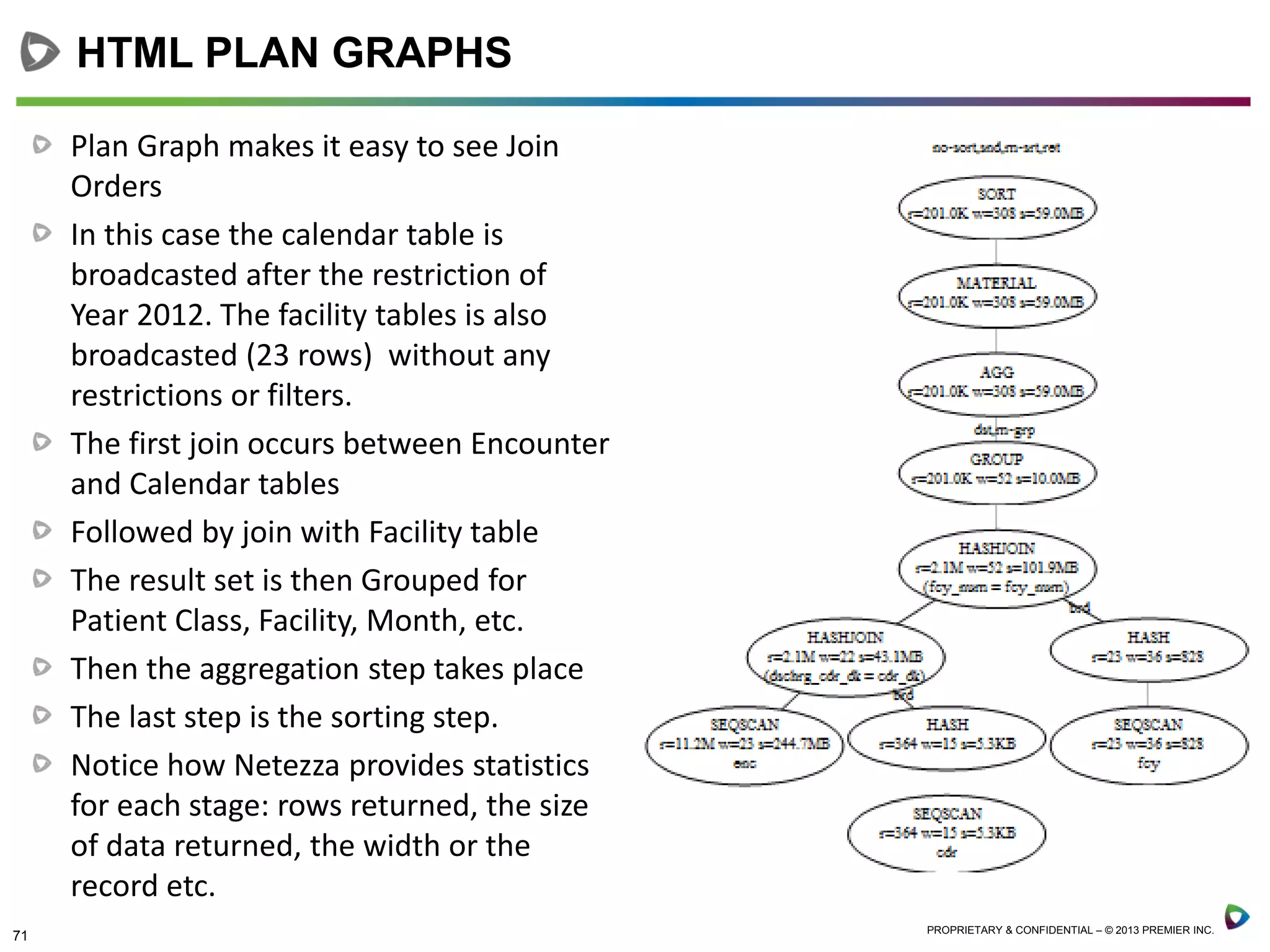

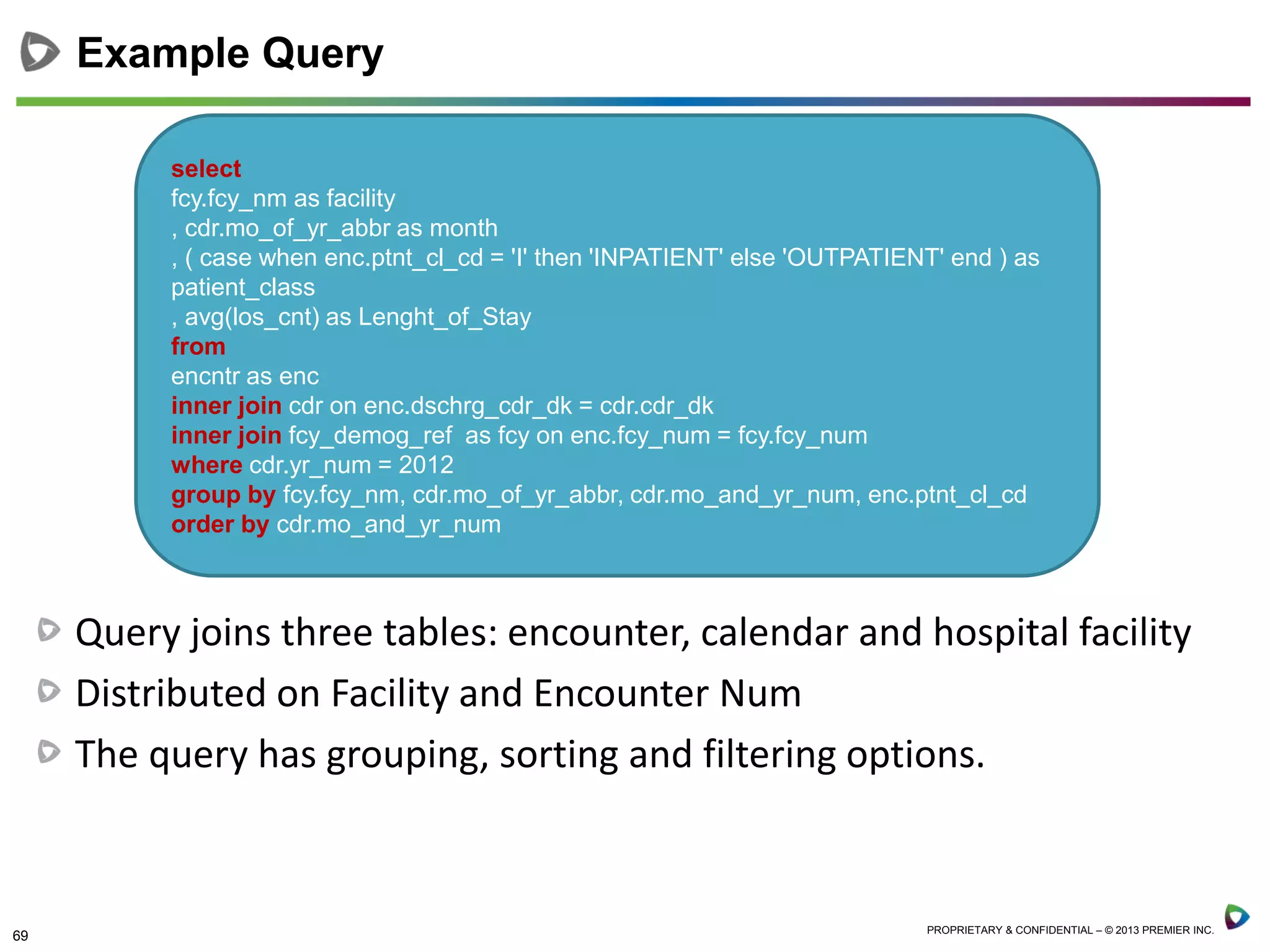

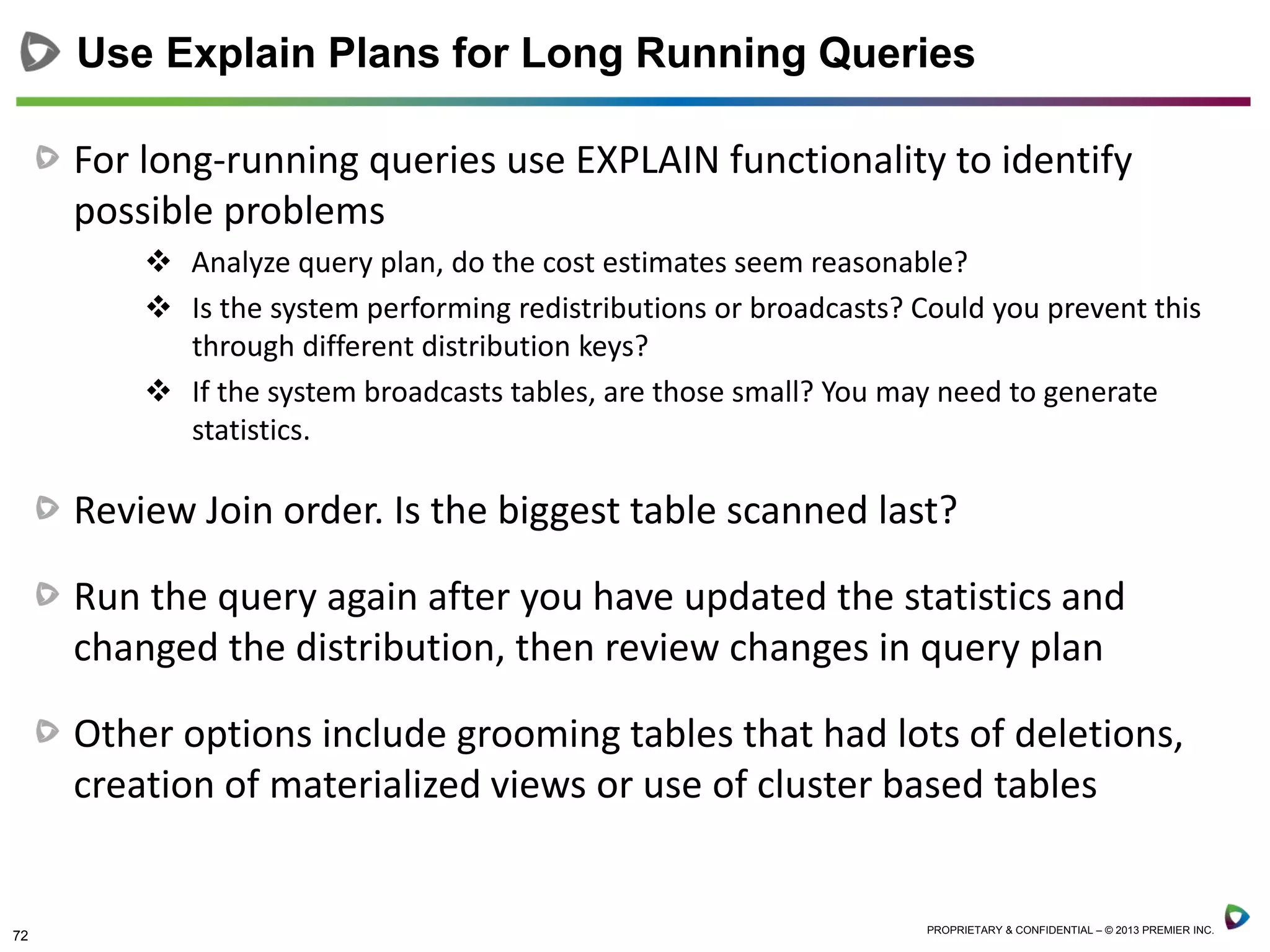

• Interpreting Queries

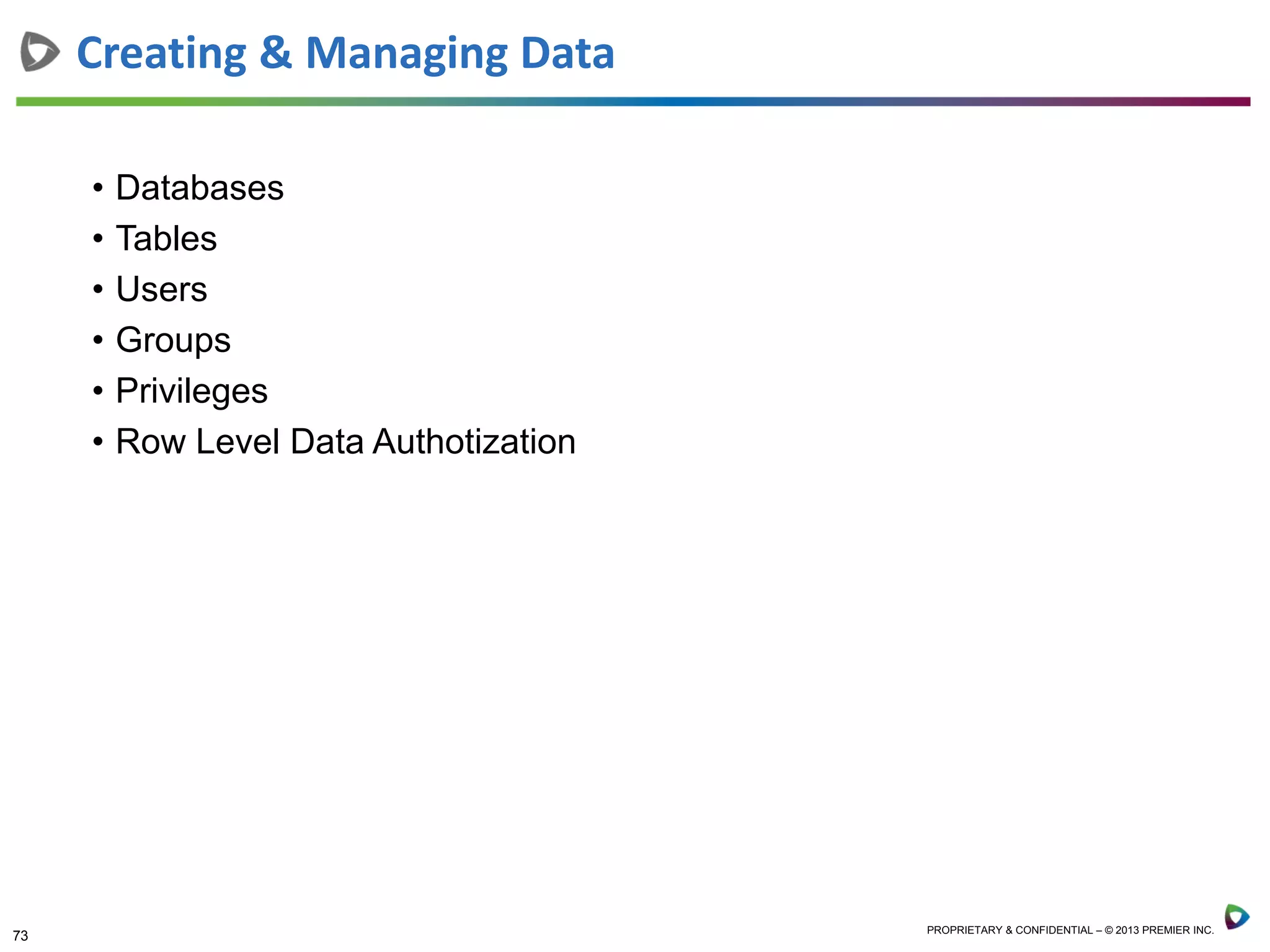

Creating and Managing Data

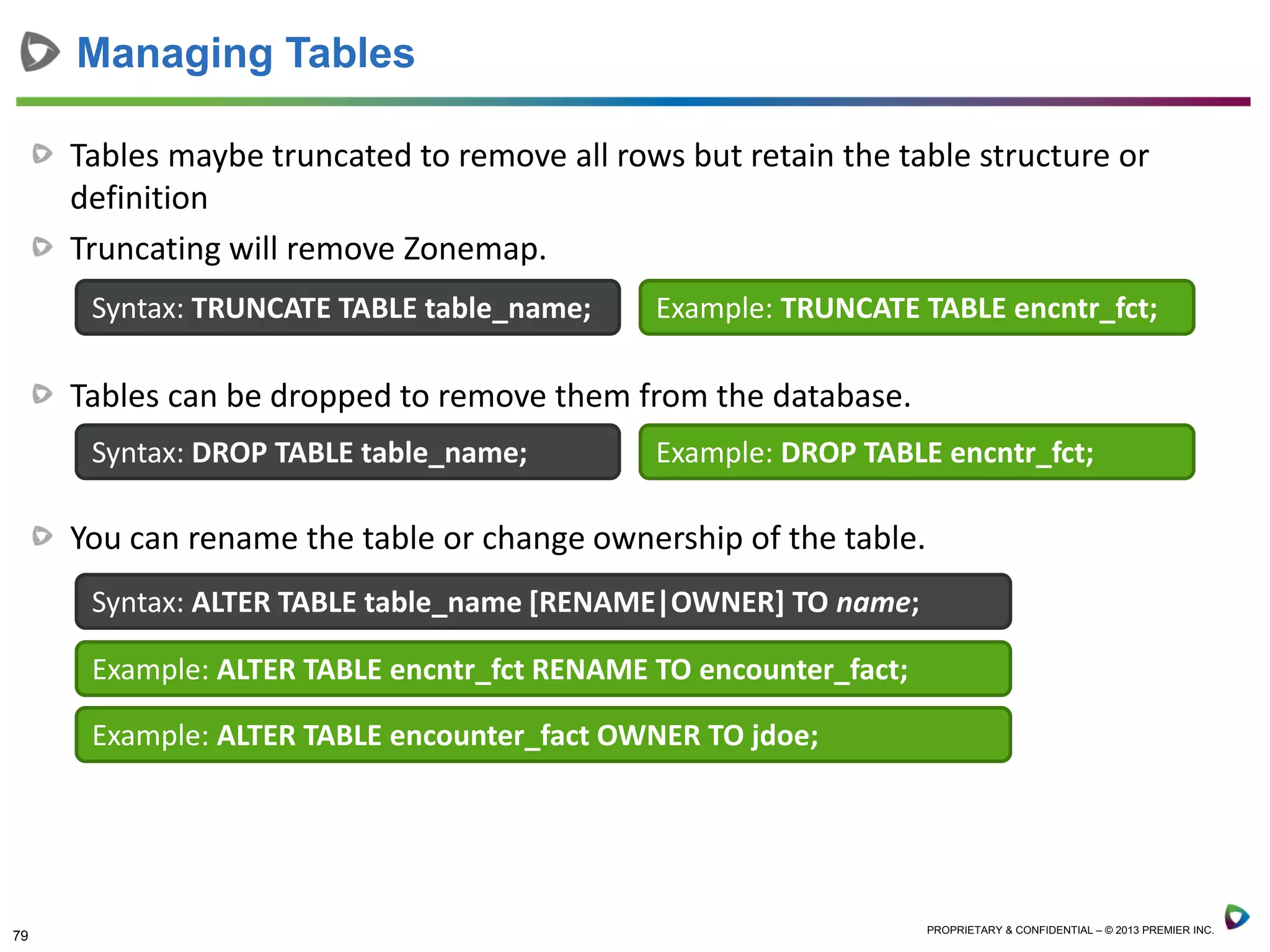

• Databases and Tables

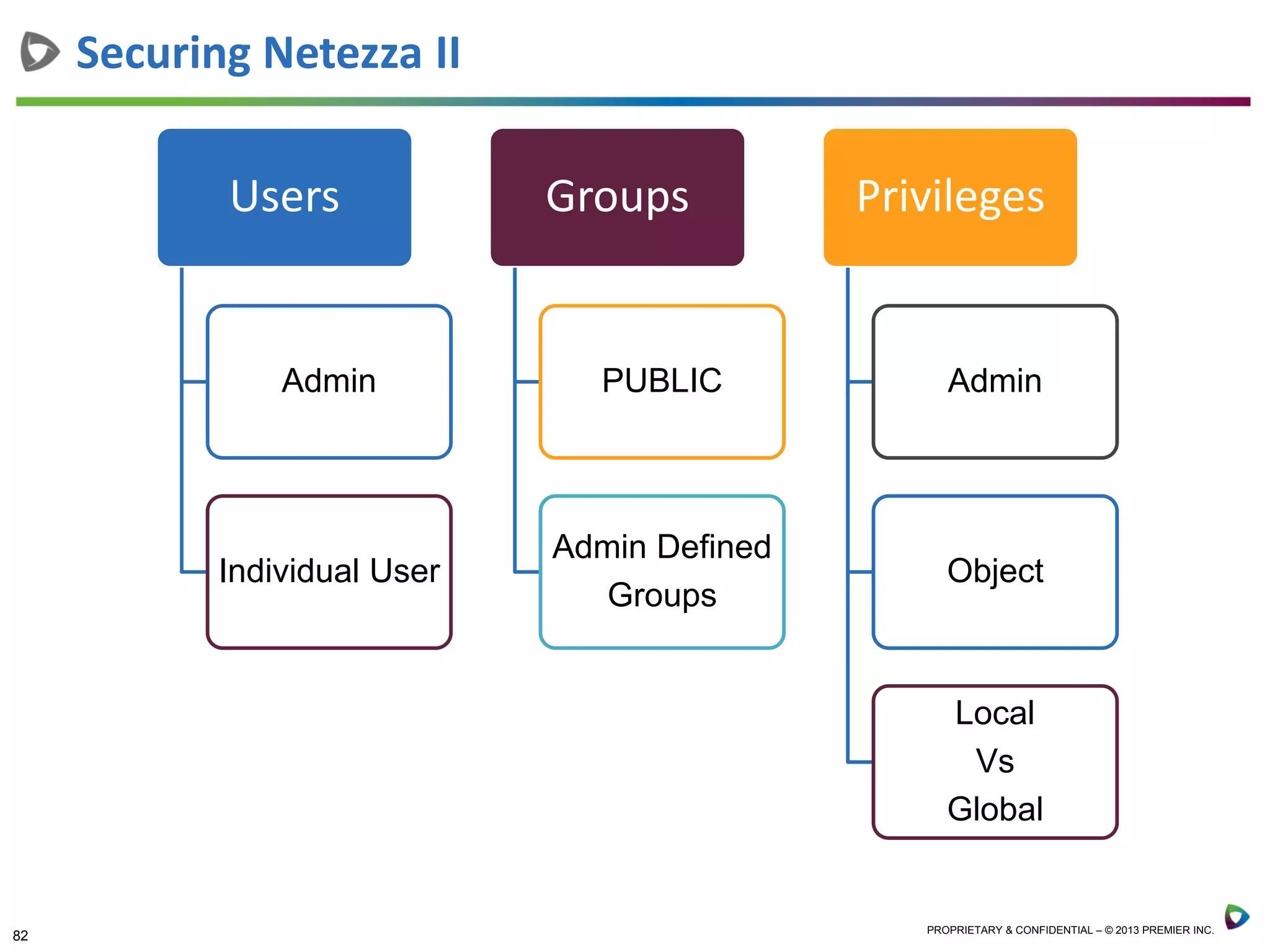

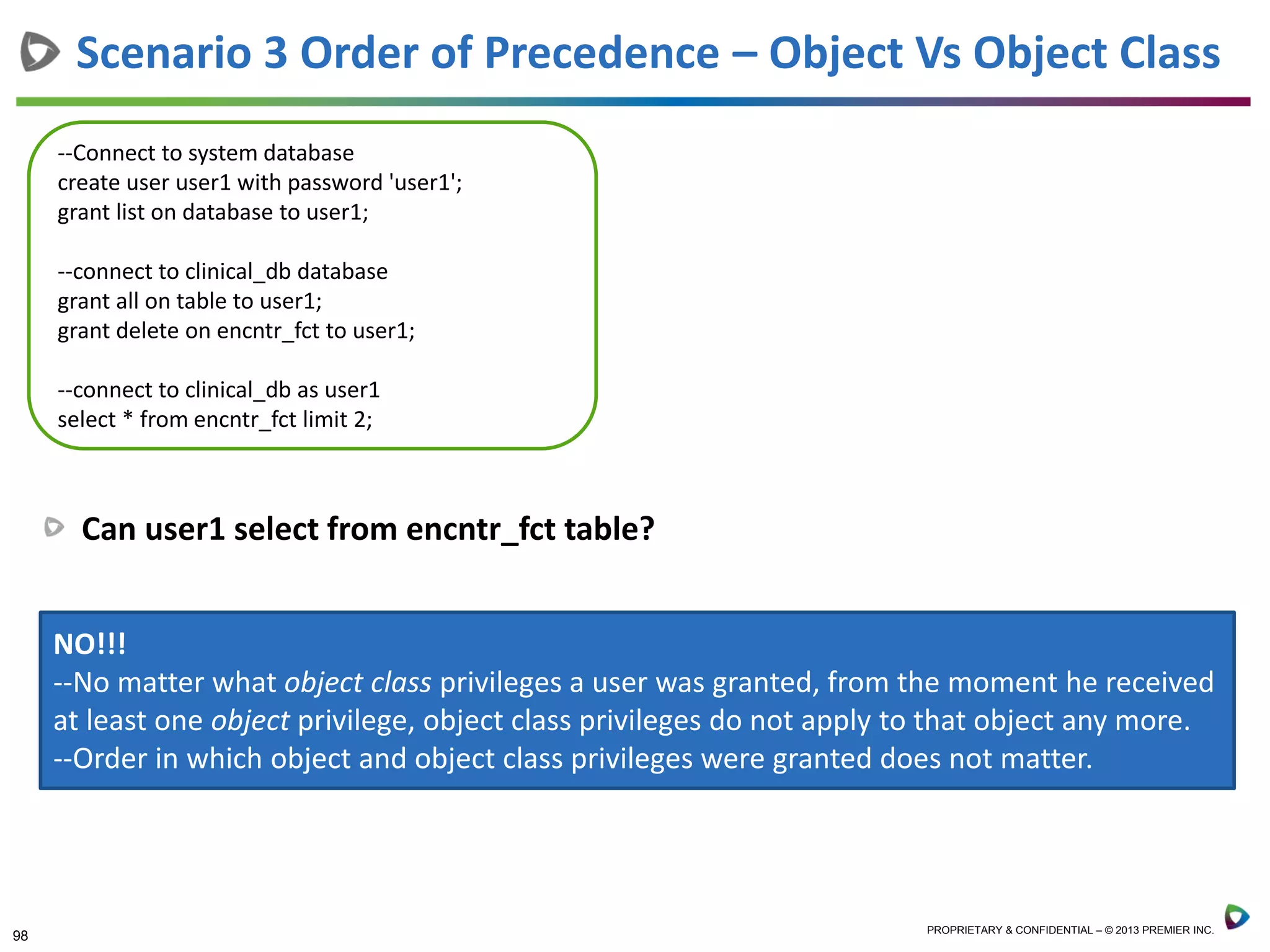

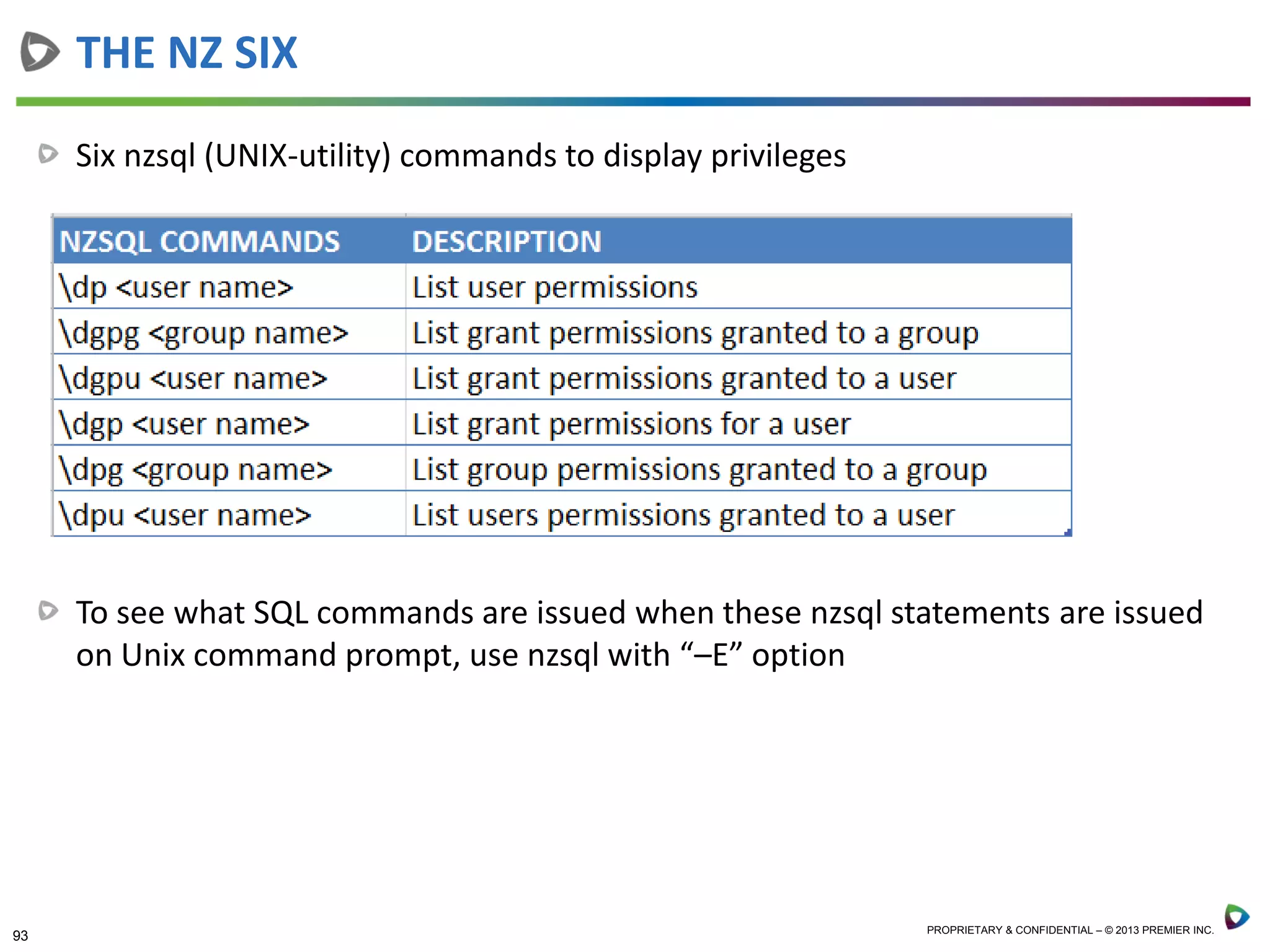

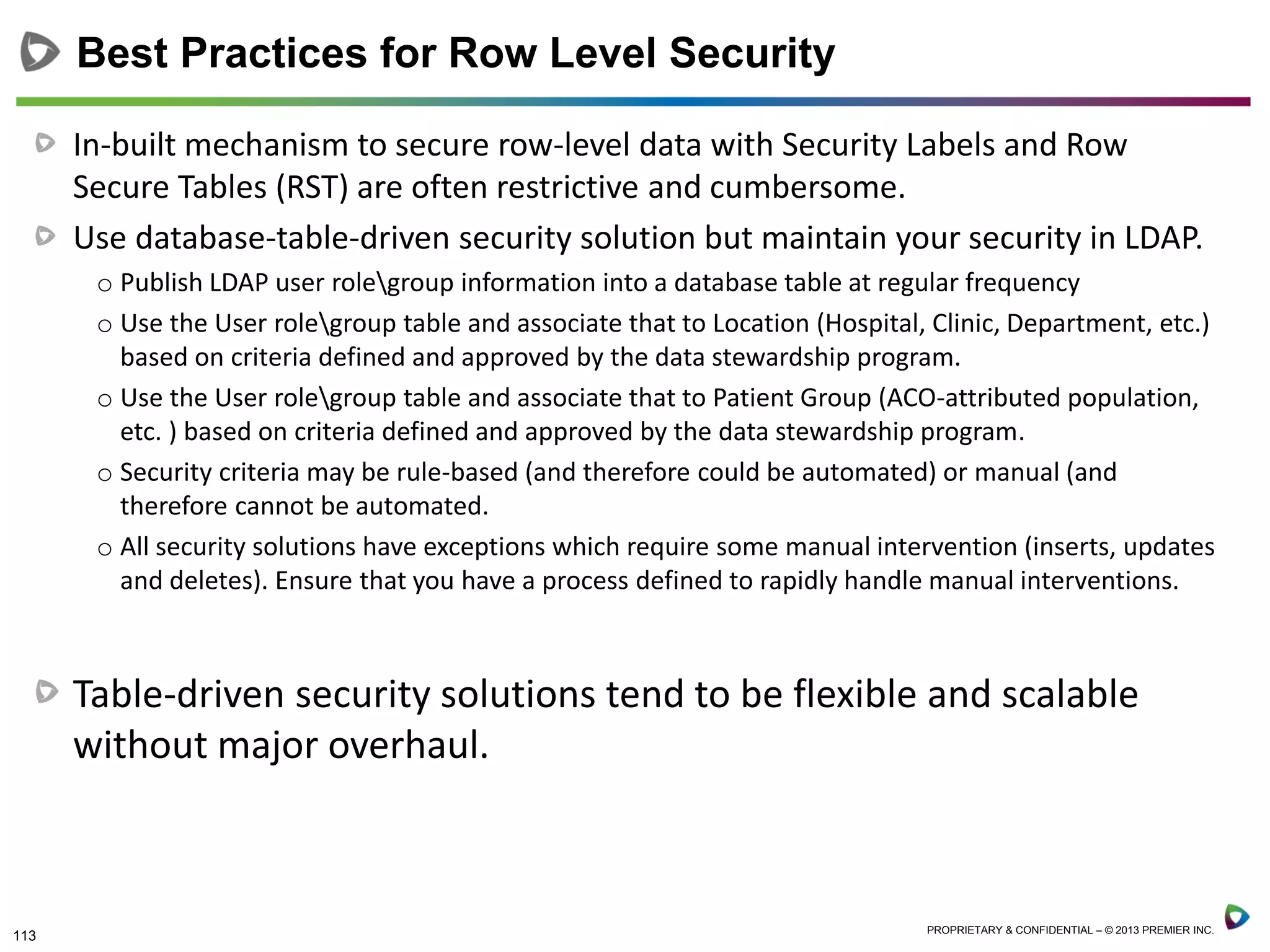

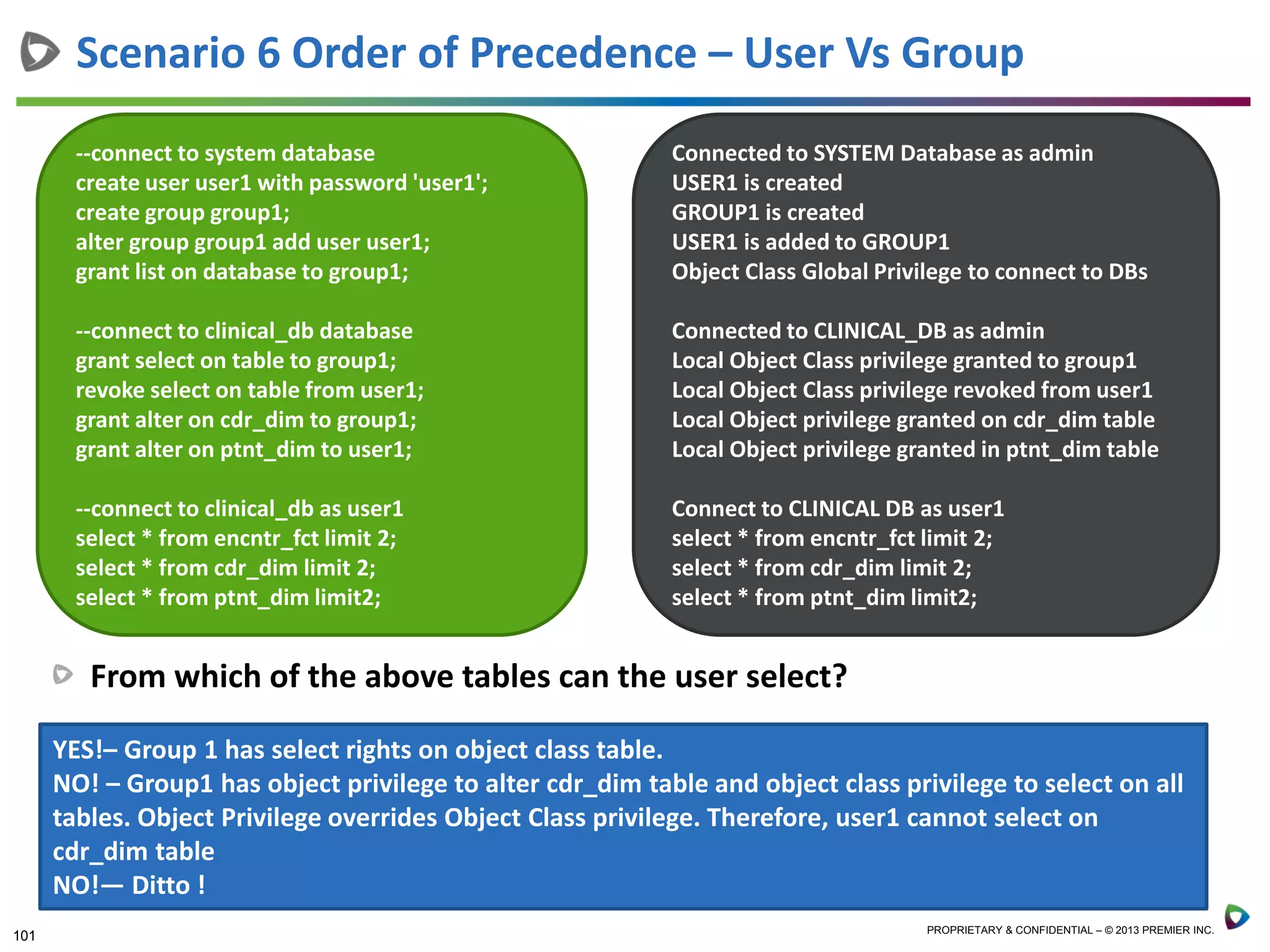

• Security
Workshop Part III -- Agenda

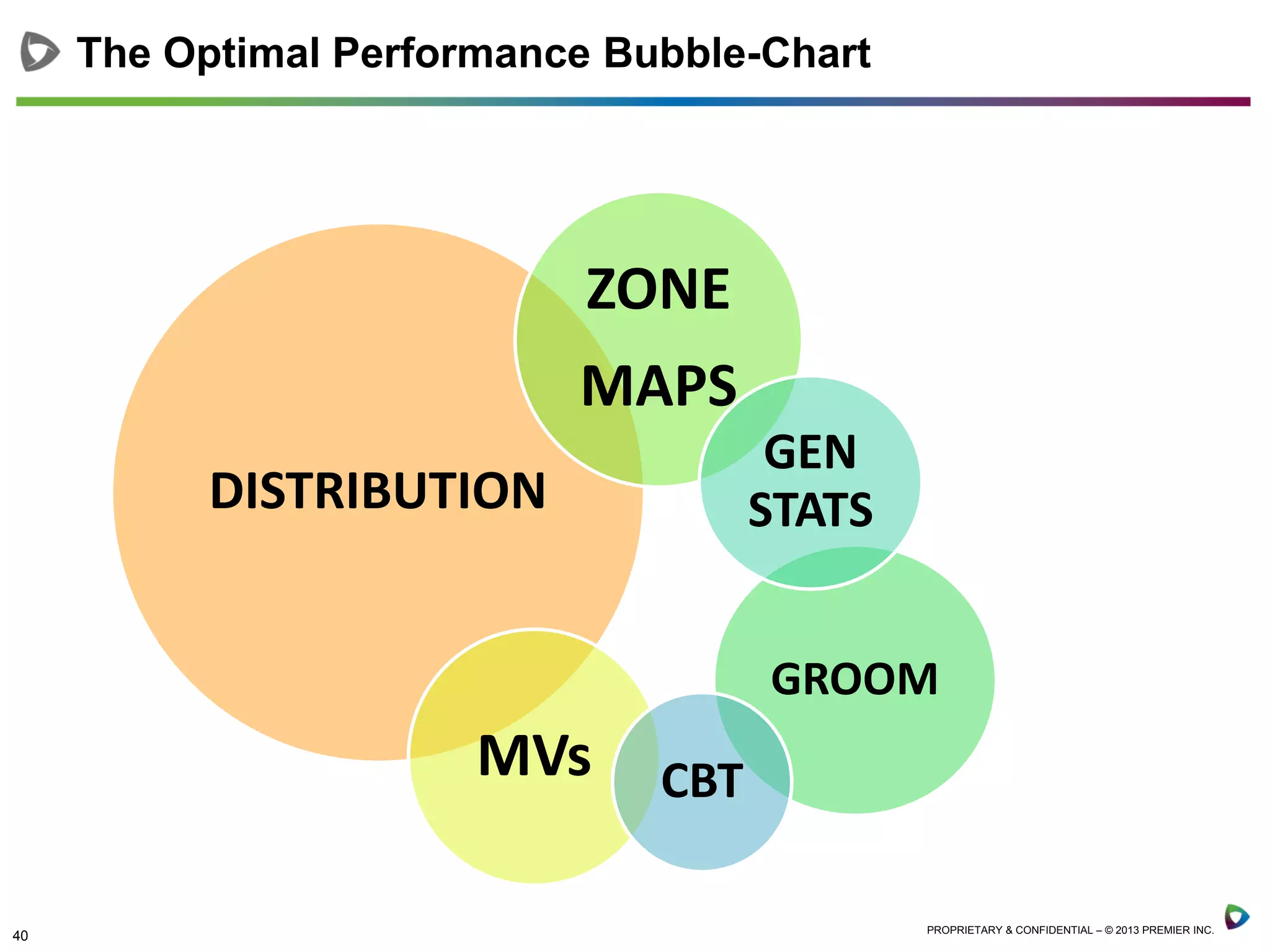

The Optimal Performance Bubble-Chart
DISTRIBUTION

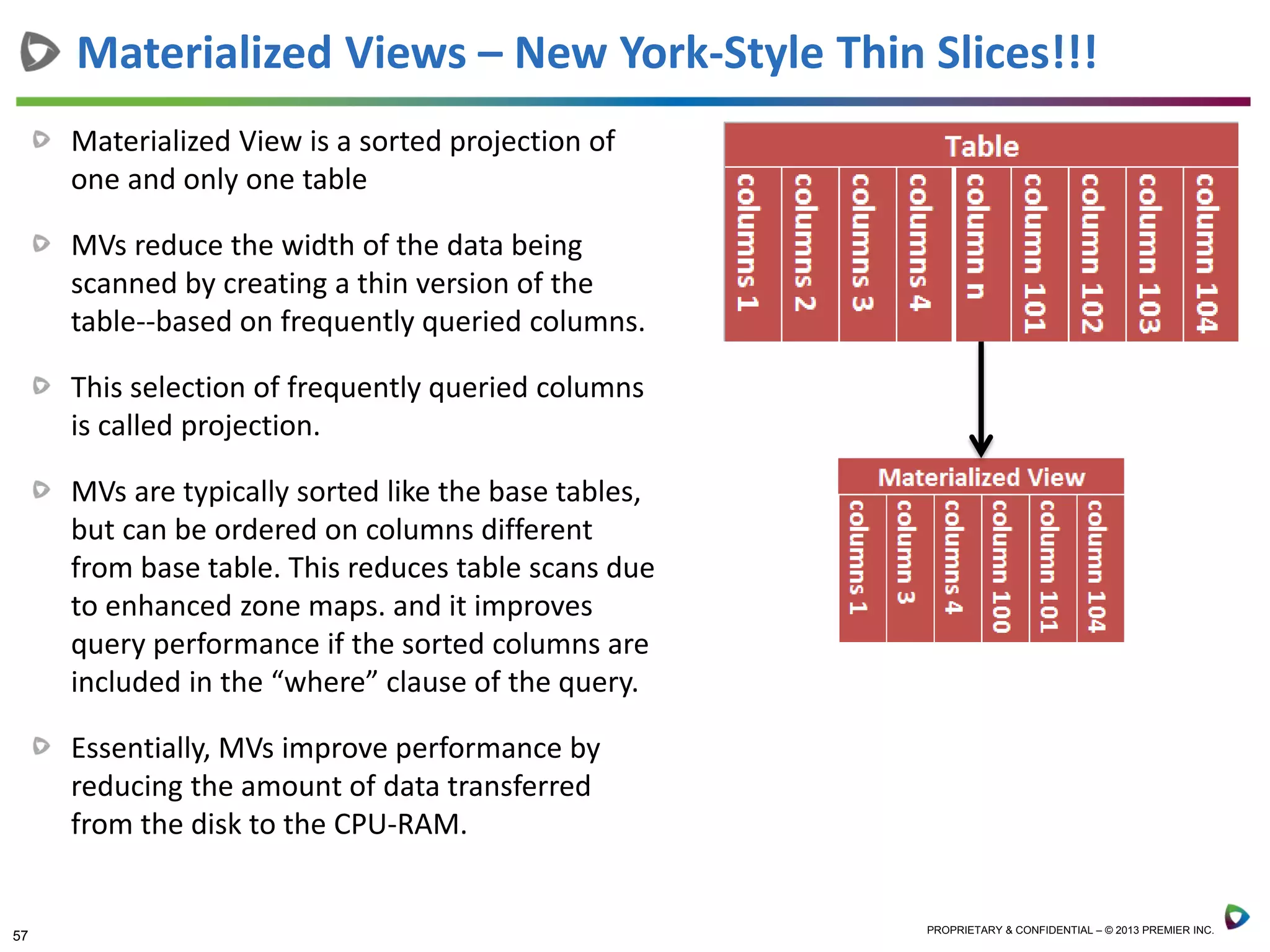

MVs

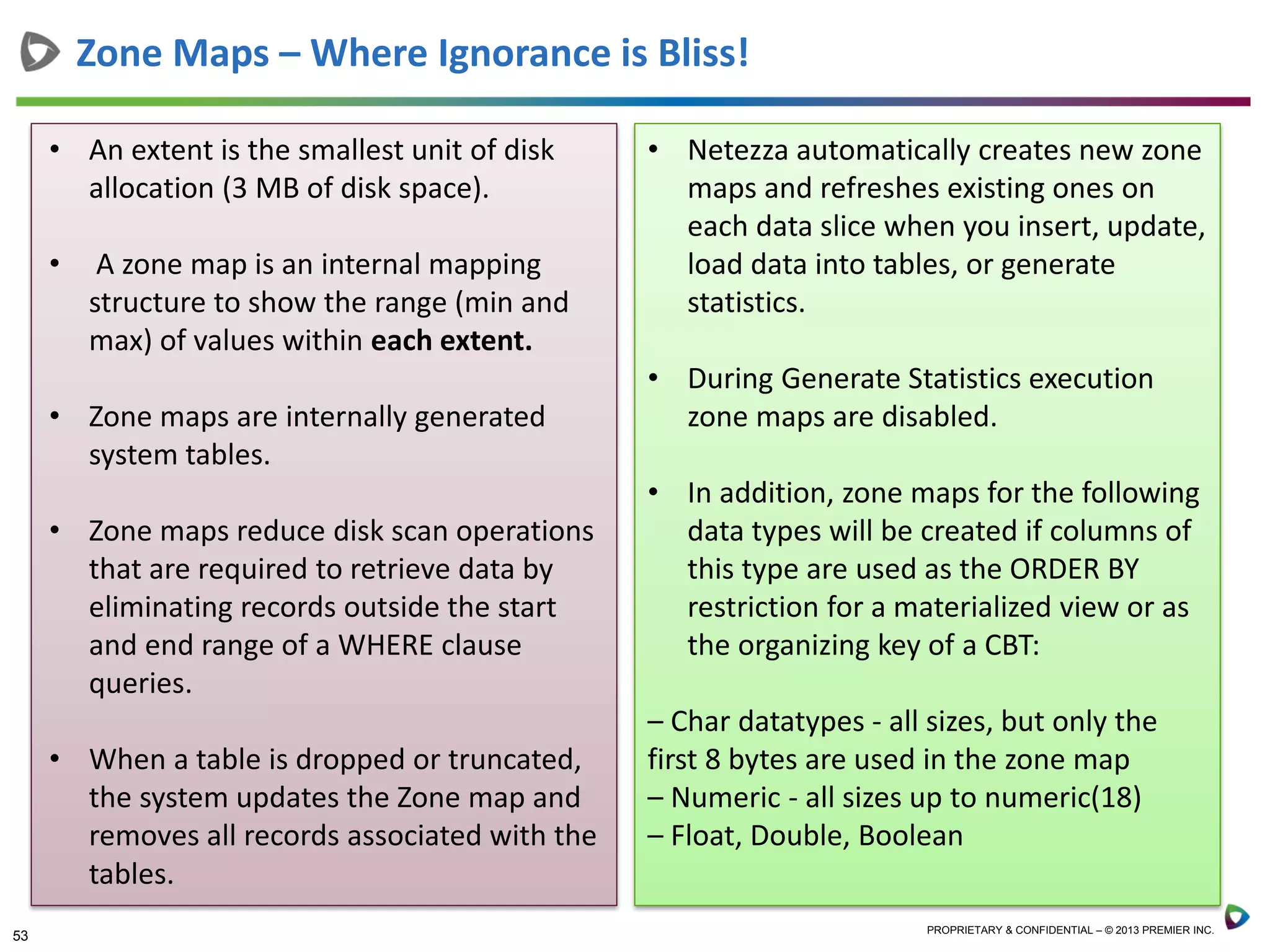

ZONE
MAPS
GROOM
GEN
STATS
CBT

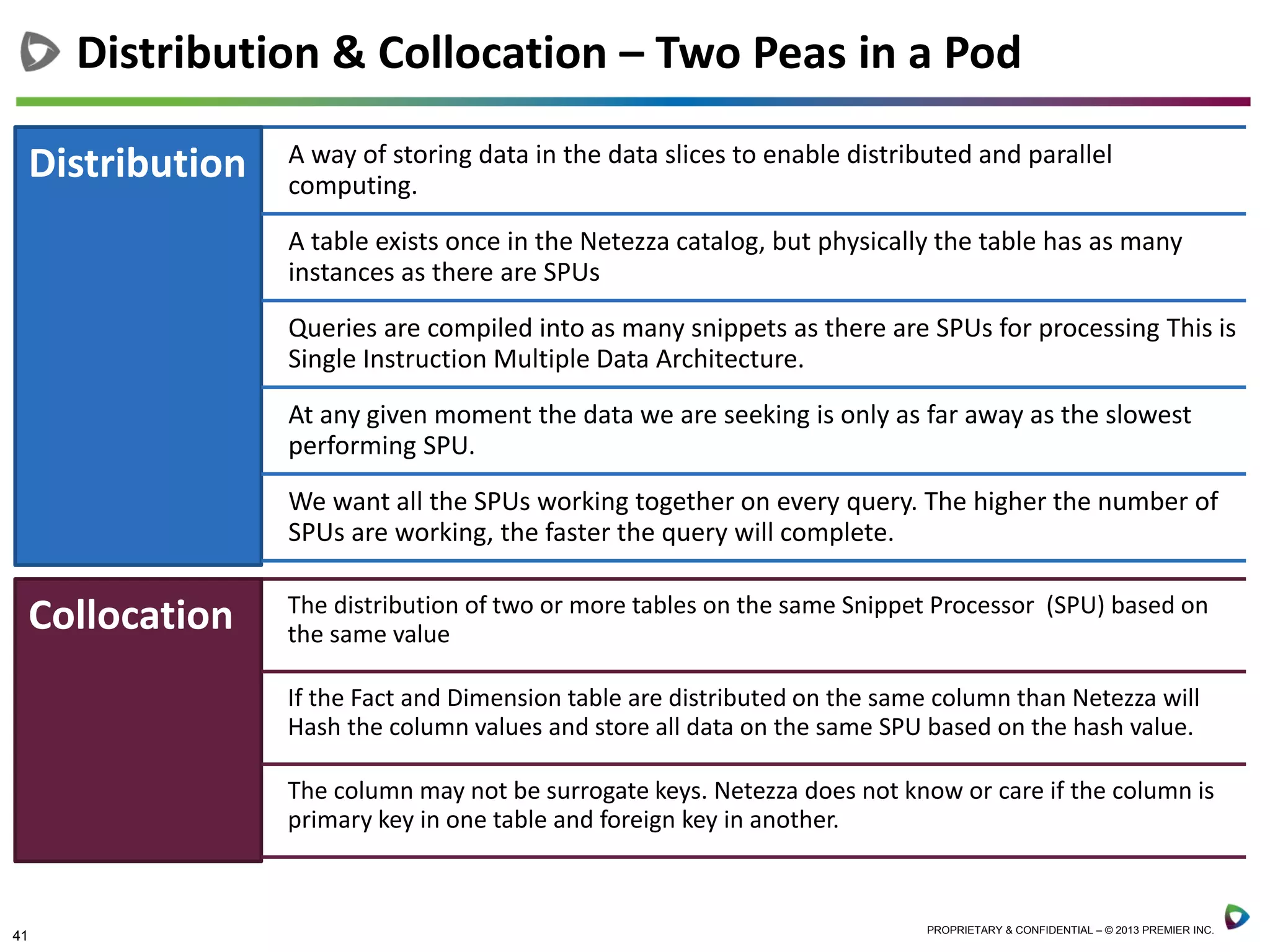

Distribution A way of storing data in the data slices to enable distributed and parallel
computing.
A table exists once in the Netezza catalog, but physically the table has as many
instances as there are SPUs
Queries are compiled into as many snippets as there are SPUs for processing This is
Single Instruction Multiple Data Architecture.
At any given moment the data we are seeking is only as far away as the slowest
performing SPU.
We want all the SPUs working together on every query. The higher the number of
SPUs are working, the faster the query will complete.
Distribution & Collocation – Two Peas in a Pod
Collocation The distribution of two or more tables on the same Snippet Processor (SPU) based on
the same value
If the Fact and Dimension table are distributed on the same column than Netezza will
Hash the column values and store all data on the same SPU based on the hash value.
The column may not be surrogate keys. Netezza does not know or care if the column is
primary key in one table and foreign key in another.

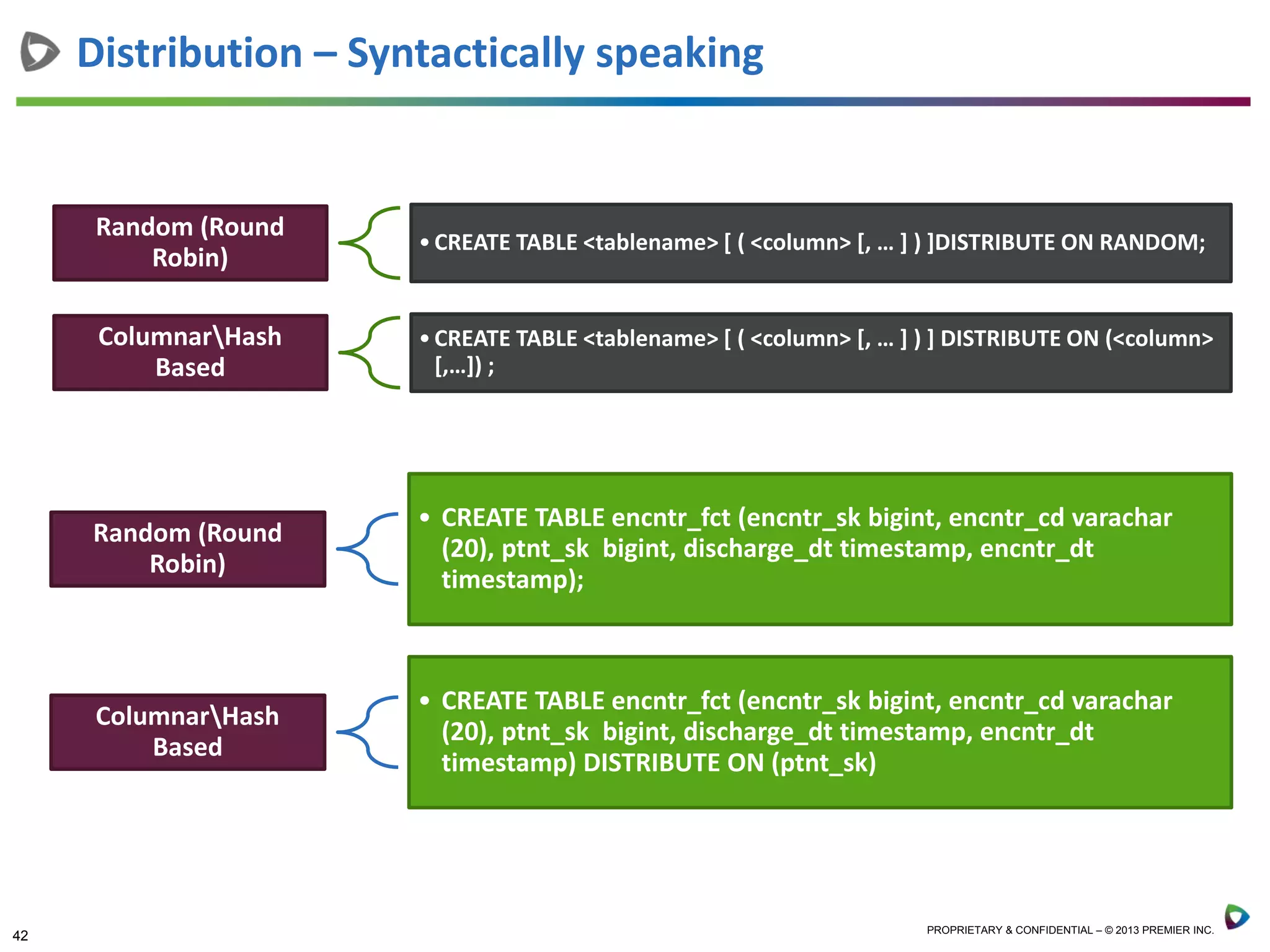

Distribution – Syntactically speaking
Random (Round
Robin)
•CREATE TABLE <tablename> [ ( <column> [, … ] ) ]DISTRIBUTE ON RANDOM;
ColumnarHash
Based
•CREATE TABLE <tablename> [ ( <column> [, … ] ) ] DISTRIBUTE ON (<column>
[,…]) ;
Random (Round
Robin)
• CREATE TABLE encntr_fct (encntr_sk bigint, encntr_cd varachar
(20), ptnt_sk bigint, discharge_dt timestamp, encntr_dt
timestamp);
ColumnarHash
Based
• CREATE TABLE encntr_fct (encntr_sk bigint, encntr_cd varachar
(20), ptnt_sk bigint, discharge_dt timestamp, encntr_dt
timestamp) DISTRIBUTE ON (ptnt_sk)

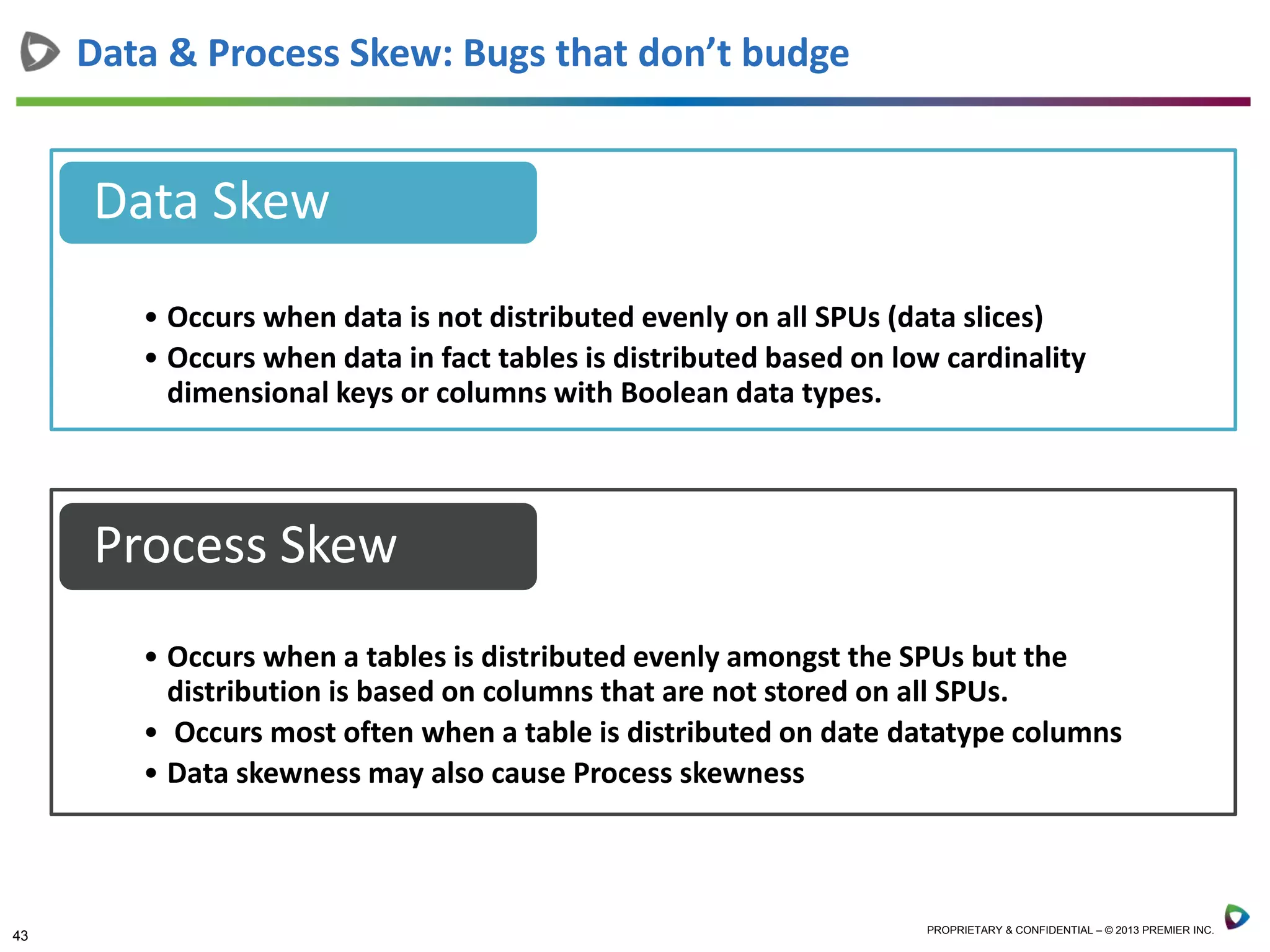

Data & Process Skew: Bugs that don’t budge
• Occurs when data is not distributed evenly on all SPUs (data slices)
• Occurs when data in fact tables is distributed based on low cardinality
dimensional keys or columns with Boolean data types.
Data Skew
• Occurs when a tables is distributed evenly amongst the SPUs but the
distribution is based on columns that are not stored on all SPUs.
• Occurs most often when a table is distributed on date datatype columns
• Data skewness may also cause Process skewness
Process Skew

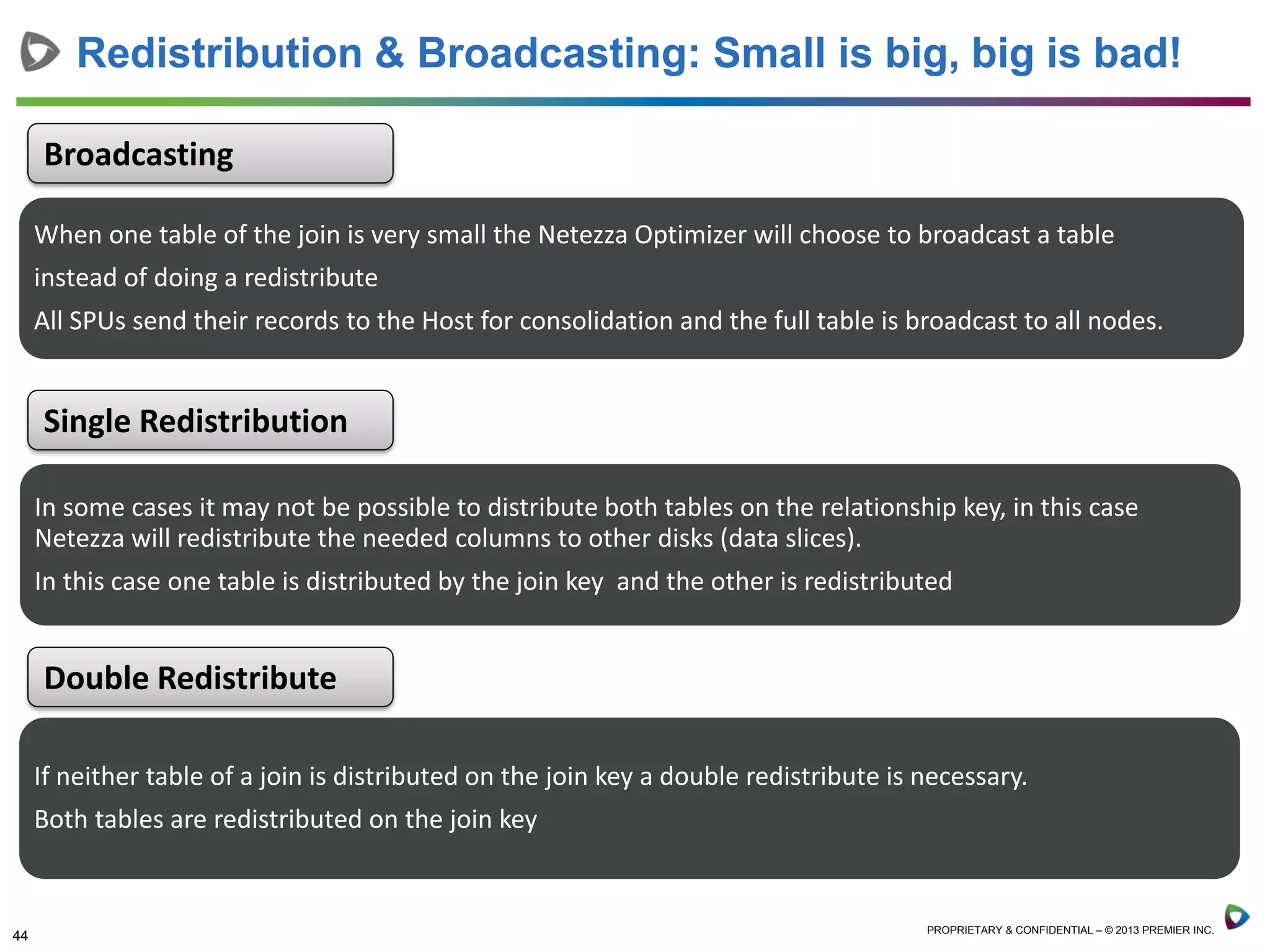

When one table of the join is very small the Netezza Optimizer will choose to broadcast a table
instead of doing a redistribute
All SPUs send their records to the Host for consolidation and the full table is broadcast to all nodes.
In some cases it may not be possible to distribute both tables on the relationship key, in this case
Netezza will redistribute the needed columns to other disks (data slices).
In this case one table is distributed by the join key and the other is redistributed
If neither table of a join is distributed on the join key a double redistribute is necessary.
Both tables are redistributed on the join key
Redistribution & Broadcasting: Small is big, big is bad!
Broadcasting
Single Redistribution
Double Redistribute

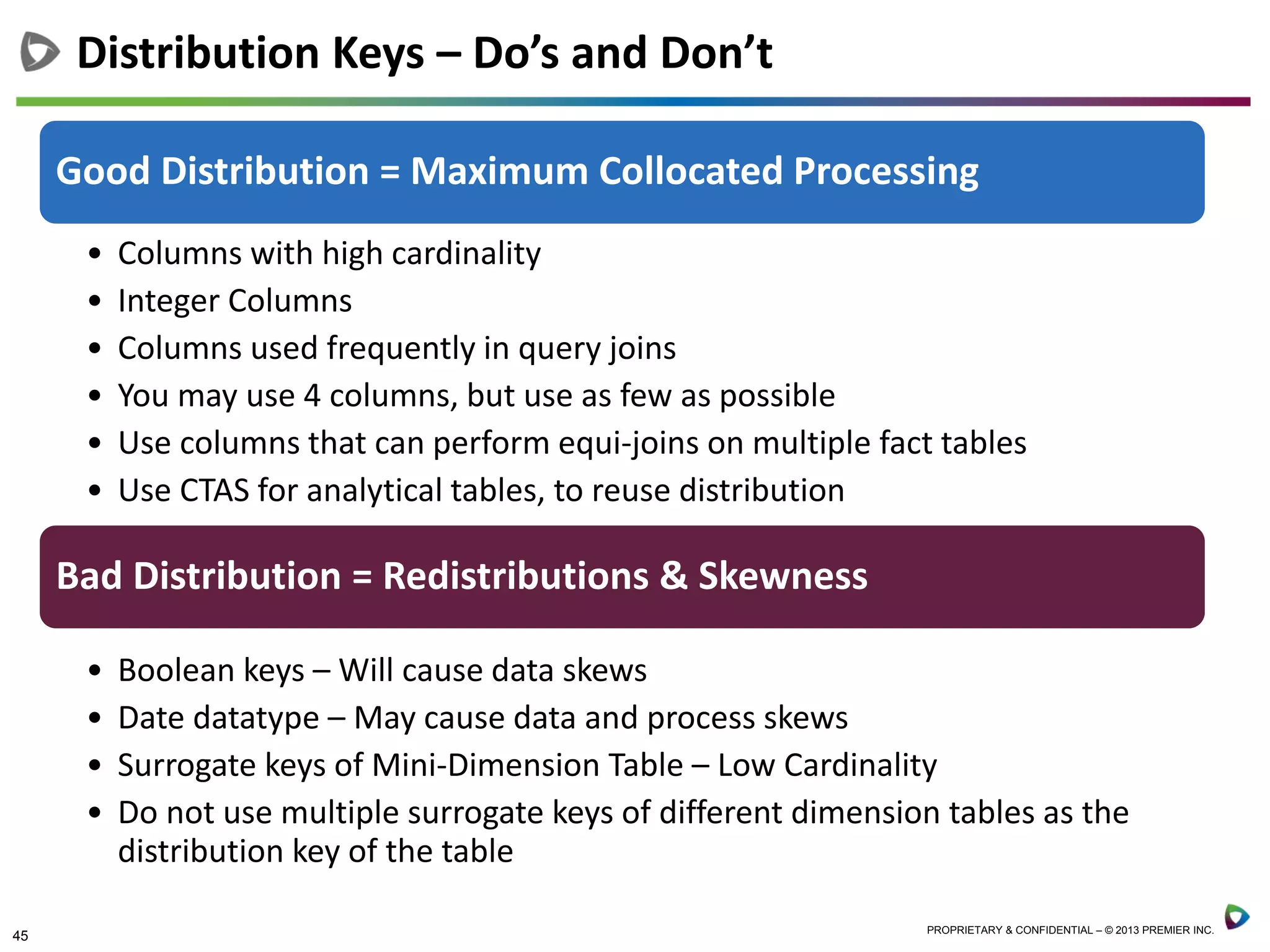

Distribution Keys – Do’s and Don’t
Good Distribution = Maximum Collocated Processing
• Columns with high cardinality
• Integer Columns
• Columns used frequently in query joins
• You may use 4 columns, but use as few as possible
• Use columns that can perform equi-joins on multiple fact tables
• Use CTAS for analytical tables, to reuse distribution
Bad Distribution = Redistributions & Skewness
• Boolean keys – Will cause data skews
• Date datatype – May cause data and process skews
• Surrogate keys of Mini-Dimension Table – Low Cardinality
• Do not use multiple surrogate keys of different dimension tables as the
distribution key of the table

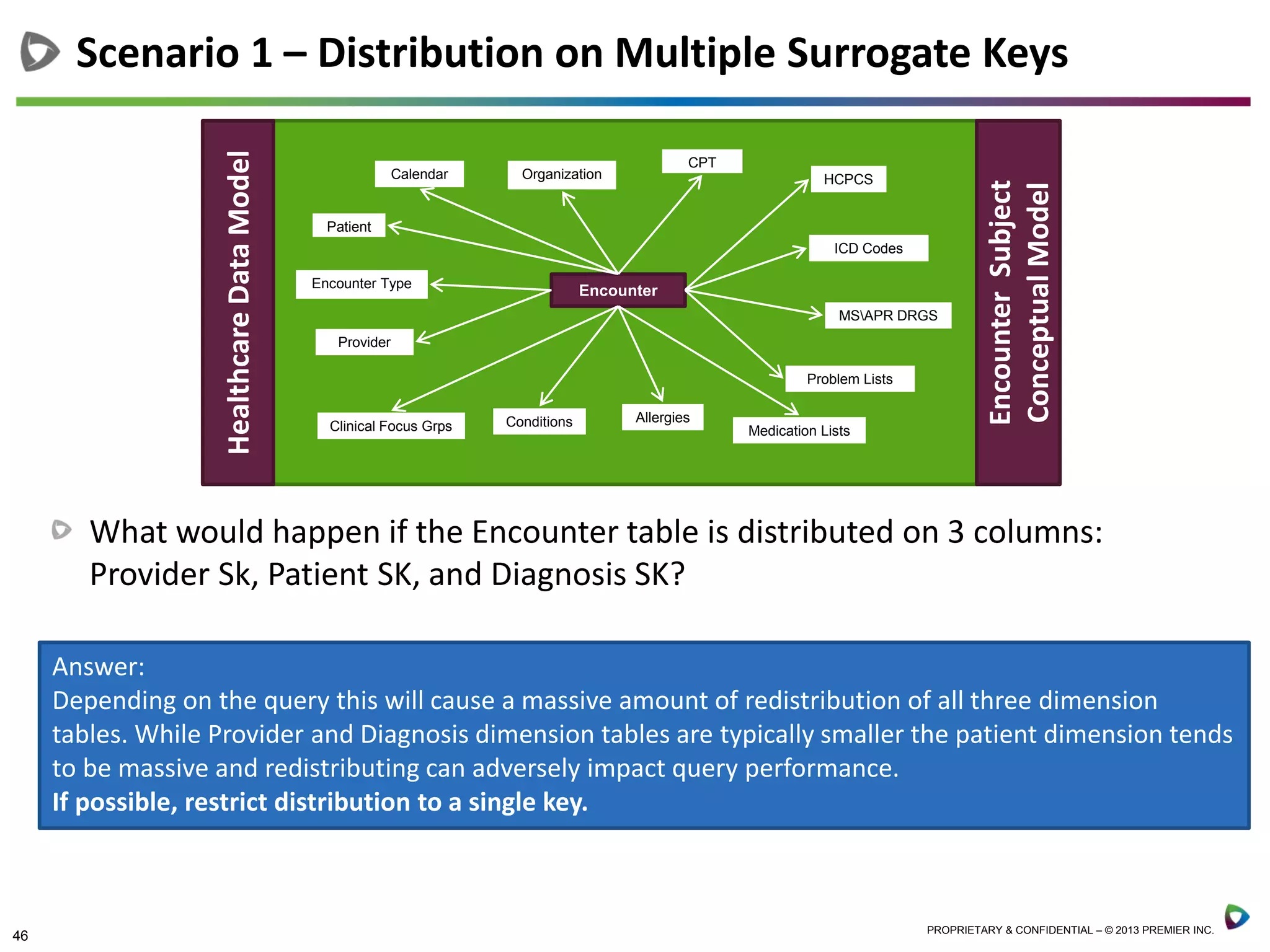

What would happen if the Encounter table is distributed on 3 columns:
Provider Sk, Patient SK, and Diagnosis SK?
Scenario 1 – Distribution on Multiple Surrogate Keys
Encounter
Calendar Organization
Provider
Clinical Focus Grps
ICD Codes
Patient
MSAPR DRGS
Problem Lists
Encounter Type
CPT
HCPCS
Medication Lists
AllergiesConditions
HealthcareDataModel
EncounterSubject
ConceptualModel
Answer:
Depending on the query this will cause a massive amount of redistribution of all three dimension
tables. While Provider and Diagnosis dimension tables are typically smaller the patient dimension tends
to be massive and redistributing can adversely impact query performance.
If possible, restrict distribution to a single key.

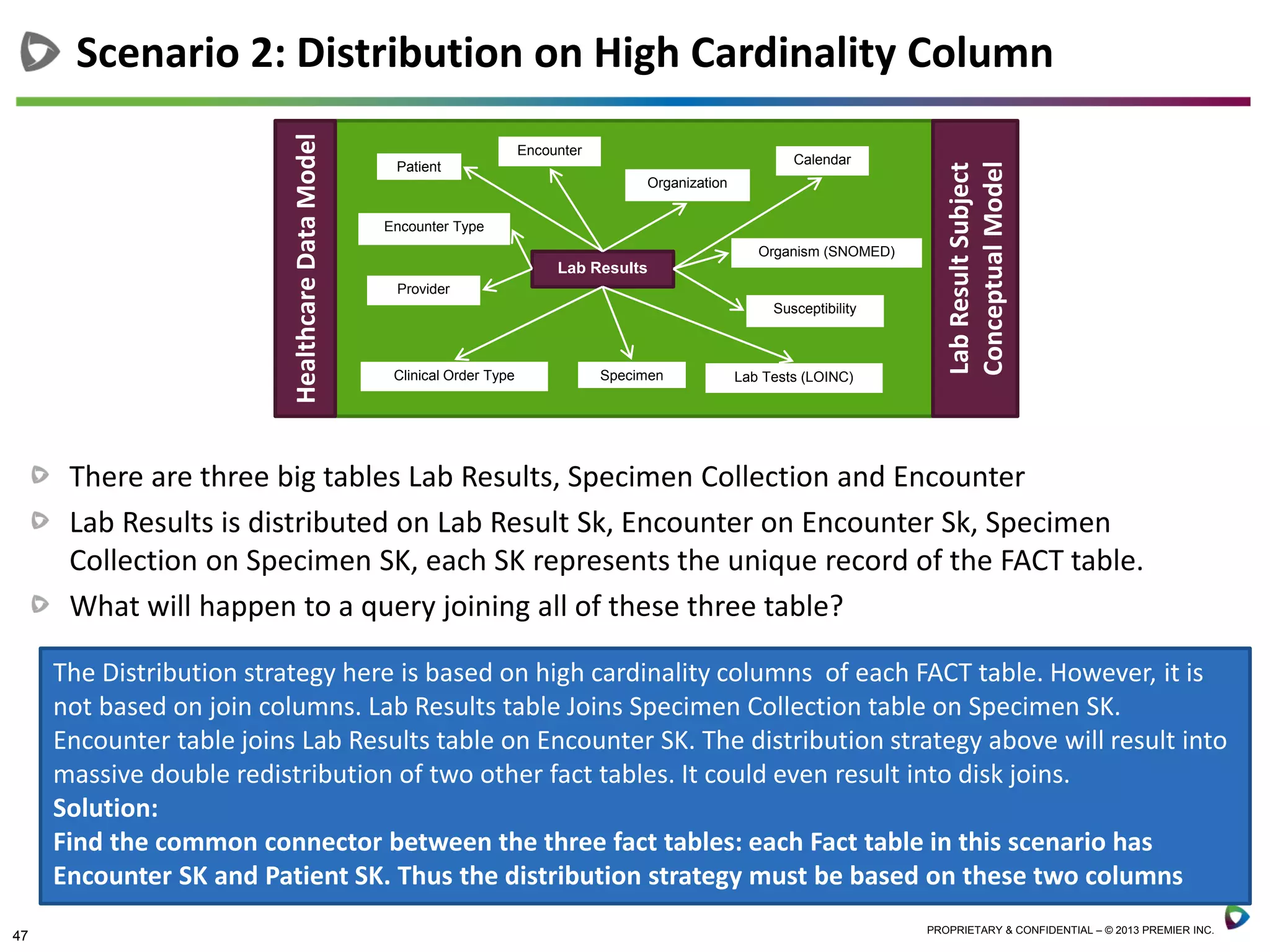

There are three big tables Lab Results, Specimen Collection and Encounter
Lab Results is distributed on Lab Result Sk, Encounter on Encounter Sk, Specimen
Collection on Specimen SK, each SK represents the unique record of the FACT table.
What will happen to a query joining all of these three table?
Scenario 2: Distribution on High Cardinality Column
Lab Results
Encounter
Organization
Provider
Clinical Order Type
Susceptibility
Patient
Lab Tests (LOINC)Specimen
Encounter Type
Calendar
Organism (SNOMED)
HealthcareDataModel
LabResultSubject
ConceptualModel
The Distribution strategy here is based on high cardinality columns of each FACT table. However, it is
not based on join columns. Lab Results table Joins Specimen Collection table on Specimen SK.
Encounter table joins Lab Results table on Encounter SK. The distribution strategy above will result into
massive double redistribution of two other fact tables. It could even result into disk joins.
Solution:
Find the common connector between the three fact tables: each Fact table in this scenario has
Encounter SK and Patient SK. Thus the distribution strategy must be based on these two columns

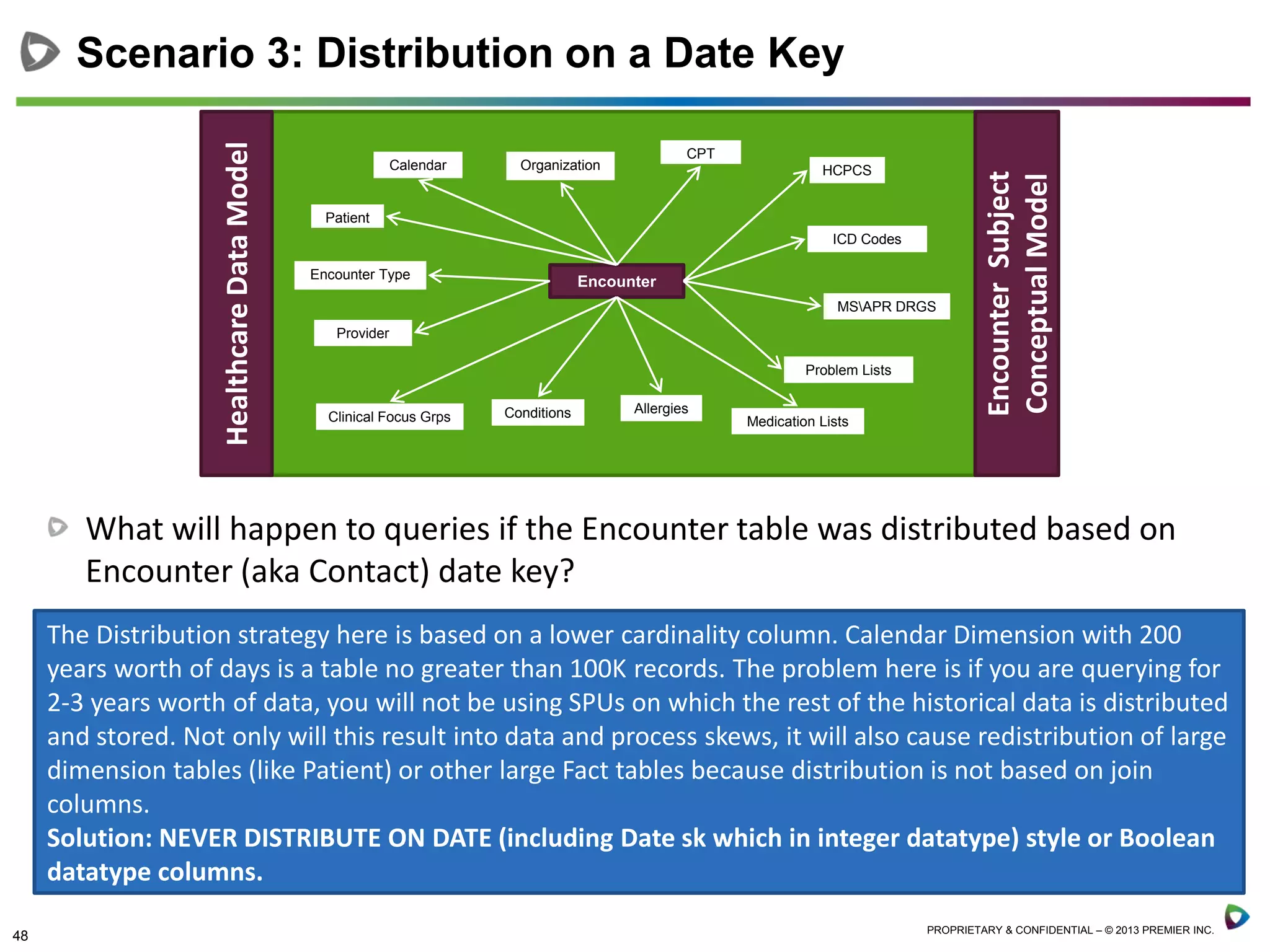

What will happen to queries if the Encounter table was distributed based on
Encounter (aka Contact) date key?
Scenario 3: Distribution on a Date Key
Encounter
Calendar Organization
Provider
Clinical Focus Grps
ICD Codes
Patient
MSAPR DRGS
Problem Lists
Encounter Type
CPT
HCPCS
Medication Lists
AllergiesConditions
HealthcareDataModel
EncounterSubject
ConceptualModel
The Distribution strategy here is based on a lower cardinality column. Calendar Dimension with 200
years worth of days is a table no greater than 100K records. The problem here is if you are querying for
2-3 years worth of data, you will not be using SPUs on which the rest of the historical data is distributed
and stored. Not only will this result into data and process skews, it will also cause redistribution of large
dimension tables (like Patient) or other large Fact tables because distribution is not based on join
columns.
Solution: NEVER DISTRIBUTE ON DATE (including Date sk which in integer datatype) style or Boolean
datatype columns.

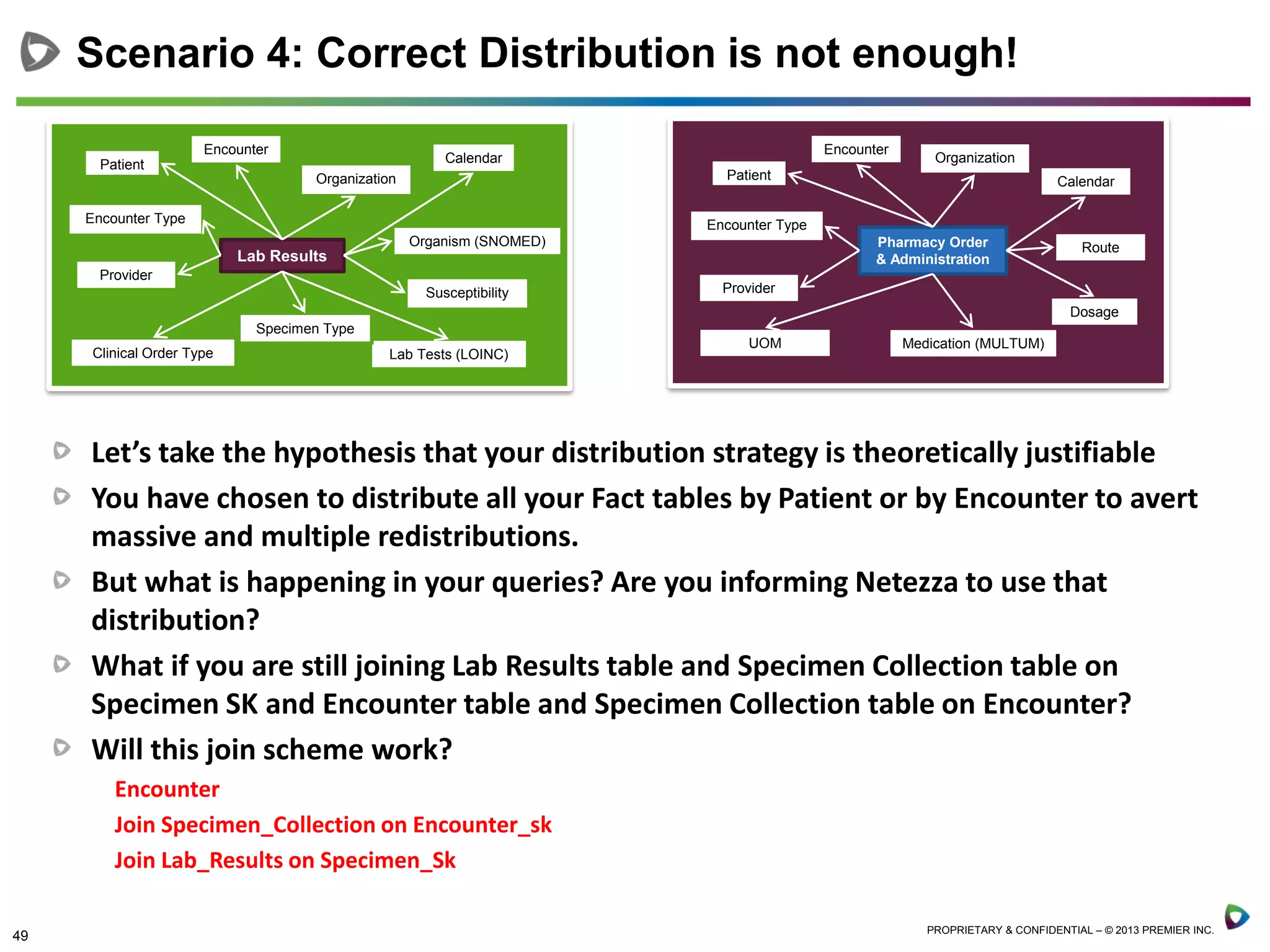

Let’s take the hypothesis that your distribution strategy is theoretically justifiable
You have chosen to distribute all your Fact tables by Patient or by Encounter to avert
massive and multiple redistributions.
But what is happening in your queries? Are you informing Netezza to use that
distribution?
What if you are still joining Lab Results table and Specimen Collection table on
Specimen SK and Encounter table and Specimen Collection table on Encounter?
Will this join scheme work?
Encounter
Join Specimen_Collection on Encounter_sk
Join Lab_Results on Specimen_Sk
Scenario 4: Correct Distribution is not enough!
Lab Results
Encounter
Organization
Provider
Clinical Order Type
Susceptibility
Patient
Lab Tests (LOINC)
Specimen Type
Encounter Type
Calendar
Organism (SNOMED) Pharmacy Order
& Administration
Encounter
Organization
Provider
Route
Patient
Dosage
UOM
Encounter Type
Calendar
Medication (MULTUM)

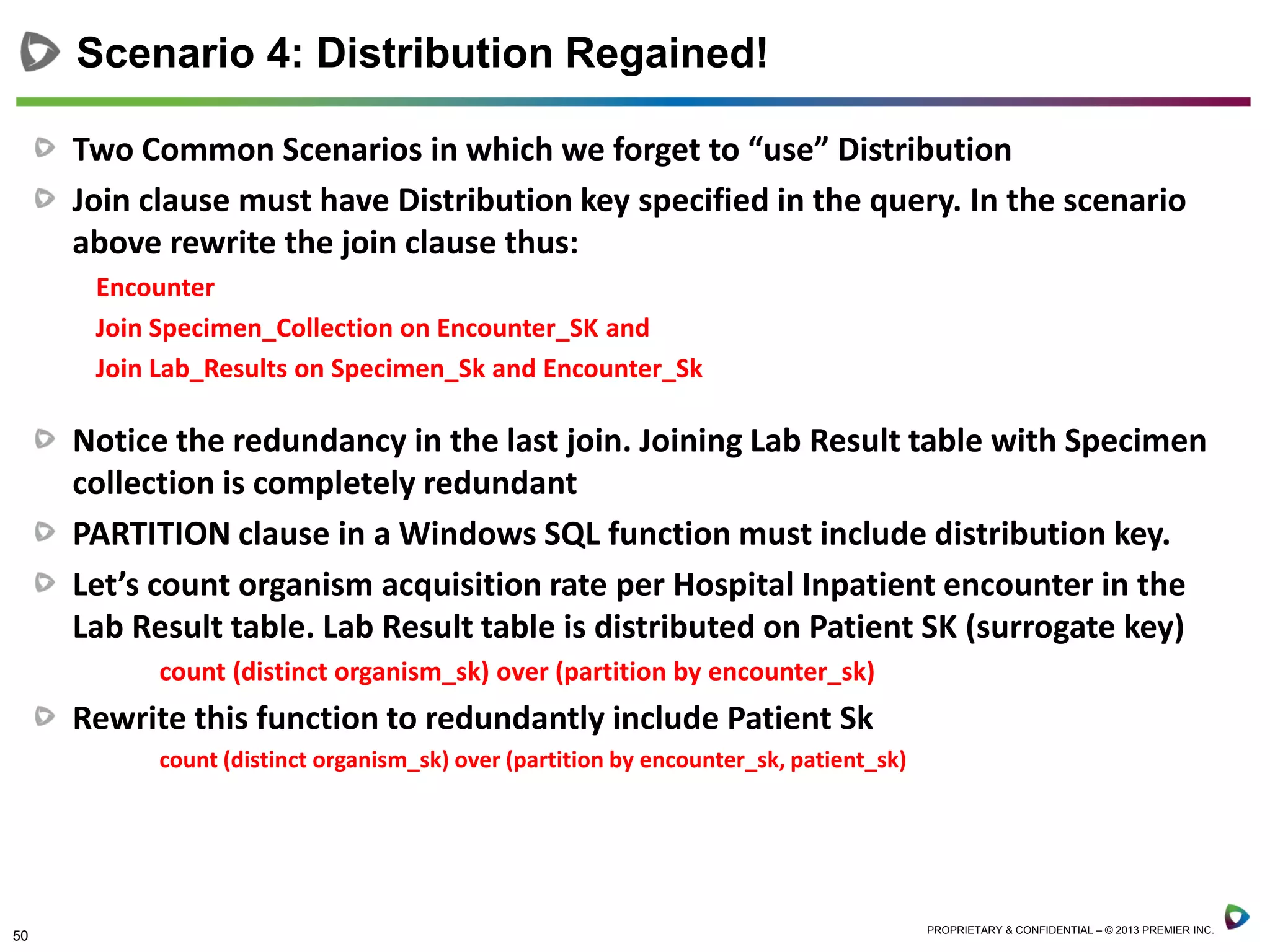

Two Common Scenarios in which we forget to “use” Distribution
Join clause must have Distribution key specified in the query. In the scenario
above rewrite the join clause thus:
Encounter
Join Specimen_Collection on Encounter_SK and
Join Lab_Results on Specimen_Sk and Encounter_Sk
Notice the redundancy in the last join. Joining Lab Result table with Specimen
collection is completely redundant
PARTITION clause in a Windows SQL function must include distribution key.
Let’s count organism acquisition rate per Hospital Inpatient encounter in the
Lab Result table. Lab Result table is distributed on Patient SK (surrogate key)
count (distinct organism_sk) over (partition by encounter_sk)
Rewrite this function to redundantly include Patient Sk
count (distinct organism_sk) over (partition by encounter_sk, patient_sk)
Scenario 4: Distribution Regained!

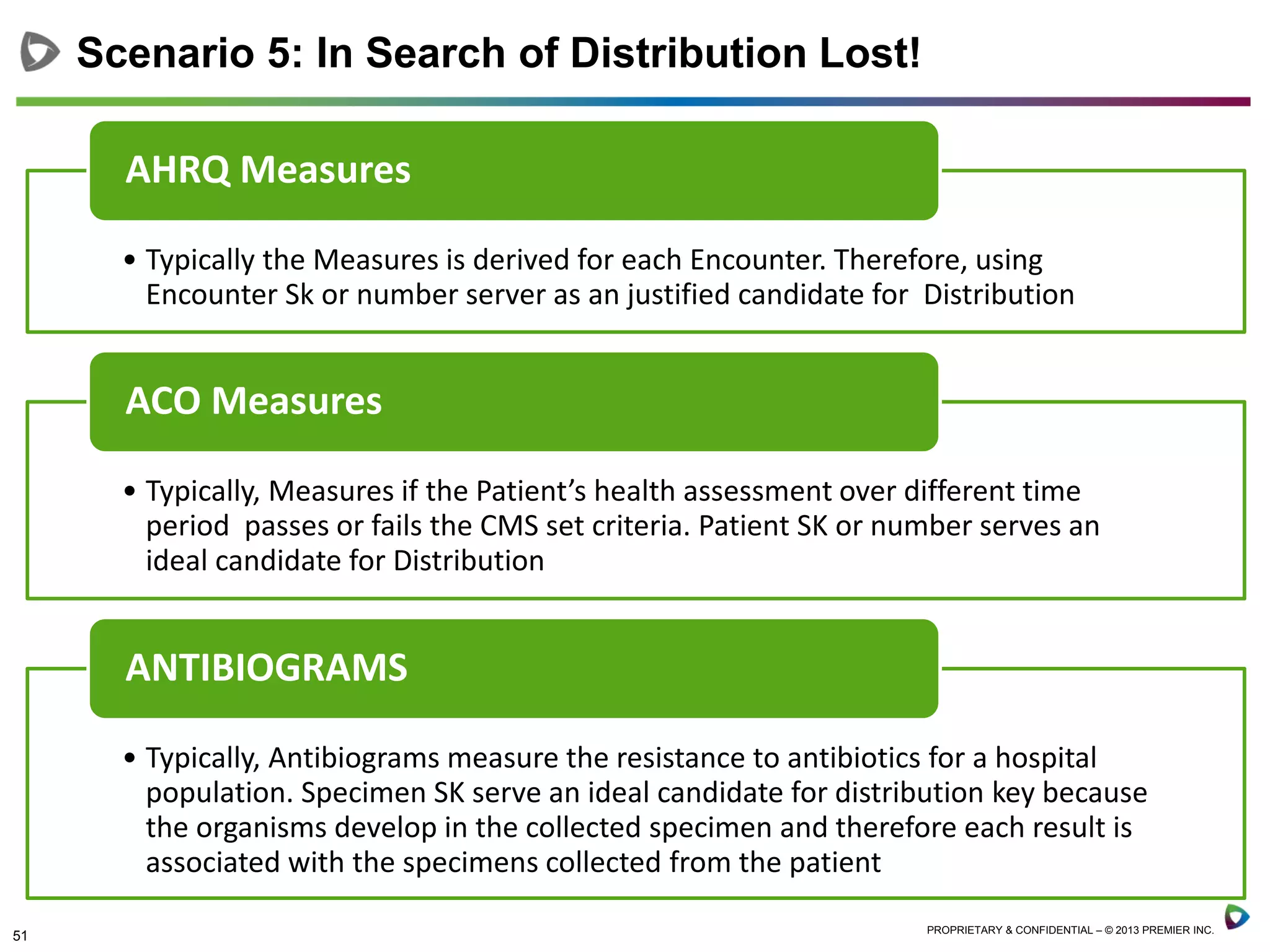

Scenario 5: In Search of Distribution Lost!
• Typically the Measures is derived for each Encounter. Therefore, using
Encounter Sk or number server as an justified candidate for Distribution
AHRQ Measures
• Typically, Measures if the Patient’s health assessment over different time
period passes or fails the CMS set criteria. Patient SK or number serves an
ideal candidate for Distribution
ACO Measures
• Typically, Antibiograms measure the resistance to antibiotics for a hospital
population. Specimen SK serve an ideal candidate for distribution key because
the organisms develop in the collected specimen and therefore each result is
associated with the specimens collected from the patient
ANTIBIOGRAMS

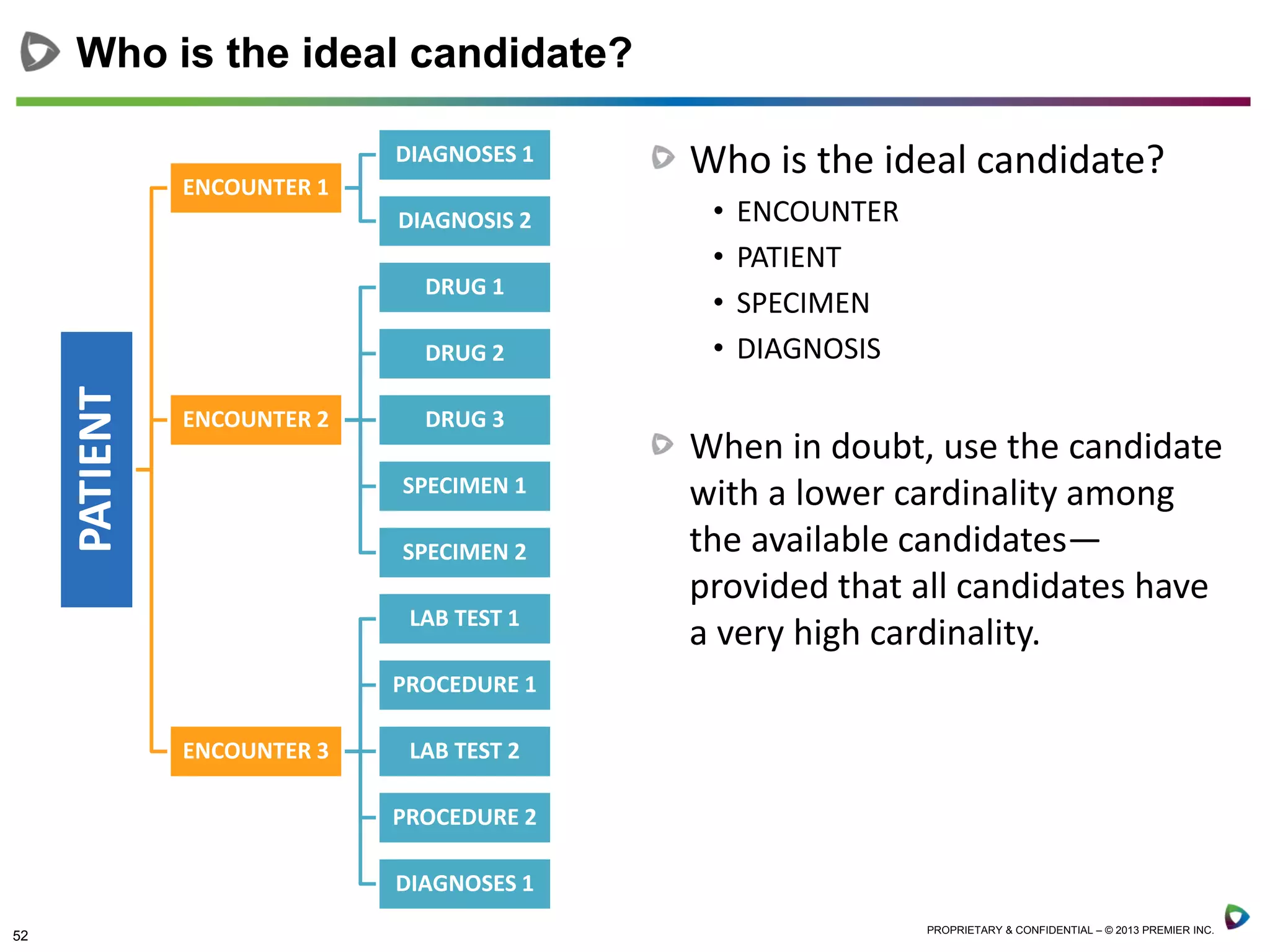

Who is the ideal candidate?
• ENCOUNTER
• PATIENT
• SPECIMEN
• DIAGNOSIS
When in doubt, use the candidate
with a lower cardinality among
the available candidates—
provided that all candidates have
a very high cardinality.
Who is the ideal candidate?
PATIENT
ENCOUNTER 1
DIAGNOSES 1
DIAGNOSIS 2
ENCOUNTER 2
DRUG 1
DRUG 2
DRUG 3
SPECIMEN 1
SPECIMEN 2
ENCOUNTER 3
LAB TEST 1
PROCEDURE 1
LAB TEST 2
PROCEDURE 2
DIAGNOSES 1

Zone Maps – Where Ignorance is Bliss!
• An extent is the smallest unit of disk
allocation (3 MB of disk space).
• A zone map is an internal mapping
structure to show the range (min and
max) of values within each extent.
• Zone maps are internally generated
system tables.
• Zone maps reduce disk scan operations
that are required to retrieve data by
eliminating records outside the start
and end range of a WHERE clause
queries.
• When a table is dropped or truncated,
the system updates the Zone map and
removes all records associated with the
tables.
• Netezza automatically creates new zone
maps and refreshes existing ones on
each data slice when you insert, update,
load data into tables, or generate
statistics.
• During Generate Statistics execution
zone maps are disabled.
• In addition, zone maps for the following
data types will be created if columns of
this type are used as the ORDER BY
restriction for a materialized view or as
the organizing key of a CBT:
– Char datatypes - all sizes, but only the
first 8 bytes are used in the zone map
– Numeric - all sizes up to numeric(18)
– Float, Double, Boolean

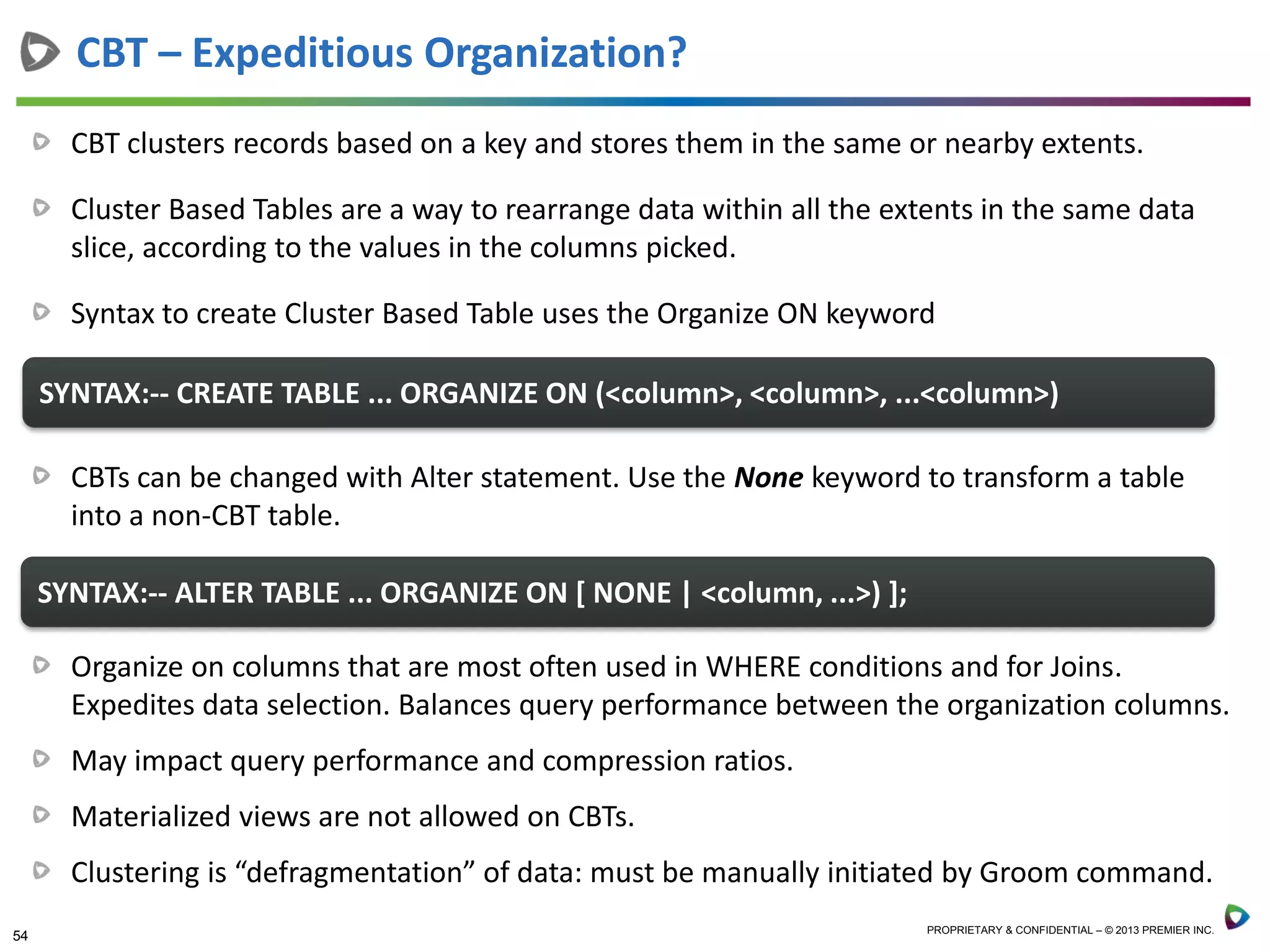

CBT clusters records based on a key and stores them in the same or nearby extents.
Cluster Based Tables are a way to rearrange data within all the extents in the same data
slice, according to the values in the columns picked.
Syntax to create Cluster Based Table uses the Organize ON keyword
CBT – Expeditious Organization?
SYNTAX:-- CREATE TABLE ... ORGANIZE ON (<column>, <column>, ...<column>)
CBTs can be changed with Alter statement. Use the None keyword to transform a table
into a non-CBT table.
SYNTAX:-- ALTER TABLE ... ORGANIZE ON [ NONE | <column, ...>) ];
Organize on columns that are most often used in WHERE conditions and for Joins.
Expedites data selection. Balances query performance between the organization columns.
May impact query performance and compression ratios.
Materialized views are not allowed on CBTs.
Clustering is “defragmentation” of data: must be manually initiated by Groom command.

Although the Netezza system automatically maintains certain statistics, you might want to run
GENERATE STATISTICS command & the Groom Table command periodically.
Generate statistics gathers statistics for each table’s column's like duplicate values, minimum
values, maximum values, null values, unique values and updates the system catalog tables.
Generate Statistics command should especially be used when a table structure is altered or
renamed. It forces the Netezza system to updates the zone maps and thereby improve query
performance.
The difference between 'generate statistics' and 'generate express statistics' is based on how the
column uniqueness is calculated. The 'generate express statistics' calculates estimated dispersion
values based on the sampling of rows in the table.
As part of your routine database maintenance activities, plan to recover disk space that is occupied
by outdated or deleted rows. In normal Netezza operations, an update or delete of a table row
does not remove the version of the row. This approach benefits multi-version concurrency
control. Over time however, the outdated or deleted tuples are of no interest to any transaction.
You can reclaim the space that they occupy by using the SQL GROOM TABLE command.
Groom commands typically run longer for Cluster Based Tables (tables created with Organize on
clause).
Groom and Generate Stats: Always!
Syntax: Generate statistics on table <table name> ;
Generate express statistics on table <table name>;

To migrate data for a versioned table: GROOM TABLE <table_name> VERSIONS;
To reclaim deleted records in a table: GROOM TABLE <table_name> RECORDS ALL;
To identify data pages that contain only deleted records and to reclaim extents that are empty as a
result: GROOM TABLE <table_name> PAGES ALL;
To organize data that is not already organized in a clustered base table:
GROOM TABLE <table_name> RECORDS READY;
Groom: Syntactically Speaking
SYNTAX: GROOM TABLE <name> <mode-choice>
<mode-choice>:= RECORDS READY | RECORDS ALL | PAGES ALL | PAGES START |
VERSIONS

Materialized View is a sorted projection of
one and only one table
MVs reduce the width of the data being
scanned by creating a thin version of the
table--based on frequently queried columns.
This selection of frequently queried columns
is called projection.
MVs are typically sorted like the base tables,
but can be ordered on columns different
from base table. This reduces table scans due
to enhanced zone maps. and it improves
query performance if the sorted columns are
included in the “where” clause of the query.
Essentially, MVs improve performance by
reducing the amount of data transferred
from the disk to the CPU-RAM.
Materialized Views – New York-Style Thin Slices!!!

Materialized Views are user defined
Materialized Views are automatically managed
o The query planneroptimizer in NZ host decides whether to use base table or MV based on
factors like least scanning cost: sort order required by the query, columns projected and used in
“where” clauses
o Adding MVs can be useful if the Netezza database is used by multiple applications (especially
when you have applications (ETL loaders) which writes into the database and one that reads
from the database (BI Apps)
Materialized Views are automatically maintained
o MVs are automatically maintained on LOAD, INSERT, UPDATE, DELETE, and TRUNCATE TABLE
o REFRESH in Materialized Views refreshes the sort order of the data, not the data itself.
o System automatically adds a column to the MV to define where in the base table the record
originated.
o LOAD, INSERT and UPDATE will append unsorted rows to the base table, this may degrade
performance over time
o For large table modification or batch jobs—LOAD, INSERT or UPDATE—it is recommended to
SUSPEND a materialized view before the batch operation and REFRESH the materialized view
upon the completion of the batch job.
MVs – What’s under the hood?

Base Table
• Materialized View can be based on only one base table.
• Materialized View cannot be created on external tables, temporary tables, system tables or
Cluster-based table.
SELECT clause
• Expressions are not allowed in the projected (select clause) columns
• Materialized View must have atleast one column in the SELECT clause
JOIN clause
• No JOINs are allowed in the query of a materialized view
WHERE clause
• No WHERE clause is allowed in the query of materialized view
ORDER BY clause
• Columns in the ORDER BY clause of the query must also be specified in the SELECT clause
• ORDER BY clause cannot be descending
Thou Shall Not! in Materialized Views

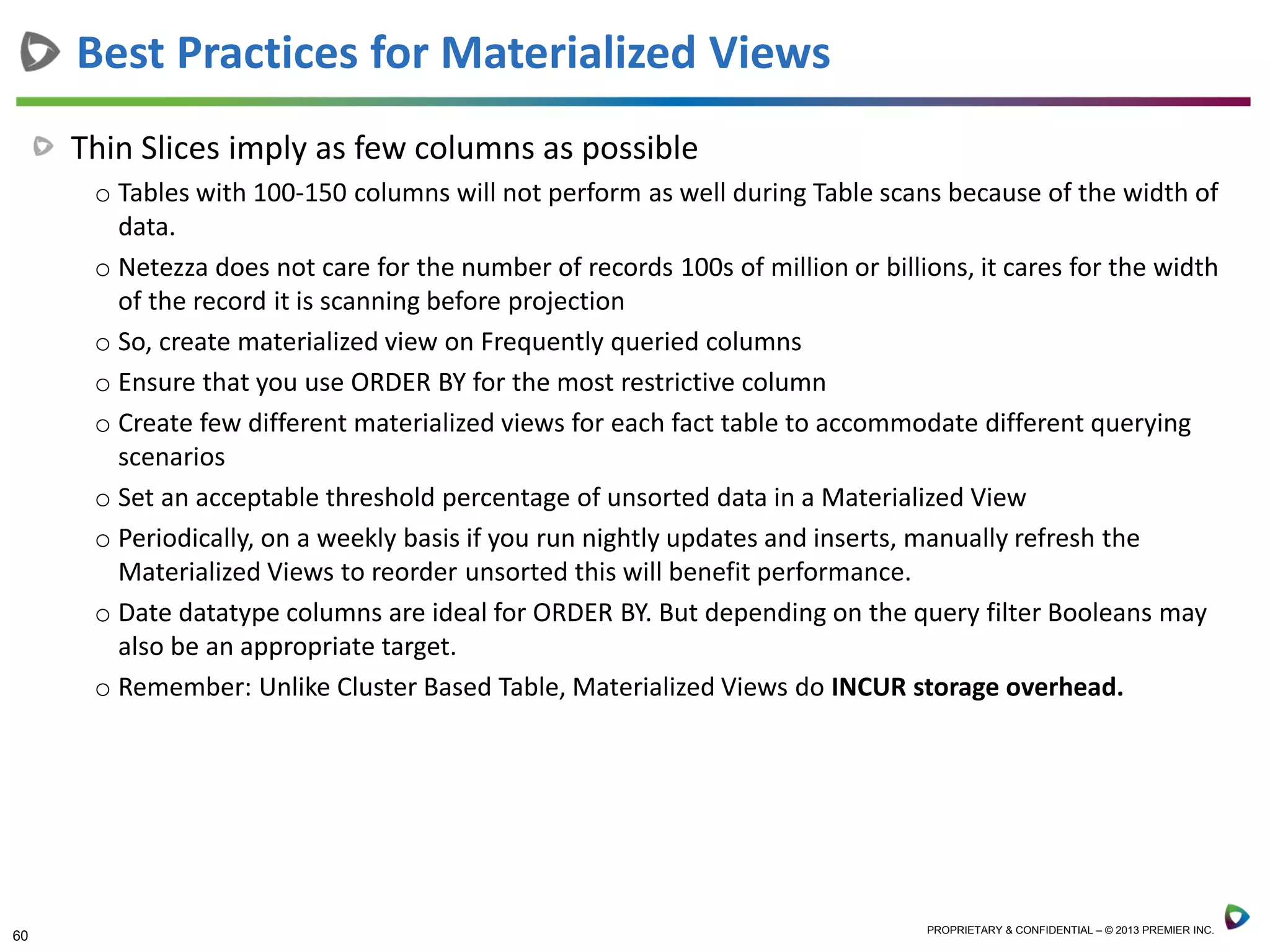

Thin Slices imply as few columns as possible
o Tables with 100-150 columns will not perform as well during Table scans because of the width of
data.
o Netezza does not care for the number of records 100s of million or billions, it cares for the width
of the record it is scanning before projection
o So, create materialized view on Frequently queried columns
o Ensure that you use ORDER BY for the most restrictive column
o Create few different materialized views for each fact table to accommodate different querying
scenarios
o Set an acceptable threshold percentage of unsorted data in a Materialized View
o Periodically, on a weekly basis if you run nightly updates and inserts, manually refresh the
Materialized Views to reorder unsorted this will benefit performance.
o Date datatype columns are ideal for ORDER BY. But depending on the query filter Booleans may
also be an appropriate target.
o Remember: Unlike Cluster Based Table, Materialized Views do INCUR storage overhead.
Best Practices for Materialized Views

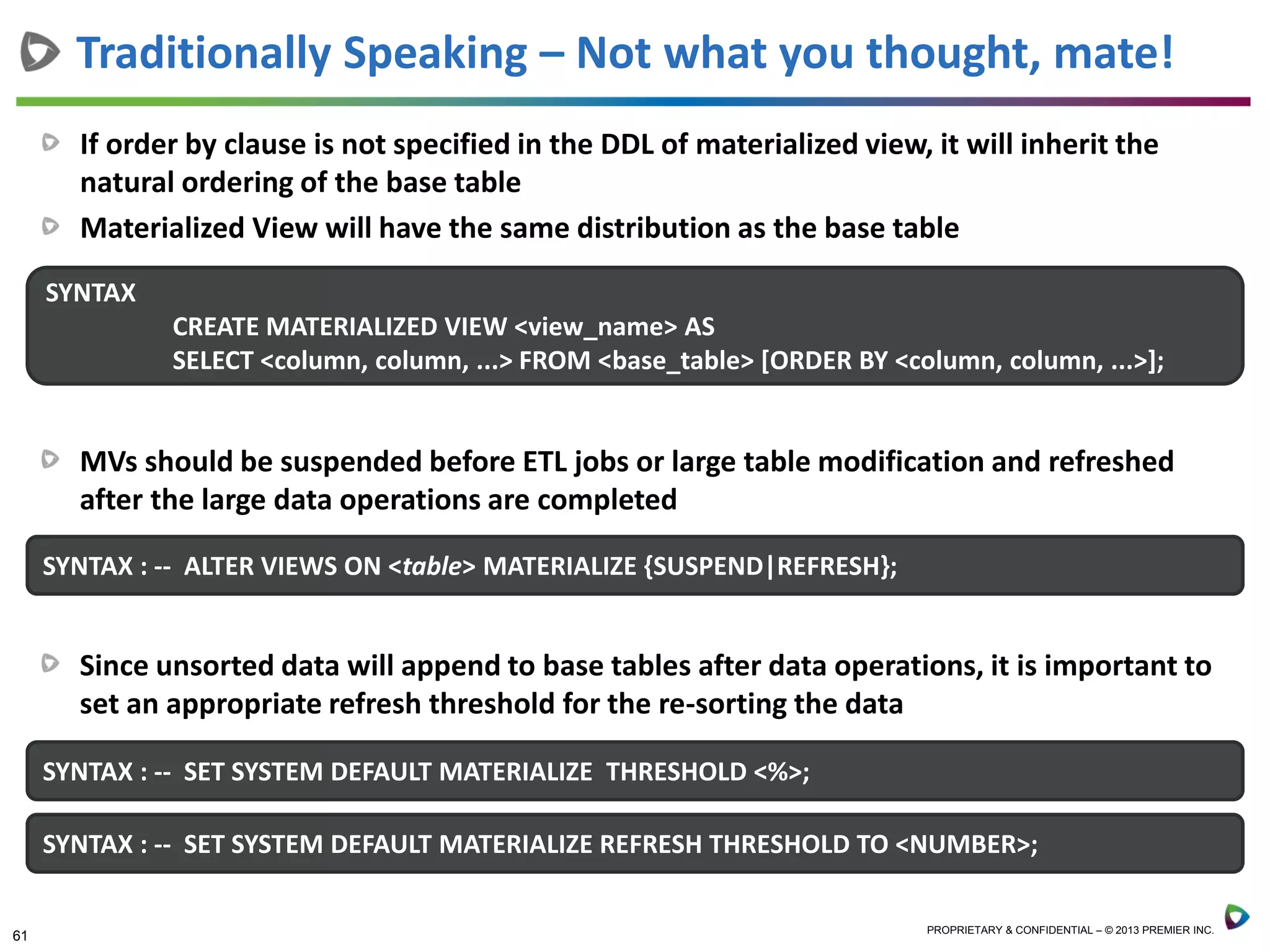

Traditionally Speaking – Not what you thought, mate!
If order by clause is not specified in the DDL of materialized view, it will inherit the
natural ordering of the base table
Materialized View will have the same distribution as the base table
SYNTAX
CREATE MATERIALIZED VIEW <view_name> AS
SELECT <column, column, ...> FROM <base_table> [ORDER BY <column, column, ...>];
SYNTAX : -- ALTER VIEWS ON <table> MATERIALIZE {SUSPEND|REFRESH};
MVs should be suspended before ETL jobs or large table modification and refreshed
after the large data operations are completed
Since unsorted data will append to base tables after data operations, it is important to
set an appropriate refresh threshold for the re-sorting the data
SYNTAX : -- SET SYSTEM DEFAULT MATERIALIZE THRESHOLD <%>;
SYNTAX : -- SET SYSTEM DEFAULT MATERIALIZE REFRESH THRESHOLD TO <NUMBER>;

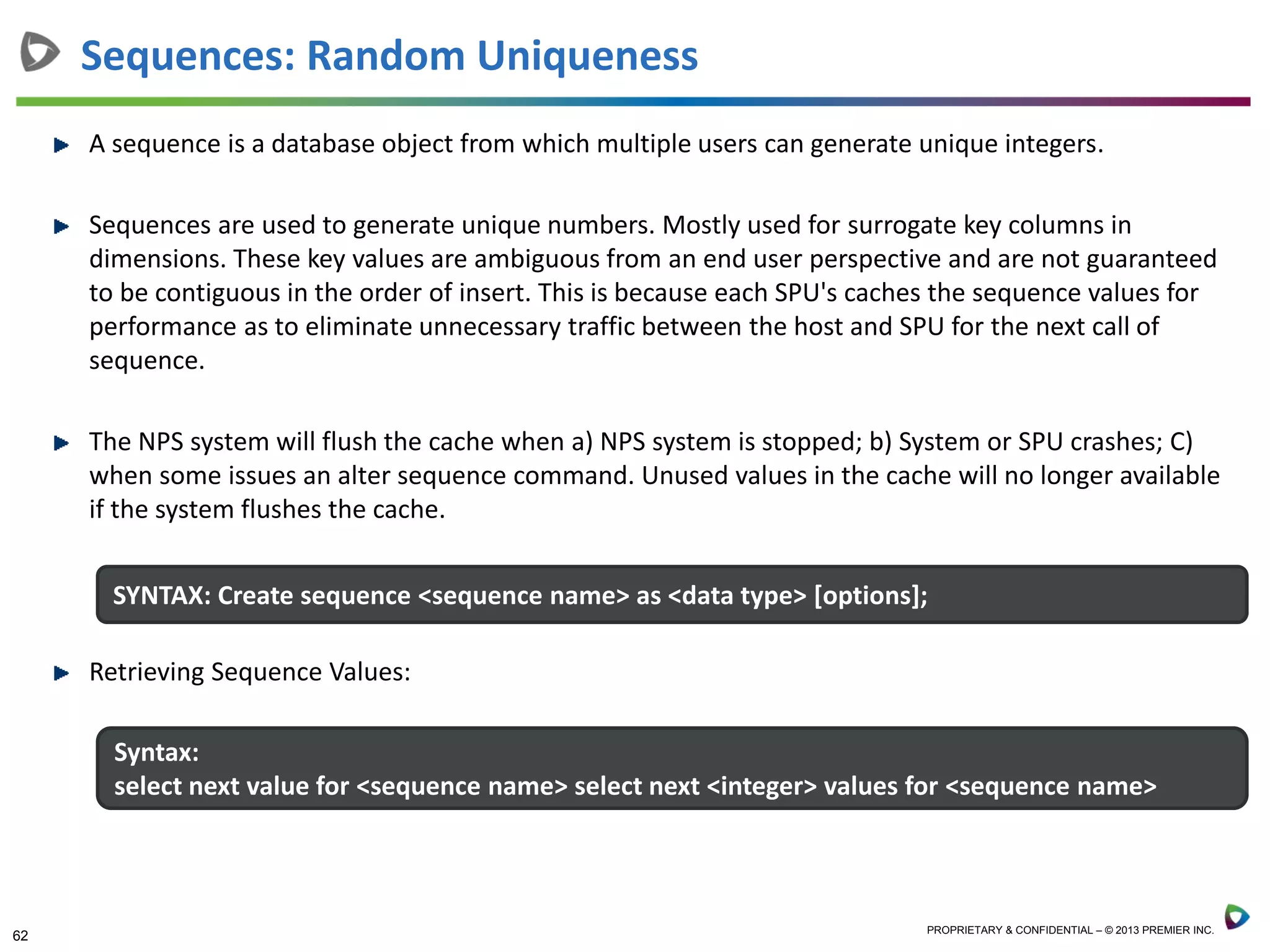

A sequence is a database object from which multiple users can generate unique integers.
Sequences are used to generate unique numbers. Mostly used for surrogate key columns in
dimensions. These key values are ambiguous from an end user perspective and are not guaranteed
to be contiguous in the order of insert. This is because each SPU's caches the sequence values for
performance as to eliminate unnecessary traffic between the host and SPU for the next call of
sequence.
The NPS system will flush the cache when a) NPS system is stopped; b) System or SPU crashes; C)
when some issues an alter sequence command. Unused values in the cache will no longer available
if the system flushes the cache.
Retrieving Sequence Values:
Sequences: Random Uniqueness
SYNTAX: Create sequence <sequence name> as <data type> [options];
Syntax:
select next value for <sequence name> select next <integer> values for <sequence name>

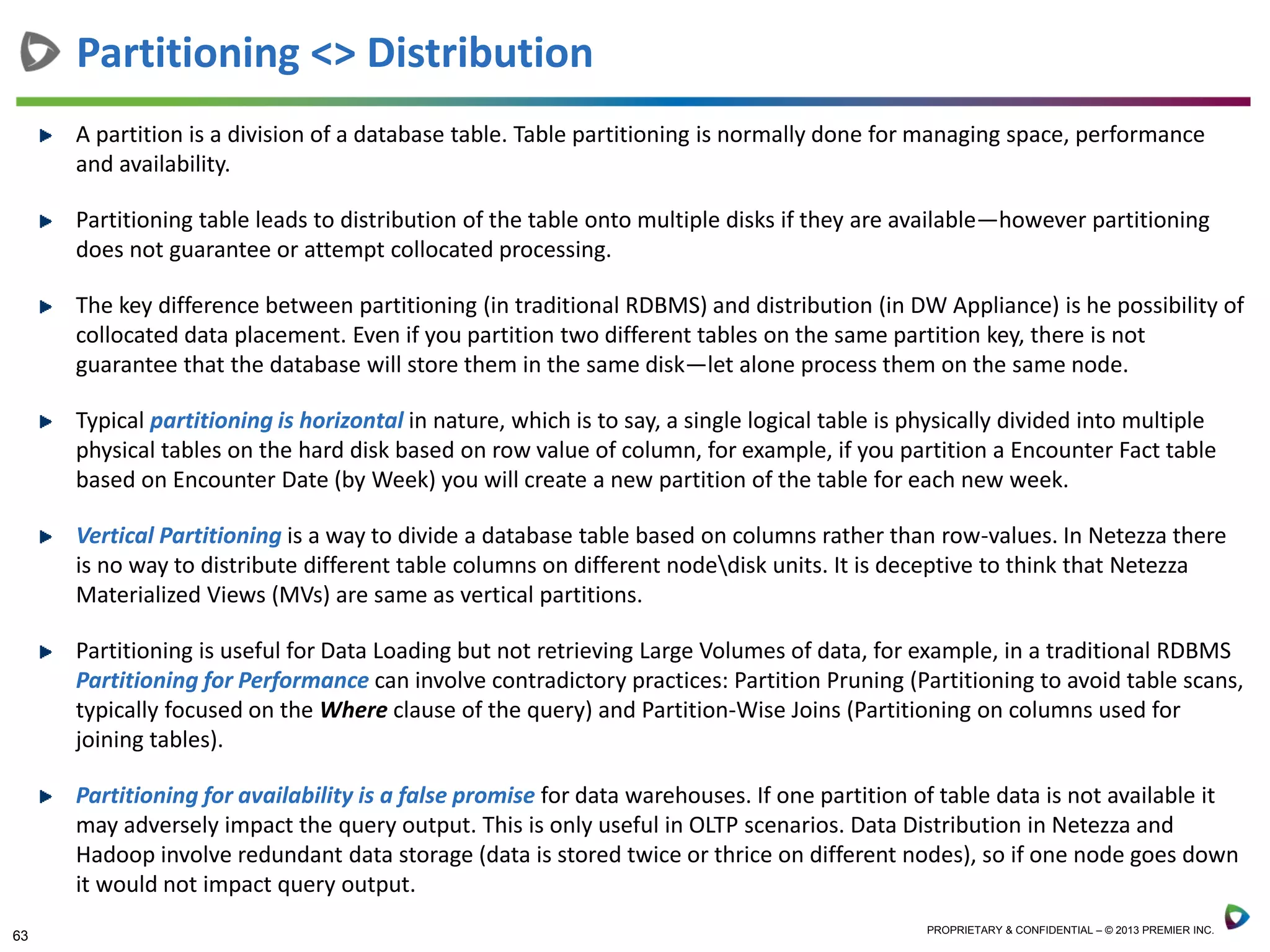

A partition is a division of a database table. Table partitioning is normally done for managing space, performance
and availability.
Partitioning table leads to distribution of the table onto multiple disks if they are available—however partitioning
does not guarantee or attempt collocated processing.
The key difference between partitioning (in traditional RDBMS) and distribution (in DW Appliance) is he possibility of
collocated data placement. Even if you partition two different tables on the same partition key, there is not
guarantee that the database will store them in the same disk—let alone process them on the same node.
Typical partitioning is horizontal in nature, which is to say, a single logical table is physically divided into multiple
physical tables on the hard disk based on row value of column, for example, if you partition a Encounter Fact table
based on Encounter Date (by Week) you will create a new partition of the table for each new week.
Vertical Partitioning is a way to divide a database table based on columns rather than row-values. In Netezza there
is no way to distribute different table columns on different nodedisk units. It is deceptive to think that Netezza
Materialized Views (MVs) are same as vertical partitions.
Partitioning is useful for Data Loading but not retrieving Large Volumes of data, for example, in a traditional RDBMS
Partitioning for Performance can involve contradictory practices: Partition Pruning (Partitioning to avoid table scans,
typically focused on the Where clause of the query) and Partition-Wise Joins (Partitioning on columns used for
joining tables).
Partitioning for availability is a false promise for data warehouses. If one partition of table data is not available it
may adversely impact the query output. This is only useful in OLTP scenarios. Data Distribution in Netezza and
Hadoop involve redundant data storage (data is stored twice or thrice on different nodes), so if one node goes down
it would not impact query output.
Partitioning <> Distribution

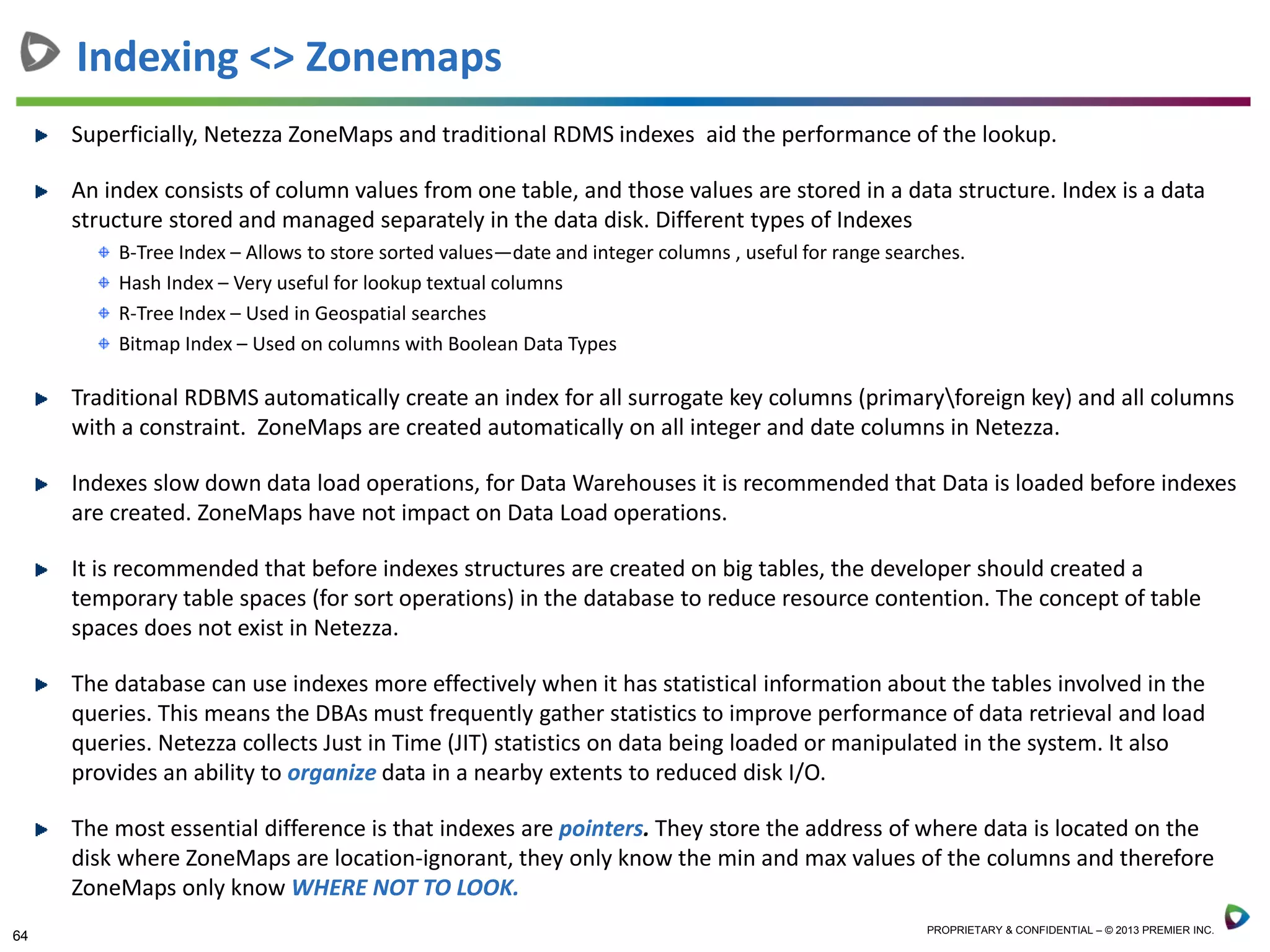

Superficially, Netezza ZoneMaps and traditional RDMS indexes aid the performance of the lookup.
An index consists of column values from one table, and those values are stored in a data structure. Index is a data
structure stored and managed separately in the data disk. Different types of Indexes
B-Tree Index – Allows to store sorted values—date and integer columns , useful for range searches.
Hash Index – Very useful for lookup textual columns
R-Tree Index – Used in Geospatial searches
Bitmap Index – Used on columns with Boolean Data Types
Traditional RDBMS automatically create an index for all surrogate key columns (primaryforeign key) and all columns
with a constraint. ZoneMaps are created automatically on all integer and date columns in Netezza.
Indexes slow down data load operations, for Data Warehouses it is recommended that Data is loaded before indexes
are created. ZoneMaps have not impact on Data Load operations.
It is recommended that before indexes structures are created on big tables, the developer should created a
temporary table spaces (for sort operations) in the database to reduce resource contention. The concept of table
spaces does not exist in Netezza.
The database can use indexes more effectively when it has statistical information about the tables involved in the
queries. This means the DBAs must frequently gather statistics to improve performance of data retrieval and load
queries. Netezza collects Just in Time (JIT) statistics on data being loaded or manipulated in the system. It also
provides an ability to organize data in a nearby extents to reduced disk I/O.
The most essential difference is that indexes are pointers. They store the address of where data is located on the
disk where ZoneMaps are location-ignorant, they only know the min and max values of the columns and therefore
ZoneMaps only know WHERE NOT TO LOOK.
Indexing <> Zonemaps

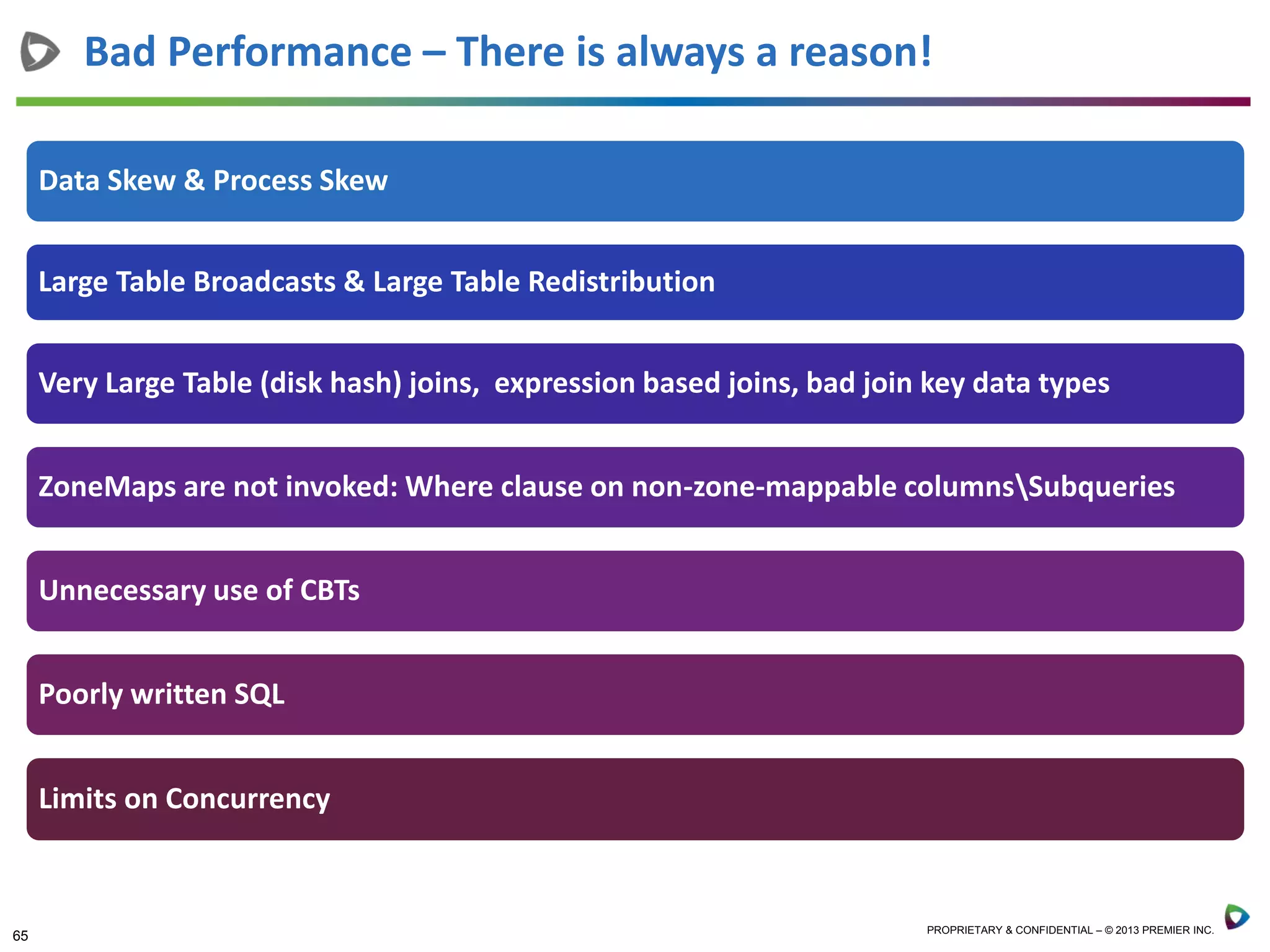

Bad Performance – There is always a reason!
Data Skew & Process Skew
Large Table Broadcasts & Large Table Redistribution
Very Large Table (disk hash) joins, expression based joins, bad join key data types
ZoneMaps are not invoked: Where clause on non-zone-mappable columnsSubqueries
Unnecessary use of CBTs
Poorly written SQL
Limits on Concurrency

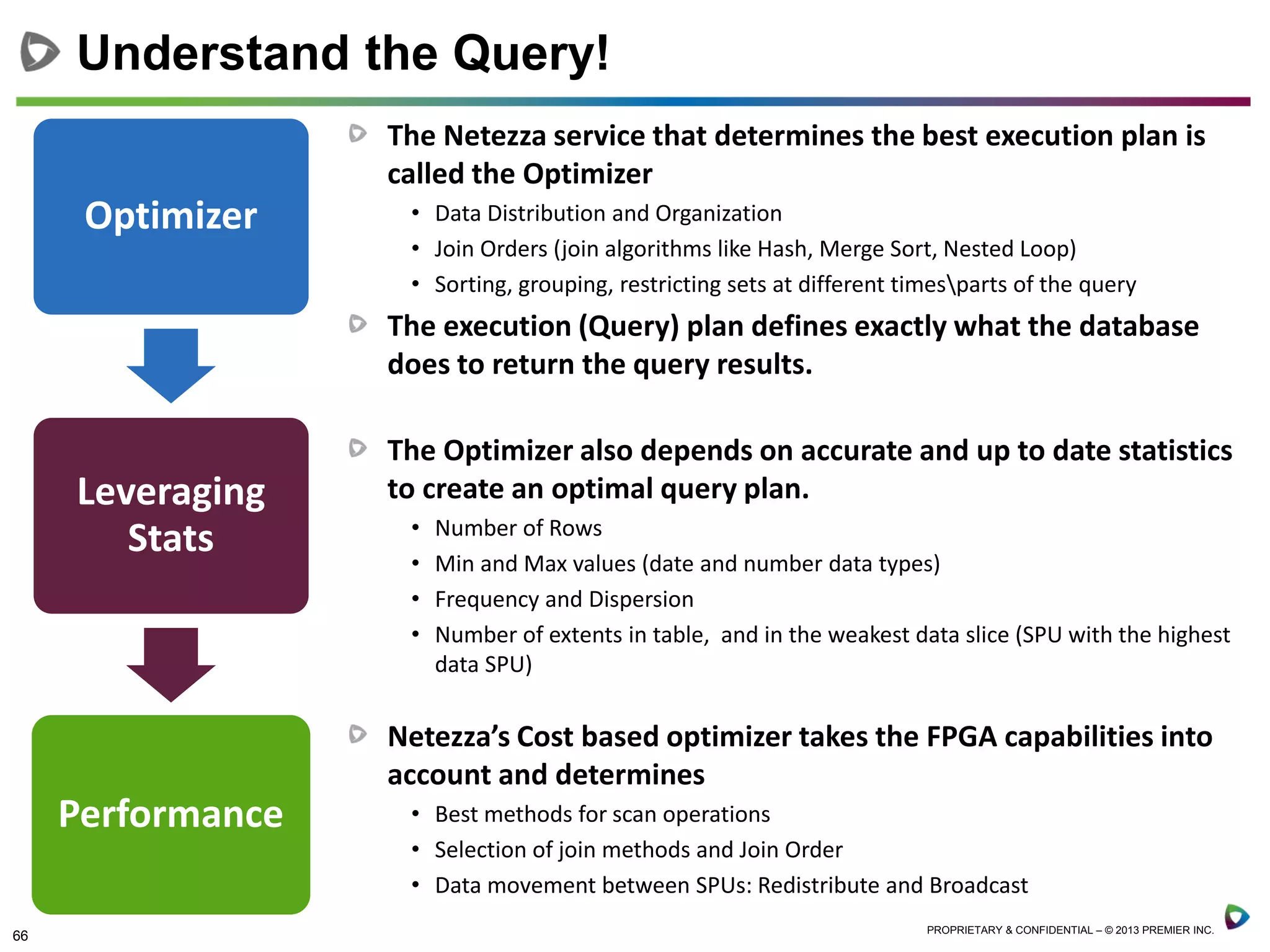

Optimizer
Leveraging
Stats
Performance
Understand the Query!
The Netezza service that determines the best execution plan is
called the Optimizer
• Data Distribution and Organization
• Join Orders (join algorithms like Hash, Merge Sort, Nested Loop)
• Sorting, grouping, restricting sets at different timesparts of the query
The execution (Query) plan defines exactly what the database
does to return the query results.
The Optimizer also depends on accurate and up to date statistics
to create an optimal query plan.
• Number of Rows
• Min and Max values (date and number data types)
• Frequency and Dispersion
• Number of extents in table, and in the weakest data slice (SPU with the highest
data SPU)
Netezza’s Cost based optimizer takes the FPGA capabilities into
account and determines
• Best methods for scan operations
• Selection of join methods and Join Order
• Data movement between SPUs: Redistribute and Broadcast

The Optimizer may rewrite queries to improve performance
• Push down tables to Sub queries
• Pull up or De Correlation of Subqueries
• Rewrite of Expressions
All query tasks are broken down into snippets that are executed in parallel.
Examples of snippet operations include Scan operations, joins, filters, sorting,
aggregations, etc.
The Netezza Snippet Scheduler determines which snippet to add to the current
workload based on session priority, estimated memory consumption vs.
available memory, estimated SPU disk time
Optimizer is a tough Editor!

Netezza provides three different ways to display Query Plans
• EXPLAIN VERBOSE provides detailed cost estimated per SPU and operation
• Text Plans provides a natural language description of the plan
• HTML plans provides a graphical representation of the query plan
Syntactically Speaking – Query Plans
SYNTAX:-- EXPLAIN VERBOSE <QUERY>
SYNTAX:-- EXPLAIN PLANTEXT <QUERY>
SYNTAX:-- EXPLAIN PLANGRAPH <QUERY>

Example Query
select
fcy.fcy_nm as facility
, cdr.mo_of_yr_abbr as month
, ( case when enc.ptnt_cl_cd = 'I' then 'INPATIENT' else 'OUTPATIENT' end ) as
patient_class
, avg(los_cnt) as Lenght_of_Stay
from
encntr as enc
inner join cdr on enc.dschrg_cdr_dk = cdr.cdr_dk
inner join fcy_demog_ref as fcy on enc.fcy_num = fcy.fcy_num
where cdr.yr_num = 2012
group by fcy.fcy_nm, cdr.mo_of_yr_abbr, cdr.mo_and_yr_num, enc.ptnt_cl_cd
order by cdr.mo_and_yr_num
Query joins three tables: encounter, calendar and hospital facility
Distributed on Facility and Encounter Num
The query has grouping, sorting and filtering options.

Restrictions imply the WHERE clause of the query
Projections imply the SELECT clause of the query
Join type like MergeSort or Disk (multi-node) HASH joins can have a big impact.

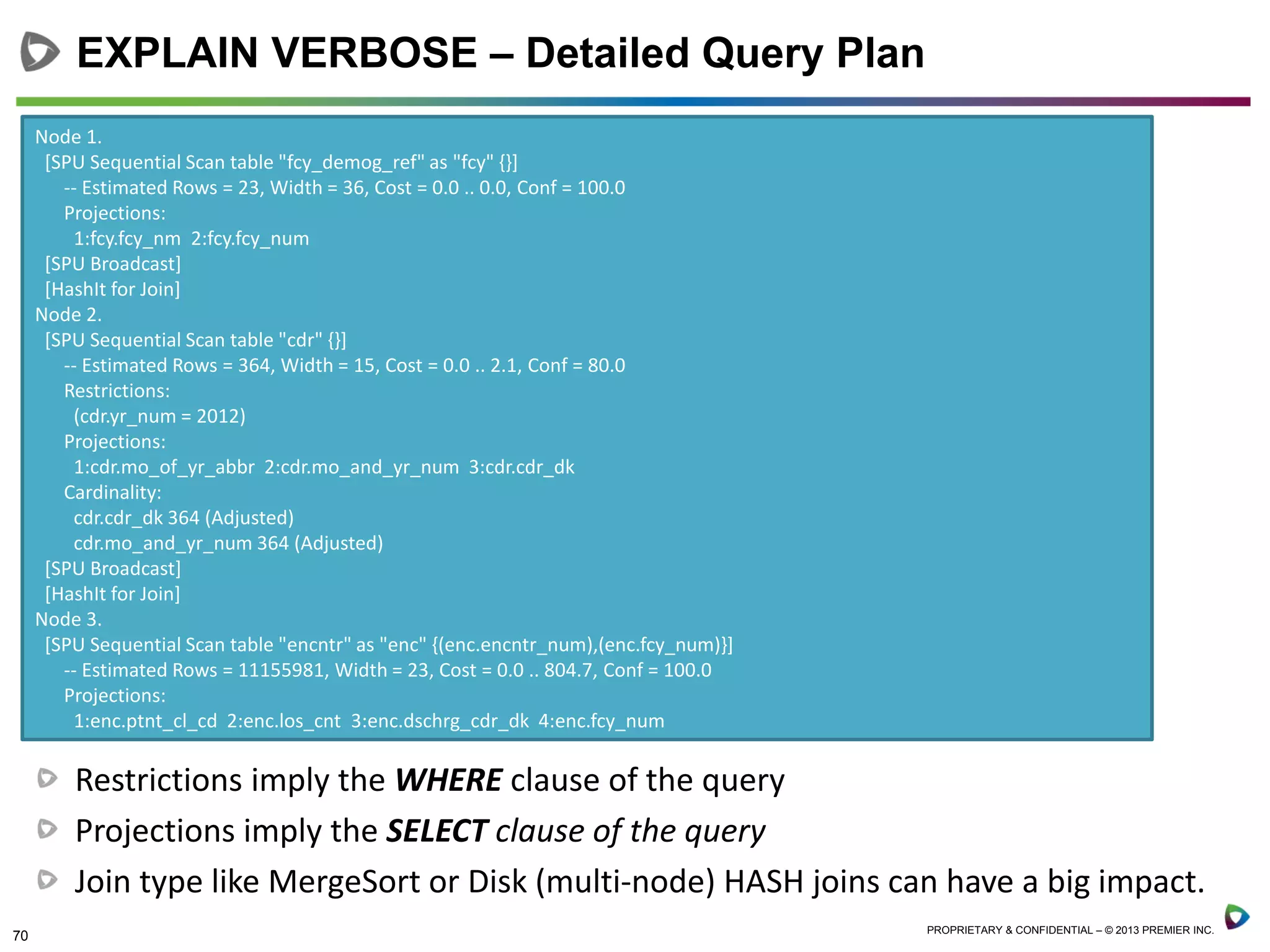

EXPLAIN VERBOSE – Detailed Query Plan
Node 1.
[SPU Sequential Scan table "fcy_demog_ref" as "fcy" {}]
-- Estimated Rows = 23, Width = 36, Cost = 0.0 .. 0.0, Conf = 100.0
Projections:
1:fcy.fcy_nm 2:fcy.fcy_num
[SPU Broadcast]
[HashIt for Join]
Node 2.
[SPU Sequential Scan table "cdr" {}]
Restrictions:
(cdr.yr_num = 2012)
Projections:
1:cdr.mo_of_yr_abbr 2:cdr.mo_and_yr_num 3:cdr.cdr_dk
Cardinality:
cdr.cdr_dk 364 (Adjusted)
cdr.mo_and_yr_num 364 (Adjusted)
[SPU Broadcast]
[HashIt for Join]
Node 3.
[SPU Sequential Scan table "encntr" as "enc" {(enc.encntr_num),(enc.fcy_num)}]
Projections:
1:enc.ptnt_cl_cd 2:enc.los_cnt 3:enc.dschrg_cdr_dk 4:enc.fcy_num

Plan Graph makes it easy to see Join
Orders
In this case the calendar table is
broadcasted after the restriction of
Year 2012. The facility tables is also
broadcasted (23 rows) without any
restrictions or filters.
The first join occurs between Encounter
and Calendar tables
Followed by join with Facility table
The result set is then Grouped for
Patient Class, Facility, Month, etc.
Then the aggregation step takes place
The last step is the sorting step.
Notice how Netezza provides statistics
for each stage: rows returned, the size
of data returned, the width or the
record etc.
HTML PLAN GRAPHS

For long-running queries use EXPLAIN functionality to identify
possible problems
 Analyze query plan, do the cost estimates seem reasonable?
 Is the system performing redistributions or broadcasts? Could you prevent this
through different distribution keys?
 If the system broadcasts tables, are those small? You may need to generate
statistics.
Review Join order. Is the biggest table scanned last?
Run the query again after you have updated the statistics and
changed the distribution, then review changes in query plan
Other options include grooming tables that had lots of deletions,
creation of materialized views or use of cluster based tables
Use Explain Plans for Long Running Queries

• Databases
• Tables
• Users
• Groups
• Privileges
• Row Level Data Authotization
Creating & Managing Data

Create Databases can be created by a SQL tool, NzAdmin or NzSql (Unix utility)
Privilege to create database must be granted. Or you must be an Admin
Syntax:-- CREATE DATABASE database_name;
Example:-- create database my_db;
Creating & Managing Databases
ALTER You can rename a database ,or change ownership of a database.
Syntax: ALTER DATABASE db_name [RENAME|OWNER] TO name;
Example:-- alter database my_db to clinical_db;
Example:-- alter database clinical_db owner to ‘jdoe’
DROP You can drop a database –if privileges are granted to you to do so.
Syntax: DROP DATABASE database_name;
Example:-- drop database clinical_db;

A user must be an Admin or must have object privileges in order to
create a table
Creating Tables
CREATE TABLE table_name (
column_name data_type,
column_name data_type,
column_name data_type);
distribute on (column_1, column_2);
You may also create temporary table with a slight modification to
the syntax
Limitations: 1600 columns; column size <= 64k and row size <=
65535k
CREATE [TEMPORARY | TEMP] TABLE table_name
(column_name data_type) [,…];

Use the smallest integer data type necessary .
Do not use approximate numeric for columns for distribution columns, join columns or
columns that require mathematical operations (sum, avg, etc.).
Floating point data types have performance implications. Netezza will not perform hash
joins on floating point data type columns, instead it must instead must perform a slower
sort merge join.
Use date, time and timestamp for consistency and validation.
Column Data Types

Constraints are rules every recordrow in a table must satisfy at the time load or
update operations
Netezza enforces NOT NULL and DEFAULT constraints.
Netezza will not enforce referential integrity constraints for reasons of
performance but specifying them may be helpful for the integration with third-
party tools.
Constraints
CREATE TABLE table_name (
column_name data_type NOT NULL,
column_name data_type NOT NULL,
column_name data_type NOT NULL DEFAULT value,
PRIMARY KEY (column_name, column_name)
UNIQUE (column));

CREATE TABLE AS, also known as, CTAS table is just a regular table
Efficient method to create new tables from existing tables without costly reload
of data
Highly recommended for changing the distribution of a table without data reload.
You may also create temporary session-specific CTAS tables for your analytical needs
CTAS – The best tool for Analytics
Syntax: CREATE TABLE table_name AS <select clause>;
Syntax:
CREATE TABLE table_name AS <select clause>
DISTRIBUTE ON (column_name);
Syntax:
CREATE [TEMPORARY | TEMP] TABLE table_name
AS <select clause>;

Tables maybe truncated to remove all rows but retain the table structure or
definition
Truncating will remove Zonemap.
Tables can be dropped to remove them from the database.
You can rename the table or change ownership of the table.
Managing Tables
Syntax: TRUNCATE TABLE table_name; Example: TRUNCATE TABLE encntr_fct;
Syntax: DROP TABLE table_name; Example: DROP TABLE encntr_fct;
Syntax: ALTER TABLE table_name [RENAME|OWNER] TO name;
Example: ALTER TABLE encntr_fct RENAME TO encounter_fact;
Example: ALTER TABLE encounter_fact OWNER TO jdoe;

You can add, rename, or drop columns in table
When you drop a column or rename a column, Netezza performs versioning of
the dropped or renamed column.
Use GROOM Table and GENERATE STATS immediately after the table is altered.
Altering Table Structure
Syntax: ALTER TABLE table_name [ADD|DROP] COLUMN column_name datatype;
Syntax: ALTER TABLE encntr_fct ADD COLUMN encntr_num varchar(20);
Syntax: ALTER TABLE encntr_fct DROP COLUMN encntr_num;
Syntax: ALTER TABLE table_name RENAME COLUMN
column_name TO new_column_name;
Syntax: ALTER TABLE encntr_fct RENAME COLUMN
encntr_num TO encntr_nbr;

• Manage SPUs and Data Slices
• Manage Backups and Restores (Disaster Recovery)
• Manage Host Statistics
• Managing Alerts and Event Rules
Appliance
Management
• Creator or Consumer of Data
• Application Service Account or Actual User
• Level of privileges to modify a database or objects
• Capability to assign or revoke privileges
Database
Management
• Usage of Columns in a Table
• Usage of Rows in a table
• Usage of Database Objects
• Usage of Databases
Data
Authorization
Securing Netezza

Securing Netezza II
Users
Admin
Individual User
Groups
PUBLIC
Admin Defined
Groups
Privileges
Admin
Object
Local
Vs
Global

Default User is Admin. Netezza Super User has all object permissions.
All user (Admin user + other Users) are members of the system group PUBLIC
User, groups and database names must be unique – cannot overlap.
User Names cannot be greater than 128 characters in length
Users can be created using any SQL (ODBCJDBC) tool, NZSQL Utility in Unix-
based platform or NzAdmin utility
Users maybe altered or dropped
Managing Users
Syntax: CREATE USER user_name WITH [options];
Example: CREATE USER jdoe WITH password ‘jenesaispas’;
Syntax: ALTER USER user_name WITH [options];
Example: alter USER jdoe WITH password ‘idonotknow’;
Syntax: DROP USER user_name;
Syntax: DROP USER user_name;

RENAME TO <newname> |
RESET ACCOUNT |
PASSWORD {'<pw>'|NULL} |
EXPIRE PASSWORD
PASSWORDEXPIRY <days>
AUTH {LOCAL|DEFAULT}
SYSID <userid> |
IN GROUP <usergrp>[,<usergrp>…] |
IN RESOURCEGROUP <rsg>
VALID UNTIL '<valid_date>' |
DEFPRIORITY {CRITICAL|HIGH|NORMAL|LOW|NONE} |
MAXPRIORITY {CRITICAL|HIGH|NORMAL|LOW|NONE} |
ROWSETLIMIT <rslimit> |
SESSIONTIMEOUT <sessiontimeout> |
QUERYTIMEOUT <querytimeout> |
CONCURRENT SESSIONS <concsessions> |
SECURITY LABEL {'<seclabel>|PUBLIC::'} |
AUDIT CATEGORY {NONE|'<category>[,<category>…]'}
COLLECT HISTORY {ON|OFF|DEFAULT} |
ALLOW CROSS JOIN {TRUE|FALSE|NULL} |
ACCESS TIME {ALL|DEFAULT|(<access-time>[,<access-time>…])}
Managing Users -- Options

Groups allow database administrators to club users to gather based on their
functions, departments, or usage activities
Groups are the most efficient method to control user permissions.
Netezza comes with a predefined group called PUBLIC
 Users are automatically added, upon creation, to the group PUBLIC
 Users cannot be dropped or deleted from the group PUBLIC
 PUBLIC group cannot be deleted
Permissions granted to a group are automatically inherited by the user.
User, groups and database names must be unique – cannot overlap.
User Names cannot be greater than 128 characters in length
Managing Groups
Syntax: CREATE GROUP group_name WITH [options];
Example: create group qlty_of_care;
Example: create group qlty_of_care with jdoe, johnpublic;

Groups maybe altered or deleted
Managing Groups II
Syntax:
ALTER GROUP name { {ADD | DROP } USER <user>[,<user>…] |
OWNER TO <user> |
RENAME TO <new_group_name> |
WITH <clause> [<clause>…] }
Example: alter group qlty_of_care add user jjohnson;
Example: alter group qlty_of_care rename to quality;
Example: alter group quality drop user jdoe, jjohnson;
Syntax: DROP GROUP group_name; Example: drop group quality;

DEFPRIORITY {CRITICAL|HIGH|NORMAL|LOW|NONE} |
MAXPRIORITY {CRITICAL|HIGH|NORMAL|LOW|NONE} |
ROWSETLIMIT <rslimit> |
SESSIONTIMEOUT <sessiontimeout> |
QUERYTIMEOUT <querytimeout> |
CONCURRENT SESSIONS <concsessions> |
RESOURCE MINIMUM <min_percent> |
RESOURCE MAXIMUM <max_percent> |
JOB MAXIMUM <jobmax> |
COLLECT HISTORY {ON|OFF|DEFAULT} |
ALLOW CROSS JOIN {TRUE|FALSE|NULL} |
PASSWORDEXPIRY <days>
ACCESS TIME {ALL|DEFAULT|(<access_time>[,<access_time>…])} |
Managing Groups - Options

Scope of Privileges
 Global – Applicable to the entire system
 Local – Applicable to the database within which the privileges are recorded
Admin Privileges
 Controls creation of objects and system administration
 Some privileges are global in scope, regardless of the current database
Object Privileges
 Controls access to specific object
 Privileges granted in the system database are global in scope
 Privileges granted with a specific database are local to that database
With Power Comes Responsibility

Privileges can be granted to
individual objects or object classes.
Object classes include:
o DATABASE
o TABLE
o VIEW
o FUNCTION
o SEQUENCE
o SYNONYM
o USER
o GROUP
Presence of keyword ON in the
GRANT statement implies object
privileges
List is a special privilege
o You can only see an object if you have list
privilege on it.
o You can only connect to a database when you
have list privileges on it
o You can see Users activity when you have list
rights on both the user and the database they
are connected to.
OBJECT Privileges

Creator or database object automatically has all privileges over the object
All other users must be granted object privileges
GRANT command with “ON” keyword gives specific privileges on an object or object class
Grant Privileges are always additive
o Any privilege granted to the user plus
o Any privilege granted to user group the user belongs to
o Any privilege granted to the PUBLIC group
Use REVOKE command to remove object privileges from user, group or PUBLIC
OBJECT Privileges II
Syntax:--
GRANT object_privilege_name ON object_name TO {PUBLIC|GROUP group_name|
user_name} [WITH GRANT OPTION];
Example: GRANT ALL ON TABLE TO jdoe;
Example: GRANT list, select on TABLE to group quality
Example: GRANT list, select, insert, update on encntr_fct to jdoe

Admin privilege allows
user to create certain
type of objects or
execute some global
operations
No ON keyword is
required while granting
this privilege
ADMIN Privileges

Netezza super-user, ADMIN, is the only user that has full admin privileges
Other users must be granted Admin privileges
Admin privileges are associated with OBJECT CLASSES not specific objects
GRANT command without the “ON” clause gives specific admin privileges to
user or group
ADMIN Privileges
Syntax:--
GRANT admin_privilege_name TO {PUBLIC|GROUP group_name| user_name} [WITH OPTION];

Six nzsql (UNIX-utility) commands to display privileges
To see what SQL commands are issued when these nzsql statements are issued
on Unix command prompt, use nzsql with “–E” option
THE NZ SIX

Where’s the metadata at?

A user’s privileges are evaluated in an order of precedence. In case of conflicts,
the order of precedence determines the user’s rights on Netezza database
 Object Privileges granted explicitly to the user.
 Object Privileges granted via a group.
 Database Object Class privileges granted to the user.
 Database Object Class privileges granted via a group.
 Global Object Class privileges granted to the user.
 Global Object Class privileges granted via a group.
Order of Precedence

Which of the two users can see databases?
Which of the two users can create databases?
Scenario 1 – Object Vs Admin Privilege
create user user1 with password ‘user1’;
grant all on database to user1;
grant database to user2;
User Created
User Created
Object Privileges granted
Database Privilege granted
User1 – We gave him all the privileges on all databases
User2 – We gave him administration level privilege to create database

Scenario 2 – Object Vs Object Class Privilege
create database test_db;
grant list on test_db to user1;
grant list on database to user2;
User Created
User Created
Database Created
Object Privilege granted
Object Class Privilege granted
Which of the two users can see the test_db database?
Which of the two users can connect to the test_db database?
Which of the two users can see (and/or connect to) other databases?
Both – User1 has list on test_db; User2 has he privilege on all database
Both – Ditto. List privilege allows both user to connect to the database
User2 – We gave User2 list privilege on the object class, so User2 can connect to
all databases

Can user1 select from encntr_fct table?
Scenario 3 Order of Precedence – Object Vs Object Class
--Connect to system database
create user user1 with password 'user1';
--connect to clinical_db database
grant all on table to user1;
grant delete on encntr_fct to user1;
--connect to clinical_db as user1
select * from encntr_fct limit 2;
NO!!!
--No matter what object class privileges a user was granted, from the moment he received
at least one object privilege, object class privileges do not apply to that object any more.
--Order in which object and object class privileges were granted does not matter.

Can user1 select from tables in the
clinical_db database?
Can user1 select from tables in other
databases?
Scenario 4 – Global Vs Local Prvileges
--connect to system database
grant select on table to user1;
--connect to clinical_db database as user1
select * from cdr_dim limit 2;
--connect to clinical_db database as admin
--connect to clinical_db database as user2
Can user2 select from tables in the
clinical_db database?
Can user2 select from tables in other
databases?
YES! – We granted select on object class
TABLE while connected to the SYSTEM
database. so the privileges are global
YES! – DITTO!
YES! – We granted select on TABLE while
connected to the clinical_db database.
NO! – We granted select on TABLE while
connected to the clinical_db database,
so the privileges are local.

Can user1 select from the encntr_fct table?
Scenario 5 Order of Precedence – Global Vs Local
grant alter on table to user1;
--connect to system database as admin
User created
Object Class Global Privilege Granted
Global Object Privilege Granted
--connect to the clinical_db as admin
Local Object Class Privilege Granted
Select Data command issued
NO!!! -- Local Privileges override Global Privileges
--No matter what global object class privileges a user was granted, from the moment the
user received at least one local object class privilege, global class privileges do not
apply to that class of objects any more.
-- Order in which local and global object class privileges are granted does notmatter.

From which of the above tables can the user select?
Scenario 6 Order of Precedence – User Vs Group
create group group1;
alter group group1 add user user1;
grant list on database to group1;
grant select on table to group1;
revoke select on table from user1;
grant alter on cdr_dim to group1;
grant alter on ptnt_dim to user1;
select * from ptnt_dim limit2;
Connected to SYSTEM Database as admin
USER1 is created
GROUP1 is created
USER1 is added to GROUP1
Object Class Global Privilege to connect to DBs
Connected to CLINICAL_DB as admin
Local Object Class privilege granted to group1
Local Object Class privilege revoked from user1
Local Object privilege granted on cdr_dim table
Local Object privilege granted in ptnt_dim table
Connect to CLINICAL DB as user1
select * from ptnt_dim limit2;
YES!– Group 1 has select rights on object class table.
NO! – Group1 has object privilege to alter cdr_dim table and object class privilege to select on all
tables. Object Privilege overrides Object Class privilege. Therefore, user1 cannot select on
cdr_dim table
NO!— Ditto !

Can user1, as an owner of clinical_db, grant certain privileges to user2?
Scenario 7 – Grants from Non-Admin USER
grant database to user1
--connect to system database as user 1
create database clinical_db;
create table test_tbl1 (c1 int, c2 char);
grant list, select on test_tbl1 to user2;
Connect to System database as admin user
User1 created
User2 created
Global object class privilege granted to User1
Global object class privilege granted to User2
Global admin privilege to create DBs granted
Connect to system database as user1
Clinical_db database created
Connect to clinical_db as user1
Test_tbl1 table created
Grant Object privileges on test_tb1 to user2
NO!!! --User1 does not see user2 & User1 does not have the privilege to alter User 2
To fix the problem connect to the system database as an ADMIN user
grant list, alter on user2 to user1;

A privilege given to a user via a group cannot be revoked from that user by
submitting “revoke … from <user> command”; it can be revoked only from the
group.
A privilege given to a user explicitly cannot be revoked from that user by
submitting “revoke … from <group> command”; it can be revoked only explicitly
from the user.
A user can be a member of multiple groups and hence receive some privileges
more than once.
Privilege granted via one group cannot be revoked via a different group.
User has a certain privilege if it was granted to him explicitly or through at least
one of the groups he belongs to.
User and Group Privileges – Order of Precedence
GRANTS ARE ADDITIVE! REVOKES ARE NOT NECESSARILY SUBTRACTIVE!

Netezza Workload Management can be performed
By setting limits on Customer (aka Tenant), User GroupRole, User Level resource utilization
Guaranteed Resource Allocation (GRA) limit are set to ensure that there is no monopolization of resources.
Netezza allows HighLowCritical Prioritization of Queries.
By simple workload limits -- Max queriesjobs, row limits, query time limit, etc.
Short Query Bias – Netezza provides express lanes for short queries.
Workload Management
Based on high-level GRA
settings, Netezza manages
resources across the whole
stack: host, node, CPU,
FPGA, memory, disk

Job Limits per customer or User Group
Query Prioritization and Job Limits
Within the Customer
1 slice, max number
of jobs = 11
Prioritized Query Execution

Simple Workload Limits can be set globally, by customer, user grouprole, or user.
Limit number of jobs, rows, query time, idle time
Event management, e.g. Long-running query
Apply a basic level of global control at the very minimum
Simple Workload Limits
Limit by result rows
Manage long-running
queries
Eliminate idle sessions

Best Practices for Maintaining Privileges
• Grant Privileges at a group level
• Grant Privileges at an object class level
• Define Workloads: for Multi-tenancy, or if there is resource contention between
multiple Applications
Manage at a high level
• If there are different database for different applications, grant object class privileges at
specific database level (Local level).
Break up data logically
• Create separate group for Admin user(s)
• Create separate group for ETL users of each database
• Create service account for each application that will access database. Ex: service
account for ETL tool, service account for BI tool, service account for Statistical tool, etc.
• Create separate generic groups for Read-Only and Read-Write users for each database
Create Groups based on Usage Types

Data Authorization – Security Models in Clinical Domain
•All authorized members of the org or dept. can see all the data pertaining to their org or dept.
•Typically, used for (non-clinical and HR functions) operational and supply-chain reporting
•Can be applied to clinical data: the user of one department can see the patient records
associated to that Hospital or Departments.
Organization or Departmental Model
•Access is granted to the patient and all of their records within the Network regardless of
Hospital or dept. where the care is provided
•Used for clinical reporting (ACO, AHRQ, PQRS, etc.)
360° Patient View Model
•Hybrid Model also implies different type of access for different user types.
•Some user types (IT administrator's and developers, executives and managers) have access to
all patient data for all hospitals, others have access to all aggregated data for all organizations,
• Some have access to only data pertaining to their department
• Care Providers have full access to all care data for patients attributed to them
Hybrid (Combination) Model

Anatomy of Dimensional Model
Event
Encounter
Who
Patient
Provider
What
Procedure
Where
Location or
Unit
When
Proc. Date
Admit Date
Why
Diagnosis
How
Drug
Delivery
Route?

Organizational Model of Security
Event
Encounter
Who
Patient
Provider
What
Procedure
Where
Location or
Unit
When
Proc. Date
Admit Date
Why
Diagnosis
How
Drug
Delivery
Route?
User Group
2 Location
Table
User Group
Table
Table has details about
Security Group and Users
who are members of the
security group. Table is
usually published from LDAP.
Table has User Group and
Locations to which the
User Groups are
authorized.

Patient Centric Model of Security
Event
Encounter
Who
Patient
Provider
What
Procedure
Where
Location or
Unit
When
Proc. Date
Admit Date
Why
Diagnosis
How
Drug
Delivery
Route?
User Group 2
Patient
Group Table
User Group
Table
Table has User Group
and Patient Groups to
which the User Groups
are authorized.
Patient
Group 2
Patient Table
Table has details of
Patients and Patient
Groups of which the
Patients are members
of.
Table has details about
Security Group and Users
who are members of the
security group. Table is
usually published from LDAP.

Hybrid Model of Security
Encounter
Who
Patient
Provider
What
Procedure
Where
Location or
Unit
When
Proc. Date
Admit Date
Why
Diagnosis
How
Drug
Delivery
Route?
User Group 2
Patient
Group Table
User Group
Table
Patient
Group 2
Patient Table
User Group
2 Location
Table

In-built mechanism to secure row-level data with Security Labels and Row
Secure Tables (RST) are often restrictive and cumbersome.
Use database-table-driven security solution but maintain your security in LDAP.
o Publish LDAP user rolegroup information into a database table at regular frequency
o Use the User rolegroup table and associate that to Location (Hospital, Clinic, Department, etc.)
based on criteria defined and approved by the data stewardship program.
o Use the User rolegroup table and associate that to Patient Group (ACO-attributed population,
etc. ) based on criteria defined and approved by the data stewardship program.
o Security criteria may be rule-based (and therefore could be automated) or manual (and
therefore cannot be automated.
o All security solutions have exceptions which require some manual intervention (inserts, updates
and deletes). Ensure that you have a process defined to rapidly handle manual interventions.
Table-driven security solutions tend to be flexible and scalable
without major overhaul.
Best Practices for Row Level Security

Netezza SQL Command Reference:
https://www.ibm.com/developerworks/community/blogs/Netezza/?lang=en
http://pic.dhe.ibm.com/infocenter/ntz/v7r0m3/index.jsp?topic=2Fcom.ibm.nz.dbu.doc2Fr_dbuser_ntz_sql_com
mand_reference.html
Image References: the following images are sourced from
Netezza Architecture Comparison Whitepaper (IBM)
Wikimedia Commons
Netezza Appliance Architecture Whitepaper
IBM IOD Presentation of Netezza Architecture
Netezza Underground -- the book and the blog, an indispensable tool in any
Netezza journey.
The Netezza JEDI: Shawn Fox
Appendix

Netezza Appliance Specification Sample

Netezza Deep Dives

More Related Content

What's hot

Similar to Netezza Deep Dives

Netezza Deep Dives
