1. Neo4jSpatial
Craig Taverner
Neo Technology
#neo4j
@craigtaverner
craig@amanzi.com
Web Map Data with Neo4j-Spatial
and OpenStreetMap

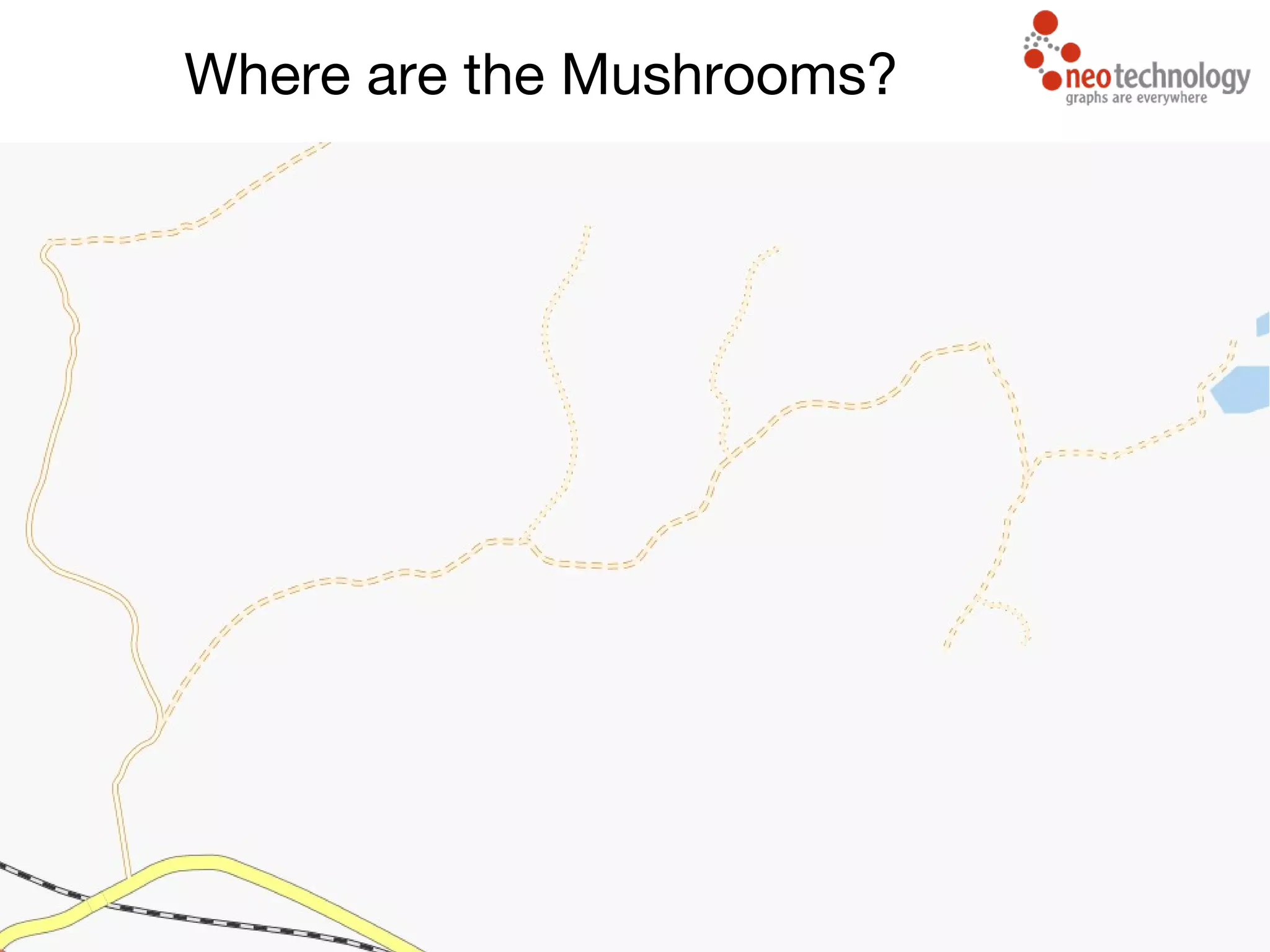

2. Where are the Mushrooms?

3. Where are the Mushrooms?

6. Social Network

7. (Network) Impact Analysis

8. Logistics & Routing

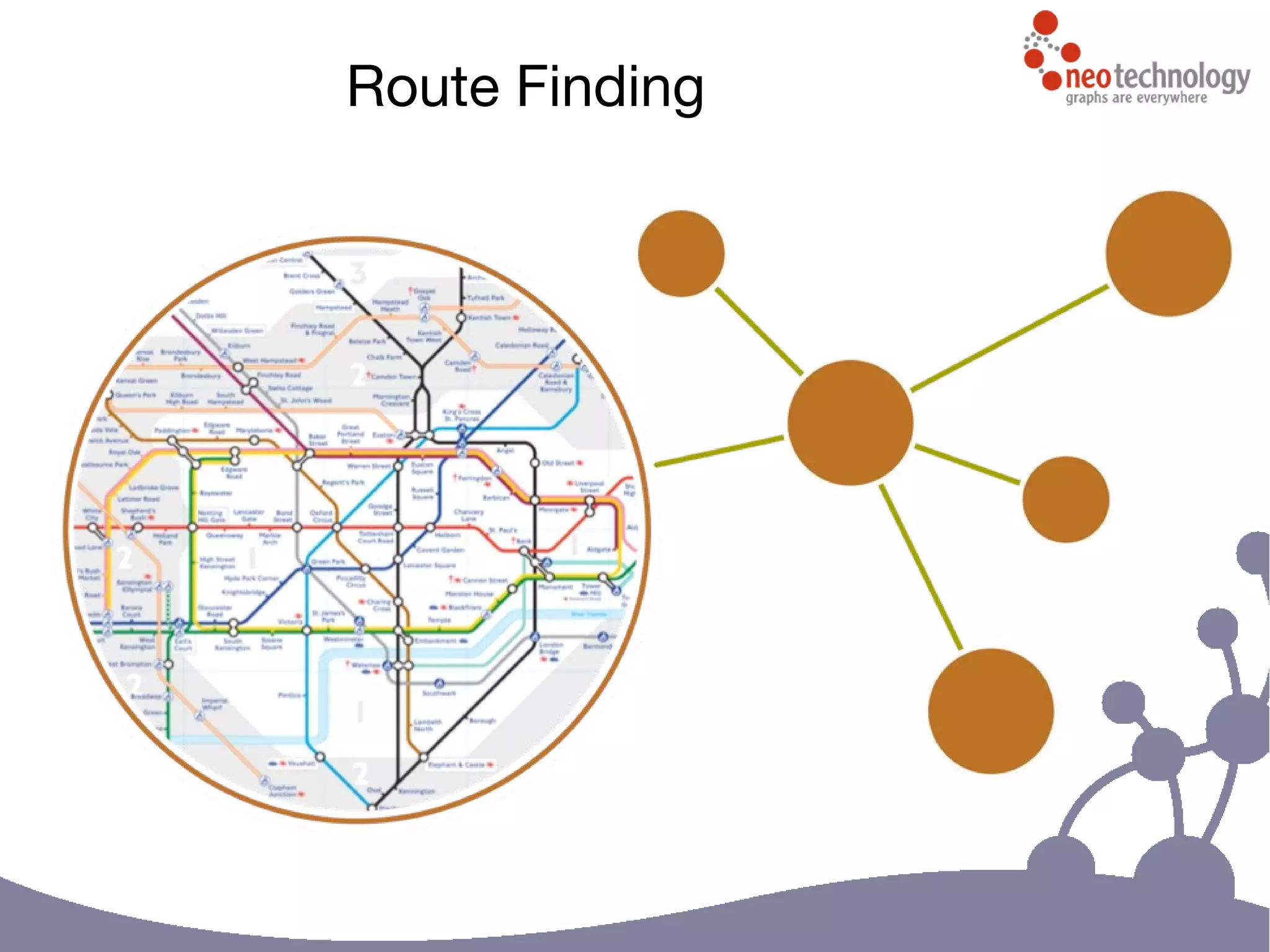

9. Route Finding

10. Recommendations

11. Access Control

12. Fraud Analysis

13. What is a graph,
anyway?

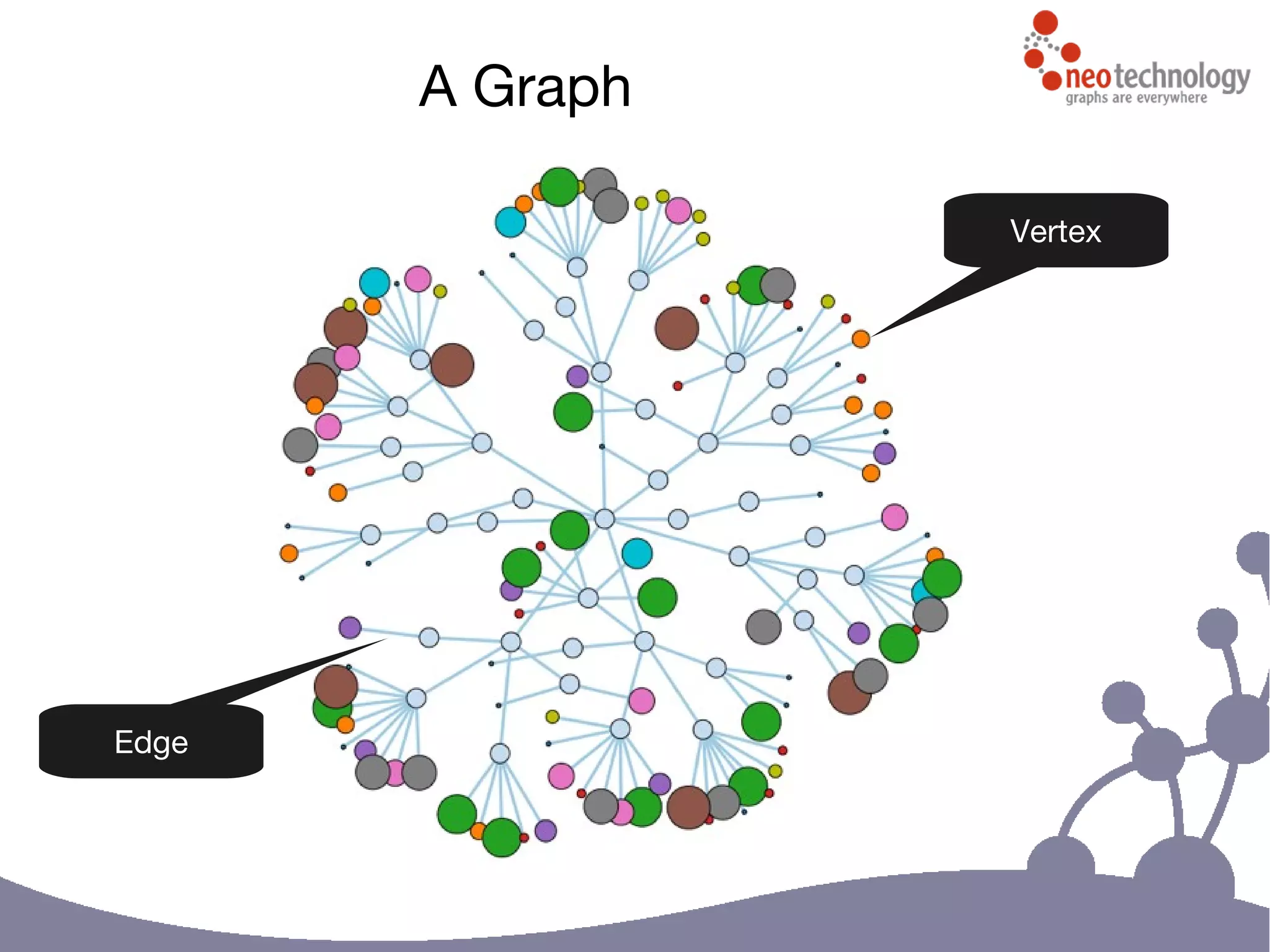

14. A Graph
Vertex
Edge

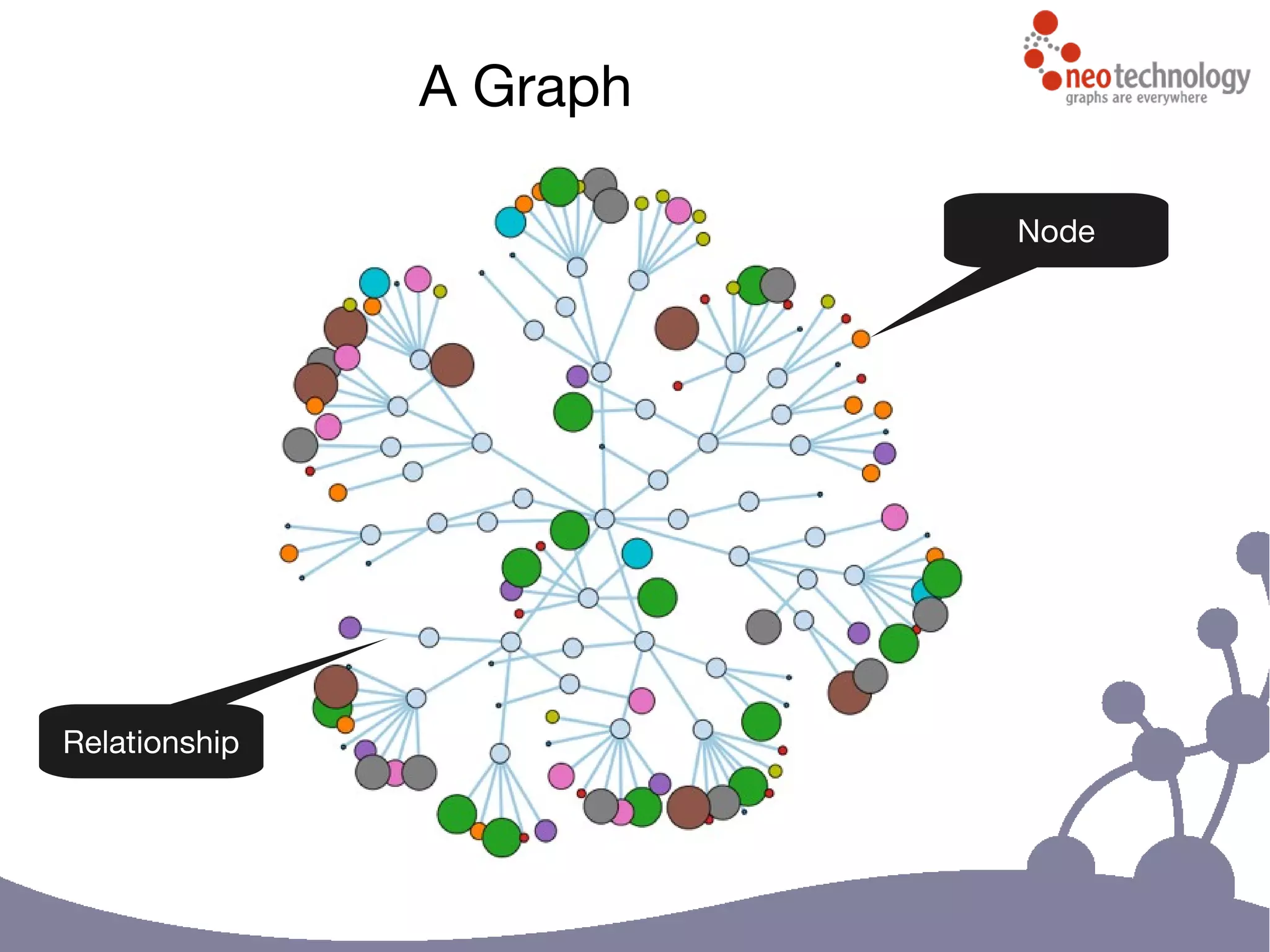

15. A Graph
Node
Relationship

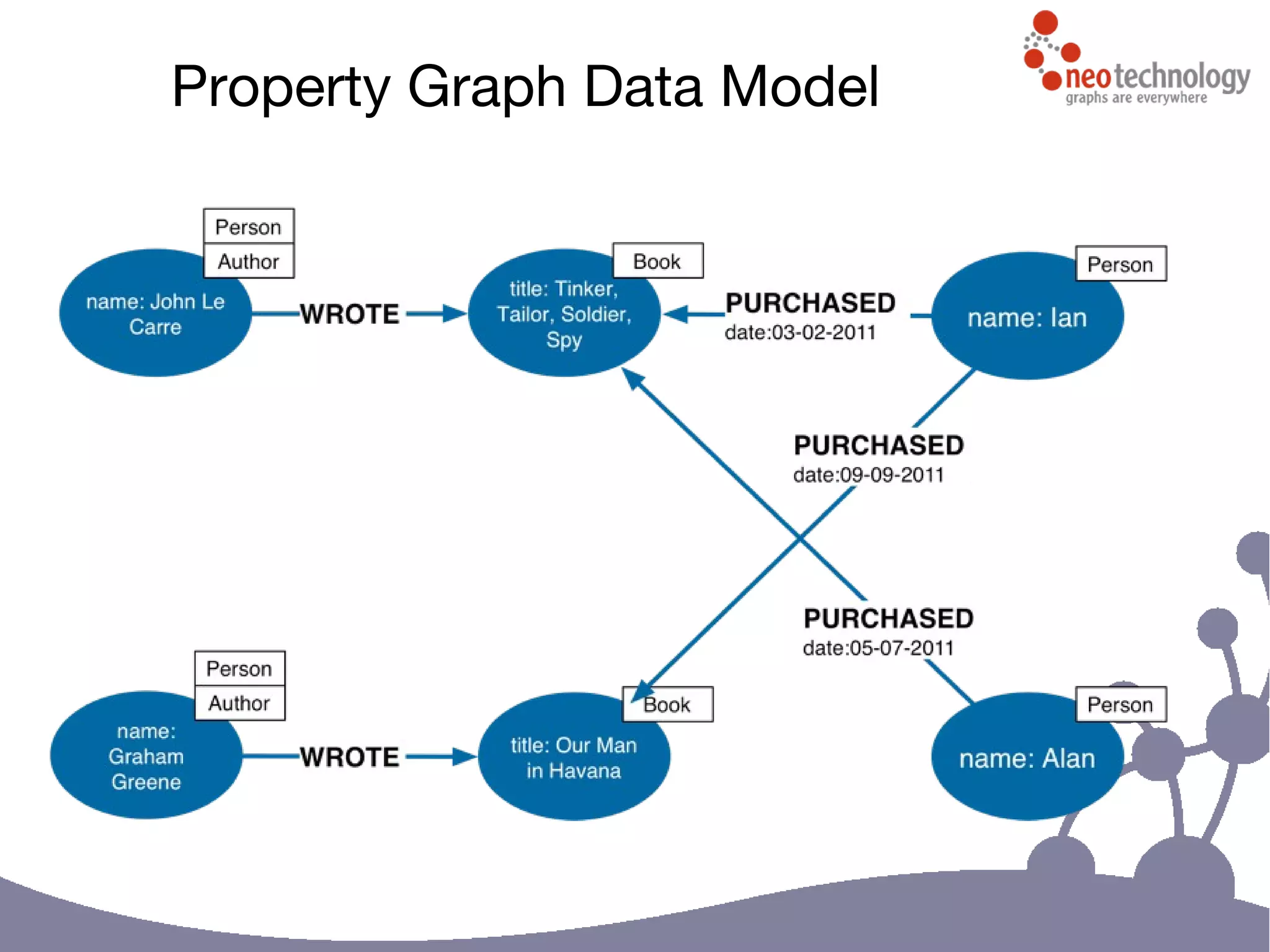

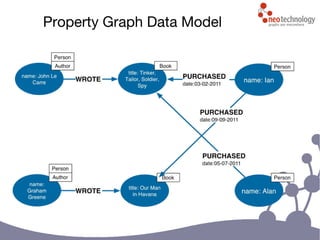

16. Property Graph Data Model

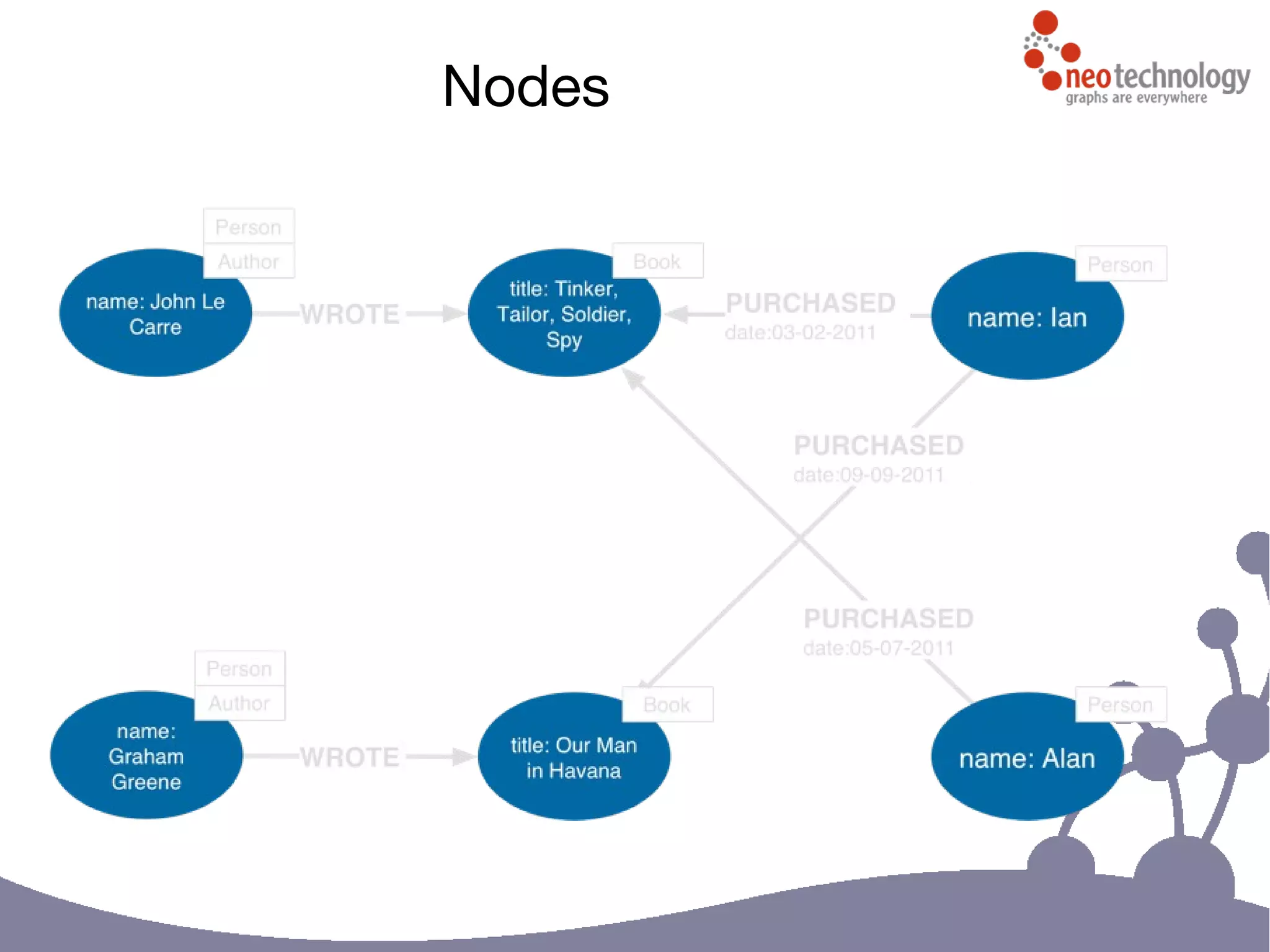

17. Nodes

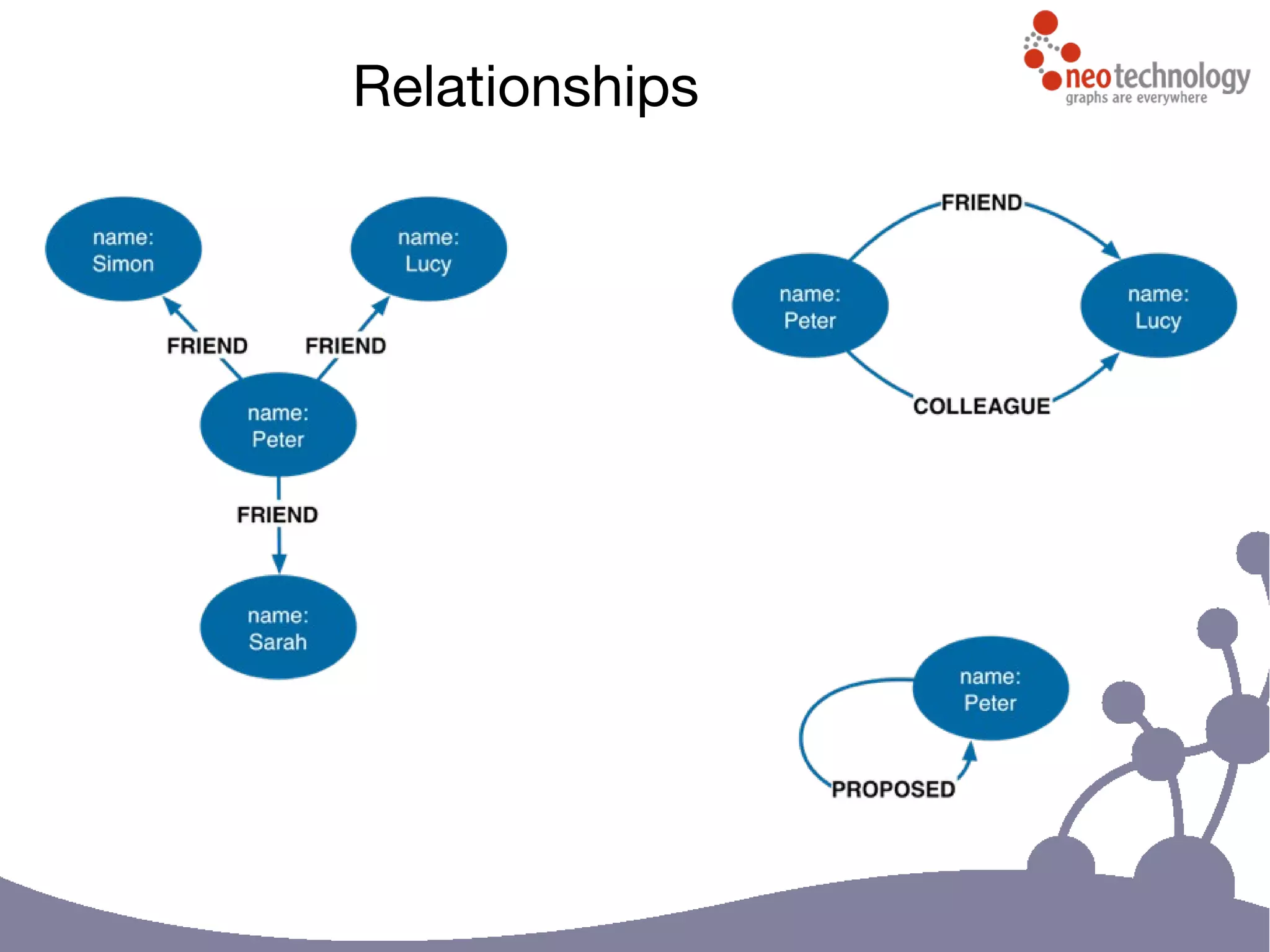

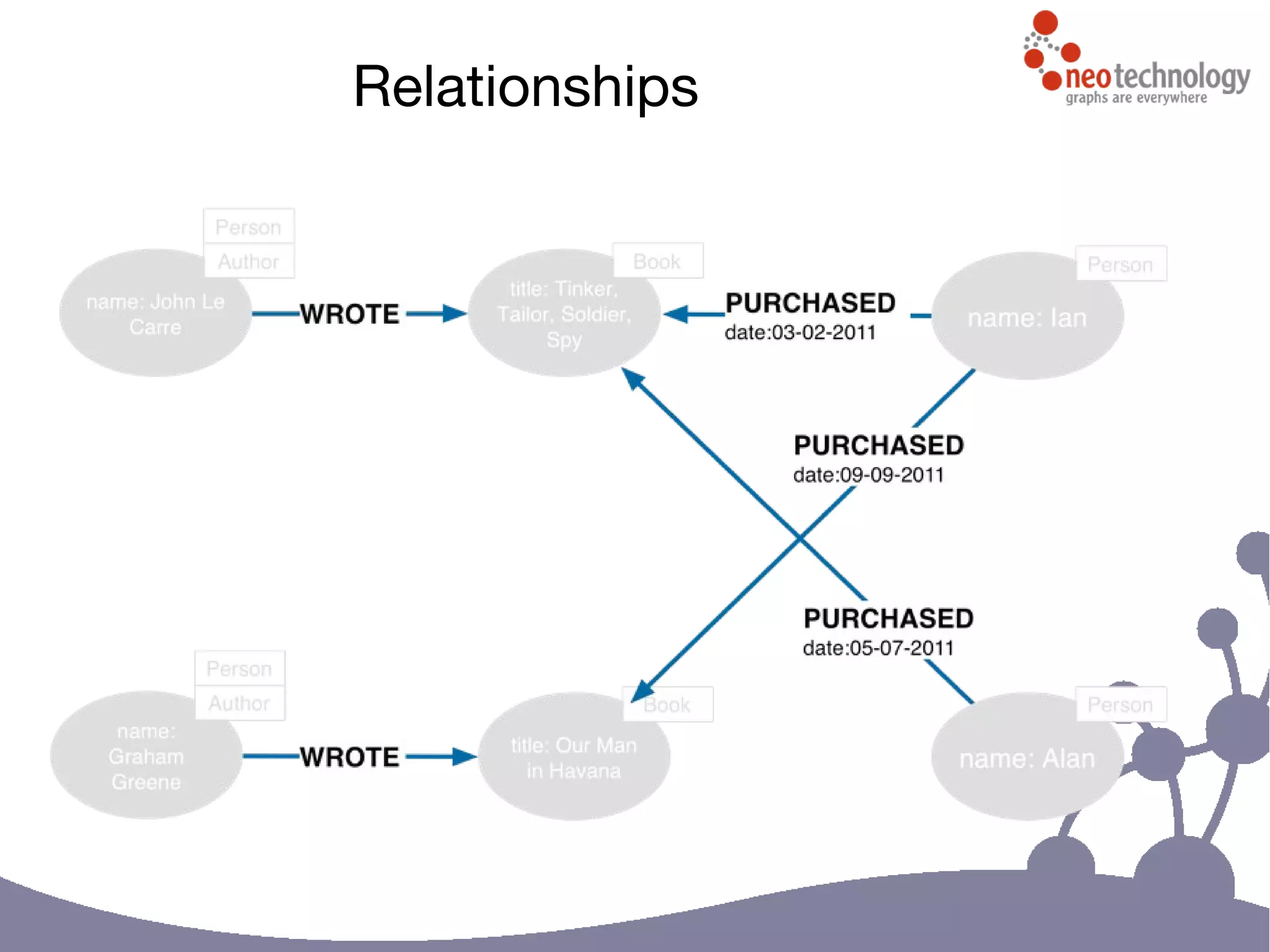

18. Relationships

19. Relationships

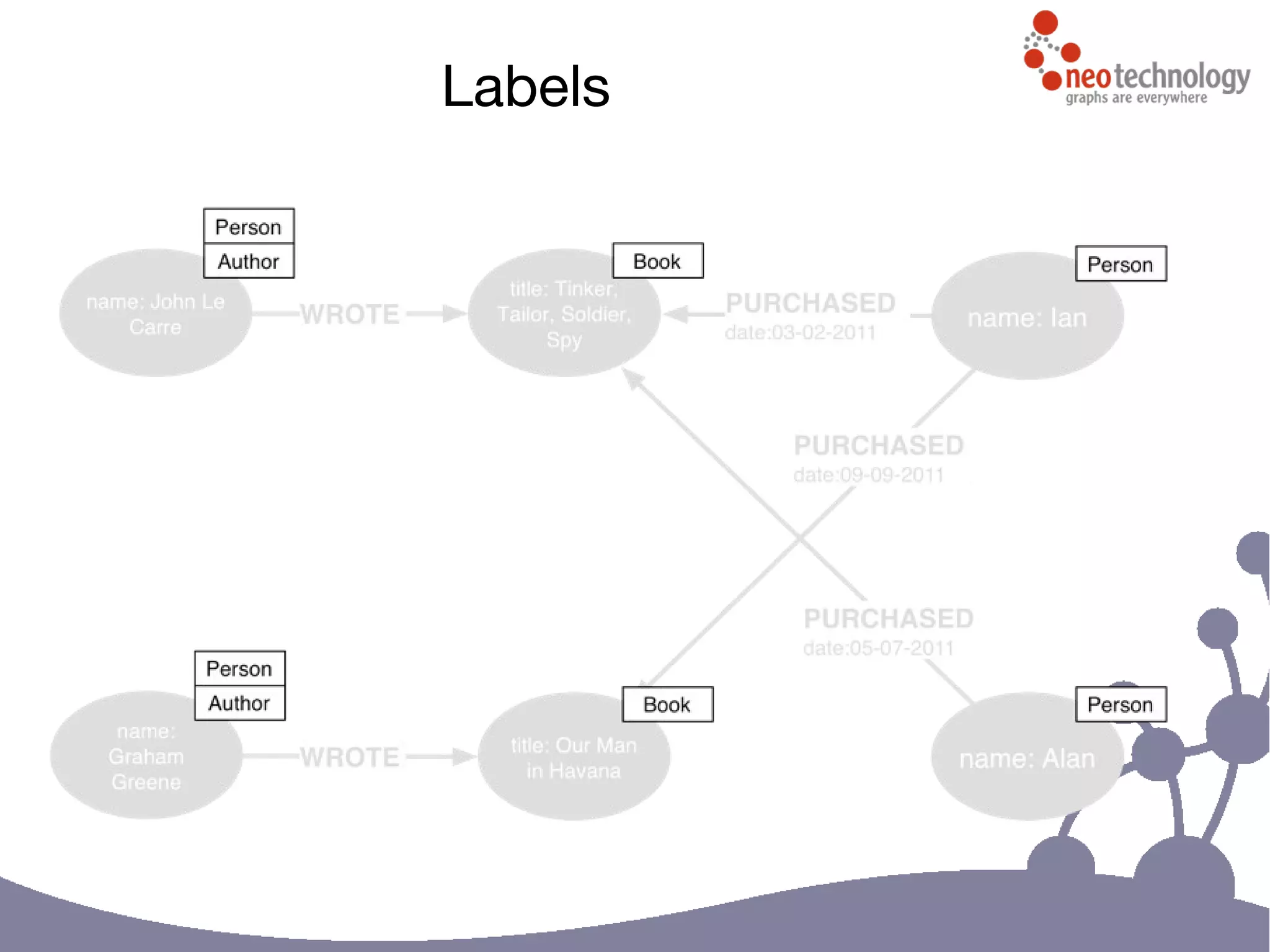

20. Labels

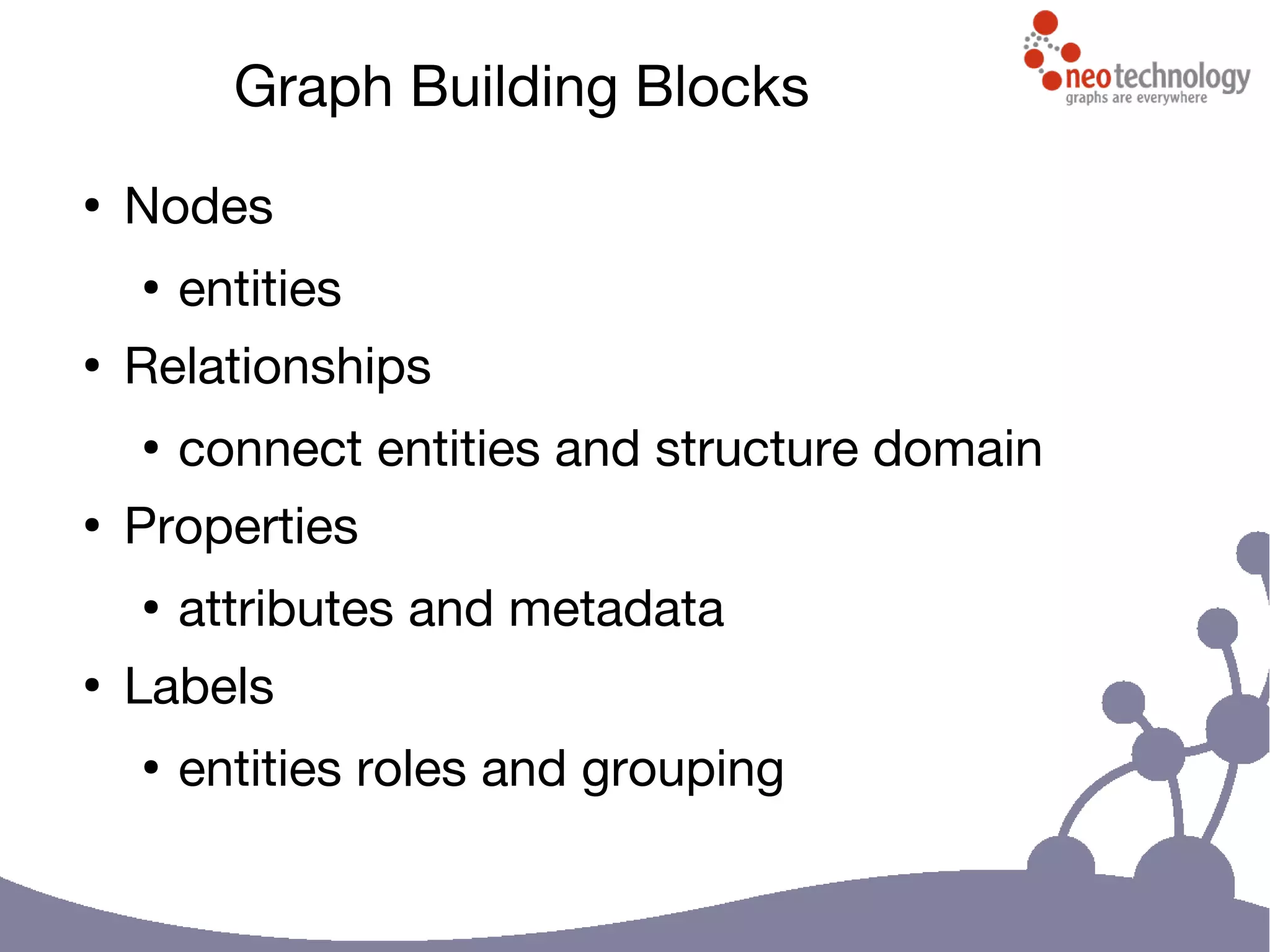

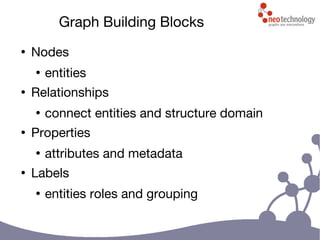

21. Graph Building Blocks
●
Nodes
●
entities
●
Relationships
●
connect entities and structure domain
●
Properties
●
attributes and metadata
●
Labels
●
entities roles and grouping

22. What is Neo4j
Spatial?

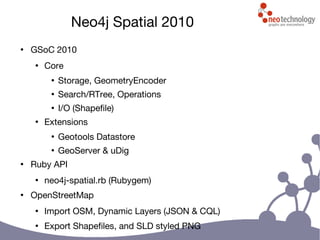

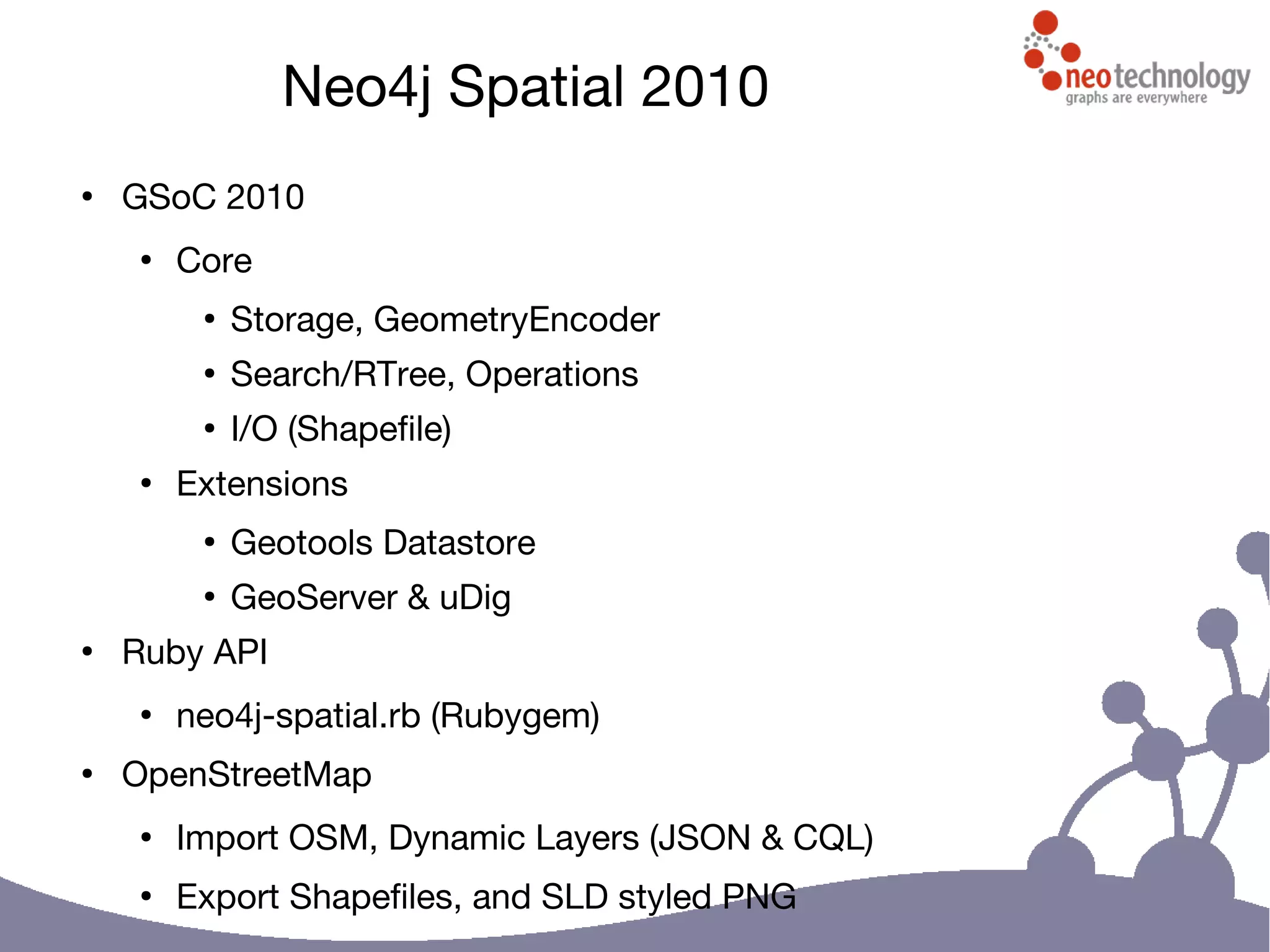

23. Neo4j Spatial 2010
●
GSoC 2010
●
Core
●
Storage, GeometryEncoder
●
Search/RTree, Operations
●
I/O (Shapefile)
●
Extensions
●
Geotools Datastore
●
GeoServer & uDig
●
Ruby API
●
neo4j-spatial.rb (Rubygem)
●
OpenStreetMap
●
Import OSM, Dynamic Layers (JSON & CQL)
●
Export Shapefiles, and SLD styled PNG

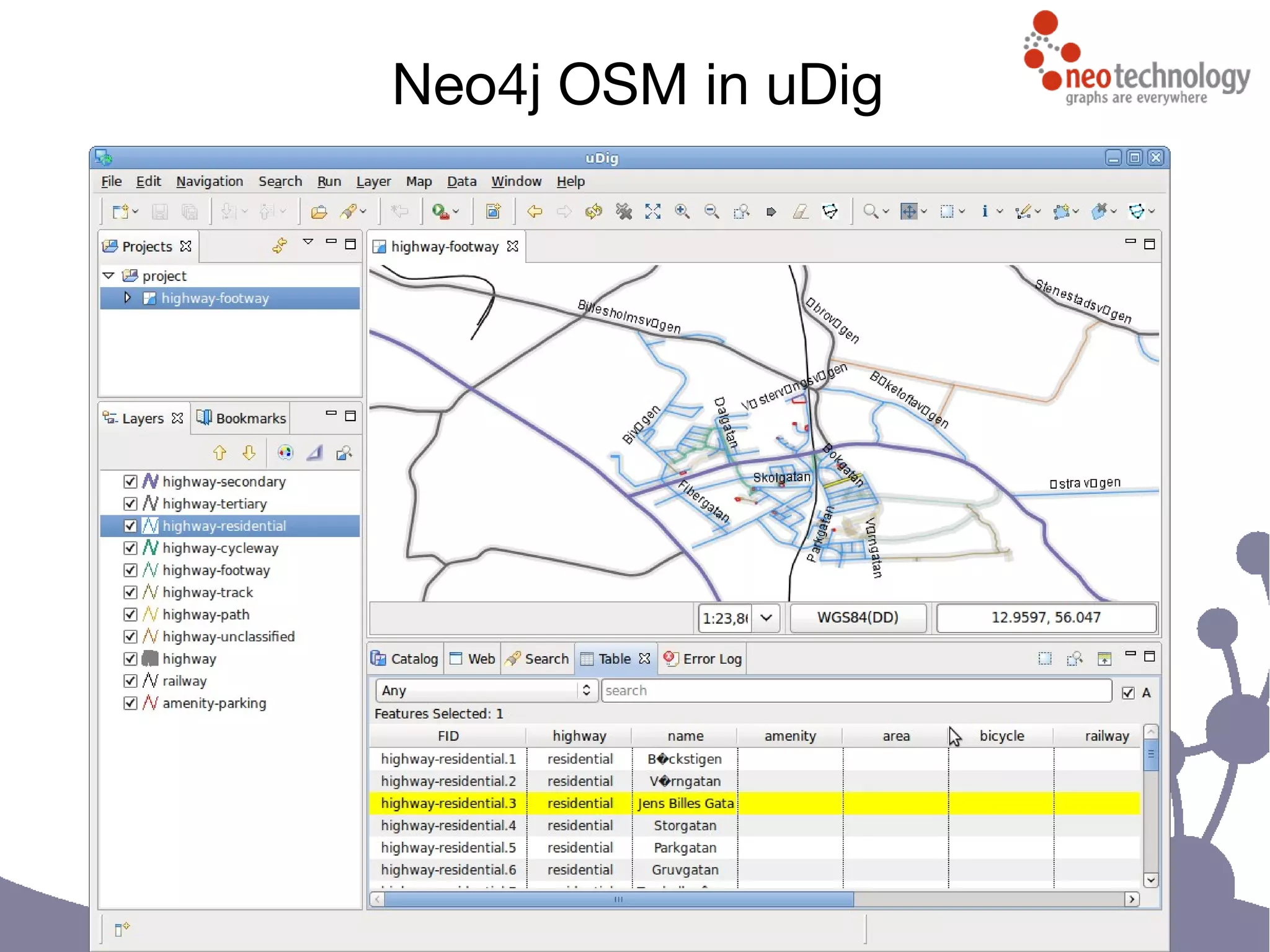

24. Neo4j OSM in uDig

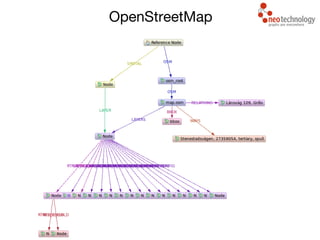

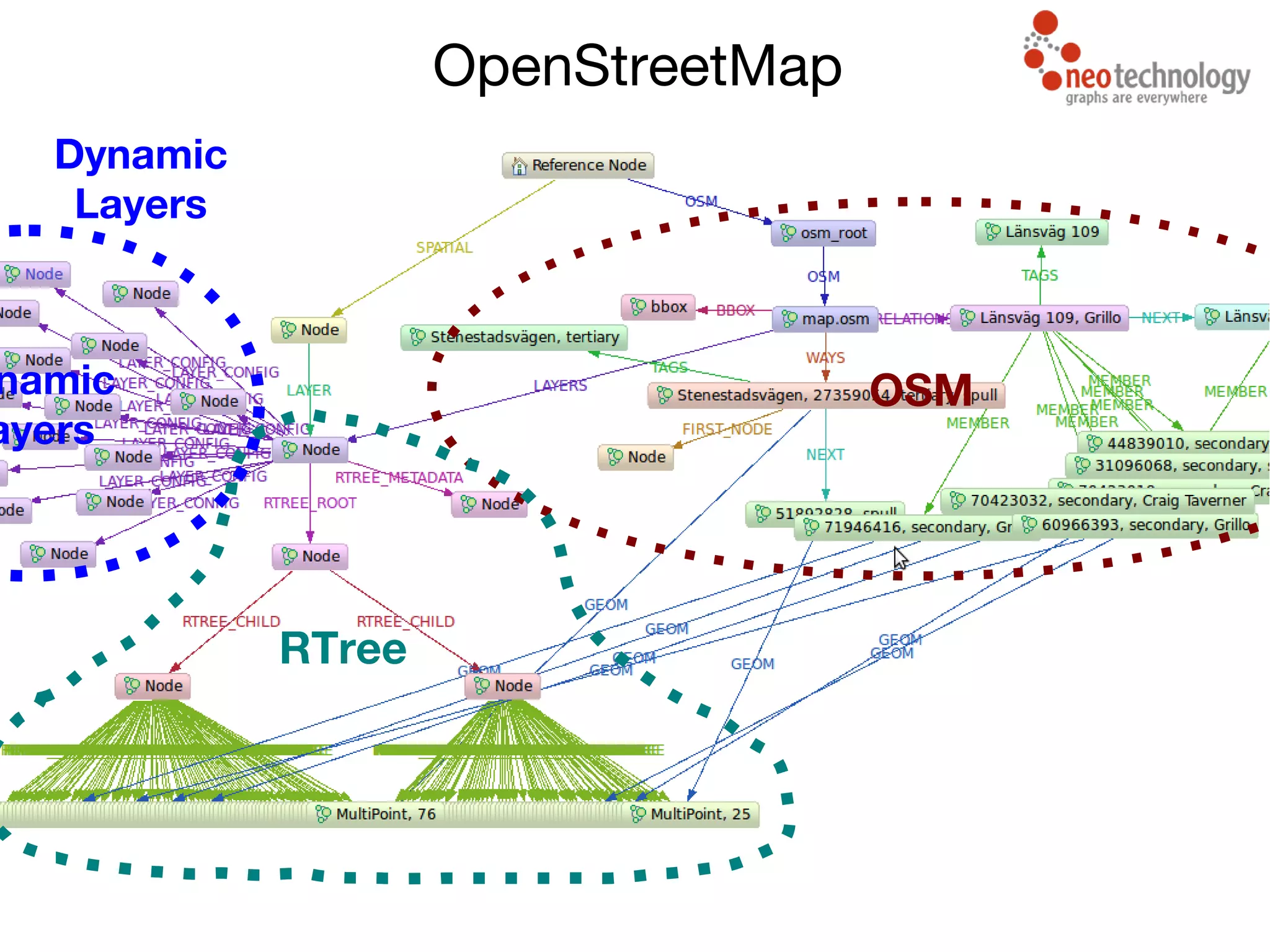

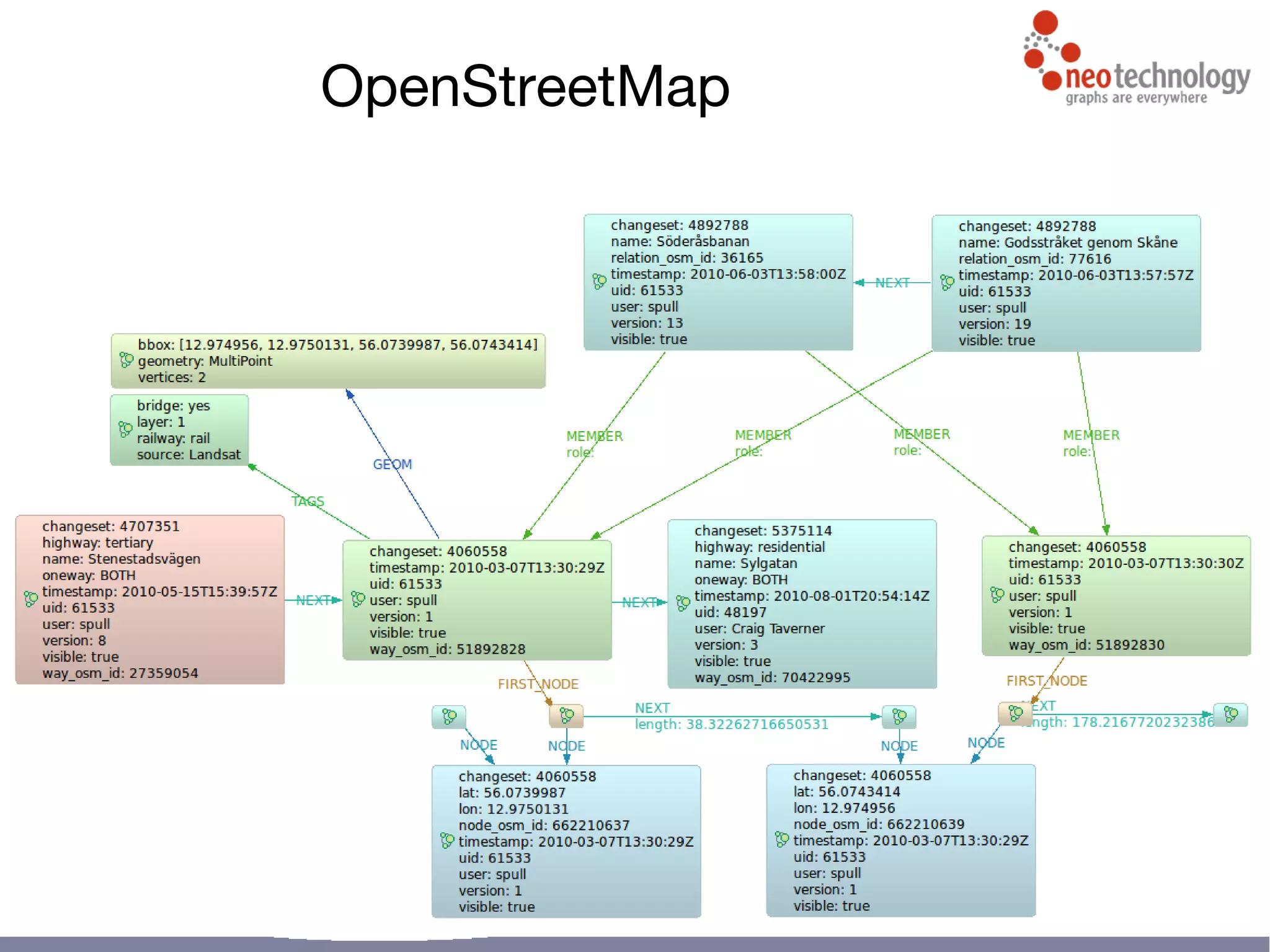

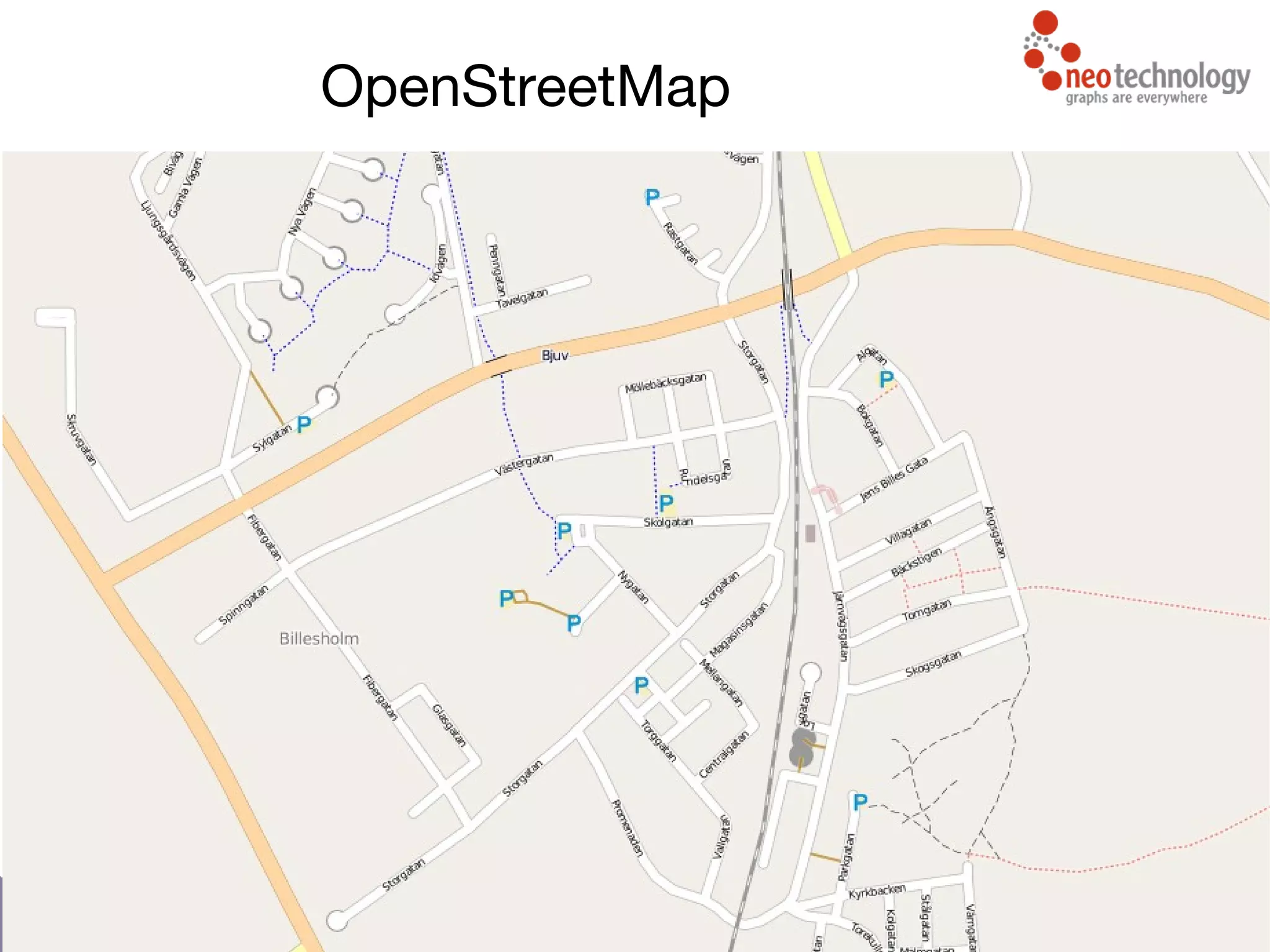

25. OpenStreetMap

26. OpenStreetMap

27. OpenStreetMap

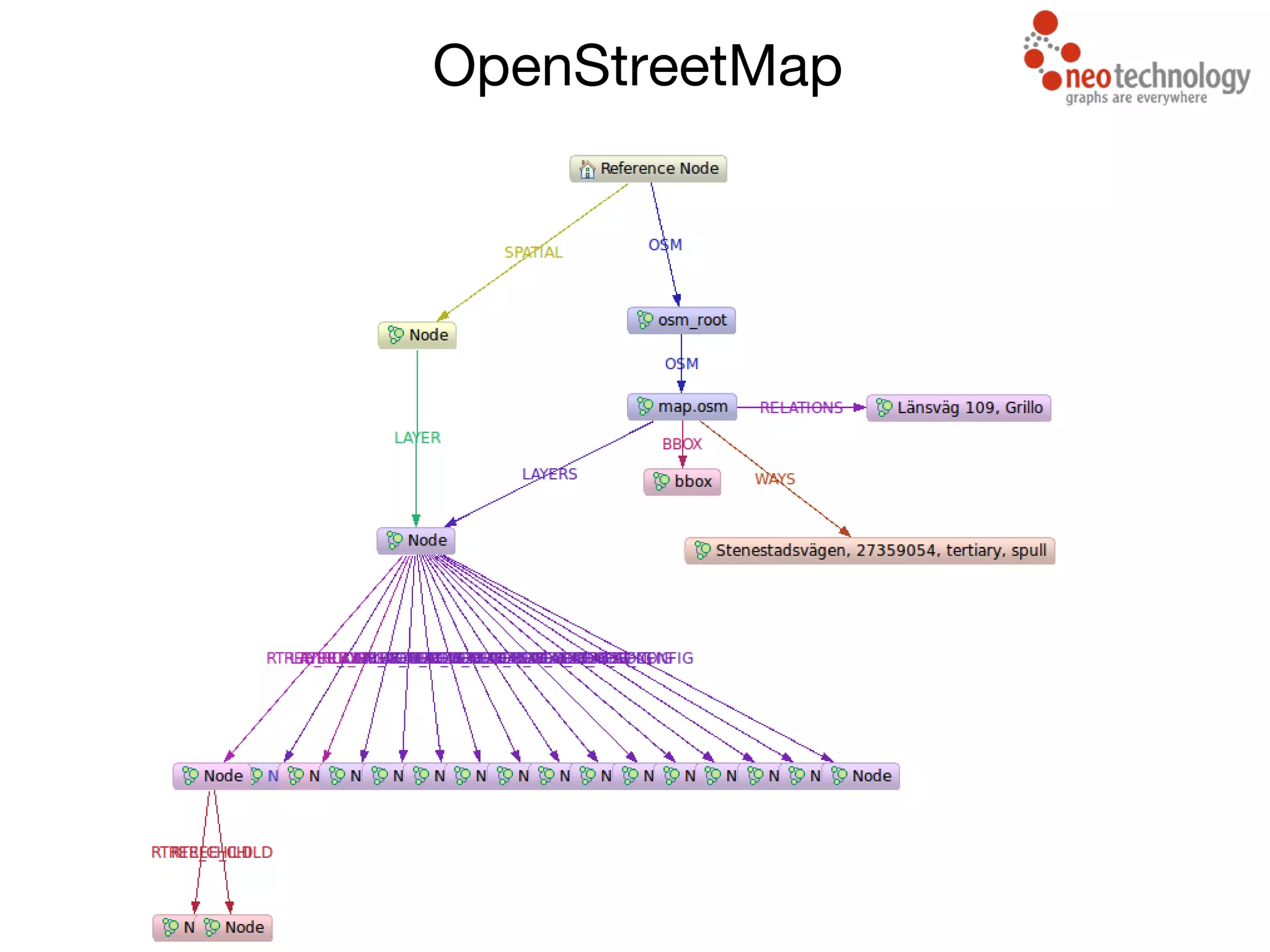

28. OpenStreetMap
OSM
RTree
namic
ayers
Dynamic
Layers

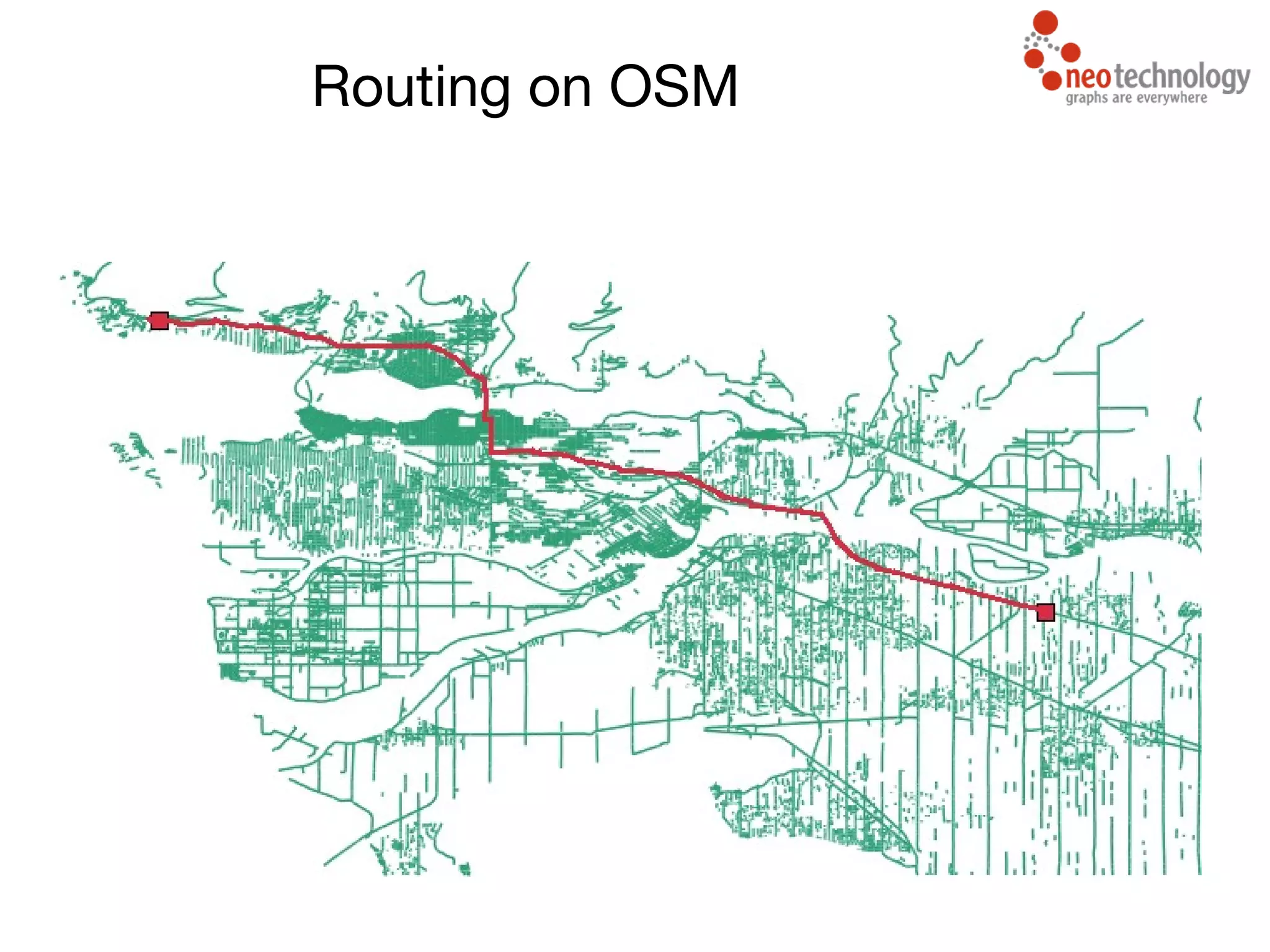

29. Routing on OSM

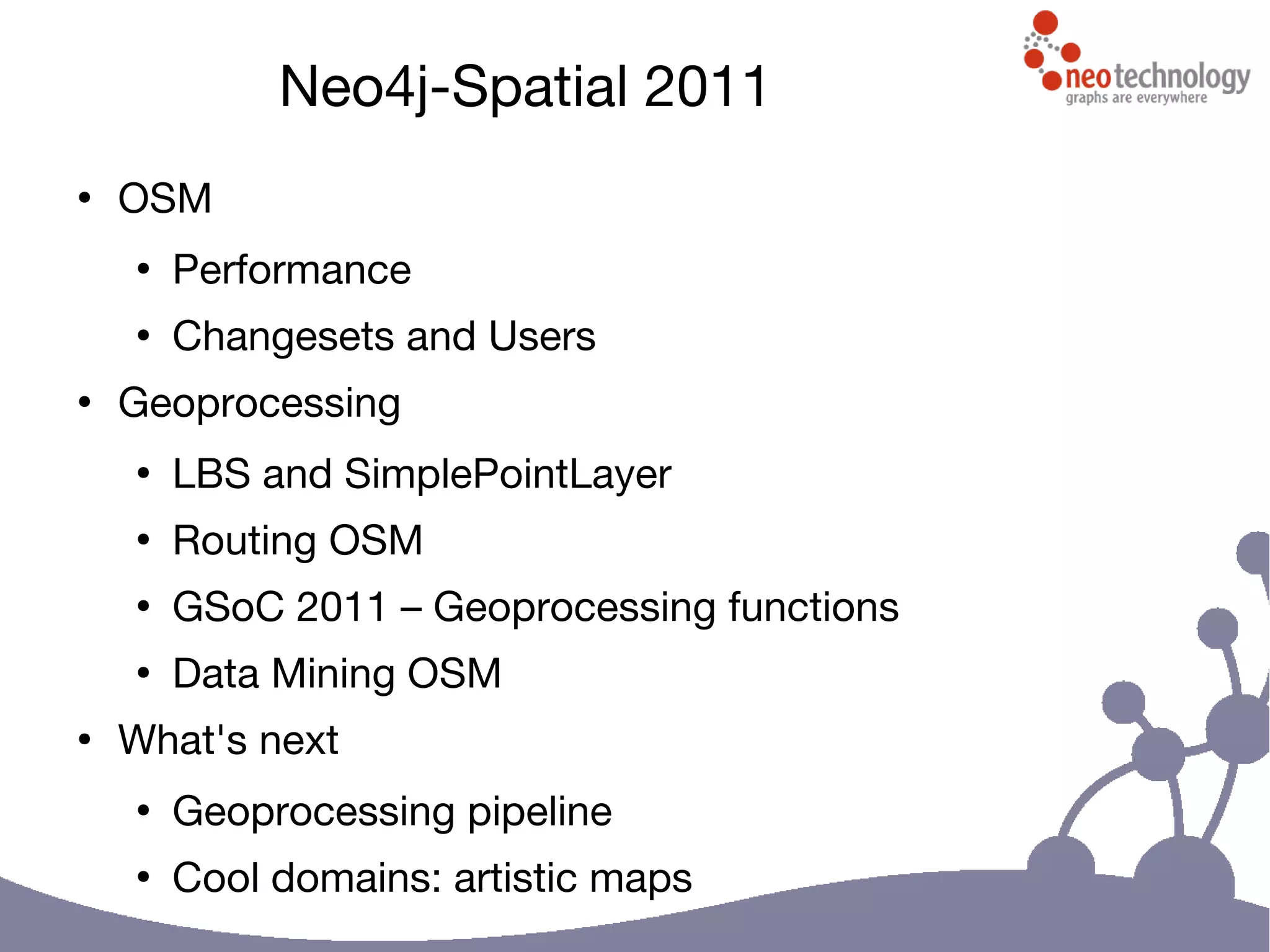

30. Neo4j-Spatial 2011
●
OSM
●
Performance
●
Changesets and Users
●
Geoprocessing
●
LBS and SimplePointLayer
●
Routing OSM
●
GSoC 2011 – Geoprocessing functions
●
Data Mining OSM
●
What's next
●
Geoprocessing pipeline
●
Cool domains: artistic maps

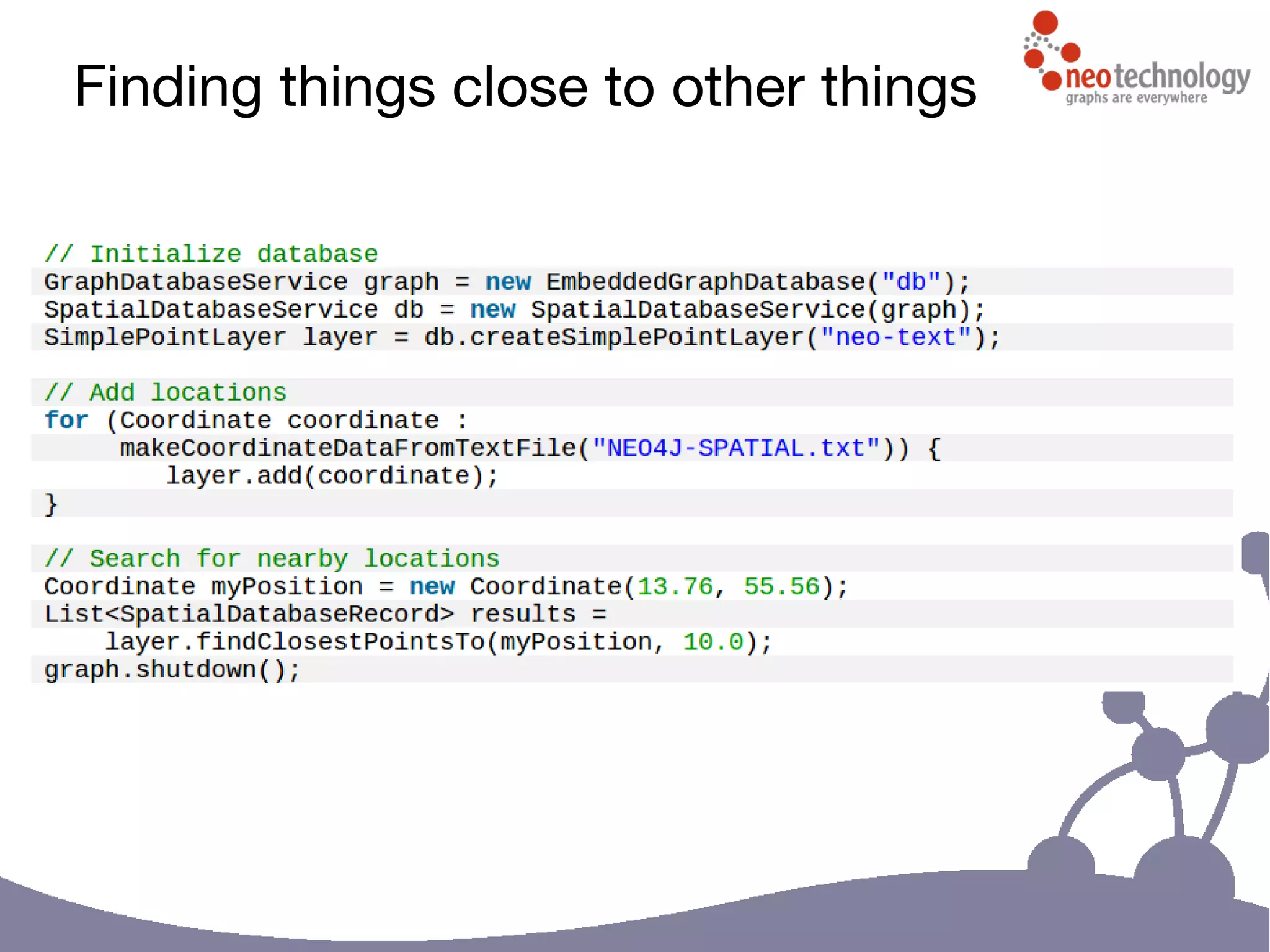

31. Finding things close to other things
http://blog.neo4j.org/2011/03/neo4j-spatial-part1-finding-things.html

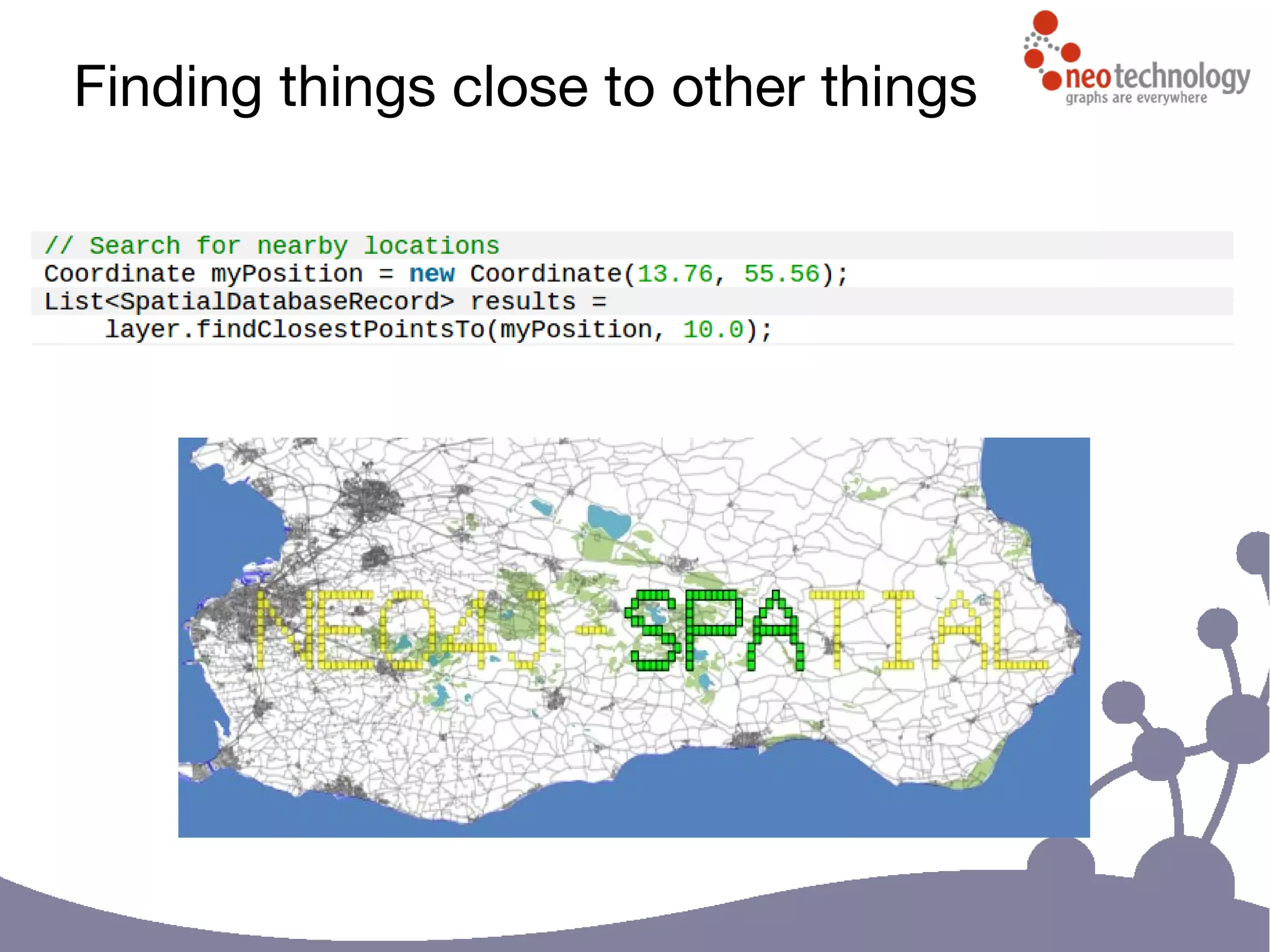

32. Finding things close to other things
http://blog.neo4j.org/2011/03/neo4j-spatial-part1-finding-things.html

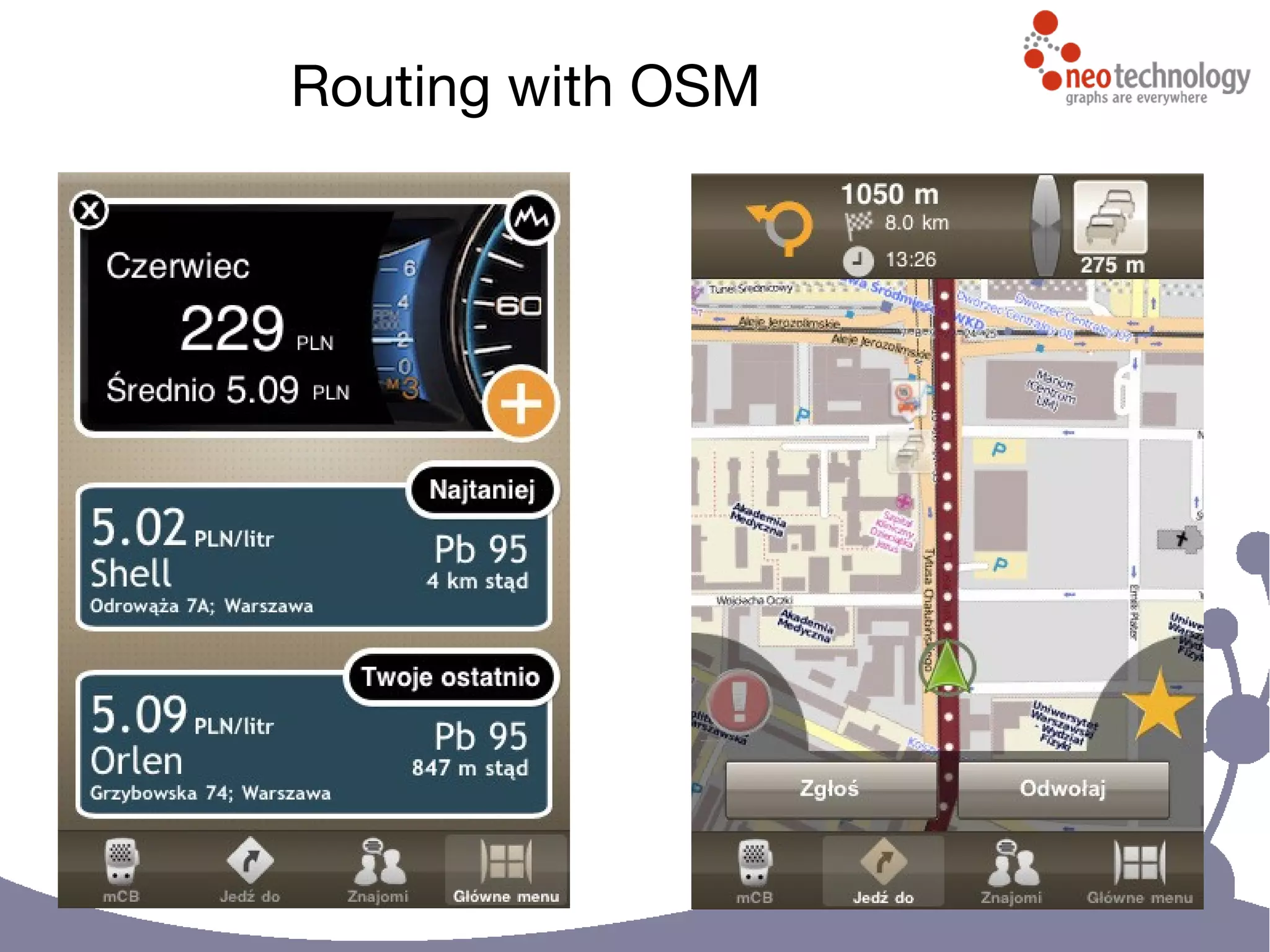

33. Routing with OSM

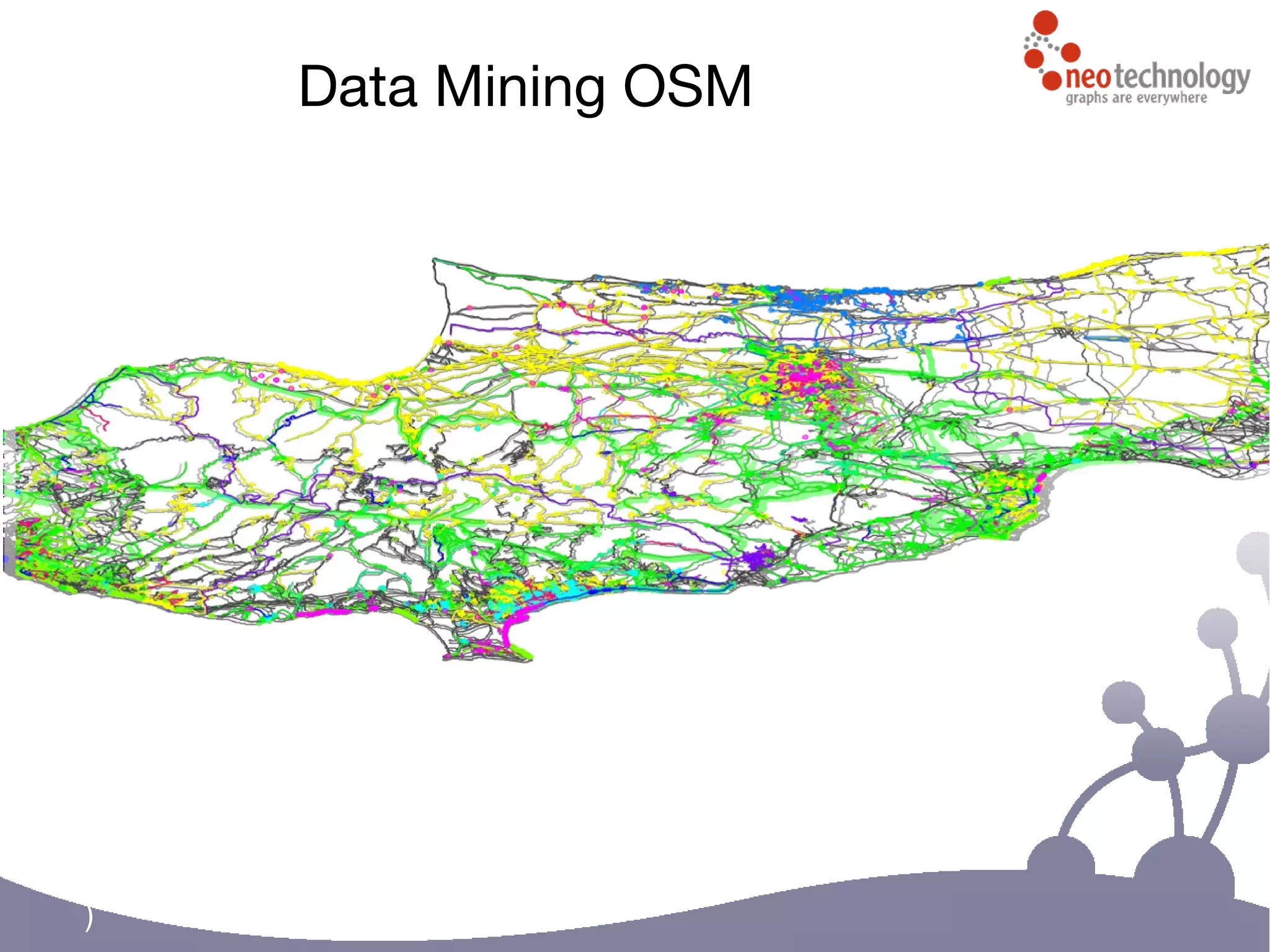

34. Data Mining OSM
timestamp > 1207014810000 and timestamp < 1208310810000 and
(
user = 'Zenon' or user = 'tomasCY' or user = 'muffu' or
user = 'dcp' or user = 'cartOMike' or user = 'djanda' or
user = 'Peter14' or user = 'toaster' or user = 'user_7363' or
user = 'lyx'
)

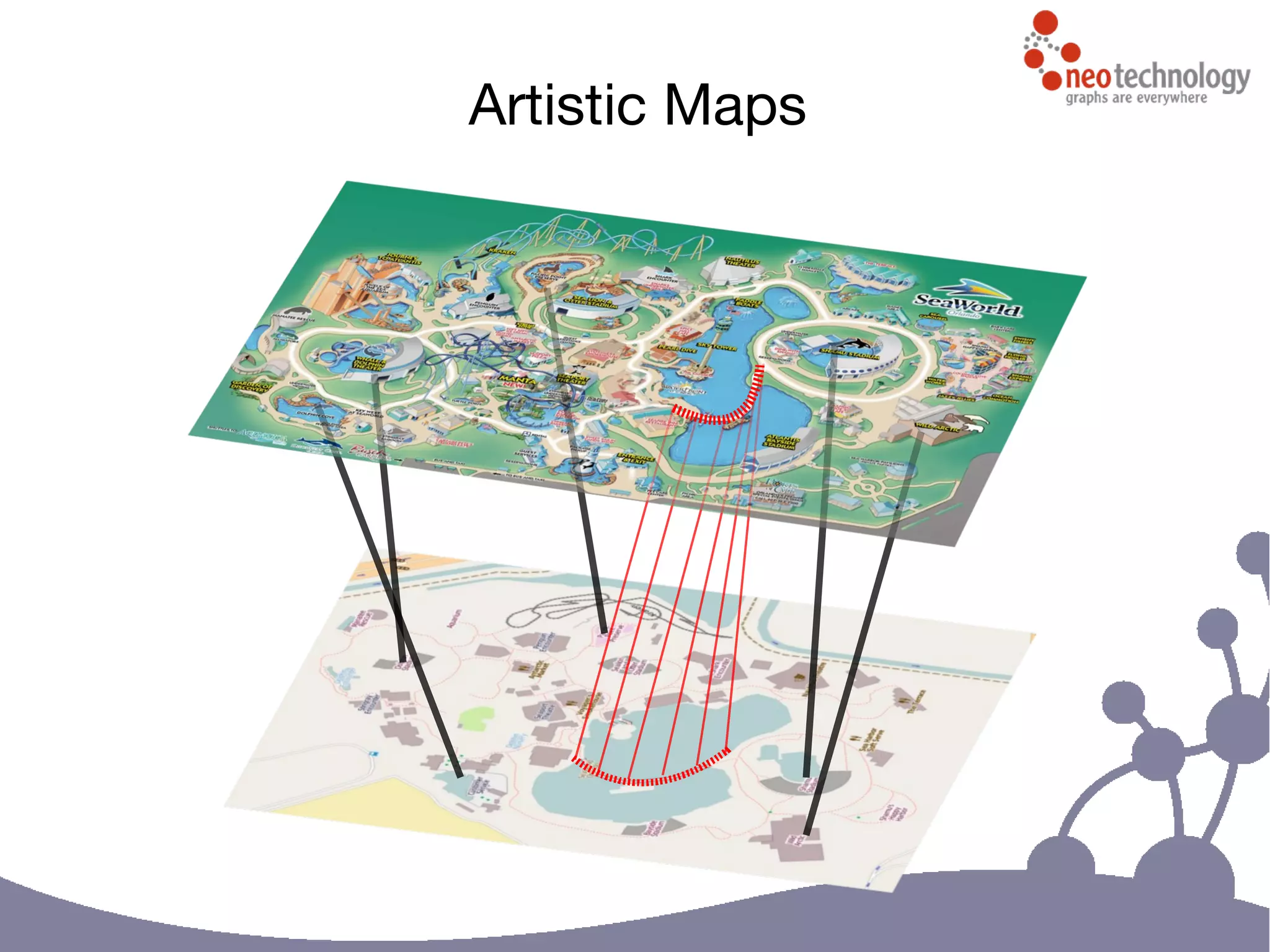

35. Artistic Maps

36. Artistic Maps

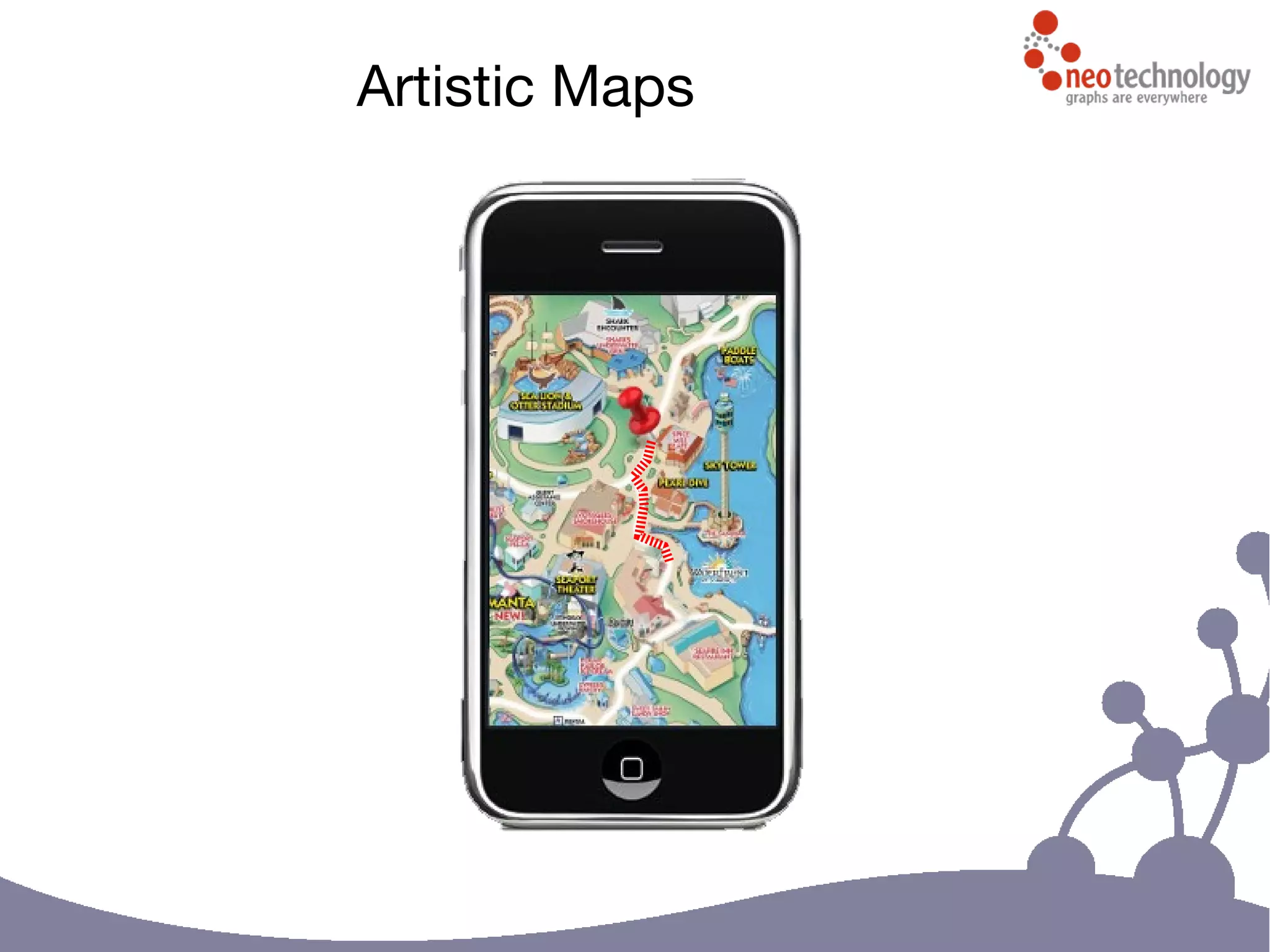

37. Artistic Maps

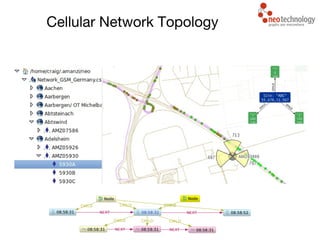

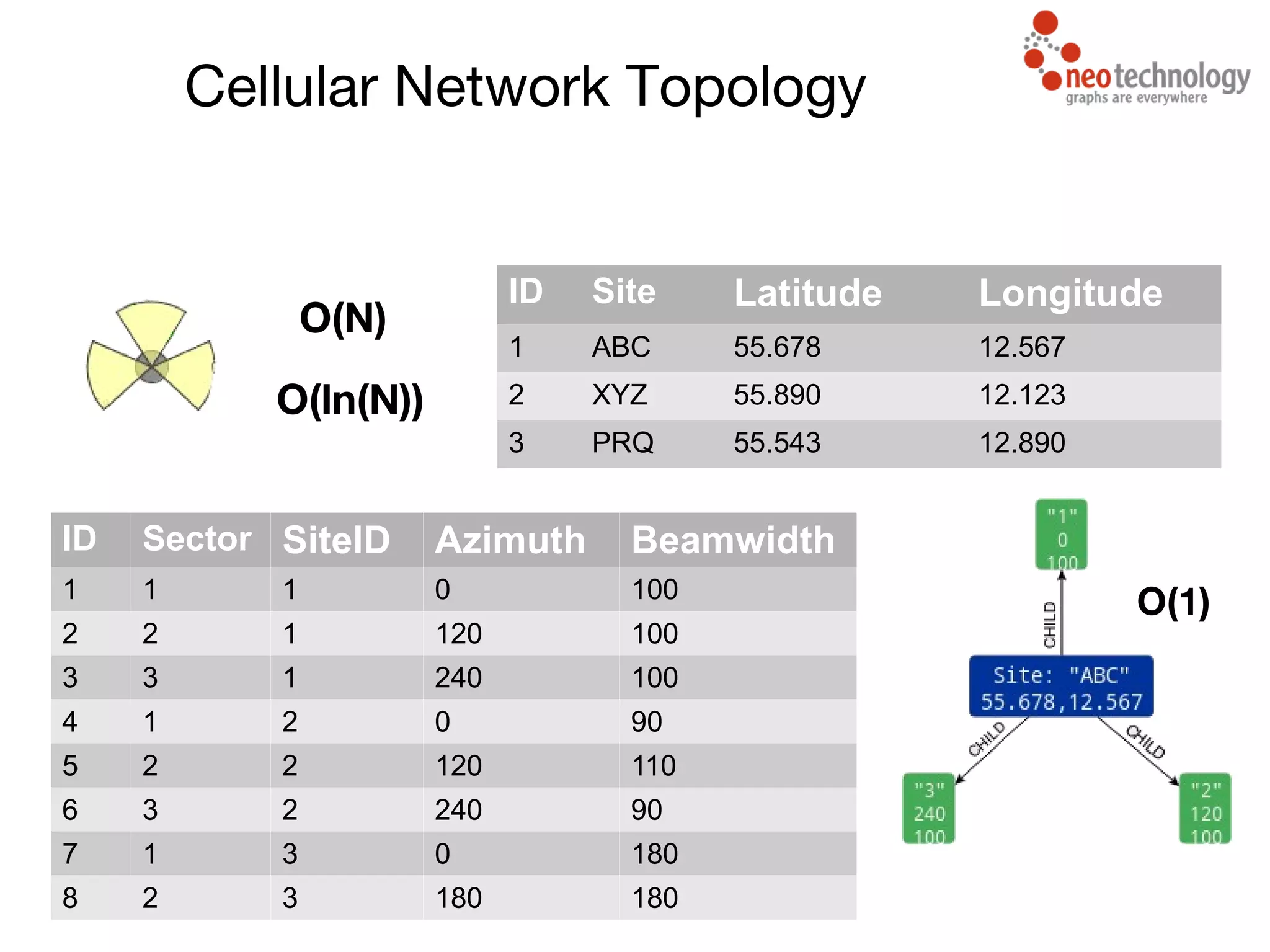

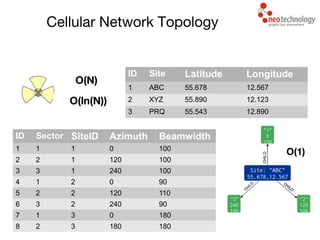

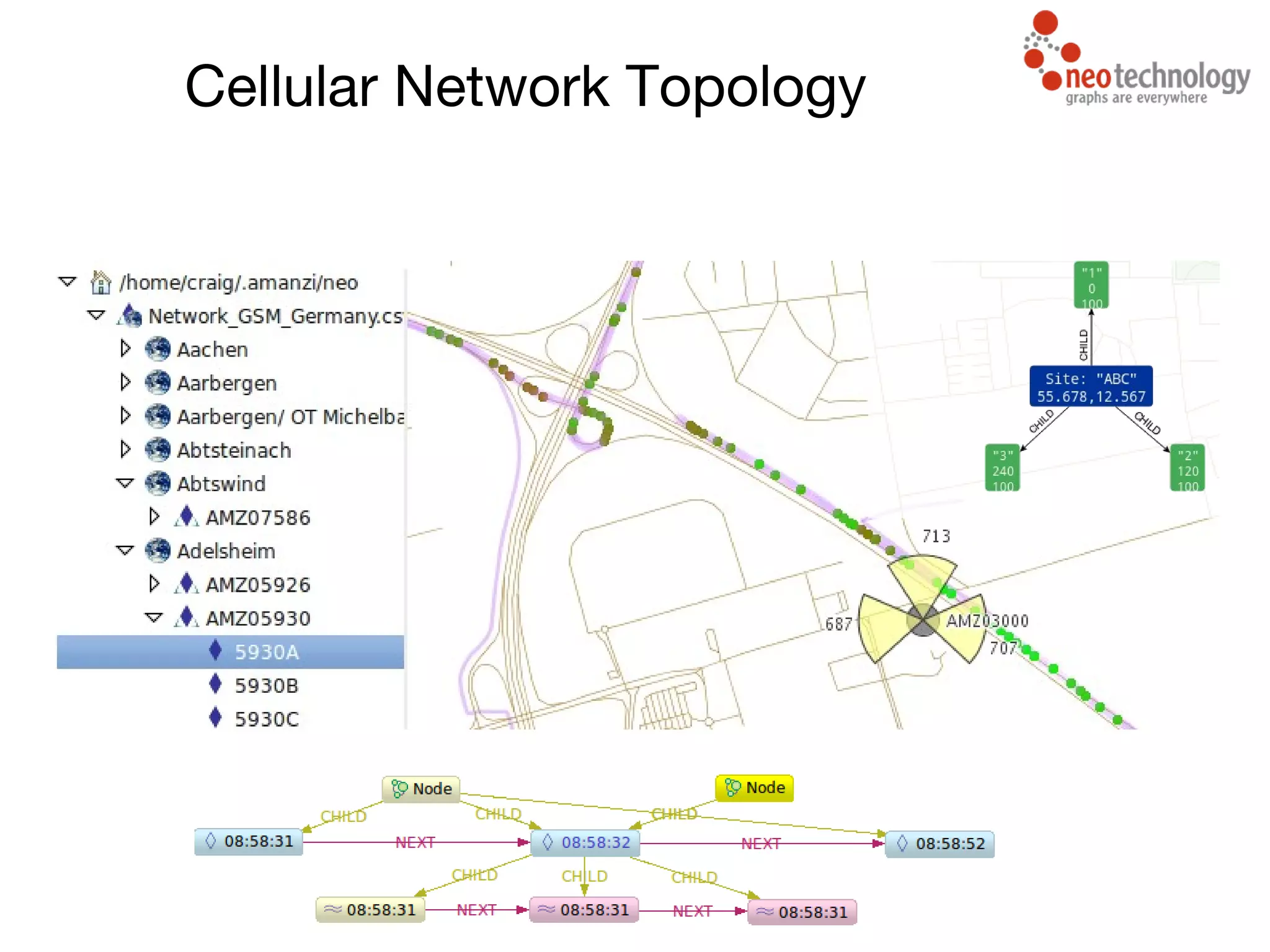

38. Cellular Network Topology

39. Cellular Network Topology
ID Site Latitude Longitude
1 ABC 55.678 12.567
2 XYZ 55.890 12.123
3 PRQ 55.543 12.890
ID Sector SiteID Azimuth Beamwidth
1 1 1 0 100
2 2 1 120 100
3 3 1 240 100
4 1 2 0 90
5 2 2 120 110
6 3 2 240 90
7 1 3 0 180
8 2 3 180 180

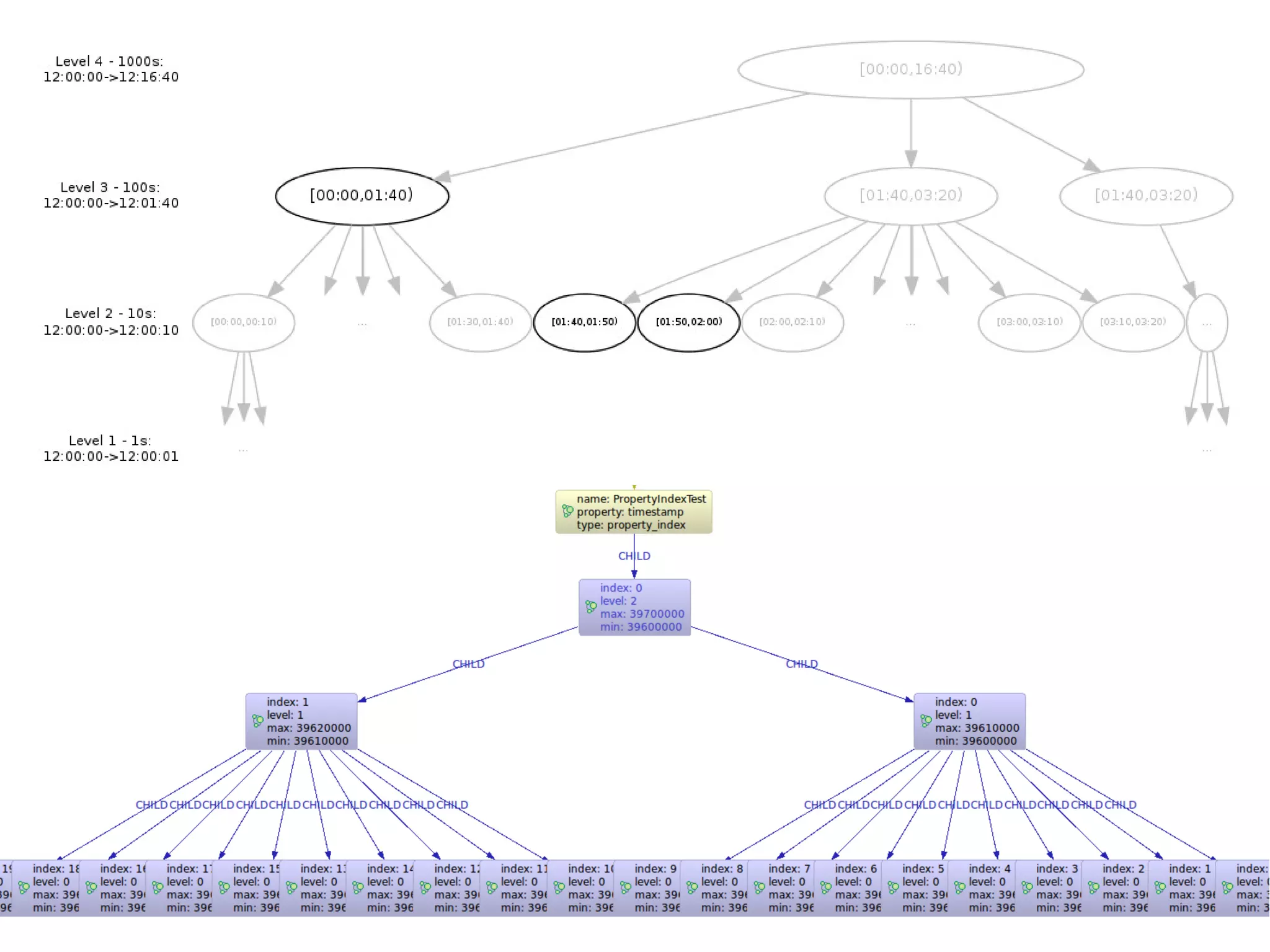

O(N)
O(ln(N))
O(1)

41. What's next?

42. Spatial Cypher!

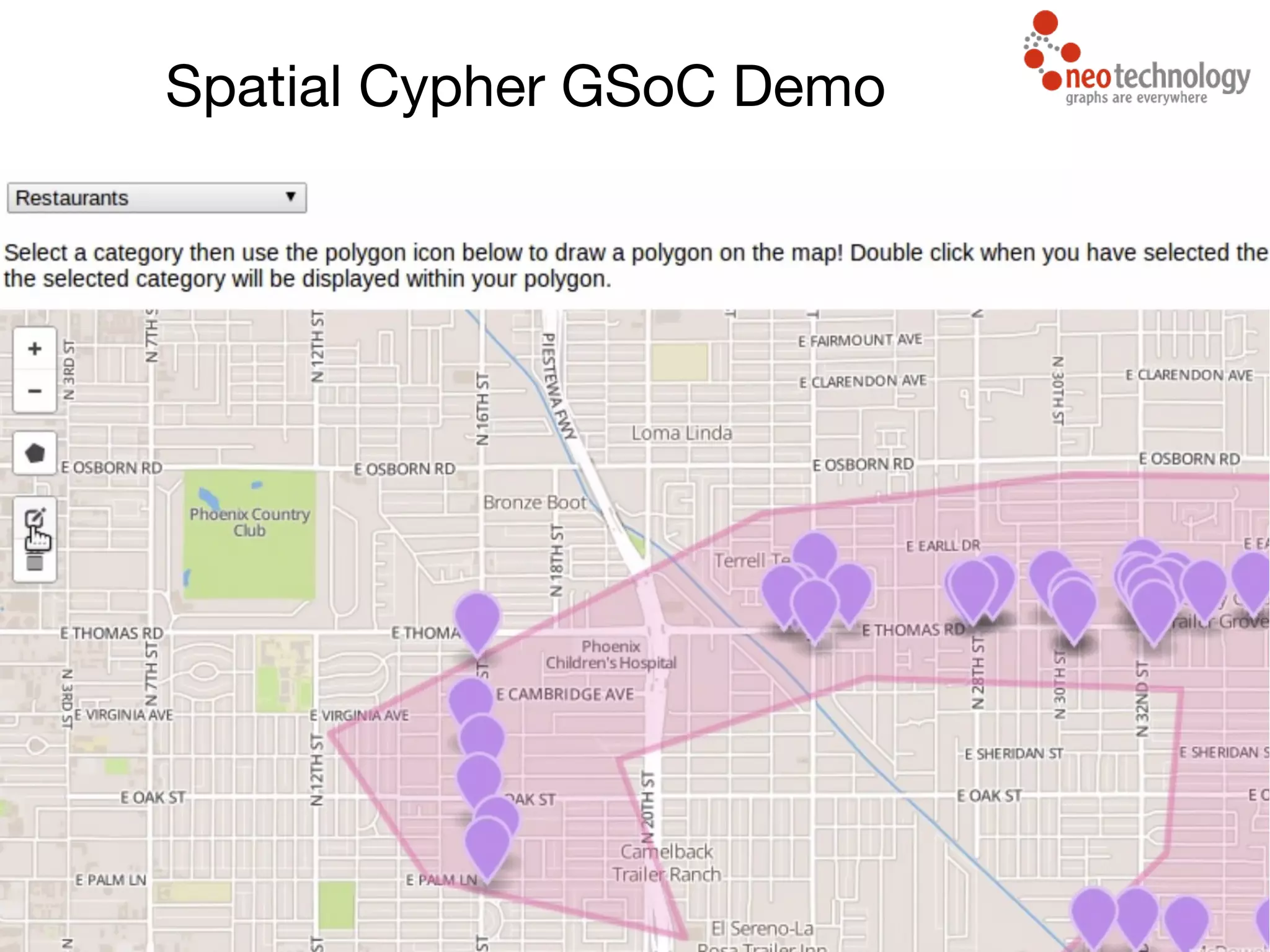

43. Spatial Cypher GSoC Demo

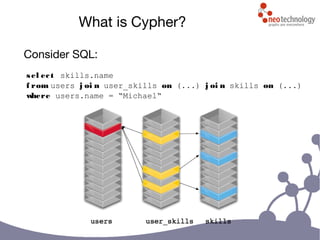

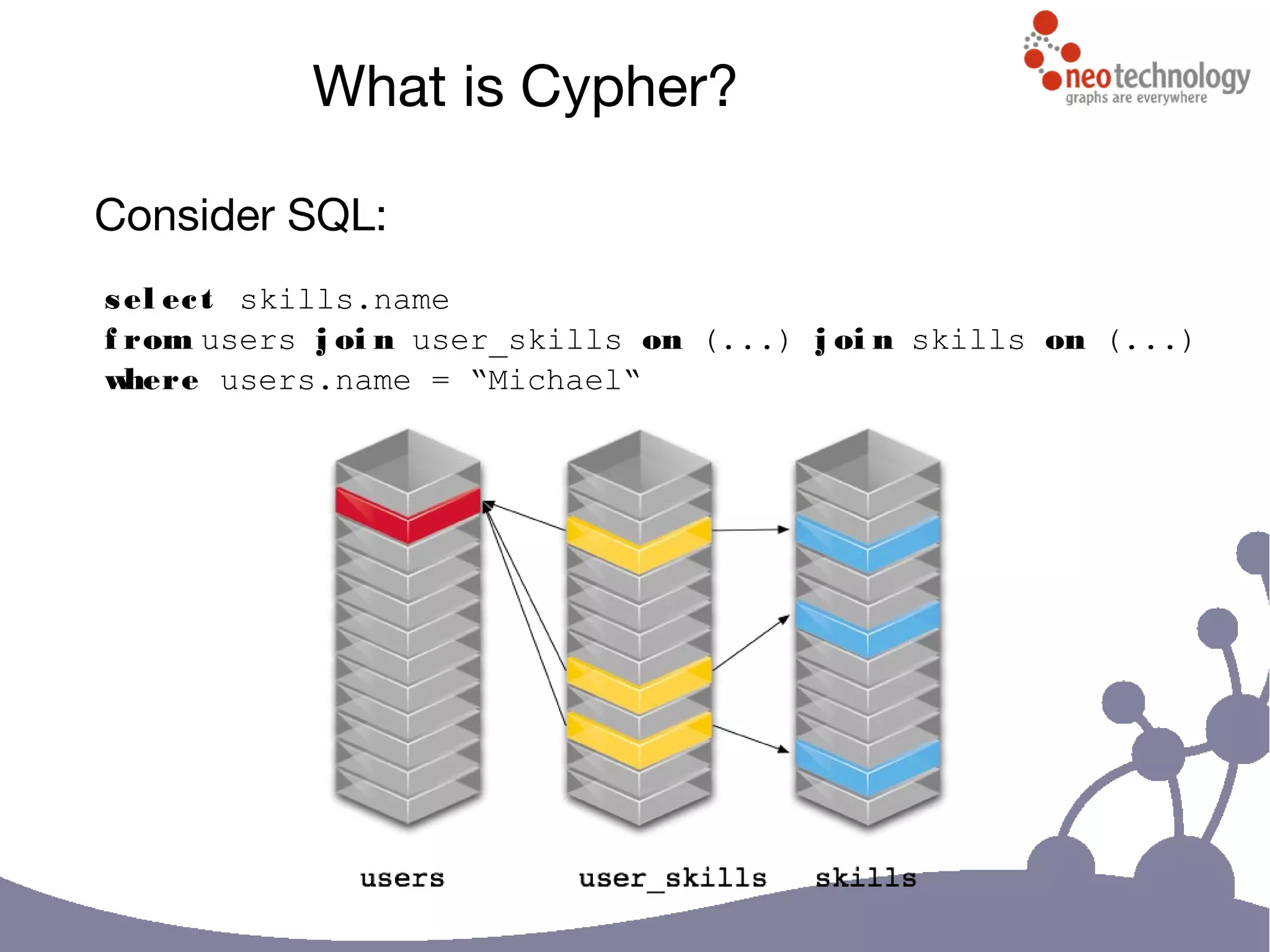

44. What is Cypher?
sel ect skills.name
f rom users j oi n user_skills on (...) j oi n skills on (...)
where users.name = “Michael“
Consider SQL:

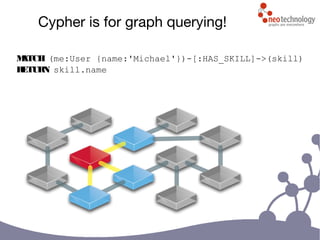

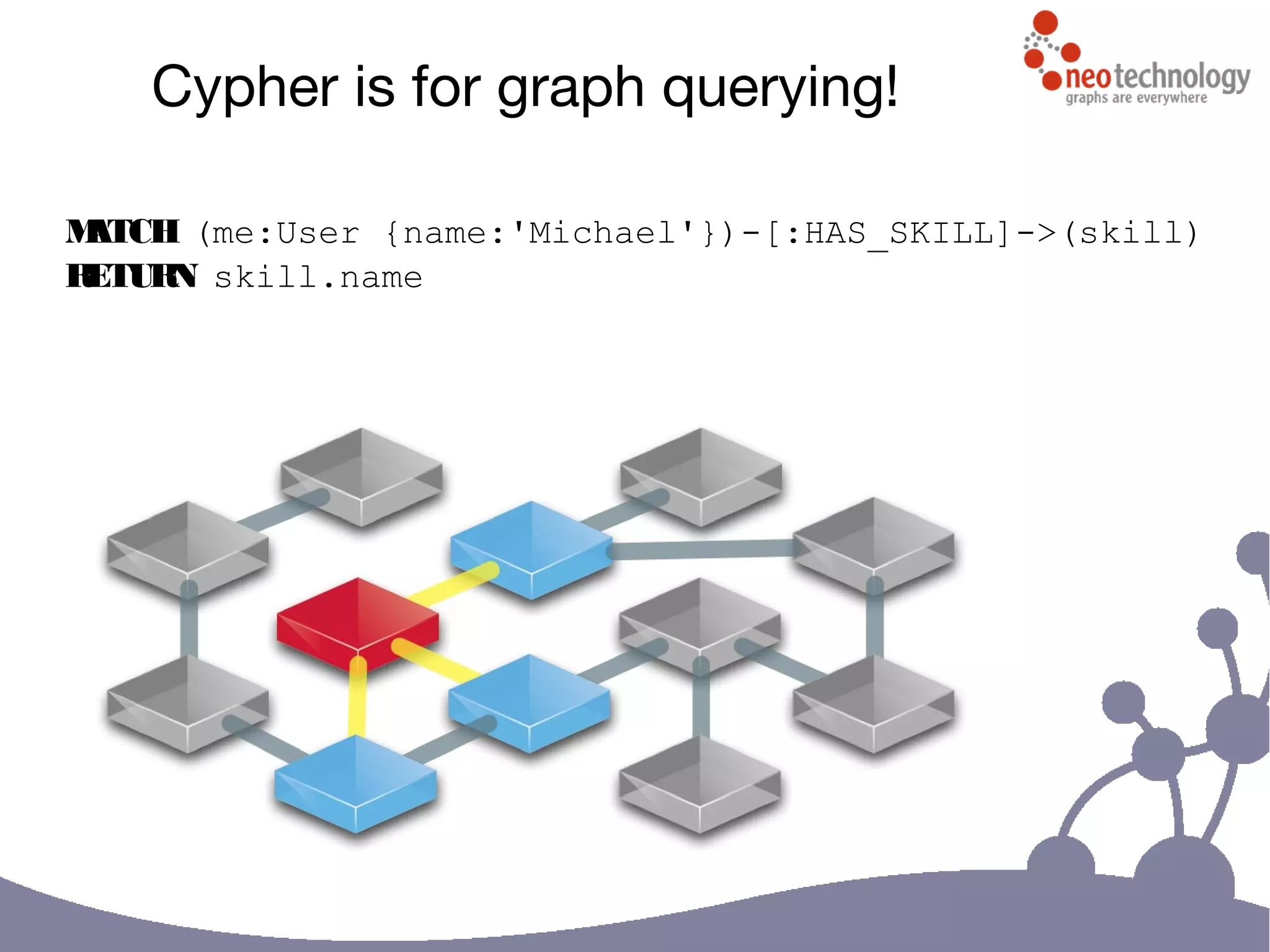

45. Cypher is for graph querying!
MATCH (me:User {name:'Michael'})-[:HAS_SKILL]->(skill)
RETURN skill.name

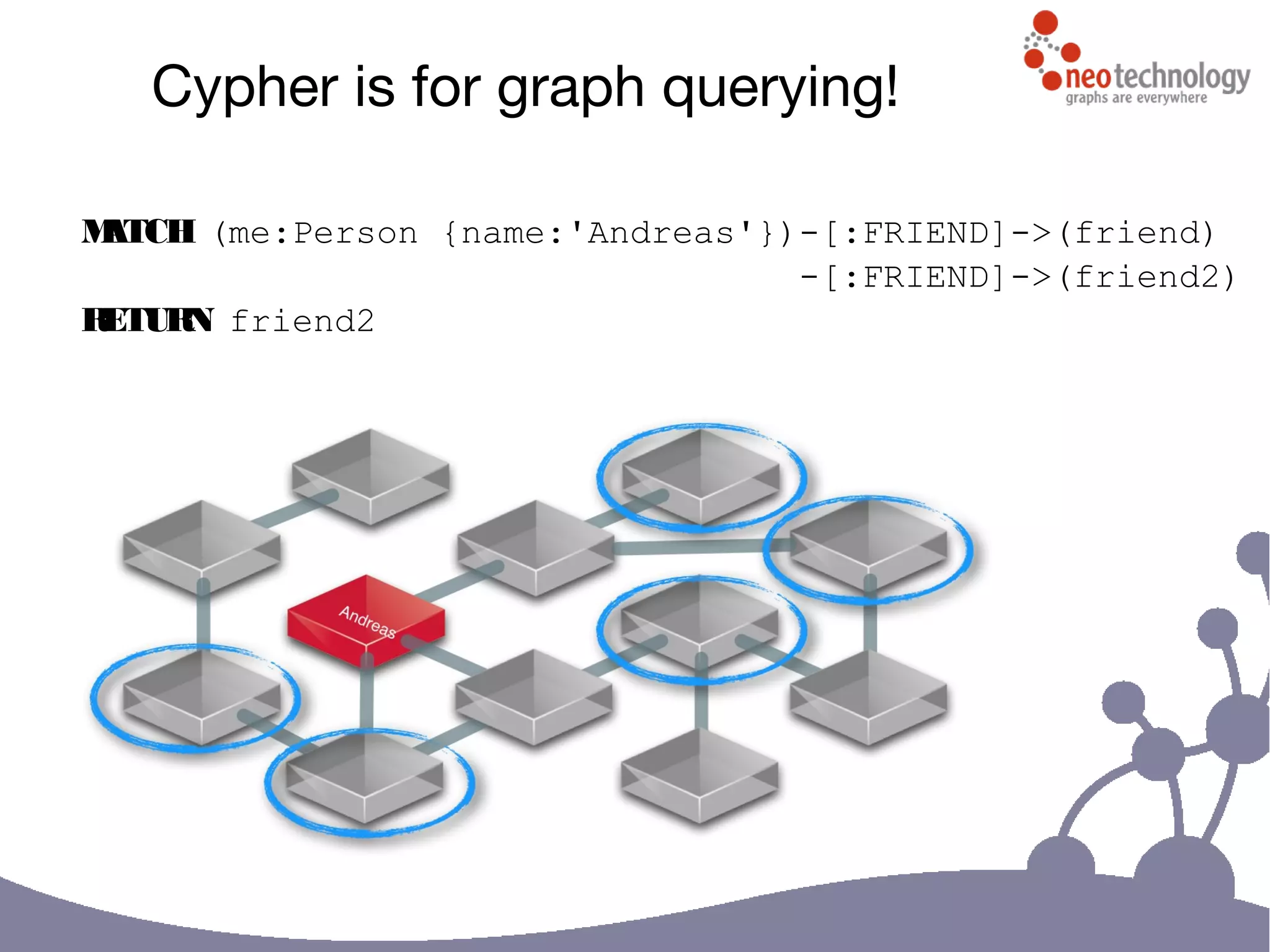

46. Cypher is for graph querying!
MATCH (me:Person {name:'Andreas'})-[:FRIEND]->(friend)
-[:FRIEND]->(friend2)
RETURN friend2

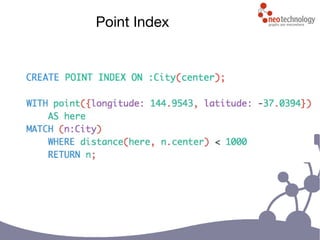

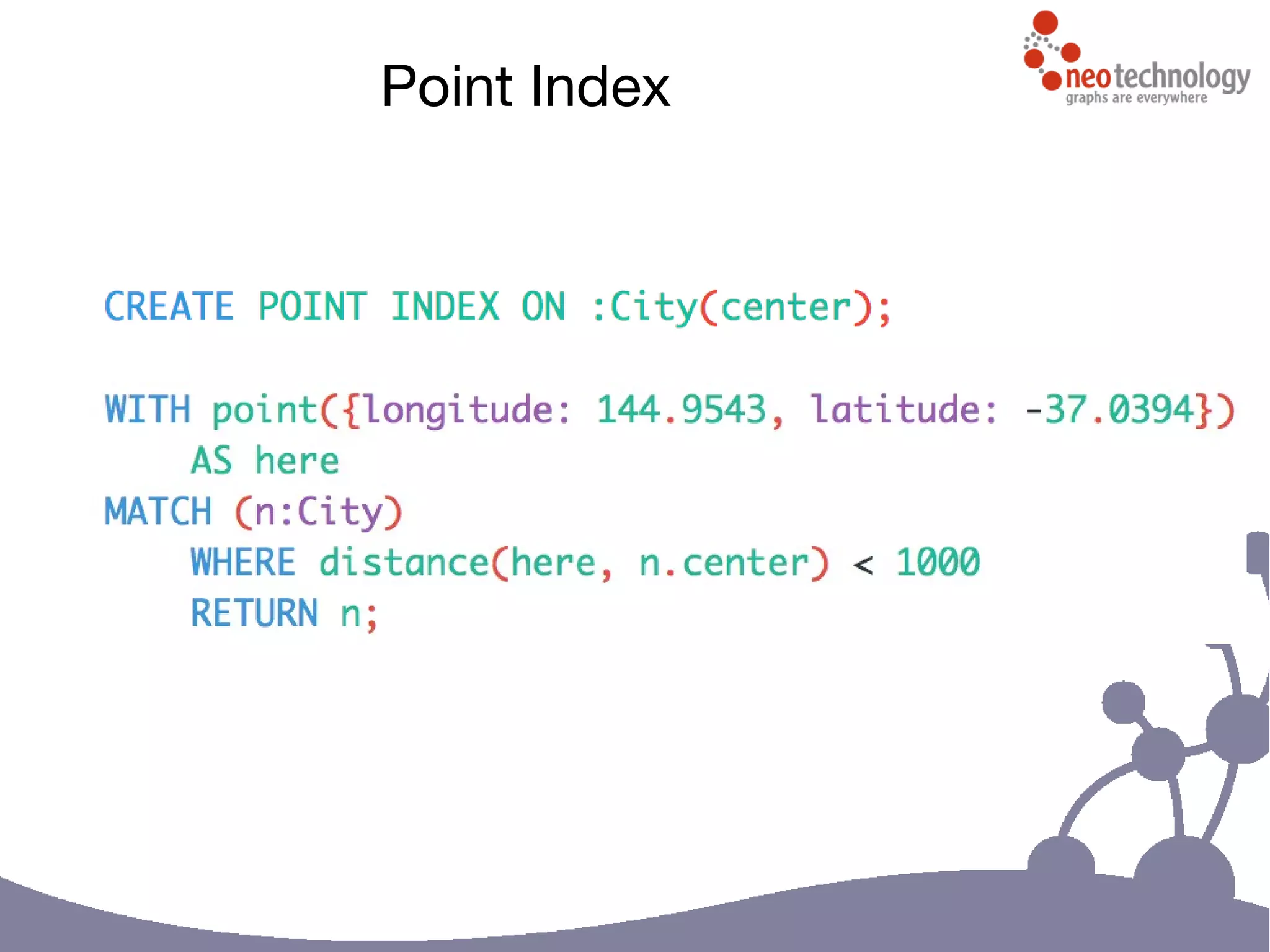

47. Point Index

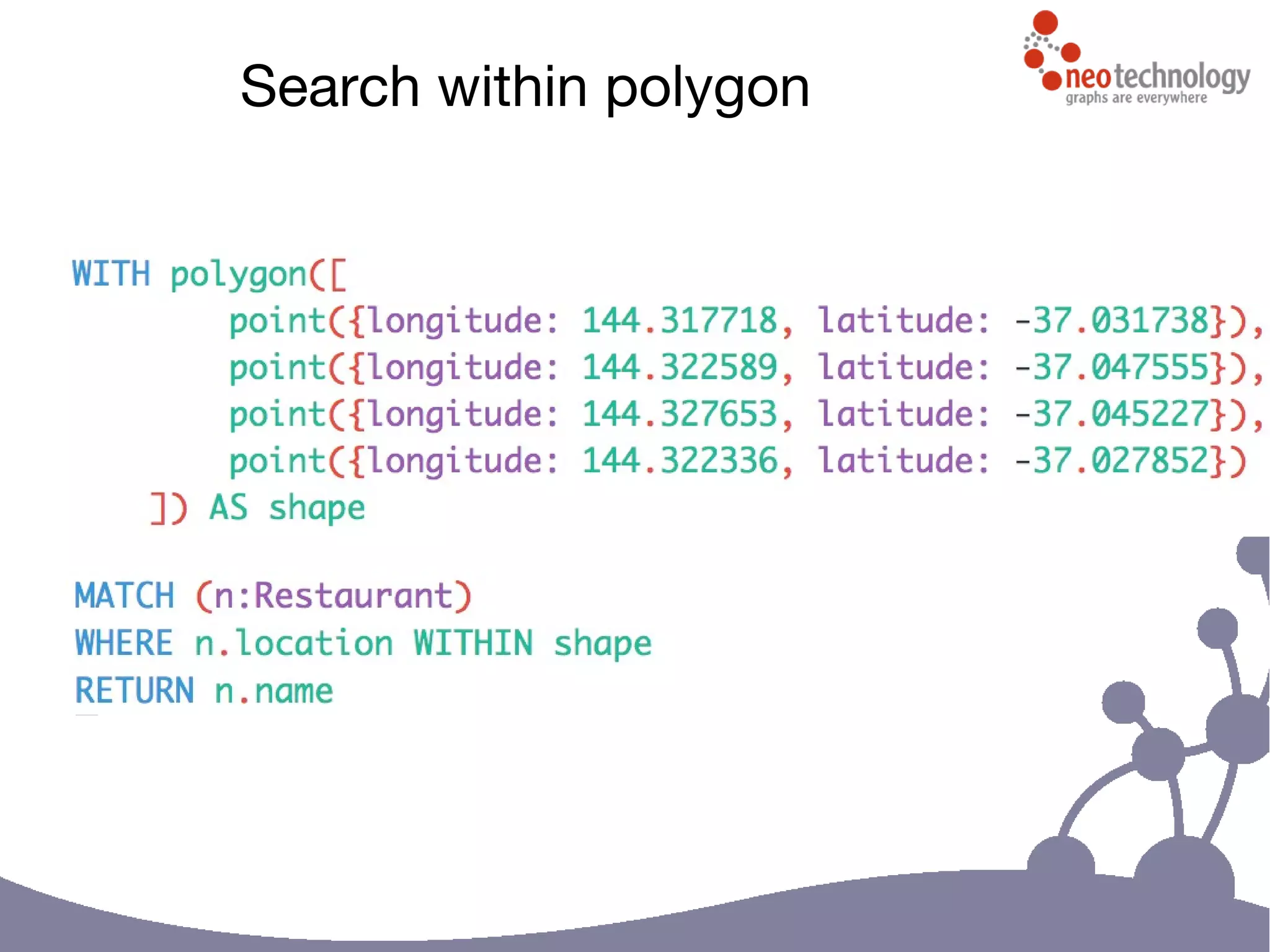

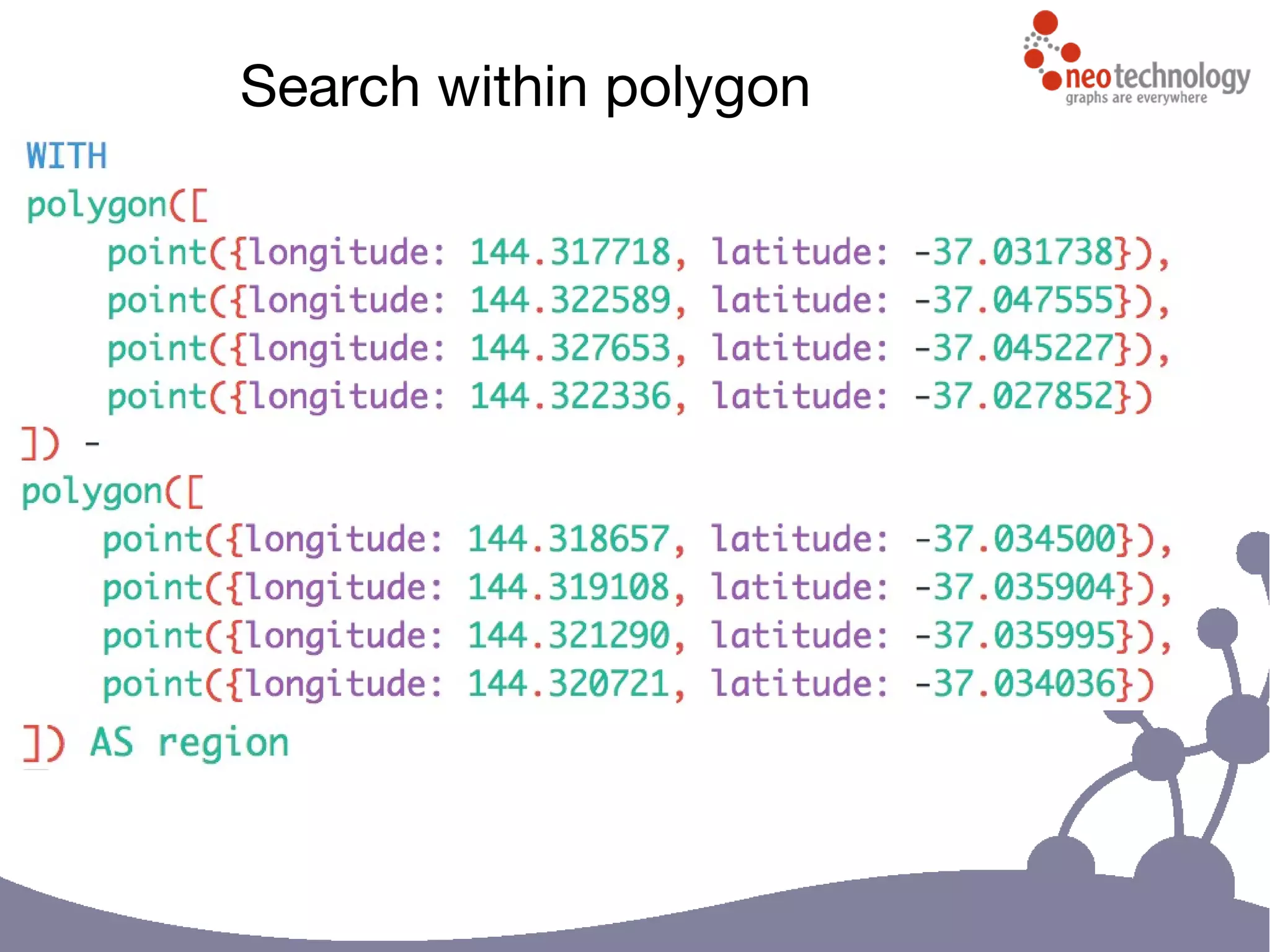

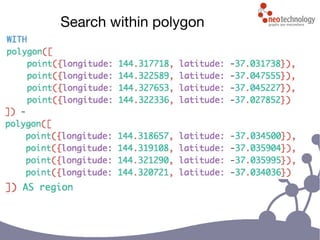

48. Search within polygon

49. Search within polygon

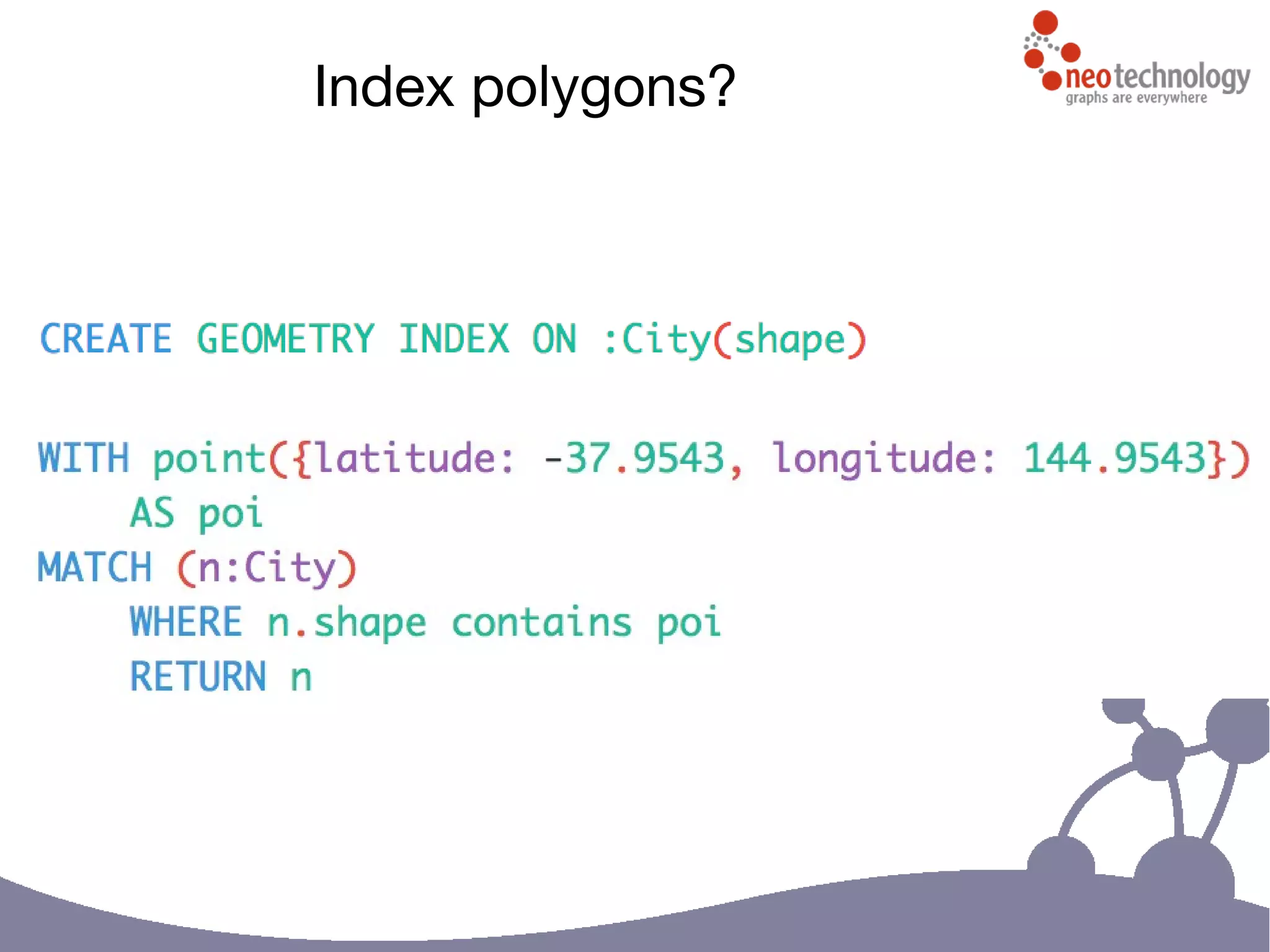

50. Index polygons?

51. Questions?
