1. Neo4j Spatial -
GIS for the rest
of us.
OSCON Data 2011
#neo4j
Peter Neubauer @peterneubauer
Neo Technology peter@neotechnology.com
Saturday, July 30, 2011

2. We are hiring.
Now.
Contact me.
#neo4j
@peterneubauer
peter@neotechnology.com
Saturday, July 30, 2011

3. Neo4j - ?
Saturday, July 30, 2011

4. The Neo4j model: Property Graph
Saturday, July 30, 2011

5. The Neo4j model: Property Graph
1 2
3
Saturday, July 30, 2011

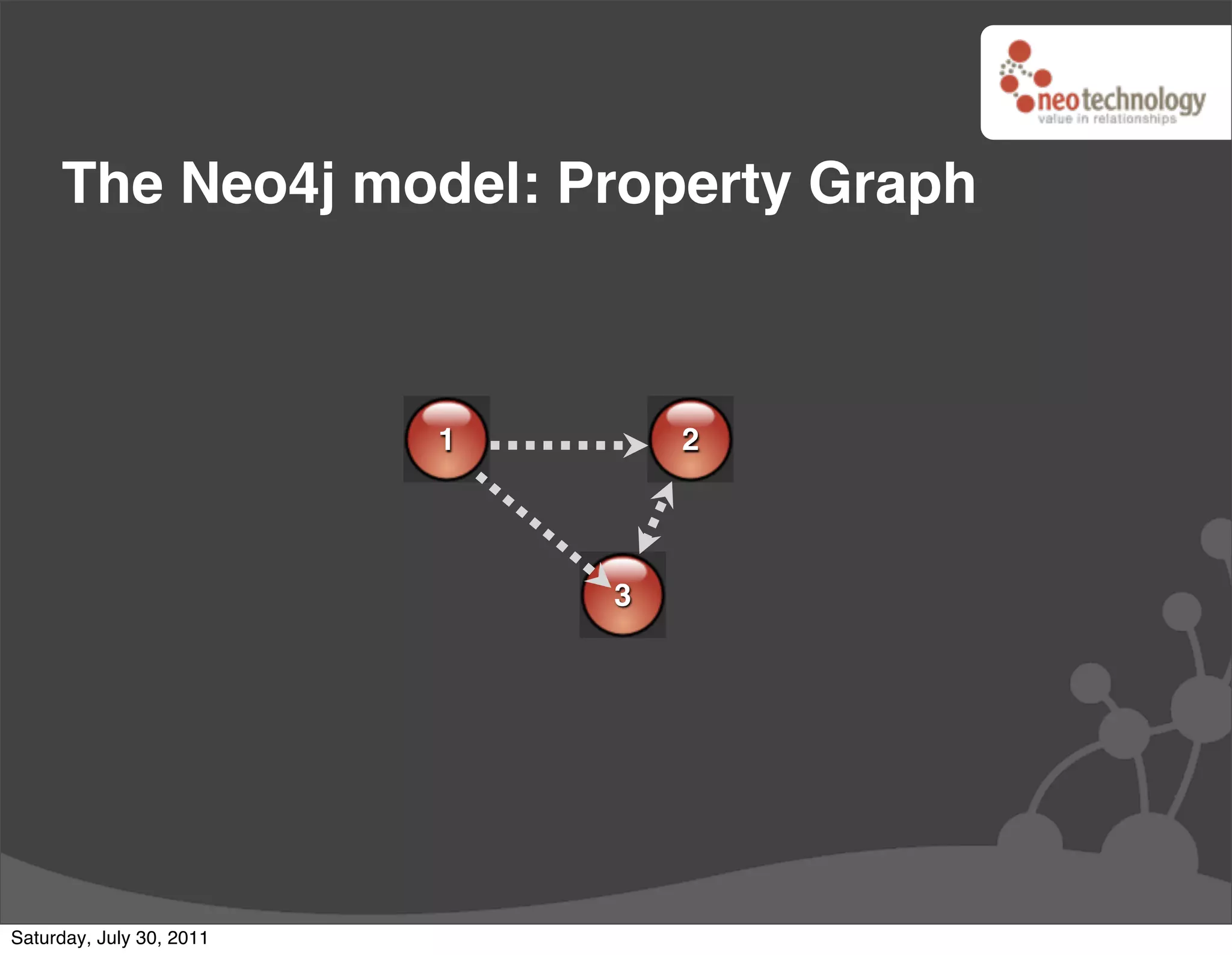

6. The Neo4j model: Property Graph
1 2
3
Saturday, July 30, 2011

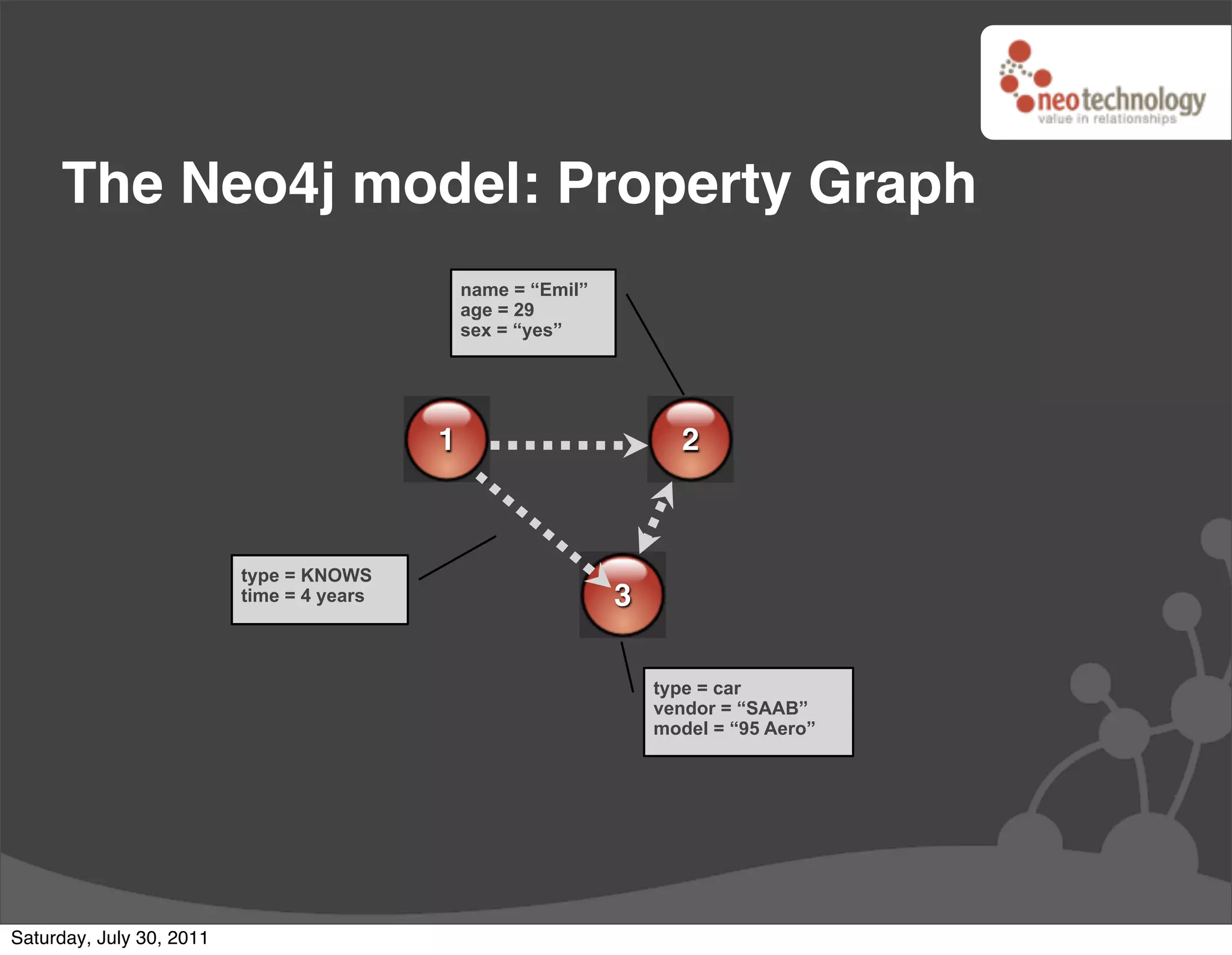

7. The Neo4j model: Property Graph
name = “Emil”
age = 29
sex = “yes”
1 2
type = KNOWS
time = 4 years 3
type = car
vendor = “SAAB”
model = “95 Aero”
Saturday, July 30, 2011

8. Saturday, July 30, 2011

9. Impact Analytics, CMDB, Network
Management, Provisioning
Saturday, July 30, 2011

10. Show me!
Saturday, July 30, 2011

11. Neo4j Spatial
Saturday, July 30, 2011

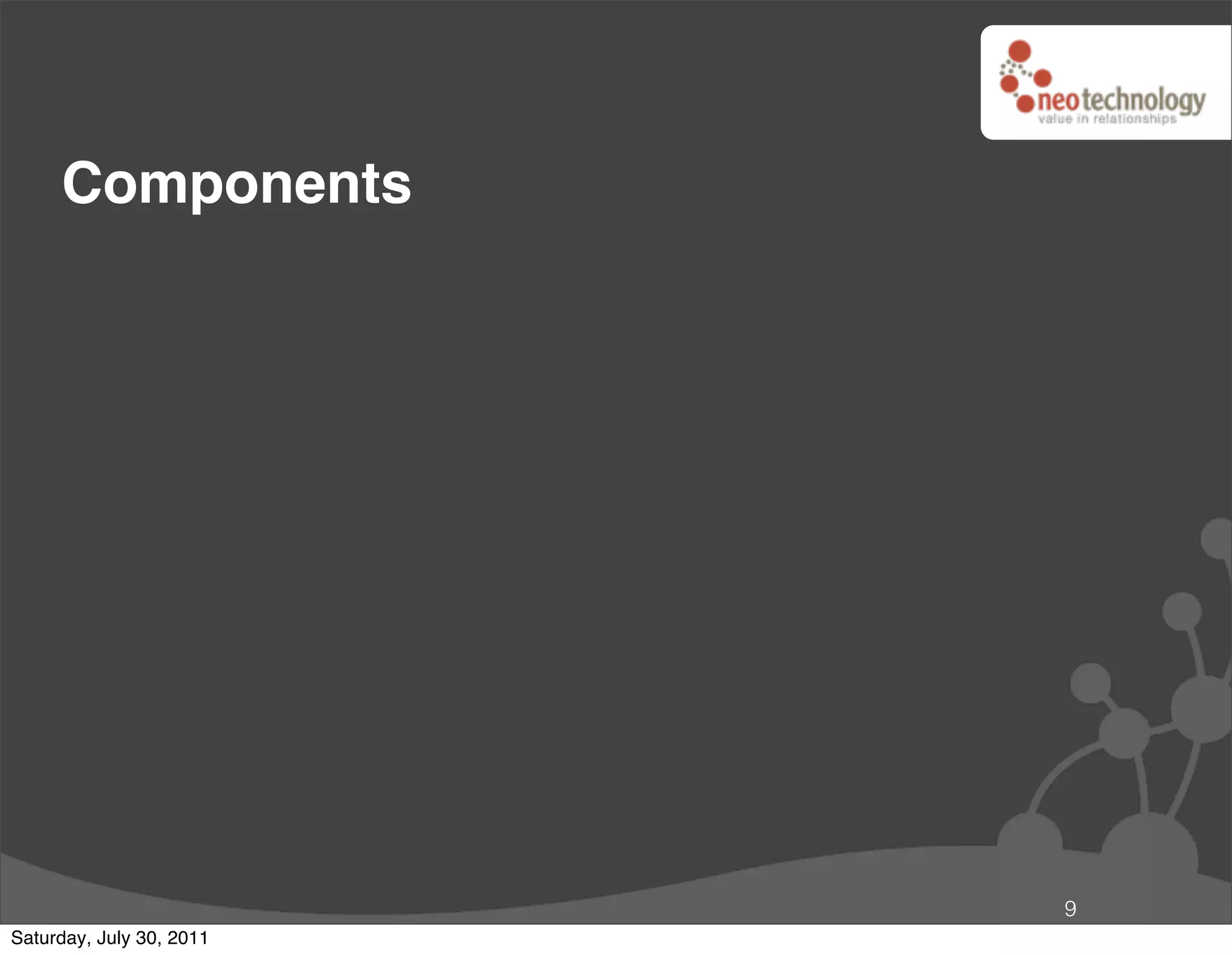

12. Components
9
Saturday, July 30, 2011

13. Components
Core
9
Saturday, July 30, 2011

14. Components
Core
Storage
9
Saturday, July 30, 2011

15. Components
Core
Storage
Search
9
Saturday, July 30, 2011

16. Components
Core
Storage
Search
GeoProcessing
9
Saturday, July 30, 2011

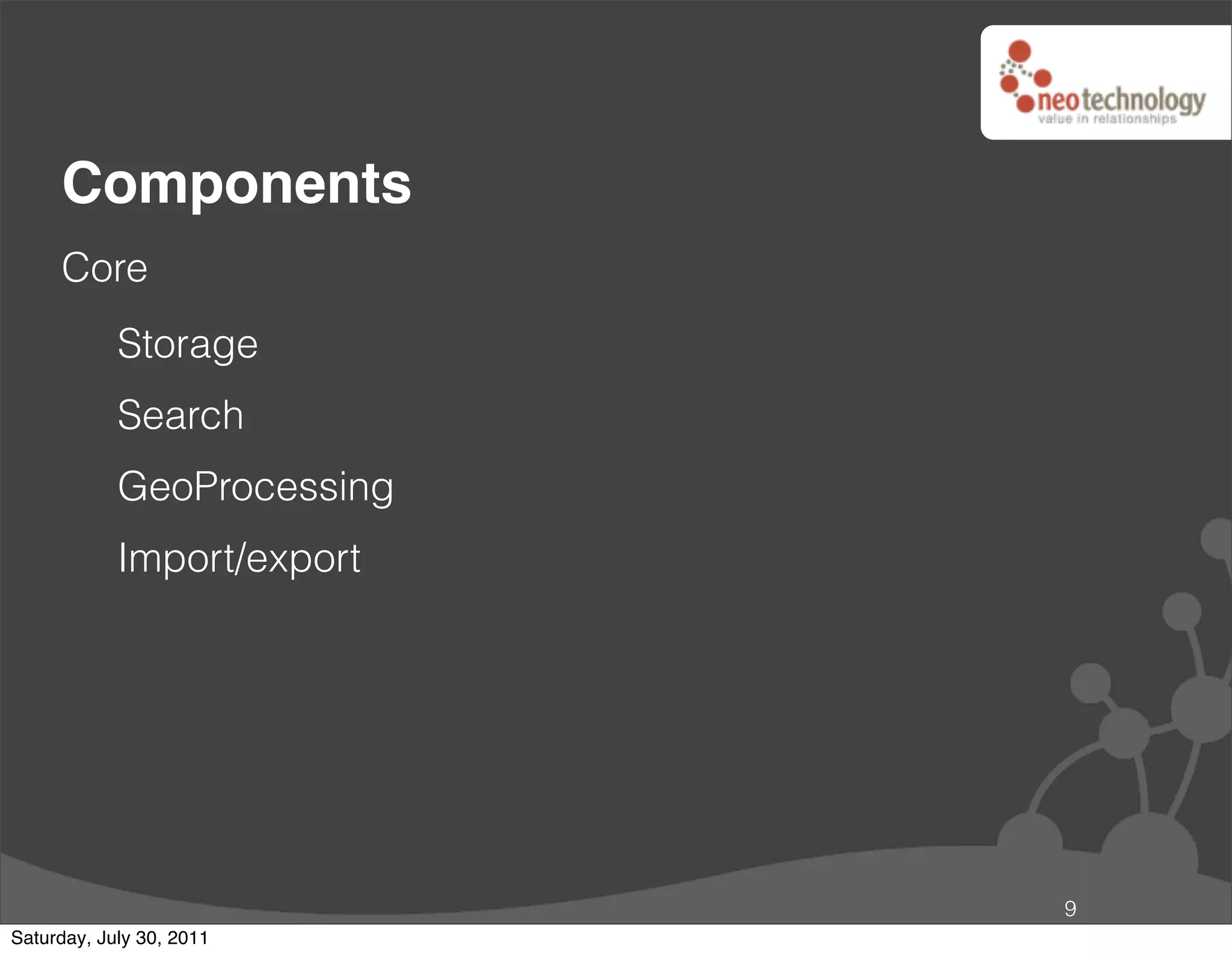

17. Components
Core
Storage
Search
GeoProcessing
Import/export
9
Saturday, July 30, 2011

18. Components
Core
Storage
Search
GeoProcessing
Import/export
Extensions
9
Saturday, July 30, 2011

19. Components
Core
Storage
Search
GeoProcessing
Import/export
Extensions
Geotools & GeoServer
9
Saturday, July 30, 2011

20. Components
Core
Storage
Search
GeoProcessing
Import/export
Extensions
Geotools & GeoServer
uDig
9
Saturday, July 30, 2011

21. Components
Core
Storage
Search
GeoProcessing
Import/export
Extensions
Geotools & GeoServer
uDig
OpenStreetMap
9
Saturday, July 30, 2011

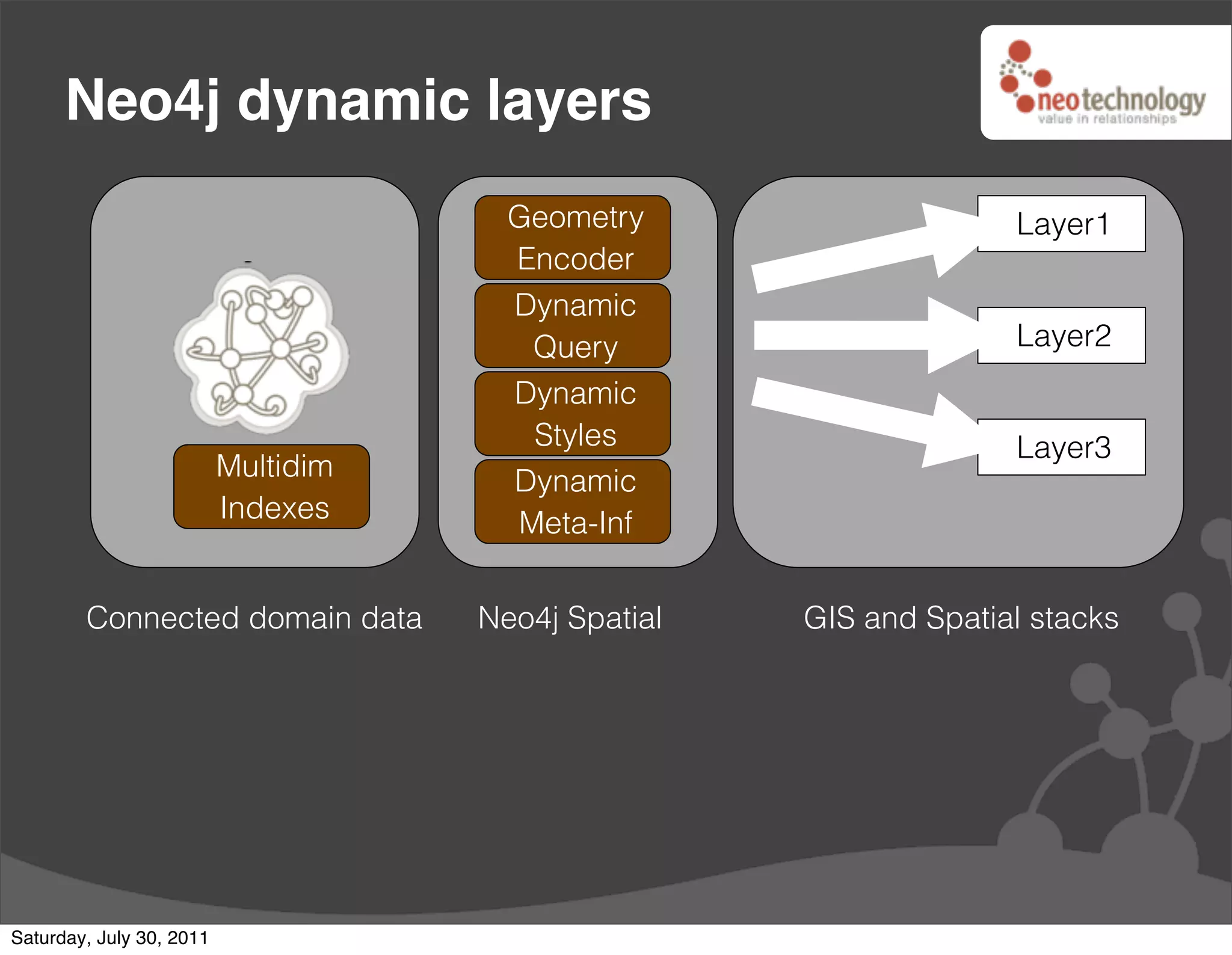

22. Neo4j dynamic layers
Geometry Layer1
Encoder
Dynamic
Query Layer2
Dynamic
Styles Layer3
Multidim Dynamic
Indexes Meta-Inf
Connected domain data Neo4j Spatial GIS and Spatial stacks
Saturday, July 30, 2011

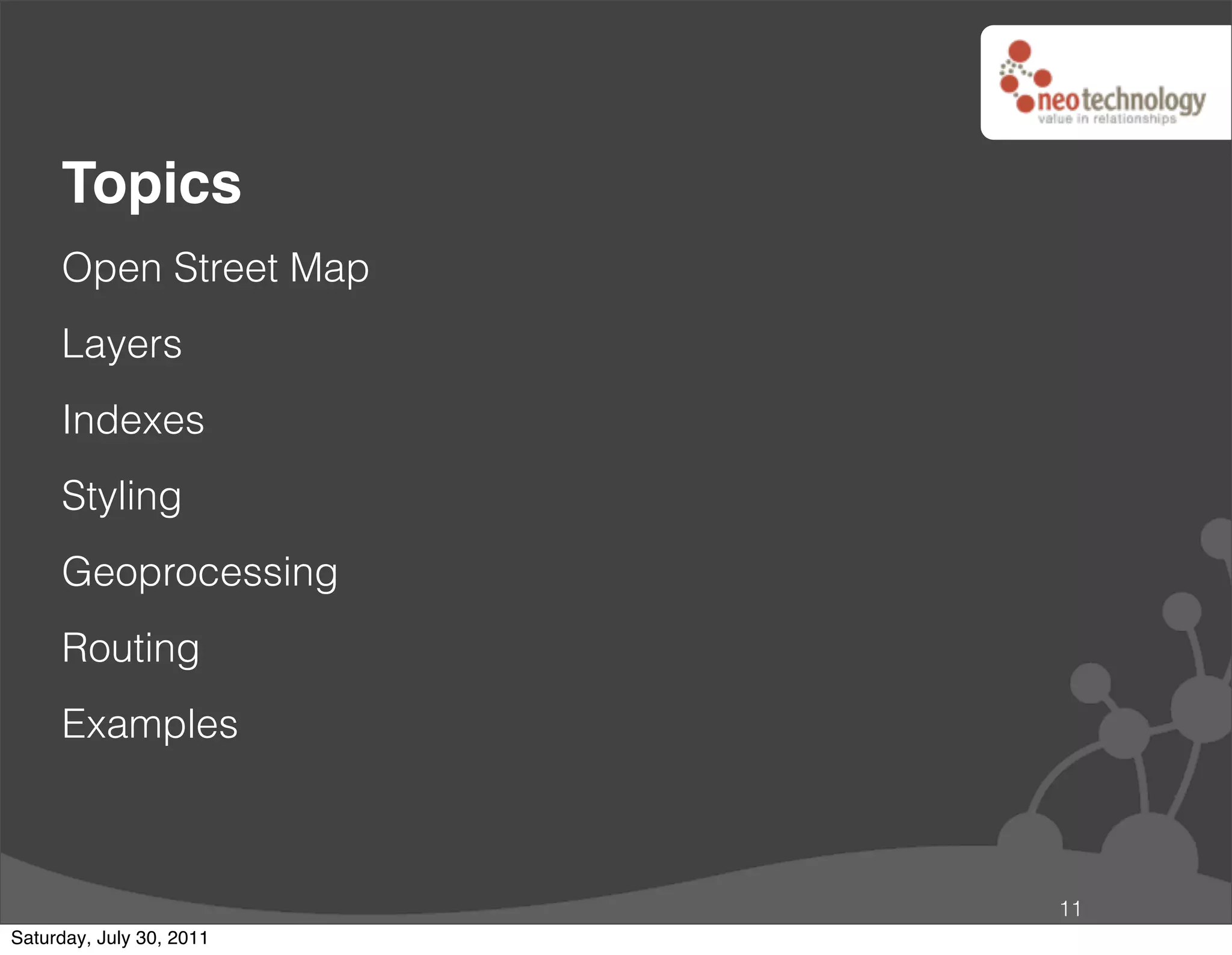

23. Topics
Open Street Map
Layers
Indexes
Styling
Geoprocessing
Routing
Examples
11
Saturday, July 30, 2011

24. Open StreetMap
Saturday, July 30, 2011

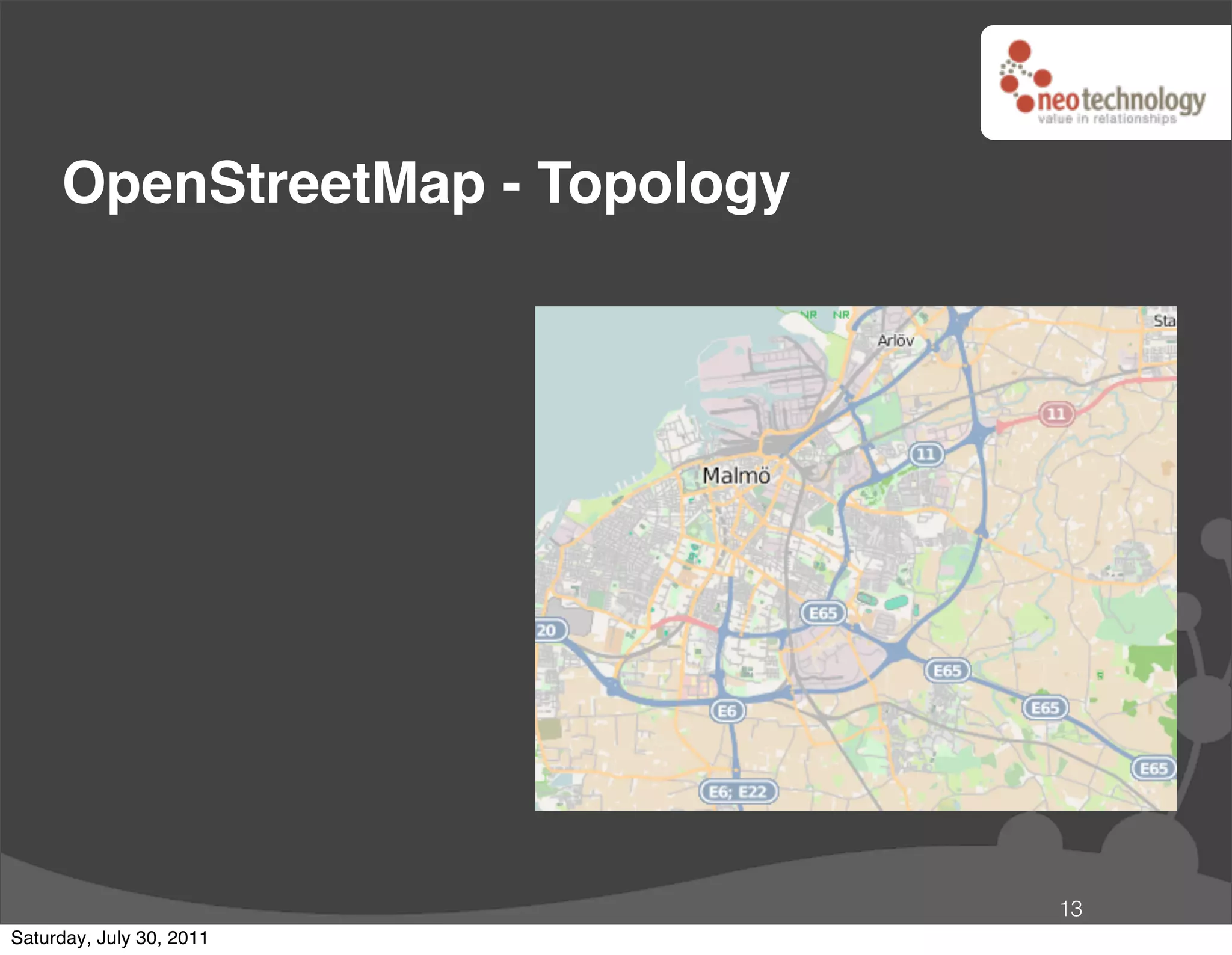

25. OpenStreetMap - Topology
13
Saturday, July 30, 2011

26. OSM Files
<?xml version="1.0" encoding="UTF-8"?>
<osm version="0.6" generator="CGImap 0.0.2">
<bounds minlat="56.0437000" minlon="12.9388000" maxlat="56.0761000"
maxlon="13.0109000"/>
<node id="371662020" lat="56.0709040" lon="12.9639158" user="Grillo"
uid="13957" visible="true" version="2" changeset="5465617"
timestamp="2010-08-11T19:50:23Z"/>
....
<way id="72090582" user="Craig Taverner" uid="48197" visible="true"
version="1" changeset="5474347" timestamp="2010-08-12T16:15:06Z">
<nd ref="371662020"/>
<nd ref="857081476"/>
<nd ref="857081950"/>
<nd ref="857081819"/>
<nd ref="857081796"/>
<nd ref="857081692"/>
<nd ref="857081617"/>
<nd ref="857081523"/>
<tag k="highway" v="residential"/>
<tag k="name" v="Nybrodalsvägen"/>
</way>
</osm>
Saturday, July 30, 2011

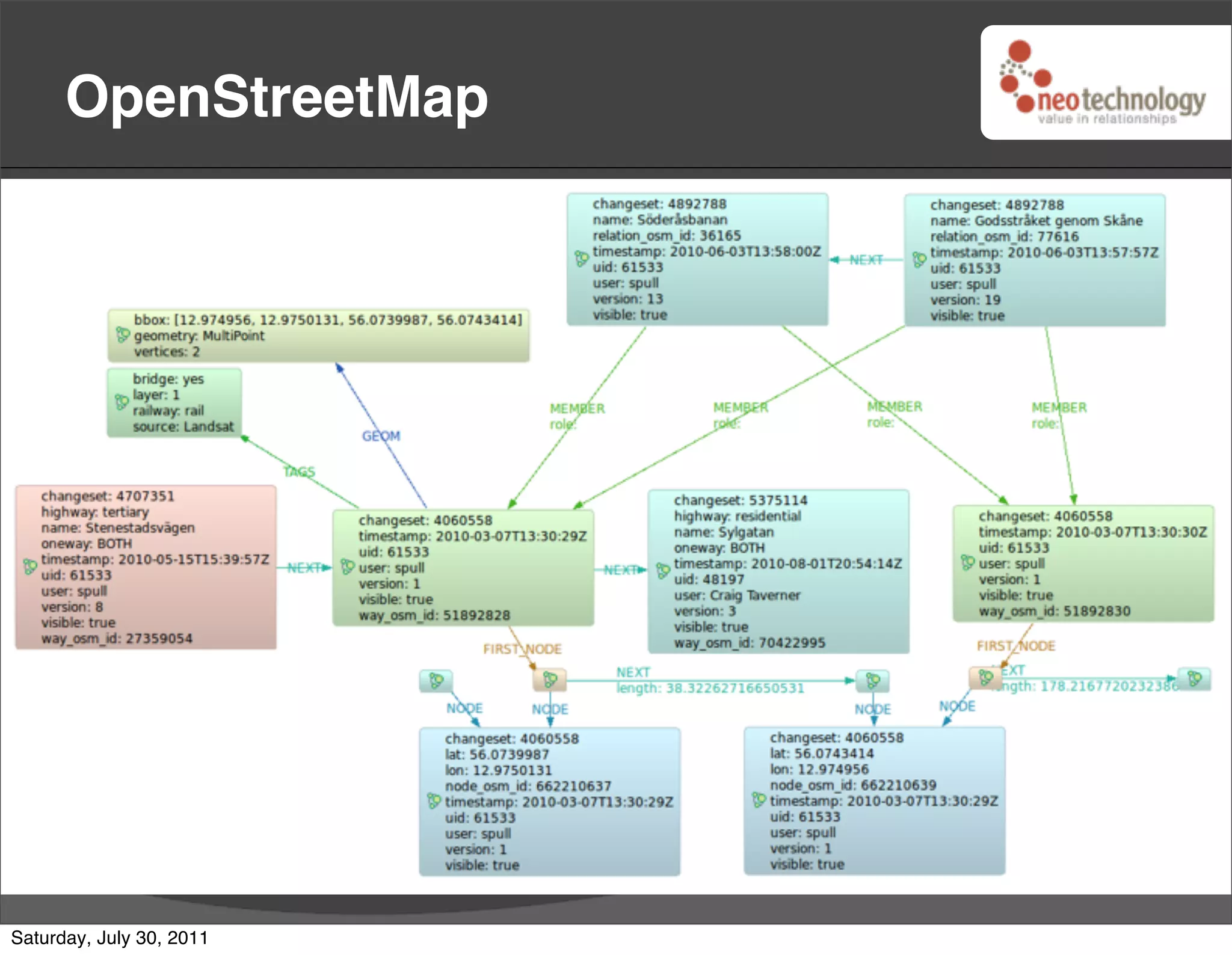

27. OpenStreetMap
Saturday, July 30, 2011

28. OpenStreetMap
Saturday, July 30, 2011

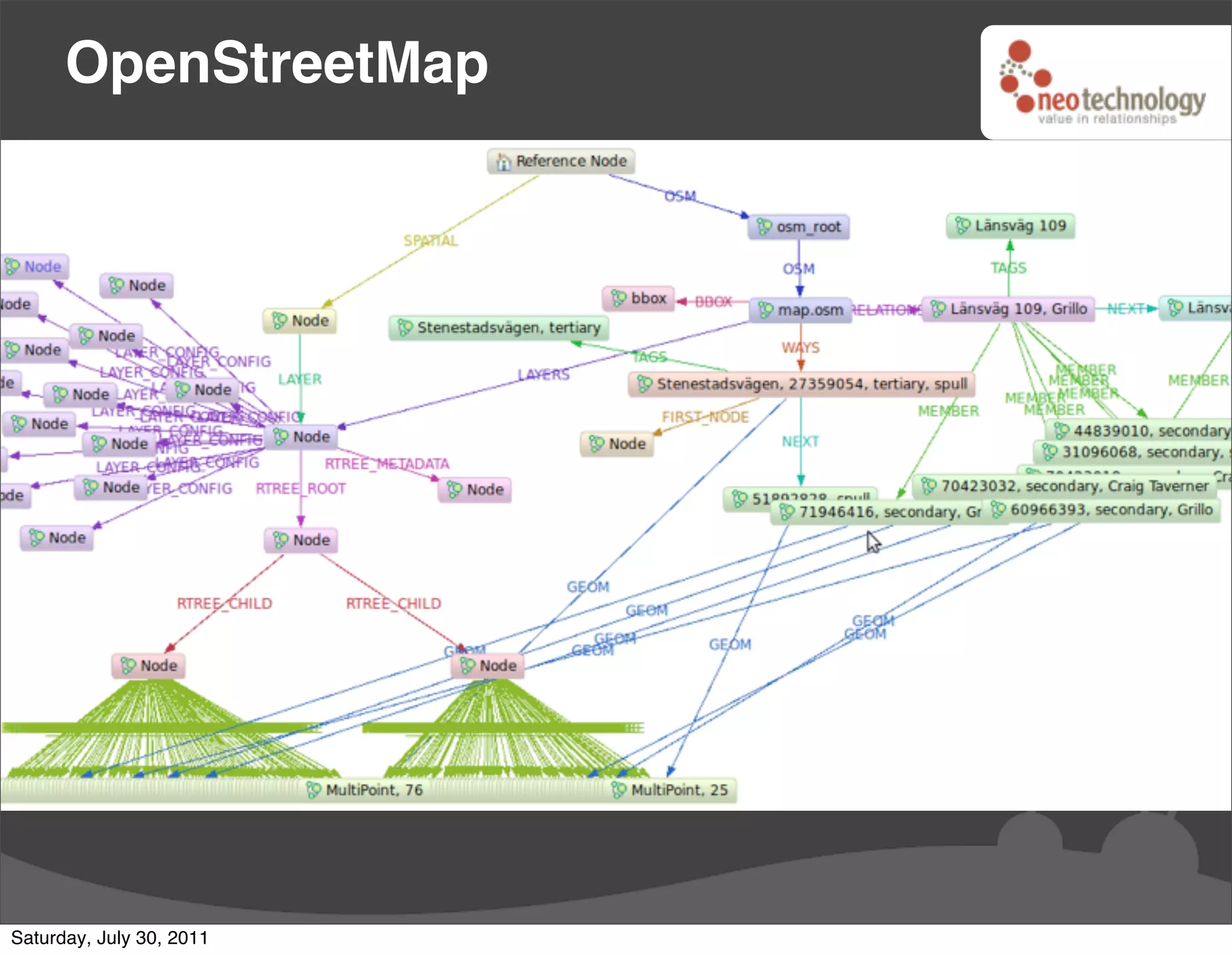

29. OpenStreetMap
Saturday, July 30, 2011

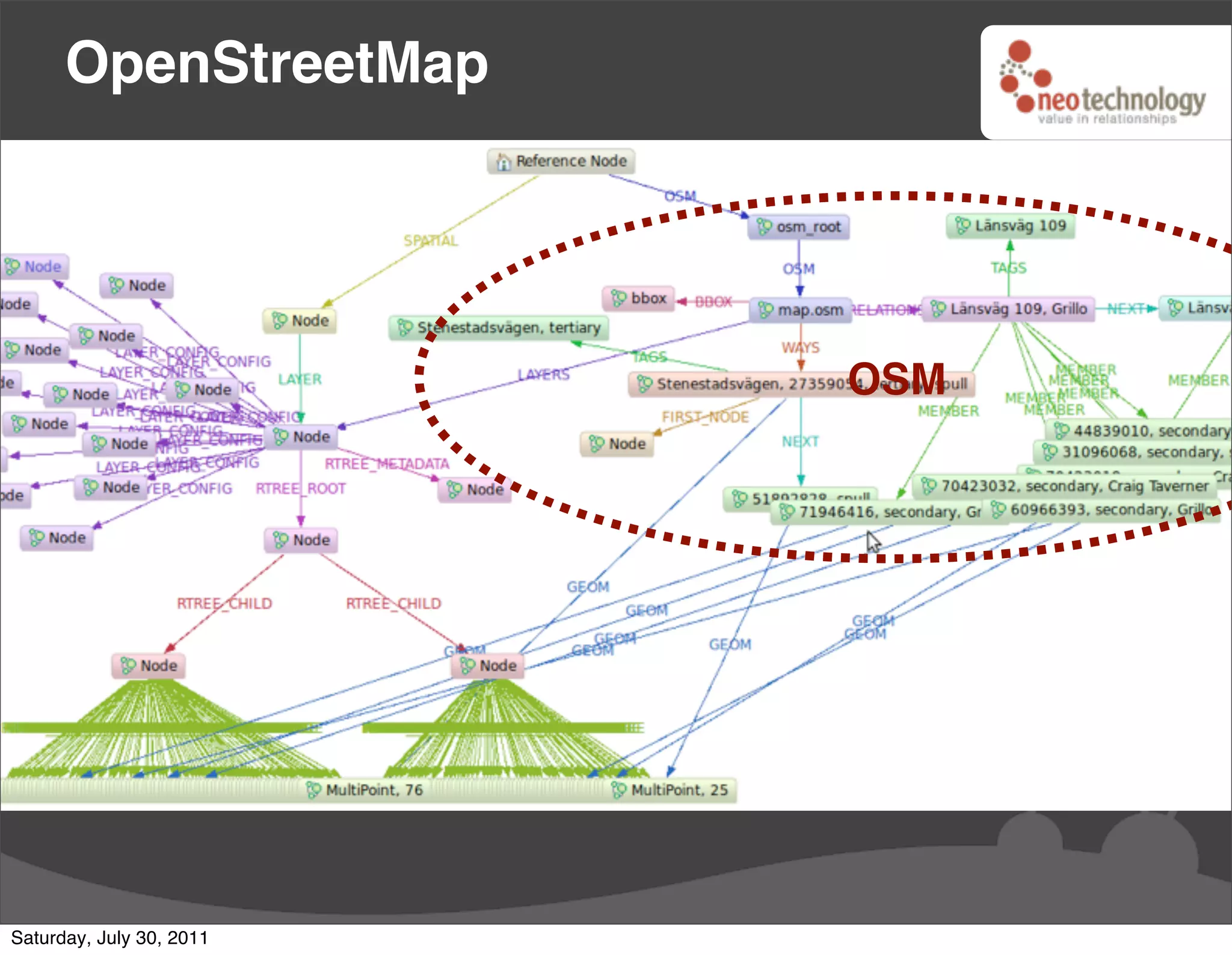

30. OpenStreetMap
OSM
Saturday, July 30, 2011

31. OpenStreetMap
Dynamic OSM
Layers
Saturday, July 30, 2011

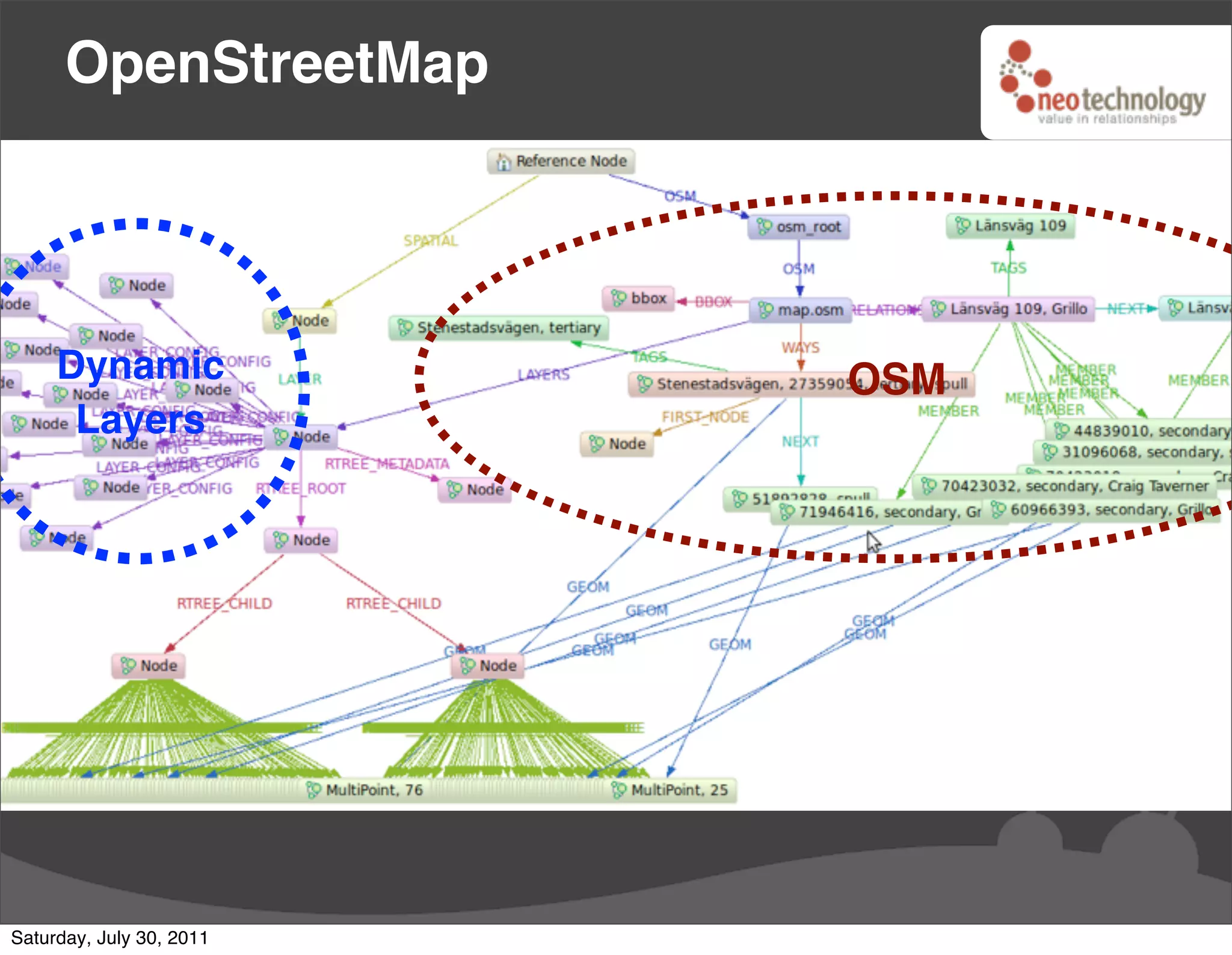

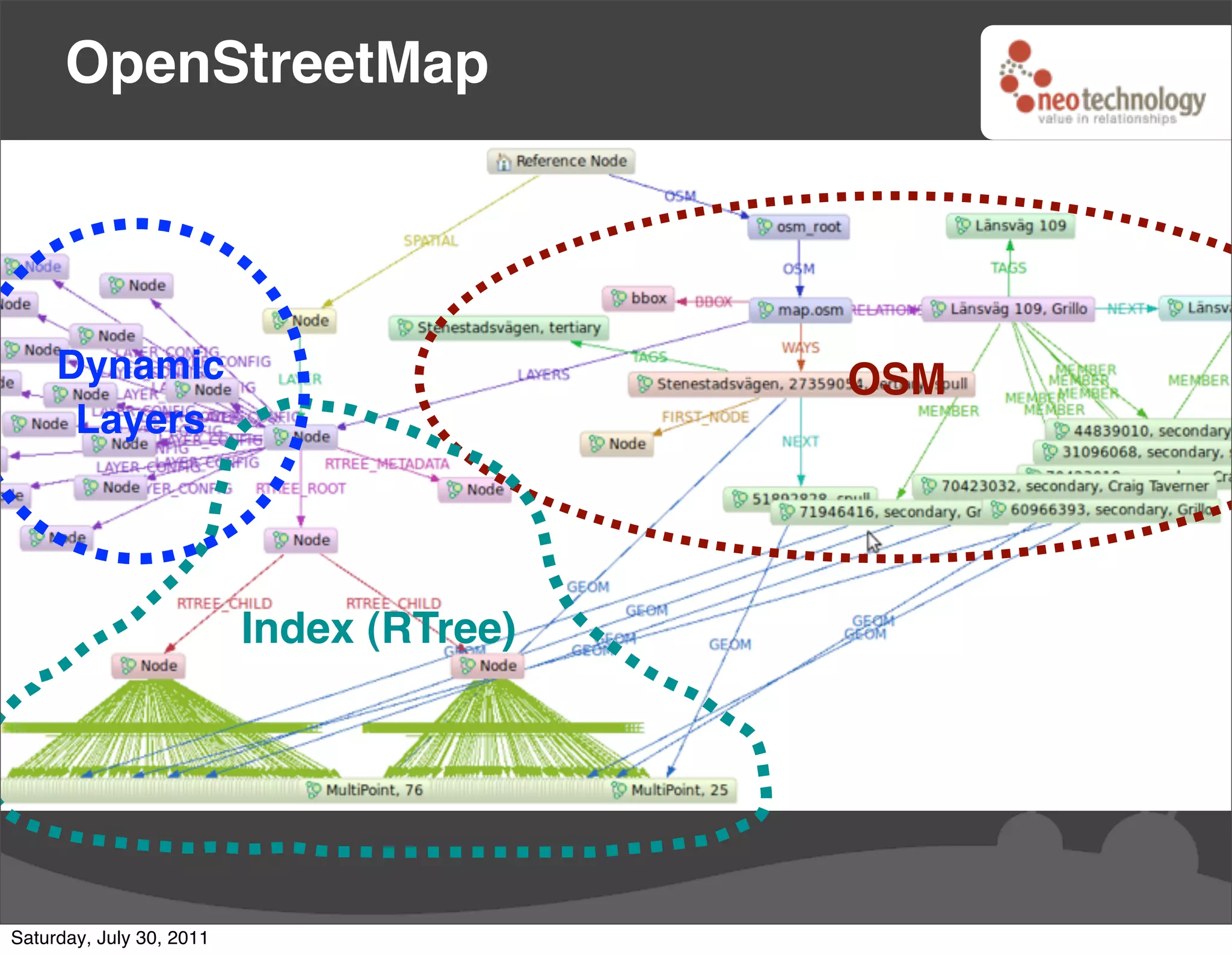

32. OpenStreetMap
Dynamic OSM
Layers
Index (RTree)
Saturday, July 30, 2011

33. Layers
Saturday, July 30, 2011

34. From Graph to Layer
Saturday, July 30, 2011

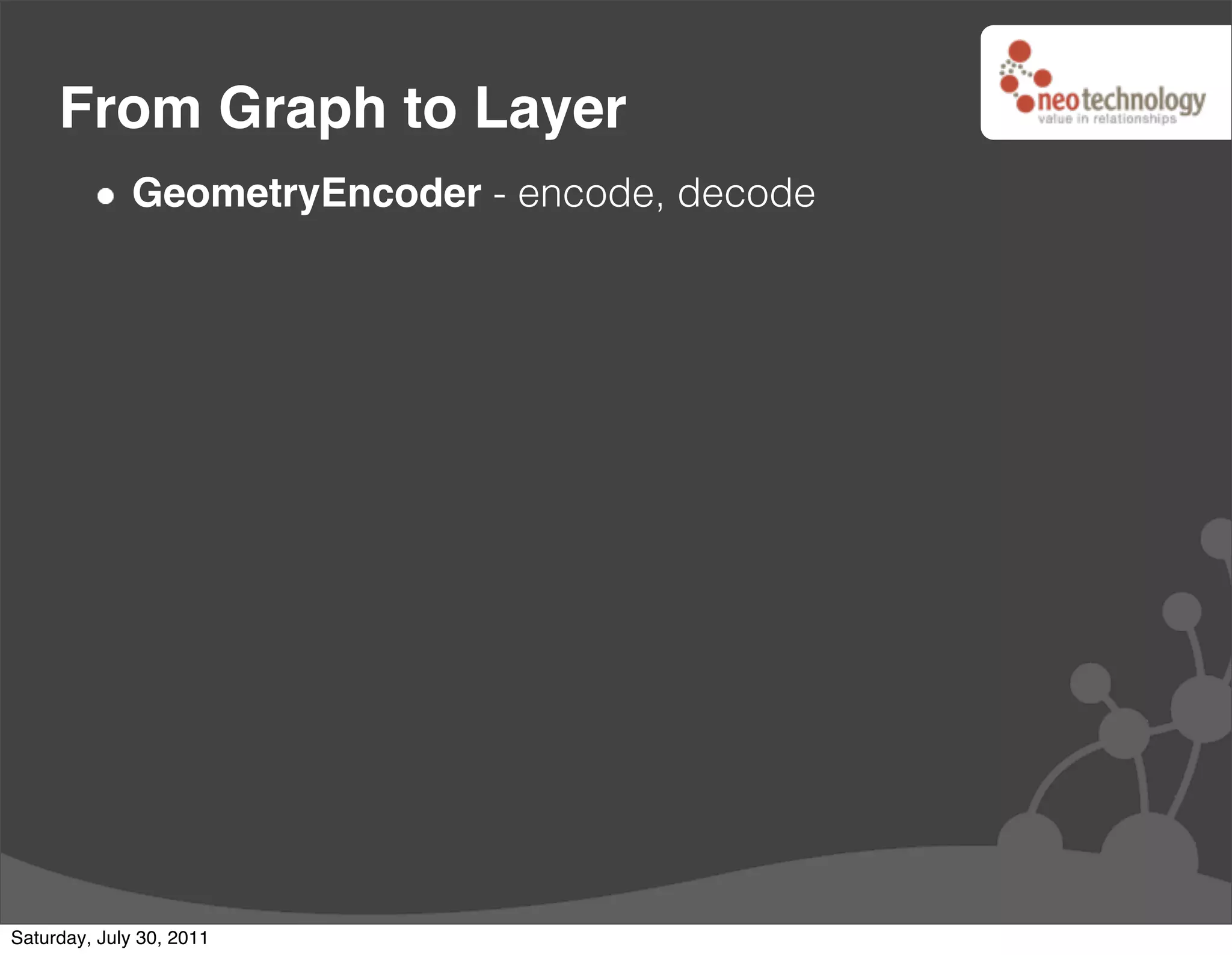

35. From Graph to Layer
GeometryEncoder - encode, decode
Saturday, July 30, 2011

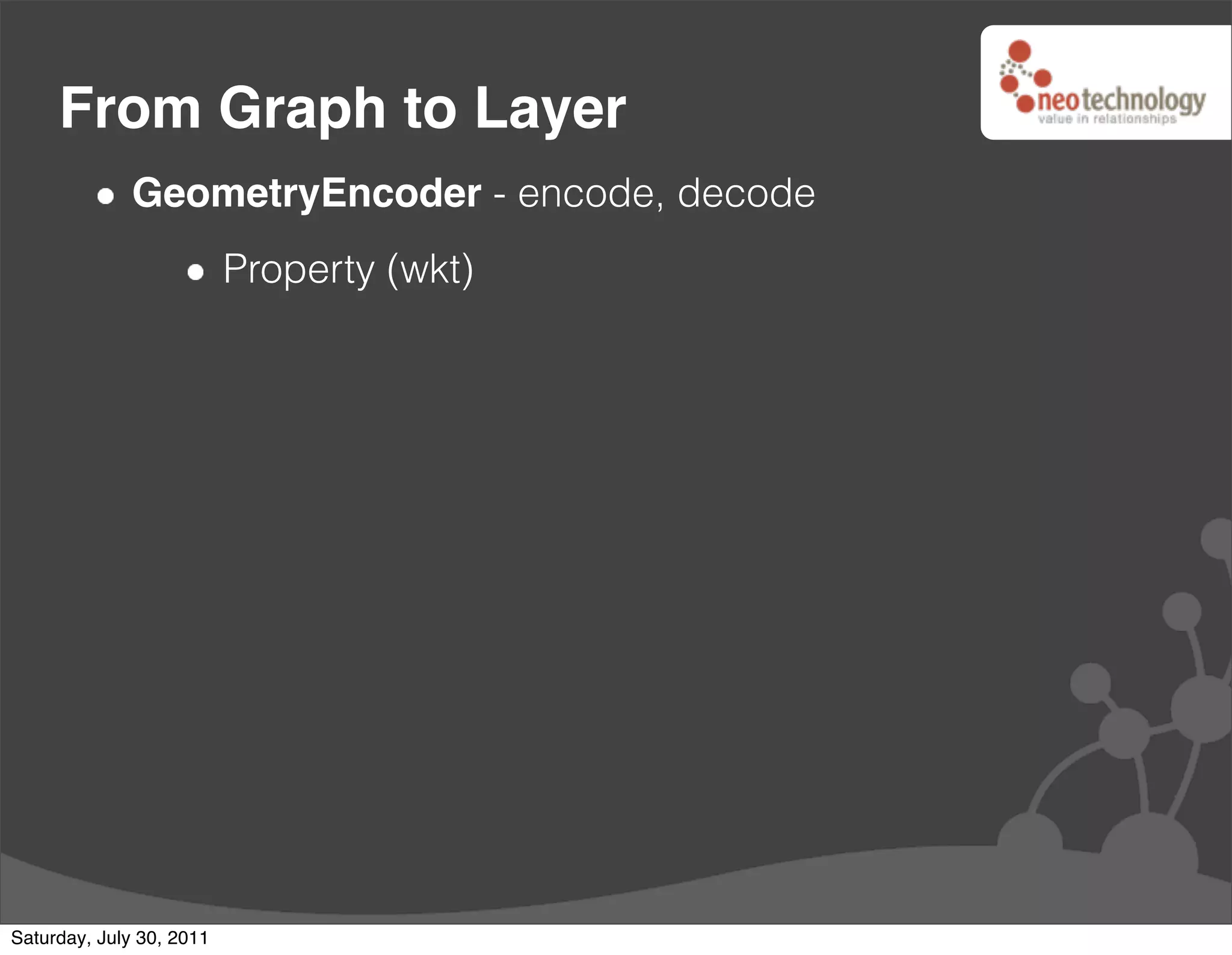

36. From Graph to Layer
GeometryEncoder - encode, decode
Property (wkt)
Saturday, July 30, 2011

37. From Graph to Layer
GeometryEncoder - encode, decode
Property (wkt)
Properties (lon, lat)
Saturday, July 30, 2011

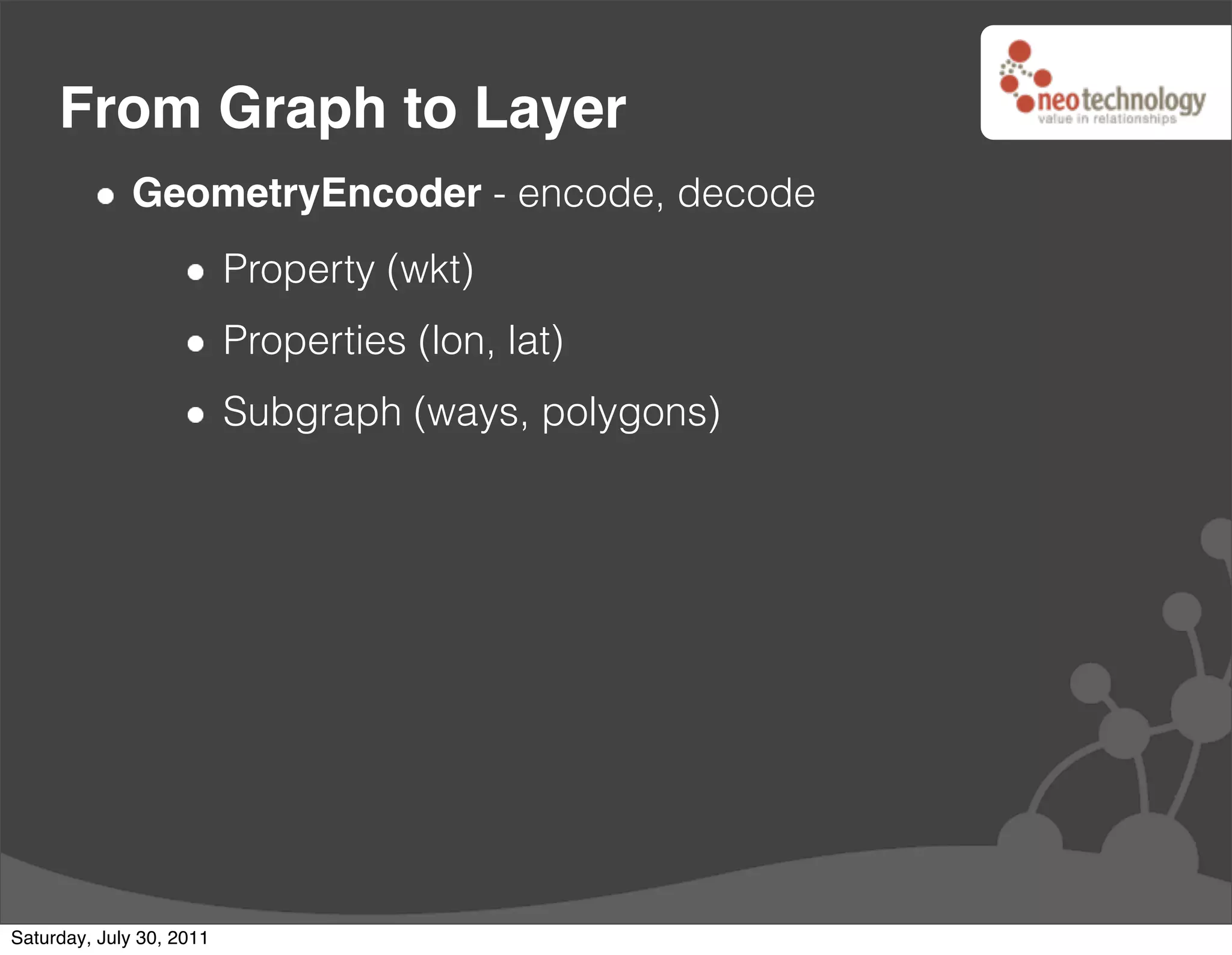

38. From Graph to Layer
GeometryEncoder - encode, decode
Property (wkt)
Properties (lon, lat)
Subgraph (ways, polygons)
Saturday, July 30, 2011

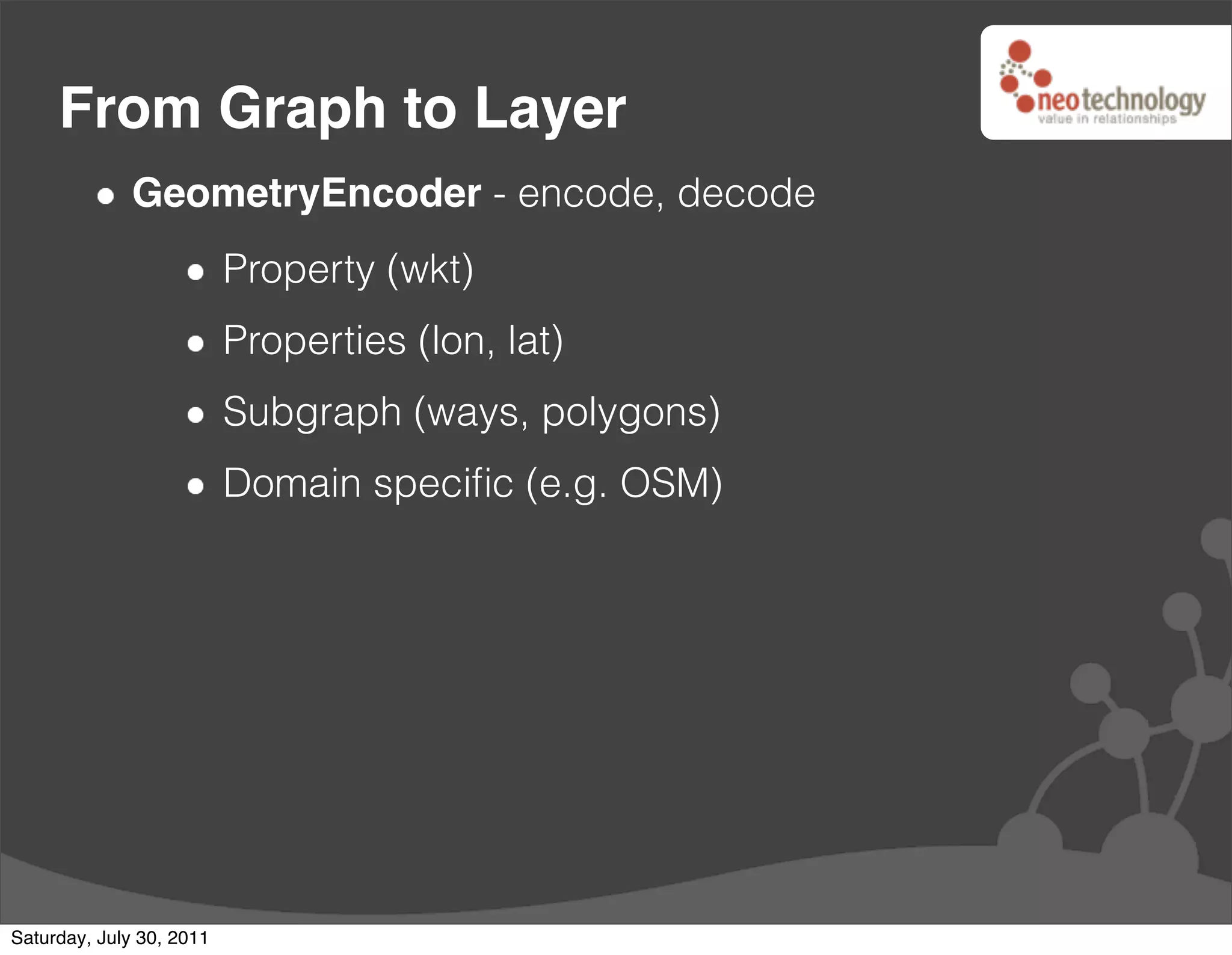

39. From Graph to Layer
GeometryEncoder - encode, decode
Property (wkt)
Properties (lon, lat)
Subgraph (ways, polygons)
Domain specific (e.g. OSM)
Saturday, July 30, 2011

40. From Graph to Layer
GeometryEncoder - encode, decode
Property (wkt)
Properties (lon, lat)
Subgraph (ways, polygons)
Domain specific (e.g. OSM)
OSM Way encoding/decoding
Saturday, July 30, 2011

41. From Graph to Layer
GeometryEncoder - encode, decode
Property (wkt)
Properties (lon, lat)
Subgraph (ways, polygons)
Domain specific (e.g. OSM)
OSM Way encoding/decoding
CRS, Geometry type
Saturday, July 30, 2011

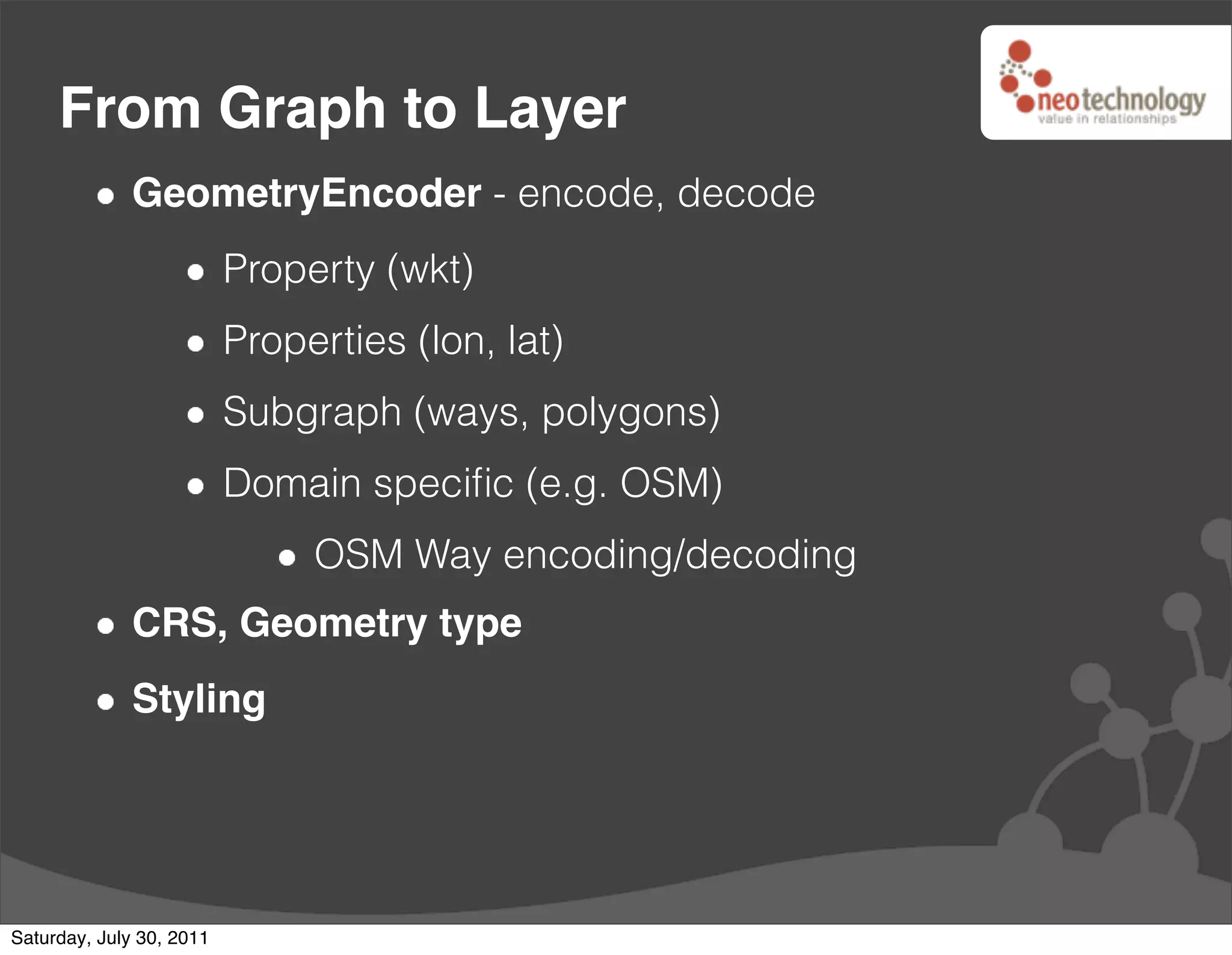

42. From Graph to Layer
GeometryEncoder - encode, decode
Property (wkt)
Properties (lon, lat)
Subgraph (ways, polygons)
Domain specific (e.g. OSM)
OSM Way encoding/decoding
CRS, Geometry type
Styling
Saturday, July 30, 2011

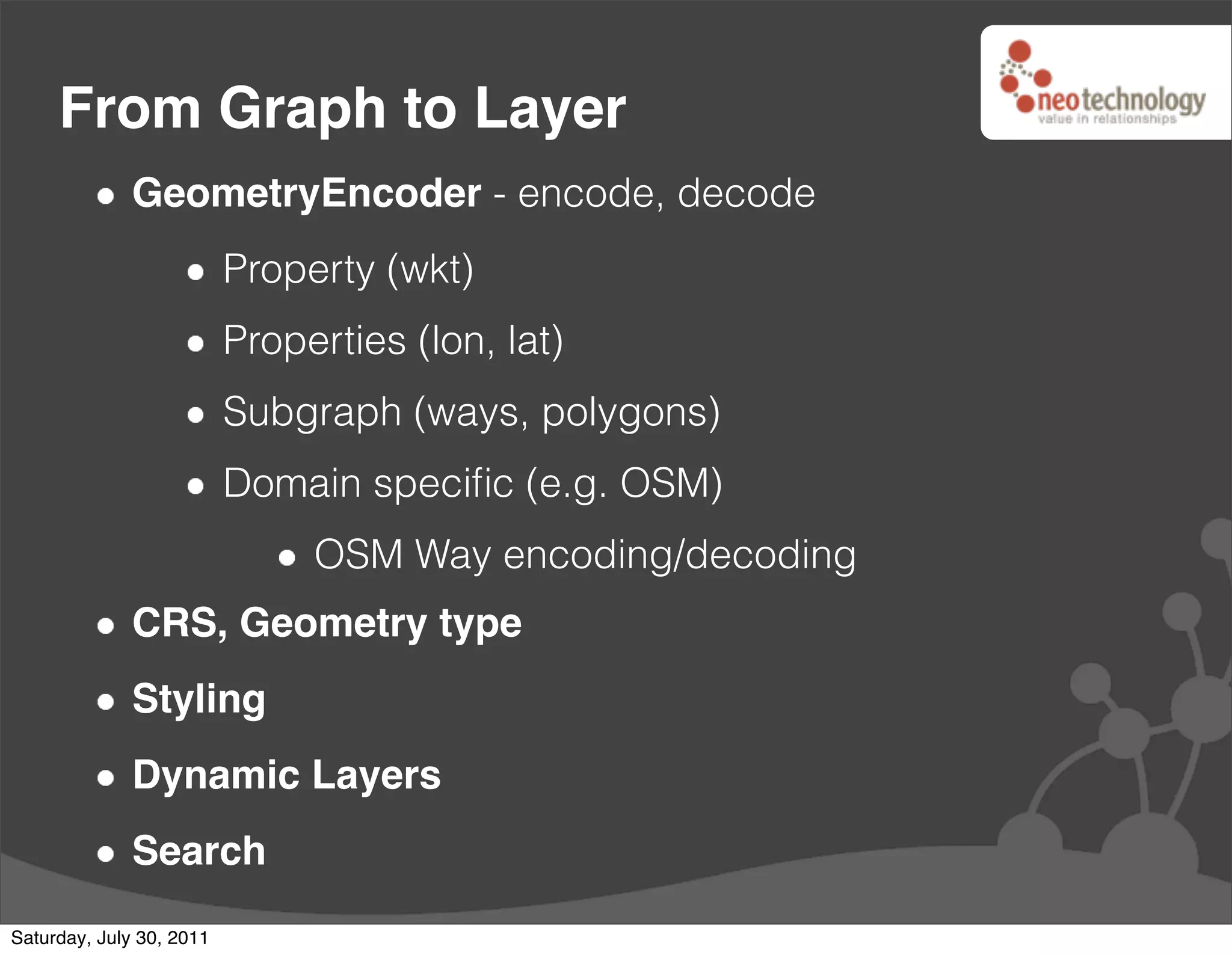

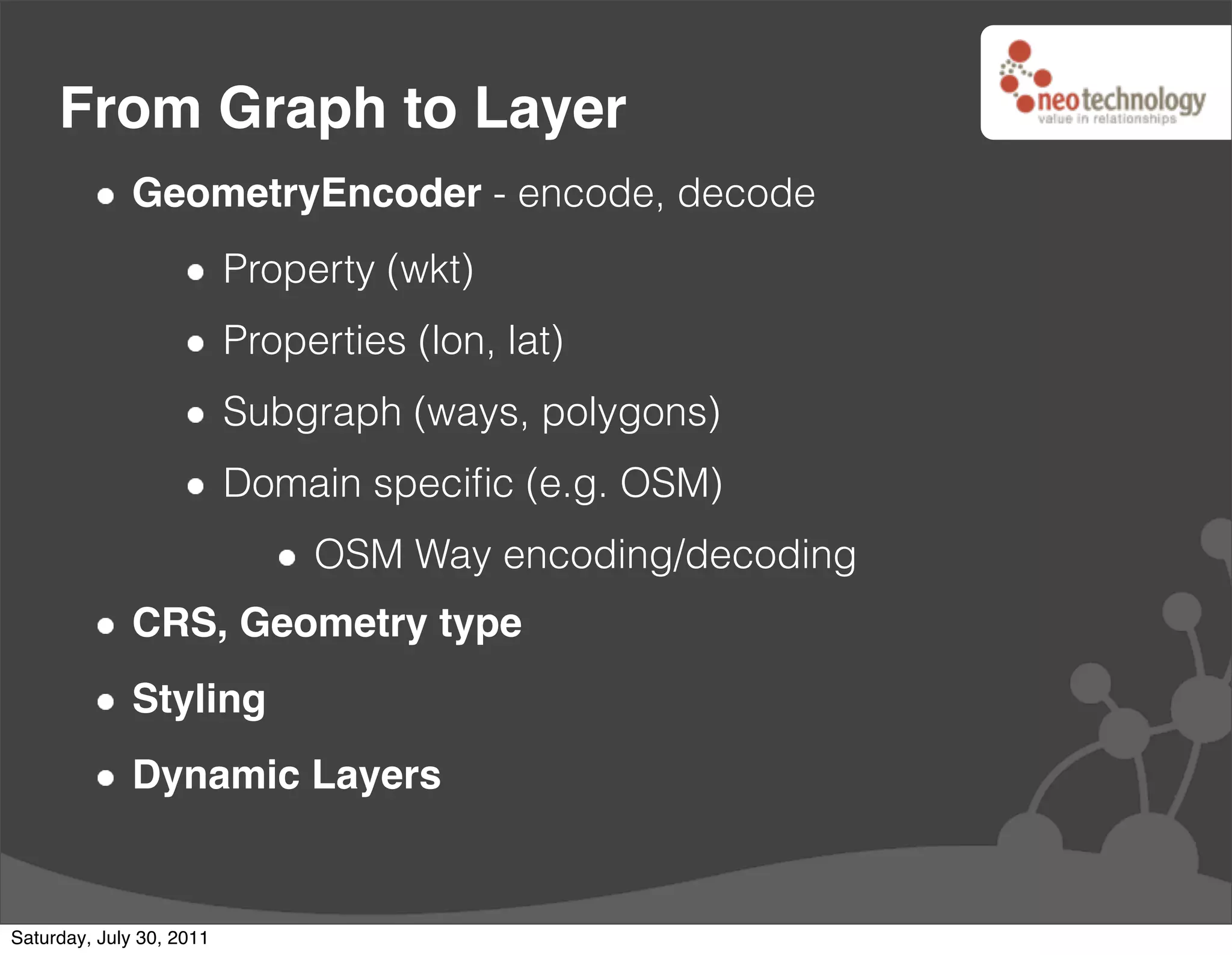

43. From Graph to Layer
GeometryEncoder - encode, decode
Property (wkt)
Properties (lon, lat)
Subgraph (ways, polygons)
Domain specific (e.g. OSM)
OSM Way encoding/decoding
CRS, Geometry type
Styling
Dynamic Layers
Saturday, July 30, 2011

44. From Graph to Layer
GeometryEncoder - encode, decode
Property (wkt)
Properties (lon, lat)
Subgraph (ways, polygons)
Domain specific (e.g. OSM)
OSM Way encoding/decoding
CRS, Geometry type
Styling
Dynamic Layers
Search
Saturday, July 30, 2011

45. Dynamic Layers, uDig
Saturday, July 30, 2011

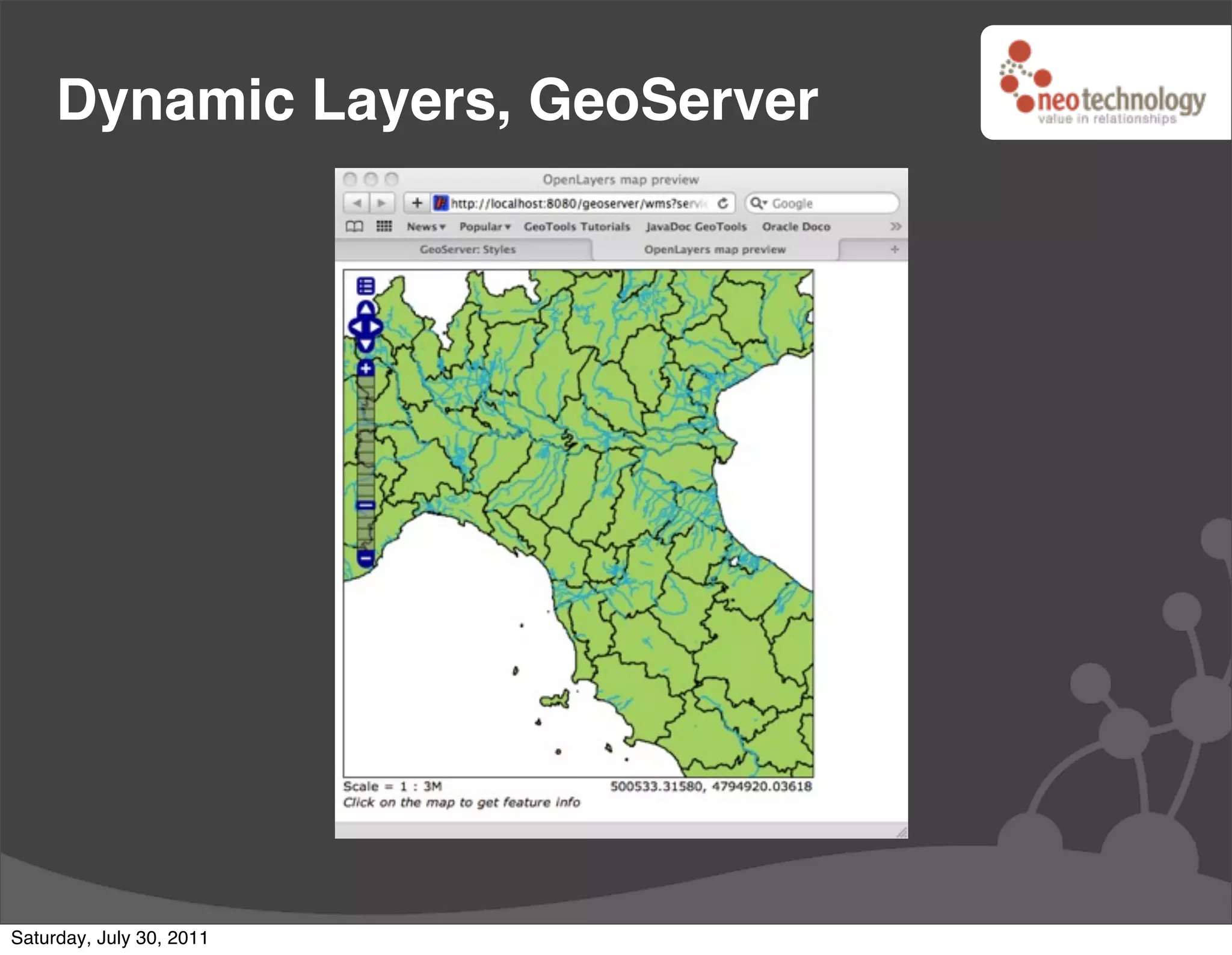

46. Dynamic Layers, GeoServer
Saturday, July 30, 2011

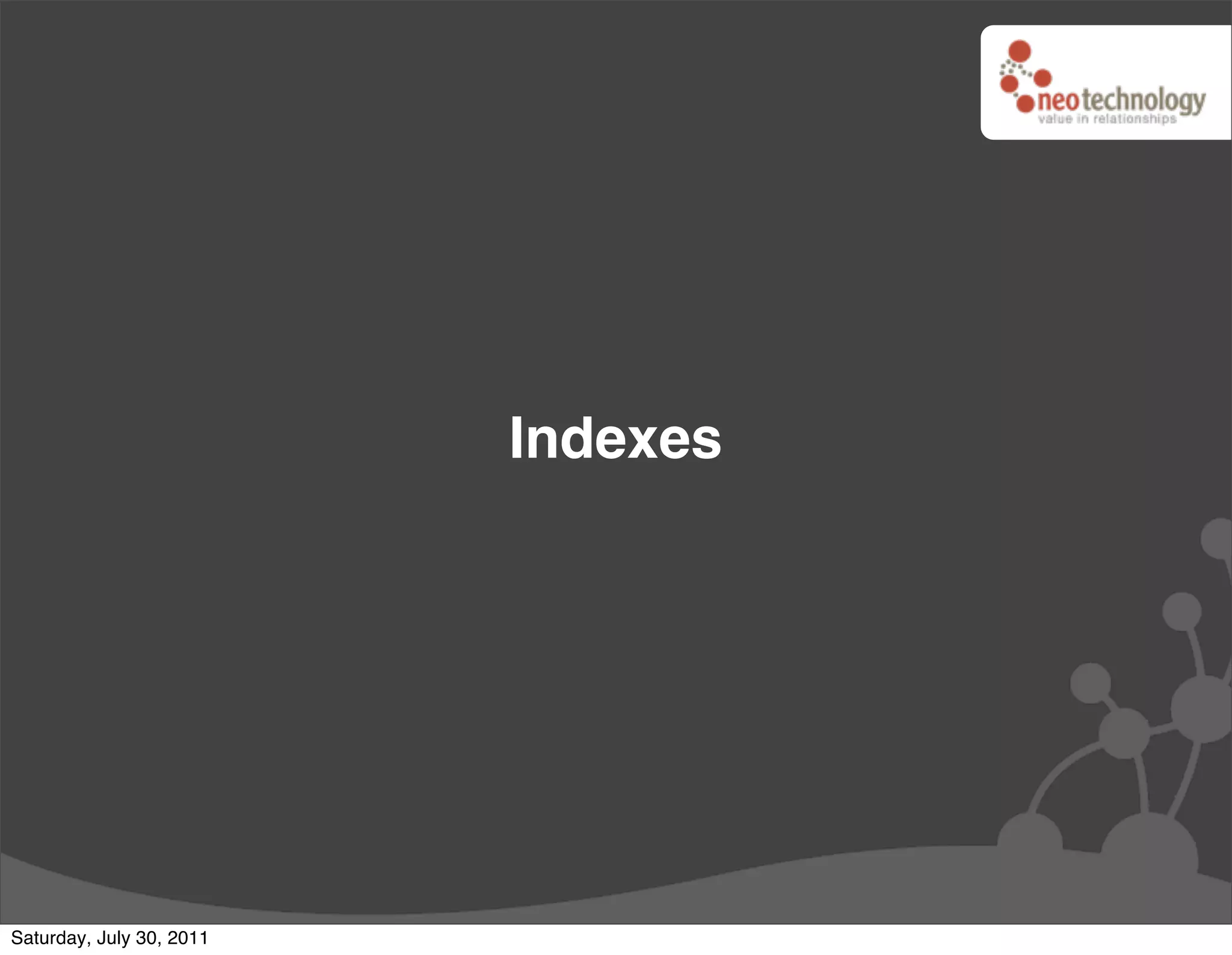

47. Indexes
Saturday, July 30, 2011

48. Multiple indexes - GIS
Illustrations: Wikipedia
Saturday, July 30, 2011

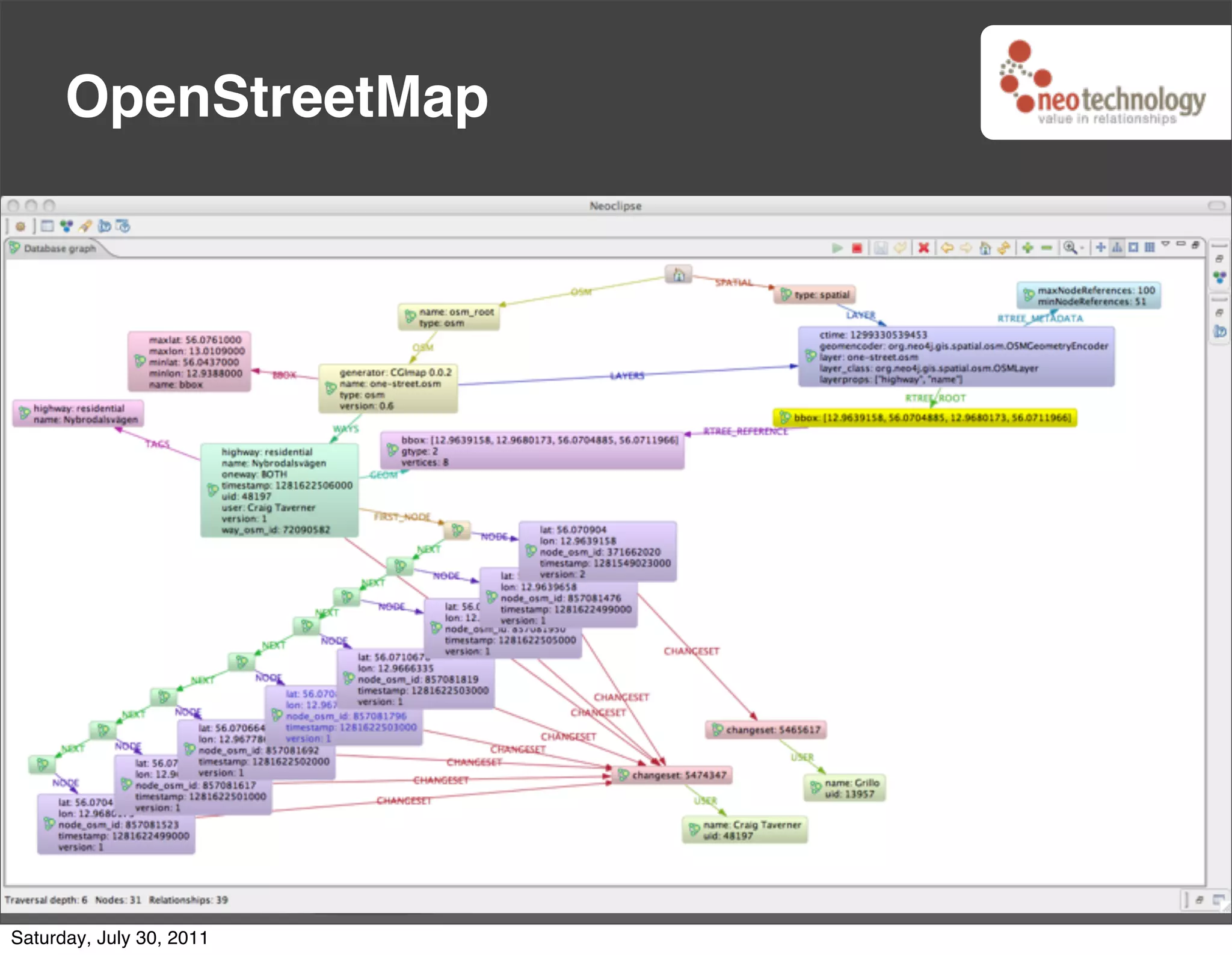

49. OpenStreetMap
Saturday, July 30, 2011

50. OpenStreetMap
Dynamic OSM
Layers
Index (RTree)
Saturday, July 30, 2011

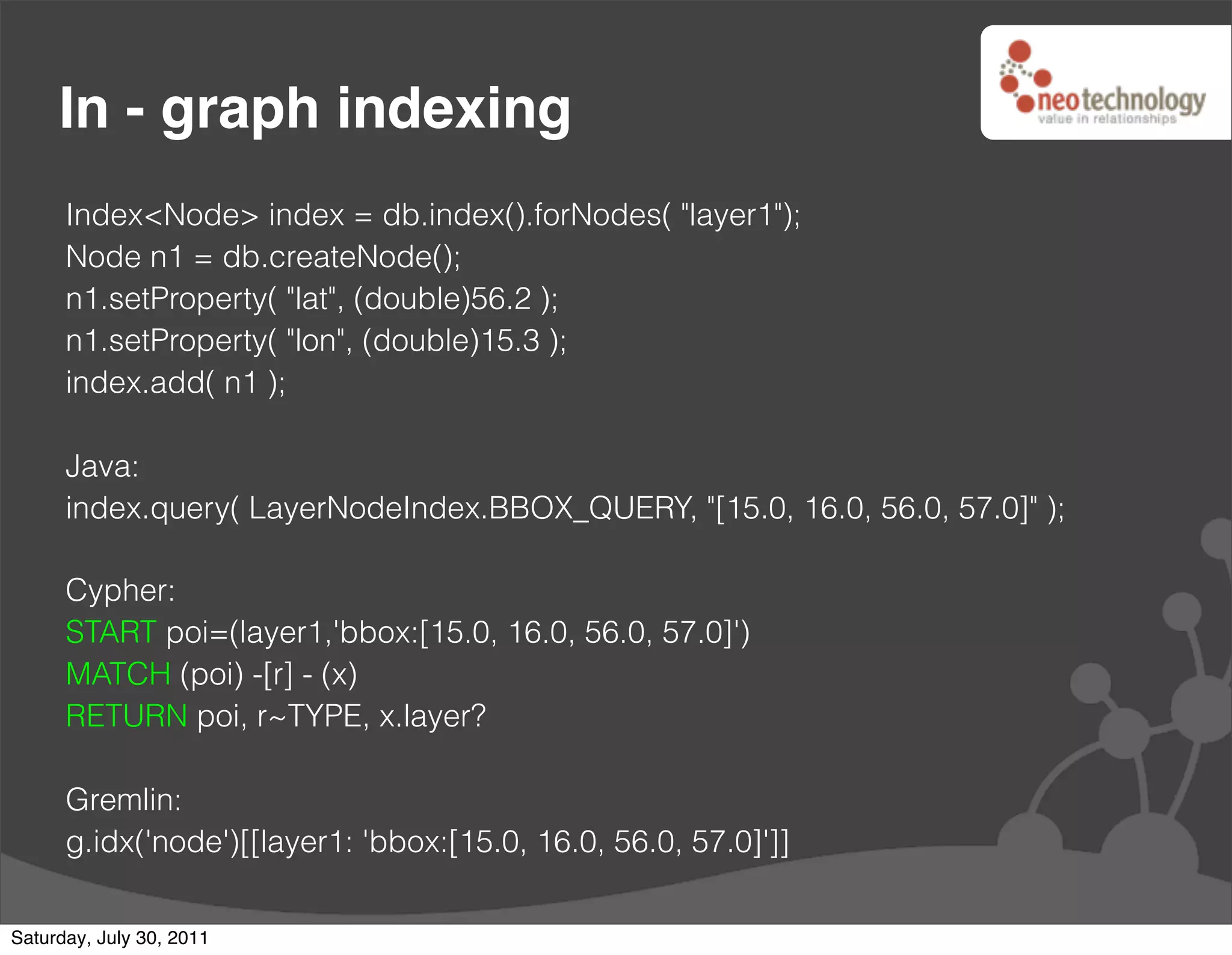

51. In - graph indexing
Index<Node> index = db.index().forNodes( "layer1");
Node n1 = db.createNode();
n1.setProperty( "lat", (double)56.2 );
n1.setProperty( "lon", (double)15.3 );
index.add( n1 );
Java:
index.query( LayerNodeIndex.BBOX_QUERY, "[15.0, 16.0, 56.0, 57.0]" );
Cypher:
START poi=(layer1,'bbox:[15.0, 16.0, 56.0, 57.0]')
MATCH (poi) -[r] - (x)
RETURN poi, r~TYPE, x.layer?
Gremlin:
g.idx('node')[[layer1: 'bbox:[15.0, 16.0, 56.0, 57.0]']]
Saturday, July 30, 2011

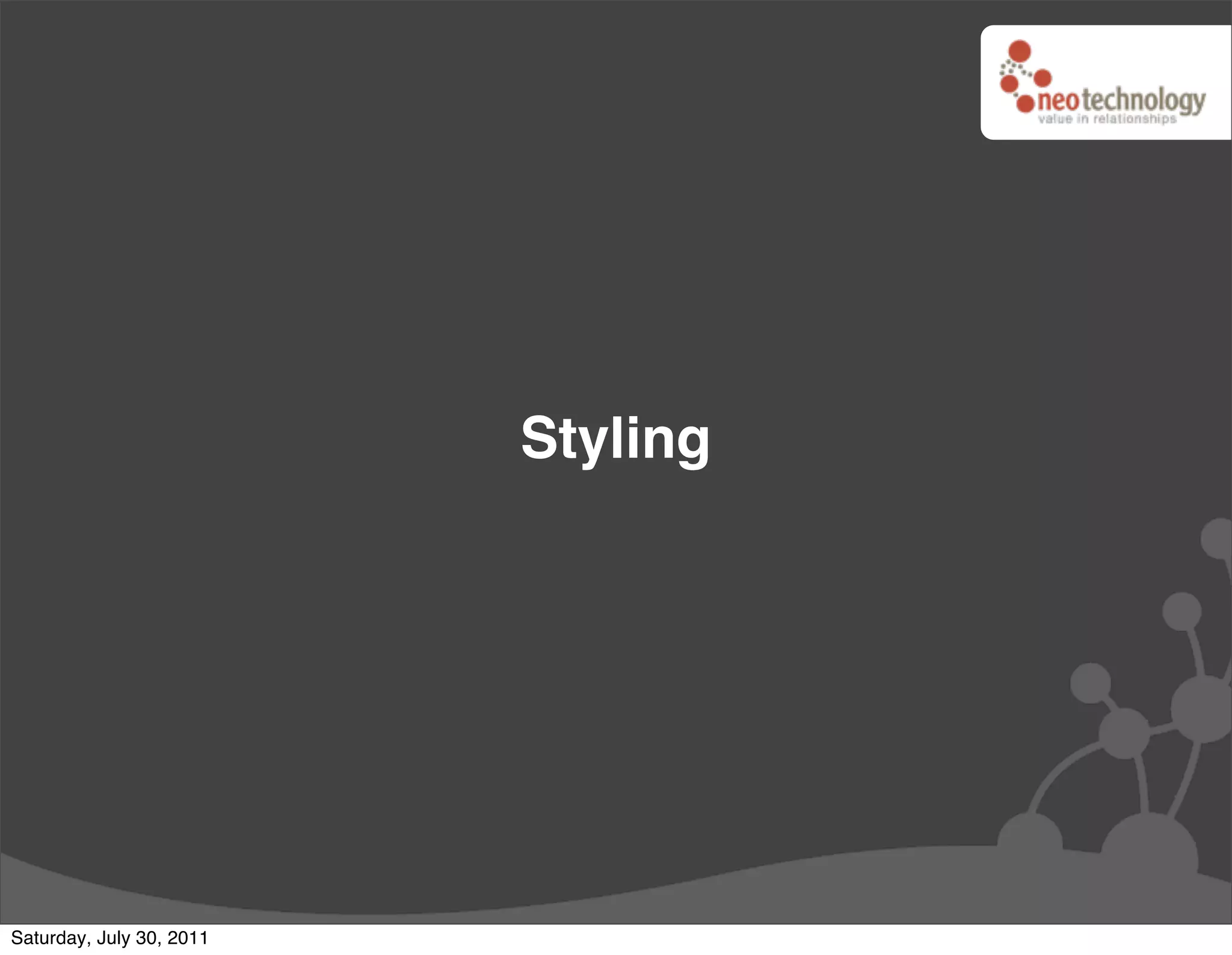

52. Styling
Saturday, July 30, 2011

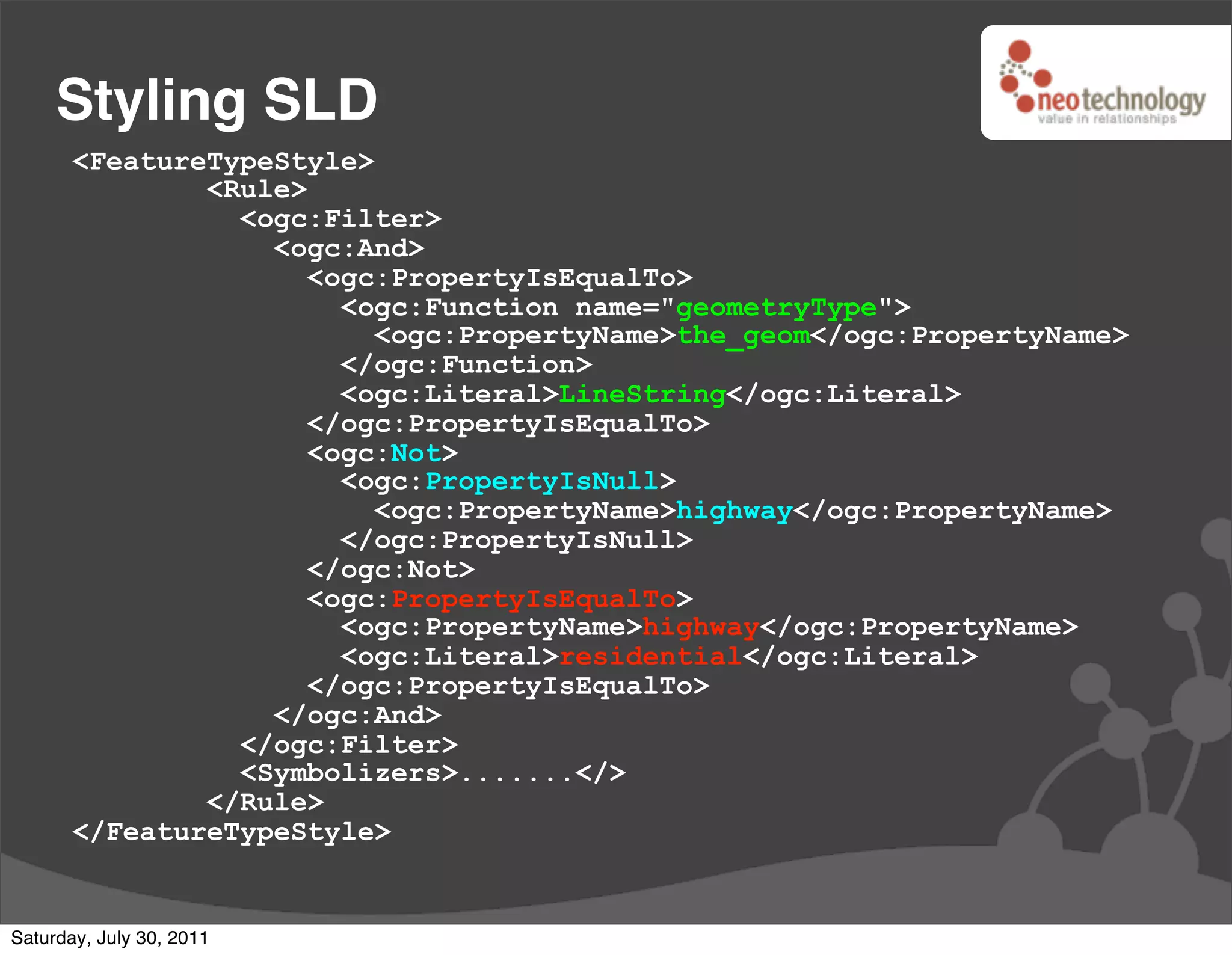

53. Styling SLD
<FeatureTypeStyle>
<Rule>
<ogc:Filter>
<ogc:And>
<ogc:PropertyIsEqualTo>
<ogc:Function name="geometryType">
<ogc:PropertyName>the_geom</ogc:PropertyName>
</ogc:Function>
<ogc:Literal>LineString</ogc:Literal>
</ogc:PropertyIsEqualTo>
<ogc:Not>
<ogc:PropertyIsNull>
<ogc:PropertyName>highway</ogc:PropertyName>
</ogc:PropertyIsNull>
</ogc:Not>
<ogc:PropertyIsEqualTo>
<ogc:PropertyName>highway</ogc:PropertyName>
<ogc:Literal>residential</ogc:Literal>
</ogc:PropertyIsEqualTo>
</ogc:And>
</ogc:Filter>
<Symbolizers>.......</>
</Rule>
</FeatureTypeStyle>
Saturday, July 30, 2011

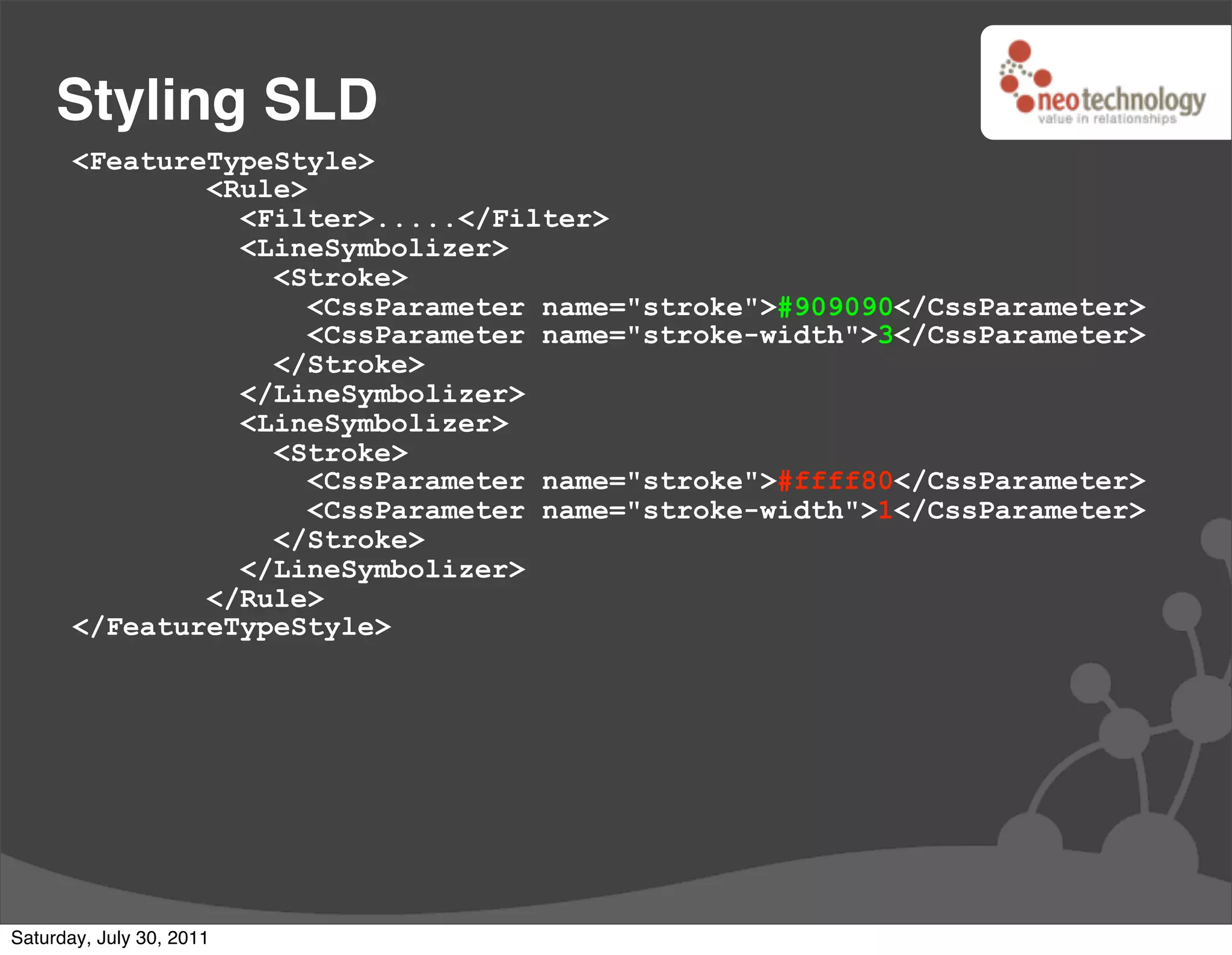

54. Styling SLD
<FeatureTypeStyle>
<Rule>
<Filter>.....</Filter>
<LineSymbolizer>
<Stroke>
<CssParameter name="stroke">#909090</CssParameter>
<CssParameter name="stroke-width">3</CssParameter>
</Stroke>
</LineSymbolizer>
<LineSymbolizer>
<Stroke>
<CssParameter name="stroke">#ffff80</CssParameter>
<CssParameter name="stroke-width">1</CssParameter>
</Stroke>
</LineSymbolizer>
</Rule>
</FeatureTypeStyle>
Saturday, July 30, 2011

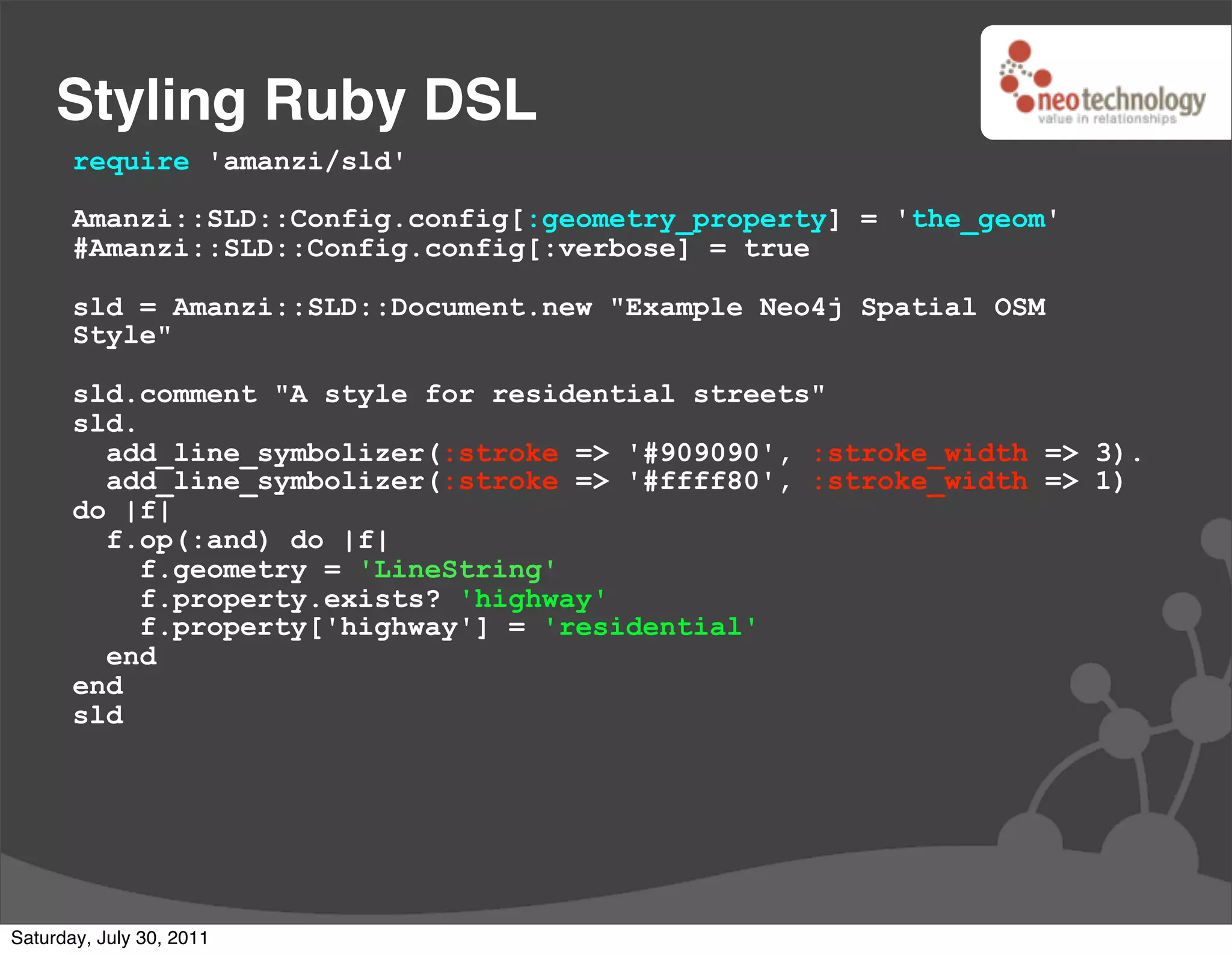

55. Styling Ruby DSL
require 'amanzi/sld'
Amanzi::SLD::Config.config[:geometry_property] = 'the_geom'
#Amanzi::SLD::Config.config[:verbose] = true
sld = Amanzi::SLD::Document.new "Example Neo4j Spatial OSM
Style"
sld.comment "A style for residential streets"
sld.
add_line_symbolizer(:stroke => '#909090', :stroke_width => 3).
add_line_symbolizer(:stroke => '#ffff80', :stroke_width => 1)
do |f|
f.op(:and) do |f|
f.geometry = 'LineString'
f.property.exists? 'highway'
f.property['highway'] = 'residential'
end
end
sld
Saturday, July 30, 2011

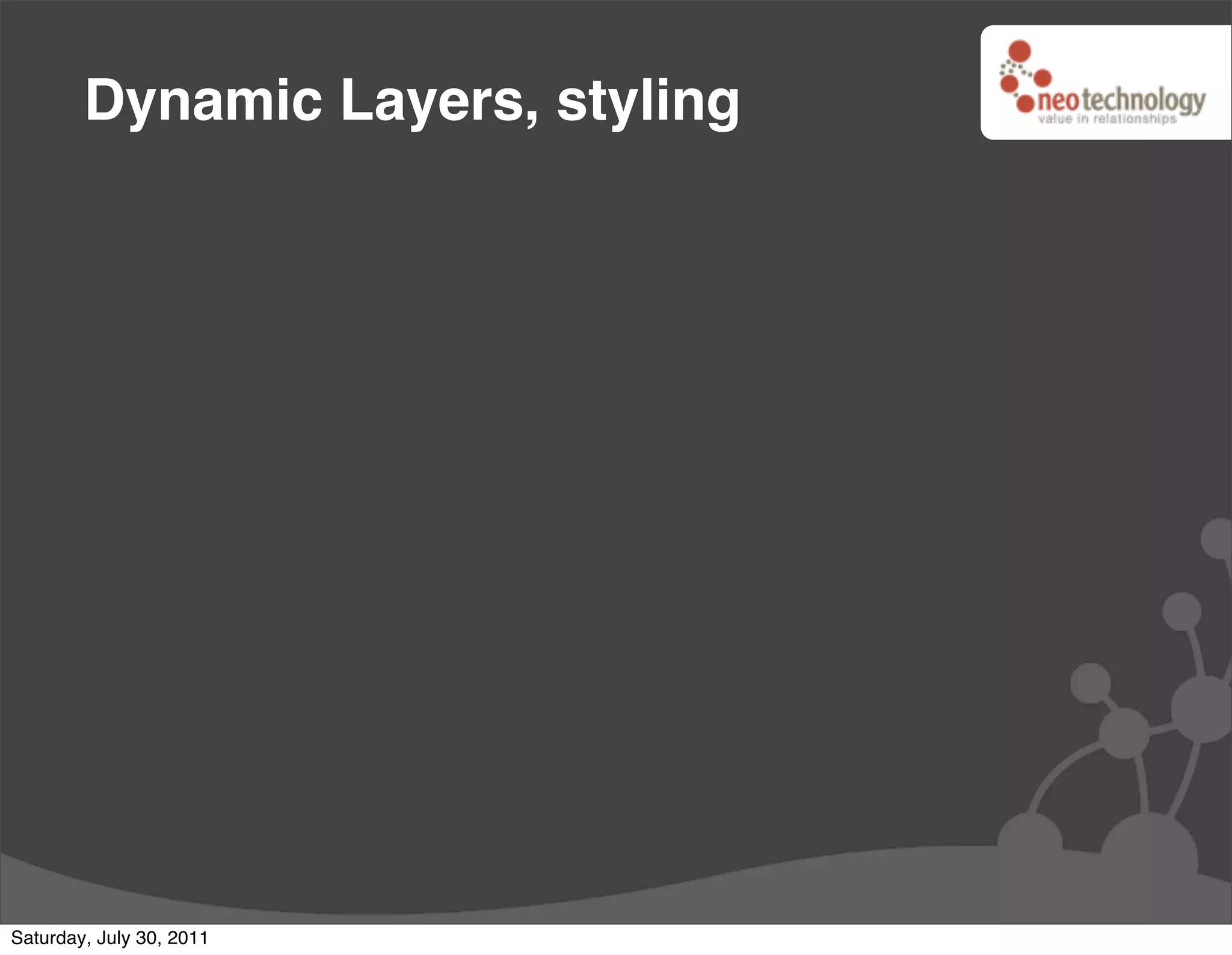

56. Dynamic Layers, styling
Saturday, July 30, 2011

57. Dynamic Layers, styling
Saturday, July 30, 2011

58. Dynamic Layers, styling
Saturday, July 30, 2011

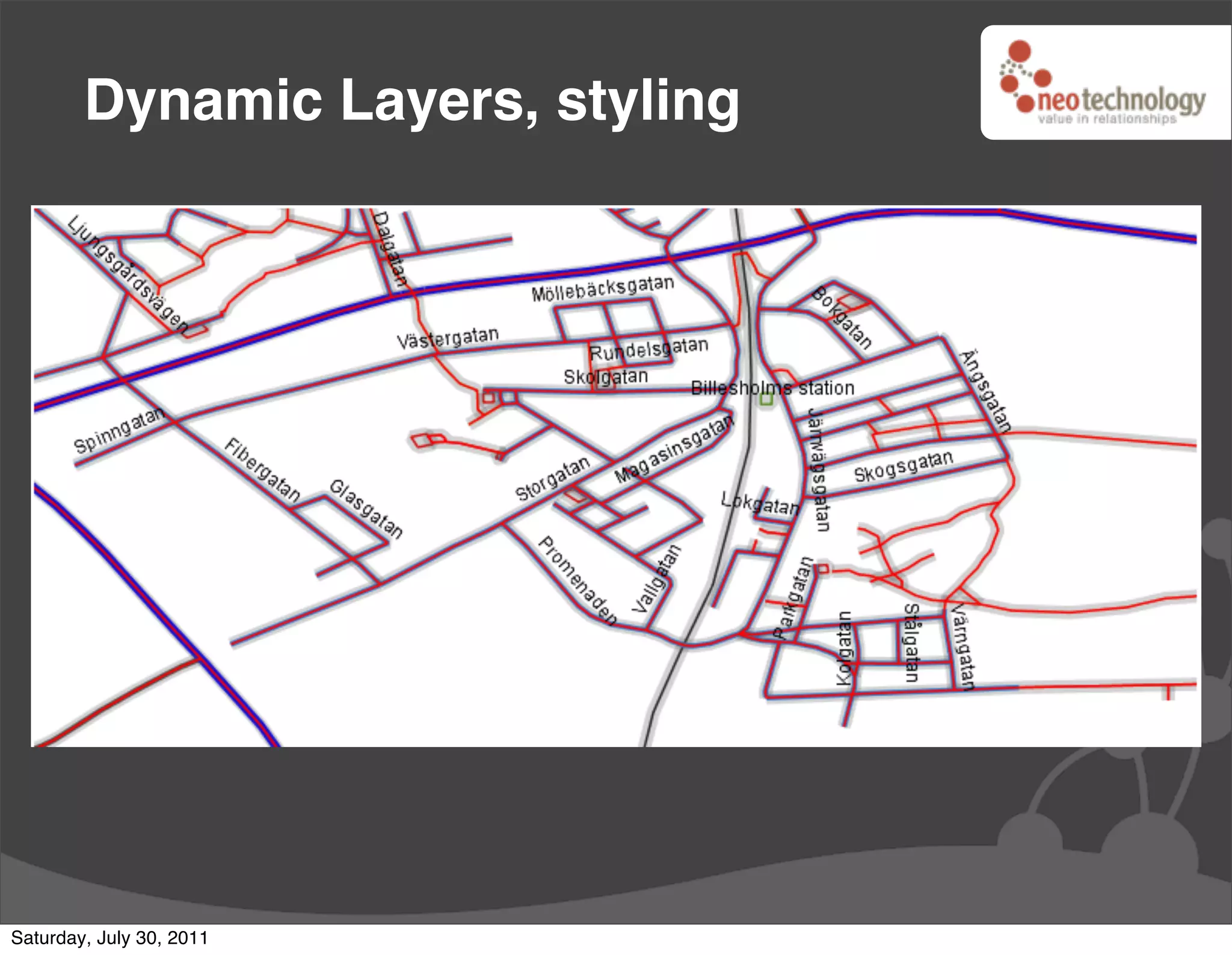

59. Dynamic Layers, styling
Saturday, July 30, 2011

60. Geoprocessing
Saturday, July 30, 2011

61. GSoC: PostGIS -> OSM Graph
33
Saturday, July 30, 2011

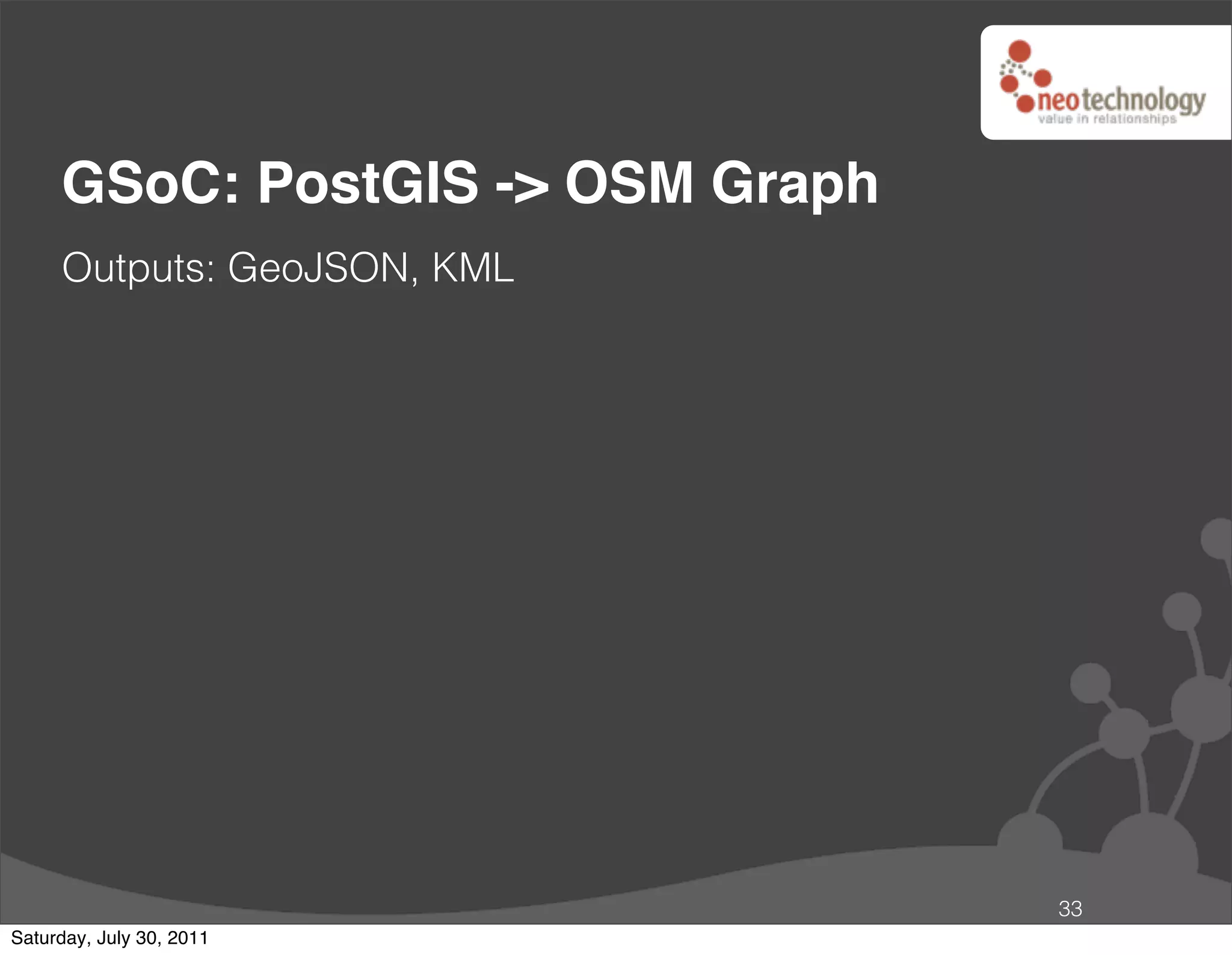

62. GSoC: PostGIS -> OSM Graph
Outputs: GeoJSON, KML
33
Saturday, July 30, 2011

63. GSoC: PostGIS -> OSM Graph
Outputs: GeoJSON, KML
33
Saturday, July 30, 2011

64. GSoC: PostGIS -> OSM Graph
Outputs: GeoJSON, KML
Accessors: ST_EndPoint
33
Saturday, July 30, 2011

65. GSoC: PostGIS -> OSM Graph
Outputs: GeoJSON, KML
Accessors: ST_EndPoint
33
Saturday, July 30, 2011

66. GSoC: PostGIS -> OSM Graph
Outputs: GeoJSON, KML
Accessors: ST_EndPoint
Processing: ST_CLosest, ST_Disjoint
33
Saturday, July 30, 2011

67. GSoC: PostGIS -> OSM Graph
Outputs: GeoJSON, KML
Accessors: ST_EndPoint
Processing: ST_CLosest, ST_Disjoint
33
Saturday, July 30, 2011

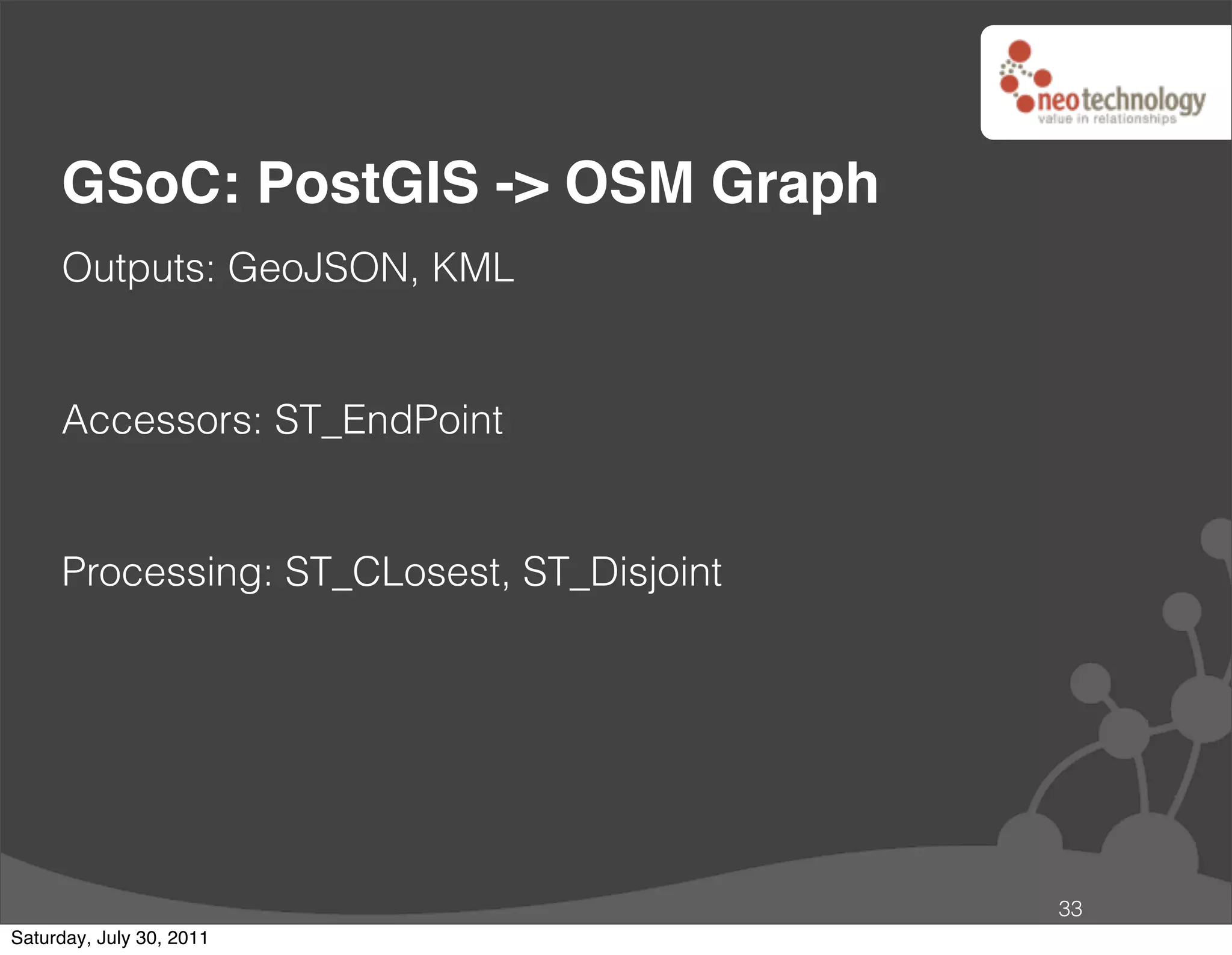

68. GSoC: PostGIS -> OSM Graph
Outputs: GeoJSON, KML
Accessors: ST_EndPoint
Processing: ST_CLosest, ST_Disjoint
Search: SearchWithin, SearchClosest, Route, etc
33
Saturday, July 30, 2011

69. GSoC: PostGIS -> OSM Graph
Outputs: GeoJSON, KML
Accessors: ST_EndPoint
Processing: ST_CLosest, ST_Disjoint
Search: SearchWithin, SearchClosest, Route, etc
33
Saturday, July 30, 2011

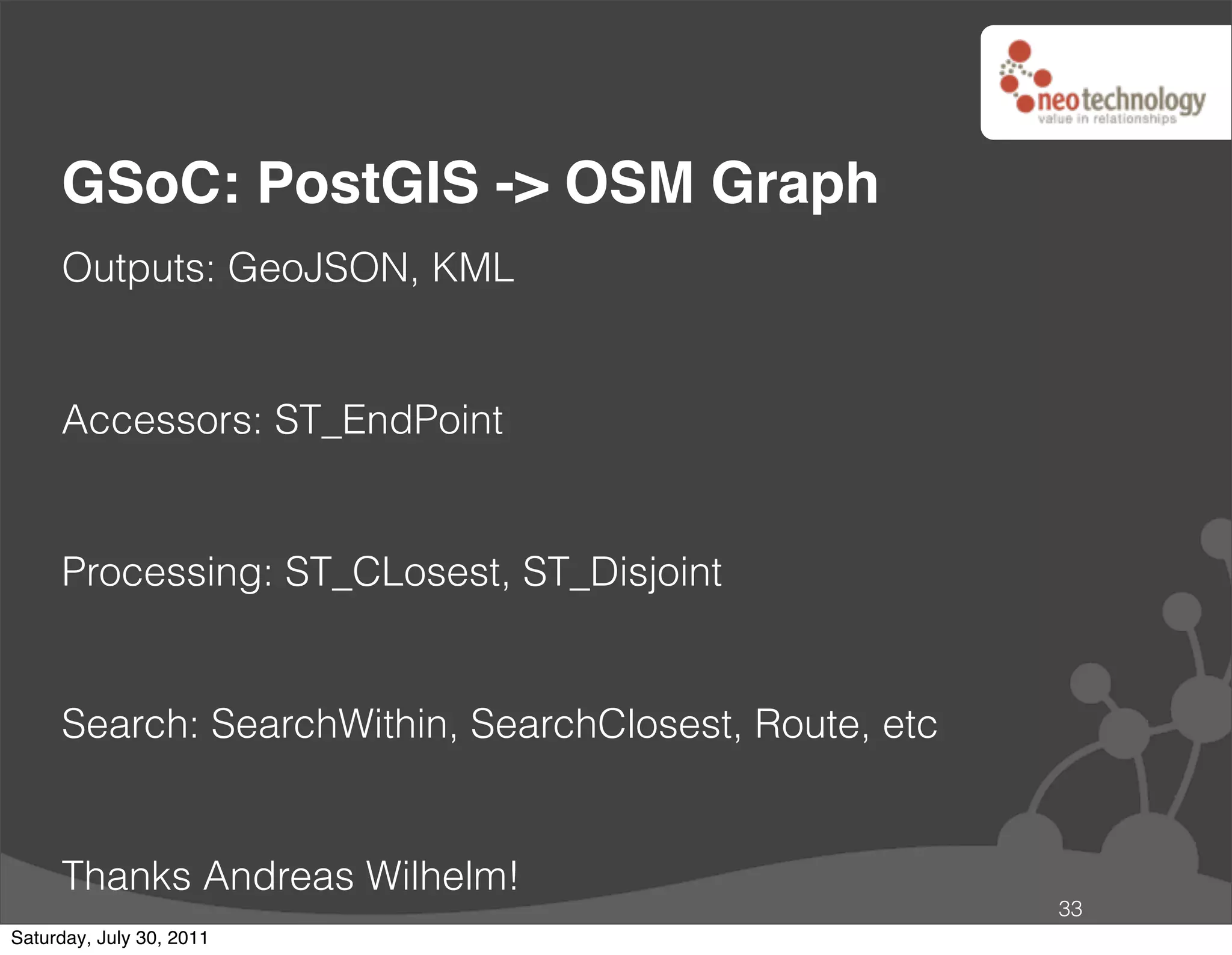

70. GSoC: PostGIS -> OSM Graph
Outputs: GeoJSON, KML
Accessors: ST_EndPoint
Processing: ST_CLosest, ST_Disjoint
Search: SearchWithin, SearchClosest, Route, etc
Thanks Andreas Wilhelm!
33
Saturday, July 30, 2011

71. Routing
Saturday, July 30, 2011

72. Routing
Saturday, July 30, 2011

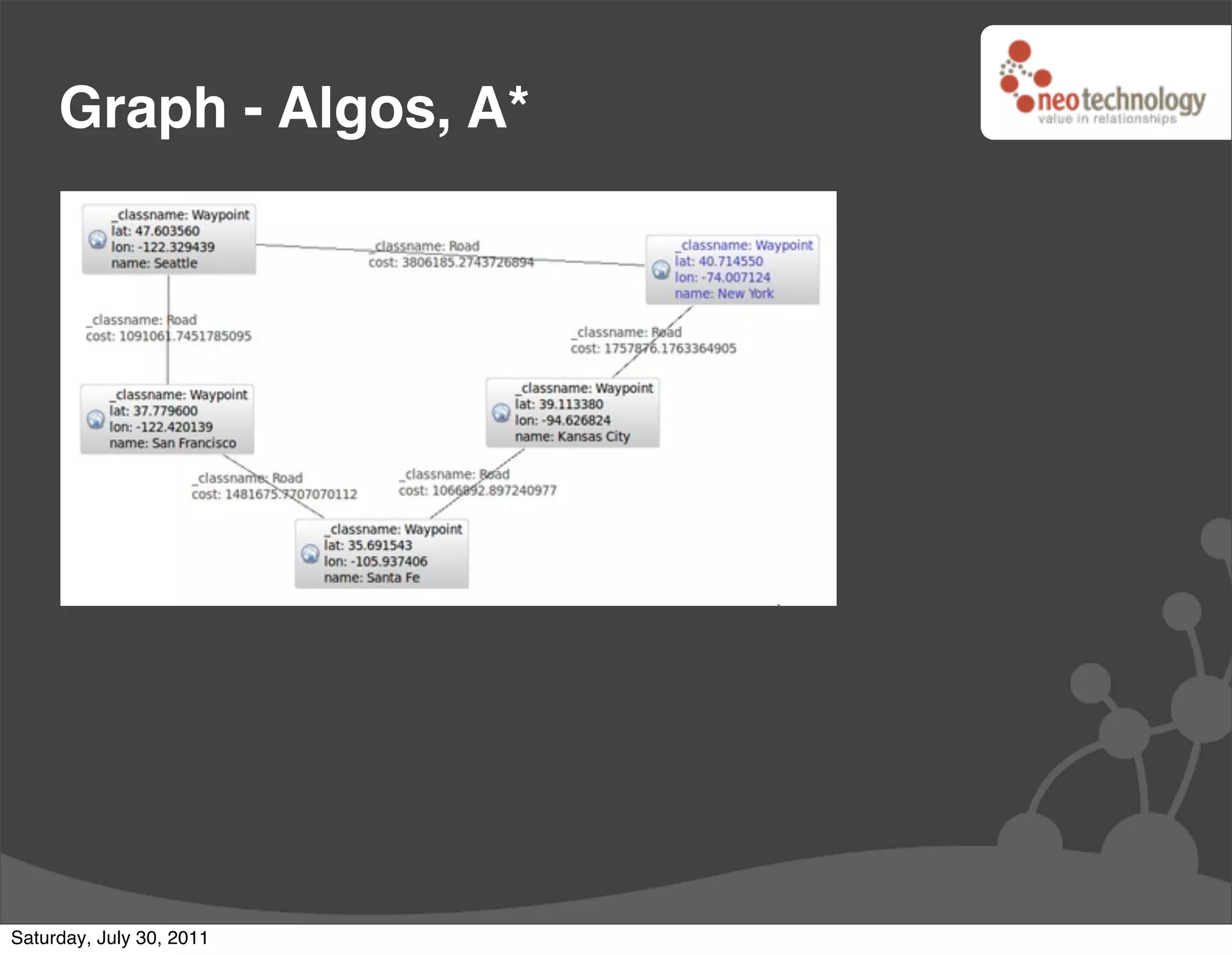

73. Graph - Algos, A*
Saturday, July 30, 2011

74. h"p://www.transportdublin.ie/
-­‐
Patrick
Fitzgerald
on
Neo4j
Saturday, July 30, 2011

75. Neo4j Spatial examples
Saturday, July 30, 2011

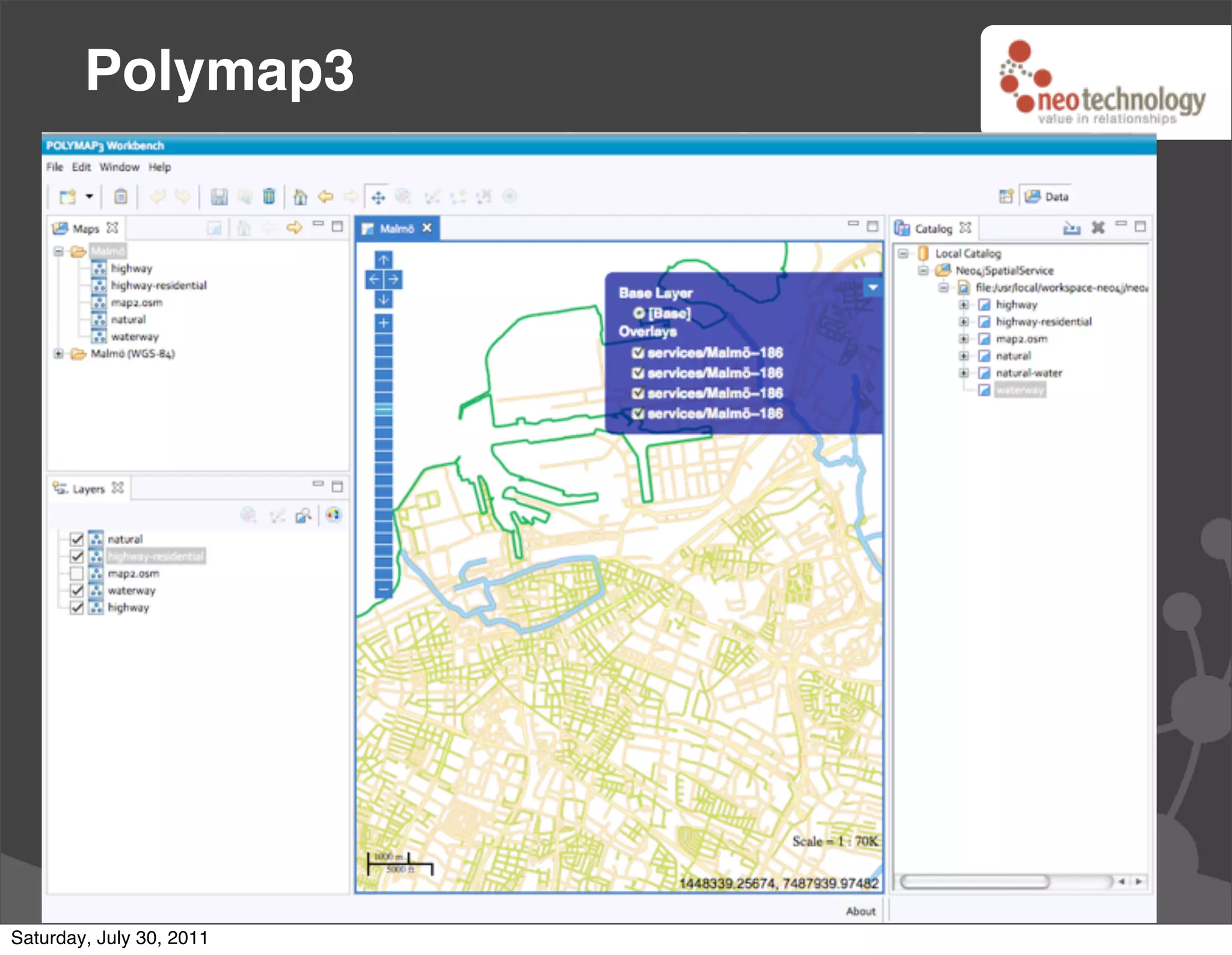

76. Polymap3
Saturday, July 30, 2011

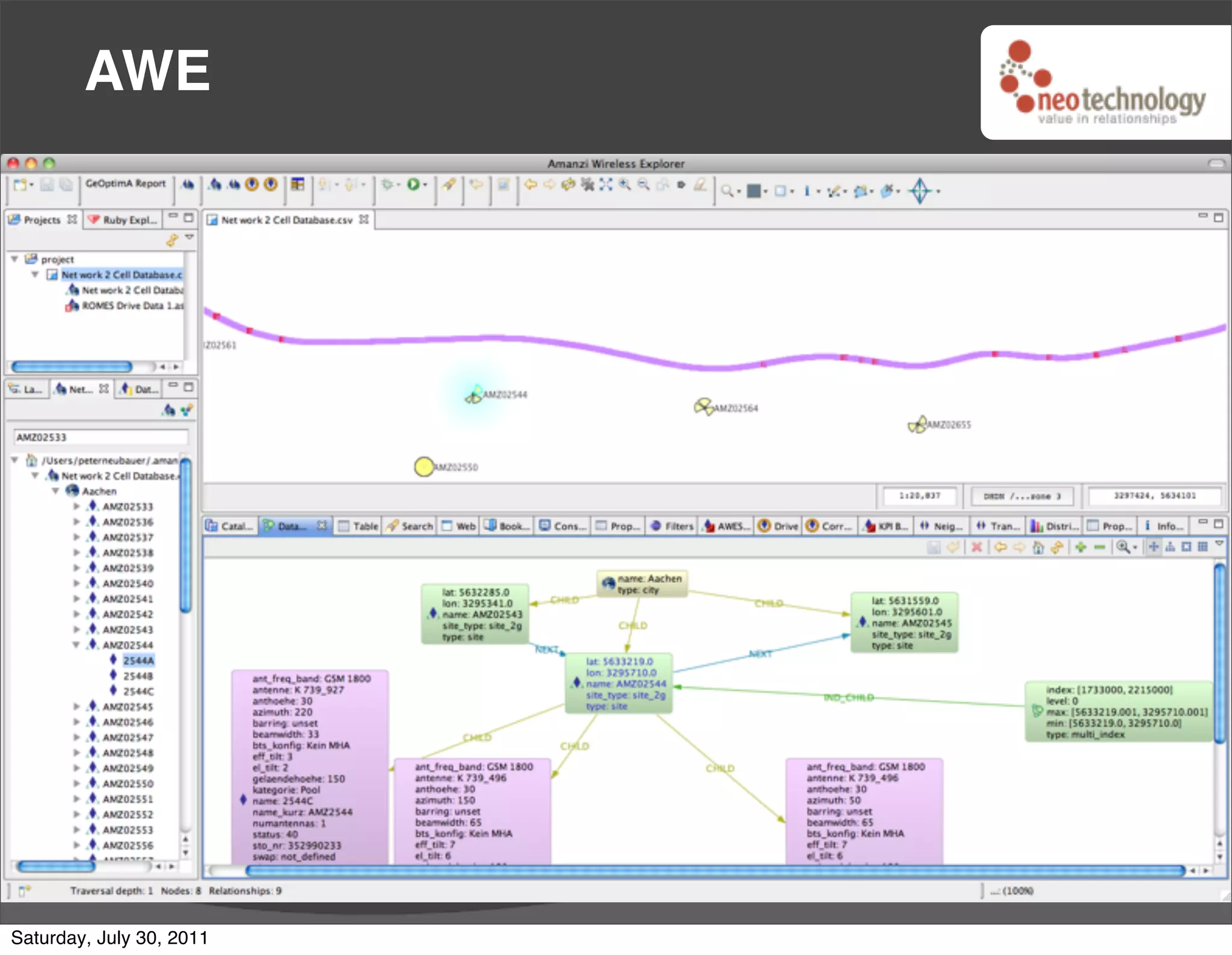

77. AWE
Saturday, July 30, 2011

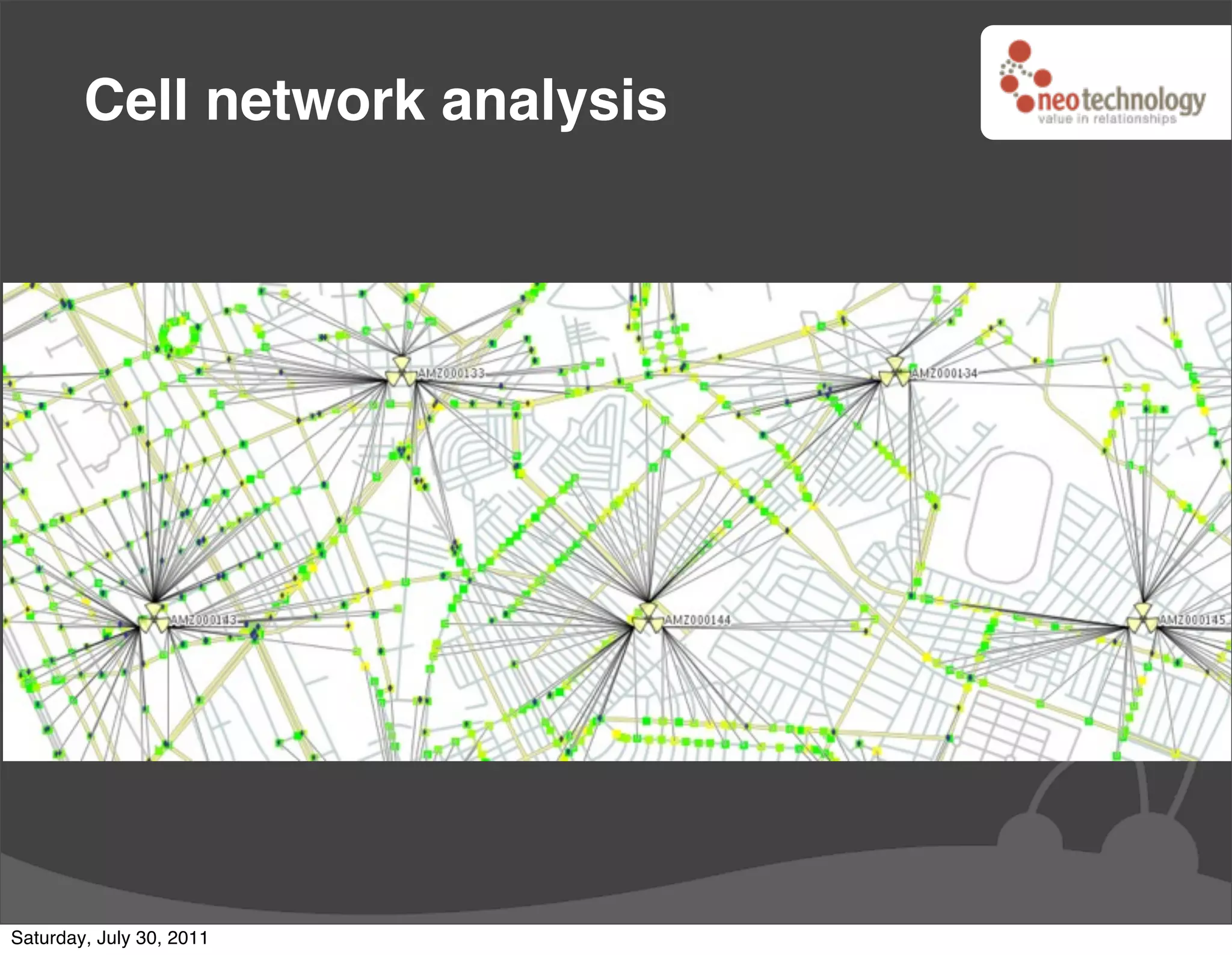

78. Cell network analysis
Saturday, July 30, 2011

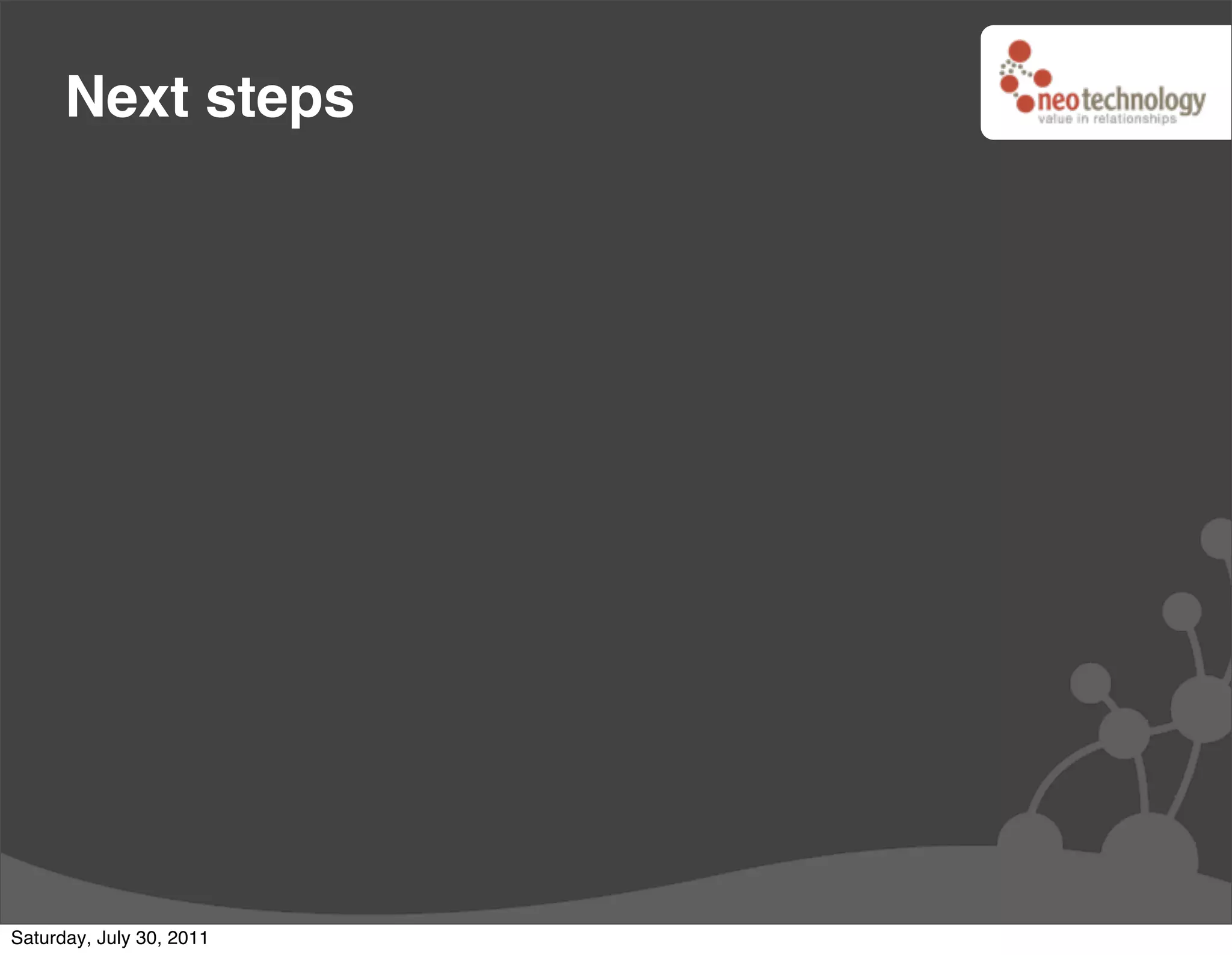

79. Next steps
Saturday, July 30, 2011

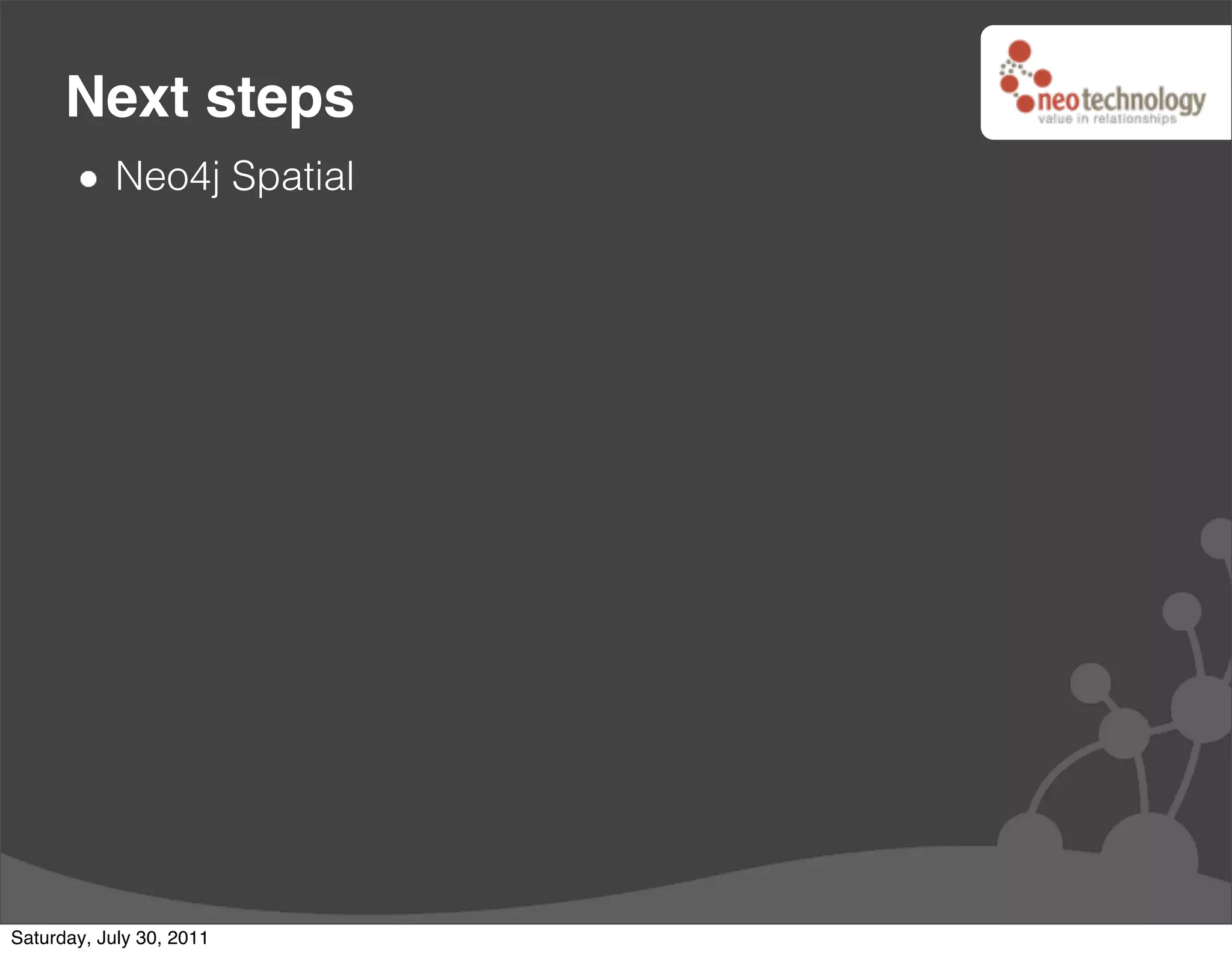

80. Next steps
Neo4j Spatial
Saturday, July 30, 2011

81. Next steps
Neo4j Spatial
Cypher, Gremlin, CQL dynamic querying
Saturday, July 30, 2011

82. Next steps
Neo4j Spatial
Cypher, Gremlin, CQL dynamic querying
Graph Geoprocessing domain level - GSoC 2011
Saturday, July 30, 2011

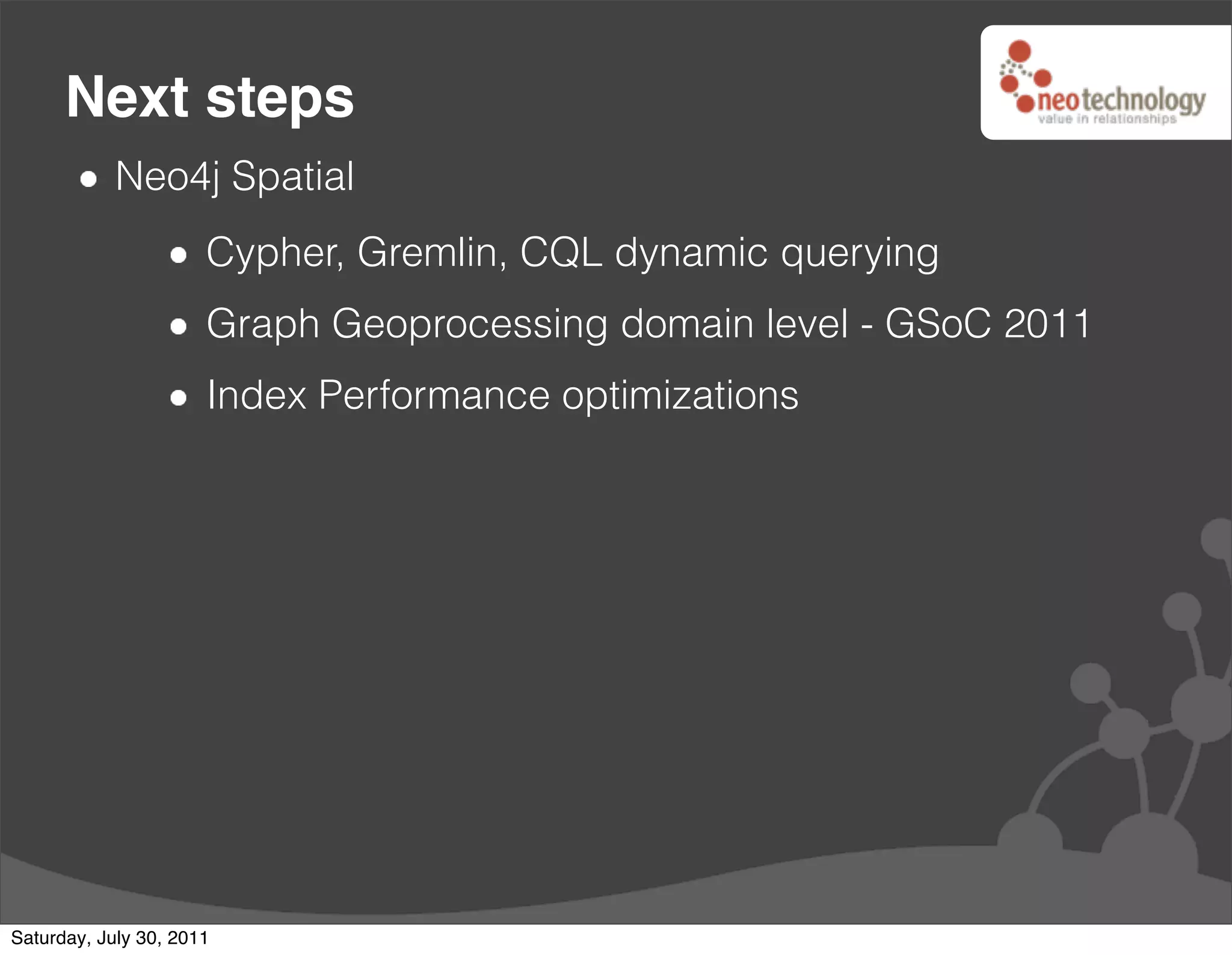

83. Next steps
Neo4j Spatial
Cypher, Gremlin, CQL dynamic querying
Graph Geoprocessing domain level - GSoC 2011
Index Performance optimizations
Saturday, July 30, 2011

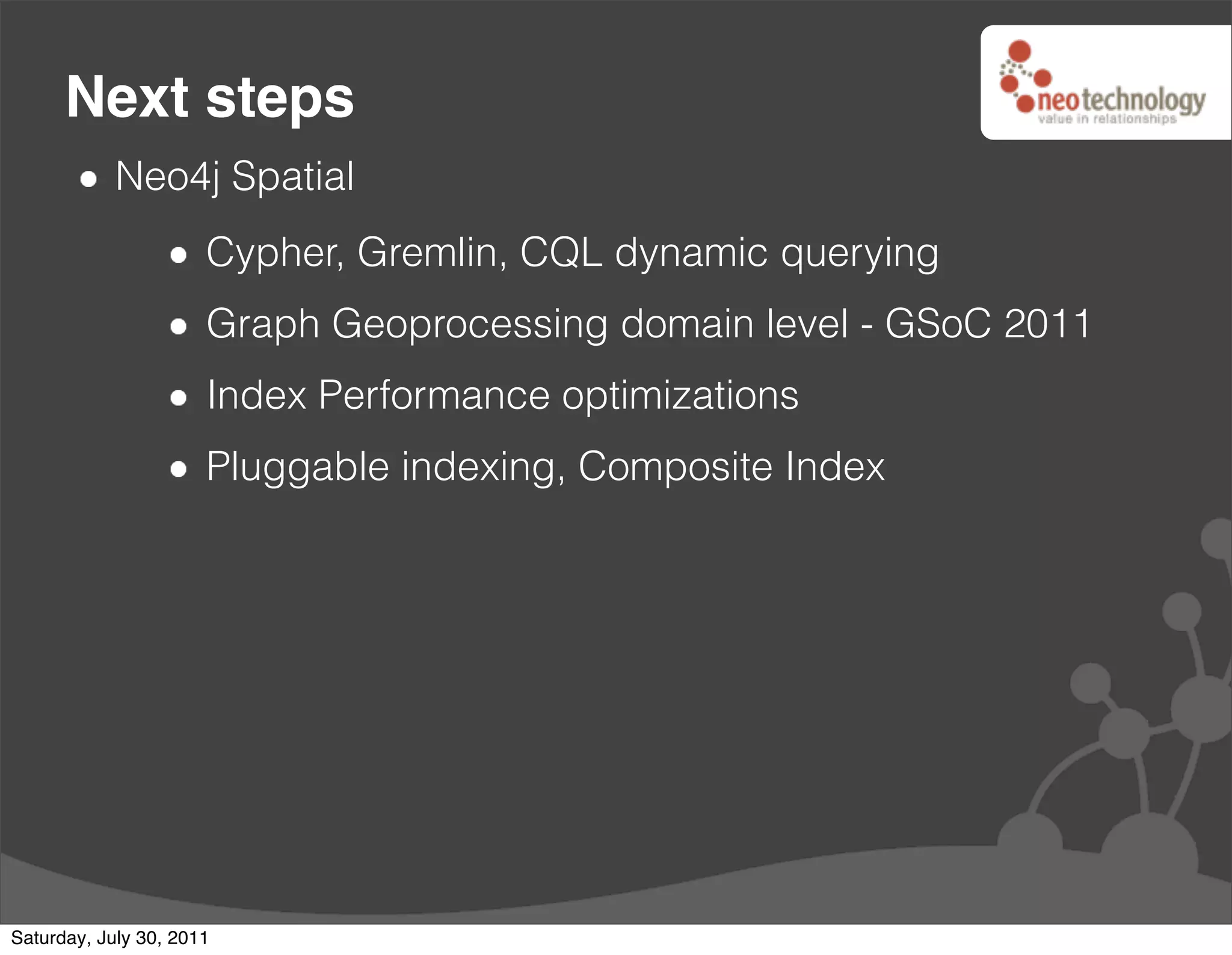

84. Next steps
Neo4j Spatial
Cypher, Gremlin, CQL dynamic querying
Graph Geoprocessing domain level - GSoC 2011
Index Performance optimizations
Pluggable indexing, Composite Index
Saturday, July 30, 2011

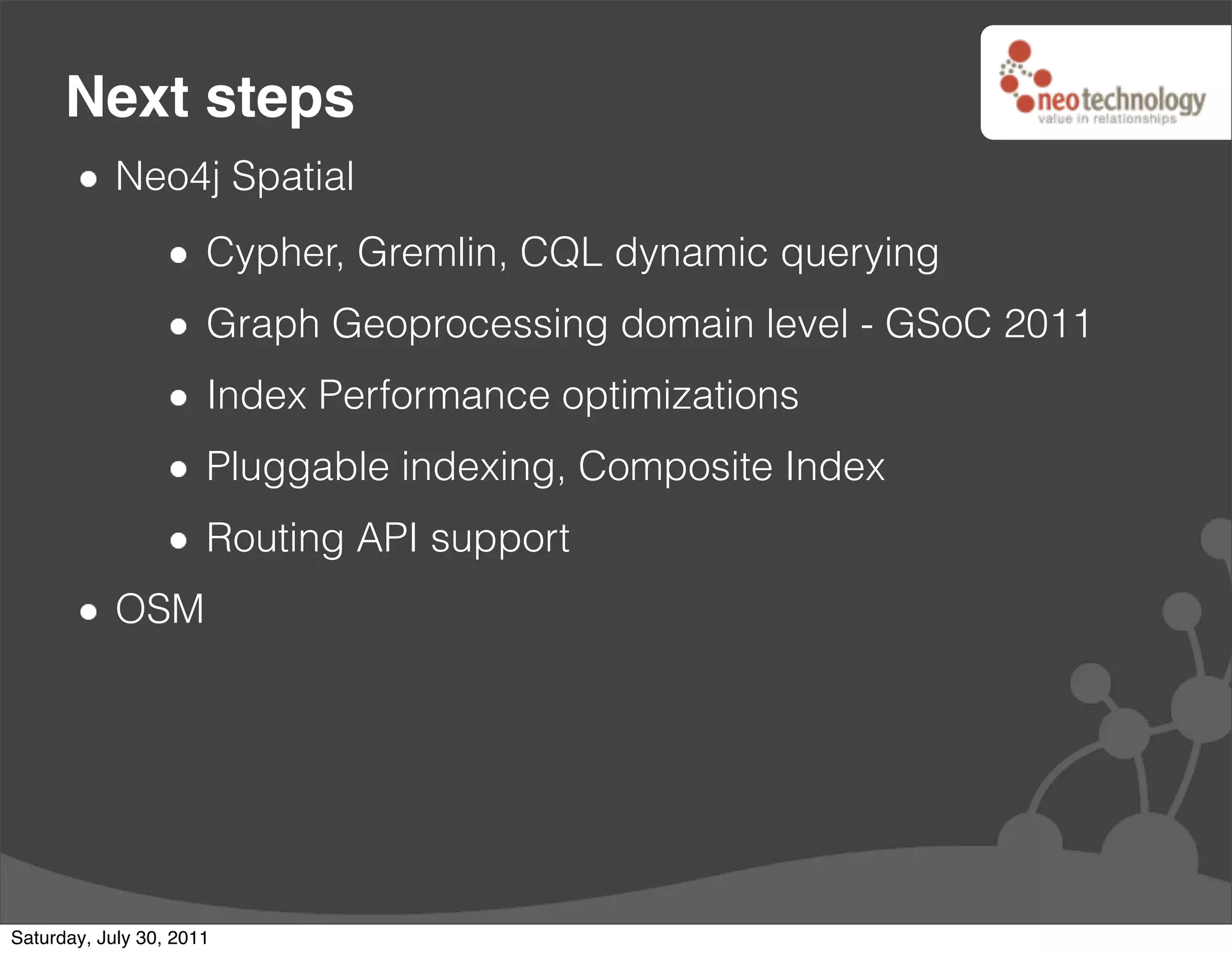

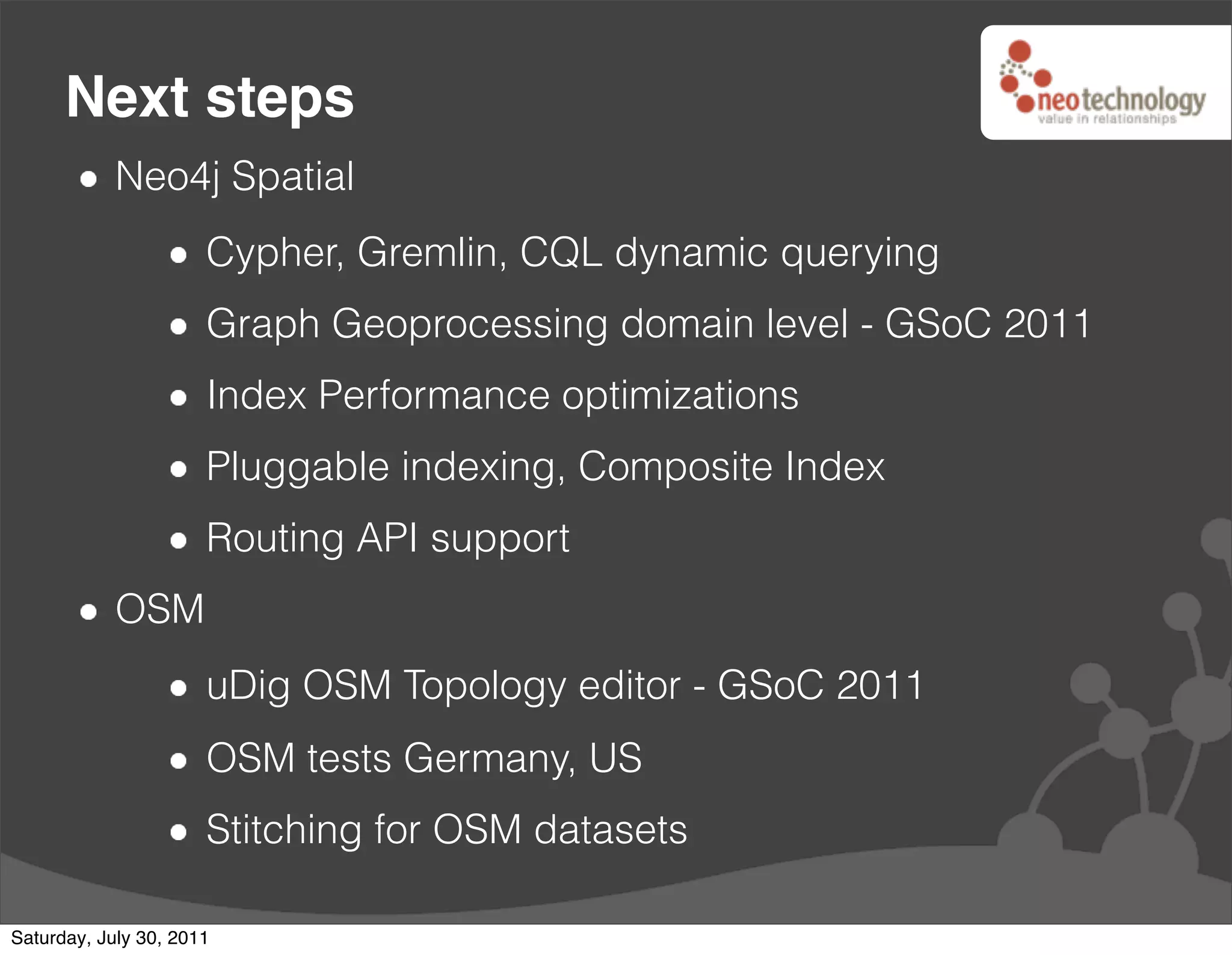

85. Next steps
Neo4j Spatial
Cypher, Gremlin, CQL dynamic querying
Graph Geoprocessing domain level - GSoC 2011
Index Performance optimizations
Pluggable indexing, Composite Index
Routing API support
Saturday, July 30, 2011

86. Next steps
Neo4j Spatial
Cypher, Gremlin, CQL dynamic querying
Graph Geoprocessing domain level - GSoC 2011
Index Performance optimizations
Pluggable indexing, Composite Index
Routing API support
OSM
Saturday, July 30, 2011

87. Next steps
Neo4j Spatial
Cypher, Gremlin, CQL dynamic querying
Graph Geoprocessing domain level - GSoC 2011
Index Performance optimizations
Pluggable indexing, Composite Index
Routing API support
OSM
uDig OSM Topology editor - GSoC 2011
Saturday, July 30, 2011

88. Next steps
Neo4j Spatial
Cypher, Gremlin, CQL dynamic querying
Graph Geoprocessing domain level - GSoC 2011
Index Performance optimizations
Pluggable indexing, Composite Index
Routing API support
OSM
uDig OSM Topology editor - GSoC 2011
OSM tests Germany, US
Saturday, July 30, 2011

89. Next steps
Neo4j Spatial
Cypher, Gremlin, CQL dynamic querying
Graph Geoprocessing domain level - GSoC 2011
Index Performance optimizations
Pluggable indexing, Composite Index
Routing API support
OSM
uDig OSM Topology editor - GSoC 2011
OSM tests Germany, US
Stitching for OSM datasets
Saturday, July 30, 2011

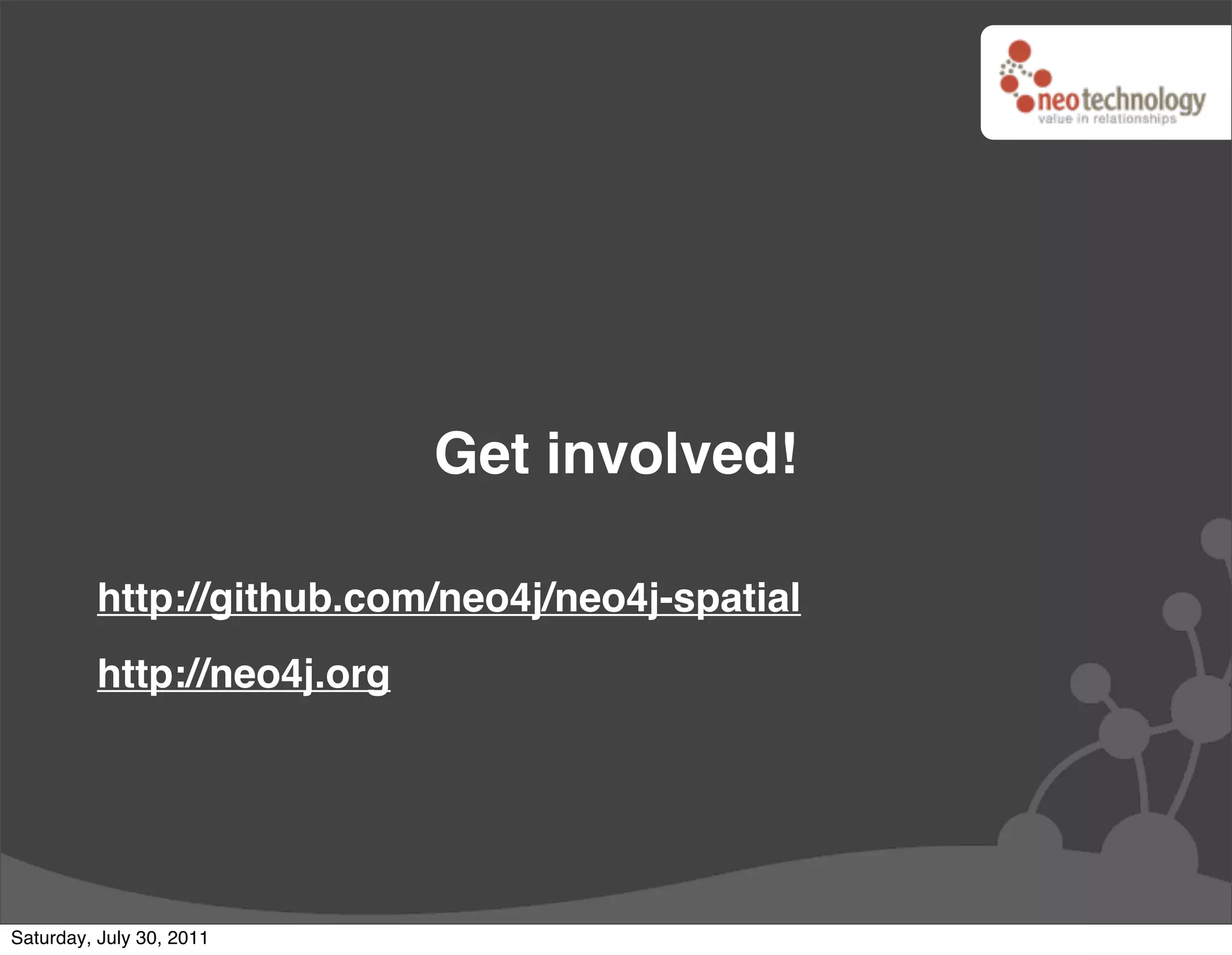

90. Get involved!
http://github.com/neo4j/neo4j-spatial
http://neo4j.org
Saturday, July 30, 2011

91. And - we are hiring!
http://neotechnology.com
44
Saturday, July 30, 2011
