NDB Cluster 8.0 was benchmarked using YCSB, the de facto cloud benchmark. The benchmark showed that: 1) NDB Cluster achieved the highest throughput of any distributed in-memory transactional database, scaling linearly as data nodes were added. 2) Increasing the number of rows in the cluster from 300M to 600M rows showed no impact on performance or latency. 3) Performance was optimized for latency versus throughput by adjusting load generators and the number of data manager threads per data node.

1. Copyright © 2020 Oracle and/or its affiliates.
MySQL NDB Cluster 8.0,
YCSB In-Memory Benchmark
MySQL Cluster Development
Mikael Ronström

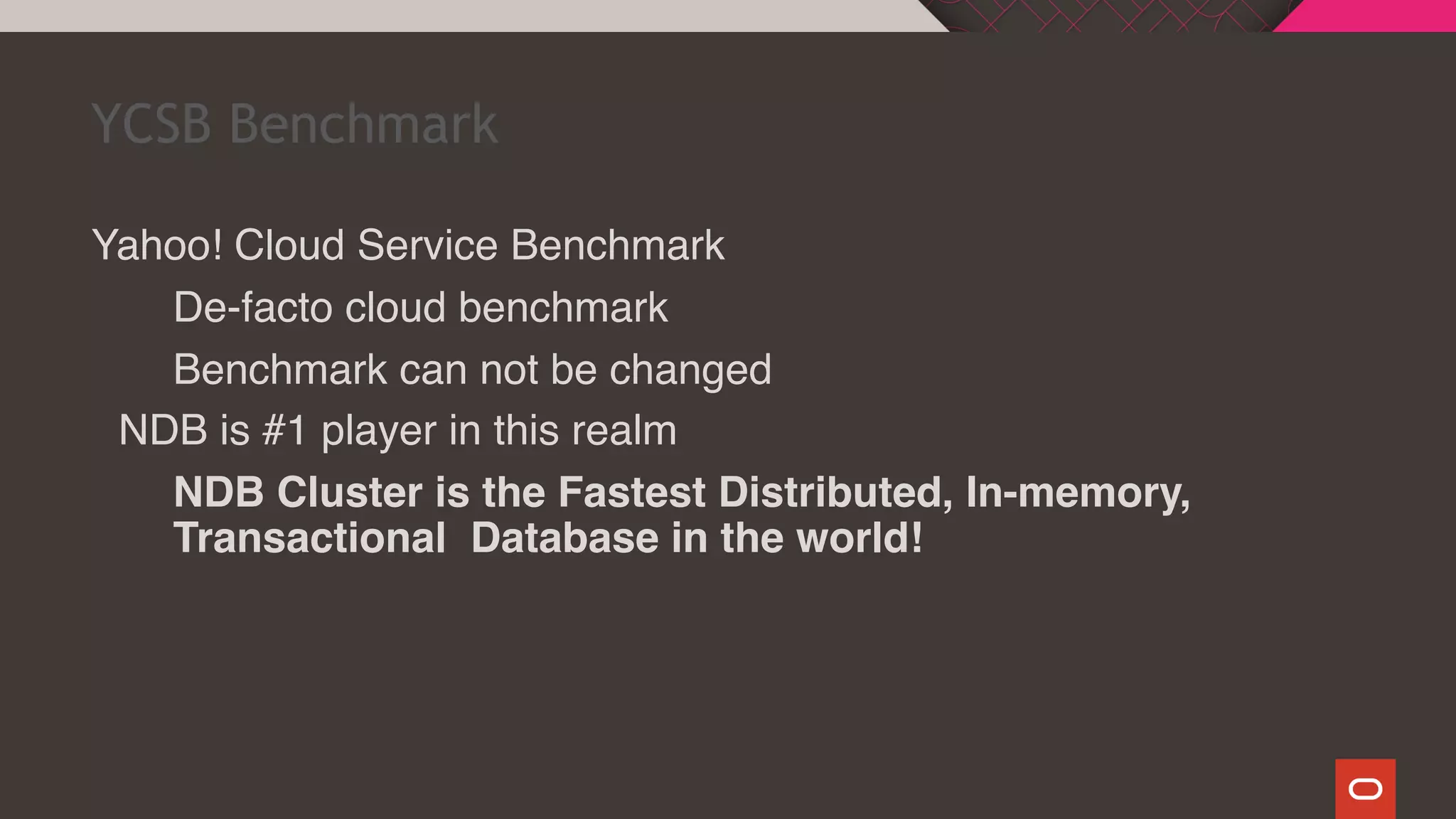

2. YCSB Benchmark
Yahoo! Cloud Service Benchmark
De-facto cloud benchmark
Benchmark can not be changed
NDB is #1 player in this realm
NDB Cluster is the Fastest Distributed, In-memory,
Transactional Database in the world!

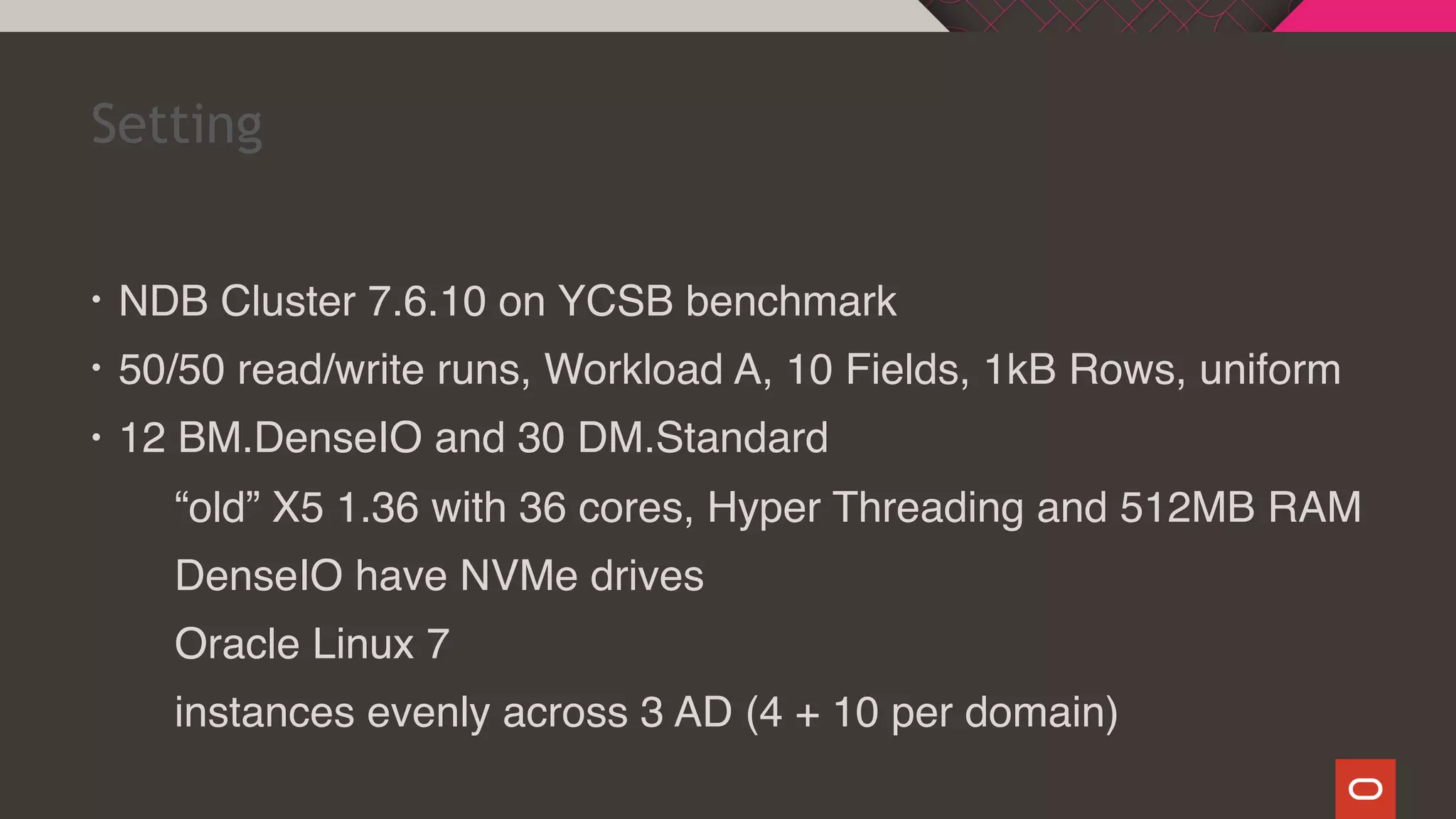

3. • NDB Cluster 7.6.10 on YCSB benchmark
• 50/50 read/write runs, Workload A, 10 Fields, 1kB Rows, uniform
• 12 BM.DenseIO and 30 DM.Standard
“old” X5 1.36 with 36 cores, Hyper Threading and 512MB RAM
DenseIO have NVMe drives
Oracle Linux 7
instances evenly across 3 AD (4 + 10 per domain)
Setting

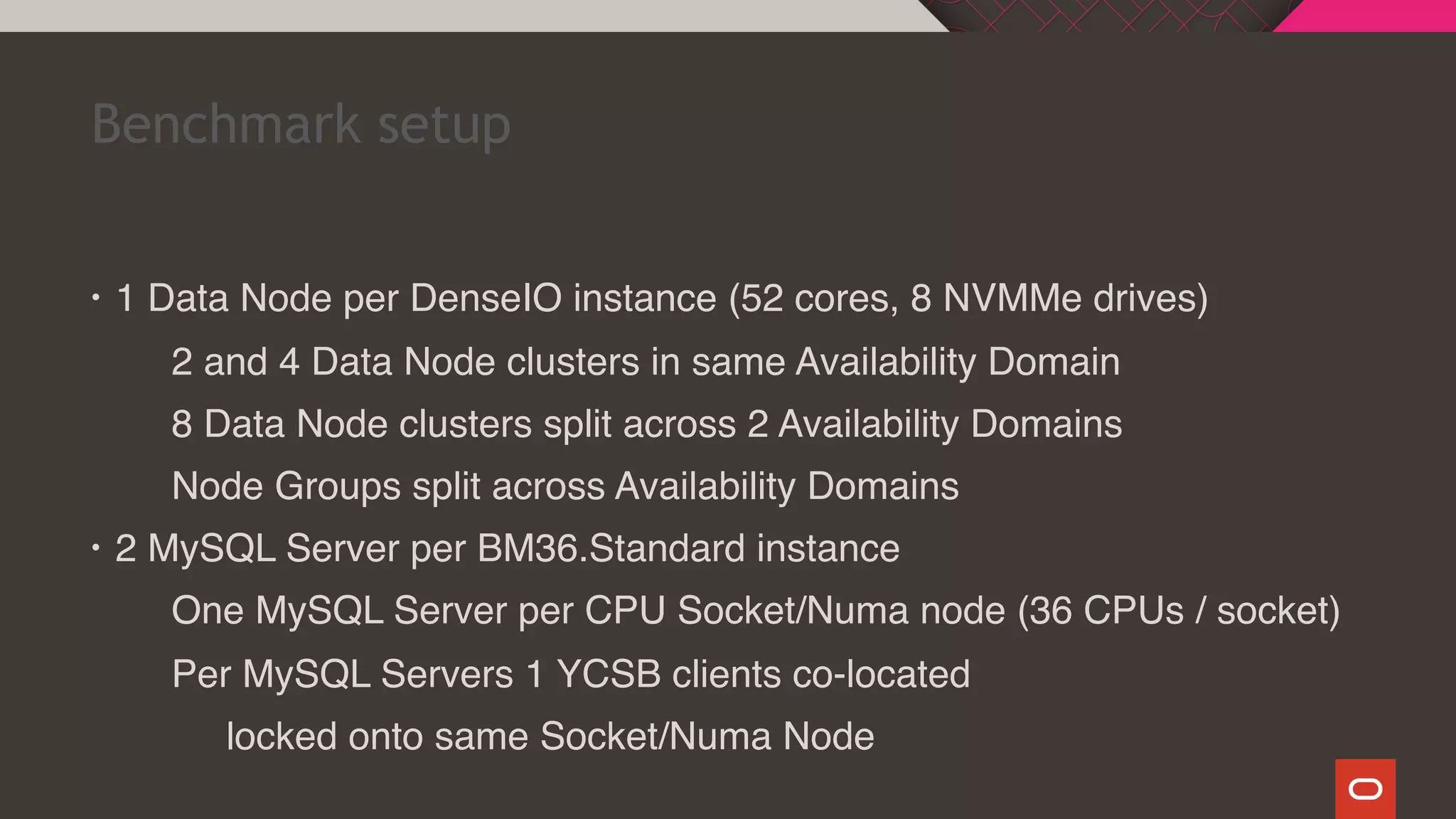

4. • 1 Data Node per DenseIO instance (52 cores, 8 NVMMe drives)
2 and 4 Data Node clusters in same Availability Domain
8 Data Node clusters split across 2 Availability Domains
Node Groups split across Availability Domains
• 2 MySQL Server per BM36.Standard instance
One MySQL Server per CPU Socket/Numa node (36 CPUs / socket)
Per MySQL Servers 1 YCSB clients co-located
locked onto same Socket/Numa Node
Benchmark setup

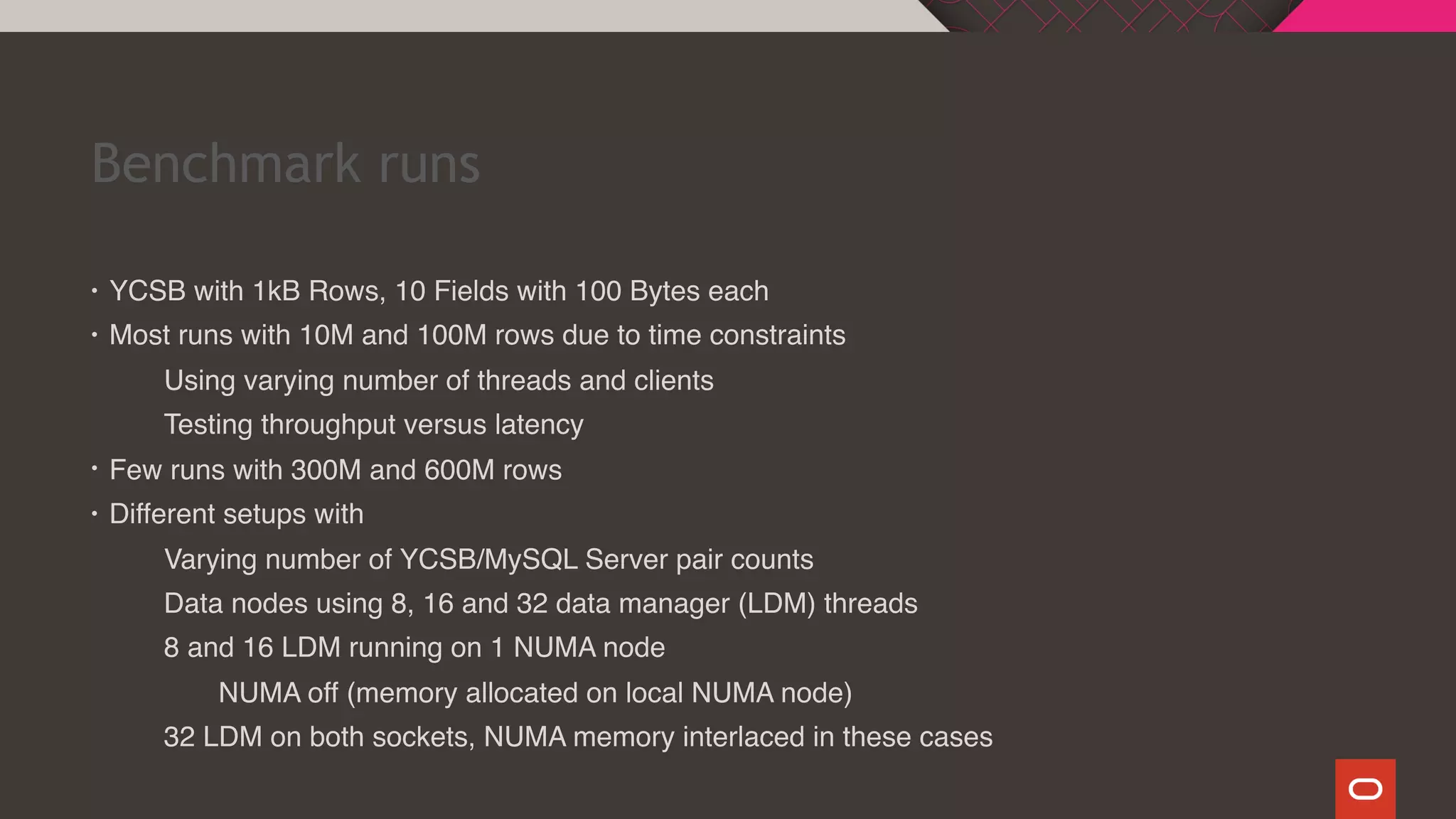

5. Benchmark runs
• YCSB with 1kB Rows, 10 Fields with 100 Bytes each
• Most runs with 10M and 100M rows due to time constraints
Using varying number of threads and clients
Testing throughput versus latency
• Few runs with 300M and 600M rows
• Different setups with
Varying number of YCSB/MySQL Server pair counts
Data nodes using 8, 16 and 32 data manager (LDM) threads
8 and 16 LDM running on 1 NUMA node
NUMA off (memory allocated on local NUMA node)
32 LDM on both sockets, NUMA memory interlaced in these cases

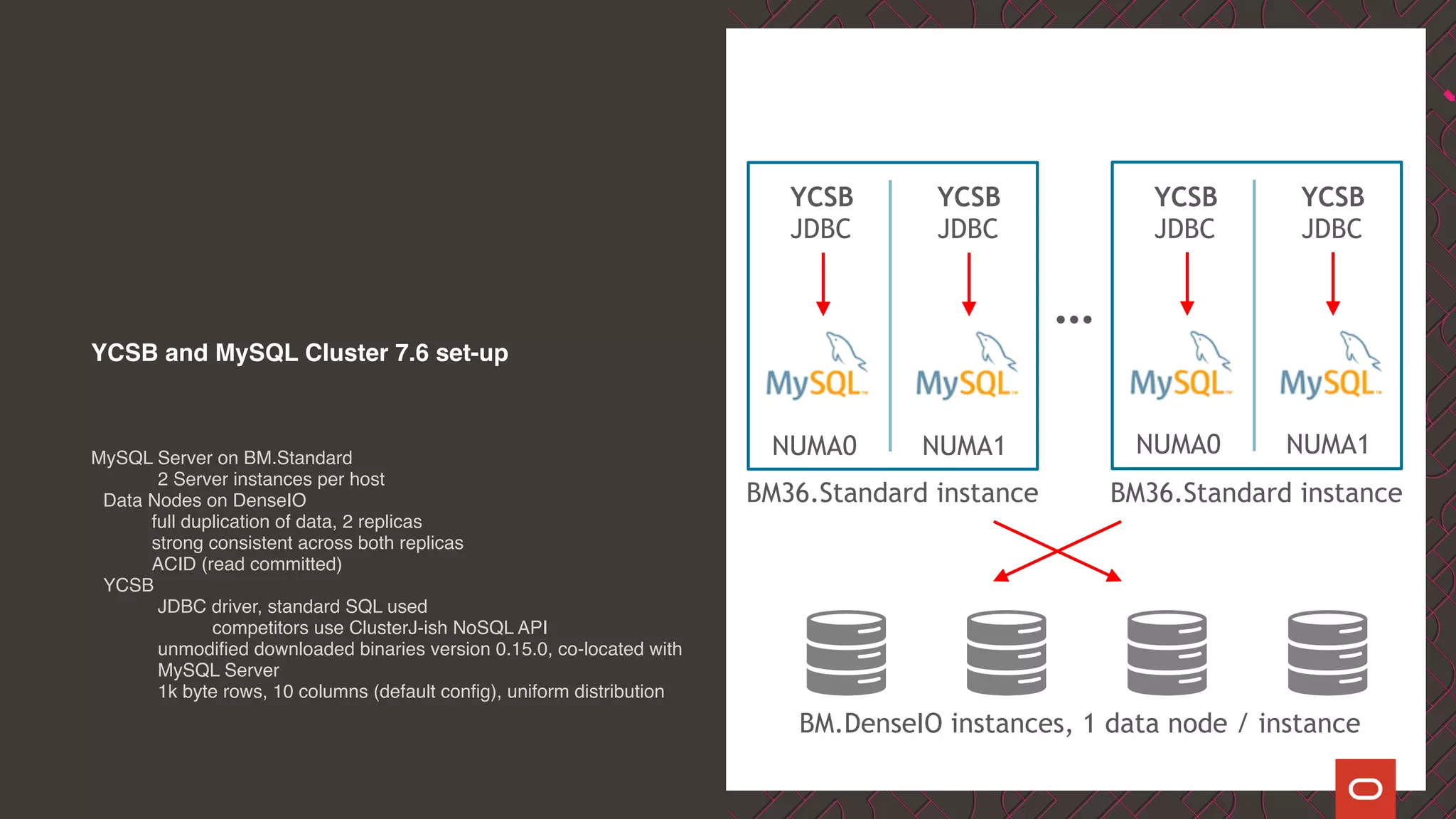

6. YCSB and MySQL Cluster 7.6 set-up
MySQL Server on BM.Standard
2 Server instances per host
Data Nodes on DenseIO
full duplication of data, 2 replicas
strong consistent across both replicas
ACID (read committed)
YCSB
JDBC driver, standard SQL used
competitors use ClusterJ-ish NoSQL API
unmodified downloaded binaries version 0.15.0, co-located with
MySQL Server
1k byte rows, 10 columns (default config), uniform distribution
YCSB
JDBC
YCSB
JDBC
NUMA0 NUMA1
BM36.Standard instance
YCSB
JDBC
YCSB
JDBC
NUMA0 NUMA1
BM36.Standard instance
…
BM.DenseIO instances, 1 data node / instance

7. Copyright © 2019 Oracle and/or its affiliates.

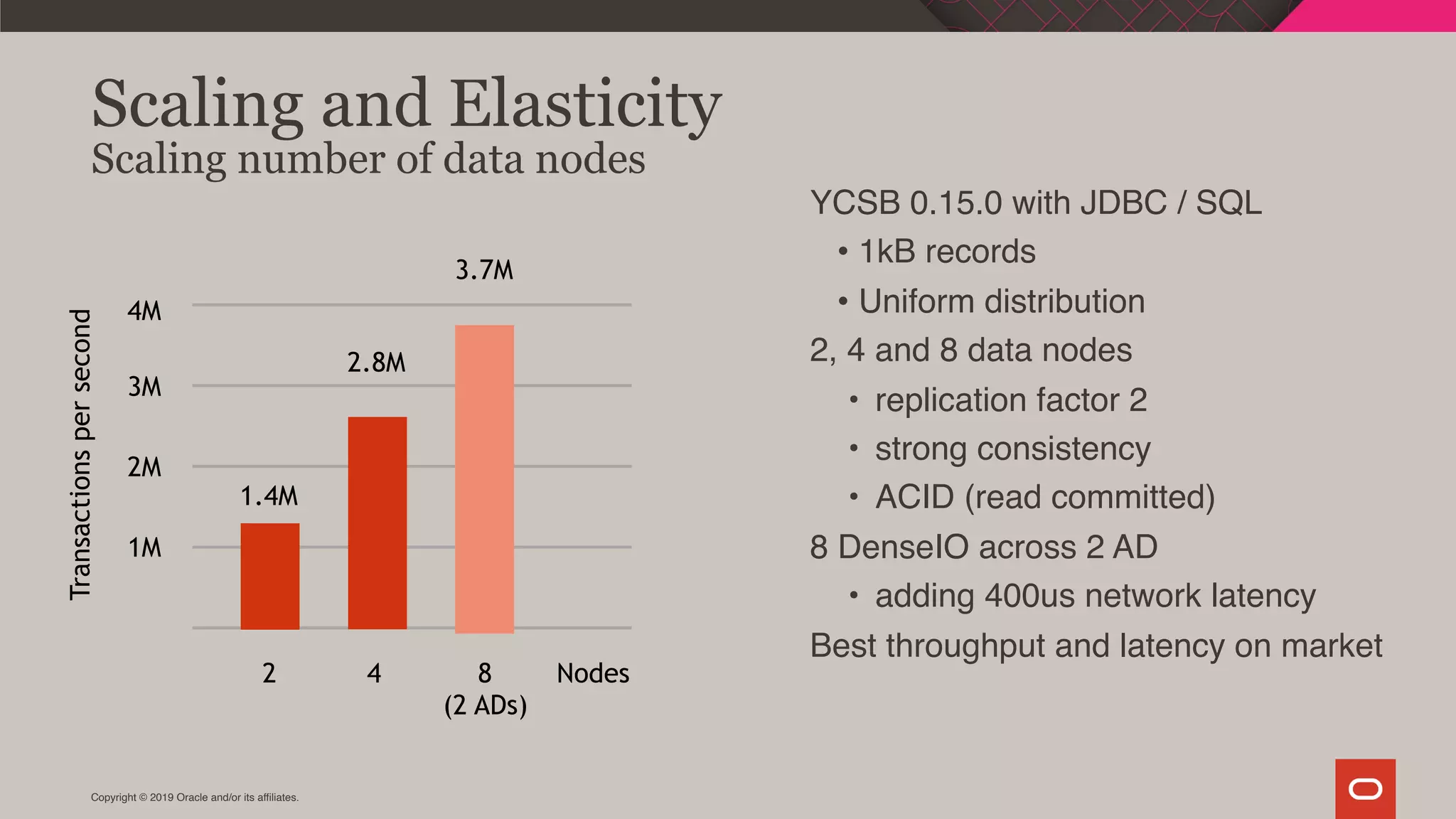

Scaling and Elasticity
Scaling number of data nodes
YCSB 0.15.0 with JDBC / SQL
• 1kB records
• Uniform distribution
2, 4 and 8 data nodes
• replication factor 2
• strong consistency
• ACID (read committed)
8 DenseIO across 2 AD
• adding 400us network latency
Best throughput and latency on market
1M
2M
3M
4M
2 4 8
(2 ADs)
1.4M
2.8M
3.7M
Transactionspersecond
Nodes

8. Copyright © 2019 Oracle and/or its affiliates.

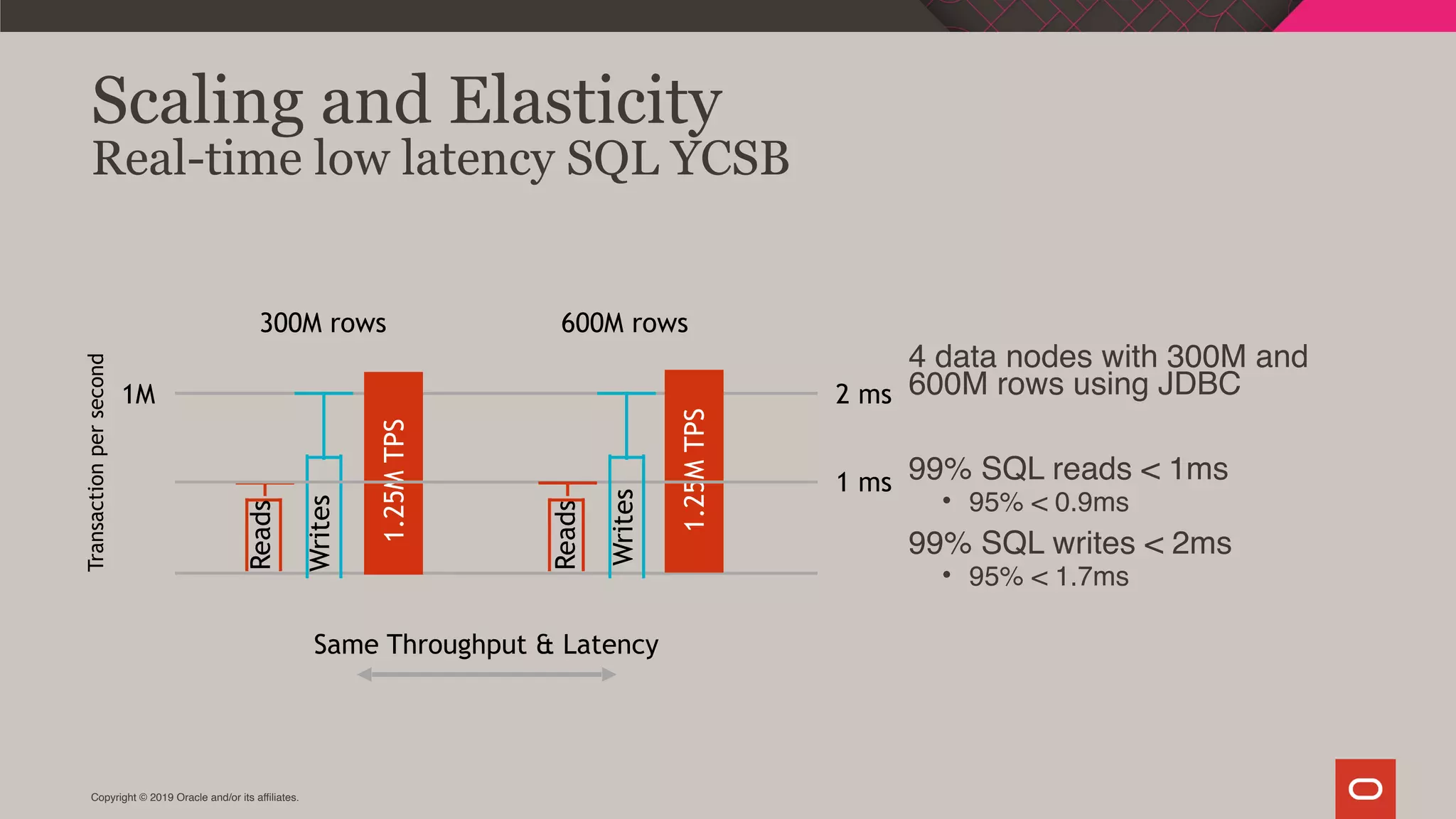

Scaling and Elasticity
Real-time low latency SQL YCSB
4 data nodes with 300M and
600M rows using JDBC
99% SQL reads < 1ms
• 95% < 0.9ms
99% SQL writes < 2ms
• 95% < 1.7ms
1M
Transactionpersecond
2 ms
Same Throughput & Latency
300M rows 600M rows
1.25MTPS
1.25MTPS
Reads
Reads
Writes
Writes
1 ms

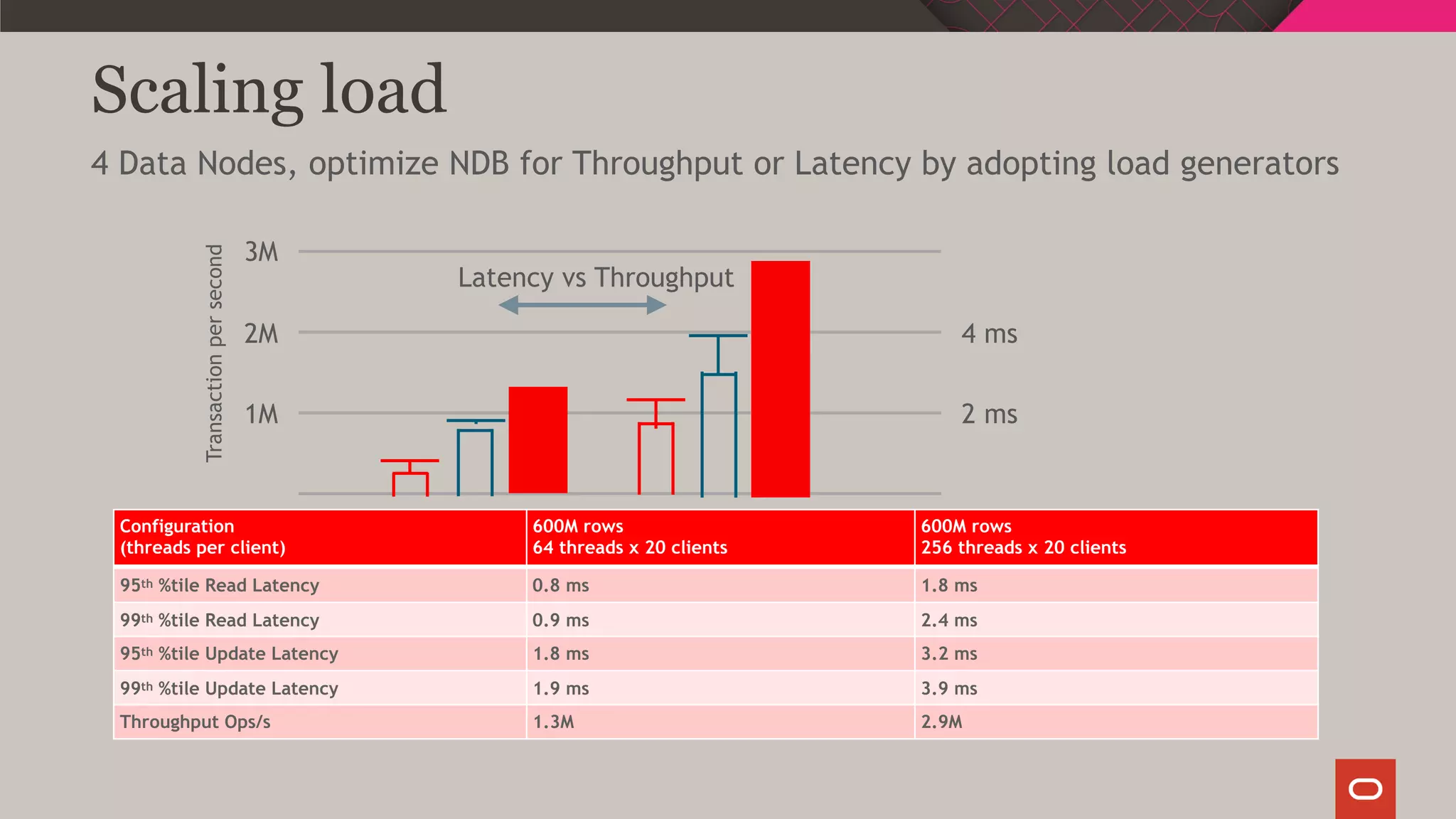

9. Scaling load
4 Data Nodes, optimize NDB for Throughput or Latency by adopting load generators
Configuration
(threads per client)
600M rows
64 threads x 20 clients
600M rows
256 threads x 20 clients
95th %tile Read Latency 0.8 ms 1.8 ms
99th %tile Read Latency 0.9 ms 2.4 ms
95th %tile Update Latency 1.8 ms 3.2 ms
99th %tile Update Latency 1.9 ms 3.9 ms
Throughput Ops/s 1.3M 2.9M
1M
2M
3M
Transactionpersecond
Latency vs Throughput
2 ms
4 ms

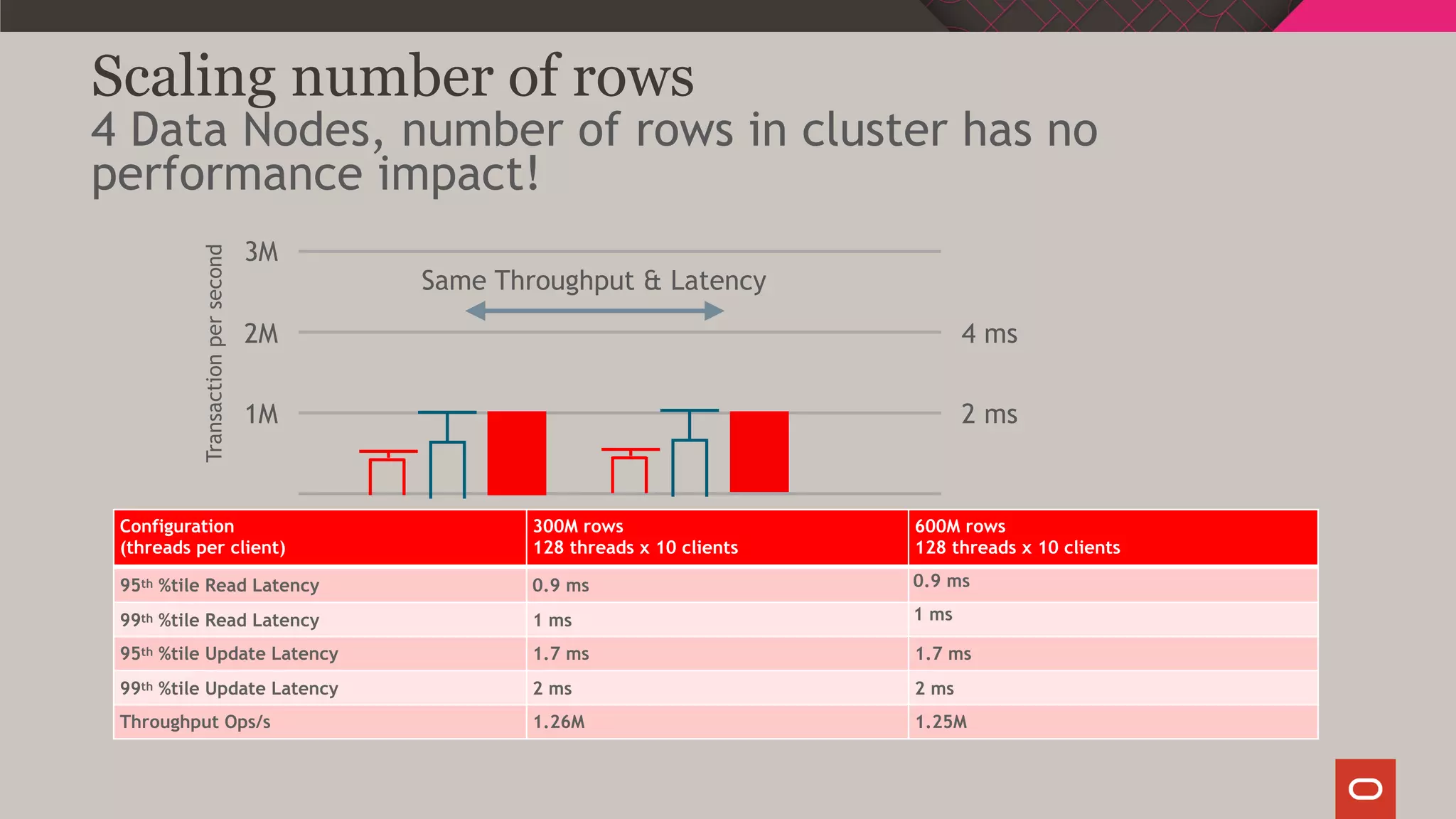

10. Scaling number of rows
4 Data Nodes, number of rows in cluster has no
performance impact!
Configuration
(threads per client)
300M rows
128 threads x 10 clients
600M rows
128 threads x 10 clients
95th %tile Read Latency 0.9 ms 0.9 ms
99th %tile Read Latency 1 ms 1 ms
95th %tile Update Latency 1.7 ms 1.7 ms
99th %tile Update Latency 2 ms 2 ms
Throughput Ops/s 1.26M 1.25M
1M
2M
3M
Transactionpersecond
2 ms
4 ms
Same Throughput & Latency

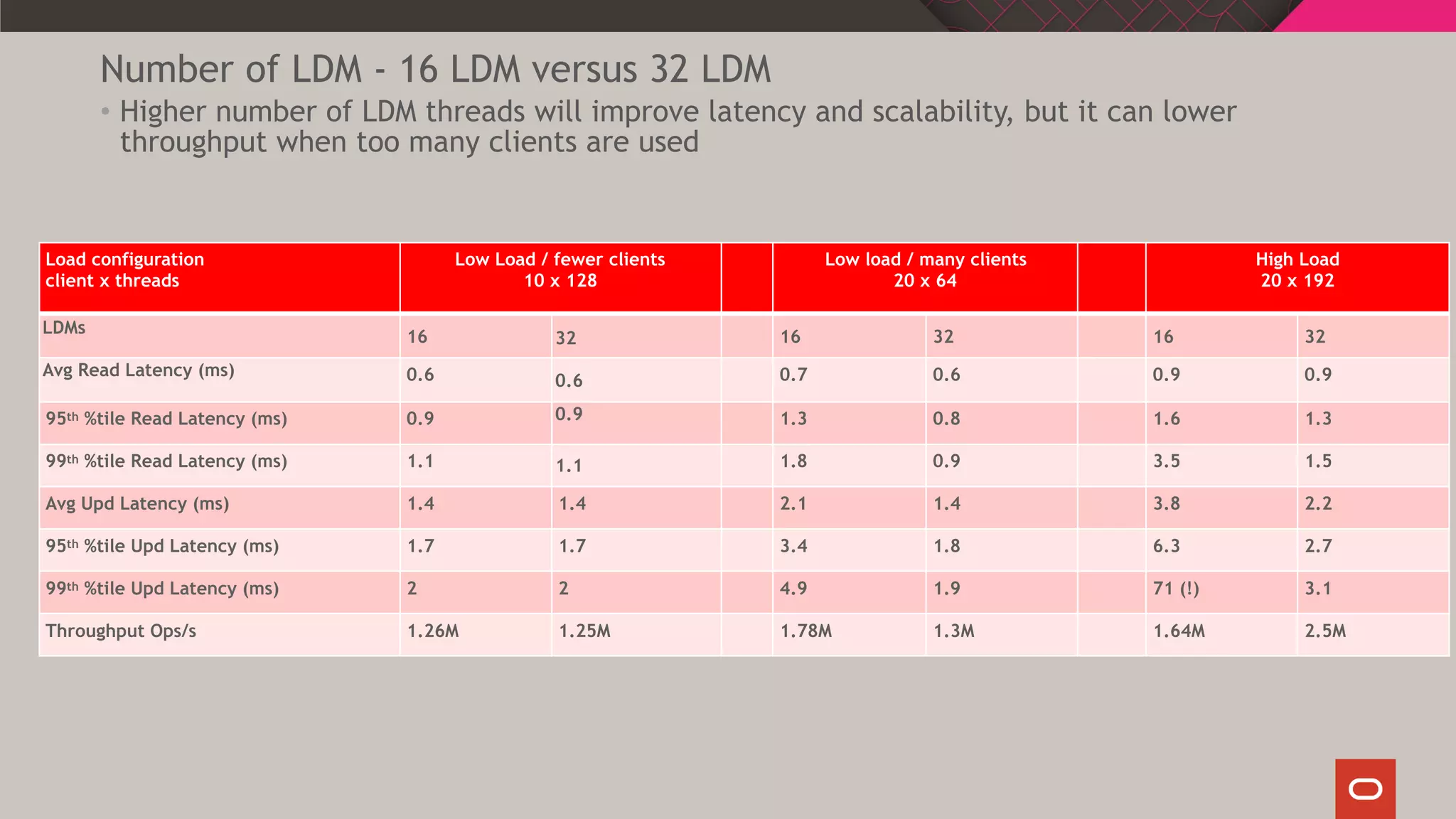

11. Number of LDM - 16 LDM versus 32 LDM
• Higher number of LDM threads will improve latency and scalability, but it can lower
throughput when too many clients are used
Load configuration
client x threads
Low Load / fewer clients
10 x 128
Low load / many clients
20 x 64
High Load
20 x 192
LDMs
16 32 16 32 16 32
Avg Read Latency (ms) 0.6 0.6 0.7 0.6 0.9 0.9
95th %tile Read Latency (ms) 0.9 0.9 1.3 0.8 1.6 1.3
99th %tile Read Latency (ms) 1.1 1.1 1.8 0.9 3.5 1.5
Avg Upd Latency (ms) 1.4 1.4 2.1 1.4 3.8 2.2
95th %tile Upd Latency (ms) 1.7 1.7 3.4 1.8 6.3 2.7
99th %tile Upd Latency (ms) 2 2 4.9 1.9 71 (!) 3.1
Throughput Ops/s 1.26M 1.25M 1.78M 1.3M 1.64M 2.5M

12. Copyright © 2017, Oracle and/or its affiliates. All rights reserved. |

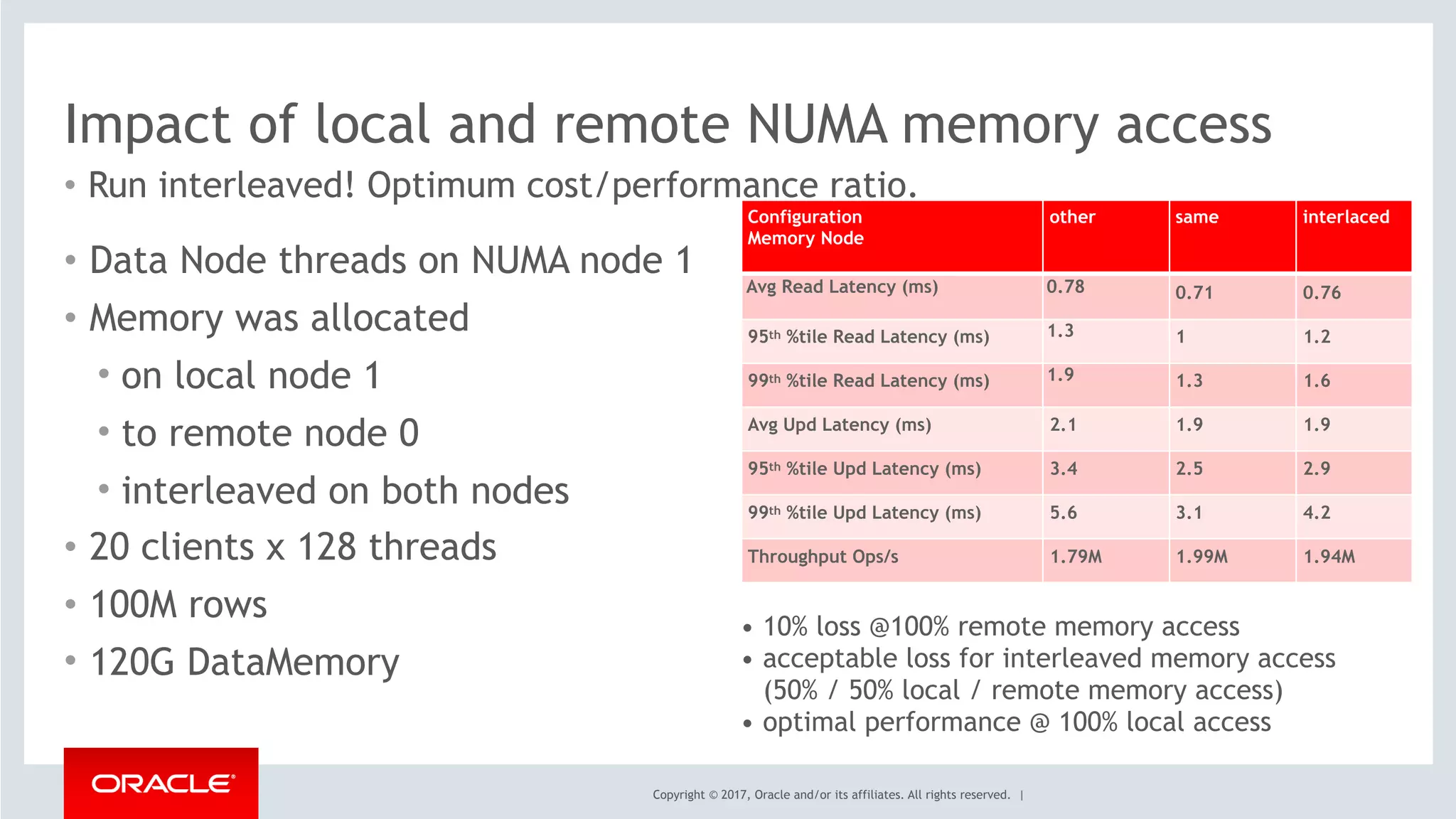

Impact of local and remote NUMA memory access
• Data Node threads on NUMA node 1
• Memory was allocated
• on local node 1
• to remote node 0
• interleaved on both nodes
• 20 clients x 128 threads
• 100M rows
• 120G DataMemory
• Run interleaved! Optimum cost/performance ratio.
• 10% loss @100% remote memory access
• acceptable loss for interleaved memory access
(50% / 50% local / remote memory access)
• optimal performance @ 100% local access
Configuration
Memory Node
other same interlaced
Avg Read Latency (ms) 0.78 0.71 0.76
95th %tile Read Latency (ms) 1.3 1 1.2
99th %tile Read Latency (ms) 1.9 1.3 1.6
Avg Upd Latency (ms) 2.1 1.9 1.9
95th %tile Upd Latency (ms) 3.4 2.5 2.9
99th %tile Upd Latency (ms) 5.6 3.1 4.2
Throughput Ops/s 1.79M 1.99M 1.94M

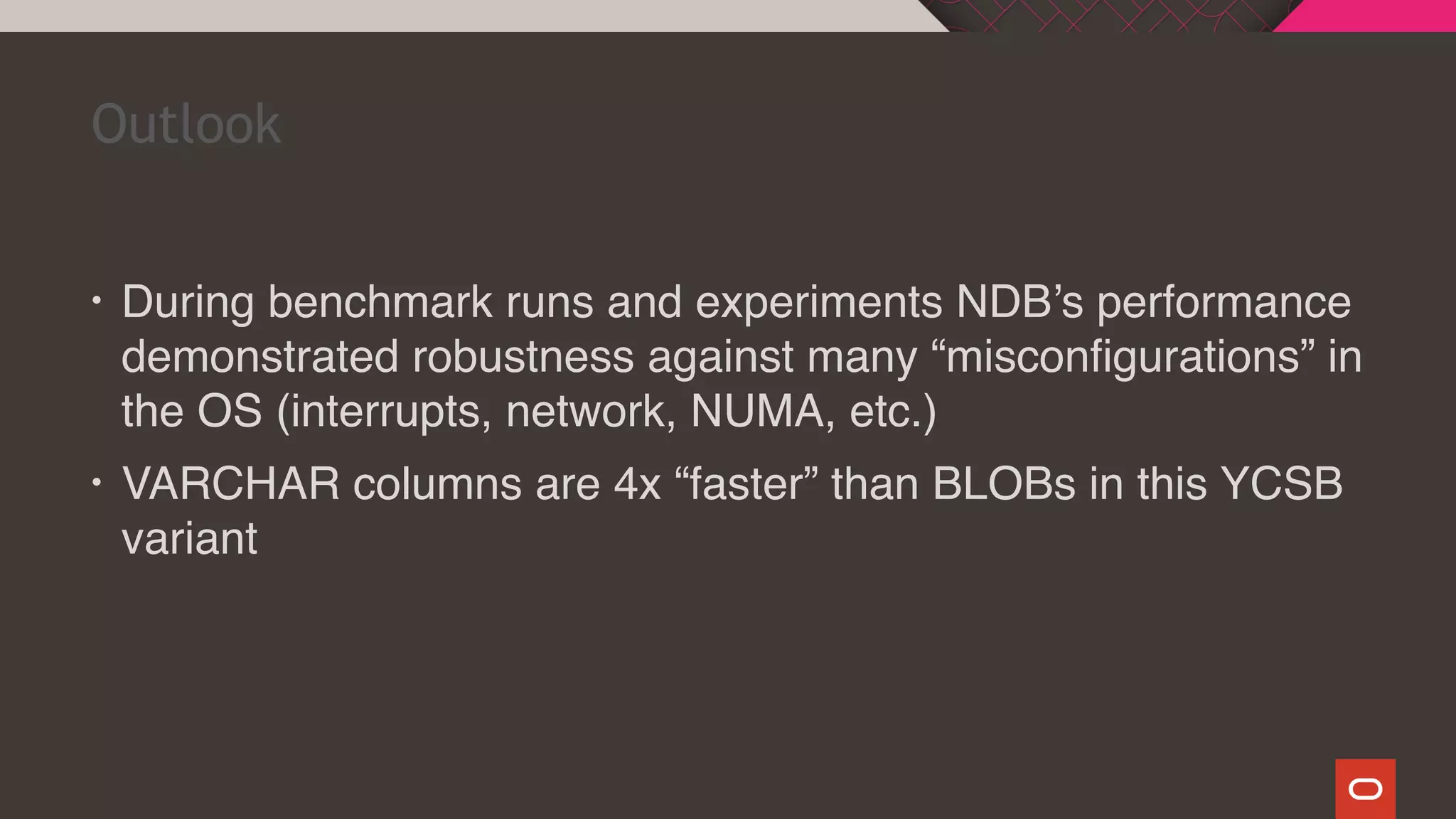

13. • During benchmark runs and experiments NDB’s performance
demonstrated robustness against many “misconfigurations” in
the OS (interrupts, network, NUMA, etc.)
• VARCHAR columns are 4x “faster” than BLOBs in this YCSB
variant
Outlook

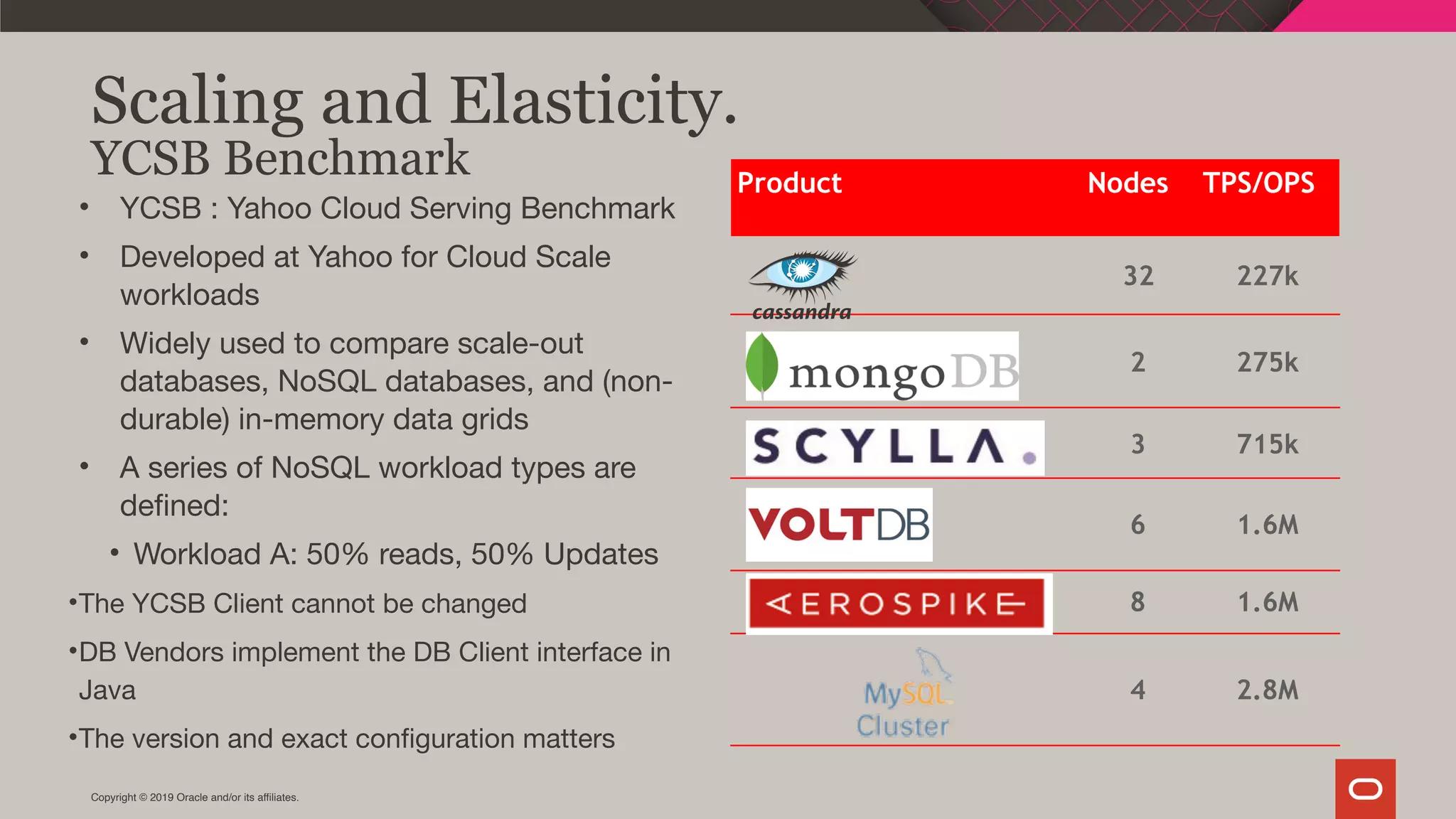

14. Product Nodes TPS/OPS
32 227k
2 275k
3 715k
6 1.6M
8 1.6M
4 2.8M
Copyright © 2019 Oracle and/or its affiliates.
Scaling and Elasticity.
YCSB Benchmark
• YCSB : Yahoo Cloud Serving Benchmark
• Developed at Yahoo for Cloud Scale
workloads
• Widely used to compare scale-out
databases, NoSQL databases, and (non-
durable) in-memory data grids
• A series of NoSQL workload types are
defined:
• Workload A: 50% reads, 50% Updates
•The YCSB Client cannot be changed
•DB Vendors implement the DB Client interface in
Java
•The version and exact configuration matters

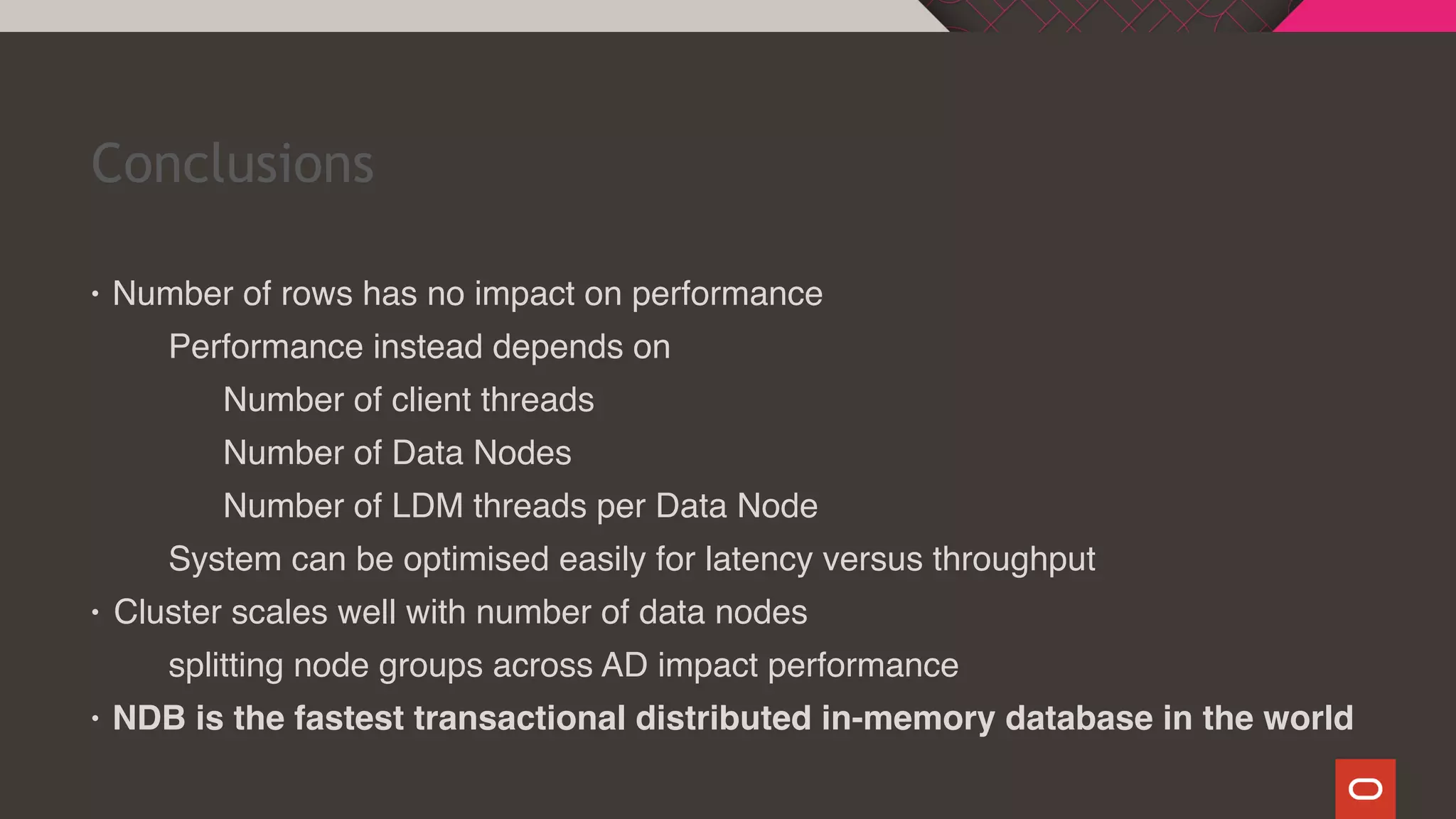

15. Conclusions
• Number of rows has no impact on performance
Performance instead depends on
Number of client threads
Number of Data Nodes
Number of LDM threads per Data Node
System can be optimised easily for latency versus throughput
• Cluster scales well with number of data nodes
splitting node groups across AD impact performance
• NDB is the fastest transactional distributed in-memory database in the world
