The document discusses MySQL server architecture and high availability solutions. It provides an overview of MySQL's architecture including storage engines, clients, connectors and pluggable components. It then summarizes high availability options like replication, shared disk clusters, DRBD and MySQL Cluster, highlighting features like redundancy, fault tolerance and performance. The document concludes with an introduction to MySQL Enterprise Monitor for management and a brief overview of performance improvements in MySQL 5.5.

1. MySQL Server Architecture and Technology

2. MySQL Marcelo Souza [email_address] MySQL Account Manager Henrique Leandro [email_address] MySQL Sales Consultant

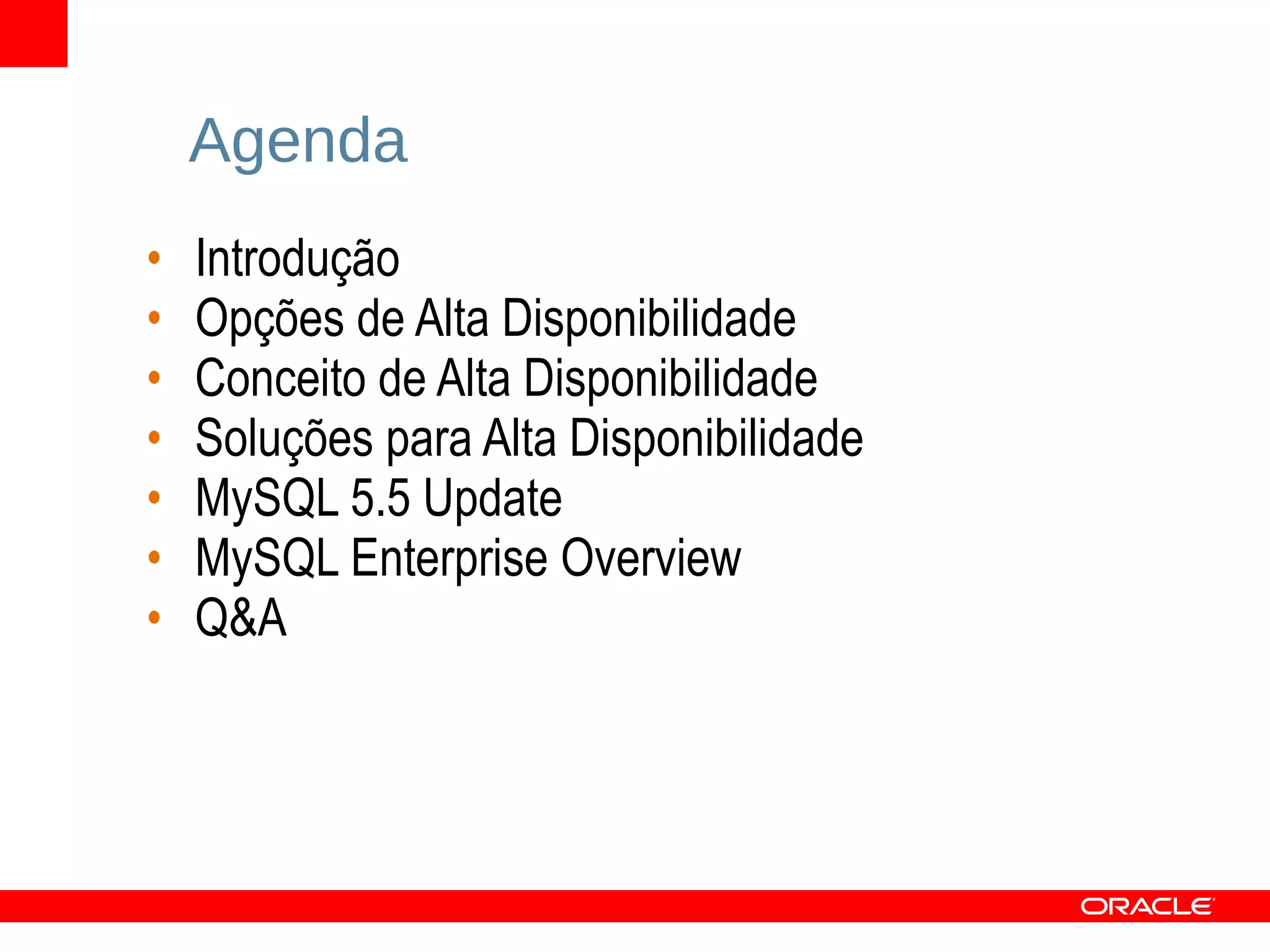

3. Agenda Introdução Opções de Alta Disponibilidade Conceito de Alta Disponibilidade Soluções para Alta Disponibilidade MySQL 5.5 Update MySQL Enterprise Overview Q&A

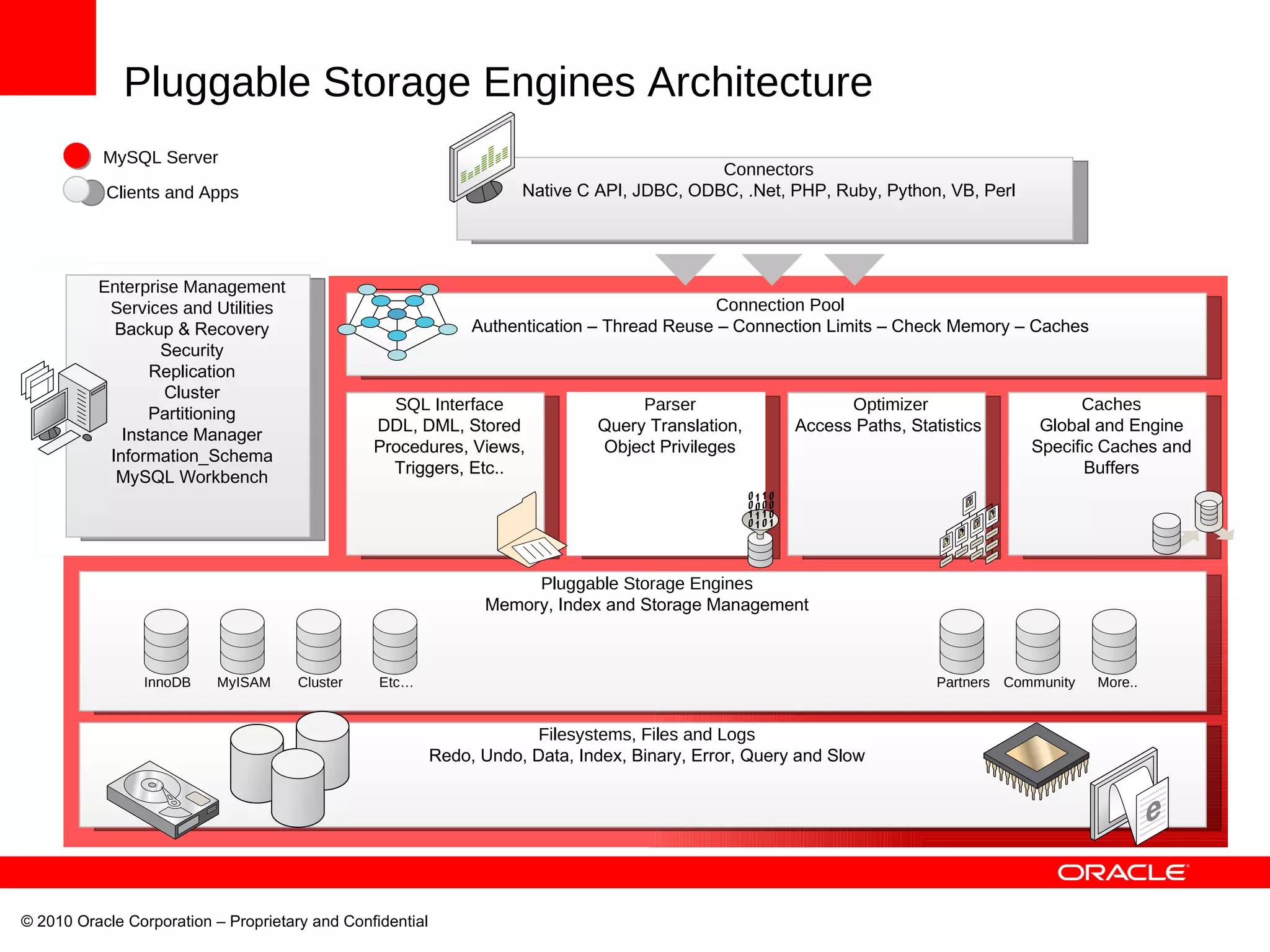

4. Pluggable Storage Engines Architecture InnoDB MyISAM Cluster Etc… Partners Community More.. MySQL Server Clients and Apps © 2010 Oracle Corporation – Proprietary and Confidential Filesystems, Files and Logs Redo, Undo, Data, Index, Binary, Error, Query and Slow Connectors Native C API, JDBC, ODBC, .Net, PHP, Ruby, Python, VB, Perl Connection Pool Authentication – Thread Reuse – Connection Limits – Check Memory – Caches Enterprise Management Services and Utilities Backup & Recovery Security Replication Cluster Partitioning Instance Manager Information_Schema MySQL Workbench SQL Interface DDL, DML, Stored Procedures, Views, Triggers, Etc.. Parser Query Translation, Object Privileges Optimizer Access Paths, Statistics Caches Global and Engine Specific Caches and Buffers Pluggable Storage Engines Memory, Index and Storage Management

5. High Availability & Disaster Recovery MySQL replication Built into MySQL database Fast & easy implementation Sync disk replication DRBD, AVS Replicate at disk level Shared disk cluster Shared storage device Cluster mgt. software MySQL Cluster Active/Active solution Five 9 ’ s Very high performance Not for all workloads Active Node Passive DRBD

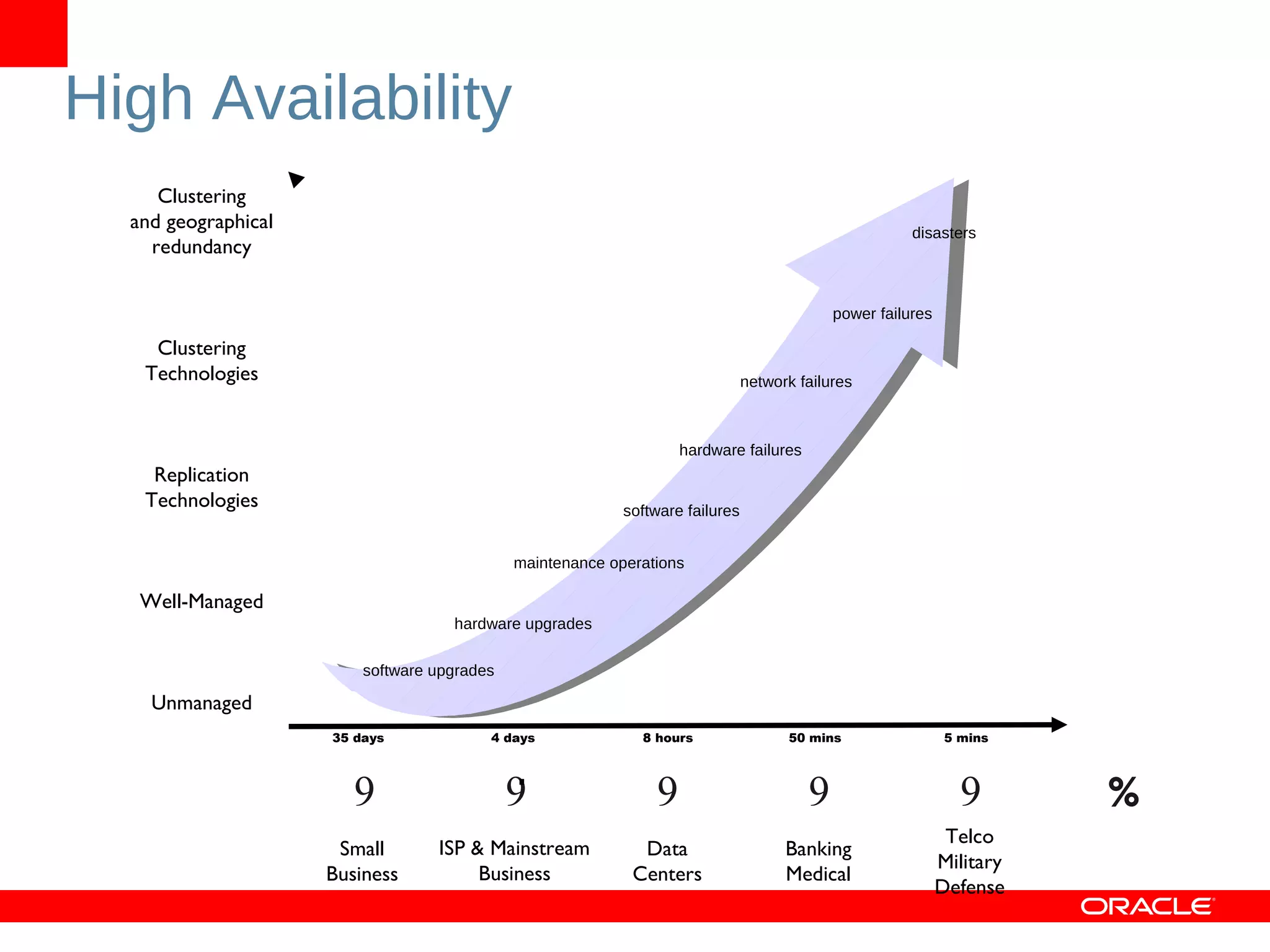

6. High Availability software upgrades hardware upgrades maintenance operations software failures network failures power failures disasters hardware failures Clustering and geographical redundancy Clustering Technologies Replication Technologies Well-Managed Unmanaged Small Business ISP & Mainstream Business Data Centers Banking Medical Telco Military Defense . 35 days 4 days 50 mins 5 mins 8 hours 9 9 9 9 9 %

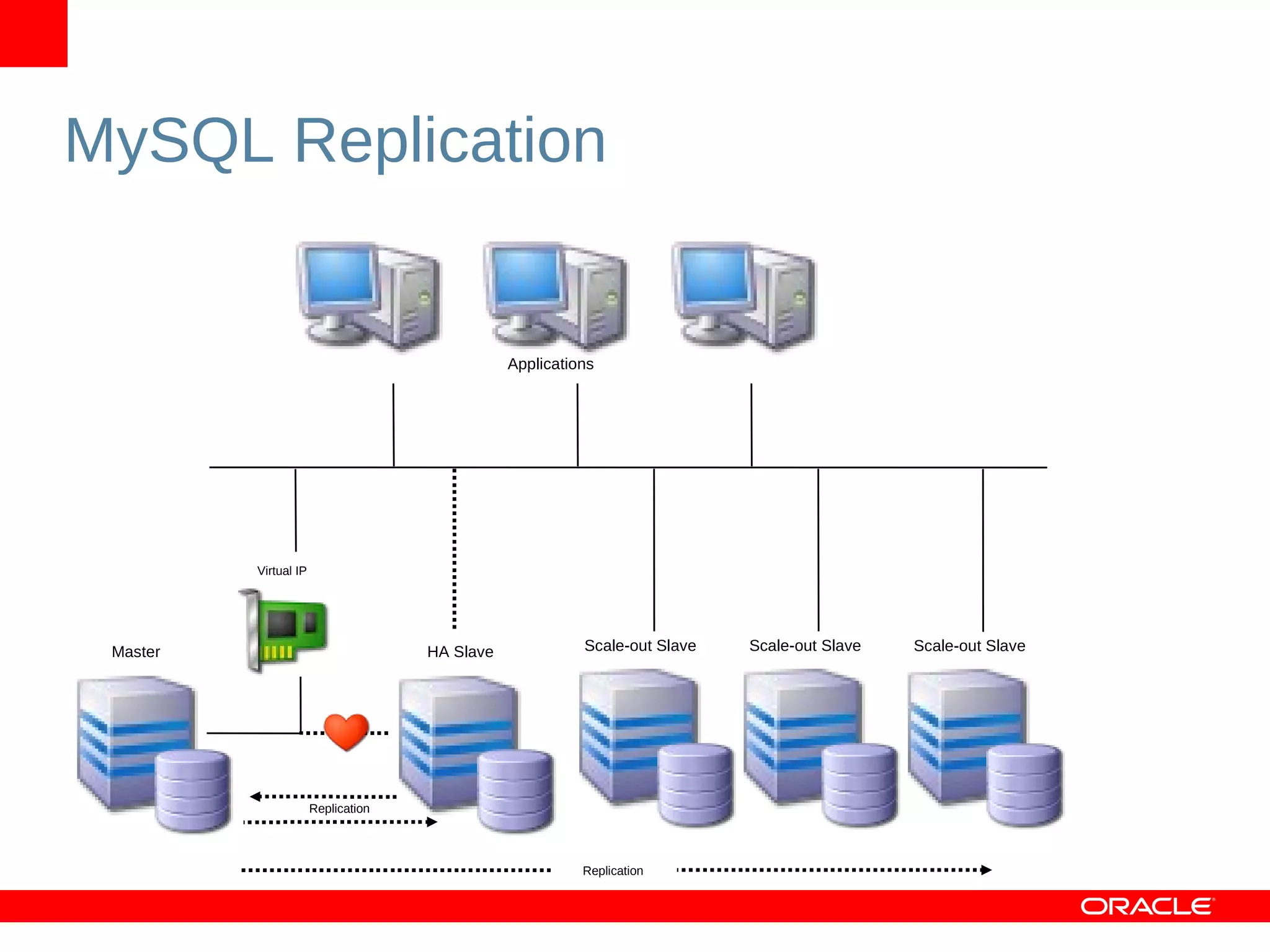

7. MySQL Replication Virtual IP Replication Applications Master HA Slave Scale-out Slave Scale-out Slave Scale-out Slave Replication

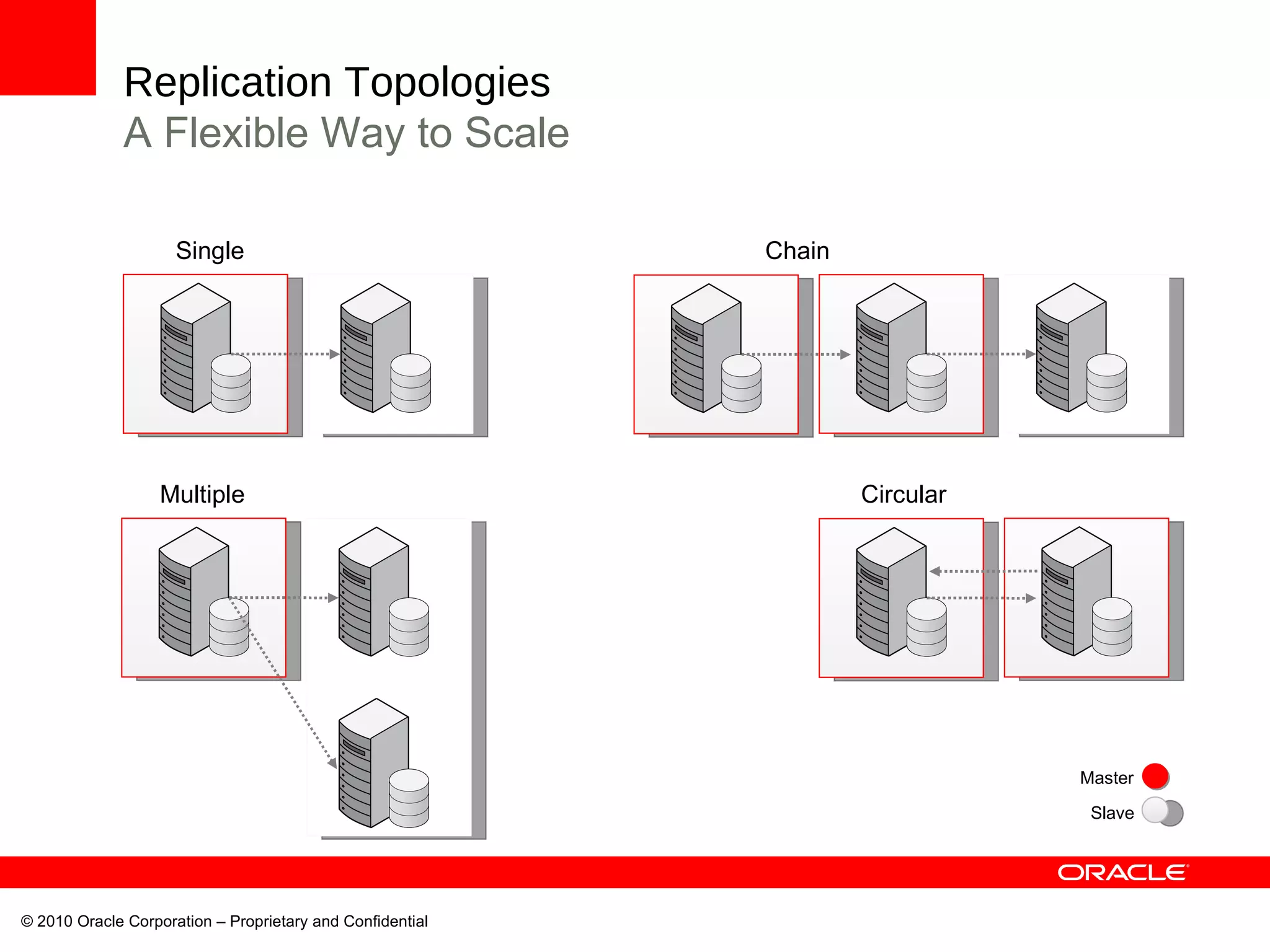

8. Replication Topologies A Flexible Way to Scale Multiple Single Chain Circular © 2010 Oracle Corporation – Proprietary and Confidential Master Slave

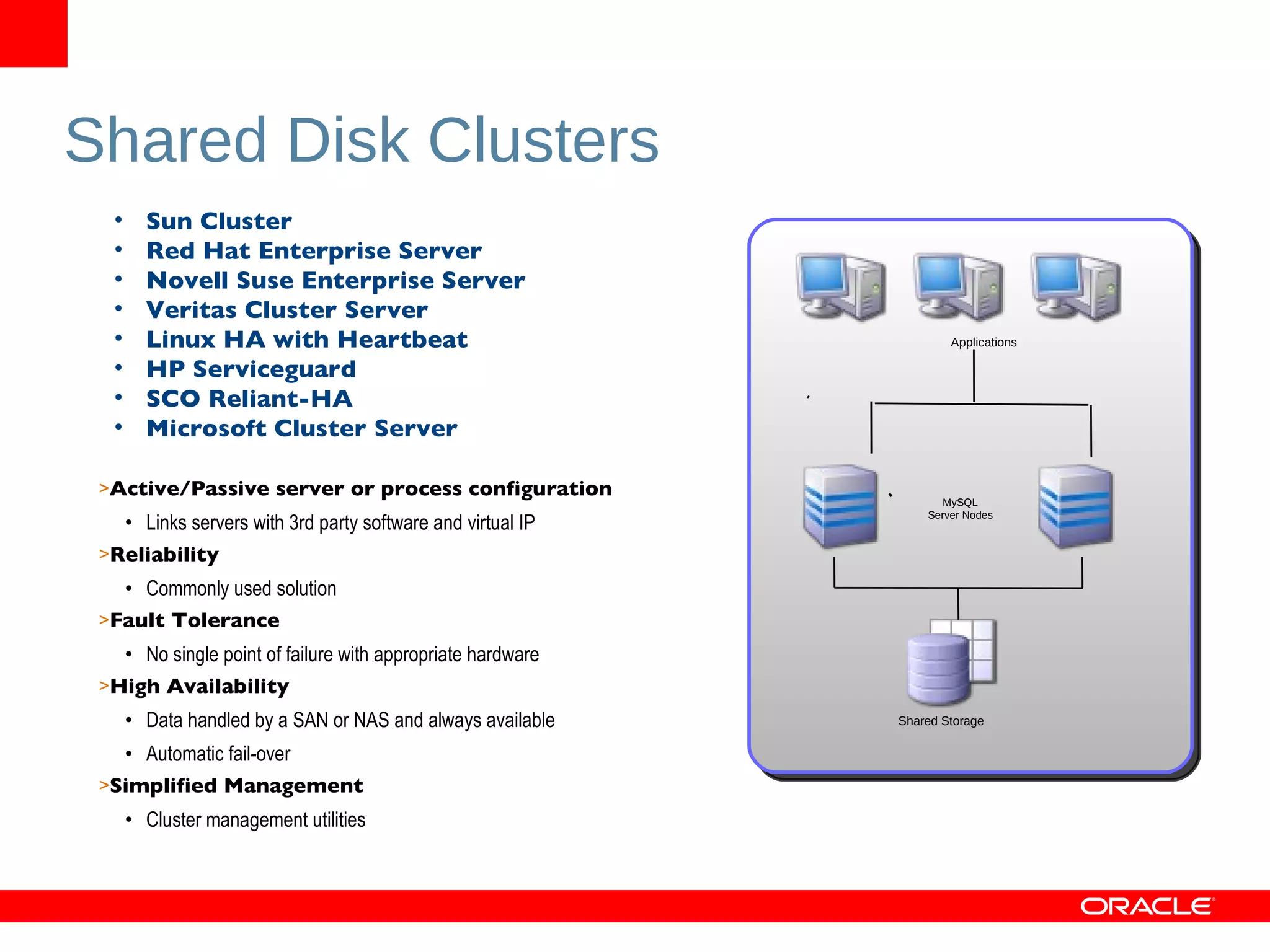

9. Shared Disk Clusters Active/Passive server or process configuration Links servers with 3rd party software and virtual IP Reliability Commonly used solution Fault Tolerance No single point of failure with appropriate hardware High Availability Data handled by a SAN or NAS and always available Automatic fail-over Simplified Management Cluster management utilities Sun Cluster Red Hat Enterprise Server Novell Suse Enterprise Server Veritas Cluster Server Linux HA with Heartbeat HP Serviceguard SCO Reliant-HA Microsoft Cluster Server MySQL Server Nodes Shared Storage Applications

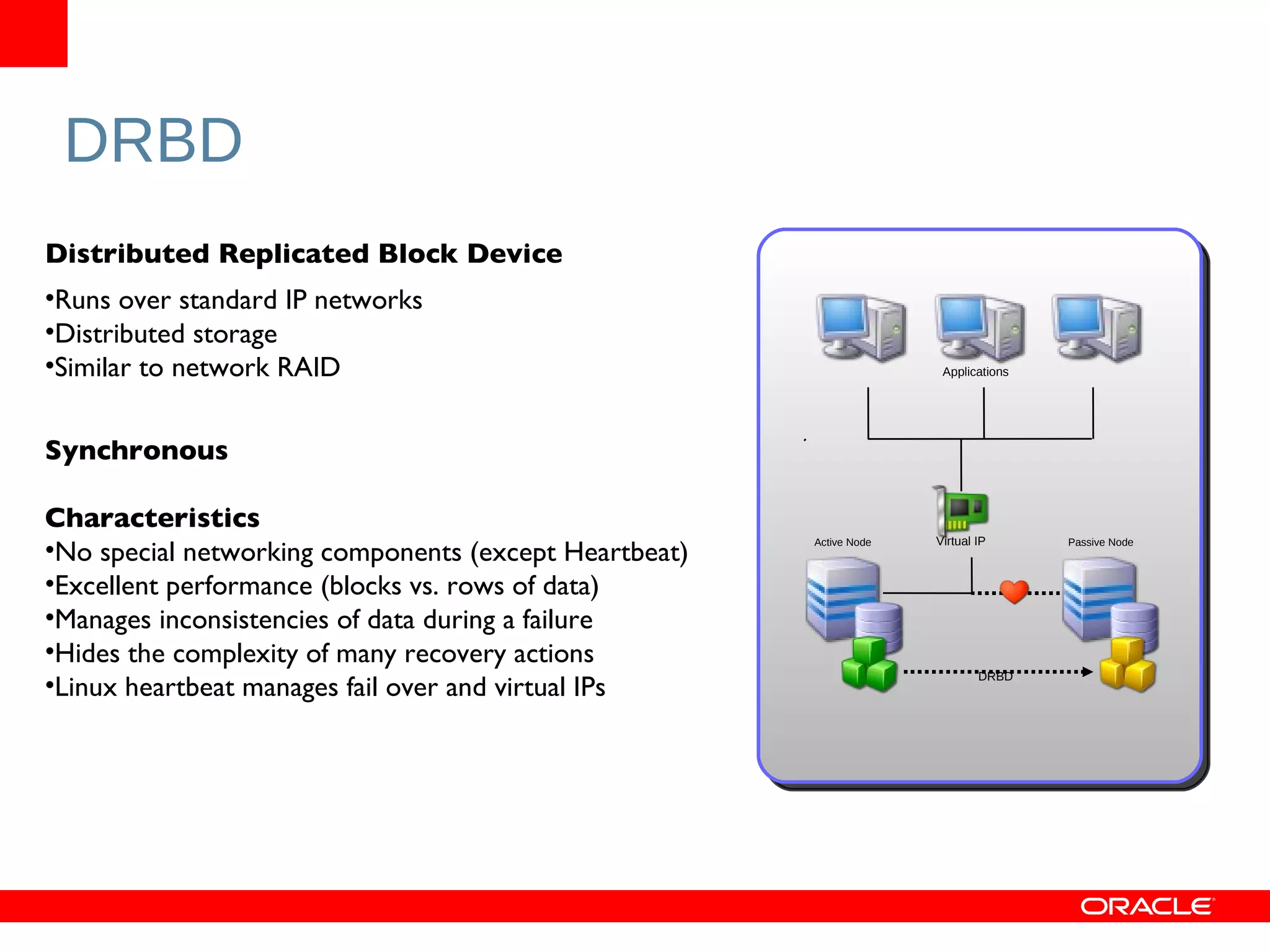

10. DRBD Distributed Replicated Block Device Runs over standard IP networks Distributed storage Similar to network RAID Synchronous Characteristics No special networking components (except Heartbeat) Excellent performance (blocks vs. rows of data) Manages inconsistencies of data during a failure Hides the complexity of many recovery actions Linux heartbeat manages fail over and virtual IPs Applications Virtual IP Active Node Passive Node DRBD

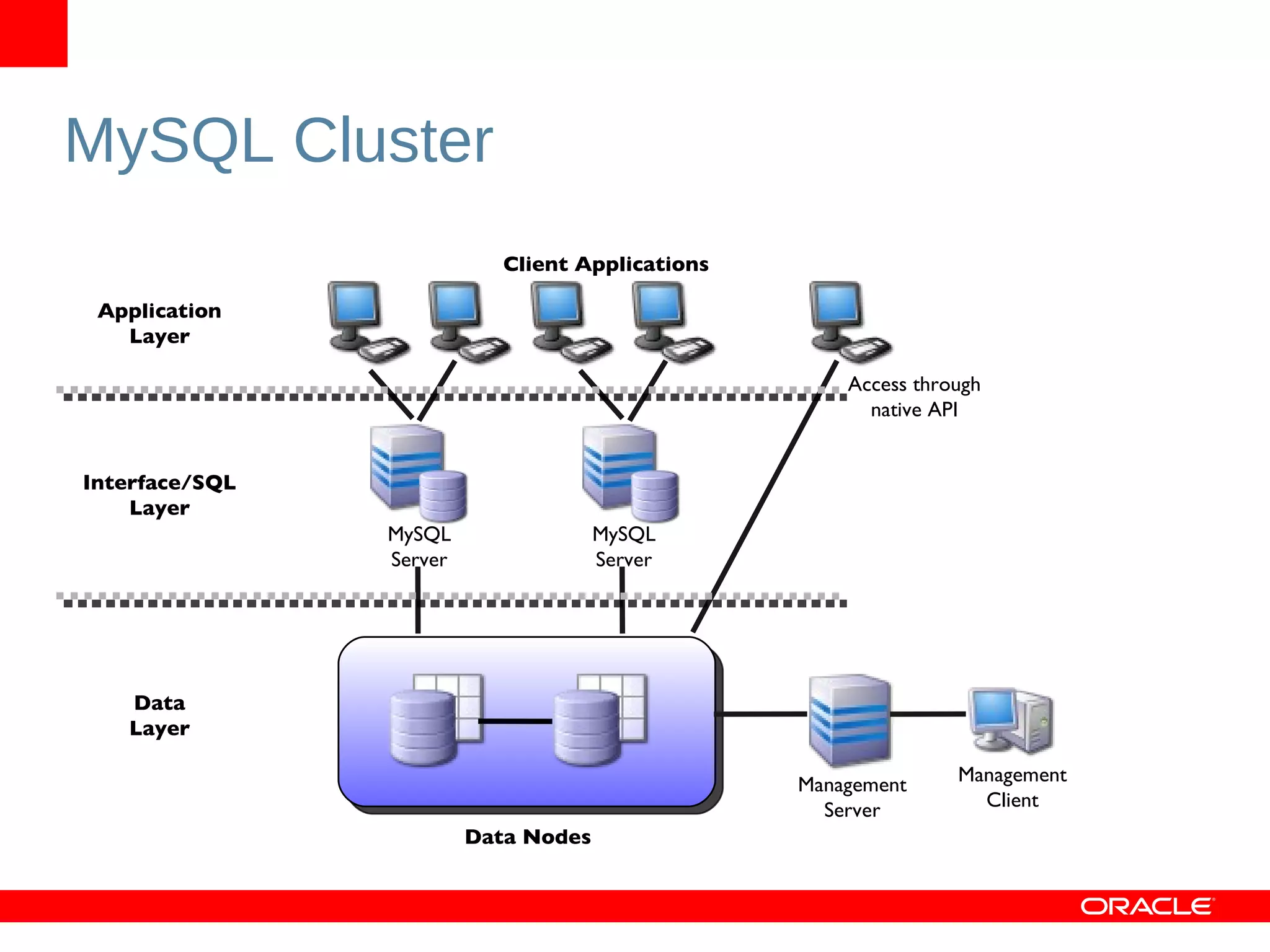

11. MySQL Cluster Application Layer Interface/SQL Layer Data Layer Data Nodes Management Server Client Applications MySQL Server Access through native API MySQL Server Management Client

12. MySQL Server 5.5

13. Making MySQL Better Everyday Announced at MySQL Sunday: MySQL 5.5 Release Candidate

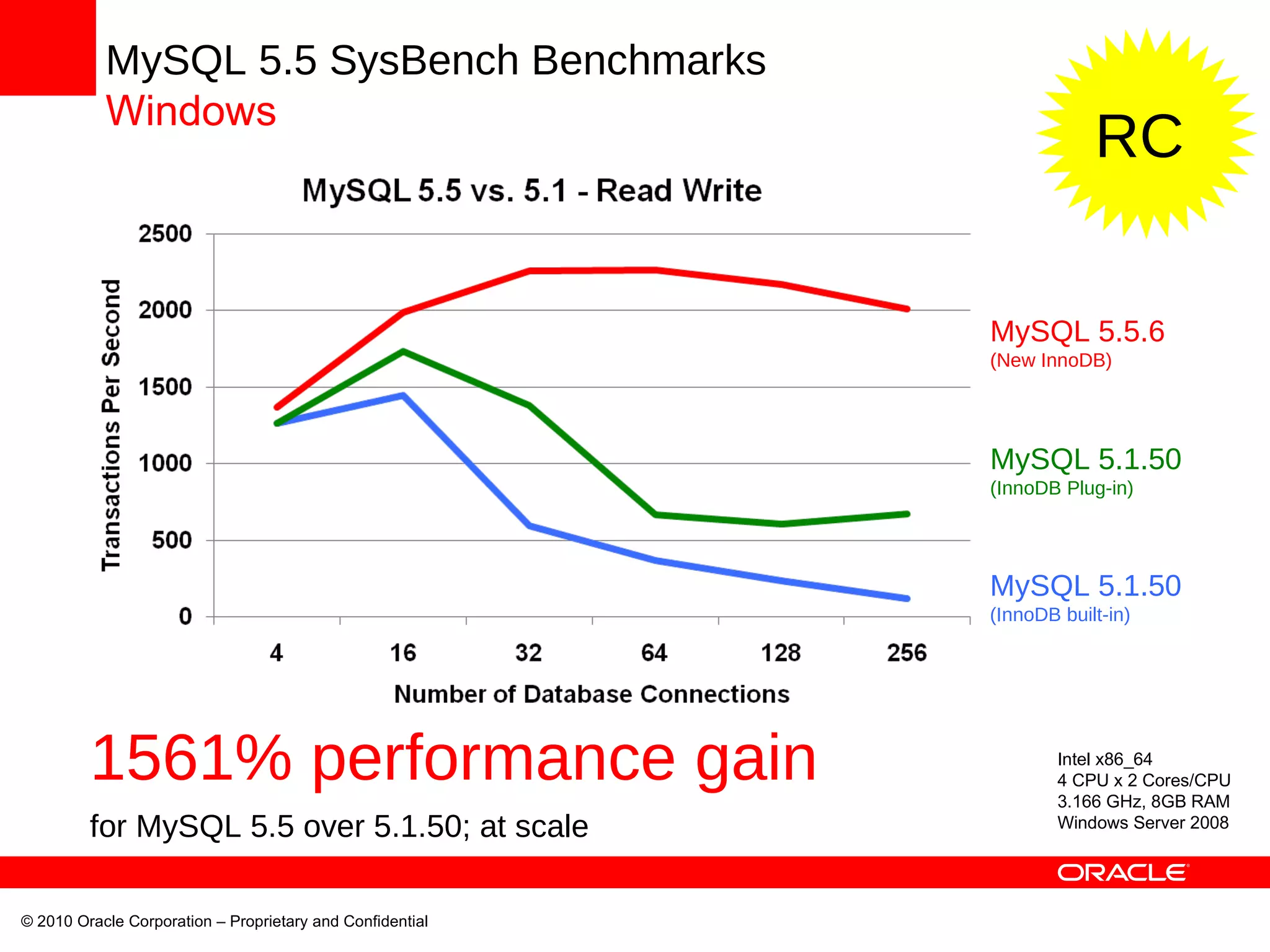

14. MySQL 5.5 SysBench Benchmarks Windows MySQL 5.1.50 (InnoDB built-in) MySQL 5.1.50 (InnoDB Plug-in) MySQL 5.5.6 (New InnoDB) Intel x86_64 4 CPU x 2 Cores/CPU 3.166 GHz, 8GB RAM Windows Server 2008 1561% performance gain for MySQL 5.5 over 5.1.50; at scale © 2010 Oracle Corporation – Proprietary and Confidential RC

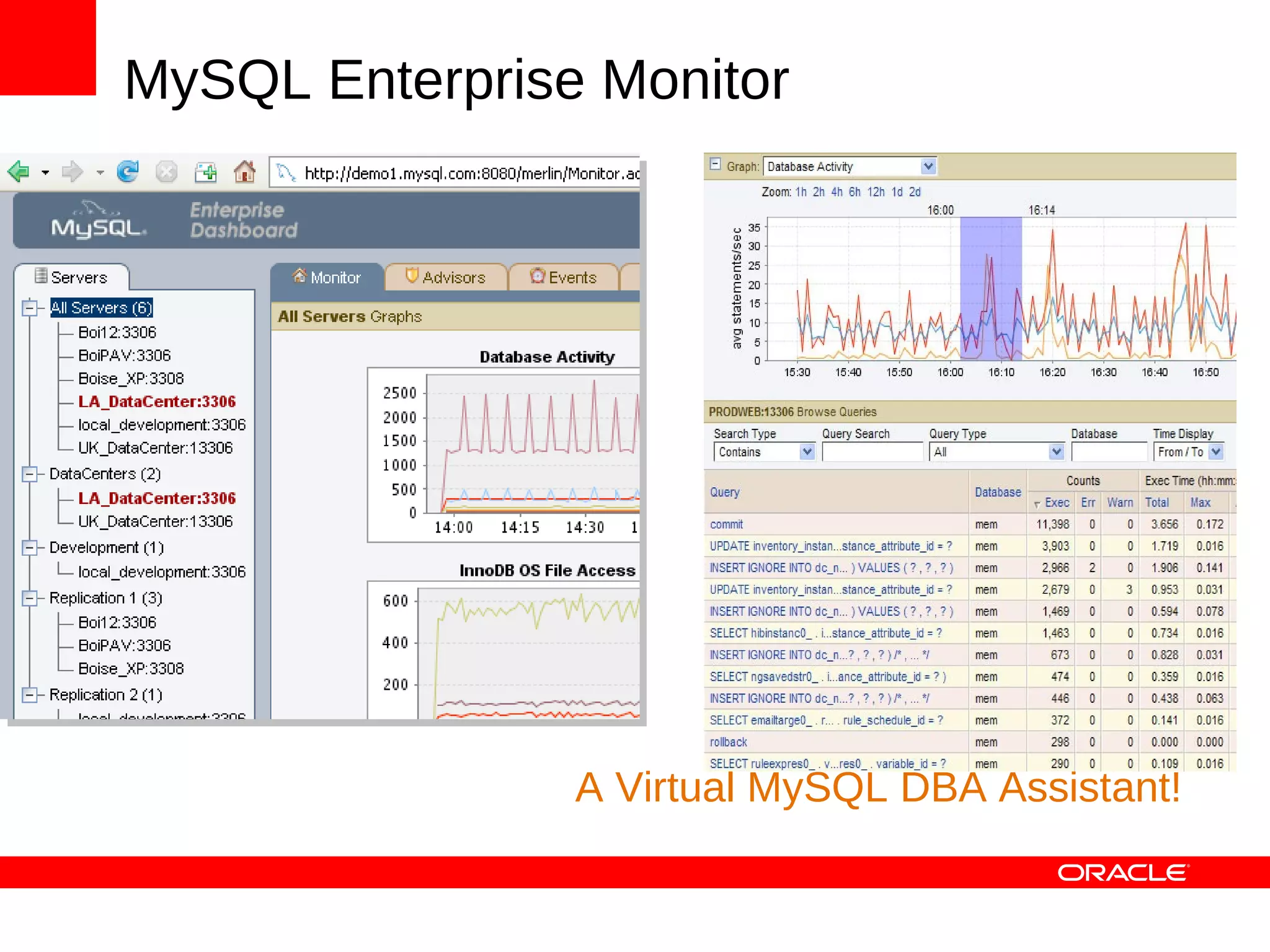

15. A Virtual MySQL DBA Assistant! MySQL Enterprise Monitor

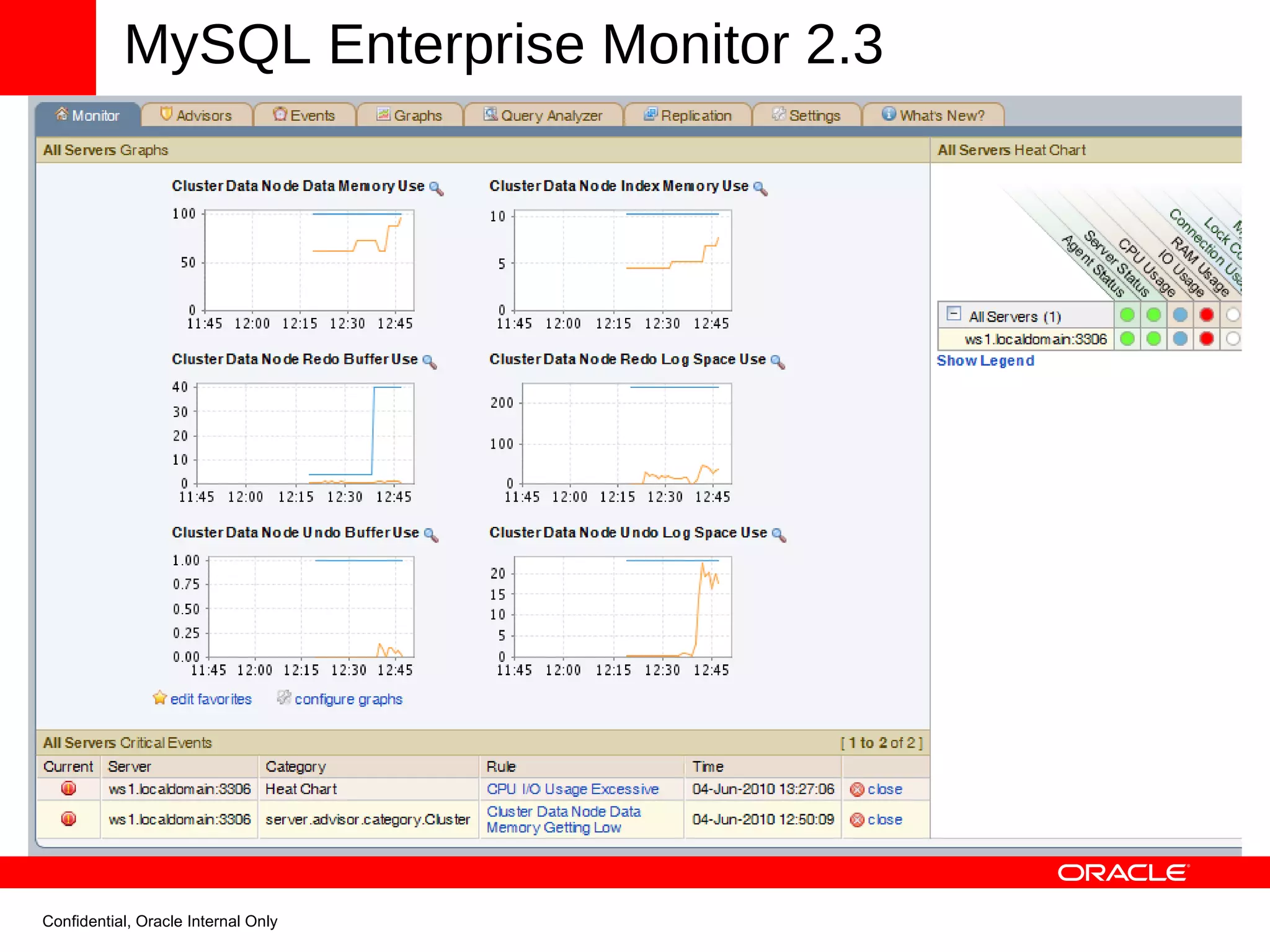

16. MySQL Enterprise Monitor 2.3 Confidential, Oracle Internal Only

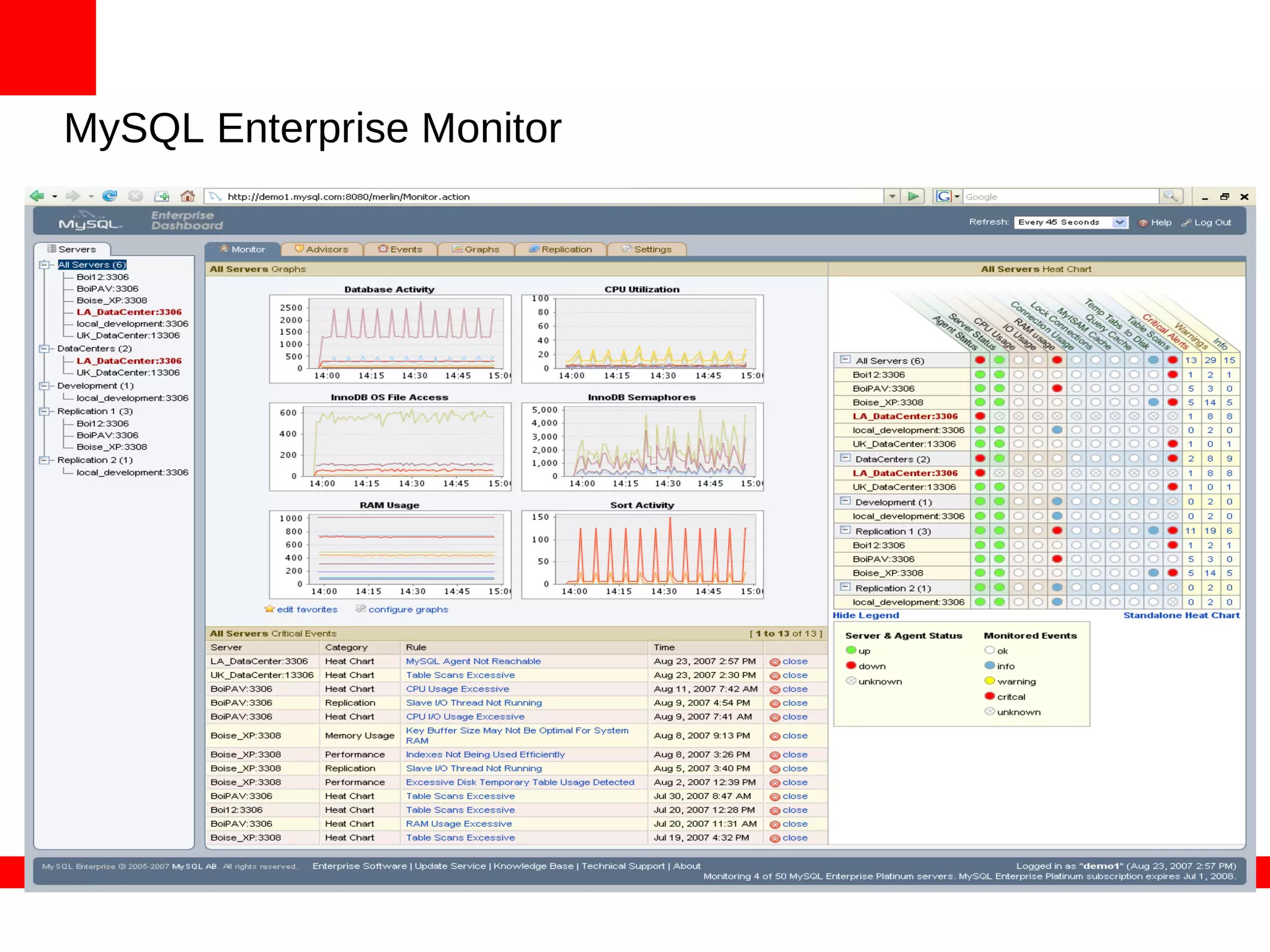

17. MySQL Enterprise Monitor

18. © 2010 Oracle Corporation – Proprietary and Confidential MySQL Marcelo Souza [email_address] MySQL Account Manager Henrique Leandro [email_address] MySQL Sales Consultant
