Window Porn for Passive House
- 1. WINDOW PORN forPassive House North American Passive House Conference, Portland 2010

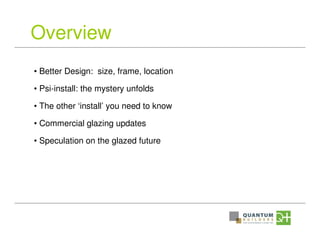

- 2. Overview • Better Design:size, frame, location • Psi-install: the mystery unfolds • The other ‘install’ you need to know • Commercial glazing updates • Speculation on the glazed future
- 3. Design matters… A B CD $83.310.1324.17645 5/7D $83.560.1324.17049 3/5C 0.146229 5/8B-2 $121.23 0.14 24.1 6226 3/8B-1 0.1515 3/856A-3 0.1446 5/829 5/8A-2 $143.12 0.14 24.1 46 5/826 3/8A-1 $BTU/hr.ft2 .FSF(")(") Cost/sf U- installed TotalHtWidth Window

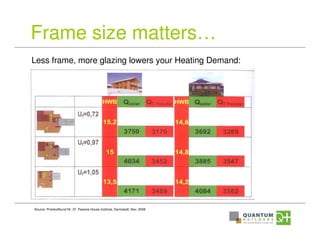

- 4. Frame size matters… Source:Protokollbund Nr. 37, Passive House Institute, Darmstadt, Nov. 2008 Less frame, more glazing lowers your Heating Demand:

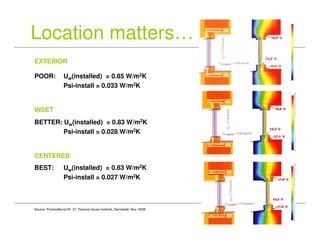

- 5. Location matters… Source: ProtokollbundNr. 37, Passive House Institute, Darmstadt, Nov. 2008 POOR: Uw(installed) = 0.85 W/m2K/m2K Psi-install = 0.033 W/m2K BETTER: Uw(installed) = 0.83 W/m2K0 W/m2K Psi-install = 0.028 W/m2K BEST: Uw(installed) = 0.83 W/m2KW/m2K Psi-install = 0.027 W/m2K EXTERIOR INSET CENTERED

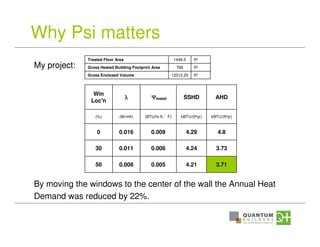

- 6. Why Psi matters 3.714.210.0050.00850 3.734.240.0060.01130 4.84.290.0090.0160 kBTU/(ft²yr)kBTU/(ft²yr)(BTU/hr.ft.°F)(W/mK)(%) AHDSSHDΨΨΨΨInstallλλλλ Win Loc'n ft312312.25GrossEnclosed Volume ft2796Gross Heated Building Footprint Area ft21448.5Treated Floor Area My project: By moving the windows to the center of the wall the Annual Heat Demand was reduced by 22%.

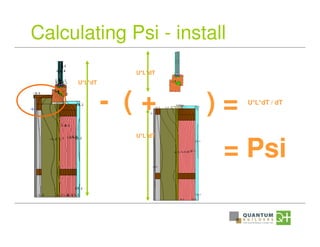

- 7. Calculating Psi -install - ( ) = U*L*dT U*L*dT U*L*dT U*L*dT / dT = Psi +

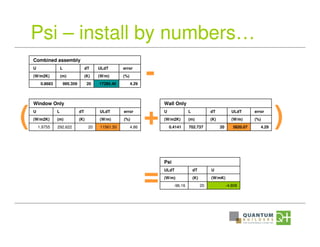

- 8. Psi – installby numbers… 4.2917285.4020995.3590.8683 (%)(W/m)(K)(m)(W/m2K) errorULdTdTLU Combined assembly 4.8611561.5020292.6221.9755 (%)(W/m)(K)(m)(W/m2K) errorULdTdTLU Window Only 4.295820.0720702.7370.4141 (%)(W/m)(K)(m)(W/m2K) errorULdTdTLU Wall Only - = ( + ) -4.80820-96.16 (W/mK)(K)(W/m) UdTULdT Psi

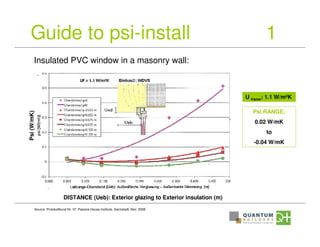

- 9. Guide to psi-install1 Insulated PVC window in a masonry wall: Source: Protokollbund Nr. 37, Passive House Institute, Darmstadt, Nov. 2008 DISTANCE (Ueb): Exterior glazing to Exterior insulation (m) Psi(W/mK) Psi RANGE: 0.02 W/mK to -0.04 W/mK U frame: 1.1 W/m2K
- 10. Guide to psi-install2 Insulated PVC window in a wood wall: Source: Protokollbund Nr. 37, Passive House Institute, Darmstadt, Nov. 2008 DISTANCE (Ueb): Exterior glazing to Exterior insulation (m) Psi(W/mK) Psi RANGE: 0.045 W/mK to -0.015 W/mK U frame: 1.1 W/m2K
- 11. Guide to psi-install3 Insulated Fiberglass + wood window in a wood wall: Source: Protokollbund Nr. 37, Passive House Institute, Darmstadt, Nov. 2008 DISTANCE (Ueb): Exterior glazing to Exterior insulation (m) Psi(W/mK) Psi RANGE: 0.017 W/mK to 0.007 W/mK U frame: 0.7 W/m2K

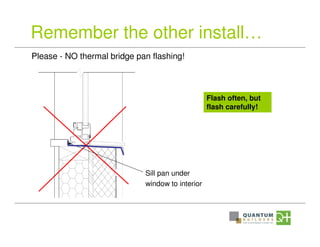

- 12. Remember the otherinstall… Please - NO thermal bridge pan flashing! Sill pan under window to interior Flash often, but flash carefully!

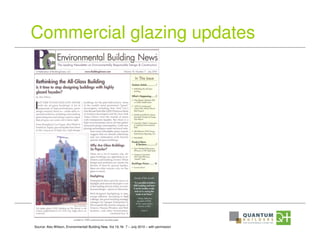

- 13. Commercial glazing updates Source:Alex Wiilson, Environmentatl Building New, Vol 19, Nr. 7 – July 2010 – with permission

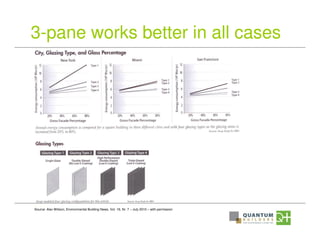

- 14. 3-pane works betterin all cases Source: Alex Wiilson, Environmental Building News, Vol. 19, Nr. 7 – July 2010 – with permission

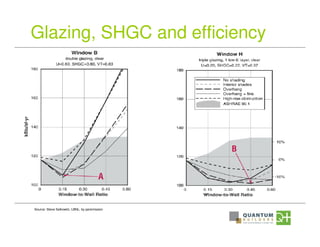

- 15. Glazing, SHGC andefficiency Source: Steve Selkowitz, LBNL, by persmission

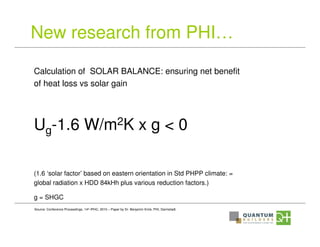

- 16. New research fromPHI… Source: Conference Proceedings, 14th IPHC, 2010 – Paper by Dr. Benjamin Krick, PHI, Darmstadt. Calculation of SOLAR BALANCE: ensuring net benefit of heat loss vs solar gain Ug-1.6 W/m2K x g < 0 (1.6 ‘solar factor’ based on eastern orientation in Std PHPP climate: = global radiation x HDD 84kHh plus various reduction factors.) g = SHGC
- 17. Wealth of USsolar insolation Hours of sun per day on an optimally tilted surface during the worst month of the year Source: National Renewable Energy Lab, www.nrel.gov/solar

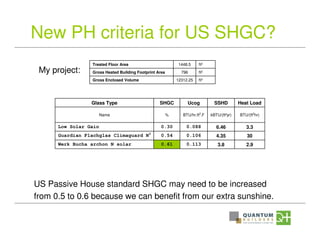

- 18. New PH criteriafor US SHGC? ft312312.25Gross Enclosed Volume ft2796Gross Heated Building Footprint Area ft21448.5Treated Floor Area My project: 2.93.80.1130.61Werk Bucha archon N solar 304.350.1060.54Guardian Flachglas Climaguard N3 3.36.460.0880.30Low Solar Gain BTU/(ft2 hr)kBTU/(ft²yr)BTU/hr.ft2 .F%Name Heat LoadSSHDUcogSHGCGlass Type US Passive House standard SHGC may need to be increased from 0.5 to 0.6 because we can benefit from our extra sunshine.

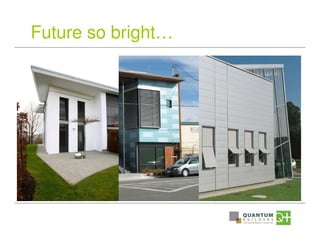

- 19.

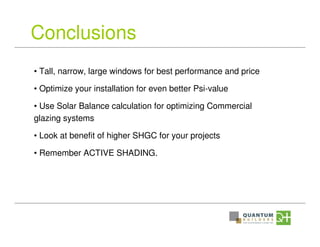

- 20. Conclusions • Tall, narrow,large windows for best performance and price • Optimize your installation for even better Psi-value • Use Solar Balance calculation for optimizing Commercial glazing systems • Look at benefit of higher SHGC for your projects • Remember ACTIVE SHADING.
- 21. Thank you! Presentation &Data: Bronwyn Barry Review & assistance: Guenter Pazen
