The document discusses MySQL, the most popular open-source database in the world. It covers how MySQL can provide high availability through replication and monitoring. It also describes MySQL Enterprise Monitor which provides a consolidated view of MySQL servers and reduces risk through query analysis. Key architectures like replication topologies, application partitioning, and sharding are explained to improve performance and scalability. An example of Wikipedia's large-scale use of MySQL is provided.
1. MySQL
Software Livre de Banco de Dados Mais Popular do Mundo
Henrique Leandro Brasil
Craig Sylvester - USA
Consultores MySQL/Database

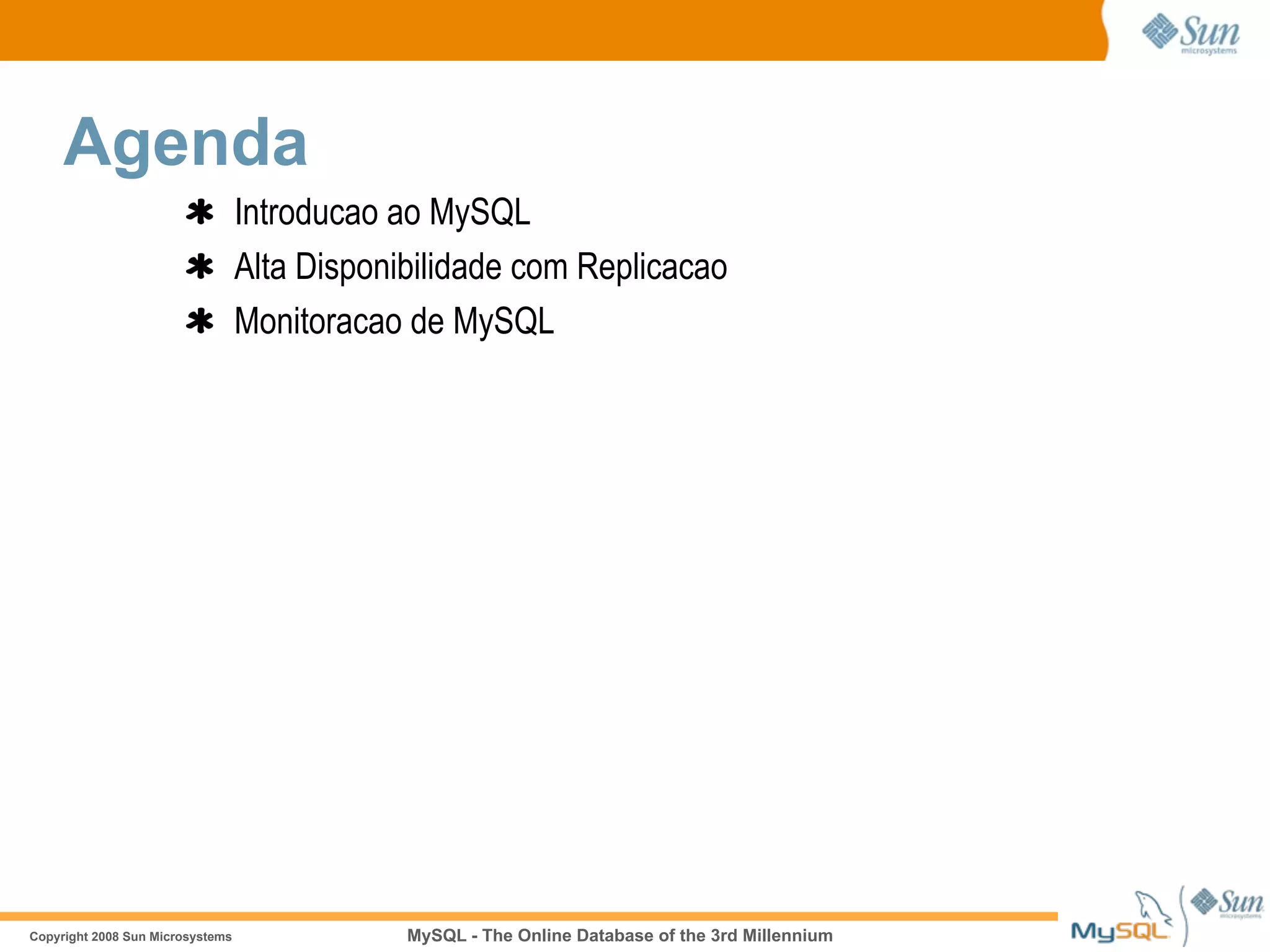

2. Agenda
Introducao ao MySQL
Alta Disponibilidade com Replicacao
Monitoracao de MySQL
Copyright 2008 Sun Microsystems MySQL - The Online Database of the 3rd Millennium
3. MySQL Architecture
MySQL Server
Copyright 2008 Sun Microsystems MySQL - The Online Database of the 3rd Millennium
4. MySQL Enterprise Monitor
• Consolidated view
• Auto discovery
• Customizable
• Reduce risk
• Query Analysis
• More effective DBAs
“Virtual MySQL DBA”
Assistant
Copyright 2008 Sun Microsystems MySQL - The Online Database of the 3rd Millennium
5. Enterprise Monitor Architecture
Customer Datacenter
Enterprise Dashboard
-Web-based, JSPs
Service Manager
-Java servlets exposed as web
services
-Linux, Solaris, Mac OSX and
MS Windows
MySQL Servers w/Agent
Repository
-MySQL DB
-historical performance data
for analysis
Service Agent
-lightweight C application
-for all Enterprise platforms
Copyright 2008 Sun Microsystems MySQL - The Online Database of the 3rd Millennium
6. Copyright 2008 Sun Microsystems MySQL - The Online Database of the 3rd Millennium
7. Copyright 2008 Sun Microsystems MySQL - The Online Database of the 3rd Millennium
9. MySQL Replication
Applications
Virtual IP
Master HA Slave Scale-out Slave Scale-out Slave Scale-out Slave
Replication
Replication
Copyright 2008 Sun Microsystems MySQL - The Online Database of the 3rd Millennium
10. Replication Topologies
Single Chain Circular
Multiple Multi - Master Multi - Circular
Copyright 2008 Sun Microsystems MySQL - The Online Database of the 3rd Millennium
11. MySQL Replication
Write
Read
Applications
Master
Slave/Master Slave/Master Slave/Master
Scale-out Slave Scale-out Slave Scale-out Slave Scale-out Slave Scale-out Slave Scale-out Slave Scale-out Slave
Copyright 2008 Sun Microsystems MySQL - The Online Database of the 3rd Millennium
12. Application Partitioning
• Significantly improves performance and scalability, but the
application must be designed to implement it
• Vertical Partitioning - 1:1 tables to reduce the size of rows,
tables and indexes
• Horizontal Partitioning - 1 table split on multiple tables with
different rows
• Tables can be split on multiple servers
Vertical Partitioning Horizontal Partitioning
Col1 Col2 Col3 Col4 Col5 Col1 Col2 Col1 Col3 Col4 Col5 Col1 Col2 Col3 Col4 Col5 Col1 Col2 Col3 Col4 Col5
Col1 Col2 Col3 Col4 Col5
Copyright 2008 Sun Microsystems MySQL - The Online Database of the 3rd Millennium
13. Sharding
Web/Application Servers
Write
Read
Copyright 2008 Sun Microsystems MySQL - The Online Database of the 3rd Millennium
14. Wikipedia Application
Online Encyclopedia - Constantly in the top
10 of the most visited websites worldwide
• 5M+ articles in 100 languages
• Tens of millions of visitors each day with
500K edits
• Based on LAMP
• 20+ replicated DB servers + lightweight
MySQL instances as distributed archive
solutions
Language based server splitting (application
partitioning)
Performance
• 3,000 pageviews / second
• 8,000+ http requests / second
• 25,000+ SQL requests / second
MySQL Key Points
• 90% of DB Server Memory is InnoDB
buffer pool
• General availability and scalability using
replication
Copyright 2008 Sun Microsystems MySQL - The Online Database of the 3rd Millennium
