MTX-3G-JAVA-BT allows remote maintenance and control of vending machines over 2G or 3G networks or locally via Bluetooth without cables. It can send machine serial data to a server, read sensors, and switch devices via digital outputs. MTX-IND-3G creates wireless mesh networks to connect external sensors for applications like smart cities, reading hundreds of meters remotely. It has 3G connectivity, RS232/485 interfaces, and internal battery backup. MTX-65+G provides vehicle telematics solutions for fleet management with GPS, accelerometer, internal battery, and ability to remotely read sensors and switch digital outputs. It can automatically switch on from stop to movement.

1. 2G/3G
INTERNET
RS232
RS485
MTX-3G-JAVA-BT
VENDING MACHINE
BLUETOOTH
SMARTPHONE
OFFICE

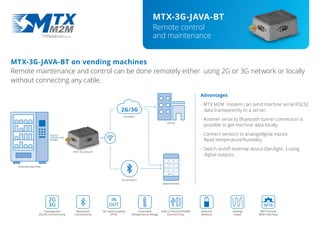

MTX-3G-JAVA-BT on vending machines
Remote maintenance and control can be done remotely either using 2G or 3G network or locally
without connecting any cable.
Remote control
and maintenance
MTX-3G-JAVA-BT
Advantages
- MTX M2M modem can send machine serial RS232
data transparently to a server.
- Another serial to Bluetooth tunnel connection is
possible to get machine data locally.
- Connect sensors to analog/digital inputs:
Read temperature/humidity.
- Switch on/off external device (fan/light…) using
digital outputs.
MTX
MTX Tunnel
Web Interface
Analog
Input
Internal
Battery
USB 2.0 RS232/RS485
Connectivity
Extended
Temperature Range
I2C Optocoupled
GPIO
Bluetooth
Connectivity
2G
3G
Transparent
2G/3G Connectivity

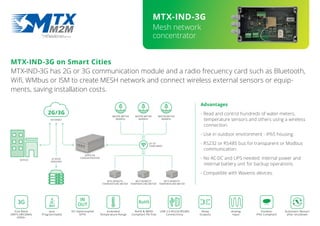

2. MTX-IND-3G on Smart Cities
MTX‐IND‐3G has 2G or 3G communication module and a radio frecuency card such as Bluetooth,
Wifi, WMbus or ISM to create MESH network and connect wireless external sensors or equip-
ments, saving installation costs.
Mesh network
concentrator
MTX-IND-3G
Advantages
- Read and control hundreds of water meters,
temperature sensors and others using a wireless
connection.
- Use in outdoor environment - IP65 housing.
- RS232 or RS485 bus for transparent or Modbus
communication.
- No AC-DC and UPS needed: internal power and
internal battery unit for backup operations.
- Compatible with Wavenis devices.
UP TO
12KM AWAY
WATER METER
868MHz
WATER METER
868MHz
WATER METER
868MHz
MTX-REMOTE
TEMPERATURE METER
MTX-REMOTE
TEMPERATURE METER
MTX-REMOTE
TEMPERATURE METER
GPRS/3G
CONCENTRATOR
INTERNET
2G/3G
OFFICE IP DATA
SENSORS
3G
Five Band
UMTS (WCDMA)
HSPA+
Java
Programmable
I2C Optocoupled
GPIO
Extended
Temperature Range
RoHS
RoHS & WEEE
Compliant Pb-free
Analog
Input
USB 2.0 RS232/RS485
Connectivity
Relay
Outputs
Outdoor
IP65 Compliant
Automatic Restart
after shutdown

3. MTX-65+G on fleet management
MTX‐65+G provides smooth vehicle telematics solutions, efficient and safe operations for both
fleets and mobile units.
Fleet management, AVL
and transport solutions
MTX-65+G
Advantages
- MTX‐65i+G modem includes GPS/GLONASS
receiver plus accelerometer.
- Extra internal Li‐Po battery.
- Remote reading of sensor/device (temperature) on
RS232 port. Use analog or digital inputs (ignition
contact, door switch) or switch a digital output.
- Automatic switch on from stop to movement.
- MTXM2M with GNSS can be JAVA programmed or
have MTX‐TUNNEL‐GPS track&tracing software for
a fast time to market.
Automatic Restart
after shutdown
MTX65+G
INTERNET
2G/3G
OFFICE
GPS POSITIONS
& TELEMETRY
SERVER DATABASE FLEET VEHICLE
GPS DATA
GSM/GPRS
Quad Band
Java
Programmable
3-Axis
Accelerometer
GPSI2C Optocoupled
GPIO
Extended
Temperature Range
Analog
Input
Internal
Battery
USB 2.0 RS232/RS485
Connectivity

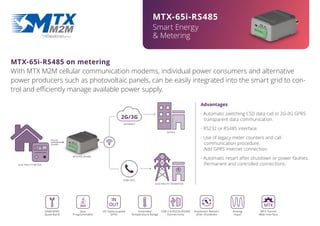

4. MTX-65i-RS485 on metering
With MTX M2M cellular communication modems, individual power consumers and alternative
power producers such as photovoltaic panels, can be easily integrated into the smart grid to con-
trol and efficiently manage available power supply.
Smart Energy
& Metering
MTX-65i-RS485
Advantages
- Automatic switching CSD data call to 2G‐3G GPRS
transparent data communication.
- RS232 or RS485 interface.
- Use of legacy meter counters and call
communication procedure.
Add GPRS internet connection.
- Automatic resart after shutdown or power faulties.
Permanent and controlled connections.
Automatic Restart
after shutdown
GSM/GPRS
Quad Band
Java
Programmable
I2C Optocoupled
GPIO
Extended
Temperature Range
Analog
Input
USB 2.0 RS232/RS485
Connectivity
OFFICE
ELECTRICITY OPERATOR
2G/3G
INTERNET
GSM CALL
RS232
RS485
MTX‐65I‐RS485
ELECTRICITY METER
MTX
MTX Tunnel
Web Interface

5. MTX-DIN-3G on Modbus applications
MTX M2M wireless modem can interface and read/write RS485 ModBus equipment. All informa-
tion is packed in JSON object format to make easy central server applications.
Advantages
- RS485 ModBus RTU to TCP tunneling.
- ModBus register reading and writing remotely.
Datalogger.
- JSON packetized data transmission allow easy
front office server application (web page)
- Extra I2C, GPIO and relays to read sensors or
swith any load.
I2C Optocoupled
GPIO
Extended
Temperature Range
Analog
Input
USB 2.0 RS232/RS485
Connectivity
MTX
MTX Tunnel
Web Interface
Modbus Telemetry
MTX-DIN-2G
INTERNET
MTX-65I-RS485
2G/3G
MODBUS DATA
(JSON)
USER INTERFACE
RS485
MODBUS DEVICES
3G
Five Band
UMTS (WCDMA)
HSPA+
Java
Programmable
Relay
Outputs
DIN rail
Housing
DIN
rail
ModBus & ISM
Sensor Monitoring

6. RS485
MODBUS DEVICES
INTERNET
USB DEVICE
USER INTERFACE
4G-LTE
IP DATA SENSORS
(JSON)
MTX-REMOTE
TEMPERATURE METER
ETHERNET
IP CAMERA
WI-FI ENABLED
DEVICES
MTX-TITAN as IoT Gateway
Features the most complete interfaces in one equipment. Ethernet, serial, GPIO, USB, wireless Wifi
and 3G/4G are the perfect connections for Smart City and IoT Gateway applications.
IoT Gateway: Connect
everything to the internet
MTX-TITAN
Advantages
- Serial, USB and Ethernet data communication
machiines to 3G/4G connection.
- Wifi (Access point) provides local internet
connectivity.
- Flexible connections and tunneling
- LTE-4G used for Video security streaming.
- Control Modbus equipments (water meter, Street
lighting, noise/polution sensors etc..)
- ISM, Bluetooth or Zigbee radio frequency card to
create mesh sensor network.
- Use relay and control any external devices
MTX
MTX Tunnel
Web Interface
ModBus & ISM
Sensor Monitoring
Relay
Outputs
Relay
Outputs
USB 2.0 RS232/RS485
Connectivity
Extended
Temperature Range
DynDNS/No-IP
Compatible
Dyn
DNS
EthernetSMS Alarms
and Control
Quad Band LTE
Tri Band HSPA+
UMTS (WCDMA)
4G
