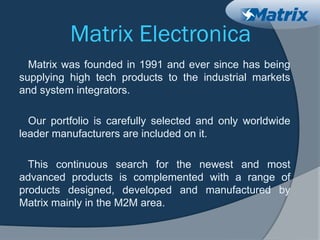

2. Matrix Electronica
Matrix was founded in 1991 and ever since has being
supplying high tech products to the industrial markets
and system integrators.
Our portfolio is carefully selected and only worldwide
leader manufacturers are included on it.
This continuous search for the newest and most
advanced products is complemented with a range of
products designed, developed and manufactured by
Matrix mainly in the M2M area.

3. MTX-65i, MTX-65ULP, MTX-65i-RS485
Based on Cinterion’s TC65i GSM/GPRS Java module
 MTX-65i:
2 RS232 ports, USB, I2C/SPI, 4 GPIO + 2 ADC
 MTX-65ULP (Ultra Low Power):
2 RS232 ports, USB, I2C/SPI, 4 GPIO + 2 ADC
 ULP: Ultra Low Power means that the entire modem is switched off.
Only the internal RTC is powered from the battery/power supply (a small
button battery guarantees 10 years date retention).
 In Ultra Low Power mode consumption is only 2.5uA (typical)
 Can be switched ON by RTC programmed alarm or by any of the 4
external inputs.
 MTX-65i+RS485
 1 RS485 serial
 1 RS232 serial

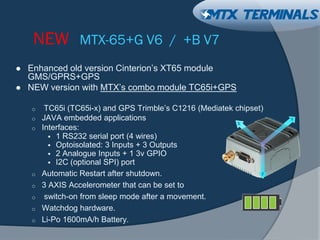

4. NEW MTX-65+G V6 / +B V7
 Enhanced old version Cinterion’s XT65 module
GMS/GPRS+GPS
 NEW version with MTX’s combo module TC65i+GPS
o TC65i (TC65i-x) and GPS Trimble’s C1216 (Mediatek chipset)
o JAVA embedded applications
o Interfaces:
 1 RS232 serial port (4 wires)
 Optoisolated: 3 Inputs + 3 Outputs
 2 Analogue Inputs + 1 3v GPIO
 I2C (optional SPI) port
o Automatic Restart after shutdown.
o 3 AXIS Accelerometer that can be set to
o switch-on from sleep mode after a movement.
o Watchdog hardware.
o Li-Po 1600mA/h Battery.

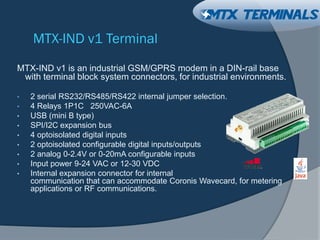

5. MTX-IND v1 Terminal
MTX-IND v1 is an industrial GSM/GPRS modem in a DIN-rail base
with terminal block system connectors, for industrial environments.
• 2 serial RS232/RS485/RS422 internal jumper selection.
• 4 Relays 1P1C 250VAC-6A
• USB (mini B type)
• SPI/I2C expansion bus
• 4 optoisolated digital inputs
• 2 optoisolated configurable digital inputs/outputs
• 2 analog 0-2.4V or 0-20mA configurable inputs
• Input power 9-24 VAC or 12-30 VDC
• Internal expansion connector for internal
communication that can accommodate Coronis Wavecard, for metering
applications or RF communications.

6. MTX-IND v2 Terminal
MTX-IND v2 is an industrial GSM/GPRS modem in a IP65 housing
with terminal block system connectors, for industrial environments.
• 2 serial RS232/RS485/RS422 internal jumper selection
• 4 Relays 1P1C 250VAC-6A
• USB (mini B type)
• SPI/I2C expansion bus
• 4 optoisolated digital inputs
• 2 optoisolated configurable digital inputs/outputs
• 2 analog 0-2.4V or 0-20mA configurable inputs
• Input power: 90-264VAC/120-370VDC or 9-30 VDC
• 1600mA Li-Po Battery
• Internal or external antennas
• Internal expansion connector for RF cards such as: Coronis Wavecard,
Bluetooth, Zigbee, Xbee, GPS and others.

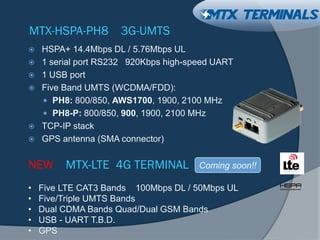

7. MTX-HSPA-PH8 3G-UMTS
 HSPA+ 14.4Mbps DL / 5.76Mbps UL
 1 serial port RS232 920Kbps high-speed UART
 1 USB port
 Five Band UMTS (WCDMA/FDD):
 PH8: 800/850, AWS1700, 1900, 2100 MHz
 PH8-P: 800/850, 900, 1900, 2100 MHz
 TCP-IP stack
 GPS antenna (SMA connector)
NEW MTX-LTE 4G TERMINAL
• Five LTE CAT3 Bands 100Mbps DL / 50Mbps UL
• Five/Triple UMTS Bands
• Dual CDMA Bands Quad/Dual GSM Bands
• USB - UART T.B.D.
• GPS
Coming soon!!

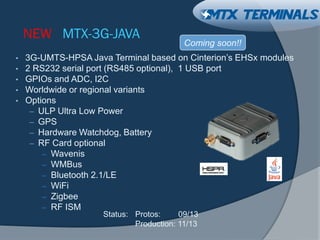

8. NEW MTX-3G-JAVA
• 3G-UMTS-HPSA Java Terminal based on Cinterion’s EHSx modules
• 2 RS232 serial port (RS485 optional), 1 USB port
• GPIOs and ADC, I2C
• Worldwide or regional variants
• Options
– ULP Ultra Low Power
– GPS
– Hardware Watchdog, Battery
– RF Card optional
– Wavenis
– WMBus
– Bluetooth 2.1/LE
– WiFi
– Zigbee
– RF ISM
Coming soon!!
Status: Protos: 09/13
Production: 11/13

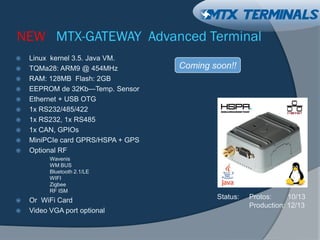

9. NEW MTX-GATEWAY Advanced Terminal
 Linux kernel 3.5. Java VM.
 TQMa28: ARM9 @ 454MHz
 RAM: 128MB Flash: 2GB
 EEPROM de 32Kb—Temp. Sensor
 Ethernet + USB OTG
 1x RS232/485/422
 1x RS232, 1x RS485
 1x CAN, GPIOs
 MiniPCIe card GPRS/HSPA + GPS
 Optional RF
Wavenis
WM BUS
Bluetooth 2.1/LE
WIFI
Zigbee
RF ISM
 Or WiFi Card
 Video VGA port optional
Status: Protos: 10/13
Production: 12/13
Coming soon!!

10. MTX-TUNNEL v7
 MTX-TUNNEL is an application running on MTX-JAVA enabled
terminals. It is similar to an RS232-GPRS Gateway; all the data at the
serial port is sent by GPRS and viceversa, in transparent mode.
 For MTX-65i, MTX-65-ULP, MTX-IND and MTX-65+G**
ADSL GPRS
MTX-Tunnel
RS232/485 Based
End Device
RS232
RS485

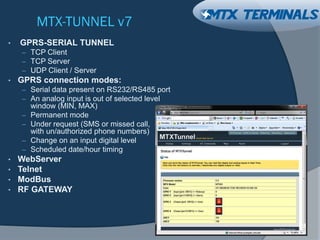

11. MTX-TUNNEL v7
• GPRS-SERIAL TUNNEL
– TCP Client
– TCP Server
– UDP Client / Server
• GPRS connection modes:
– Serial data present on RS232/RS485 port
– An analog input is out of selected level
window (MIN, MAX)
– Permanent mode
– Under request (SMS or missed call,
with un/authorized phone numbers)
– Change on an input digital level
– Scheduled date/hour timing
• WebServer
• Telnet
• ModBus
• RF GATEWAY

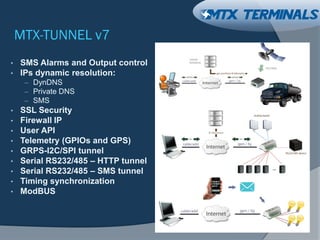

12. MTX-TUNNEL v7
• SMS Alarms and Output control
• IPs dynamic resolution:
– DynDNS
– Private DNS
– SMS
• SSL Security
• Firewall IP
• User API
• Telemetry (GPIOs and GPS)
• GRPS-I2C/SPI tunnel
• Serial RS232/485 – HTTP tunnel
• Serial RS232/485 – SMS tunnel
• Timing synchronization
• ModBUS

13. gsmsupport@matrix.es
 Total Emails gsmsupport in-out: 3215
Our Team of Engineers.
1 FAE & Product Manager Jesus Santos
1 Technical manager Jose Angel Llano
1 Designer FAE Carlos Pozuelo
1 Designer and JAVA FAE Jose Maria Gallego
1 Technical assistance for lab and tests Miguel Angel Espada
1 Accessories FAE & PM Antonio Dorado
1 Embedded FAE (LINUX, CE and other OS) Ruben Rodriguez
1 Networking FAE Daniel Cortes
1 RF FAE (Bluetooth, Wifi, Mesh…) Carmen Tarrio
CINTERION Projects : 753 Customers.
Active Customers in 2012: 475 customers

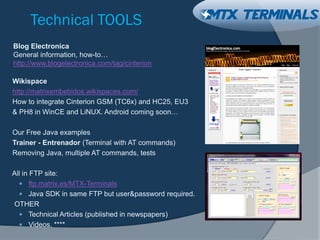

14. Technical TOOLS
