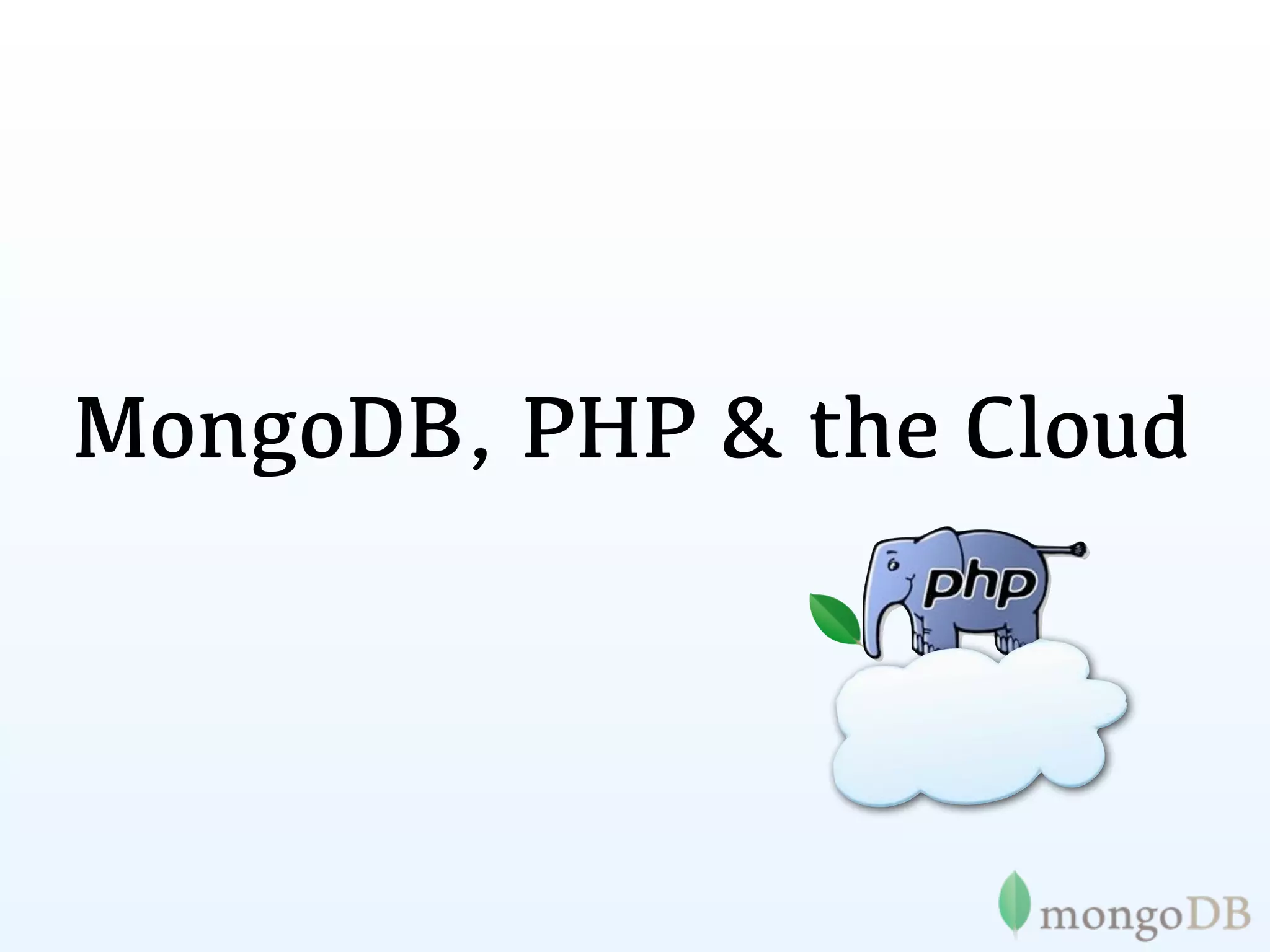

1. MongoDB, PHP & the Cloud

2. My name is
Steve Francia
@spf13

3. • 15+ years building the
internet
• Father, husband,
skateboarder
• Chief Solutions Architect @
10gen
• Author of upcoming O’Reilly
publication
“MongoDB and PHP”

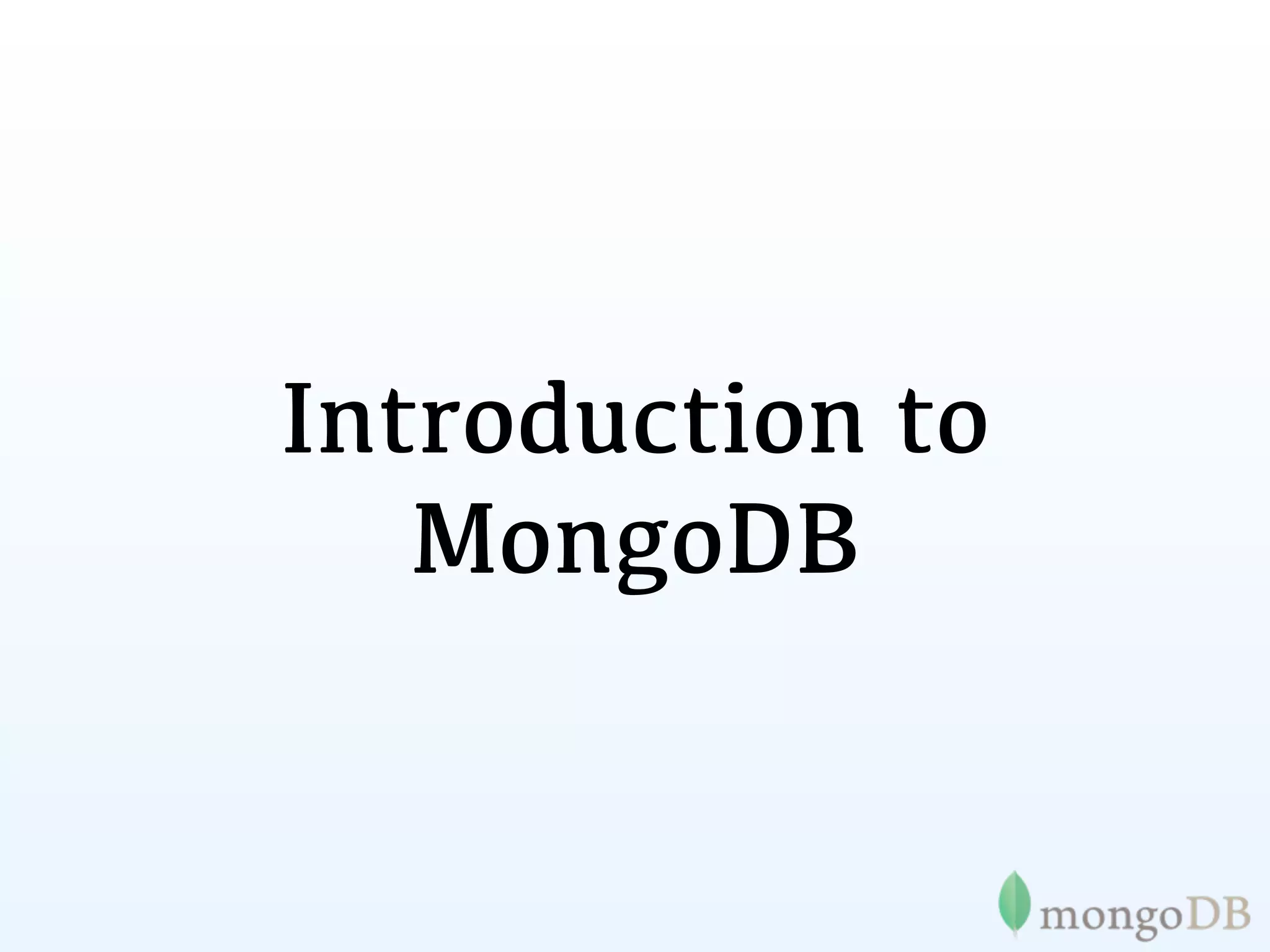

4. Introduction to
MongoDB

5. Why MongoDB?

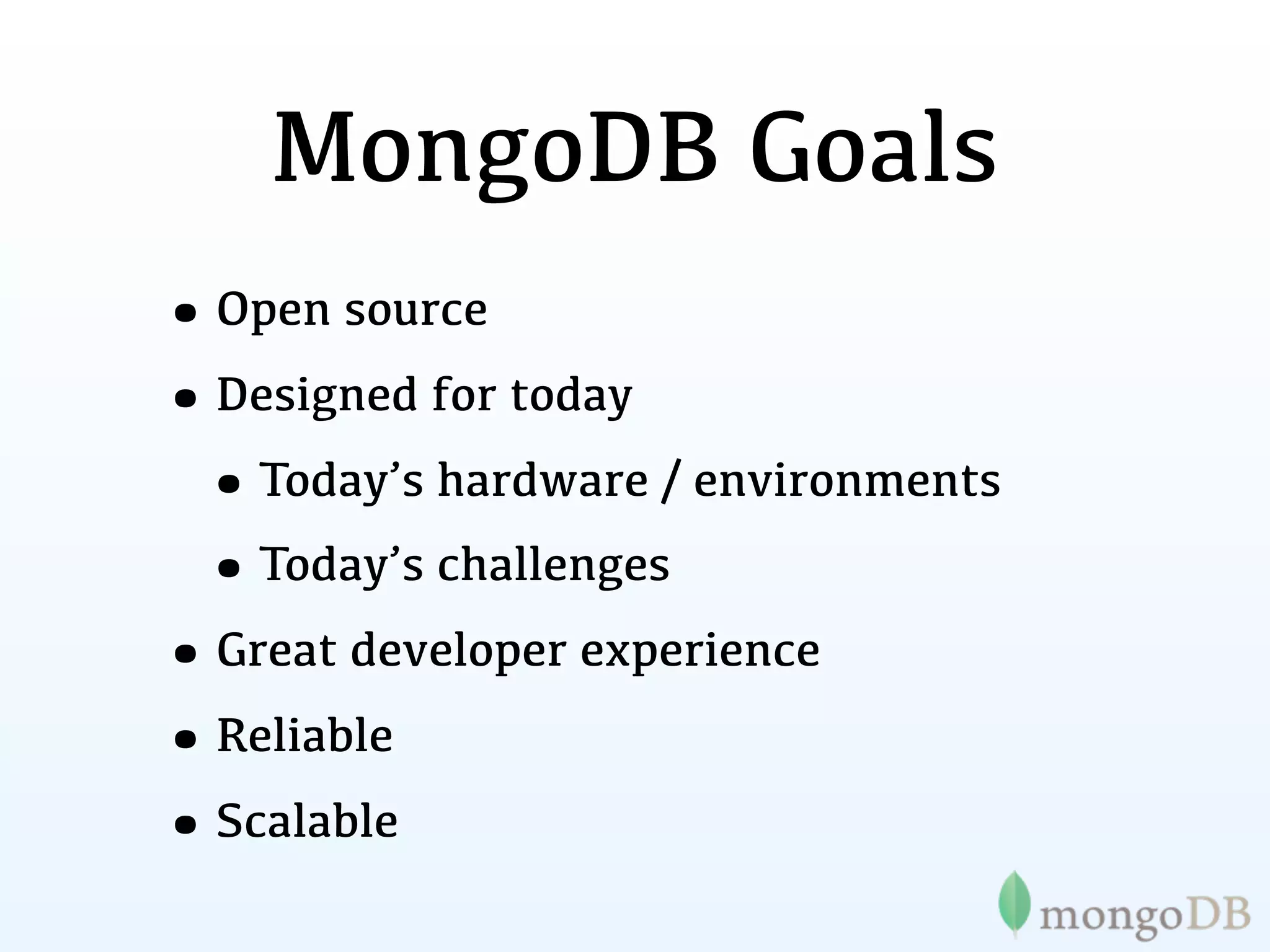

6. MongoDB Goals
• Open source
• Designed for today
• Today’s hardware / environments
• Today’s challenges
• Great developer experience
• Reliable
• Scalable

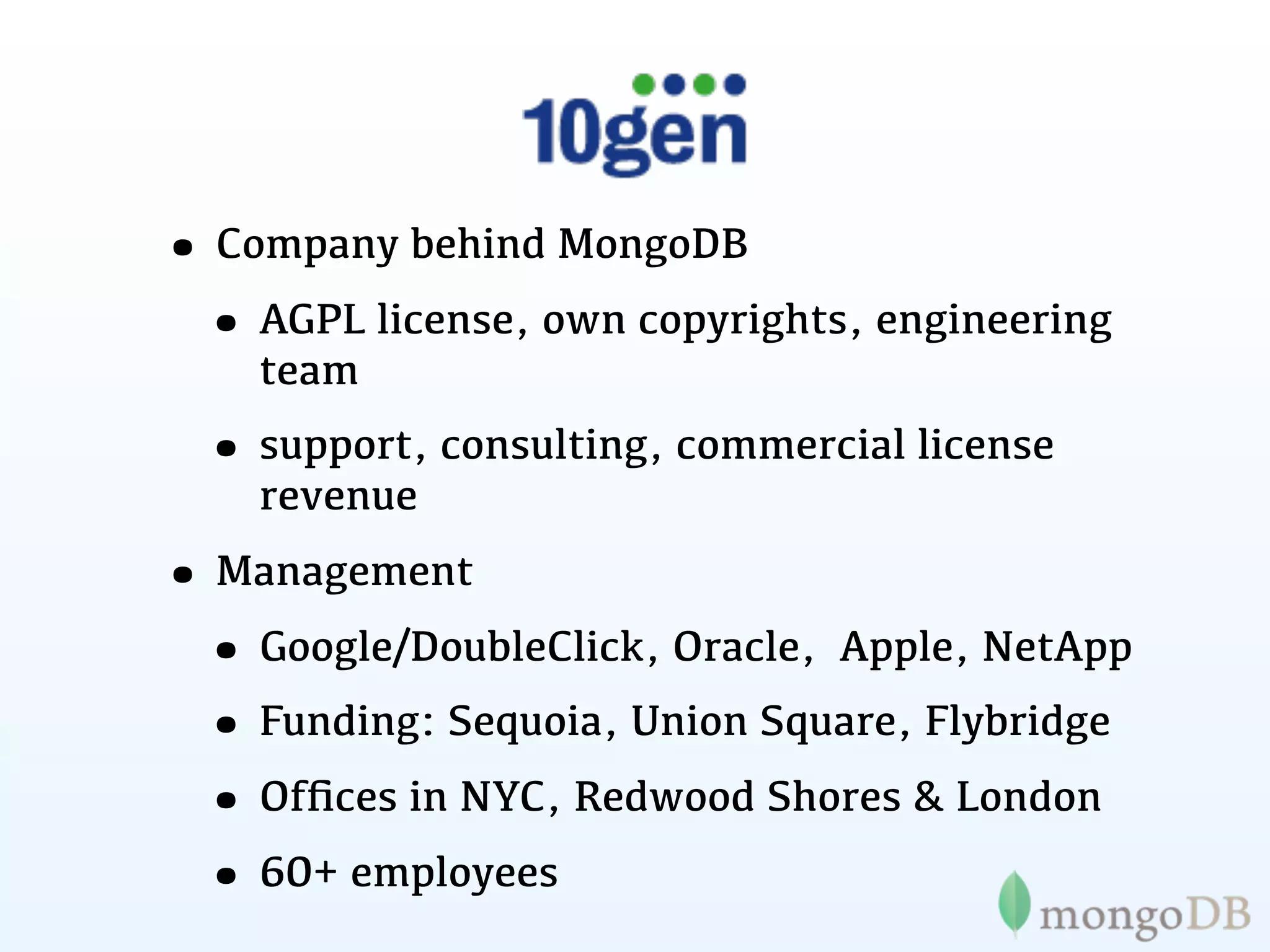

7. • Company behind MongoDB
• AGPL license, own copyrights, engineering
team
• support, consulting, commercial license
revenue
• Management
• Google/DoubleClick, Oracle, Apple, NetApp
• Funding: Sequoia, Union Square, Flybridge
• Offices in NYC, Redwood Shores & London
• 60+ employees

8. A bit of history

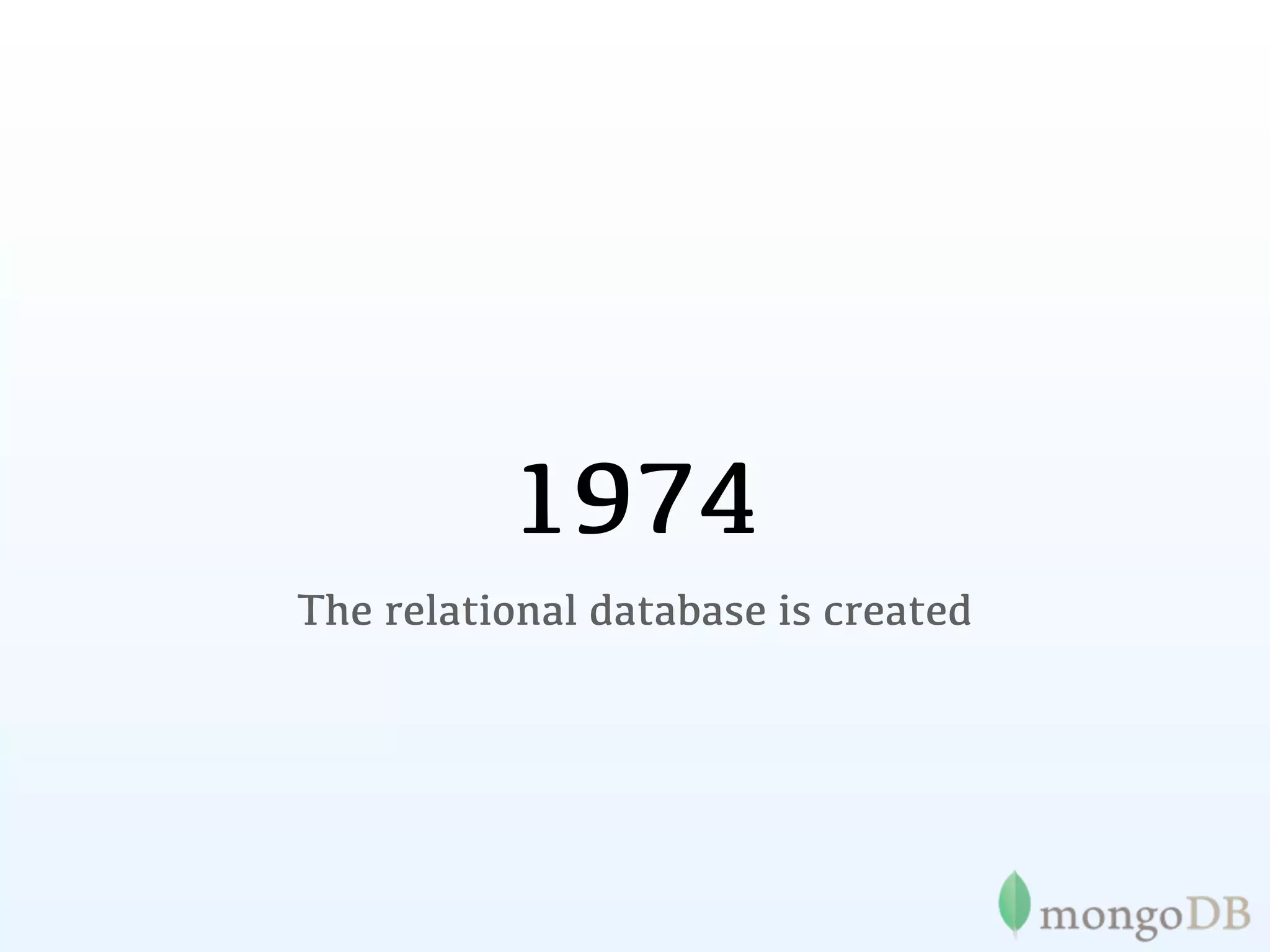

9. 1974
The relational database is created

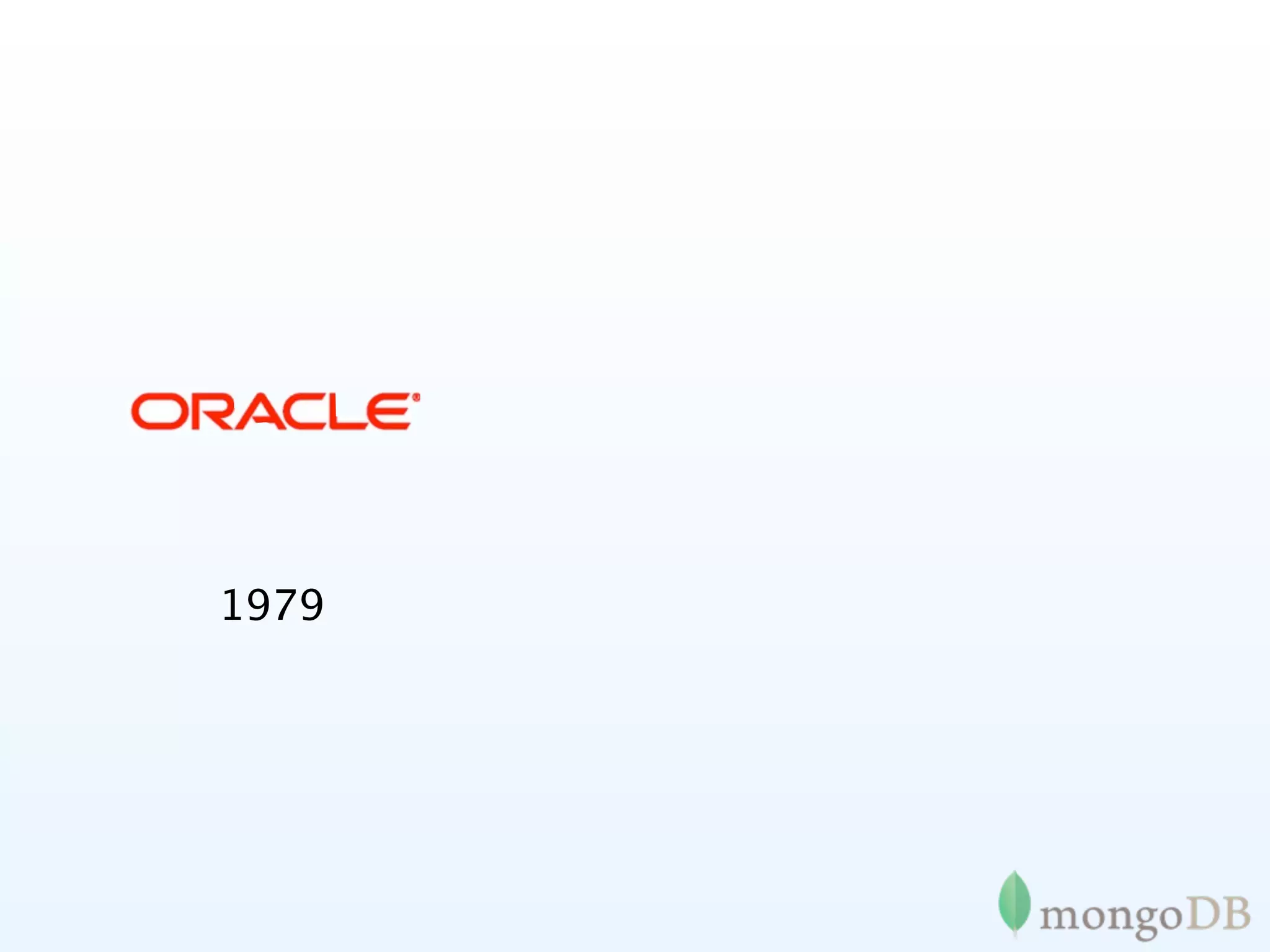

12. 1979

13. 1979 1982-1996

14. 1979 1982-1996 1995

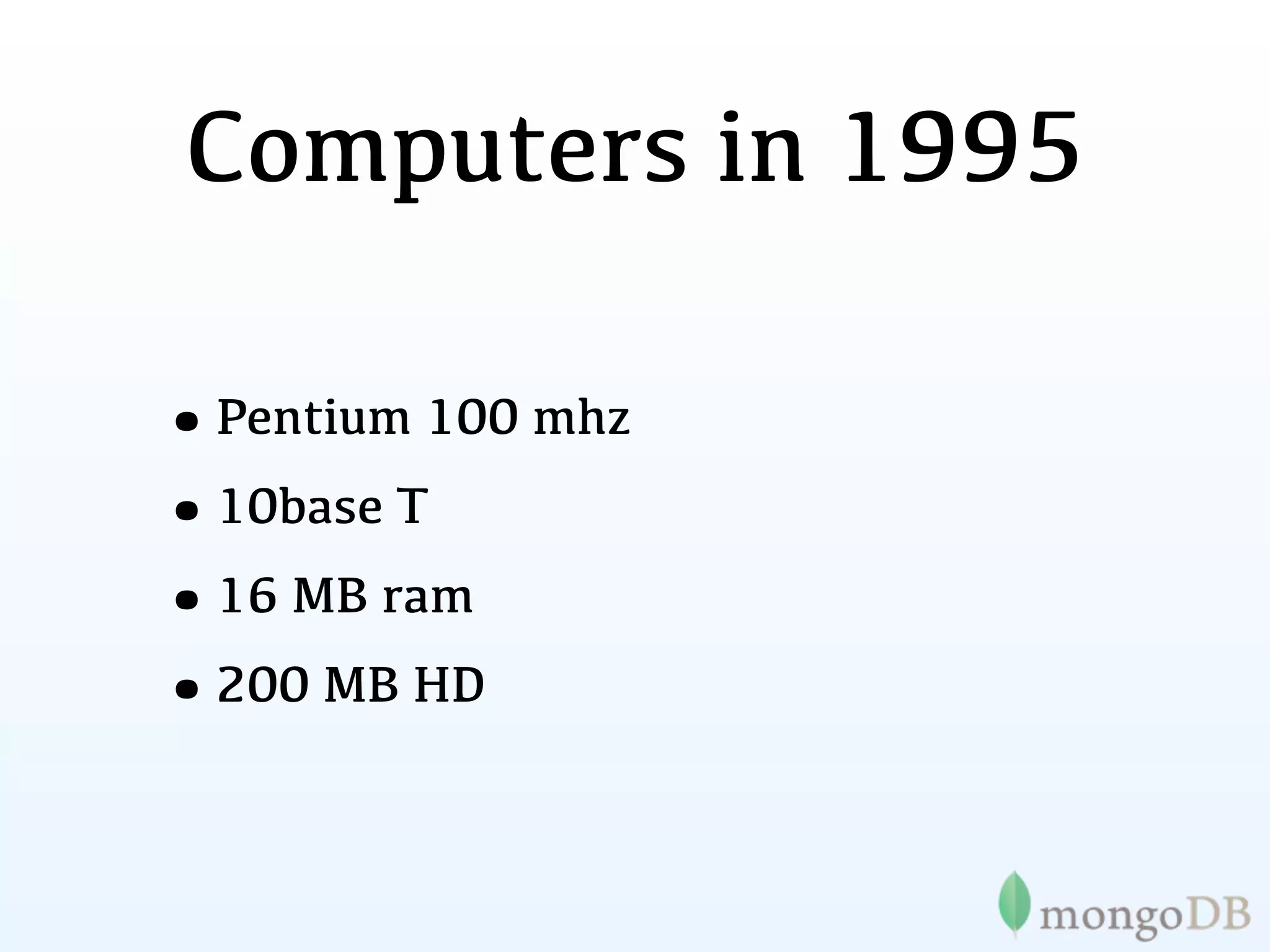

15. Computers in 1995
•Pentium 100 mhz
•10base T
•16 MB ram
•200 MB HD

16. Cloud in 1995
(Windows 95 cloud wallpaper)

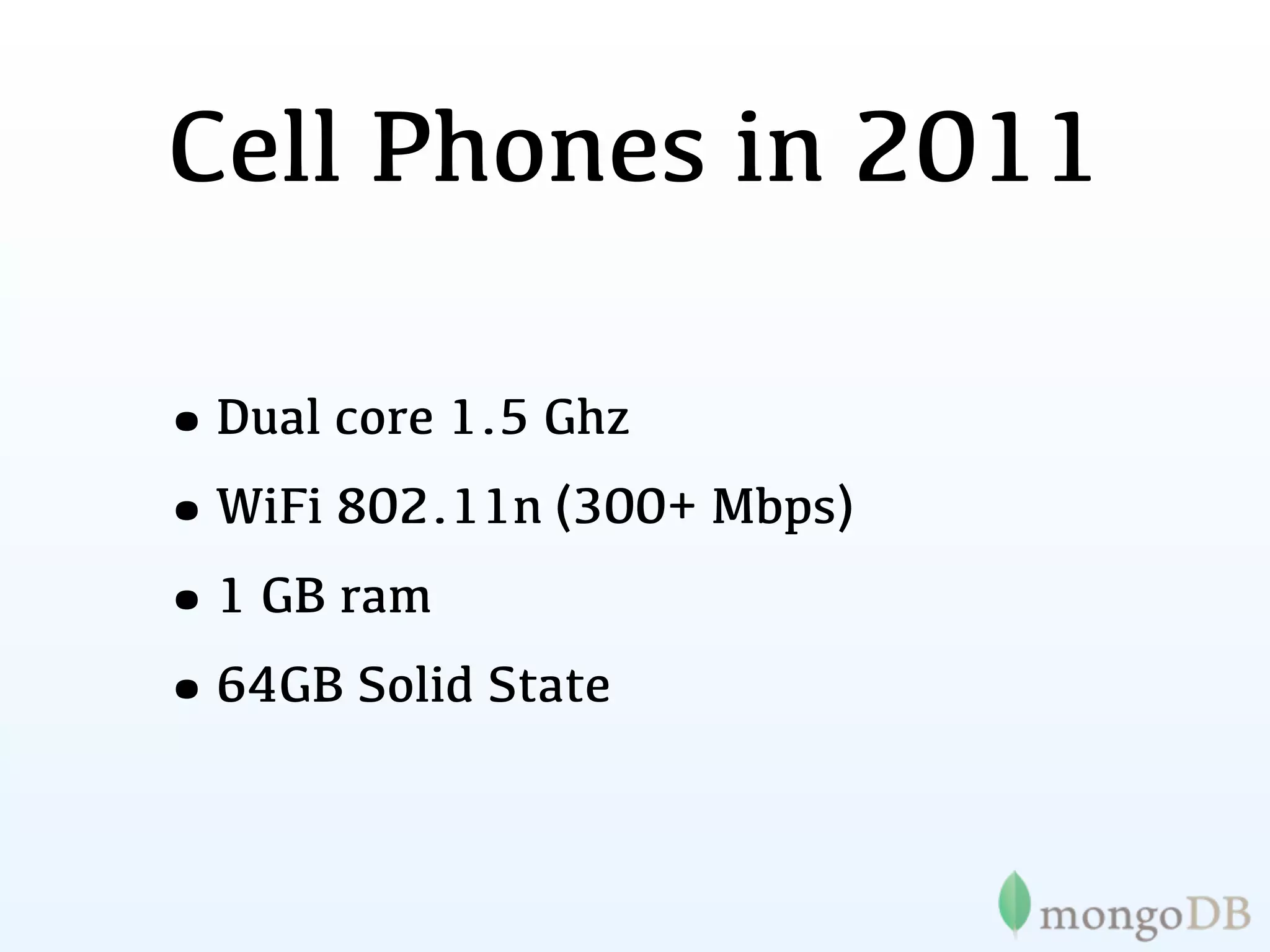

17. Cell Phones in 2011
•Dual core 1.5 Ghz
•WiFi 802.11n (300+ Mbps)
•1 GB ram
•64GB Solid State

18. How about a DB
designed for today?

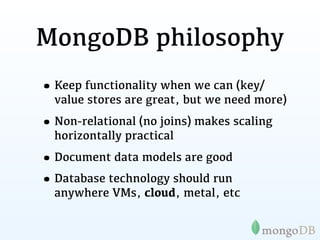

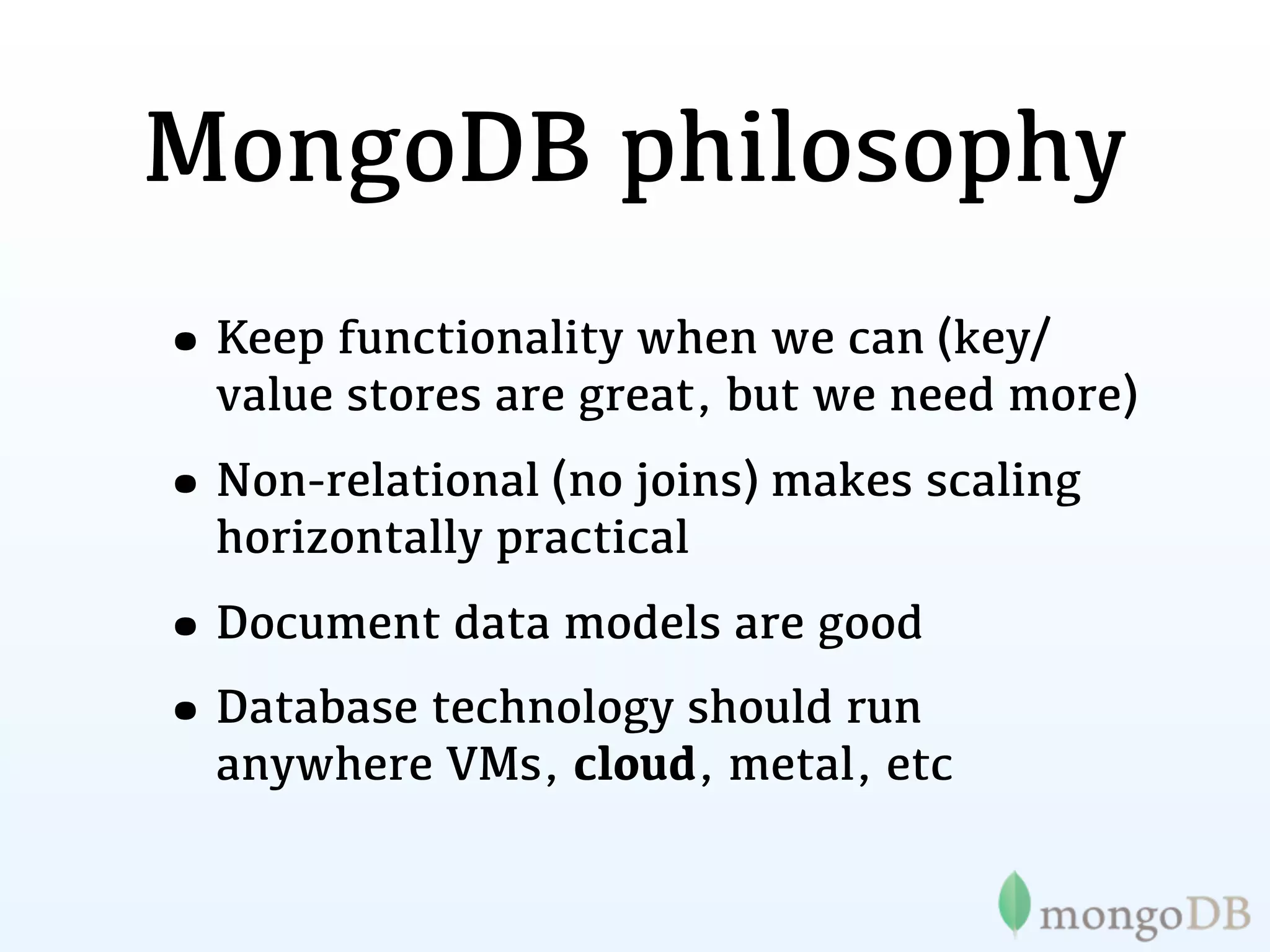

19. MongoDB philosophy
• Keep functionality when we can (key/
value stores are great, but we need more)
• Non-relational (no joins) makes scaling
horizontally practical
• Document data models are good
• Database technology should run
anywhere VMs, cloud, metal, etc

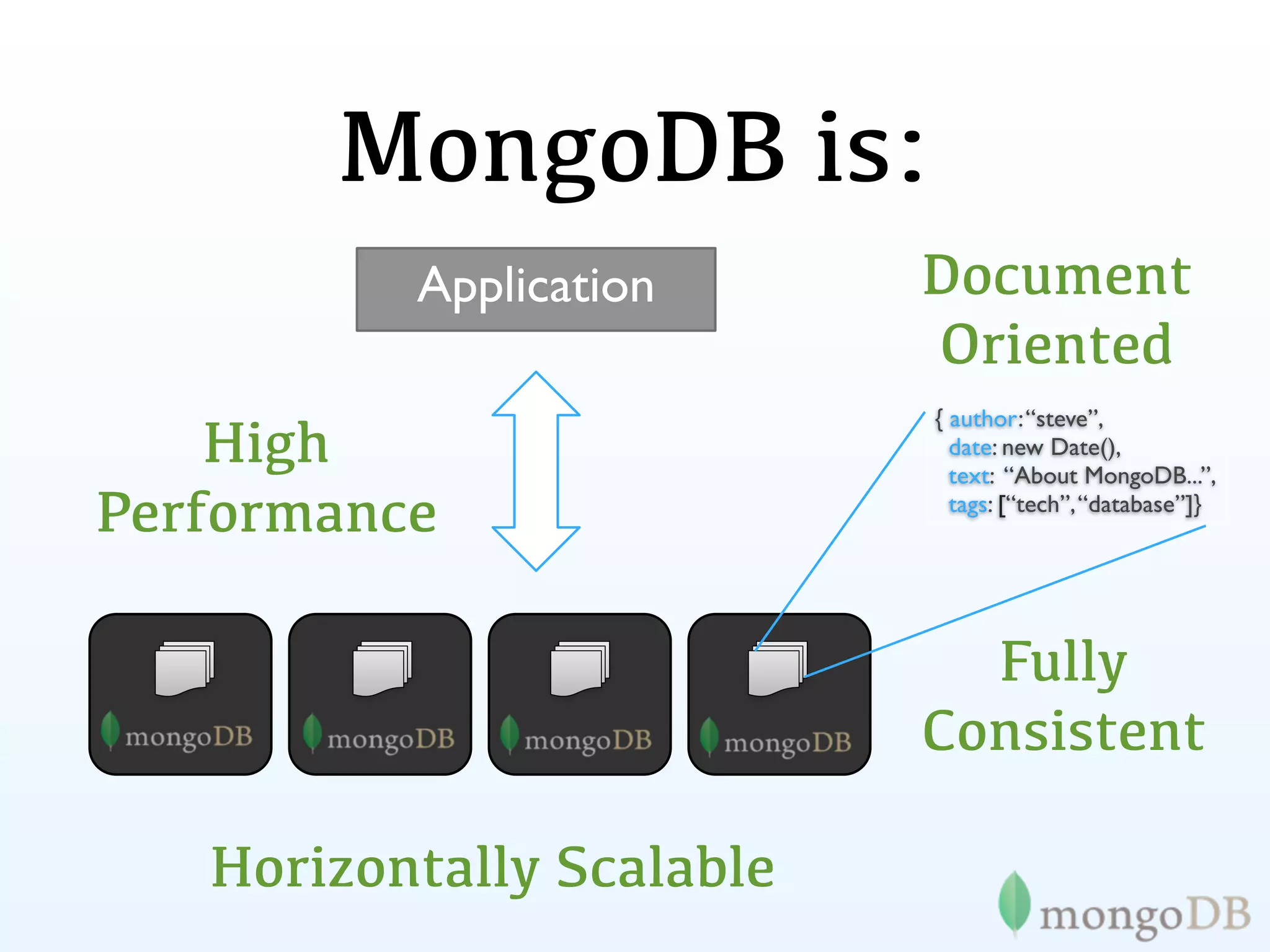

20. MongoDB is:
Application Document
Oriented
{ author: “steve”,
High date: new Date(),
text: “About MongoDB...”,
Performance tags: [“tech”, “database”]}
Fully
Consistent
Horizontally Scalable

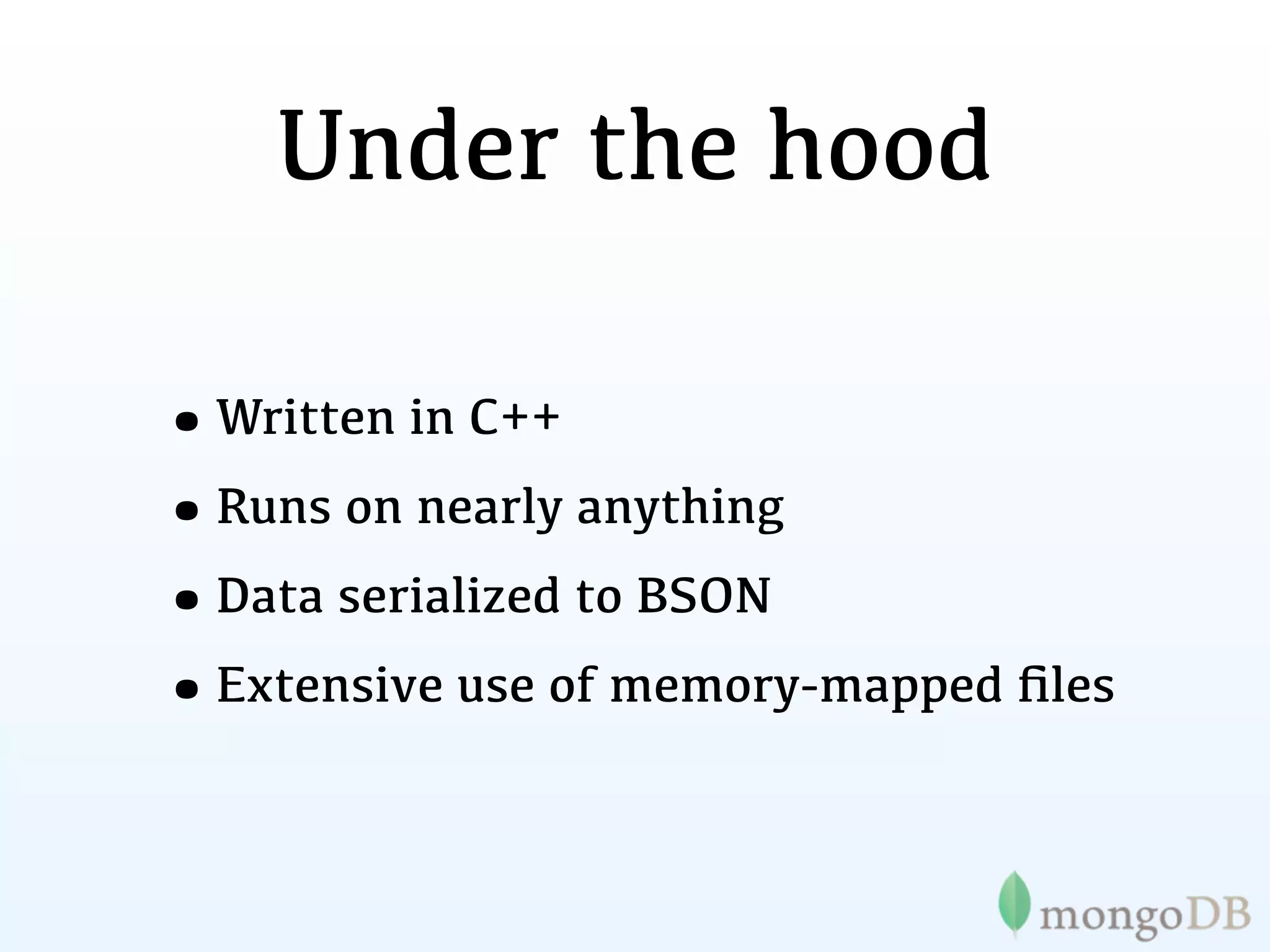

21. Under the hood
•Written in C++
•Runs on nearly anything
•Data serialized to BSON
•Extensive use of memory-mapped files

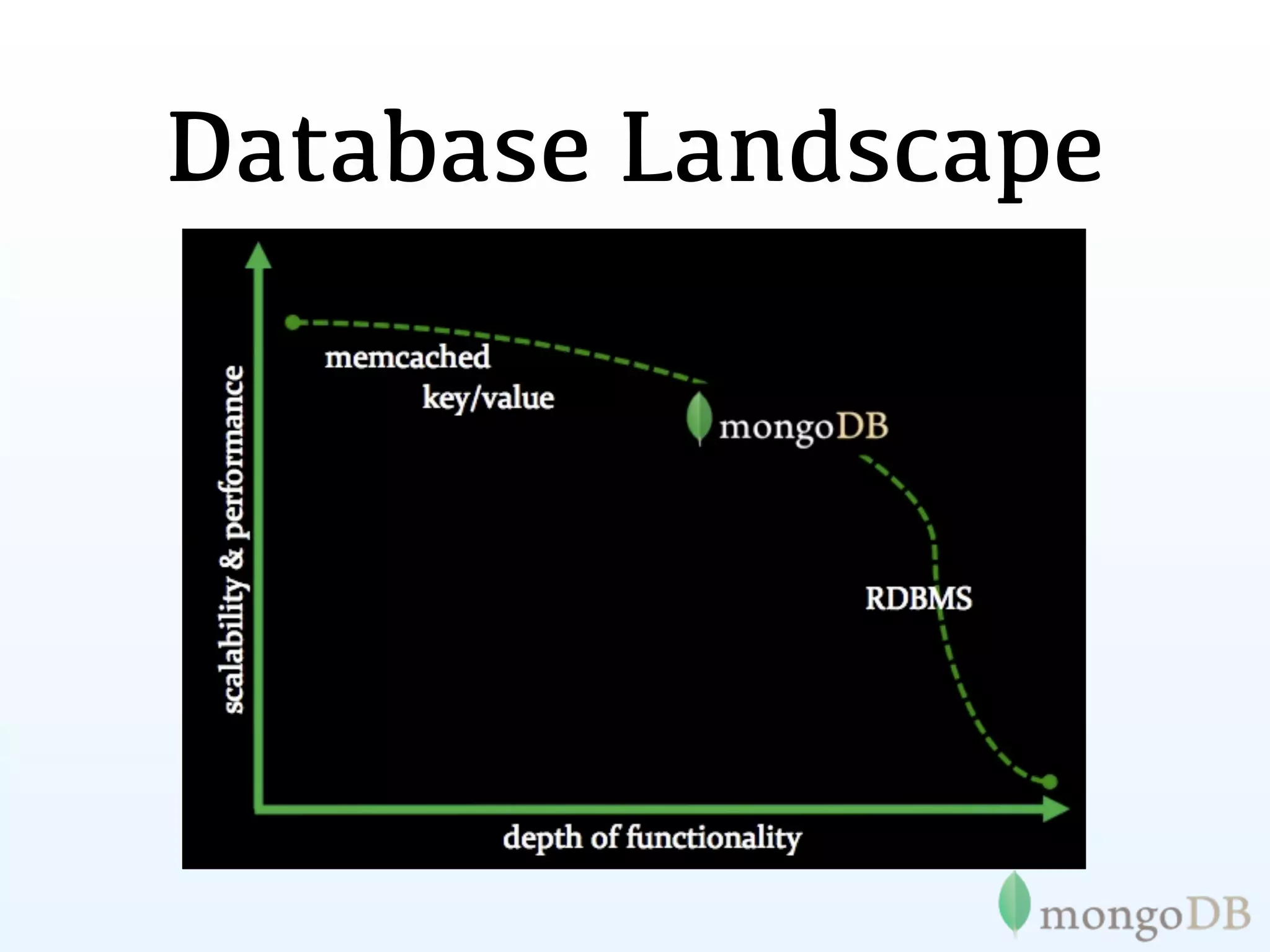

22. Database Landscape

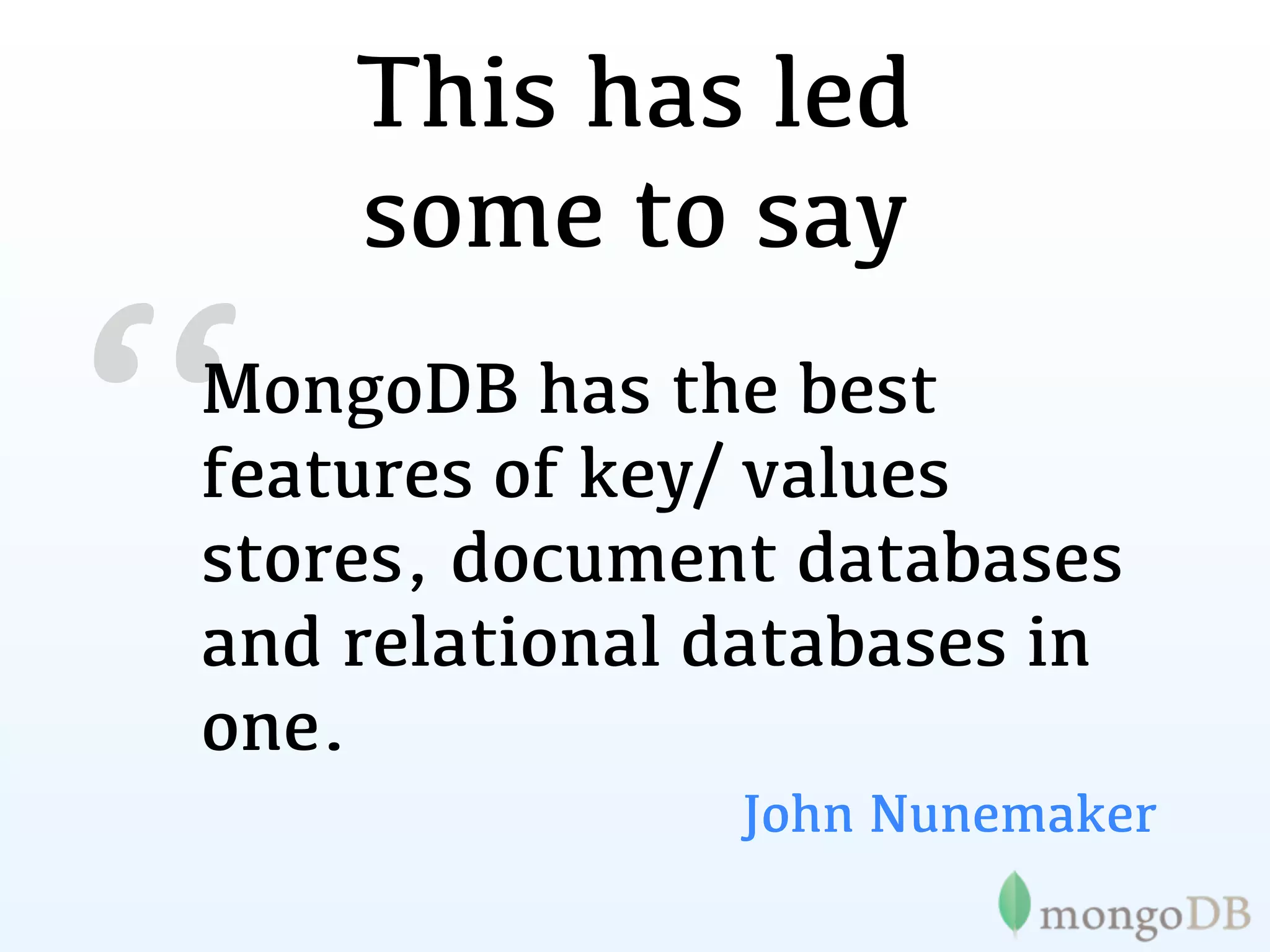

23. This has led
some to say
“
MongoDB has the best
features of key/ values
stores, document databases
and relational databases in
one.
John Nunemaker

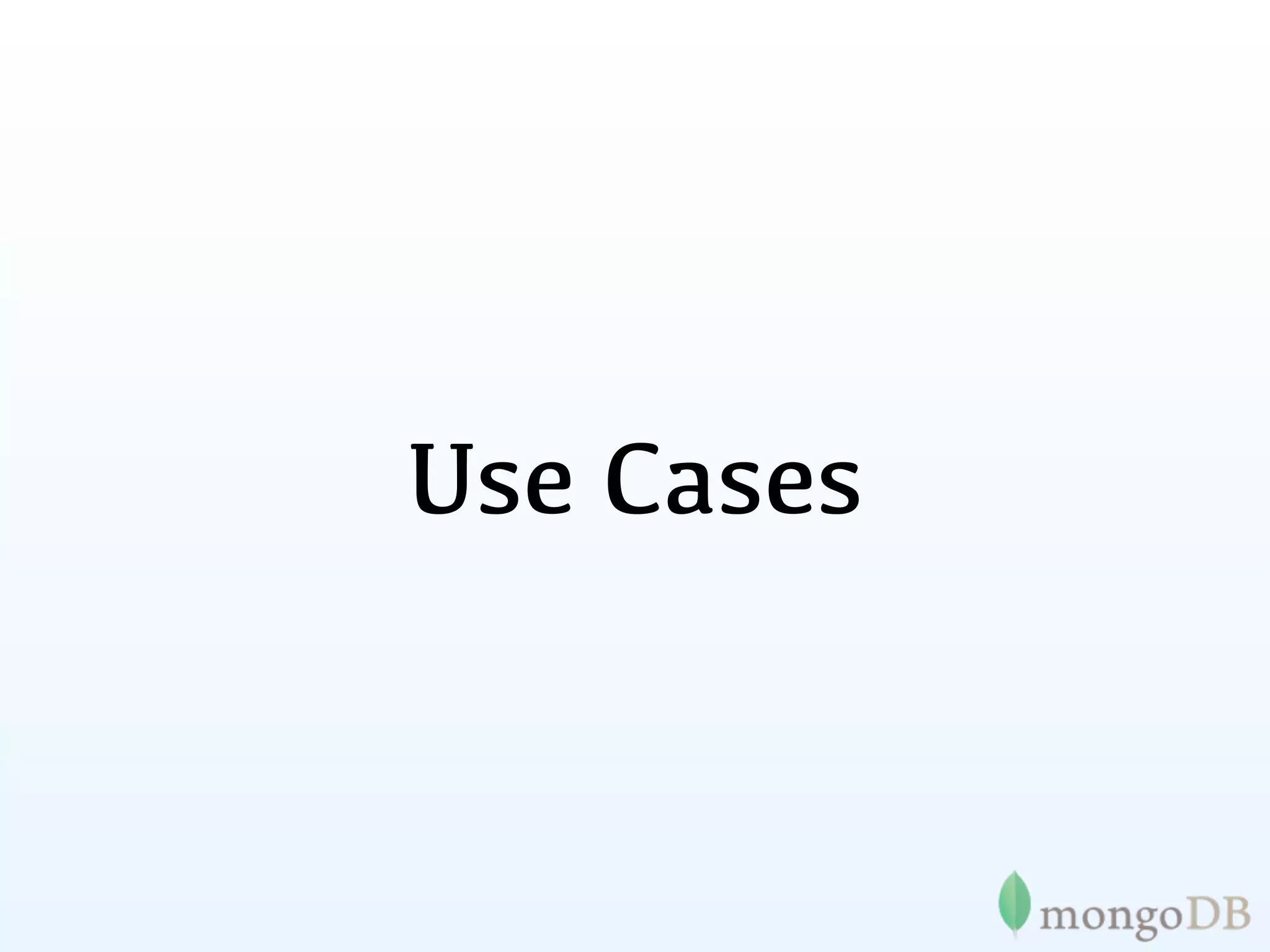

24. Use Cases

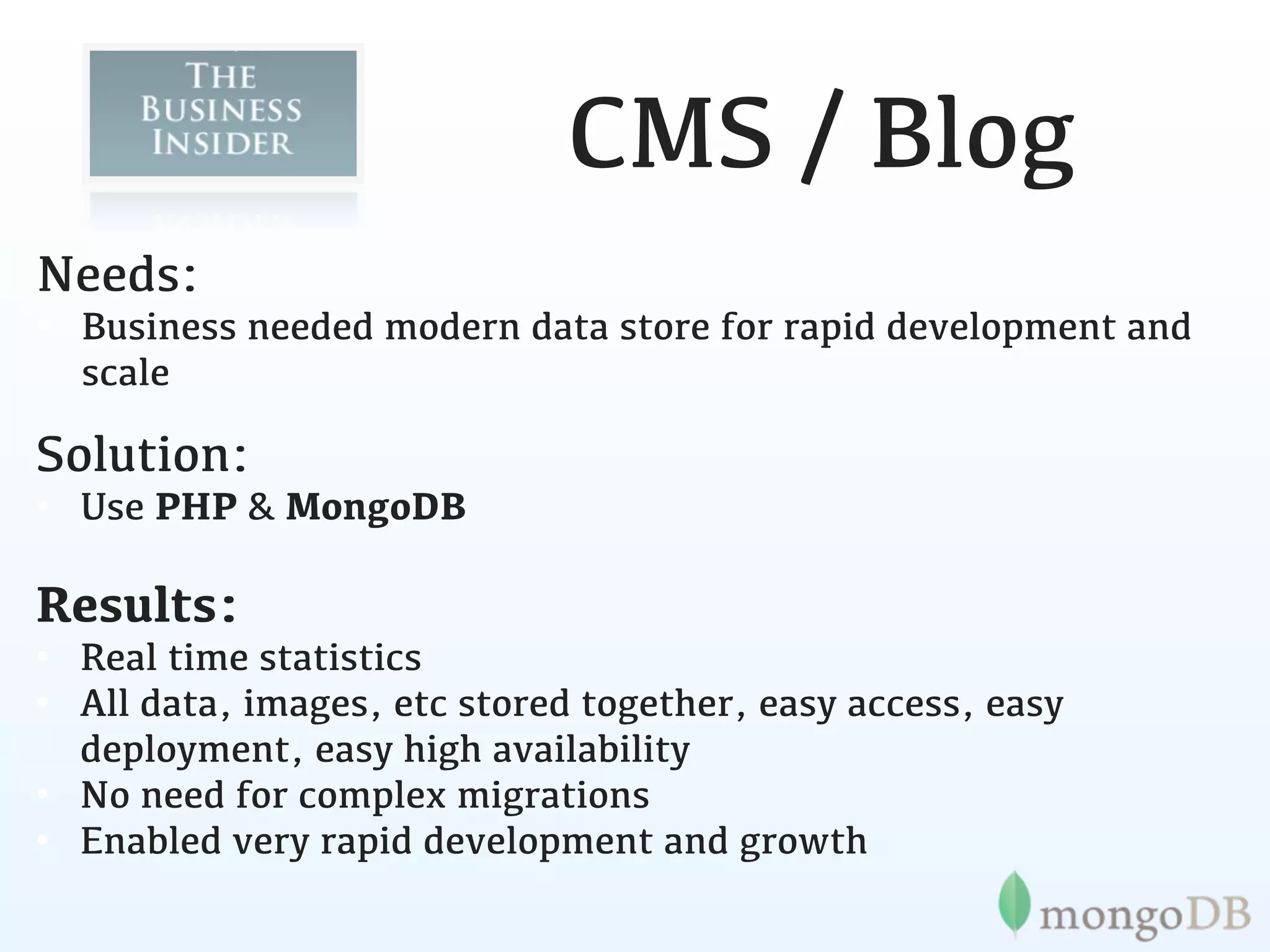

25. CMS / Blog
Needs:
• Business needed modern data store for rapid development and
scale
Solution:
• Use PHP & MongoDB
Results:
• Real time statistics
• All data, images, etc stored together, easy access, easy
deployment, easy high availability
• No need for complex migrations
• Enabled very rapid development and growth

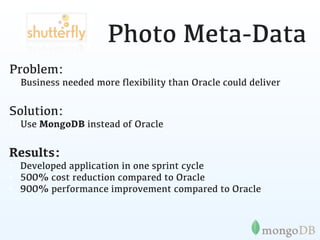

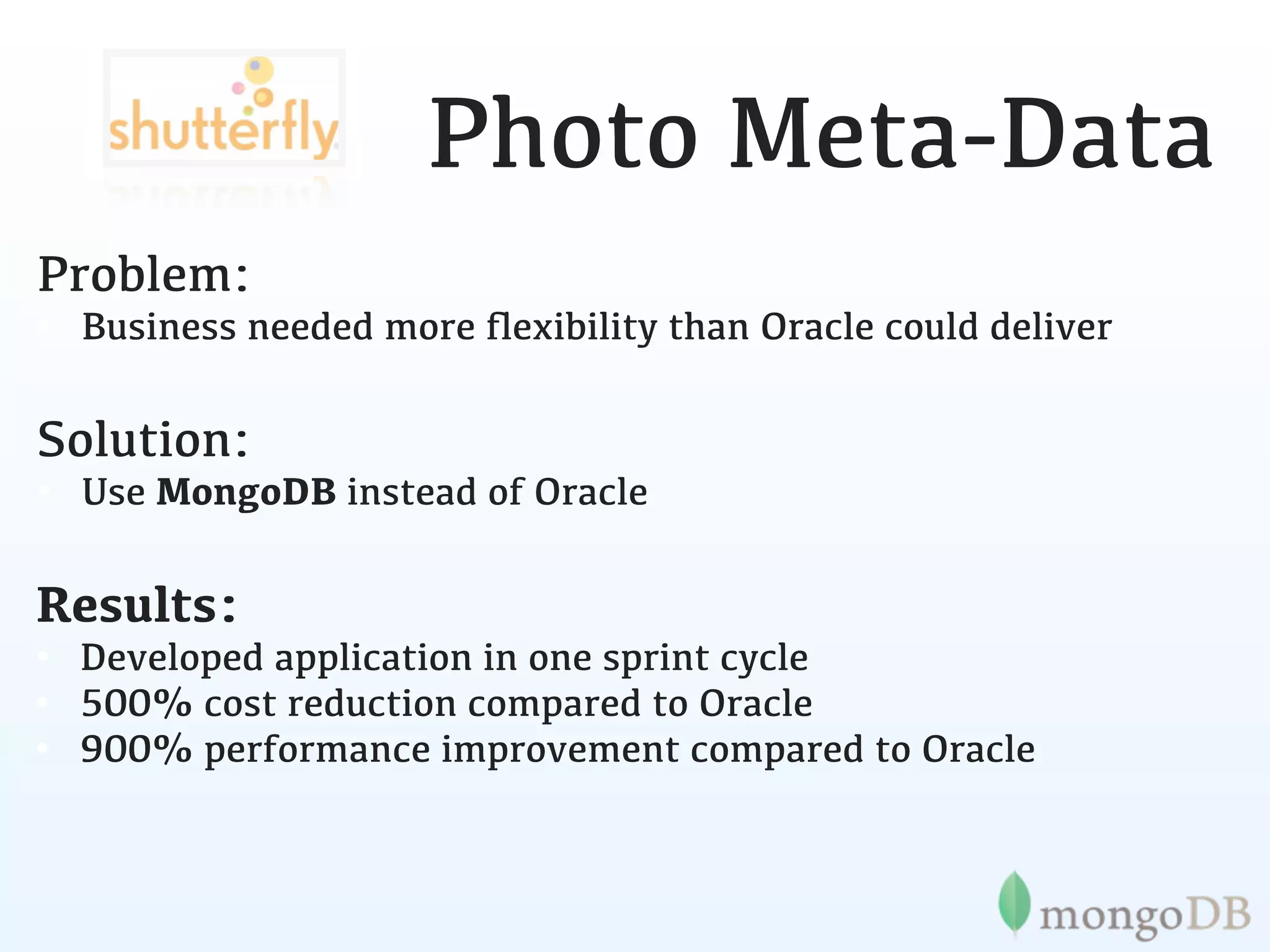

26. Photo Meta-Data
Problem:
• Business needed more flexibility than Oracle could deliver
Solution:
• Use MongoDB instead of Oracle
Results:
• Developed application in one sprint cycle
• 500% cost reduction compared to Oracle
• 900% performance improvement compared to Oracle

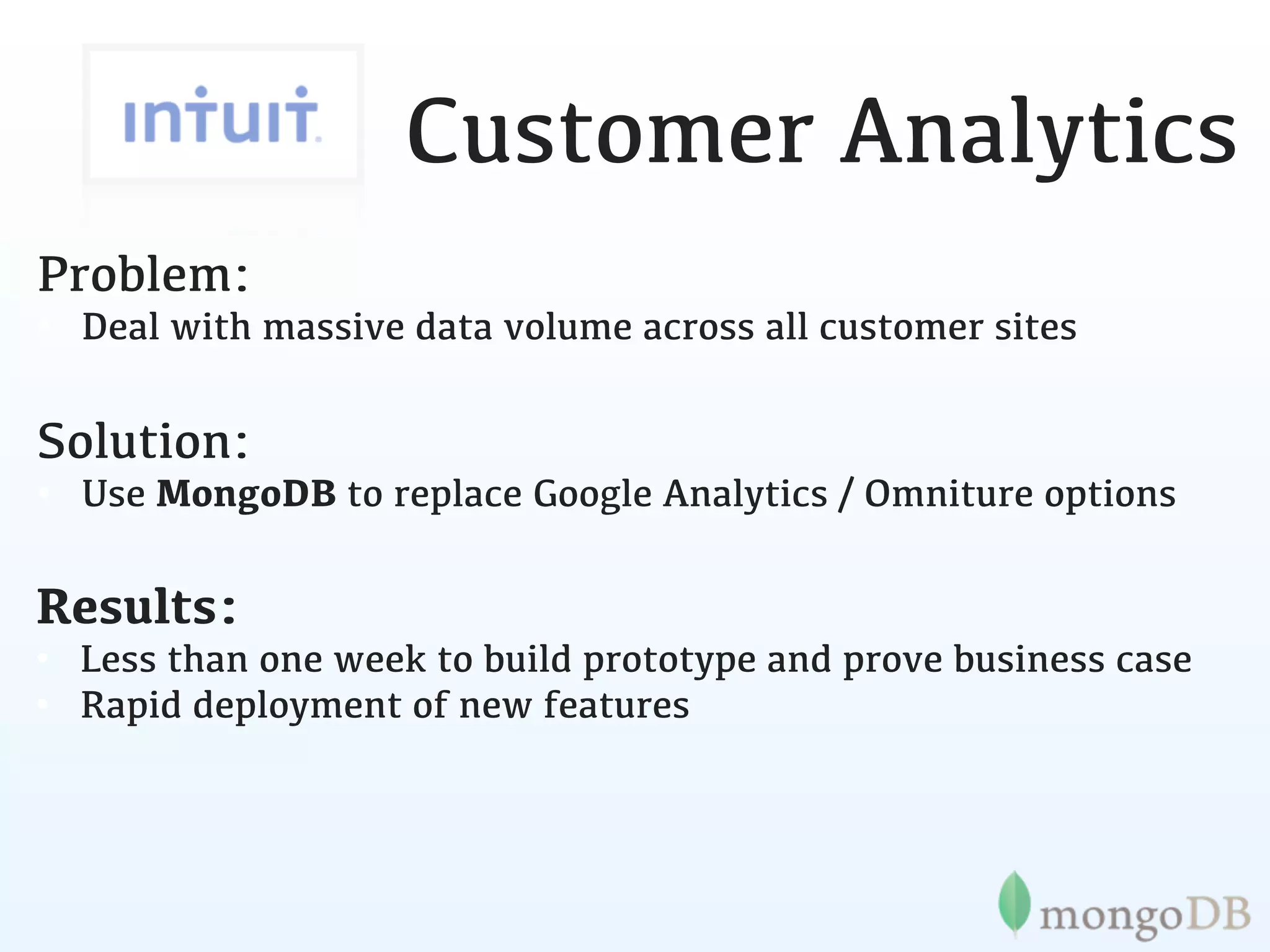

27. Customer Analytics
Problem:
• Deal with massive data volume across all customer sites
Solution:
• Use MongoDB to replace Google Analytics / Omniture options
Results:
• Less than one week to build prototype and prove business case
• Rapid deployment of new features

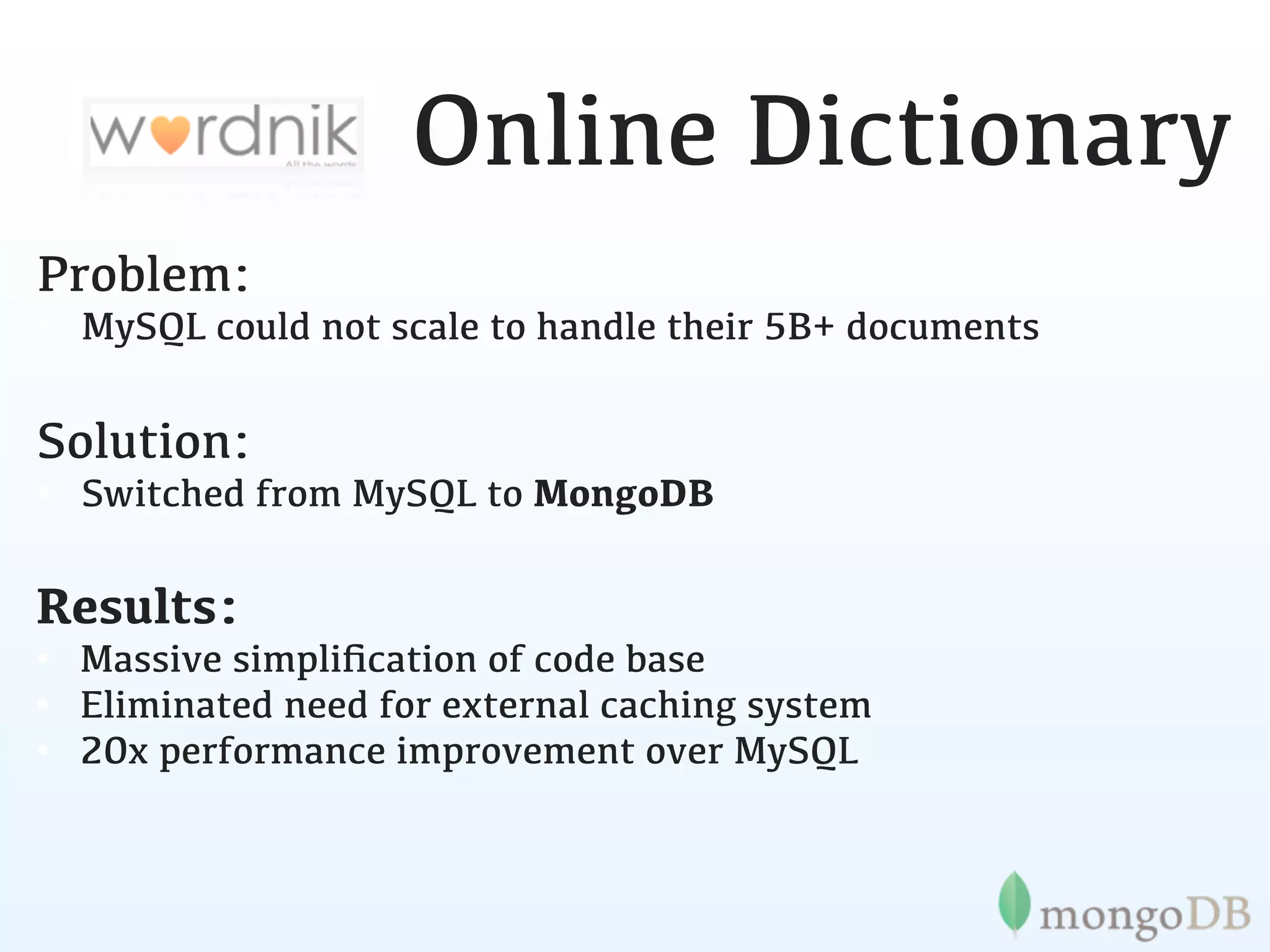

28. Online Dictionary
Problem:
• MySQL could not scale to handle their 5B+ documents
Solution:
• Switched from MySQL to MongoDB
Results:
• Massive simplification of code base
• Eliminated need for external caching system
• 20x performance improvement over MySQL

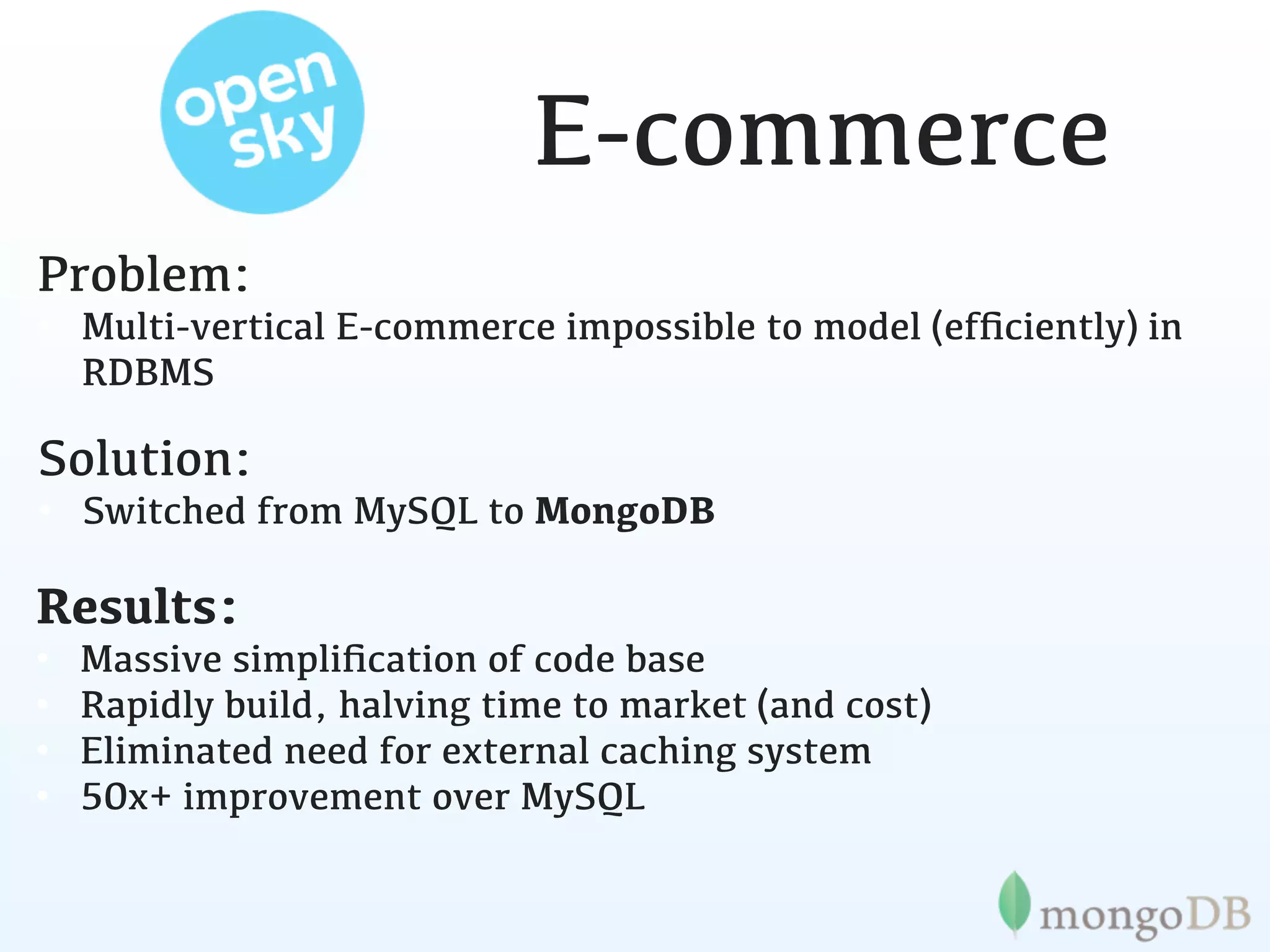

29. E-commerce
Problem:
• Multi-vertical E-commerce impossible to model (efficiently) in
RDBMS
Solution:
• Switched from MySQL to MongoDB
Results:
• Massive simplification of code base
• Rapidly build, halving time to market (and cost)
• Eliminated need for external caching system
• 50x+ improvement over MySQL

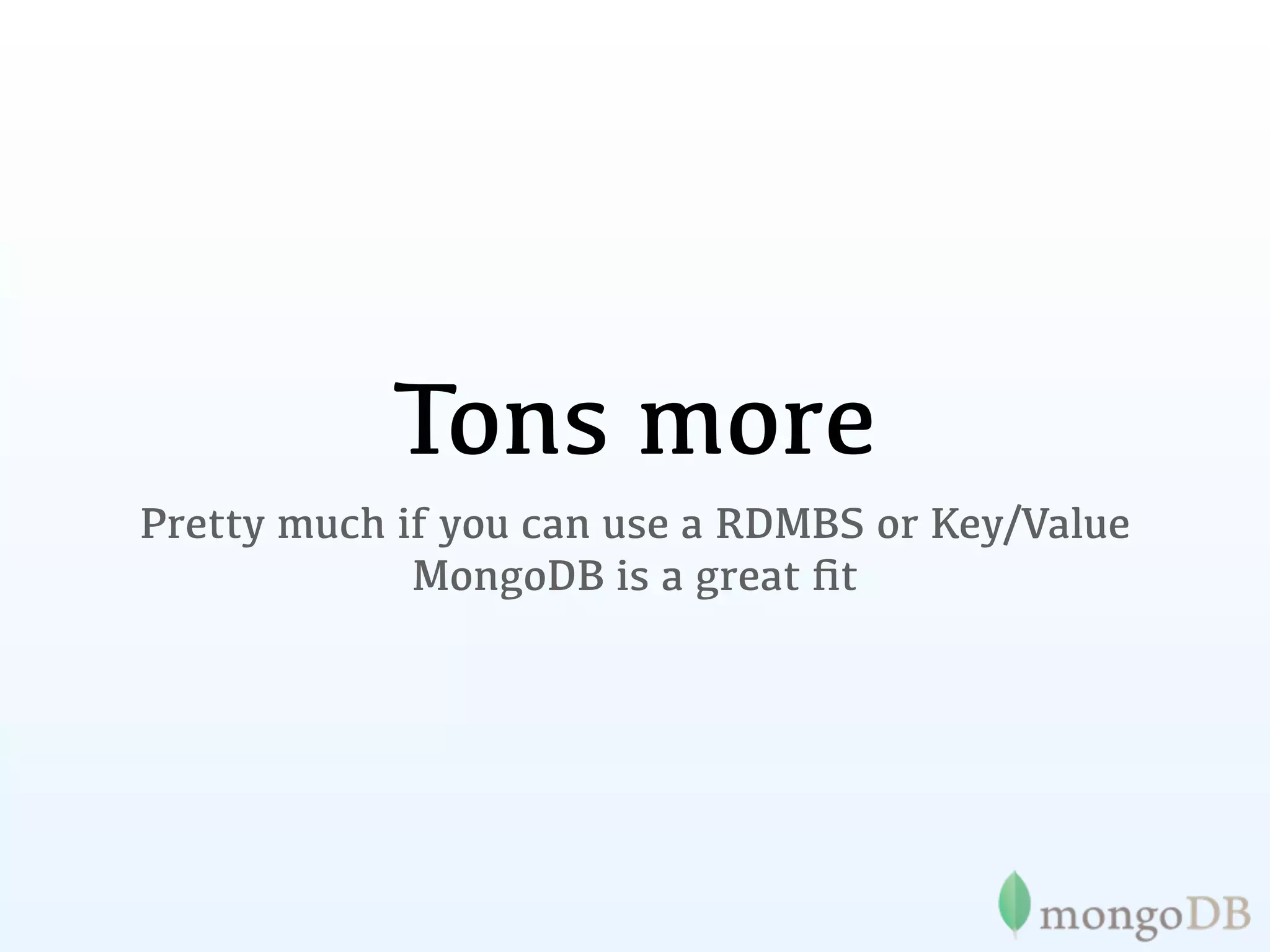

30. Tons more
Pretty much if you can use a RDMBS or Key/Value
MongoDB is a great fit

31. In Good Company

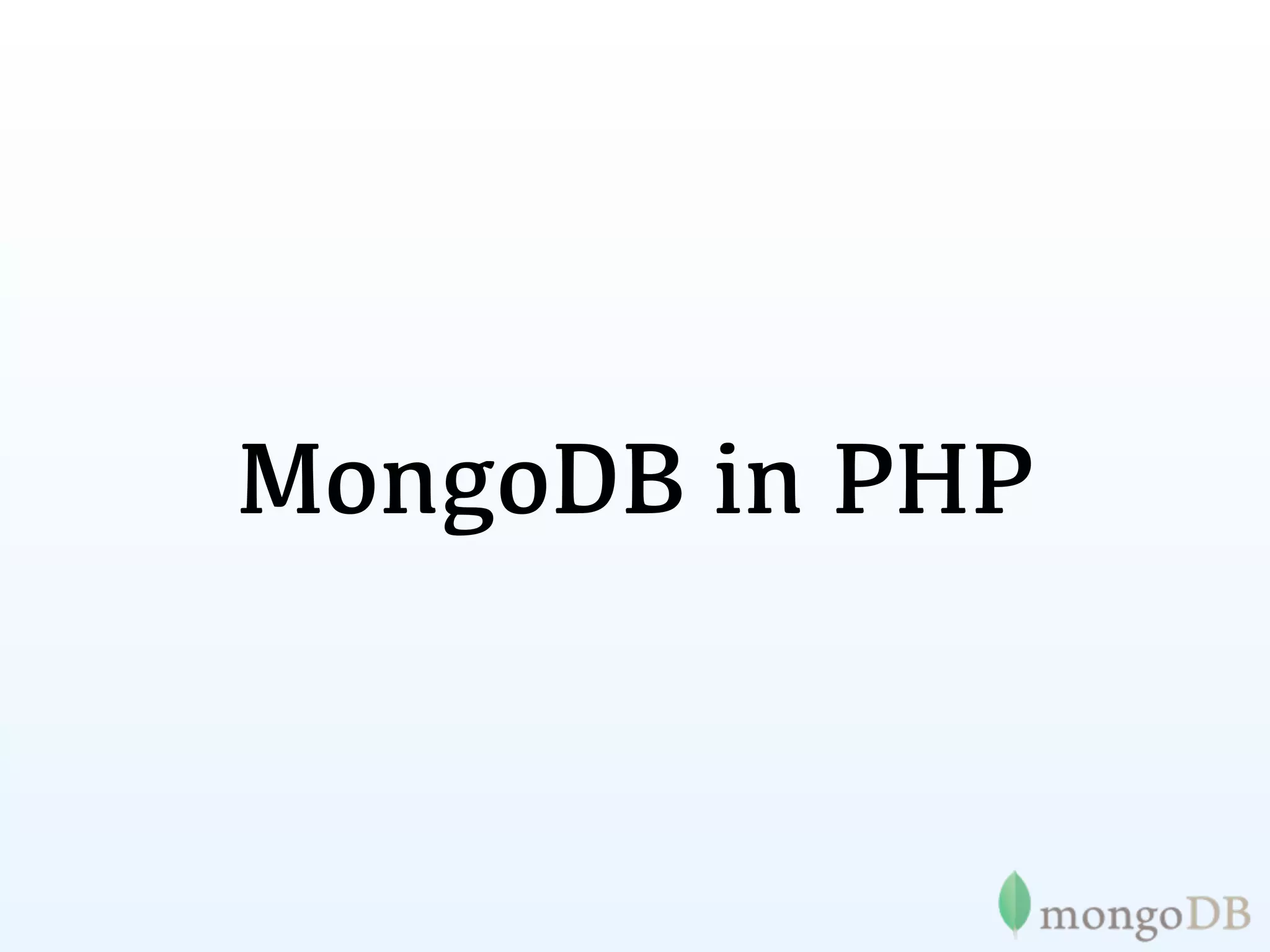

32. MongoDB in PHP

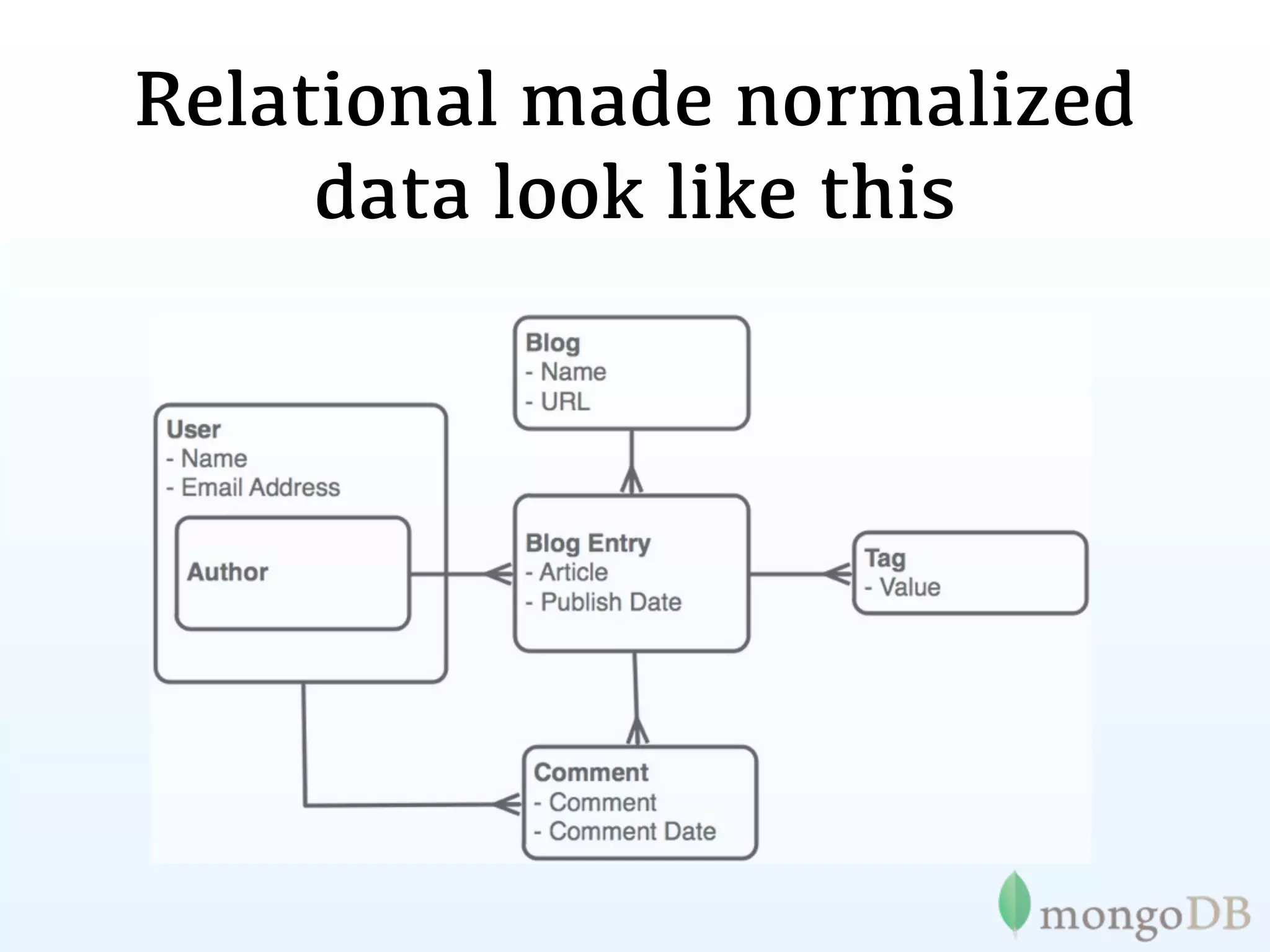

33. Relational made normalized
data look like this

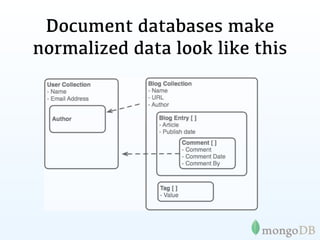

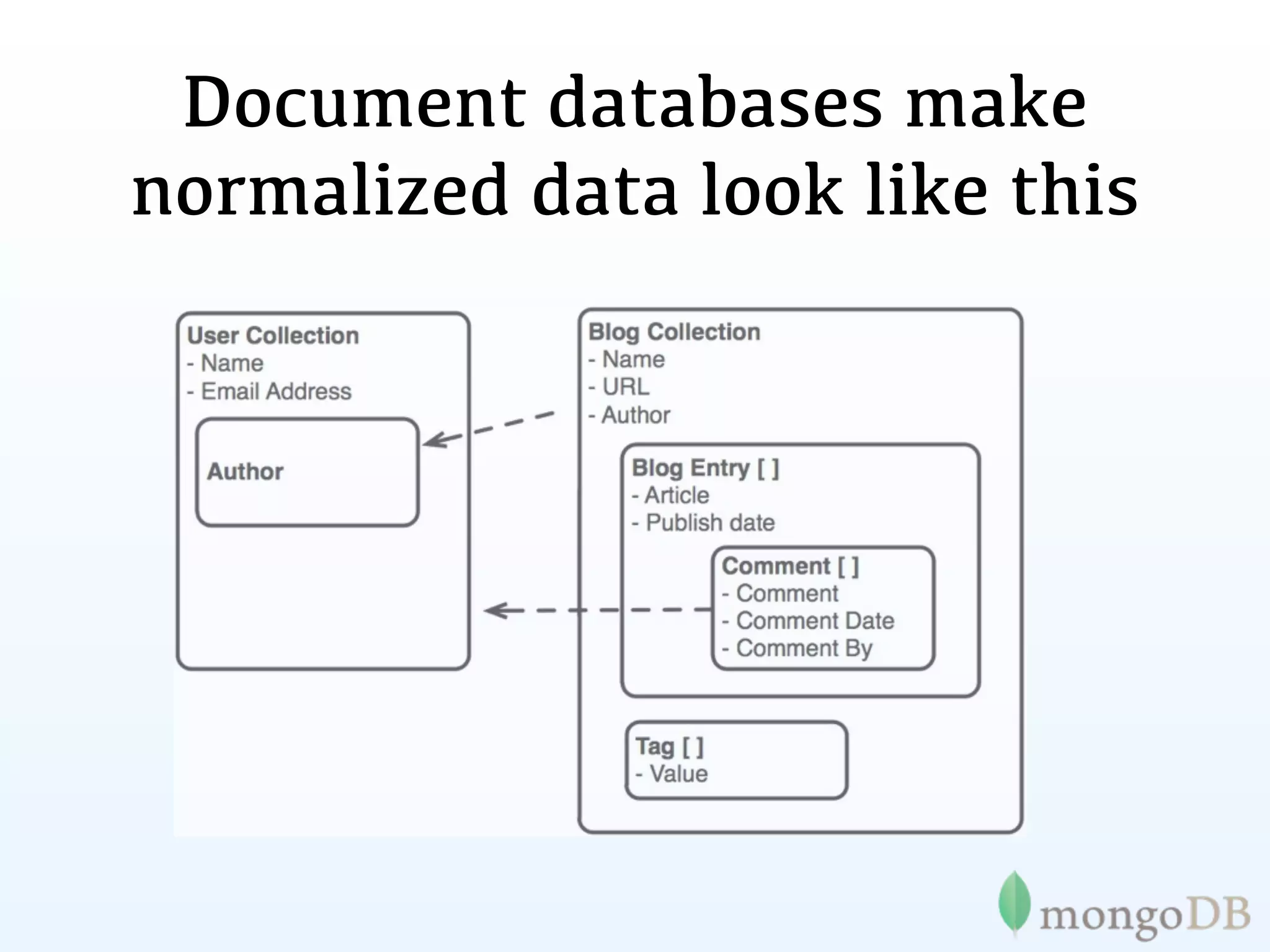

34. Document databases make
normalized data look like this

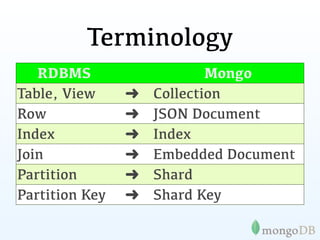

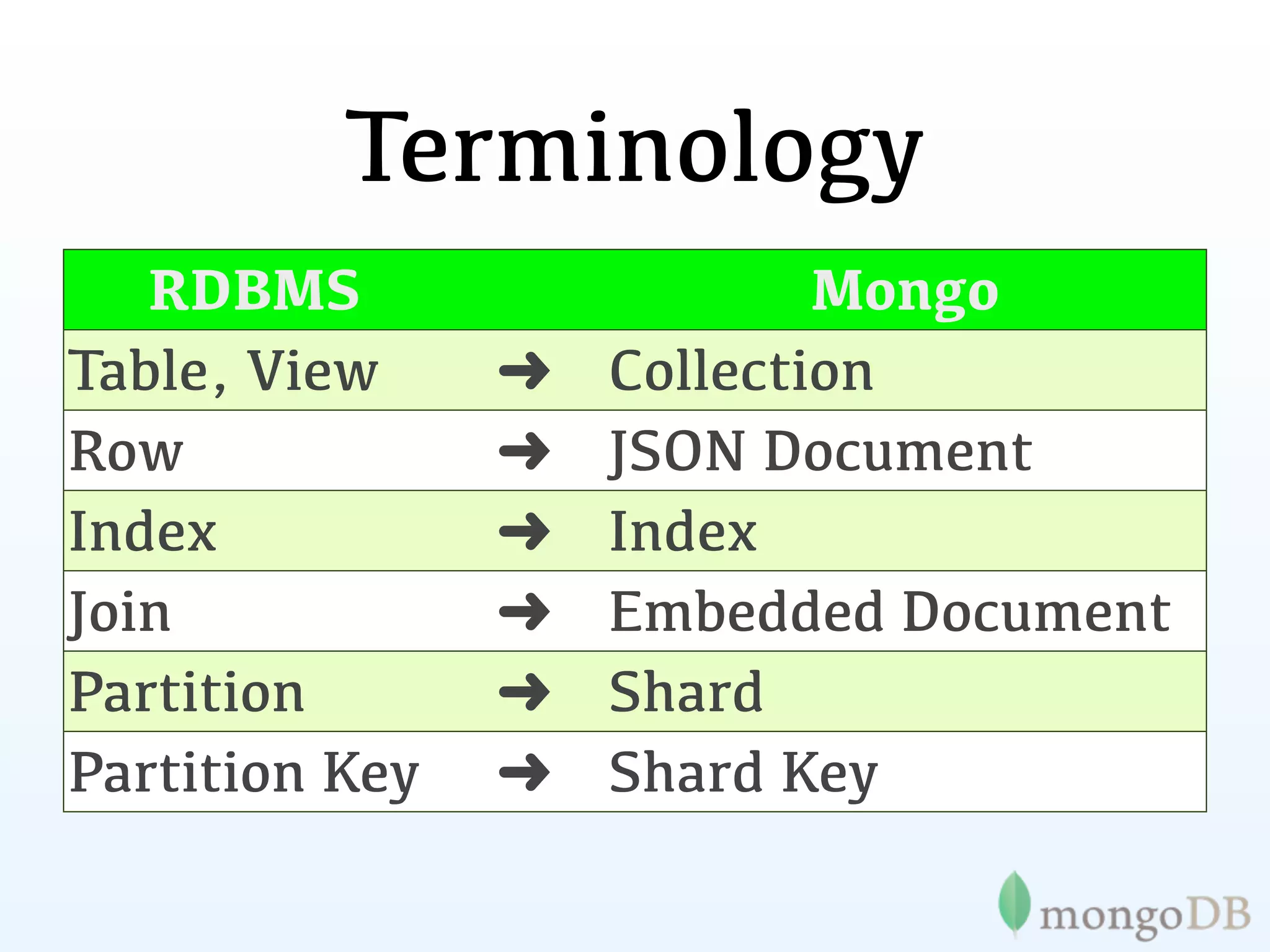

35. Terminology
RDBMS Mongo
Table, View ➜ Collection
Row ➜ JSON Document
Index ➜ Index
Join ➜ Embedded Document
Partition ➜ Shard
Partition Key ➜ Shard Key

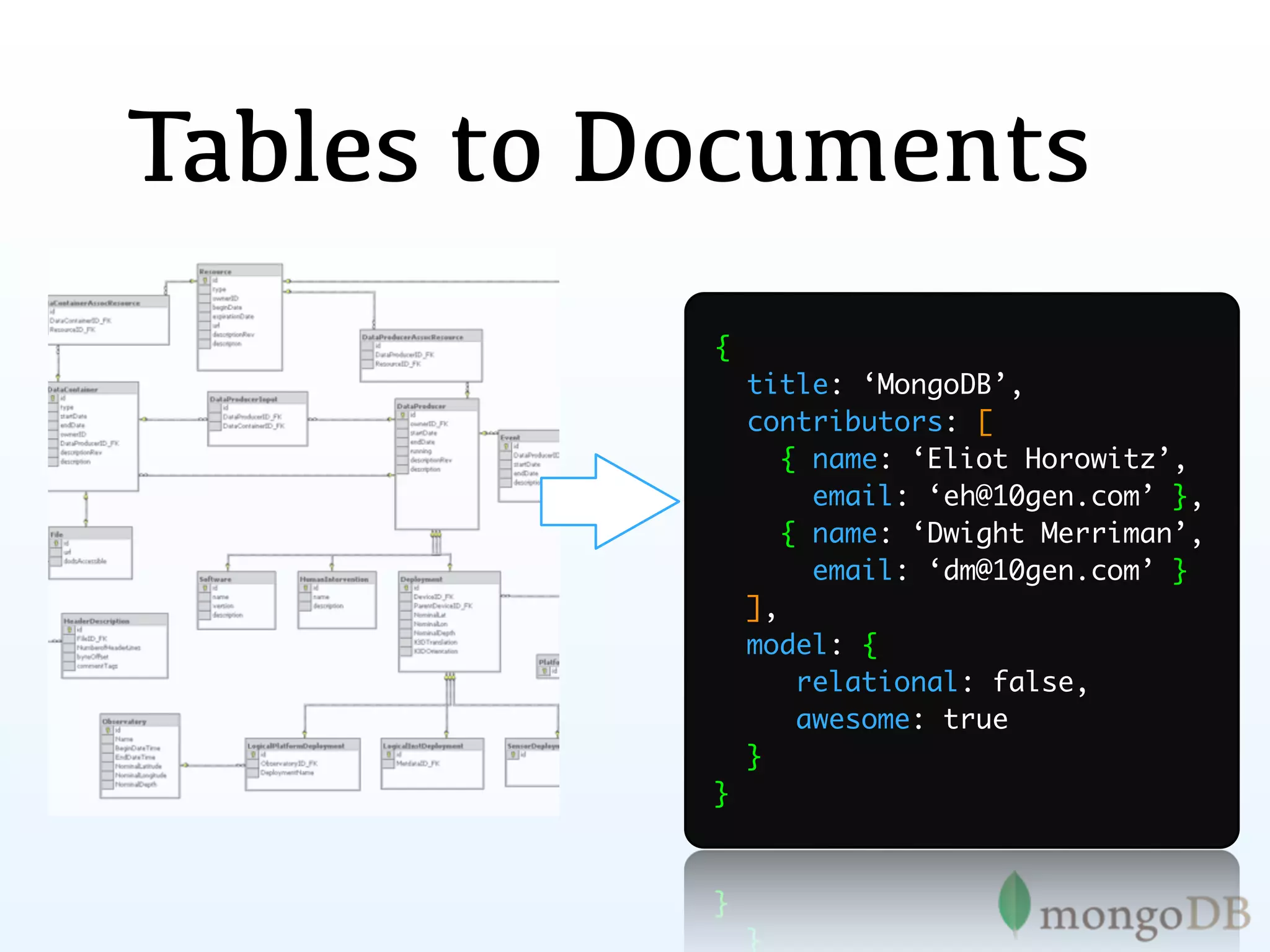

36. Tables to Documents
{
title: ‘MongoDB’,
contributors: [
{ name: ‘Eliot Horowitz’,
email: ‘eh@10gen.com’ },
{ name: ‘Dwight Merriman’,
email: ‘dm@10gen.com’ }
],
model: {
relational: false,
awesome: true
}
}

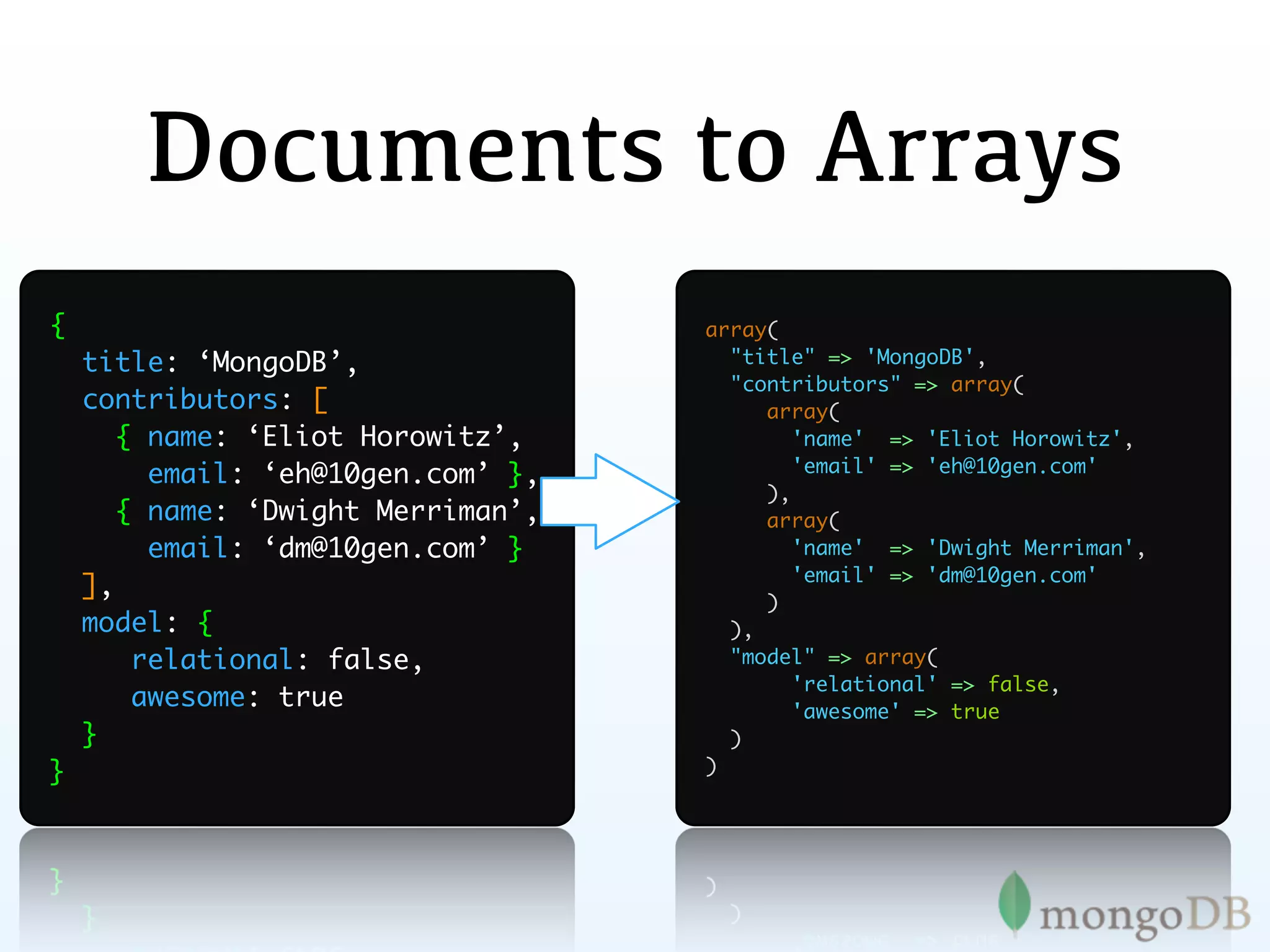

37. Documents to Arrays
{ array(
title: ‘MongoDB’, "title" => 'MongoDB',
"contributors" => array(
contributors: [ array(
{ name: ‘Eliot Horowitz’, 'name' => 'Eliot Horowitz',
email: ‘eh@10gen.com’ }, 'email' => 'eh@10gen.com'
),
{ name: ‘Dwight Merriman’, array(
email: ‘dm@10gen.com’ } 'name' => 'Dwight Merriman',
'email' => 'dm@10gen.com'
],
)
model: { ),
relational: false, "model" => array(
'relational' => false,
awesome: true 'awesome' => true
} )
} )

38. Documents to Objects
{ PostObject Object(
title: ‘MongoDB’, [title] => MongoDB
[contributors] => Array(
contributors: [ [0] => PersonObject Object(
{ name: ‘Eliot Horowitz’, [name] => Eliot Horowitz
email: ‘eh@10gen.com’ }, [email] => eh@10gen.com
)
{ name: ‘Dwight Merriman’, [1] => PersonObject Object(
email: ‘dm@10gen.com’ } [name] => Dwight Merriman
[email] => dm@10gen.com
],
)
model: { )
relational: false, [model] => ModelObject Object(
[relational] =>
awesome: true [awesome] => 1
} )
} )

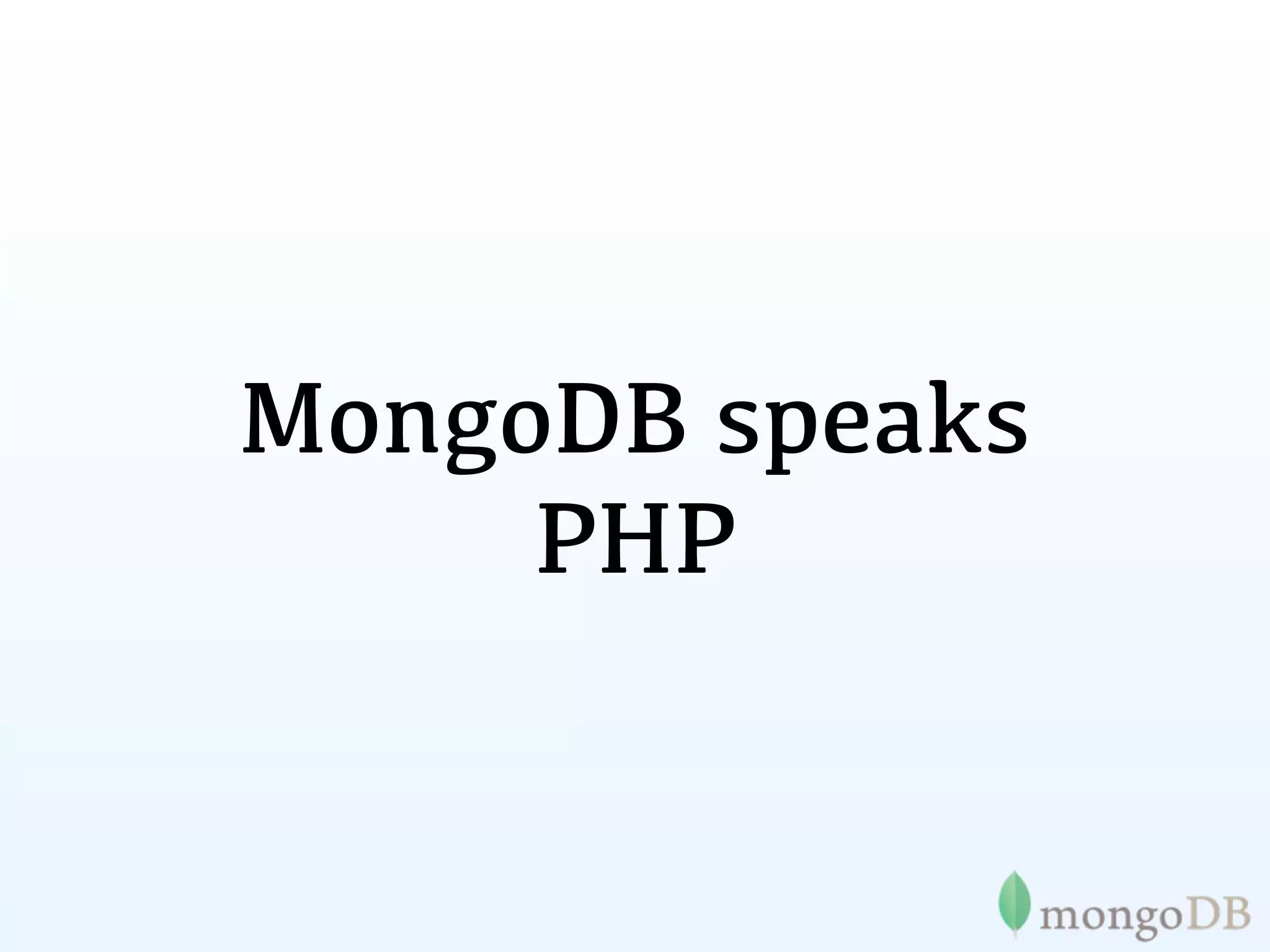

39. MongoDB speaks
PHP

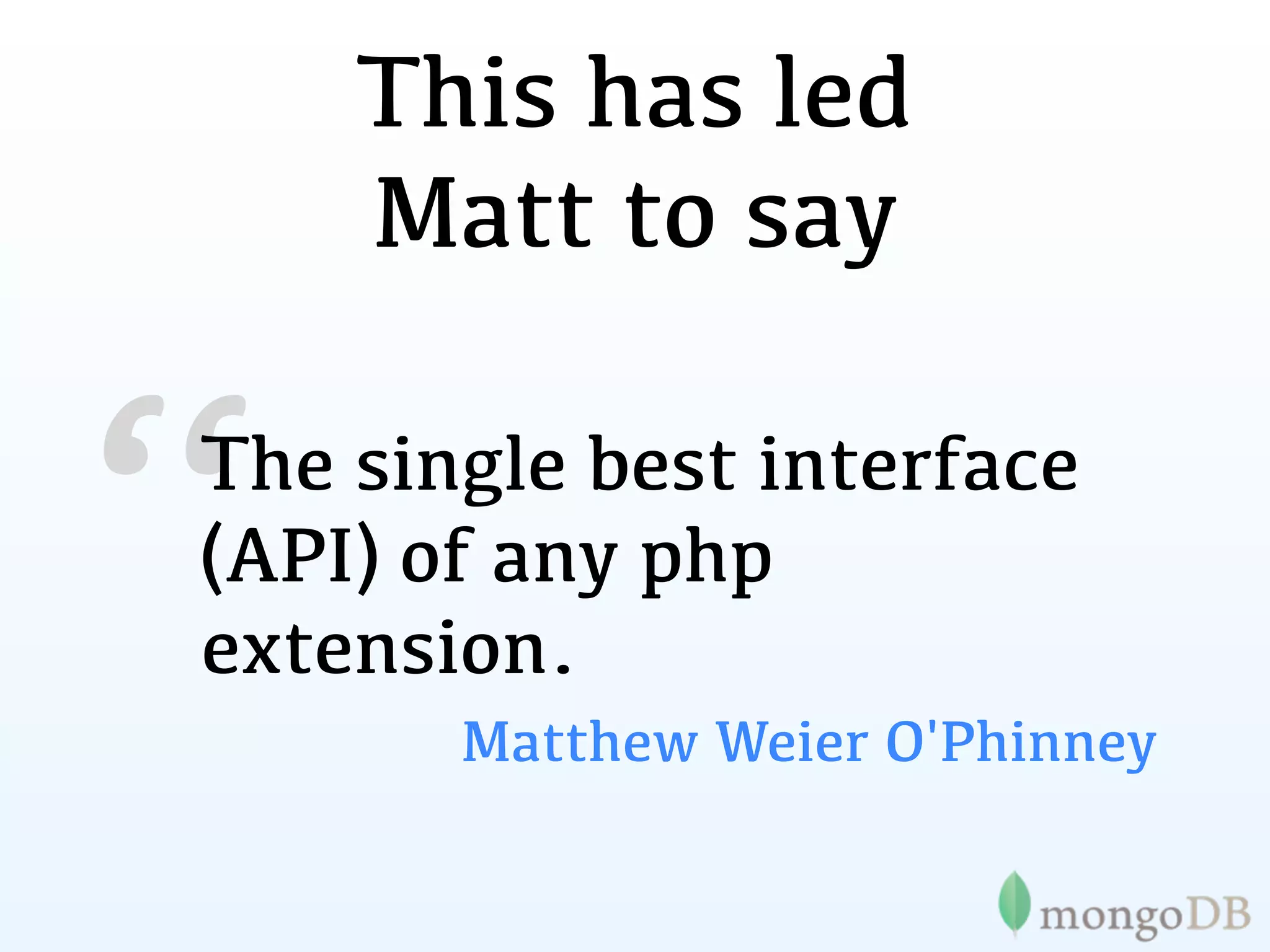

40. This has led
Matt to say
“
The single best interface
(API) of any php
extension.
Matthew Weier O'Phinney

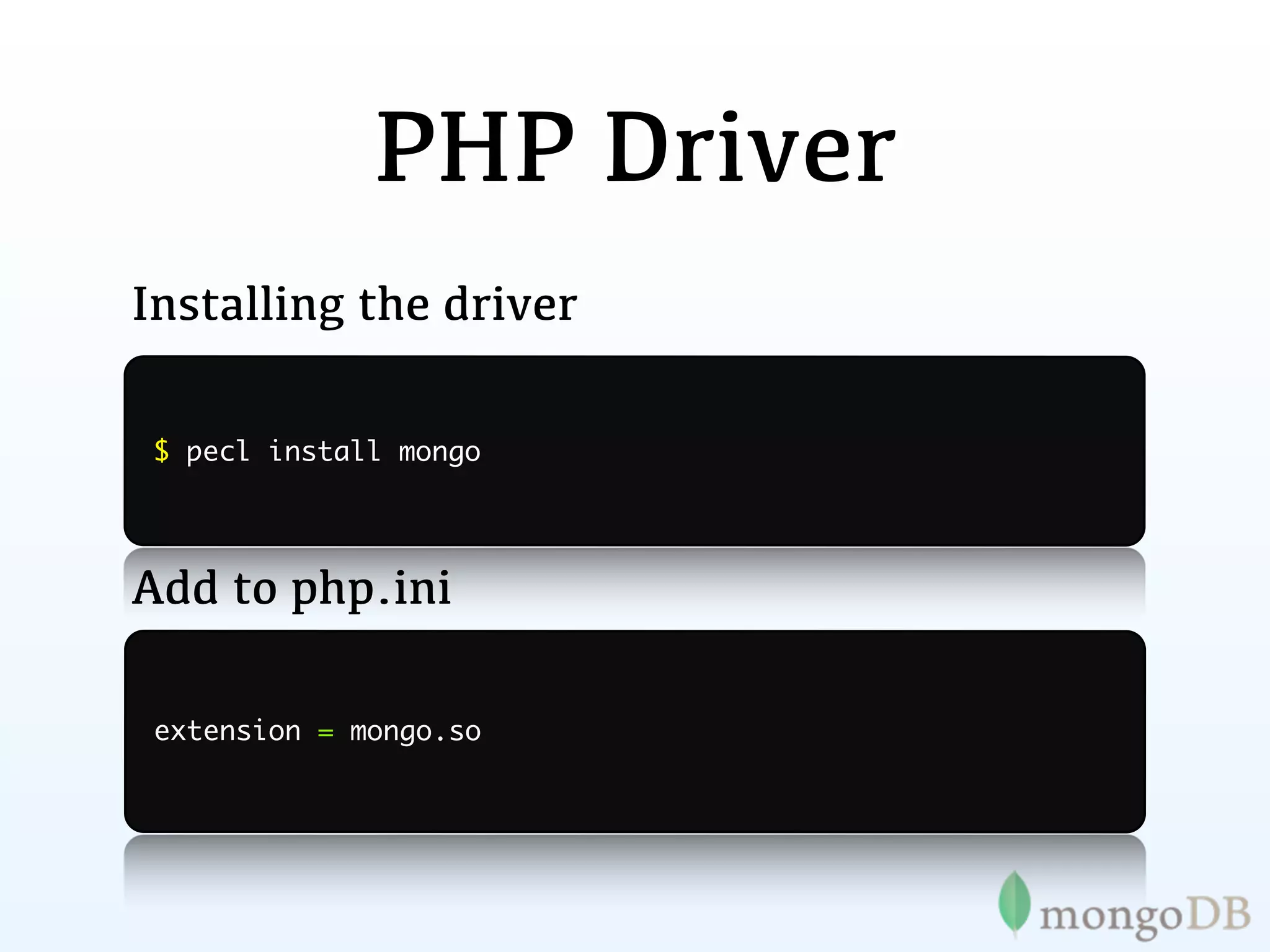

41. PHP Driver
Installing the driver
$ pecl install mongo
Add to php.ini
extension = mongo.so

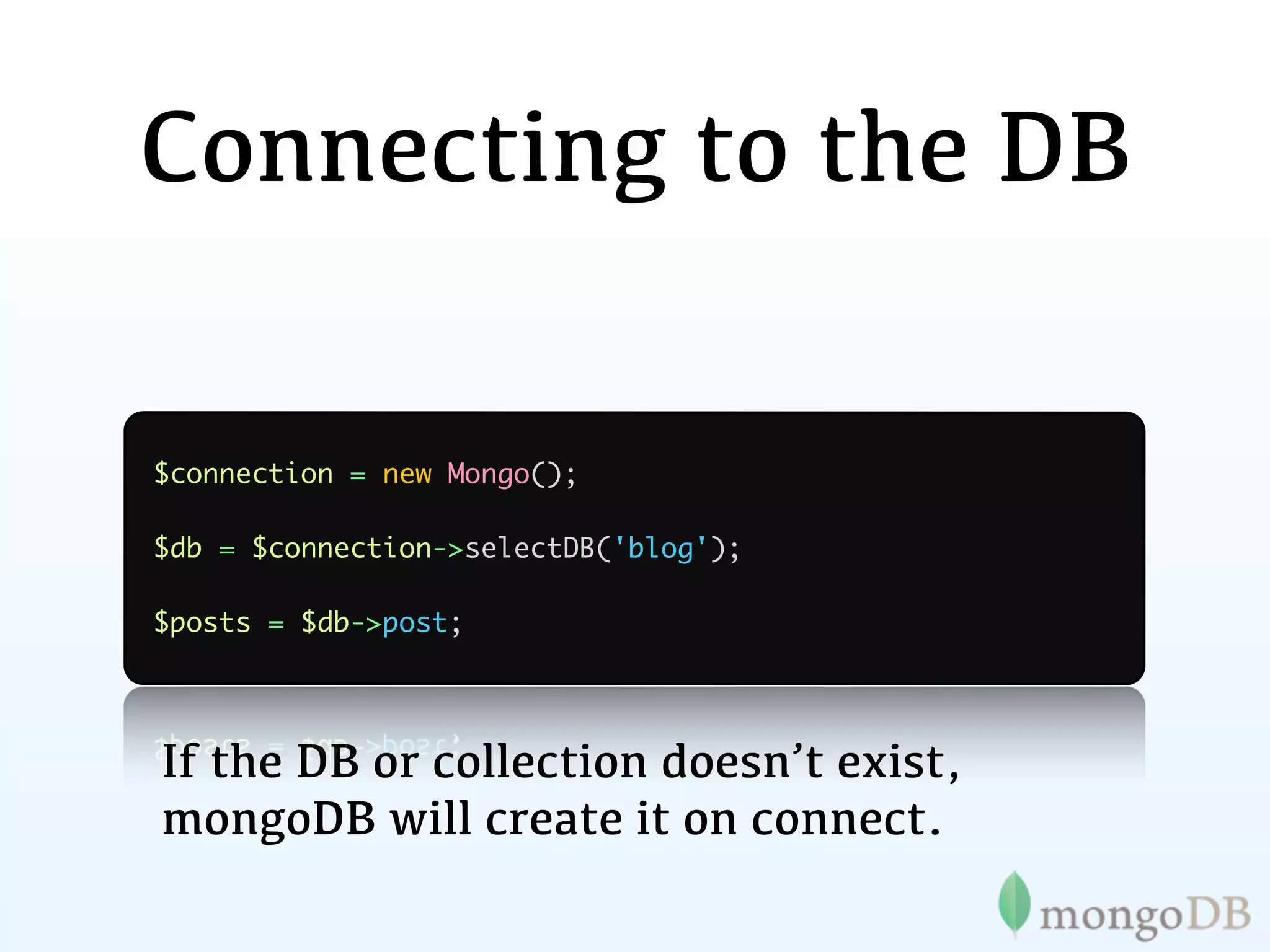

42. Connecting to the DB
$connection = new Mongo();
$db = $connection->selectDB('blog');
$posts = $db->post;
If the DB or collection doesn’t exist,
mongoDB will create it on connect.

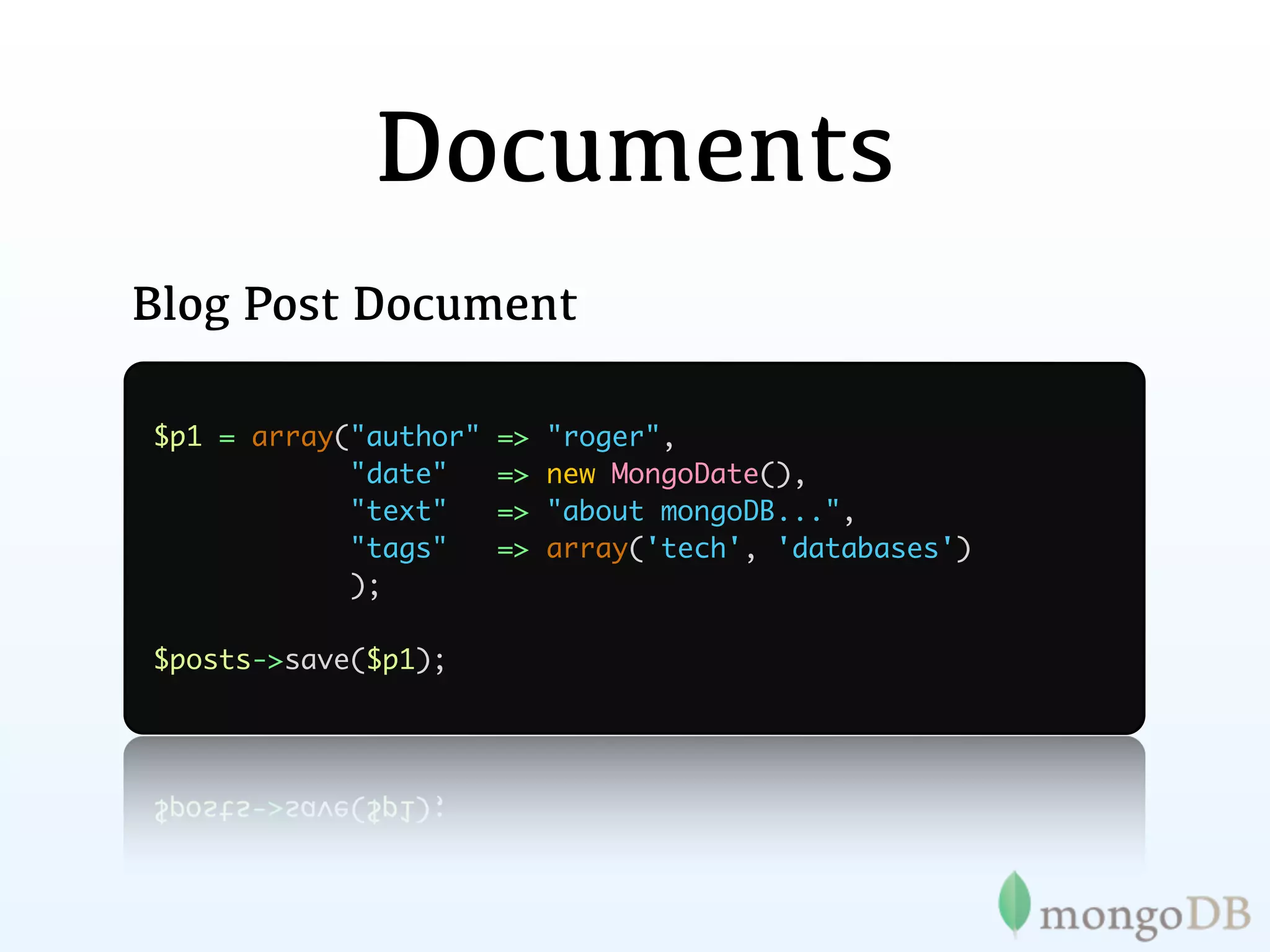

43. Documents
Blog Post Document
$p1 = array("author" => "roger",
"date" => new MongoDate(),
"text" => "about mongoDB...",
"tags" => array('tech', 'databases')
);
$posts->save($p1);

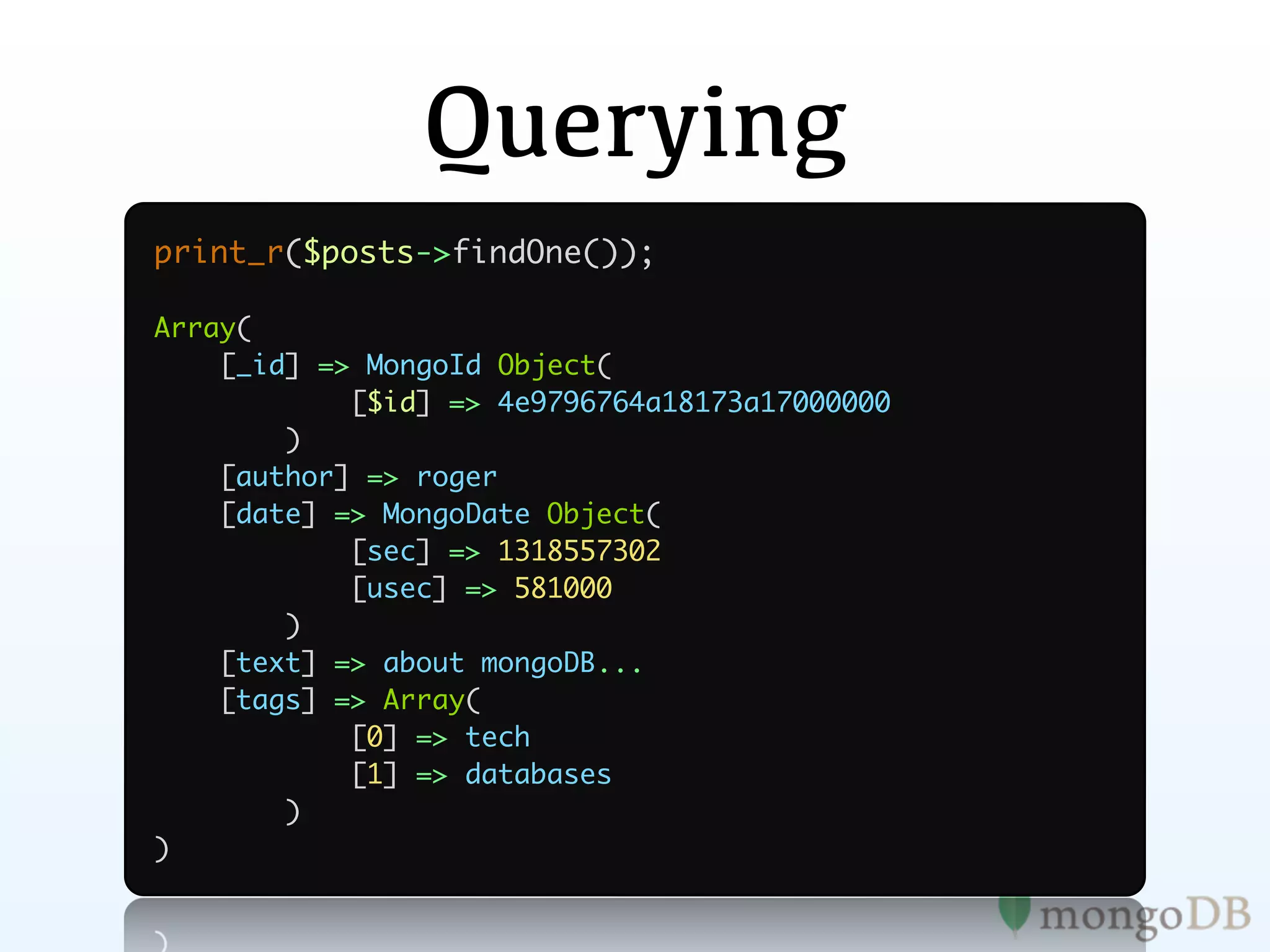

44. Querying
print_r($posts->findOne());
Array(
[_id] => MongoId Object(
[$id] => 4e9796764a18173a17000000
)
[author] => roger
[date] => MongoDate Object(
[sec] => 1318557302
[usec] => 581000
)
[text] => about mongoDB...
[tags] => Array(
[0] => tech
Note: _id is unique, but can be anything
[1] => databases
you’d like
)
)

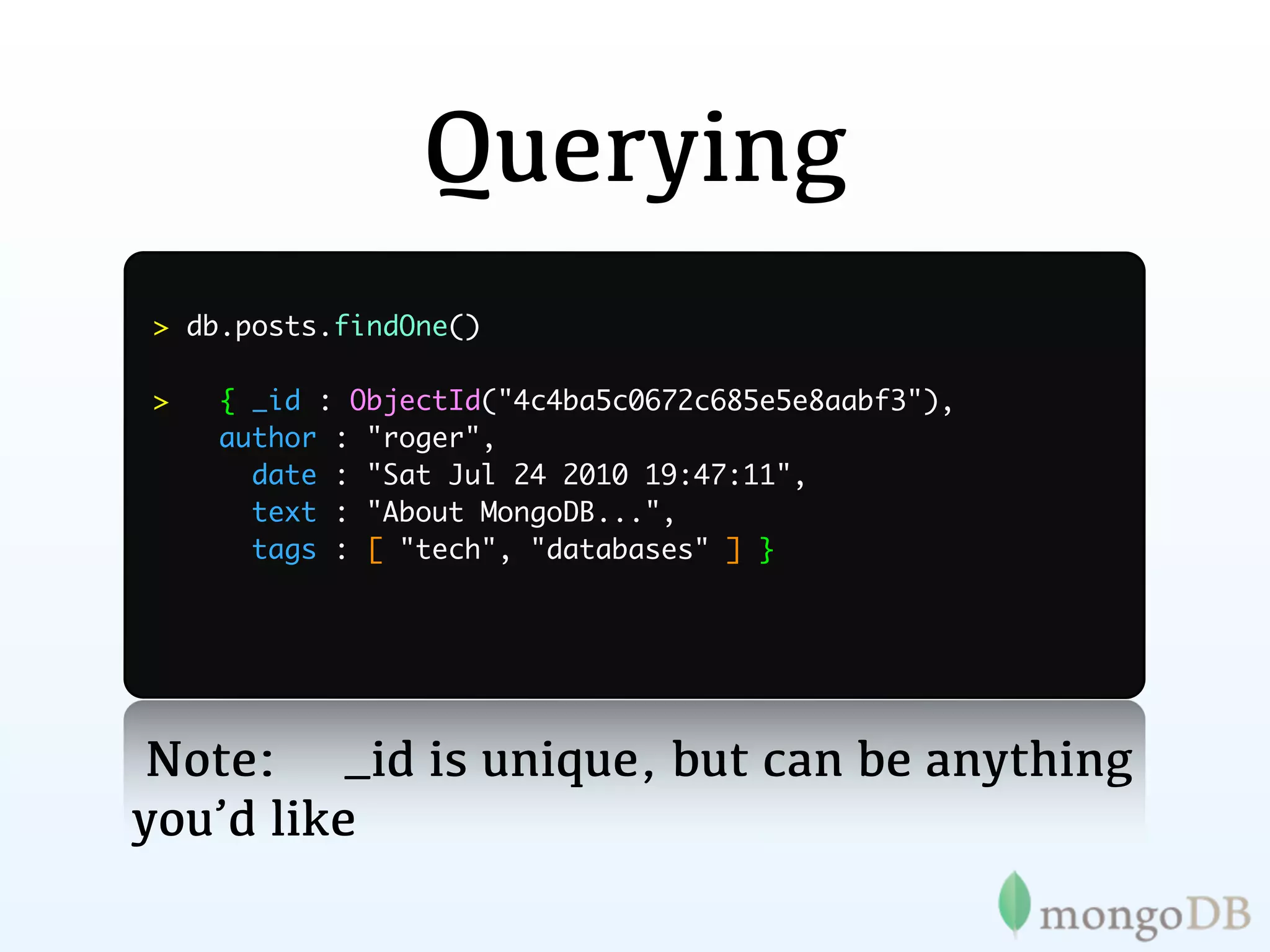

45. Querying
> db.posts.findOne()
> { _id : ObjectId("4c4ba5c0672c685e5e8aabf3"),
author : "roger",
date : "Sat Jul 24 2010 19:47:11",
text : "About MongoDB...",
tags : [ "tech", "databases" ] }
Note: _id is unique, but can be anything
you’d like

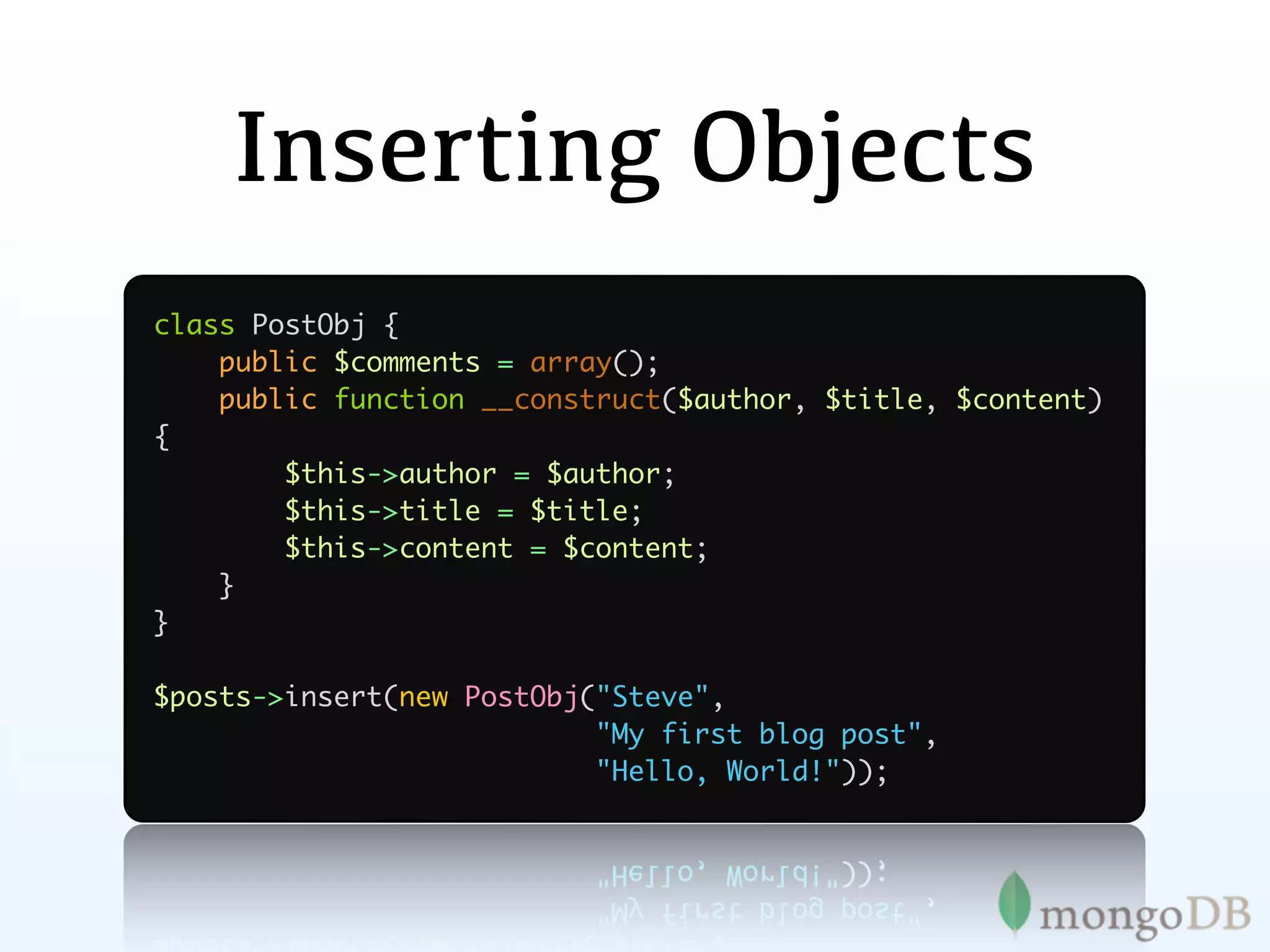

46. Inserting Objects
class PostObj {
public $comments = array();
public function __construct($author, $title, $content)
{
$this->author = $author;
$this->title = $title;
$this->content = $content;
}
}
$posts->insert(new PostObj("Steve",
"My first blog post",
"Hello, World!"));

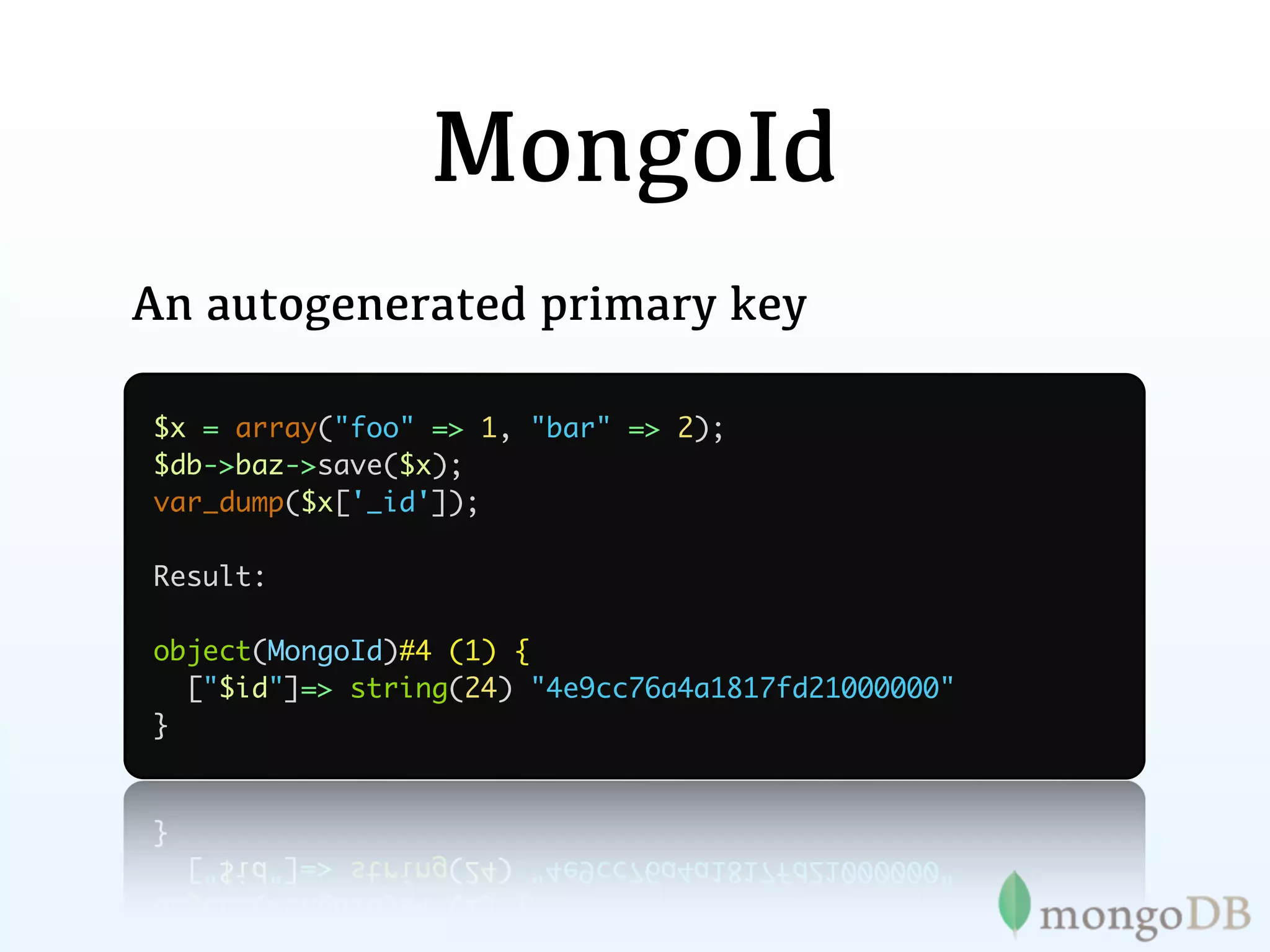

47. MongoId
An autogenerated primary key
$x = array("foo" => 1, "bar" => 2);
$db->baz->save($x);
var_dump($x['_id']);
Result:
object(MongoId)#4 (1) {
["$id"]=> string(24) "4e9cc76a4a1817fd21000000"
}

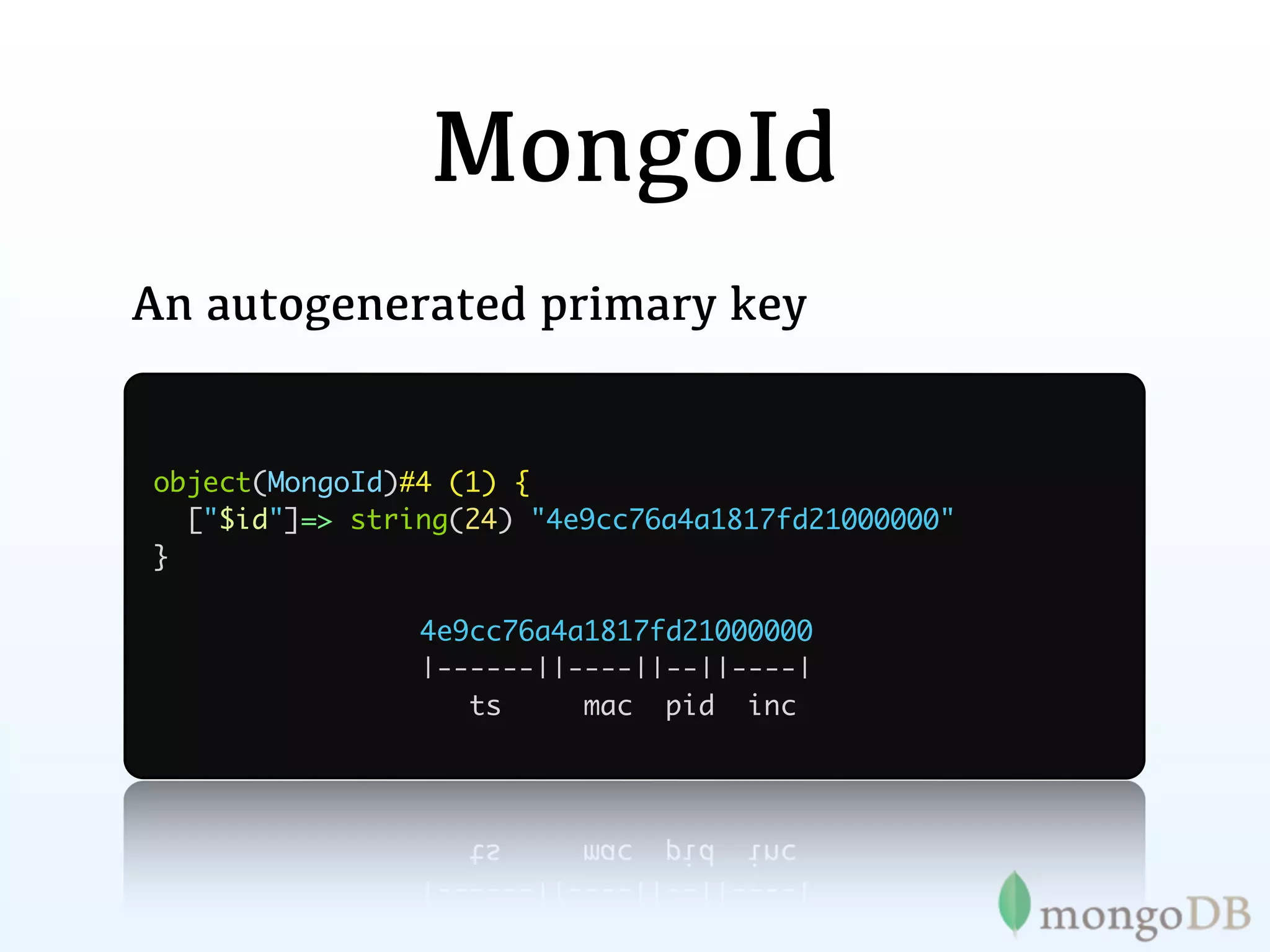

48. MongoId
An autogenerated primary key
object(MongoId)#4 (1) {
["$id"]=> string(24) "4e9cc76a4a1817fd21000000"
}
4e9cc76a4a1817fd21000000
|------||----||--||----|
ts mac pid inc

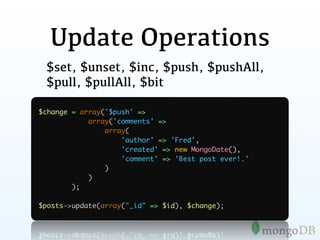

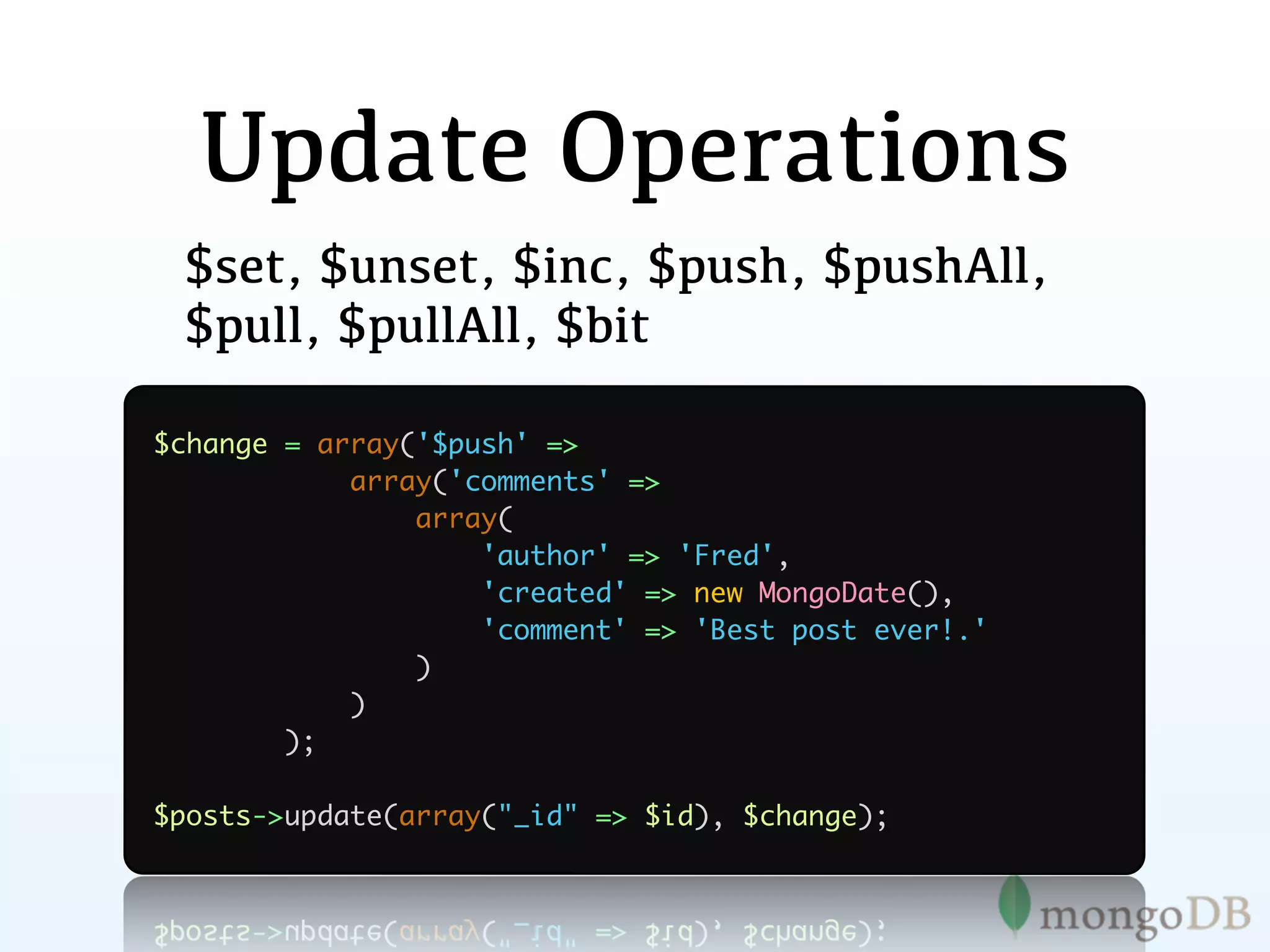

49. Update Operations
$set, $unset, $inc, $push, $pushAll,
$pull, $pullAll, $bit
$change = array('$push' =>
array('comments' =>
array(
'author' => 'Fred',
'created' => new MongoDate(),
'comment' => 'Best post ever!.'
)
)
);
$posts->update(array("_id" => $id), $change);

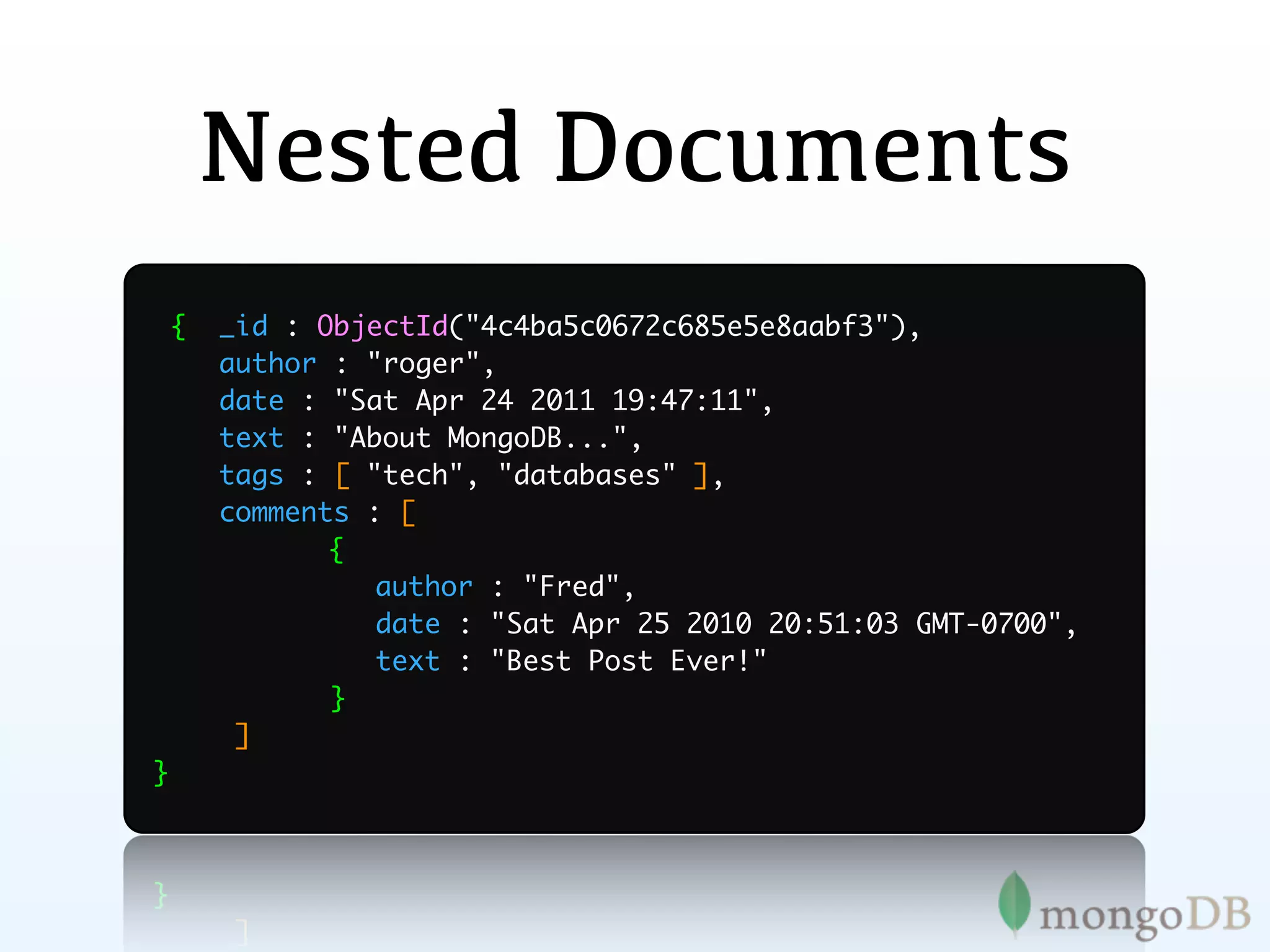

50. Nested Documents
{ _id : ObjectId("4c4ba5c0672c685e5e8aabf3"),
author : "roger",
date : "Sat Apr 24 2011 19:47:11",
text : "About MongoDB...",
tags : [ "tech", "databases" ],
comments : [
{
author : "Fred",
date : "Sat Apr 25 2010 20:51:03 GMT-0700",
text : "Best Post Ever!"
}
]
}

51. Nested Documents
{ _id : ObjectId("4c4ba5c0672c685e5e8aabf3"),
author : "roger",
date : "Sat Apr 24 2011 19:47:11",
text : "About MongoDB...",
tags : [ "tech", "databases" ],
comments : [
{
author : "Fred",
date : "Sat Apr 25 2010 20:51:03 GMT-0700",
text : "Best Post Ever!"
}
]
}

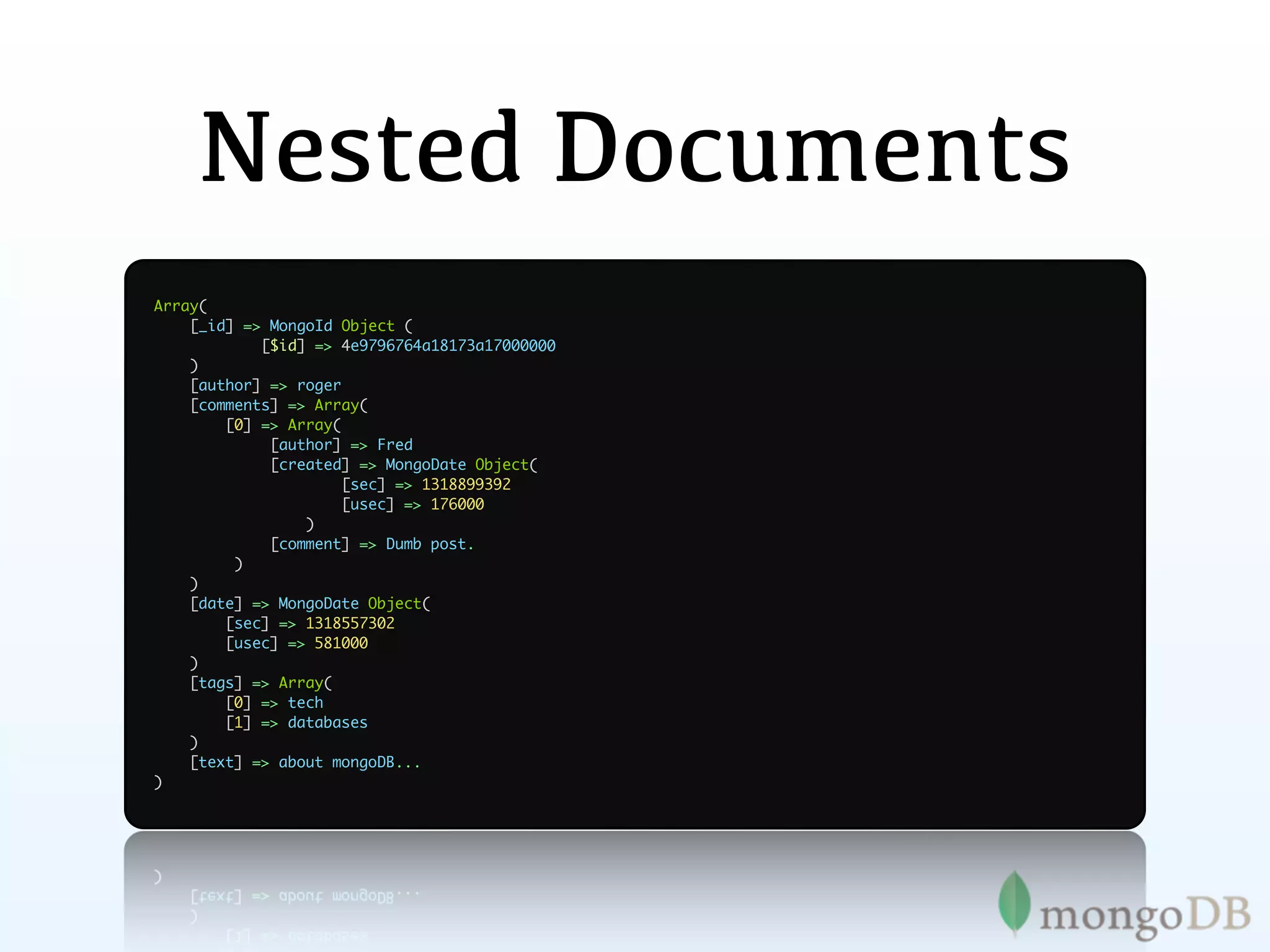

52. Nested Documents
Array(
[_id] => MongoId Object (
[$id] => 4e9796764a18173a17000000
)
[author] => roger
[comments] => Array(
[0] => Array(
[author] => Fred
[created] => MongoDate Object(
[sec] => 1318899392
[usec] => 176000
)
[comment] => Dumb post.
)
)
[date] => MongoDate Object(
[sec] => 1318557302
[usec] => 581000
)
[tags] => Array(
[0] => tech
[1] => databases
)
[text] => about mongoDB...
)

53. Querying
$posts = $blog->find(array(
"author" => "Roger"));
$commentsByFred = $blog->find(array(
"comments.author" => "Fred"));
$commentsByFred = $blog->find(array(
"comments.author" =>
new MongoRegex("/fred/i")));

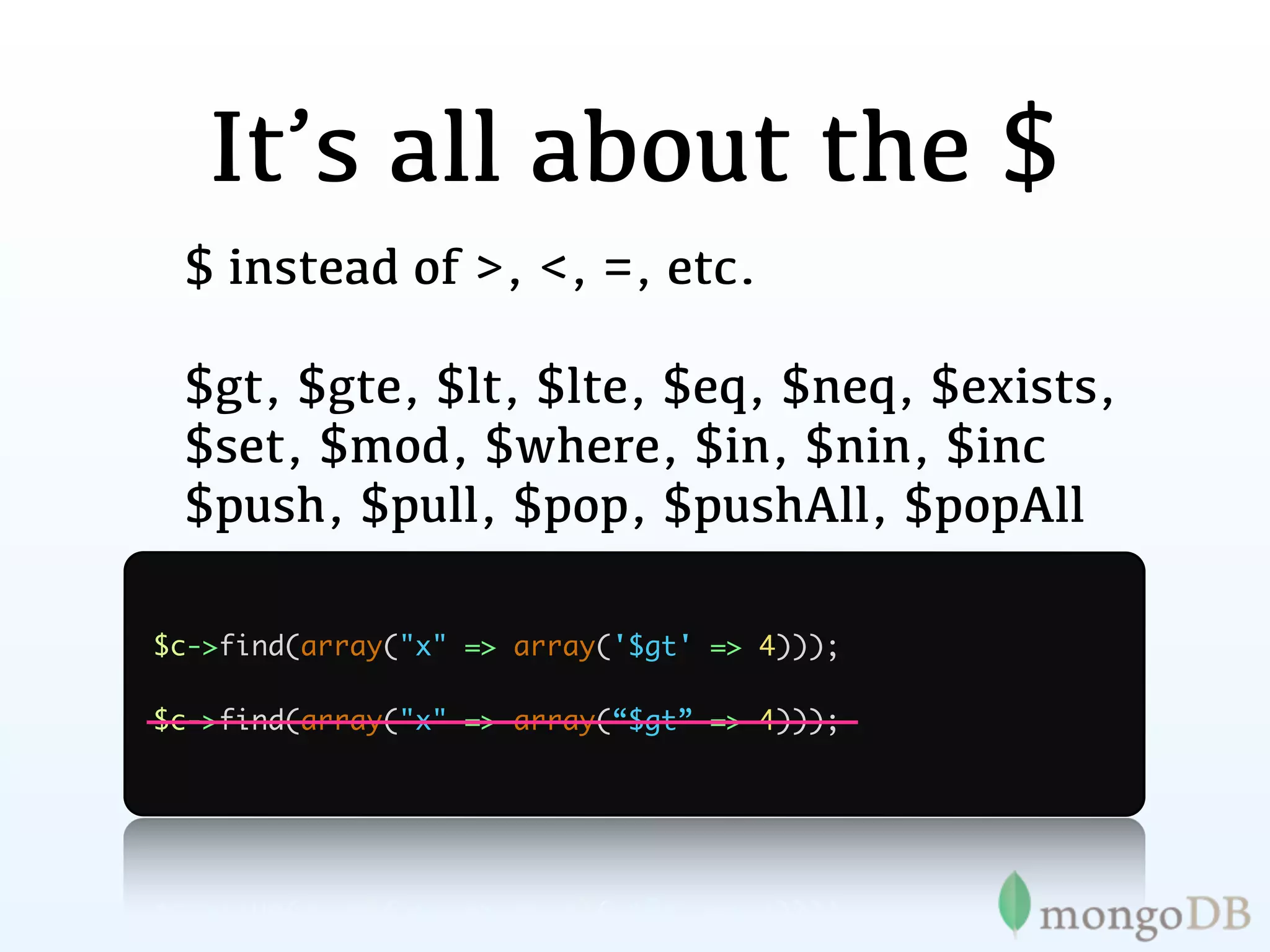

54. It’s all about the $
$ instead of >, <, =, etc.
$gt, $gte, $lt, $lte, $eq, $neq, $exists,
$set, $mod, $where, $in, $nin, $inc
$push, $pull, $pop, $pushAll, $popAll
$c->find(array("x" => array('$gt' => 4)));
$c->find(array("x" => array(“$gt” => 4)));

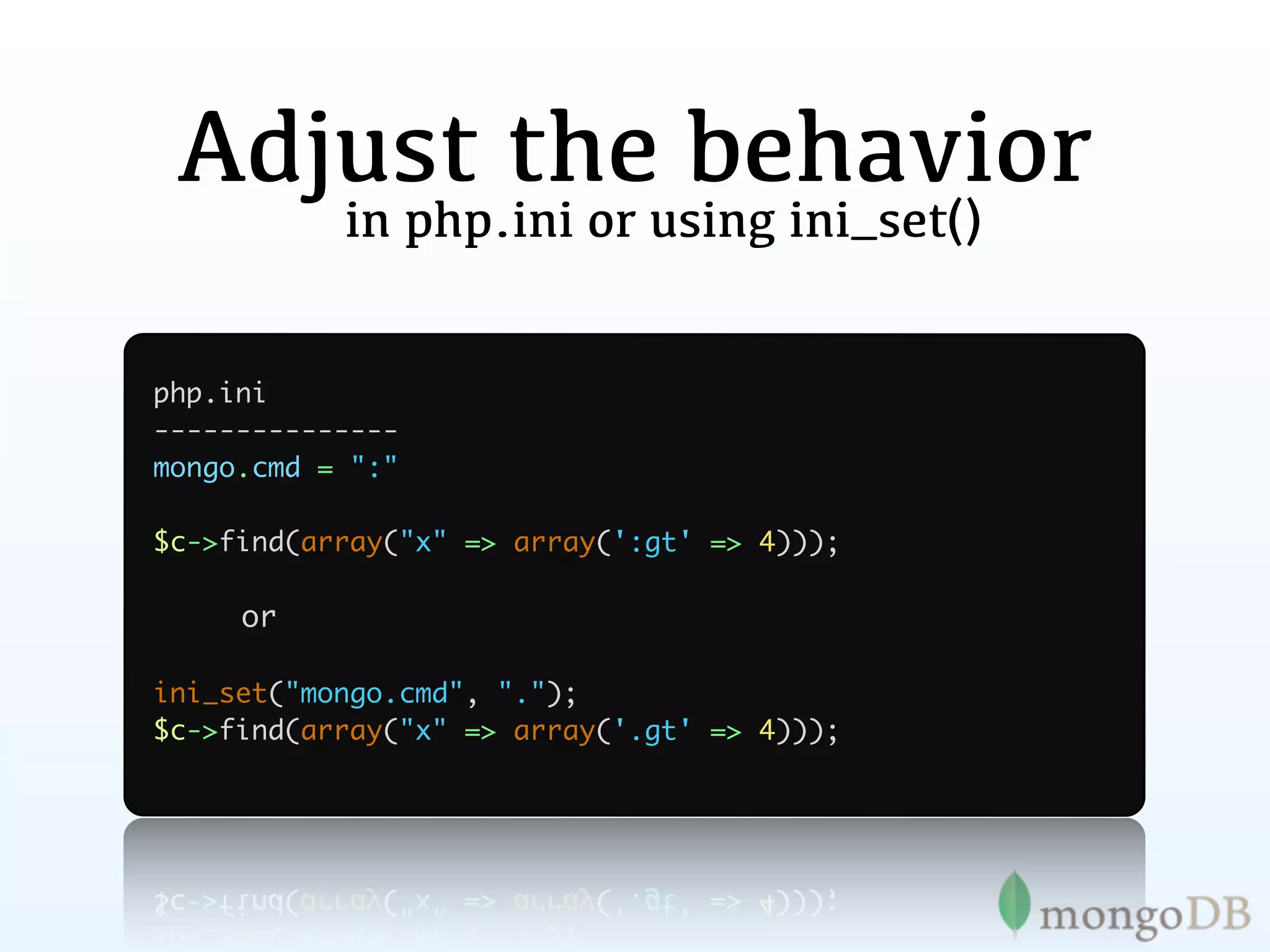

55. Adjust the behavior
in php.ini or using ini_set()
php.ini
---------------
mongo.cmd = ":"
$c->find(array("x" => array(':gt' => 4)));
or
ini_set("mongo.cmd", ".");
$c->find(array("x" => array('.gt' => 4)));

56. Indexing
including secondary and compound
indexes
$people->ensureIndex(array("age" => 1));
$people->ensureIndex(array(
"name" => -1,
"ts" => -1,
"comments.author" => 1
));

57. Cursors
$cursor = $c->find(array("foo" => "bar"))
foreach ($cursor as $id => $value) {
echo "$id: ";
var_dump( $value );
}
$a = iterator_to_array($cursor);

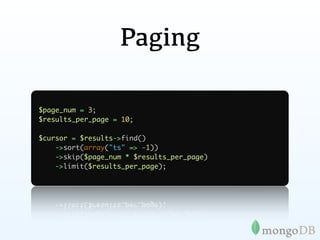

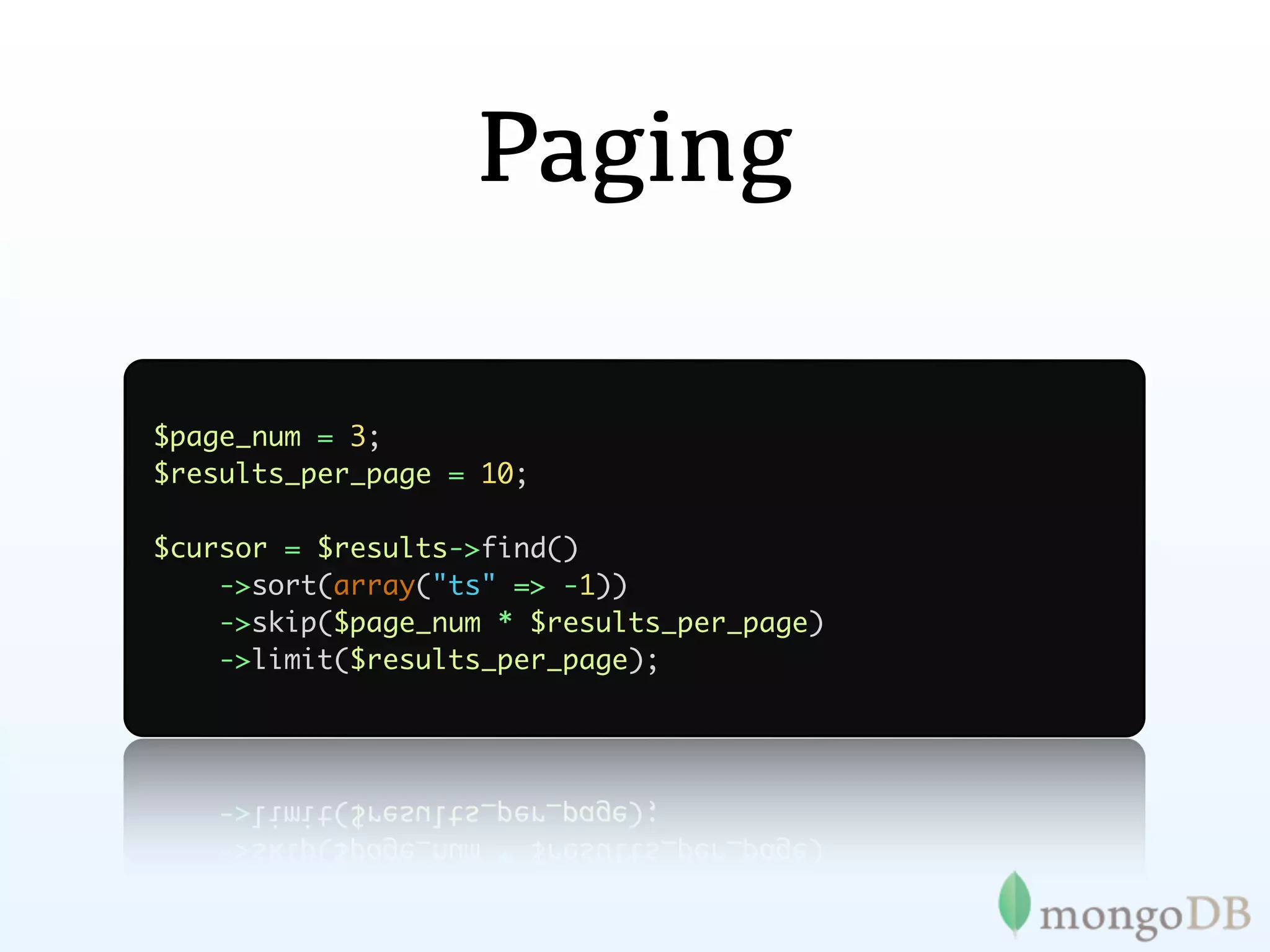

58. Paging
$page_num = 3;
$results_per_page = 10;
$cursor = $results->find()
->sort(array("ts" => -1))
->skip($page_num * $results_per_page)
->limit($results_per_page);

59. Grid FS

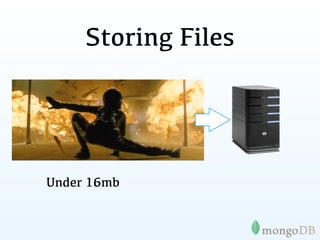

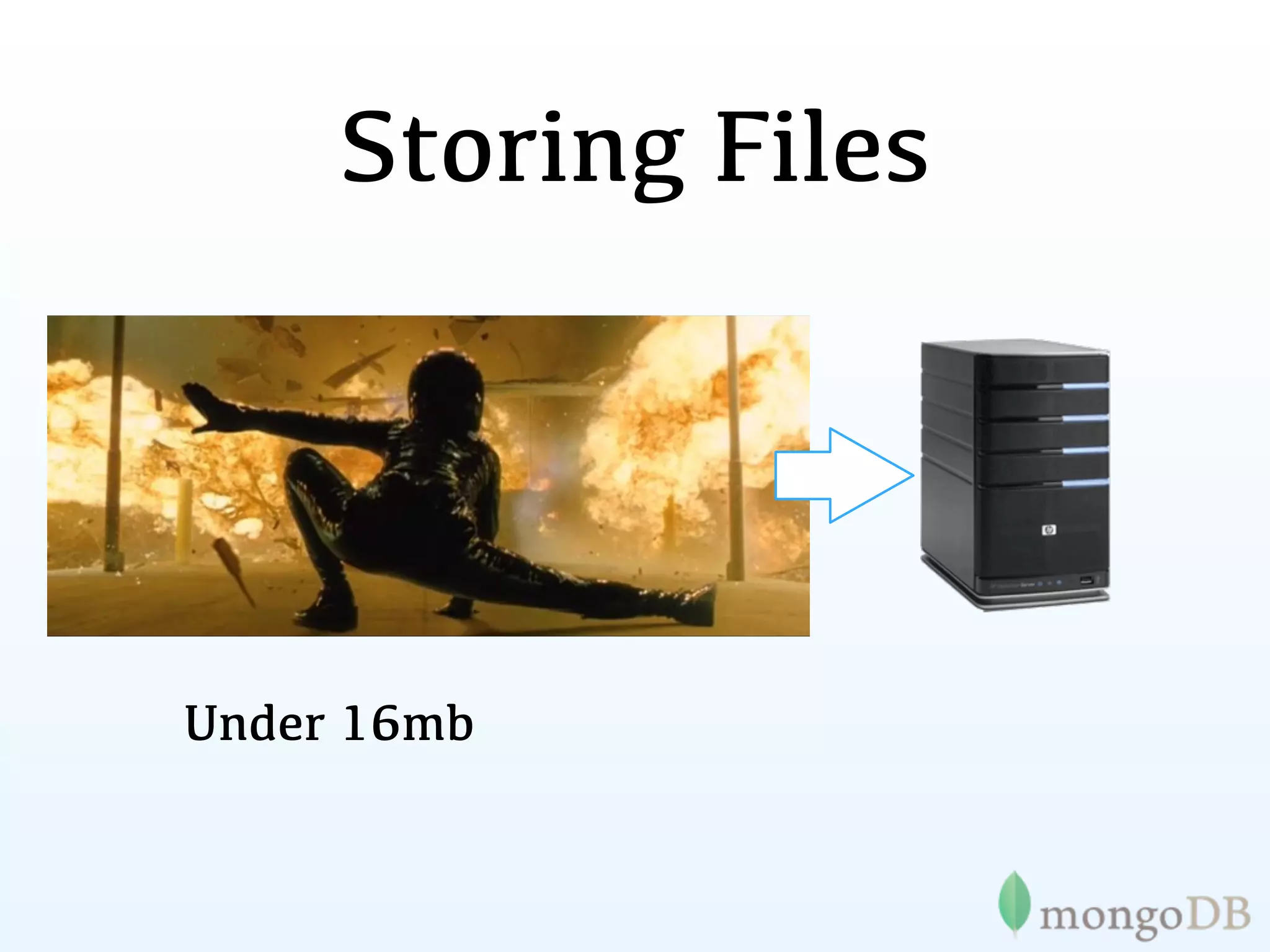

60. Storing Files
Under 16mb

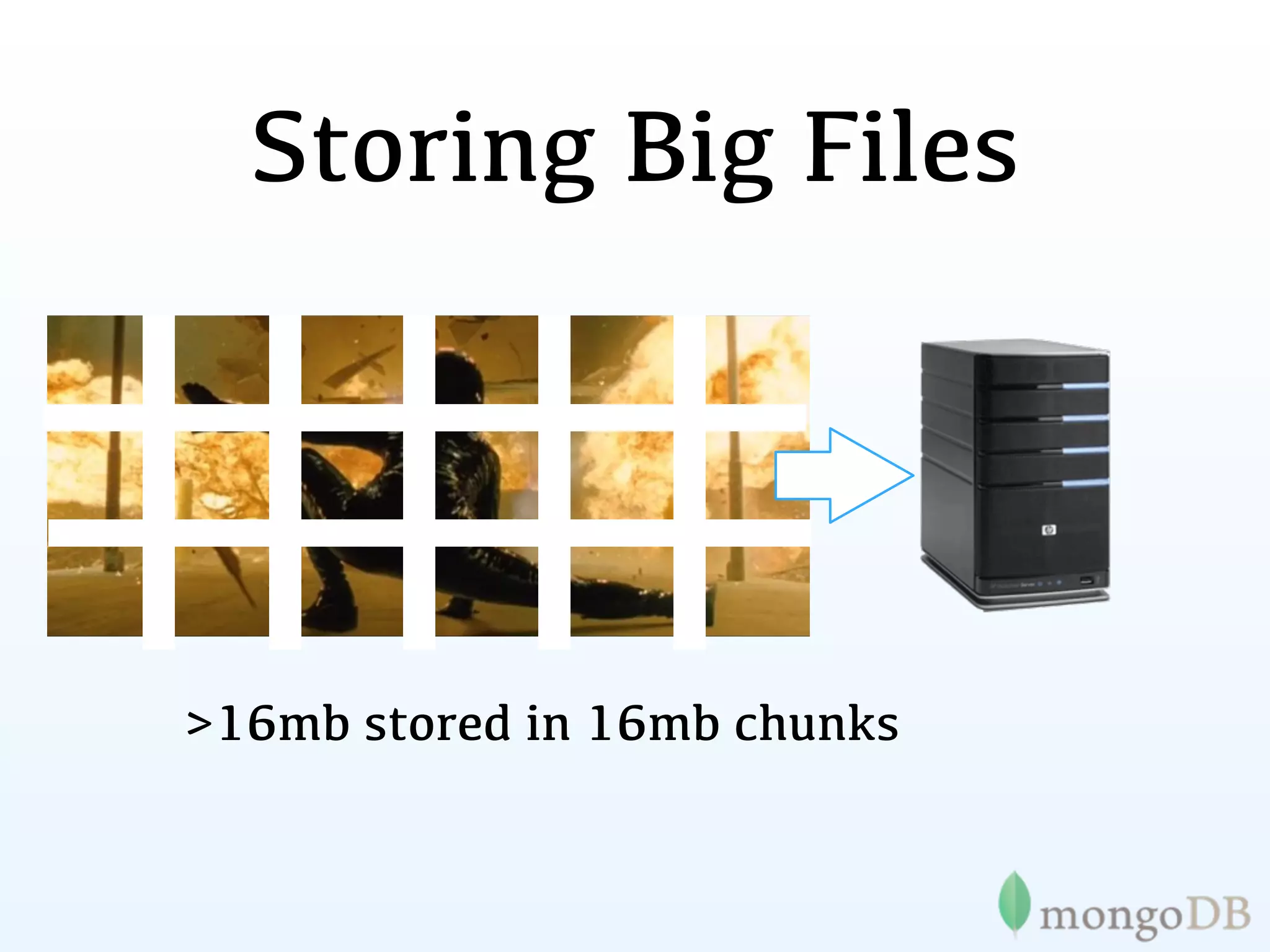

61. Storing Big Files
>16mb stored in 16mb chunks

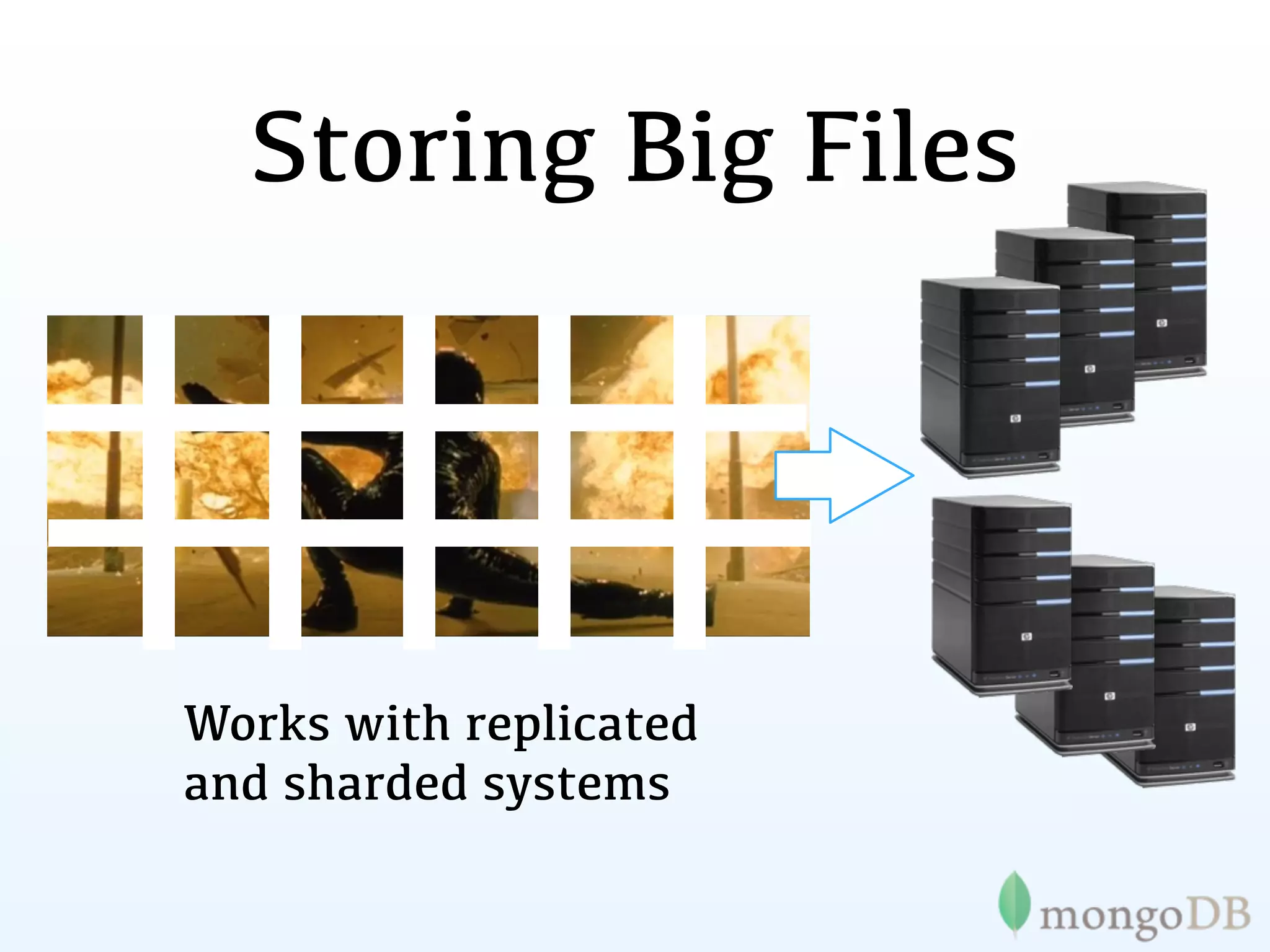

62. Storing Big Files
Works with replicated
and sharded systems

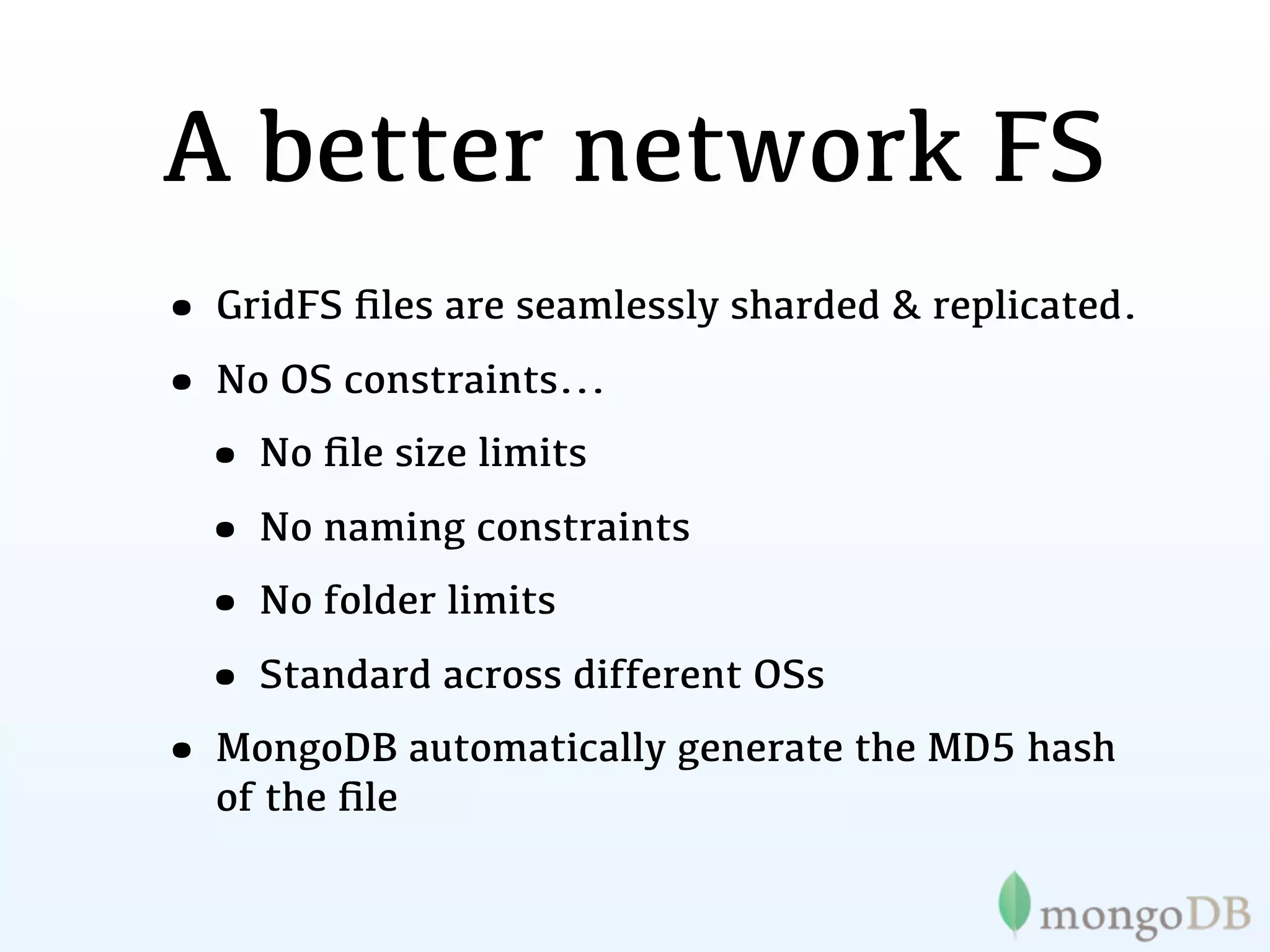

63. A better network FS
• GridFS files are seamlessly sharded & replicated.
• No OS constraints...
• No file size limits
• No naming constraints
• No folder limits
• Standard across different OSs
• MongoDB automatically generate the MD5 hash
of the file

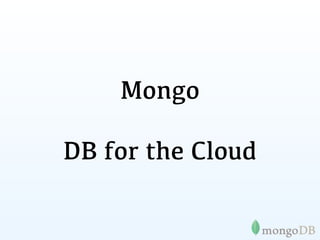

64. Mongo
DB for the Cloud

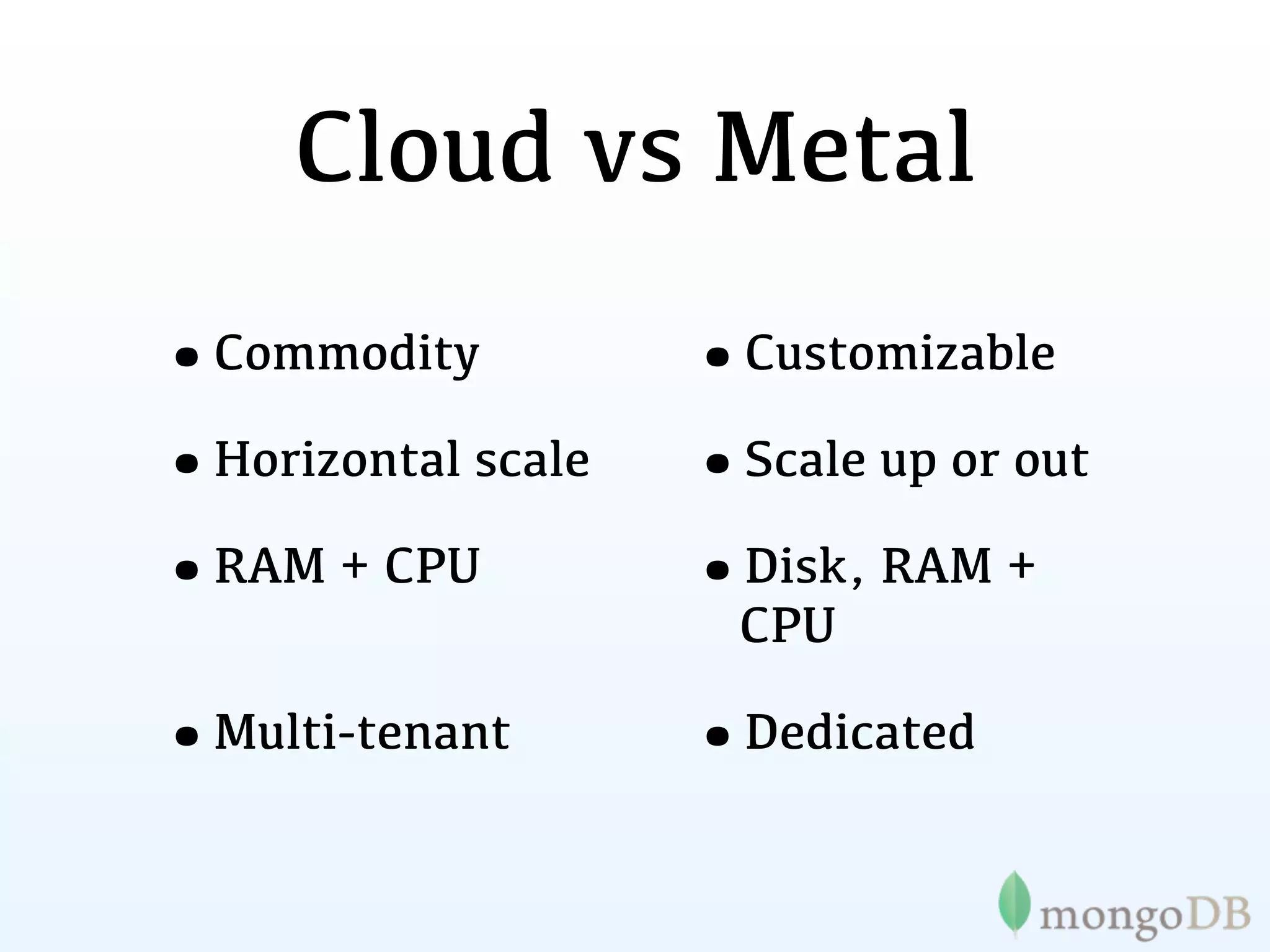

65. Cloud vs Metal
•Commodity •Customizable
•Horizontal scale •Scale up or out
•RAM + CPU •Disk, RAM +
CPU
•Multi-tenant •Dedicated

66. IaaS

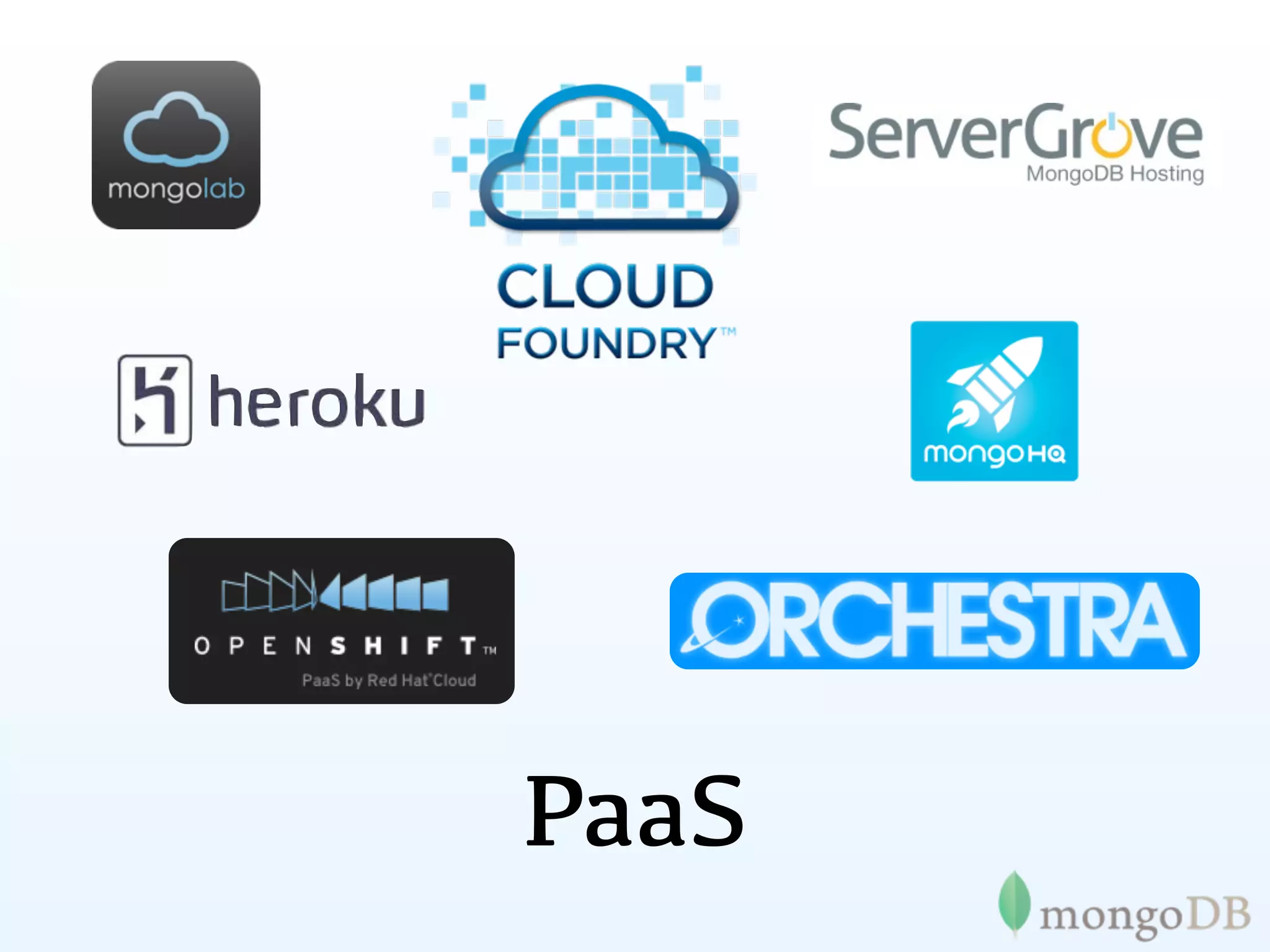

67. PaaS

68. MongoDB
Components

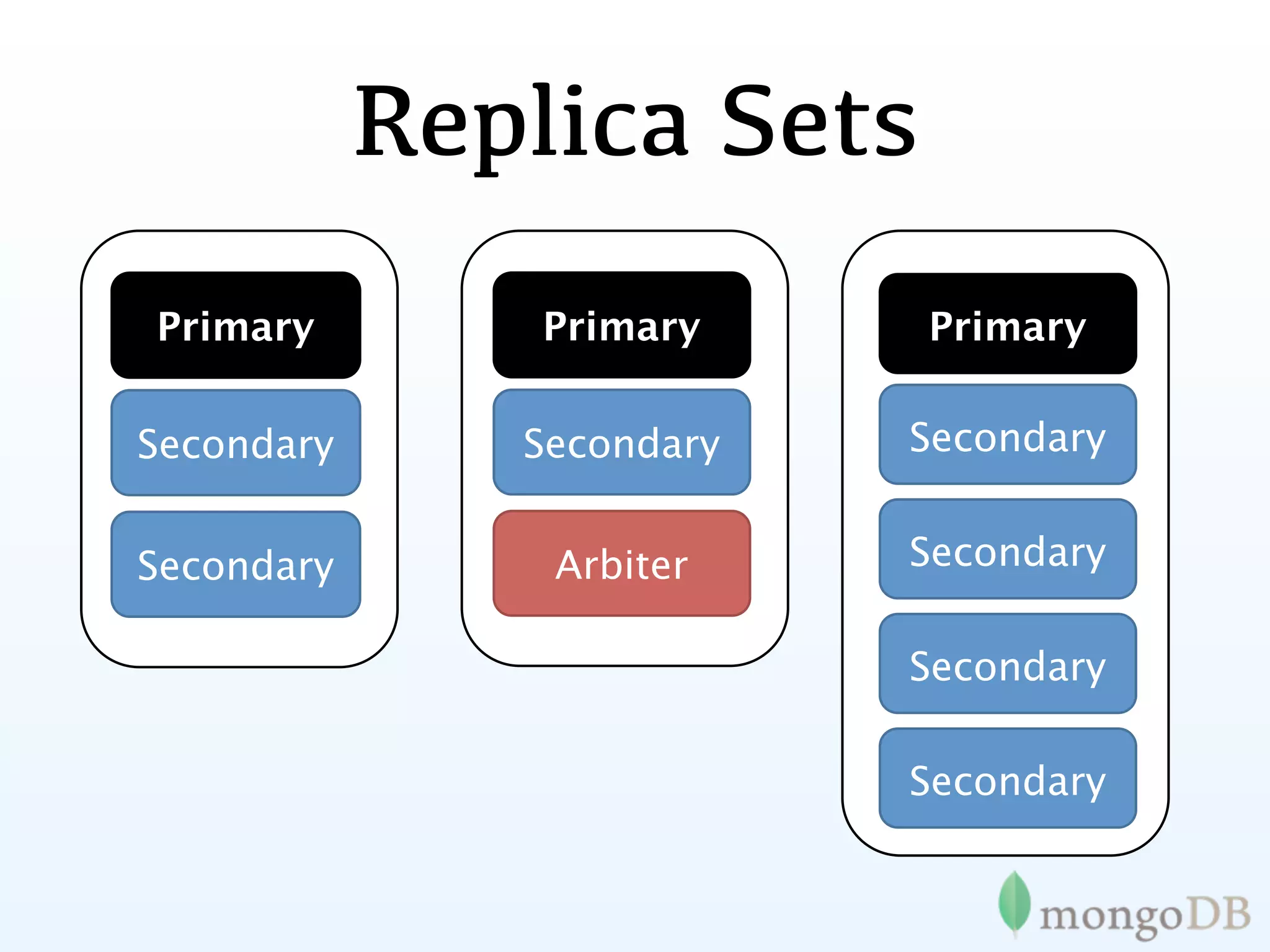

69. Replica Sets
Primary Primary Primary
Secondary Secondary Secondary
Secondary Arbiter Secondary
Secondary
Secondary

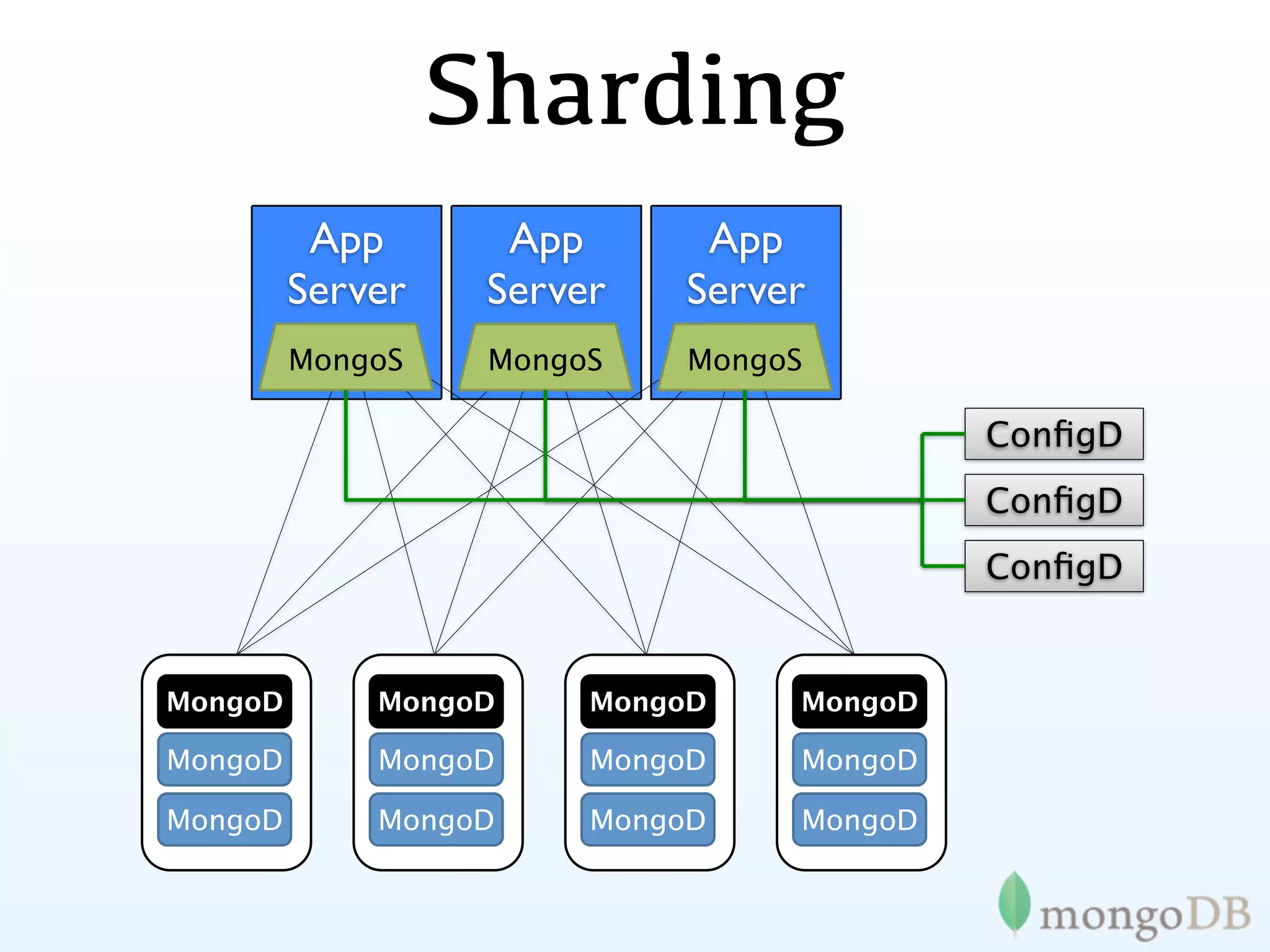

70. Sharding
App App App
Server Server Server
MongoS MongoS MongoS
ConfigD
ConfigD
ConfigD
MongoD MongoD MongoD MongoD
MongoD MongoD MongoD MongoD
MongoD MongoD MongoD MongoD

71. MongoDB on EC2

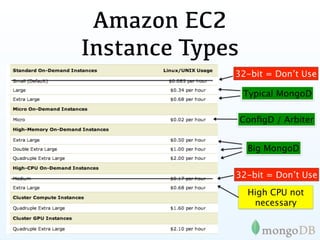

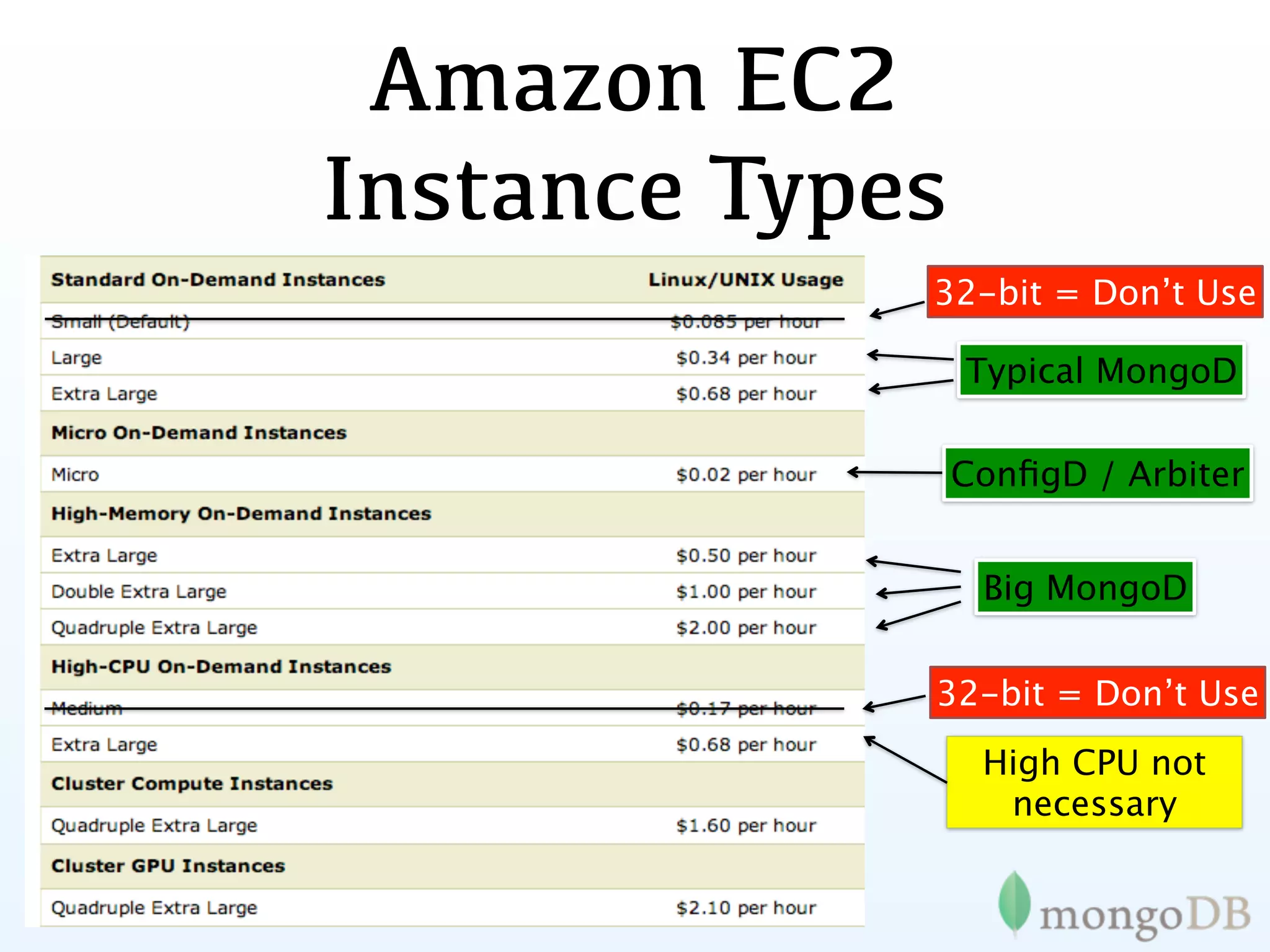

72. Amazon EC2
Instance Types
32-bit = Don’t Use
Typical MongoD
ConfigD / Arbiter
Big MongoD
32-bit = Don’t Use
High CPU not
necessary

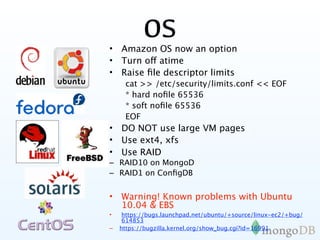

73. OS
• Amazon OS now an option
• Turn off atime
• Raise file descriptor limits
cat >> /etc/security/limits.conf << EOF
* hard nofile 65536
* soft nofile 65536
EOF
• DO NOT use large VM pages
• Use ext4, xfs
• Use RAID
– RAID10 on MongoD
– RAID1 on ConfigDB
• Warning! Known problems with Ubuntu
10.04 & EBS
• https://bugs.launchpad.net/ubuntu/+source/linux-ec2/+bug/
614853
– https://bugzilla.kernel.org/show_bug.cgi?id=16991

74. http://spf13.com
http://github.com/spf13
@spf13
Questions?
download at mongodb.org
PS: We’re hiring!! Contact us at jobs@10gen.com
