Mongo & Ecommerce
Mongo & Ecommerce A perfect combination
SQL Dilemma Pick One
SQL Dilemma Pick One • Stick to one vertical (Sane schema)
SQL Dilemma Pick One • Stick to one vertical (Sane schema) • Flexiblity (Insane schema)
Sane Schema
Sane Schema • Works fine for a few types of products
Sane Schema • Works fine for a few types of products • Not possible when more product types introduced.
Let’s Use an Example
Let’s Use an Example How about we start with books
Book Product Schema id: sku: product dimensions: General Product shipping weight: MSRP: attributes price: description: ... author: Orson Scott Card title: Enders Game binding: Hardcover publication date: July 15, 1994 Book Specific publisher name: Tor Science Fiction attributes number of pages: 352 ISBN: 0812550706 language: English ...
Seems simple enough
Seems simple enough What happens when we add another vertical... say music albums
Album Product Schema id: sku: product dimensions: General Product shipping weight: MSRP: attributes stay the price: same description: ... artist: MxPx title: Panic Album Specific release date: June 7, 2005 label: Side One Dummy attributes are track listing: [ The Darkest ... different language: English format: CD
Okay, it’s getting hairy but is still manageable, right?
Okay, it’s getting hairy but is still manageable, right? Now the business want to sell jeans
Jeans Product Schema id: sku: General Product product dimensions: shipping weight: attributes stay the MSRP: same price: description: ... brand: Lucky gender: Mens Jeans specific make: Vintage attributes are totally style: Straight Cut different ... and not length: 34 width: 34 consistent across color: Hipster brands & make material: Cotten Blend ...
Now we’re screwed
We need a flexible schema in RDBMS We got this ... right?

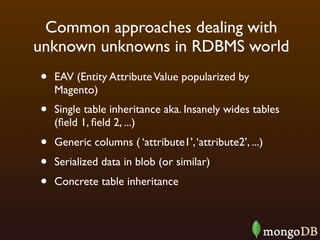

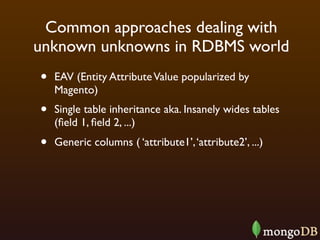

Common approaches dealing with unknown unknowns in RDBMS world
Common approaches dealing with unknown unknowns in RDBMS world • EAV (Entity Attribute Value popularized by Magento)
Common approaches dealing with unknown unknowns in RDBMS world • EAV (Entity Attribute Value popularized by Magento) • Single table inheritance aka. Insanely wides tables (field 1, field 2, ...)
Common approaches dealing with unknown unknowns in RDBMS world • EAV (Entity Attribute Value popularized by Magento) • Single table inheritance aka. Insanely wides tables (field 1, field 2, ...) • Generic columns ( ‘attribute1’, ‘attribute2’, ...)

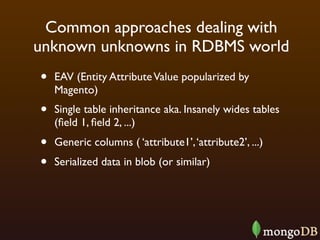

Common approaches dealing with unknown unknowns in RDBMS world • EAV (Entity Attribute Value popularized by Magento) • Single table inheritance aka. Insanely wides tables (field 1, field 2, ...) • Generic columns ( ‘attribute1’, ‘attribute2’, ...) • Serialized data in blob (or similar)
Common approaches dealing with unknown unknowns in RDBMS world • EAV (Entity Attribute Value popularized by Magento) • Single table inheritance aka. Insanely wides tables (field 1, field 2, ...) • Generic columns ( ‘attribute1’, ‘attribute2’, ...) • Serialized data in blob (or similar) • Concrete table inheritance

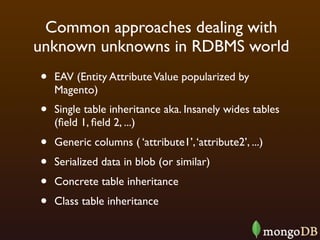

Common approaches dealing with unknown unknowns in RDBMS world • EAV (Entity Attribute Value popularized by Magento) • Single table inheritance aka. Insanely wides tables (field 1, field 2, ...) • Generic columns ( ‘attribute1’, ‘attribute2’, ...) • Serialized data in blob (or similar) • Concrete table inheritance • Class table inheritance
None Work Well Let’s look at why

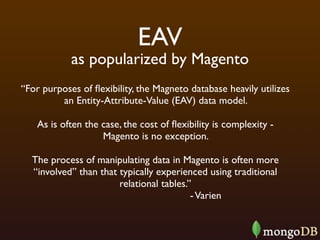

EAV as popularized by Magento “For purposes of flexibility, the Magneto database heavily utilizes an Entity-Attribute-Value (EAV) data model. As is often the case, the cost of flexibility is complexity - Magento is no exception. The process of manipulating data in Magento is often more “involved” than that typically experienced using traditional relational tables.” - Varien

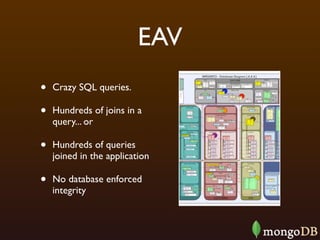

EAV • Crazy SQL queries. • Hundreds of joins in a query... or • Hundreds of queries joined in the application • No database enforced integrity

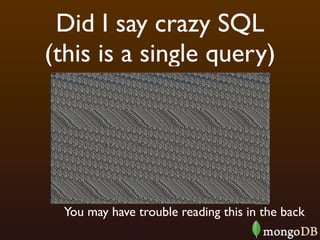

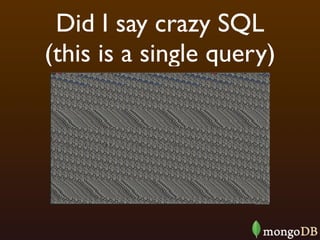

Did I say crazy SQL (this is a single query)
Did I say crazy SQL (this is a single query) You may have trouble reading this in the back

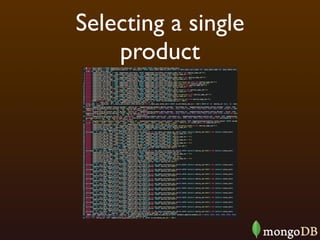

Selecting a single product

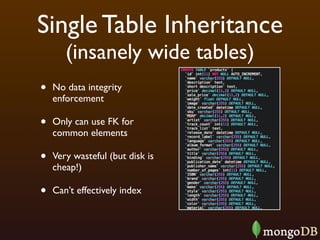

Single Table Inheritance (insanely wide tables) • No data integrity enforcement • Only can use FK for common elements • Very wasteful (but disk is cheap!) • Can’t effectively index

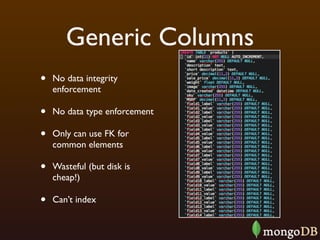

Generic Columns • No data integrity enforcement • No data type enforcement • Only can use FK for common elements • Wasteful (but disk is cheap!) • Can’t index

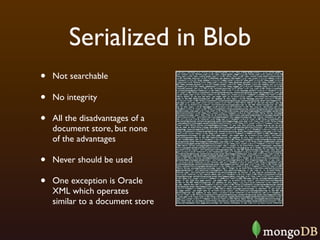

Serialized in Blob • Not searchable • No integrity • All the disadvantages of a document store, but none of the advantages • Never should be used • One exception is Oracle XML which operates similar to a document store

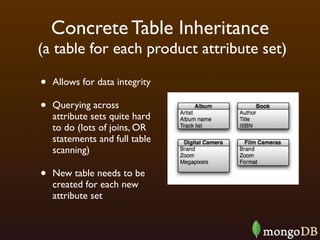

Concrete Table Inheritance (a table for each product attribute set) • Allows for data integrity • Querying across attribute sets quite hard to do (lots of joins, OR statements and full table scanning) • New table needs to be created for each new attribute set

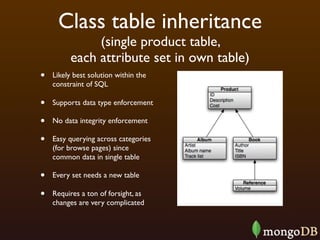

Class table inheritance (single product table, each attribute set in own table) • Likely best solution within the constraint of SQL • Supports data type enforcement • No data integrity enforcement • Easy querying across categories (for browse pages) since common data in single table • Every set needs a new table • Requires a ton of forsight, as changes are very complicated
Square Peg Round Hole
Mongo to the Rescue • Flexible (and sane) Schema • Easily searchable • Easily accessible • Fast
Examples • grab products.js from http://github.com/ spf13/mongoProducts • mongo --shell products.js • > use mongoProducts
Schema

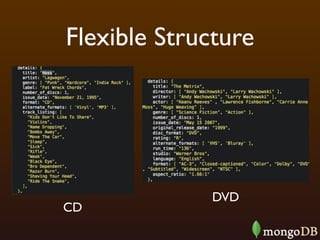

Flexible Structure DVD CD

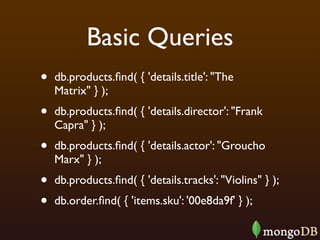

Basic Queries • db.products.find( { 'details.title': "The Matrix" } ); • db.products.find( { 'details.director': "Frank Capra" } ); • db.products.find( { 'details.actor': "Groucho Marx" } ); • db.products.find( { 'details.tracks': "Violins" } ); • db.order.find( { 'items.sku': '00e8da9f' } );

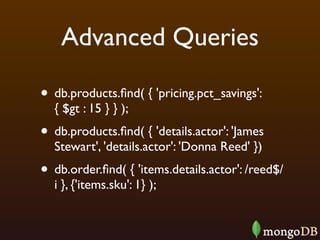

Advanced Queries • db.products.find( { 'pricing.pct_savings': { $gt : 15 } } ); • db.products.find( { 'details.actor': 'James Stewart', 'details.actor': 'Donna Reed' }) • db.order.find( { 'items.details.actor': /reed$/ i }, {'items.sku': 1} );

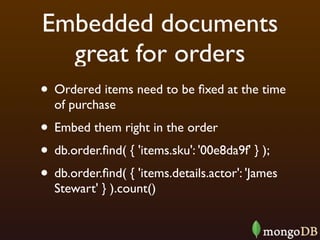

Embedded documents great for orders • Ordered items need to be fixed at the time of purchase • Embed them right in the order • db.order.find( { 'items.sku': '00e8da9f' } ); • db.order.find( { 'items.details.actor': 'James Stewart' } ).count()
What about the $$?

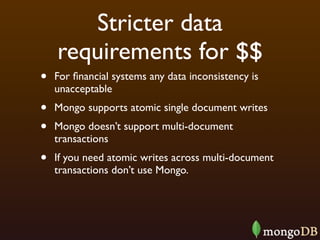

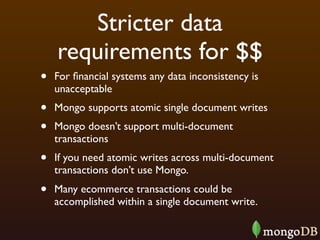

Stricter data requirements for $$
Stricter data requirements for $$ • For financial systems any data inconsistency is unacceptable
Stricter data requirements for $$ • For financial systems any data inconsistency is unacceptable • Mongo supports atomic single document writes
Stricter data requirements for $$ • For financial systems any data inconsistency is unacceptable • Mongo supports atomic single document writes • Mongo doesn’t support multi-document transactions
Stricter data requirements for $$ • For financial systems any data inconsistency is unacceptable • Mongo supports atomic single document writes • Mongo doesn’t support multi-document transactions • If you need atomic writes across multi-document transactions don’t use Mongo.
Stricter data requirements for $$ • For financial systems any data inconsistency is unacceptable • Mongo supports atomic single document writes • Mongo doesn’t support multi-document transactions • If you need atomic writes across multi-document transactions don’t use Mongo. • Many ecommerce transactions could be accomplished within a single document write.

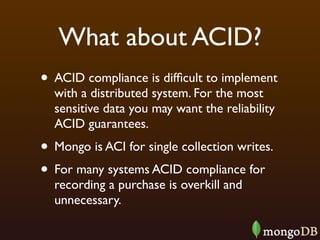

What about ACID?
What about ACID? • ACID compliance is difficult to implement with a distributed system. For the most sensitive data you may want the reliability ACID guarantees.

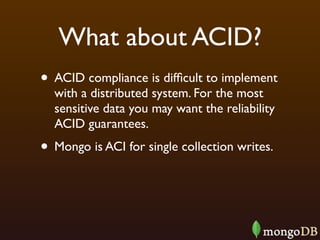

What about ACID? • ACID compliance is difficult to implement with a distributed system. For the most sensitive data you may want the reliability ACID guarantees. • Mongo is ACI for single collection writes.
What about ACID? • ACID compliance is difficult to implement with a distributed system. For the most sensitive data you may want the reliability ACID guarantees. • Mongo is ACI for single collection writes. • For many systems ACID compliance for recording a purchase is overkill and unnecessary.
About Me • VP Engineering @ OpenSky • @spf13 • github.com/spf13 • Hacker, Father, Husband, Entrepreneur, Skate Punk

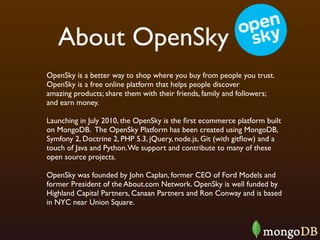

About OpenSky OpenSky is a better way to shop where you buy from people you trust. OpenSky is a free online platform that helps people discover amazing products; share them with their friends, family and followers; and earn money. Launching in July 2010, the OpenSky is the first ecommerce platform built on MongoDB.  The OpenSky Platform has been created using MongoDB, Symfony 2, Doctrine 2, PHP 5.3, jQuery, node.js, Git (with gitflow) and a touch of Java and Python. We support and contribute to many of these open source projects.   OpenSky was founded by John Caplan, former CEO of Ford Models and former President of the About.com Network. OpenSky is well funded by Highland Capital Partners, Canaan Partners and Ron Conway and is based in NYC near Union Square.
Interested in what you saw? • We’re Hiring • Contact me at jobs@shopOpenSky.com
Questions
Appendix

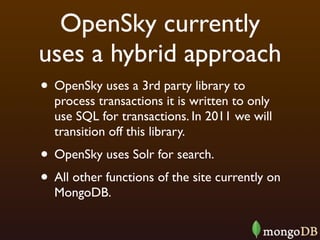

OpenSky currently uses a hybrid approach • OpenSky uses a 3rd party library to process transactions it is written to only use SQL for transactions. In 2011 we will transition off this library. • OpenSky uses Solr for search. • All other functions of the site currently on MongoDB.

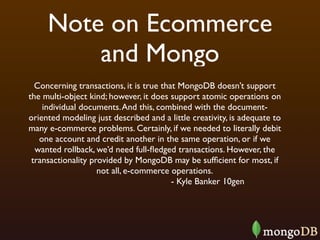

Note on Ecommerce and Mongo Concerning transactions, it is true that MongoDB doesn’t support the multi-object kind; however, it does support atomic operations on individual documents. And this, combined with the document- oriented modeling just described and a little creativity, is adequate to many e-commerce problems. Certainly, if we needed to literally debit one account and credit another in the same operation, or if we wanted rollback, we’d need full-fledged transactions. However, the transactionality provided by MongoDB may be sufficient for most, if not all, e-commerce operations. - Kyle Banker 10gen
