When using MongoDB and AWS, you want to design your infrastructure to avoid storage bottlenecks and make the best use of your available storage resources. AWS offers a myriad of storage options, including ephemeral disks, EBS, Provisioned IOPS, and ephemeral SSD's, each offering different performance and persistence characteristics. In this session, we’ll evaluate each of these options in the context of your MongoDB deployment, assessing the benefits and drawbacks of each.

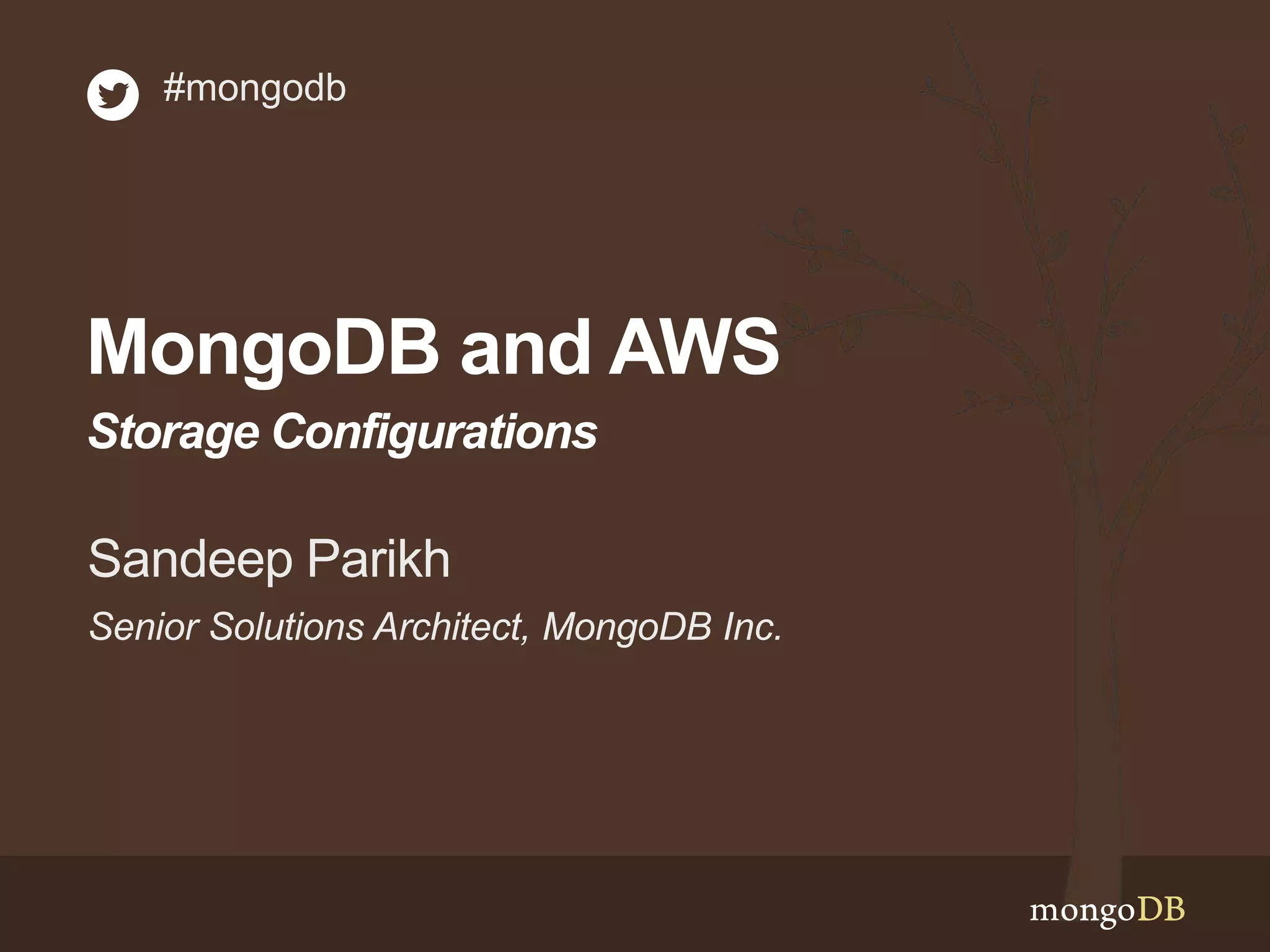

1. MongoDB and AWS
Storage Configurations
Senior Solutions Architect, MongoDB Inc.
Sandeep Parikh
#mongodb

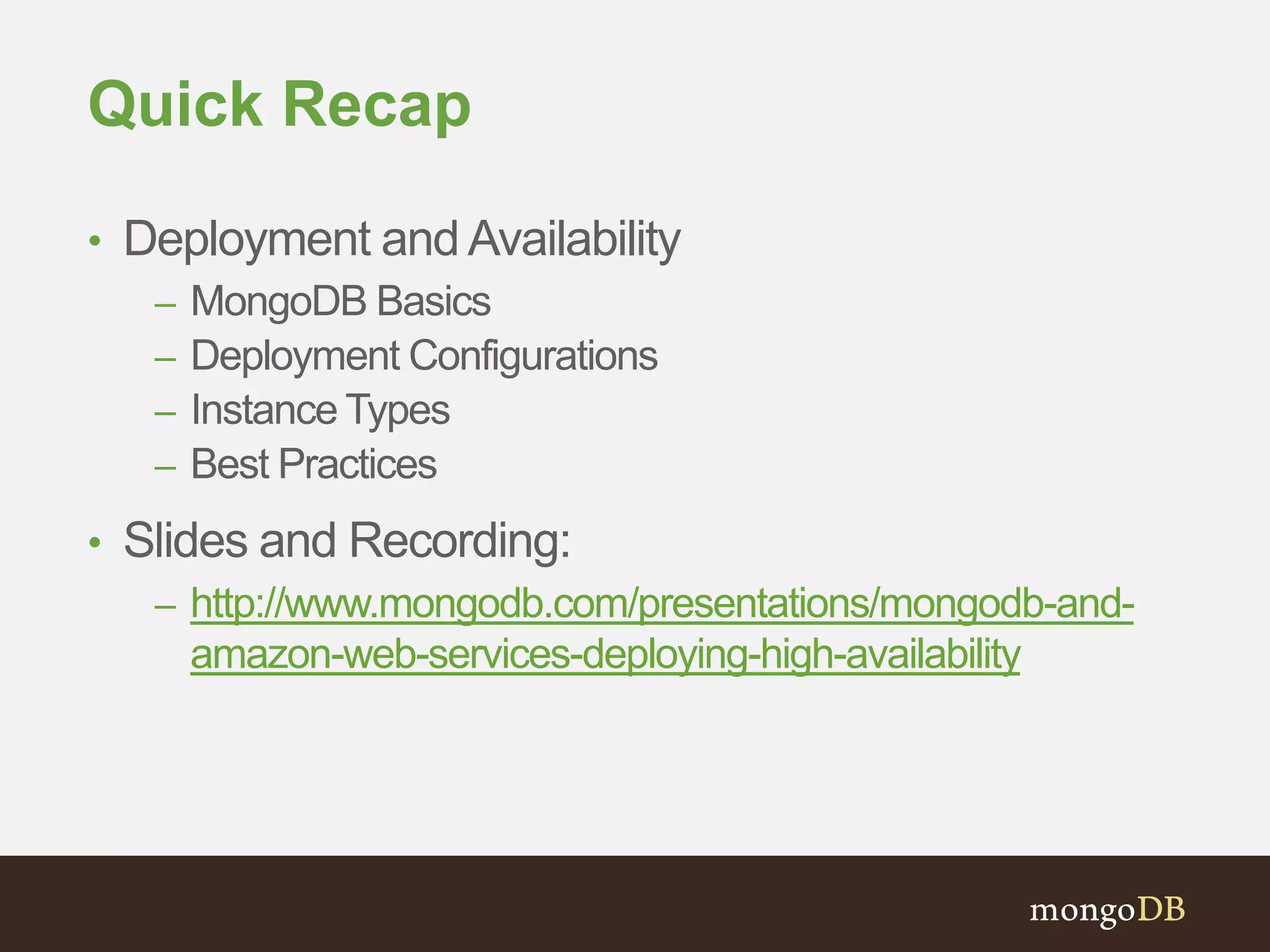

2. Quick Recap
• Deployment and Availability
– MongoDB Basics
– Deployment Configurations
– Instance Types
– Best Practices
• Slides and Recording:
– http://www.mongodb.com/presentations/mongodb-and-
amazon-web-services-deploying-high-availability

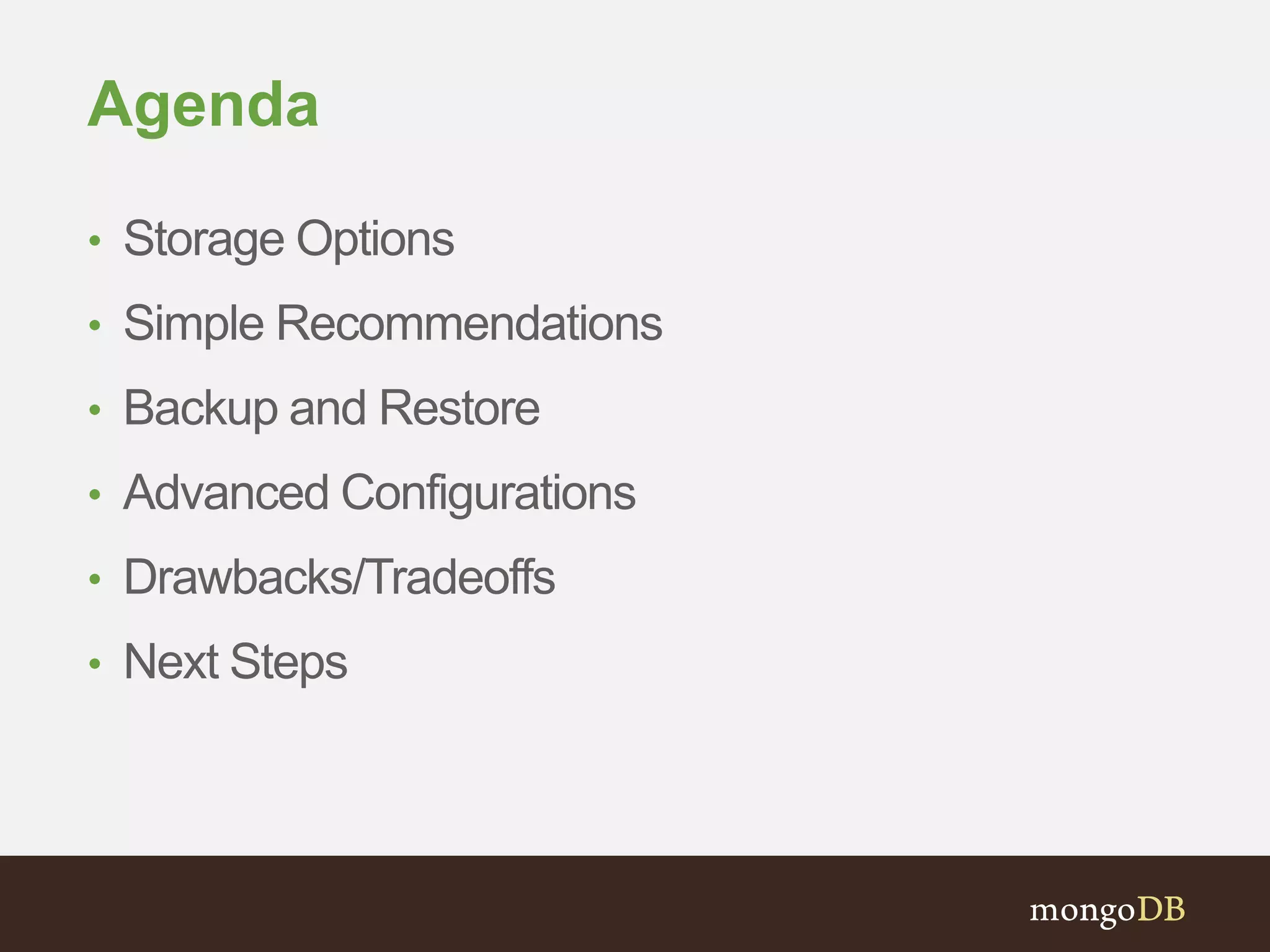

3. Agenda
• Storage Options
• Simple Recommendations
• Backup and Restore
• Advanced Configurations
• Drawbacks/Tradeoffs
• Next Steps

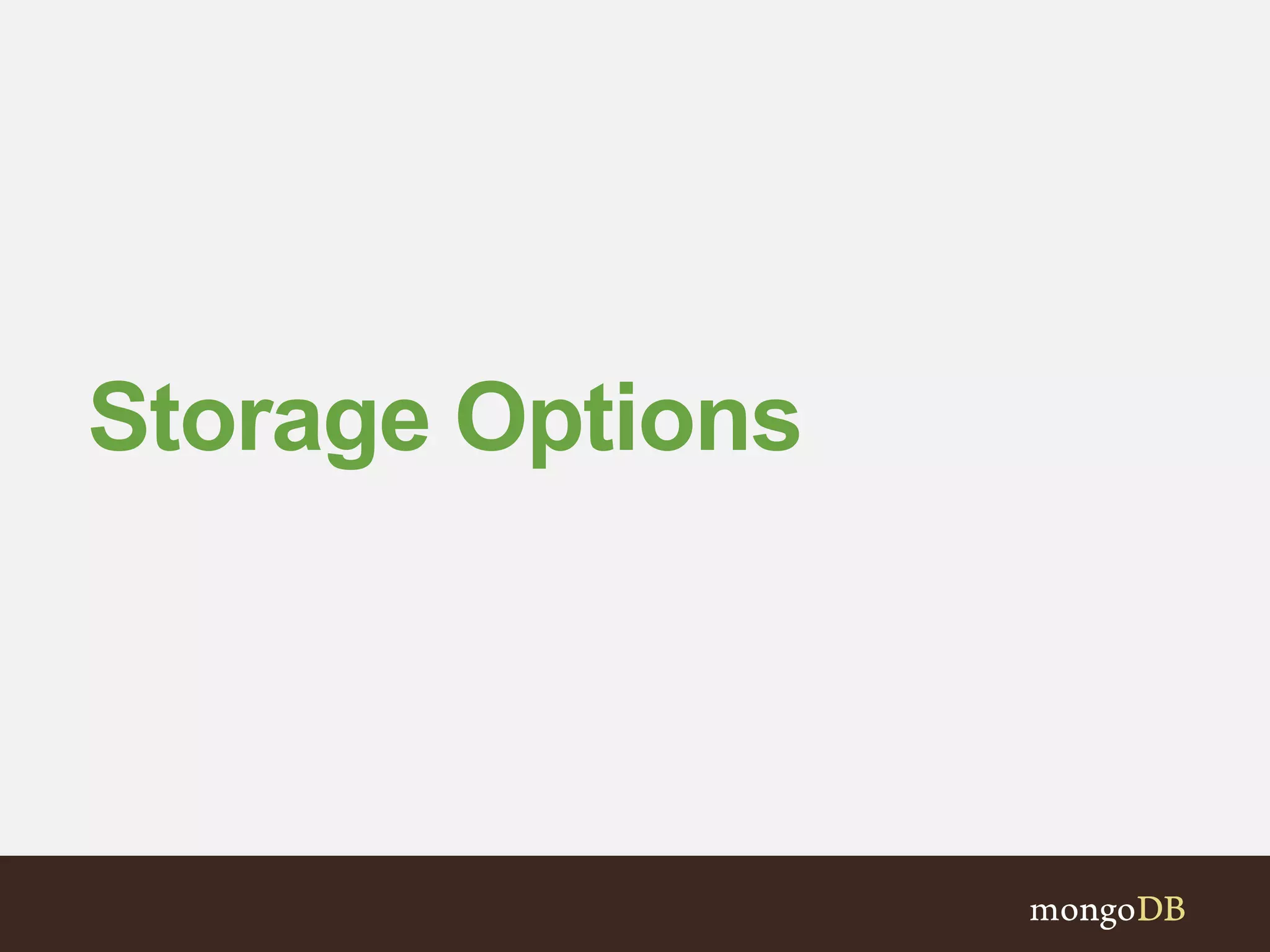

4. Storage Options

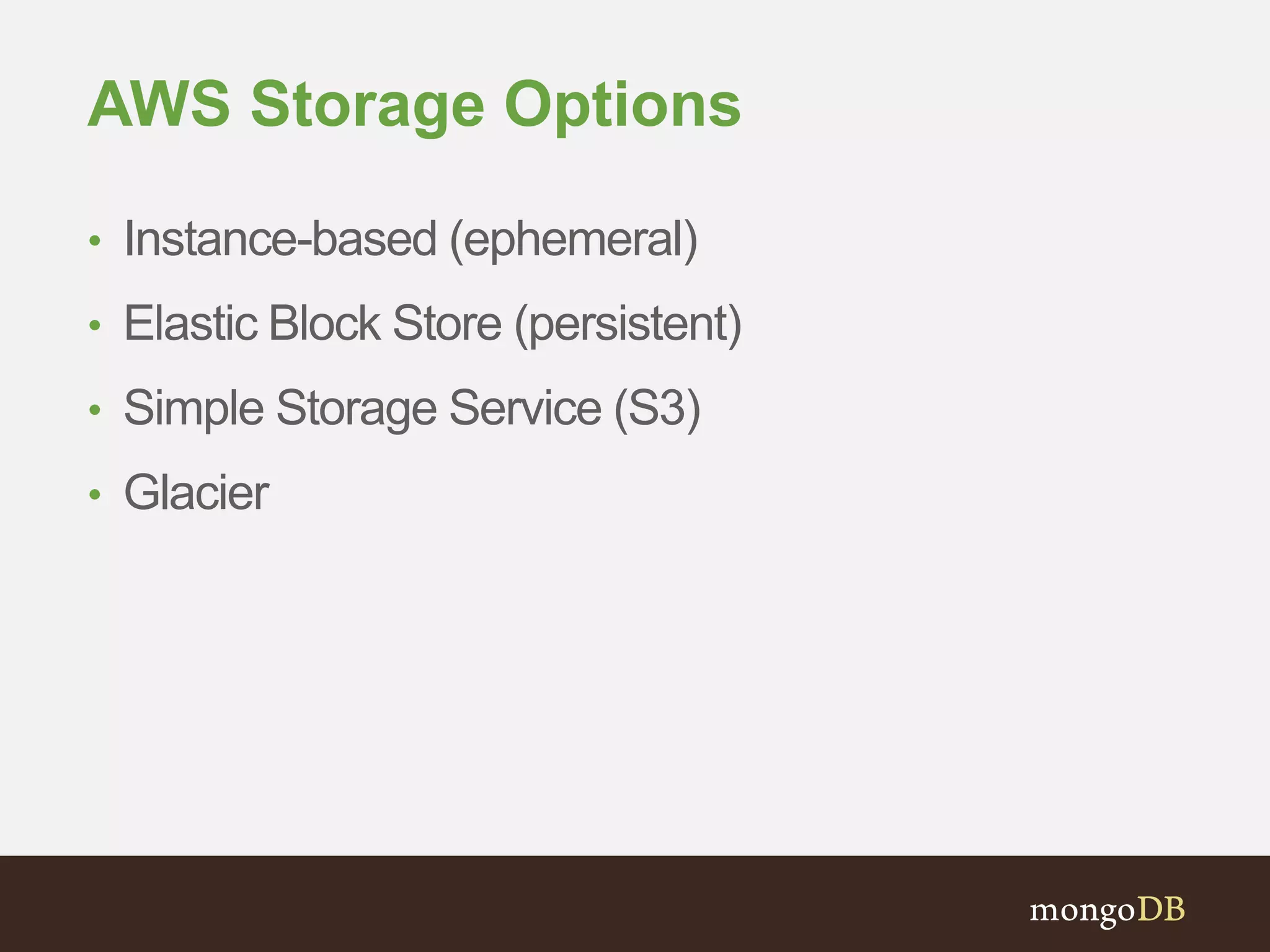

5. AWS Storage Options
• Instance-based (ephemeral)
• Elastic Block Store (persistent)
• Simple Storage Service (S3)
• Glacier

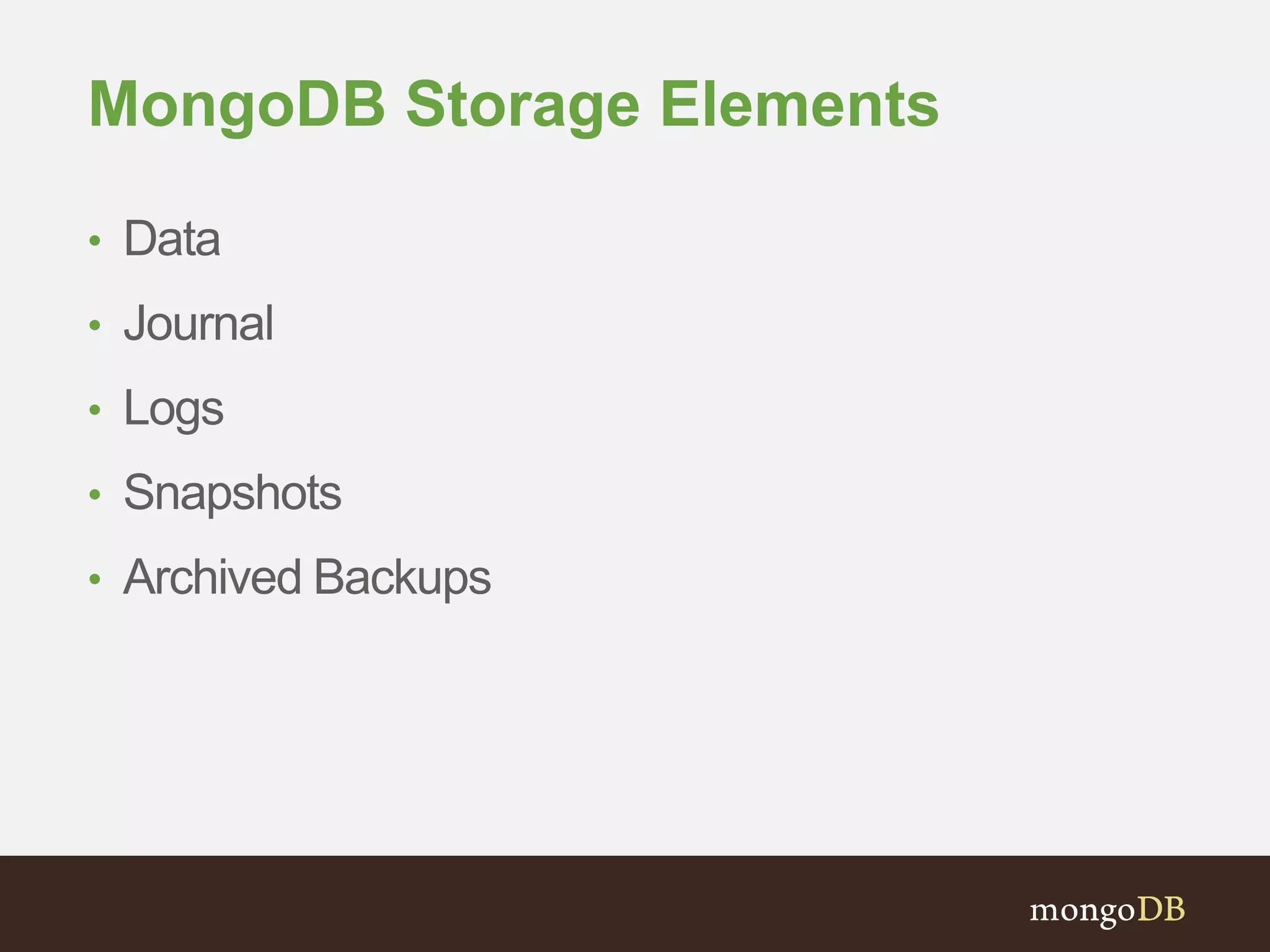

6. MongoDB Storage Elements
• Data
• Journal
• Logs
• Snapshots
• Archived Backups

7. Instance
• Data
• Log
• Journal
EBS
• Data
• Log
• Journal
• Snapshots
S3
• Snapshots
• Archived
Backups
Glacier
• Archived
Backups

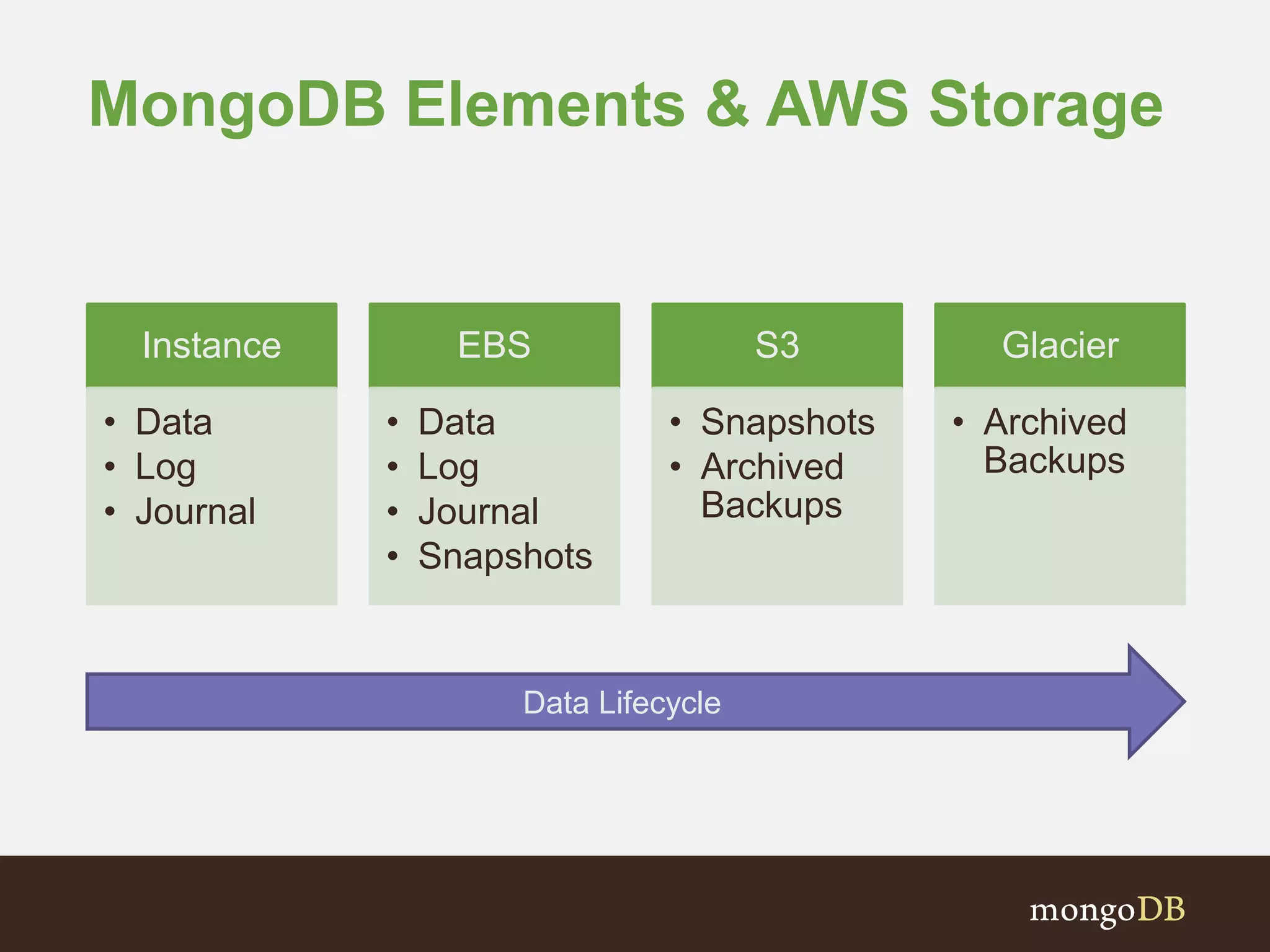

MongoDB Elements & AWS Storage
Data Lifecycle

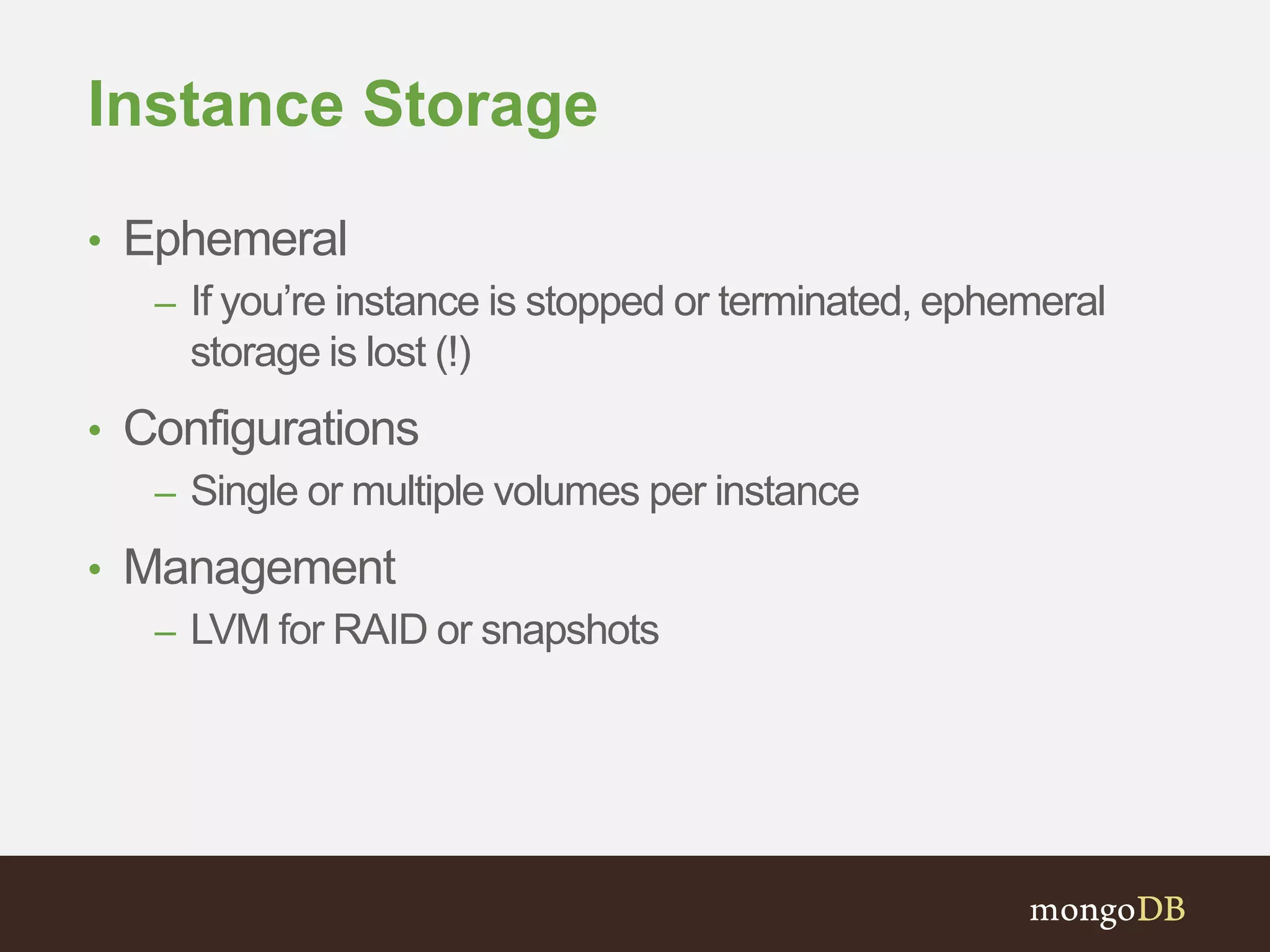

8. Instance Storage
• Ephemeral
– If you’re instance is stopped or terminated, ephemeral
storage is lost (!)
• Configurations
– Single or multiple volumes per instance
• Management
– LVM for RAID or snapshots

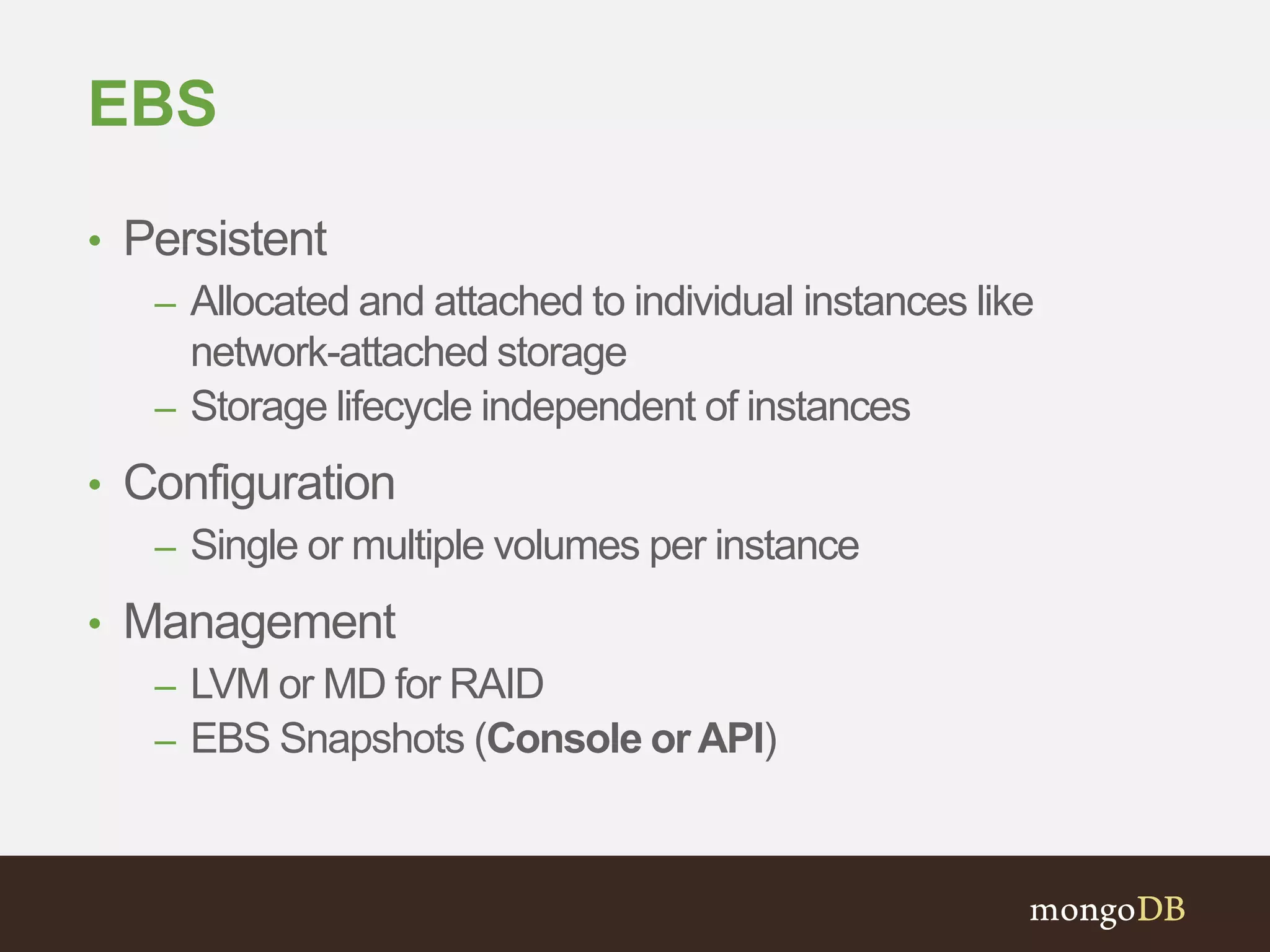

9. EBS
• Persistent
– Allocated and attached to individual instances like
network-attached storage
– Storage lifecycle independent of instances
• Configuration
– Single or multiple volumes per instance
• Management
– LVM or MD for RAID
– EBS Snapshots (Console or API)

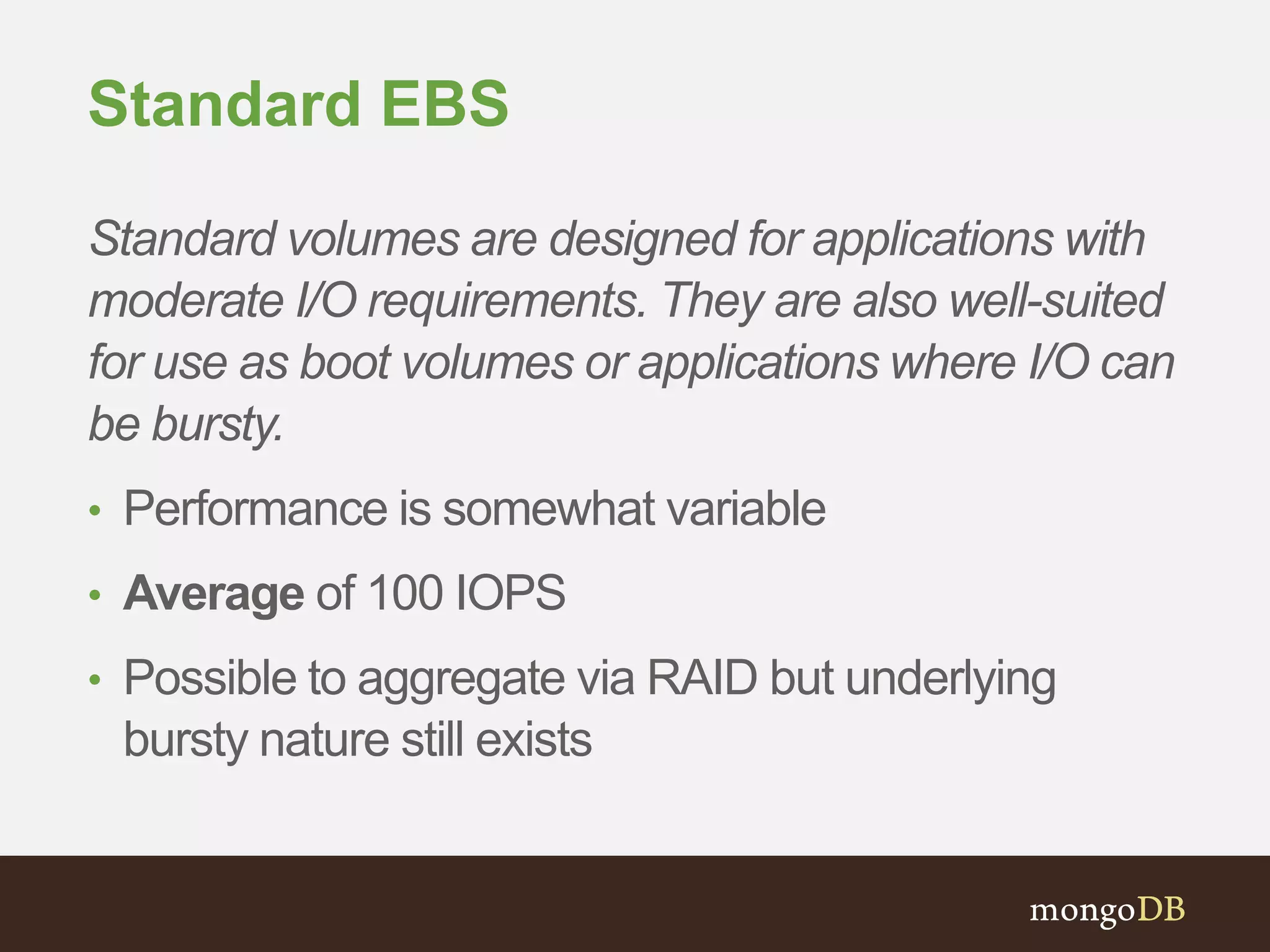

10. Standard EBS
Standard volumes are designed for applications with
moderate I/O requirements. They are also well-suited
for use as boot volumes or applications where I/O can
be bursty.
• Performance is somewhat variable
• Average of 100 IOPS
• Possible to aggregate via RAID but underlying
bursty nature still exists

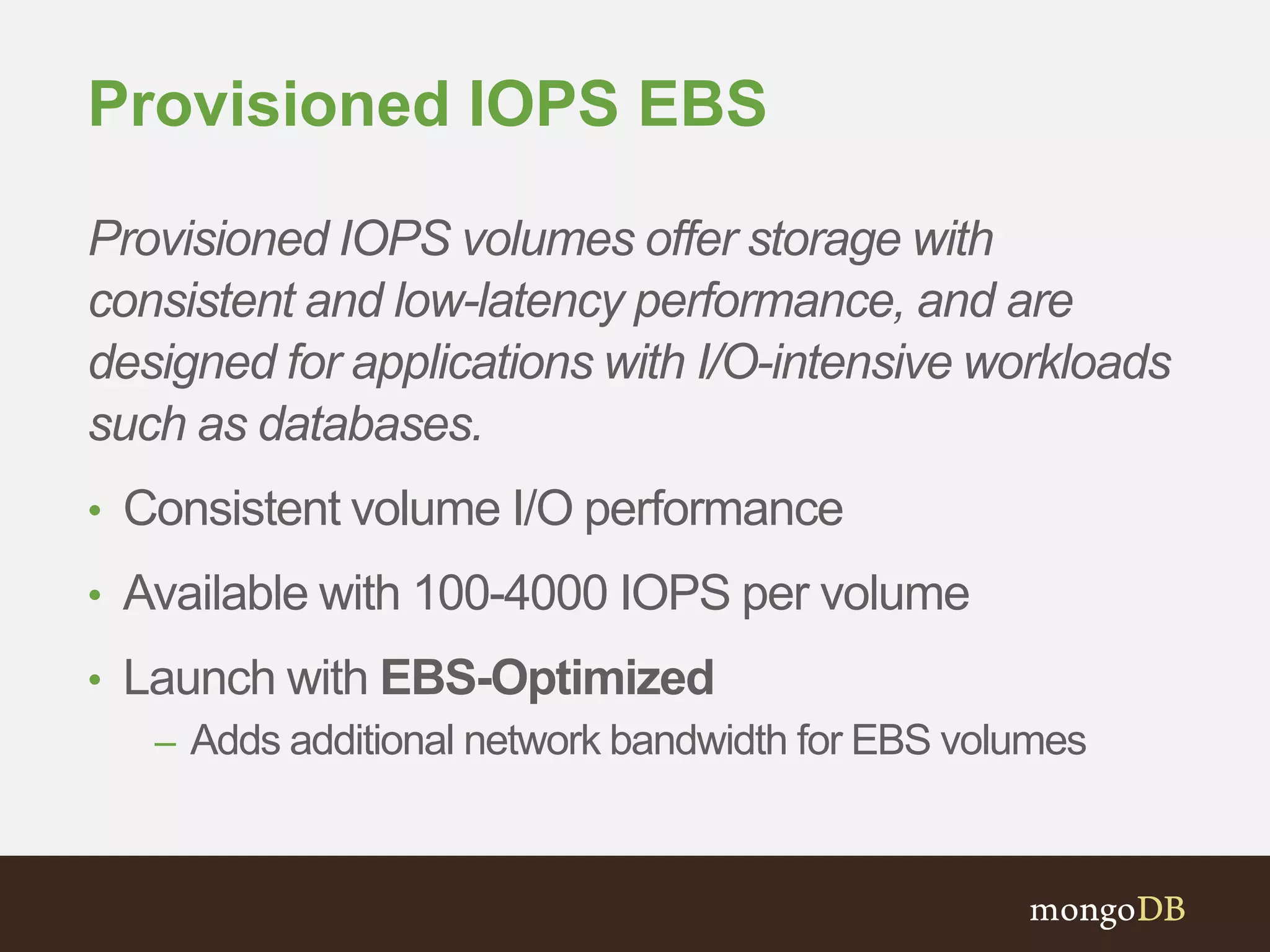

11. Provisioned IOPS EBS
Provisioned IOPS volumes offer storage with
consistent and low-latency performance, and are
designed for applications with I/O-intensive workloads
such as databases.
• Consistent volume I/O performance
• Available with 100-4000 IOPS per volume
• Launch with EBS-Optimized
– Adds additional network bandwidth for EBS volumes

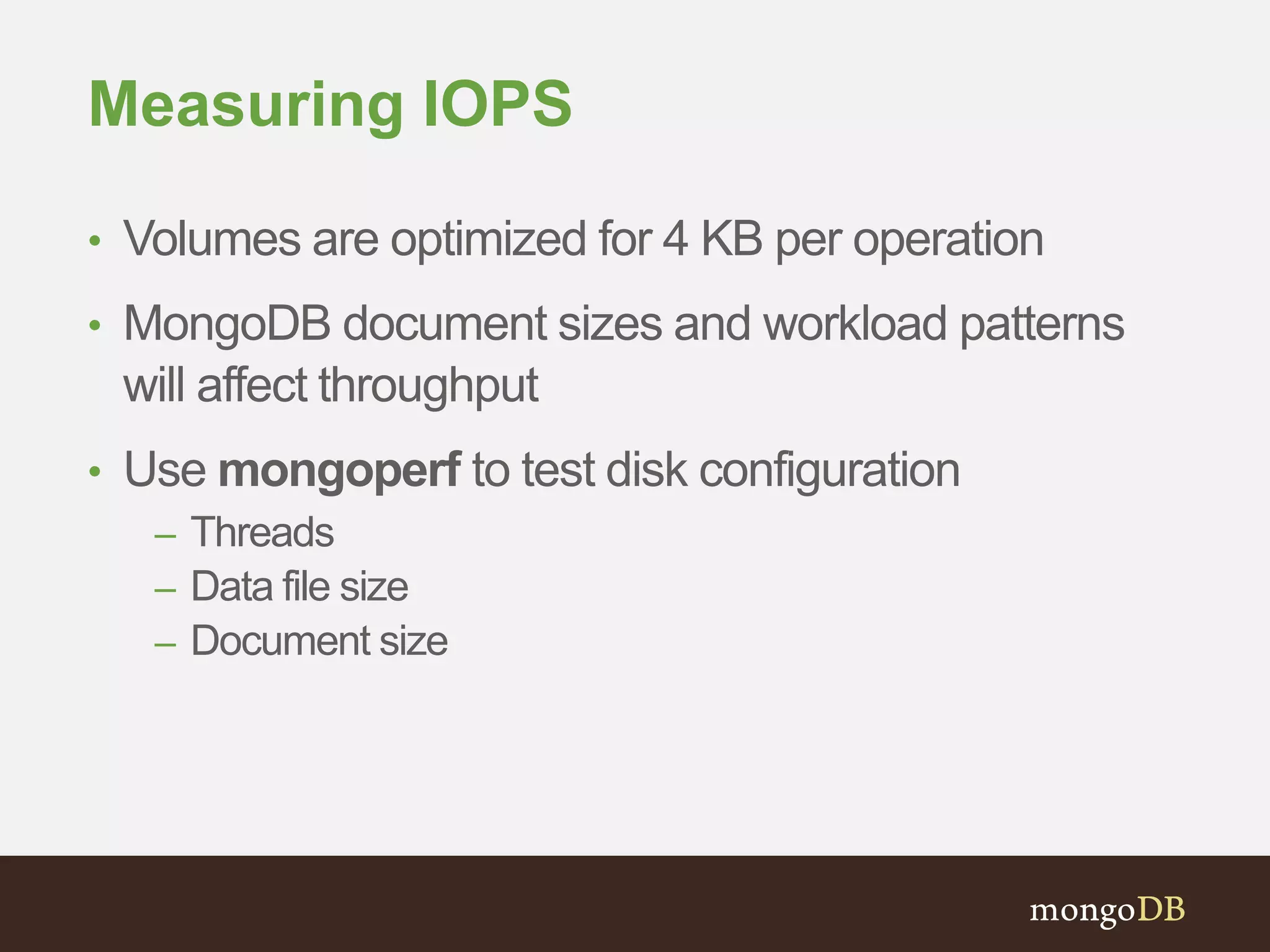

12. Measuring IOPS
• Volumes are optimized for 4 KB per operation
• MongoDB document sizes and workload patterns
will affect throughput
• Use mongoperf to test disk configuration
– Threads
– Data file size
– Document size

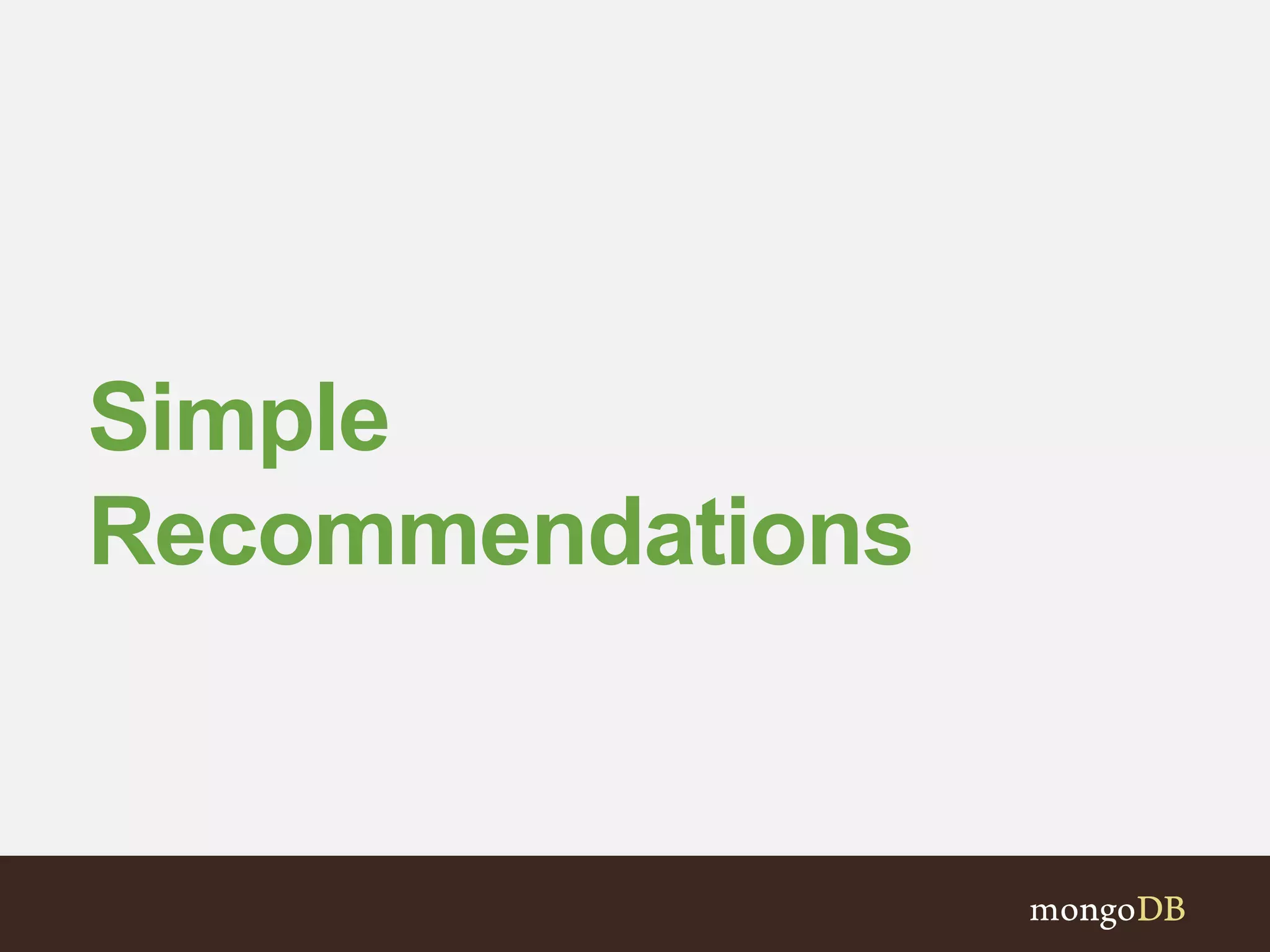

13. Simple
Recommendations

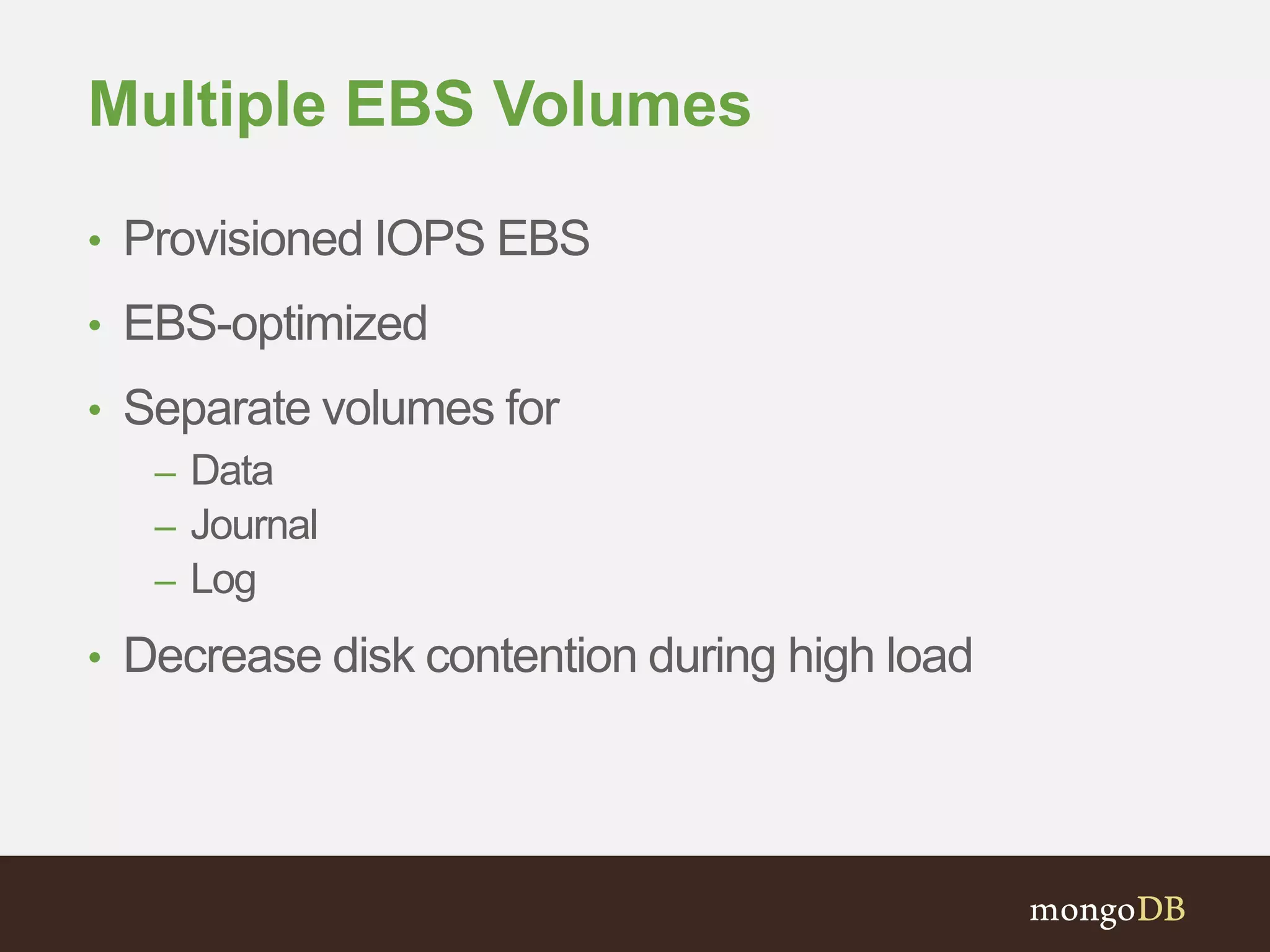

14. Multiple EBS Volumes
• Provisioned IOPS EBS
• EBS-optimized
• Separate volumes for
– Data
– Journal
– Log
• Decrease disk contention during high load

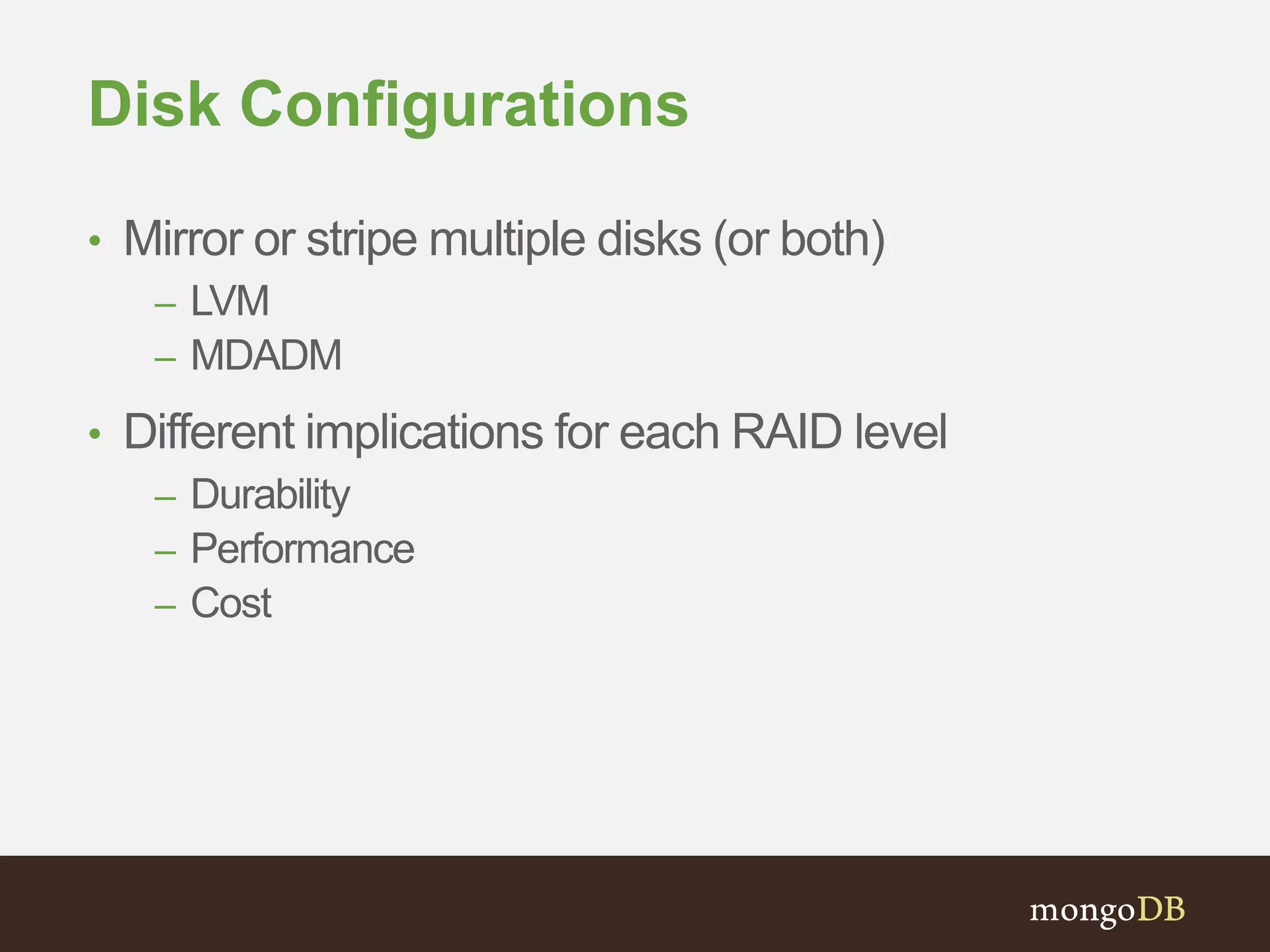

15. Disk Configurations
• Mirror or stripe multiple disks (or both)
– LVM
– MDADM
• Different implications for each RAID level
– Durability
– Performance
– Cost

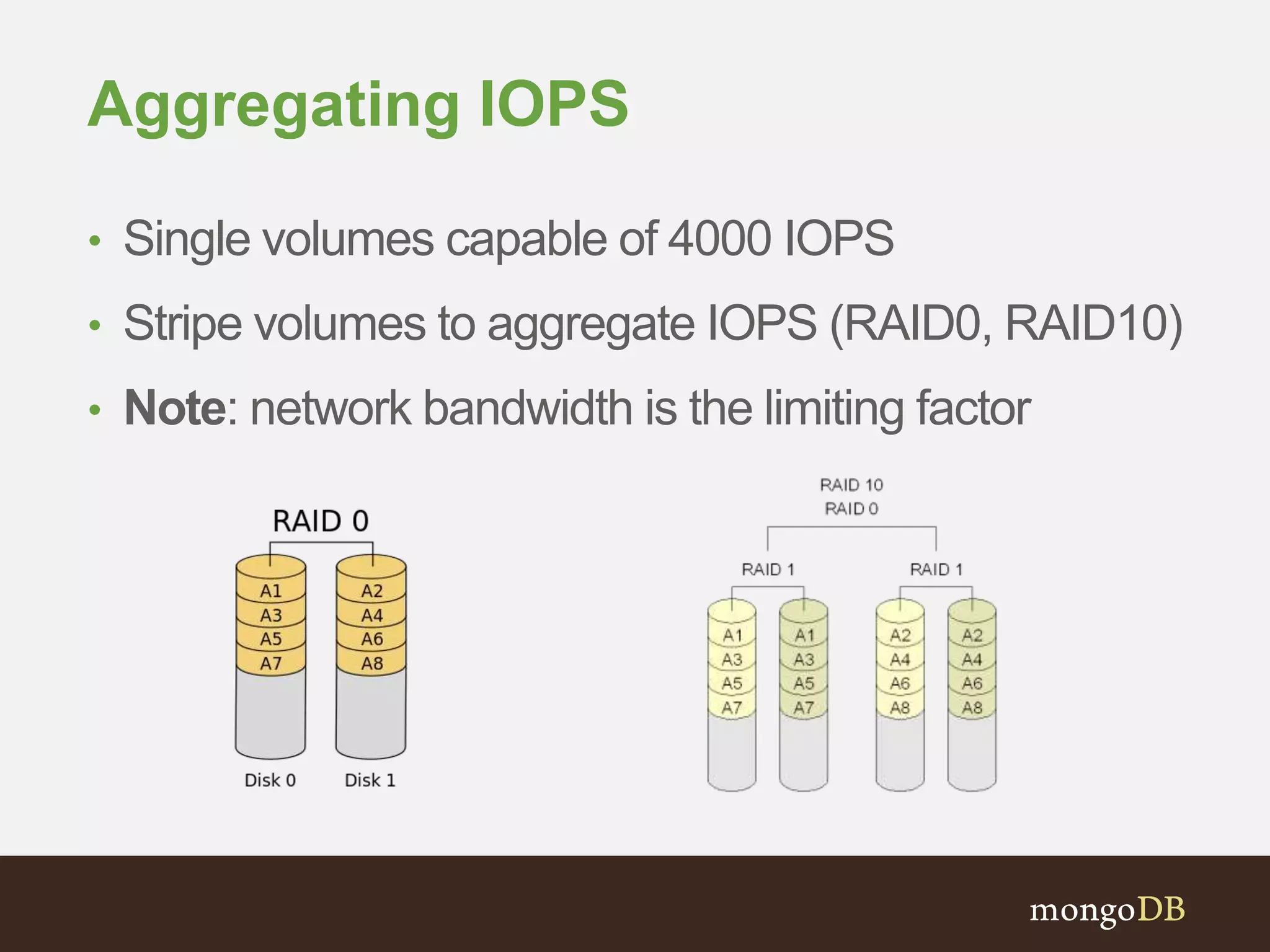

16. Aggregating IOPS
• Single volumes capable of 4000 IOPS
• Stripe volumes to aggregate IOPS (RAID0, RAID10)
• Note: network bandwidth is the limiting factor

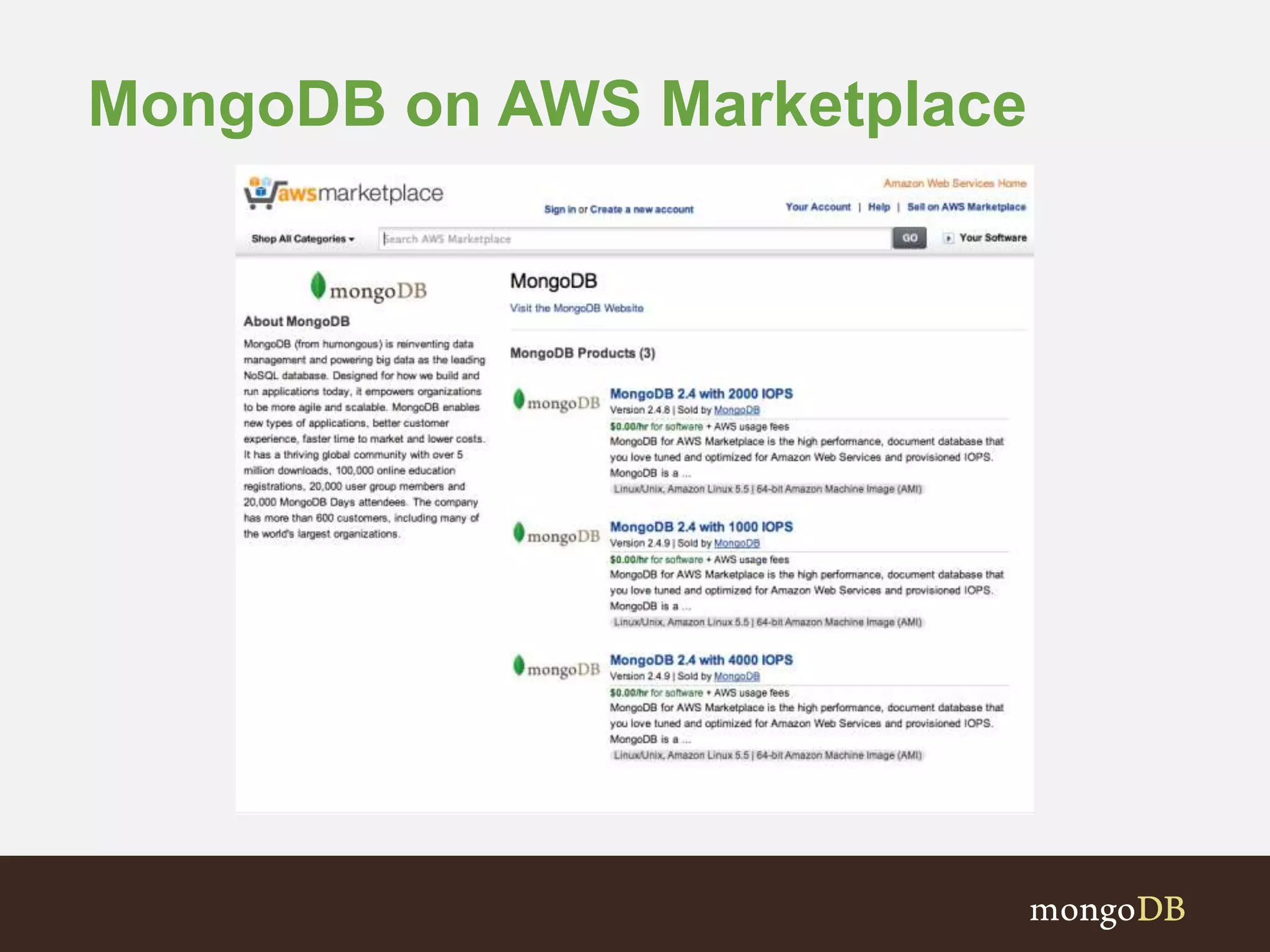

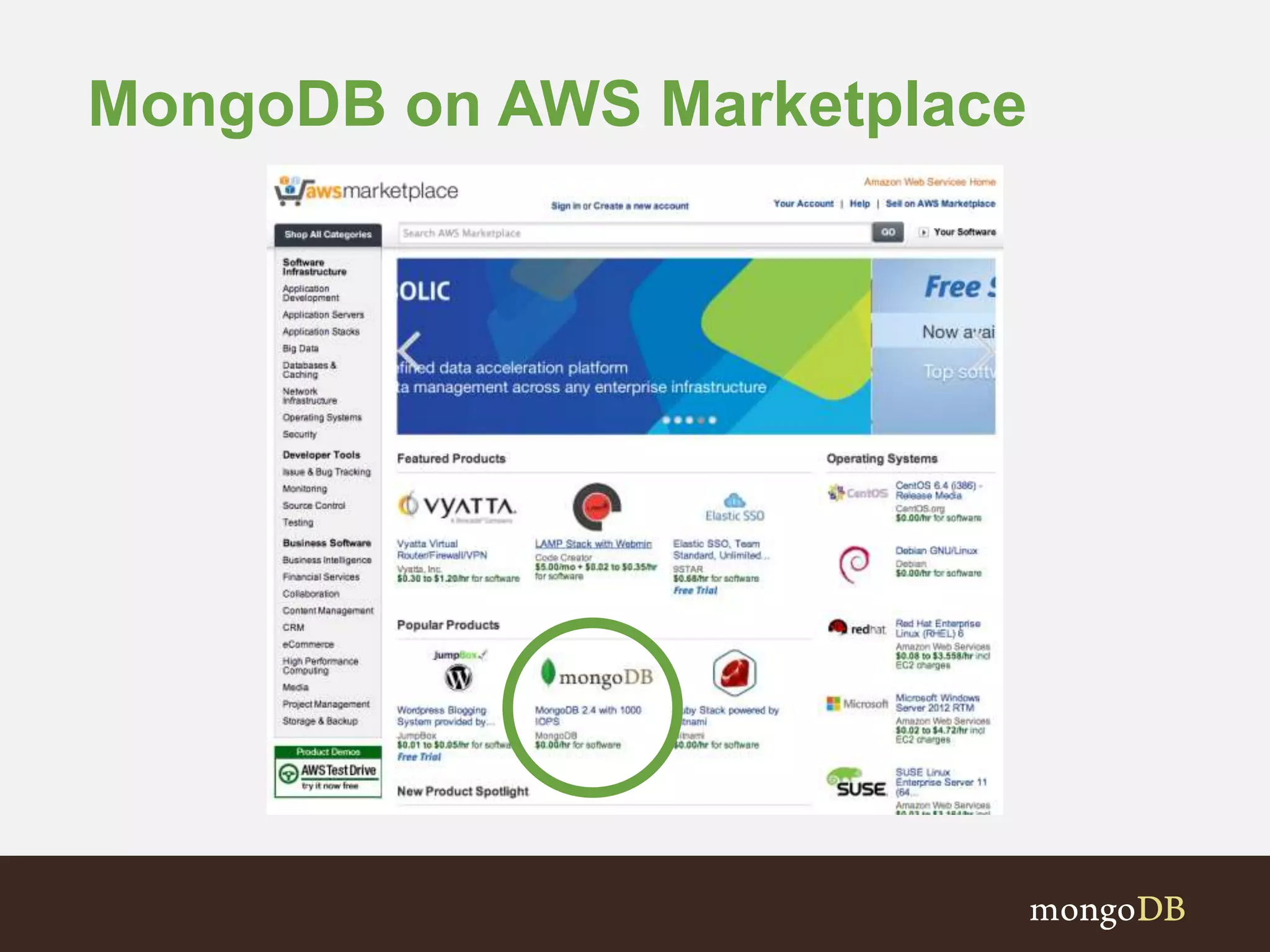

17. MongoDB on AWS Marketplace

18. MongoDB on AWS Marketplace

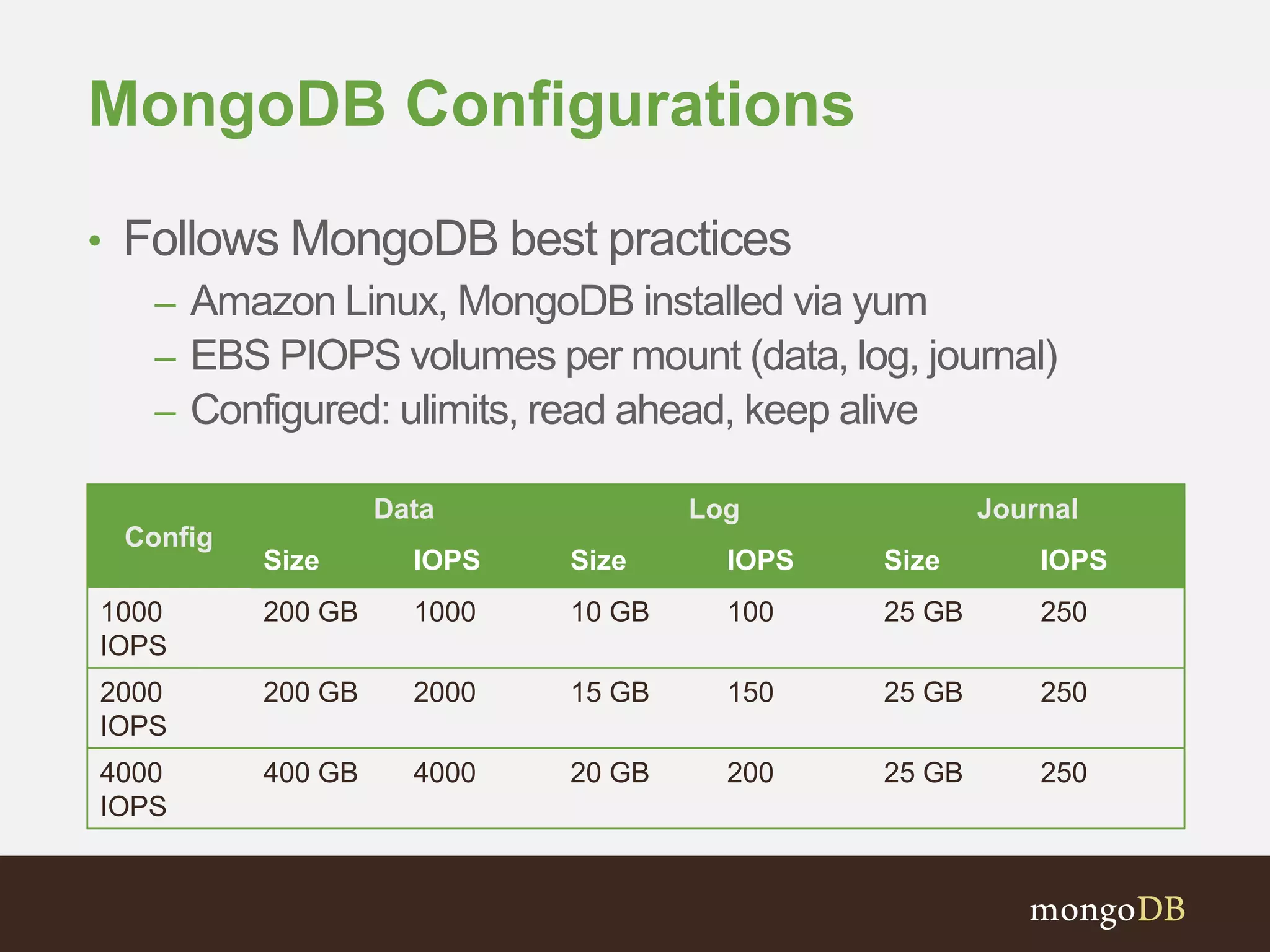

19. MongoDB Configurations
• Follows MongoDB best practices
– Amazon Linux, MongoDB installed via yum
– EBS PIOPS volumes per mount (data, log, journal)
– Configured: ulimits, read ahead, keep alive
Config
Data Log Journal
Size IOPS Size IOPS Size IOPS
1000
IOPS
200 GB 1000 10 GB 100 25 GB 250
2000
IOPS
200 GB 2000 15 GB 150 25 GB 250
4000
IOPS
400 GB 4000 20 GB 200 25 GB 250

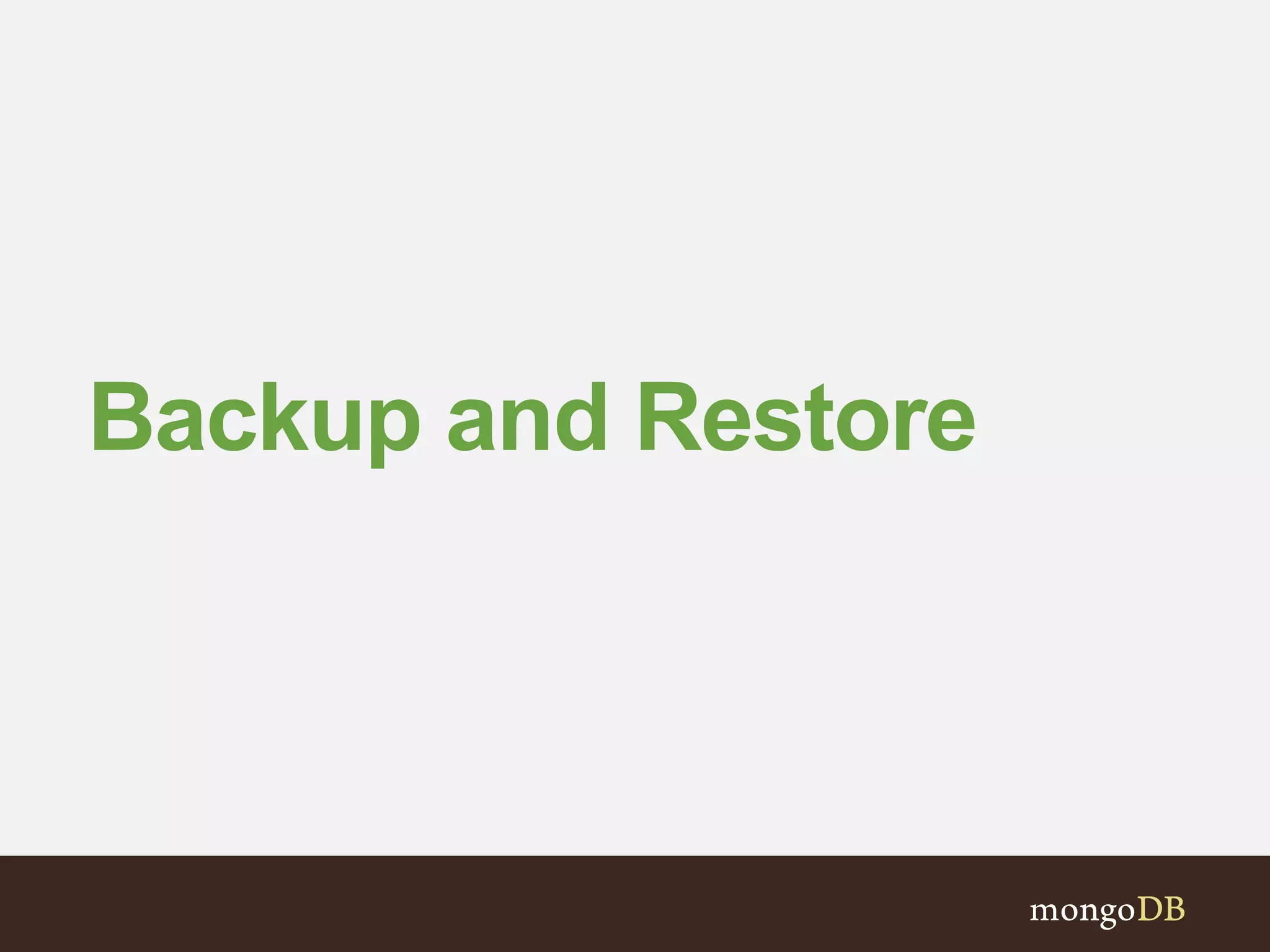

20. Backup and Restore

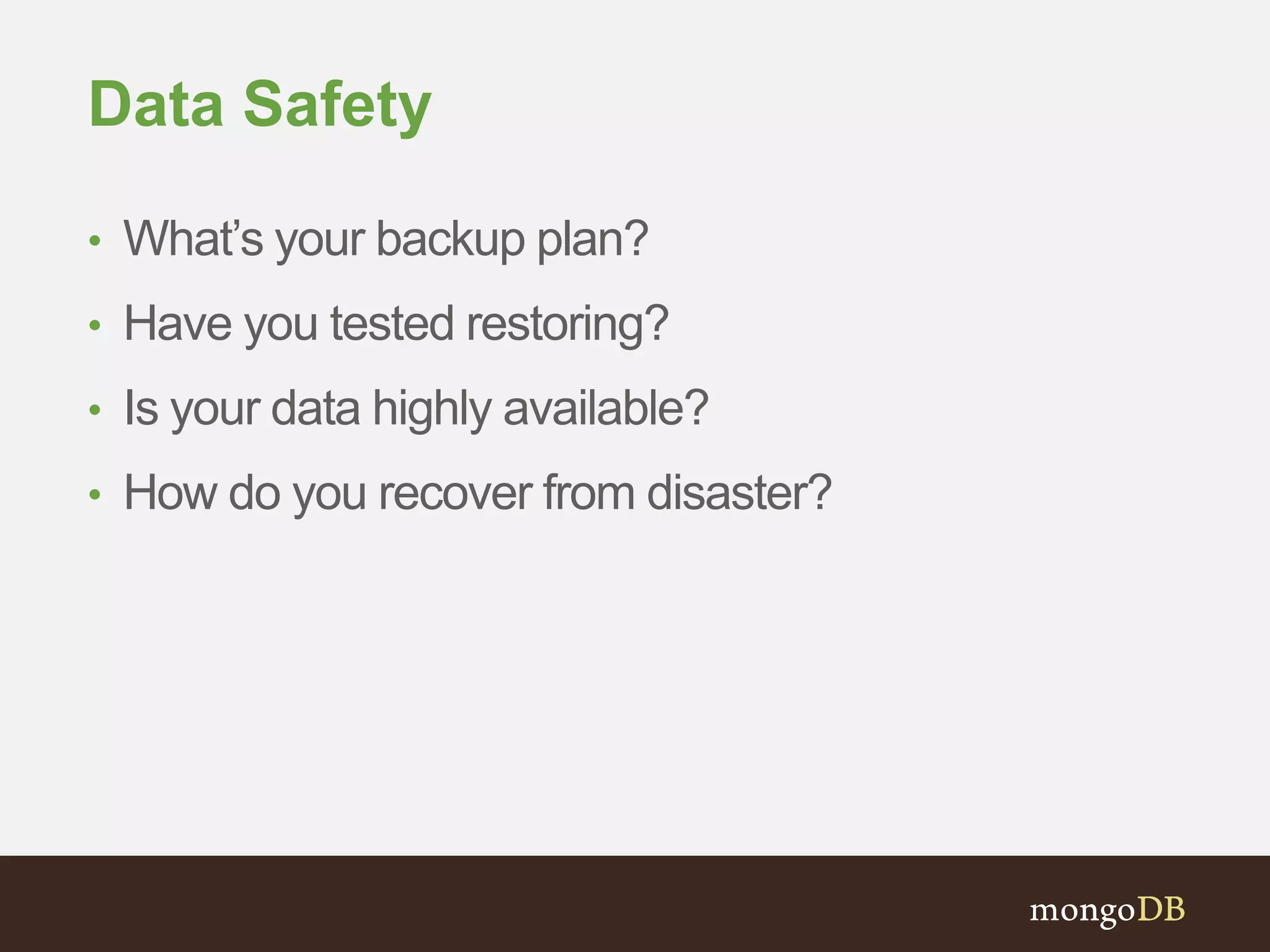

21. Data Safety
• What’s your backup plan?
• Have you tested restoring?
• Is your data highly available?
• How do you recover from disaster?

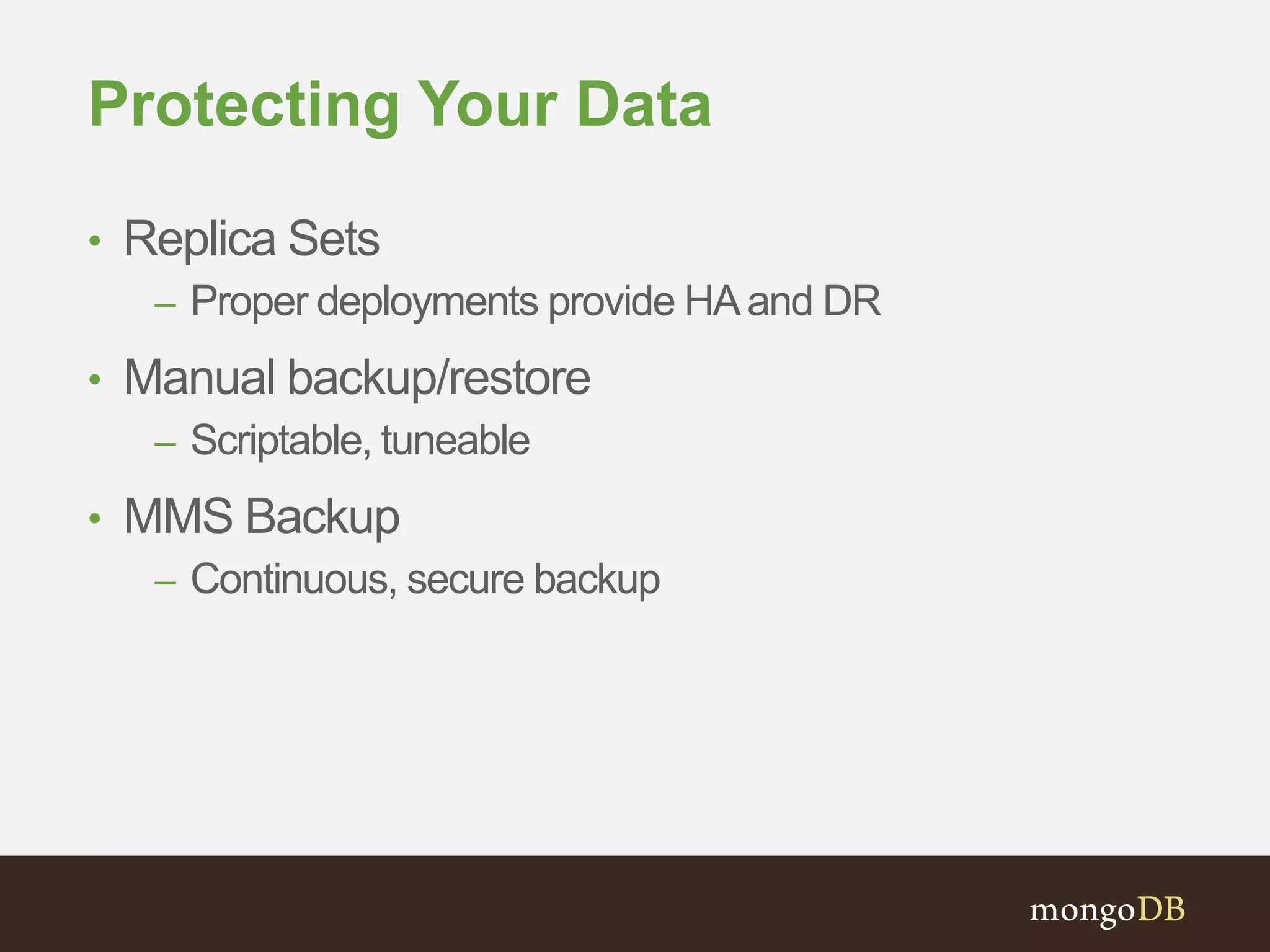

22. Protecting Your Data
• Replica Sets
– Proper deployments provide HAand DR
• Manual backup/restore
– Scriptable, tuneable
• MMS Backup
– Continuous, secure backup

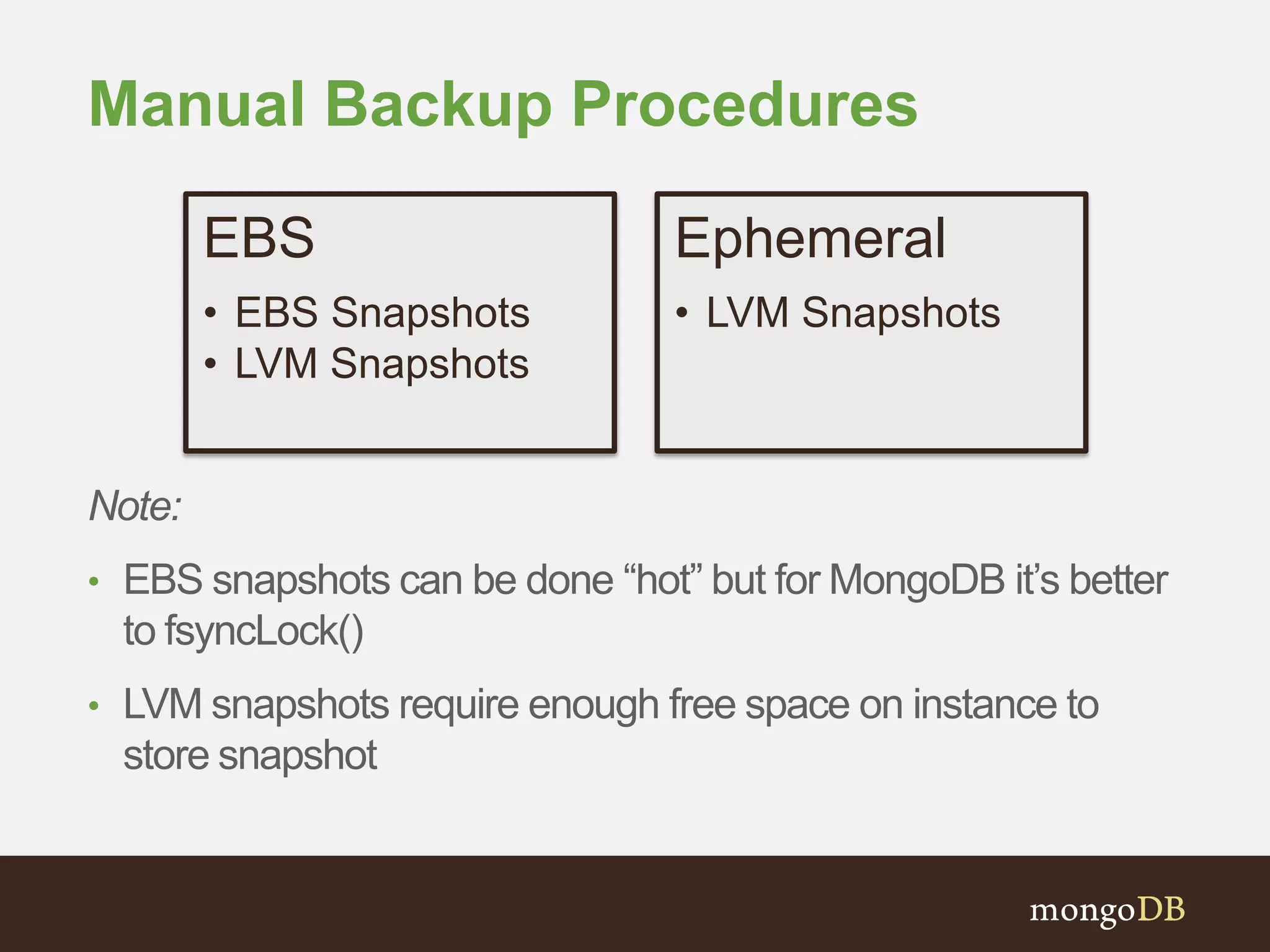

23. Manual Backup Procedures
EBS
• EBS Snapshots
• LVM Snapshots
Ephemeral
• LVM Snapshots
Note:
• EBS snapshots can be done “hot” but for MongoDB it’s better
to fsyncLock()
• LVM snapshots require enough free space on instance to
store snapshot

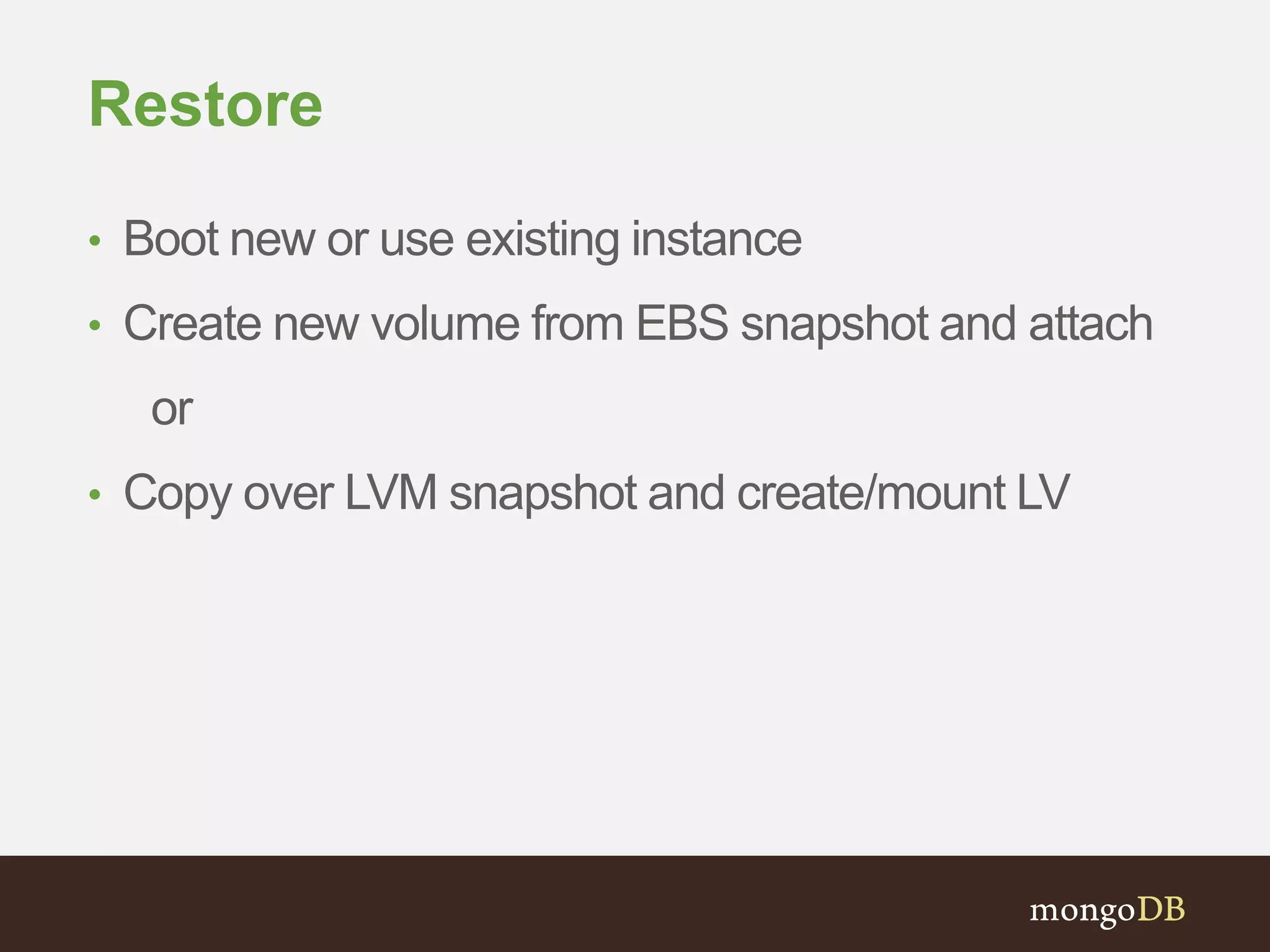

24. Restore
• Boot new or use existing instance
• Create new volume from EBS snapshot and attach
or
• Copy over LVM snapshot and create/mount LV

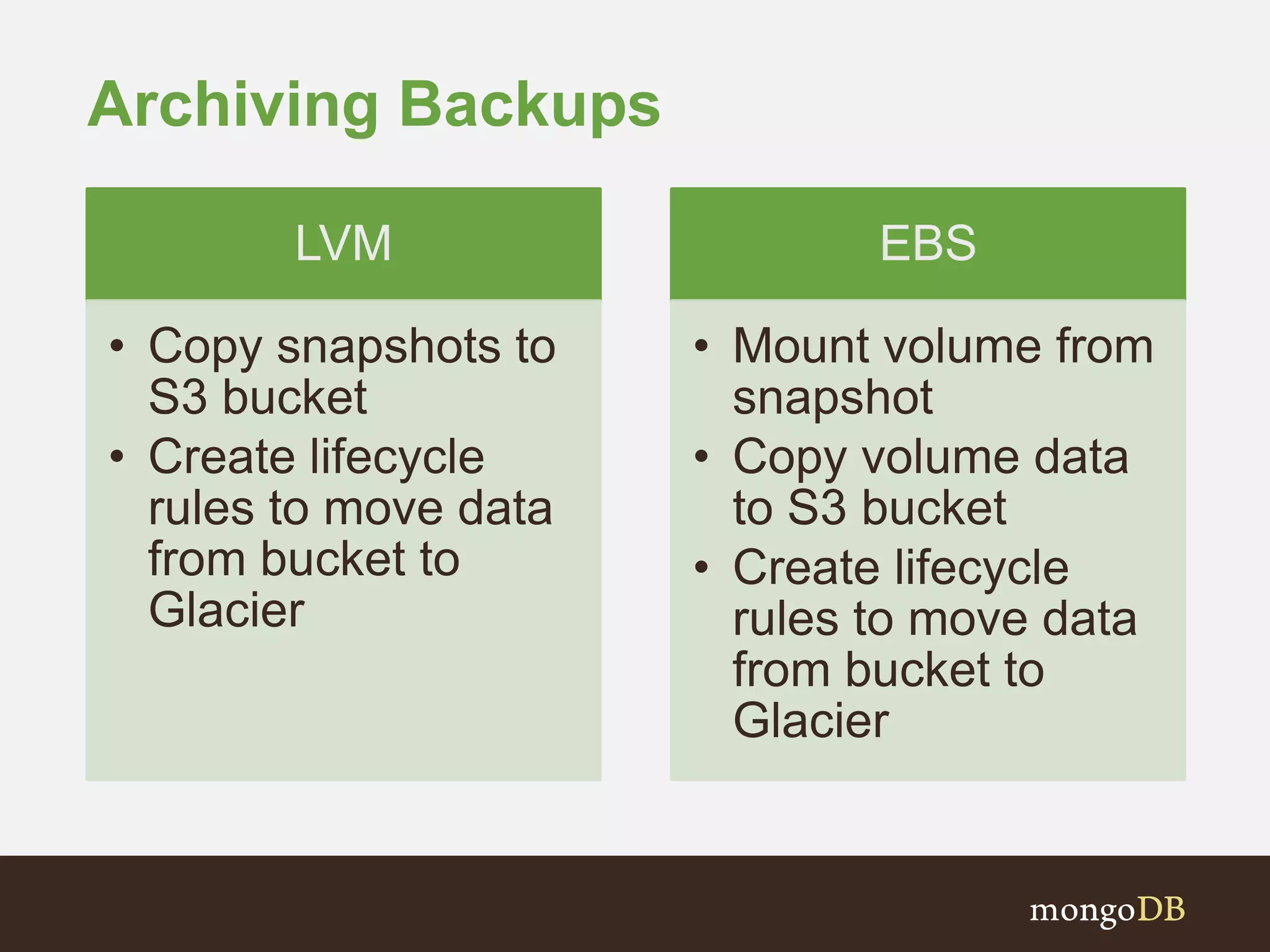

25. LVM
• Copy snapshots to
S3 bucket
• Create lifecycle
rules to move data
from bucket to
Glacier
EBS
• Mount volume from
snapshot
• Copy volume data
to S3 bucket
• Create lifecycle
rules to move data
from bucket to
Glacier
Archiving Backups

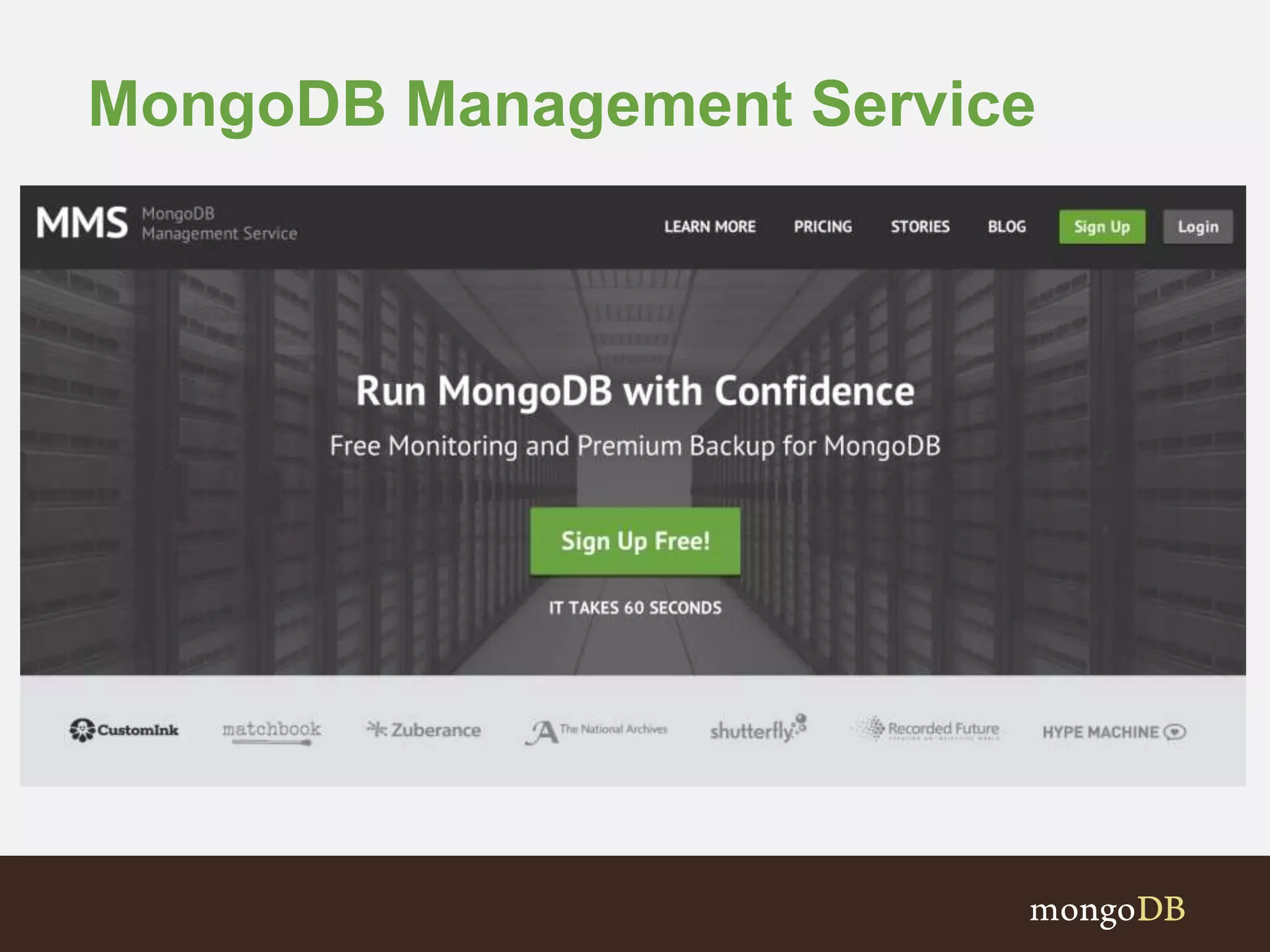

26. MongoDB Management Service

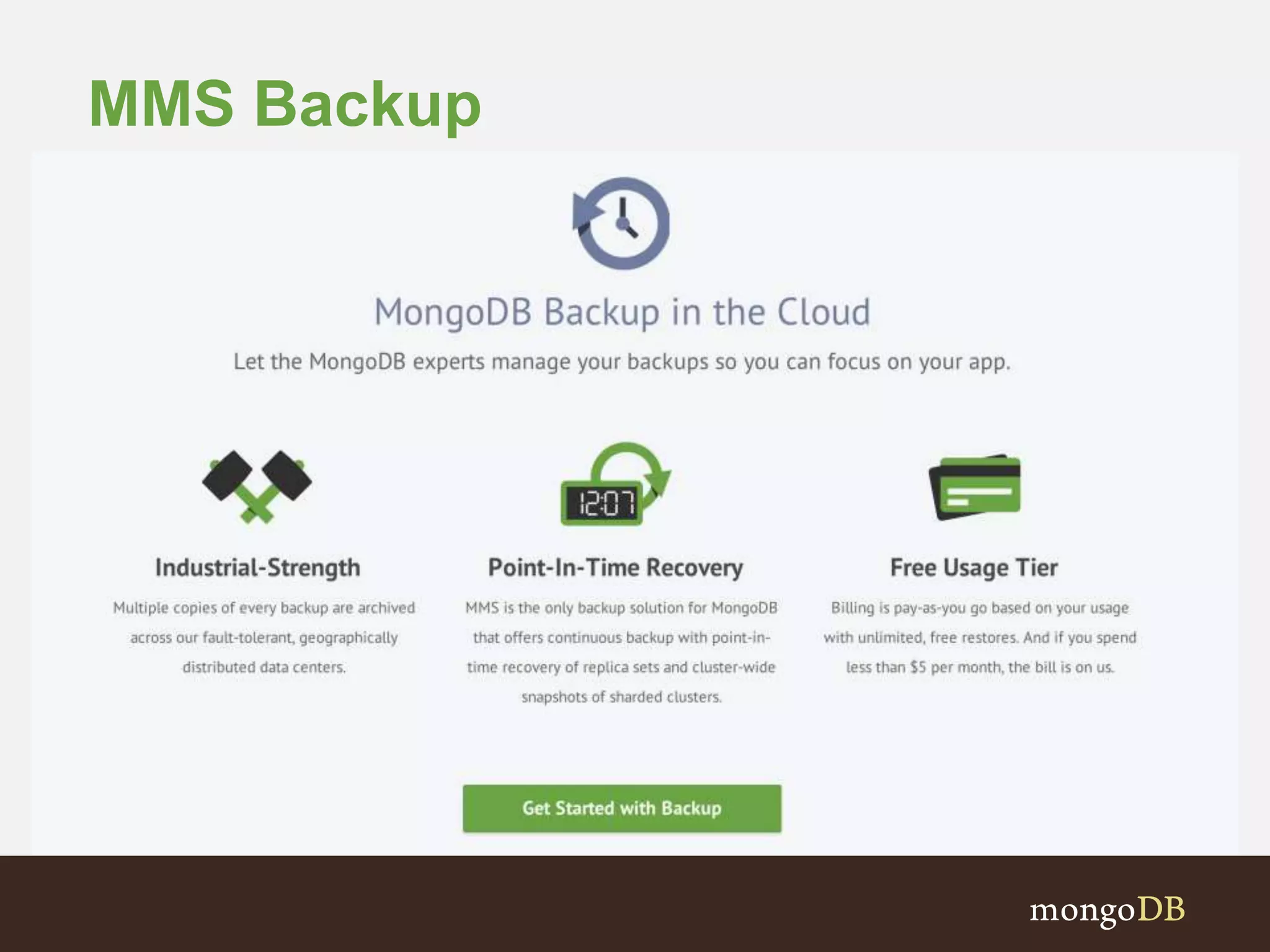

27. MMS Backup

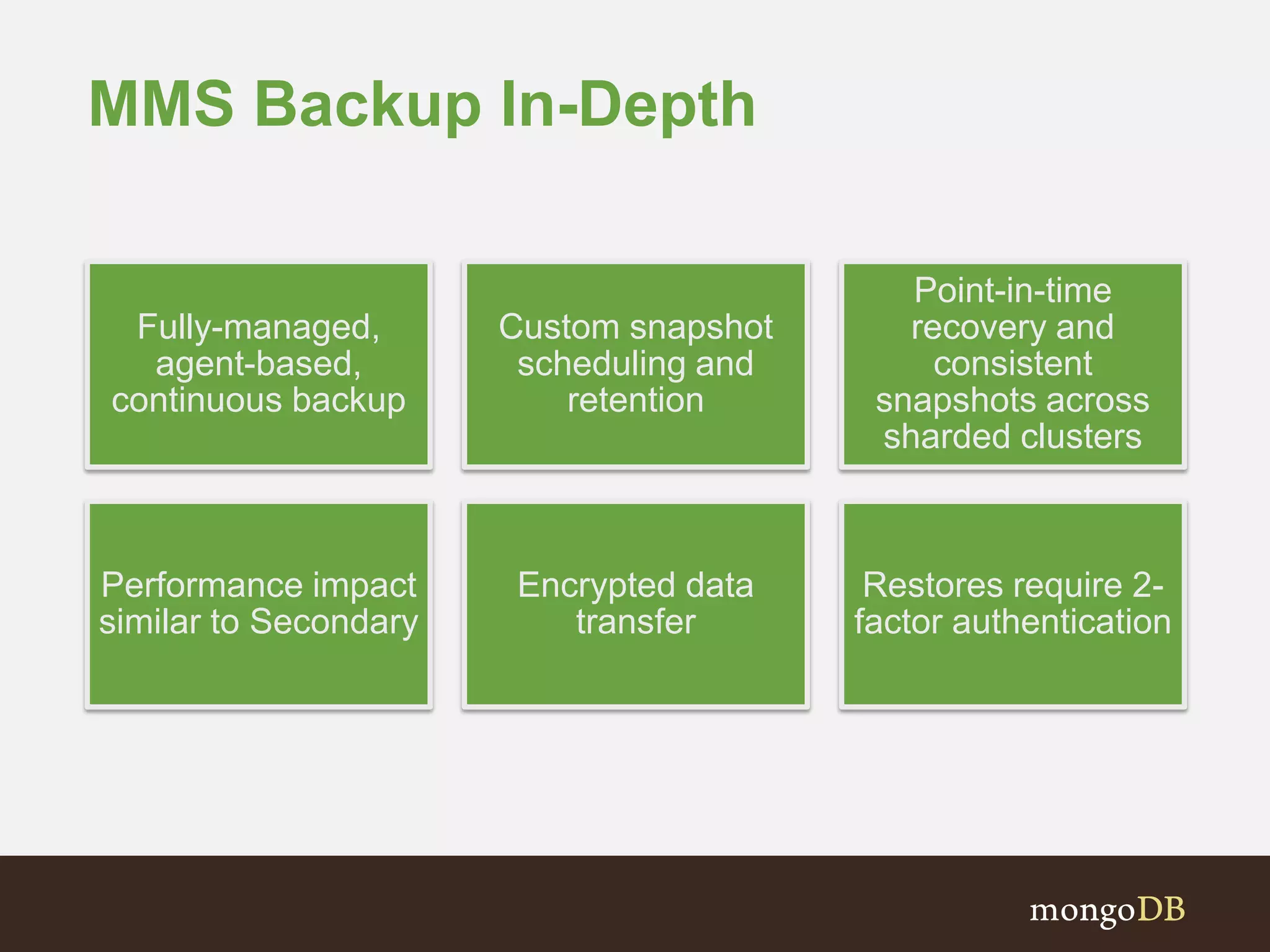

28. Fully-managed,
agent-based,
continuous backup
Custom snapshot
scheduling and
retention
Point-in-time
recovery and
consistent
snapshots across
sharded clusters
Performance impact
similar to Secondary
Encrypted data
transfer
Restores require 2-
factor authentication
MMS Backup In-Depth

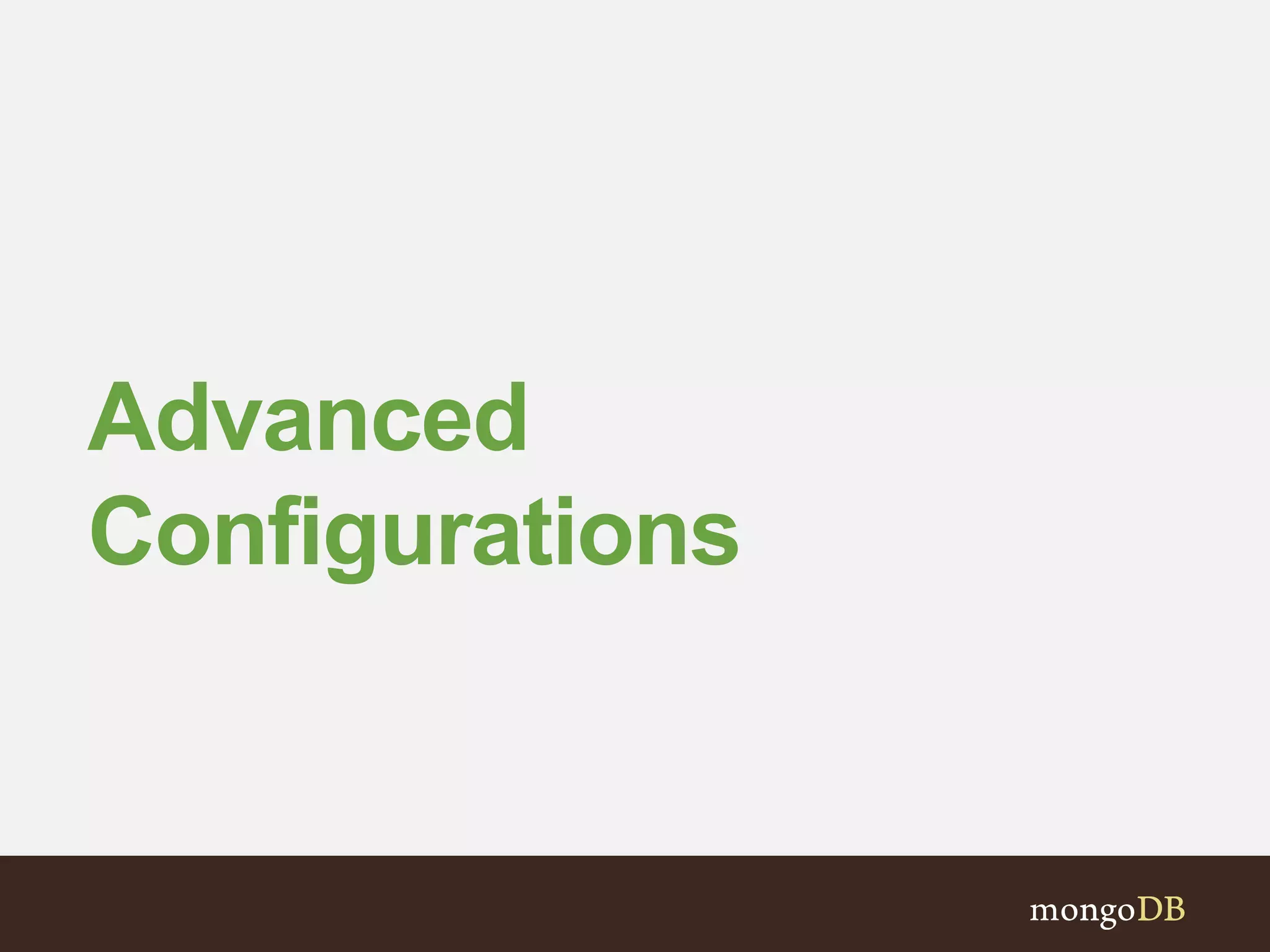

29. Advanced
Configurations

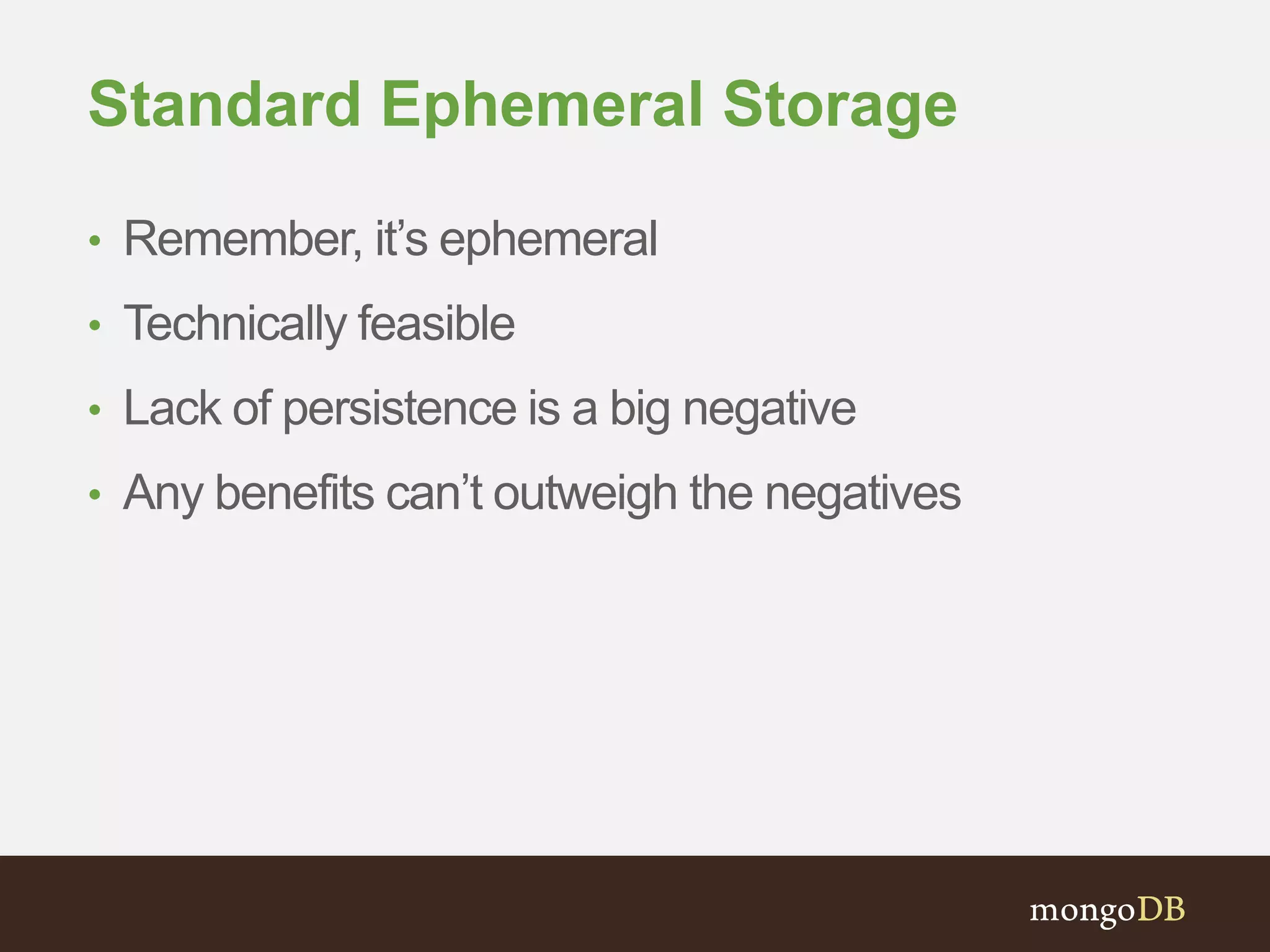

30. Standard Ephemeral Storage
• Remember, it’s ephemeral
• Technically feasible
• Lack of persistence is a big negative
• Any benefits can’t outweigh the negatives

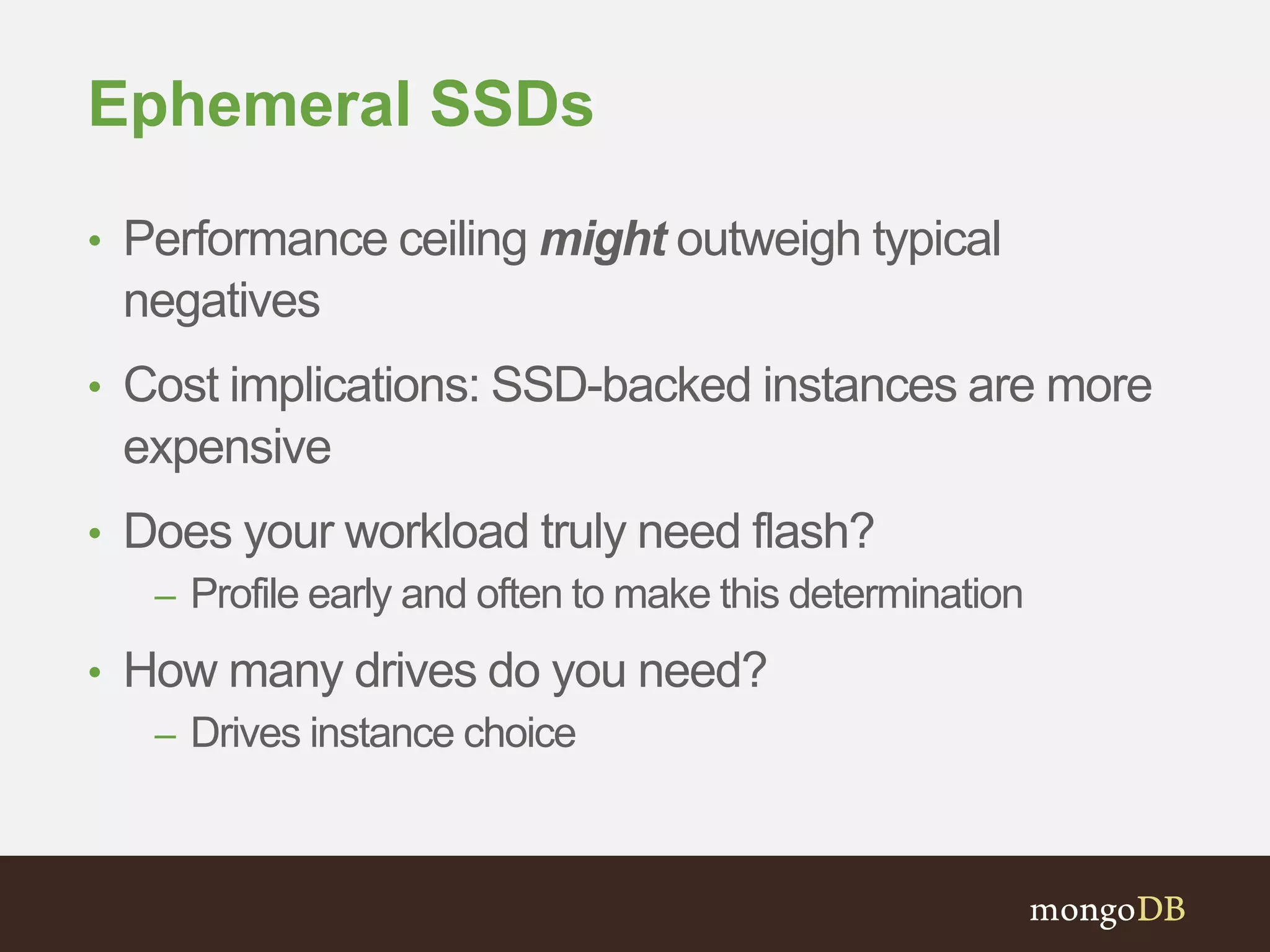

31. Ephemeral SSDs
• Performance ceiling might outweigh typical
negatives
• Cost implications: SSD-backed instances are more
expensive
• Does your workload truly need flash?
– Profile early and often to make this determination
• How many drives do you need?
– Drives instance choice

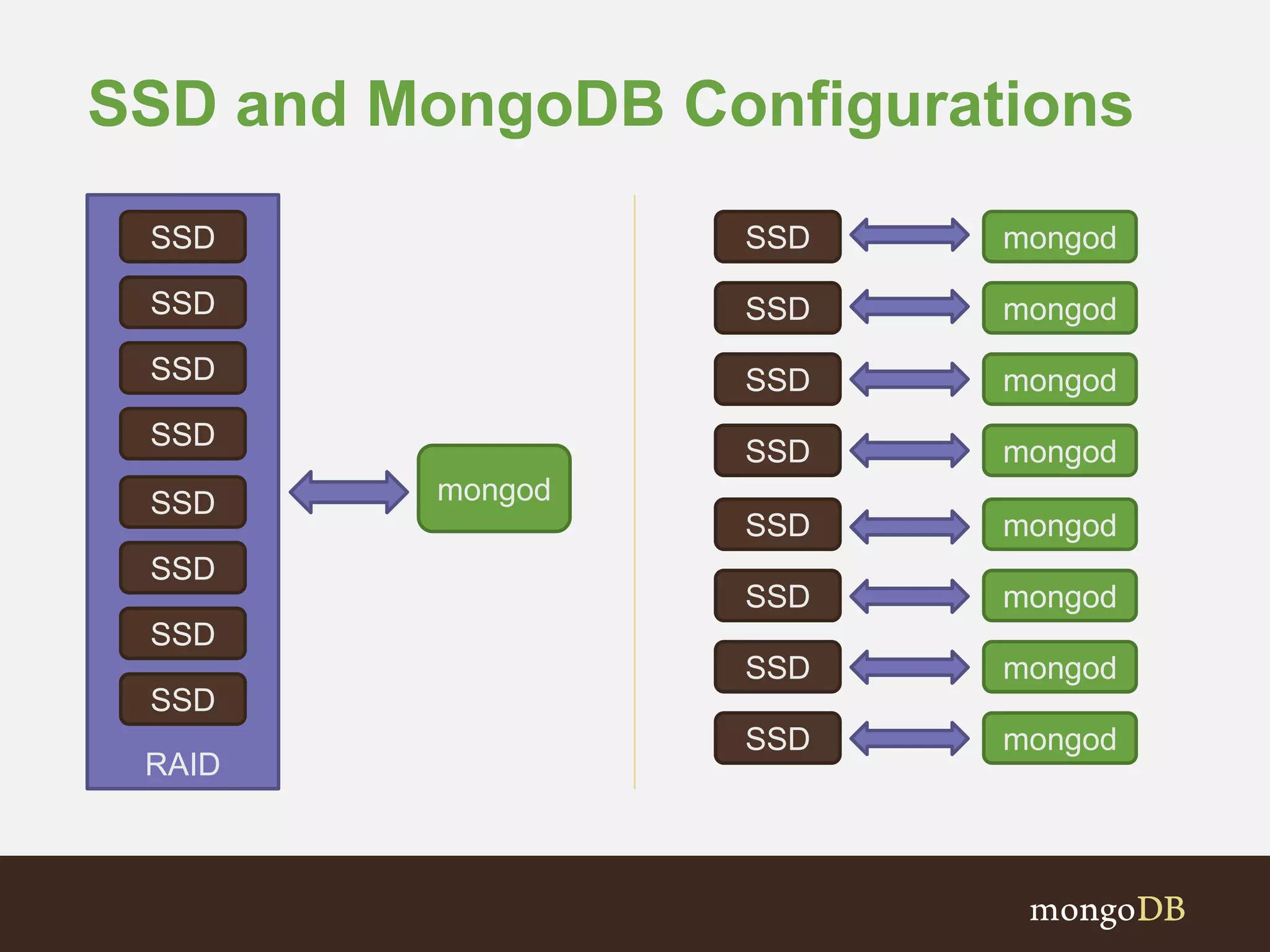

32. RAID
SSD and MongoDB Configurations
SSD
mongod
SSD
SSD
SSD
SSD
SSD
SSD
SSD
SSD
SSD
SSD
SSD
SSD
SSD
SSD
SSD
mongod
mongod
mongod
mongod
mongod
mongod
mongod
mongod

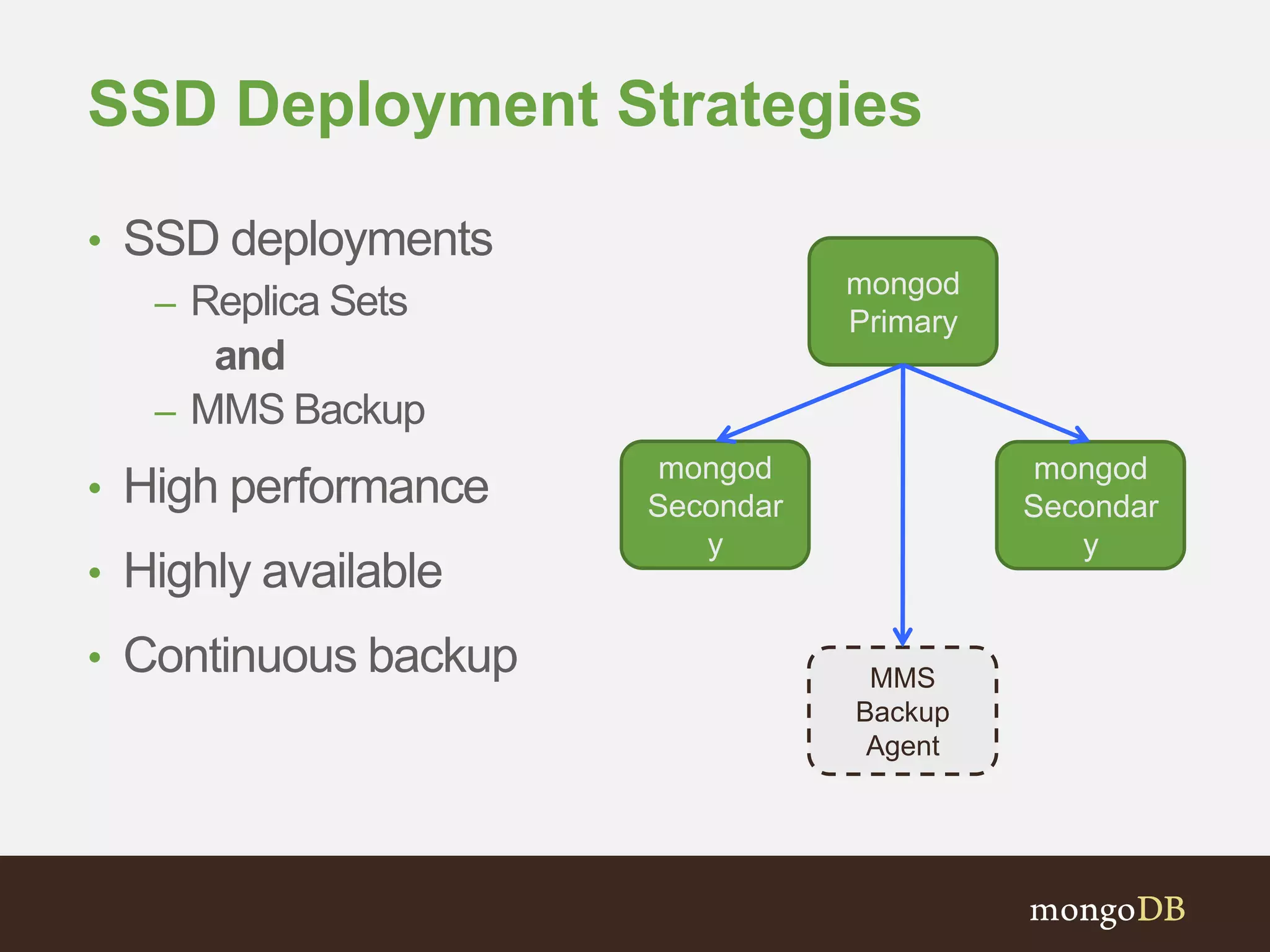

33. SSD Deployment Strategies
• SSD deployments
– Replica Sets
and
– MMS Backup
• High performance
• Highly available
• Continuous backup
mongod
Primary
mongod
Secondar
y
mongod
Secondar
y
MMS
Backup
Agent

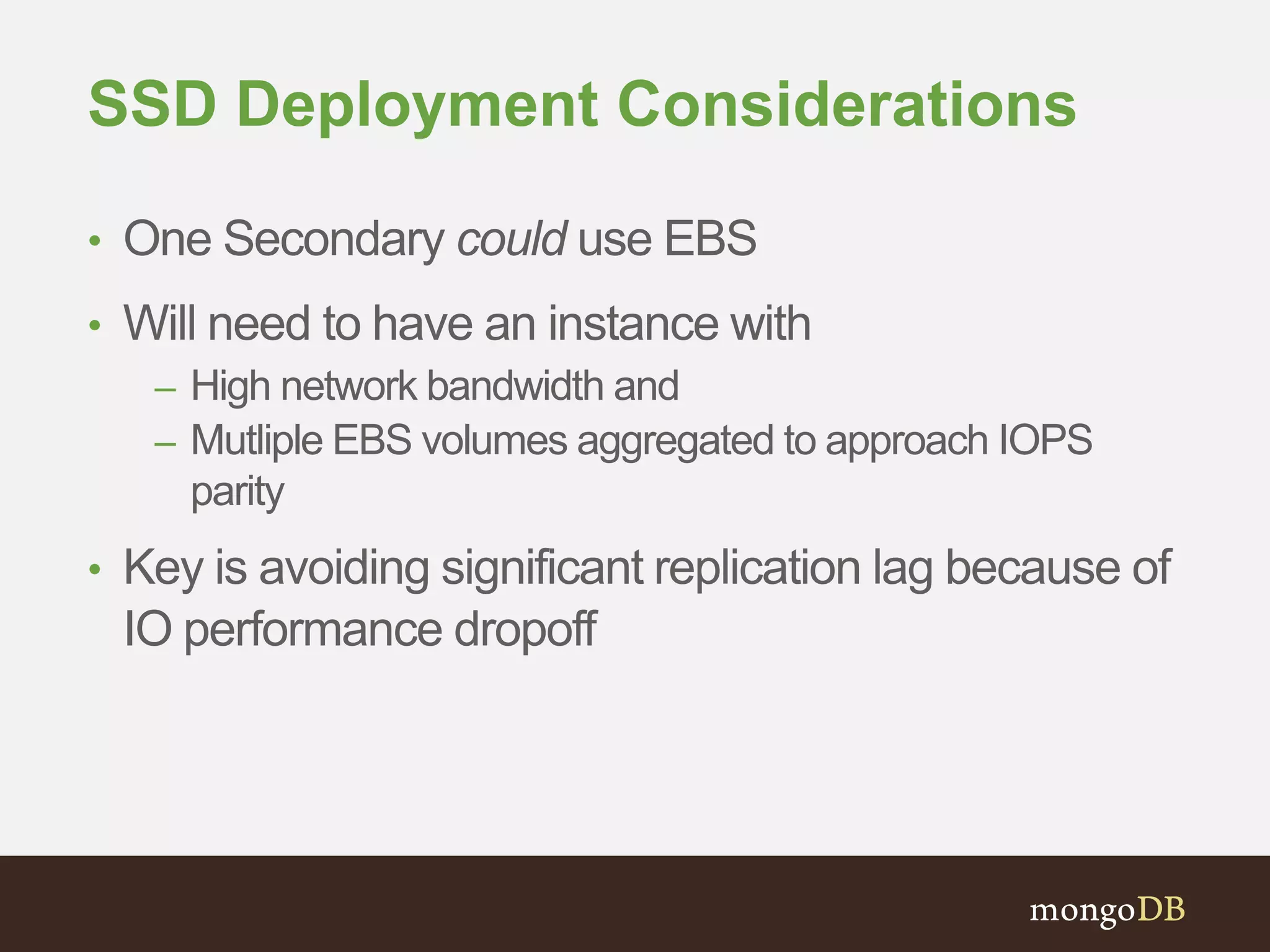

34. SSD Deployment Considerations
• One Secondary could use EBS
• Will need to have an instance with
– High network bandwidth and
– Mutliple EBS volumes aggregated to approach IOPS
parity
• Key is avoiding significant replication lag because of
IO performance dropoff

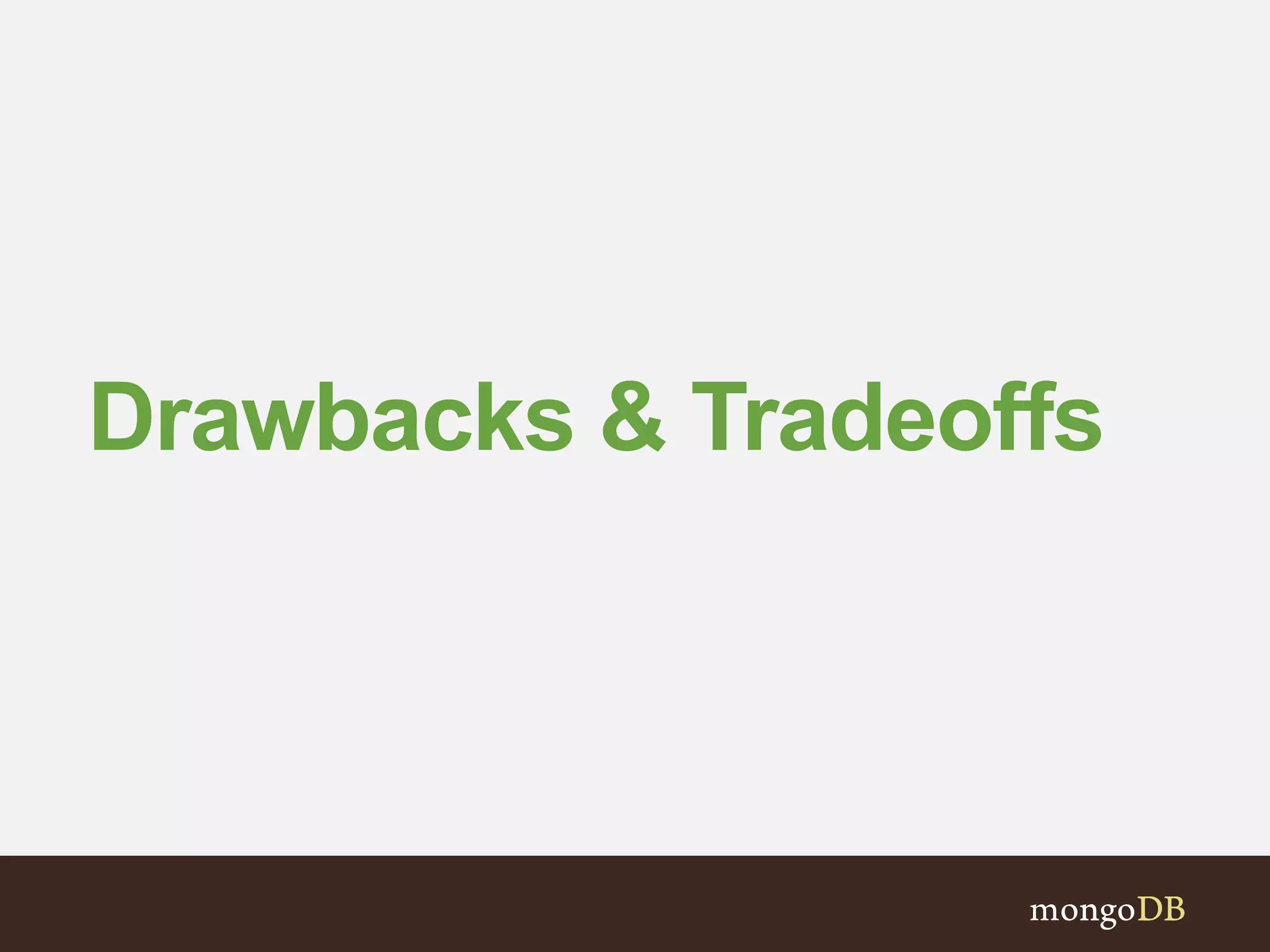

35. Drawbacks & Tradeoffs

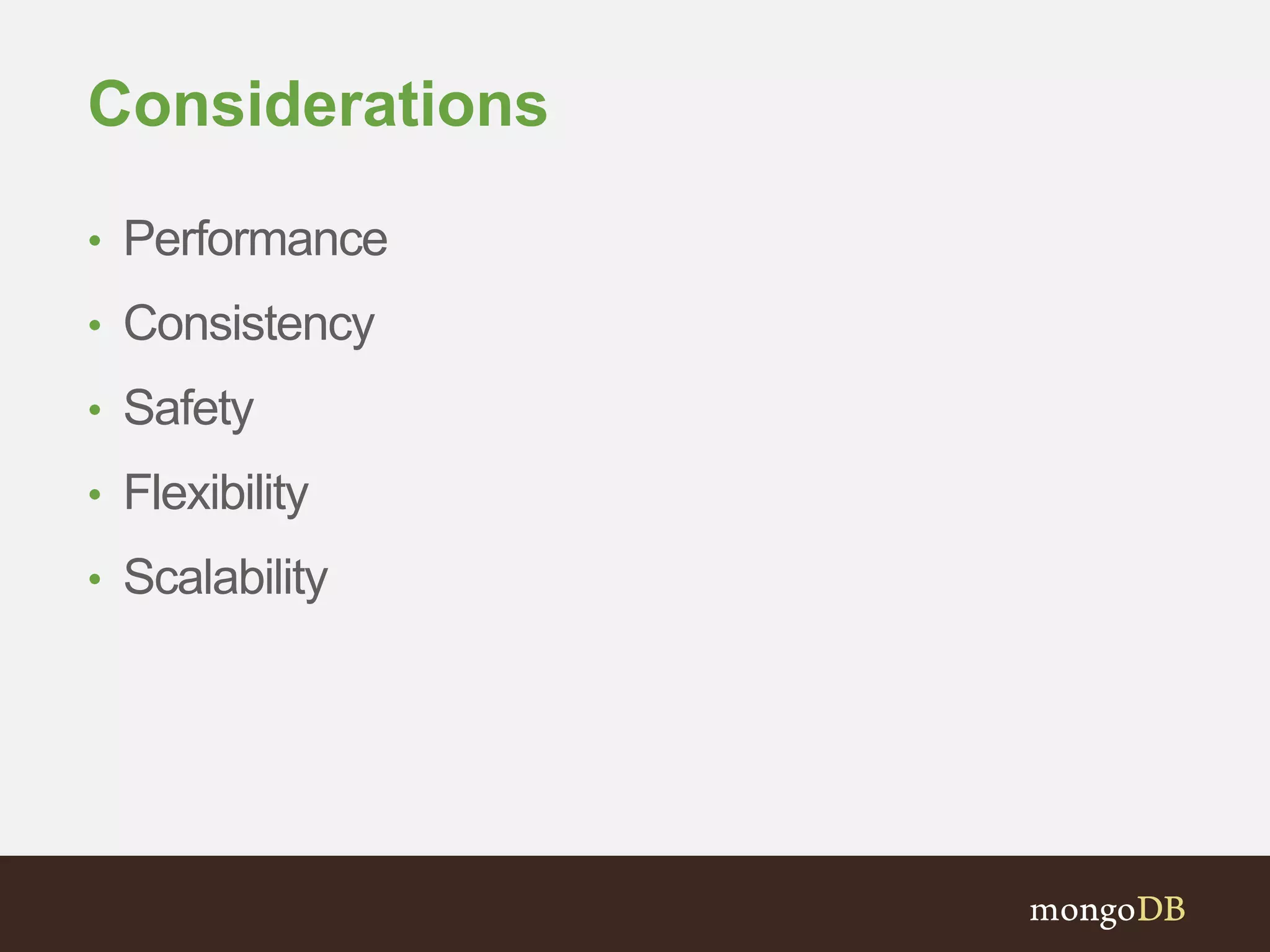

36. Considerations
• Performance
• Consistency
• Safety
• Flexibility
• Scalability

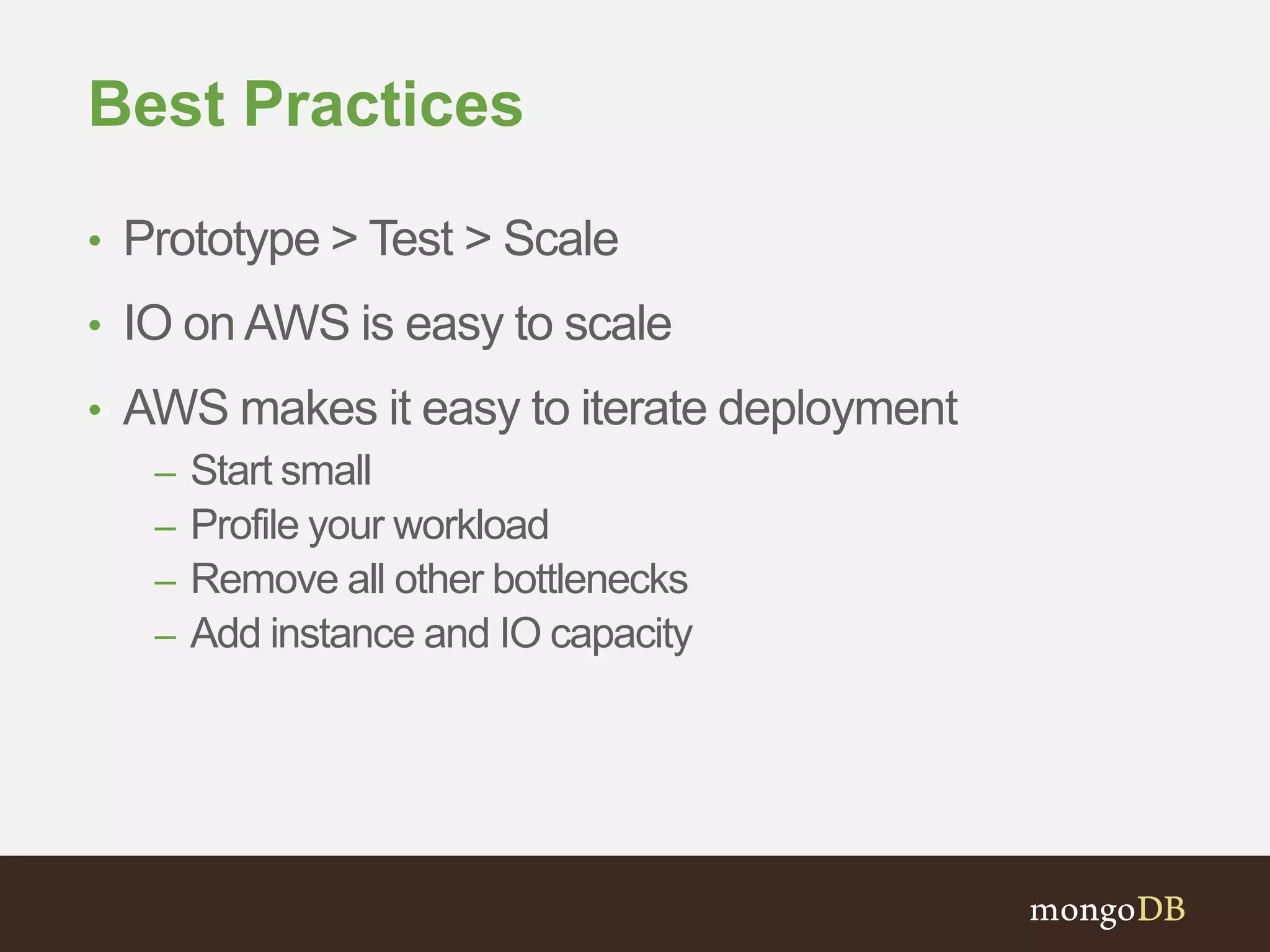

37. Best Practices
• Prototype > Test > Scale
• IO on AWS is easy to scale
• AWS makes it easy to iterate deployment
– Start small
– Profile your workload
– Remove all other bottlenecks
– Add instance and IO capacity

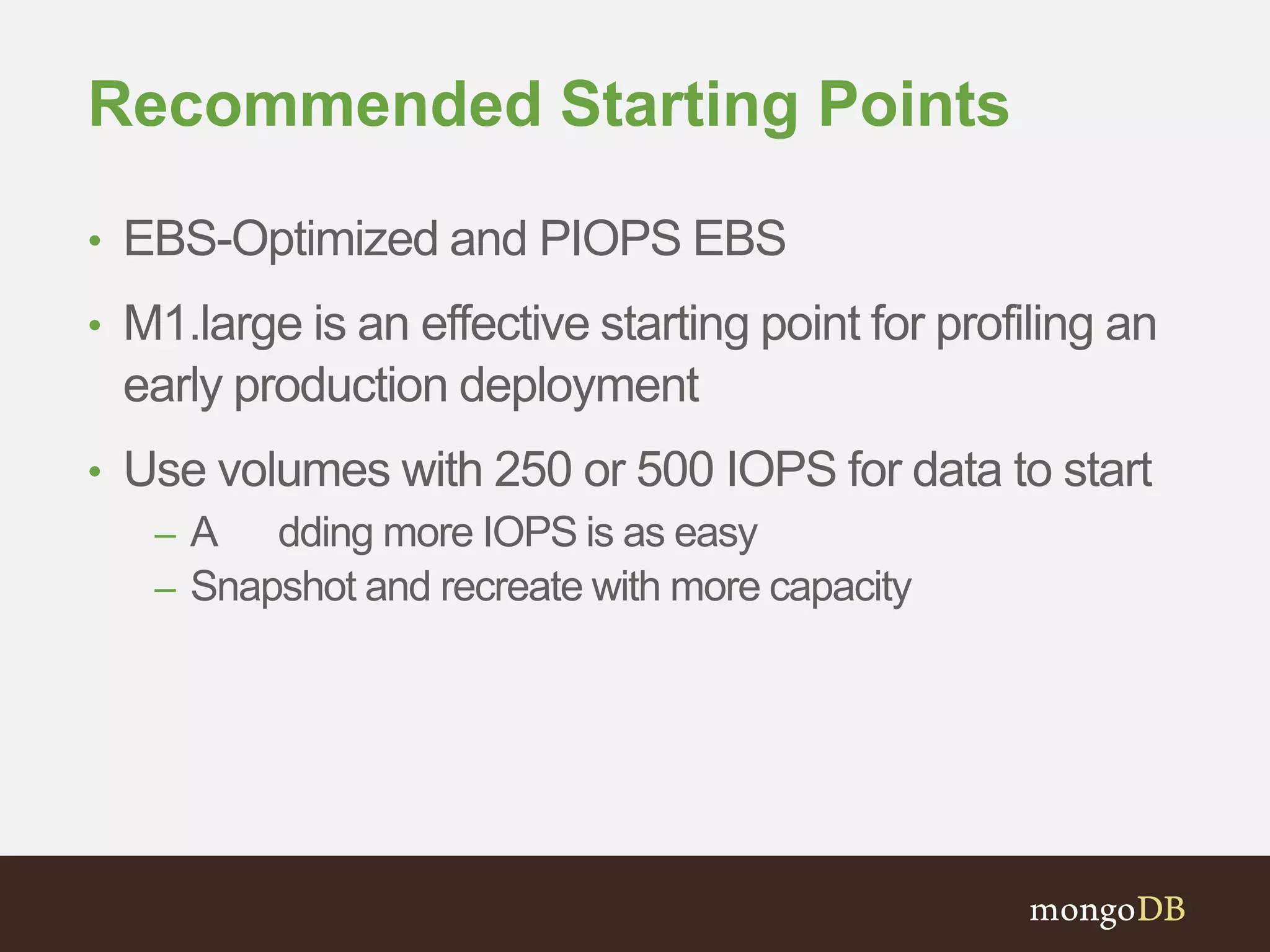

38. Recommended Starting Points
• EBS-Optimized and PIOPS EBS
• M1.large is an effective starting point for profiling an
early production deployment
• Use volumes with 250 or 500 IOPS for data to start
– A dding more IOPS is as easy
– Snapshot and recreate with more capacity

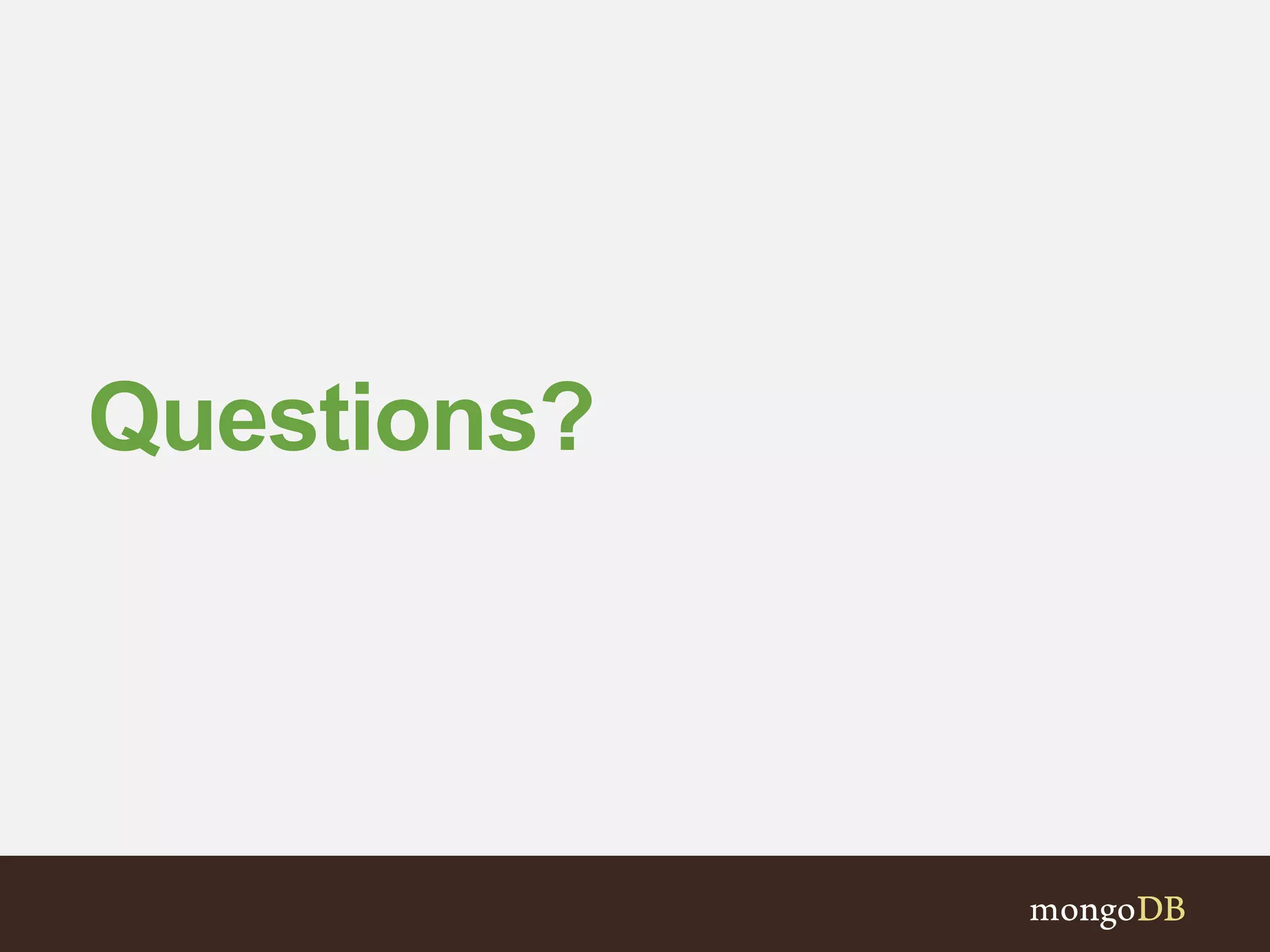

39. Questions?

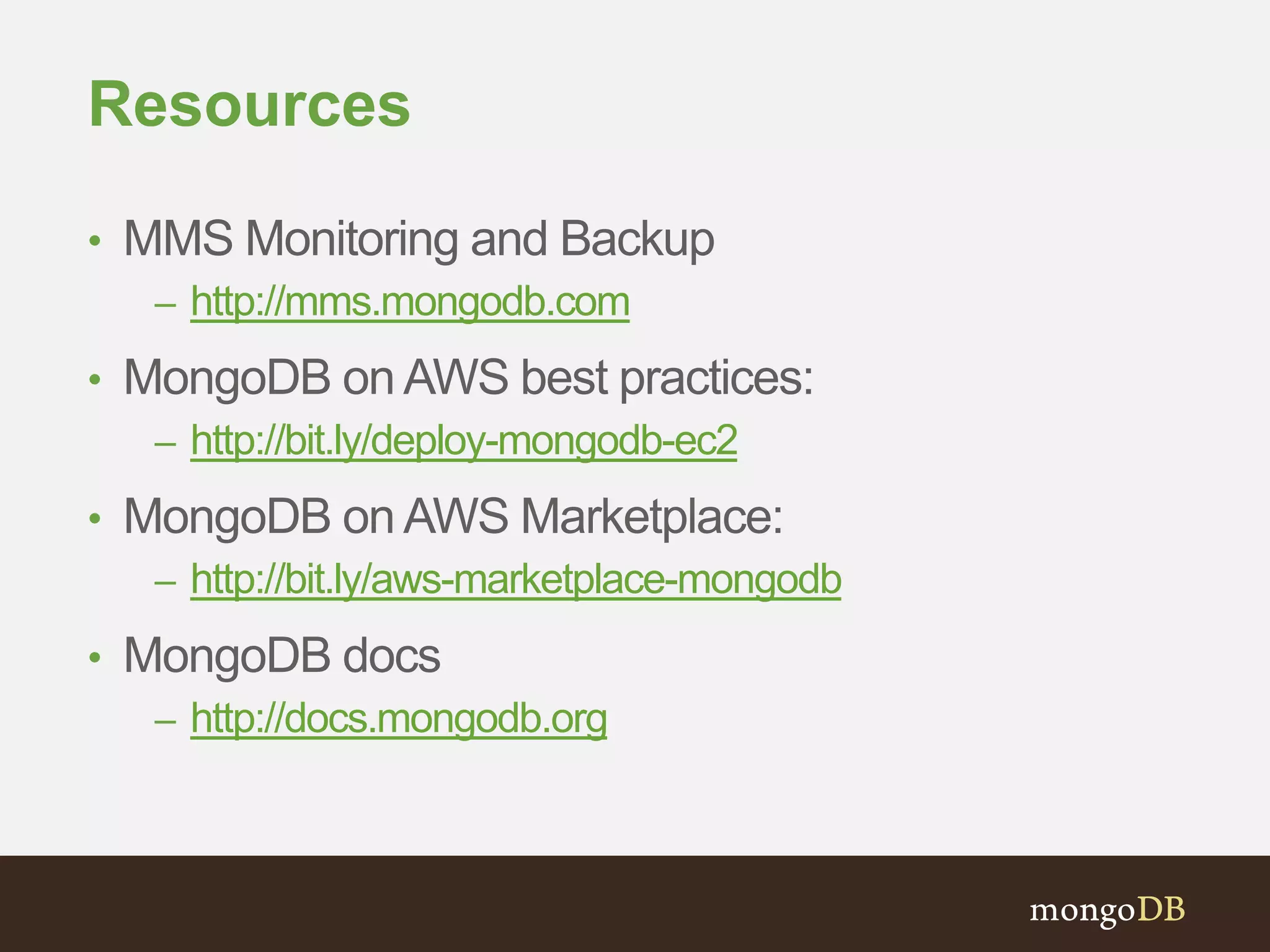

40. Resources
• MMS Monitoring and Backup
– http://mms.mongodb.com
• MongoDB on AWS best practices:
– http://bit.ly/deploy-mongodb-ec2
• MongoDB on AWS Marketplace:
– http://bit.ly/aws-marketplace-mongodb
• MongoDB docs
– http://docs.mongodb.org

41. MongoDB World
New York City, June 23-25
#MongoDBWorld
See what’s next in MongoDB including
• MongoDB 2.6
• Sharding
• Replication
• Aggregation
http://world.mongodb.com
Save 25% with discount code 25SandeepParikh
