Microsoft Azure Media Services
This document provides an overview of Microsoft Azure Media Services for encoding, packaging and streaming media. It describes Media Services' support for common input/output formats and codecs for video and audio encoding. Tasks define processing instructions for assets containing media files and associated metadata. Jobs coordinate task execution across processors. Streaming can be static via packaged files or dynamic via just-in-time encoding. Pricing is based on data processed and reserved units for parallel tasks or streaming bandwidth.
More Related Content
Similar to Microsoft Azure Media Services
Microsoft Azure Media Services
- 1. Microsoft Azure MediaServices Pavlo Revenkov EPAM Cloud Computing Competency Center Email: pavlo_revenkov@epam.com Skype: rp_risingstar

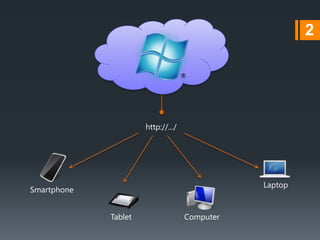

- 2. http://.../ Smartphone TabletComputer Laptop 2
- 3.
- 4. Video encoding 4 • 3GPP • 3GPP2 • ASF • AVI • DV • MOD • M2TS • MP4 • MPEG-1 • MPEG-2 • MTS • PIFF 1.3 • TS • VOB • WMV • XESC Input formats (containers) • DV • H.264 • MPEG-1 • MPEG-2 • MPEG-4 v2 • VC-1 • WMV Input codecs
- 5. Video encoding 5 Output formats (containers) • MP4 • PIFF 1.1 • WMV • H.264 • VC-1 Output codecs Streaming formats • HLS • Smooth Streaming • MPEG DASH
- 6. Audio encoding 6 • AC3 • AIFF • BWF • MP3 • M4A • M4B • WAV • WMA Input formats (containers) • AC-3 • AAC • AAC-LC • HE-AAC v1 • HE-AAC v2 • MP3 • WMA Input codecs Output formats (containers) • AAC • WMA • AAC-LC • HE-AAC v1 • HE-AAC v2 Output • WMA codecs
- 7.
- 8. Concepts 8 Inputmedia files … Asset Output media files … Blob Asset: • Contains digital files (video, audio, text tracks, etc.) • Contains metadata about digital files • Mapped to Azure Blob Storage
- 9. Concepts 9 Asset Encode Thumbnails Encrypt Package Task: • Contains asset processing instructions Processor: • Compute resource to be used for work Tasks Processor Processor Processor Processor
- 10. Concepts 10 Asset Job: • Combines several tasks • Contains details of the processing work • Event handling • Monitoring Job Task execution Progress Events
- 11. Streaming 11 Staticpackaging Dynamic packaging • Encode with specific presets • Encode with multi-bitrate MP4 preset URL example: {media services account name}.origin.mediaservices.net/{locator ID}/{filename}.ism/Manifest(format=m3u8-aapl)
- 12. Pricing 12 Dataprocessed Data processed First 5 TB/Month $1.99 per GB Next 15 TB/Month $1.60 per GB Next 30 TB/Month $1.09 per GB Next 50 TB/Month $0.89 per GB Greater than 100 TB/Month $0.69 per GB Tasks are executed one by one. If you want to execute the tasks in parallel you should purchase additional Reserved Units. Reserved Unit – 99$/Month On-demand streaming is charged based on the number of Reserved Units you use. Reserved Unit provides bandwidth up to 200 Mbps per Reserved Unit along with built-in failover. Streaming Reserved Unit – 199$/Month
- 13.
- 14. References Get startedwith Media Services: http://www.windowsazure.com/en-us/documentation/articles/media-services- dotnet-get-started/ Process assets with the Media Services SDK: http://msdn.microsoft.com/en-us/library/windowsazure/jj129580.aspx Media Services Encoder System Presets: http://msdn.microsoft.com/en-us/library/windowsazure/jj129582.aspx 14
- 15.
