1. Alexander Meijers
Solutions Architect / Mixed Reality Evangelist
Create an immersive experience with
Office 365 data and Mixed Reality
using HoloLens
#MWCP18

2. #MWCP18
ARCHITECTE DE SOLUTIONS
ÉVANGÉLISTE DE RÉALITÉ MIXTE
ÉQUIPE DE RÉALITÉ MIXTE @ ETTU
MVP DE DÉVELOPPEMENT MICROSOFT
WINDOWS POUR LA RÉALITÉ MIXTE
FONDATEUR DU MIXED REALITY USER GROUP
ORGANISATEURS DU GLOBAL AI/MR BOOTCAMP, SP&C, MIXED REALITY TALK @ VR ET FUTURETECH
EMAIL: A.MEIJERS@ETTU.NL / ALEXANDER@APPZINSIDE.COM
TWITTER: @AMEIJERS
BLOG: HTTP://WWW.APPZINSIDE.COM
À PROPOS DE MOI

3. #MWCP18

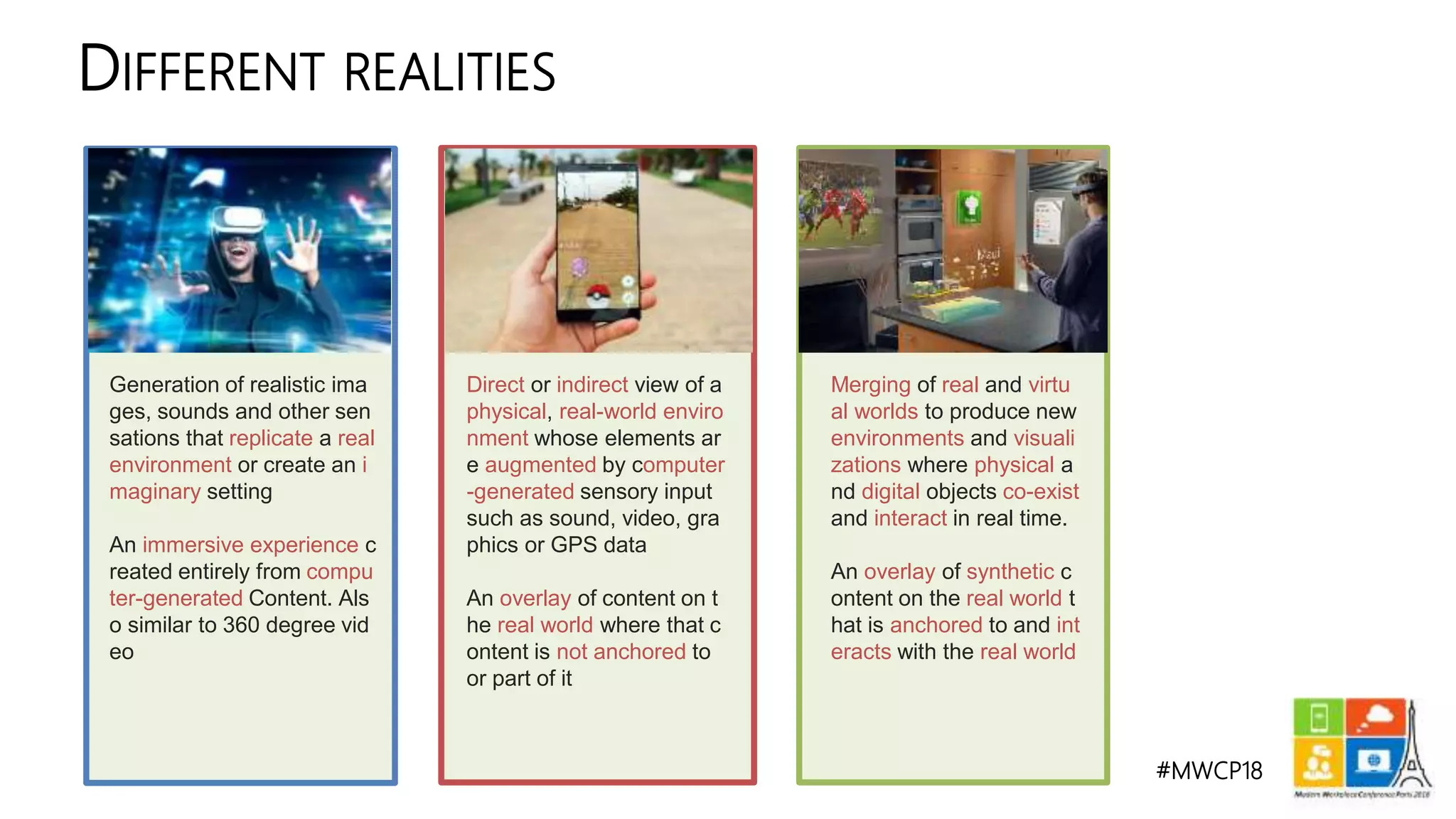

DIFFERENT REALITIES
Merging of real and virtu
al worlds to produce new
environments and visuali
zations where physical a
nd digital objects co-exist
and interact in real time.
An overlay of synthetic c
ontent on the real world t
hat is anchored to and int
eracts with the real world
MIXED REALITY
Direct or indirect view of a
physical, real-world enviro
nment whose elements ar
e augmented by computer
-generated sensory input
such as sound, video, gra
phics or GPS data
An overlay of content on t
he real world where that c
ontent is not anchored to
or part of it
AUGMENTED REALITY
Generation of realistic ima
ges, sounds and other sen
sations that replicate a real
environment or create an i
maginary setting
An immersive experience c
reated entirely from compu
ter-generated Content. Als
o similar to 360 degree vid
eo
VIRTUAL REALITY

4. #MWCP18

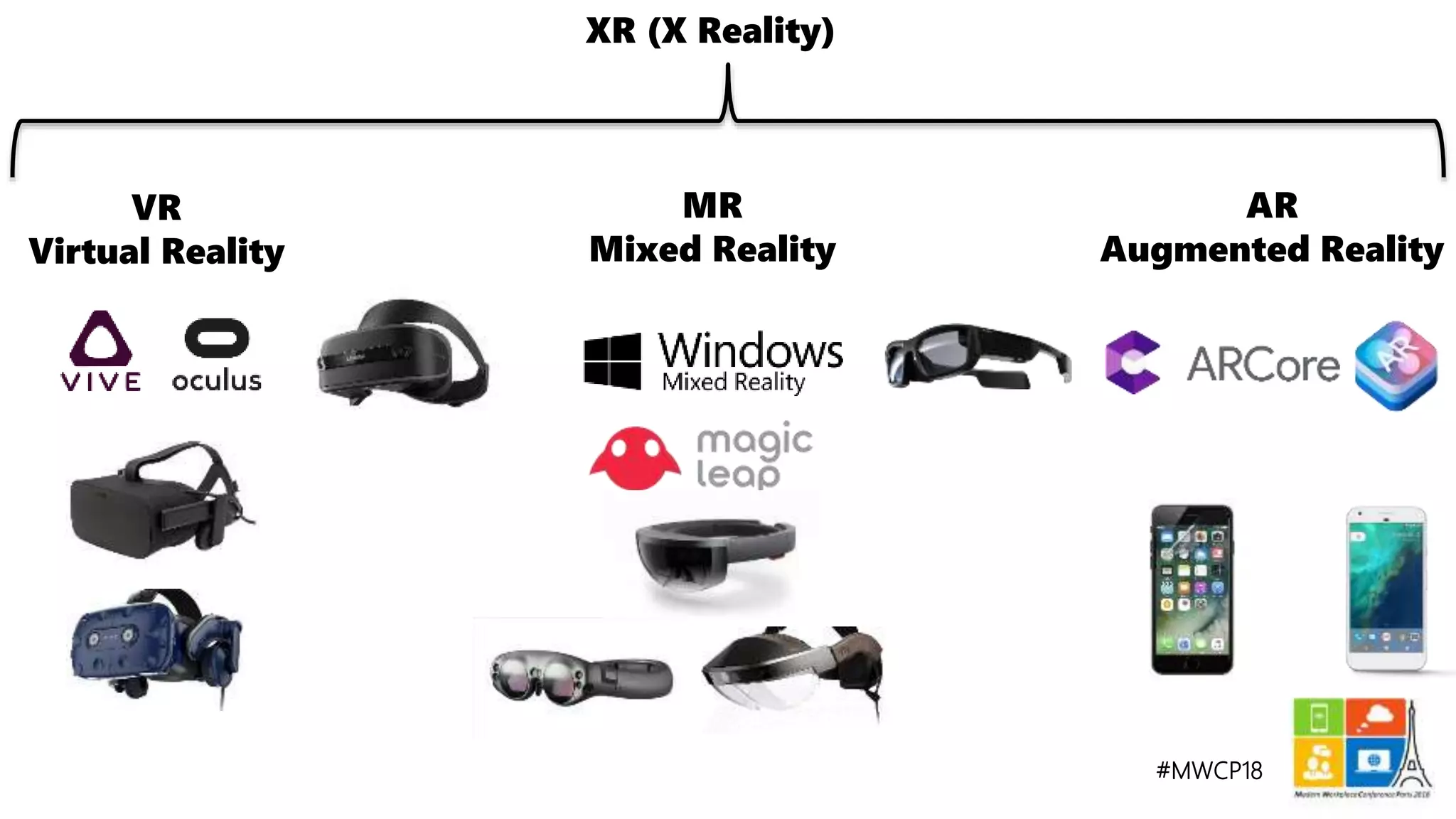

XR (X Reality)
VR
Virtual Reality
MR
Mixed Reality
AR
Augmented Reality

5. MIXED REALITY & HOLOLENS

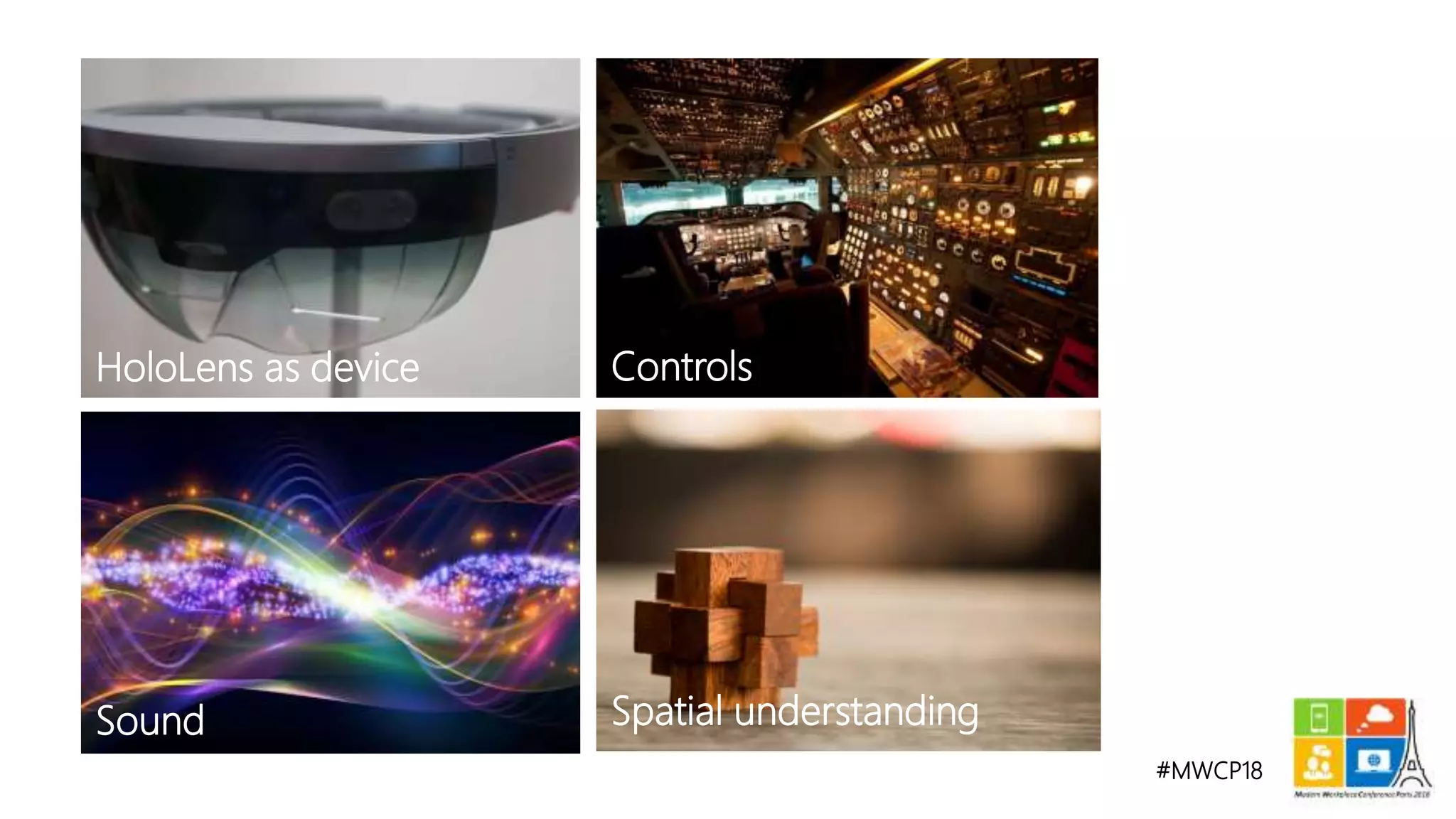

6. #MWCP18
Controls
Sound Spatial understanding
HoloLens as device

7. IMMERSIVE HOLOLENS EXPERIENCE

8. #MWCP18

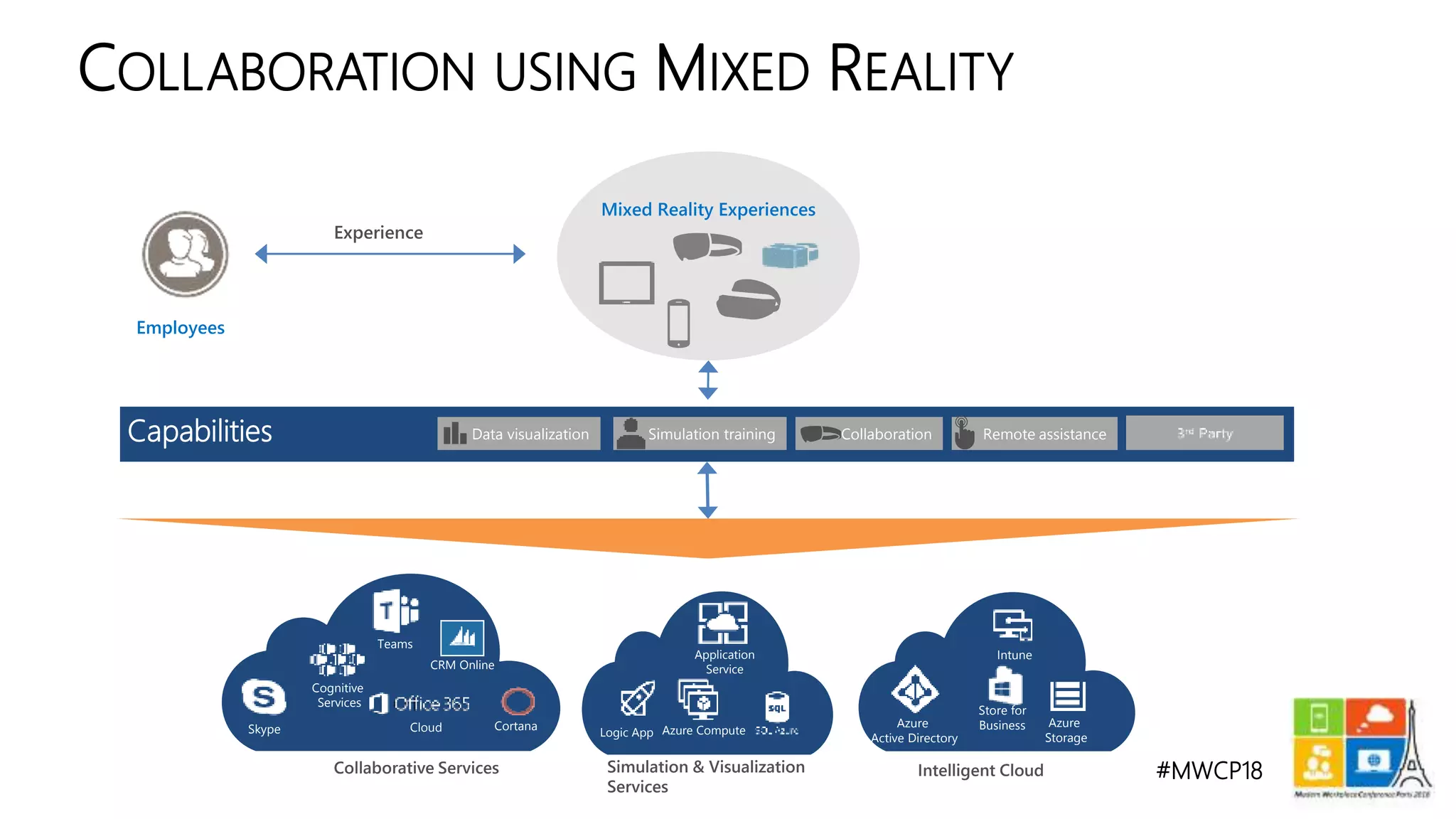

COLLABORATION USING MIXED REALITY
Capabilities
Intelligent Cloud
Employees
Skype
Cognitive
Services
Cortana
Collaborative Services
Azure
StorageLogic App
Simulation & Visualization
Services
CRM Online
Experience
Application
Service
Azure
Active Directory
Intune
Teams
Store for
BusinessAzure Compute
Remote assistanceSimulation training CollaborationData visualization
Mixed Reality Experiences
Cloud

9. WHAT ARE WE GOING TO BUILD?

10. #MWCP18

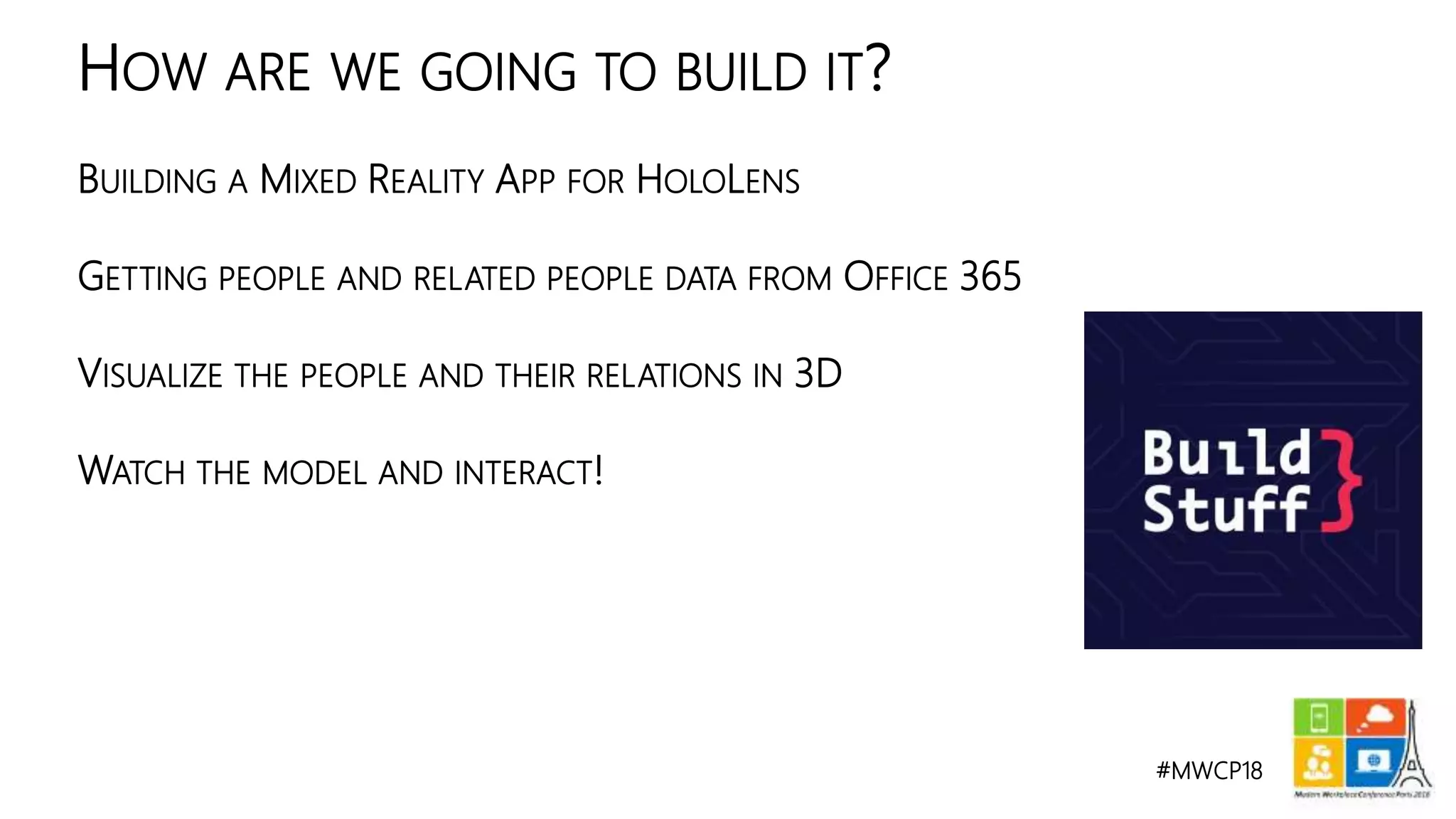

BUILDING A MIXED REALITY APP FOR HOLOLENS
GETTING PEOPLE AND RELATED PEOPLE DATA FROM OFFICE 365
VISUALIZE THE PEOPLE AND THEIR RELATIONS IN 3D
WATCH THE MODEL AND INTERACT!
HOW ARE WE GOING TO BUILD IT?

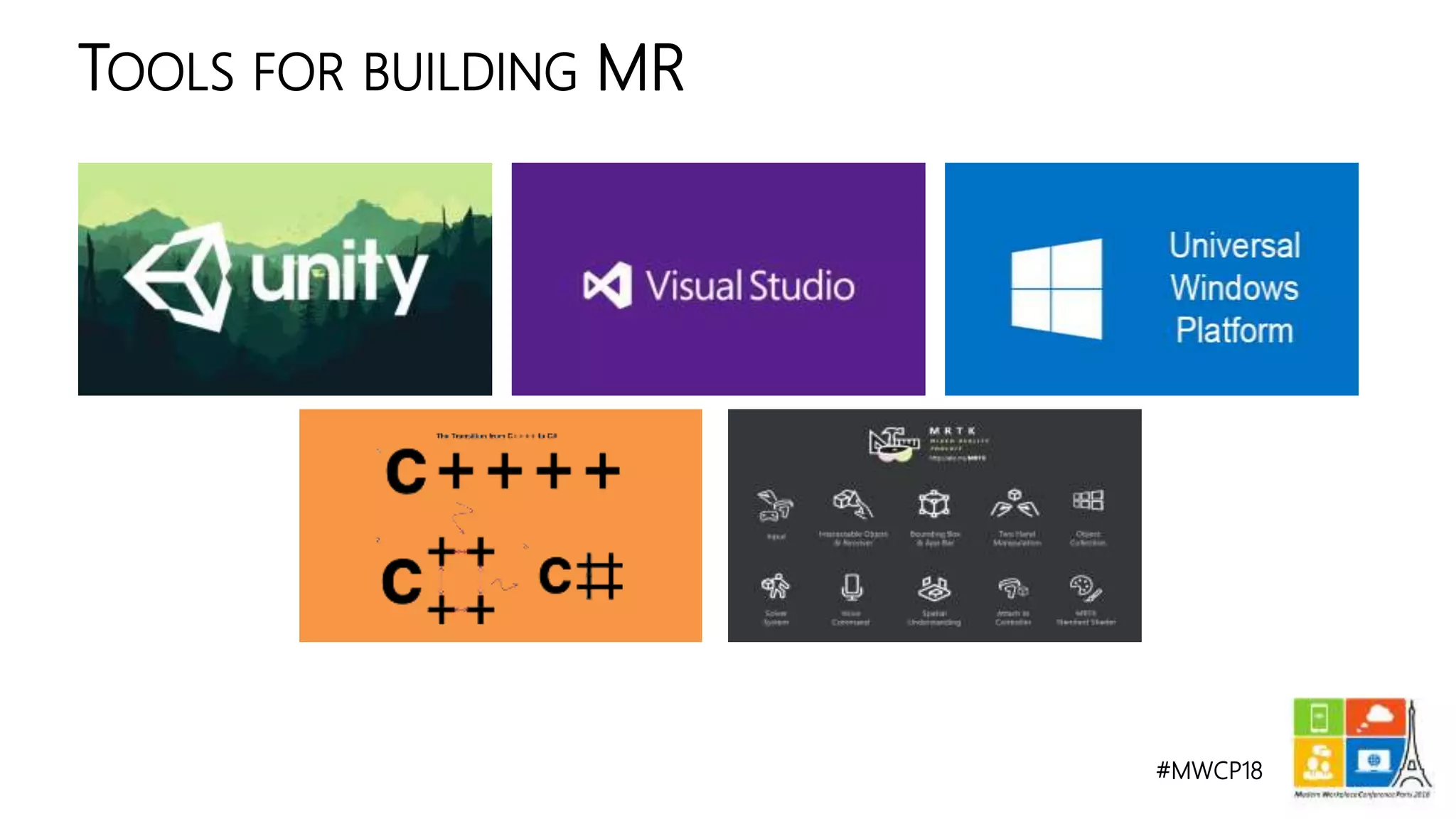

11. TOOLS FOR BUILDING MR

12. #MWCP18
TOOLS FOR BUILDING MR

13. #MWCP18

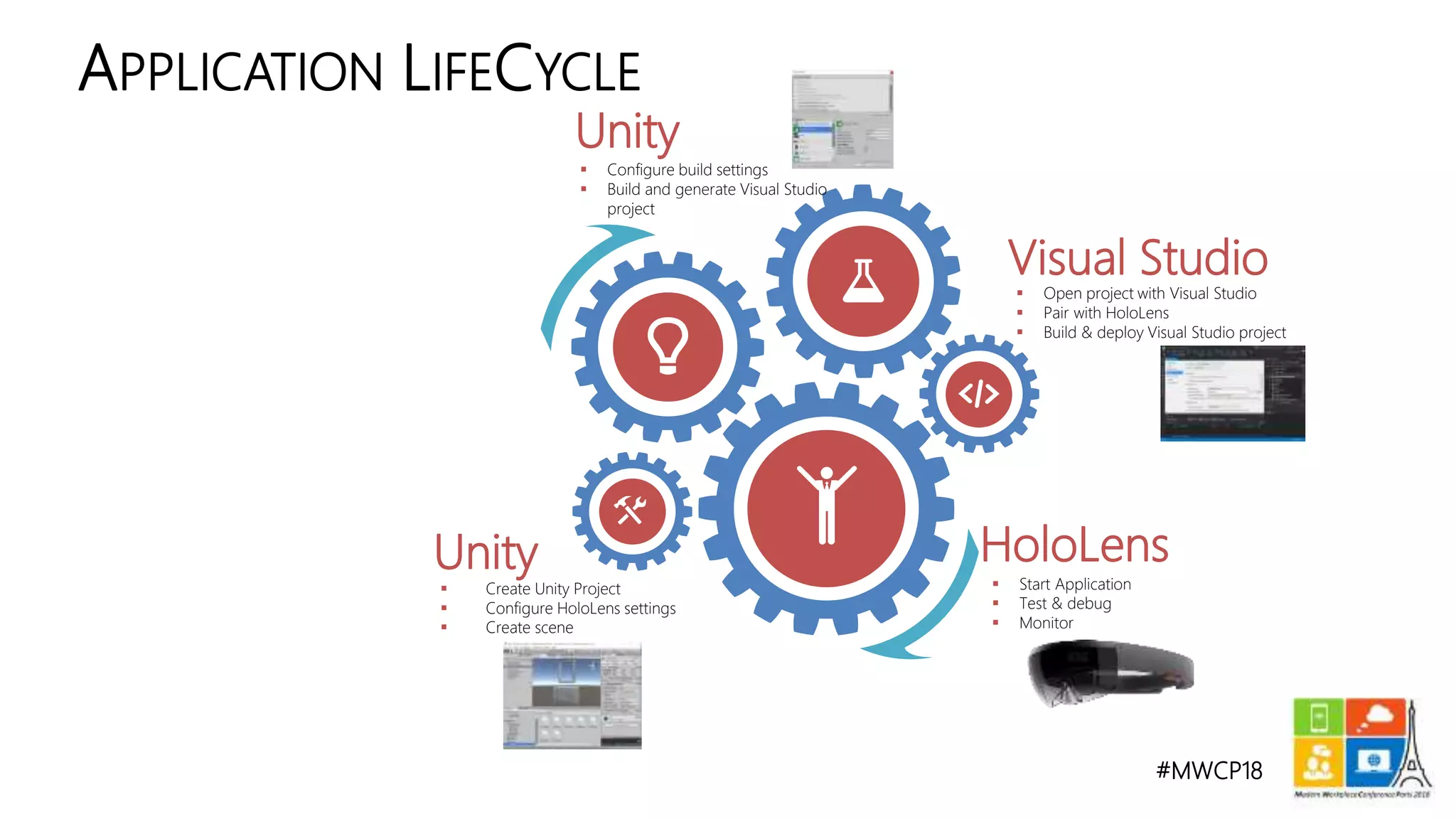

APPLICATION LIFECYCLE
 Create Unity Project
 Configure HoloLens settings
 Create scene
Visual Studio
Unity HoloLens
 Configure build settings
 Build and generate Visual Studio
project
 Open project with Visual Studio
 Pair with HoloLens
 Build & deploy Visual Studio project
 Start Application
 Test & debug
 Monitor
Unity

14. #MWCP18

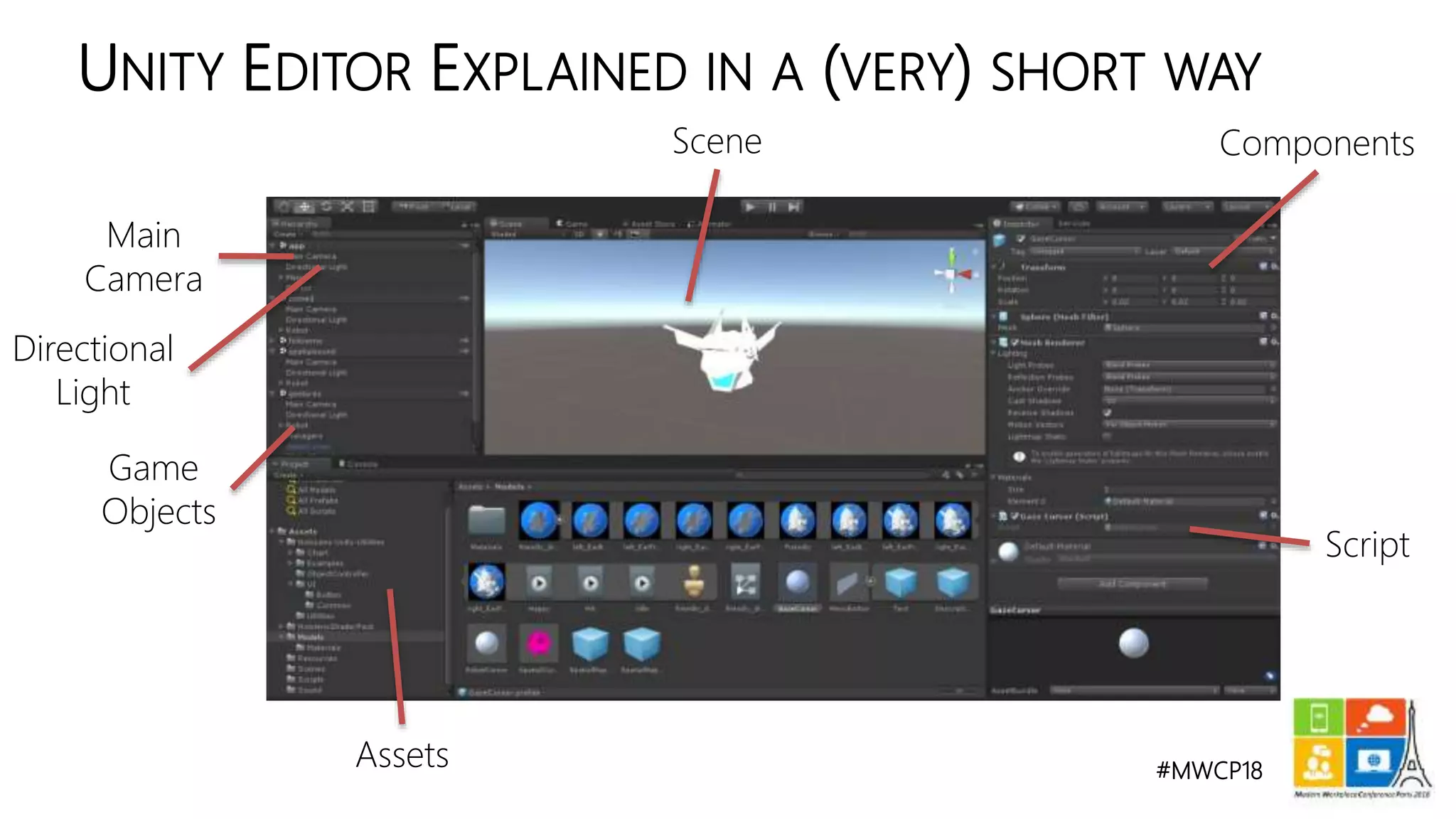

UNITY EDITOR EXPLAINED IN A (VERY) SHORT WAY
Main
Camera
Directional
Light
Game
Objects
Assets
Components
Script
Scene

15. DEMONSTRATION OF UNITY

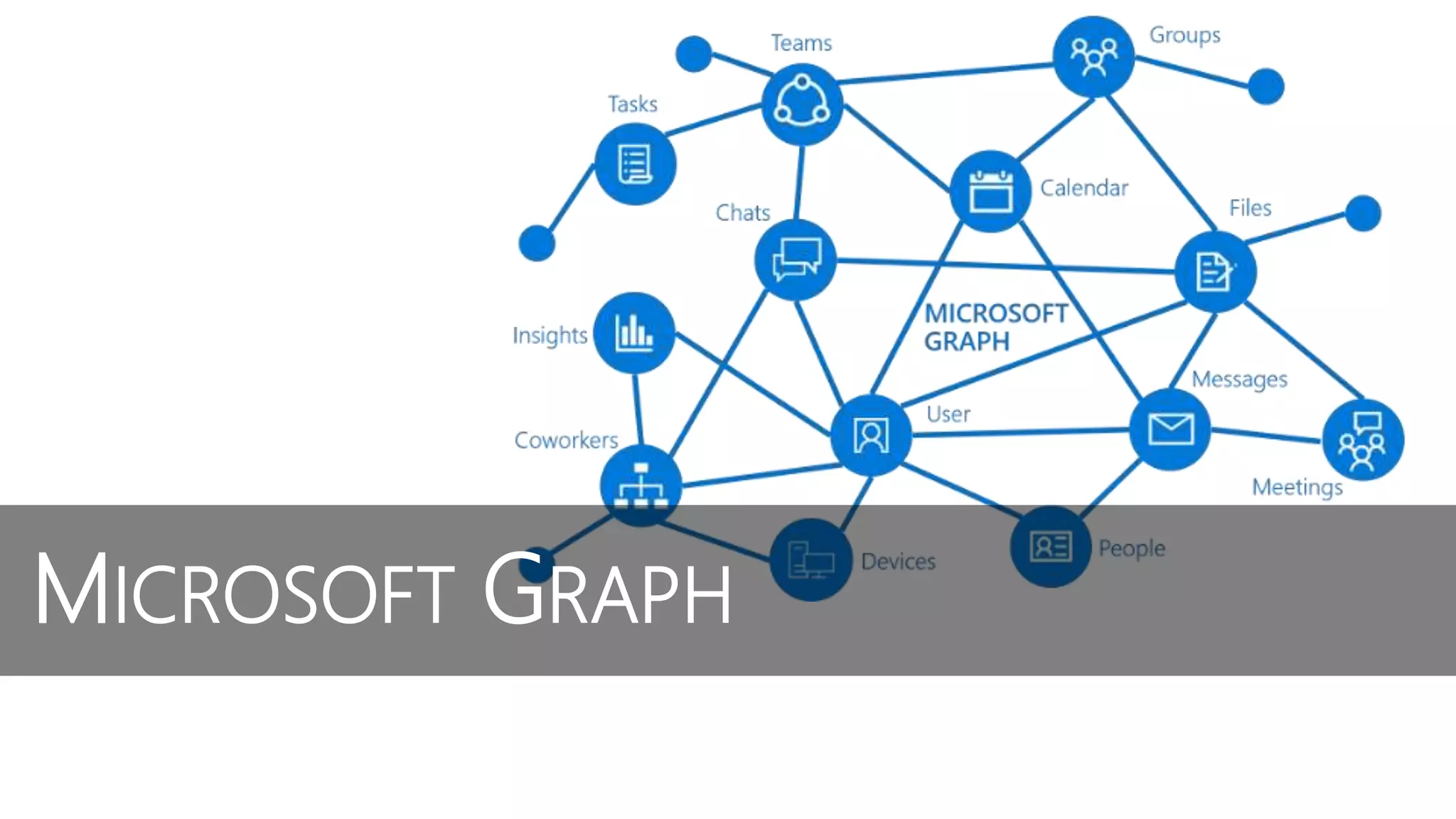

16. MICROSOFT GRAPH

17. #MWCP18

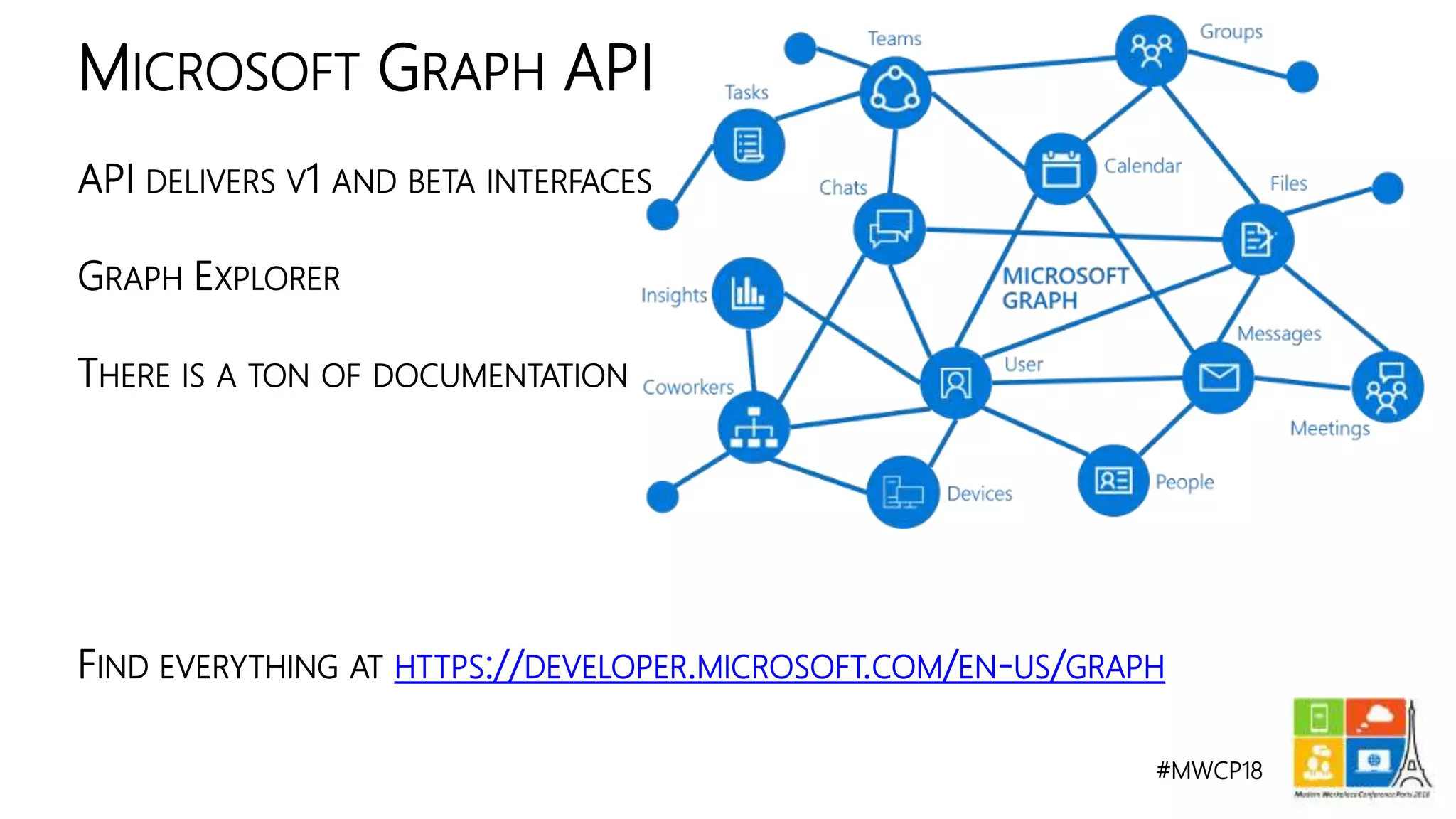

MICROSOFT GRAPH

18. #MWCP18
API DELIVERS V1 AND BETA INTERFACES
GRAPH EXPLORER
THERE IS A TON OF DOCUMENTATION
FIND EVERYTHING AT HTTPS://DEVELOPER.MICROSOFT.COM/EN-US/GRAPH
MICROSOFT GRAPH API

19. #MWCP18

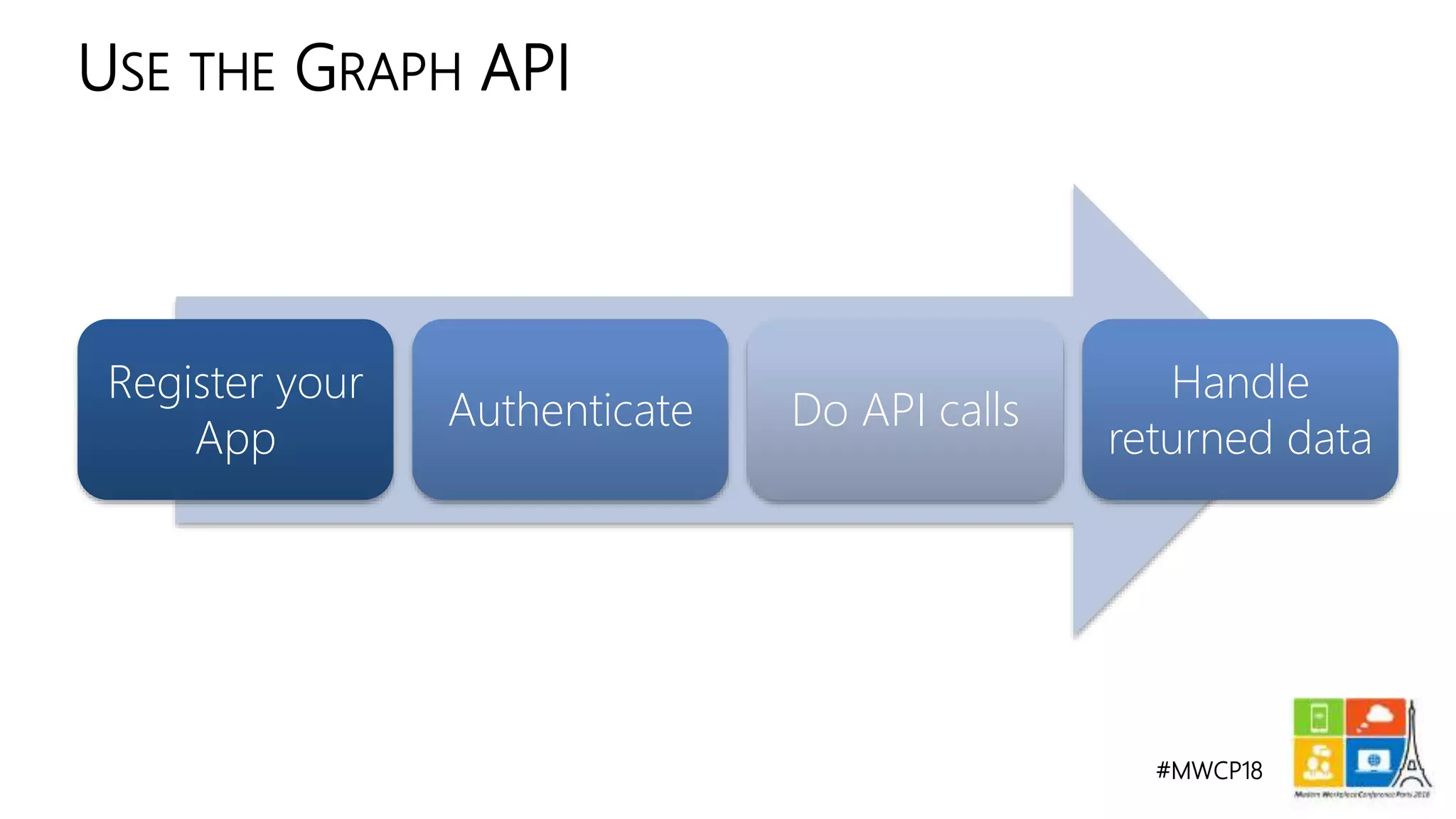

USE THE GRAPH API
Register your
App
Authenticate Do API calls
Handle
returned data

20. #MWCP18

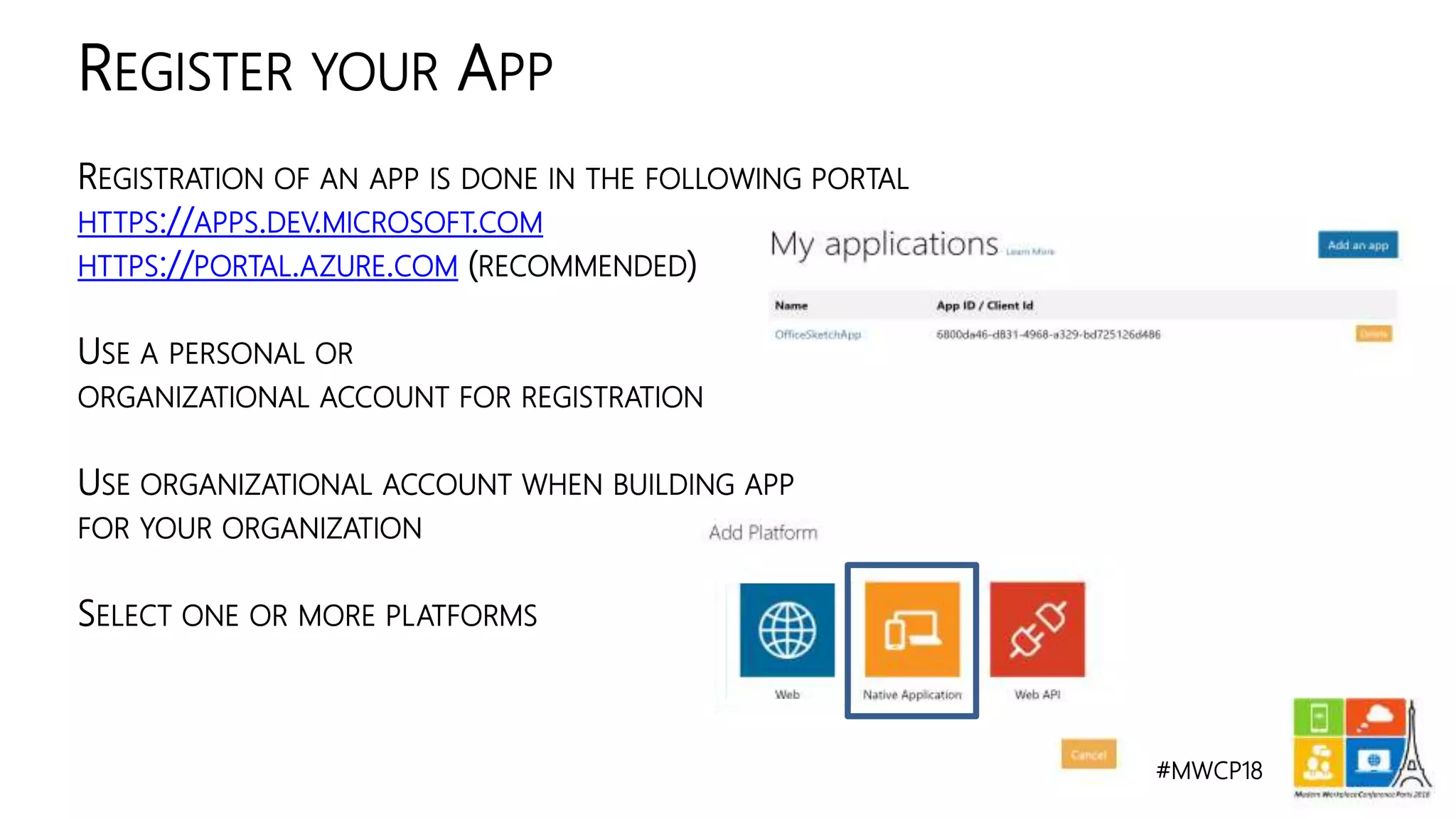

REGISTRATION OF AN APP IS DONE IN THE FOLLOWING PORTAL
HTTPS://APPS.DEV.MICROSOFT.COM
HTTPS://PORTAL.AZURE.COM (RECOMMENDED)
USE A PERSONAL OR
ORGANIZATIONAL ACCOUNT FOR REGISTRATION
USE ORGANIZATIONAL ACCOUNT WHEN BUILDING APP
FOR YOUR ORGANIZATION
SELECT ONE OR MORE PLATFORMS
REGISTER YOUR APP

21. #MWCP18

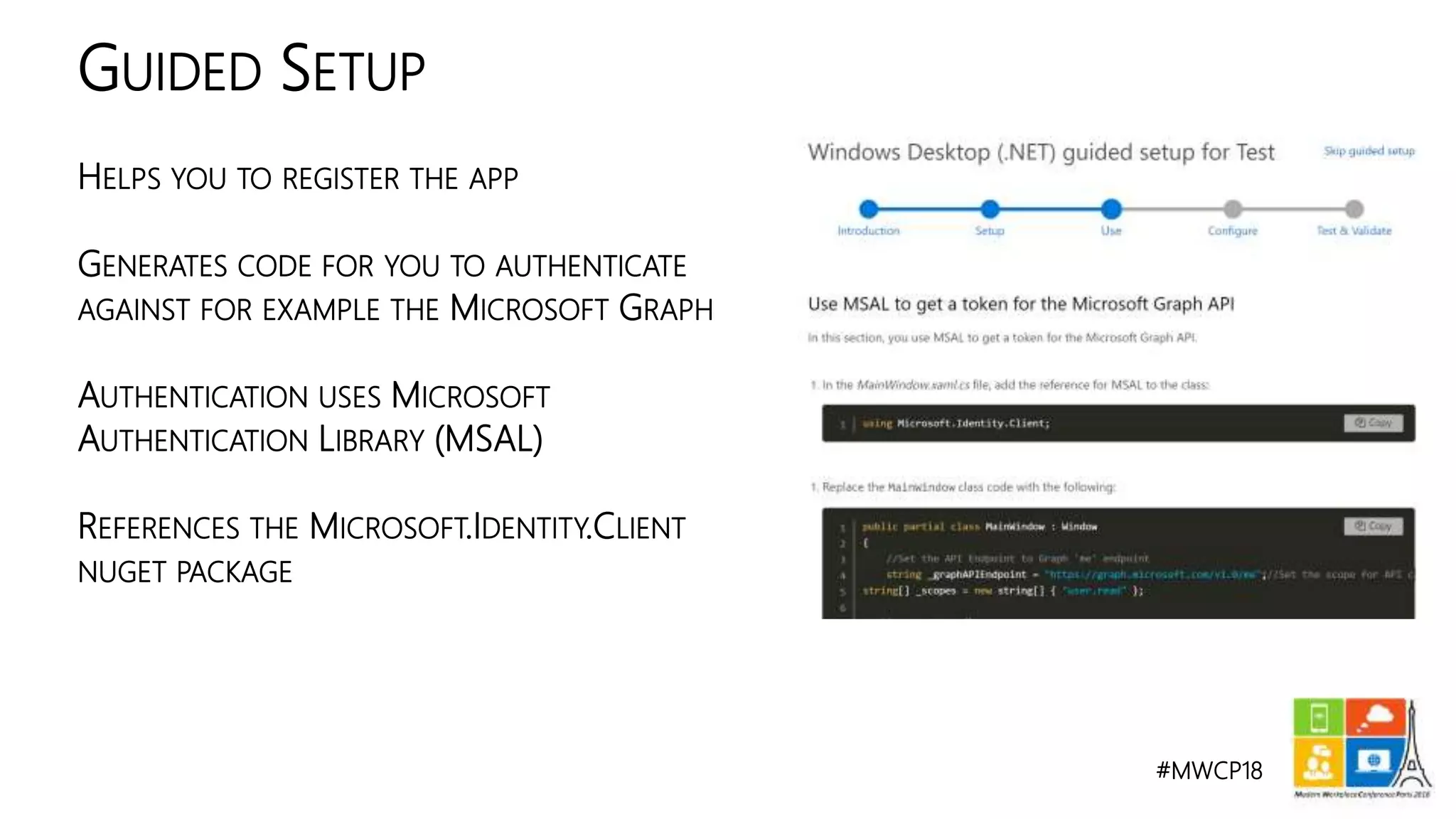

HELPS YOU TO REGISTER THE APP
GENERATES CODE FOR YOU TO AUTHENTICATE
AGAINST FOR EXAMPLE THE MICROSOFT GRAPH
AUTHENTICATION USES MICROSOFT
AUTHENTICATION LIBRARY (MSAL)
REFERENCES THE MICROSOFT.IDENTITY.CLIENT
NUGET PACKAGE
GUIDED SETUP

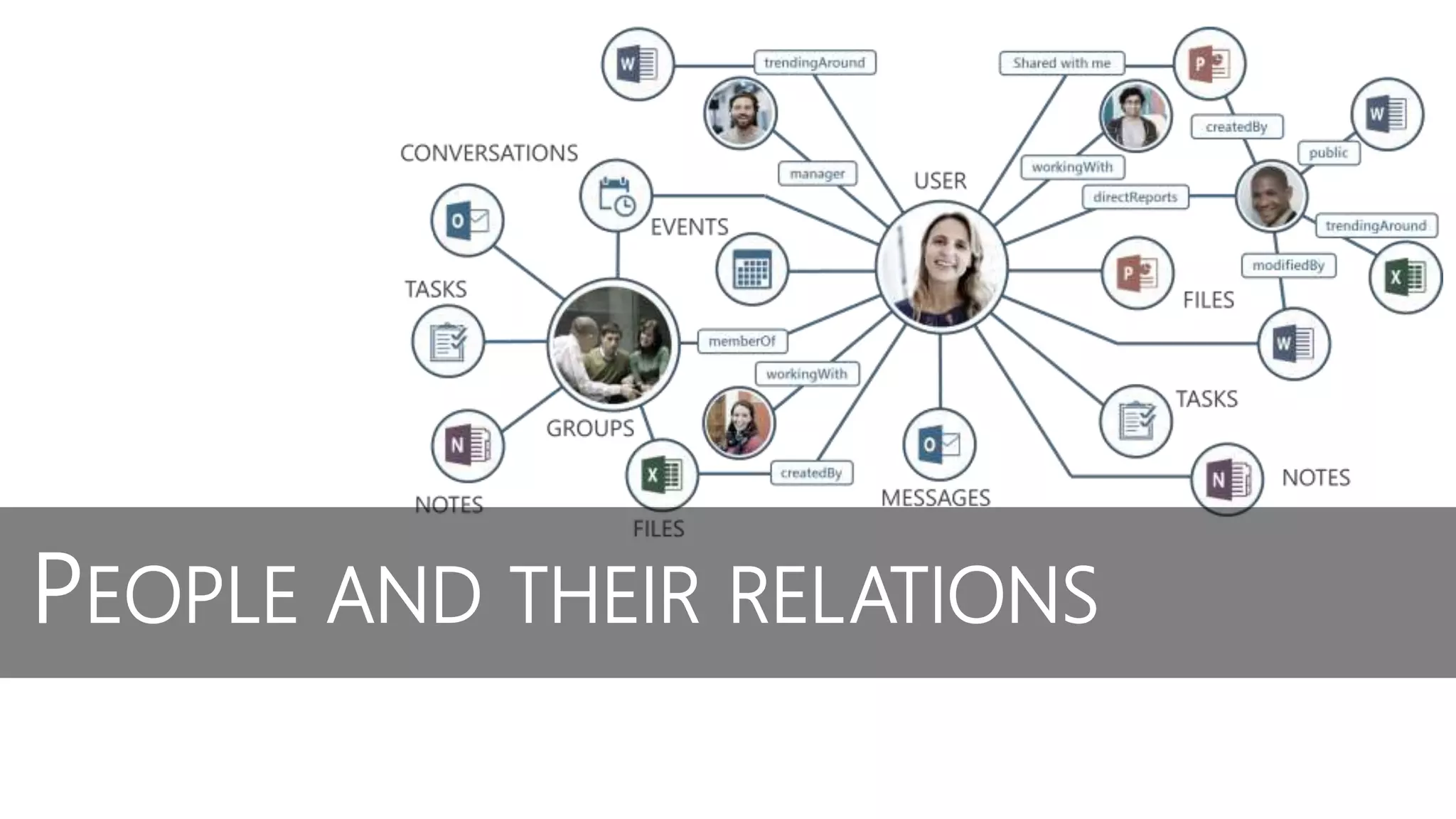

22. PEOPLE AND THEIR RELATIONS

23. GET PEOPLE AND RELATIONS
IN OFFICE 365 VIA GRAPH EXPLORER

24. #MWCP18

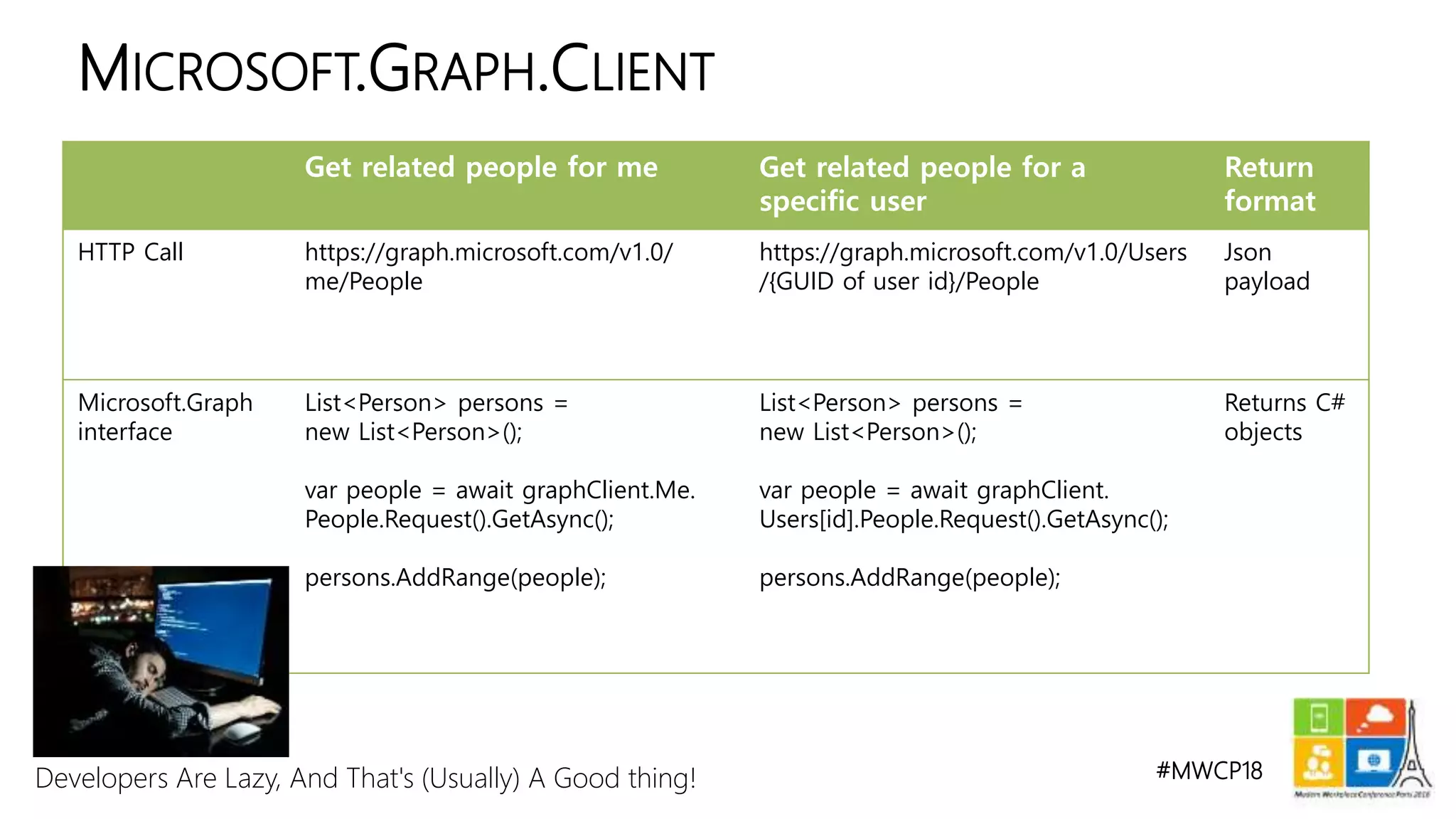

MICROSOFT.GRAPH.CLIENT
Get related people for me Get related people for a
specific user
Return
format
HTTP Call https://graph.microsoft.com/v1.0/
me/People
https://graph.microsoft.com/v1.0/Users
/{GUID of user id}/People
Json
payload
Microsoft.Graph
interface
List<Person> persons =
new List<Person>();
var people = await graphClient.Me.
People.Request().GetAsync();
persons.AddRange(people);
List<Person> persons =
new List<Person>();
var people = await graphClient.
Users[id].People.Request().GetAsync();
persons.AddRange(people);
Returns C#
objects
Developers Are Lazy, And That's (Usually) A Good thing!

25. MATHEMATICAL VISUALIZATION

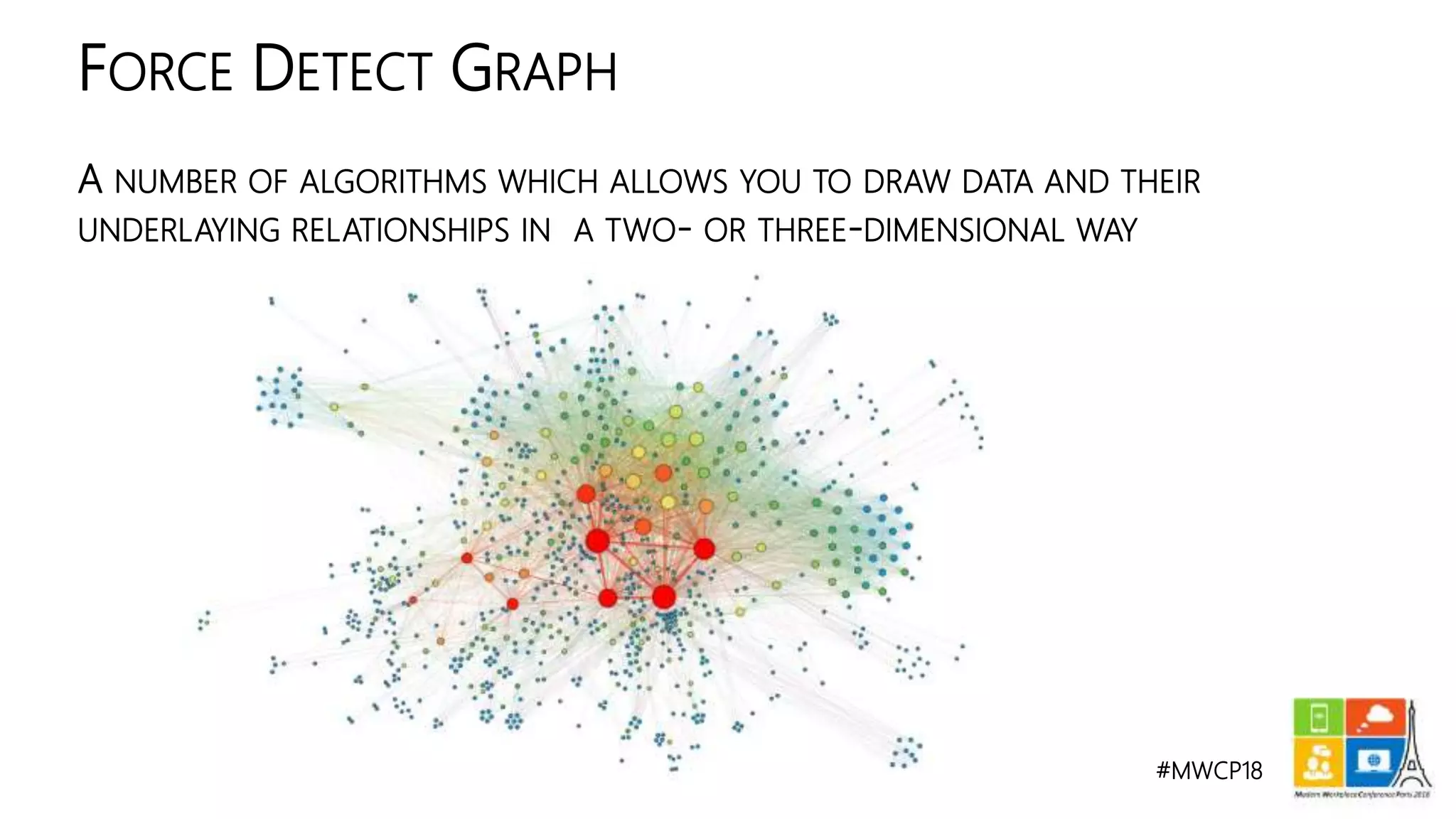

26. #MWCP18
A NUMBER OF ALGORITHMS WHICH ALLOWS YOU TO DRAW DATA AND THEIR
UNDERLAYING RELATIONSHIPS IN A TWO- OR THREE-DIMENSIONAL WAY
FORCE DETECT GRAPH

27. #MWCP18

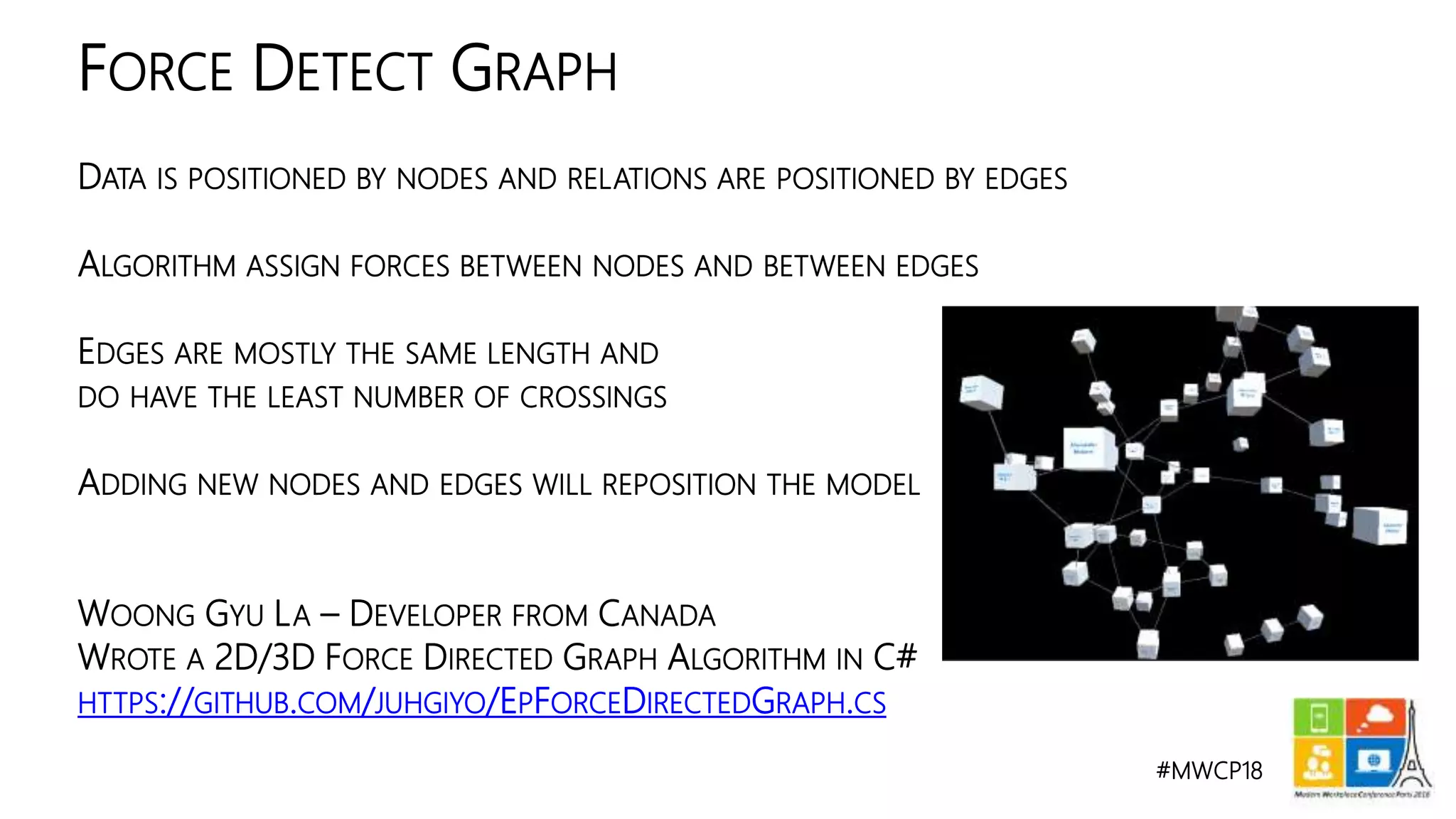

DATA IS POSITIONED BY NODES AND RELATIONS ARE POSITIONED BY EDGES
ALGORITHM ASSIGN FORCES BETWEEN NODES AND BETWEEN EDGES
EDGES ARE MOSTLY THE SAME LENGTH AND
DO HAVE THE LEAST NUMBER OF CROSSINGS
ADDING NEW NODES AND EDGES WILL REPOSITION THE MODEL
WOONG GYU LA – DEVELOPER FROM CANADA
WROTE A 2D/3D FORCE DIRECTED GRAPH ALGORITHM IN C#
HTTPS://GITHUB.COM/JUHGIYO/EPFORCEDIRECTEDGRAPH.CS
FORCE DETECT GRAPH

28. SHOW FDG MODEL IN UNITY USING
RANDOM NODES AND EDGES

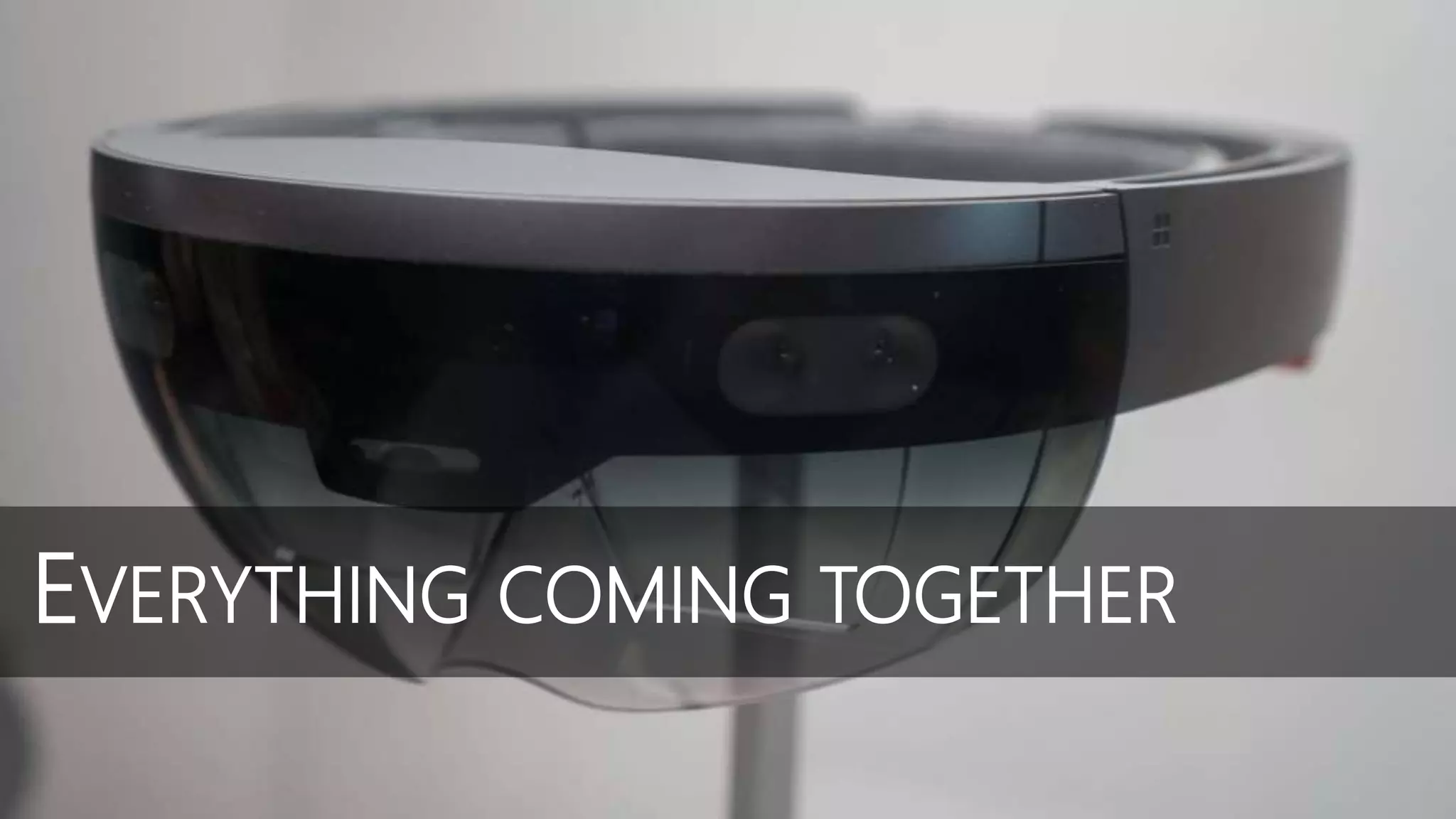

29. EVERYTHING COMING TOGETHER

30. #MWCP18

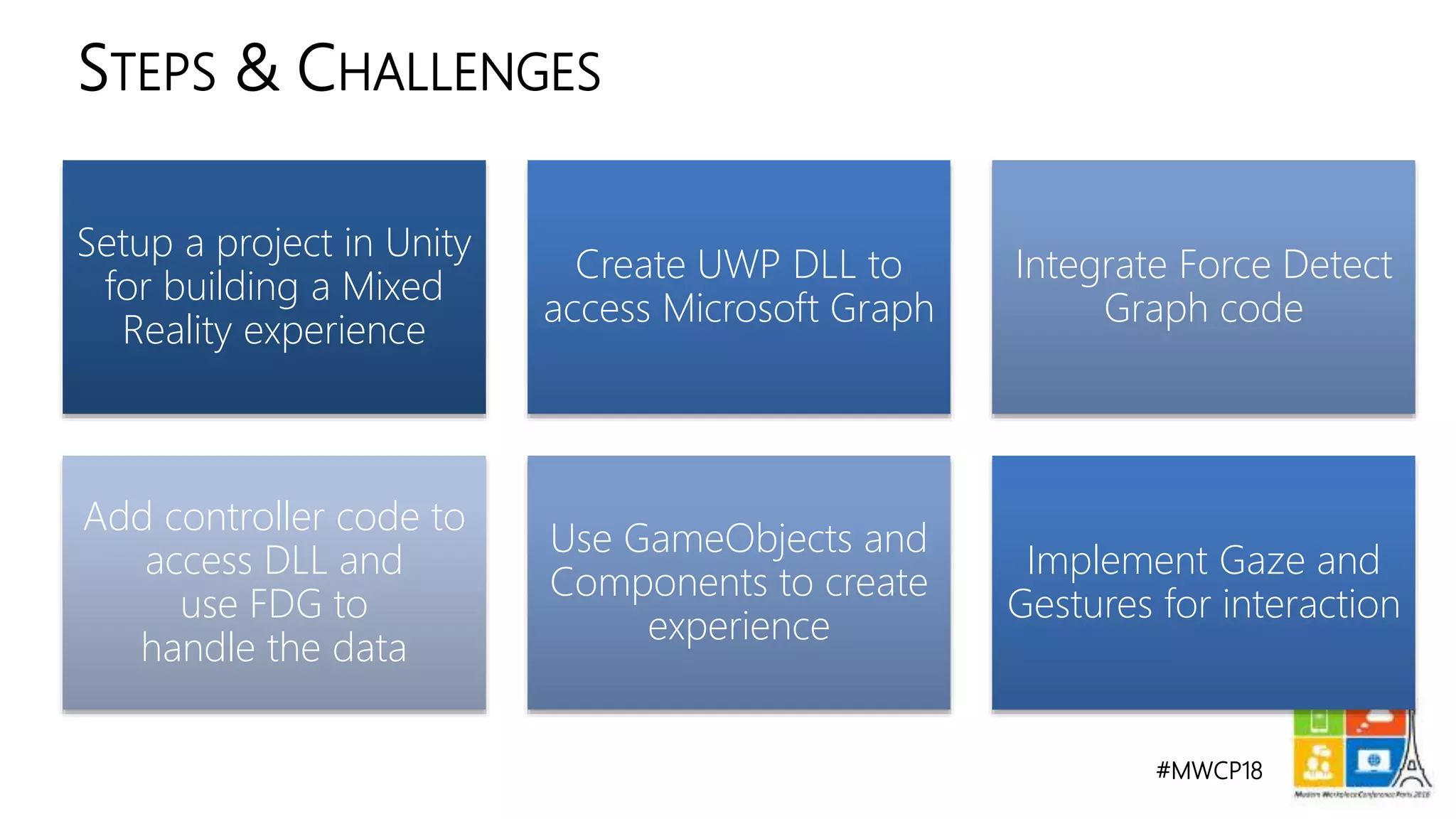

STEPS & CHALLENGES
Setup a project in Unity
for building a Mixed
Reality experience
Create UWP DLL to
access Microsoft Graph
Integrate Force Detect
Graph code
Add controller code to
access DLL and
use FDG to
handle the data
Use GameObjects and
Components to create
experience
Implement Gaze and
Gestures for interaction

31. FINAL RESULT IN A MIXED REALITY
DEVICE

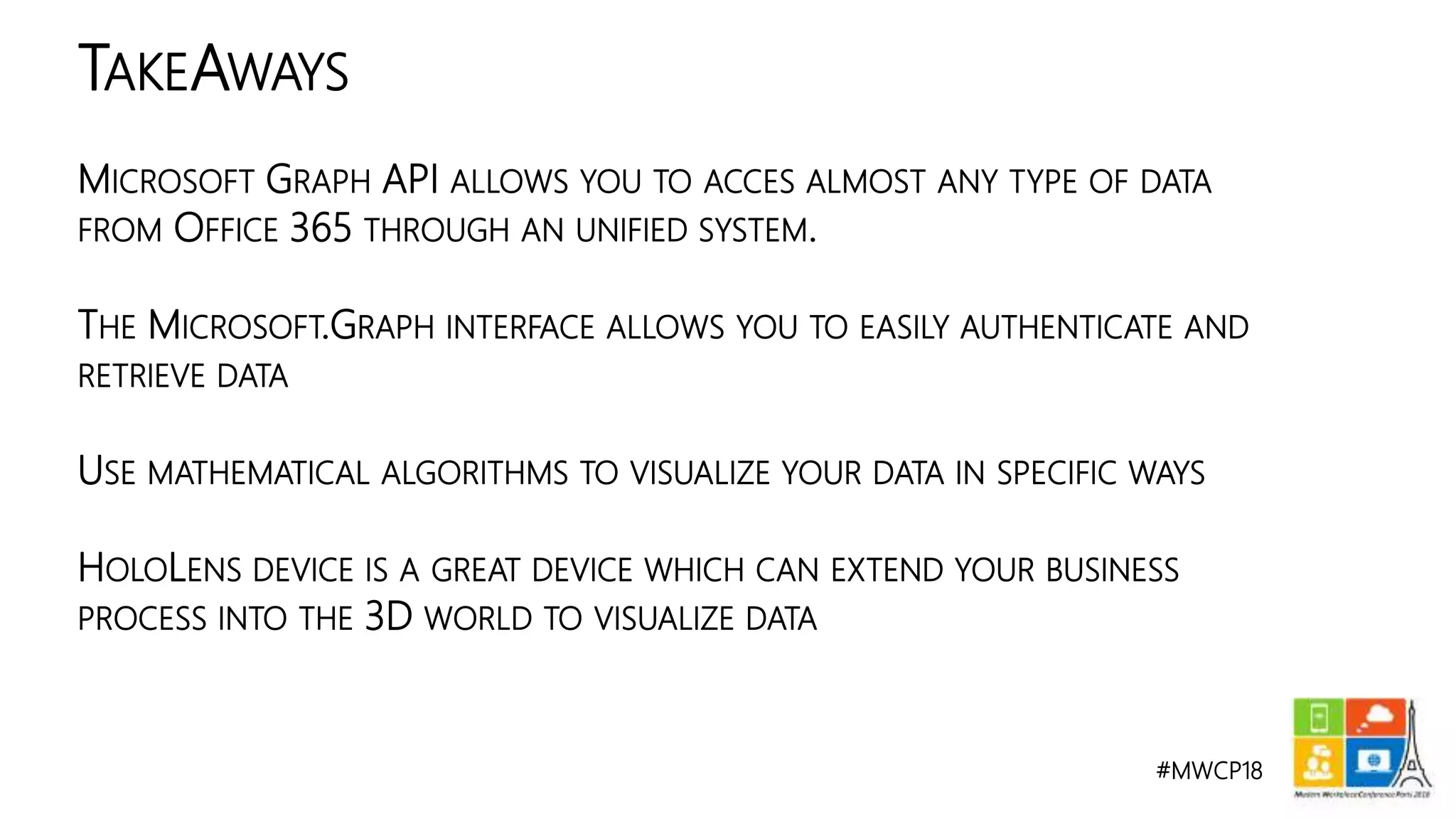

32. TAKEAWAYS

33. #MWCP18
MICROSOFT GRAPH API ALLOWS YOU TO ACCES ALMOST ANY TYPE OF DATA
FROM OFFICE 365 THROUGH AN UNIFIED SYSTEM.
THE MICROSOFT.GRAPH INTERFACE ALLOWS YOU TO EASILY AUTHENTICATE AND
RETRIEVE DATA
USE MATHEMATICAL ALGORITHMS TO VISUALIZE YOUR DATA IN SPECIFIC WAYS
HOLOLENS DEVICE IS A GREAT DEVICE WHICH CAN EXTEND YOUR BUSINESS
PROCESS INTO THE 3D WORLD TO VISUALIZE DATA
TAKEAWAYS

34. MERCI BEAUCOUP!
THANK YOU! #MWCP18
