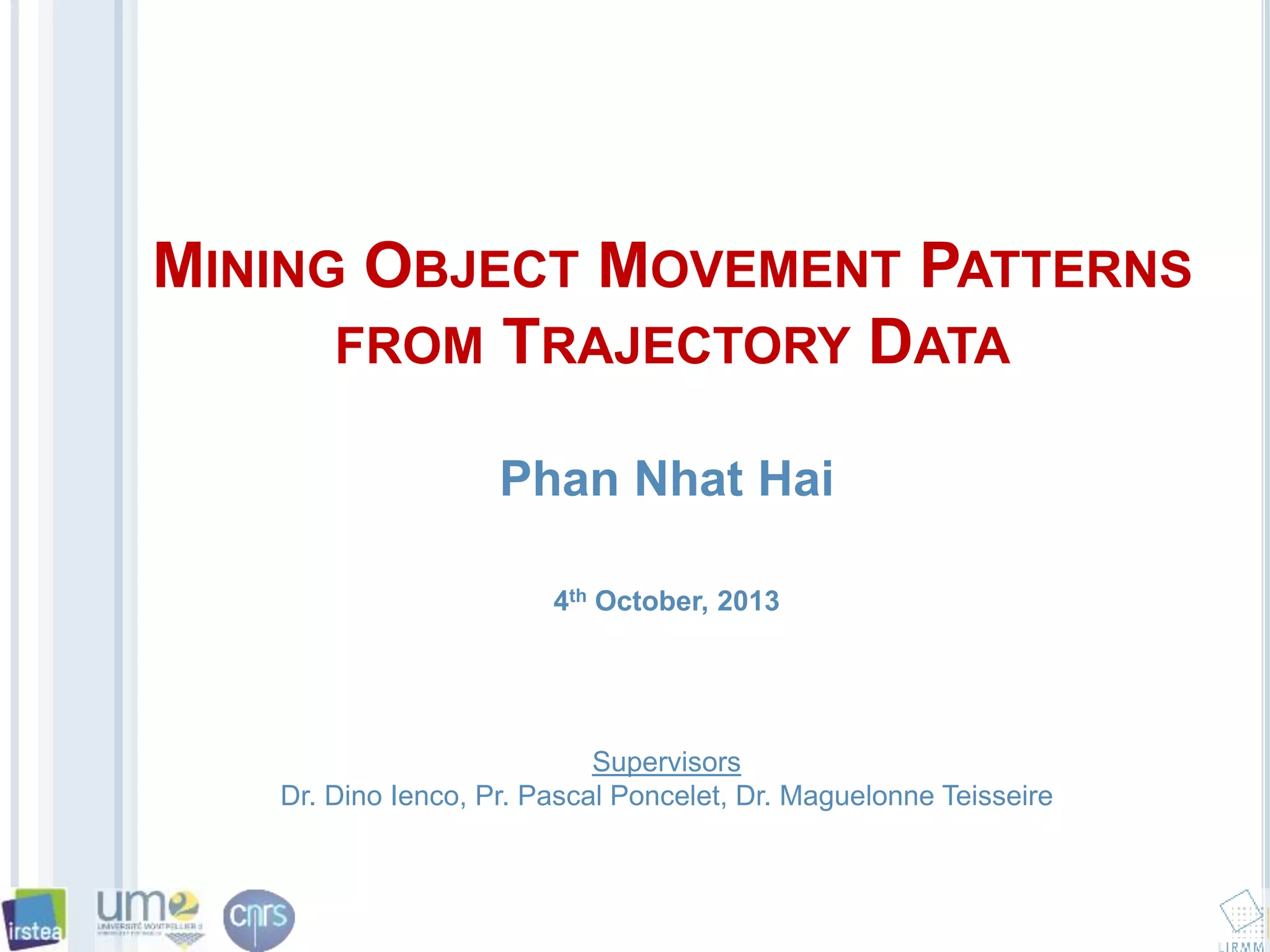

1. MINING OBJECT MOVEMENT PATTERNS
FROM TRAJECTORY DATA
Phan Nhat Hai
4th October, 2013
Supervisors
Dr. Dino Ienco, Pr. Pascal Poncelet, Dr. Maguelonne Teisseire

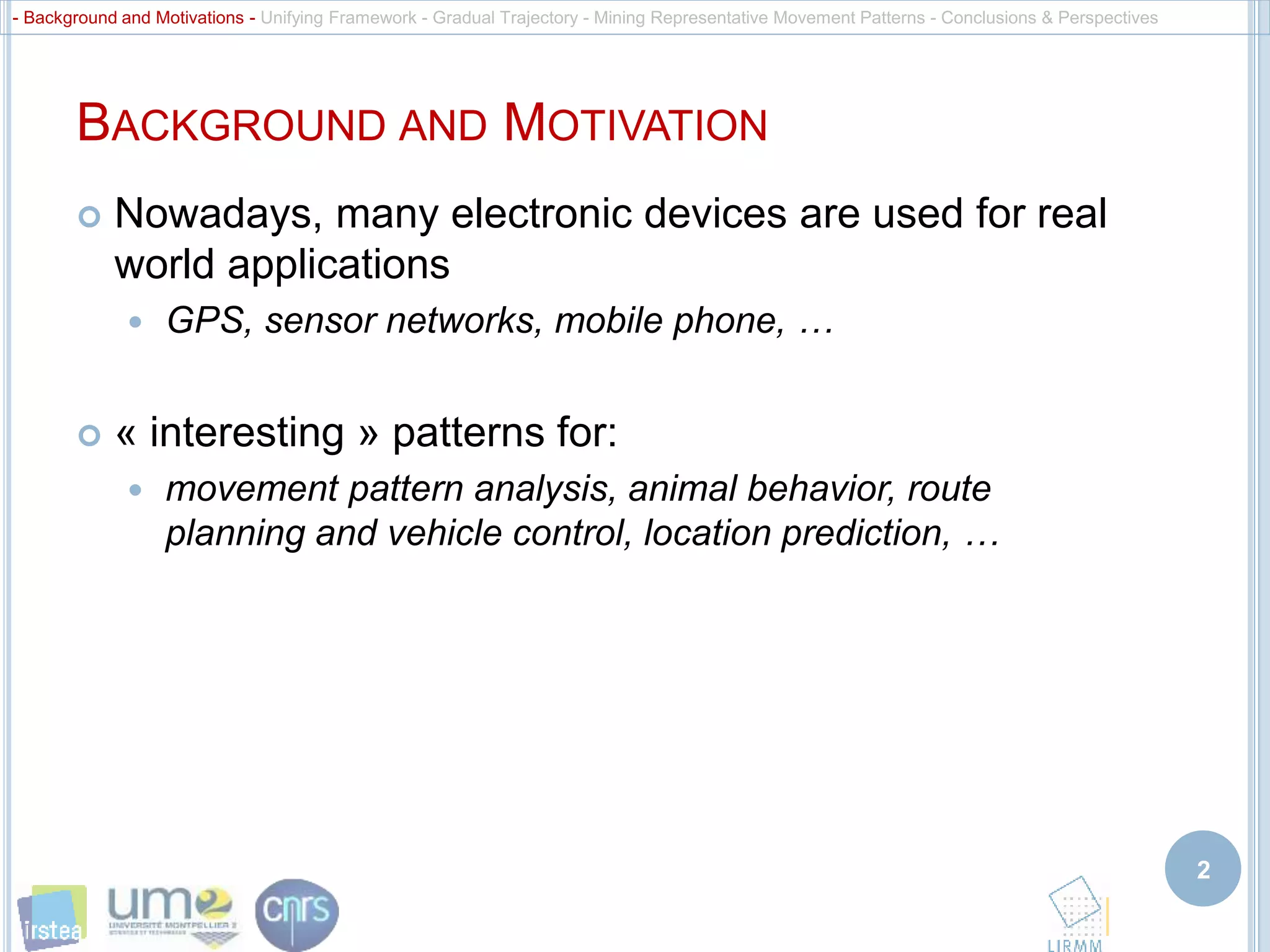

2. BACKGROUND AND MOTIVATION
 Nowadays, many electronic devices are used for real
world applications
 GPS, sensor networks, mobile phone, …
 « interesting » patterns for:
 movement pattern analysis, animal behavior, route
planning and vehicle control, location prediction, …
2
- Background and Motivations - Unifying Framework - Gradual Trajectory - Mining Representative Movement Patterns - Conclusions & Perspectives

3. SOME EXAMPLES
3
Route Planning
Animal migration analysis
-Background and Motivations - Unifying Framework - Gradual Trajectory - Mining Representative Movement Patterns - Conclusions & Perspectives
The world’s largest traffic jam
in history (China)

4. SPATIO-TEMPORAL DATA (ST)
 Represented as a list of points, located in space and
time
 T=(x1,y1, t1), …, (xn, yn, tn)  position in space at time ti
was (xi, yi)
4
- Background and Motivations - Unifying Framework - Gradual Trajectory - Mining Representative Movement Patterns - Conclusions & Perspectives

5. MINING SPATIO-TEMPORAL PATTERNS FROM TRAJECTORY
DATA (1)
 Frequent Patterns:
 Frequent followed paths:
 Group pattern [6], Tralus [7], …
5
Region (Cluster)
[6] Y. Wang et. al. Data Knowl.
Eng., June 2006.
[7] J. G. Lee et. al. In ACM
SIGMOD ’07.
- Background and Motivations - Unifying Framework - Gradual Trajectory - Mining Representative Movement Patterns - Conclusions & Perspectives
o1
o2
o3 o4

6. [1] Z.Li et. al. PVLDB 10.
[2] P. Kalnis et. al. SSTD’05.
[3] J. Gudmundsson et. al. ACM GIS’06.
[4] H. Jeung et. al. VLDB 08.
[5] F. Verhein. SDM’09.
MINING SPATIO-TEMPORAL PATTERNS FROM TRAJECTORY
DATA (2)
 Clustering:
 Group together similar trajectories
 For each group produce a summary
 Flock [3], convoy [4], moving cluster [2], swarm & closed
swarm [1], k-Star [5]
6
Region (Cluster)
- Background and Motivations - Unifying Framework - Gradual Trajectory - Mining Representative Movement Patterns - Conclusions & Perspectives
o1
o2
o3
o4

7. SWARM – CLOSED SWARM [1]
 Swarm - groups of objects (O, T ):
 At least objects move together
 timestamps
 Closed Swarm
 Swarm which cannot be enlarged
 Algorithm
 ObjectGrowth
7
[1] Z.Li et. al. Swarm: mining
relaxed temporal moving object
clusters. PVLDB 2010.
- Background and Motivations - Unifying Framework - Gradual Trajectory - Mining Representative Movement Patterns - Conclusions & Perspectives

8. CONVOY [4]
 Convoy - groups of objects (O, T ):
 At least objects move together
 consecutive timestamps
 Algorithm
 CuTS*
8
[4] H. Jeung et. al. Discovery of
convoys in trajectory
databases. PVLDB 2008.
- Background and Motivations - Unifying Framework - Gradual Trajectory - Mining Representative Movement Patterns - Conclusions & Perspectives

9. MOTIVATIONS (1)
 Motivations:
 Complexity?
 Are they enough?
 Informative patterns?
9
data
Informative
patterns
extract
- Background and Motivations - Unifying Framework - Gradual Trajectory - Mining Representative Movement Patterns - Conclusions & Perspectives

10. MOTIVATIONS (2)
 Proposed solution
data
- Background and Motivations - Unifying Framework - Gradual Trajectory - Mining Representative Movement Patterns - Conclusions & Perspectives
Unifying
10

11. OUTLINE
 Background and Motivations
 Unifying Framework
 Gradual Trajectory
 Mining Representative Movement Patterns
 Conclusions and Perspectives
11

12. CLUSTER MATRIX
 Objects: transactions
 Clusters: items
12
diaper
beer
diaperbeer
- Background and Motivations - Unifying Framework - Gradual Trajectory - Mining Representative Movement Patterns - Conclusions & Perspectives

13. FREQUENT CLOSED ITEMSET FROM CLUSTER
MATRIX
13
Frequent Itemset
- Background and Motivations - Unifying Framework - Gradual Trajectory - Mining Representative Movement Patterns - Conclusions & Perspectives

14. THE MAIN INTUITION (FOLLOWING…)
 We are now able to extract itemsets corresponding to
a set of clusters occurring over time
 Not movement patterns yet!
 What about properties on Itemsets?
14
- Background and Motivations - Unifying Framework - Gradual Trajectory - Mining Representative Movement Patterns - Conclusions & Perspectives

15. SWARM
15
- Background and Motivations - Unifying Framework - Gradual Trajectory - Mining Representative Movement Patterns - Conclusions & Perspectives

16. PROPERTIES
 In the same way it is possible to define properties for:
Swarm, Closed Swarm, Convoy, Moving Cluster,
Periodic Pattern, …
 We are now able to extract different movement
patterns!
16
- Background and Motivations - Unifying Framework - Gradual Trajectory - Mining Representative Movement Patterns - Conclusions & Perspectives

17. THE MAIN PROCESS (GET_MOVE)
17
- Background and Motivations - Unifying Framework - Gradual Trajectory - Mining Representative Movement Patterns - Conclusions & Perspectives

18. INCREMENTAL GET_MOVE
18
- Background and Motivations - Unifying Framework - Gradual Trajectory - Mining Representative Movement Patterns - Conclusions & Perspectives

19. THE MAIN PROCESS
19
- Background and Motivations - Unifying Framework - Gradual Trajectory - Mining Representative Movement Patterns - Conclusions & Perspectives

20. CMC CuTS* ObjectGrowth Vg-Growth Incremental
GeT_Move
Convoys X X X
Closed Swarms X X
Group Patterns X X
Moving Cluster X
EXPERIMENTAL RESULTS
 Datasets:
 Competitive algorithms:
#objects #timestamps
Swainsoni 43 4,425
Buffalo 165 3,000
Synthetic* 500 10,000
Synthetic 2 50,000 10,000
- Background and Motivations - Unifying Framework - Gradual Trajectory - Mining Representative Movement Patterns - Conclusions & Perspectives
* http://iapg.jade-hs.de/personen/brinkhoff/generator/
20

21. SWAINSONI
21
- Background and Motivations - Unifying Framework - Gradual Trajectory - Mining Representative Movement Patterns - Conclusions & Perspectives

22. UNIFYING FRAMEWORK – CONCLUSIONS
 GeT_Move: a unifying movement pattern mining
approach
 Properties adapted to specific movement patterns
 Proofs of properties
 Theorem providing that all the patterns are found
 Incremental GeT_Move
 A new approach for identifying the size of blocks
 Fully nested block partition
22
- Background and Motivations - Unifying Framework - Gradual Trajectory - Mining Representative Movement Patterns - Conclusions & Perspectives

23. OUTLINE
 Background and Motivations
 Unifying Framework
 Gradual Trajectory
 Mining Representative Movement Patterns
 Conclusions and Perspectives
23

24. ONE OF CLOSED SWARMS …
24
o1
o2
o3
o4
o6
o5
c1 c2
c3
c4
c5
t1 t2 t3 t4 t5 t6
- Background and Motivations - Unifying Framework - Gradual Trajectory - Mining Representative Movement Patterns - Conclusions & Perspectives

25. …GRADUAL TRAJECTORIES
25
o1
o2
o3
o4
o6
o5
c1 c2
c3
c4
c5
t1 t2 t3 t4 t5 t6
-Background and Motivations - Unifying Framework - Gradual Trajectory - Mining Representative Movement Patterns - Conclusions & Perspectives

26. A CONCRETE EXAMPLE
26
-Background and Motivations - Unifying Framework - Gradual Trajectory - Mining Representative Movement Patterns - Conclusions & Perspectives

27. PATTERN DEFINITION
 The objects still remain in the next cluster
 The number of objects is equal-increasing (resp. equal-
decreasing)
 At least a number of certain timestamps
 non-consecutive
27
- Background and Motivations - Unifying Framework - Gradual Trajectory - Mining Representative Movement Patterns - Conclusions & Perspectives
27

28. TIME RELAXED GRADUAL TRAJECTORIES
 Timestamps can be:
 non-consecutive
 within a sliding time window
28
-Background and Motivations - Unifying Framework - Gradual Trajectory - Mining Representative Movement Patterns - Conclusions & Perspectives
o1
o2
o3
o4
c1
c2
t1 t2 t3 ………… t999 t1000
A
F
Sliding
window
Too far away

29. EXPERIMENTAL RESULTS
 Synthetic data: 500 objects - 10,000 timestamps
 Reasonable scalability
 Low complexity
29
-Background and Motivations - Unifying Framework - Gradual Trajectory - Mining Representative Movement Patterns - Conclusions & Perspectives

30. GRADUAL TRAJECTORY - CONCLUSIONS
 New kinds of trajectories: gradual trajectory
 ClusterGrowth: an efficient algorithm to extract all
gradual trajectories
 Fuzzy closed swarm
 Too many extracted patterns:
 DiCompoGP algorithm to directly extract the top-k gradual
trajectories 30
Convergent Divergent

31. OUTLINE
 Background and Motivations
 Unifying Framework
 Gradual Trajectory
 Mining Representative Movement Patterns
 Conclusions and Perspectives
31

32.  Methodology
 A set of movement patterns (closed swarms, convoys,
gradual trajectories, etc.)
 Employ MDL (Minimum Description Length) schema to
select the most informative and less redundant pattern
set
 Compo Algorithm
 Rank and select the most representative patterns
 Allow different types of pattern in the final results
 Characterize data by the selected patterns
32
CONTRIBUTIONS
-Background and Motivations - Unifying Framework - Gradual Trajectory - Mining Representative Movement Patterns - Conclusions & Perspectives

33. MOTIVATIONS
33
data
Patterns
1) One kind of patterns is not enough
to describe the data!
2) Overlapping!
-Background and Motivations - Unifying Framework - Gradual Trajectory - Mining Representative Movement Patterns - Conclusions & Perspectives

34. PROBLEM STATEMENT
 Given a spatio-temporal DB Odb and a set of patterns F
(extracted from Odb)
 Discover the optimal dictionary P (subset of F)
 compresses the data best w.r.t. the given encoding schema
 L(p): number of bits to encode the pattern p + extra bit
to encode the type of pattern
 L(Odb|P): number of bits to encode the dataset Odb
given P
34
MDL approach: LP(Odb) = L(P) + L(Odb|P)
-Background and Motivations - Unifying Framework - Gradual Trajectory - Mining Representative Movement Patterns - Conclusions & Perspectives

35. ENCODING EXAMPLE (I)
35
-Background and Motivations - Unifying Framework - Gradual Trajectory - Mining Representative Movement Patterns - Conclusions & Perspectives

36. ENCODING EXAMPLE (II)
36
L(ODB|P) = 4 + 6 + 2 + 1 + 1 = 14
L(P) = 4 + 5 + 3 + 4 = 16
LP(ODB) = 30
L(ODB|P) = 4 + 5 + 2 + 1 + 1 = 13
L(P) = 4 + 5 = 9
LP(ODB) = 22
-Background and Motivations - Unifying Framework - Gradual Trajectory - Mining Representative Movement Patterns - Conclusions & Perspectives

37. NAÏVE COMPO VS SMART COMPO
We design two different approaches:
 Naive Compo (baseline)
 Work in a greedy way
 Given the actual P, for each candidate p’ recompress the data
with P U p’
 Select the p’ that obtain the best performance
 Smart Compo
 Compute the gain incrementally
 Avoid to recompress the whole data
 Directly compute Gain(p’,P) = L(Odb|P) - L(Odb|P U p’) without
compute L(Odb|P U p’)
37
-Background and Motivations - Unifying Framework - Gradual Trajectory - Mining Representative Movement Patterns - Conclusions & Perspectives

38. EXPERIMENTAL RESULTS
38
-Background and Motivations - Unifying Framework - Gradual Trajectory - Mining Representative Movement Patterns - Conclusions & Perspectives

39. REPRESENTATIVE PATTERN - CONCLUSIONS
 Propose an encoding scheme allowing multi-
overlapping movement patterns
 Propose two algorithms
 Naïve Compo (greedy approach)
 Smart Compo (compute gain incrementally)
 Experimental results show that the top-k
representative patterns are well adapted to the data
39

40. OUTLINE
 Background and Motivations
 Unifying Framework
 Gradual Trajectory
 Mining Representative Movement Patterns
 Conclusions and Perspectives
40

41. OVERALL CONCLUSIONS (1)
 Three step framework
 GeT_Move: a unifying movement pattern mining approach
 Discovering novel patterns: Gradual trajectory + Fuzzy
closed swarm
 Mining representative movement patterns
41
-Background and Motivations - Unifying Framework - Gradual Trajectory - Mining Representative Movement Patterns - Conclusions & Perspectives
data

42. OVERALL CONCLUSIONS (2)
DEMONSTRATION SYSTEM
 Link: http://www.lirmm.fr/~phan/multimove.jsp
42
-Background and Motivations - Unifying Framework - Gradual Trajectory - Mining Representative Movement Patterns - Conclusions & Perspectives

43. OVERALL CONCLUSIONS (3) – OTHER APPLICATIONS
 Mining trajectories on genes
 Mining trajectories on tweets
43
-Background and Motivations - Unifying Framework - Gradual Trajectory - Mining Representative Movement Patterns - Conclusions & Perspectives

44. PERSPECTIVES (1)
 Streaming GeT_Move
 Mining representative movement patterns from streaming
trajectory data
44
-Background and Motivations - Unifying Framework - Gradual Trajectory - Mining Representative Movement Patterns - Conclusions & Perspectives

45. PERSPECTIVES (2)
 Trajectory mining on remote sensing, spatial
information on satellite image processing
45

46. EXTRA WORK
 Mining multi-relational gradual patterns (with Prof. Donato
Malerba)
 Kendal’s tau
 Gradual support
 Communication graph summarization (with Dr. Francesco
Bonchi)
46
-Background and Motivations - Unifying Framework - Gradual Trajectory - Mining Representative Movement Patterns - Conclusions & Perspectives

47. PUBLICATIONS
[1] P. N. Hai, D. Ienco, P. Poncelet, M. Teisseire. "Mining Representative Movement Patterns
through Compression". PAKDD 2013.
[2] A.Z.E. Aabidine, A. Sallaberry, S. Bringay, M. Fabregue, C. Lecellier, P. N. Hai, P. Poncelet.
“Co2Vis: A Visual Analytics Tool for Mining Co-expressed And Co-regulated Genes Implied
in HIV Infections”. IEEE BioVis 2013.
[3] P. N. Hai, D. Ienco, P. Poncelet, M. Teisseire. "Mining Fuzzy Moving Object Clusters".
ADMA 2012.
[4] P. N. Hai, D. Ienco, P. Poncelet, M. Teisseire. "Mining Time Relaxed Gradual Moving Object
Clusters". ACM GIS 2012.
[5] F. Bouillot, P. N. Hai, N. Béchet, S. Bringay, D. Ienco, S. Matwin, P. Poncelet, M. Roche,
and M. Teisseire. "How to Extract Relevant Knowledge from Tweets?". ISIP 2012.
[6] P. N. Hai, P. Poncelet, M. Teisseire. "GET_MOVE: An Efficient and Unifying Spatio-
Temporal Pattern Mining Algorithm for Moving Objects". IDA 2012.
[7] P. N. Hai, P. Poncelet, M. Teisseire. "An Efficient Spatio-Temporal Mining Approach to
Really Know Who Travels with Whom!". BDA 2012. (selected as Best papers)
[8] P. N. Hai, D. Ienco, P. Poncelet, M. Teisseire. "Extracting Trajectories through an Efficient
and Unifying Spatio-Temporal Patten Mining System". ECML-PKDD 2012.
[9] P. N. Hai, P. Poncelet, M. Teisseire. "MovingObjects: Combining Gradual Rules and Spatio-
Temporal Patterns". IEEE ICSDM 2011.
[10] P. N. Hai, P. Poncelet, M. Teisseire. "An Efficient Spatio-Temporal Mining Approach to
Really Know Who Travels with Whom!". ISI special issue, selected papers from BDA’12,
2013, to appear. 47
