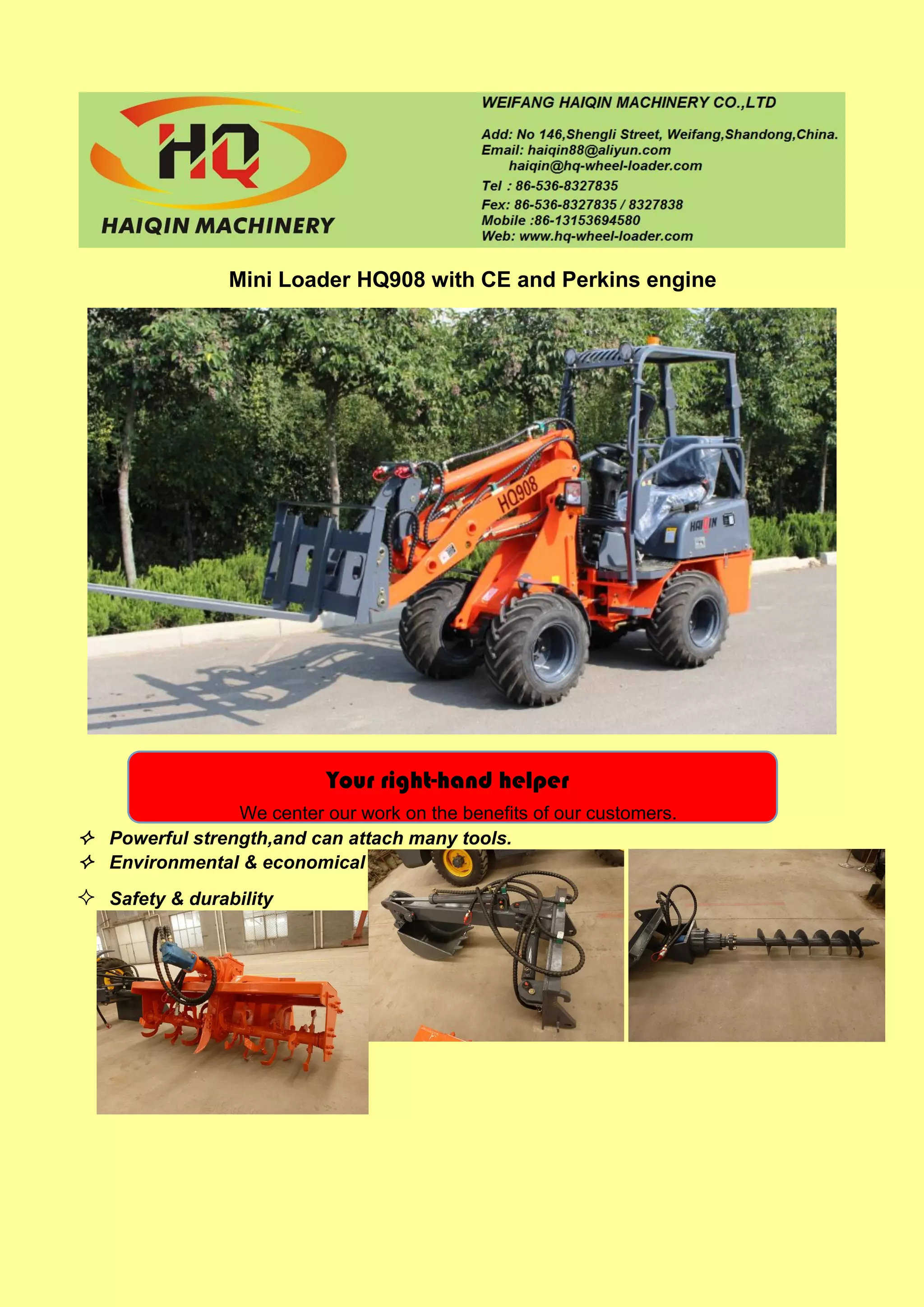

1. Mini Loader HQ908 with CE and Perkins engine
Your right-hand helper
We center our work on the benefits of our customers.
 Powerful strength,and can attach many tools.
 Environmental & economical
 Safety & durability

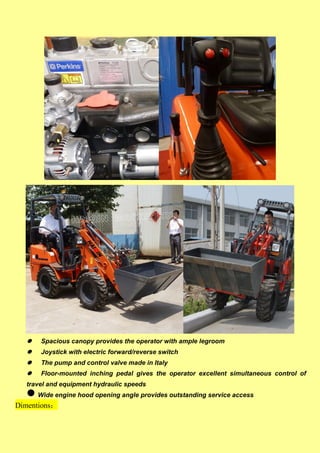

2.  Spacious canopy provides the operator with ample legroom
 Joystick with electric forward/reverse switch
 The pump and control valve made in Italy
 Floor-mounted inching pedal gives the operator excellent simultaneous control of
travel and equipment hydraulic speeds
 Wide engine hood opening angle provides outstanding service access
Dimentions：

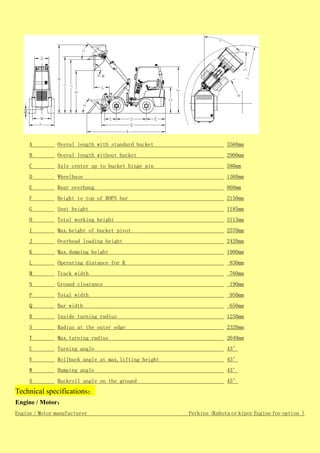

3. A Overal length with standard bucket 3560mm
B Overal length without bucket 2900mm
C Axle center up to bucket hinge pin 580mm
D Wheelbase 1360mm
E Rear overhang 860mm
F Height to top of ROPS bar 2150mm
G Seat height 1185mm
H Total working height 3115mm
I Max.height of bucket pivot 2570mm
J Overhead loading height 2420mm
K Max.dumping height 1900mm
L Operating diatance for K 830mm
M Track width 760mm
N Ground clearance 190mm
P Total width 950mm
Q Bar width 650mm
R Inside turning radius 1250mm
S Radius at the outer edge 2320mm
T Max.turning radius 2640mm
U Turning angle 43°
V Rollback angle at max.lifting height 45°
W Dumping angle 43°
X Backroll angle on the ground 45°
Technical specifications：
Engine / Motor：
Engine / Motor manufacturer Perkins（Kubota or kipor Engine for option )

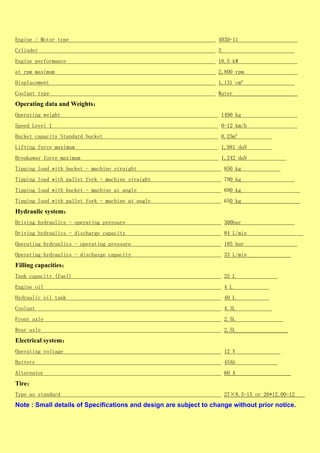

4. Engine / Motor type 403D-11
Cylinder 3
Engine performance 18.5 kW
at rpm maximum 2,800 rpm
Displacement 1,131 cm³
Coolant type Water
Operating data and Weights：
Operating weight 1490 kg
Speed Level 1 0-12 km/h
Bucket capacity Standard bucket 0.25m³
Lifting force maximum 1,981 daN
Breakaway force maximum 1,242 daN
Tipping load with bucket - machine straight 850 kg
Tipping load with pallet fork - machine straight 790 kg
Tipping load with bucket - machine at angle 680 kg
Tipping load with pallet fork - machine at angle 650 kg
Hydraulic system：
Driving hydraulics - operating pressure 300bar
Driving hydraulics - discharge capacity 84 L/min
Operating hydraulics - operating pressure 185 bar
Operating hydraulics - discharge capacity 33 L/min
Filling capacities：
Tank capacity (fuel) 25 L
Engine oil 4 L
Hydraulic oil tank 40 L
Coolant 4.3L
Front axle 2.5L
Rear axle 2.5L
Electrical system：
Operating voltage 12 V
Battery 45Ah
Alternator 60 A
Tire：
Type as standard 27×8.5-15 or 26*12.00-12
Note : Small details of Specifications and design are subject to change without prior notice.
