![Blob content upload
var storageAccount = CloudStorageAccount.Parse(
ConfigurationManager
.ConnectionStrings[ConnectionStringSetting]
.ConnectionString);
var blobClient = storageAccount.CreateCloudBlobClient();
var container = blobClient.GetContainerReference(containerName);
var pageBlob = container.GetPageBlobReference(blobName);
using (var fileStream = new FileStream(filePath, FileMode.Open)) {
pageBlob.Create(fileStream.Length);
var buffer = new byte[partSize];
while (offset < fileStream.Length) {
var bytesRead = fileStream.Read(buffer, 0, partSize);
pageBlob.WritePages(new MemoryStream(buffer, 0, bytesRead), offset);
offset += bytesRead;
}
}
5](https://image.slidesharecdn.com/windowsazuredrive-131211092344-phpapp02/85/Windows-Azure-Drive-5-320.jpg)
![1. public static void UploadVHDFile(string filePath, string containerName, string blobName)
2. {
3.
const int partSize = 1024 * 1024;
4.
5.
var storageAccount = CloudStorageAccount.Parse(
6.
ConfigurationManager.ConnectionStrings[ConnectionStringSetting].ConnectionString);
7.
8.
var blobClient = storageAccount.CreateCloudBlobClient();
9.
var container = blobClient.GetContainerReference(containerName);
10.
container.CreateIfNotExist();
11.
12.
var pageBlob = container.GetPageBlobReference(blobName);
13.
pageBlob.DeleteIfExists();
14.
pageBlob.Properties.ContentType = "binary/octet-stream";
15.
16.
using (var fileStream = new FileStream(filePath, FileMode.Open))
17.
{
18.
int offset = 0;
19.
20.
pageBlob.Create(fileStream.Length);
21.
22.
var buffer = new byte[partSize];
23.
while (offset < fileStream.Length)
24.
{
25.
var bytesRead = fileStream.Read(buffer, 0, partSize);
26.
27.
pageBlob.WritePages(new MemoryStream(buffer, 0, bytesRead), offset);
28.
29.
offset += bytesRead;
30.
31.
Console.Write('.');
32.
}
33.
}
34. }
6](https://image.slidesharecdn.com/windowsazuredrive-131211092344-phpapp02/85/Windows-Azure-Drive-6-320.jpg)
![Workflow
var account = CloudStorageAccount.Parse(
ConfigurationManager.AppSettings["ConnectionString“]);
var drive = new CloudDrive(blobUri, account.Credentials.*);
try
{
drive.Mount(0, DriveMountOptions.None);
...
}
catch (CloudDriveException e)
{
drive = new CloudDrive(new Uri(drive.Snapshot().AbsoluteUri), ...);
drive.Mount(0, DriveMountOptions.None);
}
finally
{
drive.Unmount();
}
8](https://image.slidesharecdn.com/windowsazuredrive-131211092344-phpapp02/85/Windows-Azure-Drive-8-320.jpg)
Uploaded byPavel Revenkov
Windows Azure Drive

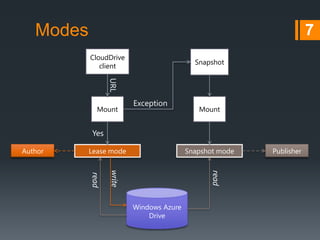

The document discusses Windows Azure Drive, which allows mounting cloud storage as a virtual disk. It provides examples of uploading files to Azure blob storage using page blobs. There are different modes for accessing the drive, including lease mode and snapshot mode. The workflow involves mounting the drive, handling exceptions by remounting from a snapshot, and unmounting. The document compares storage emulators to Azure storage services and provides a reference to learn more about Windows Azure Drive.
Windows Azure Drive
- 1. Windows Azure Drive PavloRevenkov EPAM Cloud Computing Competency Center Email: pavlo_revenkov@epam.com Skype: rp_risingstar Habrahabr: habrahabr.ru/users/risingstar/
- 2. Data management services 2 Web-roleWorker-role Worker-role Worker-role Web-role Drive SQL Azure Blobs Tables Queues
- 3. Example: CMS 3 Publishers Instance 1 Author Instance2 Instance 3 Mount 30 minutes Snapshot Repository Instance 4

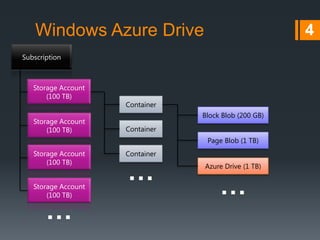

- 4. Windows Azure Drive 4 Subscription StorageAccount (100 ТВ) Storage Account (100 ТВ) Container Block Blob (200 GB) Container Page Blob (1 ТВ) Storage Account (100 ТВ) Storage Account (100 ТВ) … Container … Azure Drive (1 ТВ) …

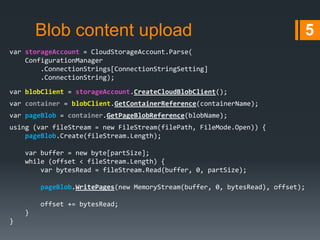

- 5. Blob content upload varstorageAccount = CloudStorageAccount.Parse( ConfigurationManager .ConnectionStrings[ConnectionStringSetting] .ConnectionString); var blobClient = storageAccount.CreateCloudBlobClient(); var container = blobClient.GetContainerReference(containerName); var pageBlob = container.GetPageBlobReference(blobName); using (var fileStream = new FileStream(filePath, FileMode.Open)) { pageBlob.Create(fileStream.Length); var buffer = new byte[partSize]; while (offset < fileStream.Length) { var bytesRead = fileStream.Read(buffer, 0, partSize); pageBlob.WritePages(new MemoryStream(buffer, 0, bytesRead), offset); offset += bytesRead; } } 5

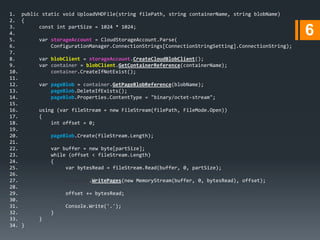

- 6. 1. public staticvoid UploadVHDFile(string filePath, string containerName, string blobName) 2. { 3. const int partSize = 1024 * 1024; 4. 5. var storageAccount = CloudStorageAccount.Parse( 6. ConfigurationManager.ConnectionStrings[ConnectionStringSetting].ConnectionString); 7. 8. var blobClient = storageAccount.CreateCloudBlobClient(); 9. var container = blobClient.GetContainerReference(containerName); 10. container.CreateIfNotExist(); 11. 12. var pageBlob = container.GetPageBlobReference(blobName); 13. pageBlob.DeleteIfExists(); 14. pageBlob.Properties.ContentType = "binary/octet-stream"; 15. 16. using (var fileStream = new FileStream(filePath, FileMode.Open)) 17. { 18. int offset = 0; 19. 20. pageBlob.Create(fileStream.Length); 21. 22. var buffer = new byte[partSize]; 23. while (offset < fileStream.Length) 24. { 25. var bytesRead = fileStream.Read(buffer, 0, partSize); 26. 27. pageBlob.WritePages(new MemoryStream(buffer, 0, bytesRead), offset); 28. 29. offset += bytesRead; 30. 31. Console.Write('.'); 32. } 33. } 34. } 6
- 7.

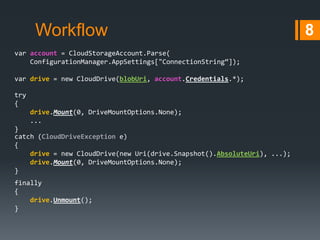

- 8. Workflow var account =CloudStorageAccount.Parse( ConfigurationManager.AppSettings["ConnectionString“]); var drive = new CloudDrive(blobUri, account.Credentials.*); try { drive.Mount(0, DriveMountOptions.None); ... } catch (CloudDriveException e) { drive = new CloudDrive(new Uri(drive.Snapshot().AbsoluteUri), ...); drive.Mount(0, DriveMountOptions.None); } finally { drive.Unmount(); } 8
- 9.

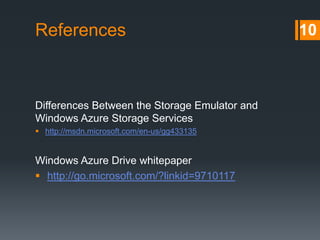

- 10. References Differences Between theStorage Emulator and Windows Azure Storage Services http://msdn.microsoft.com/en-us/gg433135 Windows Azure Drive whitepaper http://go.microsoft.com/?linkid=9710117 10
- 11.
