The document describes the new features of meteodyn WT 5.0 software. Key new features include the ability to define vertical wind profiles, automatically generate profiles at turbine locations, and define new synthesis configurations to add or remove result points and turbines. The software also includes improvements to the land cover database and processing status window.

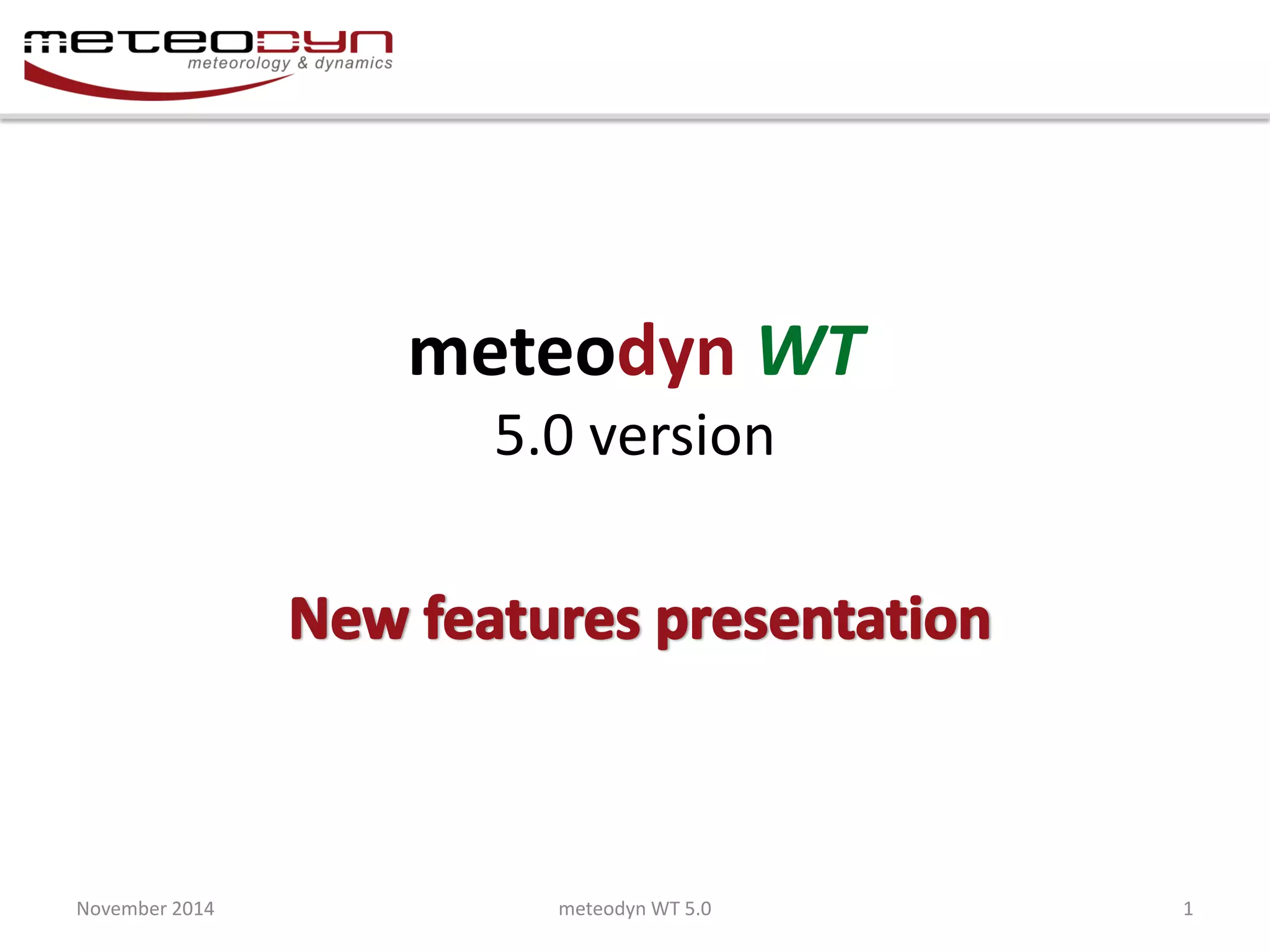

1. meteodyn WT 5.0 version
November 2014
meteodyn WT 5.0
1

2. 2. Vertical profile

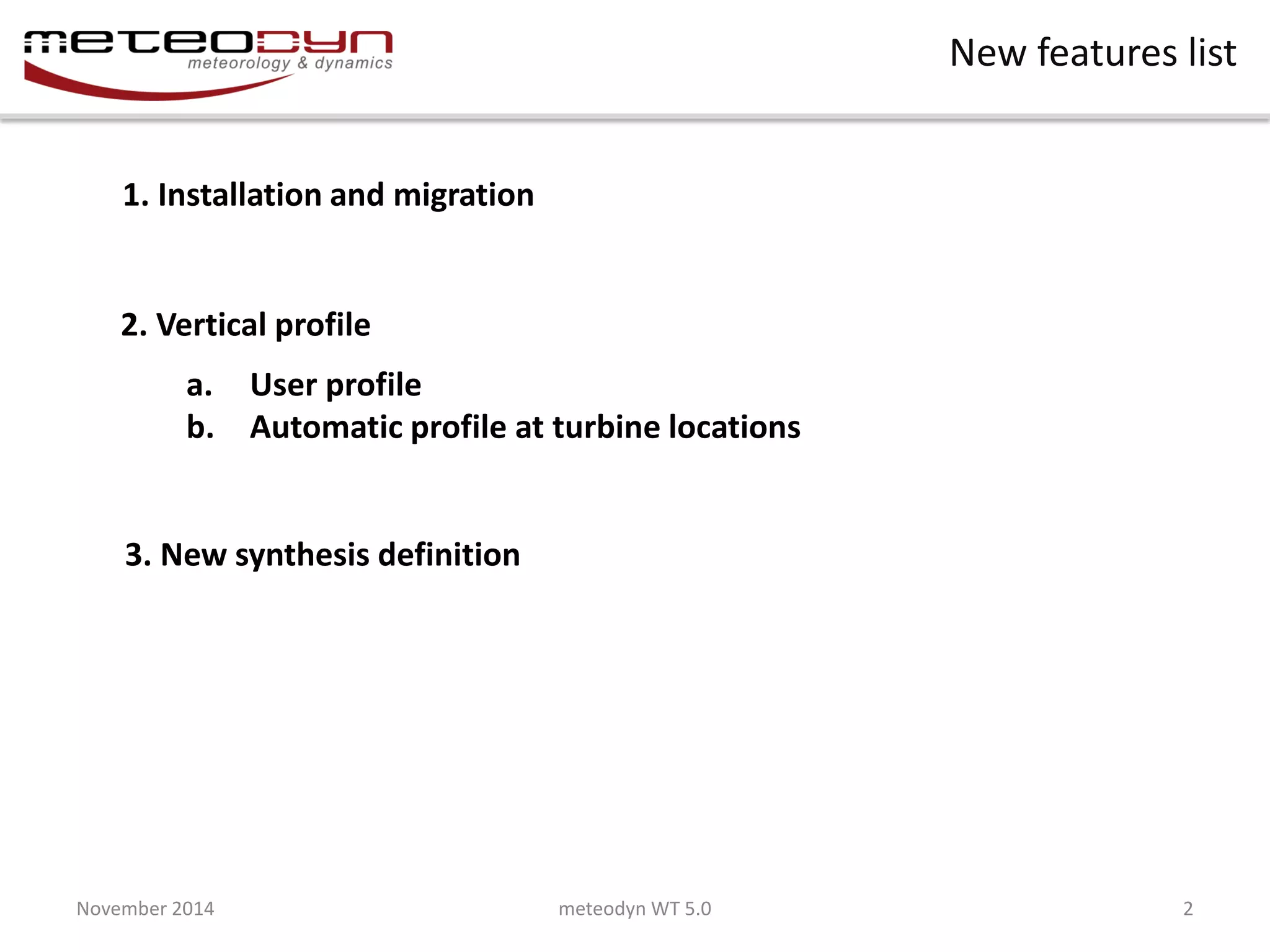

New features list
November 2014
meteodyn WT 5.0
2
3. New synthesis definition
a.User profile
b.Automatic profile at turbine locations
1. Installation and migration

3. November 2014
meteodyn WT 5.0
3

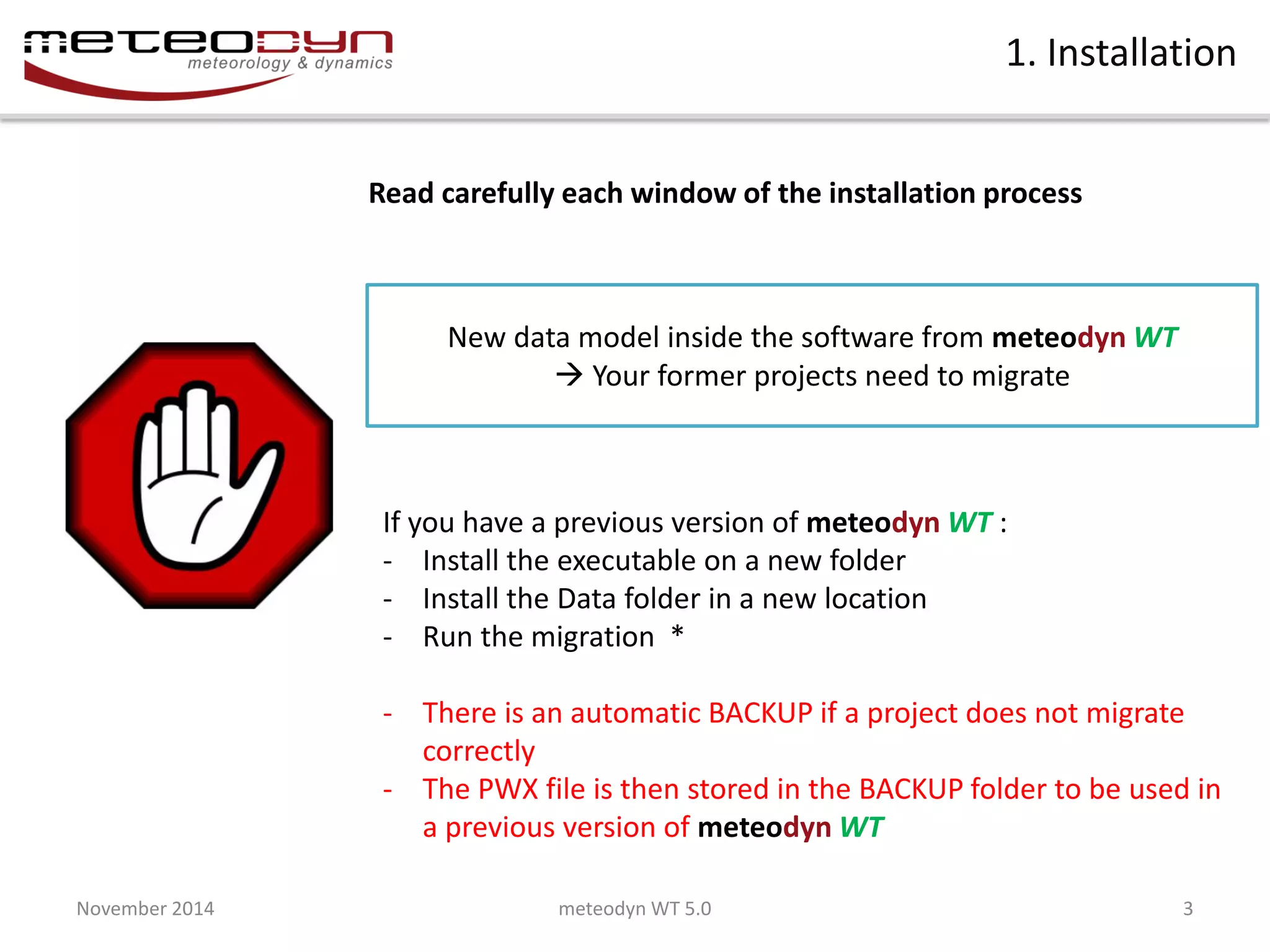

1. Installation
Read carefully each window of the installation process
If you have a previous version of meteodyn WT :
-Install the executable on a new folder
-Install the Data folder in a new location
-Run the migration *
-There is an automatic BACKUP if a project does not migrate correctly
-The PWX file is then stored in the BACKUP folder to be used in a previous version of meteodyn WT
New data model inside the software from meteodyn WT  Your former projects need to migrate

4. November 2014
meteodyn WT 5.0
4
2. Vertical profile
User vertical profile - definition

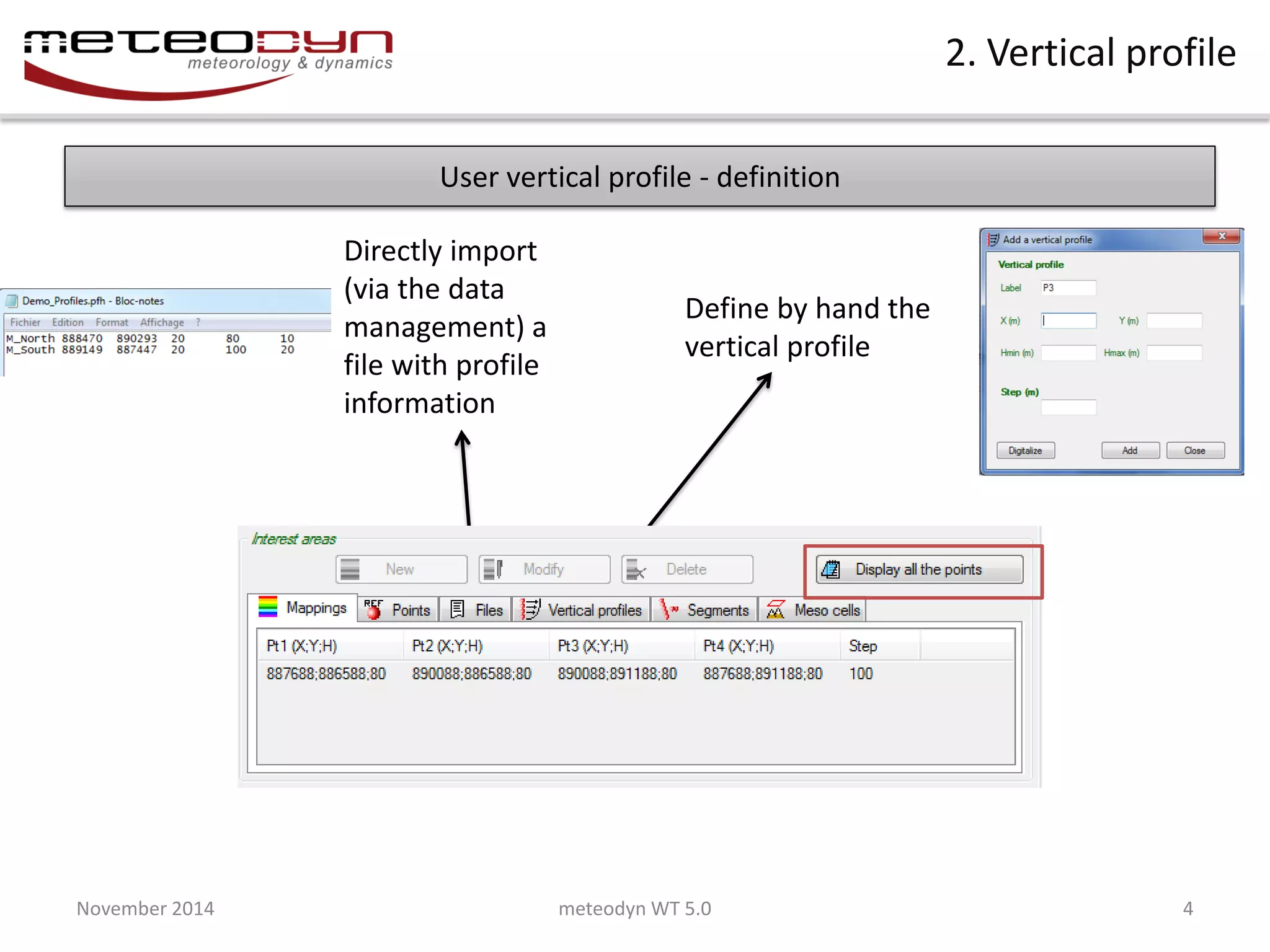

Define by hand the vertical profile
Directly import (via the data management) a file with profile information

5. November 2014
meteodyn WT 5.0
5
2. Vertical profile

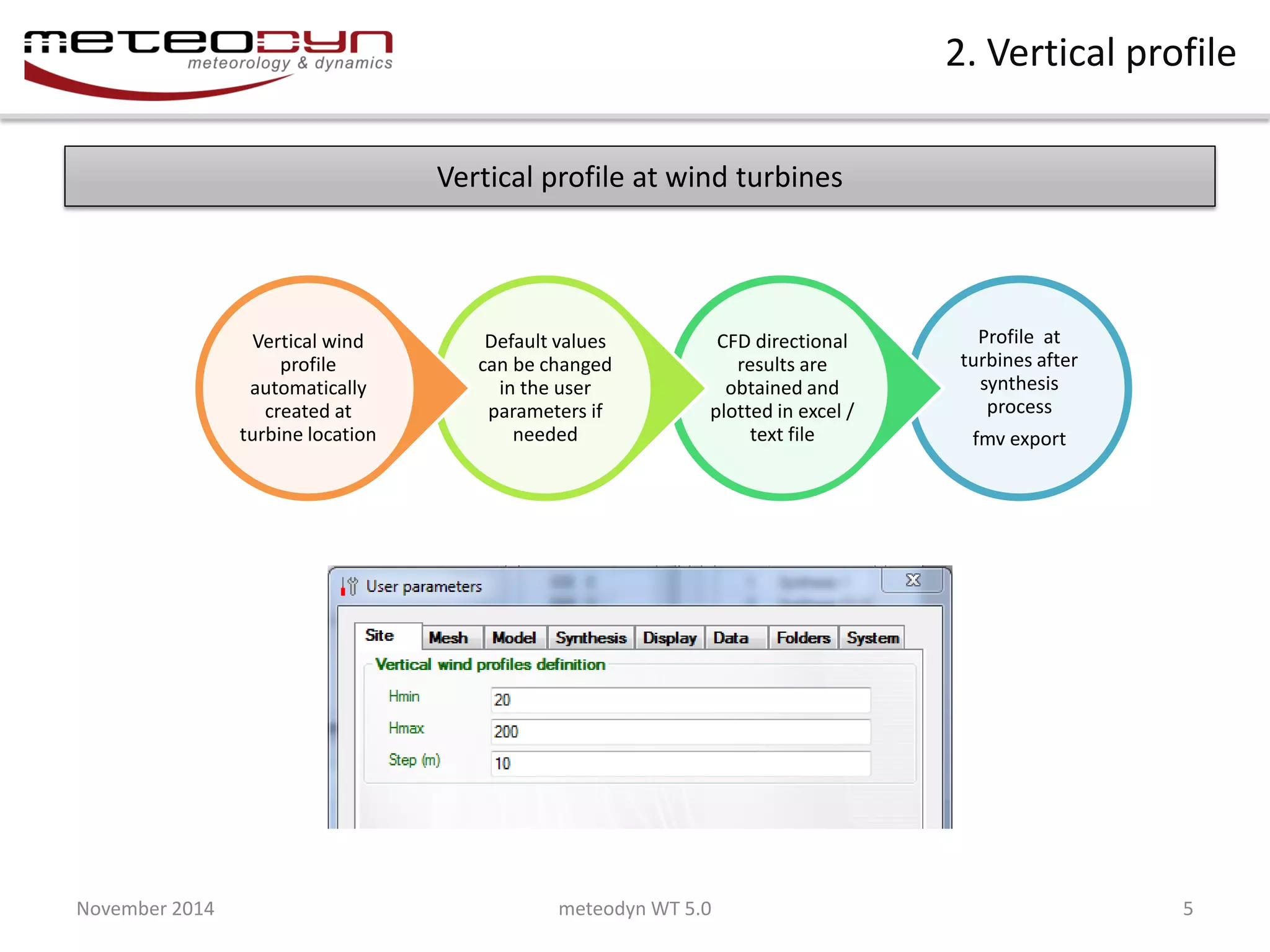

Vertical profile at wind turbines
Profile at turbines after synthesis process
fmv export
CFD directional results are obtained and plotted in excel / text file
Default values can be changed in the user parameters if needed
Vertical wind profile automatically created at turbine location

6. November 2014
meteodyn WT 5.0
6
2. Vertical profile

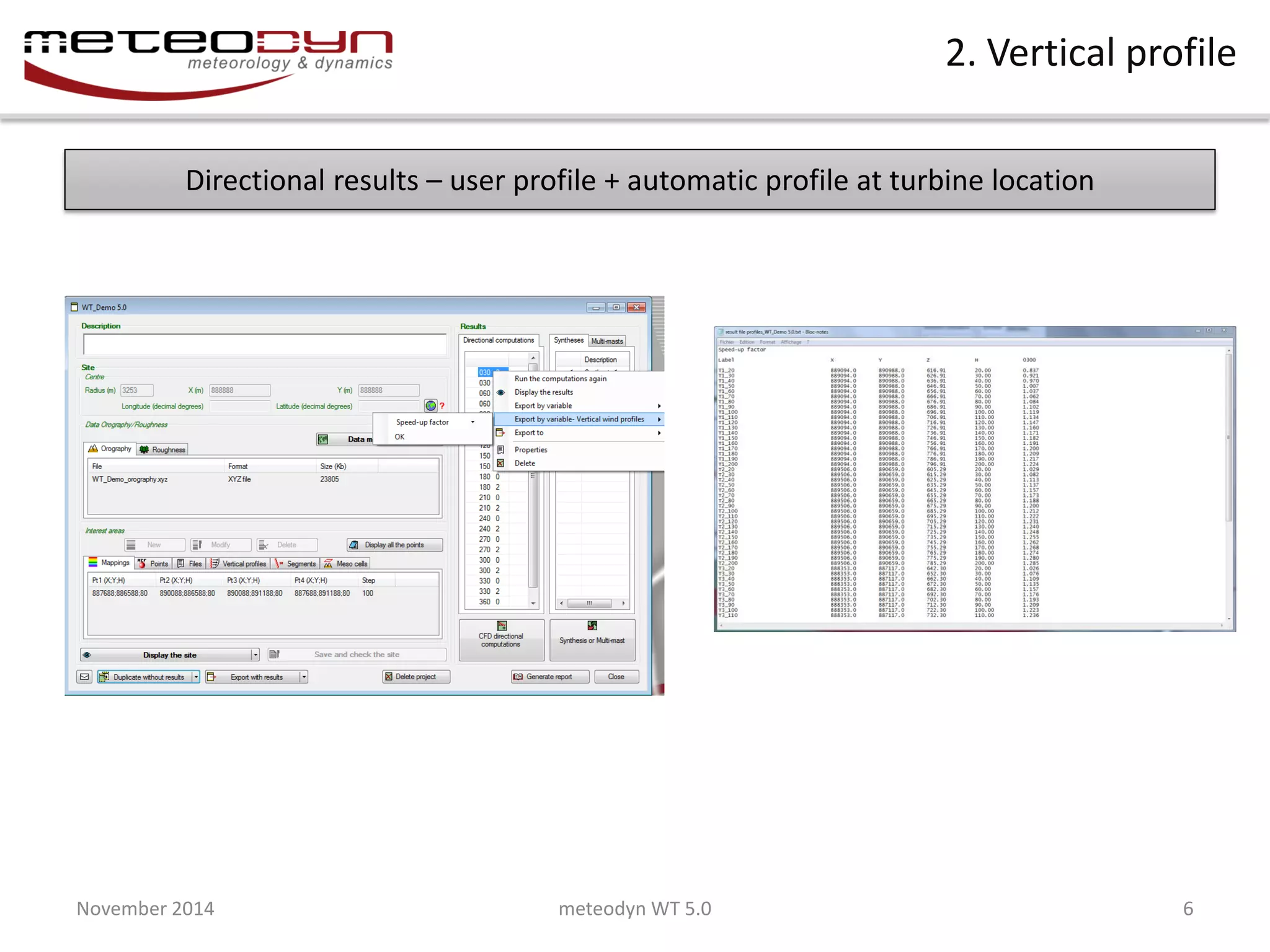

Directional results – user profile + automatic profile at turbine location

7. November 2014
meteodyn WT 5.0
7
2. Vertical profile

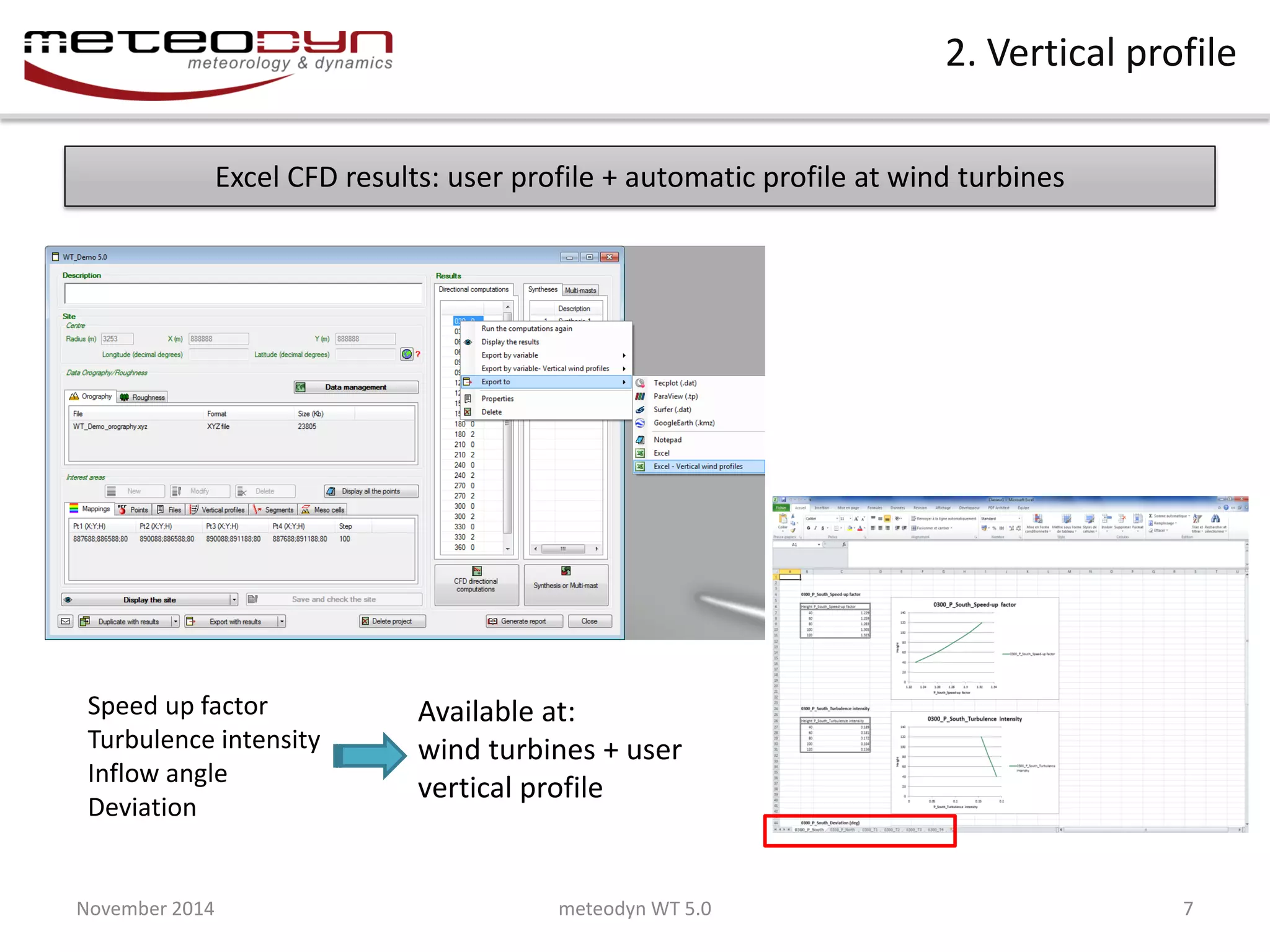

Excel CFD results: user profile + automatic profile at wind turbines
Speed up factor
Turbulence intensity
Inflow angle
Deviation
Available at:
wind turbines + user vertical profile

8. November 2014
meteodyn WT 5.0
8

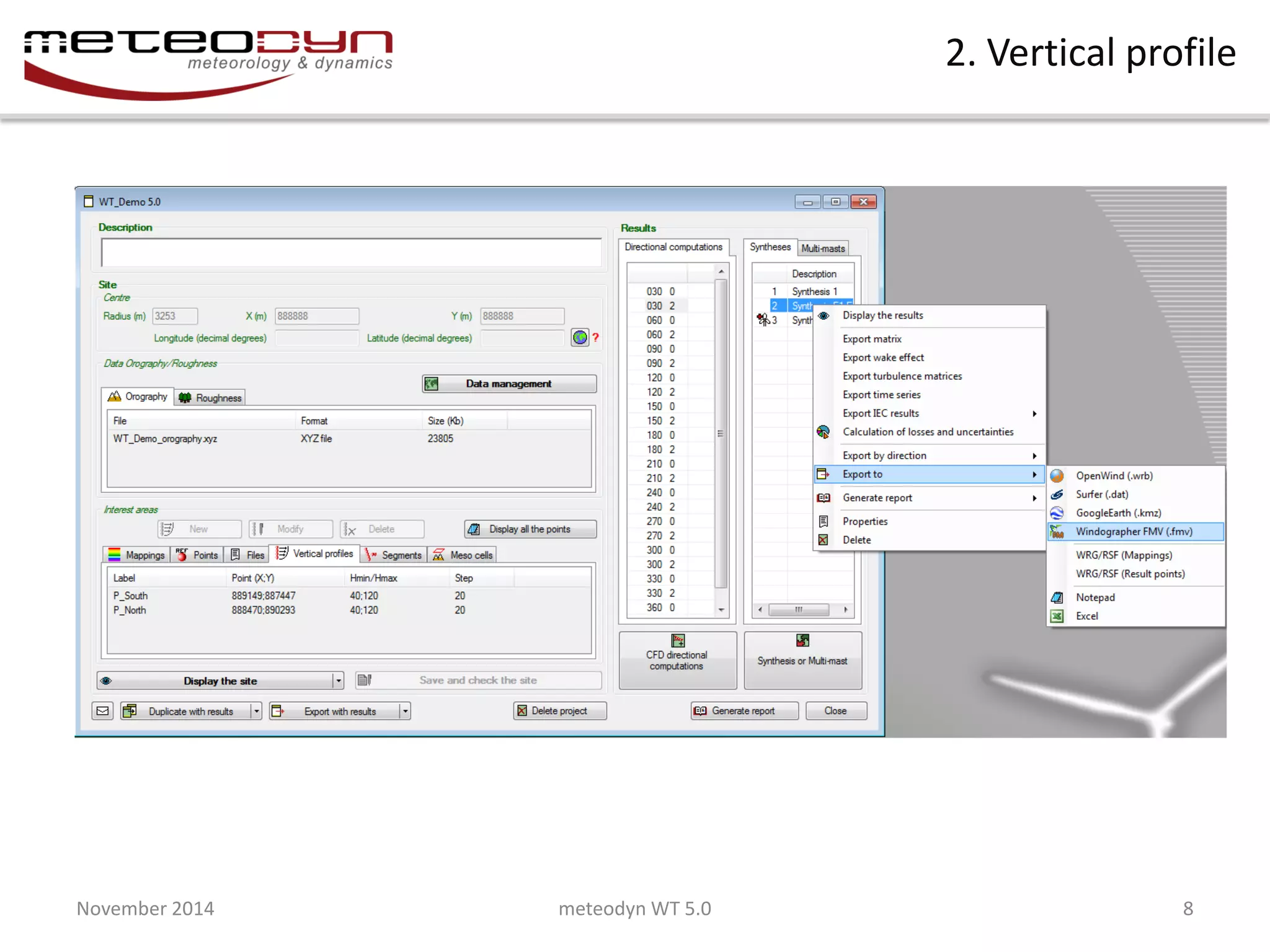

2. Vertical profile

9. November 2014
meteodyn WT 5.0
9

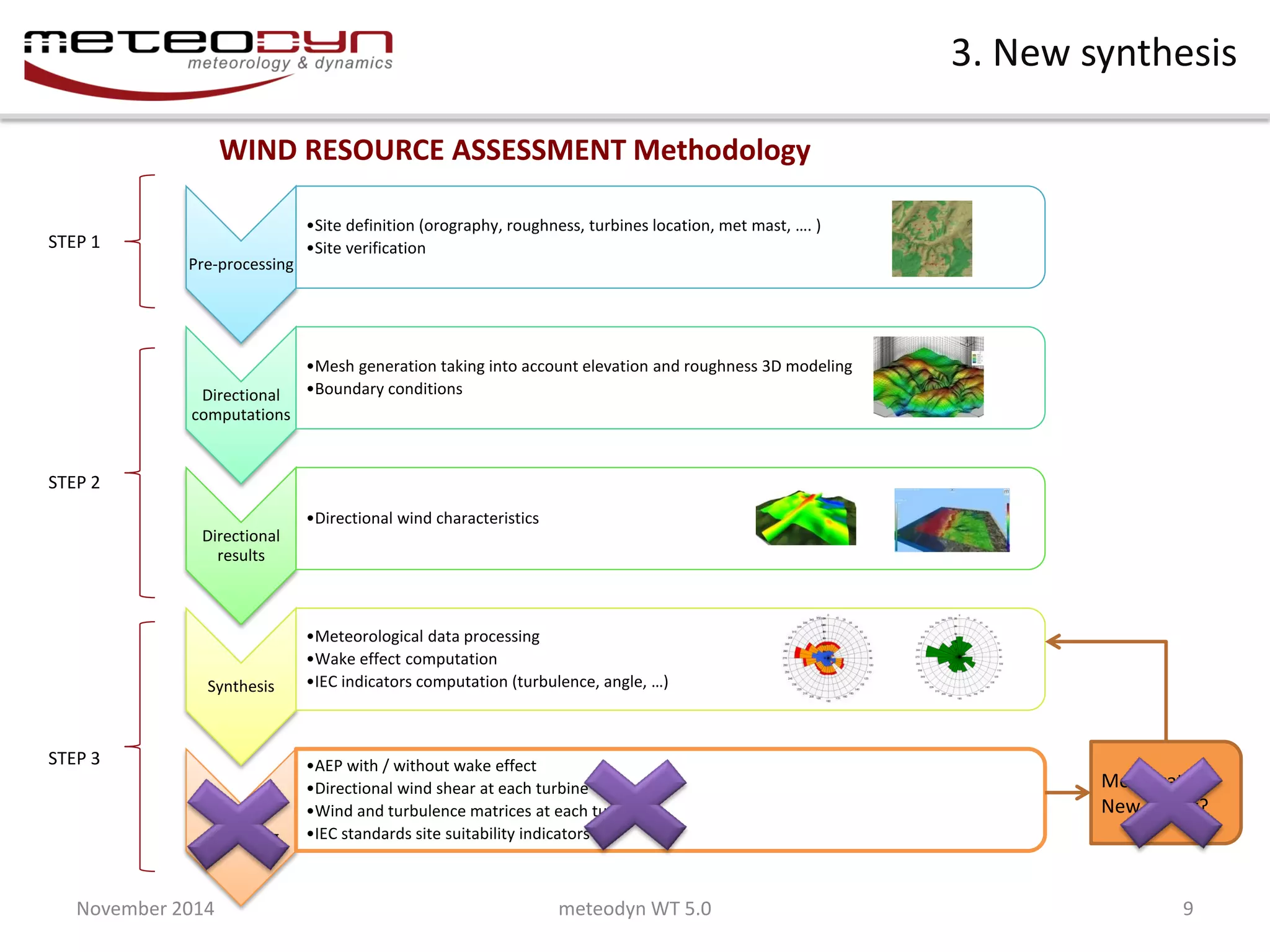

WIND RESOURCE ASSESSMENT Methodology
Pre-processing
•Site definition (orography, roughness, turbines location, met mast, …. )
•Site verification
Directional computations
•Mesh generation taking into account elevation and roughness 3D modeling
•Boundary conditions
Directional results
•Directional wind characteristics
Synthesis
•Meteorological data processing
•Wake effect computation
•IEC indicators computation (turbulence, angle, …)
Post processing
•AEP with / without wake effect
•Directional wind shear at each turbine
•Wind and turbulence matrices at each turbine
•IEC standards site suitability indicators
Modification New layout?
STEP 1
STEP 2
STEP 3
3. New synthesis

10. November 2014
meteodyn WT 5.0
10

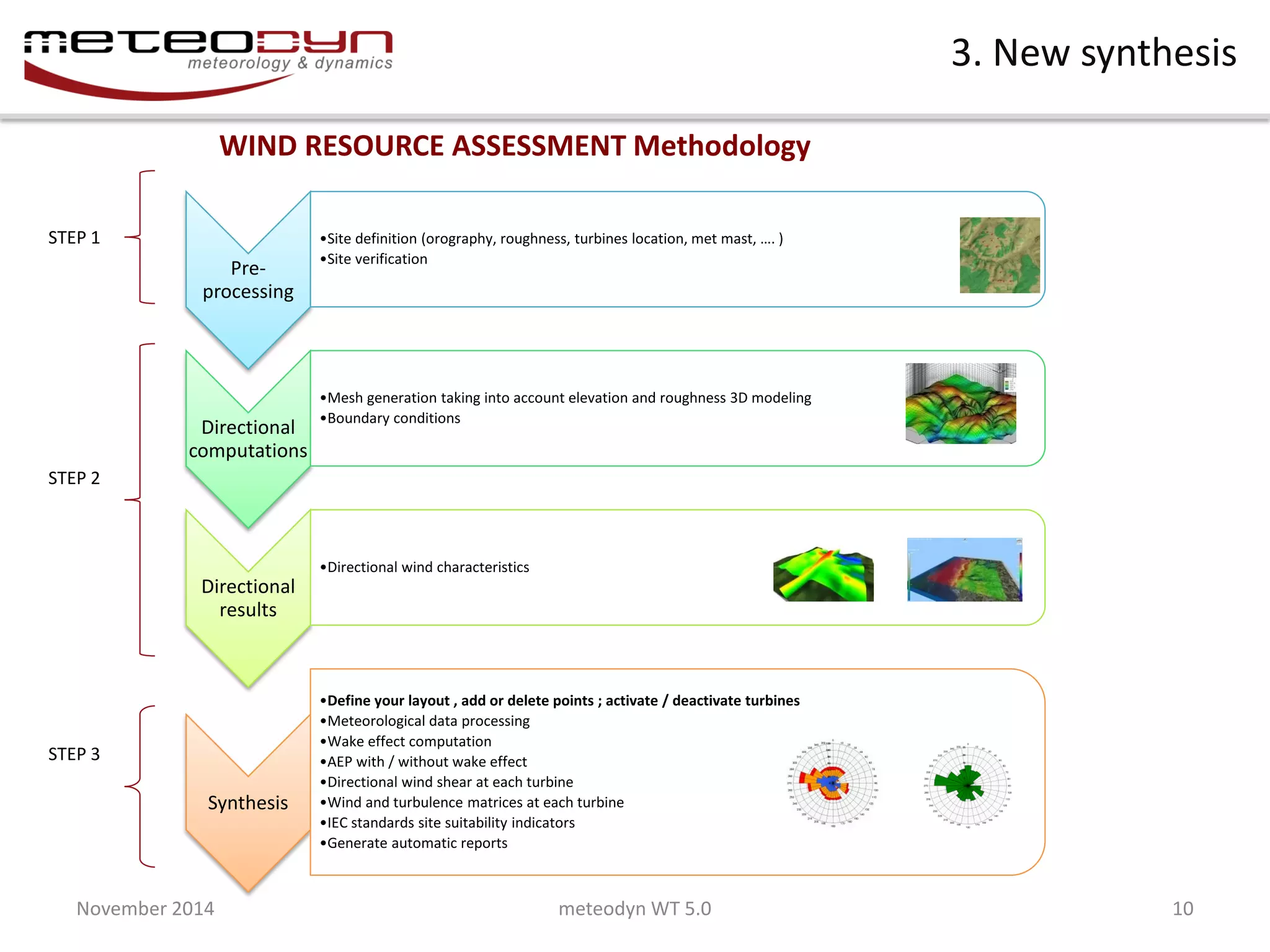

3. New synthesis
WIND RESOURCE ASSESSMENT Methodology
Pre- processing
•Site definition (orography, roughness, turbines location, met mast, …. )
•Site verification
Directional computations
•Mesh generation taking into account elevation and roughness 3D modeling
•Boundary conditions
Directional results
•Directional wind characteristics
Synthesis
•Define your layout , add or delete points ; activate / deactivate turbines
•Meteorological data processing
•Wake effect computation
•AEP with / without wake effect
•Directional wind shear at each turbine
•Wind and turbulence matrices at each turbine
•IEC standards site suitability indicators
•Generate automatic reports
STEP 1
STEP 2
STEP 3

11. November 2014
meteodyn WT 5.0
11
3. New synthesis

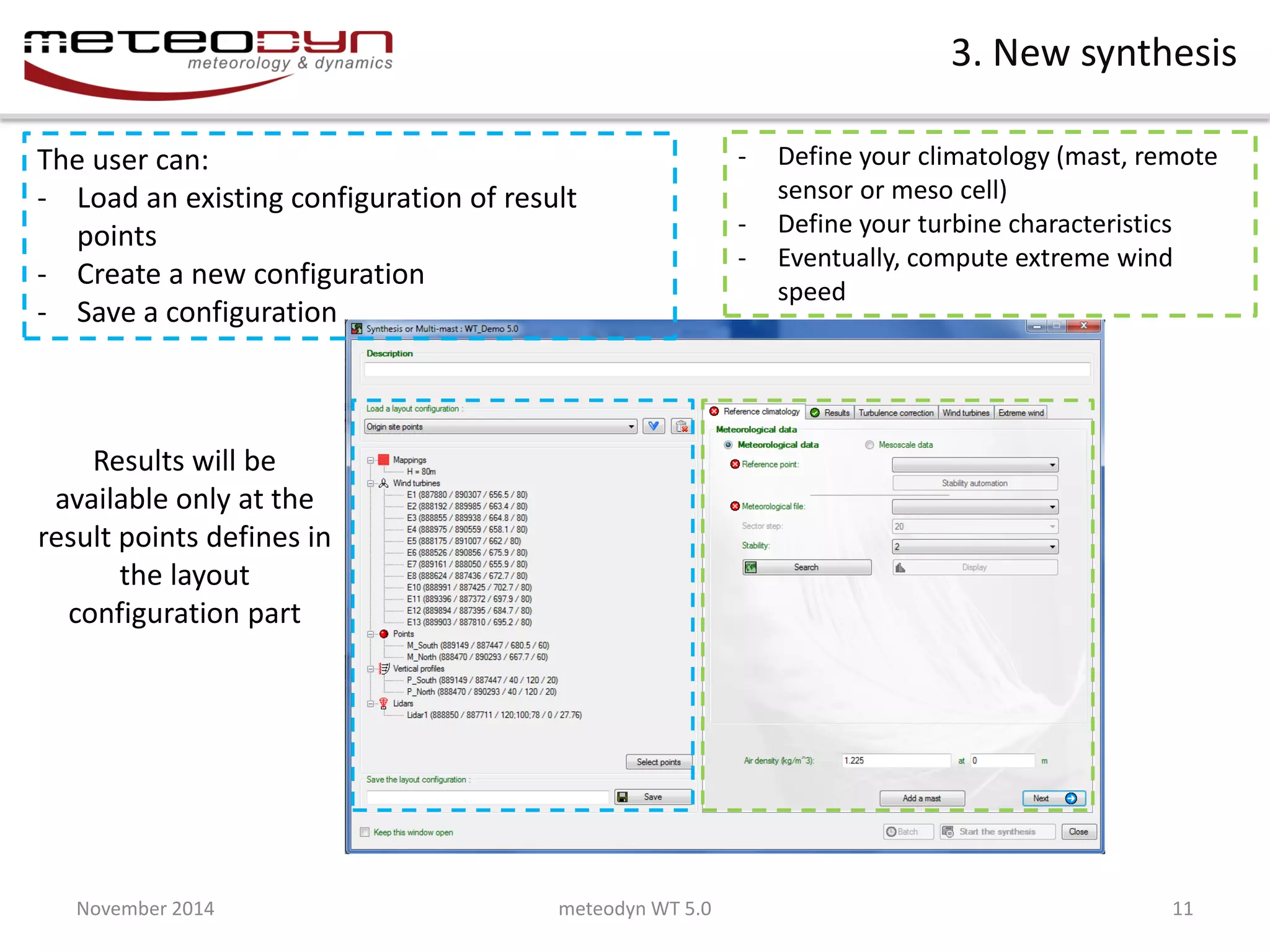

Define your synthesis as you usually do
The user can:
-Load an existing configuration of result points
-Create a new configuration
-Save a configuration
Results will be available only at the result points defines in the layout configuration part
-Define your climatology (mast, remote sensor or meso cell)
-Define your turbine characteristics
-Eventually, compute extreme wind speed

12. November 2014
meteodyn WT 5.0
12
3. New synthesis

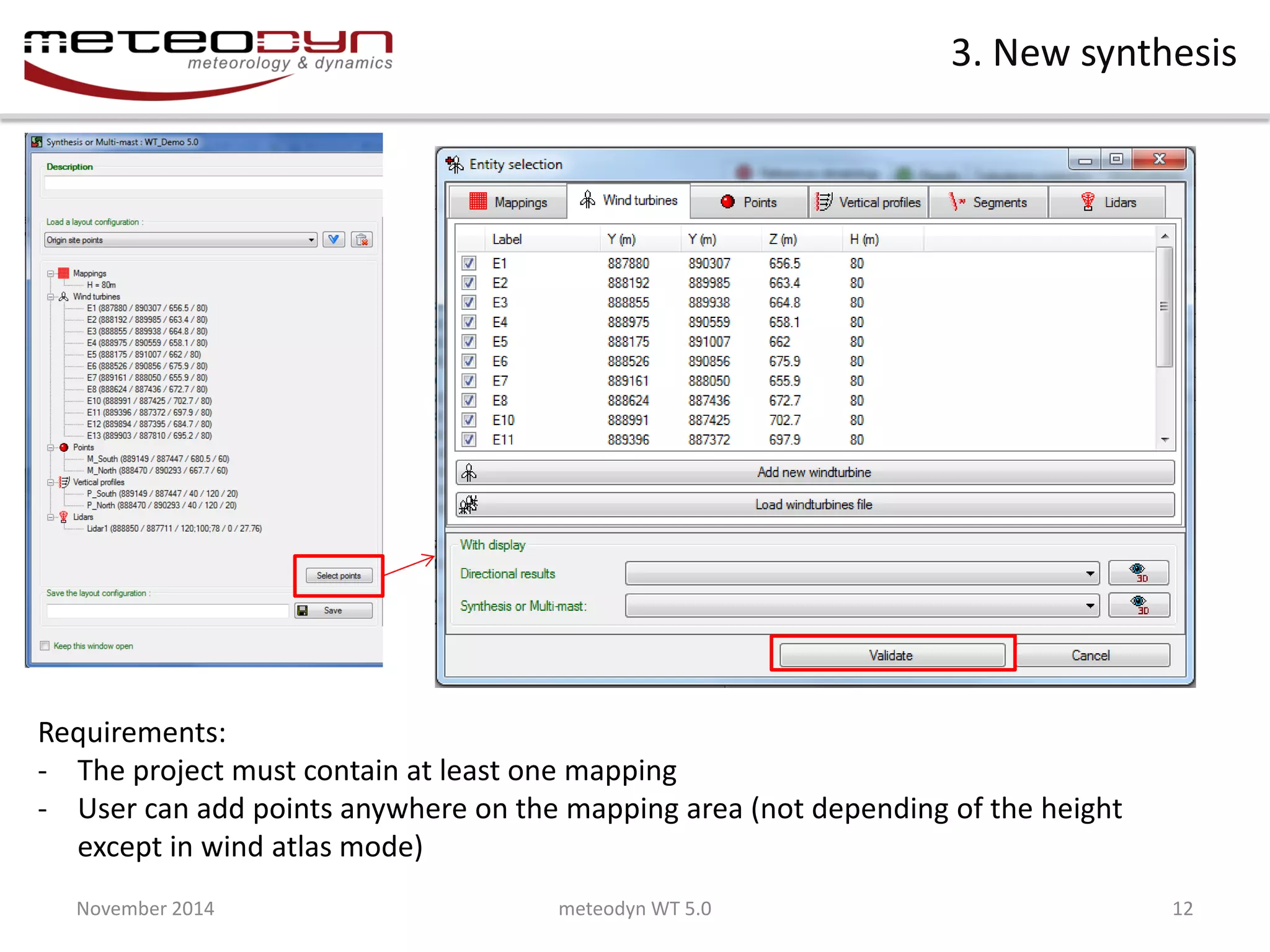

Requirements:
-The project must contain at least one mapping
-User can add points anywhere on the mapping area (not depending of the height except in wind atlas mode)

13. November 2014
meteodyn WT 5.0
13
3. New synthesis

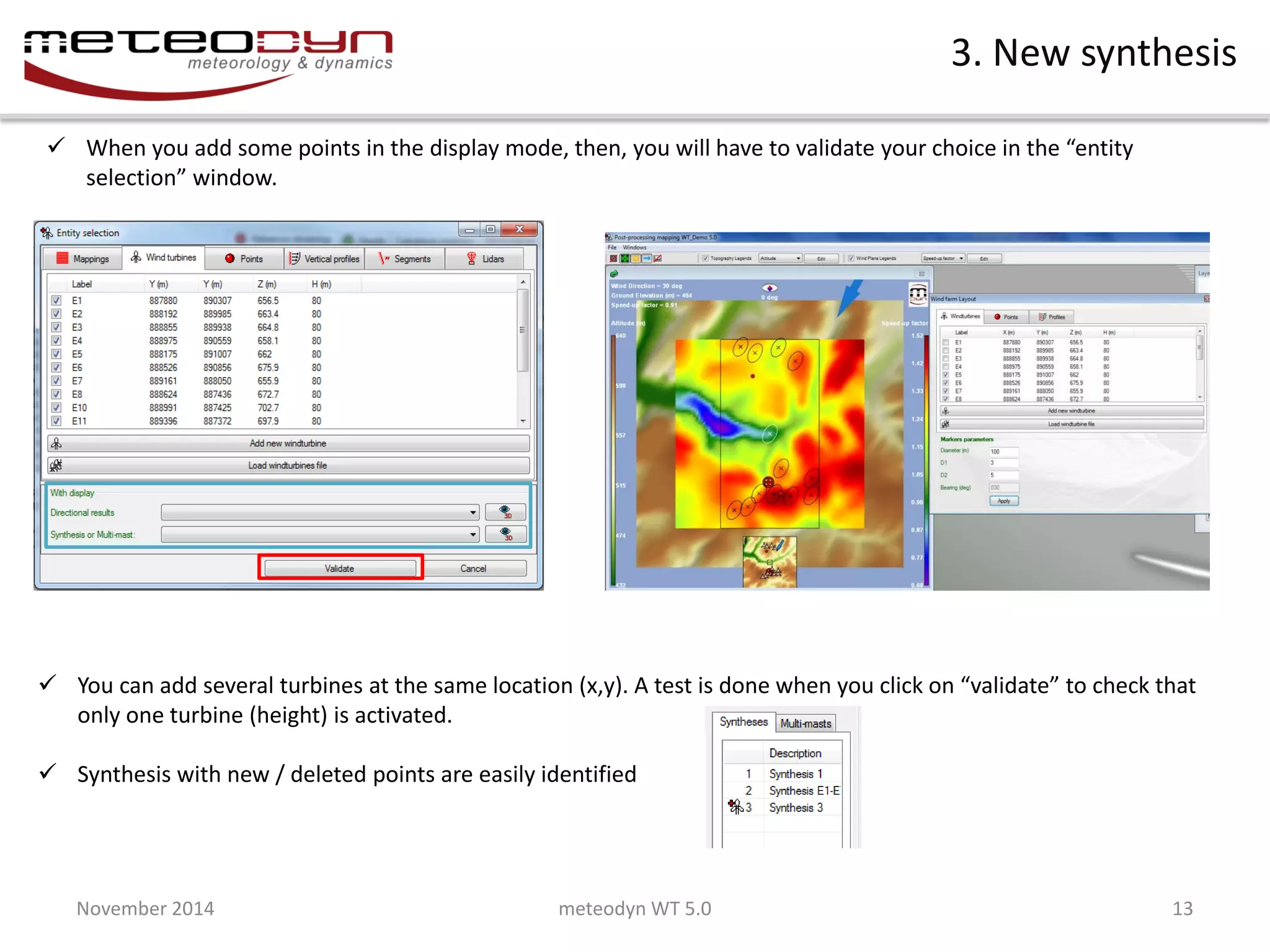

When you add some points in the display mode, then, you will have to validate your choice in the “entity selection” window.
You can add several turbines at the same location (x,y). A test is done when you click on “validate” to check that only one turbine (height) is activated.
Synthesis with new / deleted points are easily identified

14. November 2014
meteodyn WT 5.0
14

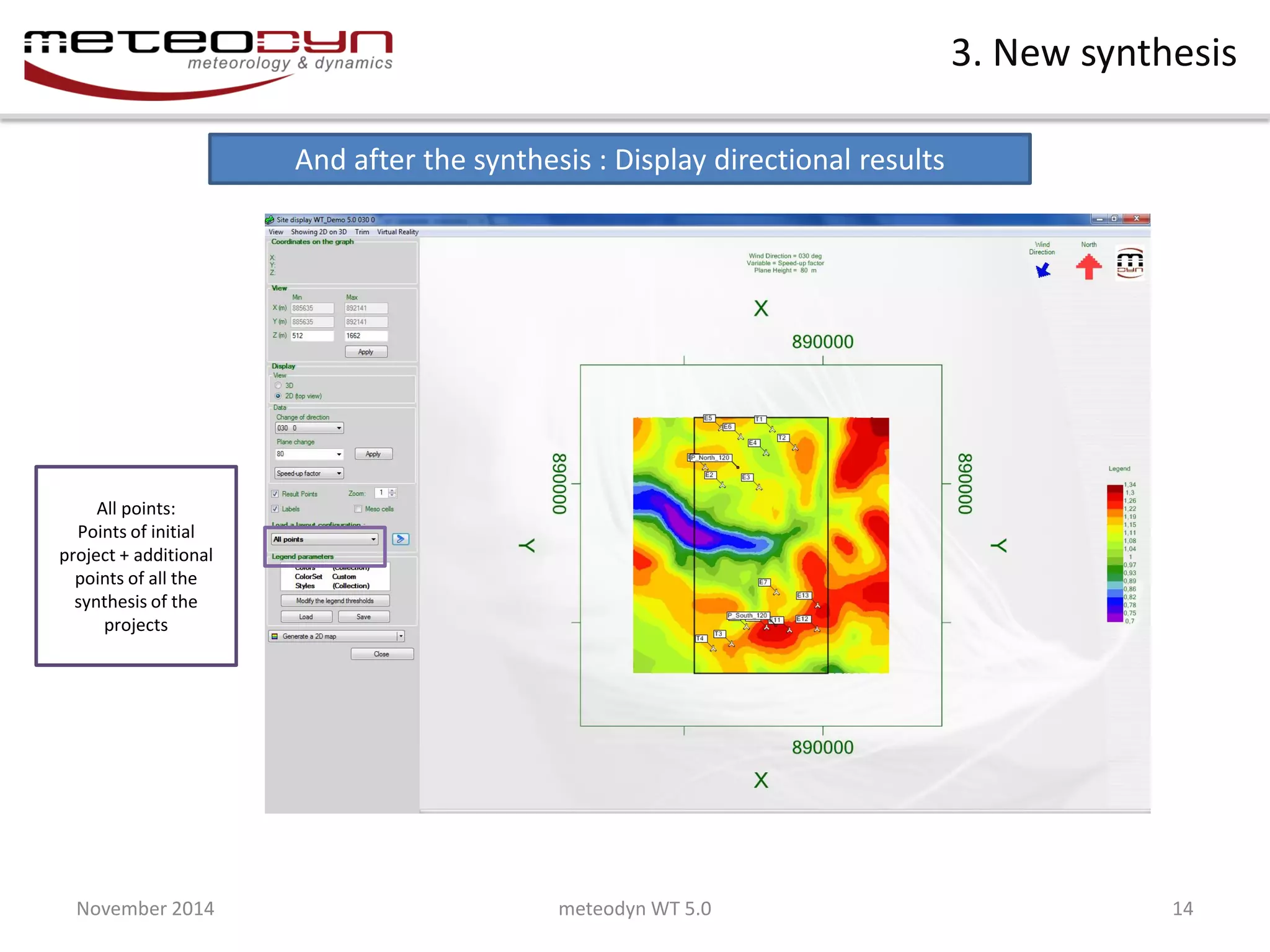

3. New synthesis
And after the synthesis : Display directional results
All points:
Points of initial project + additional points of all the synthesis of the projects

15. November 2014
meteodyn WT 5.0
15
3. New synthesis

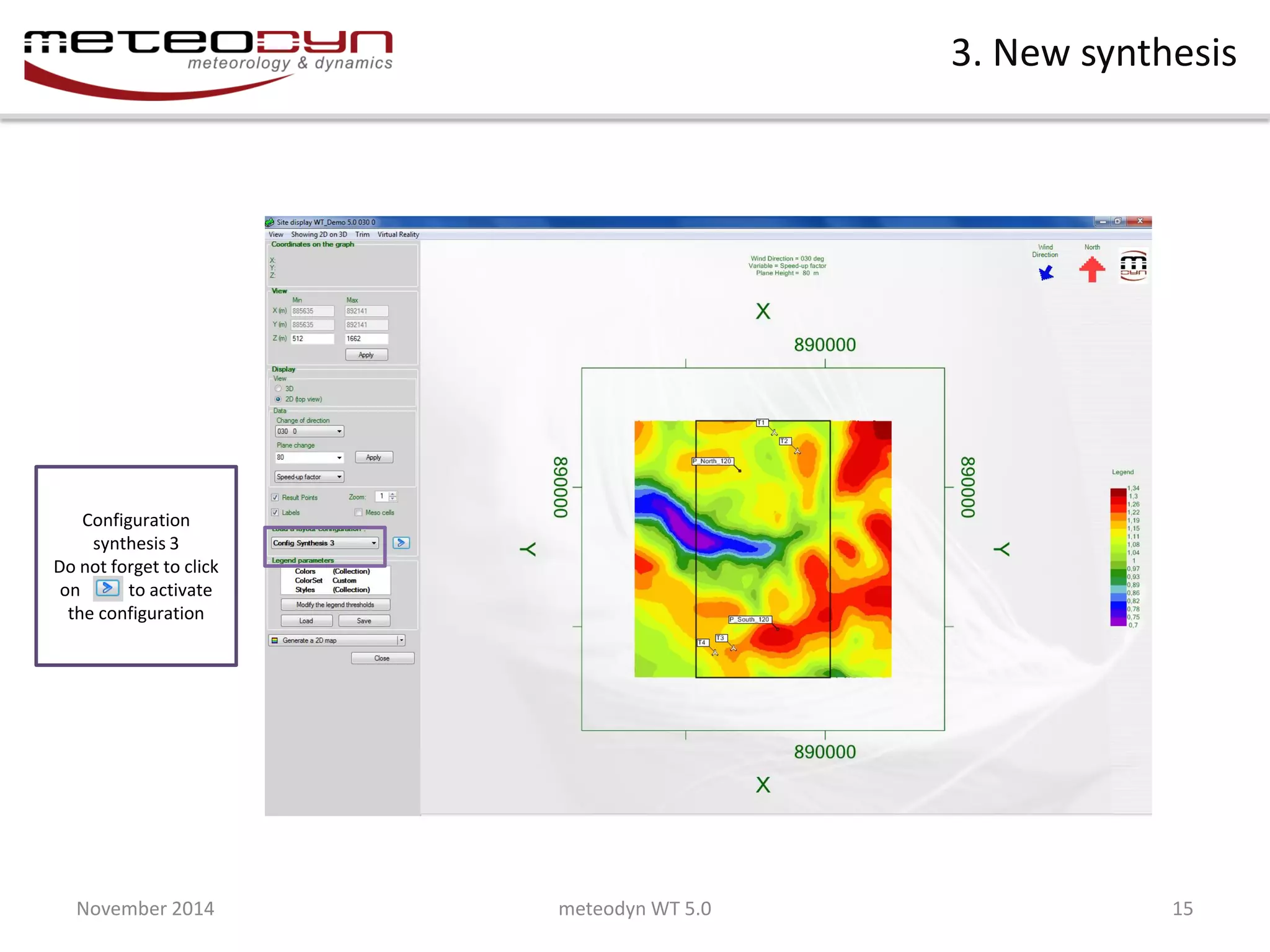

Configuration synthesis 3 Do not forget to click on to activate the configuration

16. November 2014
meteodyn WT 5.0
16
3. New synthesis
•Site of origin. If points have been added during a synthesis, they are not visible in this window.
Site window
•In the display window, the user can select the points configuration to be displayed.
Site display
•CFD results are available for all the points (points od origin + added points of any synthesis)
CFD results
•Results are available only at results points of the synthesis configuration
Synthesis results / display results
•Results in the report are depending of the access to this feature
Automatic report

17. November 2014
meteodyn WT 5.0
17
4. Other improvements

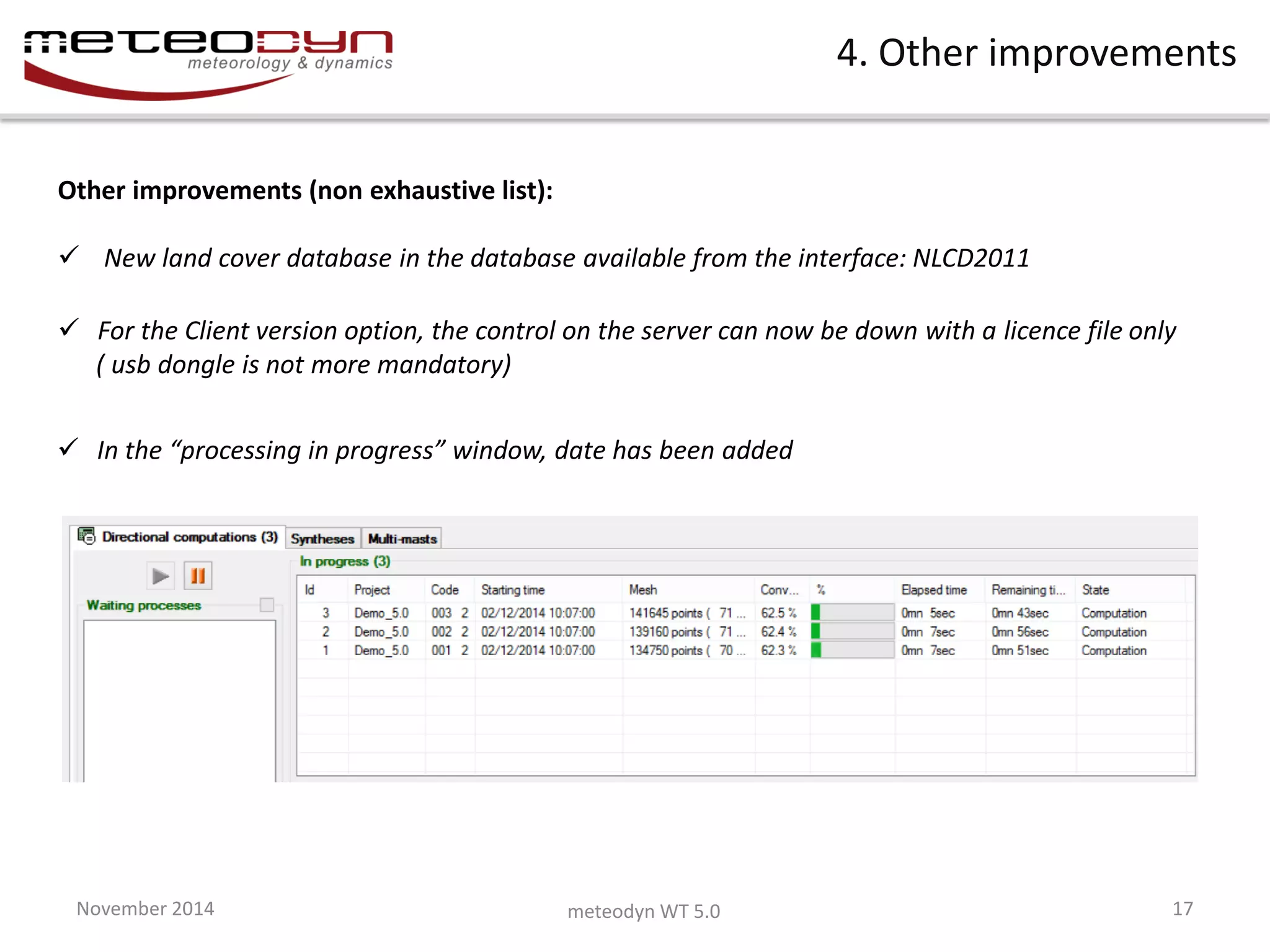

Other improvements (non exhaustive list):
 New land cover database in the database available from the interface: NLCD2011
In the “processing in progress” window, date has been added
For the Client version option, the control on the server can now be down with a licence file only ( usb dongle is not more mandatory)
