1. Better Living Through Messaging -
Leveraging the HornetQ Message
Broker at Shopzilla
Mark Lui ( Merchant Services)
and
Josh Long (Inventory)
- 1-

2. What is Messaging
- 2-

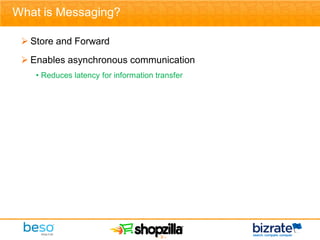

3. What is Messaging?
 Store and Forward
 Enables asynchronous communication
• Reduces latency for information transfer
- 3-

4. What is Messaging?
 Loosely coupled distributed communication (Data or Command)
 Exchange of messages between software components
 Two forms
• Point-to-Point (Queue)
• Publish/Subscribe (Topic)
- 4-

5. Enterprise Application Integration
 Integration of data and services between applications
 Communication between information silos
 Approaches
• File Transfer
• Shared Database
• Remote Procedure Call
• Messaging
- 5-

6. Integration Patterns
 Patterns
• Data Synchronization
• Workflow
• Portal
- 6-

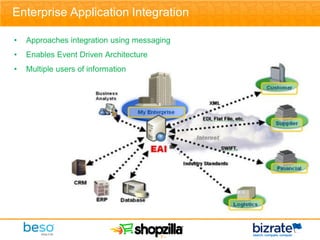

7. Enterprise Application Integration
• Approaches integration using messaging
• Enables Event Driven Architecture
• Multiple users of information
- 7-

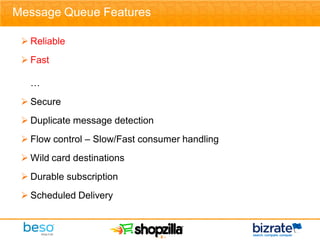

8. Message Queue Features
 Reliable
 Fast
…
 Secure
 Duplicate message detection
 Flow control – Slow/Fast consumer handling
 Wild card destinations
 Durable subscription
 Scheduled Delivery
- 8-

9. Message Queue Features
 Redelivery handling
• DLQ/Discard
• Delay redelivery
 Message Ordering on Topics
 Client side load balancing options
• Random
• Round Robin
 Message prioritization
- 9-

10. Introducing HornetQ
 New ultra high performance enterprise grade messaging system
from JBoss
 Apache V2 License
 HornetQ 2.0.GA obtained scores up to 307% higher than
previously published SPECjms2007 benchmark results
 “Throughput of 800K small non persistent messages per second
on a single 4 x 2.5GHz core server” – Tim Fox
- 10 -

11. HornetQ – Secret Sauce
 LibAIO
• Linux Kernel 2.6 Subsystem
• Able to submit I/O requests without waiting for completion
 HornetQ uses an append-only journal using LibAIO
 ActiveMQ 6 will support LibAIO 
- 11 -

12. ActiveMQ Issues
 Difficult to configuration correctly
 Prone to hang
 Poor persistence options
• KahaDB – better scalability, shorter recovery time
• AMQ Message Store – faster
• JDBC database – too slow
- 12 -

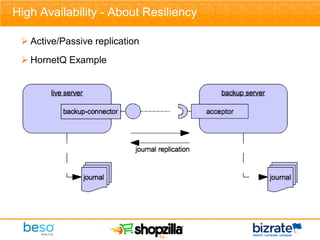

13. High Availability - About Resiliency
 Active/Passive replication
 HornetQ Example
- 13 -

14. High Availability - About Resiliency
 Live Server
- 14 -

15. High Availability - About Resiliency
 Backup Server
- 15 -

16. Clustering - About Scalability
 Client side load balancing
- 16 -

17. About performance
 Offer Bidding Service Performance Data
- 17 -

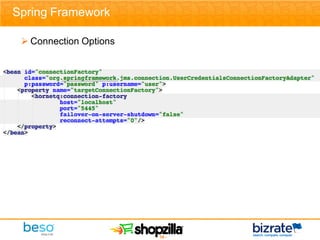

18. Spring Framework
 Connection Options
- 18 -

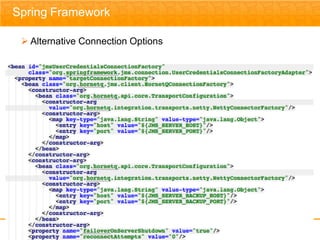

19. Spring Framework
 Alternative Connection Options
- 19 -

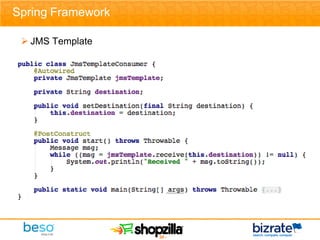

20. Spring Framework
 JMS Template
- 20 -

21. Spring Framework
 Message Driven POJOs : MessageListener
- 21 -

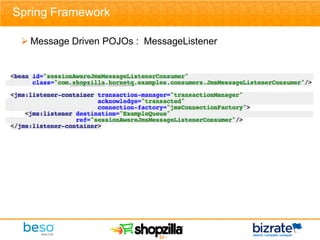

22. Spring Framework
 Message Driven POJOs : MessageListener
- 22 -

23. Spring Framework
 Message Driven POJOs : SessionAwareMessageListener
- 23 -

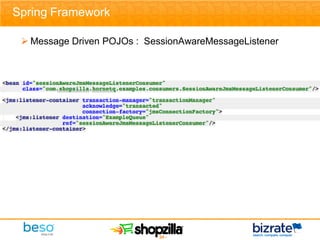

24. Spring Framework
 Message Driven POJOs : SessionAwareMessageListener
- 24 -

25. Spring Framework
 Spring Integration
- 25 -

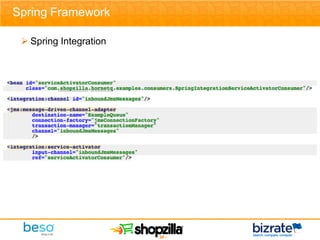

26. Spring Framework
 Spring Integration
- 26 -

27. Messaging at Shopzilla
 Merchant Service
• Offer Bidding Service – Using to scale
 Inventory
• Offer Service
 Dampening request to Coherence
 Dampening request to Oracle for write behind
- 27 -

28. Merchant Service’s Order Bidding Service
 Demo
- 28 -

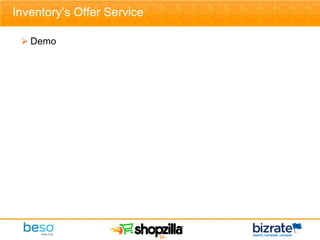

29. Inventory’s Offer Service
 Demo
- 29 -

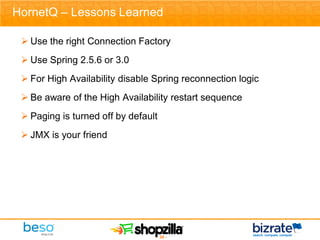

30. HornetQ – Lessons Learned
 Use the right Connection Factory
 Use Spring 2.5.6 or 3.0
 For High Availability disable Spring reconnection logic
 Be aware of the High Availability restart sequence
 Paging is turned off by default
 JMX is your friend
- 30 -

31. Possible Future Opportunities
 SLA compliance
 Unified messaging
 Real-time, event driven architectures
- 31 -

32. Conclusion
 Q and A?
 Don't forget to tip your waiter!
- 32 -
