This document discusses deploying applications to Cloud Foundry using Spring, Vaadin, and Cloud Foundry. It provides an overview of deploying a Java application using the vmc command line tool and Spring Tool Suite. It also covers services, runtime choices, and the benefits of using open source Cloud Foundry which avoids vendor lock-in.

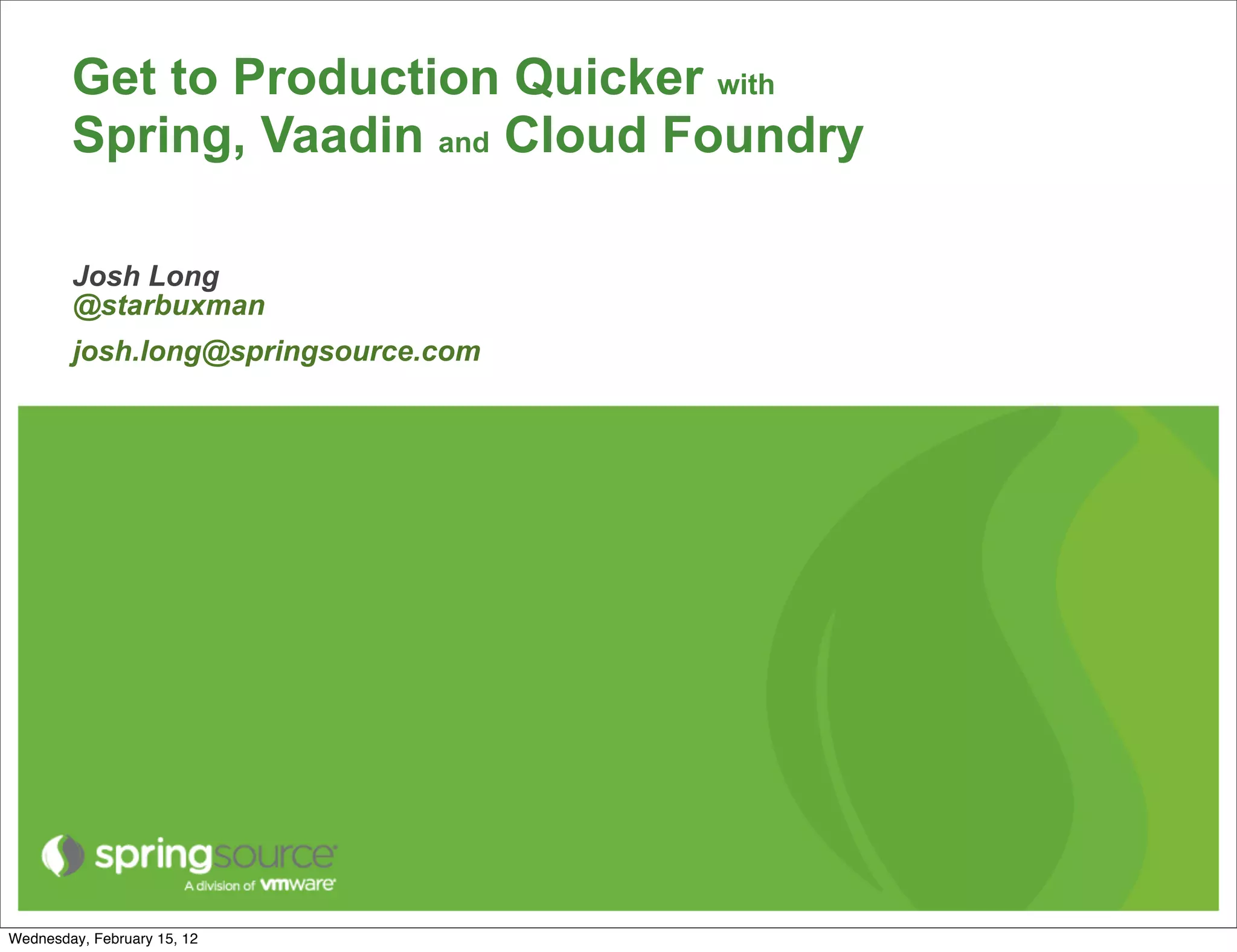

1. Get to Production Quicker with
Spring, Vaadin and Cloud Foundry
Josh Long
@starbuxman
josh.long@springsource.com
Wednesday, February 15, 12

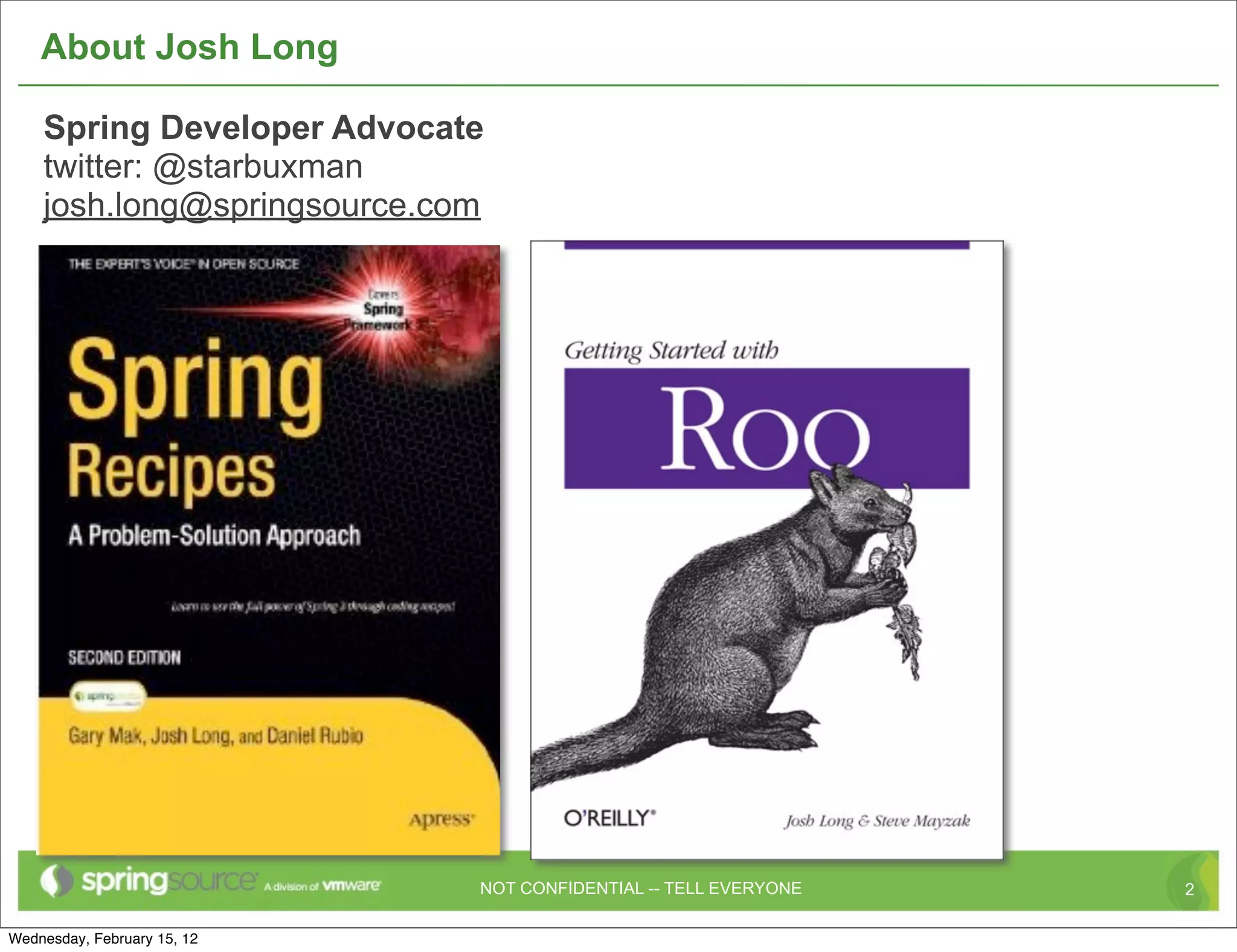

2. About Josh Long
Spring Developer Advocate
twitter: @starbuxman
josh.long@springsource.com
NOT CONFIDENTIAL -- TELL EVERYONE 2
Wednesday, February 15, 12

3. Cloud Developer Bill of Rights (www.developerrights.org)
 The Right to Code
use the best tools for the job
 The Right to Build Applications (and Only Applications) :
devs != admins
 The Right to Cloud Portability :
write once, run anywhere (really!)
 The Right to a Choice of Frameworks
I say “potato,” you say “Node.js”
 The Right to a Choice of Application Services
MySQL, Redis, Mongo, All? More?
 The Right to Platform Transparency
simple != opaque; I need logs damnit!
The Right to Emigrate
it’s your code, your data, always. you can take it and leave.
The Right of Ownership
it’s your code, your data, always. you own access rights.
The Right to Be Left Alone
even applications need personal space, respect!
The Right to Open Source
lots of clouds during spring - both Apache2 licensed!
3
Wednesday, February 15, 12

4. Flexible Administration
Application Lifecycle API Services API
• Create, start, stop, update • Enumerate system services
• Set URL(s), instance count, memory • Select and create service instance
• Get stats, logs, crashes, files • Bind and unbind service & app(s)
Cloud
Foundry
APIs
Also includes
• account spacing
• clients: STS, VMC
• Info API for both system and account space
4
Wednesday, February 15, 12

5. Cloud Foundry: Choice of Runtimes
5
Wednesday, February 15, 12

6. Frameworks and Runtimes Supported
• Out of the Box
• Java (.WAR files, on Tomcat. Spring’s an ideal choice here, of course..)
• Scala (Lift, Play!)
• Ruby (Rails, Sinatra, etc.)
• Node.js
• Other
• Python (Stackato)
• PHP (AppFog)
• Haskell (1)
• Erlang (2)
1) http://www.cakesolutions.net/teamblogs/2011/11/25/haskell-happstack-on-cloudfoundry/
2) https://github.com/cloudfoundry/vcap/pull/20
6
Wednesday, February 15, 12

7. Deploying an Application
CLI Application name Dir containing application (or, .WAR for Java)
$ vmc push cf1 --path target
--url cer-cf1.cloudfoundry.com
Application URL
7
Wednesday, February 15, 12

8. Deploying an Application
$ vmc push cf1 --path target
--url cer-cf1.cloudfoundry.com
Detected a Java Web Application, is this correct?
[Yn]:
Wednesday, February 15, 12

9. Deploying an Application
$ vmc push cf1 --path target
--url cer-cf1.cloudfoundry.com
Detected a Java Web Application, is this correct?
[Yn]:
Memory Reservation [Default:512M] (64M, 128M, 256M,
512M, 1G or 2G)
Wednesday, February 15, 12

10. Deploying an Application
$ vmc push cf1 --path target
--url cer-cf1.cloudfoundry.com
Detected a Java Web Application, is this correct?
[Yn]:
Memory Reservation [Default:512M] (64M, 128M, 256M,
512M, 1G or 2G)
Creating Application: OK
Would you like to bind any services to 'cf1'? [yN]:
Wednesday, February 15, 12

11. Deploying an Application
$ vmc push cf1 --path target
--url cer-cf1.cloudfoundry.com
Detected a Java Web Application, is this correct?
[Yn]:
Memory Reservation [Default:512M] (64M, 128M, 256M,
512M, 1G or 2G)
Creating Application: OK
Would you like to bind any services to 'cf1'? [yN]:
Uploading Application:
Checking for available resources: OK
Packing application: OK
Uploading (2K): OK
Push Status: OK
Starting Application: OK
Wednesday, February 15, 12

12. Deploying an Application (with a Manifest)
$ vmc push
Would you like to deploy from the current directory?
[Yn]: y
Pushing application 'html5expenses'...
Creating Application: OK
Creating Service [expenses-mongo]: OK
Binding Service [expenses-mongo]: OK
Creating Service [expenses-postgresql]: OK
Binding Service [expenses-postgresql]: OK
Uploading Application:
Checking for available resources: OK
Processing resources: OK
Packing application: OK
Uploading (6K): OK
Push Status: OK
Wednesday, February 15, 12

13. Deploying an Application (with a manifest.yml)
---
applications:
target:
name: html5expenses
url: ${name}.${target-base}
framework:
name: spring
info:
mem: 512M
description: Java SpringSource Spring Application
exec:
mem: 512M
instances: 1
services:
expenses-mongo:
type: :mongodb
expenses-postgresql:
type: :postgresql
Wednesday, February 15, 12

14. Deployment with STS
Wednesday, February 15, 12

15. Cloud Foundry: Choice of Clouds
12
Wednesday, February 15, 12

16. Main Risk: Lock In
Welcome to the hotel california
Such a lovely place
Such a lovely face
Plenty of room at the hotel california
Any time of year, you can find it here
Last thing I remember, I was
Running for the door
I had to find the passage back
To the place I was before
’relax,’ said the night man,
We are programmed to receive.
You can checkout any time you like,
But you can never leave!
-the Eagles
13
Wednesday, February 15, 12

17. Open Source Advantage
14
Wednesday, February 15, 12

18. Open Source Advantage
Wednesday, February 15, 12

19. Cloud Foundry: Clouds
 AppFog.com
• community lead for PHP
• PaaS for PHP
 Joyent
• community lead for Node.js
 ActiveState
• community lead for Python, Perl
• Providers of Stackato private PaaS
16
Wednesday, February 15, 12

20. Cloud Foundry Community
Foundry.org
17
Wednesday, February 15, 12

21. Micro Cloud Foundry (beta)
Micro Cloud Foundry
Wednesday, February 15, 12

22. Cloud Foundry: Services
19
Wednesday, February 15, 12

23. Cloud Foundry: Services
 Services are one of the extensibility planes in Cloud Foundry
• there are more services being contributed by the community daily!
 MySQL, Redis, MongoDB, RabbitMQ, PostgreSQL
 Services may be shared across applications
 Cloud Foundry abstracts the provisioning aspect of services through
a uniform API hosted in the cloud controller
 It’s very easy to take an app and add a service to the app in a uniform
way
• Cassandra? COBOL / CICS, Oracle
20
Wednesday, February 15, 12

24. Cloud Foundry: Services
$ vmc create-service mysql --name mysql1
Creating Service: OK
$ vmc services
============== System Services ==============
+------------+---------+---------------------------------------+
| Service | Version | Description |
+------------+---------+---------------------------------------+
| mongodb | 1.8 | MongoDB NoSQL store |
| mysql | 5.1 | MySQL database service |
| postgresql | 9.0 | PostgreSQL database service (vFabric) |
| rabbitmq | 2.4 | RabbitMQ messaging service |
| redis | 2.2 | Redis key-value store service |
+------------+---------+---------------------------------------+
=========== Provisioned Services ============
+-------------+---------+
| Name | Service |
+-------------+---------+
| mysql1 | mysql |
+-------------+---------+
21
Wednesday, February 15, 12

25. Cloud Foundry: Services Creation and Binding
$VCAP_SERVICES:
{"redis-2.2":
[{"name":"redis_sample","label":"redis-2.2","plan":"free",
"tags":["redis","redis-2.2","key-value","nosql"],
"credentials":
{"hostname":"172.30.48.40",
"host":"172.30.48.40",
"port":5023,
"password":"8e9a901f-987d-4544-9a9e-ab0c143b5142",
"name":"de82c4bb-bd08-46c0-a850-af6534f71ca3"}
}],
"mongodb-1.8":[{"name":"mongodb-
e7d29","label":"mongodb-1.8","plan":"free","tags”:………………….
22
Wednesday, February 15, 12

26. Accessing Your Services
 Debugging and accessing the data locally
• Caldecott --> Service tunneling. Access your Cloud Foundry service as if it was local.
23
Wednesday, February 15, 12

27. Tunneling
gem install caldecott
vmc tunnel <mongodb>
24
Wednesday, February 15, 12

28. Using your favorite tools
25
Wednesday, February 15, 12

29. 26
Wednesday, February 15, 12

30. intro to Spring
27
Wednesday, February 15, 12

31. The Spring framework
 de-facto standard programming model for enterprise Java
 Two million+ developers
 Rapid evolution
• Spring 1.0 – March 2004
• Spring 2.0 – October 2006
• Spring 2.5 – December 2007
• Spring 3.0 – November 2009
• Spring 3.1 - December 2011
 Complete backward compatibility
Wednesday, February 15, 12

32. Spring’s aim:
bring simplicity to java development
data
web tier
batch integration & access
& service tier mobile
processing messaging / NoSQL /
RIA
Big Data
The Spring framework
the cloud: lightweight traditional
CloudFoundry tc Server WebSphere
Google App Engine Tomcat JBoss AS
Amazon Web Services Jetty WebLogic
(on legacy versions, too!)
29
Wednesday, February 15, 12

33. The Spring Framework
Framework Description
Spring Core The foundation
Spring @MVC the web leading framework (comes with the core framework)
Spring Security Extensible framework providing authentication, authorization
Spring Webflow An excellent web framework for building multi-page flows
Spring Web Services Contract-first, document–centric SOAP and XML web services
Spring Batch Powerful batch processing framework
Spring Integration Implements enterprise integration patterns
Spring BlazeDS Support for Adobe BlazeDS
Spring AMQP interface with AMQP message brokers, like RabbitMQ
Spring Data NoSQL options: HBase, MongoDB, Redis, Riak, CouchDB, Neo4J, etc.
Spring Social integrate Twitter, Facebook, Tripit, MySpace, LinkedIn, etc.
Spring Hadoop Provides a POJO-centric approach to building Hadoop applications
provides first-class support for service
Spring Mobile, Spring Android
creation and consumption for iPhone, Android
Spring GemFire Provides the easiest interface for the GemFire enterprise data grid technology
30
Wednesday, February 15, 12

34. The Spring ApplicationContext
 Spring Beans are Managed by An ApplicationContext
• whether you’re in an application server, a web server, in regular Java SE application, in
the cloud, Spring is initialized through an ApplicationContext
• In a Java SE application:
ApplicationContext ctx =
new GenericAnnotationApplicationContext( “com.foo.bar.my.package”);
• In a web application, you will configure an application context in your web.xml
<servlet>
<servlet-name>Spring Dispatcher Servlet</servlet-name>
<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
<init-param>
<param-name>contextConfigLocation</param-name>
<param-value>my.spring.ConfigurationClass</param-value>
</init-param>
<load-on-startup>1</load-on-startup>
</servlet>
31
Wednesday, February 15, 12

35. Tell Spring About Your Objects
package org.springsource.examples.spring31.services;
...
@Configuration
@ComponentScan(“the.package.with.beans.in.it”)
public class ServicesConfiguration {
...
}
32
Wednesday, February 15, 12

36. Tell Spring About Your Objects
public class Main {
static public void main (String [] args) throws Throwable {
ApplicationContext ac = new AnnotationConfigApplicationContext(
org.springsource.examples.spring31.services.ServicesConfiguration.class);
...
}
}
33
Wednesday, February 15, 12

37. Tell Spring About Your Objects
package the.package.with.beans.in.it;
@Service
public class CustomerService {
public Customer createCustomer(String firstName,
String lastName,
Date signupDate) {
}
...
}
34
Wednesday, February 15, 12

38. Tell Spring About Your Objects
I want Database Access ...
package org.springsource.examples.spring31.services;
...
@Configuration
public class ServicesConfiguration {
@Bean
public DataSource dataSource() throws Exception {
SimpleDriverDataSource simpleDriverDataSource =
new SimpleDriverDataSource();
....
return simpleDriverDataSource;
}
}
35
Wednesday, February 15, 12

39. Tell Spring About Your Objects
I want Database Access ... with Hibernate 4 Support
package org.springsource.examples.spring31.services;
...
@Configuration
public class ServicesConfiguration {
@Bean
public SessionFactory sessionFactory() throws Exception {
Properties props = new Properties();
// ... show_sql, dialect, etc.
return new LocalSessionFactoryBuilder(this.dataSource())
.addAnnotatedClasses(Customer.class)
.addProperties(props)
.buildSessionFactory();
}
}
36
Wednesday, February 15, 12

40. Tell Spring About Your Objects
package the.package.with.beans.in.it;
...
@Service
public class CustomerService {
@javax.inject.Inject
private SessionFactory sessionFactory;
public Customer createCustomer(String firstName,
String lastName,
Date signupDate) {
Customer customer = new Customer();
customer.setFirstName(firstName);
customer.setLastName(lastName);
customer.setSignupDate(signupDate);
sessionFactory.getCurrentSession().save(customer);
return customer;
}
...
}
37
Wednesday, February 15, 12

41. Tell Spring About Your Objects
I want Declarative Transaction Management
package org.springsource.examples.spring31.services;
...
@Configuration
@EnableTransactionManagement
public class ServicesConfiguration {
...
@Bean
public PlatformTransactionManager transactionManager() throws Exception {
return new HibernateTransactionManager(this.sessionFactory());
}
}
38
Wednesday, February 15, 12

42. Tell Spring About Your Objects
package the.package.with.beans.in.it;
...
@Service
public class CustomerService {
@javax.inject.Inject
private SessionFactory sessionFactory;
@Transactional
public Customer createCustomer(String firstName,
String lastName,
Date signupDate) {
Customer customer = new Customer();
customer.setFirstName(firstName);
customer.setLastName(lastName);
customer.setSignupDate(signupDate);
sessionFactory.getCurrentSession().save(customer);
return customer;
}
...
} 39
Wednesday, February 15, 12

43. Tell Spring About Your Objects
I want Declarative Cache Management
package org.springsource.examples.spring31.services;
...
@Configuration
@EnableTransactionManagement
@EnableCaching
public class ServicesConfiguration {
...
@Bean
public CacheManager cacheManager() {
SimpleCacheManager scm = new SimpleCacheManager();
Cache cache = new ConcurrentMapCache("customers");
scm.setCaches(Arrays.asList(cache));
return scm;
}
}
40
Wednesday, February 15, 12

44. Tell Spring About Your Objects
package the.package.with.beans.in.it;
...
@Service
public class CustomerService {
@javax.inject.Inject
private SessionFactory sessionFactory;
@Transactional
@Cacheable(“customers”)
public Customer createCustomer(String firstName,
String lastName,
Date signupDate) {
Customer customer = new Customer();
customer.setFirstName(firstName);
customer.setLastName(lastName);
customer.setSignupDate(signupDate);
sessionFactory.getCurrentSession().save(customer);
return customer;
}
...
41
}
Wednesday, February 15, 12

45. Buuut....
 Spring makes Java as powerful as can be...
 Java’s still missing a few things
• dynanicism
• Java EE still filled with too much boilerplate code
• UI generation is still not appropriate with Java, and requires an alternative view technology
• Domain Driven Design isn’t particularly elegant
 Answer: Spring Roo
Wednesday, February 15, 12

46. the Pyramid of Opinionation
Spring Roo, Grails
More opinionated
the Spring framework
straight Java EE, assembler
Not confidential - tell everyone! 43
Wednesday, February 15, 12

47. What Is Spring Roo?
Not confidential - tell everyone! 44
Wednesday, February 15, 12

48. What Is Spring Roo?
 Rapid Application Development tool
• 100% Java
Not confidential - tell everyone! 44
Wednesday, February 15, 12

49. What Is Spring Roo?
 Rapid Application Development tool
• 100% Java
 Based on other Spring projects
• Spring, Spring @MVC, Spring Security, WebFlow...
Not confidential - tell everyone! 44
Wednesday, February 15, 12

50. What Is Spring Roo?
 Rapid Application Development tool
• 100% Java
 Based on other Spring projects
• Spring, Spring @MVC, Spring Security, WebFlow...
 Supports standards
• JPA 2
• JSR 303 (javax.validation.*)
Not confidential - tell everyone! 44
Wednesday, February 15, 12

51. What Is Spring Roo?
 Rapid Application Development tool
• 100% Java
 Based on other Spring projects
• Spring, Spring @MVC, Spring Security, WebFlow...
 Supports standards
• JPA 2
• JSR 303 (javax.validation.*)
 Uses a command-line tool for smart code generation
Not confidential - tell everyone! 44
Wednesday, February 15, 12

52. Out Of The Box
 Project management
 General object services
 Entity support
 Field management
 Persistence w/JPA, Neo4J, etc.
 JUnit testing
 Dynamic finders
 Spring MVC, Spring Web Flow and Selenium
 GWT, Vaadin, Flex
 JMS, SMTP and build system integration
 Spring Security, Bundlor, Logging Setup.....
 DBRE
Not confidential - tell everyone! 45
Wednesday, February 15, 12

53. Roo overview
Not confidential - tell everyone! 46
Wednesday, February 15, 12

54. Active code generation
Not confidential - tell everyone! 47
Wednesday, February 15, 12

55. Creating a Roo App
48
Wednesday, February 15, 12

56. Domain Models
 Multiple routes:
• on the fly, declarative domain development
• DBRE (good for tool driven MDA (just add the Roo annotations as well as existing
schema)
Not confidential - tell everyone! 49
Wednesday, February 15, 12

57. DBRE - the domain
Not confidential - tell everyone!
Wednesday, February 15, 12

58. DBRE - the domain
1) database properties set --key database.url
--value jdbc:h2:tcp://localhost/~/roo_crm
2) database reverse engineer
--package ~.domain --schema PUBLIC
Not confidential - tell everyone! 51
Wednesday, February 15, 12

59. Setting Up The Domain Model
persistence setup --provider ECLIPSELINK --database
HYPERSONIC_IN_MEMORY
entity --class ~.domain.Topping --testAutomatically
field string --fieldName name --notNull --sizeMin 2
entity --class ~.domain.Base --testAutomatically
field string --fieldName name --notNull --sizeMin 2
entity --class ~.domain.Pizza --testAutomatically
field string --fieldName name --notNull --sizeMin 2
field number --fieldName price --type java.lang.Float
field set --fieldName toppings --type ~.domain.Topping
field reference --fieldName base --type ~.domain.Base
entity --class ~.domain.PizzaOrder --testAutomatically
field string --fieldName name --notNull --sizeMin 2
field string --fieldName address --sizeMax 30
field number --fieldName total --type java.lang.Float
field date --fieldName deliveryDate --type java.util.Date
field set --fieldName pizzas --type ~.domain.Pizza
perform tests
52
Wednesday, February 15, 12

60. / _, _/ /_/ / /_/ /
Setup the Vaadin Addon
/_/ |_|____/____/ 1.1.5.RELEASE [rev d3a68c3]
Welcome to Spring Roo. For assistance press CTRL+SPACE or type "hint" then hit ENTER.
roo> pgp trust --keyId 0xBF0451C0
Added trust for key:
>>>> KEY ID: 0xBF0451C0 <<<<
More Info: http://keyserver.ubuntu.com/pks/lookup?fingerprint=on&op=index&search=0xBF0451C0
Created: 2009-Aug-14 11:54:20 +0000
Fingerprint: cc57399d74cd7e4768ed6fa4ca62973fbf0451c0
Algorithm: DSA
User ID: Artur Signell <artur@vaadin.com>
Signed By: Key 0xBF0451C0 (Artur Signell <artur@vaadin.com>)
Subkey ID: 0x17EBEE72 [ELGAMAL_ENCRYPT]
53
Wednesday, February 15, 12

61. / _, _/ /_/ / /_/ /
Setup the Vaadin Addon
/_/ |_|____/____/ 1.1.5.RELEASE [rev d3a68c3]
Welcome to Spring Roo. For assistance press CTRL+SPACE or type "hint" then hit ENTER.
roo> pgp trust --keyId 0xBF0451C0
Added trust for key:
>>>> KEY ID: 0xBF0451C0 <<<<
More Info: http://keyserver.ubuntu.com/pks/lookup?fingerprint=on&op=index&search=0xBF0451C0
Created: 2009-Aug-14 11:54:20 +0000
Fingerprint: cc57399d74cd7e4768ed6fa4ca62973fbf0451c0
Algorithm: DSA
User ID: Artur Signell <artur@vaadin.com>
Signed By: Key 0xBF0451C0 (Artur Signell <artur@vaadin.com>)
Subkey ID: 0x17EBEE72 [ELGAMAL_ENCRYPT]
roo> download accept terms of use
Thank you. All Spring Roo download features have now been enabled.
54
Wednesday, February 15, 12

62. / _, _/ /_/ / /_/ /
Setup the Vaadin Addon
/_/ |_|____/____/ 1.1.5.RELEASE [rev d3a68c3]
Welcome to Spring Roo. For assistance press CTRL+SPACE or type "hint" then hit ENTER.
roo> pgp trust --keyId 0xBF0451C0
Added trust for key:
>>>> KEY ID: 0xBF0451C0 <<<<
More Info: http://keyserver.ubuntu.com/pks/lookup?fingerprint=on&op=index&search=0xBF0451C0
Created: 2009-Aug-14 11:54:20 +0000
Fingerprint: cc57399d74cd7e4768ed6fa4ca62973fbf0451c0
Algorithm: DSA
User ID: Artur Signell <artur@vaadin.com>
Signed By: Key 0xBF0451C0 (Artur Signell <artur@vaadin.com>)
Subkey ID: 0x17EBEE72 [ELGAMAL_ENCRYPT]
roo> download accept terms of use
Thank you. All Spring Roo download features have now been enabled.
roo> addon search vaadin
Successfully downloaded Roo add-on Data
1 found, sorted by rank; T = trusted developer; R = Roo 1.1 compatible
ID T R DESCRIPTION -------------------------------------------------------------
01 Y Y 1.0.1 Spring Roo addon for creating rich internet applications with
Vaadin.
--------------------------------------------------------------------------------
[HINT] use 'addon info id --searchResultId ..' to see details about a search result 55
[HINT] use 'addon install id --searchResultId ..' to install a specific search result, or
Wednesday, February 15, 12

63. Setup the Vaadin Addon
roo> addon install id --searchResultId 01
roo> Target resource(s):
-------------------
Vaadin Plug-in for Spring Roo (1.0.1)
Deploying...done.
roo>
56
Wednesday, February 15, 12

64. Building the UI
vaadin setup --applicationPackage ~.web --baseName PizzaShop
--themeName pizza --useJpaContainer false
vaadin generate all --package ~.web.ui --visuallyComposable true
....That’s it!
57
Wednesday, February 15, 12

65. Building the UI
58
Wednesday, February 15, 12

66. Building the UI with the Eclipse Visual UI
59
Wednesday, February 15, 12

67. Building the UI
60
Wednesday, February 15, 12

68. Summary
 Cloud Foundry provides the Platform
 Spring Provides the API Glue
• Roo Takes Care of the Rest
 Vaadin Makes it Look Great (TM)
• and does so, quickly!
 Resources
• Cloud Foundry http://cloudfoundry.org
• Vaadin Roo addon http://vaadin.com/springroo
• Spring Framework http://www.springframework.org
61
Wednesday, February 15, 12

69. Auto-Reconfiguration: Getting Started
 Deploy Spring apps to the cloud without changing a single line of
code
 Cloud Foundry automatically re-configures bean definitions to bind to
cloud services
 Works with Spring and Grails
62
Wednesday, February 15, 12

70. Auto-Reconfiguration: Relational DB
 Detects beans of type javax.sql.DataSource
 Connects to MySQL or PostgreSQL services
• Specifies driver, url, username, password, validation query
 Creates Commons DBCP or Tomcat DataSource
 Replaces existing DataSource
import org.apache.commons.dbcp.BasicDataSource;
...
@Bean(destroyMethod = "close")
public BasicDataSource dataSource(){
BasicDataSource bds = new BasicDataSource();
bds.setUrl( "jdbc:h2:mem");
bds.setPassword("");
bds.setUsername("sa");
bds.setDriverClass( Driver.class);
return bds;
}
63
Wednesday, February 15, 12

71. Auto-Reconfiguration: ORM
 Adjusts Hibernate Dialect
 Changes hibernate.dialect property to
MySQLDialect (MyISAM) or PostgreSQLDialect
• org.springframework.orm.jpa.AbstractEntityManagerFactoryBean
• org.springframework.orm.hibernate3.AbstractSessionFactoryBean
(Spring 2.5 and 3.0)
• org.springframework.orm.hibernate3.SessionFactoryBuilderSupport
(Spring 3.1)
@Bean
public LocalContainerEntityManagerFactoryBean entityManager(){
LocalContainerEntityManagerFactoryBean lcem =
new LocalContainerEntityManagerFactoryBean();
lcem.setDataSource( dataSource());
return lcem;
}
64
Wednesday, February 15, 12

72. Auto-Reconfiguration: How It Works
 Cloud Foundry installs a BeanFactoryPostProcessor in your
application context during staging
• Adds jar to your application
• Modifies web.xml to load BFPP
• Adds context file to contextConfigLocation
• web-app context-param
• Spring MVC DispatcherServlet init-param
 Adds PostgreSQL and MySQL driver jars as needed for DataSource
reconfiguration
65
Wednesday, February 15, 12

73. The Environment
 Asking Questions
• You can introspect the environment variables (System.getenv(“VCAP_SERVICES”)),
or...
• import the CloudFoundry runtime API from Java!
• (much simpler)
<dependency>
<groupId>org.cloudfoundry</groupId>
<artifactId>cloudfoundry-runtime</artifactId>
<version>0.8.0</version>
</dependency>
66
Wednesday, February 15, 12

74. The Spring Developer’s Perspective: The Environment
@Controller
public class HomeController {
@RequestMapping(value = "/", method = RequestMethod.GET)
public String home(Map<String, Object> model) {
CloudEnvironment cloudEnvironment = new CloudEnvironment();
if (cloudEnvironment.getCloudApiUri() != null) {
model.put("host", cloudEnvironment.getInstanceInfo().getHost());
model.put("port", cloudEnvironment.getInstanceInfo().getPort());
}
return "home";
}
}
67
Wednesday, February 15, 12

75. Giving Your Application Clues with the env command
env <appname>
List application environment variables
env-add <appname> <variable[=]value>
Add an environment variable to an application
env-del <appname> <variable>
Delete an environment variable to an application
$ env-add html5expenses PAYMENT_GATEWAY=http://blah.com
is the same as..
$ export PAYMENT_GATEWAY=http://blah.com
68
Wednesday, February 15, 12

76. Introducing... the Cloud Namespace
 <cloud:> namespace for use in Spring app contexts
 Provides application-level control of bean service bindings
 Recommended for development of new cloud apps
 Use when:
• You have multiple services of the same type
• You have multiple connecting beans of the same type
• e.g. DataSource, MongoDBFactory
• You have custom bean configuration
• e.g. DataSource pool size, connection properties
69
Wednesday, February 15, 12

77. <cloud:data-source>
 Configures a DataSource bean
• Commons DBCP or Tomcat DataSource
 Basic attributes:
• id: defaults to service name
• service-name: only needed if you have multiple relational database services bound to
the app
<cloud:data-source id="dataSource"/>
<bean class="org.sf.orm.jpa.LocalContainerEntityManagerFactoryBean"
id="entityManagerFactory">
<property name="dataSource" ref="dataSource"/>
</bean>
70
Wednesday, February 15, 12

78. <cloud:data-source> Example
<cloud:data-source id="dataSource" service-name="mySQLSvc">
<cloud:pool pool-size="1-5"/>
<cloud:connection properties="charset=utf-8"/>
</cloud:data-source>
...
@Autowired
private DataSource dataSource ;
71
Wednesday, February 15, 12

79. <cloud:properties>
 Exposes basic information about services that can be consumed with
Spring’s property placeholder support
 Basic attributes:
• id: the name of the properties bean
 Properties automatically available when deploying Spring 3.1
applications
<cloud:properties id="cloudProperties" />
<context:property-placeholder properties-ref="cloudProperties"/>
@Autowired private Environment environment;
@Bean
public ComboPooledDataSource dataSource() throws Exception {
String user = this.environment.getProperty
("cloud.services.mysql.connection.username");
ComboPooledDataSource cpds = new ComboPooledDataSource();
cpds.setUser(user);
return cpds;
} 72
Wednesday, February 15, 12

80. Spring 3.1 Environment Abstraction
 Bean definitions for a specific environment (Profiles)
• e.g. development, testing, production
• Possibly different deployment environments
• Activate profiles by name
• spring.profiles.active system property
• Other means outside deployment unit
• “default” profile activates if no other profiles specified
 Custom resolution of placeholders
• Dependent on the actual environment
• Ordered property sources
 Requires Spring 3.1 (or later)
73
Wednesday, February 15, 12

81. Isolating Cloud Foundry Configuration
 Switch between local, testing and Cloud Foundry deployments with
Profiles
 “cloud” profile automatically activates on Cloud Foundry
• usage of the cloud namespace should occur within the cloud profile block
74
Wednesday, February 15, 12

82. Isolating Cloud Foundry Configuration
<bean class="org.sf.orm.jpa.LocalContainerEntityManagerFactoryBean">
<property name="dataSource" ref="dataSource"/>
</bean>
<beans profile="cloud">
<cloud:data-source id="dataSource" />
</beans>
<beans profile="default">
<bean class="org.a.commons.dbcp.BasicDataSource" id="dataSource">
<property name="url" value="jdbc:mysql://localhost/my_db" />
</bean>
</beans>
75
Wednesday, February 15, 12

83. Profile Support: How It Works
 Cloud Foundry installs a custom ApplicationContextInitializer in your
app during staging
• Modifies web.xml
• Adds to contextInitializerClasses context-param
 Adds “cloud” as an active profile
 Adds a PropertySource to the Environment
76
Wednesday, February 15, 12

84. Java Configuration
 Alternative to <cloud:*> namespace
• Spring Java Configuration
• Non-Spring apps
 Programmatic creation of service connection factories
• Using ServiceCreator and ServiceInfo classes
 Works well with CloudEnvironment
 Included in cloudfoundry-runtime lib
77
Wednesday, February 15, 12

85. Java Configuration with Profiles
@Configuration
@Profile(“local”)
public class LocalDataSourceConfiguration {
@Bean public javax.sql.DataSource dataSource() { ... }
}
@Configuration
@Profile(“cloud”)
public class CloudDataSourceConfiguration {
@Bean public javax.sql.DataSource dataSource() { ... }
}
78
Wednesday, February 15, 12

86. Using ServiceCreator
//Provides access to CF service and application env info
CloudEnvironment environment = new CloudEnvironment();
//Retrieve env info for bound service named "mysqlService"
RdbmsServiceInfo mysqlSvc =
environment.getServiceInfo("mysqlService", RdbmsServiceInfo.class);
//create a DataSource bound to the service
RdbmsServiceCreator dataSourceCreator = new RdbmsServiceCreator();
DataSource dataSource = dataSourceCreator.createService(mysqlSvc);
79
Wednesday, February 15, 12

87. Using ServiceInfo
//Provides access to CF service and application env info
CloudEnvironment environment = new CloudEnvironment();
//Retrieve env info for bound service named "mongoService"
MongoServiceInfo mongoSvc =
environment.getServiceInfo("mongoService", MongoServiceInfo.class);
//create a Mongo DB bound to the service
Mongo mongoDB = new Mongo(mongoSvc.getHost(), mongoSvc.getPort());
80
Wednesday, February 15, 12
