1. © 2014 IBM Corporation
IBM Integration Bus
Selecting the Right Transformation Option
Andrew Coleman
IBM Integration Bus Development
Co-Chair, W3C XML Query Working Group

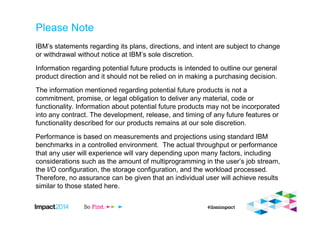

2. Please Note
IBM’s statements regarding its plans, directions, and intent are subject to change
or withdrawal without notice at IBM’s sole discretion.
Information regarding potential future products is intended to outline our general
product direction and it should not be relied on in making a purchasing decision.
The information mentioned regarding potential future products is not a
commitment, promise, or legal obligation to deliver any material, code or
functionality. Information about potential future products may not be incorporated
into any contract. The development, release, and timing of any future features or
functionality described for our products remains at our sole discretion.
Performance is based on measurements and projections using standard IBM
benchmarks in a controlled environment. The actual throughput or performance
that any user will experience will vary depending upon many factors, including
considerations such as the amount of multiprogramming in the user’s job stream,
the I/O configuration, the storage configuration, and the workload processed.
Therefore, no assurance can be given that an individual user will achieve results
similar to those stated here.

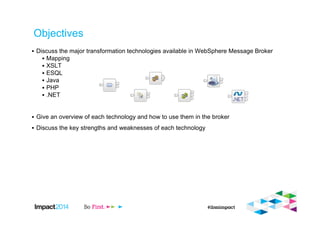

3. Objectives
▪ Discuss the major transformation technologies available in WebSphere Message Broker
▪ Mapping
▪ XSLT
▪ ESQL
▪ Java
▪ PHP
▪ .NET
▪ Give an overview of each technology and how to use them in the broker
▪ Discuss the key strengths and weaknesses of each technology

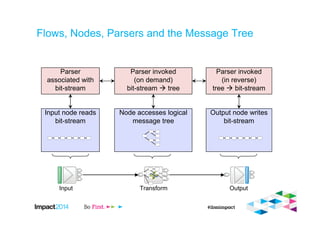

4. Flows, Nodes, Parsers and the Message Tree
Input Transform Output
Input node reads
bit-stream
Node accesses logical
message tree
Output node writes
bit-stream
Parser invoked
(on demand)
bit-stream tree
Parser invoked
(in reverse)
tree bit-stream
Parser
associated with
bit-stream

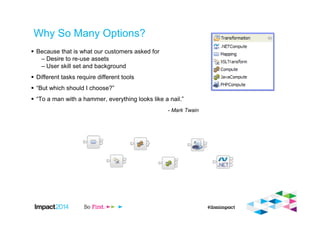

5. Why So Many Options?
Because that is what our customers asked for
– Desire to re-use assets
– User skill set and background
Different tasks require different tools
“But which should I choose?”
“To a man with a hammer, everything looks like a nail.”
- Mark Twain

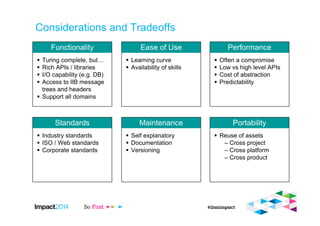

6. Considerations and Tradeoffs
Performance
Often a compromise
Low vs high level APIs
Cost of abstraction
Predictability
Functionality
Turing complete, but
Rich APIs / libraries
I/O capability (e.g. DB)
Access to IIB message
trees and headers
Support all domains
Ease of Use
Learning curve
Availability of skills
Portability
Reuse of assets
– Cross project
– Cross platform
– Cross product
Standards
Industry standards
ISO / Web standards
Corporate standards
Maintenance
Self explanatory
Documentation
Versioning

7. Graphical Mapping XSLT
ESQL Java PHP .NET
Transformation Nodes
General purpose programmable (Compute) Nodes

8. Mapping Node

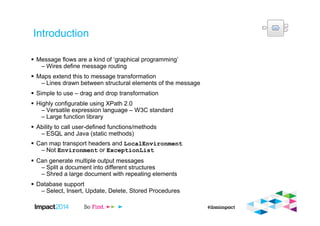

9. Introduction
Message flows are a kind of ‘graphical programming’
– Wires define message routing
Maps extend this to message transformation
– Lines drawn between structural elements of the message
Simple to use – drag and drop transformation
Highly configurable using XPath 2.0
– Versatile expression language – W3C standard
– Large function library
Ability to call user-defined functions/methods
– ESQL and Java (static methods)
Can map transport headers and LocalEnvironment
– Not Environment or ExceptionList
Can generate multiple output messages
– Split a document into different structures
– Shred a large document with repeating elements
Database support
– Select, Insert, Update, Delete, Stored Procedures

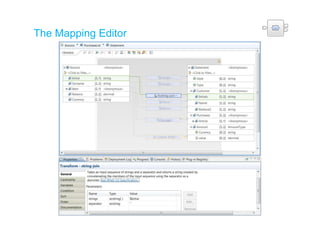

10. The Mapping Editor

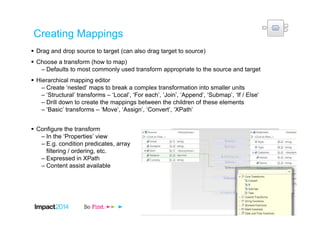

11. Creating Mappings
Drag and drop source to target (can also drag target to source)
Choose a transform (how to map)
– Defaults to most commonly used transform appropriate to the source and target
Hierarchical mapping editor
– Create ‘nested’ maps to break a complex transformation into smaller units
– ‘Structural’ transforms – ‘Local’, ‘For each’, ‘Join’, ‘Append’, ‘Submap’, ‘If / Else’
– Drill down to create the mappings between the children of these elements
– ‘Basic’ transforms – ‘Move’, ‘Assign’, ‘Convert’, ‘XPath’
Configure the transform
– In the ‘Properties’ view
– E.g. condition predicates, array
filtering / ordering, etc.
– Expressed in XPath
– Content assist available

12. Function Transforms
Target value can be computed by applying a function to one or more inputs
– Large function library inherited from XPath 2.0
– String manipulation: concatenation, sub-string, matching, find/replace, regex
– Numeric calculation: counting, summing, rounding, min/max
– Date/time processing: creating time stamps, extracting components of dates and times

13. Conditional Mapping
Individual transforms can be configured to occur only if a condition is met
– User enters an XPath 2.0 predicate
– Mapping is only performed if predicate evaluates to true
Can also create an if else condition for higher level control
– Each clause contains a nested map

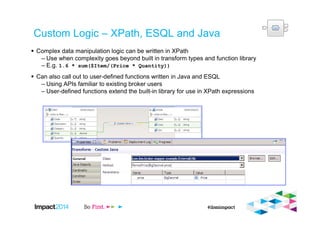

14. Custom Logic – XPath, ESQL and Java
Complex data manipulation logic can be written in XPath
– Use when complexity goes beyond built in transform types and function library
– E.g. 1.6 * sum($Item/(Price * Quantity))
Can also call out to user-defined functions written in Java and ESQL
– Using APIs familiar to existing broker users
– User-defined functions extend the built-in library for use in XPath expressions

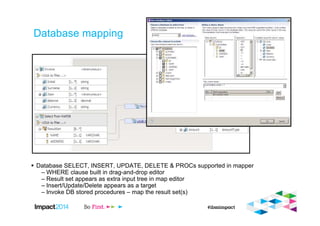

15. Database mapping
Database SELECT, INSERT, UPDATE, DELETE & PROCs supported in mapper
– WHERE clause built in drag-and-drop editor
– Result set appears as extra input tree in map editor
– Insert/Update/Delete appears as a target
– Invoke DB stored procedures – map the result set(s)

16. Mapping Node – at a glance
Performance
Compiles and runs in
dedicated engine
Benefits from JIT
technology
Functionality
Multi domain support
Integrates with RDBMS
Rich function library
– Extensible with Java
& ESQL
Ease of Use
Gentle learning curve
Graphical drag and drop
Minimal ‘programming’
skills
Portability
Graphical Data Mapper
used across many IBM
products
– Including DataPower
MDM Server, RAD
Standards
W3C XPath 2.0
expression language
Structures modelled in
XML Schema (XSD)
Maintenance
Visual representation
assists understanding

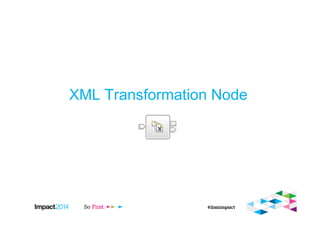

17. XML Transformation Node

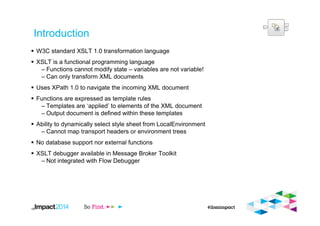

18. Introduction
W3C standard XSLT 1.0 transformation language
XSLT is a functional programming language
– Functions cannot modify state – variables are not variable!
– Can only transform XML documents
Uses XPath 1.0 to navigate the incoming XML document
Functions are expressed as template rules
– Templates are ‘applied’ to elements of the XML document
– Output document is defined within these templates
Ability to dynamically select style sheet from LocalEnvironment
– Cannot map transport headers or environment trees
No database support nor external functions
XSLT debugger available in Message Broker Toolkit
– Not integrated with Flow Debugger
18

19. XPath 1.0 Overview
XPath is a language for addressing parts of a document
Operates on the logical tree
Location Paths
– Used to navigate the tree
– Series of location steps separated by ‘/’
– Each step selects a set of nodes relative to the previous step
Expressions
– Function library
– Numeric and boolean operators
– Variable references
W3C recommendation http://www.w3.org/TR/xpath
Used by other Message Broker nodes, not just XSLT

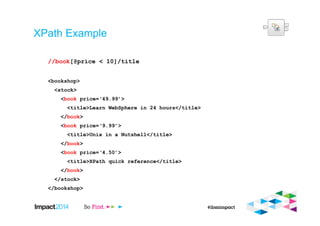

20. XPath Example
//book[@price < 10]/title
<bookshop>
<stock>
<book price=‘49.99’>
<title>Learn WebSphere in 24 hours</title>
</book>
<book price=‘9.99’>
<title>Unix in a Nutshell</title>
</book>
<book price=‘4.50’>
<title>XPath quick reference</title>
</book>
</stock>
</bookshop>

21. XPath Example
//book[@price < 10]/title
<bookshop>
<stock>
<book price=‘49.99’>
<title>Learn WebSphere in 24 hours</title>
</book>
<book price=‘9.99’>
<title>Unix in a Nutshell</title>
</book>
<book price=‘4.50’>
<title>XPath quick reference</title>
</book>
</stock>
</bookshop>

22. XPath Example
//book[@price < 10]/title
<bookshop>
<stock>
<book price=‘49.99’>
<title>Learn WebSphere in 24 hours</title>
</book>
<book price=‘9.99’>
<title>Unix in a Nutshell</title>
</book>
<book price=‘4.50’>
<title>XPath quick reference</title>
</book>
</stock>
</bookshop>

23. XPath Example
//book[@price < 10]/title
<bookshop>
<stock>
<book price=‘49.99’>
<title>Learn WebSphere in 24 hours</title>
</book>
<book price=‘9.99’>
<title>Unix in a Nutshell</title>
</book>
<book price=‘4.50’>
<title>XPath quick reference</title>
</book>
</stock>
</bookshop>

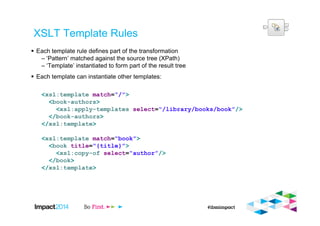

24. XSLT Template Rules
Each template rule defines part of the transformation
– ‘Pattern’ matched against the source tree (XPath)
– ‘Template’ instantiated to form part of the result tree
Each template can instantiate other templates:
<xsl:template match=“/”>
<book-authors>
<xsl:apply-templates select=“/library/books/book”/>
</book-authors>
</xsl:template>
<xsl:template match=“book”>
<book title=“{title}”>
<xsl:copy-of select=“author”/>
</book>
</xsl:template>

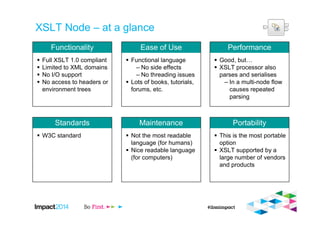

25. XSLT Node – at a glance
Performance
Good, but
XSLT processor also
parses and serialises
– In a multi-node flow
causes repeated
parsing
Functionality
Full XSLT 1.0 compliant
Limited to XML domains
No I/O support
No access to headers or
environment trees
Ease of Use
Functional language
– No side effects
– No threading issues
Lots of books, tutorials,
forums, etc.
Portability
This is the most portable
option
XSLT supported by a
large number of vendors
and products
Standards
W3C standard
Maintenance
Not the most readable
language (for humans)
Nice readable language
(for computers)

26. Compute Node

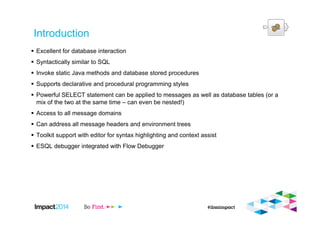

27. Introduction
Excellent for database interaction
Syntactically similar to SQL
Invoke static Java methods and database stored procedures
Supports declarative and procedural programming styles
Powerful SELECT statement can be applied to messages as well as database tables (or a
mix of the two at the same time – can even be nested!)
Access to all message domains
Can address all message headers and environment trees
Toolkit support with editor for syntax highlighting and context assist
ESQL debugger integrated with Flow Debugger

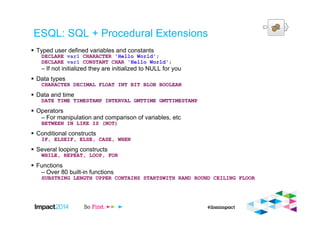

28. ESQL: SQL + Procedural Extensions
Typed user defined variables and constants
DECLARE var1 CHARACTER 'Hello World';
DECLARE var1 CONSTANT CHAR 'Hello World';
– If not initialized they are initialized to NULL for you
Data types
CHARACTER DECIMAL FLOAT INT BIT BLOB BOOLEAN
Data and time
DATE TIME TIMESTAMP INTERVAL GMTTIME GMTTIMESTAMP
Operators
– For manipulation and comparison of variables, etc
BETWEEN IN LIKE IS (NOT)
Conditional constructs
IF, ELSEIF, ELSE, CASE, WHEN
Several looping constructs
WHILE, REPEAT, LOOP, FOR
Functions
– Over 80 built-in functions
SUBSTRING LENGTH UPPER CONTAINS STARTSWITH RAND ROUND CEILING FLOOR

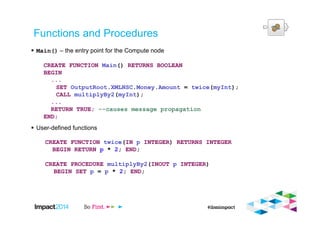

29. Functions and Procedures
Main() – the entry point for the Compute node
CREATE FUNCTION Main() RETURNS BOOLEAN
BEGIN
...
SET OutputRoot.XMLNSC.Money.Amount = twice(myInt);
CALL multiplyBy2(myInt);
...
RETURN TRUE; --causes message propagation
END;
User-defined functions
CREATE FUNCTION twice(IN p INTEGER) RETURNS INTEGER
BEGIN RETURN p * 2; END;
CREATE PROCEDURE multiplyBy2(INOUT p INTEGER)
BEGIN SET p = p * 2; END;

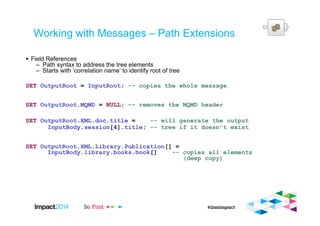

30. Working with Messages – Path Extensions
Field References
– Path syntax to address the tree elements
– Starts with ‘correlation name’ to identify root of tree
SET OutputRoot = InputRoot; -- copies the whole message
SET OutputRoot.MQMD = NULL; -- removes the MQMD header
SET OutputRoot.XML.doc.title = -- will generate the output
InputBody.session[4].title; -- tree if it doesn’t exist
SET OutputRoot.XML.Library.Publication[] =
InputBody.library.books.book[] -- copies all elements
(deep copy)

31. Transformation using SELECT
The SELECT implicitly loops over the repeating ‘book’ element in the input message
– A ‘Publication’ element is created in the output for each one
The children elements of ‘book’ are mapped
– Element names are changed (‘title’ -> ‘BookTitle’, etc)
– Values are copied (deep copy)
– Arrays and structures are built (author[] -> Authors.Name[])
– Note that nested repeating structures can be transformed with nested SELECTS
SET OutputRoot.XML.Library.Publication[] =
SELECT BOOK.title AS BookTitle,
BOOK.author[] AS Authors.Name[],
BOOK.isbn AS ISBN,
BOOK.price AS Price
FROM InputBody.library.books.book[] AS BOOK;

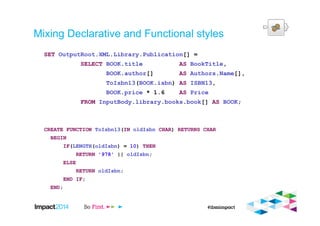

32. Mixing Declarative and Functional styles
SET OutputRoot.XML.Library.Publication[] =
SELECT BOOK.title AS BookTitle,
BOOK.author[] AS Authors.Name[],
ToIsbn13(BOOK.isbn) AS ISBN13,
BOOK.price * 1.6 AS Price
FROM InputBody.library.books.book[] AS BOOK;
CREATE FUNCTION ToIsbn13(IN oldIsbn CHAR) RETURNS CHAR
BEGIN
IF(LENGTH(oldIsbn) = 10) THEN
RETURN '978' || oldIsbn;
ELSE
RETURN oldIsbn;
END IF;
END;

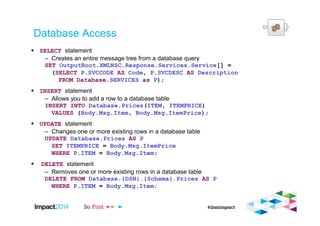

33. Database Access
SELECT statement
– Creates an entire message tree from a database query
SET OutputRoot.XMLNSC.Response.Services.Service[] =
(SELECT P.SVCCODE AS Code, P.SVCDESC AS Description
FROM Database.SERVICES as P);
INSERT statement
– Allows you to add a row to a database table
INSERT INTO Database.Prices(ITEM, ITEMPRICE)
VALUES (Body.Msg.Item, Body.Msg.ItemPrice);
UPDATE statement
– Changes one or more existing rows in a database table
UPDATE Database.Prices AS P
SET ITEMPRICE = Body.Msg.ItemPrice
WHERE P.ITEM = Body.Msg.Item;
DELETE statement
– Removes one or more existing rows in a database table
DELETE FROM Database.{DSN}.{Schema}.Prices AS P
WHERE P.ITEM = Body.Msg.Item;

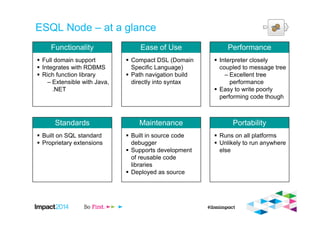

34. ESQL Node – at a glance
Performance
Interpreter closely
coupled to message tree
– Excellent tree
performance
Easy to write poorly
performing code though
Functionality
Full domain support
Integrates with RDBMS
Rich function library
– Extensible with Java,
.NET
Ease of Use
Compact DSL (Domain
Specific Language)
Path navigation build
directly into syntax
Portability
Runs on all platforms
Unlikely to run anywhere
else
Standards
Built on SQL standard
Proprietary extensions
Maintenance
Built in source code
debugger
Supports development
of reusable code
libraries
Deployed as source

35. Java Compute Node

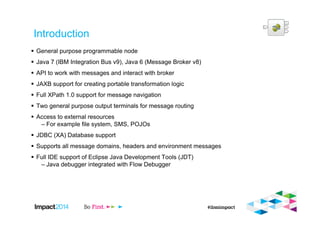

36. Introduction
General purpose programmable node
Java 7 (IBM Integration Bus v9), Java 6 (Message Broker v8)
API to work with messages and interact with broker
JAXB support for creating portable transformation logic
Full XPath 1.0 support for message navigation
Two general purpose output terminals for message routing
Access to external resources
– For example file system, SMS, POJOs
JDBC (XA) Database support
Supports all message domains, headers and environment messages
Full IDE support of Eclipse Java Development Tools (JDT)
– Java debugger integrated with Flow Debugger

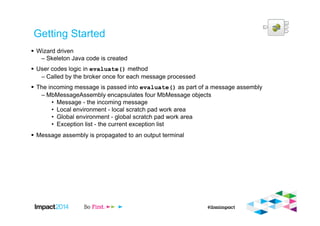

37. Getting Started
Wizard driven
– Skeleton Java code is created
User codes logic in evaluate() method
– Called by the broker once for each message processed
The incoming message is passed into evaluate() as part of a message assembly
– MbMessageAssembly encapsulates four MbMessage objects
• Message - the incoming message
• Local environment - local scratch pad work area
• Global environment - global scratch pad work area
• Exception list - the current exception list
Message assembly is propagated to an output terminal

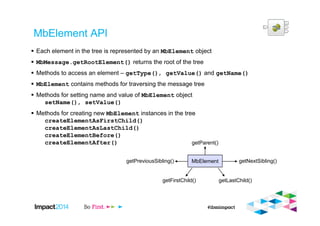

38. MbElement API
Each element in the tree is represented by an MbElement object
MbMessage.getRootElement() returns the root of the tree
Methods to access an element – getType(), getValue() and getName()
MbElement contains methods for traversing the message tree
Methods for setting name and value of MbElement object
setName(), setValue()
Methods for creating new MbElement instances in the tree
createElementAsFirstChild()
createElementAsLastChild()
createElementBefore()
createElementAfter()
MbElement
getParent()
getPreviousSibling() getNextSibling()
getFirstChild() getLastChild()

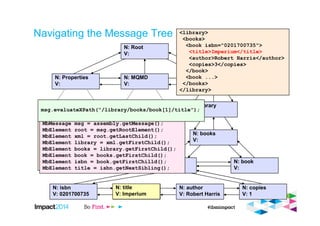

39. N: XMLNSC
V:
N: Root
V:
N: Properties
V:
N: MQMD
V:
N: library
V:
N: books
V:
N: book
V:
N: book
V:
N: isbn
V: 0201700735
N: title
V: Imperium
N: author
V: Robert Harris
N: copies
V: 1
<library>
<books>
<book isbn="0201700735">
<title>Imperium</title>
<author>Robert Harris</author>
<copies>3</copies>
</book>
<book ...>
</books>
</library>
<library>
<books>
<book isbn="0201700735">
<title>Imperium</title>
<author>Robert Harris</author>
<copies>3</copies>
</book>
<book ...>
</books>
</library>
N: title
V: Imperium
MbMessage msg = assembly.getMessage();
MbElement root = msg.getRootElement();
MbElement xml = root.getLastChild();
MbElement library = xml.getFirstChild();
MbElement books = library.getFirstChild();
MbElement book = books.getFirstChild();
MbElement isbn = book.getFirstChilld();
MbElement title = isbn.getNextSibling();
msg.evaluateXPath(“/library/books/book[1]/title”);
Navigating the Message Tree

40. JAXB
Java Architecture for XML Binding
Allows Java developers to write transformation code using a Java object representation of
the data
– JavaBean like representation – getter and setter methods are used to traverse, modify
and build messages
– Transformation logic can be coded without using MbElement API
• Useful for writing code for use across multiple products, or migrating existing code
into WMB
– Full generation wizard and content assist support within WMB toolkit
JAXB comprises several components
– Schema compiler – generates a set of Java classes from an XSD
– Schema generator – generates an XSD from Java classes
– Binding runtime framework – for converting data between the two representations
• Unmarsalling – converts data in the WMB logical tree into a set of Java objects
• Marshalling – converts the Java objects back into a WMB tree

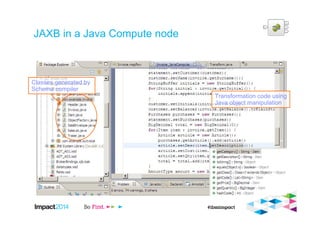

41. JAXB in a Java Compute node
Classes generated by
Schema compiler
Transformation code using
Java object manipulation

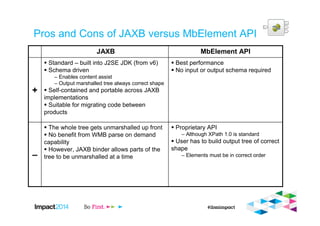

42. Pros and Cons of JAXB versus MbElement API
Proprietary API
– Although XPath 1.0 is standard
User has to build output tree of correct
shape
– Elements must be in correct order
The whole tree gets unmarshalled up front
No benefit from WMB parse on demand
capability
However, JAXB binder allows parts of the
tree to be unmarshalled at a time–
Best performance
No input or output schema required
Standard – built into J2SE JDK (from v6)
Schema driven
– Enables content assist
– Output marshalled tree always correct shape
Self-contained and portable across JAXB
implementations
Suitable for migrating code between
products
+
MbElement APIJAXB

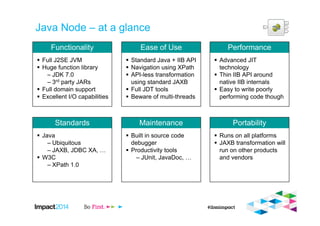

43. Java Node – at a glance
Performance
Advanced JIT
technology
Thin IIB API around
native IIB internals
Easy to write poorly
performing code though
Functionality
Full J2SE JVM
Huge function library
– JDK 7.0
– 3rd party JARs
Full domain support
Excellent I/O capabilities
Ease of Use
Standard Java + IIB API
Navigation using XPath
API-less transformation
using standard JAXB
Full JDT tools
Beware of multi-threads
Portability
Runs on all platforms
JAXB transformation will
run on other products
and vendors
Standards
Java
– Ubiquitous
– JAXB, JDBC XA,
W3C
– XPath 1.0
Maintenance
Built in source code
debugger
Productivity tools
– JUnit, JavaDoc,

44. PHP Compute Node

45. PHP
PHP is a dynamic scripting language used to implement web sites
Easy to use – gentle learning curve
Efficient syntax and library have evolved in open source
– Community driven to get more done in less time
– Impressive results with little code
– Extensive library support
– Language suited to rapid incremental prototyping
http://www.php.net
More than 3 million developers worldwide
Predicted to grow to 5.5M developers
– 60% corporate by 2013
4th most popular language (after Java/C/VB)
Customer demand for scripting support in the broker
– Allowing rapid development of message processing logic

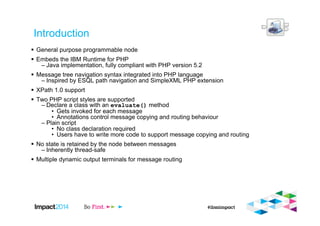

46. Introduction
General purpose programmable node
Embeds the IBM Runtime for PHP
– Java implementation, fully compliant with PHP version 5.2
Message tree navigation syntax integrated into PHP language
– Inspired by ESQL path navigation and SimpleXML PHP extension
XPath 1.0 support
Two PHP script styles are supported
– Declare a class with an evaluate() method
• Gets invoked for each message
• Annotations control message copying and routing behaviour
– Plain script
• No class declaration required
• Users have to write more code to support message copying and routing
No state is retained by the node between messages
– Inherently thread-safe
Multiple dynamic output terminals for message routing

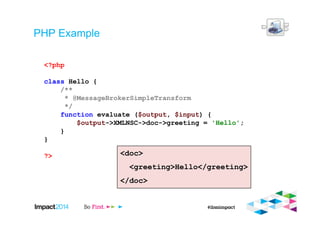

47. PHP Example
<?php
class Hello {
/**
* @MessageBrokerSimpleTransform
*/
function evaluate ($output, $input) {
$output->XMLNSC->doc->greeting = 'Hello';
}
}
?> <doc>
<greeting>Hello</greeting>
</doc>

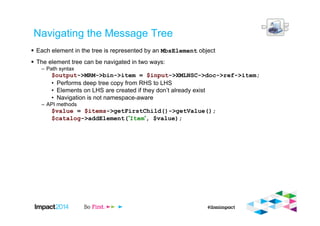

48. Navigating the Message Tree
Each element in the tree is represented by an MbsElement object
The element tree can be navigated in two ways:
– Path syntax
$output->MRM->bin->item = $input->XMLNSC->doc->ref->item;
• Performs deep tree copy from RHS to LHS
• Elements on LHS are created if they don’t already exist
• Navigation is not namespace-aware
– API methods
$value = $items->getFirstChild()->getValue();
$catalog->addElement('Item', $value);

49. Navigating the Message Tree
N: Root
V:
N: Properties
V:
N: MQMD
V:
N: XMLNSC
V:
N: document
V:
N: chapter
V: Some text.
N: chapter
V: More text.
N: title
V: Introduction
<document>
<chapter title=’Introduction’>
Some text.
</chapter>
<chapter title=’Beginnings’>
More text.
</chapter>
</document> N: title
V: Beginnings
$xml = $input->getLastChild();
$doc = $xml->getFirstChild();
$ch1 = $doc->getFirstChild();
$ch2 = $ch1->getNextSibling()
$attr = $ch2->getFirstChild();
$xml = $input->getChild(‘XMLNSC’);
$doc = $xml->getChild(‘document’);
$ch2 = $doc->getChild(‘chapter’, 1);
$attr = $ch2->getAttribute(‘title’);
$attr = $input->XMLNSC->document->chapter[1][‘title’]
N: title
V: Beginnings
<document>
<chapter title=’Introduction’>
Some text.
</chapter>
<chapter title=’Beginnings’>
More text.
</chapter>
</document>

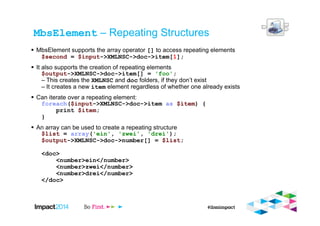

50. MbsElement – Repeating Structures
MbsElement supports the array operator [] to access repeating elements
$second = $input->XMLNSC->doc->item[1];
It also supports the creation of repeating elements
$output->XMLNSC->doc->item[] = 'foo';
– This creates the XMLNSC and doc folders, if they don’t exist
– It creates a new item element regardless of whether one already exists
Can iterate over a repeating element:
foreach($input->XMLNSC->doc->item as $item) {
print $item;
}
An array can be used to create a repeating structure
$list = array('ein', 'zwei', 'drei');
$output->XMLNSC->doc->number[] = $list;
<doc>
<number>ein</number>
<number>zwei</number>
<number>drei</number>
</doc>

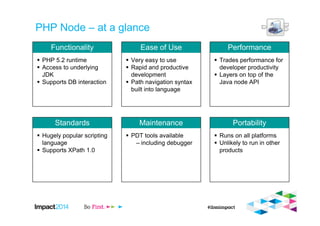

51. PHP Node – at a glance
Performance
Trades performance for
developer productivity
Layers on top of the
Java node API
Functionality
PHP 5.2 runtime
Access to underlying
JDK
Supports DB interaction
Ease of Use
Very easy to use
Rapid and productive
development
Path navigation syntax
built into language
Portability
Runs on all platforms
Unlikely to run in other
products
Standards
Hugely popular scripting
language
Supports XPath 1.0
Maintenance
PDT tools available
– including debugger

52. .NET Compute Node

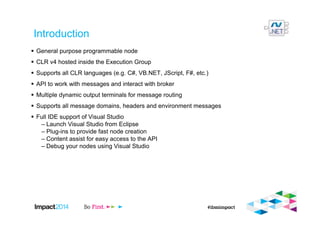

53. Introduction
General purpose programmable node
CLR v4 hosted inside the Execution Group
Supports all CLR languages (e.g. C#, VB.NET, JScript, F#, etc.)
API to work with messages and interact with broker
Multiple dynamic output terminals for message routing
Supports all message domains, headers and environment messages
Full IDE support of Visual Studio
– Launch Visual Studio from Eclipse
– Plug-ins to provide fast node creation
– Content assist for easy access to the API
– Debug your nodes using Visual Studio

54. N: XMLNSC
V:
N: Root
V:
N: Properties
V:
N: MQMD
V:
N: library
V:
N: books
V:
N: book
V:
N: book
V:
N: isbn
V: 0201700735
N: title
V: Imperium
N: author
V: Robert Harris
N: copies
V: 1
<library>
<books>
<book isbn="0201700735">
<title>Imperium</title>
<author>Robert Harris</author>
<copies>3</copies>
</book>
<book ...>
</books>
</library>
<library>
<books>
<book isbn="0201700735">
<title>Imperium</title>
<author>Robert Harris</author>
<copies>3</copies>
</book>
<book ...>
</books>
</library>
N: title
V: Imperium
NBElement title =
root.LastChild.LastChild.FirstChild.FirstChild.FirstChild.NextSibling
NBElement title = root[“library”][“books”][“book”][“title”];
Navigating the Message Tree

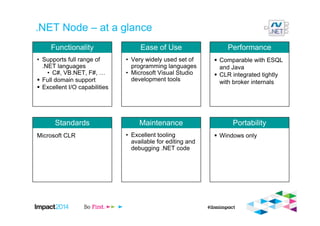

55. .NET Node – at a glance
Performance
Comparable with ESQL
and Java
CLR integrated tightly
with broker internals
Functionality
• Supports full range of
.NET languages
• C#, VB.NET, F#,
Full domain support
Excellent I/O capabilities
Ease of Use
• Very widely used set of
programming languages
• Microsoft Visual Studio
development tools
Portability
Windows only
Standards
Microsoft CLR
Maintenance
• Excellent tooling
available for editing and
debugging .NET code

56. Questions?
As a reminder, please fill out a session evaluation

57. IBM Integration Bus This Week – Selected Sessions
Monday
– 2.30-3.30 Palazzo H – Integration Featured Session
– 2.30-5.00 Murano 3305 – Healthcare Integration Lab
– 4.00-5.00 Palazzo H – What's New in IIB
– 5.15-6.15 Palazzo H – Introduction to IIB
Tuesday
– 10.30-11.30 Palazzo H – Cloud Integration Options
– 10.30-11.30 San Polo 3502 – Meet The Experts
– 1.00-2.00 Palazzo H – WESB Conversion
– 1.00-2.00 Marcello 4403 – IIB Retail Integration Pack
– 1.00-3.15 Murano 3303 – IIB V9 Lab
– 2.15-3.15 Palazzo H – Designing for Performance
– 3.45-4.45 Palazzo H – Mobile Integration
– 5.00-6.00 Palazzo H – DFDL Introduction
– 5.00-6.00 Marcello 4402 – Manufacturing in IIB
57

58. IBM Integration Bus This Week – Selected Sessions
Wednesday
– 10.30-11.30 Palazzo H – .NET Integration
– 1.00-2.00 Palazzo H – Effective Application Development
– 1.00-2.00 Marcello 4403 – IIB Healthcare Integration Pack
– 1.00-2.00 San Polo 3503 – Meet The Experts (Repeat)
– 2.15-3.15 Palazzo H – Effective Administration
– 3.45-4.45 Palazzo H – Applications, Libraries, APIs
– 3.45-6.00 Murano 3303 – IIB Open Beta Lab
– 5.00-6.00 Palazzo H – Transformation Options in IIB
Thursday
– 9.00-10.00 Palazzo H – Predictive Analytics
– 10.30-11.30 Palazzo H – BPM Integration
– 1.00-2.00 Palazzo H – Modelling Industry Formats
– 2.15-3.15 Palazzo H – What's New in IIB (Repeat)
58

59. We Value Your Feedback
Don’t forget to submit your Impact session and speaker feedback! Your feedback is very
important to us – we use it to continually improve the conference.
Use the Conference Mobile App or the online Agenda Builder to quickly submit your
survey
– Navigate to “Surveys” to see a view of surveys for sessions you’ve attended
59

60. Legal Disclaimer
• © IBM Corporation 2014. All Rights Reserved.
• The information contained in this publication is provided for informational purposes only. While efforts were made to verify the completeness and accuracy of the information contained
in this publication, it is provided AS IS without warranty of any kind, express or implied. In addition, this information is based on IBM’s current product plans and strategy, which are
subject to change by IBM without notice. IBM shall not be responsible for any damages arising out of the use of, or otherwise related to, this publication or any other materials. Nothing
contained in this publication is intended to, nor shall have the effect of, creating any warranties or representations from IBM or its suppliers or licensors, or altering the terms and
conditions of the applicable license agreement governing the use of IBM software.
• References in this presentation to IBM products, programs, or services do not imply that they will be available in all countries in which IBM operates. Product release dates and/or
capabilities referenced in this presentation may change at any time at IBM’s sole discretion based on market opportunities or other factors, and are not intended to be a commitment to
future product or feature availability in any way. Nothing contained in these materials is intended to, nor shall have the effect of, stating or implying that any activities undertaken by
you will result in any specific sales, revenue growth or other results.
• If the text contains performance statistics or references to benchmarks, insert the following language; otherwise delete:
Performance is based on measurements and projections using standard IBM benchmarks in a controlled environment. The actual throughput or performance that any user will
experience will vary depending upon many factors, including considerations such as the amount of multiprogramming in the user's job stream, the I/O configuration, the storage
configuration, and the workload processed. Therefore, no assurance can be given that an individual user will achieve results similar to those stated here.
• If the text includes any customer examples, please confirm we have prior written approval from such customer and insert the following language; otherwise delete:
All customer examples described are presented as illustrations of how those customers have used IBM products and the results they may have achieved. Actual environmental costs
and performance characteristics may vary by customer.
• Please review text for proper trademark attribution of IBM products. At first use, each product name must be the full name and include appropriate trademark symbols (e.g., IBM
Lotus® Sametime® Unyte™). Subsequent references can drop “IBM” but should include the proper branding (e.g., Lotus Sametime Gateway, or WebSphere Application Server).
Please refer to http://www.ibm.com/legal/copytrade.shtml for guidance on which trademarks require the ® or ™ symbol. Do not use abbreviations for IBM product names in your
presentation. All product names must be used as adjectives rather than nouns. Please list all of the trademarks that you use in your presentation as follows; delete any not included in
your presentation. IBM, the IBM logo, Lotus, Lotus Notes, Notes, Domino, Quickr, Sametime, WebSphere, UC2, PartnerWorld and Lotusphere are trademarks of International
Business Machines Corporation in the United States, other countries, or both. Unyte is a trademark of WebDialogs, Inc., in the United States, other countries, or both.
• If you reference Adobe® in the text, please mark the first use and include the following; otherwise delete:
Adobe, the Adobe logo, PostScript, and the PostScript logo are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States, and/or other countries.
• If you reference Java™ in the text, please mark the first use and include the following; otherwise delete:
Java and all Java-based trademarks are trademarks of Sun Microsystems, Inc. in the United States, other countries, or both.
• If you reference Microsoft® and/or Windows® in the text, please mark the first use and include the following, as applicable; otherwise delete:
Microsoft and Windows are trademarks of Microsoft Corporation in the United States, other countries, or both.
• If you reference Intel® and/or any of the following Intel products in the text, please mark the first use and include those that you use as follows; otherwise delete:
Intel, Intel Centrino, Celeron, Intel Xeon, Intel SpeedStep, Itanium, and Pentium are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and
other countries.
• If you reference UNIX® in the text, please mark the first use and include the following; otherwise delete:
UNIX is a registered trademark of The Open Group in the United States and other countries.
• If you reference Linux® in your presentation, please mark the first use and include the following; otherwise delete:
Linux is a registered trademark of Linus Torvalds in the United States, other countries, or both. Other company, product, or service names may be trademarks or service marks of
others.
• If the text/graphics include screenshots, no actual IBM employee names may be used (even your own), if your screenshots include fictitious company names (e.g., Renovations, Zeta
Bank, Acme) please update and insert the following; otherwise delete: All references to [insert fictitious company name] refer to a fictitious company and are used for illustration
purposes only.
