Megaport: enabled
AWS Direct Connect
David McCullough - Cloud Strategy Director
Misha Cetrone - Head of Solutions

2. 2
Megaport is the reason cloud interconnection scales
Megaport is the leading Software Defined Network (SDN) connecting
data centres to cloud, and cloud to enterprise
There are 4000+ enterprise
data centres
160 + Megaported
data centres and growing to
connect Enterprises
Megaport provides 84 Global Cloud
on-ramp locations and growing !!
Megaport SDN

3. Why AWS Direct Connect?
○ Reduces your bandwidth costs
○ Consistent network performance
○ Compatible with all AWS services
○ Build hybrid applications
○ Private connectivity to your Amazon VPC
○ Elastic
○ Simple
More Info: https://aws.amazon.com/directconnect/

4. Why Megaport enabled AWS Direct Connect?
○ No long-term contracts: flexible billing terms and pay as you go
consumption model
○ Megaport absorbs the hourly port charge for Direct Connect*
○ SDN (Software Defined Networking) - customer managed
● Portal
● API
○ Elasticity - Megaport allows for dynamically allocating bandwidth
(i.e. “dialing” up/down as needed)
○ Data center and carrier/NSP agnostic
○ Hybrid cloud connectivity - one port - multiple VXCs
*see https://aws.amazon.com/directconnect/pricing/

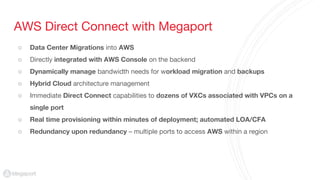

5. AWS Direct Connect with Megaport
○ Data Center Migrations into AWS
○ Directly integrated with AWS Console on the backend
○ Dynamically manage bandwidth needs for workload migration and backups
○ Hybrid Cloud architecture management
○ Immediate Direct Connect capabilities to dozens of VXCs associated with VPCs on a
single port
○ Real time provisioning within minutes of deployment; automated LOA/CFA
○ Redundancy upon redundancy – multiple ports to access AWS within a region

6. The Fabric
Megaport is a software service
controlling a global hardware
infrastructure.
It supplies elastic bandwidth for Internet
Peering and virtual connections to users
and services. These can be controlled via
an API stack, mobile app, or web portal to
enable automation and service flexibility.

7. SEATTLE
SAN FRANCISCO
LOS ANGELES
DALLAS
NEW YORK
TORONTO
ASHBURN
CHICAGO
HONG KONG
SINGAPORE
PERTH
BRISBANE
SYDNEY
MELBOURNE
AUCKLAND
LAS VEGAS
PORTLAND
RESTON
SAN JOSE,
SANTA CLARA
NEWARK
View all current locations at megaport.com/locations
DUBLIN
LONDON
MOSCOW
KIEV
DUSSELDORF,
BERLIN,
NURNBERG,
FRANKFURT,
MUNICH,
HAMBURG
SOFIA,
KAPITAN
ANDREEVO
THESSALONIKI
BUCHAREST
SKOPJE
VIENNA
LUXEMBOURG
STOCKHOLMAMSTERDAM

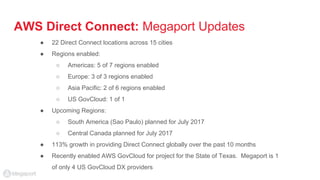

8. AWS Direct Connect: Megaport Updates
● 22 Direct Connect locations across 15 cities
● Regions enabled:
○ Americas: 5 of 7 regions enabled
○ Europe: 3 of 3 regions enabled
○ Asia Pacific: 2 of 6 regions enabled
○ US GovCloud: 1 of 1
● Upcoming Regions:
○ South America (Sao Paulo) planned for July 2017
○ Central Canada planned for July 2017
● 113% growth in providing Direct Connect globally over the past 10 months
● Recently enabled AWS GovCloud for project for the State of Texas. Megaport is 1
of only 4 US GovCloud DX providers

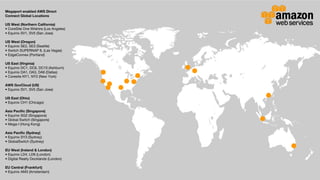

9. Megaport enabled AWS Direct
Connect Global Locations
US West (Northern California)
• CoreSite One Wilshire (Los Angeles)
• Equinix SV1, SV5 (San Jose)
US West (Oregon)
• Equinix SE2, SE3 (Seattle)
• Switch SUPERNAP 8, (Las Vegas)
• EdgeConnex (Portland)
US East (Virginia)
• Equinix DC1, DC6, DC10 (Ashburn)
• Equinix DA1, DA3, DA6 (Dallas)
• Coresite NY1, NY2 (New York)
AWS GovCloud (US)
• Equinix SV1, SV5 (San Jose)
US East (Ohio)
• Equinix CH1 (Chicago)
Asia Pacific (Singapore)
• Equinix SG2 (Singapore)
• Global Switch (Singapore)
• Mega-I (Hong Kong)
Asia Pacific (Sydney)
• Equinix SY3 (Sydney)
• GlobalSwitch (Sydney)
EU West (Ireland & London)
• Equinix LD4, LD6 (London)
• Digital Realty Docklands (London)
EU Central (Frankfurt)
• Equinix AM3 (Amsterdam)

10. AWS Console (Getting Started with AWS Direct Connect)
To use AWS Direct Connect, you simply:
● Decide on an AWS Direct Connect location, how many
connections you would like to use, and the port size. Multiple
ports can be used simultaneously for increased bandwidth or
redundancy.
● Use the AWS Management Console to create your connection
request(s).
● If you are connecting from a remote location, you can work with
an APN Partner supporting Direct Connect or a network carrier
of your choice.
● Once your request is confirmed, you will receive an email which
contains a Letter of Authorization – Connecting Facility
Assignment (LOA-CFA).
● Provide the LOA-CFA to an APN Partner or your service provider
who will establish the connection on your behalf.
● Once the connection is up, use the AWS Management
Console to configure one or more virtual interfaces to establish
network connectivity.
From https://aws.amazon.com/directconnect/getting-started/
Megaportal
AWS Direct Connect enabled by Megaport involves fewer steps,
automates the order process allowing for provisioning of Direct Connect
within minutes, and does not require the need to use a traditional network
service provider.
● Use the Megaportal to design and deploy Megaports and
VXCs to AWS Direct Connect locations
● Once your request is confirmed, you will receive an email which
contains a Letter of Authorization – Connecting Facility
Assignment (LOA-CFA).
● Once the connection is up, use the AWS Management
Console to configure one or more virtual interfaces to establish
network connectivity.

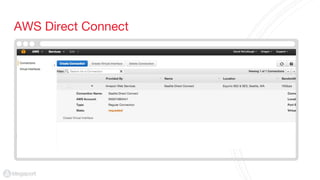

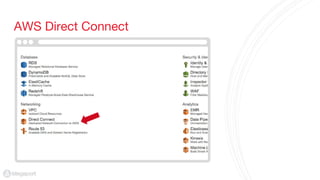

AWS Direct Connect: AWS Console & Megaportal

11. AWS Direct Connect

12. AWS Direct Connect

13. Public vs Private
Public VIF
● Public IP addresses required
● Private ASN permitted
● Customer must provide prefix list
● Manual approval process (24-48hr)
Private VIF
● Private IP addressing permitted
● Private ASN permitted
● No prefix list required
● Instant deployment

14. Anatomy of a VPC and VGW
○ A VPC is a collection of IP subnets containing EC2 instances
○ EC2 is the building block supporting a number of AWS services
● RDS, Workspaces, ElastiCache, Redshift
○ Two main gateway types in VPC
● IGW - internet access
● VGW - Direct Connect & VPN
○ VGW is a virtual router that facilitates connectivity between the VPC and
customer network
○ A VGW can terminate more than one Direct Connect for redundancy

15. Megaport VXC (Virtual Cross Connect)
○ A Megaport VXC (layer 2 vlan) is a connection from a port in the customer DC direct to a Virtual
Gateway in AWS
○ Using a VXC skips the AWS hourly port-hour fees for the end customer - Megaport absorbs up to
$1620/mo (10G DX port) and does not pass this along to the customer
○ Customers are charged for egress data direct by AWS at more favorable rates (i.e. approximately
$0.030 per GB in the US) per https://aws.amazon.com/directconnect/pricing/
○ VXC minimum term in M2M
○ VXC has flat rate pricing: $200/mo (in zone) or $400/mo (across zone) with up to 10 Gbps capacity
per VXC
○ VXC and VPC have 1:1 relationship

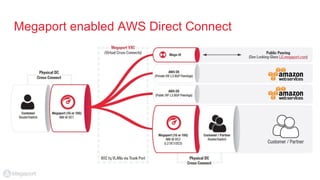

16. Megaport enabled AWS Direct Connect

17. AWS Direct Connect: Redundant
Architecture
17

18. Megaport enabled AWS Direct Connect
18

19. Customer Tools
Megaport tools include web and mobile apps, plus an open API.
○ Plan and design interconnections
○ Instantaneous service provisioning
○ Rapid change management
○ Reporting tools for
management
○ DevOps support for additional
business applications

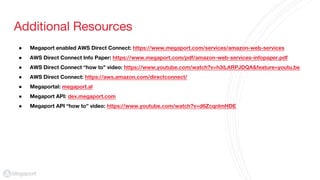

20. Additional Resources
● Megaport enabled AWS Direct Connect: https://www.megaport.com/services/amazon-web-services
● AWS Direct Connect Info Paper: https://www.megaport.com/pdf/amazon-web-services-infopaper.pdf
● AWS Direct Connect “how to” video: https://www.youtube.com/watch?v=h3iLARPJDQA&feature=youtu.be
● AWS Direct Connect: https://aws.amazon.com/directconnect/
● Megaportal: megaport.al
● Megaport API: dev.megaport.com
● Megaport API “how to” video: https://www.youtube.com/watch?v=d6ZcqnlmHDE

21. West Region
Pricing is net of applicable state & local taxes
AWS 2017 Locations:
Ashburn
• Equinix DC1 (21715 Filigree)
Atlanta
• DLR ATL1
Chicago
• Equinix (350 E Cermak)
Dallas
• Equinix DA1 (1950
Stemmons)
New York
• Coresite (32 Ave of
Americas)
Bay Area / GOV
• Equinix SV1 (11 Great
Oaks)
• Gov Cloud Equinix SV1
Los Angeles
• CoreSite One Wilshire
Las Vegas
• Switch SUPERNAP 7
Portland
• EdgeConneX POR1
Seattle
• Equinix SE2 (Westin)
East Region

22. Thank you
