Medical imaging refers to techniques that create visual representations of the body's interior, including X-rays, computed tomography (CT), magnetic resonance imaging (MRI), ultrasound, nuclear medicine, and positron emission tomography (PET). X-rays produce images of bones and dense tissues while CT scans create detailed 3D images; MRI uses magnets and radio waves to image soft tissues; ultrasound uses sound waves to view organs; nuclear medicine and PET involve radioactive tracers; and medical imaging plays a key role in diagnosis and treatment but risks like radiation exposure must be considered.

1. Medical imaging

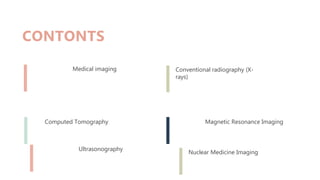

2. CONTONTS
Medical imaging
Computed Tomography
Conventional radiography (X-
rays)
Magnetic Resonance Imaging
Nuclear Medicine Imaging
Ultrasonography

3. Medical imaging

4. Medical imaging refers to the use of various techniques and technologies to create visual
representations of the interior of the human body for diagnostic and therapeutic purposes. Medical
imaging techniques include X-rays, computed tomography (CT), magnetic resonance imaging (MRI),
ultrasound, nuclear medicine, and positron emission tomography (PET).
X-rays are a type of electromagnetic radiation that are used to create images of bones and other
dense tissues, while CT scans use X-rays to create detailed, 3D images of the body. MRI uses
powerful magnets and radio waves to create detailed images of soft tissues, such as the brain and
organs, while ultrasound uses high-frequency sound waves to create images of internal organs and
tissues.
Nuclear medicine involves the use of small amounts of radioactive material to diagnose and treat
diseases, while PET scans use a radioactive tracer to create images of the body's metabolic activity.
Medical imaging plays a crucial role in the diagnosis and treatment of many medical conditions,
allowing healthcare professionals to visualize and analyse the internal structures and functions of
the body. However, it is important to balance the benefits of medical imaging with the potential
risks, such as exposure to radiation or the use of contrast agents, and to ensure that imaging tests
are used appropriately and judiciously

5. Click here to add content of the text，and briefly explain your
Conventional radiography, also known as X-rays, is a medical imaging technique that uses ionizing
radiation to produce images of the interior of the body. X-rays are a type of electromagnetic
radiation that can penetrate the body to varying degrees depending on the density of the tissue it
encounters. Dense tissues, such as bones, absorb more X-rays and appear white on the resulting
image, while less dense tissues, such as muscles and organs, appear darker.
During a conventional radiography exam, a patient is positioned between an X-ray machine and a
photographic plate or digital detector. The X-ray machine emits a controlled burst of radiation that
passes through the body and onto the plate or detector, creating an image of the internal
structures.
Conventional radiography is a commonly used diagnostic tool for detecting bone fractures, lung
conditions such as pneumonia and lung cancer, and dental problems. It is also used for a variety of
other medical conditions, such as gastrointestinal issues and heart conditions.
While conventional radiography is a relatively safe and non-invasive procedure, it does expose the
patient to a small amount of ionizing radiation. Therefore, healthcare professionals must balance the
benefits of the exam against the potential risks and ensure that the exam is performed only when
necessary. Additionally, pregnant women should avoid conventional radiography if possible, as ionizing
conventional tomography:

6. Computed tomography (CT) is a medical imaging technique that uses X-rays and computer technology
to create detailed, cross-sectional images of the body. Unlike conventional radiography, which
produces a 2D image, CT scans produce a 3D image that allows healthcare professionals to view
internal structures from multiple angles.
During a CT scan, the patient is positioned on a table that is moved into a large, doughnut-shaped
machine called a CT scanner. The scanner emits a series of X-rays that pass through the body from
different angles, and a detector on the opposite side of the scanner measures the amount of
radiation that passes through the body. A computer then uses this information to construct a
detailed, cross-sectional image of the body part being examined.
CT scans are commonly used to diagnose a variety of medical conditions, including bone fractures,
internal injuries, and cancers. They are also used to guide procedures such as biopsies and to monitor
the effectiveness of treatments.
While CT scans are a valuable diagnostic tool, they do expose the patient to a higher amount of
radiation than conventional radiography. Therefore, healthcare professionals must carefully weigh
the benefits of a CT scan against the potential risks and ensure that the exam is performed only
when necessary. Additionally, patients who are pregnant or have a history of kidney problems may
need to take special precautions before undergoing a CT scan.
Computed tomography:

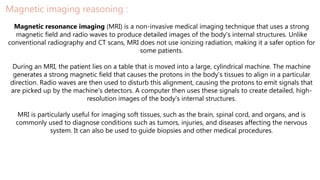

7. Magnetic imaging reasoning :
Magnetic resonance imaging (MRI) is a non-invasive medical imaging technique that uses a strong
magnetic field and radio waves to produce detailed images of the body's internal structures. Unlike
conventional radiography and CT scans, MRI does not use ionizing radiation, making it a safer option for
some patients.
During an MRI, the patient lies on a table that is moved into a large, cylindrical machine. The machine
generates a strong magnetic field that causes the protons in the body's tissues to align in a particular
direction. Radio waves are then used to disturb this alignment, causing the protons to emit signals that
are picked up by the machine's detectors. A computer then uses these signals to create detailed, high-
resolution images of the body's internal structures.
MRI is particularly useful for imaging soft tissues, such as the brain, spinal cord, and organs, and is
commonly used to diagnose conditions such as tumors, injuries, and diseases affecting the nervous
system. It can also be used to guide biopsies and other medical procedures.

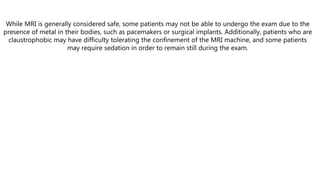

8. While MRI is generally considered safe, some patients may not be able to undergo the exam due to the
presence of metal in their bodies, such as pacemakers or surgical implants. Additionally, patients who are
claustrophobic may have difficulty tolerating the confinement of the MRI machine, and some patients
may require sedation in order to remain still during the exam.

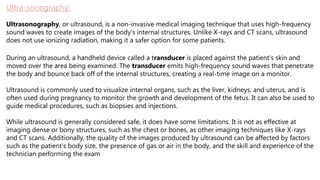

9. Ultra-sonography:
Ultrasonography, or ultrasound, is a non-invasive medical imaging technique that uses high-frequency
sound waves to create images of the body's internal structures. Unlike X-rays and CT scans, ultrasound
does not use ionizing radiation, making it a safer option for some patients.
During an ultrasound, a handheld device called a transducer is placed against the patient's skin and
moved over the area being examined. The transducer emits high-frequency sound waves that penetrate
the body and bounce back off of the internal structures, creating a real-time image on a monitor.
Ultrasound is commonly used to visualize internal organs, such as the liver, kidneys, and uterus, and is
often used during pregnancy to monitor the growth and development of the fetus. It can also be used to
guide medical procedures, such as biopsies and injections.
While ultrasound is generally considered safe, it does have some limitations. It is not as effective at
imaging dense or bony structures, such as the chest or bones, as other imaging techniques like X-rays
and CT scans. Additionally, the quality of the images produced by ultrasound can be affected by factors
such as the patient's body size, the presence of gas or air in the body, and the skill and experience of the
technician performing the exam

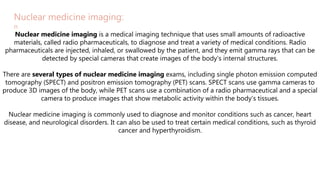

10. ADD TITLE
Nuclear medicine imaging:
n
Nuclear medicine imaging is a medical imaging technique that uses small amounts of radioactive
materials, called radio pharmaceuticals, to diagnose and treat a variety of medical conditions. Radio
pharmaceuticals are injected, inhaled, or swallowed by the patient, and they emit gamma rays that can be
detected by special cameras that create images of the body's internal structures.
There are several types of nuclear medicine imaging exams, including single photon emission computed
tomography (SPECT) and positron emission tomography (PET) scans. SPECT scans use gamma cameras to
produce 3D images of the body, while PET scans use a combination of a radio pharmaceutical and a special
camera to produce images that show metabolic activity within the body's tissues.
Nuclear medicine imaging is commonly used to diagnose and monitor conditions such as cancer, heart
disease, and neurological disorders. It can also be used to treat certain medical conditions, such as thyroid
cancer and hyperthyroidism.

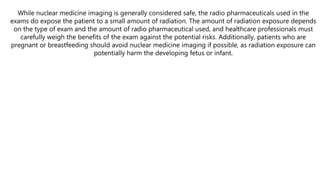

11. While nuclear medicine imaging is generally considered safe, the radio pharmaceuticals used in the
exams do expose the patient to a small amount of radiation. The amount of radiation exposure depends
on the type of exam and the amount of radio pharmaceutical used, and healthcare professionals must
carefully weigh the benefits of the exam against the potential risks. Additionally, patients who are
pregnant or breastfeeding should avoid nuclear medicine imaging if possible, as radiation exposure can
potentially harm the developing fetus or infant.

12. T H A N K S
