This document summarizes strategies for reducing energy consumption in facilities through newer technologies like LED lighting, cogeneration, and wireless automation systems. It discusses the cost and benefits of these technologies, where they can be applied, and available funding to assist with return on investment. The presentation covers LED lighting technologies and applications, different types of cogeneration systems from microturbines to gas turbines and their applications, and uses of wireless automation using technologies like Zigbee and EnOcean. It provides examples of calculating return on investment for these systems and discusses available rebates.

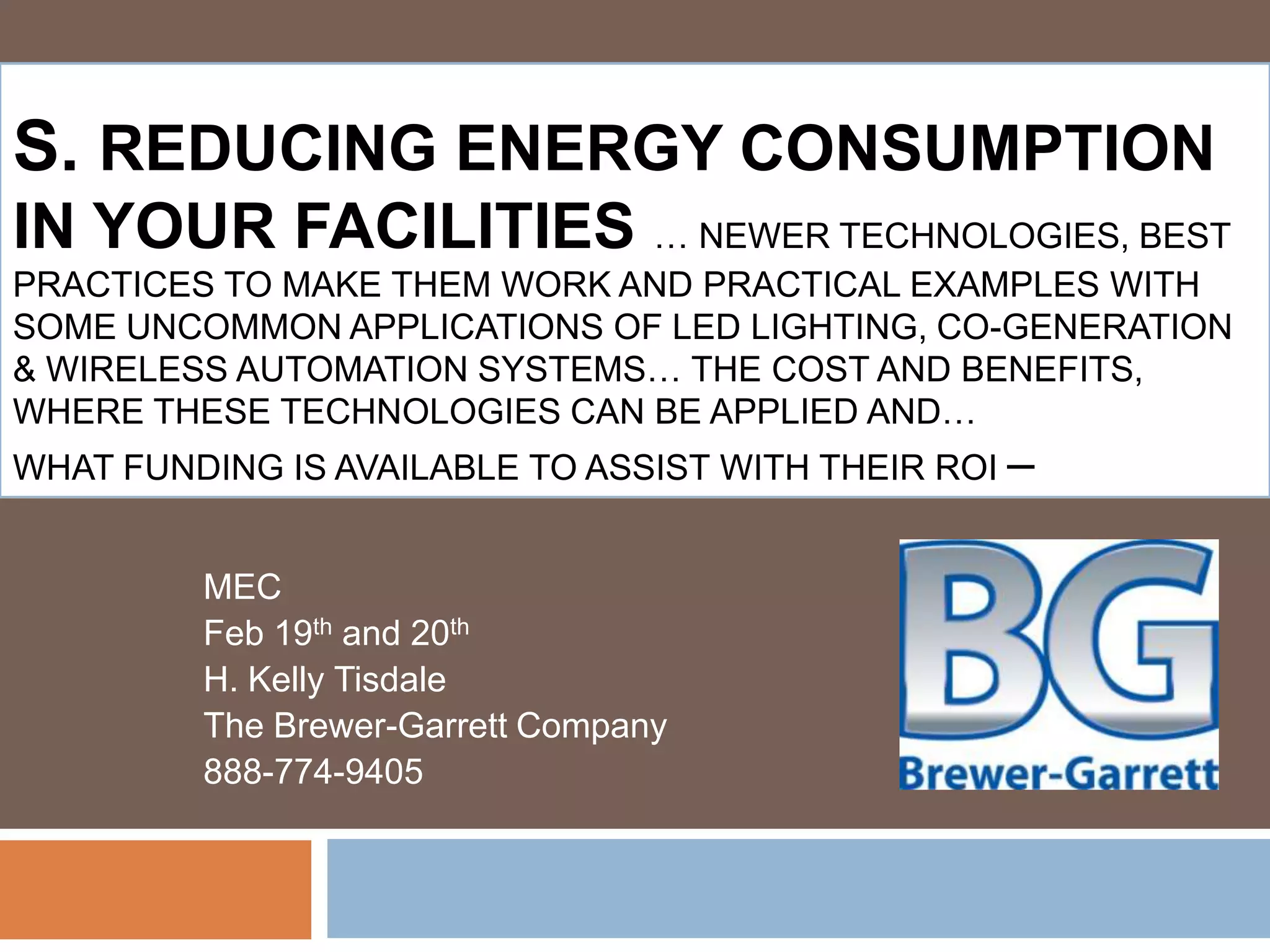

1. S. REDUCING ENERGY CONSUMPTION
IN YOUR FACILITIES … NEWER TECHNOLOGIES, BEST
PRACTICES TO MAKE THEM WORK AND PRACTICAL EXAMPLES WITH
SOME UNCOMMON APPLICATIONS OF LED LIGHTING, CO-GENERATION
& WIRELESS AUTOMATION SYSTEMS… THE COST AND BENEFITS,
WHERE THESE TECHNOLOGIES CAN BE APPLIED AND…
WHAT FUNDING IS AVAILABLE TO ASSIST WITH THEIR ROI –
MEC
Feb 19th and 20th
H. Kelly Tisdale
The Brewer-Garrett Company
888-774-9405

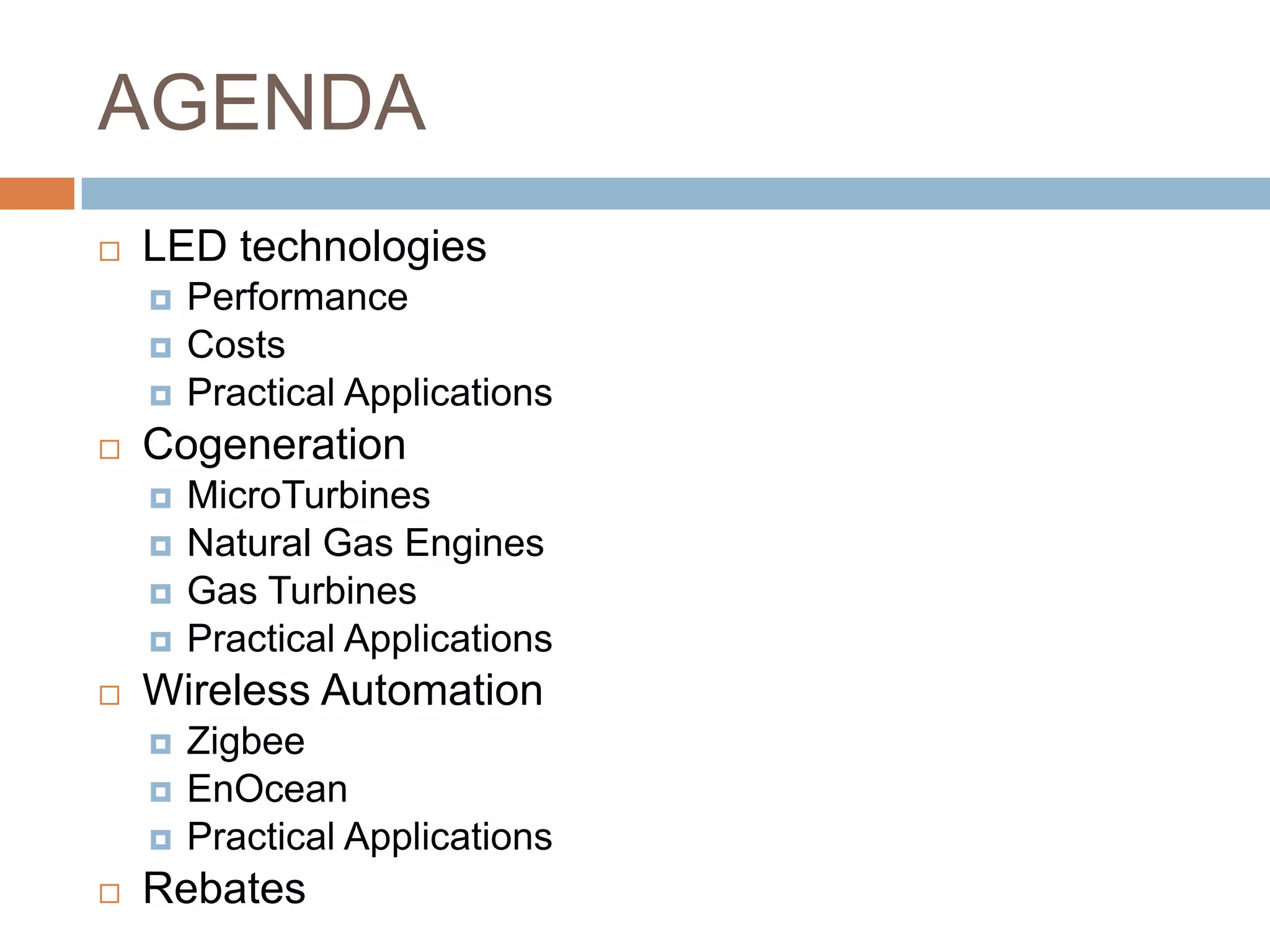

2. AGENDA
 LED technologies
 Performance
 Costs
 Practical Applications
 Cogeneration
 MicroTurbines
 Natural Gas Engines
 Gas Turbines
 Practical Applications
 Wireless Automation
 Zigbee
 EnOcean
 Practical Applications
 Rebates

3. LED

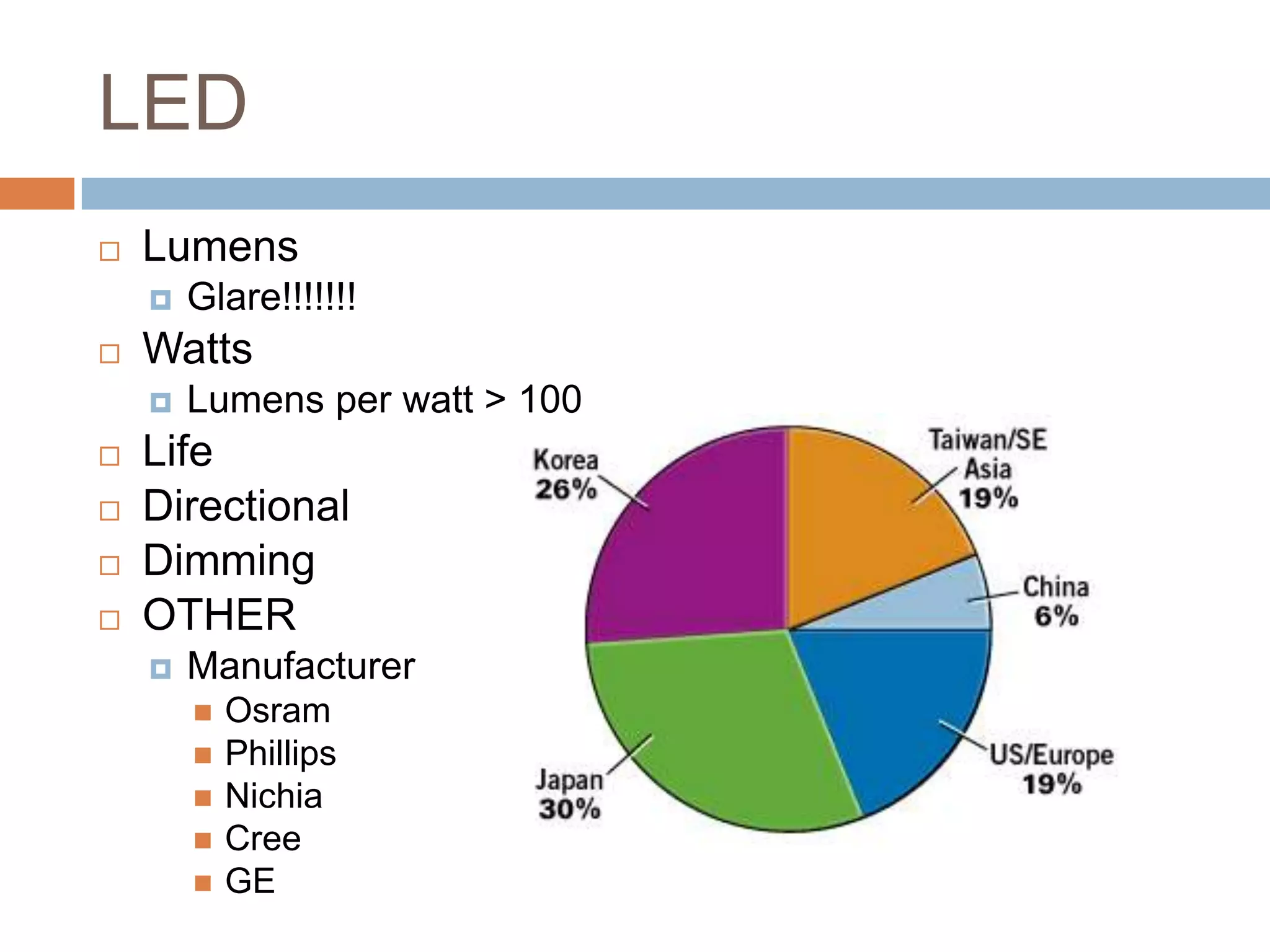

 Lumens
 Glare!!!!!!!
 Watts
 Lumens per watt > 100
 Life
 Directional
 Dimming
 OTHER
 Manufacturer
 Osram
 Phillips
 Nichia
 Cree
 GE

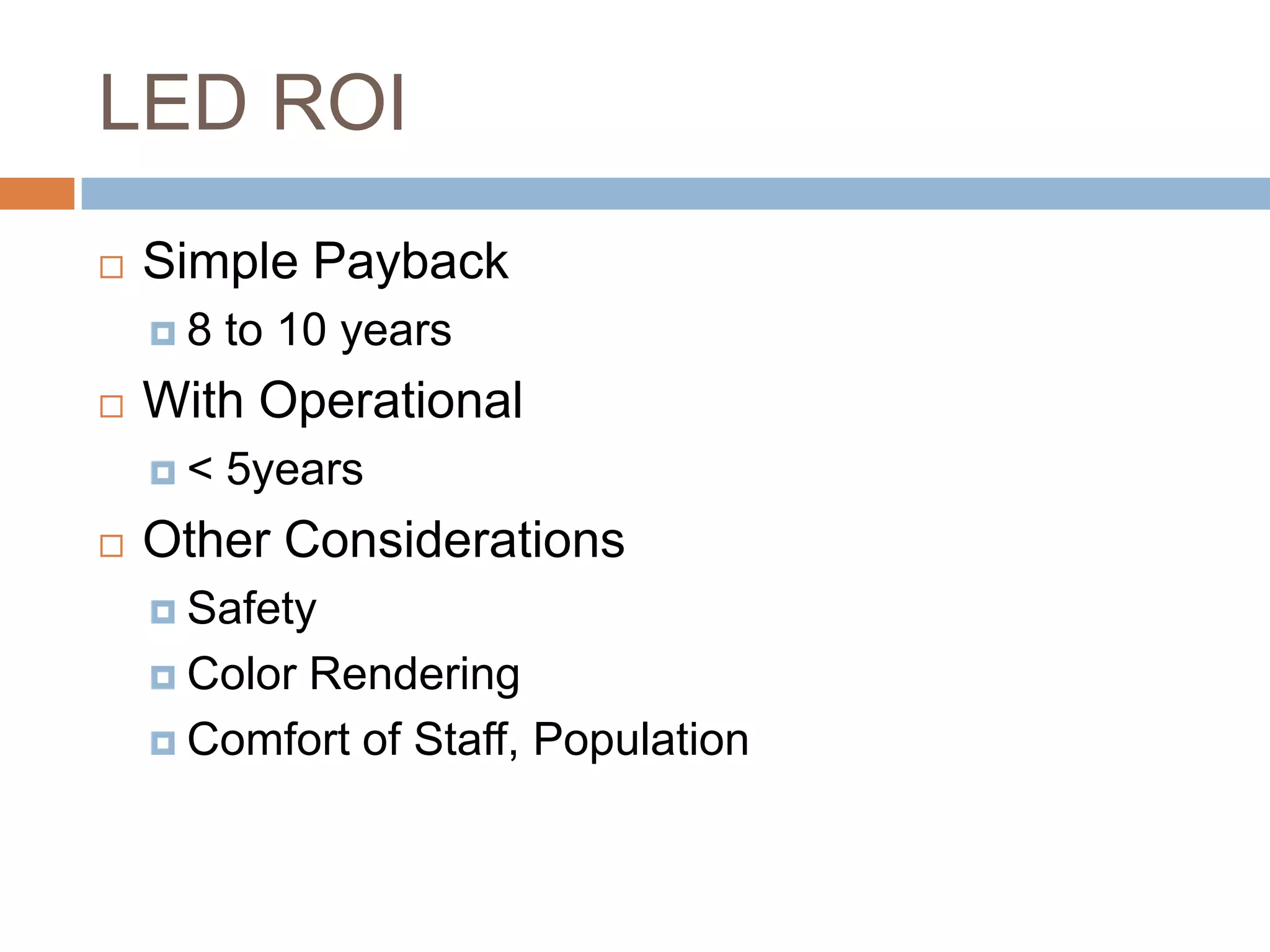

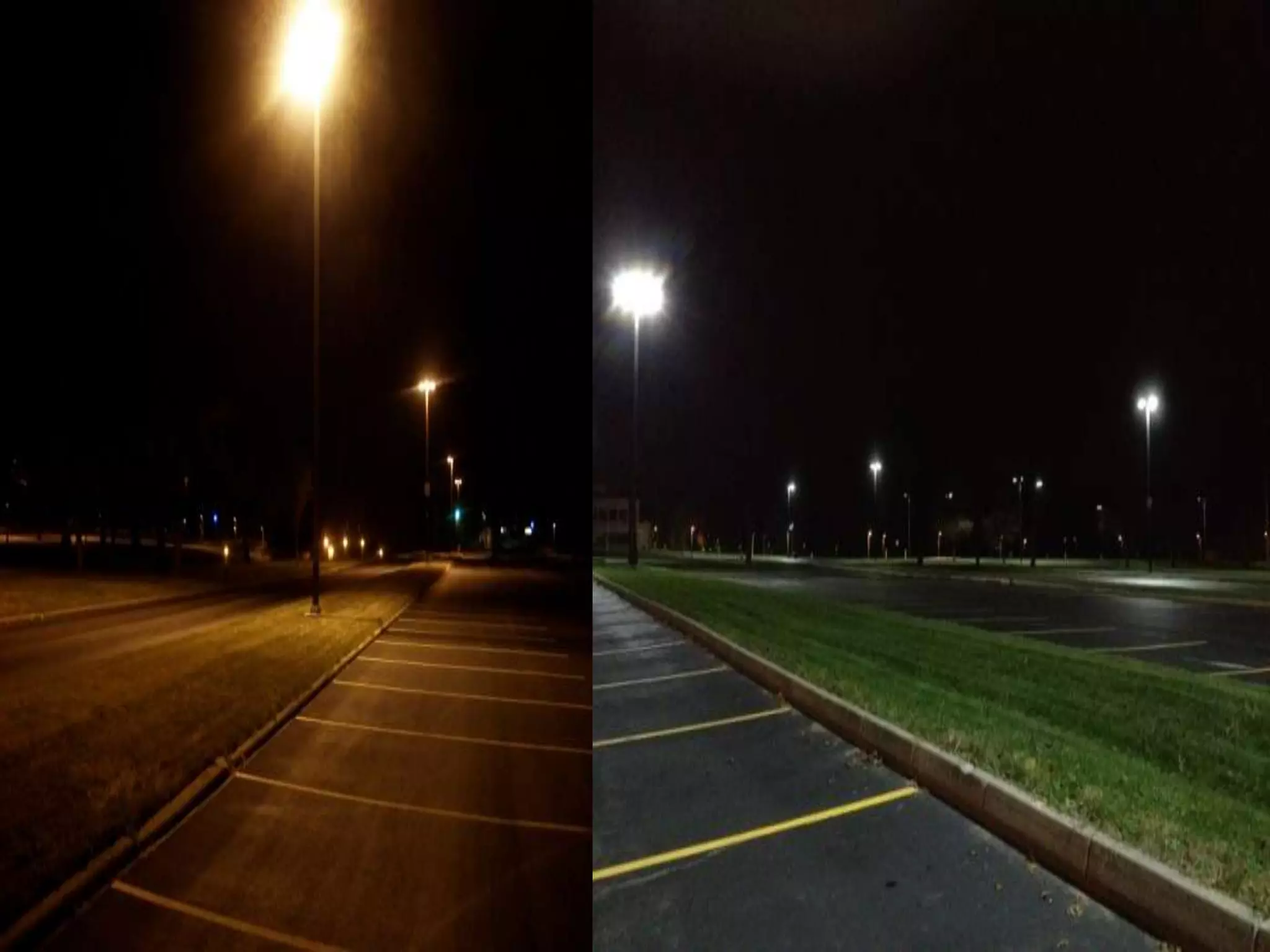

7. LED ROI
 Simple Payback
8 to 10 years
 With Operational
< 5years
 Other Considerations
 Safety
 Color
Rendering
 Comfort of Staff, Population

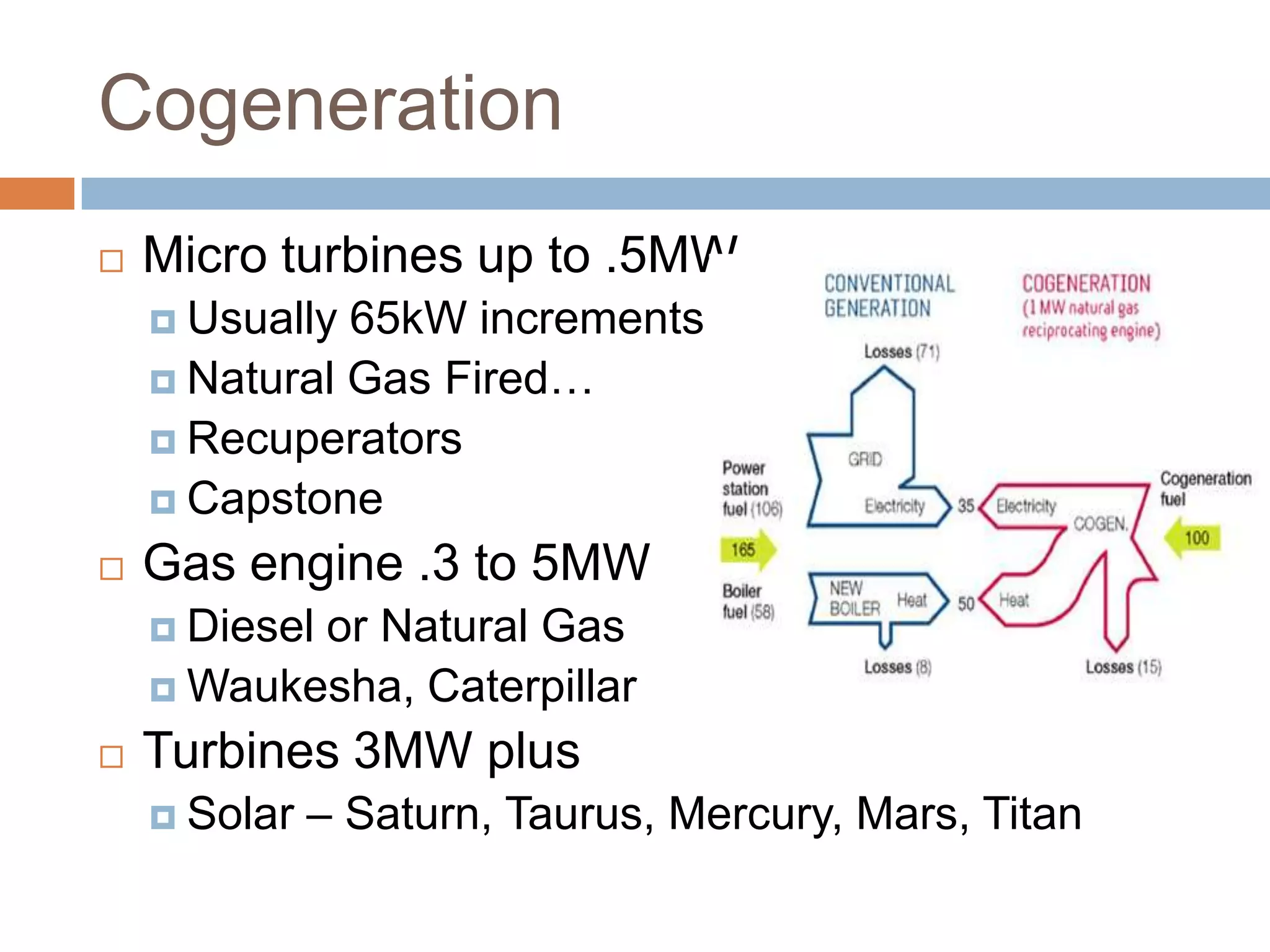

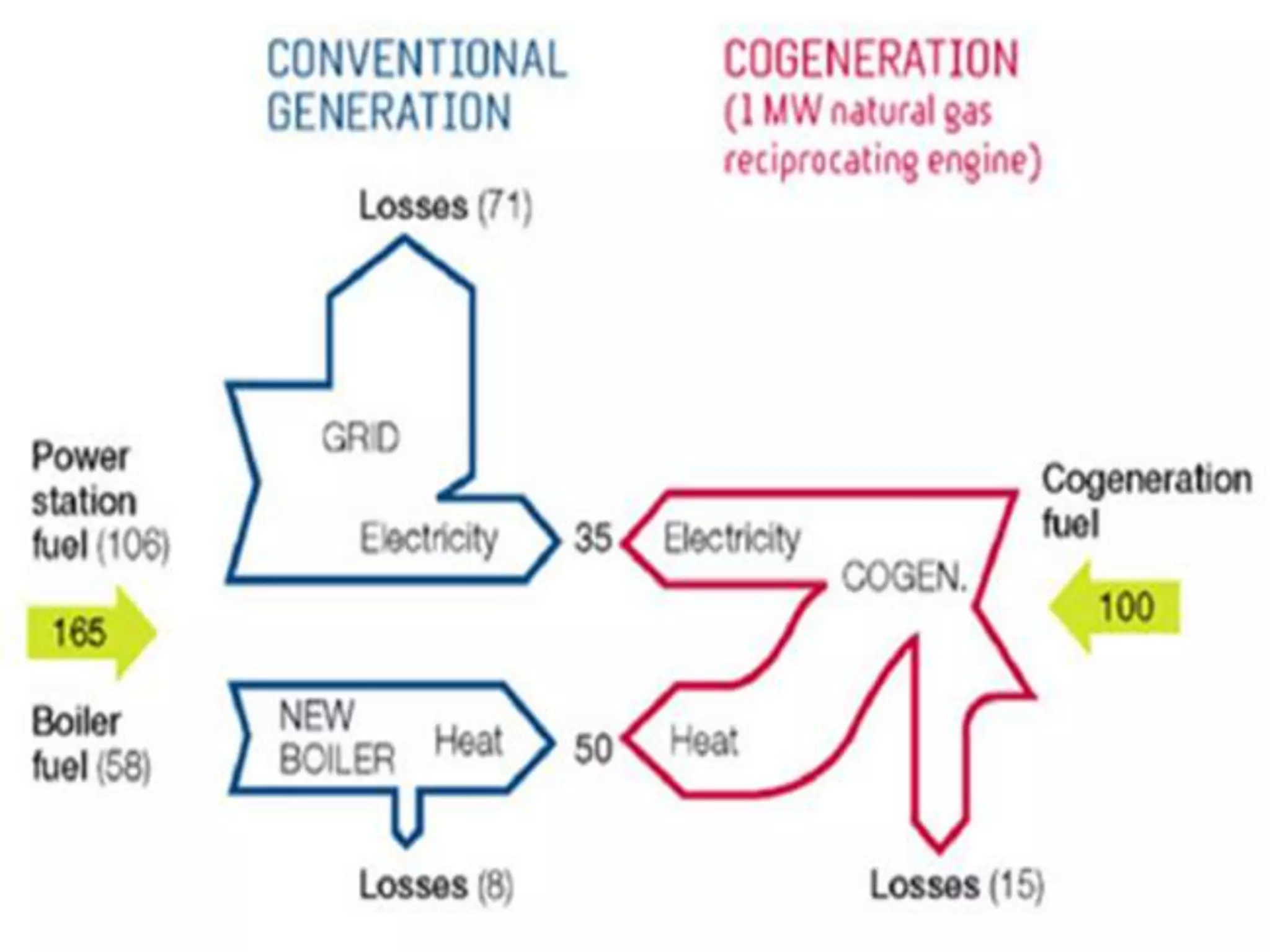

9. Cogeneration
 Micro turbines up to .5MW
 Usually 65kW increments
 Natural Gas Fired…
 Recuperators
 Capstone
 Gas engine .3 to 5MW
 Diesel
or Natural Gas
 Waukesha, Caterpillar
 Turbines 3MW plus
 Solar – Saturn, Taurus, Mercury, Mars, Titan

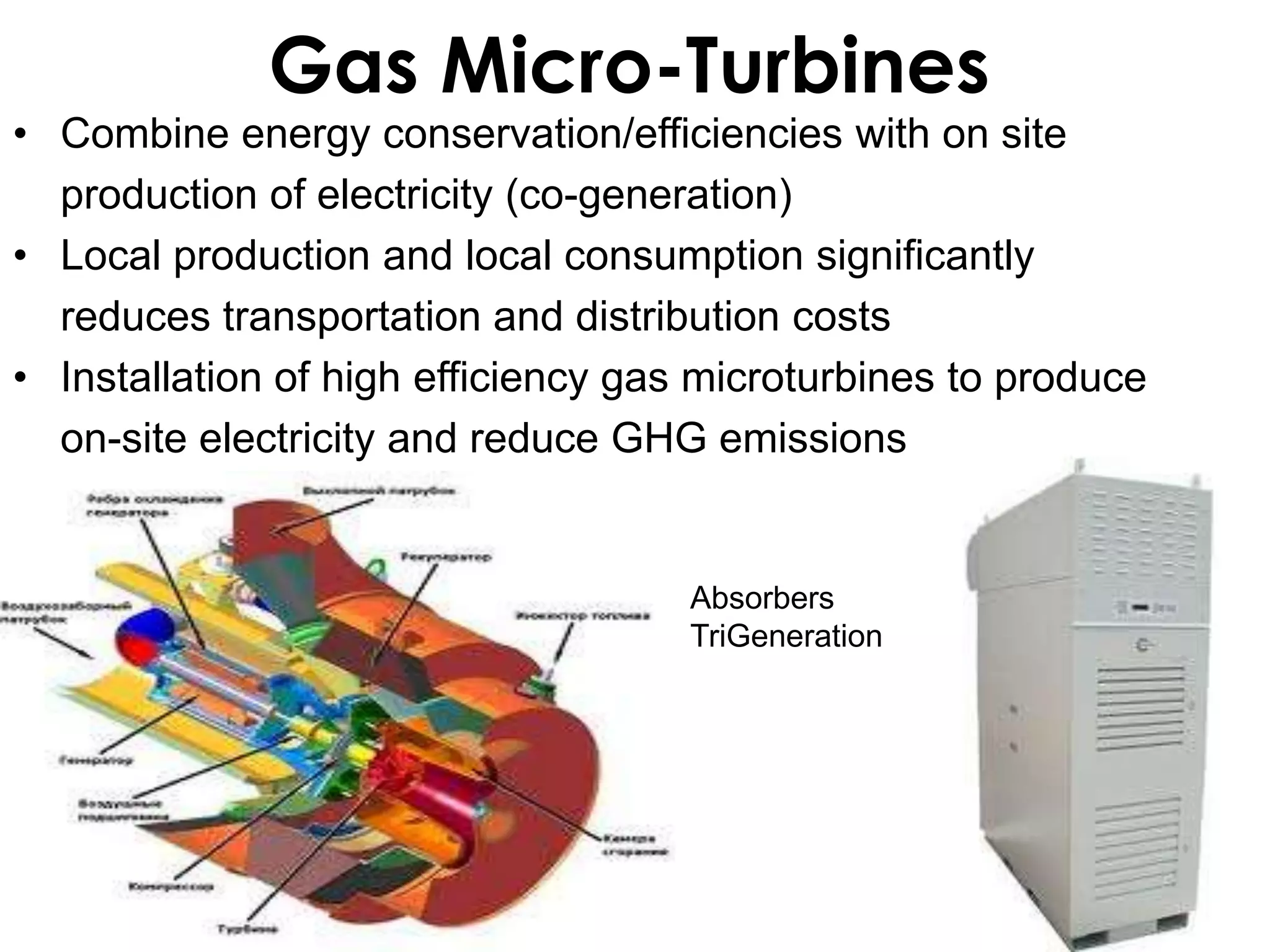

10. Gas Micro-Turbines
• Combine energy conservation/efficiencies with on site
production of electricity (co-generation)
• Local production and local consumption significantly
reduces transportation and distribution costs
• Installation of high efficiency gas microturbines to produce
on-site electricity and reduce GHG emissions
Absorbers
TriGeneration

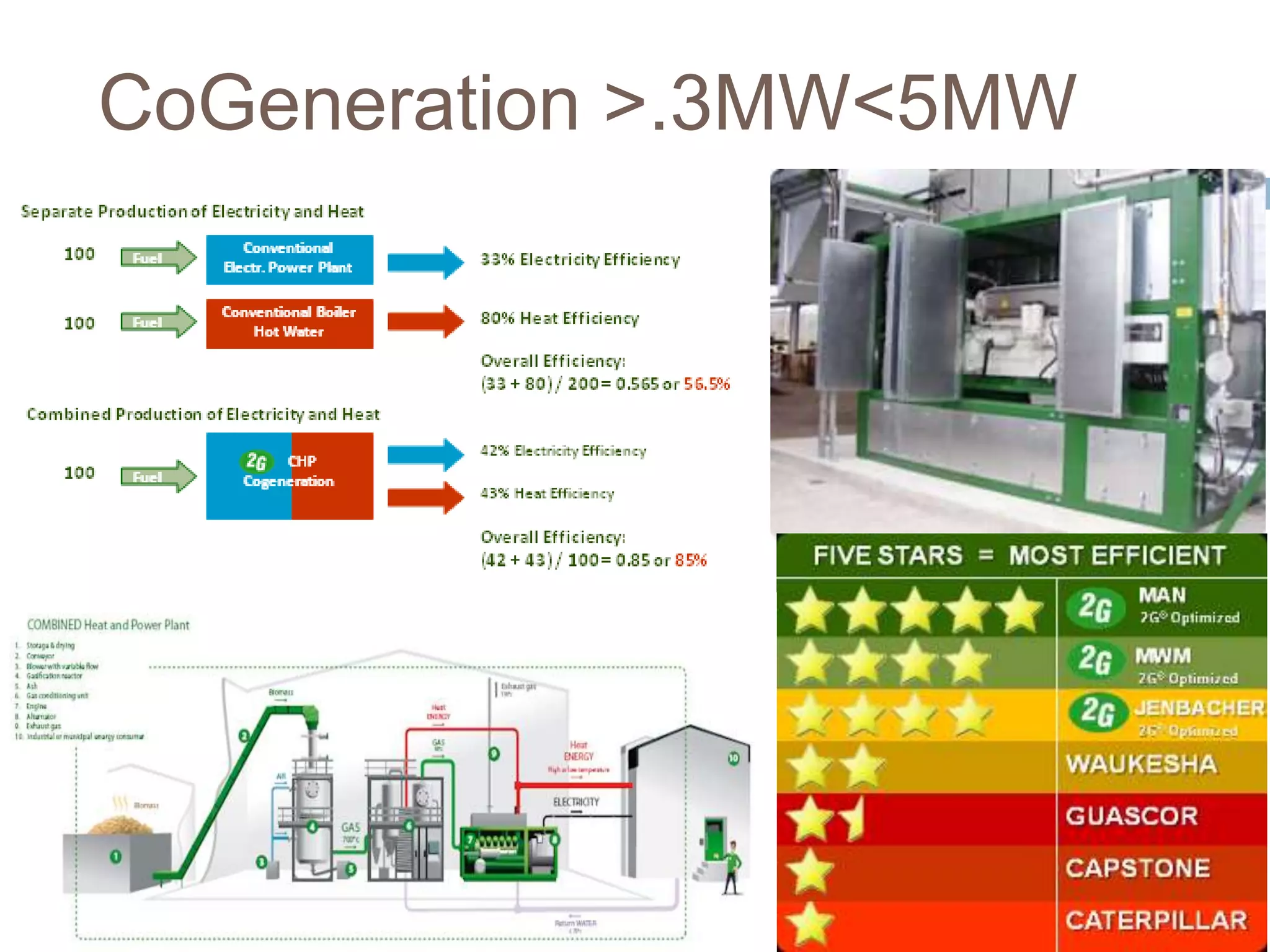

11. CoGeneration >.3MW<5MW

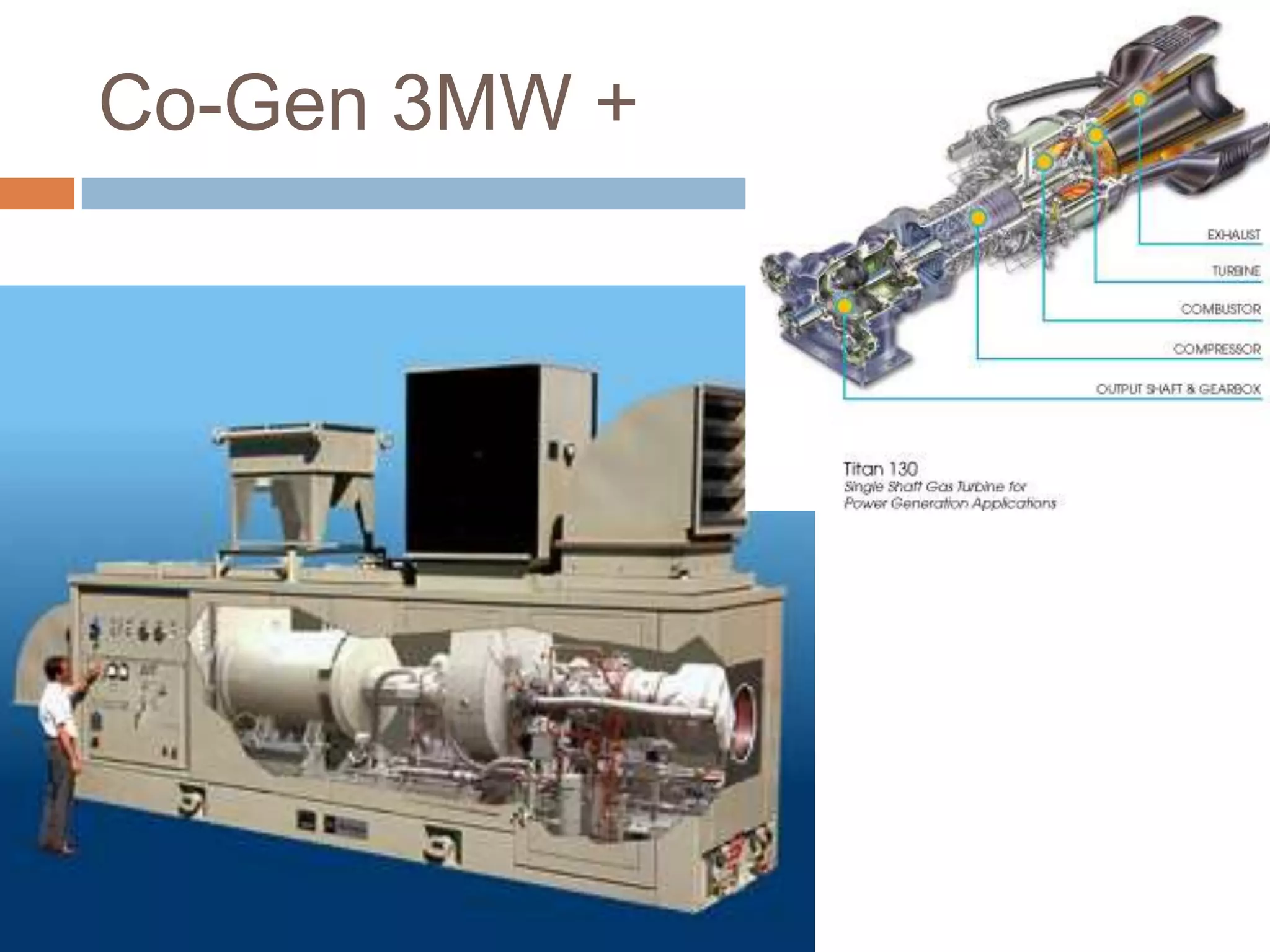

12. Co-Gen 3MW +

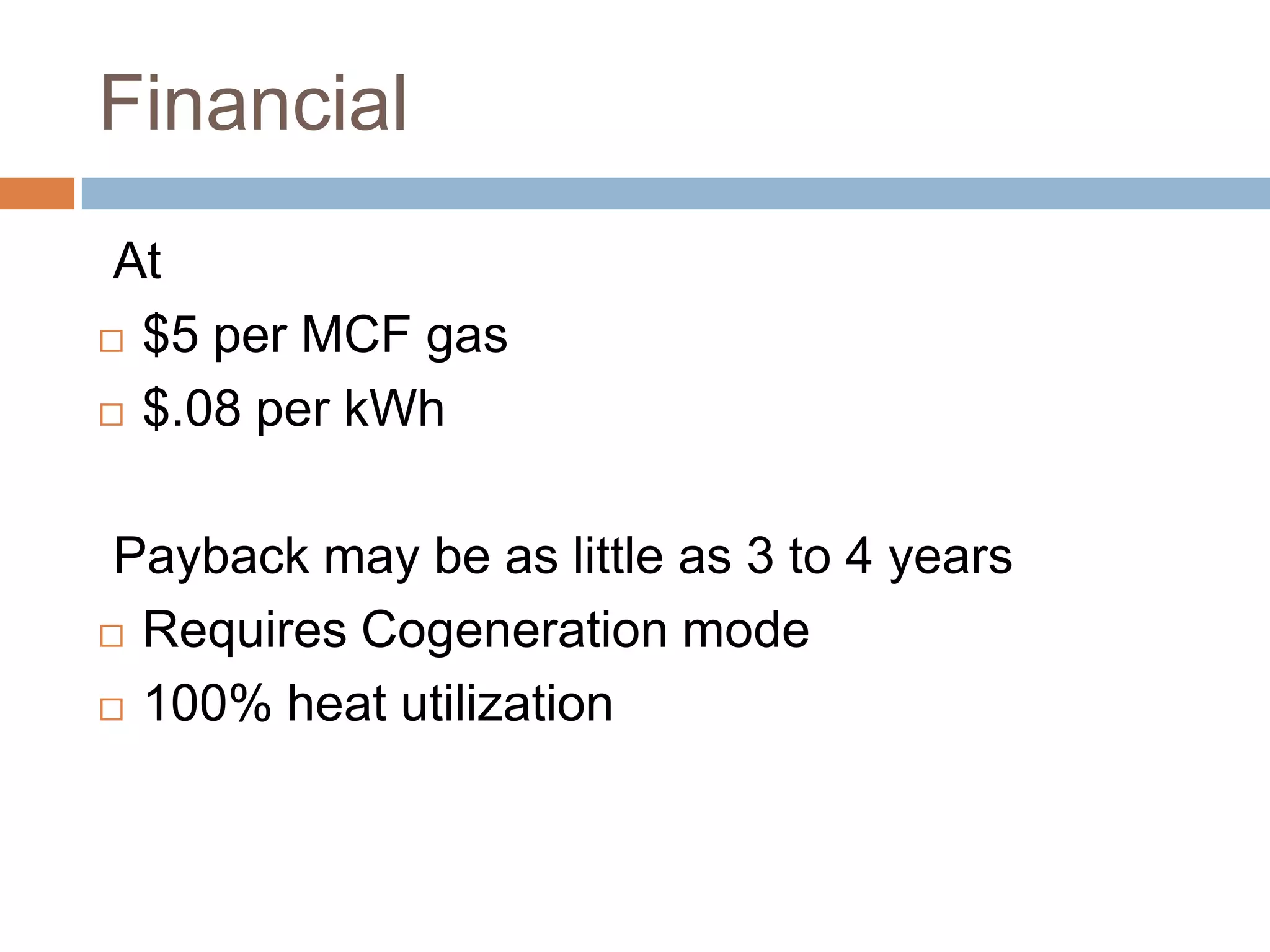

13. Financial
At
 $5 per MCF gas
 $.08 per kWh
Payback may be as little as 3 to 4 years
 Requires Cogeneration mode
 100% heat utilization

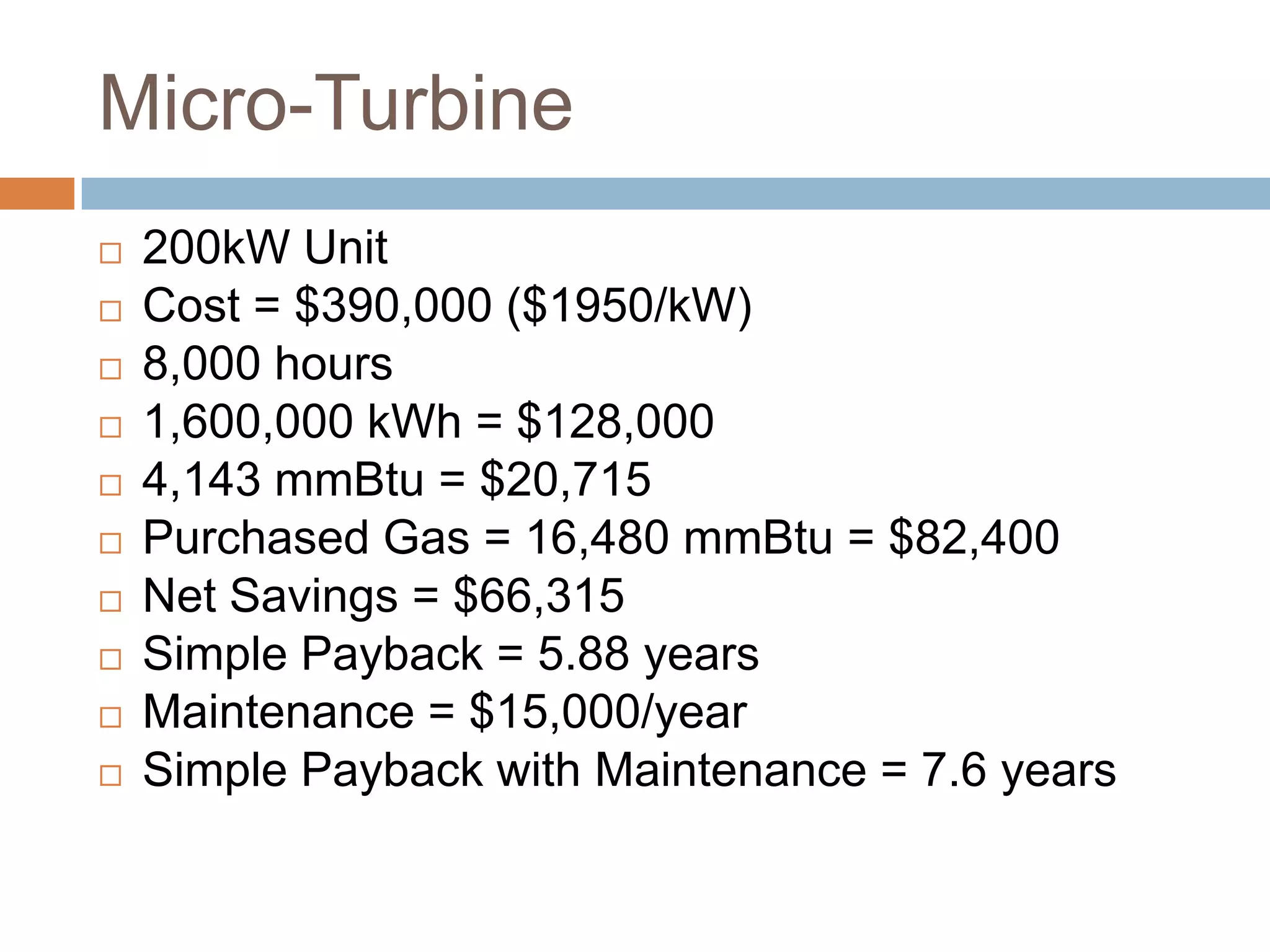

14. Micro-Turbine
 200kW Unit
 Cost = $390,000 ($1950/kW)
 8,000 hours
 1,600,000 kWh = $128,000
 4,143 mmBtu = $20,715
 Purchased Gas = 16,480 mmBtu = $82,400
 Net Savings = $66,315
 Simple Payback = 5.88 years
 Maintenance = $15,000/year
 Simple Payback with Maintenance = 7.6 years

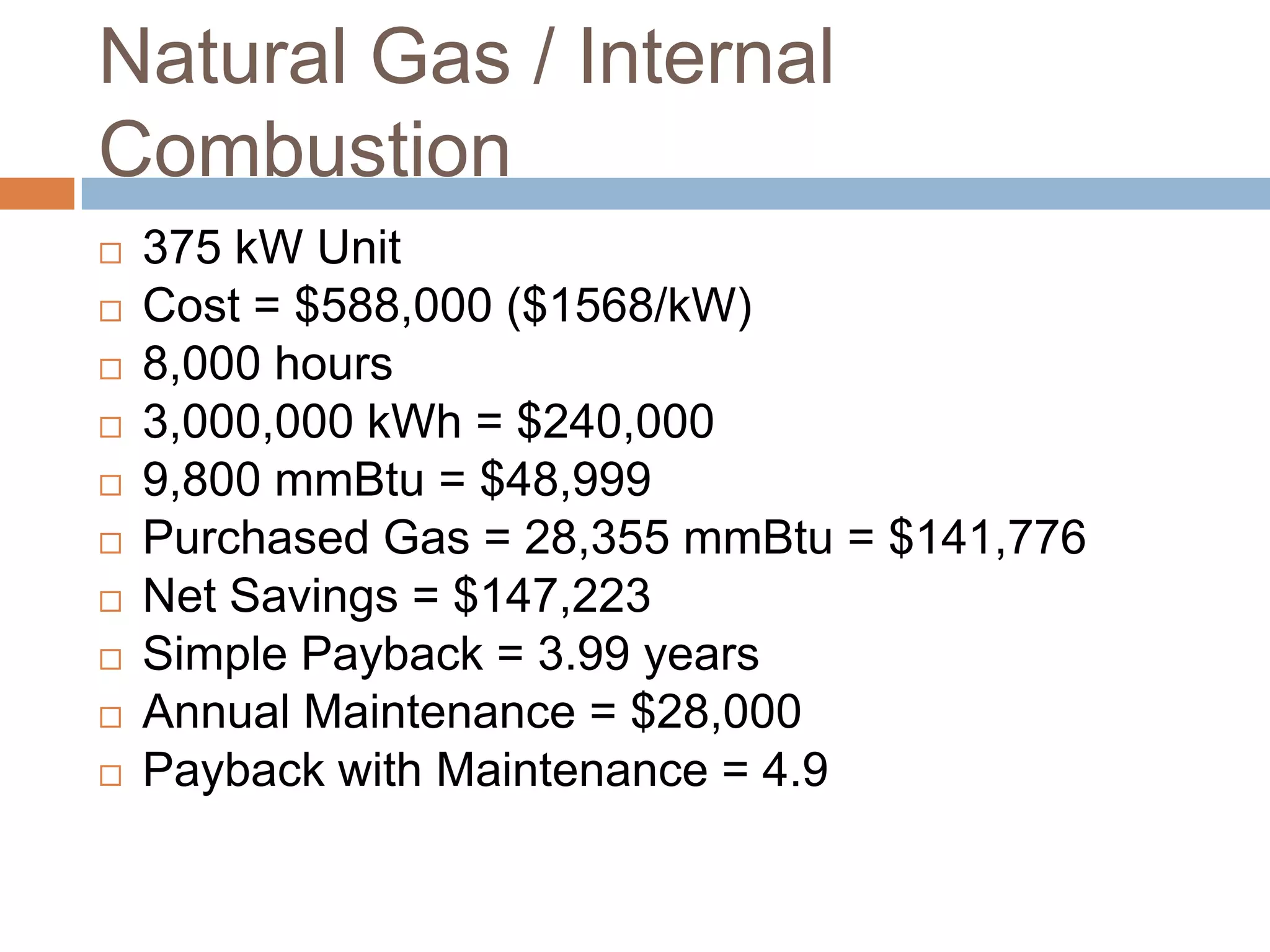

15. Natural Gas / Internal
Combustion
 375 kW Unit
 Cost = $588,000 ($1568/kW)
 8,000 hours
 3,000,000 kWh = $240,000
 9,800 mmBtu = $48,999
 Purchased Gas = 28,355 mmBtu = $141,776
 Net Savings = $147,223
 Simple Payback = 3.99 years
 Annual Maintenance = $28,000
 Payback with Maintenance = 4.9

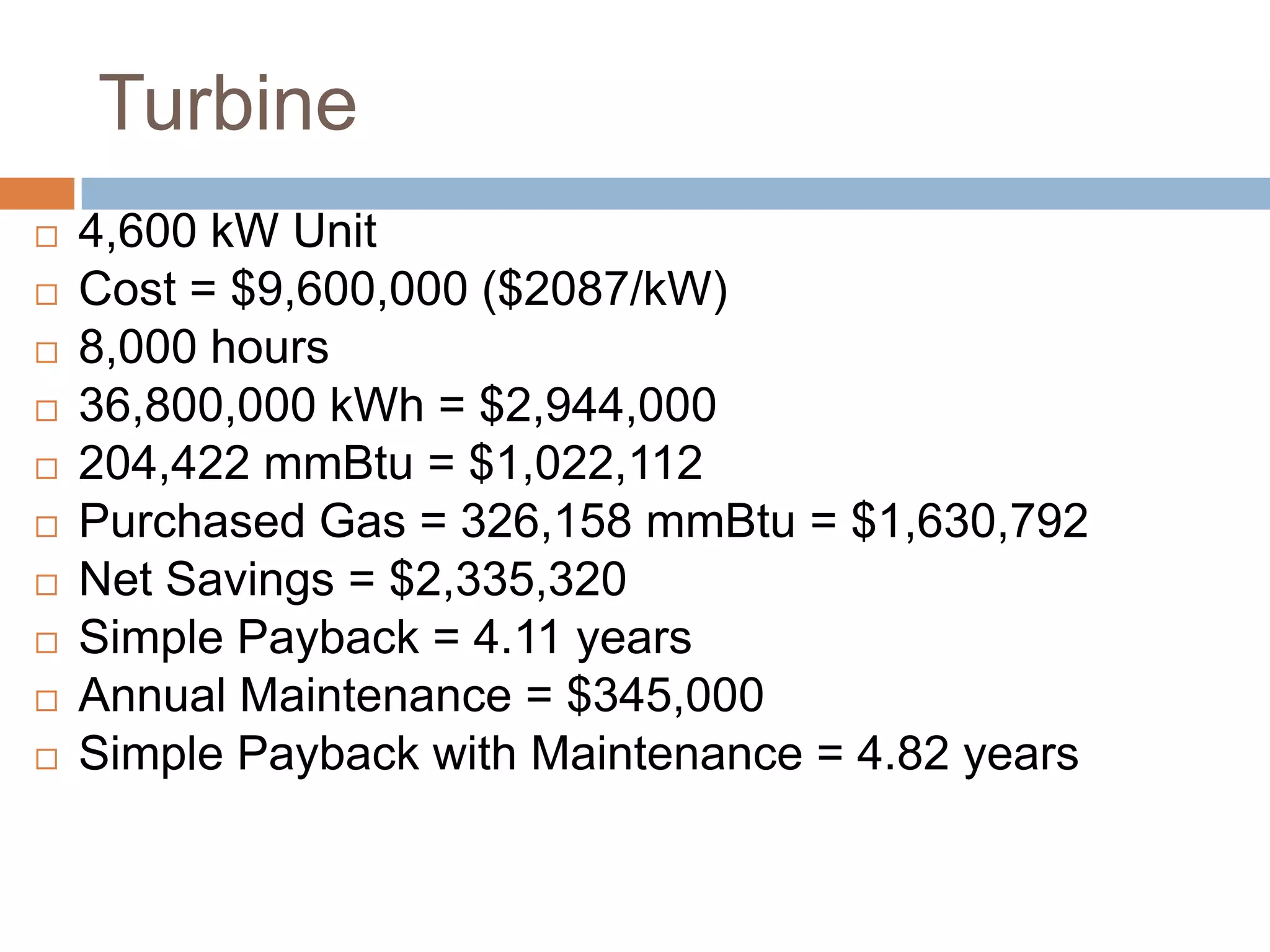

16. Turbine
 4,600 kW Unit
 Cost = $9,600,000 ($2087/kW)
 8,000 hours
 36,800,000 kWh = $2,944,000
 204,422 mmBtu = $1,022,112
 Purchased Gas = 326,158 mmBtu = $1,630,792
 Net Savings = $2,335,320
 Simple Payback = 4.11 years
 Annual Maintenance = $345,000
 Simple Payback with Maintenance = 4.82 years

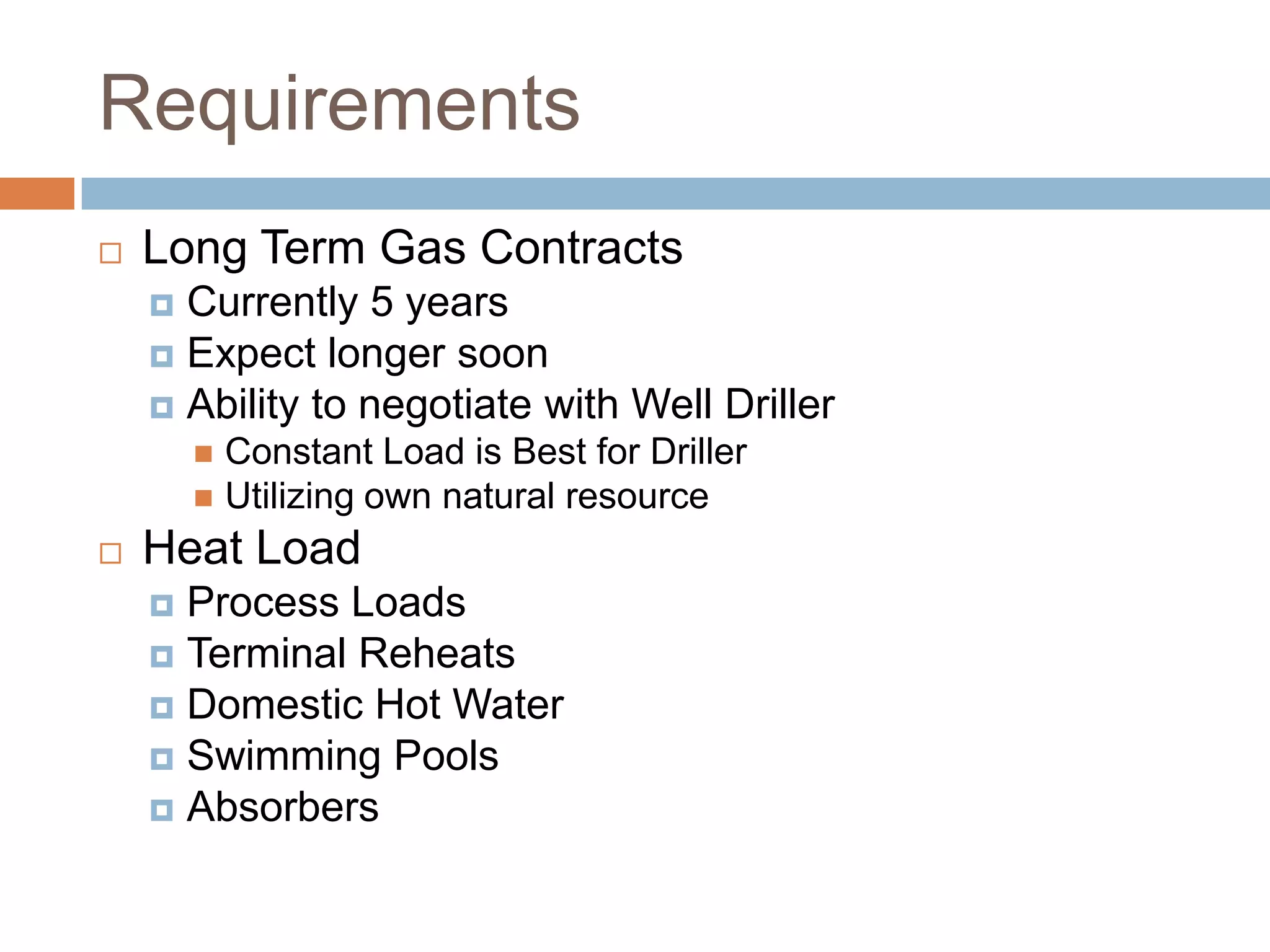

17. Requirements
 Long Term Gas Contracts
 Currently 5 years
 Expect longer soon
 Ability to negotiate with Well Driller
 Constant Load is Best for Driller
 Utilizing own natural resource
 Heat Load
 Process Loads
 Terminal Reheats
 Domestic Hot Water
 Swimming Pools
 Absorbers

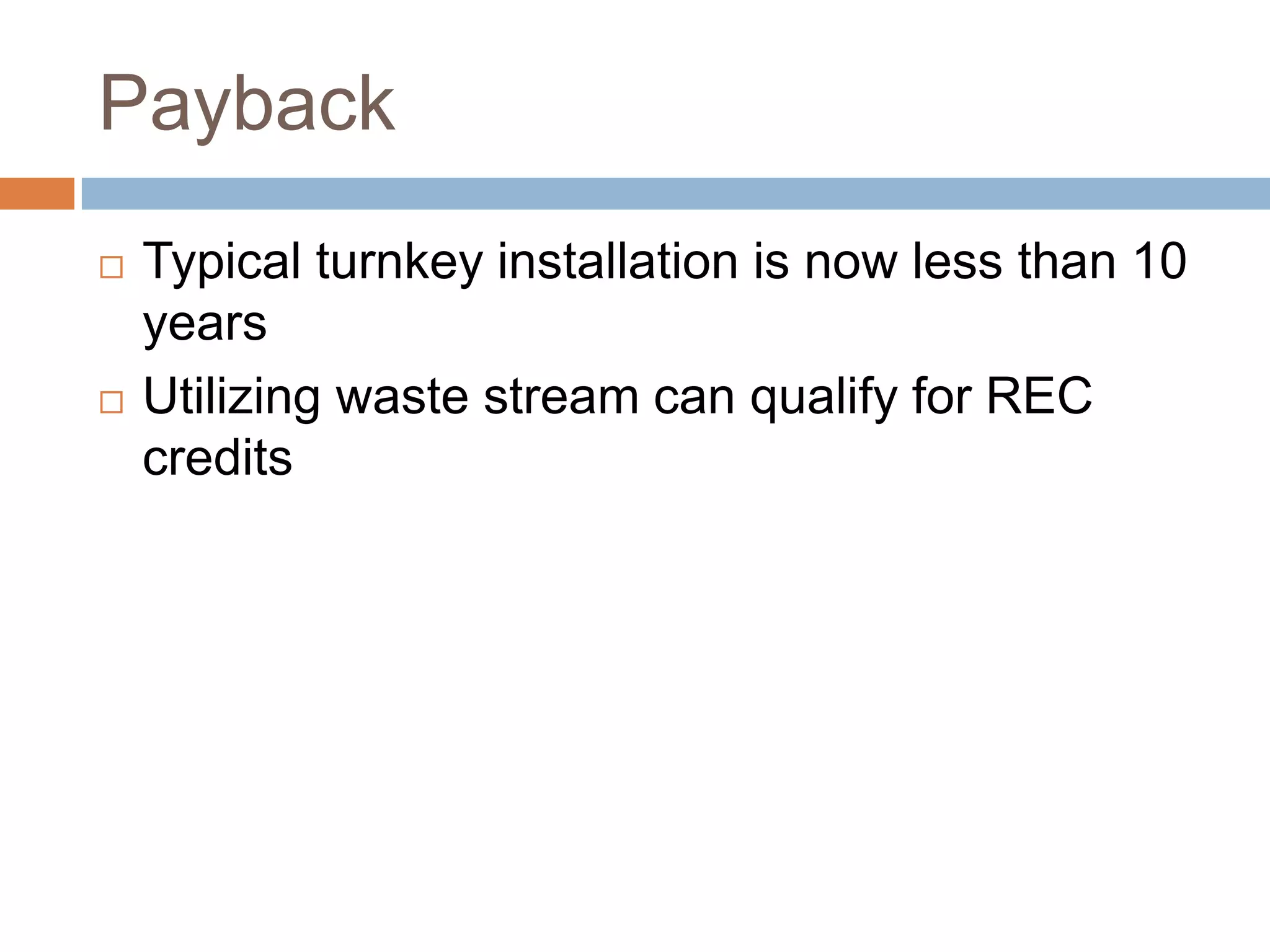

18. Payback
 Typical turnkey installation is now less than 10
years
 Utilizing waste stream can qualify for REC
credits

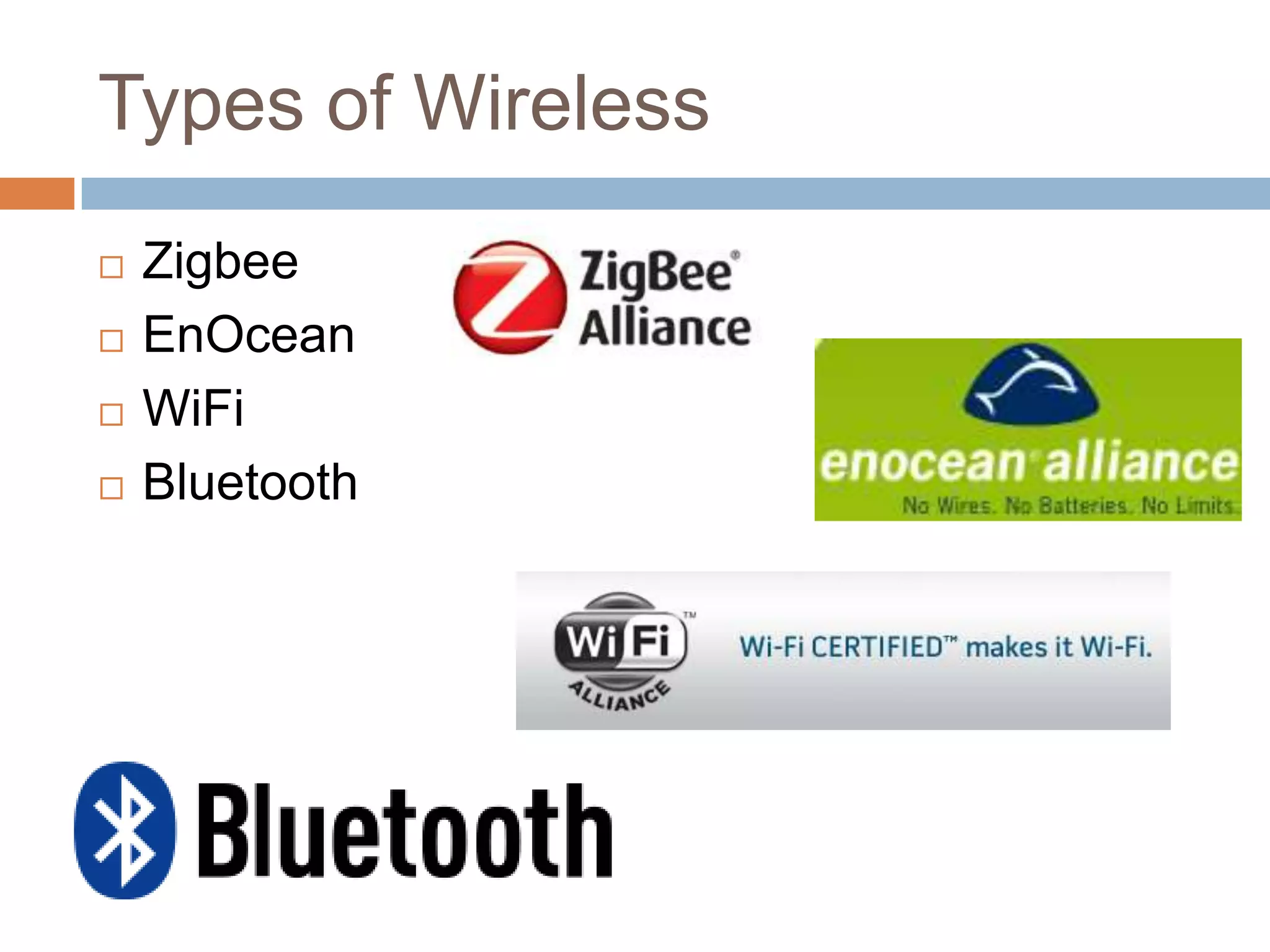

19. Types of Wireless
 Zigbee
 EnOcean
 WiFi
 Bluetooth

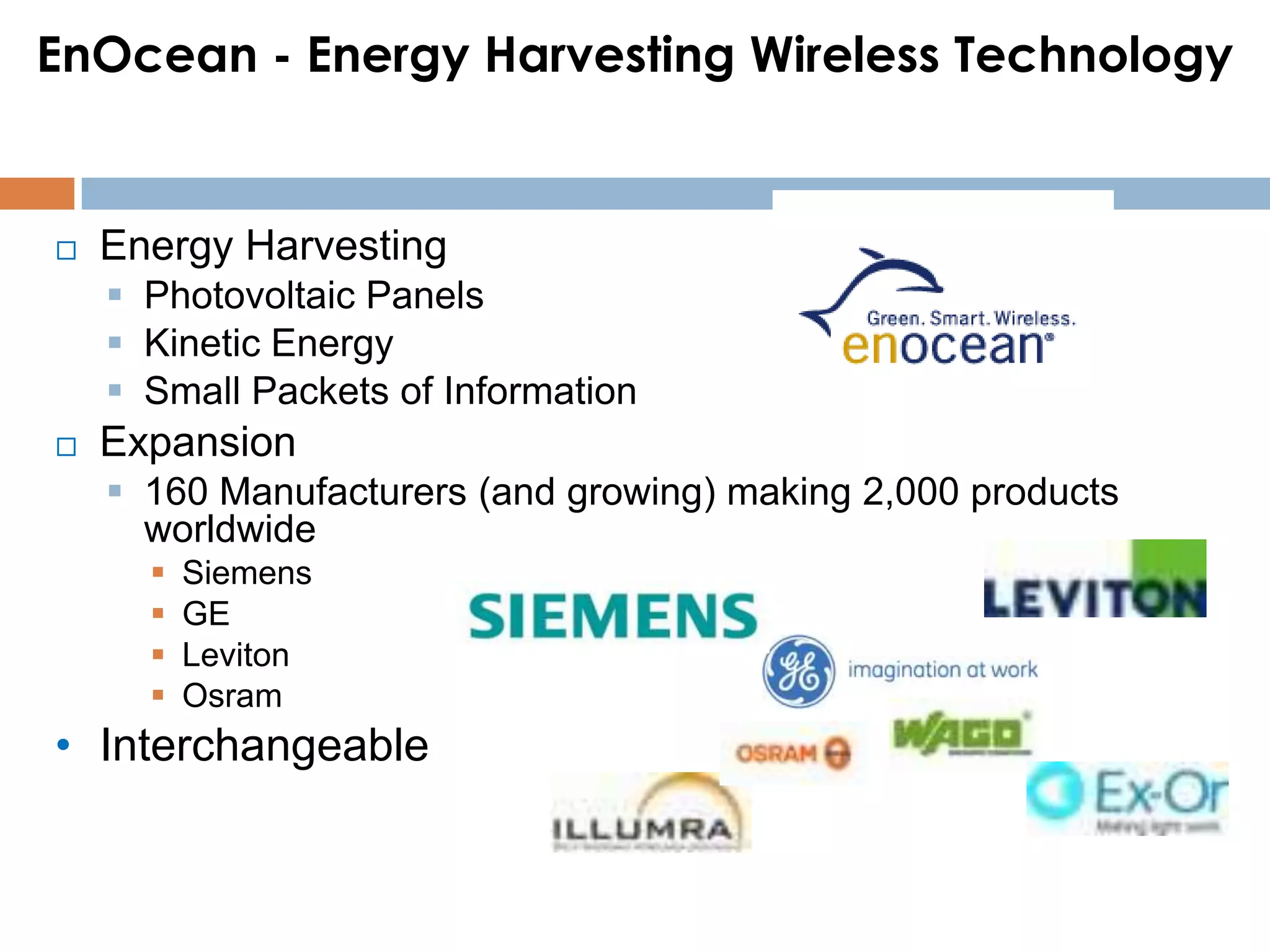

20. EnOcean - Energy Harvesting Wireless Technology
 Energy Harvesting
 Photovoltaic Panels
 Kinetic Energy
 Small Packets of Information
 Expansion
 160 Manufacturers (and growing) making 2,000 products
worldwide
 Siemens
 GE
 Leviton
 Osram
• Interchangeable

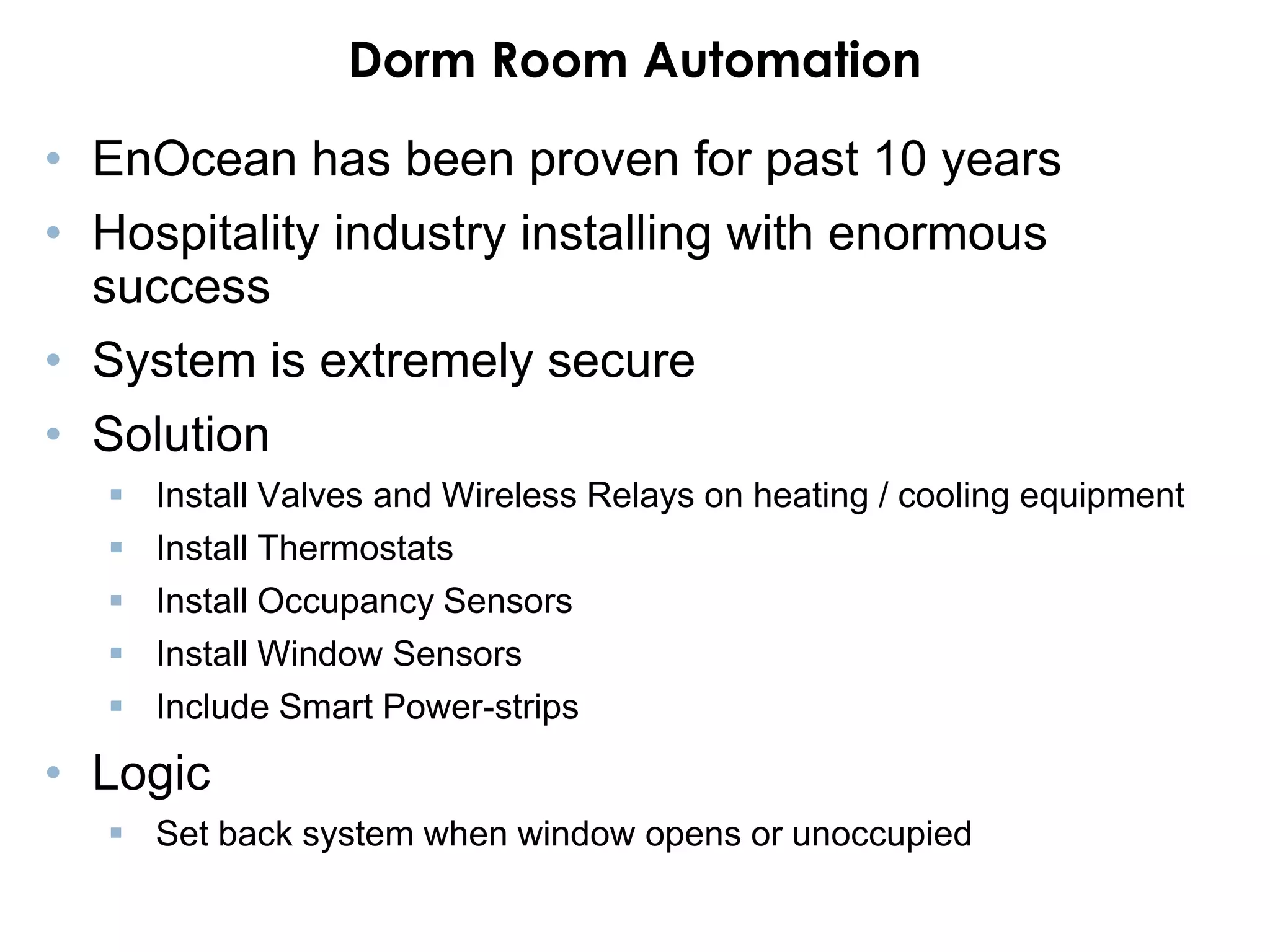

21. Dorm Room Automation
• EnOcean has been proven for past 10 years
• Hospitality industry installing with enormous
success
• System is extremely secure
• Solution
 Install Valves and Wireless Relays on heating / cooling equipment
 Install Thermostats
 Install Occupancy Sensors
 Install Window Sensors
 Include Smart Power-strips
• Logic
 Set back system when window opens or unoccupied

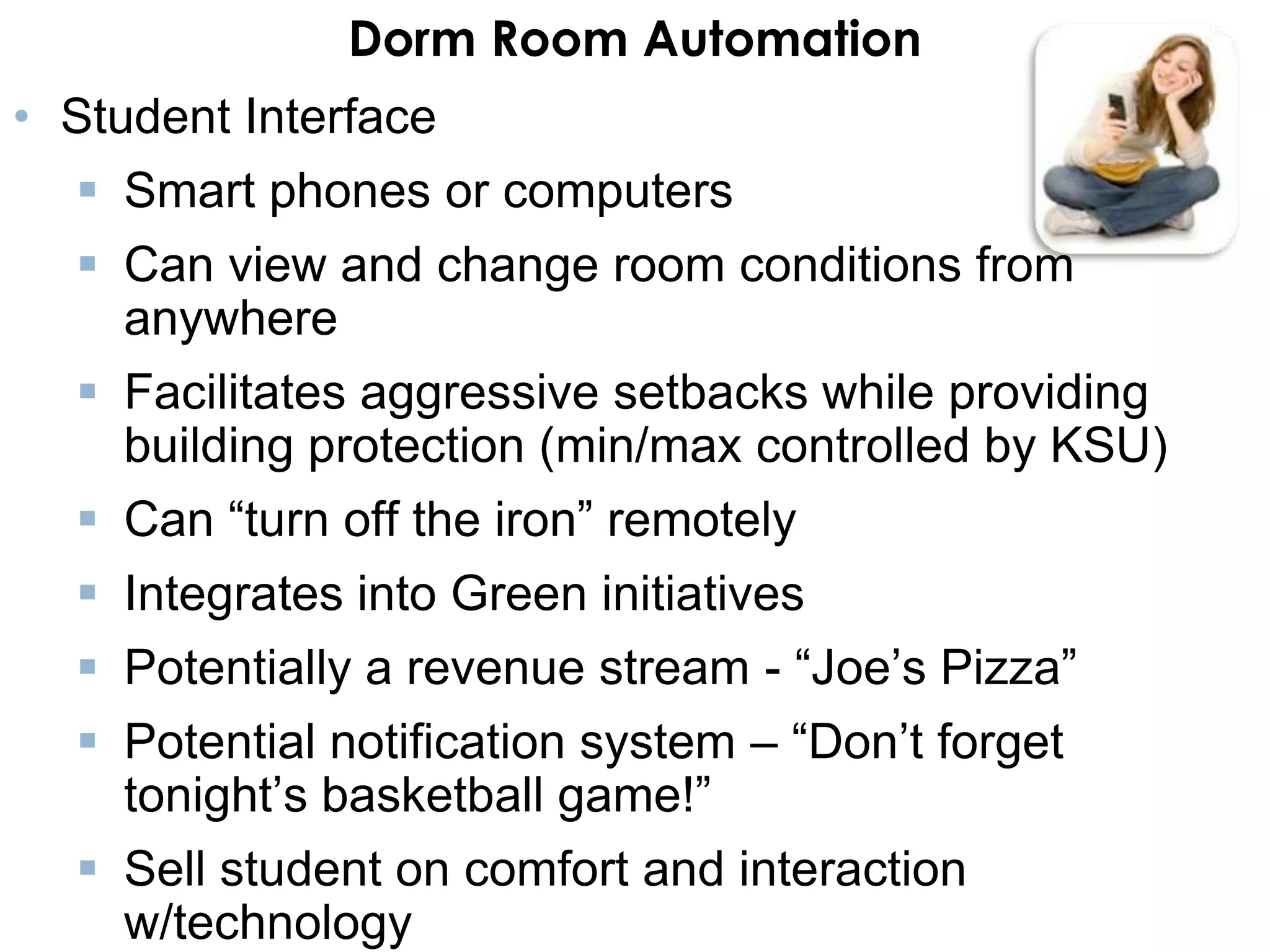

22. Dorm Room Automation
• Student Interface
 Smart phones or computers
 Can view and change room conditions from
anywhere
 Facilitates aggressive setbacks while providing
building protection (min/max controlled by KSU)
 Can “turn off the iron” remotely
 Integrates into Green initiatives
 Potentially a revenue stream - “Joe’s Pizza”
 Potential notification system – “Don’t forget
tonight’s basketball game!”
 Sell student on comfort and interaction
w/technology

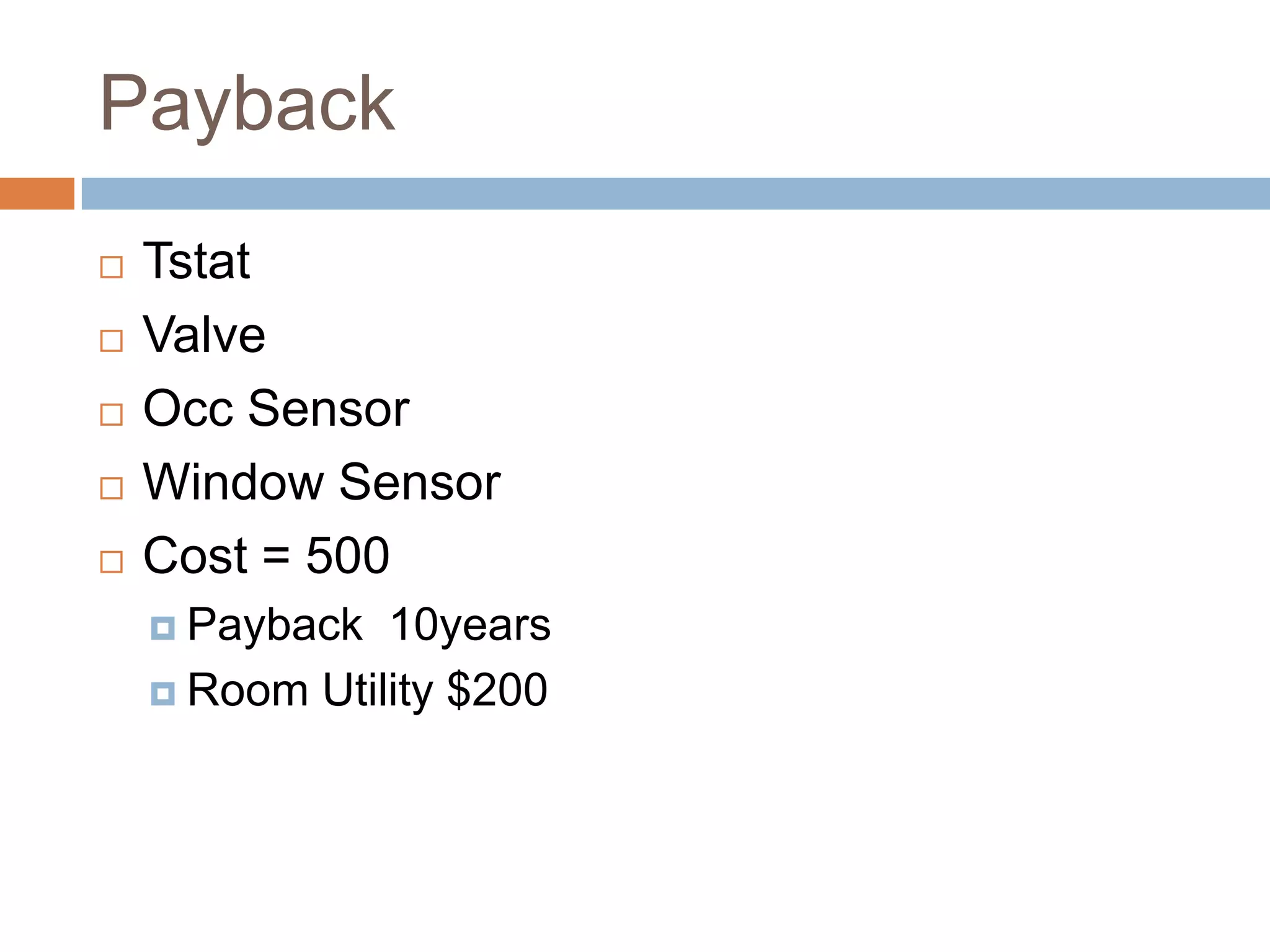

23. Payback
 Tstat
 Valve
 Occ Sensor
 Window Sensor
 Cost = 500
 Payback 10years
 Room Utility $200

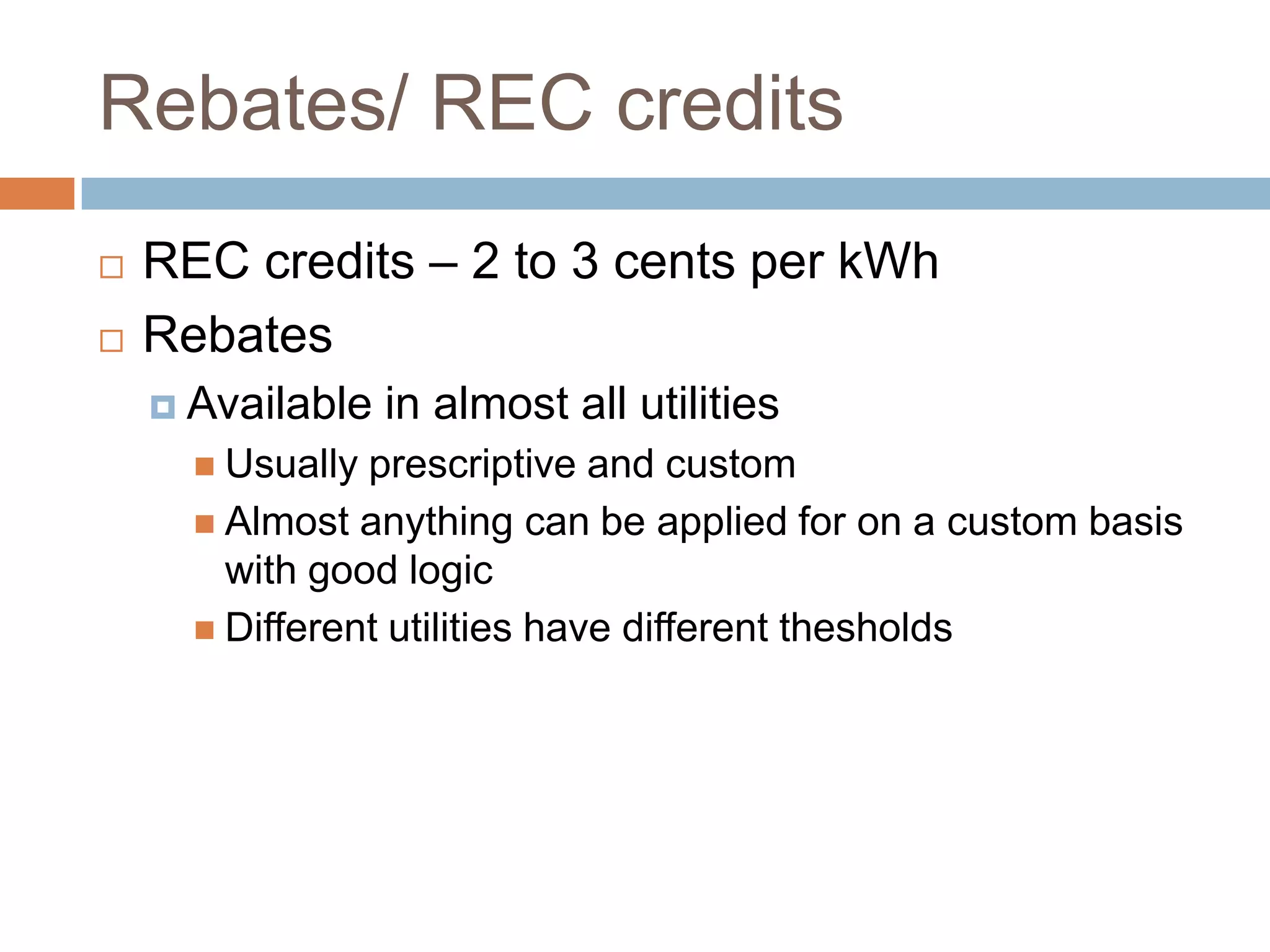

24. Rebates/ REC credits
 REC credits – 2 to 3 cents per kWh
 Rebates
 Available in almost all utilities
 Usually prescriptive and custom
 Almost anything can be applied for on a custom basis
with good logic
 Different utilities have different thesholds

25. Questions?
