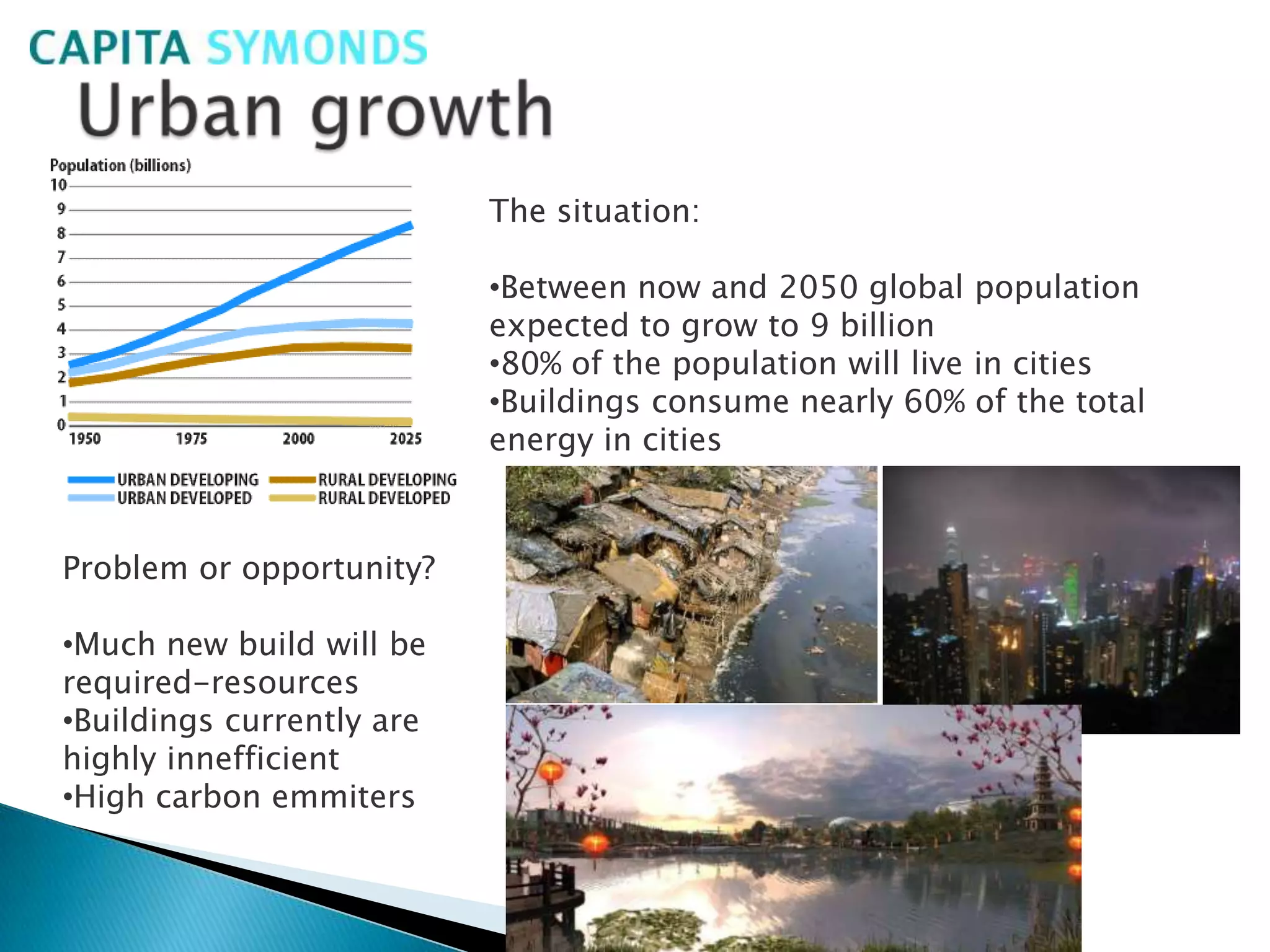

2. The situation:
•Between now and 2050 global population
expected to grow to 9 billion
•80% of the population will live in cities
•Buildings consume nearly 60% of the total
energy in cities
Problem or opportunity?
•Much new build will be
required-resources
•Buildings currently are
highly innefficient
•High carbon emmiters

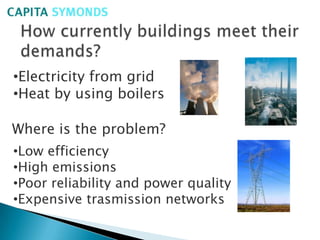

3. •Electricity from grid
•Heat by using boilers
Where is the problem?
•Low efficiency
•High emissions
•Poor reliability and power quality
•Expensive trasmission networks
4. Building passive design:
•Natural ventilation
•Enhansed thermal performance
•External microclimate
•Solar shading
•Low energy appliances
•Low energy lighting
•Green roof
Energy systems optimization:
•PV
•CHP/CCHP
•Biomass
•Wind
•Fuel cells
6. Which technology to be installed?
What is the appropriate level of installed
capacity?
How should operate the installed capacity?
With Objective:
• Minimize the energy cost
• Minimize the environmental effect
+
7.

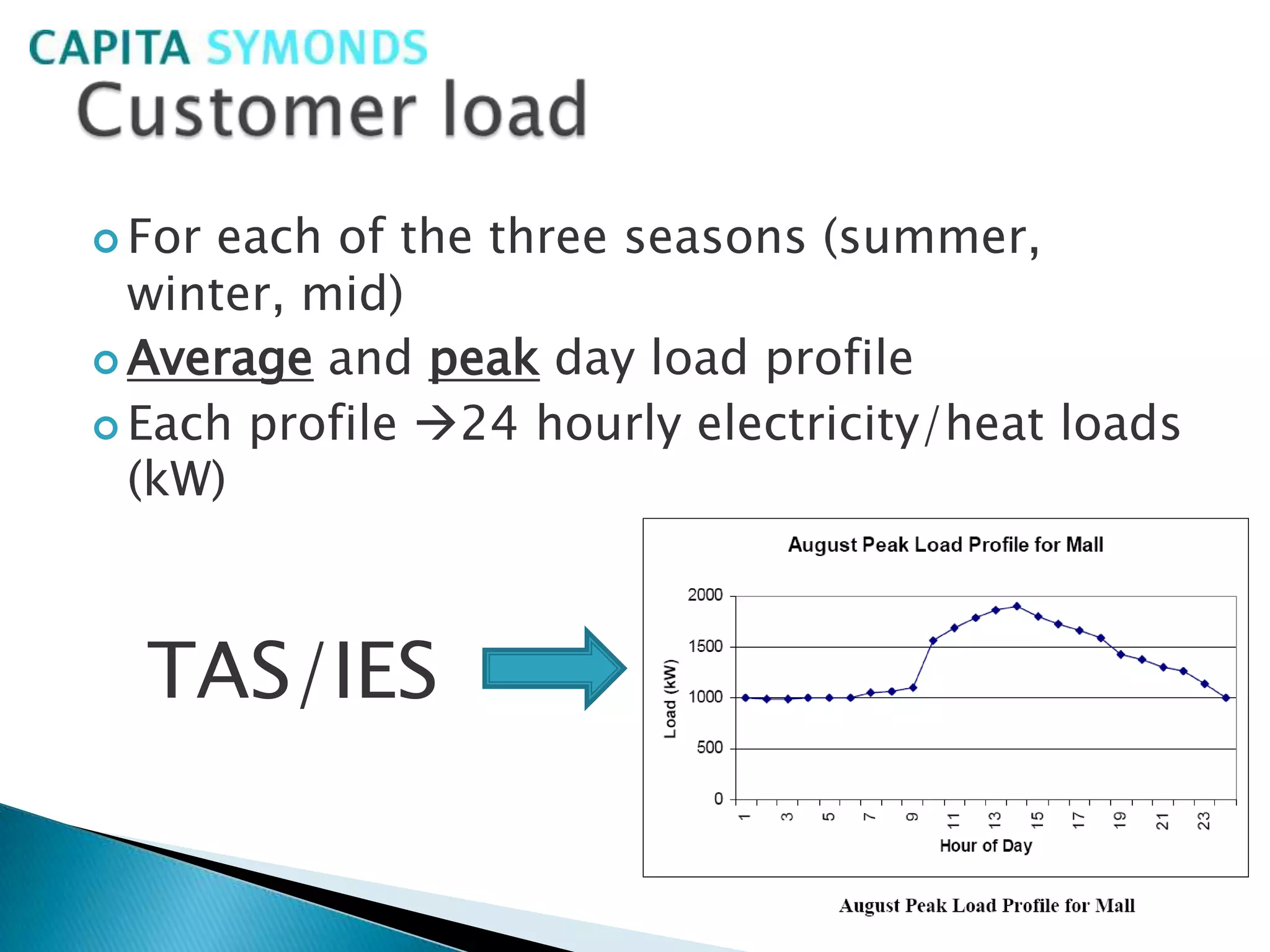

8. For each of the three seasons (summer,
winter, mid)
Average and peak day load profile
Each profile 24 hourly electricity/heat loads
(kW)
TAS/IES

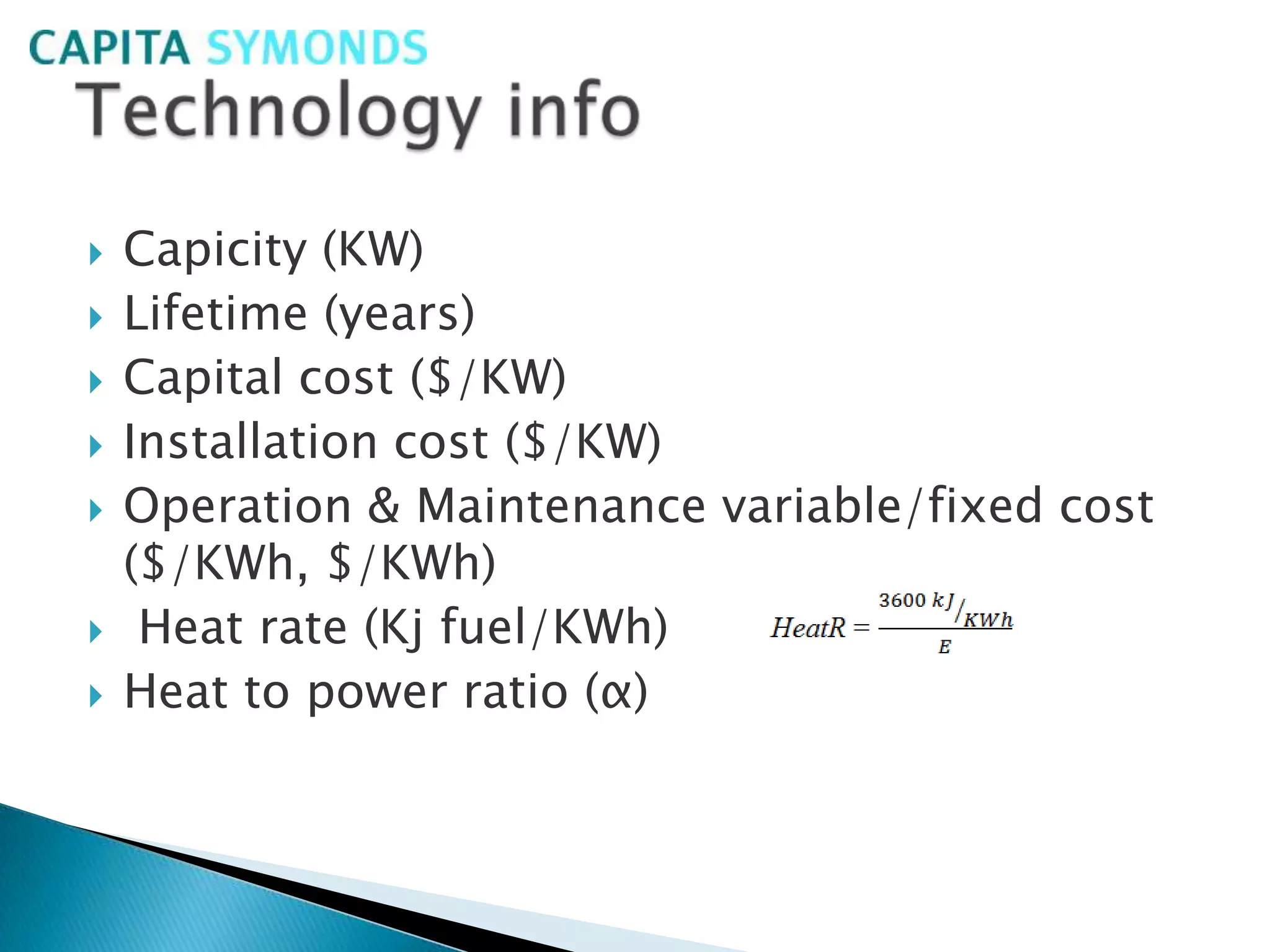

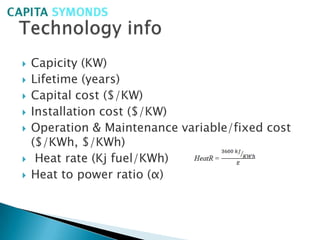

10. Capicity (KW)
Lifetime (years)
Capital cost ($/KW)
Installation cost ($/KW)
Operation & Maintenance variable/fixed cost
($/KWh, $/KWh)
Heat rate (Kj fuel/KWh)
Heat to power ratio (α)
11.

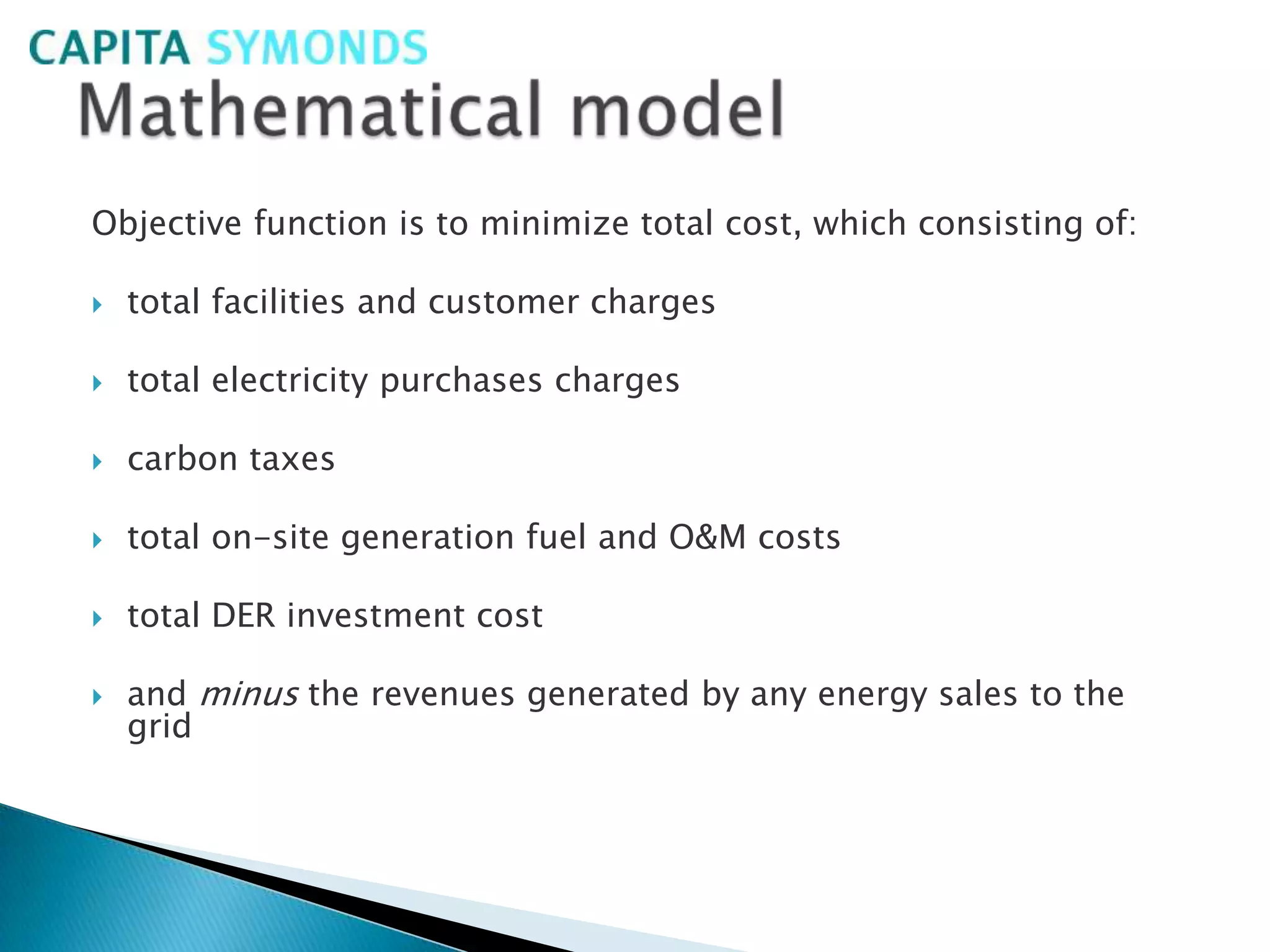

12. Objective function is to minimize total cost, which consisting of:
total facilities and customer charges
total electricity purchases charges
carbon taxes
total on-site generation fuel and O&M costs
total DER investment cost
and minus the revenues generated by any energy sales to the
grid

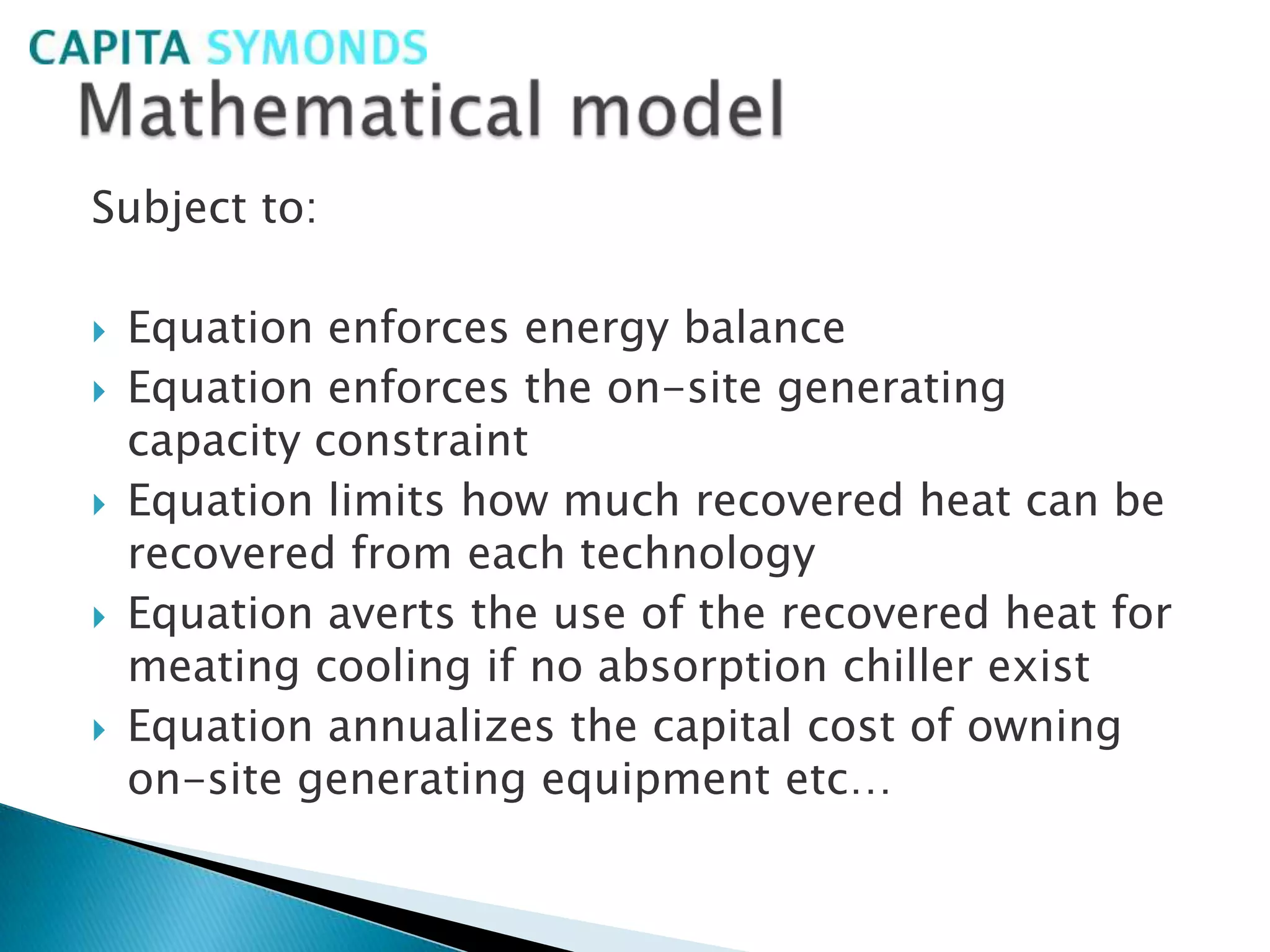

13. Subject to:
Equation enforces energy balance
Equation enforces the on-site generating
capacity constraint
Equation limits how much recovered heat can be
recovered from each technology
Equation averts the use of the recovered heat for
meating cooling if no absorption chiller exist
Equation annualizes the capital cost of owning
on-site generating equipment etc…

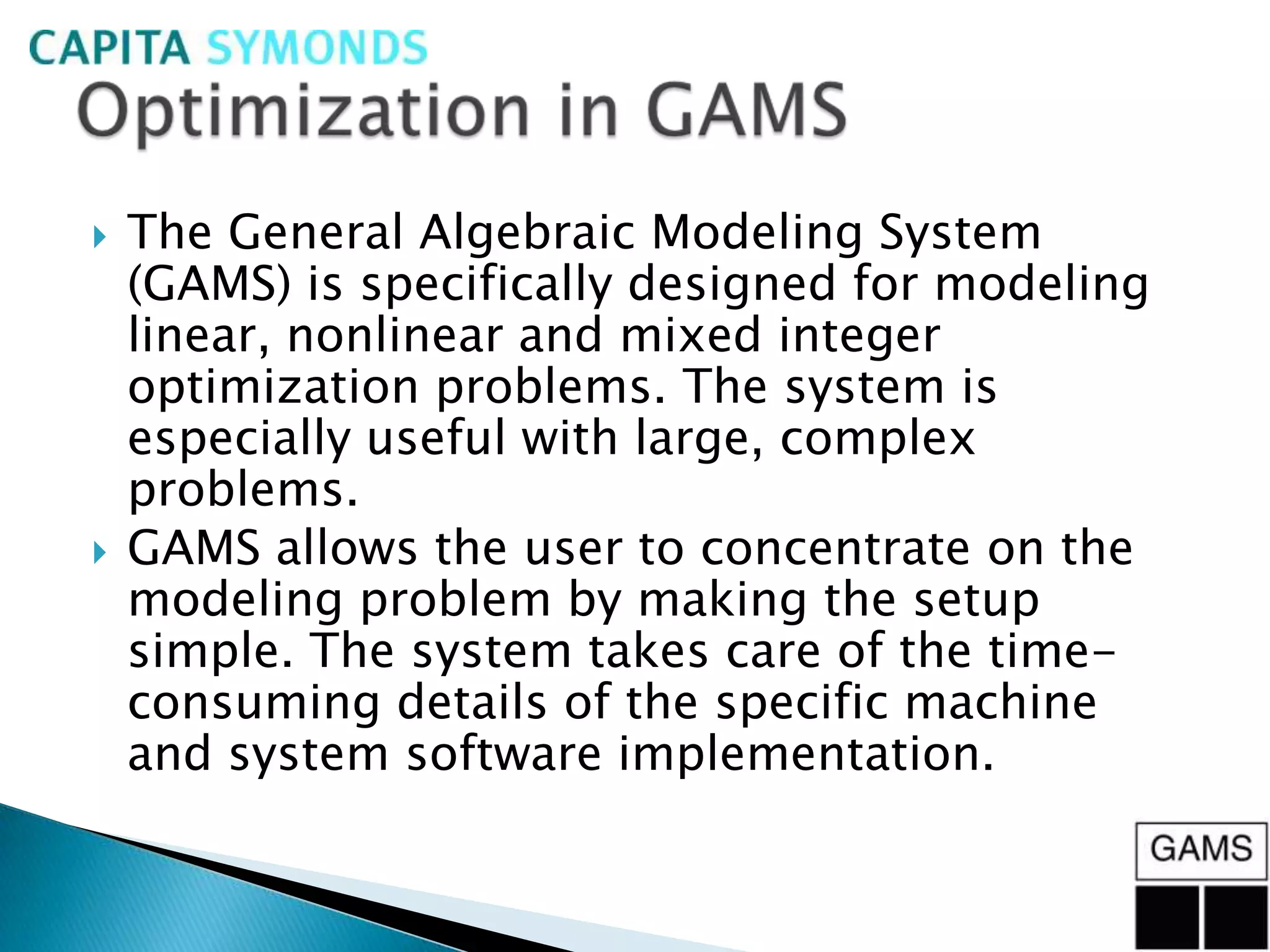

14. The General Algebraic Modeling System
(GAMS) is specifically designed for modeling
linear, nonlinear and mixed integer
optimization problems. The system is
especially useful with large, complex
problems.
GAMS allows the user to concentrate on the
modeling problem by making the setup
simple. The system takes care of the time-
consuming details of the specific machine
and system software implementation.

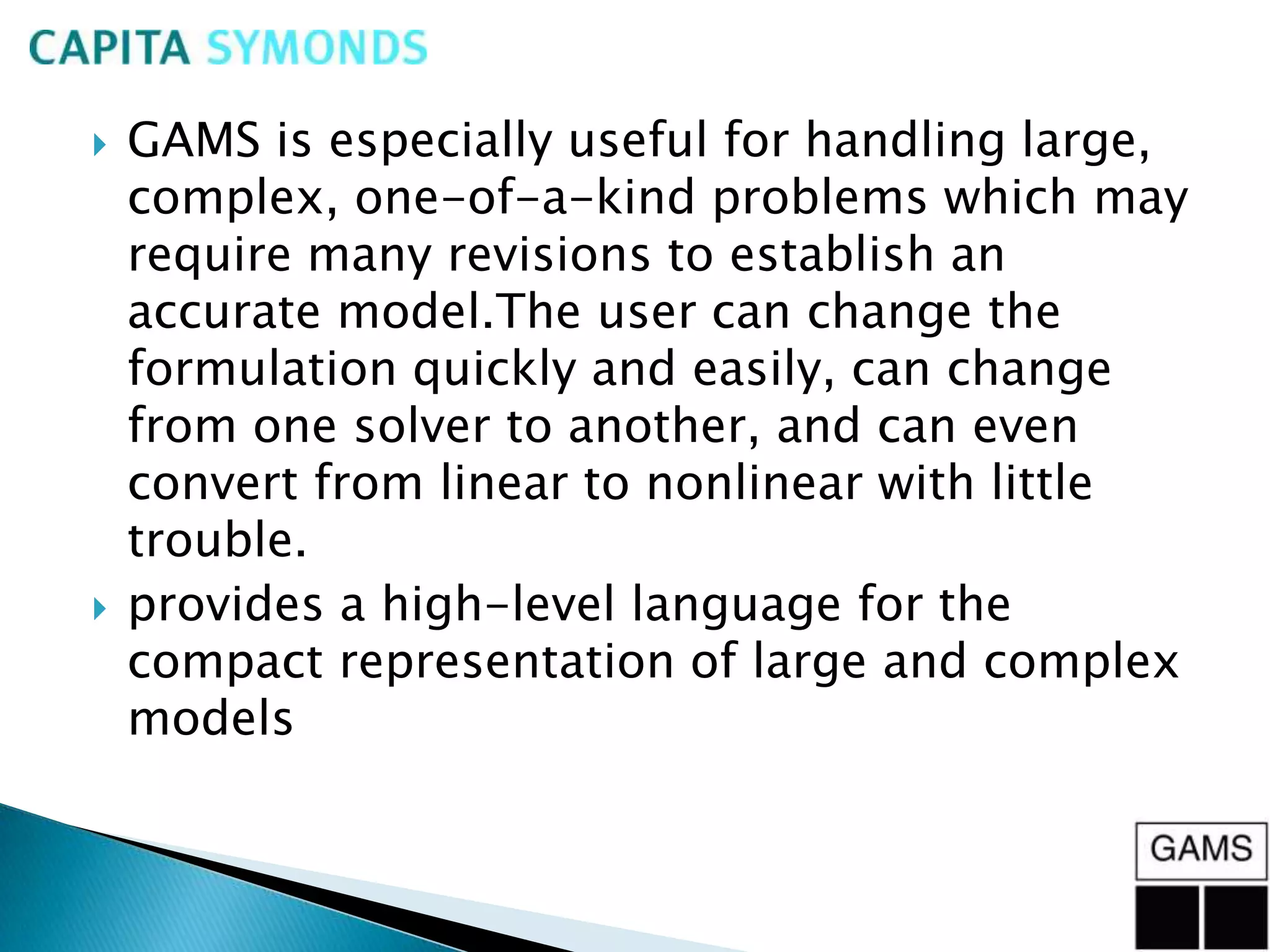

15. GAMS is especially useful for handling large,
complex, one-of-a-kind problems which may
require many revisions to establish an
accurate model.The user can change the
formulation quickly and easily, can change
from one solver to another, and can even
convert from linear to nonlinear with little
trouble.
provides a high-level language for the
compact representation of large and complex
models

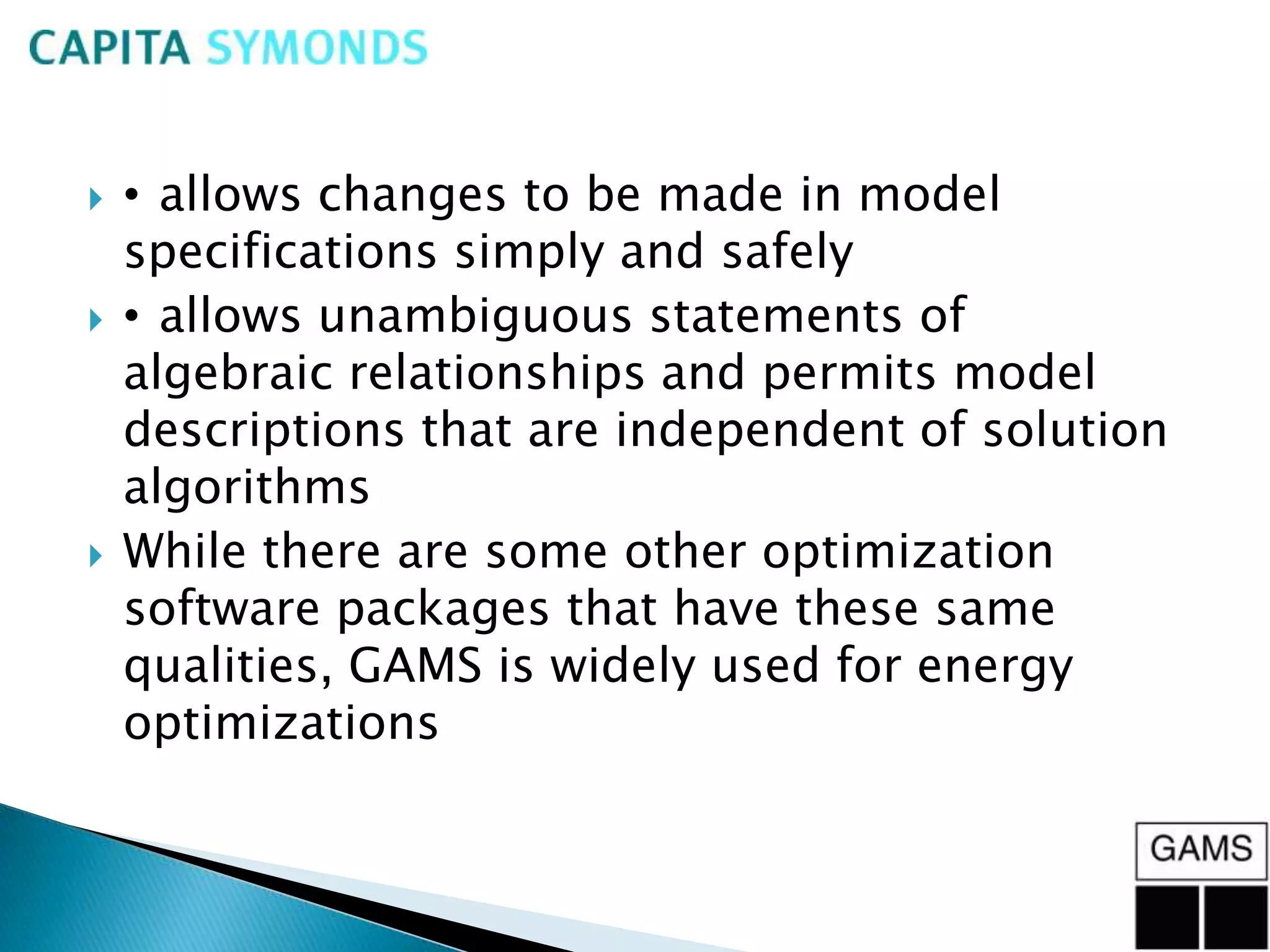

16. • allows changes to be made in model
specifications simply and safely
• allows unambiguous statements of
algebraic relationships and permits model
descriptions that are independent of solution
algorithms
While there are some other optimization
software packages that have these same
qualities, GAMS is widely used for energy
optimizations

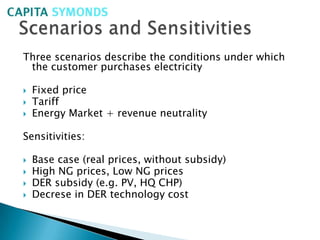

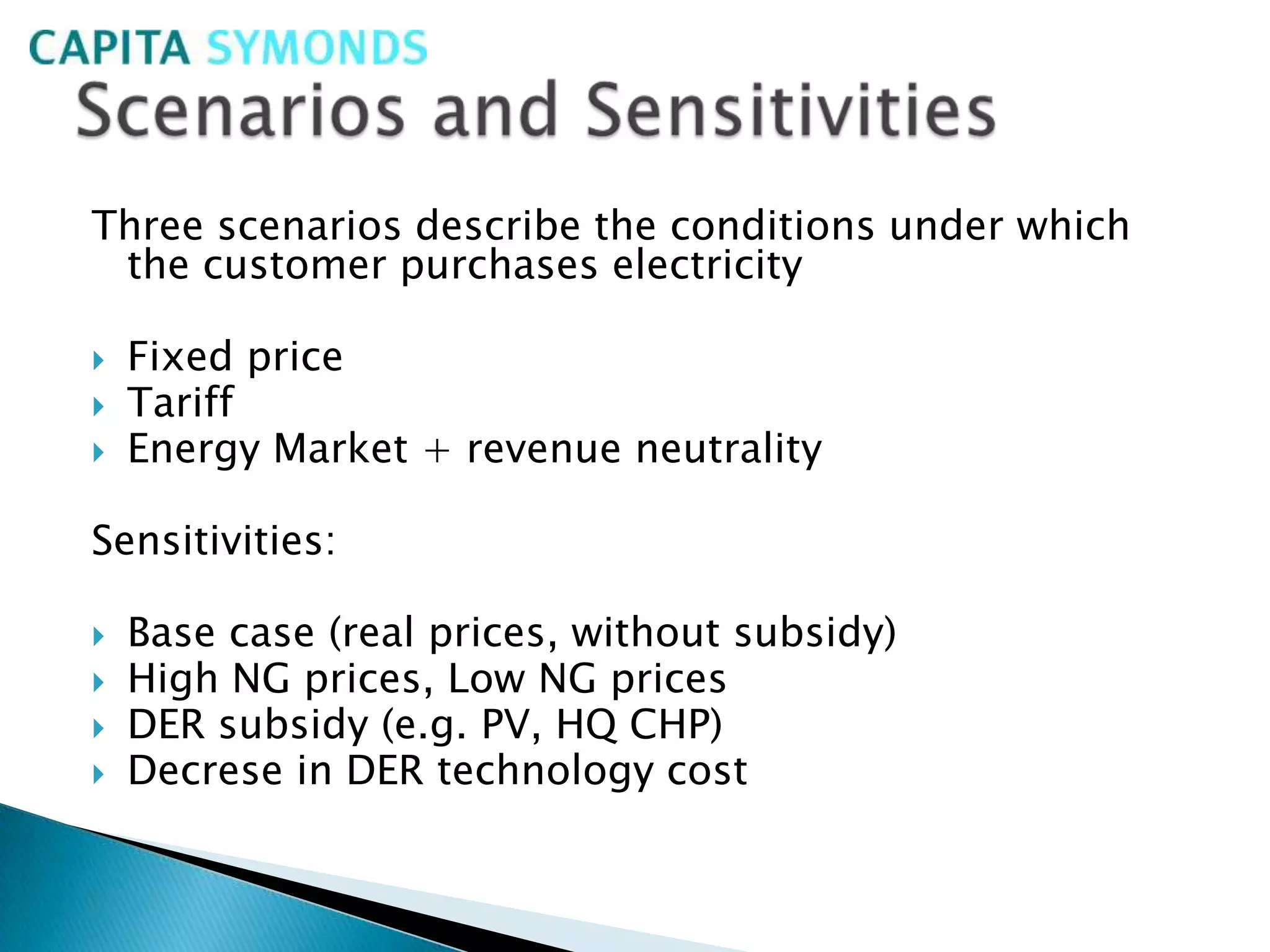

17. Three scenarios describe the conditions under which
the customer purchases electricity
Fixed price
Tariff
Energy Market + revenue neutrality
Sensitivities:
Base case (real prices, without subsidy)
High NG prices, Low NG prices
DER subsidy (e.g. PV, HQ CHP)
Decrese in DER technology cost

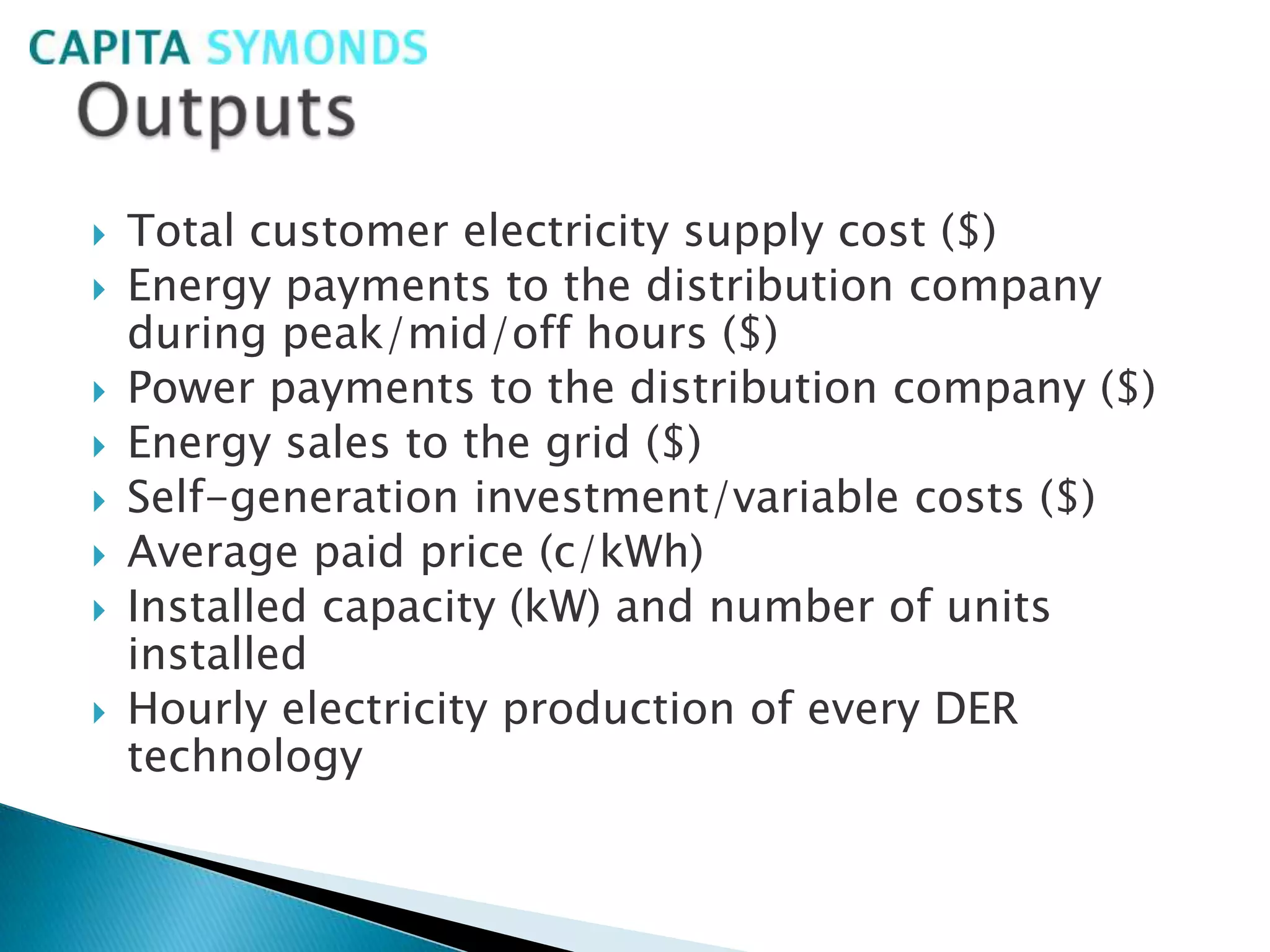

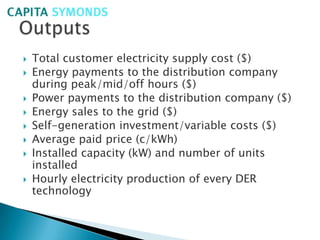

18. Total customer electricity supply cost ($)
Energy payments to the distribution company
during peak/mid/off hours ($)
Power payments to the distribution company ($)
Energy sales to the grid ($)
Self-generation investment/variable costs ($)
Average paid price (c/kWh)
Installed capacity (kW) and number of units
installed
Hourly electricity production of every DER
technology

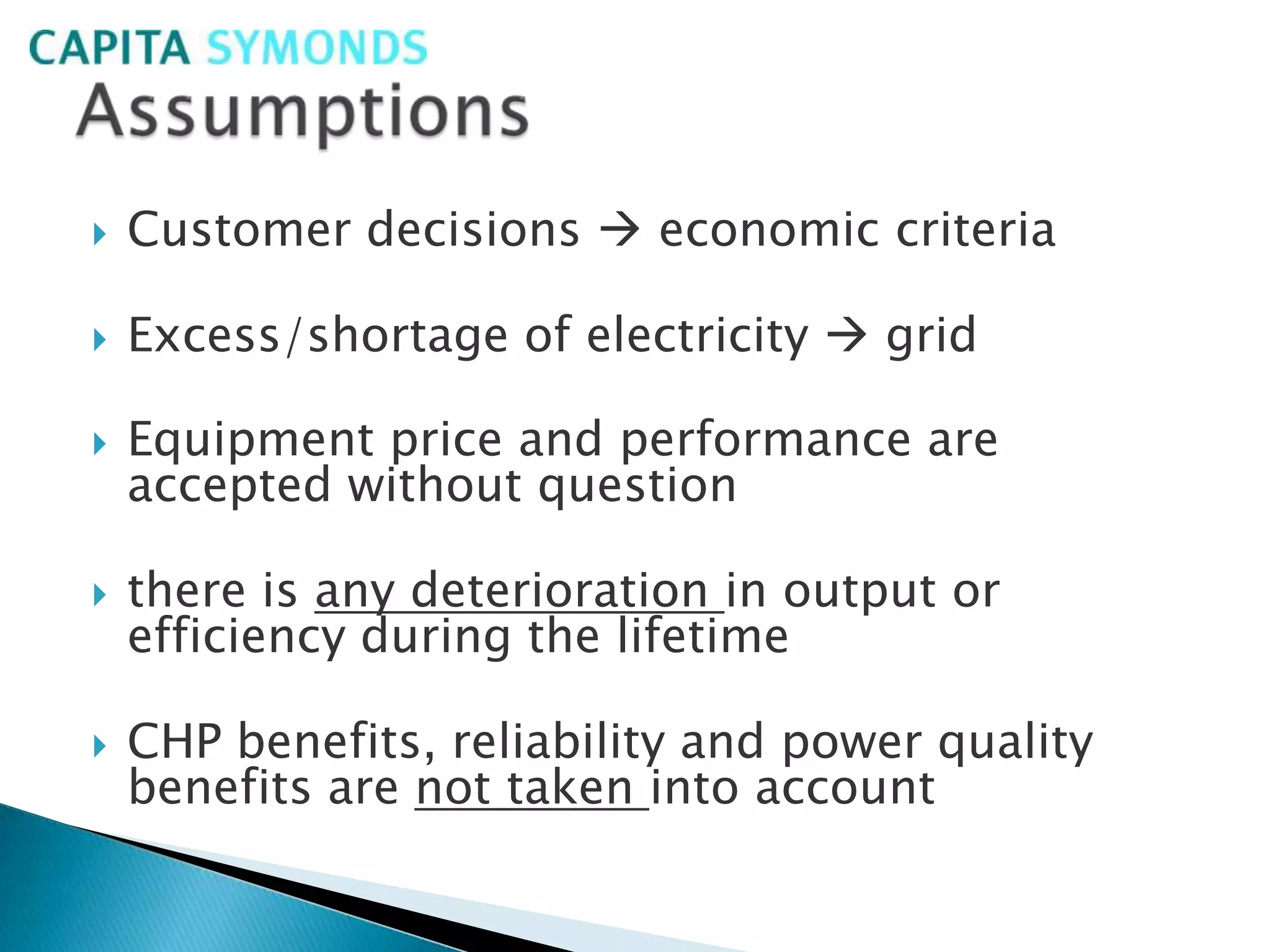

19. Customer decisions economic criteria
Excess/shortage of electricity grid
Equipment price and performance are
accepted without question
there is any deterioration in output or
efficiency during the lifetime
CHP benefits, reliability and power quality
benefits are not taken into account

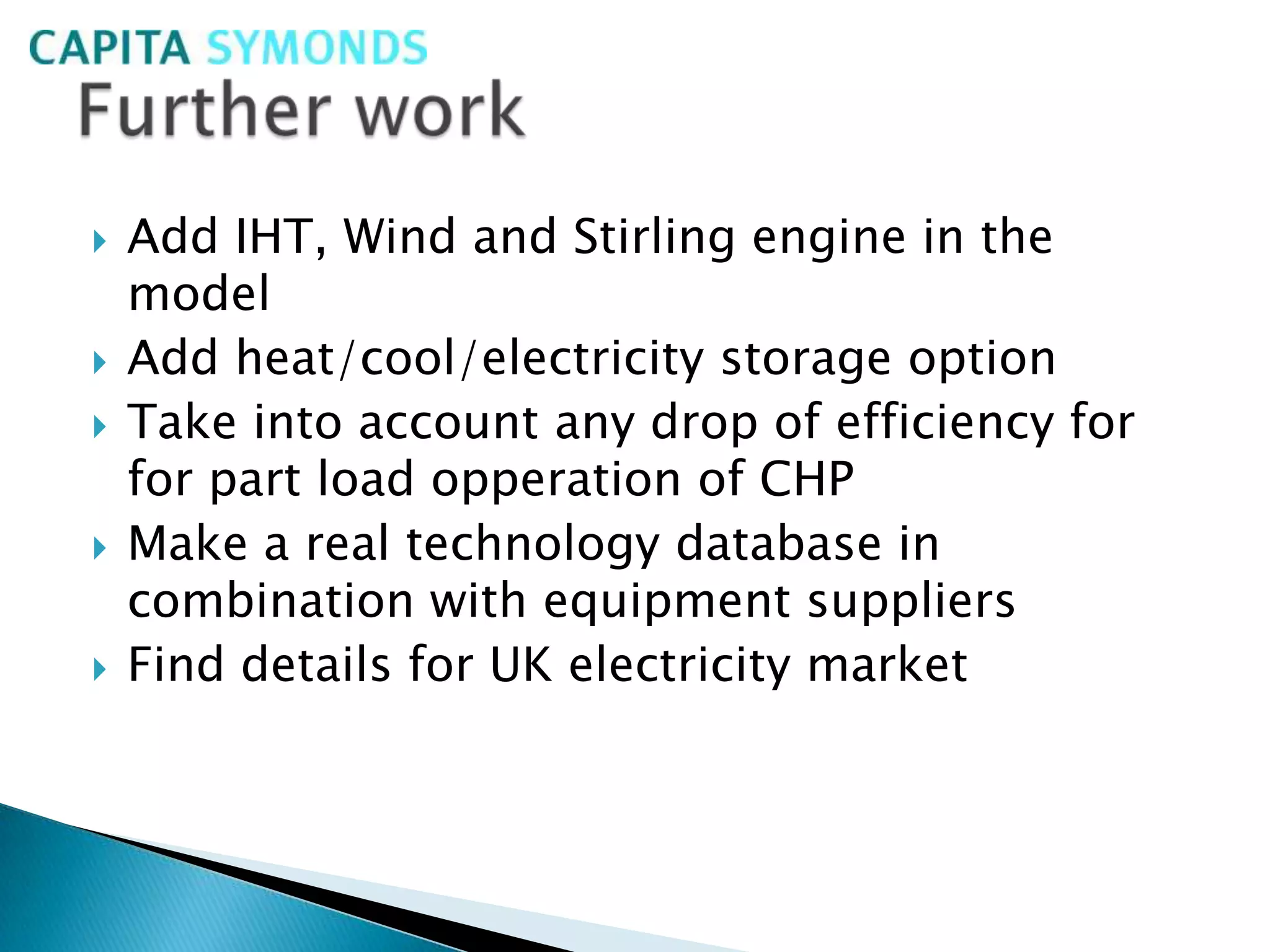

20. Add IHT, Wind and Stirling engine in the
model
Add heat/cool/electricity storage option
Take into account any drop of efficiency for
for part load opperation of CHP
Make a real technology database in
combination with equipment suppliers
Find details for UK electricity market
