M/DB and M/DB:X are open source NoSQL databases based on GT.M. M/DB emulates the Amazon SimpleDB API and data model, allowing use of SimpleDB-compatible clients on premise. M/DB:X provides a native XML database with DOM and XPath APIs that can store and retrieve XML documents in JSON or XML format using the SimpleDB security model. Both leverage the high performance and scalability of the underlying GT.M database.

1. M/DB & M/DB:X Open Source NoSQL Projects based on GT.M Rob Tweed: M/Gateway Developments Ltd

2. M/DB & M/DB:X What are they? Why might you use them? What is GT.M? Why are they based on GT.M? What should you be interested in GT.M?

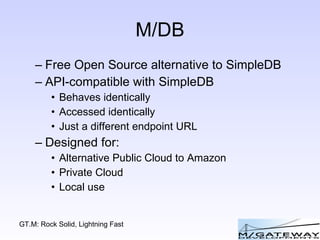

3. M/DB Free Open Source alternative to SimpleDB API-compatible with SimpleDB Behaves identically Accessed identically Just a different endpoint URL Designed for: Alternative Public Cloud to Amazon Private Cloud Local use

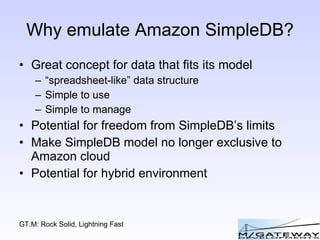

4. Why emulate Amazon SimpleDB? Great concept for data that fits its model “ spreadsheet-like” data structure Simple to use Simple to manage Potential for freedom from SimpleDB’s limits Make SimpleDB model no longer exclusive to Amazon cloud Potential for hybrid environment

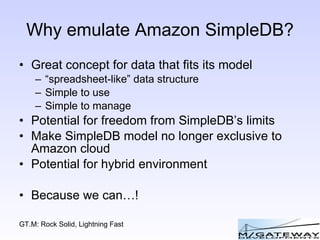

5. Why emulate Amazon SimpleDB? Great concept for data that fits its model “ spreadsheet-like” data structure Simple to use Simple to manage Potential for freedom from SimpleDB’s limits Make SimpleDB model no longer exclusive to Amazon cloud Potential for hybrid environment Because we can…!

6. SimpleDB Model Domains: individual tables or databases Items: rows in a table Attributes: columns in a table Values: cells (note: an attribute can have multiple values)

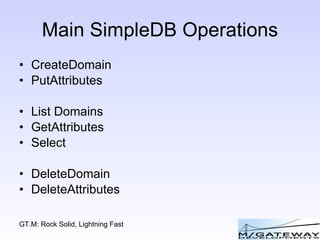

7. Main SimpleDB Operations CreateDomain PutAttributes List Domains GetAttributes Select DeleteDomain DeleteAttributes

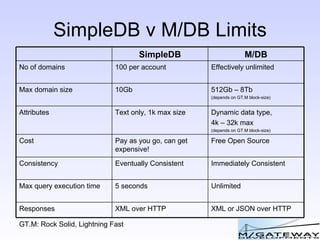

8. SimpleDB v M/DB Limits Unlimited 5 seconds Max query execution time XML or JSON over HTTP XML over HTTP Responses Immediately Consistent Eventually Consistent Consistency Free Open Source Pay as you go, can get expensive! Cost Dynamic data type, 4k – 32k max (depends on GT.M block-size) Text only, 1k max size Attributes 512Gb – 8Tb (depends on GT.M block-size) 10Gb Max domain size Effectively unlimited 100 per account No of domains M/DB SimpleDB

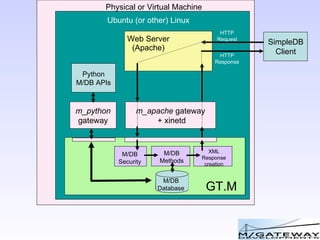

9. SimpleDB Client m_apache gateway + xinetd GT.M M/DB Security M/DB Methods Ubuntu (or other) Linux Physical or Virtual Machine HTTP Request XML Response creation HTTP Response M/DB Database m_python gateway Python M/DB APIs Web Server (Apache)

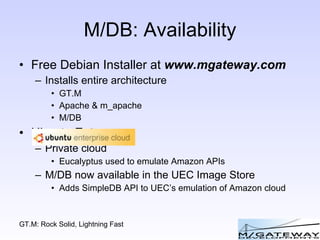

10. M/DB: Availability Free Debian Installer at www.mgateway.com Installs entire architecture GT.M Apache & m_apache M/DB Ubuntu Enterpr Private cloud Eucalyptus used to emulate Amazon APIs M/DB now available in the UEC Image Store Adds SimpleDB API to UEC’s emulation of Amazon cloud

11. M/DB Client Support Many SimpleDB Clients already support M/DB: Bolso Mindscape's SimpleDB Management Tools and LightSpeed Boto (Python client) Others? Just requires ability to change the endpoint URL M/DB emulates SimpleDB API precisely

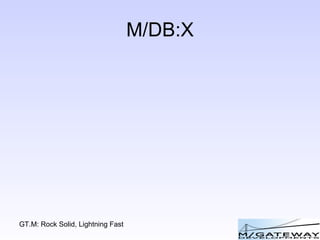

12. M/DB:X

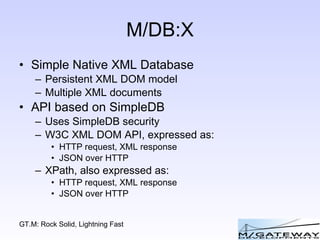

13. M/DB:X Simple Native XML Database Persistent XML DOM model Multiple XML documents API based on SimpleDB Uses SimpleDB security W3C XML DOM API, expressed as: HTTP request, XML response JSON over HTTP XPath, also expressed as: HTTP request, XML response JSON over HTTP

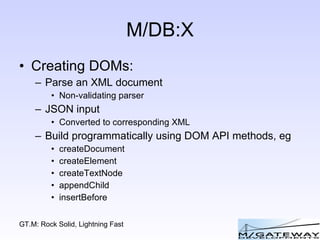

14. M/DB:X Creating DOMs: Parse an XML document Non-validating parser JSON input Converted to corresponding XML Build programmatically using DOM API methods, eg createDocument createElement createTextNode appendChild insertBefore

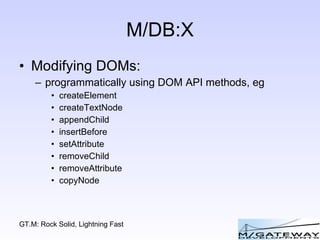

15. M/DB:X Modifying DOMs: programmatically using DOM API methods, eg createElement createTextNode appendChild insertBefore setAttribute removeChild removeAttribute copyNode

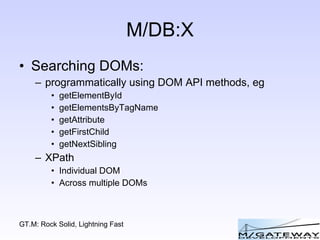

16. M/DB:X Searching DOMs: programmatically using DOM API methods, eg getElementById getElementsByTagName getAttribute getFirstChild getNextSibling XPath Individual DOM Across multiple DOMs

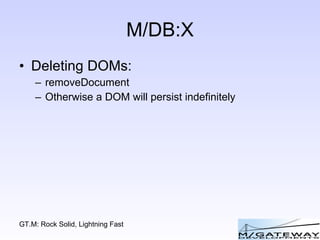

17. M/DB:X Deleting DOMs: removeDocument Otherwise a DOM will persist indefinitely

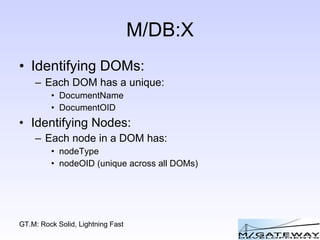

18. M/DB:X Identifying DOMs: Each DOM has a unique: DocumentName DocumentOID Identifying Nodes: Each node in a DOM has: nodeType nodeOID (unique across all DOMs)

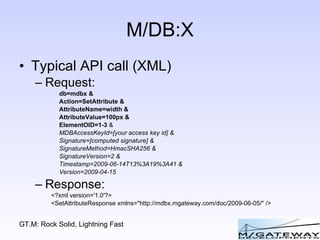

19. M/DB:X Typical API call (XML) Request: db=mdbx & Action=SetAttribute & AttributeName=width & AttributeValue=100px & ElementOID=1-3 & MDBAccessKeyId=[your access key id] & Signature=[computed signature] & SignatureMethod=HmacSHA256 & SignatureVersion=2 & Timestamp=2009-06-14T13%3A19%3A41 & Version=2009-04-15 Response: <?xml version='1.0'?> <SetAttributeResponse xmlns=&quot;http://mdbx.mgateway.com/doc/2009-06-05/&quot; />

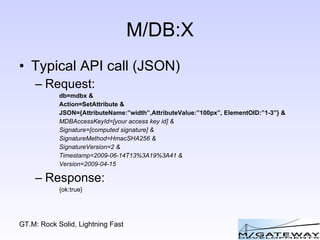

20. M/DB:X Typical API call (JSON) Request: db=mdbx & Action=SetAttribute & JSON={AttributeName:”width”,AttributeValue:”100px”, ElementOID:”1-3”} & MDBAccessKeyId=[your access key id] & Signature=[computed signature] & SignatureMethod=HmacSHA256 & SignatureVersion=2 & Timestamp=2009-06-14T13%3A19%3A41 & Version=2009-04-15 Response: {ok:true}

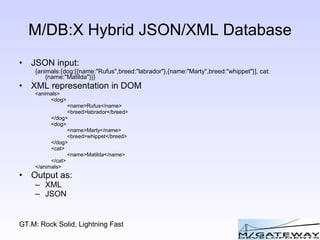

21. M/DB:X Hybrid JSON/XML Database JSON input: {animals:{dog:[{name:&quot;Rufus&quot;,breed:&quot;labrador&quot;},{name:&quot;Marty&quot;,breed:&quot;whippet&quot;}], cat:{name:&quot;Matilda&quot;}}} XML representation in DOM <animals> <dog> <name>Rufus</name> <breed>labrador</breed> </dog> <dog> <name>Marty</name> <breed>whippet</breed> </dog> <cat> <name>Matilda</name> </cat> </animals> Output as: XML JSON

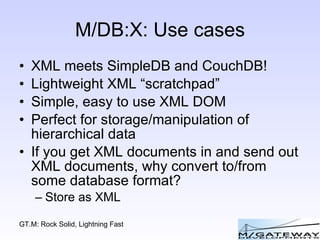

22. M/DB:X: Use cases XML meets SimpleDB and CouchDB! Lightweight XML “scratchpad” Simple, easy to use XML DOM Perfect for storage/manipulation of hierarchical data If you get XML documents in and send out XML documents, why convert to/from some database format? Store as XML

23. M/DB:X Client Support None available to my knowledge XML API based on SimpleDB model + SimpleDB security Should be simple to adapt existing SimpleDB clients

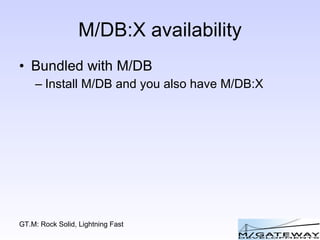

24. M/DB:X availability Bundled with M/DB Install M/DB and you also have M/DB:X

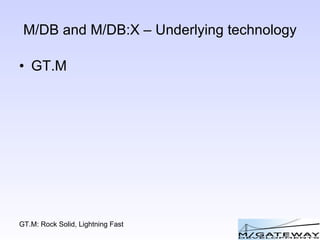

25. M/DB and M/DB:X – Underlying technology GT.M

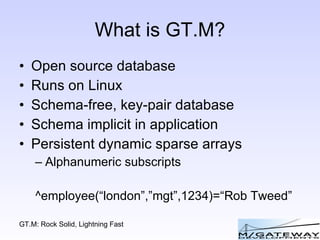

26. What is GT.M? Open source database Runs on Linux Schema-free, key-pair database Schema implicit in application Persistent dynamic sparse arrays Alphanumeric subscripts ^employee(“london”,”mgt”,1234)=“Rob Tweed”

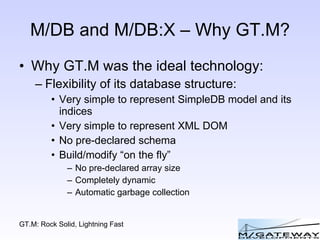

27. M/DB and M/DB:X – Why GT.M? Why GT.M was the ideal technology: Flexibility of its database structure: Very simple to represent SimpleDB model and its indices Very simple to represent XML DOM No pre-declared schema Build/modify “on the fly” No pre-declared array size Completely dynamic Automatic garbage collection

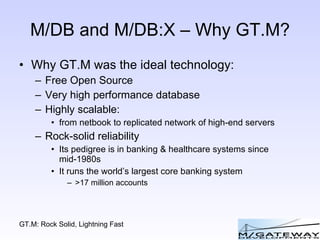

28. M/DB and M/DB:X – Why GT.M? Why GT.M was the ideal technology: Free Open Source Very high performance database Highly scalable: from netbook to replicated network of high-end servers Rock-solid reliability Its pedigree is in banking & healthcare systems since mid-1980s It runs the world’s largest core banking system >17 million accounts

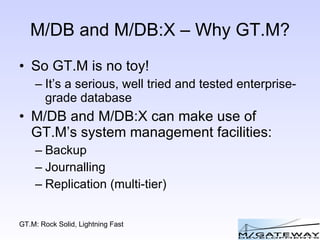

29. M/DB and M/DB:X – Why GT.M? So GT.M is no toy! It’s a serious, well tried and tested enterprise-grade database M/DB and M/DB:X can make use of GT.M’s system management facilities: Backup Journalling Replication (multi-tier)

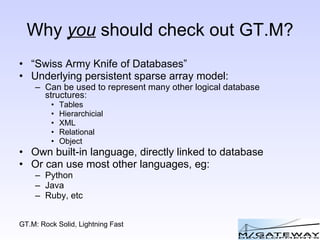

30. Why you should check out GT.M? “ Swiss Army Knife of Databases” Underlying persistent sparse array model: Can be used to represent many other logical database structures: Tables Hierarchicial XML Relational Object Own built-in language, directly linked to database Or can use most other languages, eg: Python Java Ruby, etc

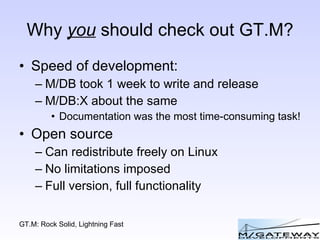

31. Why you should check out GT.M? Speed of development: M/DB took 1 week to write and release M/DB:X about the same Documentation was the most time-consuming task! Open source Can redistribute freely on Linux No limitations imposed Full version, full functionality

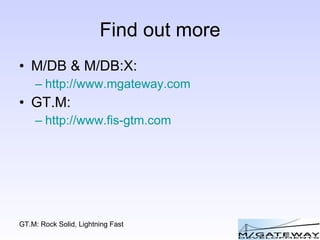

32. Find out more M/DB & M/DB:X: http://www.mgateway.com GT.M: http://www.fis-gtm.com
