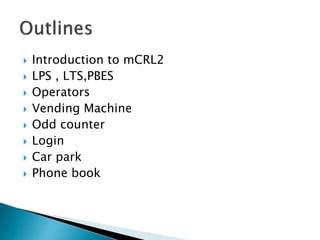

2.  Introduction to mCRL2
 LPS , LTS,PBES
 Operators
 Vending Machine
 Odd counter
 Login
 Car park
 Phone book

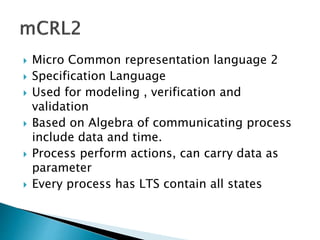

3.  Micro Common representation language 2
 Specification Language
 Used for modeling , verification and
validation
 Based on Algebra of communicating process
include data and time.
 Process perform actions, can carry data as
parameter
 Every process has LTS contain all states

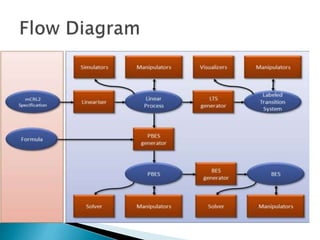

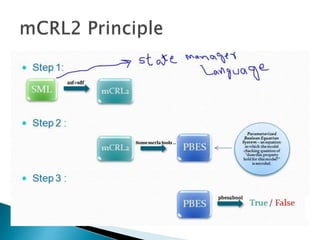

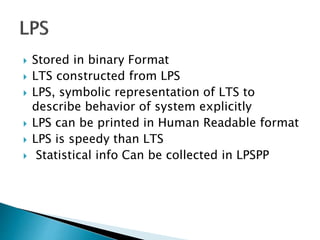

6.  Stored in binary Format
 LTS constructed from LPS
 LPS, symbolic representation of LTS to
describe behavior of system explicitly
 LPS can be printed in Human Readable format
 LPS is speedy than LTS
 Statistical info Can be collected in LPSPP

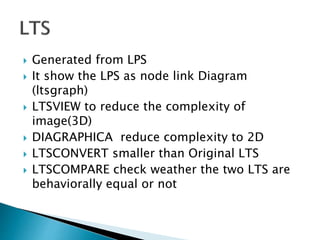

7.  Generated from LPS
 It show the LPS as node link Diagram
(ltsgraph)
 LTSVIEW to reduce the complexity of
image(3D)
 DIAGRAPHICA reduce complexity to 2D
 LTSCONVERT smaller than Original LTS
 LTSCOMPARE check weather the two LTS are
behaviorally equal or not

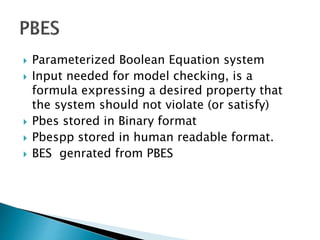

8.  Parameterized Boolean Equation system
 Input needed for model checking, is a
formula expressing a desired property that
the system should not violate (or satisfy)
 Pbes stored in Binary format
 Pbespp stored in human readable format.
 BES genrated from PBES

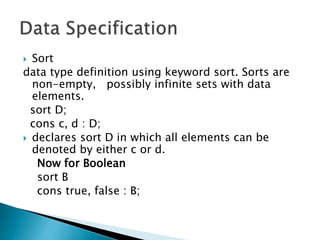

9.  Sort
data type definition using keyword sort. Sorts are
non-empty, possibly infinite sets with data
elements.
sort D;
cons c, d : D;
 declares sort D in which all elements can be
denoted by either c or d.
Now for Boolean
sort B
cons true, false : B;

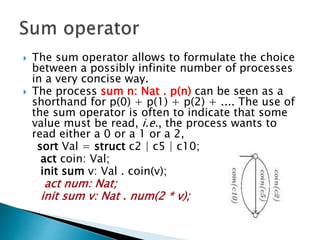

10.  The sum operator allows to formulate the choice
between a possibly infinite number of processes
in a very concise way.
 The process sum n: Nat . p(n) can be seen as a
shorthand for p(0) + p(1) + p(2) + .... The use of
the sum operator is often to indicate that some
value must be read, i.e., the process wants to
read either a 0 or a 1 or a 2,
sort Val = struct c2 | c5 | c10;
act coin: Val;
init sum v: Val . coin(v);
act num: Nat;
init sum v: Nat . num(2 * v);

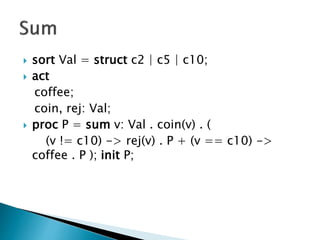

11.  sort Val = struct c2 | c5 | c10;
 act
coffee;
coin, rej: Val;
 proc P = sum v: Val . coin(v) . (
(v != c10) -> rej(v) . P + (v == c10) ->
coffee . P ); init P;

12.  We can let data influence the course of events
by adding conditions to the process
c -> p <> q implies if c then do process p
else do process q
 act tick, reset;
proc
Clock(n: Nat) = (n < 99) -> tick . Clock(n + 1)
<> tick . Clock(0) + (n < 50) -> reset .
Clock(0);
init Clock(0);

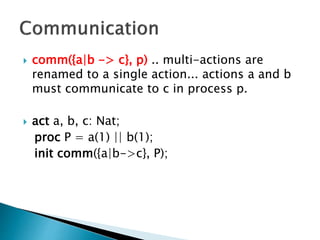

13.  comm({a|b -> c}, p) .. multi-actions are
renamed to a single action... actions a and b
must communicate to c in process p.
 act a, b, c: Nat;
proc P = a(1) || b(1);
init comm({a|b->c}, P);

14.  Allow (allow(A, P))
removes all multi-actions from the transition
system that do not occur in A. Any states that
have become unreachable will also be
removed by mCRL2, as the resulting system
is smaller and bisimilar.
allow({c}; p) only multi-actions consisting
of a single c are allowed in p.
allow({c},comm({send|read- > c}, send||read))

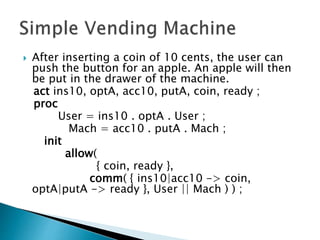

15.  After inserting a coin of 10 cents, the user can
push the button for an apple. An apple will then
be put in the drawer of the machine.
act ins10, optA, acc10, putA, coin, ready ;
proc
User = ins10 . optA . User ;
Mach = acc10 . putA . Mach ;
init
allow(
{ coin, ready },
comm( { ins10|acc10 -> coin,
optA|putA -> ready }, User || Mach ) ) ;

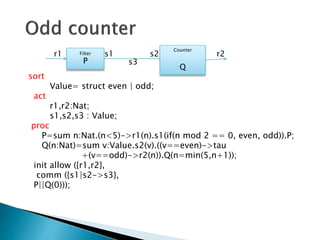

16. sort
Value= struct even | odd;
act
r1,r2:Nat;
s1,s2,s3 : Value;
proc
P=sum n:Nat.(n<5)->r1(n).s1(if(n mod 2 == 0, even, odd)).P;
Q(n:Nat)=sum v:Value.s2(v).((v==even)->tau
+(v==odd)->r2(n)).Q(n=min(5,n+1));
init allow ({r1,r2},
comm ({s1|s2->s3},
P||Q(0)));
Filter
P
Counter
Q
r1 r2s1 s2
s3

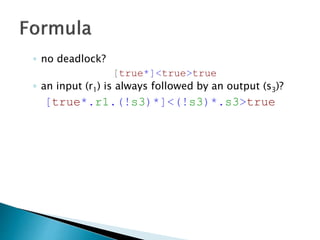

17. ◦ no deadlock?
[true*]<true>true
◦ an input (r1) is always followed by an output (s3)?
[true*.r1.(!s3)*]<(!s3)*.s3>true

18.  User first check the system if the system
working the user enter password and
username, if it is already in the database the
user login to the system if not available then
the user first go for signup and insert all the
data.

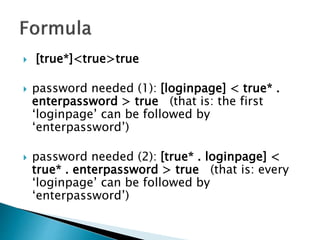

19.  [true*]<true>true
 password needed (1): [loginpage] < true* .
enterpassword > true (that is: the first
‘loginpage’ can be followed by
‘enterpassword’)
 password needed (2): [true* . loginpage] <
true* . enterpassword > true (that is: every
‘loginpage’ can be followed by
‘enterpassword’)

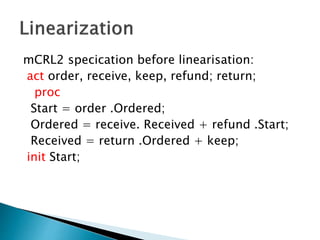

20. mCRL2 specication before linearisation:
act order, receive, keep, refund; return;
proc
Start = order .Ordered;
Ordered = receive. Received + refund .Start;
Received = return .Ordered + keep;
init Start;

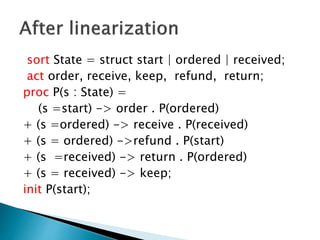

21. sort State = struct start | ordered | received;
act order, receive, keep, refund, return;
proc P(s : State) =
(s =start) -> order . P(ordered)
+ (s =ordered) -> receive . P(received)
+ (s = ordered) ->refund . P(start)
+ (s =received) -> return . P(ordered)
+ (s = received) -> keep;
init P(start);

23. act
enter_car,
enter_cash,recive_recipt,car_park,open_gate,acc_cash,give_recipt,
entercar,cash,recipt,park,acc_gate;
proc
User = enter_car . enter_cash. recive_recipt . car_park . User;
Machine =acc_gate . acc_cash . give_recipt. open_gate . Machine;
init
allow(
{entercar,cash,recipt,park },
comm(
{enter_car|acc_gate -> entercar, enter_cash|acc_cash->cash,
recive_recipt|give_recipt->recipt, car_park|open_gate->park },
User || Machine
) ) ;

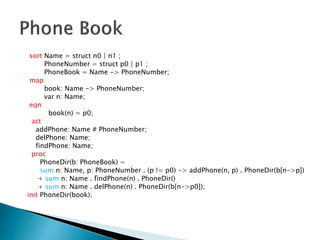

24. sort Name = struct n0 | n1 ;
PhoneNumber = struct p0 | p1 ;
PhoneBook = Name -> PhoneNumber;
map
book: Name -> PhoneNumber;
var n: Name;
eqn
book(n) = p0;
act
addPhone: Name # PhoneNumber;
delPhone: Name;
findPhone: Name;
proc
PhoneDir(b: PhoneBook) =
sum n: Name, p: PhoneNumber . (p != p0) -> addPhone(n, p) . PhoneDir(b[n->p])
+ sum n: Name . findPhone(n) . PhoneDir()
+ sum n: Name . delPhone(n) . PhoneDir(b[n->p0]);
init PhoneDir(book);
