Maurizio Bianchi
Technologies and Servi
ces
for a Smart World
CTO (Chief Technical Officer) / R&D Manager
Date: 28 April, 2015 - Hours:
16:00
Session: BS1 - Room: ASIA D

Smart cities are an obvious application of IoT as a
horizontal enabler, covering
sustainable smart grids,
smart mobility ,
smart health.
Advances in integration and miniaturization of ultra-low
power components and micro systems and increased
autonomy and flexibility of service robots is accelerating
the diffusion of embedded ICT in all types of physical
objects and artefacts ranging from clothes and even
bodies to homes, cars and transport systems, as well as all
public spaces and cities.
Internet of Things (IoT) is a technology, and a market
development, based on the inter-connection of everyday
objects among themselves and applications.
IoT will enable an ecosystem of smart applications and
services, which will improve and simplify EU citizens' lives.
Whereas in the first run Internet of Things referred to the
advent of barcodes and Radio-frequency identification (FID),
helping to automate inventory, tracking and basic identification,
the second current wave of IoT sees a strong verve for
connecting sensors, objects, devices, data and applications. The
next wave could be called a “cognitive IoT”, facilitating object
and data reuse across application domains, leveraging on
hyper-connectivity, interoperability solutions and semantic
enriched information distribution, incorporating intelligence at
different levels, in the objects, devices, network(s), systems and
in the applications for evidence-based decision making and
priority setting.
Economically , it could generate billions of Euros that easily
translate into growth and employment, provided it ensures
trust and security for the European citizens and businesses. At
the same time, the IoT will bring hyper-connectivity to a global
society, using augmented and rich interfaces. This global society
will also be characterised by higher semi-autonomous system
behaviour than today.
4

A consortium of EU researchers,
software developers and standardisation
bodies is creating a new business
ecosystem to unleash the power of the
Internet of Things for every type of user
– from shoppers and motorists to
holidaymakers and sports enthusiasts.
Partners in the COMPOSE project have
built a cloud platform that helps
developers navigate their way smoothly
through the booming, but often chaotic,
Internet of Things (IoT). Their mission is
simple: to allow developers to create
apps that provide people with Internet
services and launch them into the
market quickly – whether that be
shopping or traffic information systems,
or home-based apps for monitoring, say,
energy and water use.
The market place
of the Internet of Things
6

The Internet of Things
potential impact
on national growth
GERMANY
CHINA
Source : Accenture 17

UNITED STATES
UNITED KINGDOM
Source : Accenture
The Internet of Things
potential impact
on national growth
18

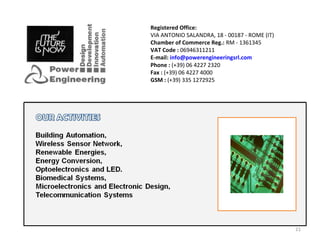

Registered Office:
VIA ANTONIO SALANDRA, 18 - 00187 - ROME (IT)
Chamber of Commerce Reg.: RM - 1361345
VAT Code : 06946311211
E-mail: info@powerengineeringsrl.com
Phone : (+39) 06 4227 2320
Fax : (+39) 06 4227 4000
GSM : (+39) 335 1272925
21

Headquarter
Via A.Salandra, 18
Rome . ITALY
Campania
Offices
Via A.Lamberti, 29
Caserta . ITALY
Operation Offices
and Laboratories
Contrada Badessa snc
Benevento . ITALY

GIOVANNI SAVARESE - Head of Facilities Management
23
LUCIANO MINERVA - President / CEO - Chief Executive Officer
MAURIZIO BIANCHI - Chief Technical Officer / R&D Manager
VINCENZO PIRONE - Coordinator and Executive Assistant

Power Engineering Ltd
is an engineering company based in Italy working in
international projects mainly in the field of electronic
design, building automation, renewable energy, electron-
medical systems.
The company has acquired and developed all the skills and
abilities needed for the provision of high quality services in
the various project stages from planning to
implementation, based on the knowledge and experience
of its founders.
Our Department of Electronic Design is able to meet the
needs of our clients by providing consulting, design,
support and supervision from the supply chain to the
industrialization, also offering integrated solutions for
turnkey projects where you need a life cycle fast and
effective.
The position covered by Power
Engineering is of multidisciplinary, service
provider in various sectors of the IoT
(internet of things) consisting in offering
internet extension to the world of objects
and concrete places: an evolution in which
objects are recognizable and acquire an
electronic identity.
24

INNOVATIVE ELEMENTS THAT DISTINGUISH
THE SYSTEMS CONTROL AND MONITORING OF
POWER ENGINEERING
Power Engineering is one of the few Italian Companies that designs, implements and optimizes all its solutions using integrated
systems (universally known as embedded systems), namely: electronic microprocessor processing - made entirely at their own labs -
designed specifically for particular application, ie not re-programmable by the user for other purposes. This technology requires an
approach to complex systems that brings together hardware, software design and control theory in a coherent and integrated way
For embedded systems will require high-end performance, high reliability and consistent performance over time, so the software and
firmware are designed and tested with much more attention than the software of personal computer.
EFFICIENCY • Thanks to the reduced use of hardware power consumption is
dramatically reduced
The advantages achievable with the integrated systems by
Power Engineering

Software
Home automation
solutions for almost all
applications support
software and interfaces
for connection are made
from C, Java and Jsp.
Except in very rare cases
the software is never sold,
but given in seconds
using terms license.
There are many software
companies that develop
customized firmware
which is written and
tailored to the specific
needs of its customers.
Manufacturers
There are companies
producing hardware,
electronic components and
devices for industrial and
home automation.
An important place is
occupied by those
companies that design and
manufacture printed circuit
boards (full or less of
electrical and electronic
components), network
servers, sensors, adapters,
sensors, PLCs
(Programmable Logic
Control), micro controllers,
etc..
Integrated
Systems
Many of the systems used
in home automation are
really only nominally
"integrated".
Generally appear to be
the result of careful
assembly of hardware and
software components
connected to vehiculate
objects, quantities and
sizes on the web.
The weak point of many
of these systems is the
difficulty of achieving an
effective interoperability
between products of
different standards.
This diagram shows the typical activities of companies in the market that
contributes to the creation and assembly of systems and solutions for
"home automation" and "smart home"

What is SmartPLC
SmartPLC is a platform of advanced telemetry, remote management and remote control that operates on the LAN net independently.
The use of TCP / IP (the same that is the basis of the Internet) allows the complete transparency of the system in respect of the protocol used for
communication. This solution allows vehicular communication through any technology (Modem, ADSL, GPRS, UMTS, 3G) without customization or
being invasive.
The advantages achieved with the SmartPLC by Power Engineering
COST: Low production cost, due to a owner technology hardware / software, which allows it to be extremely competitive on international markets
RELIABILITY : High operational reliability due to the specialization functional integrated system which gives high speed system response
INSTALL PLUG AND PLAY: For its hardware architecture, SmartPLC has a Non-invasive installation for the systems subject to control, simple and immediate
FLEXIBILITY: Due to the use of a cloud server that allows to modify the characteristics of the service through a web server without operating directly on the
remote devices
BI-DIRECTIONAL: The remote devices are able to send data and receive commands from the web server, in direct and constant conversation
INTEGRITY DATA - SAFETY: It is guaranteed that all data is collected, accessed and subsequently stored on a data base. The devices employ a dual public key (Key
Swap)
ACCESSIBILITY : The services provided by SmartPLC are accessible through any device (PC, tablet, smart-phone, etc.), simply by using any browser, it does not need
a dedicated program
SPEED REACTION : The functional specialization of the integrated system allows an high speed response of the system in function of the user's needs
ENERGY EFFICIENCY: Thanks to the use of reduced hardware power consumption is exceptionally low.
Distinctive elements of the
27

PLC is a revolutionary way towards the automation of services
Some areas of application: Solutions developed by our company :
• Building and Home Automation
• Machine controls
• Motor, pump and valve controls
• Water-treatment plants
• Woodworking machinery
• Transport facilities
• Conveyor systems
• Silo facilities
• Operational monitoring systems
• Access control
• Vehicle control monitoring
• Alarm systems
• Level limit monitoring
• Traffic light control systems
• Baggage handling
• Interior and exterior lighting control
• Door/gate control
• Irrigation system control
• Greenhouse environmental control
• Harsh environments control
• Wind and sun power systems
• Water level control
• Meteorological monitoring

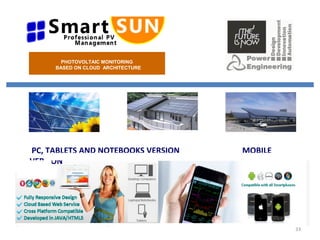

Smart/SUN
It is a monitoring system optimized and specialized in monitoring solar installations of any type and
power.
Smart/POWER
As for the SmartSUN, SmartPower is a web based monitoring system specialized in monitoring energy
intensive loads of Both single and three phase schemes.
Smart/SECURITY
It is a service to the world of active and passive remote video surveillance, using sophisticated IP
cameras.
Solutions work in progress:
Smart/SRB
It is SmartPower solution optimized for Radio Broadcasting System (signal repeaters subservient to TV,
Cell phone, private telecommunications networks).
Smart/LEVEL
An innovative solution for the prevention and protection of land and watercourses
PV /SAFE
This system is Able to solve the problem of electrical safety and certification of photo-voltaic
installations.
Smart/GREENHOUSE
The best wireless solution for remote monitoring of : temperature, irradiation, relative air humidity,
Irrigation, CO2 Concentrations, nutrient solutions and pH value.
Smart/BIOGAS
It is a monitoring system and remote control of the process of production and use of bio gas
Smart/LIFT
Is an innovative solution for the management and maintenance of Elevators, Escalators, Elevators,
Handling Systems

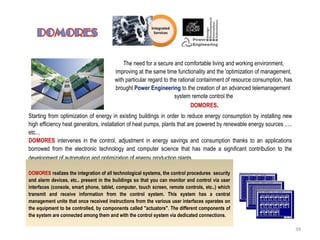

DOMORES
Is an integrated solution of all technological systems available in a building, that can be monitored and
controlled through a web based user interface
GESEA
A solution for the management of hospitals and health services
WAMAS
An advanced technological solution in the field of water resources management
GENIUS
A remote control system that allows a particularly simple and effective optimization of, remote
management , monitor and handling of the vehicles, bins and storage yard used for the collection of
municipal waste
28

Same solutions developed by our company
30

The theme of monitoring electricity consumption is as timely as ever and is a key element in the
development of solutions aimed to reduce waste and optimizing fuel consumption .

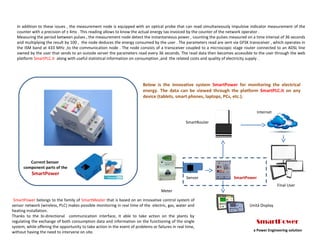

The SmartPower is a configuration of the family SmartMeter that allows you to make little effort to
design a telemetry system fully efficient and modern with professional performance .
SmartPower is addressed to private and business users and in particular institutional allowing the latter
to provide a system for acquisition of electrical consumption .
The system also allows you to acquire the following values :
•
Voltage is the RMS value in that the peak value
•
Supply current value in effective and peak value
•
Apparent Power in VA
•
Active Power in W
•
Reactive power in VAr
•
Active Energy in kWh
•
Reactive power in kVAr
•
Power factor (cos φ )
•
Phase angle
The current reading is performed safely by inductive probes while the voltage reading occurs through a
transponder.
The node is equipped with 6 analog inputs and therefore can measure up to 3 voltages and 3 currents
separately (three-phase systems), alternatively a single pair of inputs can be used to make measurements
of voltage and current in phase.
(Continued)
Examples of monitoring electricity
consumption acquired via web of a home
users equipped with the system
SmartPower
SmartMeter
SmartPower
indispensable tool
in the evolution
of traditional
electricity
networks in
smart grid
POWER ENGINEERING Ltd
Legal Address
Via A.Salandra, 18 - 00187 - Roma
(+39) 06 4227 2320 - (+39) 06 4227 4000
http://www.powerengineeringsrl.com
info@powerengineeringsrl.com
SmartPower
Cost distribution
31

In addition to these issues , the measurement node is equipped with an optical probe that can read simultaneously impulsive indicator measurement of the
counter with a precision of ± 4ms . This reading allows to know the actual energy tax invoiced by the counter of the network operator .
Measuring the period between pulses , the measurement node detect the instantaneous power , counting the pulses measured on a time interval of 36 seconds
and multiplying the result by 100 , the node deduces the energy consumed by the user . The parameters read are sent via GFSK transceiver , which operates in
the ISM band at 433 MHz ,to the communication node . The node consists of a transceiver coupled to a microscopic stage router connected to an ADSL line
owned by the user that sends to an outside server the parameters read every 36 seconds. The read data then becomes accessible to the user through the web
platform SmartPLC.it along with useful statistical information on consumption ,and the related costs and quality of electricity supply .
SmartPower belongs to the family of SmartMeater that is based on an innovative control system of
sensor network (wireless, PLC) makes possible monitoring in real time of the electric, gas, water and
heating installation.
Thanks to the bi-directional communication interface, it able to take action on the plants by
regulating the exchange of both consumption data and information on the functioning of the single
system, while offering the opportunity to take action in the event of problems or failures in real time,
without having the need to intervene on site.
Meter
SmartPower
Below is the innovative system SmartPower for monitoring the electrical
energy. The data can be viewed through the platform SmartPLC.it on any
device (tablets, smart phones, laptops, PCs, etc.).
SmartRouter
Internet
Unità Display
Sensor
Final User
SmartPower
a Power Engineering solution
Current Sensor
component parts of the
SmartPower

PC, TABLETS AND NOTEBOOKS VERSION MOBILE
VERSION
PHOTOVOLTAIC MONITORING
BASED ON CLOUD ARCHITECTURE
33

The SmartSun is the first complete solution for monitoring photo voltaic device that uses a PLC (Programmable Logic
Controller) instead of a conventional data logger in respect of which offers several advantages summarized as follows :
the monitoring device is equipped with its own system memory, programmable by the user, who is able to decide
predetermined actions, regardless of the state of connection,
the device allows a real-time monitoring,
the remote device uses a bidirectional communication mode enabling it also as an actuator function beyond that of a
simple sensor . This feature is essential to activate or deactivate the loads or control devices remotely in rea time,
the device is designed and configured to perform in a direct manner a plurality of precise measures intercepting the
parameters necessary to deduce the electric energy produced and transformed,
the remote device consumes a very low electrical power and may be accompanied, if necessary, a battery for
uninterrupted operation in case of power failure.
34

The SmartSun summarizes all the reports that provide
information about the photo voltaic system, below indicate
are the main activity that can be detected :
 The energy produced.
 The energy consumed.
 All electrical parameters for maintaining production live:
(which is linked point to point) current, mains frequency,
phase, harmonic leakage, active power, reactive power.
 Income derived from the plant in tariff explained in the day,
month and year.
 The income from the sale of electricity from the plant
explained in the day, month and year.
 Monitoring operating status of the inverted.
 Monitoring frameworks field (voltage, current,
temperature, humidity.
 Monitoring string in DC and through RS485.
 Monitoring cables cut
 Monitoring meteorological parameters (air temperature,
humidity, wind, atmospheric pressure.
 Monitoring of solar radiation through a pyranometer.
 Monitoring of weather conditions through satellite.
The SmartSun has all the requirements to be used as a fiscal meter
to communicate with the institution in charge
Is possible to activate a wide selection of alarms via
SMS and / or email in which the user can set the
alert threshold and the type of reaction to each
single event.
The SmartSun is able to react to an event if pre-
set by the user (the presence of smoke, excessive
temperature or electrical parameters, etc. out of
the norm.) Acting independently to the connected
equipment. For example, you can configure and
manage the situations listed below :
 Activation fans in the cabin of overcoming
ambient and / or inverter temperature .
 Enabling backup equipment failure on the
primary boot device .
 Smoke detection, excessive humidity, intrusions
(reed switch on the tailgate cab), state of the
auxiliary lights, service status of the UPS.
 Turning lights on the photovoltaic field at night
for maintenance or surveillance with a webcam.

The only "all in one"
solution for integrators -
EPC's, project developers,
owners and O&M - designed
for security, safety,
monitoring and
maintenance of solar
installations while
maximizing site
performance.
info@powerengineeringsrl.com
Headquarter R&D Lab. and ERP
Via A.Salandra, 18 - 00187 ROME - ITALY
(+39) 06 4227 2320
(+39) 06 4227 4000
Power Engineering Ltd
C.Da Badessa snc - 82100 BENEVENTO - ITALY
(+ 39) 373 5166544
A revolutionary
application for all types
of browsers.
PLCPLC
http://www.smartplc.it http://www.powerengineeringsrl.cominfo@powerengineeringsrl.com http://www.powersolutionsitalia.it
on cloud
platform
36

The service, aimed at the world of active and passive surveillance in
remote, it uses a sophisticated IP cameras equipped with:
- CMOS high definition and infrared sensitive sensor
-
Automatic IR illumination
-
Motorization in azimuth and elevation with stepper motors
-
Two-Way Audio
-
Motion-Detection and-Audio Trigger
-
LAN connectivity and WiFi 802.11b/g/n
The protocol of the IP cameras on the server SmartPLC is conveyed
through the SmartNode device that allows to create a very simple and
fast video surveillance systems with automatic, scheduled or on event
registration.
The system does not require a static IP or special configurations on
routers: the images are in fact kept on board of the server Sm.
With SmartSecurity
safety
37
SmartSecurityThe innovative system
for the video surveillance
of any type of context
A LOW COST FLEXIBLE
SOLUTION READY FOR
ANY FUTURE UPGRADES

SmartSecurity
Cloud
End User
SmartSecurity
Camera Server Devices
Cloud
Services be Activated:
-
Alarm (SMS, Mail with images attached)
-
Contact Closure hot (siren, beacon lighting, etc.)
-
Automatic recording of events and audio message bollard
-
Tracking of the source of movement
Advantages:
-
Low cost of ownership, the entire system is part of the infrastructure SmartPLC used in
various fields,
-
Ease of commissioning, does not require specific actions by specialized personnel,
-
No need for local DVR device,
-
It does not require a static IP,
-
The contents are not stored on board the camera but on an external server for total
protection against break-in and acts of vandalism,
-
Deterrent to intrusion: thanks to the audio message and the ability to turn on a light
source, the intruder is taken to leave the scene avoiding further damage to
infrastructure.
Below is the innovative system SmartSecurity for the monitoring of any type of environment. The data are
stored on the server and displayed through the platform SmartPLC.it, on any device (tablets, smart phones,
laptops, PCs.
SmartSecurity belongs to the family SmartPLC that is based on an innovative control system (wireless, PLC) for monitoring in real time.
Thanks to the bi-directional communication interface, it allows the user to take action on security through the information exchange
and data of a single camera, while offering the opportunity to take action in real time in the event of problems .

The need for a secure and comfortable living and working environment,
improving at the same time functionality and the 'optimization of management,
with particular regard to the rational containment of resource consumption, has
brought Power Engineering to the creation of an advanced telemanagement
system remote control the
DOMORES.
Starting from optimization of energy in existing buildings in order to reduce energy consumption by installing new
high efficiency heat generators, installation of heat pumps, plants that are powered by renewable energy sources .....
etc..,
DOMORES intervenes in the control, adjustment in energy savings and consumption thanks to an applications
borrowed from the electronic technology and computer science that has made a significant contribution to the
development of automation and optimization of energy production plants.
DOMORES realizes the integration of all technological systems, the control procedures security
and alarm devices, etc.. present in the buildings so that you can monitor and control via user
interfaces (console, smart phone, tablet, computer, touch screen, remote controls, etc..) which
transmit and receive information from the control system. This system has a central
management unite that once received instructions from the various user interfaces operates on
the equipment to be controlled, by components called "actuators". The different components of
the system are connected among them and with the control system via dedicated connections.
39

Development of a HW + SW solution that enables the provision of WI-Fe
router with simple feature known as a customer Payload,
The system must allow the user to provide a pay for wireless connection for
potential customers,
The system must use codes, user ID / password provided, monitored and
managed via web,
Potential customers are hotels, associations, communities, schools and
public institutions. To date, the said parties are forced to adopt complex
solutions to meet the needs of its members.
Global Router
Project
40

GESEA is an intelligent
platform of integrated services
developed for hospitals,
nursing homes, clinics,
rehabilitation facilities, assisted
living facilities, etc..
GESEA is able to integrate solutions for the efficiency of care facilities
(lighting, heating, ventilation air conditioning, alarm systems and security,
etc.) with the aids available for the patients (bedside terminals for
connection to the 'external video communication, nurses video call, display
digital medical record, etc..
In the programmable logic (bus wiring) a single circuit connecting all utilities. In this type of installation the
command entered goes through the whole network indiscriminately until it reaches the destination device that is
identified by its own logical address, all the components are in fact connected to the bus in the same way regardless of
their function.
These are the criteria that have followed the technicians of the Power Engineering in designing and manufacturing
GESEA, a management that combines several advantages: great versatility, ease of installation, low power
consumption, total reliability.
41

SMARTSMART
Greenhouse Remote Monitoring System
Our main suppliers of components
Transmission of
 Data
 Report
 Email
 Sms
 Alarm
 Remote control
Developing a greenhouse remote monitoring system that does not require
manual changes with each crop change.
Head office
Via A.Salandra, 18
00187 Rome - ITALY
(+39) 06 4227 2320
(+39) 06 4227 4000
C.da3 Badessa snc
82100 Benevento - ITALY
166544
Laboratories
For the refinement of agricultural products, and since most of the plants
are highly sensitive about temperature, humidity and sunshine intensity
during their growth period , our company has developed a project -
SMART GREENHOUSE - which intends to implement an automated
greenhouse management system to carefully monitor the important
environmental factors. Therefore, the greenhouse needs a complete
solution that includes a computer, IO modules and software to monitor
and automatically control the various equipment, like turning fans on at
higher temperatures, pumping water to the plants when soil moisture is
too low, using the sun shade mesh whilst the sun is at its strongest, in real
time,. Meanwhile, the related data has to be remotely accessed no matter
what terminal devices are used such as smart phone, Notebook, desktop
PC, or tablet computer so that supervisors can track the conditions of the
greenhouse.
42

Voltage
Current
Fan failure detectorIrrigation Alarm
Temperature Smoke detector
Energy meter Controlled access
CO2
Irradiation
Humidity CO2 concentrations
http://www.smartplc.it
More information is available at
http://www.powerengineeringsrl.com and
Monitor & Control (options)
Advances in computer technology have made owning and operating greenhouse easier than ever before.
SMART GREENHOUSE environmental control options can aid the home gardener or professional horticulturists by
automatically adjusting temperature, irrigation, humidity, CO2 concentrations and light intensity from within the
greenhouse or from a remote location. An environmental control system will improve plant life within greenhouse by
providing a constantly monitored atmosphere, producing a more uniform product.
In addition to common greenhouse accessories, SMART GREENHOUSE, can be designed to accommodate advanced
features like evaporation coolers and foggers, drip systems, semaphores, remote programming, photo and light sensors,
and soil sensors. The horticulturists’ time can now be spent tending to plants rather than tinkering with their growing
environment. Beyond the cost and time efficiency of the greenhouse control system, Mother Nature will benefit. Control
systems reduce the need for chemicals to aid plant growth as the environment is more closely adjusted to create the ideal
conditions and reduce energy costs and waste.
The brain of the SMART GREEHOUSE system is a Programmable Logic Controller (PLC) that includes a web server allowing remote access to greenhouse status
POWER ENGINEERING SrL
43

The design and implementation of the best criteria to water measure
and management, aimed at their optimum utilization, to economized
and sustainable use of the resource, with particular reference to
issues related to water balance and water quality, as well as
environmental reflections related to benchmarks prescribed by the
rules, has led to the creation of the system WAMAS.
WAMAS Management System allows:
The real-time monitoring of all facilities subject to verification, on a web server, able to deliver the data through any device: Smart
Phone, Tablet, portable PC, Computer etc. ... regardless of operating system.
Service automation through a two-way software and hardware solutions that enable the network to react by implementing all measures
to manage the different events.
WAMAS is able to manage :
Control of energy and thermal consumption,
Control of lift pumps,
Monitor water quality.
Control of flow discharge,
Fire control,
Lighting control.
Control services provided to its customers and or partners through the release of a personalized card for the access to restricted
areas,
Supply of network satellite internet and data encryption
WAMAS
44

Compared to traditional systems of, localization and control of compactors truck , GENIUS, in addition to the many innovative
features that characterize it, mounts a device able to detect and transmit the data of the ultrasonic Trash Sensor, positioned inside
of the dumpster , whose function is to measure the volume of waste deposited.
Φ
Φ
TRASH SENSOR
Φ
This information, processed and transmitted to the
compactor in its run-up to the dumpster, is shared with
the operations center that stores and processes the
data from the individual containers located both inside
and outside of the waste collection area. Based on the
received data, the operator is able to decide whether to
stop the vehicle for emptying or less the dumpster. ?
Due to the material with which it is made and the
special bolting system inside the lid of the dumpster,
the Trash Sensor is not subject to deterioration or
vandalism.
GENIUS is a remote control system particularly simple and effective which allows to optimize,
locate, monitor and manage in remote the vehicles used for the collection of municipal waste in
the territory.
The System - thanks to Web-GIS technology – through the planning of logistics, once at full
speed, gives the possibility the cutting of vehicles needed , covered kilometers and workers
efficiency improvement , resultant in the cutting of disposal costs.
Advanced communication infrastructure
Bidirectional data transmission
Sequential route control
Bins Recognition
Bins filling status
Fleets Optimization
Maintenance costs savings
Fuel cost savings
Timetable and Collecting Time Optimization
Exhaust Emission Reduction
Real time course and Vehicle position..
Advantages in using GENIUS
45

Mauri presentaz ok def pdf

More Related Content

What's hot

Viewers also liked

Similar to Mauri presentaz ok def pdf

Recently uploaded

Mauri presentaz ok def pdf
