1. Mastering Grails 3
Plugins
Álvaro Sánchez-Mariscal

2. Álvaro Sánchez-Mariscal
Software Engineer
Grails Development Team
sanchezmariscala@ociweb.com

4. OCI is the new home of Grails
More at ociweb.com/grails

5. The Basics

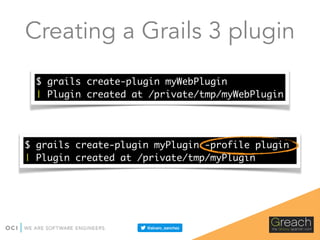

6. Creating a Grails 3 plugin
$ grails create-plugin myWebPlugin
| Plugin created at /private/tmp/myWebPlugin
$ grails create-plugin myPlugin -profile plugin
| Plugin created at /private/tmp/myPlugin

7. Understanding profiles
• A profile defines:
• Project’s build.gradle.
• Commands: create-domain-class,
run-app, etc.
• Features: hibernate, json-views, etc.
• Skeleton: files and folders.

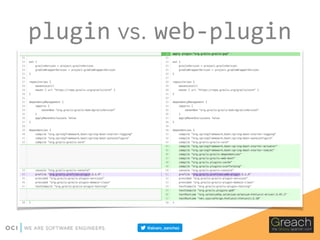

8. plugin vs. web-plugin

9. Trim your plugin!

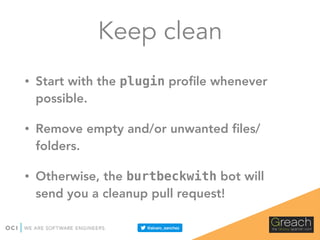

10. Keep clean
• Start with the plugin profile whenever
possible.
• Remove empty and/or unwanted files/
folders.
• Otherwise, the burtbeckwith bot will
send you a cleanup pull request!

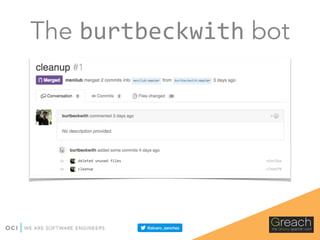

11. The burtbeckwith bot

12. The burtbeckwith bot
• Watches messy plugin repos and sends a PR
to clean them up.
• 14 pull requests in the last 3 months!
• Likely hundreds in the last years!

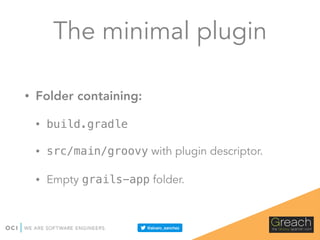

13. The minimal plugin
• Folder containing:
• build.gradle
• src/main/groovy with plugin descriptor.
• Empty grails-app folder.

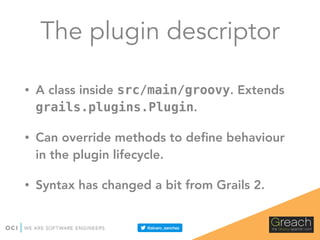

14. The plugin descriptor
• A class inside src/main/groovy. Extends
grails.plugins.Plugin.
• Can override methods to define behaviour
in the plugin lifecycle.
• Syntax has changed a bit from Grails 2.

15. Plugins features

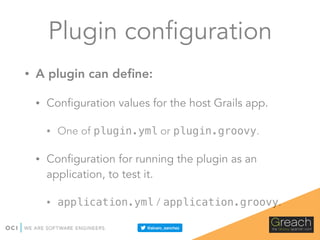

16. Plugin configuration
• A plugin can define:
• Configuration values for the host Grails app.
• One of plugin.yml or plugin.groovy.
• Configuration for running the plugin as an
application, to test it.
• application.yml / application.groovy.

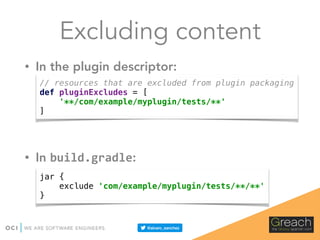

17. Excluding content
• In the plugin descriptor:
• In build.gradle:
// resources that are excluded from plugin packaging
def pluginExcludes = [
'**/com/example/myplugin/tests/**'
]
jar {
exclude 'com/example/myplugin/tests/**/**'
}

18. Command Line extensions
• Use create-script for code generation
commands.
• Runnable with the Grails CLI.
• Use create-command for interacting with a
loaded Grails application.
• Runnable with the Grails CLI or as a Gradle task.

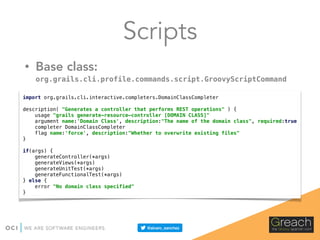

19. Scripts
• Base class:
org.grails.cli.profile.commands.script.GroovyScriptCommand
import org.grails.cli.interactive.completers.DomainClassCompleter
description( "Generates a controller that performs REST operations" ) {
usage "grails generate-resource-controller [DOMAIN CLASS]"
argument name:'Domain Class', description:"The name of the domain class", required:true
completer DomainClassCompleter
flag name:'force', description:"Whether to overwrite existing files"
}
if(args) {
generateController(*args)
generateViews(*args)
generateUnitTest(*args)
generateFunctionalTest(*args)
} else {
error "No domain class specified"
}

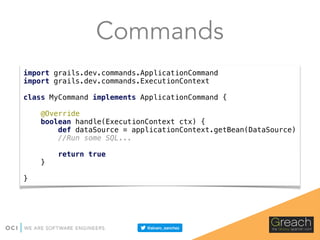

20. Commands
import grails.dev.commands.ApplicationCommand
import grails.dev.commands.ExecutionContext
class MyCommand implements ApplicationCommand {
@Override
boolean handle(ExecutionContext ctx) {
def dataSource = applicationContext.getBean(DataSource)
//Run some SQL...
return true
}
}

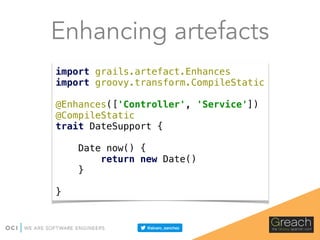

21. Enhancing artefacts
import grails.artefact.Enhances
import groovy.transform.CompileStatic
@Enhances(['Controller', 'Service'])
@CompileStatic
trait DateSupport {
Date now() {
return new Date()
}
}

22. Modularisation

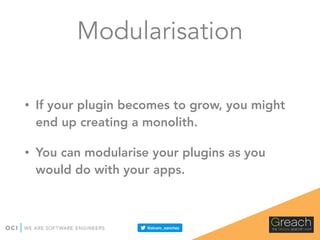

23. Modularisation
• If your plugin becomes to grow, you might
end up creating a monolith.
• You can modularise your plugins as you
would do with your apps.

24. Modularisation
Monolithic plugin
Multi-module plugin

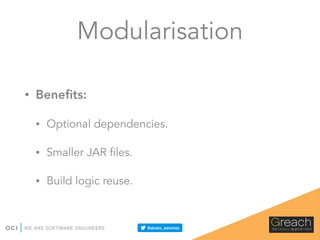

25. Modularisation
• Benefits:
• Optional dependencies.
• Smaller JAR files.
• Build logic reuse.

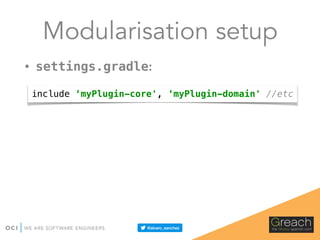

26. Modularisation setup
• settings.gradle:
include ‘myPlugin-core', ‘myPlugin-domain' //etc

27. Modularisation setup
• Root build.gradle:
allprojects {
apply plugin:"idea"
}
subprojects { Project project ->
ext {
grailsVersion = project.grailsVersion
gradleWrapperVersion = project.gradleWrapperVersion
}
repositories {
//Common repos
}
version "1.0.0.M1"
group "org.grails.plugins"
apply plugin: "org.grails.grails-plugin"
dependencies {
//Common deps
}
}

28. Modularisation setup
• Sub-module build.gradle:
dependencyManagement {
imports {
mavenBom "org.grails:grails-bom:$grailsVersion"
}
applyMavenExclusions false
}
dependencies {
compile project(":myPlugin-core")
compile "com.example:library:1.0.0"
}

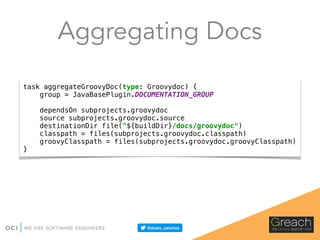

29. Aggregating Docs
task aggregateGroovyDoc(type: Groovydoc) {
group = JavaBasePlugin.DOCUMENTATION_GROUP
dependsOn subprojects.groovydoc
source subprojects.groovydoc.source
destinationDir file("${buildDir}/docs/groovydoc")
classpath = files(subprojects.groovydoc.classpath)
groovyClasspath = files(subprojects.groovydoc.groovyClasspath)
}

30. Publishing

31. Artifact publication
• Snapshots:
• Using the artifactory Gradle plugin.
• Published in OJO (oss.jfrog.org).
• Releases:
• Using the grails-plugin-publish Gradle plugin.
• Published in Bintray.

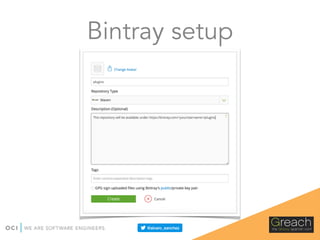

32. Bintray setup

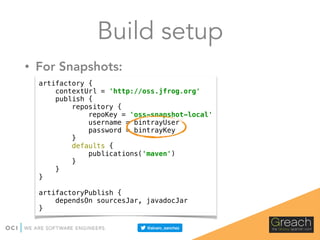

33. • For Snapshots:
Build setup
artifactory {
contextUrl = 'http://oss.jfrog.org'
publish {
repository {
repoKey = 'oss-snapshot-local'
username = bintrayUser
password = bintrayKey
}
defaults {
publications('maven')
}
}
}
artifactoryPublish {
dependsOn sourcesJar, javadocJar
}

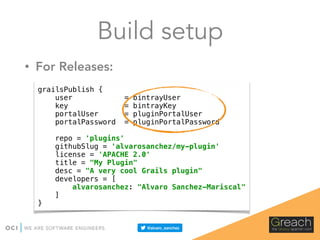

34. grailsPublish {
user = bintrayUser
key = bintrayKey
portalUser = pluginPortalUser
portalPassword = pluginPortalPassword
repo = 'plugins'
githubSlug = 'alvarosanchez/my-plugin'
license = 'APACHE 2.0'
title = "My Plugin"
desc = "A very cool Grails plugin"
developers = [
alvarosanchez: "Alvaro Sanchez-Mariscal"
]
}
• For Releases:
Build setup

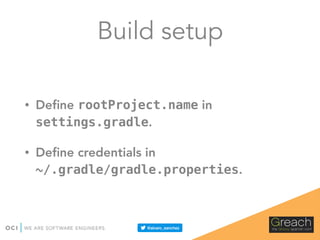

35. Build setup
• Define rootProject.name in
settings.gradle.
• Define credentials in
~/.gradle/gradle.properties.

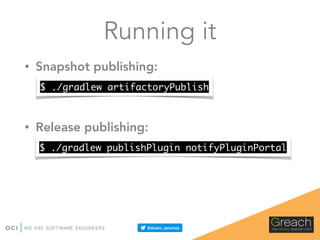

36. Running it
• Snapshot publishing:
• Release publishing:
$ ./gradlew artifactoryPublish
$ ./gradlew publishPlugin notifyPluginPortal

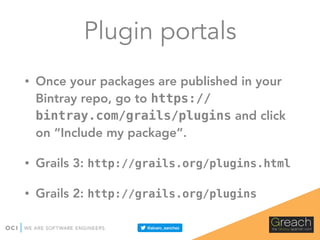

37. Plugin portals
• Once your packages are published in your
Bintray repo, go to https://
bintray.com/grails/plugins and click
on “Include my package”.
• Grails 3: http://grails.org/plugins.html
• Grails 2: http://grails.org/plugins

38. Testing

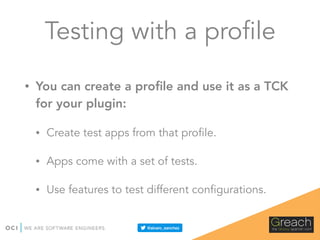

39. Testing with a profile
• You can create a profile and use it as a TCK
for your plugin:
• Create test apps from that profile.
• Apps come with a set of tests.
• Use features to test different configurations.

40. Profile descriptor
description: Creates a test app for Spring Security REST plugin
build:
excludes:
- org.grails.grails-core
dependencies:
compile:
- "org.grails.plugins:spring-security-rest:${pluginVersion}"
- "org.grails:grails-datastore-rest-client:5.0.0.RC3"
testCompile:
- "com.codeborne:phantomjsdriver:1.2.1"
- "org.seleniumhq.selenium:selenium-api:2.47.1"
- "org.seleniumhq.selenium:selenium-firefox-driver:2.47.1"
profile.yml.tmpl

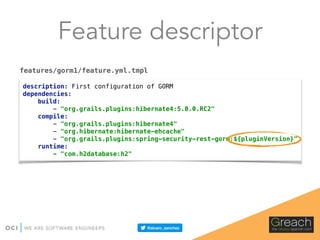

41. Feature descriptor
description: First configuration of GORM
dependencies:
build:
- "org.grails.plugins:hibernate4:5.0.0.RC2"
compile:
- "org.grails.plugins:hibernate4"
- "org.hibernate:hibernate-ehcache"
- "org.grails.plugins:spring-security-rest-gorm:${pluginVersion}"
runtime:
- "com.h2database:h2"
features/gorm1/feature.yml.tmpl

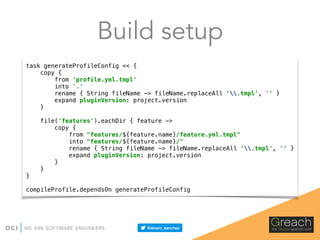

42. Build setup
task generateProfileConfig << {
copy {
from 'profile.yml.tmpl'
into '.'
rename { String fileName -> fileName.replaceAll '.tmpl', '' }
expand pluginVersion: project.version
}
file('features').eachDir { feature ->
copy {
from "features/${feature.name}/feature.yml.tmpl"
into "features/${feature.name}/"
rename { String fileName -> fileName.replaceAll '.tmpl', '' }
expand pluginVersion: project.version
}
}
}
compileProfile.dependsOn generateProfileConfig

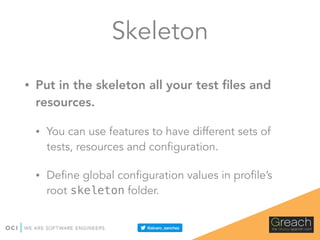

43. Skeleton
• Put in the skeleton all your test files and
resources.
• You can use features to have different sets of
tests, resources and configuration.
• Define global configuration values in profile’s
root skeleton folder.

44. Test them all!
for feature in `ls ../spring-security-rest-testapp-profile/features/`
do
grails create-app -profile
org.grails.plugins:spring-security-rest-testapp-profile:$pluginVersion
-features $feature $feature && cd $feature && ./gradlew check && cd ..
done

45. Use case: the Spring
Security REST plugin

46. ¡Muchas gracias!
Álvaro Sánchez-Mariscal
