1. Reactive microservices
with Micronaut
Álvaro Sánchez-Mariscal
@alvaro_sanchez

2. About me
— Coming from Madrid
!
— Developer since 2001 (Java / Spring stack).
— Grails fanboy since v0.4.
— Working @ OCI since 2015: Groovy, Grails & Micronaut!
— Father since 2017!
"
@alvaro_sanchez

3. DISCLAIMER
!
Work in progress

4. Introducing

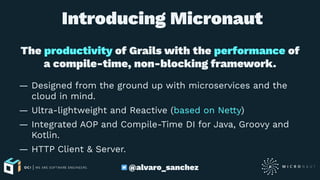

5. Introducing Micronaut
The productivity of Grails with the performance of
a compile-time, non-blocking framework.
— Designed from the ground up with microservices and the
cloud in mind.
— Ultra-lightweight and Reactive (based on Netty)
— Integrated AOP and Compile-Time DI for Java, Groovy and
Kotlin.
— HTTP Client & Server.
@alvaro_sanchez

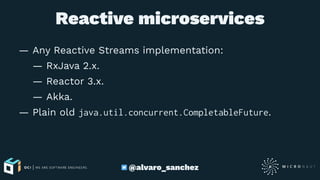

6. Reactive microservices
— Any Reactive Streams implementation:
— RxJava 2.x.
— Reactor 3.x.
— Akka.
— Plain old java.util.concurrent.CompletableFuture.
@alvaro_sanchez

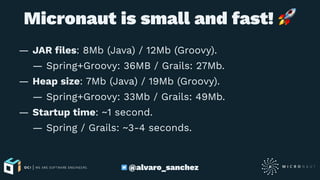

7. Micronaut is small and fast!
— JAR files: 8Mb (Java) / 12Mb (Groovy).
— Spring+Groovy: 36MB / Grails: 27Mb.
— Heap size: 7Mb (Java) / 19Mb (Groovy).
— Spring+Groovy: 33Mb / Grails: 49Mb.
— Startup time: ~1 second.
— Spring / Grails: ~3-4 seconds.
@alvaro_sanchez

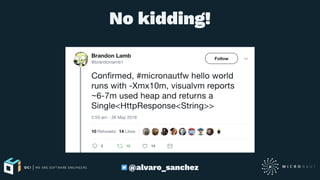

8. No kidding!
@alvaro_sanchez

9. Features

10. Inversion of Control
Dependency Injection

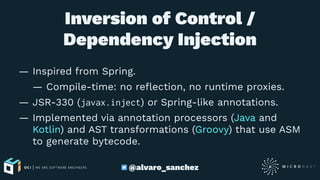

11. Inversion of Control /
Dependency Injection
— Inspired from Spring.
— Compile-time: no reflection, no runtime proxies.
— JSR-330 (javax.inject) or Spring-like annotations.
— Implemented via annotation processors (Java and
Kotlin) and AST transformations (Groovy) that use ASM
to generate bytecode.
@alvaro_sanchez

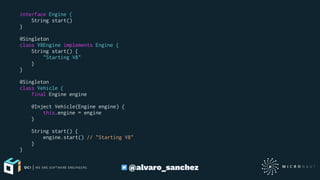

12. interface Engine {
String start()
}
@Singleton
class V8Engine implements Engine {
String start() {
"Starting V8"
}
}
@Singleton
class Vehicle {
final Engine engine
@Inject Vehicle(Engine engine) {
this.engine = engine
}
String start() {
engine.start() // "Starting V8"
}
}
@alvaro_sanchez

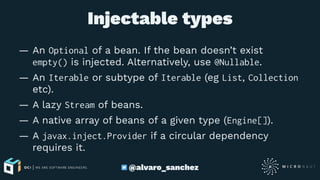

13. Injectable types
— An Optional of a bean. If the bean doesn’t exist
empty() is injected. Alternatively, use @Nullable.
— An Iterable or subtype of Iterable (eg List, Collection
etc).
— A lazy Stream of beans.
— A native array of beans of a given type (Engine[]).
— A javax.inject.Provider if a circular dependency
requires it.
@alvaro_sanchez

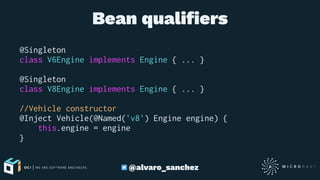

14. Bean qualifiers
@Singleton
class V6Engine implements Engine { ... }
@Singleton
class V8Engine implements Engine { ... }
//Vehicle constructor
@Inject Vehicle(@Named('v8') Engine engine) {
this.engine = engine
}
@alvaro_sanchez

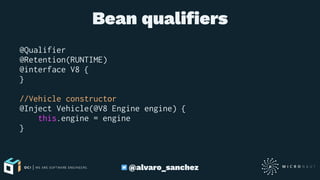

15. Bean qualifiers
@Qualifier
@Retention(RUNTIME)
@interface V8 {
}
//Vehicle constructor
@Inject Vehicle(@V8 Engine engine) {
this.engine = engine
}
@alvaro_sanchez

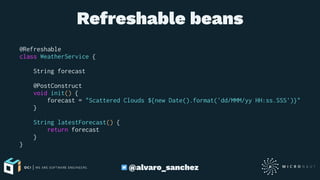

16. Refreshable beans
@Refreshable
class WeatherService {
String forecast
@PostConstruct
void init() {
forecast = "Scattered Clouds ${new Date().format('dd/MMM/yy HH:ss.SSS')}"
}
String latestForecast() {
return forecast
}
}
@alvaro_sanchez

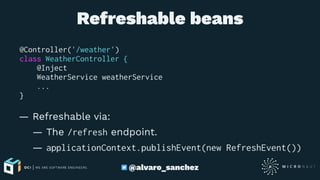

17. Refreshable beans
@Controller('/weather')
class WeatherController {
@Inject
WeatherService weatherService
...
}
— Refreshable via:
— The /refresh endpoint.
— applicationContext.publishEvent(new RefreshEvent())
@alvaro_sanchez

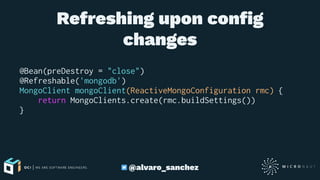

18. Refreshing upon config
changes
@Bean(preDestroy = "close")
@Refreshable('mongodb')
MongoClient mongoClient(ReactiveMongoConfiguration rmc) {
return MongoClients.create(rmc.buildSettings())
}
@alvaro_sanchez

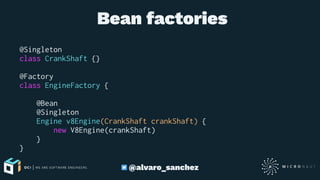

19. Bean factories
@Singleton
class CrankShaft {}
@Factory
class EngineFactory {
@Bean
@Singleton
Engine v8Engine(CrankShaft crankShaft) {
new V8Engine(crankShaft)
}
}
@alvaro_sanchez

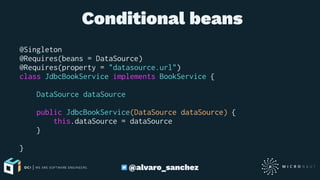

20. Conditional beans
@Singleton
@Requires(beans = DataSource)
@Requires(property = "datasource.url")
class JdbcBookService implements BookService {
DataSource dataSource
public JdbcBookService(DataSource dataSource) {
this.dataSource = dataSource
}
}
@alvaro_sanchez

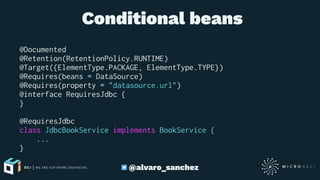

21. Conditional beans
@Documented
@Retention(RetentionPolicy.RUNTIME)
@Target({ElementType.PACKAGE, ElementType.TYPE})
@Requires(beans = DataSource)
@Requires(property = "datasource.url")
@interface RequiresJdbc {
}
@RequiresJdbc
class JdbcBookService implements BookService {
...
}
@alvaro_sanchez

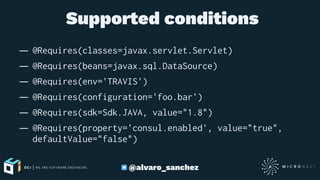

22. Supported conditions
— @Requires(classes=javax.servlet.Servlet)
— @Requires(beans=javax.sql.DataSource)
— @Requires(env='TRAVIS')
— @Requires(configuration='foo.bar')
— @Requires(sdk=Sdk.JAVA, value="1.8")
— @Requires(property='consul.enabled', value="true",
defaultValue="false")
@alvaro_sanchez

23. Bean configurations
— Grouping of multiple bean definitions within a
package:
//file: src/main/groovy/com/example/json/package-info.groovy
@Configuration
@Requires(classes = com.fasterxml.jackson.databind.ObjectMapper)
package com.example.json
— All the beans from the package can be required with
@Requires(configuration='com.example.json')
@alvaro_sanchez

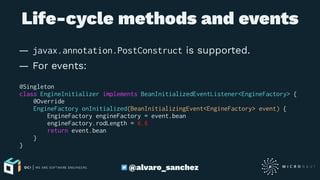

24. Life-cycle methods and events
— javax.annotation.PostConstruct is supported.
— For events:
@Singleton
class EngineInitializer implements BeanInitializedEventListener<EngineFactory> {
@Override
EngineFactory onInitialized(BeanInitializingEvent<EngineFactory> event) {
EngineFactory engineFactory = event.bean
engineFactory.rodLength = 6.6
return event.bean
}
}
@alvaro_sanchez

25. Application configuration

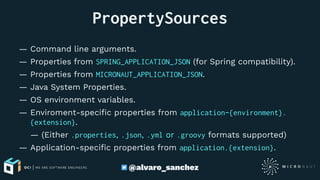

26. PropertySources
— Command line arguments.
— Properties from SPRING_APPLICATION_JSON (for Spring compatibility).
— Properties from MICRONAUT_APPLICATION_JSON.
— Java System Properties.
— OS environment variables.
— Enviroment-specific properties from application-{environment}.
{extension}.
— (Either .properties, .json, .yml or .groovy formats supported)
— Application-specific properties from application.{extension}.
@alvaro_sanchez

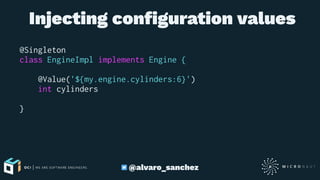

27. Injecting configuration values
@Singleton
class EngineImpl implements Engine {
@Value('${my.engine.cylinders:6}')
int cylinders
}
@alvaro_sanchez

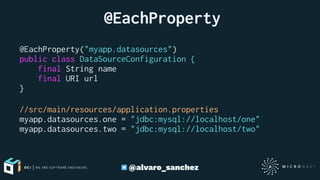

28. @EachProperty
@EachProperty("myapp.datasources")
public class DataSourceConfiguration {
final String name
final URI url
}
//src/main/resources/application.properties
myapp.datasources.one = "jdbc:mysql://localhost/one"
myapp.datasources.two = "jdbc:mysql://localhost/two"
@alvaro_sanchez

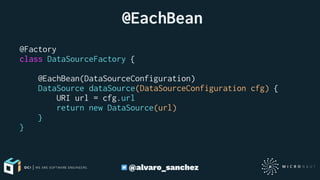

29. @EachBean
@Factory
class DataSourceFactory {
@EachBean(DataSourceConfiguration)
DataSource dataSource(DataSourceConfiguration cfg) {
URI url = cfg.url
return new DataSource(url)
}
}
@alvaro_sanchez

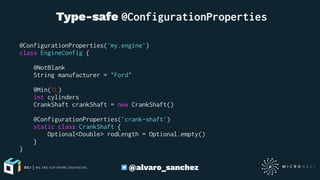

30. Type-safe @ConfigurationProperties
@ConfigurationProperties('my.engine')
class EngineConfig {
@NotBlank
String manufacturer = "Ford"
@Min(1L)
int cylinders
CrankShaft crankShaft = new CrankShaft()
@ConfigurationProperties('crank-shaft')
static class CrankShaft {
Optional<Double> rodLength = Optional.empty()
}
}
@alvaro_sanchez

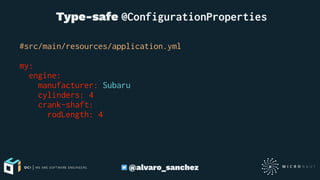

31. Type-safe @ConfigurationProperties
#src/main/resources/application.yml
my:
engine:
manufacturer: Subaru
cylinders: 4
crank-shaft:
rodLength: 4
@alvaro_sanchez

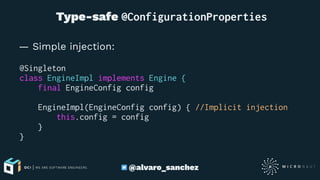

32. Type-safe @ConfigurationProperties
— Simple injection:
@Singleton
class EngineImpl implements Engine {
final EngineConfig config
EngineImpl(EngineConfig config) { //Implicit injection
this.config = config
}
}
@alvaro_sanchez

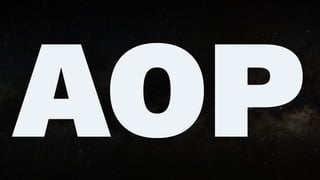

33. AOP

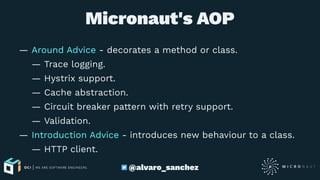

34. Micronaut's AOP
— Around Advice - decorates a method or class.
— Trace logging.
— Hystrix support.
— Cache abstraction.
— Circuit breaker pattern with retry support.
— Validation.
— Introduction Advice - introduces new behaviour to a class.
— HTTP client.
@alvaro_sanchez

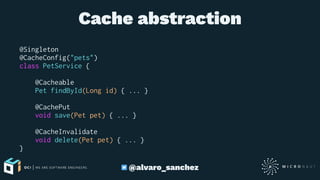

35. Cache abstraction
@Singleton
@CacheConfig("pets")
class PetService {
@Cacheable
Pet findById(Long id) { ... }
@CachePut
void save(Pet pet) { ... }
@CacheInvalidate
void delete(Pet pet) { ... }
}
@alvaro_sanchez

36. HTTP Server

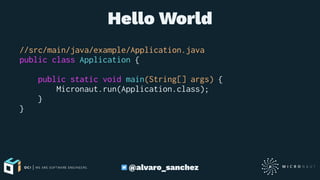

37. Hello World
//src/main/java/example/Application.java
public class Application {
public static void main(String[] args) {
Micronaut.run(Application.class);
}
}
@alvaro_sanchez

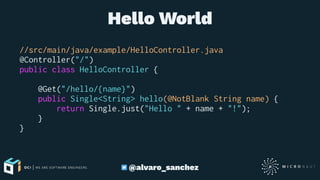

38. Hello World
//src/main/java/example/HelloController.java
@Controller("/")
public class HelloController {
@Get("/hello/{name}")
public Single<String> hello(@NotBlank String name) {
return Single.just("Hello " + name + "!");
}
}
@alvaro_sanchez

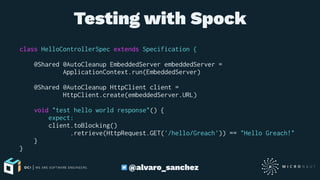

39. Testing with Spock
class HelloControllerSpec extends Specification {
@Shared @AutoCleanup EmbeddedServer embeddedServer =
ApplicationContext.run(EmbeddedServer)
@Shared @AutoCleanup HttpClient client =
HttpClient.create(embeddedServer.URL)
void "test hello world response"() {
expect:
client.toBlocking()
.retrieve(HttpRequest.GET('/hello/Greach')) == "Hello Greach!"
}
}
@alvaro_sanchez

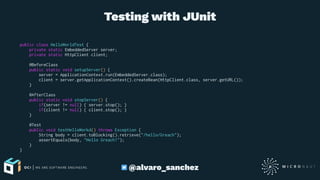

40. Testing with JUnit
public class HelloWorldTest {
private static EmbeddedServer server;
private static HttpClient client;
@BeforeClass
public static void setupServer() {
server = ApplicationContext.run(EmbeddedServer.class);
client = server.getApplicationContext().createBean(HttpClient.class, server.getURL());
}
@AfterClass
public static void stopServer() {
if(server != null) { server.stop(); }
if(client != null) { client.stop(); }
}
@Test
public void testHelloWorkd() throws Exception {
String body = client.toBlocking().retrieve("/hello/Greach");
assertEquals(body, "Hello Greach!");
}
}
@alvaro_sanchez

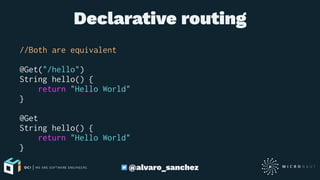

41. Declarative routing
//Both are equivalent
@Get("/hello")
String hello() {
return "Hello World"
}
@Get
String hello() {
return "Hello World"
}
@alvaro_sanchez

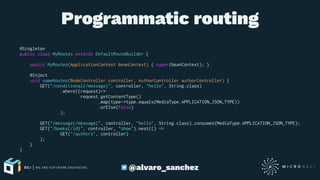

42. Programmatic routing
@Singleton
public class MyRoutes extends DefaultRouteBuilder {
public MyRoutes(ApplicationContext beanContext) { super(beanContext); }
@Inject
void someRoutes(BookController controller, AuthorController authorController) {
GET("/conditional{/message}", controller, "hello", String.class)
.where((request)->
request.getContentType()
.map(type->type.equals(MediaType.APPLICATION_JSON_TYPE))
.orElse(false)
);
GET("/message{/message}", controller, "hello", String.class).consumes(MediaType.APPLICATION_JSON_TYPE);
GET("/books{/id}", controller, "show").nest(() ->
GET("/authors", controller)
);
}
}
@alvaro_sanchez

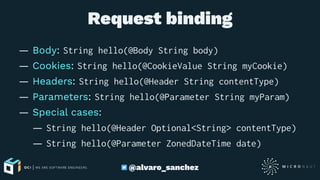

43. Request binding
— Body: String hello(@Body String body)
— Cookies: String hello(@CookieValue String myCookie)
— Headers: String hello(@Header String contentType)
— Parameters: String hello(@Parameter String myParam)
— Special cases:
— String hello(@Header Optional<String> contentType)
— String hello(@Parameter ZonedDateTime date)
@alvaro_sanchez

44. Direct request/response
manipulation
@Get("/hello")
HttpResponse<String> hello(HttpRequest<?> request) {
String name = request.getParameters()
.getFirst("name")
.orElse("Nobody");
return HttpResponse.ok("Hello " + name + "!!")
.header("X-My-Header", "Foo");
}
@alvaro_sanchez

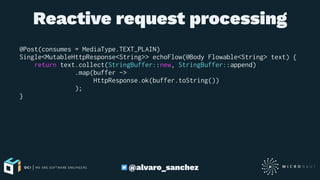

45. Reactive request processing
@Post(consumes = MediaType.TEXT_PLAIN)
Single<MutableHttpResponse<String>> echoFlow(@Body Flowable<String> text) {
return text.collect(StringBuffer::new, StringBuffer::append)
.map(buffer ->
HttpResponse.ok(buffer.toString())
);
}
@alvaro_sanchez

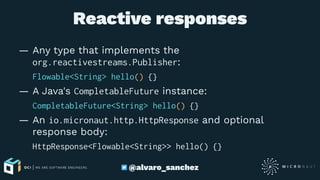

46. Reactive responses
— Any type that implements the
org.reactivestreams.Publisher:
Flowable<String> hello() {}
— A Java's CompletableFuture instance:
CompletableFuture<String> hello() {}
— An io.micronaut.http.HttpResponse and optional
response body:
HttpResponse<Flowable<String>> hello() {}
@alvaro_sanchez

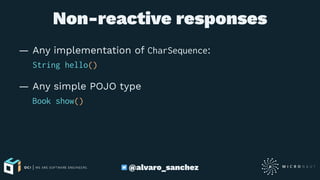

47. Non-reactive responses
— Any implementation of CharSequence:
String hello()
— Any simple POJO type
Book show()
@alvaro_sanchez

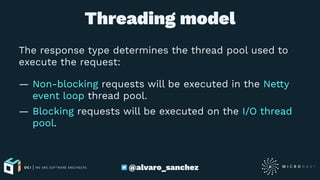

48. Threading model
The response type determines the thread pool used to
execute the request:
— Non-blocking requests will be executed in the Netty
event loop thread pool.
— Blocking requests will be executed on the I/O thread
pool.
@alvaro_sanchez

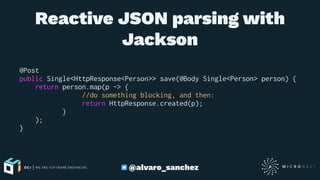

49. Reactive JSON parsing with
Jackson
@Post
public Single<HttpResponse<Person>> save(@Body Single<Person> person) {
return person.map(p -> {
//do something blocking, and then:
return HttpResponse.created(p);
}
);
}
@alvaro_sanchez

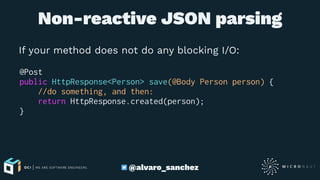

50. Non-reactive JSON parsing
If your method does not do any blocking I/O:
@Post
public HttpResponse<Person> save(@Body Person person) {
//do something, and then:
return HttpResponse.created(person);
}
@alvaro_sanchez

51. HTTP Client

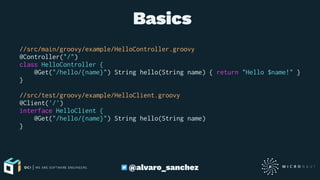

52. Basics
//src/main/groovy/example/HelloController.groovy
@Controller("/")
class HelloController {
@Get("/hello/{name}") String hello(String name) { return "Hello $name!" }
}
//src/test/groovy/example/HelloClient.groovy
@Client('/')
interface HelloClient {
@Get("/hello/{name}") String hello(String name)
}
@alvaro_sanchez

53. Testing it
class HelloControllerSpec extends Specification {
@Shared @AutoCleanup EmbeddedServer embeddedServer =
ApplicationContext.run(EmbeddedServer)
void "test hello world"() {
given:
HelloClient client = embeddedServer.applicationContext.getBean(HelloClient)
expect:
client.hello("Fred") == "Hello Fred!"
}
}
@alvaro_sanchez

54. Features
— Service discovery aware: Consul and Eureka support.
— Load balancing: round robin, Netflix's Ribbon.
— Reactive: based on the return types.
— Fault tolerant: retry, fallback, circuit breaker.
@alvaro_sanchez

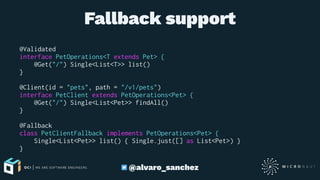

55. Fallback support
@Validated
interface PetOperations<T extends Pet> {
@Get("/") Single<List<T>> list()
}
@Client(id = "pets", path = "/v1/pets")
interface PetClient extends PetOperations<Pet> {
@Get("/") Single<List<Pet>> findAll()
}
@Fallback
class PetClientFallback implements PetOperations<Pet> {
Single<List<Pet>> list() { Single.just([] as List<Pet>) }
}
@alvaro_sanchez

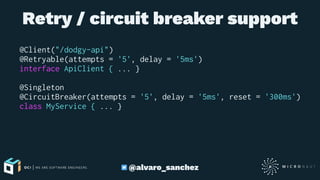

56. Retry / circuit breaker support
@Client("/dodgy-api")
@Retryable(attempts = '5', delay = '5ms')
interface ApiClient { ... }
@Singleton
@CircuitBreaker(attempts = '5', delay = '5ms', reset = '300ms')
class MyService { ... }
@alvaro_sanchez

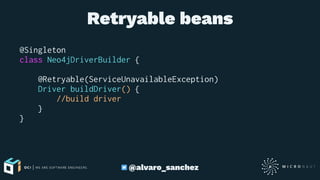

57. Retryable beans
@Singleton
class Neo4jDriverBuilder {
@Retryable(ServiceUnavailableException)
Driver buildDriver() {
//build driver
}
}
@alvaro_sanchez

58. Serverless

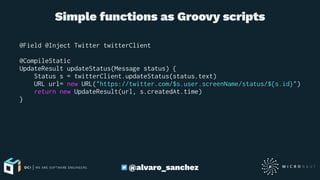

59. Simple functions as Groovy scripts
@Field @Inject Twitter twitterClient
@CompileStatic
UpdateResult updateStatus(Message status) {
Status s = twitterClient.updateStatus(status.text)
URL url= new URL("https://twitter.com/$s.user.screenName/status/${s.id}")
return new UpdateResult(url, s.createdAt.time)
}
@alvaro_sanchez

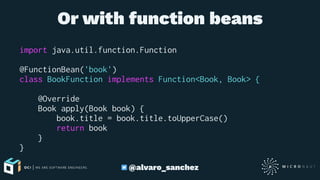

60. Or with function beans
import java.util.function.Function
@FunctionBean('book')
class BookFunction implements Function<Book, Book> {
@Override
Book apply(Book book) {
book.title = book.title.toUpperCase()
return book
}
}
@alvaro_sanchez

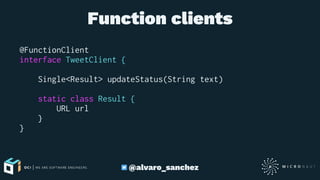

61. Function clients
@FunctionClient
interface TweetClient {
Single<Result> updateStatus(String text)
static class Result {
URL url
}
}
@alvaro_sanchez

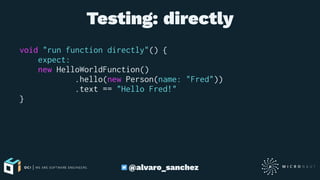

62. Testing: directly
void "run function directly"() {
expect:
new HelloWorldFunction()
.hello(new Person(name: "Fred"))
.text == "Hello Fred!"
}
@alvaro_sanchez

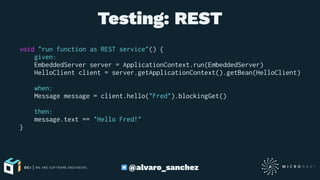

63. Testing: REST
void "run function as REST service"() {
given:
EmbeddedServer server = ApplicationContext.run(EmbeddedServer)
HelloClient client = server.getApplicationContext().getBean(HelloClient)
when:
Message message = client.hello("Fred").blockingGet()
then:
message.text == "Hello Fred!"
}
@alvaro_sanchez

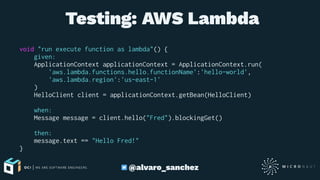

64. Testing: AWS Lambda
void "run execute function as lambda"() {
given:
ApplicationContext applicationContext = ApplicationContext.run(
'aws.lambda.functions.hello.functionName':'hello-world',
'aws.lambda.region':'us-east-1'
)
HelloClient client = applicationContext.getBean(HelloClient)
when:
Message message = client.hello("Fred").blockingGet()
then:
message.text == "Hello Fred!"
}
@alvaro_sanchez

65. Other goodies

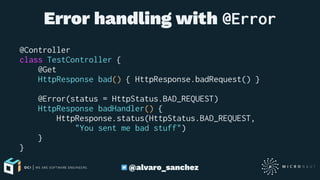

66. Error handling with @Error
@Controller
class TestController {
@Get
HttpResponse bad() { HttpResponse.badRequest() }
@Error(status = HttpStatus.BAD_REQUEST)
HttpResponse badHandler() {
HttpResponse.status(HttpStatus.BAD_REQUEST,
"You sent me bad stuff")
}
}
@alvaro_sanchez

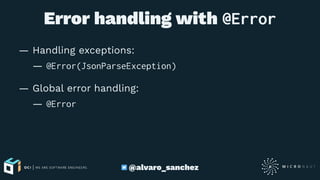

67. Error handling with @Error
— Handling exceptions:
— @Error(JsonParseException)
— Global error handling:
— @Error
@alvaro_sanchez

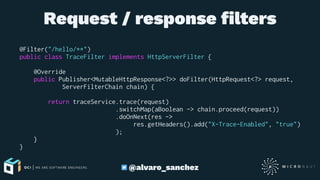

68. Request / response filters
@Filter("/hello/**")
public class TraceFilter implements HttpServerFilter {
@Override
public Publisher<MutableHttpResponse<?>> doFilter(HttpRequest<?> request,
ServerFilterChain chain) {
return traceService.trace(request)
.switchMap(aBoolean -> chain.proceed(request))
.doOnNext(res ->
res.getHeaders().add("X-Trace-Enabled", "true")
);
}
}
@alvaro_sanchez

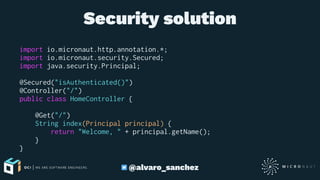

69. Security solution
import io.micronaut.http.annotation.*;
import io.micronaut.security.Secured;
import java.security.Principal;
@Secured("isAuthenticated()")
@Controller("/")
public class HomeController {
@Get("/")
String index(Principal principal) {
return "Welcome, " + principal.getName();
}
}
@alvaro_sanchez

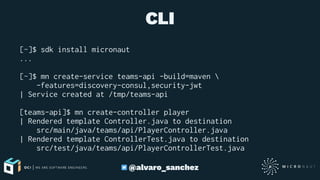

70. CLI
[~]$ sdk install micronaut
...
[~]$ mn create-service teams-api -build=maven
-features=discovery-consul,security-jwt
| Service created at /tmp/teams-api
[teams-api]$ mn create-controller player
| Rendered template Controller.java to destination
src/main/java/teams/api/PlayerController.java
| Rendered template ControllerTest.java to destination
src/test/java/teams/api/PlayerControllerTest.java
@alvaro_sanchez

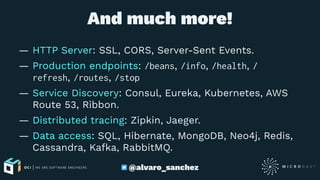

71. And much more!
— HTTP Server: SSL, CORS, Server-Sent Events.
— Production endpoints: /beans, /info, /health, /
refresh, /routes, /stop
— Service Discovery: Consul, Eureka, Kubernetes, AWS
Route 53, Ribbon.
— Distributed tracing: Zipkin, Jaeger.
— Data access: SQL, Hibernate, MongoDB, Neo4j, Redis,
Cassandra, Kafka, RabbitMQ.
@alvaro_sanchez

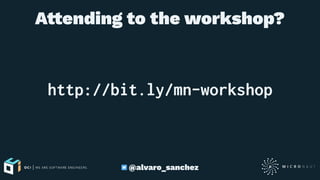

72. A!ending to the workshop?
http://bit.ly/mn-workshop
@alvaro_sanchez

73. Q & A
Álvaro Sánchez-Mariscal
@alvaro_sanchez
