Master-Trol is an electronic water management system by Acorn Engineering, enabling comprehensive control over water fixtures in facilities, with capabilities to monitor usage, report data, and prevent abuse. It supports up to 3,072 valves via a single server, has been refined over 20 years, and is applicable in challenging environments like prisons and jails, contributing to significant water conservation. Enhanced features include real-time monitoring, user activity tracking, and compliance with LEED standards for water efficiency.

1. and other Acorn Electronic Valve Systems Rev June 09R

2. Headquartered in Southern California Acorn Engineering – Innovator of Engineered Plumbing Products

3. Acorn Family of Companies Diversity in Plumbing Products Acorn Engineering and its Family of Companies are members of U.S. Green Build Council

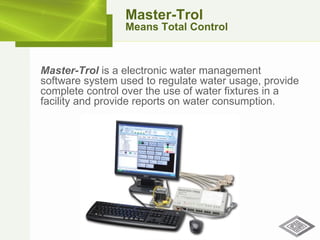

4. Master-Trol is a electronic water management software system used to regulate water usage, provide complete control over the use of water fixtures in a facility and provide reports on water consumption. Master-Trol Means Total Control

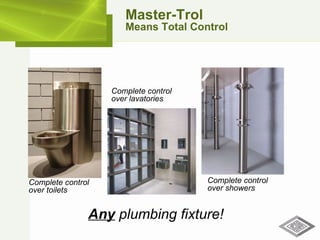

5. Master-Trol Means Total Control Any plumbing fixture! Complete control over showers Complete control over lavatories Complete control over toilets

6. Water savings by regulating the amount of water used Effortless installation and maintenance Complete control of up to 3,072 fixtures on a single system Monitors water usage by reports, graphs and charts Continuous improvement since initial development in 1991 Master-Trol Benefits

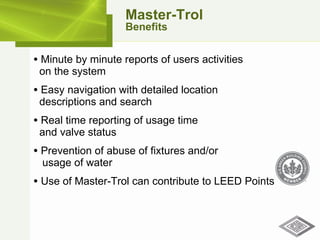

7. Minute by minute reports of users activities on the system Easy navigation with detailed location descriptions and search Real time reporting of usage time and valve status Prevention of abuse of fixtures and/or usage of water Use of Master-Trol can contribute to LEED Points Master-Trol Benefits

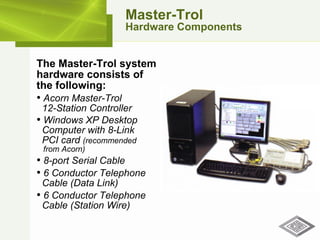

8. Master-Trol Hardware Components The Master-Trol system hardware consists of the following: Acorn Master-Trol 12-Station Controller Windows XP Desktop Computer with 8-Link PCI card (recommended from Acorn) 8-port Serial Cable 6 Conductor Telephone Cable (Data Link) 6 Conductor Telephone Cable (Station Wire)

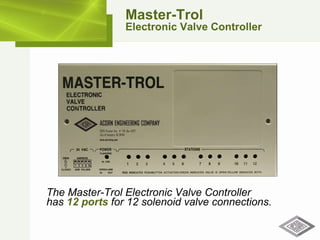

9. The Master-Trol Electronic Valve Controller has 12 ports for 12 solenoid valve connections. Master-Trol Electronic Valve Controller

10. 8 Versa Link Network Module = 3,072 total valves controlled by one server From a single source you can control up to 3,072 valves Master-Trol Controls up to 3,072 Valves 32 Controllers per Versa Link 12 Valves per controller Server Local Area Network User Interface

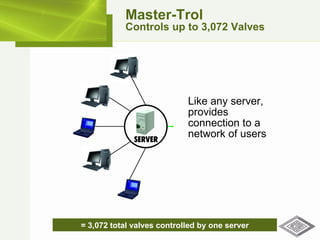

11. = 3,072 total valves controlled by one server Master-Trol Controls up to 3,072 Valves Like any server, provides connection to a network of users

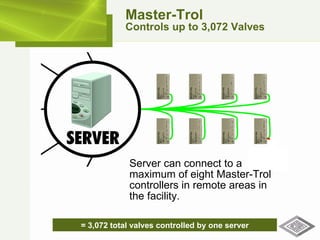

12. = 3,072 total valves controlled by one server Master-Trol Controls up to 3,072 Valves Server can connect to a maximum of eight Master-Trol controllers in remote areas in the facility.

13. = 3,072 total valves controlled by one server Master-Trol Controls up to 3,072 Valves Each Master-Trol controller can be daisy chained for a maximum of 32 controllers.

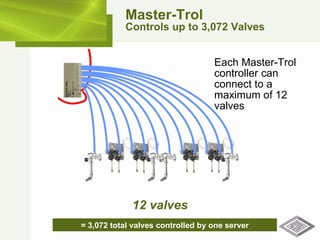

14. = 3,072 total valves controlled by one server Master-Trol Controls up to 3,072 Valves Each Master-Trol controller can connect to a maximum of 12 valves 12 valves

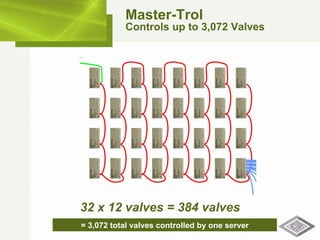

15. = 3,072 total valves controlled by one server Master-Trol Controls up to 3,072 Valves 32 x 12 valves = 384 valves

16. = 3,072 total valves controlled by one server Master-Trol Controls up to 3,072 Valves 8 x 384 valves = 3,072 valves

17. Link 8 Link 7 Link 6 Link 5 Link 4 Link 3 Link 2 Link 1 Up to 32 Master-Trol Controllers per Link (1,220 Meters per Link) Server or Handheld 120/230/24 VAC, 60 Hz hardwired transformer is provided Master-Trol Overall System Set-Up Up to 4,000 ft Controller Valves Controller Valves Controller Valves

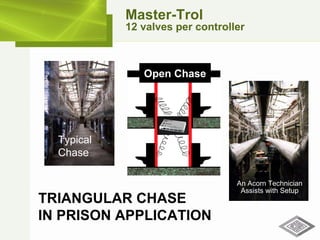

18. TRIANGULAR CHASE IN PRISON APPLICATION Typical Chase An Acorn Technician Assists with Setup Open Chase Master-Trol 12 valves per controller

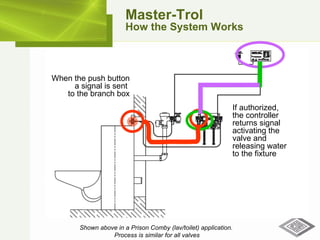

19. When the push button a signal is sent to the branch box The signal then travels to the Master-Trol controller, which identifies the station sending the signal and automatically reviews all preprogrammed options and timing requirements If authorized, the controller returns signal activating the valve and releasing water to the fixture Master-Trol How the System Works Shown above in a Prison Comby (lav/toilet) application. Process is similar for all valves

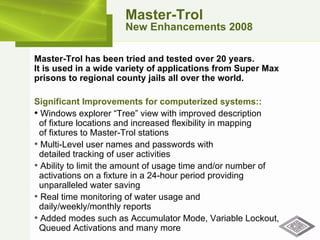

20. Master-Trol New Enhancements 2008 Master-Trol has been tried and tested over 20 years. It is used in a wide variety of applications from Super Max prisons to regional county jails all over the world. Significant Improvements for computerized systems:: Windows explorer “Tree” view with improved description of fixture locations and increased flexibility in mapping of fixtures to Master-Trol stations Multi-Level user names and passwords with detailed tracking of user activities Ability to limit the amount of usage time and/or number of activations on a fixture in a 24-hour period providing unparalleled water saving Real time monitoring of water usage and daily/weekly/monthly reports Added modes such as Accumulator Mode, Variable Lockout, Queued Activations and many more

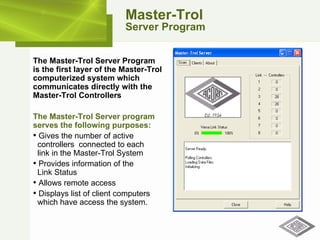

21. Master-Trol Server Program The Master-Trol Server Program is the first layer of the Master-Trol computerized system which communicates directly with the Master-Trol Controllers The Master-Trol Server program serves the following purposes: Gives the number of active controllers connected to each link in the Master-Trol System Provides information of the Link Status Allows remote access Displays list of client computers which have access the system.

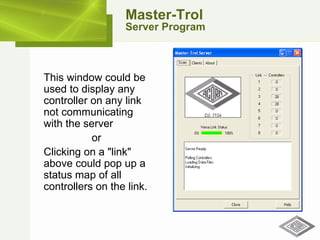

22. Master-Trol Server Program This window could be used to display any controller on any link not communicating with the server or Clicking on a "link" above could pop up a status map of all controllers on the link.

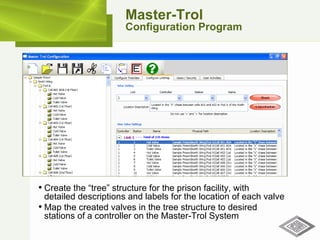

23. Master-Trol Configuration Program Create the “tree” structure for the prison facility, with detailed descriptions and labels for the location of each valve Map the created valves in the tree structure to desired stations of a controller on the Master-Trol System

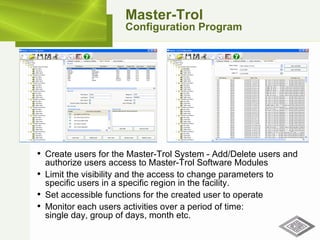

24. Master-Trol Configuration Program Create users for the Master-Trol System - Add/Delete users and authorize users access to Master-Trol Software Modules Limit the visibility and the access to change parameters to specific users in a specific region in the facility. Set accessible functions for the created user to operate Monitor each users activities over a period of time: single day, group of days, month etc.

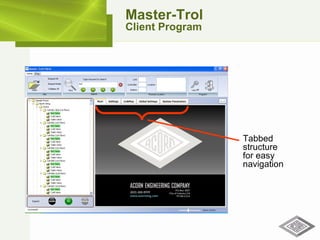

25. Master-Trol Client Program Tabbed structure for easy navigation

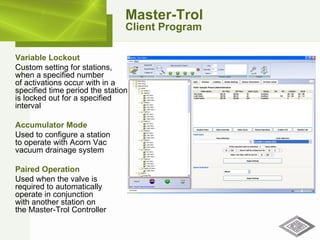

26. Master-Trol Client Program Variable Lockout Custom setting for stations, when a specified number of activations occur with in a specified time period the station is locked out for a specified interval Accumulator Mode Used to configure a station to operate with Acorn Vac vacuum drainage system Paired Operation Used when the valve is required to automatically operate in conjunction with another station on the Master-Trol Controller

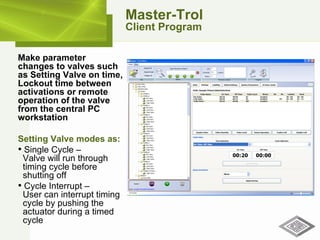

27. Master-Trol Client Program Make parameter changes to valves such as Setting Valve on time, Lockout time between activations or remote operation of the valve from the central PC workstation Setting Valve modes as: Single Cycle – Valve will run through timing cycle before shutting off Cycle Interrupt – User can interrupt timing cycle by pushing the actuator during a timed cycle

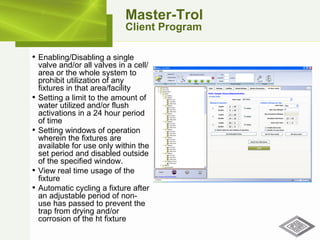

28. Master-Trol Client Program Enabling/Disabling a single valve and/or all valves in a cell/area or the whole system to prohibit utilization of any fixtures in that area/facility Setting a limit to the amount of water utilized and/or flush activations in a 24 hour period of time Setting windows of operation wherein the fixtures are available for use only within the set period and disabled outside of the specified window. View real time usage of the fixture Automatic cycling a fixture after an adjustable period of non-use has passed to prevent the trap from drying and/or corrosion of the ht fixture

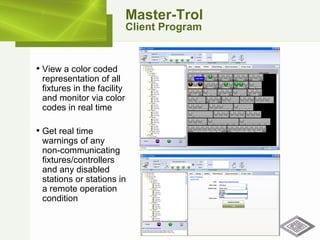

29. Master-Trol Client Program View a color coded representation of all fixtures in the facility and monitor via color codes in real time Get real time warnings of any non-communicating fixtures/controllers and any disabled stations or stations in a remote operation condition

30. Master-Trol Client Program Ability to connect to a Server from a single or multiple clients using a LAN/WAN connection Allows administrators/ maintenance personnel to monitor the system and make changes from remote locations Dual levels of security via the Server Software and Configuration Software to prevent unauthorized access.

31. Master-Trol Logging Program Log system events to a file on the computer for archiving Records number of times each valve has been activated Total ON time for each valve Log gallons/liters of water used per link/valve/all links over a selectable period of time

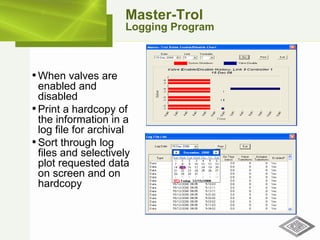

32. Master-Trol Logging Program When valves are enabled and disabled Print a hardcopy of the information in a log file for archival Sort through log files and selectively plot requested data on screen and on hardcopy

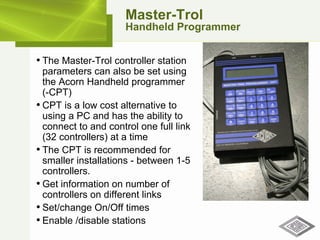

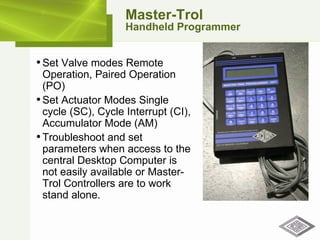

33. Master-Trol Handheld Programmer The Master-Trol controller station parameters can also be set using the Acorn Handheld programmer (-CPT) CPT is a low cost alternative to using a PC and has the ability to connect to and control one full link (32 controllers) at a time The CPT is recommended for smaller installations - between 1-5 controllers. Get information on number of controllers on different links Set/change On/Off times Enable /disable stations

34. Master-Trol Handheld Programmer Set Valve modes Remote Operation, Paired Operation (PO) Set Actuator Modes Single cycle (SC), Cycle Interrupt (CI), Accumulator Mode (AM) Troubleshoot and set parameters when access to the central Desktop Computer is not easily available or Master-Trol Controllers are to work stand alone.

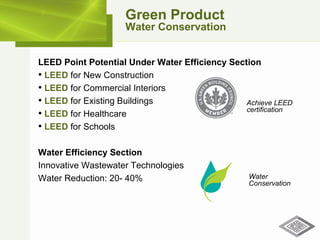

35. Green Product Water Conservation LEED Point Potential Under Water Efficiency Section LEED for New Construction LEED for Commercial Interiors LEED for Existing Buildings LEED for Healthcare LEED for Schools Water Efficiency Section Innovative Wastewater Technologies Water Reduction: 20- 40% Water Conservation Achieve LEED certification

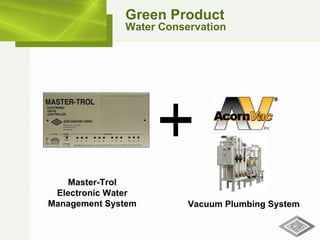

36. Green Product Water Conservation Vacuum Plumbing System Master-Trol Electronic Water Management System

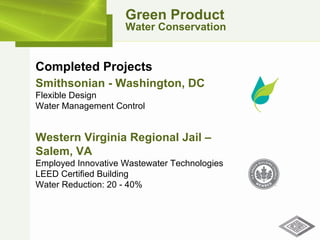

37. Green Product Water Conservation Completed Projects Smithsonian - Washington, DC Flexible Design Water Management Control Western Virginia Regional Jail – Salem, VA Employed Innovative Wastewater Technologies LEED Certified Building Water Reduction: 20 - 40%

38. Smithsonian Museum of Natural History Washington, DC Green Product Water Conservation Renovation Solutions Addressed concerns with: Structural limitations Restrictive site issues Embedded contaminants

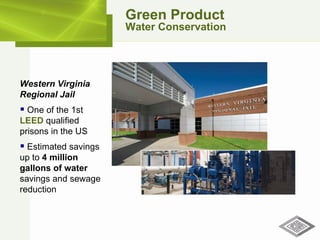

39. Green Product Water Conservation Western Virginia Regional Jail One of the 1st LEED qualified prisons in the US Estimated savings up to 4 million gallons of water savings and sewage reduction

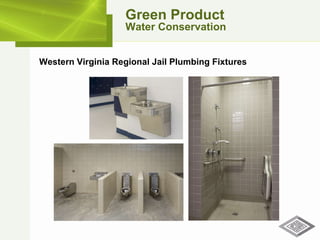

40. Western Virginia Regional Jail Plumbing Fixtures Green Product Water Conservation

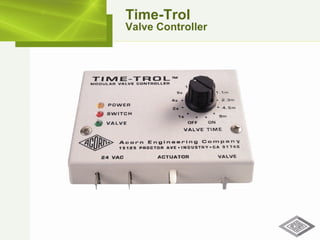

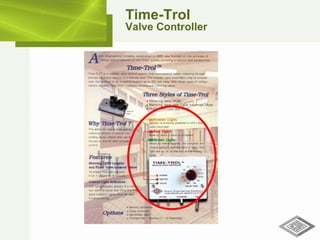

41. Time-Trol Valve Controller

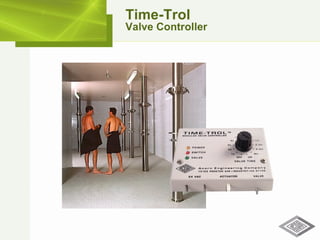

42. Time-Trol Valve Controller

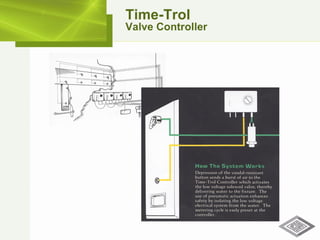

43. Time-Trol Valve Controller

44. Time-Trol Valve Controller

45. Time-Trol Valve Controller

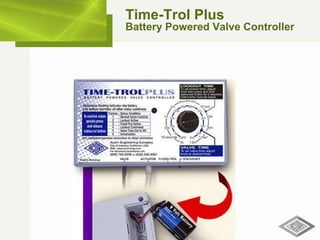

46. Time-Trol Plus Battery Powered Valve Controller

47. Time-Trol Plus Battery Powered Valve Controller

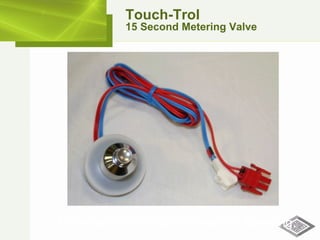

48. 15 Second Pushbutton Electronic Metering Touch-Trol 15 Second Metering Valve
