1. Managing your Minions with Func
Daniel Hanks
Sr. System Administrator, Omniture

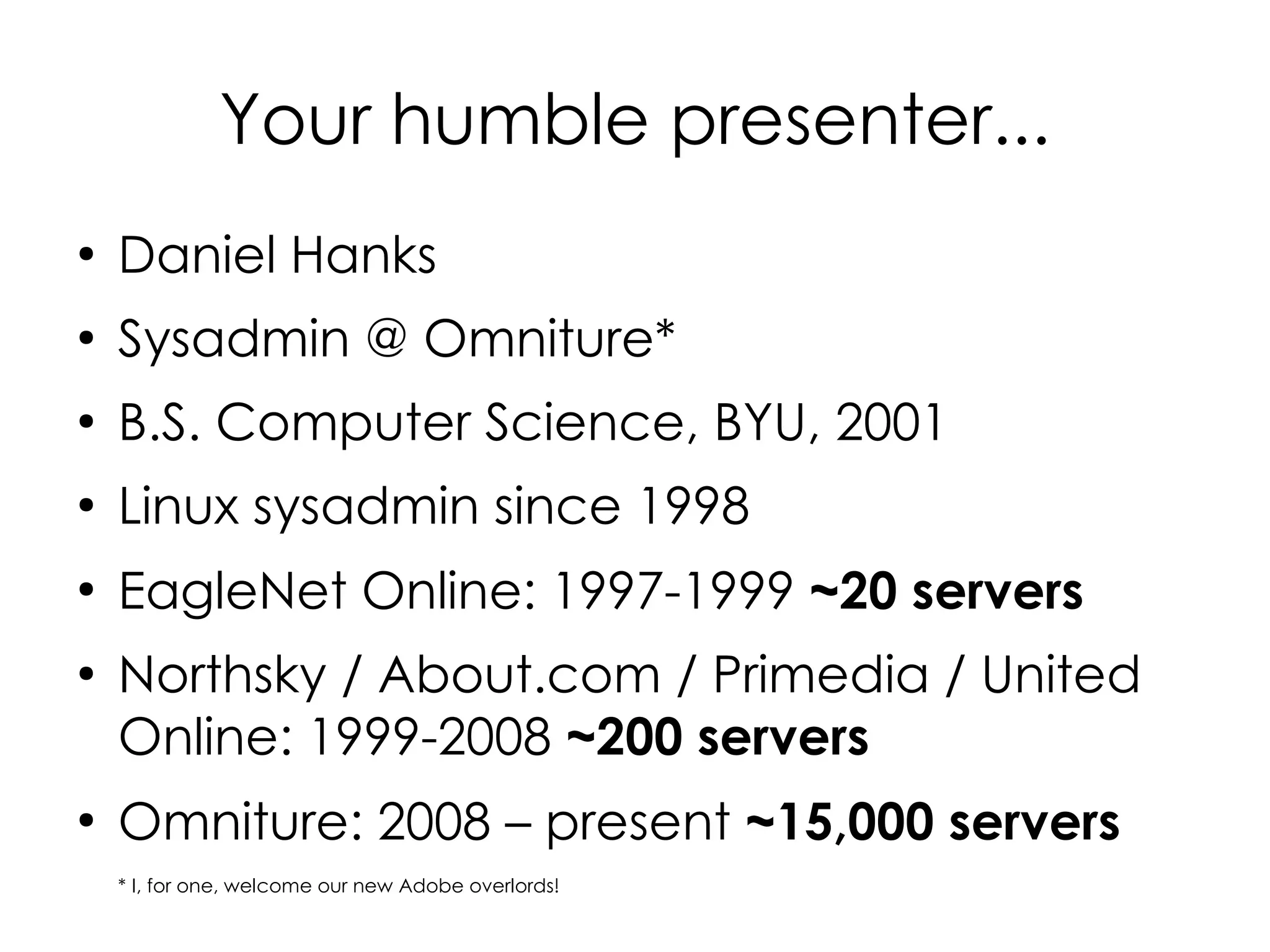

2. Your humble presenter...
●
Daniel Hanks
●
Sysadmin @ Omniture*
●
B.S. Computer Science, BYU, 2001
●
Linux sysadmin since 1998
●
EagleNet Online: 1997-1999 ~20 servers
●
Northsky / About.com / Primedia / United
Online: 1999-2008 ~200 servers
●
Omniture: 2008 – present ~15,000 servers
* I, for one, welcome our new Adobe overlords!

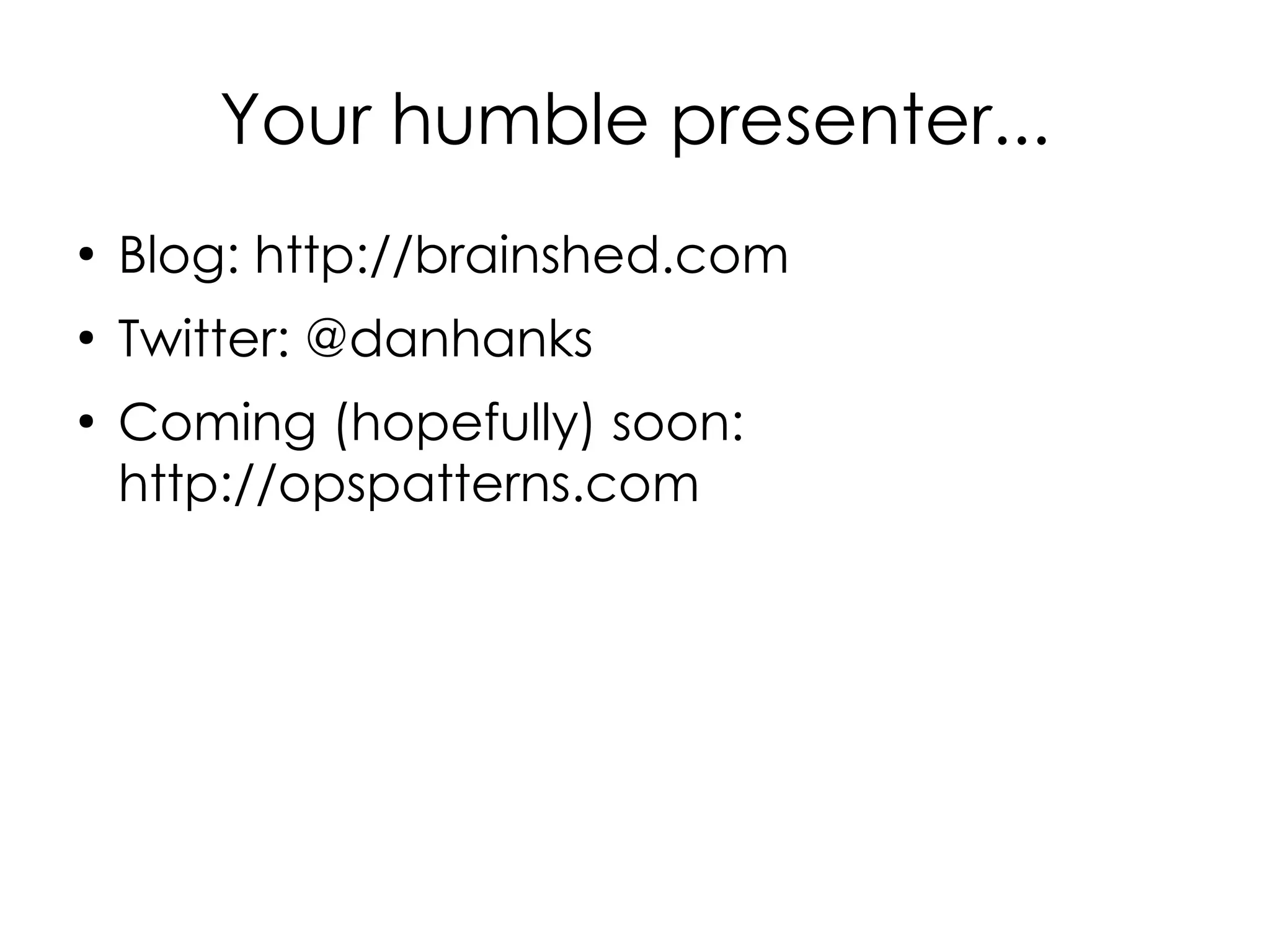

3. Your humble presenter...
●
Blog: http://brainshed.com
●
Twitter: @danhanks
●
Coming (hopefully) soon:
http://opspatterns.com

4. Why
are
you
here?

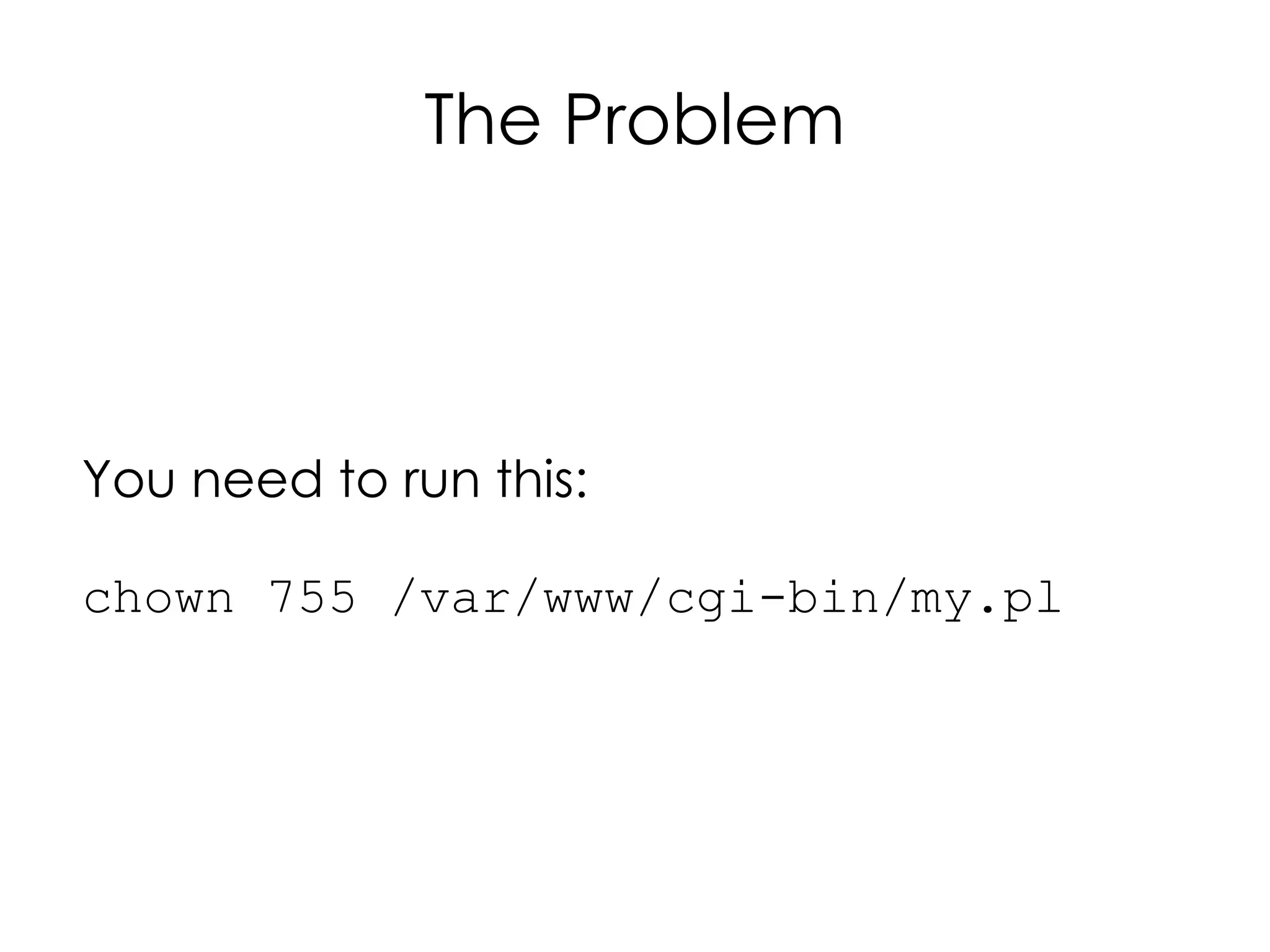

5. The Problem
You need to run this:
chown 755 /var/www/cgi-bin/my.pl

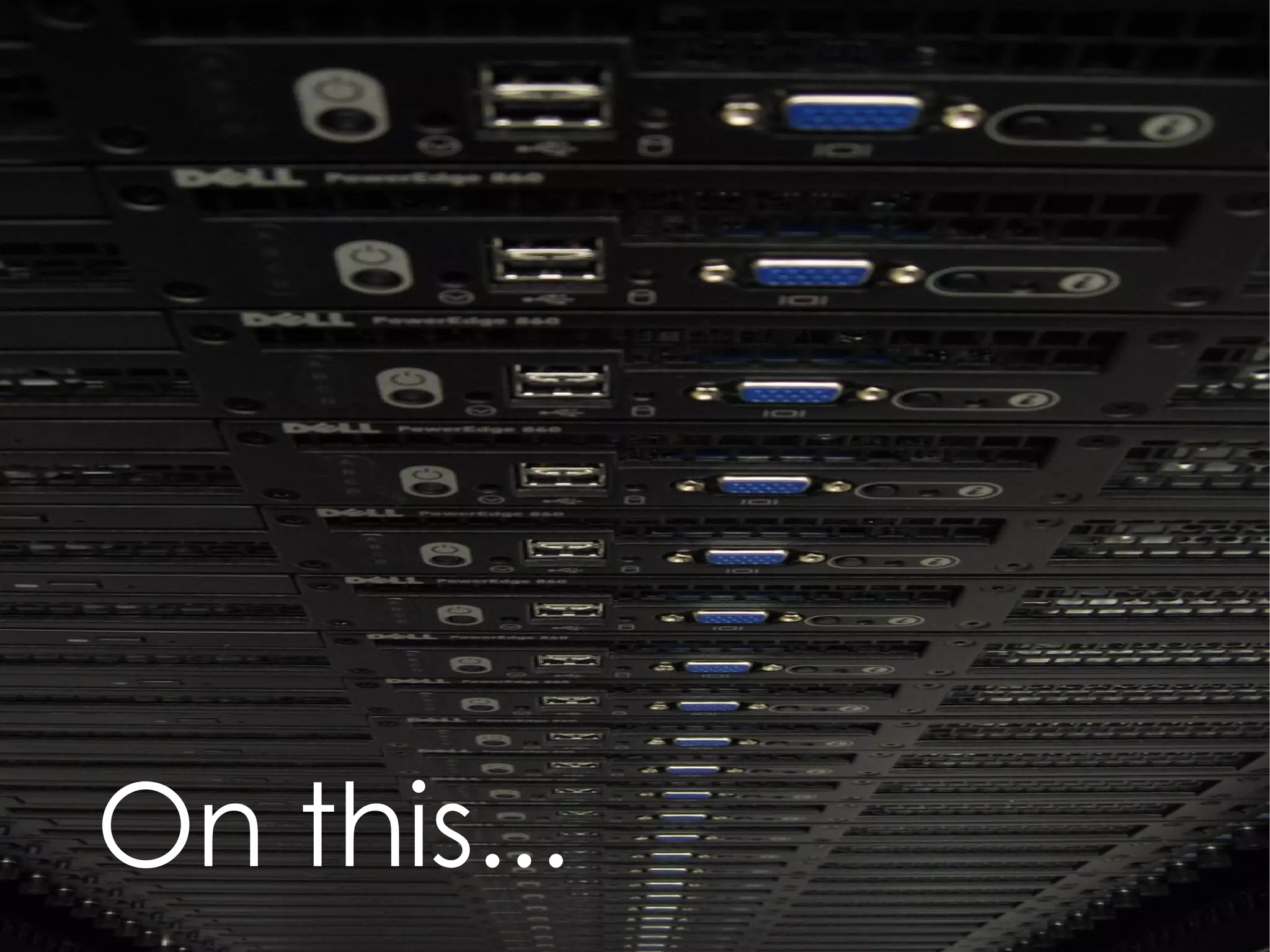

6. On this...

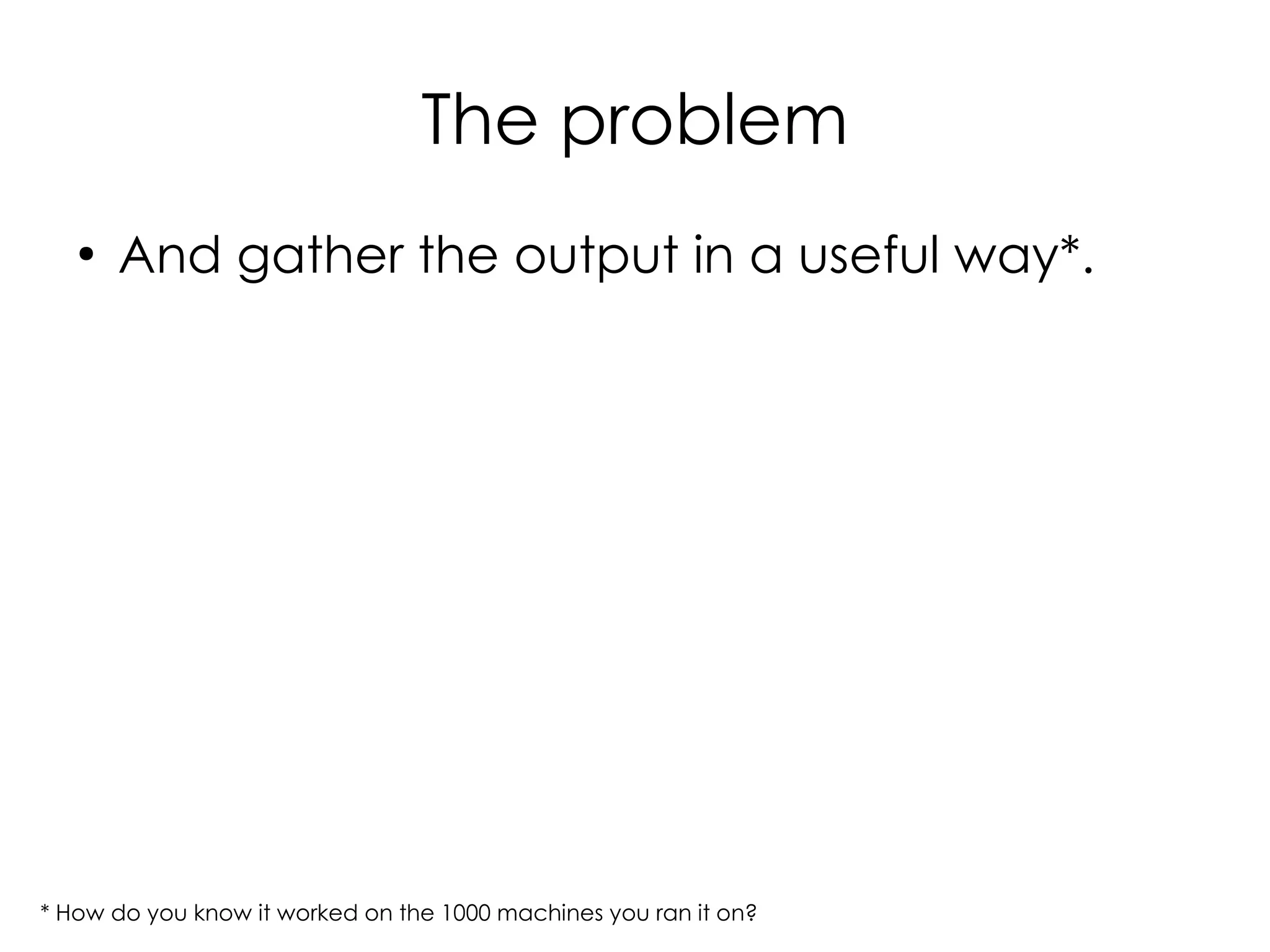

7. The problem
●
And gather the output in a useful way*.
* How do you know it worked on the 1000 machines you ran it on?

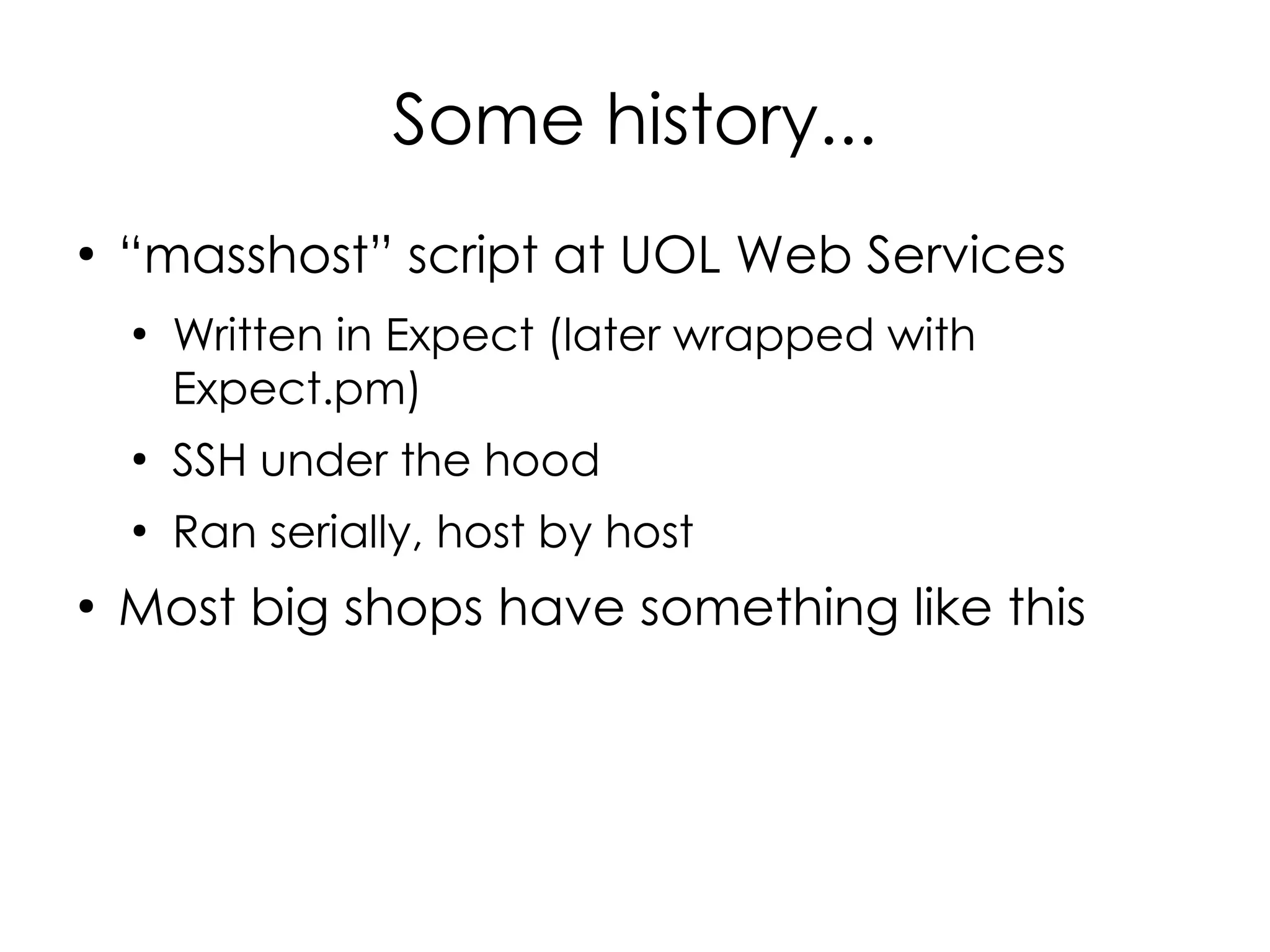

8. Some history...
●
“masshost” script at UOL Web Services
●
Written in Expect (later wrapped with
Expect.pm)
●
SSH under the hood
●
Ran serially, host by host
●
Most big shops have something like this

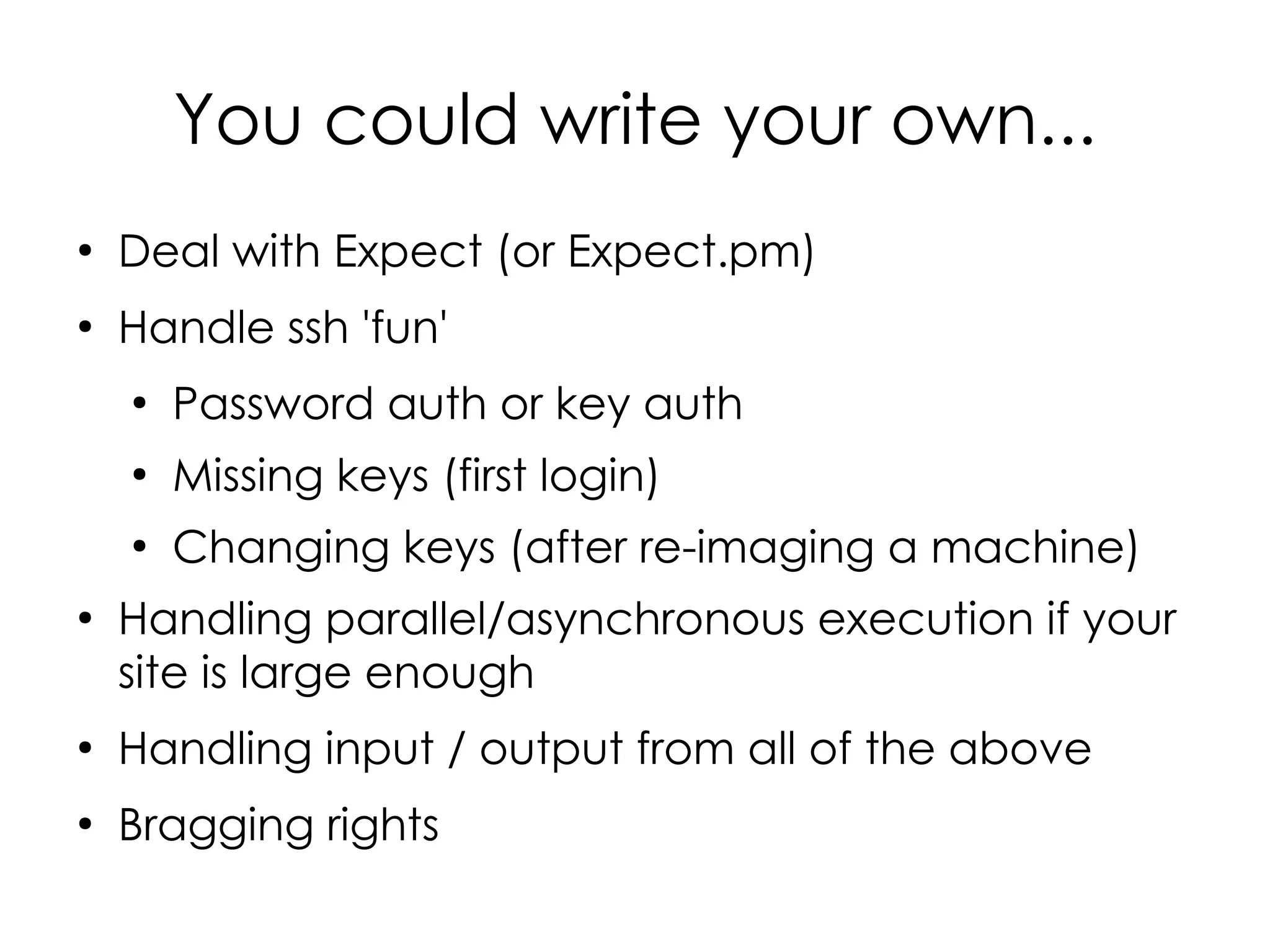

9. You could write your own...
●
Deal with Expect (or Expect.pm)
●
Handle ssh 'fun'
●
Password auth or key auth
●
Missing keys (first login)
●
Changing keys (after re-imaging a machine)
●
Handling parallel/asynchronous execution if your
site is large enough
●
Handling input / output from all of the above
●
Bragging rights

10. Or you
could
use
Func

11. What's Func?

12. Makes it easier to
manage your minions...

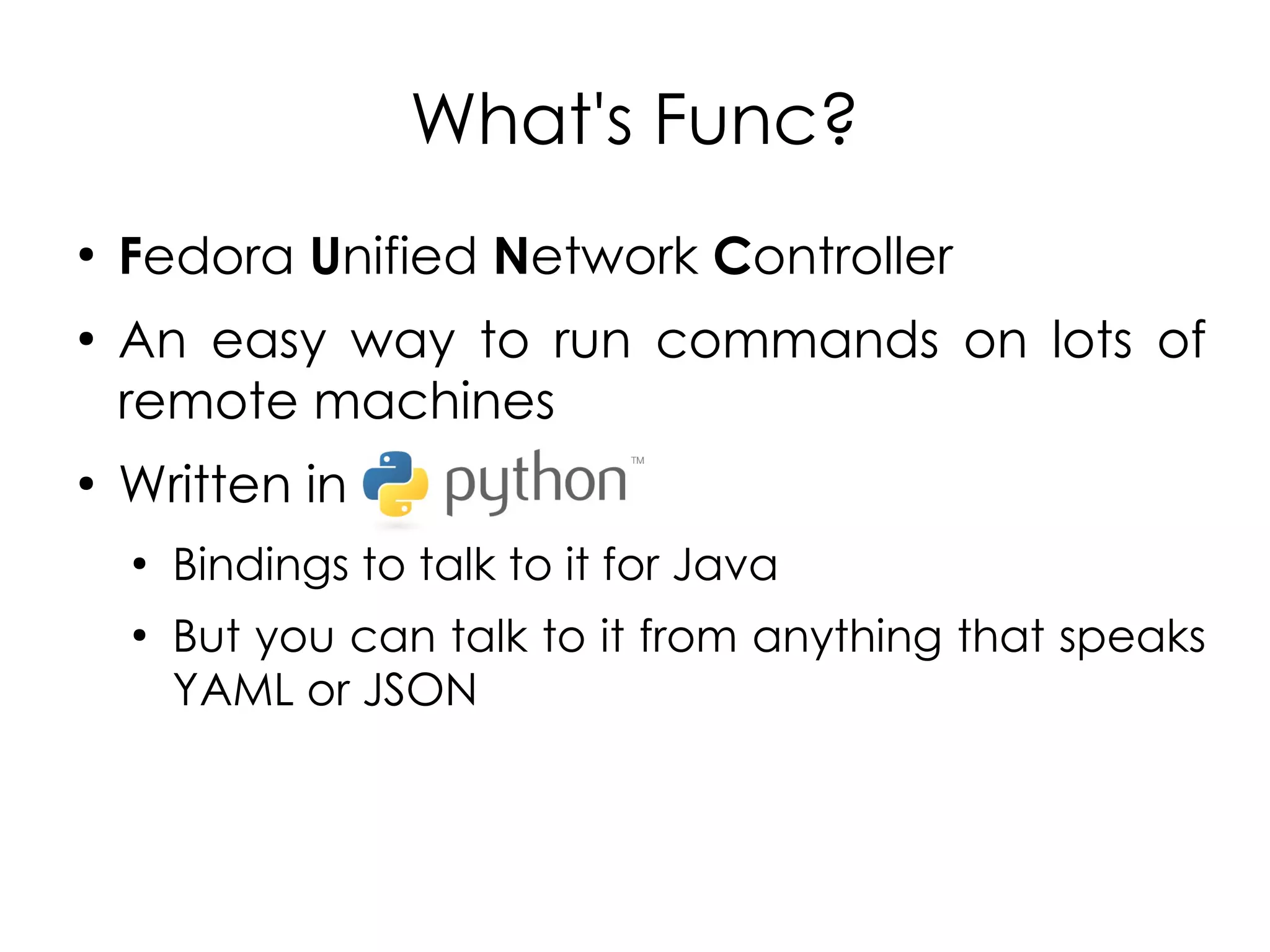

13. What's Func?
●
Fedora Unified Network Controller
●
An easy way to run commands on lots of
remote machines
●
Written in
●
Bindings to talk to it for Java
●
But you can talk to it from anything that speaks
YAML or JSON

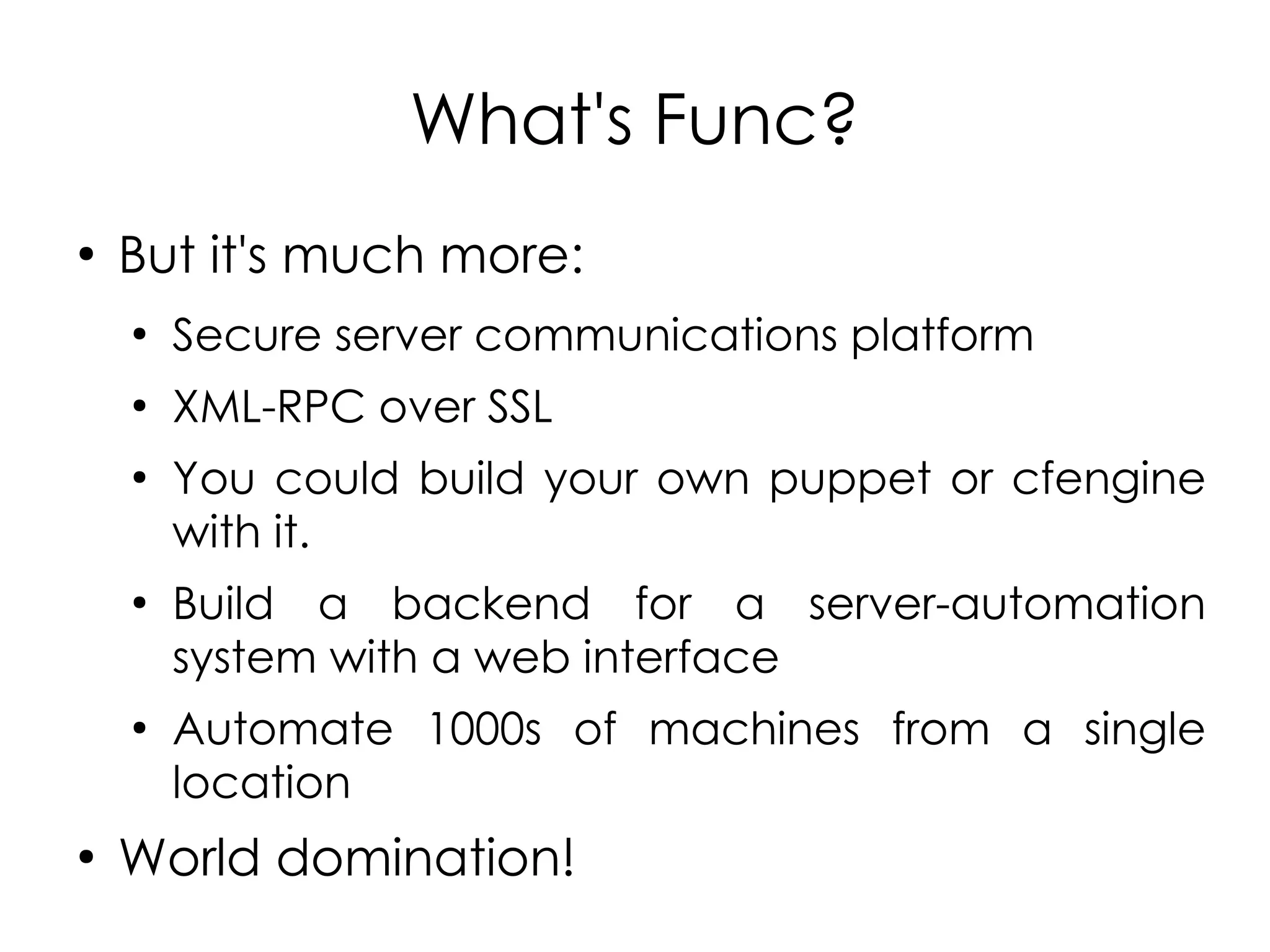

14. What's Func?
●
But it's much more:
●
Secure server communications platform
●
XML-RPC over SSL
●
You could build your own puppet or cfengine
with it.
●
Build a backend for a server-automation
system with a web interface
●
Automate 1000s of machines from a single
location
●
World domination!

15. Muahahahahahaha!

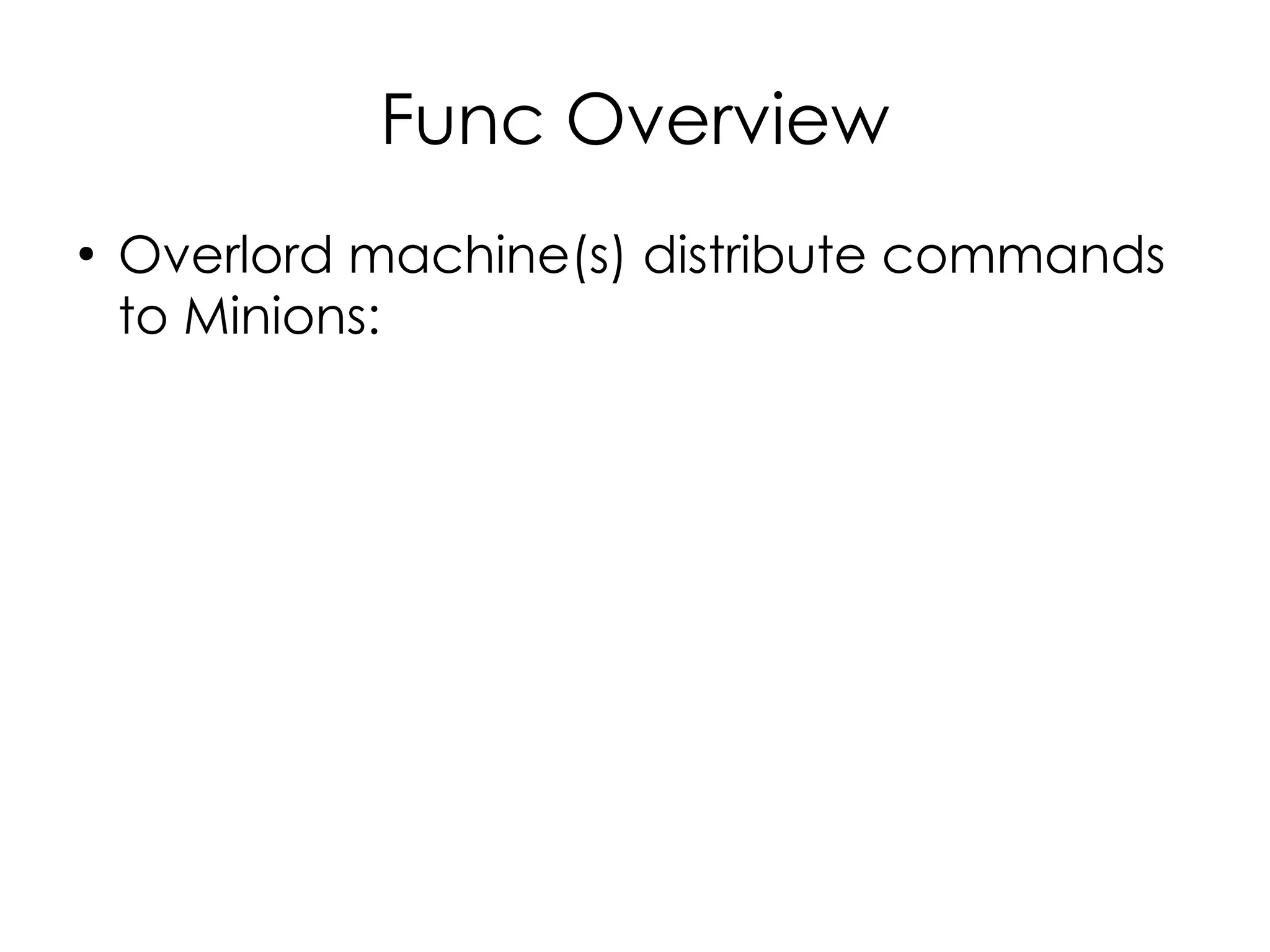

16. Func Overview
●
Overlord machine(s) distribute commands
to Minions:

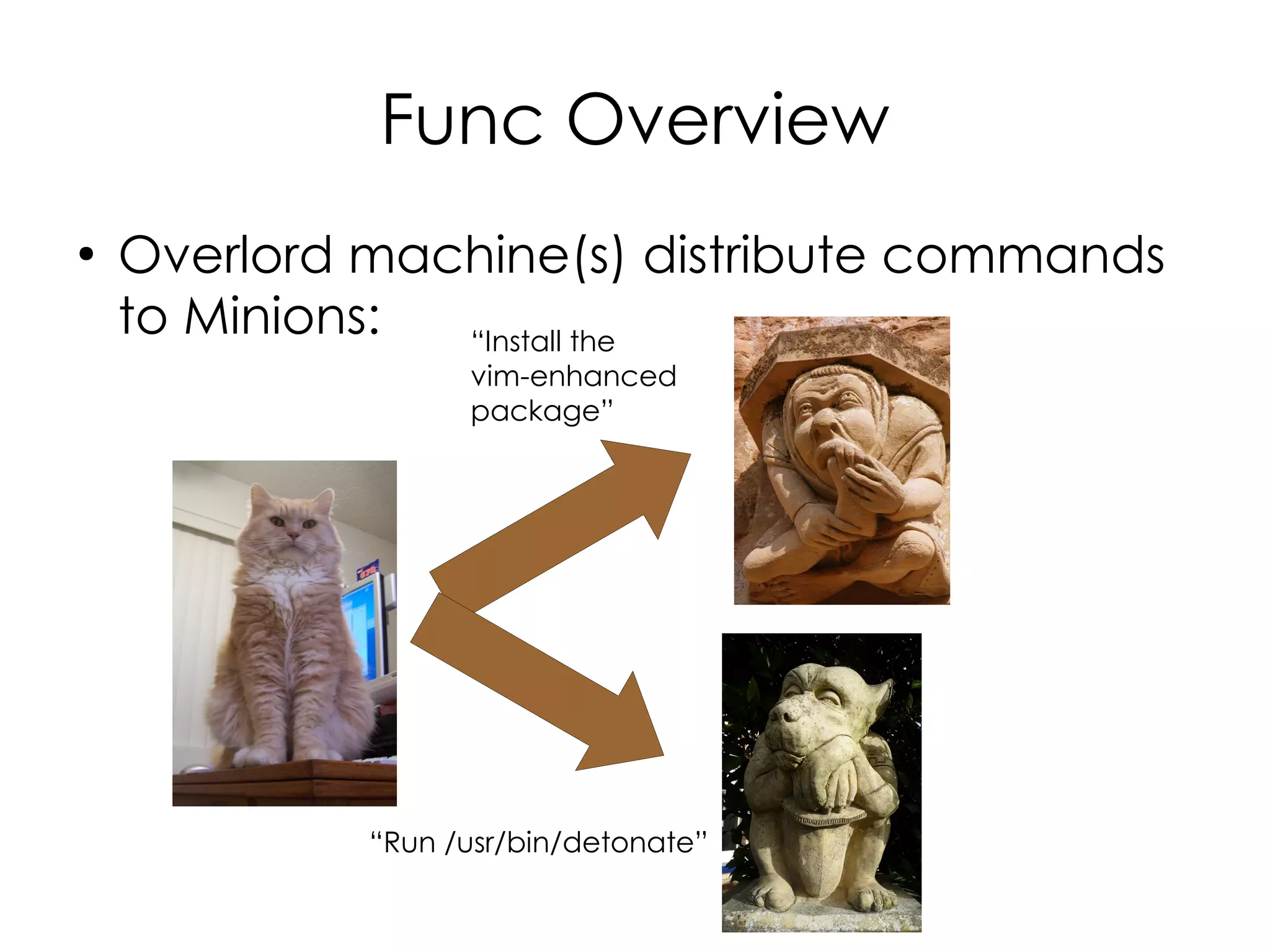

17. Func Overview
●
Overlord machine(s) distribute commands
to Minions: “Install the
vim-enhanced
package”
“Run /usr/bin/detonate”

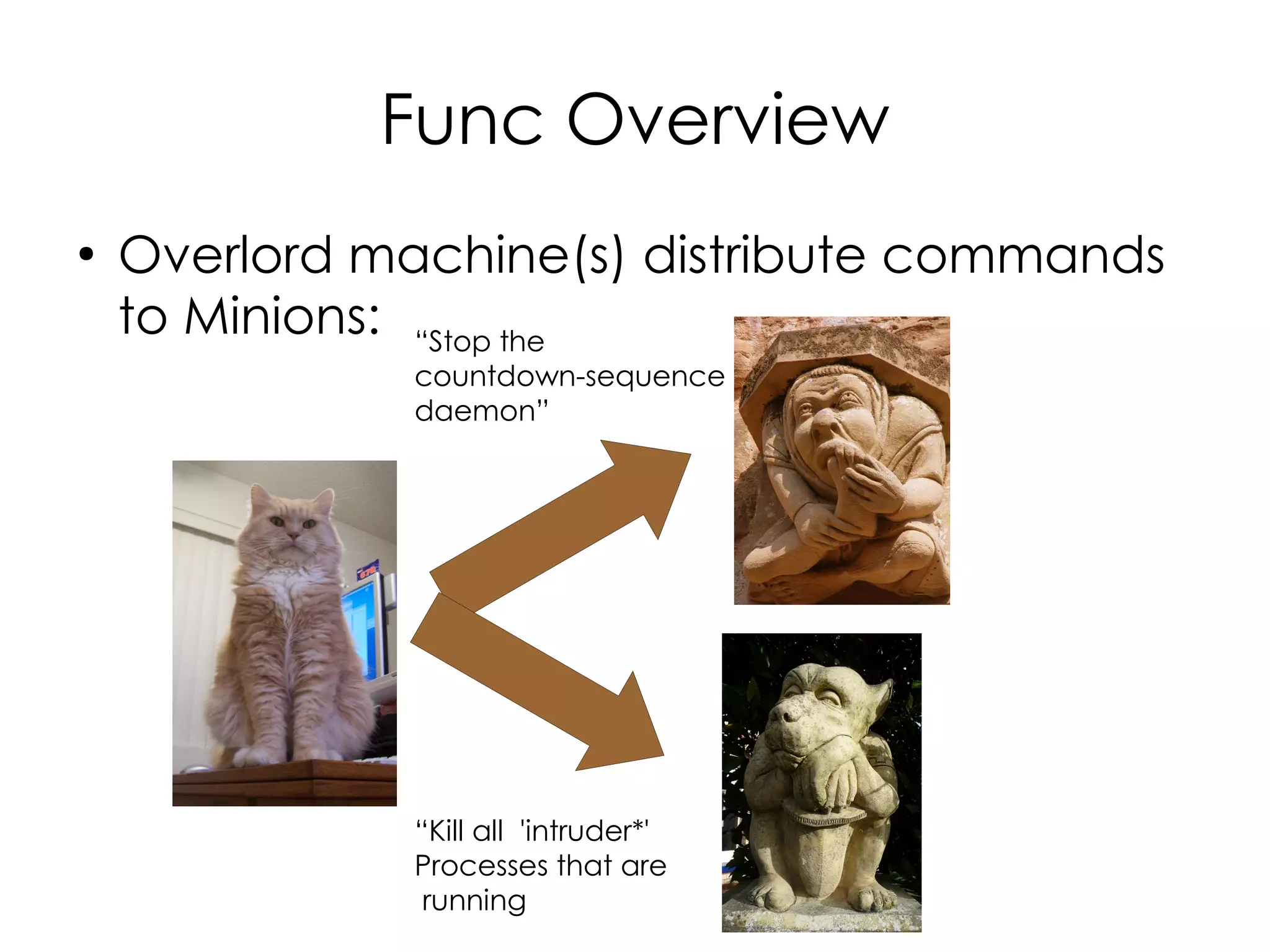

18. Func Overview
●
Overlord machine(s) distribute commands
to Minions: “Stop the
countdown-sequence
daemon”
“Kill all 'intruder*'
Processes that are
running

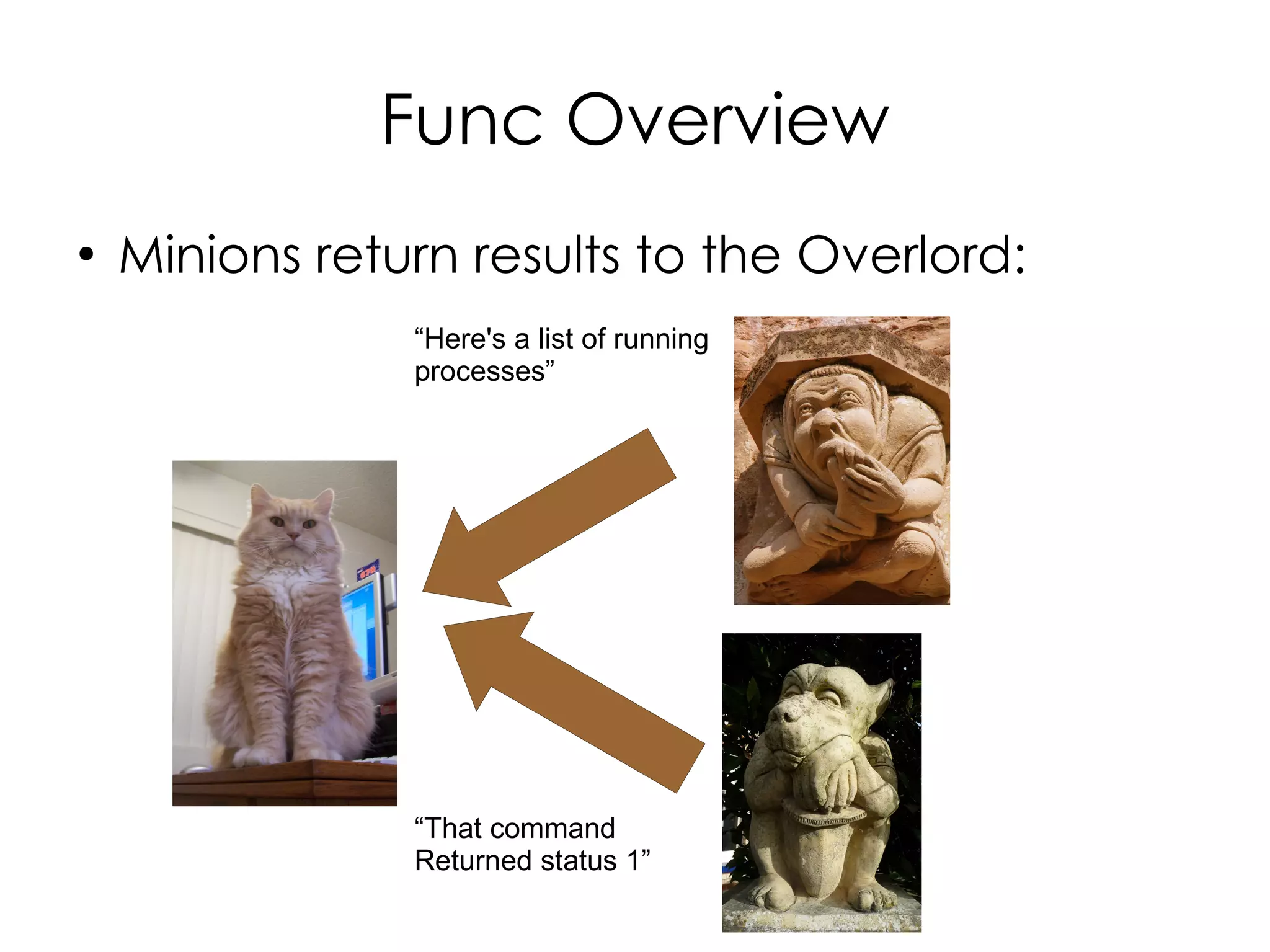

19. Func Overview
●
Minions return results to the Overlord:
“Here's a list of running
processes”
“That command
Returned status 1”

20. Getting up and running

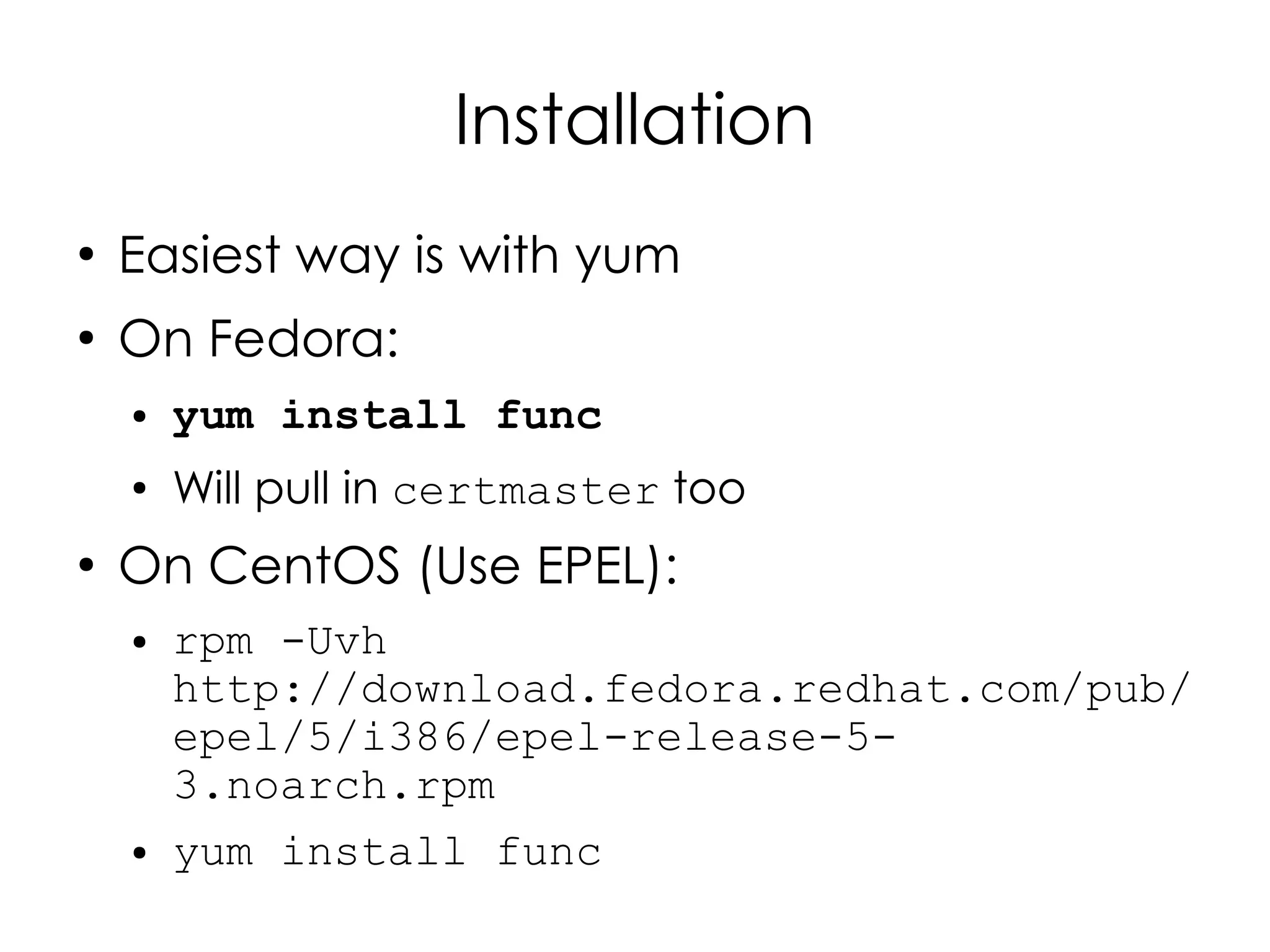

21. Installation
●
Easiest way is with yum
●
On Fedora:
● yum install func
● Will pull in certmaster too
●
On CentOS (Use EPEL):
● rpm -Uvh
http://download.fedora.redhat.com/pub/
epel/5/i386/epel-release-5-
3.noarch.rpm
● yum install func

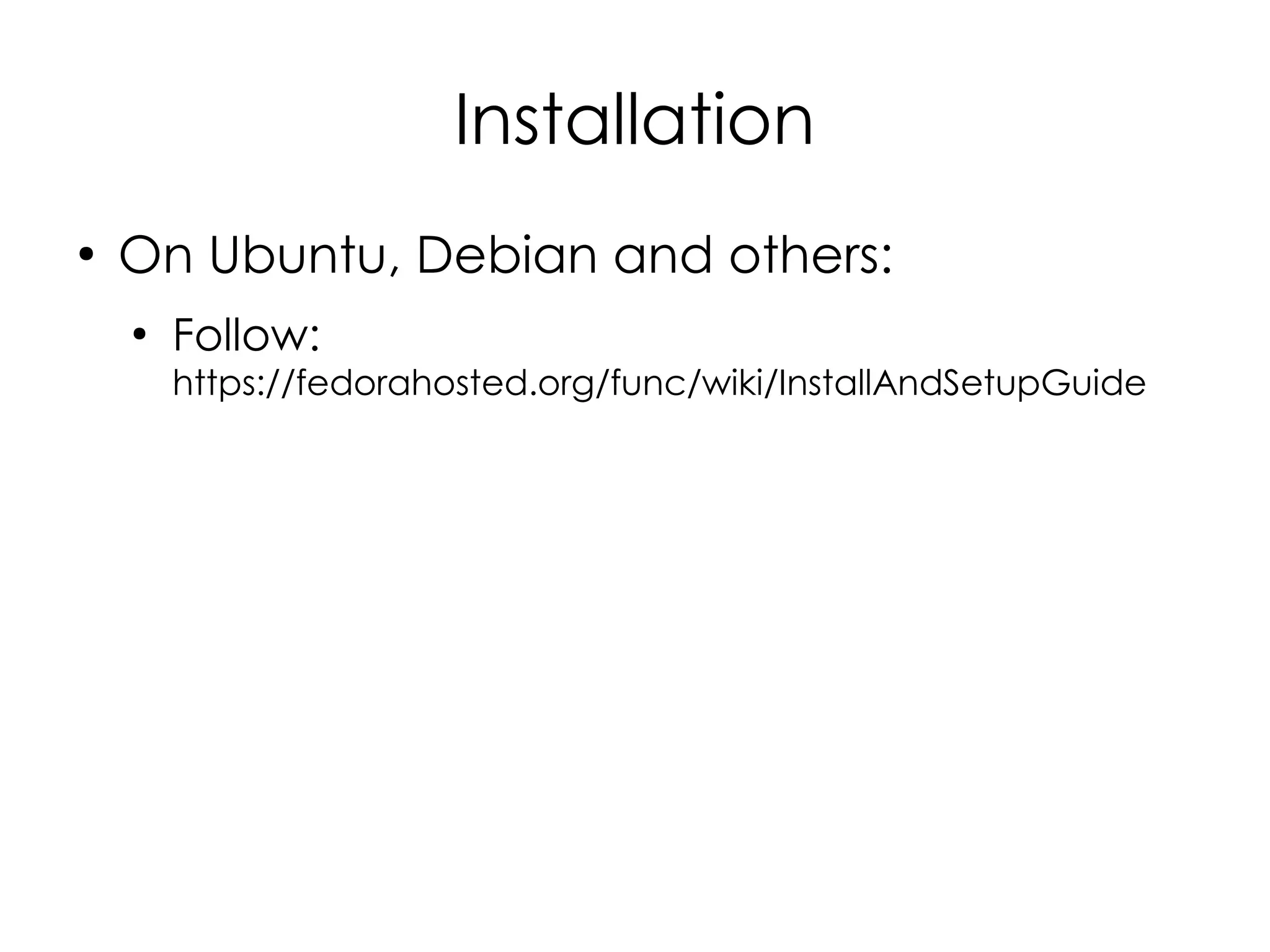

22. Installation
●
On Ubuntu, Debian and others:
●
Follow:
https://fedorahosted.org/func/wiki/InstallAndSetupGuide

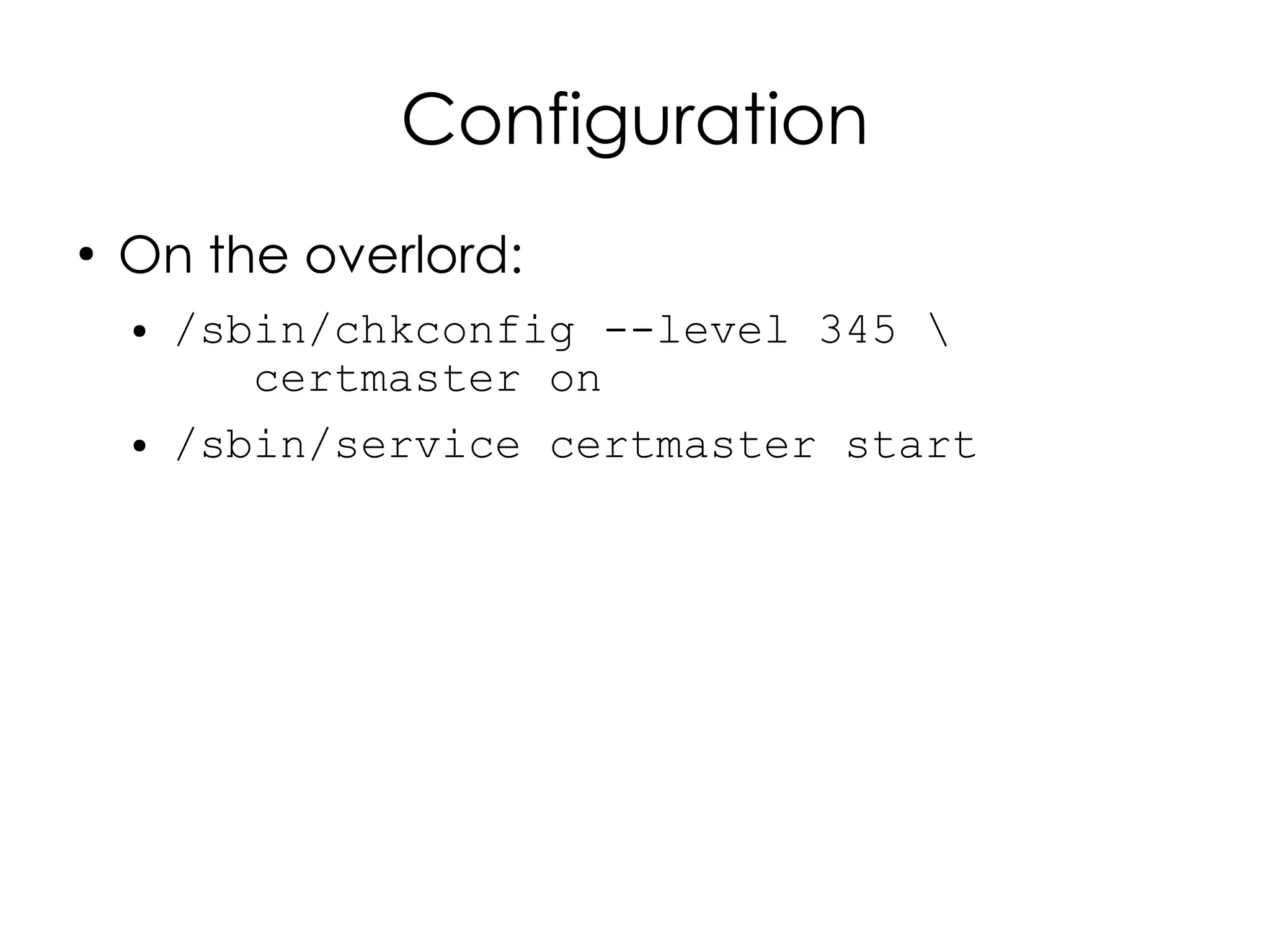

23. Configuration
●
On the overlord:
● /sbin/chkconfig --level 345
certmaster on
● /sbin/service certmaster start

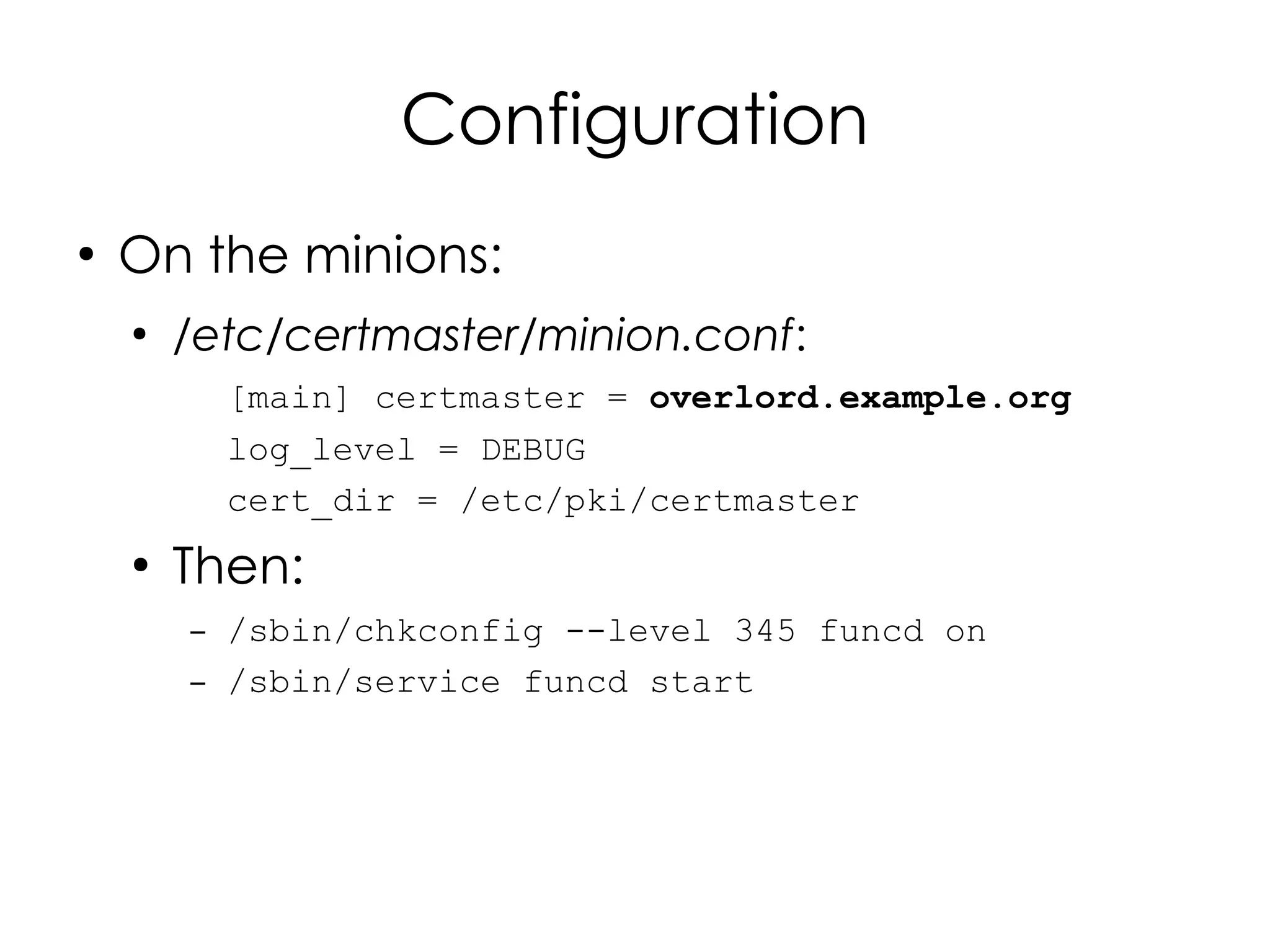

24. Configuration
●
On the minions:
●
/etc/certmaster/minion.conf:
[main] certmaster = overlord.example.org
log_level = DEBUG
cert_dir = /etc/pki/certmaster
●
Then:
– /sbin/chkconfig --level 345 funcd on
– /sbin/service funcd start

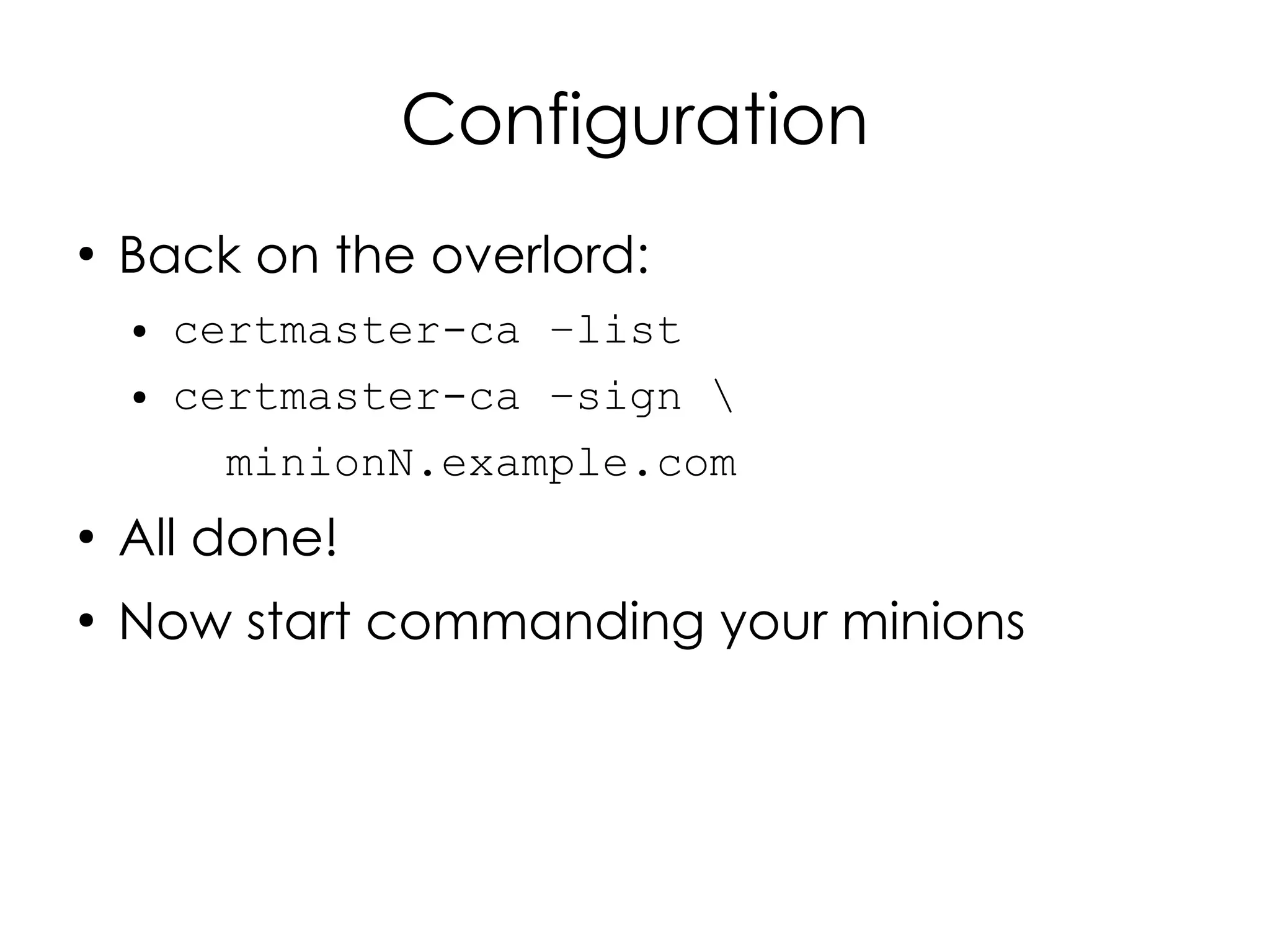

25. Configuration
●
Back on the overlord:
● certmaster-ca –list
● certmaster-ca –sign
minionN.example.com
●
All done!
●
Now start commanding your minions

26. Muahahahahahaha!

27. Using Func from the
Command Line

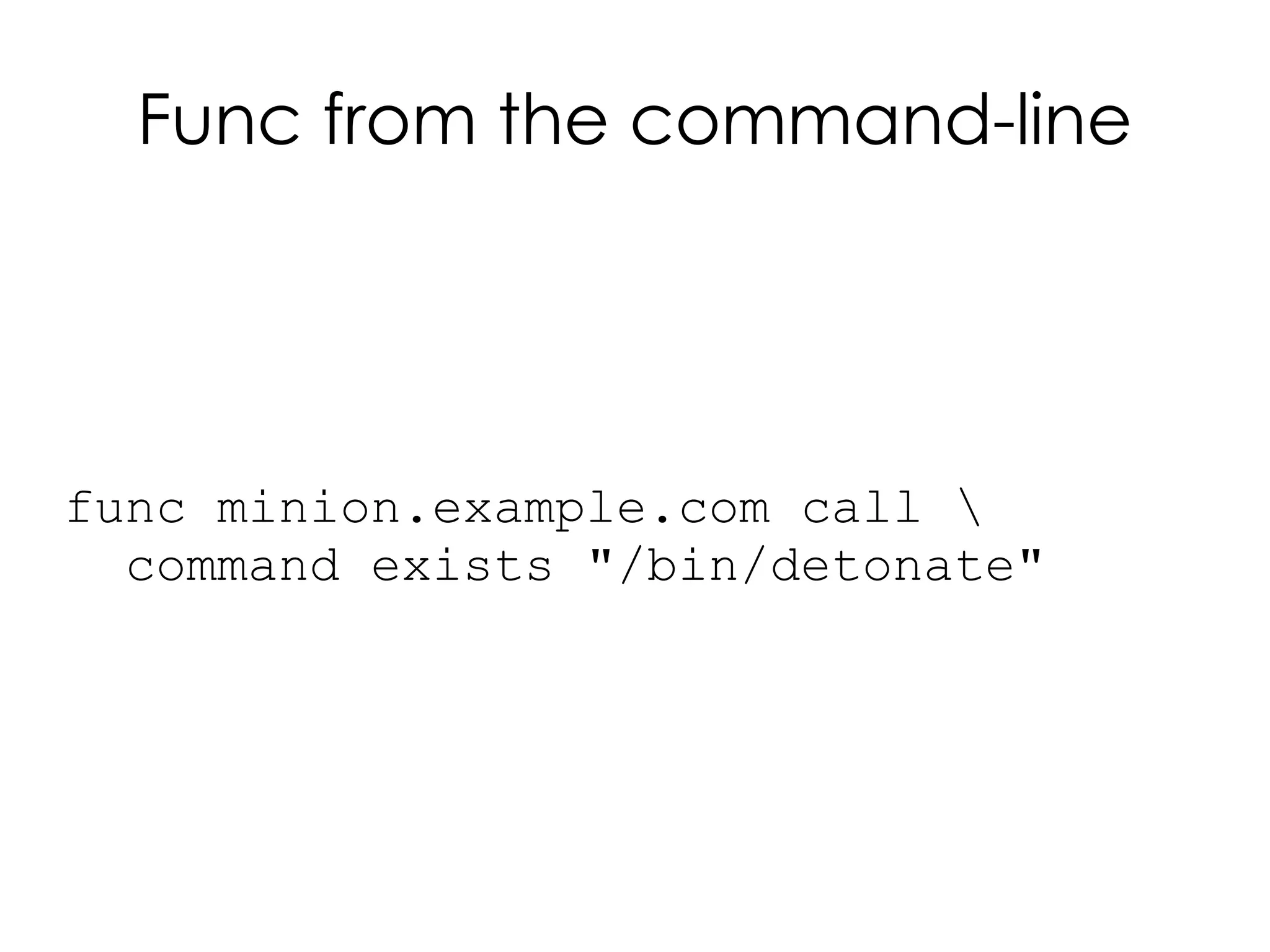

28. Func from the command-line
func minion.example.com call
command exists "/bin/detonate"

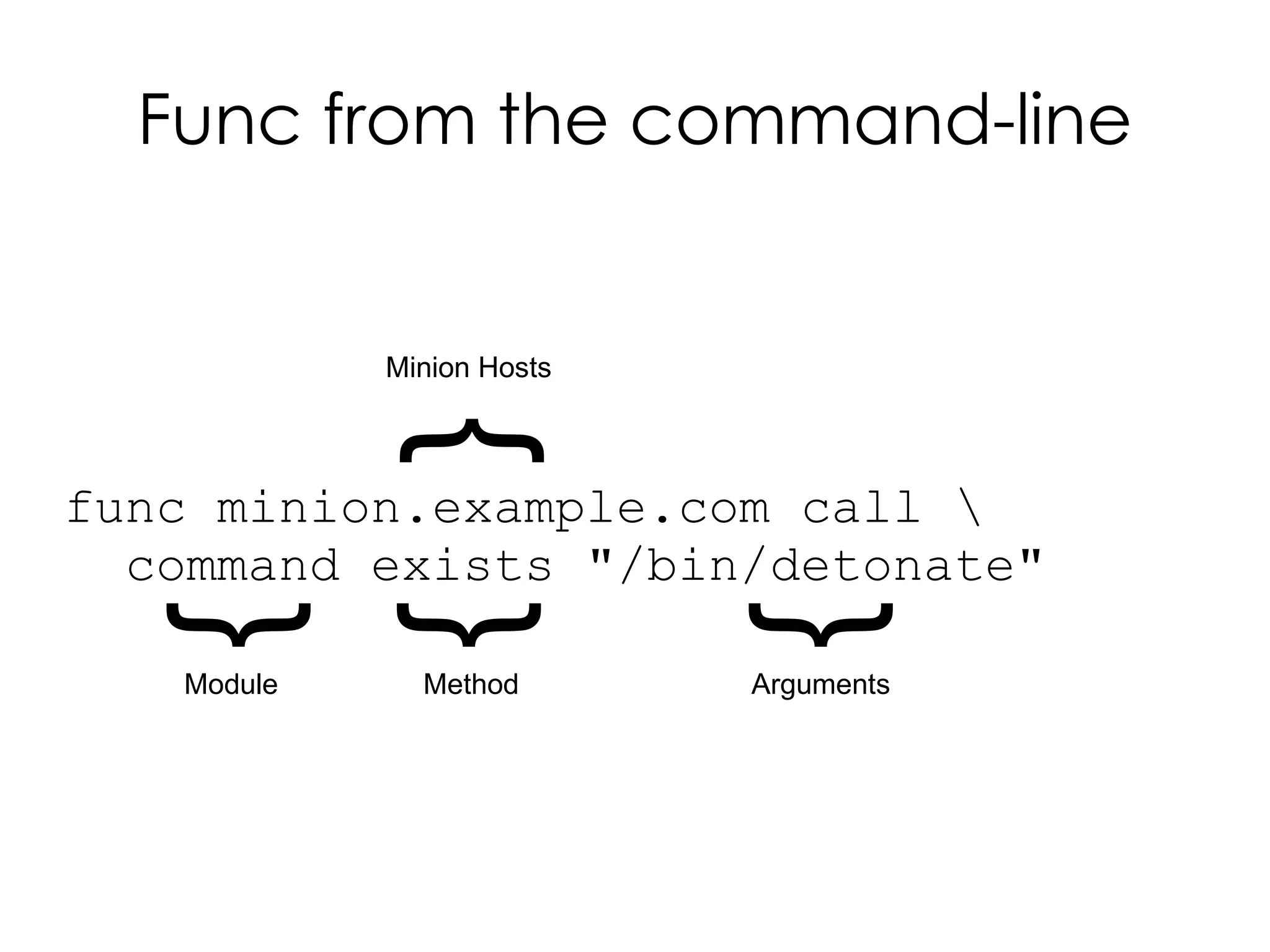

29. Func from the command-line
Minion Hosts
{
func minion.example.com call
command exists "/bin/detonate"
{
{
{
Module Method Arguments

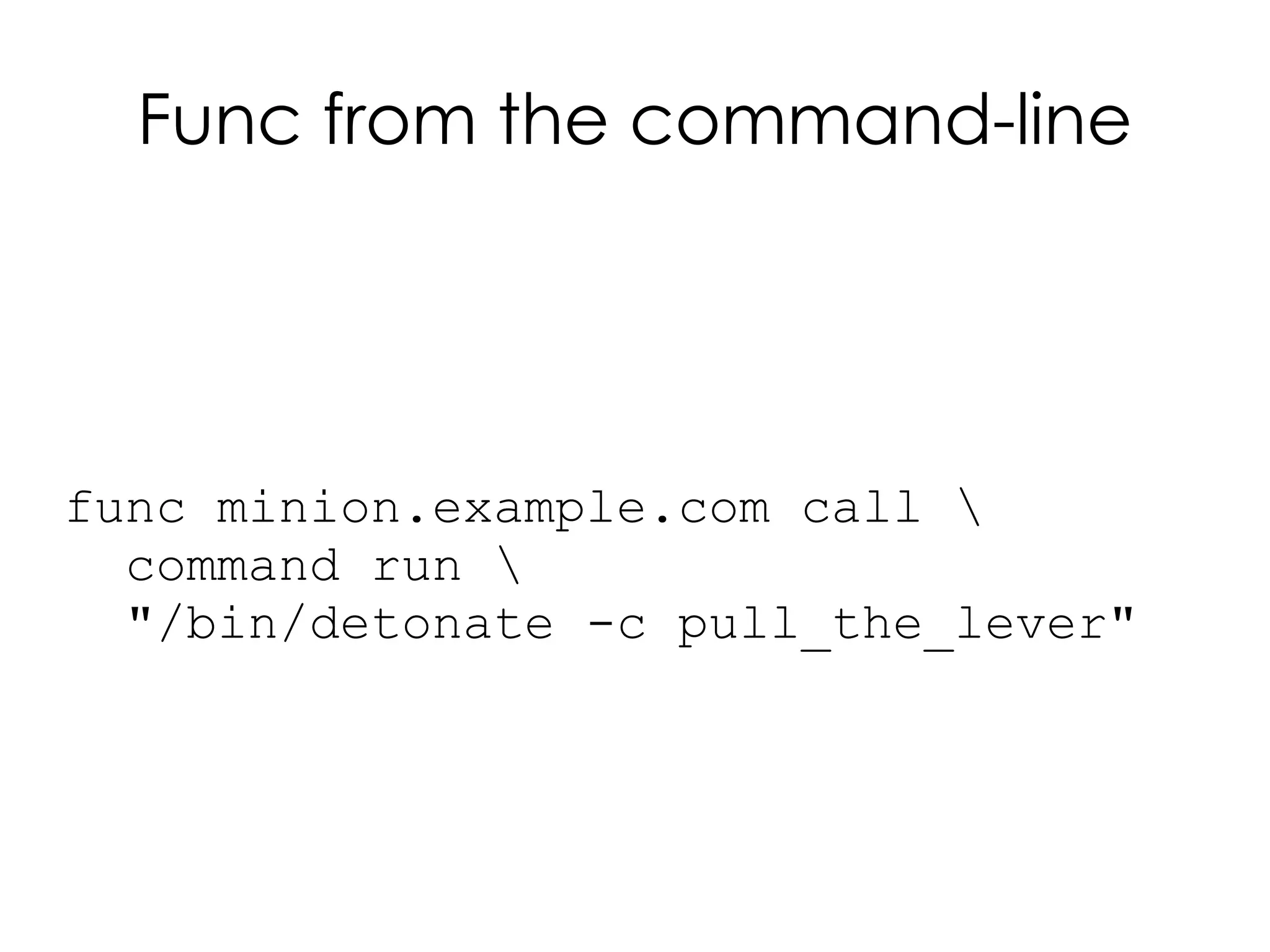

30. Func from the command-line
func minion.example.com call
command run
"/bin/detonate -c pull_the_lever"

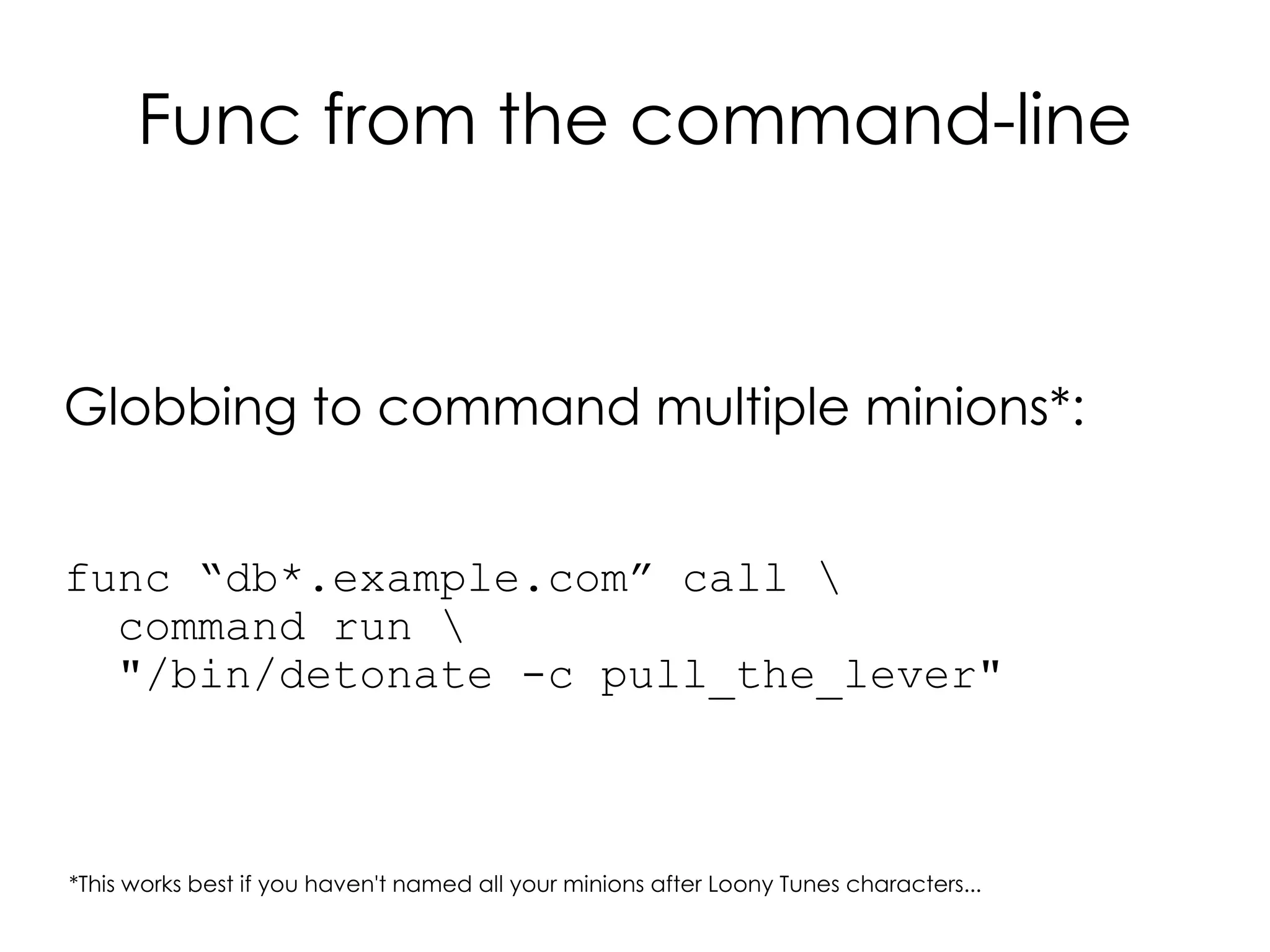

31. Func from the command-line
Globbing to command multiple minions*:
func “db*.example.com” call
command run
"/bin/detonate -c pull_the_lever"
*This works best if you haven't named all your minions after Loony Tunes characters...

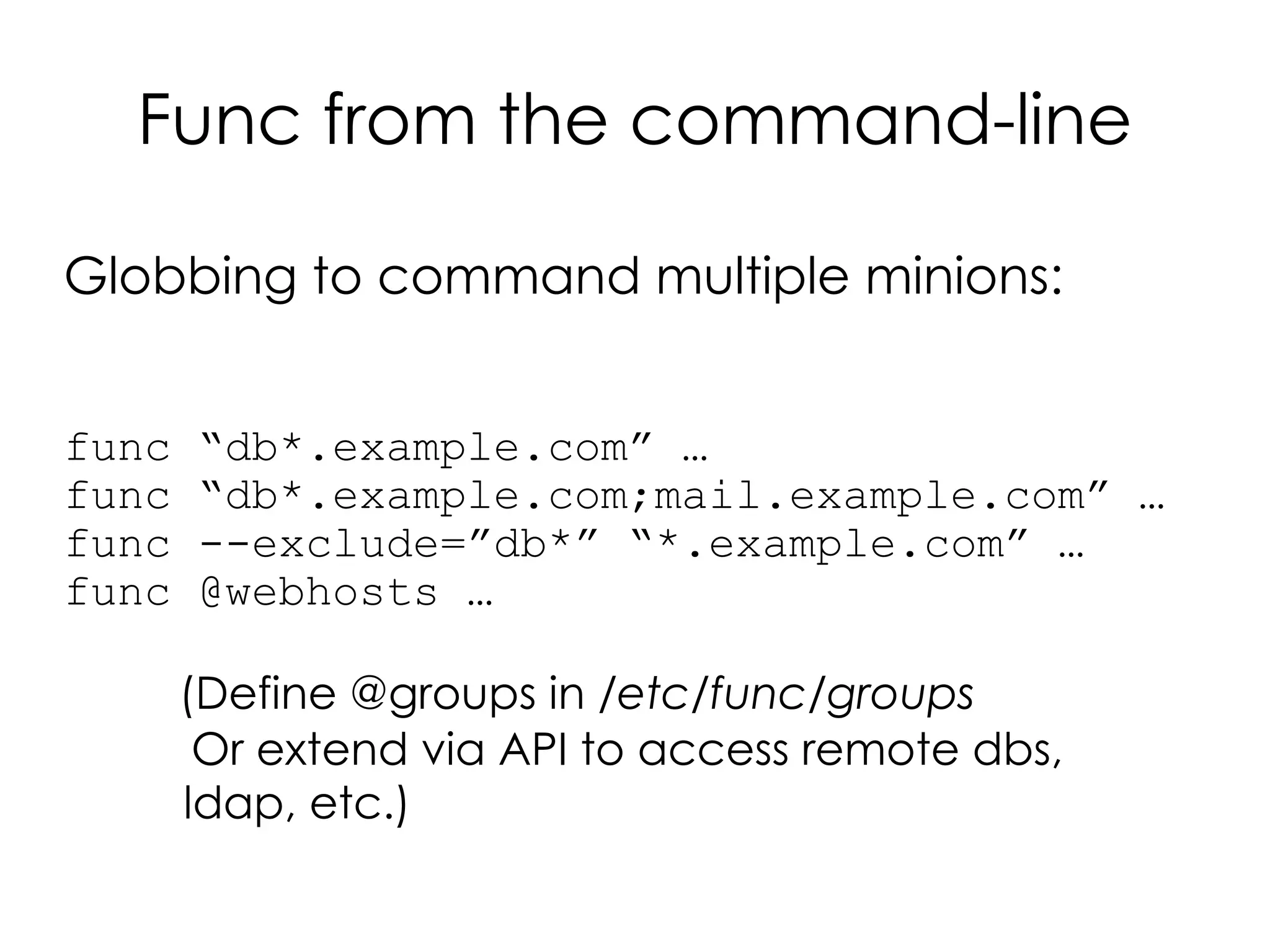

32. Func from the command-line
Globbing to command multiple minions:
func “db*.example.com” …
func “db*.example.com;mail.example.com” …
func --exclude=”db*” “*.example.com” …
func @webhosts …
(Define @groups in /etc/func/groups
Or extend via API to access remote dbs,
ldap, etc.)

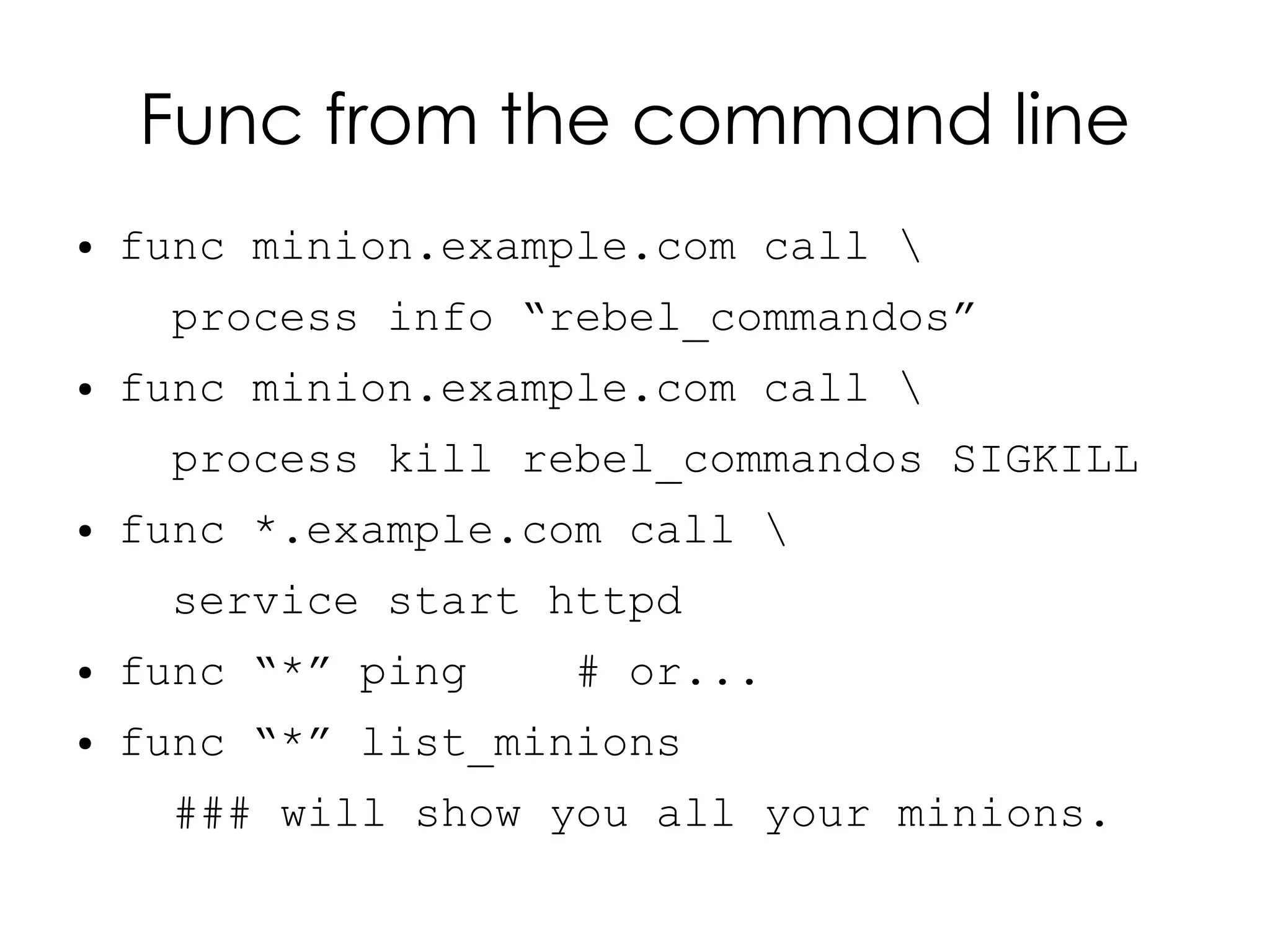

33. Func from the command line
● func minion.example.com call
process info “rebel_commandos”
● func minion.example.com call
process kill rebel_commandos SIGKILL
● func *.example.com call
service start httpd
● func “*” ping # or...
● func “*” list_minions
### will show you all your minions.

34. Func from the command line
What modules are available on my minions?
func “*” call system list_modules

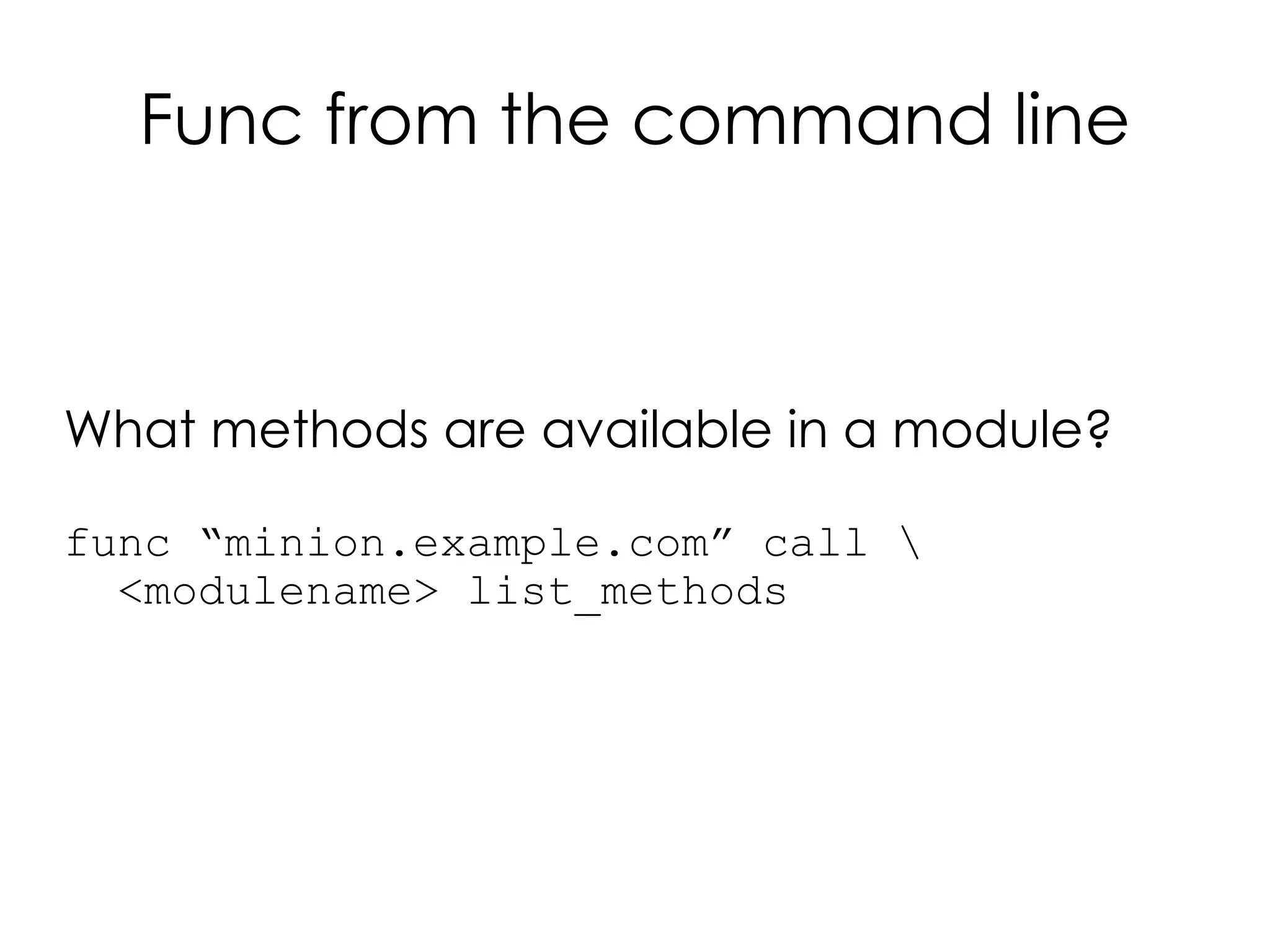

35. Func from the command line
What methods are available in a module?
func “minion.example.com” call
<modulename> list_methods

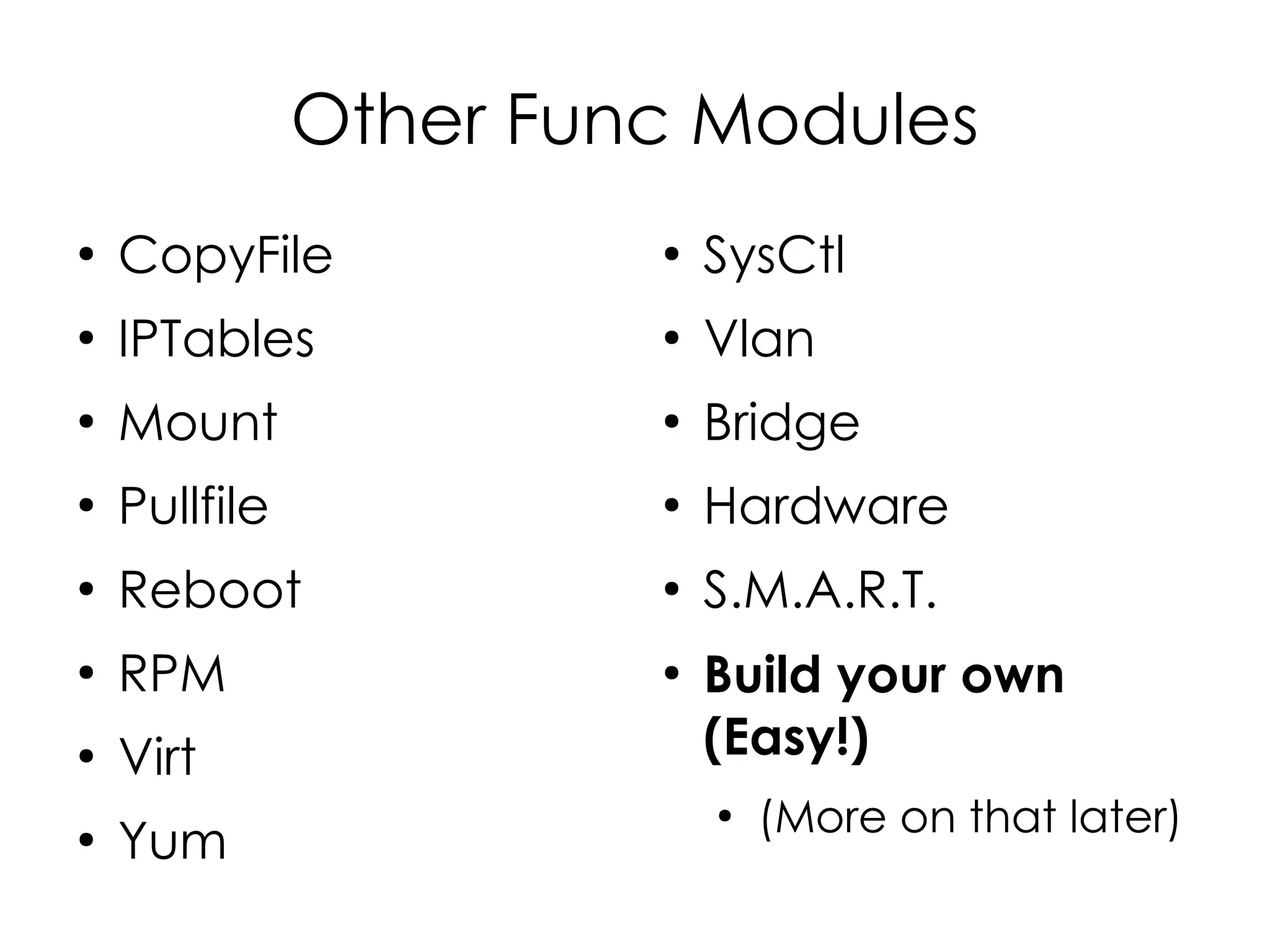

36. Other Func Modules
●
CopyFile ●
SysCtl
●
IPTables ●
Vlan
●
Mount ●
Bridge
●
Pullfile ●
Hardware
●
Reboot ●
S.M.A.R.T.
●
RPM ●
Build your own
●
Virt (Easy!)
●
(More on that later)
●
Yum

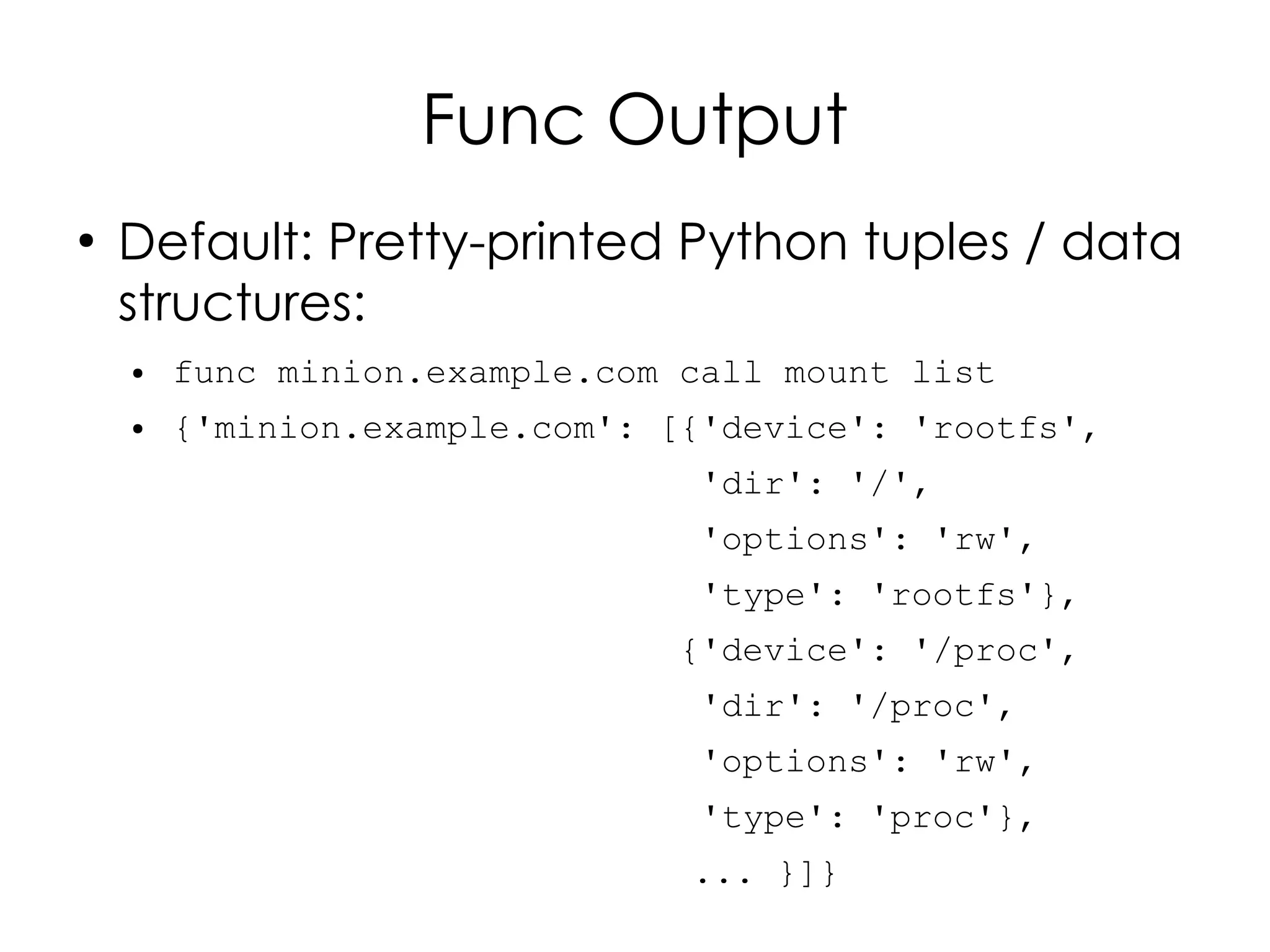

37. Func Output

38. Func Output
●
Default: Pretty-printed Python tuples / data
structures:
● func minion.example.com call mount list
● {'minion.example.com': [{'device': 'rootfs',
'dir': '/',
'options': 'rw',
'type': 'rootfs'},
{'device': '/proc',
'dir': '/proc',
'options': 'rw',
'type': 'proc'},
... }]}

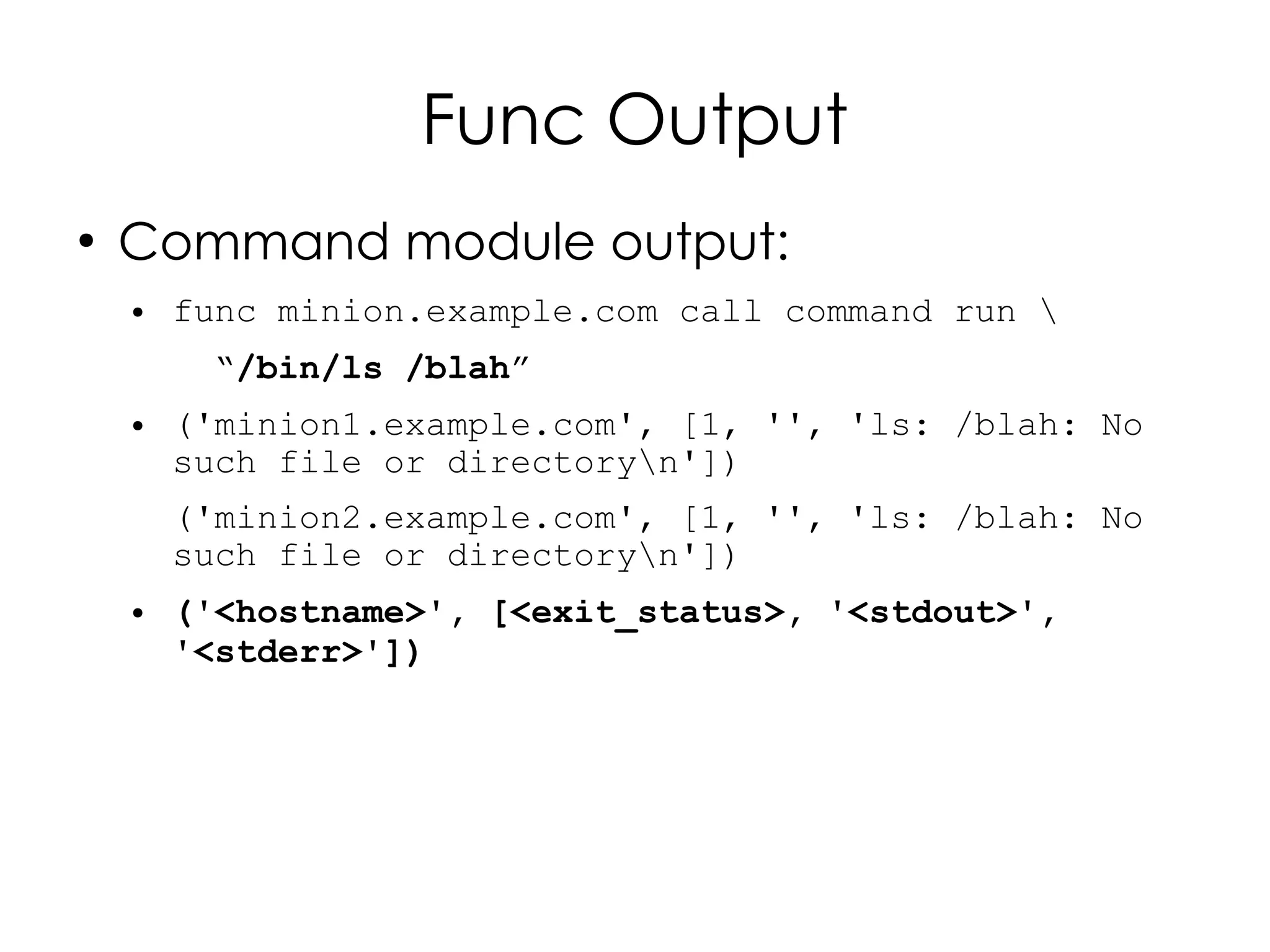

39. Func Output
●
Command module output:
● func minion.example.com call command run
“/bin/ls /blah”
● ('minion1.example.com', [1, '', 'ls: /blah: No
such file or directoryn'])
('minion2.example.com', [1, '', 'ls: /blah: No
such file or directoryn'])
● ('<hostname>', [<exit_status>, '<stdout>',
'<stderr>'])

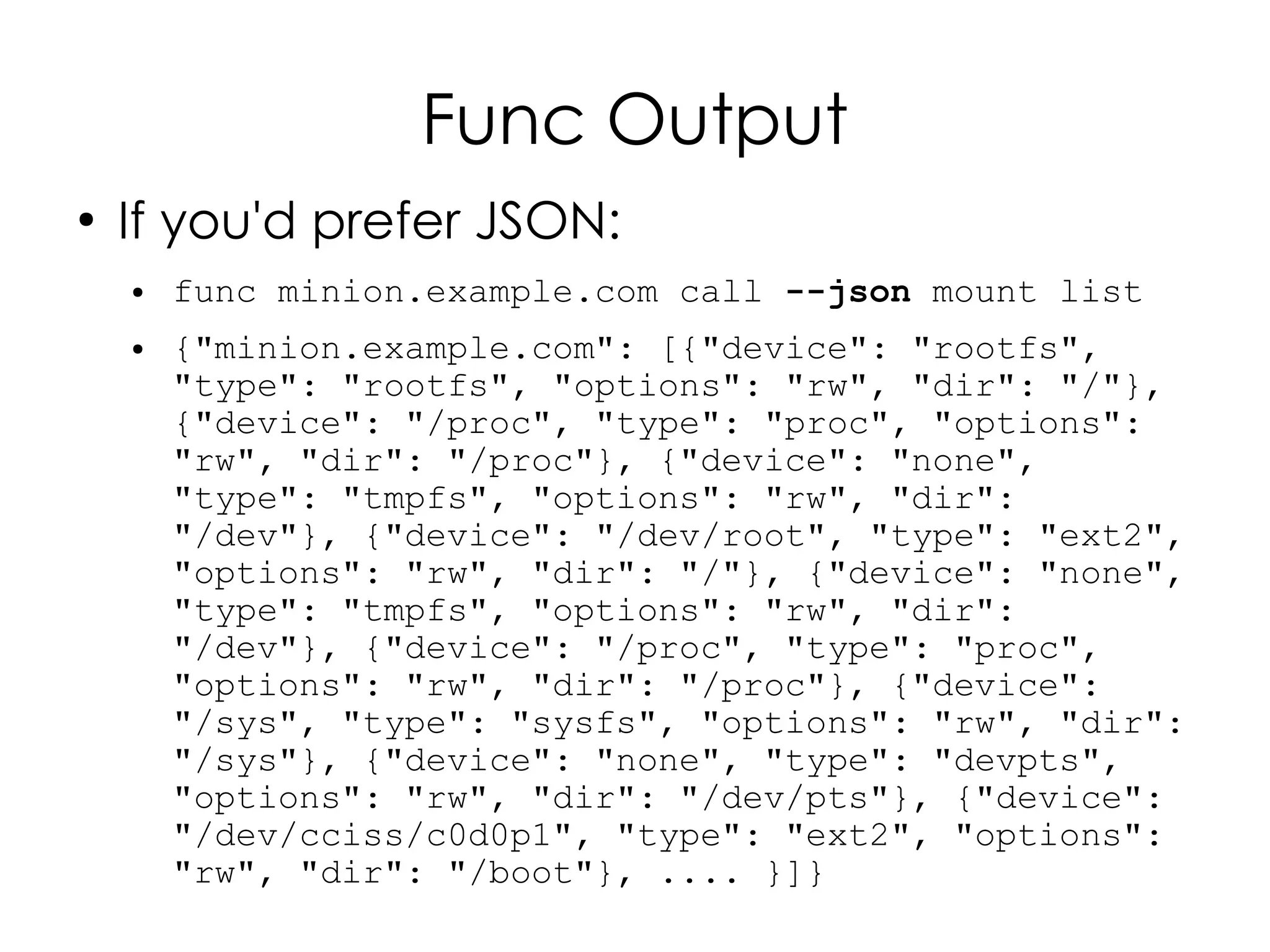

40. Func Output
●
If you'd prefer JSON:
● func minion.example.com call --json mount list
● {"minion.example.com": [{"device": "rootfs",
"type": "rootfs", "options": "rw", "dir": "/"},
{"device": "/proc", "type": "proc", "options":
"rw", "dir": "/proc"}, {"device": "none",
"type": "tmpfs", "options": "rw", "dir":
"/dev"}, {"device": "/dev/root", "type": "ext2",
"options": "rw", "dir": "/"}, {"device": "none",
"type": "tmpfs", "options": "rw", "dir":
"/dev"}, {"device": "/proc", "type": "proc",
"options": "rw", "dir": "/proc"}, {"device":
"/sys", "type": "sysfs", "options": "rw", "dir":
"/sys"}, {"device": "none", "type": "devpts",
"options": "rw", "dir": "/dev/pts"}, {"device":
"/dev/cciss/c0d0p1", "type": "ext2", "options":
"rw", "dir": "/boot"}, .... }]}

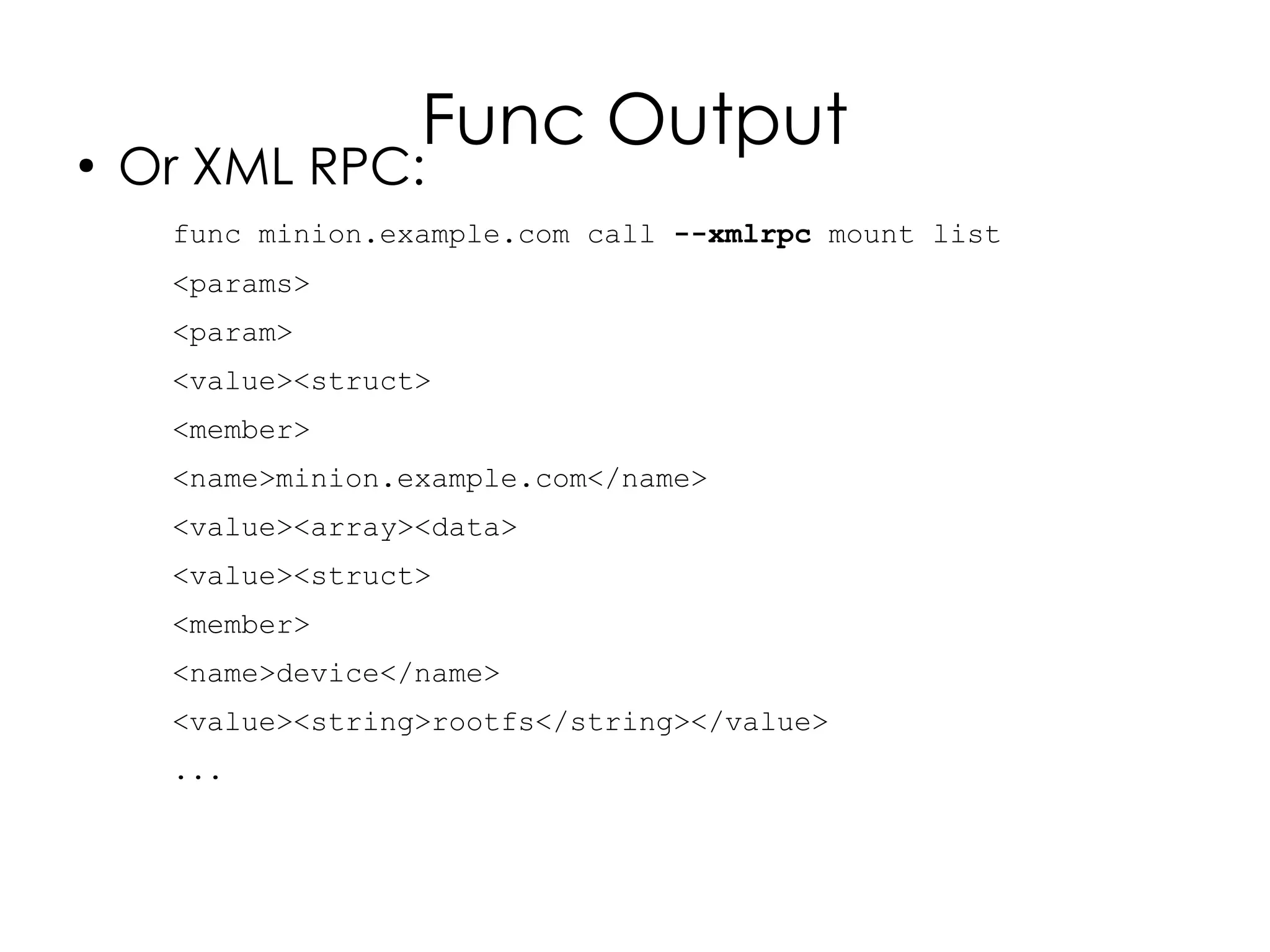

41. Func Output
●
Or XML RPC:
func minion.example.com call --xmlrpc mount list
<params>
<param>
<value><struct>
<member>
<name>minion.example.com</name>
<value><array><data>
<value><struct>
<member>
<name>device</name>
<value><string>rootfs</string></value>
...

42. Using Func
From Scripts

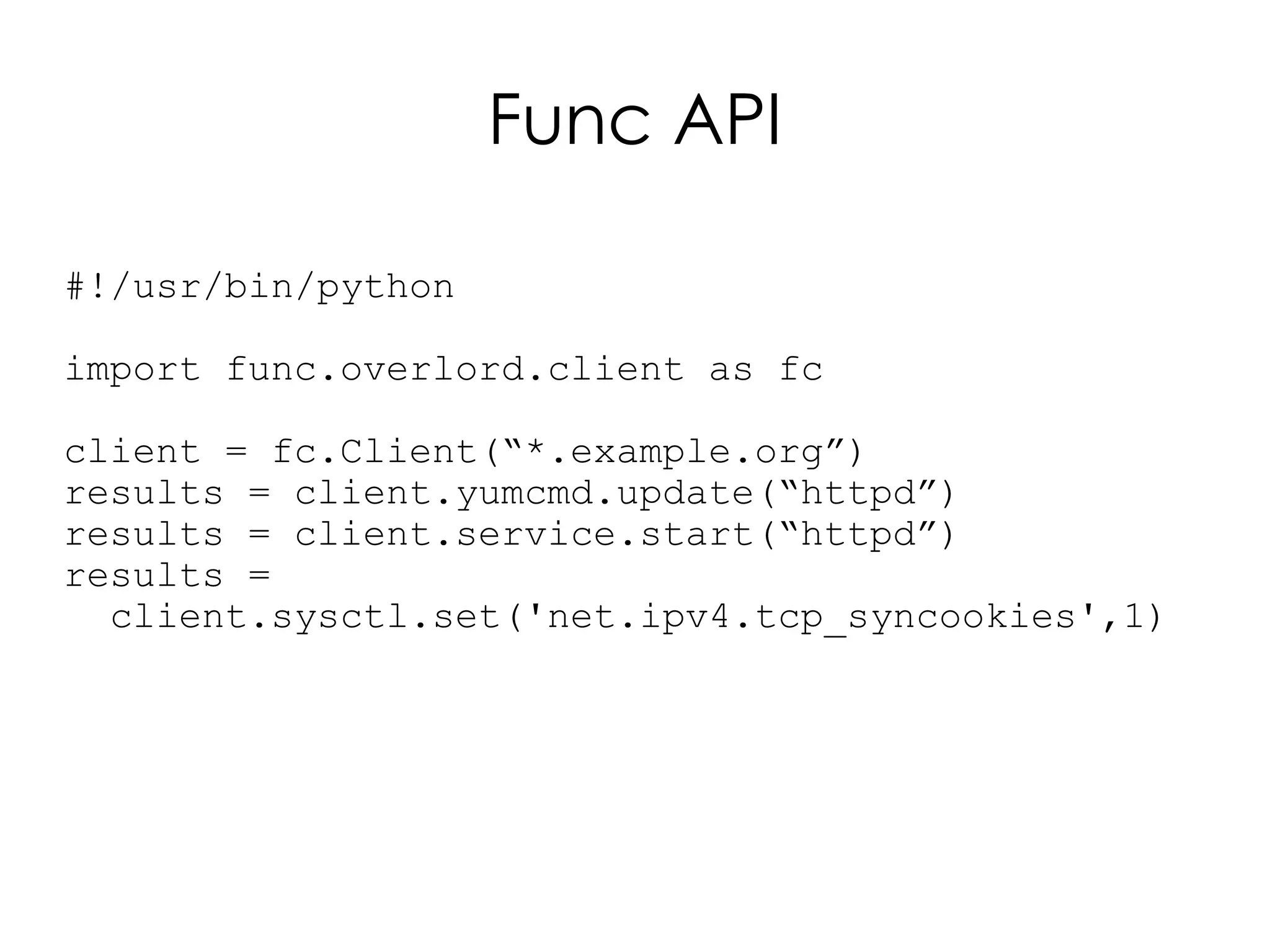

43. Func API
#!/usr/bin/python
import func.overlord.client as fc
client = fc.Client(“*.example.org”)
results = client.yumcmd.update(“httpd”)
results = client.service.start(“httpd”)
results =
client.sysctl.set('net.ipv4.tcp_syncookies',1)

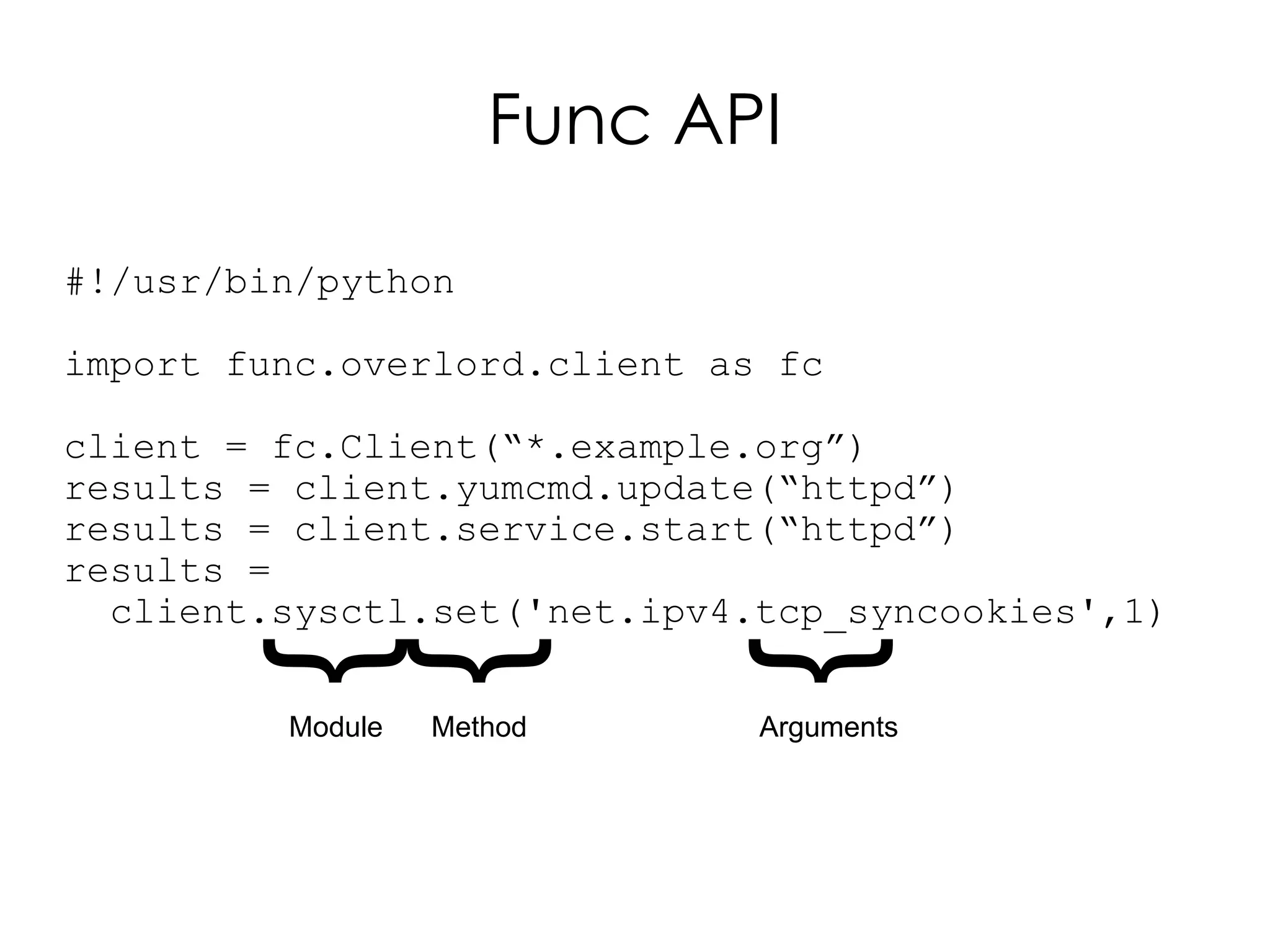

44. Func API
#!/usr/bin/python
import func.overlord.client as fc
client = fc.Client(“*.example.org”)
results = client.yumcmd.update(“httpd”)
results = client.service.start(“httpd”)
results =
client.sysctl.set('net.ipv4.tcp_syncookies',1)
{
{
{
Module Method Arguments

45. Using Func
from Other
Add picture here
Languages

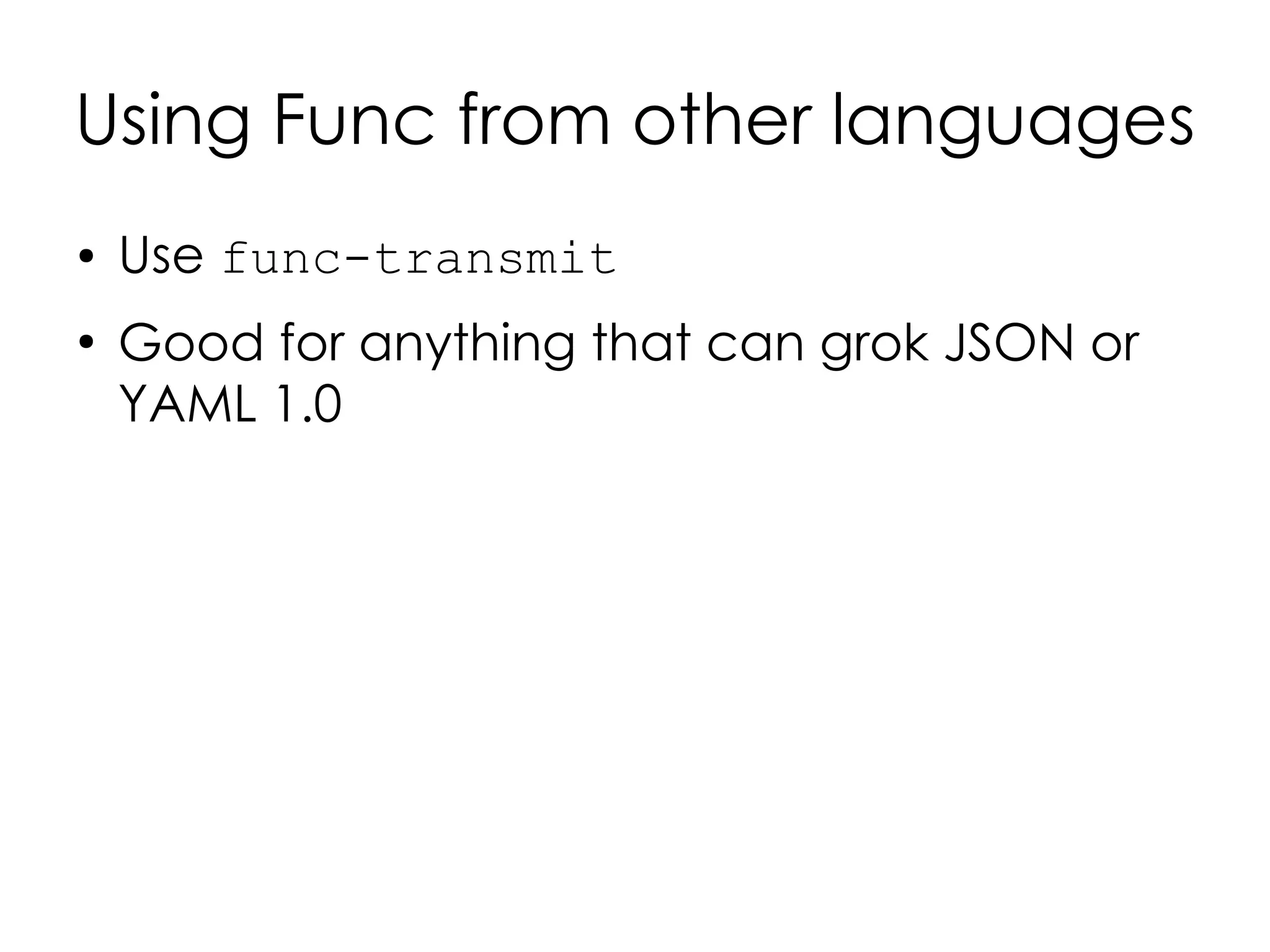

46. Using Func from other languages
● Use func-transmit
●
Good for anything that can grok JSON or
YAML 1.0

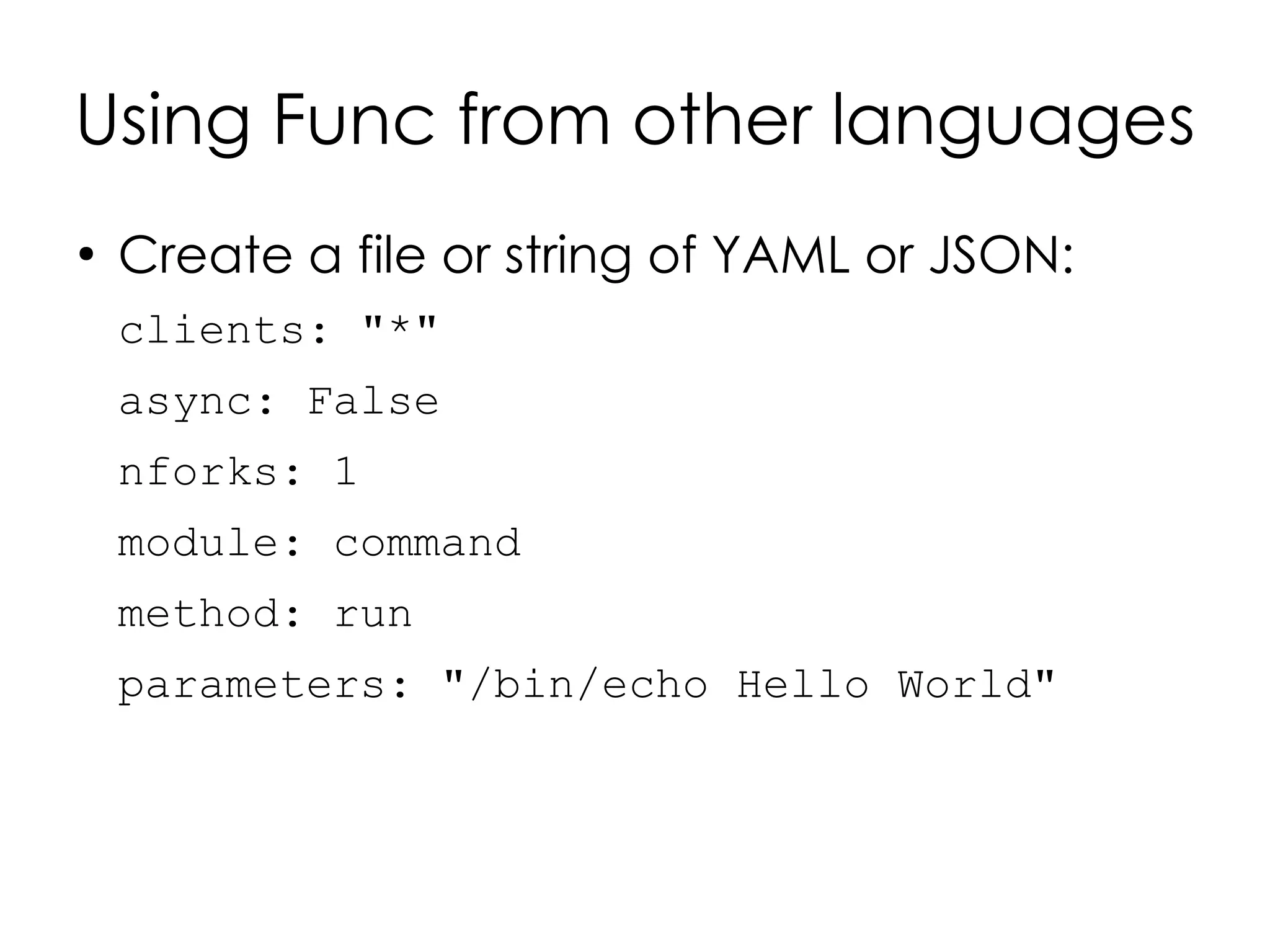

47. Using Func from other languages
●
Create a file or string of YAML or JSON:
clients: "*"
async: False
nforks: 1
module: command
method: run
parameters: "/bin/echo Hello World"

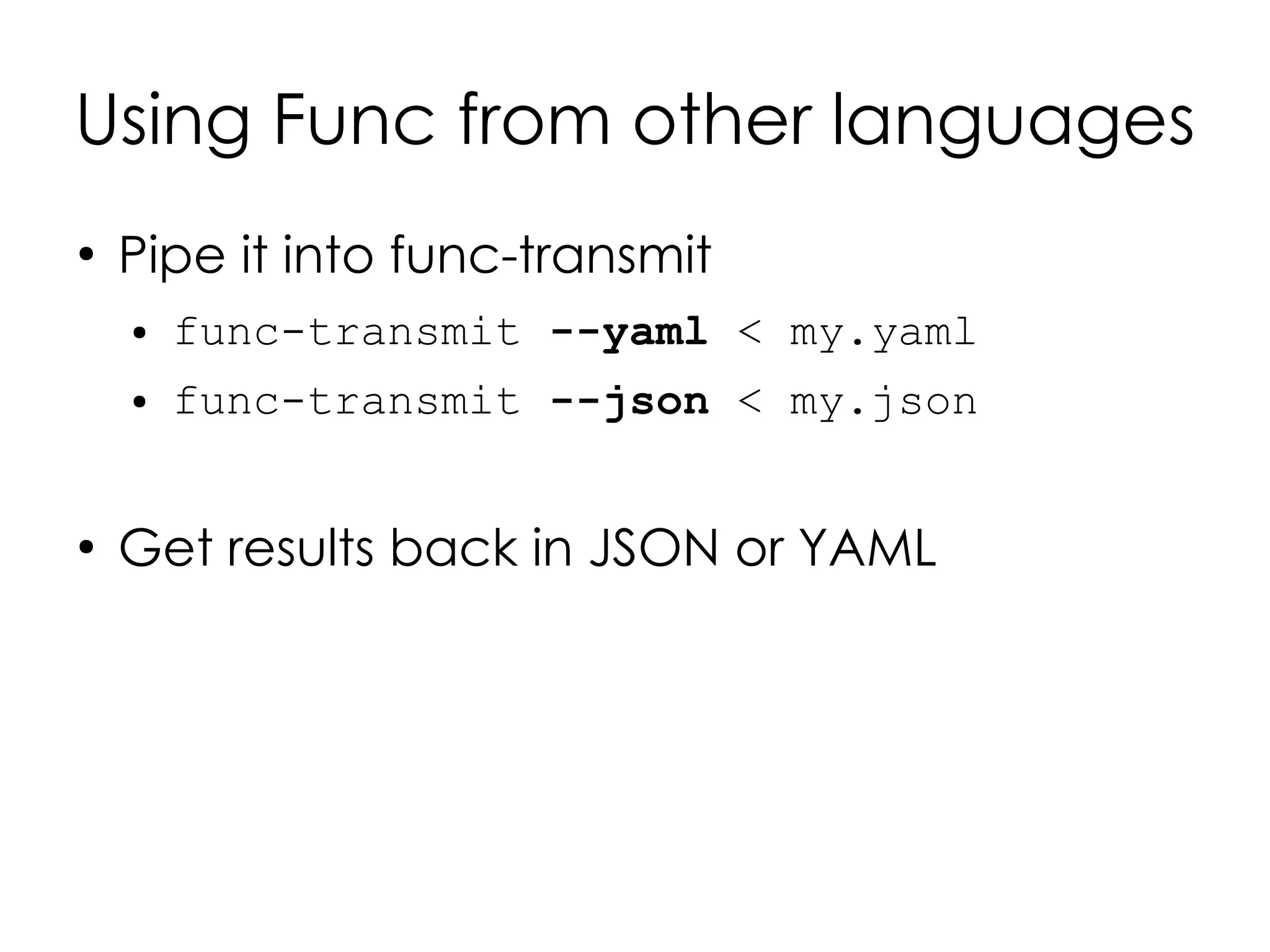

48. Using Func from other languages
●
Pipe it into func-transmit
● func-transmit --yaml < my.yaml
● func-transmit --json < my.json
●
Get results back in JSON or YAML

49. Writing your
own modules

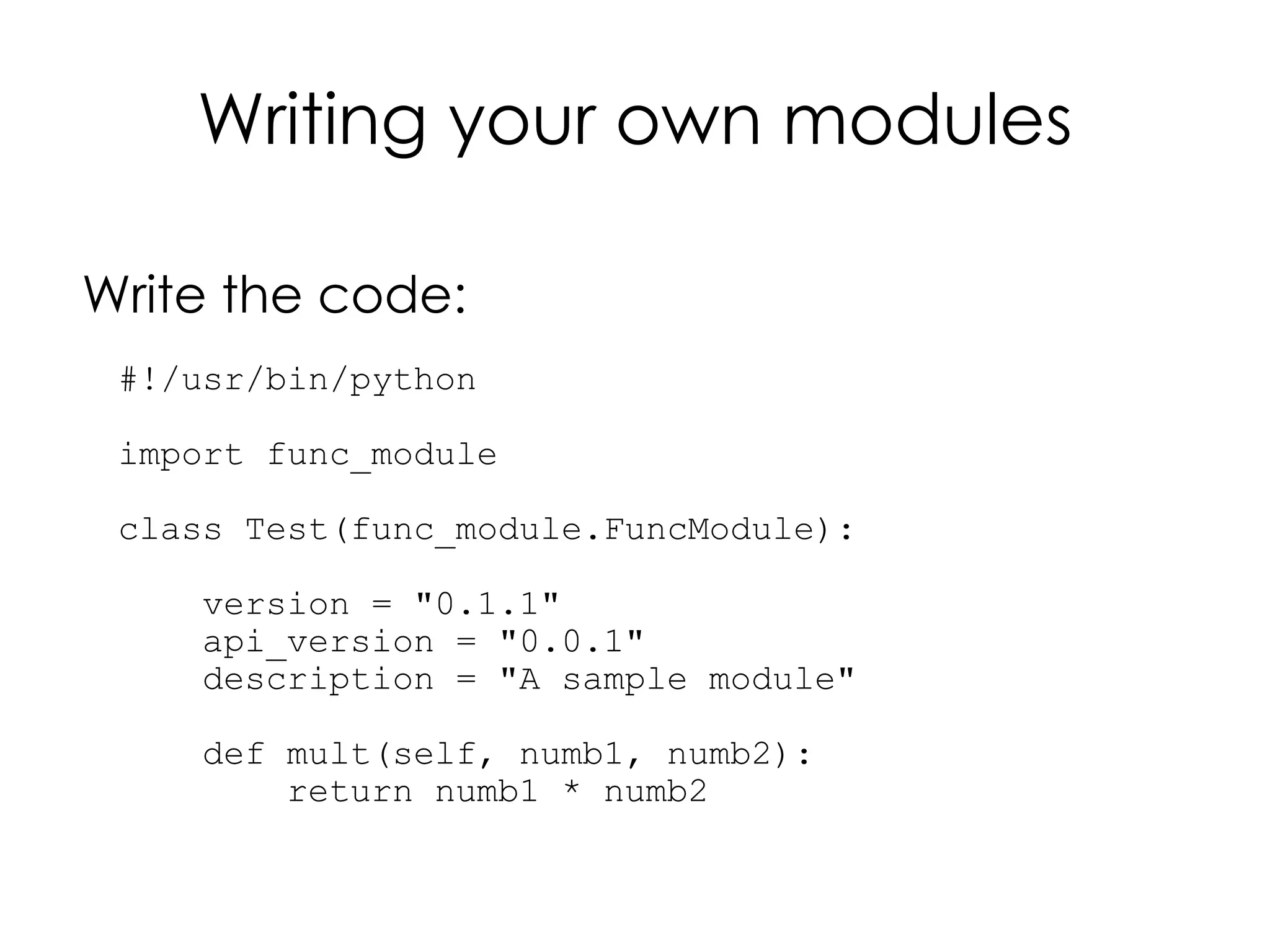

50. Writing your own modules
Write the code:
#!/usr/bin/python
import func_module
class Test(func_module.FuncModule):
version = "0.1.1"
api_version = "0.0.1"
description = "A sample module"
def mult(self, numb1, numb2):
return numb1 * numb2

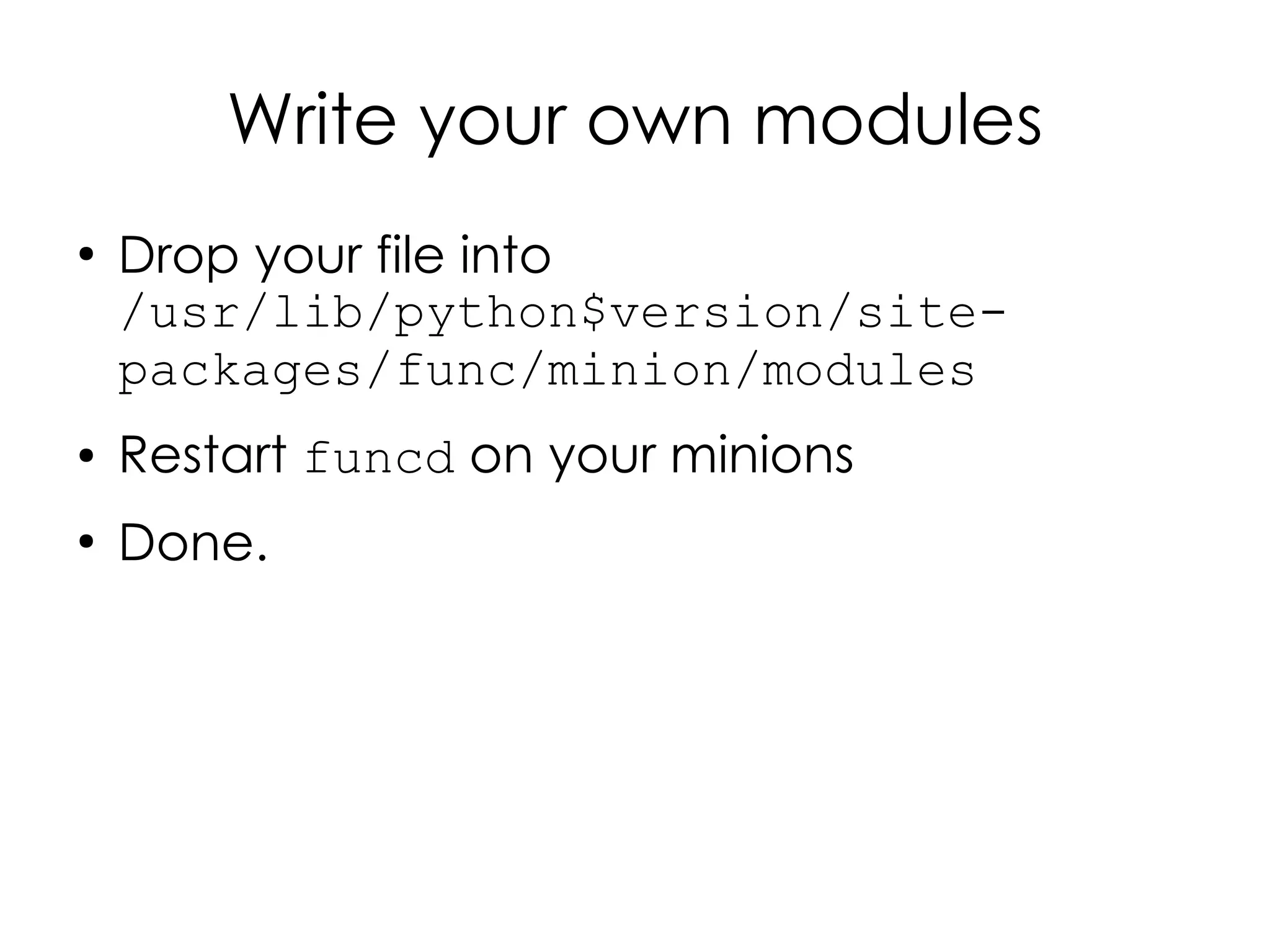

51. Write your own modules
●
Drop your file into
/usr/lib/python$version/site-
packages/func/minion/modules
● Restart funcd on your minions
●
Done.

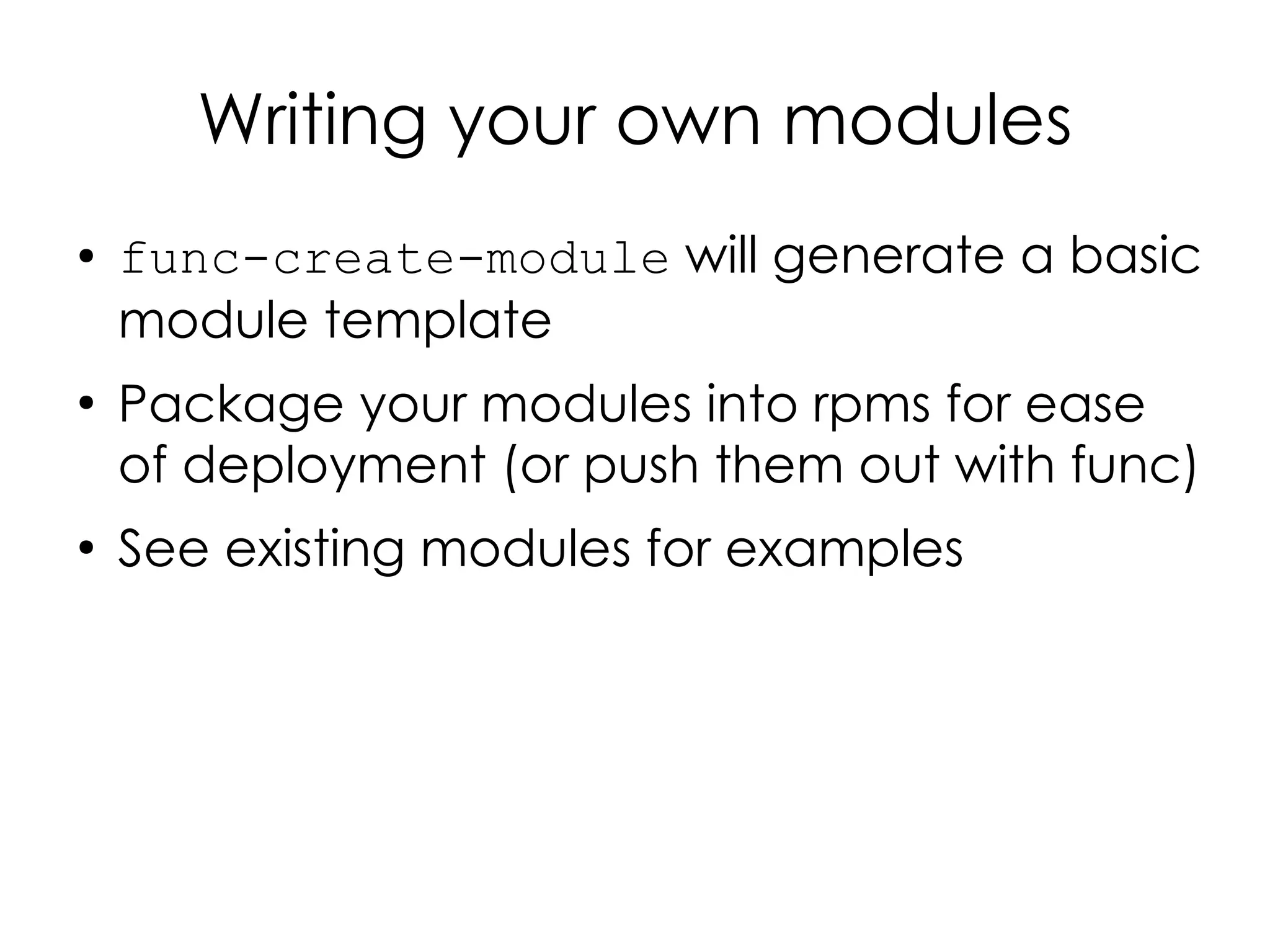

52. Writing your own modules
● func-create-module will generate a basic
module template
●
Package your modules into rpms for ease
of deployment (or push them out with func)
●
See existing modules for examples

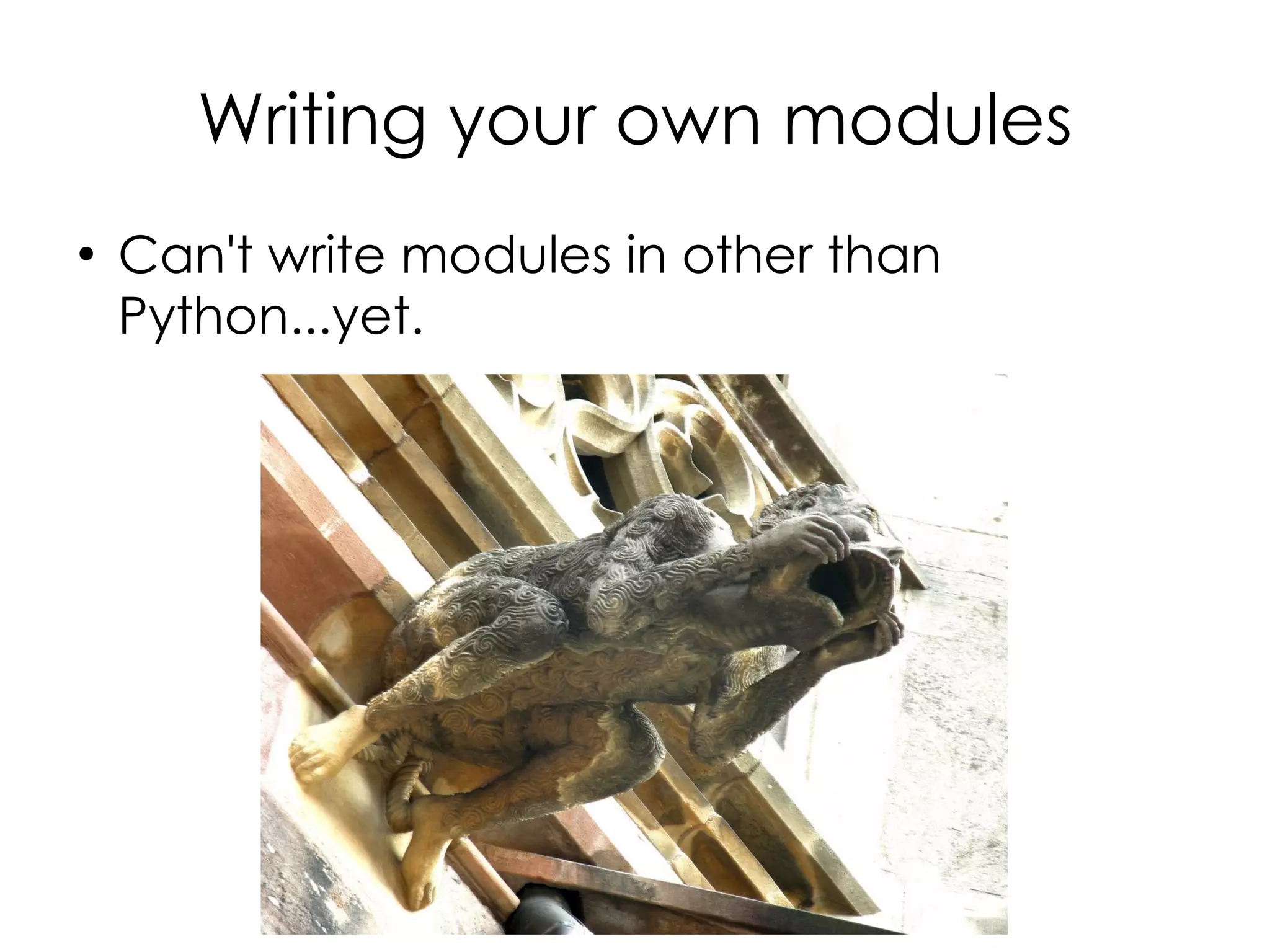

53. Writing your own modules
●
Can't write modules in other than
Python...yet.

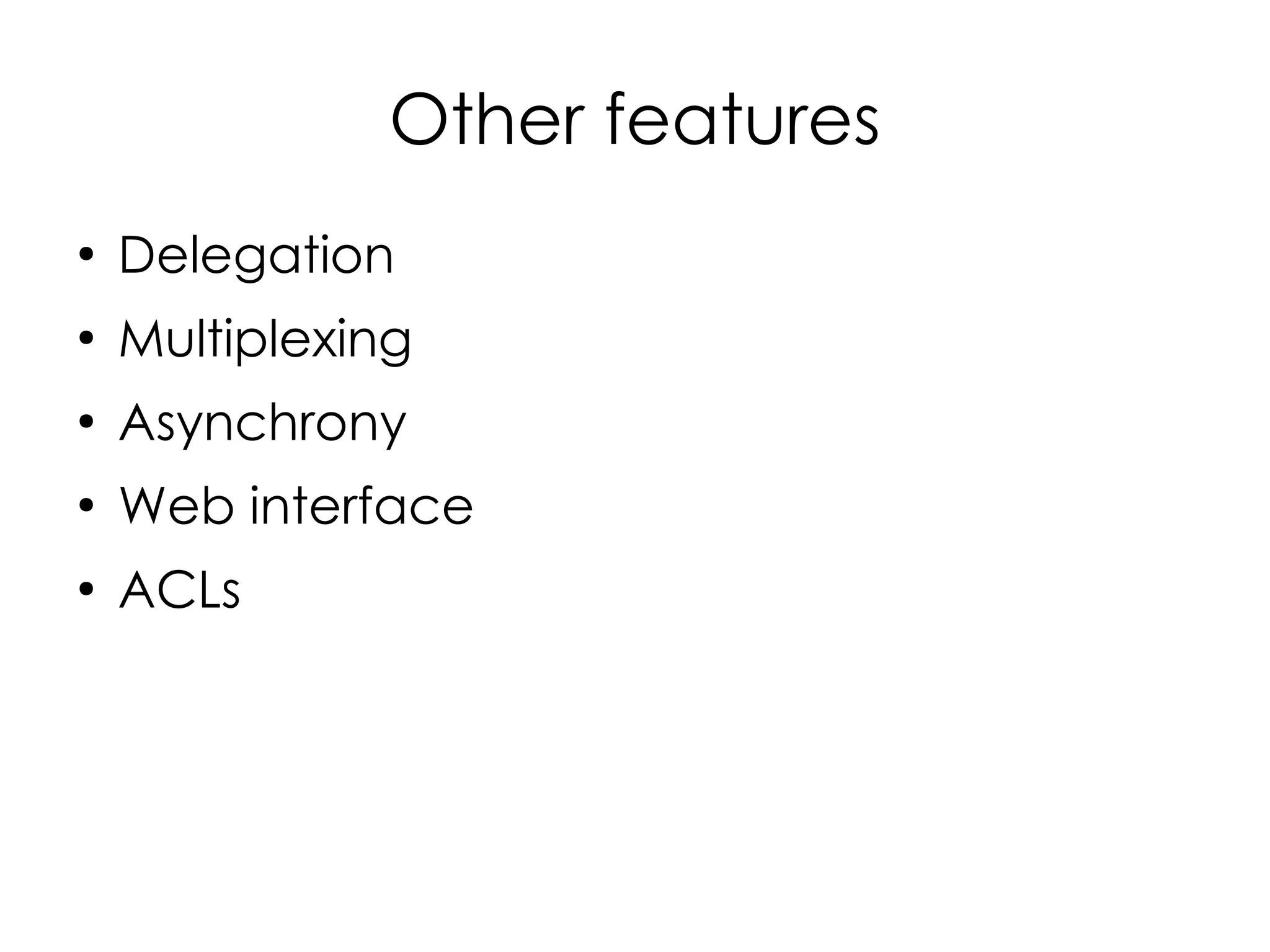

54. Other features
●
Delegation
●
Multiplexing
●
Asynchrony
●
Web interface
●
ACLs

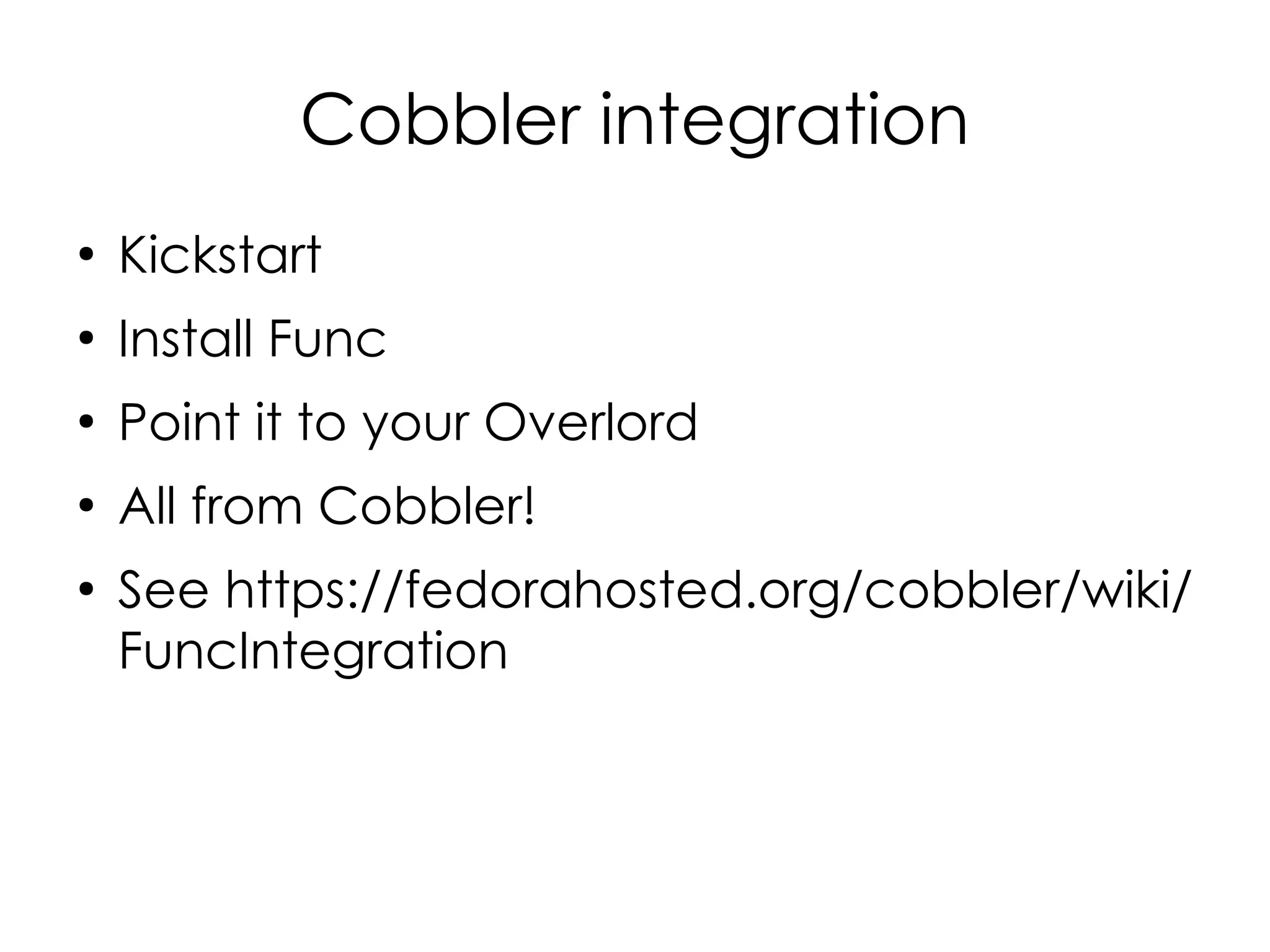

55. Cobbler integration
●
Kickstart
●
Install Func
●
Point it to your Overlord
●
All from Cobbler!
●
See https://fedorahosted.org/cobbler/wiki/
FuncIntegration

56. Muahahahahahaha!

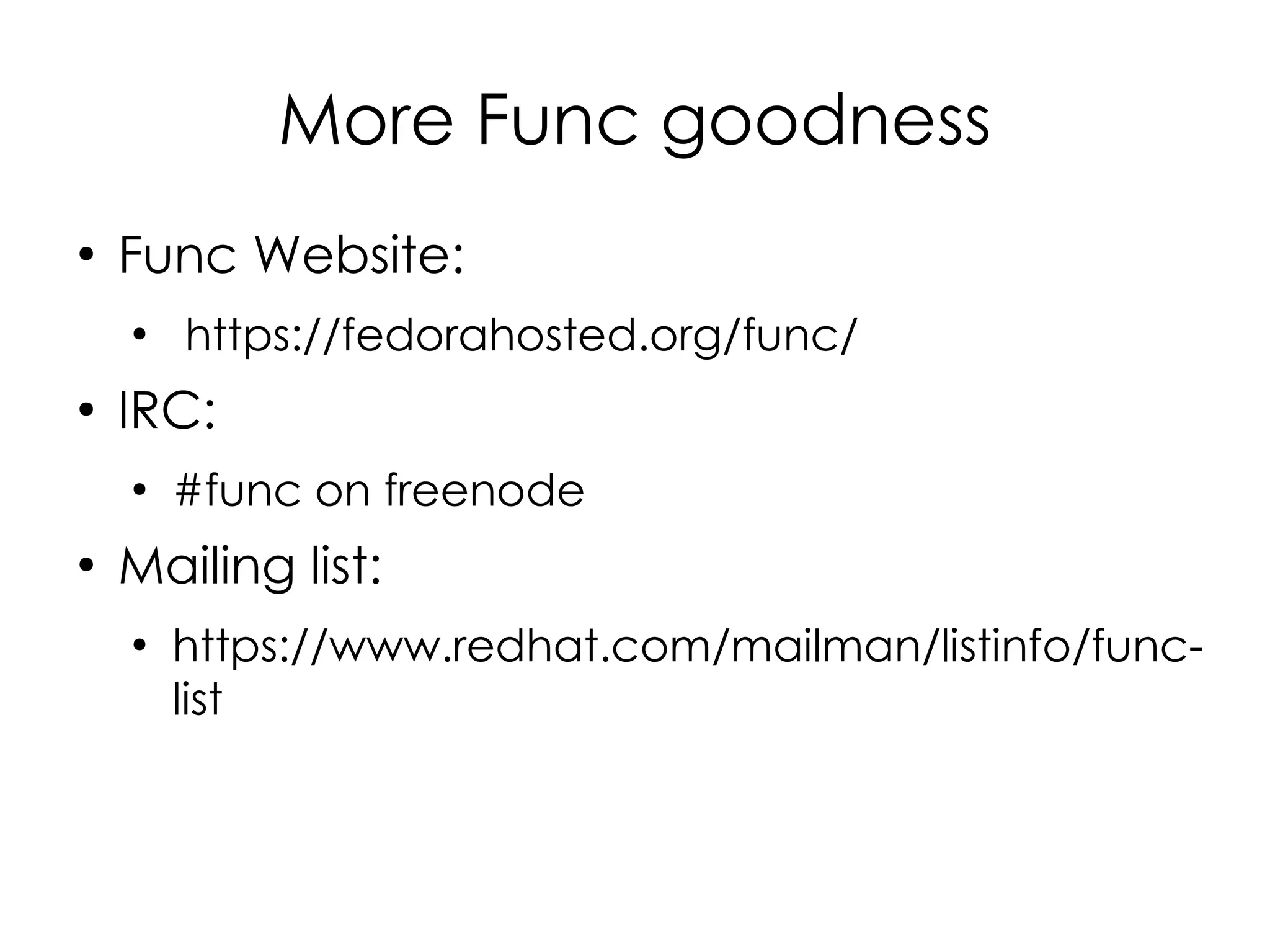

57. More Func goodness
●
Func Website:
●
https://fedorahosted.org/func/
●
IRC:
●
#func on freenode
●
Mailing list:
●
https://www.redhat.com/mailman/listinfo/func-
list

58. Questions?

59. Thank you!

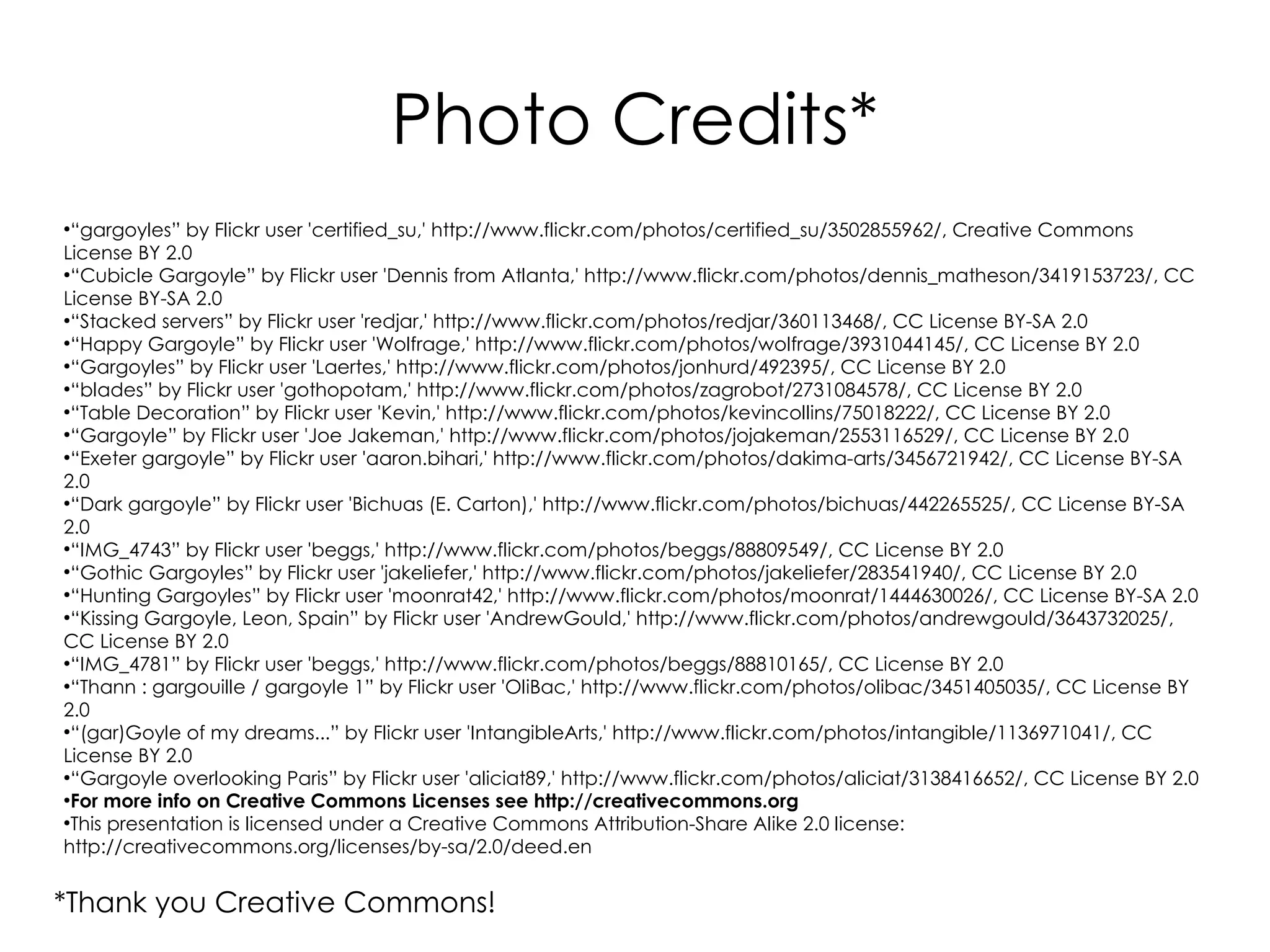

60. Photo Credits*
●
“gargoyles” by Flickr user 'certified_su,' http://www.flickr.com/photos/certified_su/3502855962/, Creative Commons
License BY 2.0
●
“Cubicle Gargoyle” by Flickr user 'Dennis from Atlanta,' http://www.flickr.com/photos/dennis_matheson/3419153723/, CC
License BY-SA 2.0
●
“Stacked servers” by Flickr user 'redjar,' http://www.flickr.com/photos/redjar/360113468/, CC License BY-SA 2.0
●
“Happy Gargoyle” by Flickr user 'Wolfrage,' http://www.flickr.com/photos/wolfrage/3931044145/, CC License BY 2.0
●
“Gargoyles” by Flickr user 'Laertes,' http://www.flickr.com/photos/jonhurd/492395/, CC License BY 2.0
●
“blades” by Flickr user 'gothopotam,' http://www.flickr.com/photos/zagrobot/2731084578/, CC License BY 2.0
●
“Table Decoration” by Flickr user 'Kevin,' http://www.flickr.com/photos/kevincollins/75018222/, CC License BY 2.0
●
“Gargoyle” by Flickr user 'Joe Jakeman,' http://www.flickr.com/photos/jojakeman/2553116529/, CC License BY 2.0
●
“Exeter gargoyle” by Flickr user 'aaron.bihari,' http://www.flickr.com/photos/dakima-arts/3456721942/, CC License BY-SA
2.0
●
“Dark gargoyle” by Flickr user 'Bichuas (E. Carton),' http://www.flickr.com/photos/bichuas/442265525/, CC License BY-SA
2.0
●
“IMG_4743” by Flickr user 'beggs,' http://www.flickr.com/photos/beggs/88809549/, CC License BY 2.0
●
“Gothic Gargoyles” by Flickr user 'jakeliefer,' http://www.flickr.com/photos/jakeliefer/283541940/, CC License BY 2.0
●
“Hunting Gargoyles” by Flickr user 'moonrat42,' http://www.flickr.com/photos/moonrat/1444630026/, CC License BY-SA 2.0
●
“Kissing Gargoyle, Leon, Spain” by Flickr user 'AndrewGould,' http://www.flickr.com/photos/andrewgould/3643732025/,
CC License BY 2.0
●
“IMG_4781” by Flickr user 'beggs,' http://www.flickr.com/photos/beggs/88810165/, CC License BY 2.0
●
“Thann : gargouille / gargoyle 1” by Flickr user 'OliBac,' http://www.flickr.com/photos/olibac/3451405035/, CC License BY
2.0
●
“(gar)Goyle of my dreams...” by Flickr user 'IntangibleArts,' http://www.flickr.com/photos/intangible/1136971041/, CC
License BY 2.0
●
“Gargoyle overlooking Paris” by Flickr user 'aliciat89,' http://www.flickr.com/photos/aliciat/3138416652/, CC License BY 2.0
●
For more info on Creative Commons Licenses see http://creativecommons.org
●
This presentation is licensed under a Creative Commons Attribution-Share Alike 2.0 license:
http://creativecommons.org/licenses/by-sa/2.0/deed.en
*Thank you Creative Commons!

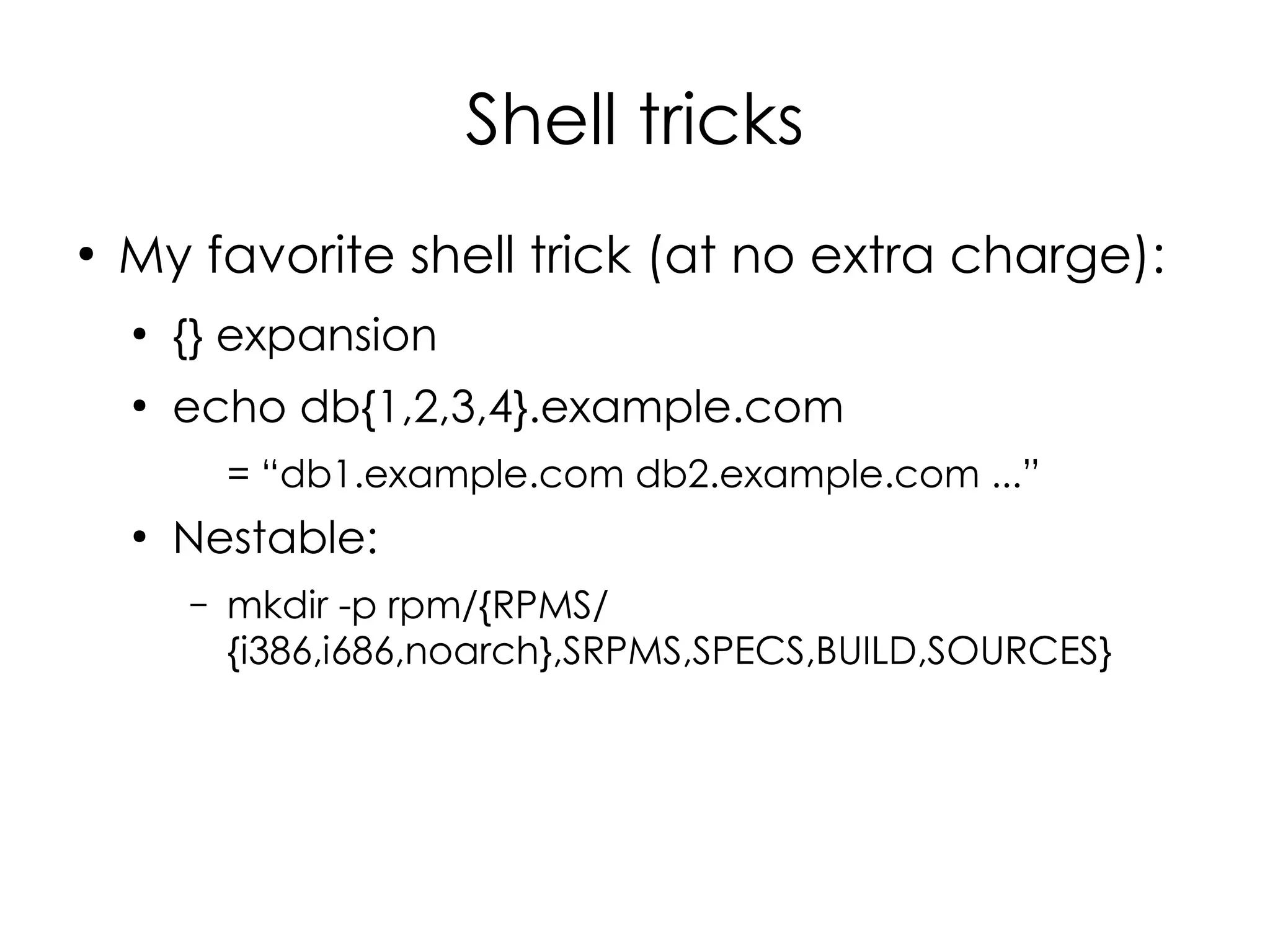

61. Shell tricks
●
My favorite shell trick (at no extra charge):
●
{} expansion
●
echo db{1,2,3,4}.example.com
= “db1.example.com db2.example.com ...”
●
Nestable:
– mkdir -p rpm/{RPMS/
{i386,i686,noarch},SRPMS,SPECS,BUILD,SOURCES}
