The Regional Bureau of Spatial Planning in Wroclaw is implementing a project to create a regional spatial data infrastructure (SDI) node for spatial planning in the Wroclaw functional area. The node will integrate multiple spatial data sources using web services to support spatial planning and management processes at the regional and local levels. It will be developed using open-source software and standards to be freely available to users and developers. The SDI node aims to facilitate monitoring, evaluation, and harmonization of spatial policy through publishing planning data and developing geospatial tools.

1. REGIONAL SDI NODE IN THE FIELD OF SPTIAL PLANNING
FOR THE FUNCTIONAL AREA OF WROCLAW
- FREE AND OPEN SOURCE PROJECT-
GI 2011
This project is implemented through the CENTRAL EUROPE Programme
co-financed by the ERDF.
www.viaregiaplus.eu

2. „REGIONAL SDI NODE IN THE FIELD OF SPTIAL PLANNING ” (action 4.2.4.)
THE PROJECT VIA REGIA PLUS (SUSTAINABLE MOBILITY AND REGIONAL COOPERATION ALONG THE
PAN-EUROPEAN TRANSPORT CORRIDOR III) CARRIED OUT UNDER THE PROGRAMME FOR CENTRAL
EUROPE OF THE EUROPEAN TERRITORIAL COOPERATION (ETC) HAS EXPANDED THE AREA ALONG THE
PAN-EUROPEAN TRANSPORT CORRIDOR III (BERLIN / DRESDEN - WROCLAW - LVIV - KIEV).
The Regional Bureau of Spatial Planning in Wroclaw has implemented under this project the following
package:
 Works on Integrated Area Allocations System for the Metropolitan Area (WP4 work package - 4.2.4.)
WBU by pursuing the objectives of the Via Regia Plus project, coordinates the creation and
development of the regional sdi node (WWIIP) in the fiels of spatial planning, which links local and
regional levels of administration.
KATOWICE 22 MARZEC 2011 2

3. „REGIONAL SDI NODE IN THE FIELD OF SPTIAL PLANNING ” (action 4.2.4.)
WWIIP WILL BE THE SUPPORT FOR MENAGEMENT PROCESSES IN THE LAND USE POLICY
WWIIP IS DEDICATED FOR TWO GROUPS OF USERS:
- Client – users on the web browser,
- Developers – free and open source software for geospatial developers.
WWIIP IDEA IS TO INTEGRATE BY WEB SERVICES MULTIPLE DATA SOURCES USING IN
SPATIAL PLANNING AND PUBLISHING PLANNING DATA
3

4. „REGIONAL SDI NODE IN THE FIELD OF SPTIAL PLANNING ” (action 4.2.4.)
NET OF NODES IN POLISH NSDI
CENTRAL LEVEL
REGIONAL LEVEL
LOCAL/DISTRICT LEVEL
4

5. „REGIONAL SDI NODE IN THE FIELD OF SPTIAL PLANNING ” (action 4.2.4.)
SDI NODES vs SPATIAL PLANNING COMPETENCE STRUCTURE
DISTRIBUTED ARCHITECTURE OF SDI NODES CAN BE VERY COMPATIBLE WITH
CURRENT STRUCTURE OF COMPETENCE IN POLISH SPTIAL PLANNING POLICY
NATIONAL LEVEL
•National concepts of NATIONAL NODE
spatial deveplopment
REGIONAL LEVEL •Regional Spatial
development Plan
REGIONAL NODES
•Local master plan
LOCAL LEVEL CITIES, DISTRICTS, LOCAL NODES
• Local development
plans
5

6. „REGIONAL SDI NODE IN THE FIELD OF SPTIAL PLANNING ” (action 4.2.4.)
MAIN TARGETS:
 MONITORING
 INTEGRATION / INTEROPERABILITY
 HARMONIZATION/ STANDARDS
 EVALUATION OF SPATIAL POLICY
 PUBLICATION STANDARDS
 DEVELOPING GEO TOOLS
6

7. „REGIONAL SDI NODE IN THE FIELD OF SPTIAL PLANNING ” (action 4.2.4.)
SUPPORT MANAGEMENT PROCESS IN LAND USE POLICY
WWIIP SUPPORT FOR:
DATA SOURCE
- SPATIAL PLANNING ON REGIONAL LEVEL – MANAGMENT, MONITORING, PLANNING WORKSHOP (ACCESS TO
MULTIPLE SOURCES)
- SPATIAL PLANNING ON LOCAL LEVEL – MANAGMENT, MONITORING, PLANNING WORKSHOP (ACCESS TO
MULTIPLE SOURCES)
- CITIZENS - ACCESS
7

8. „REGIONAL SDI NODE IN THE FIELD OF SPTIAL PLANNING ” (action 4.2.4.)

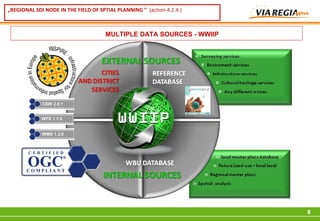

MULTIPLE DATA SOURCES - WWIIP
8

9. „REGIONAL SDI NODE IN THE FIELD OF SPTIAL PLANNING ” (action 4.2.4.)
DEVELOPMENT GEO TOOLS
THE ENTIRE SYSTEM IS BASED EXCLUSIVELY ON FREE SOFTWARE SOLUTIONS,
ENSURES COMPLIANCE WITH ISO AND OGC STANDARDS, MEETING THE
DATA SOURCE
REQUIREMENTS OF THE INSPIRE DIRECTIVE AND THE ACT IIP.
THE IDEA BEHIND THE PROJECT IS TO EXPAND COOPERATION IN THE
DEVELOPMENT OF GEO-INFORMATION WITH THE PUBLIC ADMINISTRATION AND
HIGH SCHOOL/ACADEMIA, AND THE RESULTING SOLUTION TO MAKE ALL THE
PRINCIPLES OF OPEN SOURCE SOFTWARE.
PROJECT RESULTS WILL BE DISTRIBUTED ACCORDANCE WITH THE LICENSE TYPE
GNU GPL V3.
9

10. „REGIONAL SDI NODE IN THE FIELD OF SPTIAL PLANNING ” (action 4.2.4.)
ROZWÓJ NARZĘDZI
10

11. „REGIONAL SDI NODE IN THE FIELD OF SPTIAL PLANNING ” (action 4.2.4.)
Architecture 3 layers system:
DATA SOURCE
•Database - PostgreSQL, PostGIS,
•aplication server - Geoserver, Deegree,
Apache Tomcat,
•Aplication server - OpenLayers, Apache
Tomcat, Apache HTTP
11

12. „REGIONAL SDI NODE IN THE FIELD OF SPTIAL PLANNING ” (action 4.2.4.)
DATA SOURCE

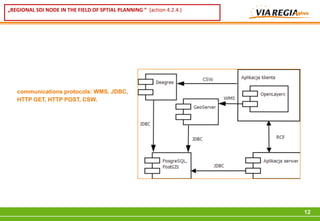

communications protocols: WMS, JDBC,
HTTP GET, HTTP POST, CSW.
12

13. „REGIONAL SDI NODE IN THE FIELD OF SPTIAL PLANNING ” (action 4.2.4.)
13

14. „REGIONAL SDI NODE IN THE FIELD OF SPTIAL PLANNING ” (action 4.2.4.)
14

15. „REGIONAL SDI NODE IN THE FIELD OF SPTIAL PLANNING ” (action 4.2.4.)
15

16. „REGIONAL SDI NODE IN THE FIELD OF SPTIAL PLANNING ” (action 4.2.4.)
16

17. „REGIONAL SDI NODE IN THE FIELD OF SPTIAL PLANNING ” (action 4.2.4.)
17

18. „REGIONAL SDI NODE IN THE FIELD OF SPTIAL PLANNING ” (action 4.2.4.)
18

19. „REGIONAL SDI NODE IN THE FIELD OF SPTIAL PLANNING ” (action 4.2.4.)
19

20. „REGIONAL SDI NODE IN THE FIELD OF SPTIAL PLANNING ” (action 4.2.4.)
Few interesting functionality:
 integrating WMS sercices,
 English language version,
 double view window to compare,
 serve API,
 integrations sources with many different coordinate systems,
 WMC
20

21. Thak you for your attention
www.wbu.wroc.pl
21
