Online Environment
Monitoring Software
What's required?

2. ©2015 LogicLadder | Private & Confidential
The CPCB
Guidelines for
Software
Section 5.2 Pg 18 CPCB Guidelines 07-11-2014

3. ©2015 LogicLadder | Private & Confidential

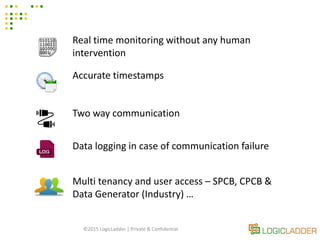

Real time monitoring without any human
intervention
Accurate timestamps
Two way communication
Data logging in case of communication failure
Multi tenancy and user access – SPCB, CPCB &
Data Generator (Industry) …

4. ©2015 LogicLadder | Private & Confidential

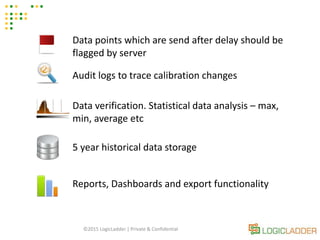

Data points which are send after delay should be
flagged by server
Audit logs to trace calibration changes
Data verification. Statistical data analysis – max,
min, average etc
5 year historical data storage
Reports, Dashboards and export functionality

5. ©2015 LogicLadder | Private & Confidential
Auto report and auto mail generation
Change request and workflow management
Integration with Map
Real time streaming for camera

6. ©2015 LogicLadder | Private & Confidential
Challenges
Involved
“The initial Indian experience of real time monitoring systems has
not been very satisfactory. “- 3.12 CPCB Guidelines 07-11-2014

7. ©2015 LogicLadder | Private & Confidential
“My equipment has not sent data since three days !” -
Real time communication over GPRS is unreliable
“Wrong data, has somebody changed the calibrations.”
– No Audit logs to trace calibration changes
“Something is wrong. Please send your engineer” …
“Vendor - Sir my engineer can only reach by
tomorrow.” – No remote device trouble shooting
“Your system is dumb. It did not even warn me that I
had exceeded threshold.” - No alerts and alarm system
to alert you before things are going wrong.

8. ©2015 LogicLadder | Private & Confidential
“Servers are crashing.” – No Big Data. SQL database will
not scale. Sensor data grows consistently, most systems
fail after some time. Hardware OEMs not skilled to
handle huge data !
“Can I replace your sensor with different make.” -
Proprietary protocols lock you with a vendor
Onsite equipments have automated monitoring but
process of sharing data is still manual.
The equipments analysis is real time but data
transmission to various stakeholders is not real time.

9. ©2015 LogicLadder | Private & Confidential
Is there a solution
to these issues?
Yes!!

10. ©2015 LogicLadder | Private & Confidential
The right environment monitoring platform to
make your life easy. Wondering how?...

11. ©2015 LogicLadder | Private & Confidential
EnviroLogicis a software platform
that gathers data from remote
environment sensors. It gives
visibility and control of environment
data and timely information on and
before potential non-compliance.

12. ©2015 LogicLadder | Private & Confidential

13. ©2015 LogicLadder | Private & Confidential
GPRS M2M GPRS
M2M GPRS gives you
more security and
more reliable
connectivity.

14. ©2015 LogicLadder | Private & Confidential

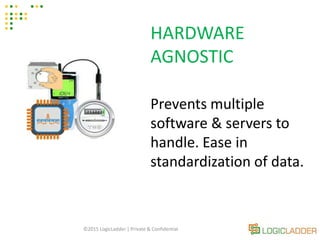

HARDWARE
AGNOSTIC
Prevents multiple
software & servers to
handle. Ease in
standardization of data.

15. ©2015 LogicLadder | Private & Confidential
REMOTE DEVICE
MANAGEMENT
•Reduce field visits, In most
cases our engineer will
solve your problem
remotely
•Increases device uptime
•Ease device calibration

16. ©2015 LogicLadder | Private & Confidential
RELIABLE
High availability of
communication
channel and servers
acquiring data.

17. ©2015 LogicLadder | Private & Confidential
Secure and tamper
proof communication
. This fosters
confidence in
statutory bodies and
enterprises.
SECURE

18. ©2015 LogicLadder | Private & Confidential
Scalable to millions of
concurrent device
connections and
handle large amounts
of data.
SCALABLE

19. ©2015 LogicLadder | Private & Confidential
Ease data sharing
between industry,
SPCB and CPCB. Also
to other systems and
organizations that may
leverage this data.
USER ACCESS
CONTROL

20. ©2015 LogicLadder | Private & Confidential
How
envirologicIQ
achieves this?

21. ©2015 LogicLadder | Private & Confidential
HTTP
MQTT
REST
MODBUS
OPEN
PROTOCOLS
Makes Communication
Reliable
BIG DATA
Store large
amount of data
Share information
with multiple
stakeholders
Support any
device
Makes time
stamps accurate
NTP

22. ©2015 LogicLadder | Private & Confidential
Is online the finish line for
envirologicIQ? No!!
Why? Just raw data on a
server doesn’t make sense.

23. ©2015 LogicLadder | Private & Confidential
Important
data is always
visible on
dashboard.
Get real time
alerts on both
email and SMS
that help you
resolve issues
in time.
View your
entire sites on
a map without
the cost of a
GIS system.
Reports for
insight into
environment
data.

24. ©2015 LogicLadder | Private & Confidential
We never rest!
Future Product
Road Map

25. ©2015 LogicLadder | Private & Confidential
Workflow for process
management to fix
responsibility of
different stakeholders.
Statistical analysis on
data quality and
integrity.
Our Roadmap…

26. ©2015 LogicLadder | Private & Confidential
Where can you
use envirologicIQ ?

27. ©2015 LogicLadder | Private & Confidential
Sardar Sarovar
Narmada Nigam
Limited
Customers using EnviroLogicIQ for Water Monitoring:
Effluent
Monitoring
Air Quality
Monitoring
Water
Quality
Monitoring
Stack
Emission
Monitoring

28. ©2015 LogicLadder | Private & Confidential
Things to take care while buying
•Choose M2M Communication instead of plain GPRS
•Choose an enterprise system (scalable) not a SCADA
system (non scalable)
•Choose No SQL (Big Data) not SQL
•Choose SSL security versus no security
•Ask for open standards for Analyzers
•Ask for open standards for communication between
Analyzer & server
•Is communication cost built in. This is large amount of
data, communication costs over five years will be
substantial
•Does the software provide audit trails
•Involve an IT guy. The software is as important as the
analyzer.

29. ©2015 LogicLadder | Private & Confidential
Total Cost of Ownership
Analyzer
Communication Hardware
Software Platform
Communication Cost
Spares
AMC

30. ©2015 LogicLadder | Private & Confidential
Snapshots – Map View

31. ©2015 LogicLadder | Private & Confidential

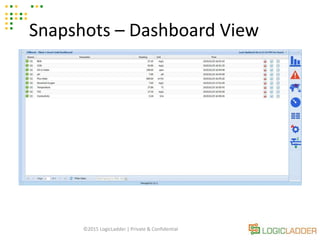

Snapshots – Dashboard View

32. ©2015 LogicLadder | Private & Confidential
Snapshots – Dashboard View

33. ©2015 LogicLadder | Private & Confidential

34. ©2015 LogicLadder | Private & Confidential
Snapshots – Dashboard View

35. ©2015 LogicLadder | Private & Confidential
Snapshots – Dashboard View

36. ©2015 LogicLadder | Private & Confidential
Snapshots – Statistical Tools

37. ©2015 LogicLadder | Private & Confidential
38
