1. LUG -4:
BUILDING BLOCKS
Building Software on Linux systems

2. Build?
• The software meaning of ‘building’ is pretty much the same as the
everyday meaning - to take raw materials and create something useful out
of them.
int c;
int d;
max();
Subl
Jmpl
Addl
Jmp
Popl
Addl
import
java.lang.*
Source files
(The Work Stuff)
int a;
int b;
sum();
import
java.util.*
BUILD PROCESS
Executable File
(The fun stuff)

3. Why use a Build System
• It makes your workflow reproducible.
• It makes life easier for end-users.
• It helps you document the full software
installation process.

4. Make
• Classic, original build system released in 1977 for
UNIX.
• Uses a formatted set of instructions, stored in a file
called a Makefile.
Source
Code
targetfile:
source
com
mand
abc.zip: curl
counties.zipMakefile
RESULT

5. Makefiles
• A makefile consists of sequential rules.
• A rule consists of a target, required components, and commands.
• If the prerequisites are satisfied, the command is performed when the
specific target is called..
target : prerequisites ; command(s)

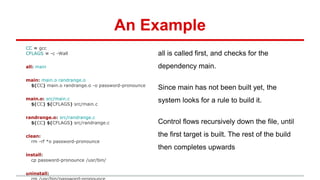

6. An Example
CC = gcc
CFLAGS = -c -Wall
all: main
main: main.o randrange.o
$(CC) main.o randrange.o -o password-pronounce
main.o: src/main.c
$(CC) $(CFLAGS) src/main.c
randrange.o: src/randrange.c
$(CC) $(CFLAGS) src/randrange.c
clean:
rm -rf *o password-pronounce
install:
cp password-pronounce /usr/bin/
uninstall:
all is called first, and checks for the
dependency main.
Since main has not been built yet, the
system looks for a rule to build it.
Control flows recursively down the file, until
the first target is built. The rest of the build
then completes upwards

7. What’s Missing?
• System prerequisites, such as compilers,
linkers and assemblers.
• Even if these are installed, make may not
know the right place to look for them.
• That’s where configure comes in.

8. Configure
• Configure is an executable shell script that
matches components on the computer to
those required by the Makefile
• Automates system portability, by making
sure that everything is in the right place

9. Version Control
• Version control is a system that records changes to a file or set of files
over time so that you can recall specific versions later
• A VCS allows you to revert files back to a previous state, revert the entire
project back to a previous state, review changes made over time, see who
last modified something that might be causing a problem, who introduced
an issue and when, and more
• Using a VCS also means that if you screw things up or lose files, you can
generally recover easily

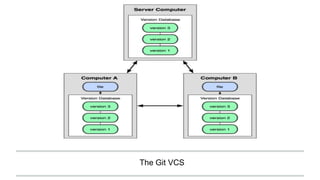

10. The Git VCS

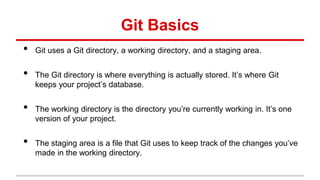

11. Git Basics
• Git uses a Git directory, a working directory, and a staging area.
• The Git directory is where everything is actually stored. It’s where Git
keeps your project’s database.
• The working directory is the directory you’re currently working in. It’s one
version of your project.
• The staging area is a file that Git uses to keep track of the changes you’ve
made in the working directory.

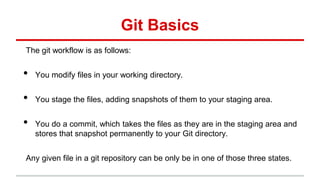

12. Git Basics
The git workflow is as follows:
• You modify files in your working directory.
• You stage the files, adding snapshots of them to your staging area.
• You do a commit, which takes the files as they are in the staging area and
stores that snapshot permanently to your Git directory.
Any given file in a git repository can be only be in one of those three states.

13. Try out what you learnt!
• We’ve prepared a (small) complete project that includes a configure script,
a makefile, and is stored as a git repository.
• To get it, type this in your git or bash terminal:
git clone https://github.com/puranjay/password-pronounce
• Use the readme file to get it up and running on a Linux machine.
