A session in the DevNet Zone at Cisco Live, Berlin. Learn the basics of using Git to share and collaborate on code.

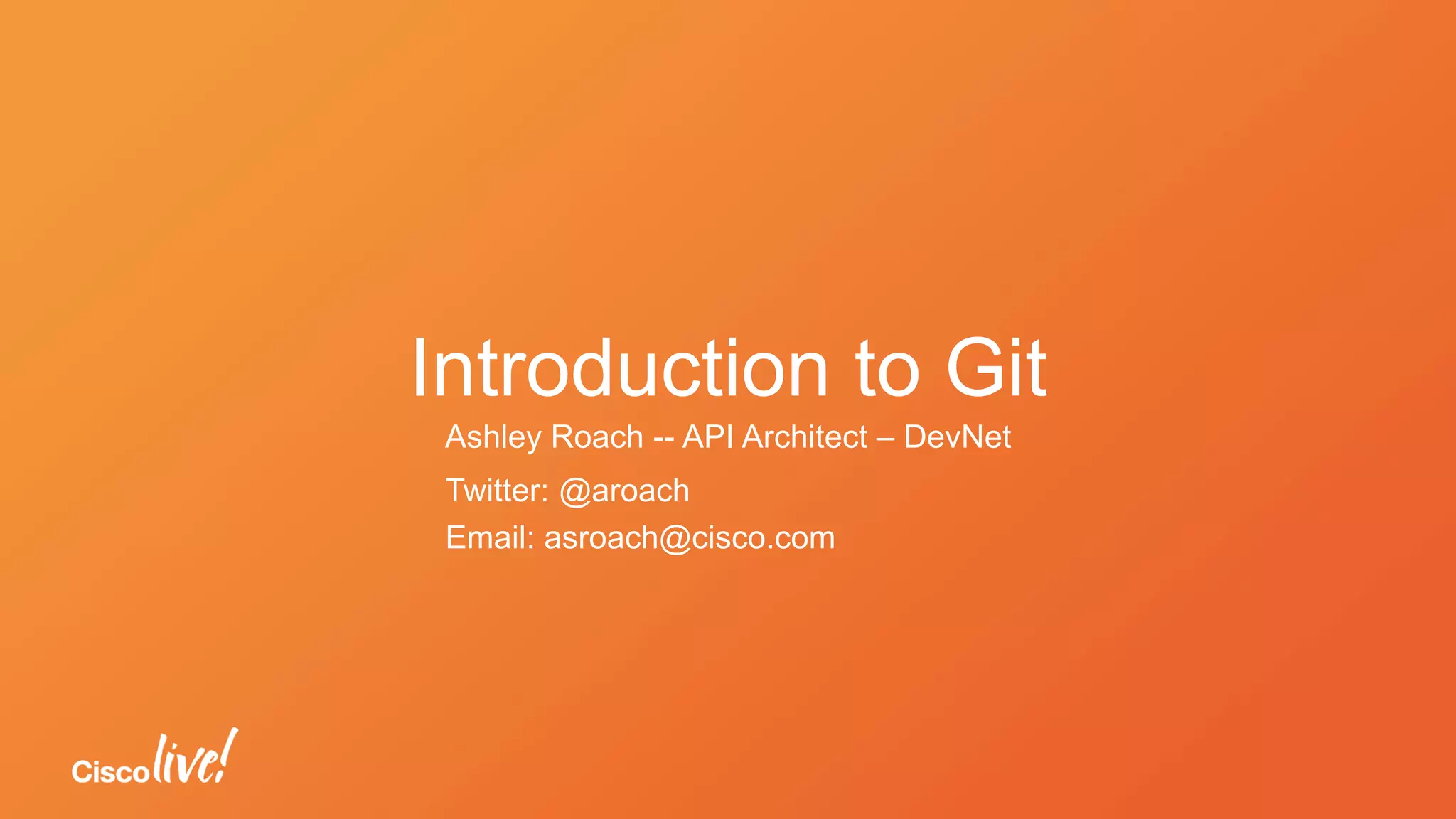

2. Introduction to Git
Ashley Roach -- API Architect – DevNet
Twitter: @aroach
Email: asroach@cisco.com

3. • Introduction
• Quick overview of Git
• Workshop
• Resources
Agenda

4. DevNet Zone Challenge – DevNet Zone Mobile App
• Download for iOS or Android
• Sign in with Cisco.com ID (not Cisco Live!)
• Visit Demos, attend Sessions and you’ll be
credited through Bluetooth on your device
• Complete Learning Labs and be
automatically credited
• Head to Info Desk to get your prize!
• 3 Levels of Prizes at 2, 5 and 10
activities
• Have the InfoDesk Staffer check off
your prize collection in the app!

5. WHY ARE WE HERE?
5

6. As si618 said on Stack Overflow
“Have you ever:
• Made a change to code, realised it was a mistake and wanted to revert back?
• Lost code or had a backup that was too old?
• Had to maintain multiple versions of a product?
• Wanted to see the difference between two (or more) versions of your code?
• Wanted to prove that a particular change broke or fixed a piece of code?
• Wanted to review the history of some code?
• Wanted to submit a change to someone else's code?
• Wanted to share your code, or let other people work on your code?
• Wanted to see how much work is being done, and where, when and by whom?
• Wanted to experiment with a new feature without interfering with working code?
In these cases, and no doubt others, a version control system should make your life easier.”
6
http://stackoverflow.com/a/1408464

7. DISTRIBUTED VERSION CONTROL
• Opens up to new workflows: git flow
• Each system has an exact replica of the repo as other collaborators.
7
https://git-scm.com/images/about/workflow-b@2x.png

8. Under the hood
• Changes are stored in trees
• Trees contain changed files
• Commits contain trees
8
http://git-scm.com/figures/18333fig0903-tn.png

9. GIT CONFIG
• So you can be held accountable, configure git
9
$ git config --global user.name "Your Name Comes Here"
$ git config --global user.email you@yourdomain.example.com

10. GIT INIT
• Initializes a project directory with a hidden directory /.git/
10
$ tar xzf project.tar.gz
$ cd project
$ git init

11. GIT ADD
• Add any files in your repository to git “stage”
11
$ git add .
https://git-scm.com/images/about/index1@2x.png

12. GIT COMMIT
• Store your changes into a commit
12
$ git commit –m ’Initial commit’

13. BRANCHING: Your safe place
• Makes a pointer to your
code
• Moves HEAD around
13
http://git-scm.com/figures/18333fig0307-tn.png
$ git branch <name>
$ git branch testing
$ git commit –m “new”
$ git checkout master

14. MERGING
• git merge <topic>
• You must be on the branch you want to merge INTO when you execute this
command (e.g. master)
14
$ git merge <topic>

15. Git over SSH vs HTTP
• No password
• Set up SSH key on remote server
15
$ git clone git@github.com:aroach/upgraded-guacamole.git
$ git clone https://github.com/aroach/upgraded-guacamole.git

16. SHARE YOUR CHANGES
• git push <destination> <branch>
• git push origin master
16
$ git push <destination> <branch>
$ git push origin master

17. Workshop
17

18. Let’s get started
• http://bit.ly/git-berlin
18

19. Additional Resources
• https://training.github.com/kit/downloads/github-git-cheat-sheet.pdf
• https://www.atlassian.com/git/tutorials/comparing-workflows/
19

20. Contact
• Ashley Roach
• asroach@cisco.com
• @aroach
20
CLEUR DevNet Zone Story 

21. Thank you
