1. Java One 2013
Java One 2013
Make Text Search “Work”
for your Apps
Anirban Mukherjee
amukherjee@verisign.com
Manish Maheshwari
mmaheshwari@verisign.com
08-May-2013

2. Speakers
Anirban
Software Architect, Verisign
Manish
Software Architect, Verisign
Verisign Public 2

3. Agenda
• Overview of Text Search
• What is Text Search
• Differences from traditional database search
• Text Search implementation for regular web applications
• Relational Databases vs Text Search Engines
• Recommended design principles
Verisign Public 3

4. Overview of Text Search
Verisign Public 4

5. What is Text Search (1/2)
• Also called Full-text search
• Enter a few keywords
• Get results fast with most relevant matches on top
• Can work well on unstructured information
• Documents e.g. resumes, papers
• Free text fields like Titles and Descriptions
• Non-exact or approximate matches may be returned
Verisign Public 5

6. What is Text Search (2/2)
• Origins in document processing systems and web search
• Now a de-facto requirement for regular web applications
• Enterprise applications
• Cloud apps / SaaS solutions for Enterprises
• Expanding into Real-time analytics
• We will focus on apps with relational database stores
• Unique challenges
• Don’t fit Text engines as naturally as Document oriented
data stores
• Frequent entity modifications are usually involved
Verisign Public 6

7. Lookup-style search: Example
• Explicit fields
• No relevance ranking for results
• Traditional RDBMS style implementation using SQL
• Wildcards can be used for partial matches (uses SQL “like”)
• Limits on results, pagination often absent
Verisign Public 7

8. Text Search: Example
• No explicit fields specified in input (may be present in Advanced Search)
• Keyword based operation
• Results are ordered by relevance and paginated
• No need to use wildcards
• Auto-suggestion is often present while typing input keywords
Verisign Public 8

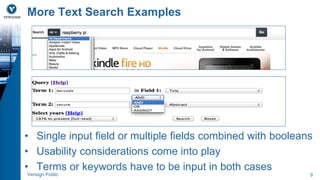

9. More Text Search Examples
• Single input field or multiple fields combined with booleans
• Usability considerations come into play
• Terms or keywords have to be input in both cases
Verisign Public 9

10. Text Search features: Summary
• Term based search at fast speeds
• index returns docs matching input terms fast
• boolean AND, OR, NOT combinations can be used
• Relevance
• usually based on TF (frequency of the term in a document) and IDF
(rarity of the term across all documents)
• other factors can be incorporated if needed
• Approximate matches
• Stemming and Synonyms
• Fuzzy matches and spelling auto-corrections
Verisign Public 10

11. Inverted Index/ Text index
• Helps in fast retrieval of documents matching terms
• Index creating involves a good bit of processing
• Different fields in a document can be indexed differently
• Indexing is very closely tied to search queries
• Text Engines can handle many indexes
Verisign Public 11

12. Popular Java-based Text Search
libraries and platforms
Verisign Public 12

13. RDBMS Full-text Search components
• Proprietary extensions to SQL to support text search
• Pros: Single data source for Apps
• Apps can interact with the database only
• Cons: Limits on flexibility, portability and perhaps scalability
Verisign Public 13

14. Typical Text Search App architecture
• RelationalEntity – TextDoc mappings have to be done
properly
• Only a subset of data should go to text index
• DB is primary datastore
• Text searches always hit text index first
Verisign Public 14

15. Location of the Text Search Engine
• Library/plugin
• Lucene
• Hibernate Search
• Database Full-text
• Oracle Text
• MySQL Full-text
• Search servers
• Solr
• Elasticsearch
Verisign Public 15

16. Relation Databases vs Text
Engines
Verisign Public 16

17. RDBMS vs Text Engine: Structural Mismatch
• Relational databases
• many data types
• tables represent entities
• entities have relationships between them
• normalized schema and joins
• Text engines
• fundamentally only type is string
• flat documents
• no relationships between documents
• joins between documents are not supported
• Relationships have to be flattened and embedded into text documents
• duplication of data
• can be difficult to implement
• relationships can be complex and 2-way too
Verisign Public 17

18. RDBMS vs Text Engine: Sync Mismatch
• Data updates have to be performed in two different places
• RDBMS and Text Engine
• Structural mismatch can make this fragile
• change to a single entity can affect many documents
• updates occur from many places in the app
• Text engines are not transactional like RDBMS
• Not all Text Engines are near real-time capable
• Elasticsearch focuses on near real-time updates
• “commit” for Text engines is expensive
Verisign Public 18

19. RDBMS vs Text Engine: Retrieval Mismatch
• Text Engine should typically have only a subset of the full
data
• Text index is not a database
• Too much data in the index makes it slow
• Purpose of text index is to provide initial result page(s)
• Document type plus entity primary key from the database
uniquely identifies a document
• Represents an entity (often partial)
• Full details can be retrieved from database
• Ideally should use at most a single database query per result view
Verisign Public 19

20. Design Principles for Text
Search Apps
Verisign Public 20

21. Design Principles for Text Search apps
• We consider regular web apps which have relational
databases as the primary data source
• User confidence in the search solution is vital
• Some principles may require thinking that departs from
traditional database apps
Verisign Public 21

22. P1: The most basic searches must work perfectly
first
Problem: If the app does not return good results for the basic
cases, users will lose faith very easily.
• E.g.: If an exact Title is entered, user certainly expects it to be
listed right on top
• Stemming, synonyms etc. must not jeopardize exact matches
• Precision is more important than recall
• Test cases should cover these elaborately
• Make it clear to users that matches are primarily keyword based
Verisign Public 22

23. P2: Text Indexes should be used for all applicable
views of the data (1/2)
Problem: Sync mismatch can cause loss of confidence
since data showing up in the tables may not be showing up
in searches.
• The data mismatch may arise due to regular indexing
delays or application bugs.
• Avoid views built directly from the database tables while
bypassing the text index
• Detection of indexing issues/errors happens early
• corrective action can be taken fast
Verisign Public 23

24. P2: Text Indexes should be used for all applicable
views of the data (2/2)
• Admin views can have a secondary option to look up the
database directly in case of problems
• Elasticsearch and latest versions of Solr strive to make
index updates available in near real-time
Verisign Public 24

25. P3: Accommodate regular Text index re-creation
(1/2)
Problem: Index re-creation can be time consuming and
involve application downtime.
• Improvements and enhancements to text search typically require full
index re-creation.
• Text indexes may also get out of sync with the primary database
store due to errors and bugs.
• Text indexes are not as resilient or robust as databases with respect
to durability.
Verisign Public 25

26. P3: Accommodate regular Text index re-creation
(2/2)
• Embrace the need for full index re-creation
• Devise ways to do it smoothly on demand and regularly
• Strategy 1: Keep alternate indexes in active/passive.
Periodically,
• re-create the passive and switch it to active mode
• switch the old active to passive mode (to be re-created next)
• Strategy 2: Store timestamp for every doc at indexing time
• re-index all documents using the database data
• Remove all docs with timestamp older than the re-index start time
Verisign Public 26

27. P4: Indexing and Searches are closely tied - think of
both together
Problem: Enhancements are needed to the search. Addition
of more searchable data is breaking older stuff.
• Unlike in the database, index updates are strongly coupled
to the types of queries
• not viable to do data modeling work first and think of queries later
• Strive to limit the amount of indexed data
• Bulk indexing is much slower than bulk database loads
• Scale out the search servers as data grows
• Performance testing is needed with a focus on frequent searches
Verisign Public 27

28. P5: Avoid treating the Text Engine as a relational
store
Problem: Searches have become really slow as the data has
grown. Each subsequent page also takes a long time to load.
• Anti-pattern: Direct one-to-one table to doc mapping with “joins”
inside the App
• Text engines are not relational databases
• App joins will tend to collapse as data grows, they may involve many
Text engine queries
• Strive to make the summary results load directly from the Text
Engine
• Initial results list page should have minimal fields
• Only minimum essential fields have to be in the index
• Avoid sorts on many fields, consider faceting instead
Verisign Public 28

29. P6: Avoid wildcards in user input (1/2)
Problem: Users are not fully satisfied with keyword based
matches. They want partial matches within the keywords too.
• Search engines allow wildcards but there are major pitfalls
• Relevance is lost, results are returned in arbitrary order similar to
SQL “like” or grep
• If stemming is in use, stems and not the original terms are in
present the index. So wildcards may not give expected matches
• E.g. management has Porter stem manag which is what gets into the
index. So it no longer matches the wildcard pattern manage*
Verisign Public 29

30. P6: Avoid wildcards in user input (2/2)
• Make use of auto-suggestion on a small number of
important fields as the user types the input
• Tends to be quite performant and lightweight if implemented
properly
• Can usually be implemented with edge n-grams for prefix matches
• Try to avoid full n-grams for arbitrary substring matches
• Number of edge n-grams is O(L), number of full n-grams is O(L2)
Verisign Public 30

31. Popular form of Auto-suggestion today
Verisign Public 31

32. P7: Analyze and improve
Problem: Things are evolving rapidly and data volumes are
increasing. It is hard to keep pace and improve performance
and user experience.
• Logs should be regularly analyzed for user behavior
• Performance testing needs to be done at higher loads
• Platform upgrades may be a reality
• Rate-limiting needs to be implemented
• But changes need to be resisted too …
Verisign Public 32

33. Conclusion
• Text search is still evolving rapidly
• Lucene is 12+ years old but is still very active
• along with Solr and Elasticsearch
• Cloud apps and high traffic websites need to scale up
constantly
• Relational databases backends are not going away soon
• Good Text search designs will continue help
• Enterprise search is now expanding to real-time analytics
Verisign Public 33

34. References
• Hibernate Search in Action, Manning Publishers
• http://www.elasticsearch.org
• http://www.lucidworks.com/
Verisign Public 34

35. Thank You
© 2013 VeriSign, Inc. All rights reserved. VERISIGN and other trademarks, service marks, and
designs are registered or unregistered trademarks of VeriSign, Inc. and its subsidiaries in the United
States and in foreign countries. All other trademarks are property of their respective owners.
