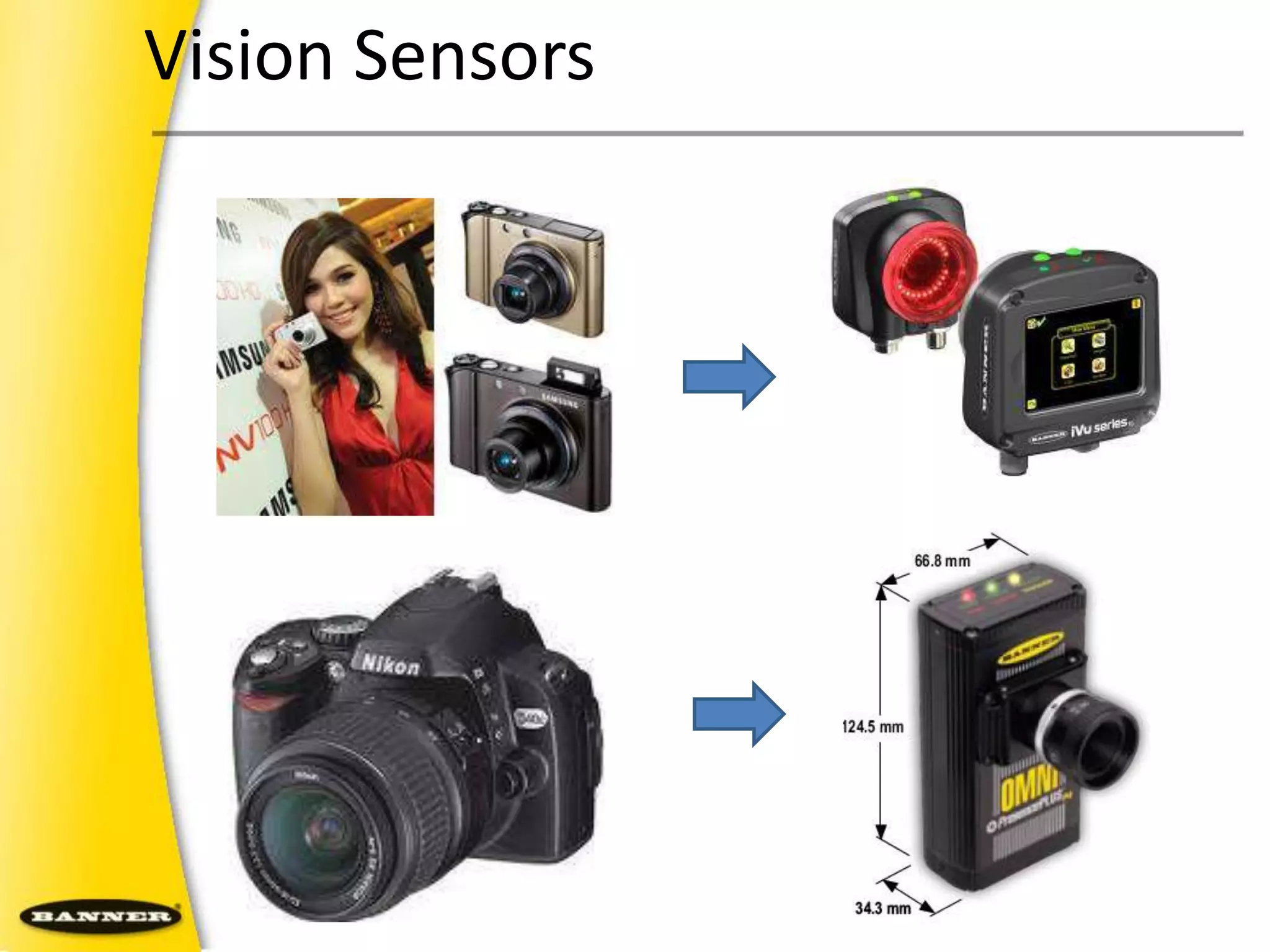

1. Vision Sensors เหมือนกับ กล้องอะไร

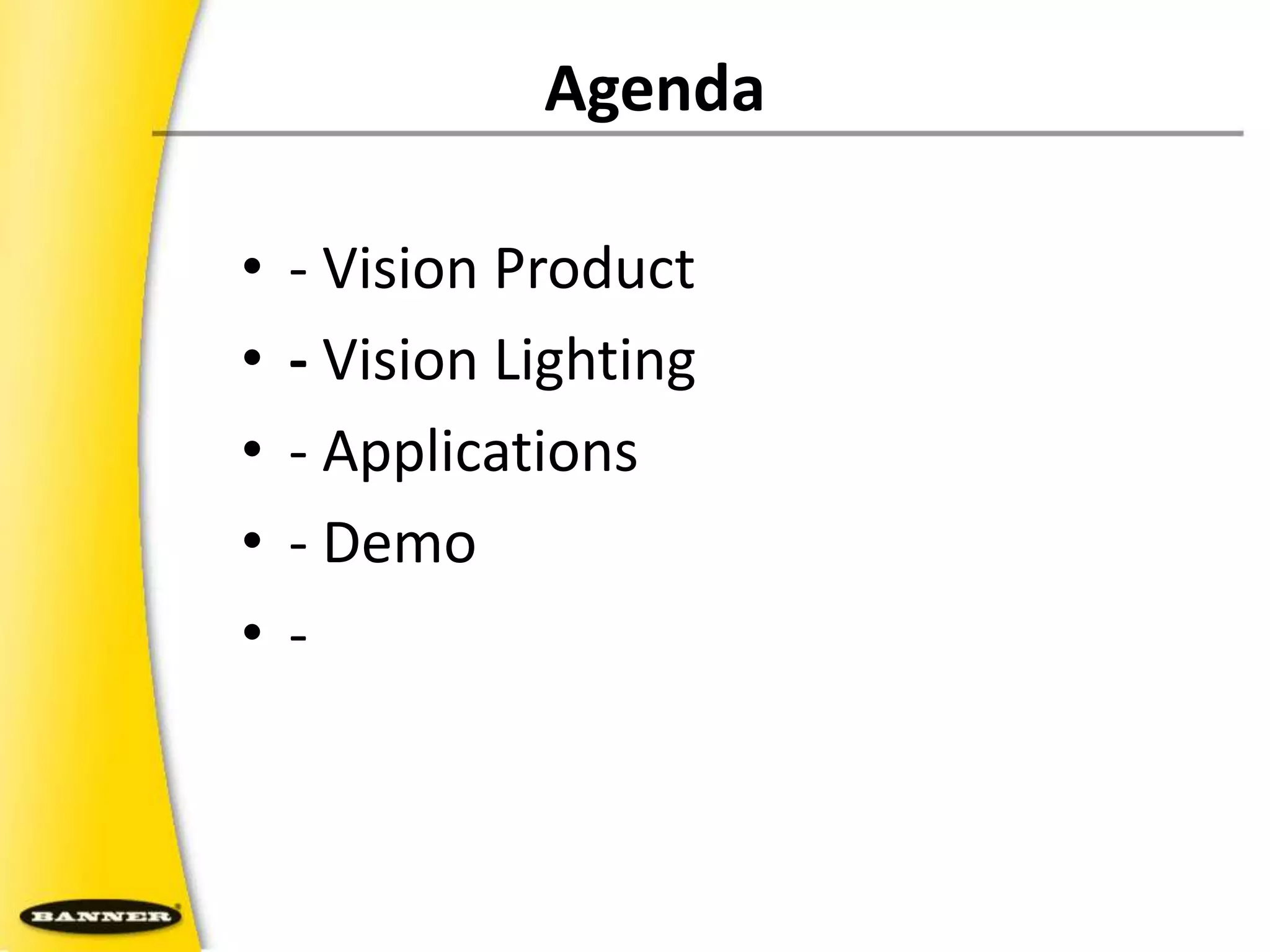

2. Agenda- Vision Product- Vision Lighting- Applications- Demo- ถาม,ตอบ

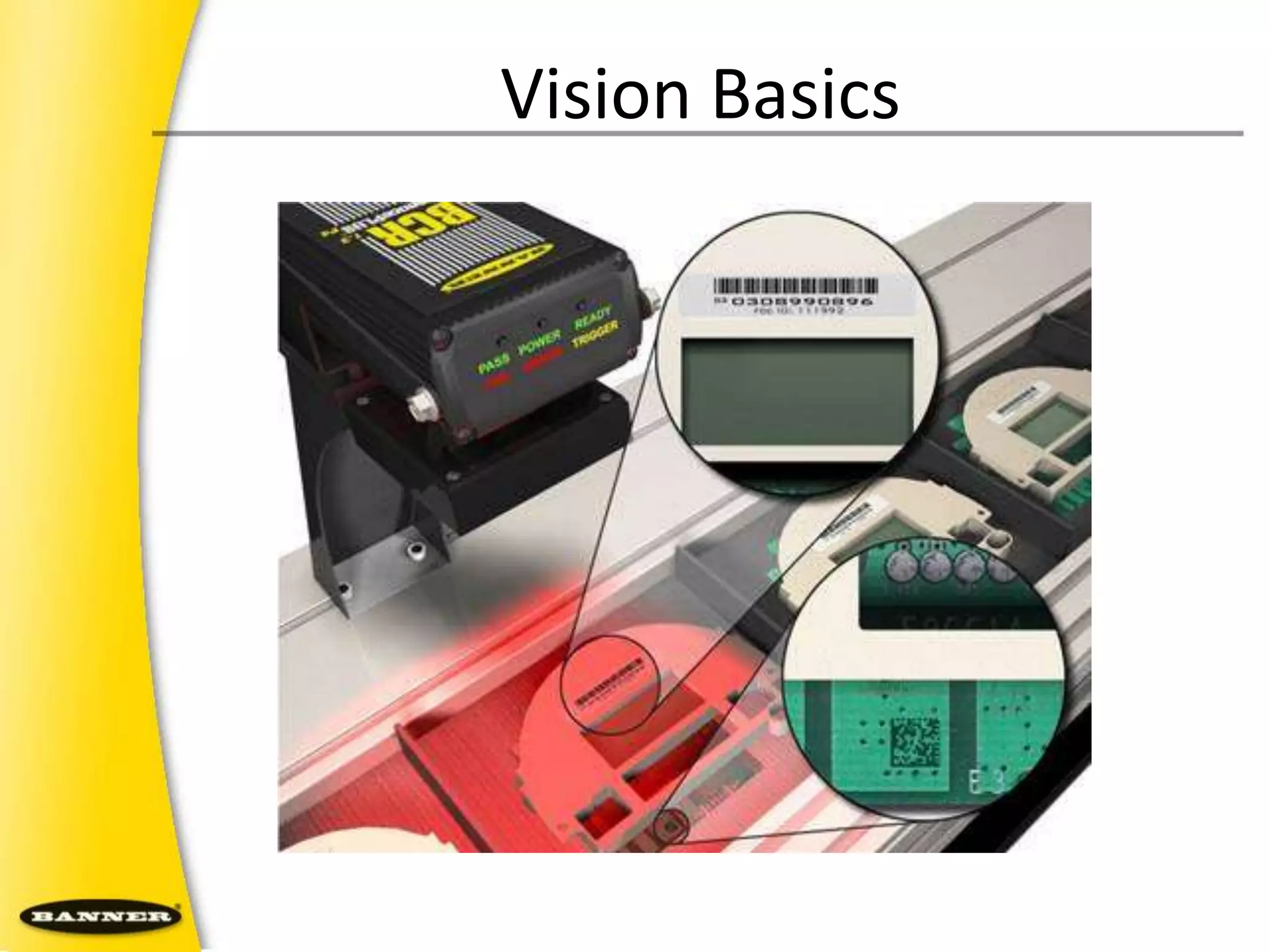

3. Vision Basics

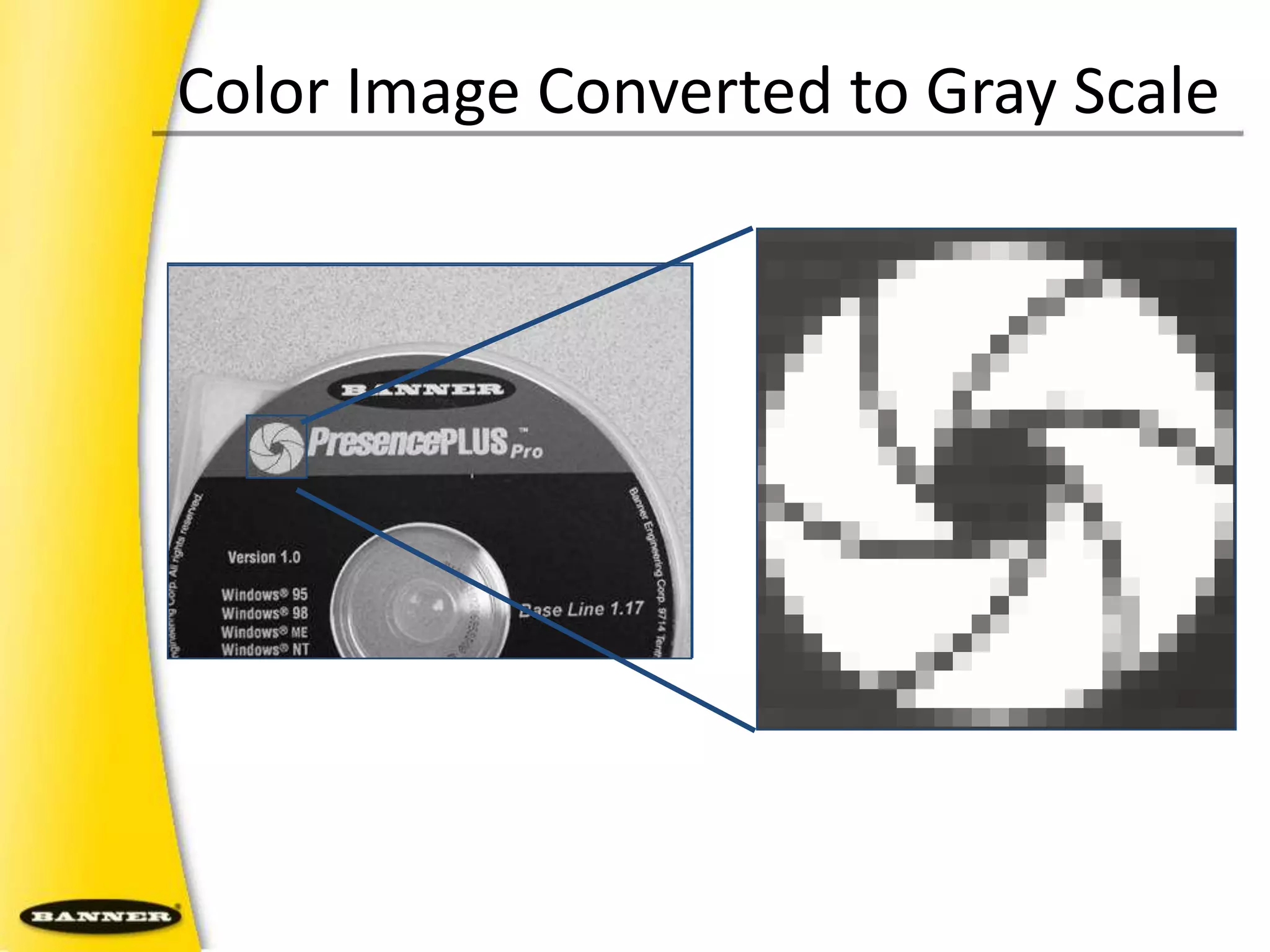

4. Color Image Converted to Gray Scale

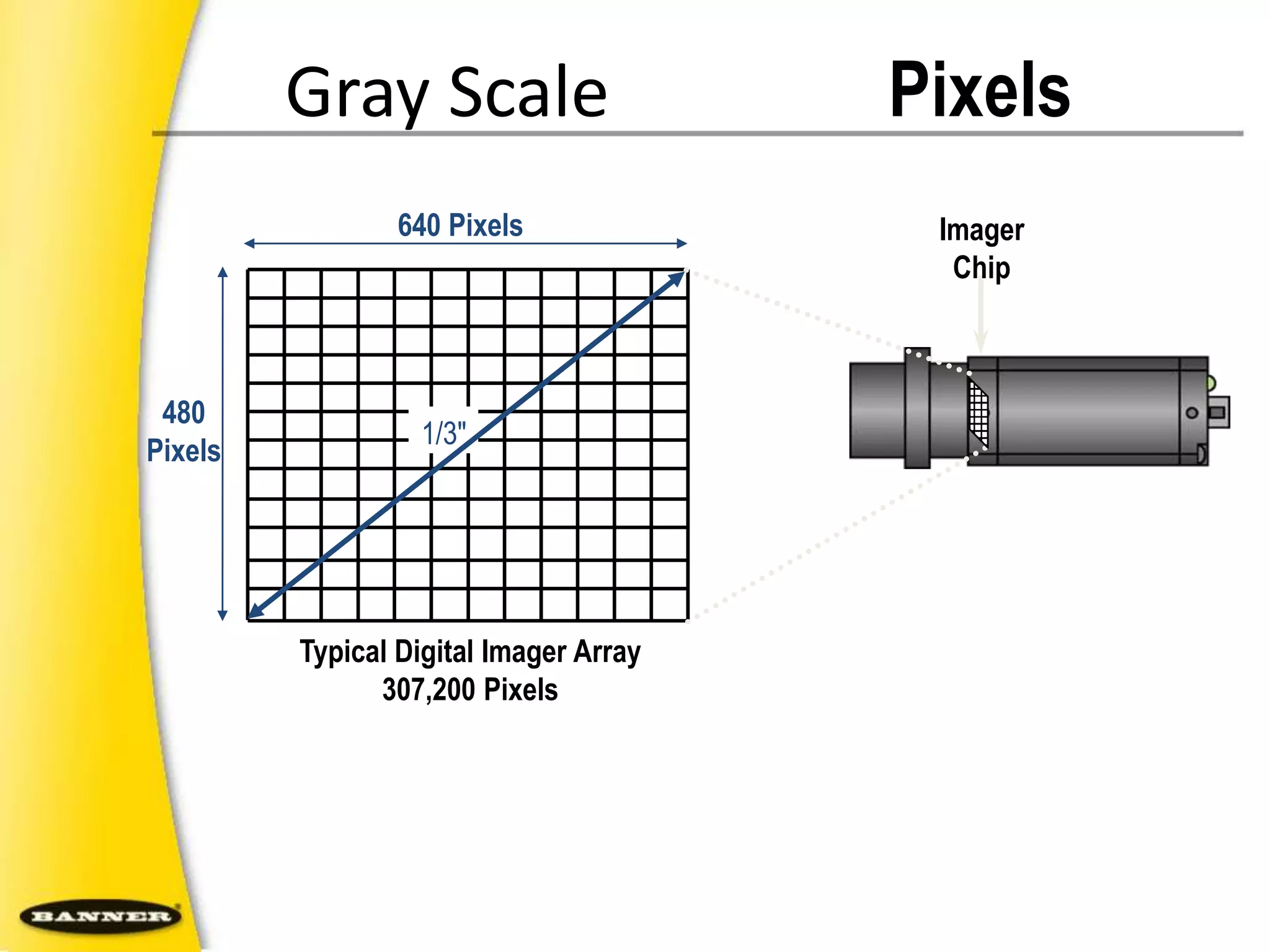

5. 640 PixelsImager Chip480 Pixels1/3"Typical Digital Imager Array307,200 PixelsGray Scale คำนวณ Pixels

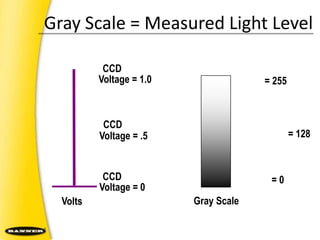

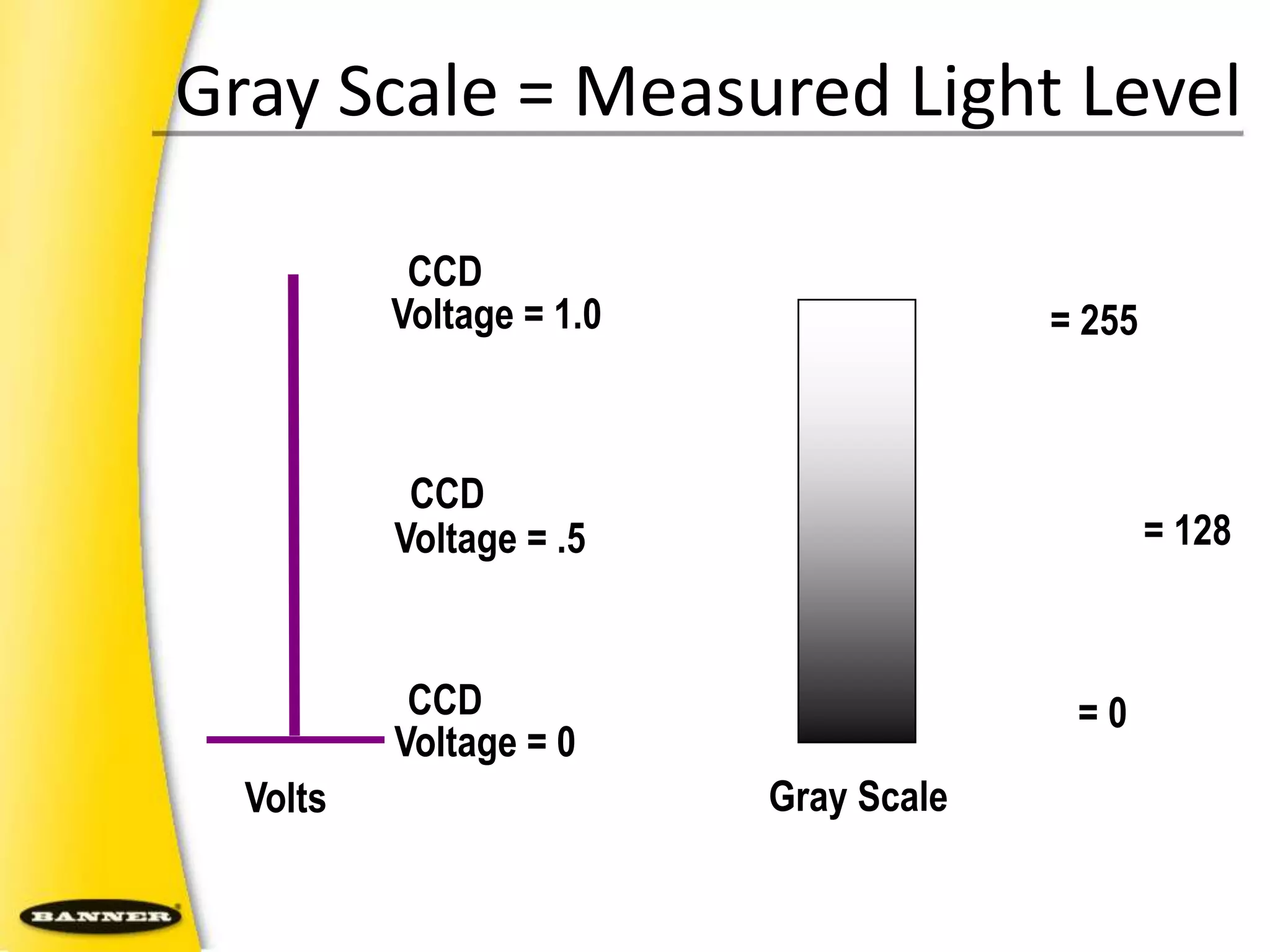

6. CCDVoltage = 1.0 สว่าง= 255CCDปานกลาง= 128Voltage = .5CCDดำมืด= 0Voltage = 0Gray ScaleVoltsGray Scale = Measured Light Level

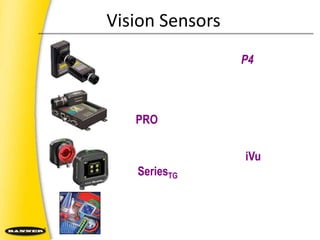

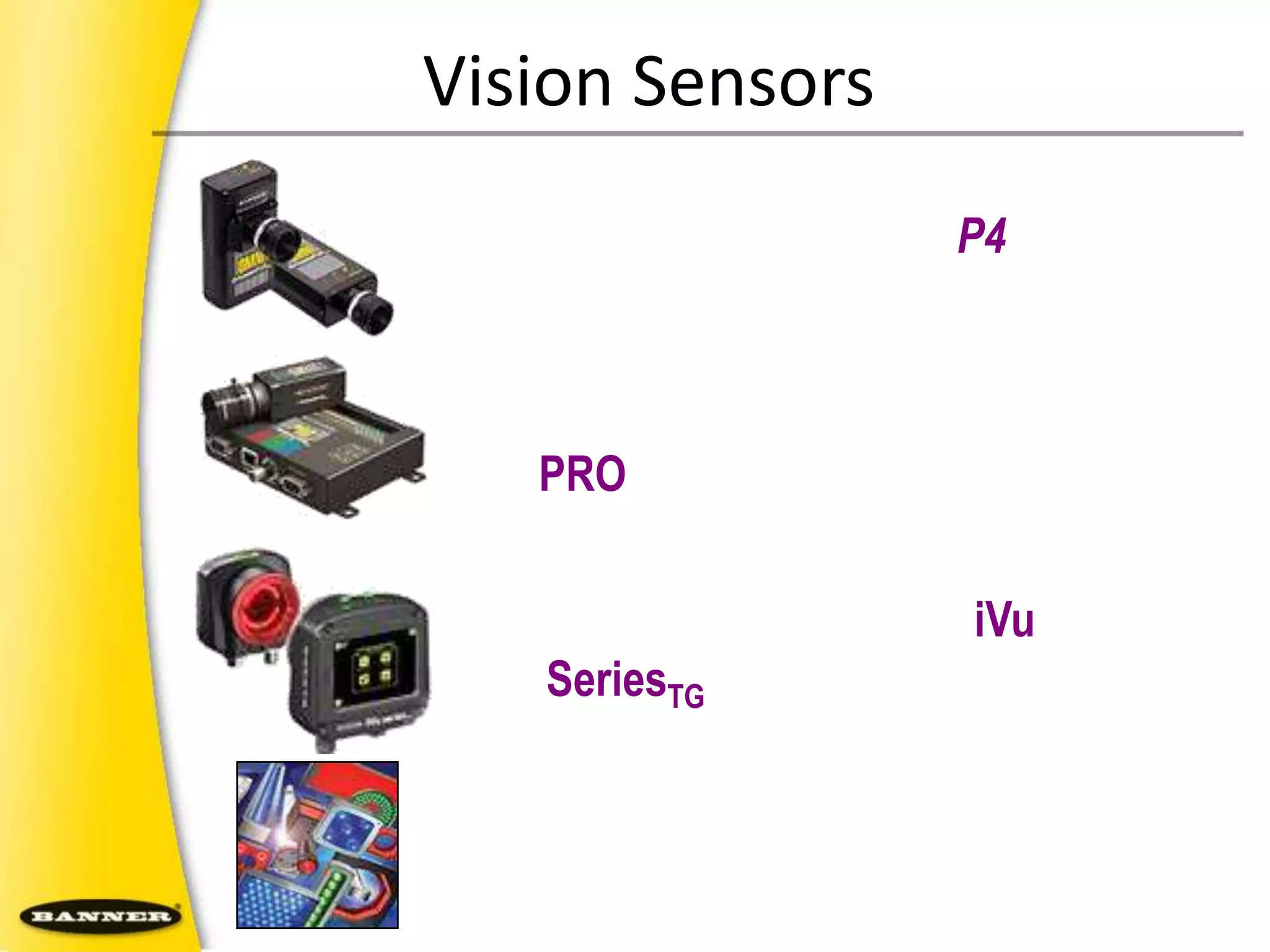

7. Vision Sensorsเซนเซอร์ กล้อง รุ่น P4เซนเซอร์ กล้อง รุ่น PROเซนเซอร์ กล้อง รุ่น iVuSeriesTGแสง

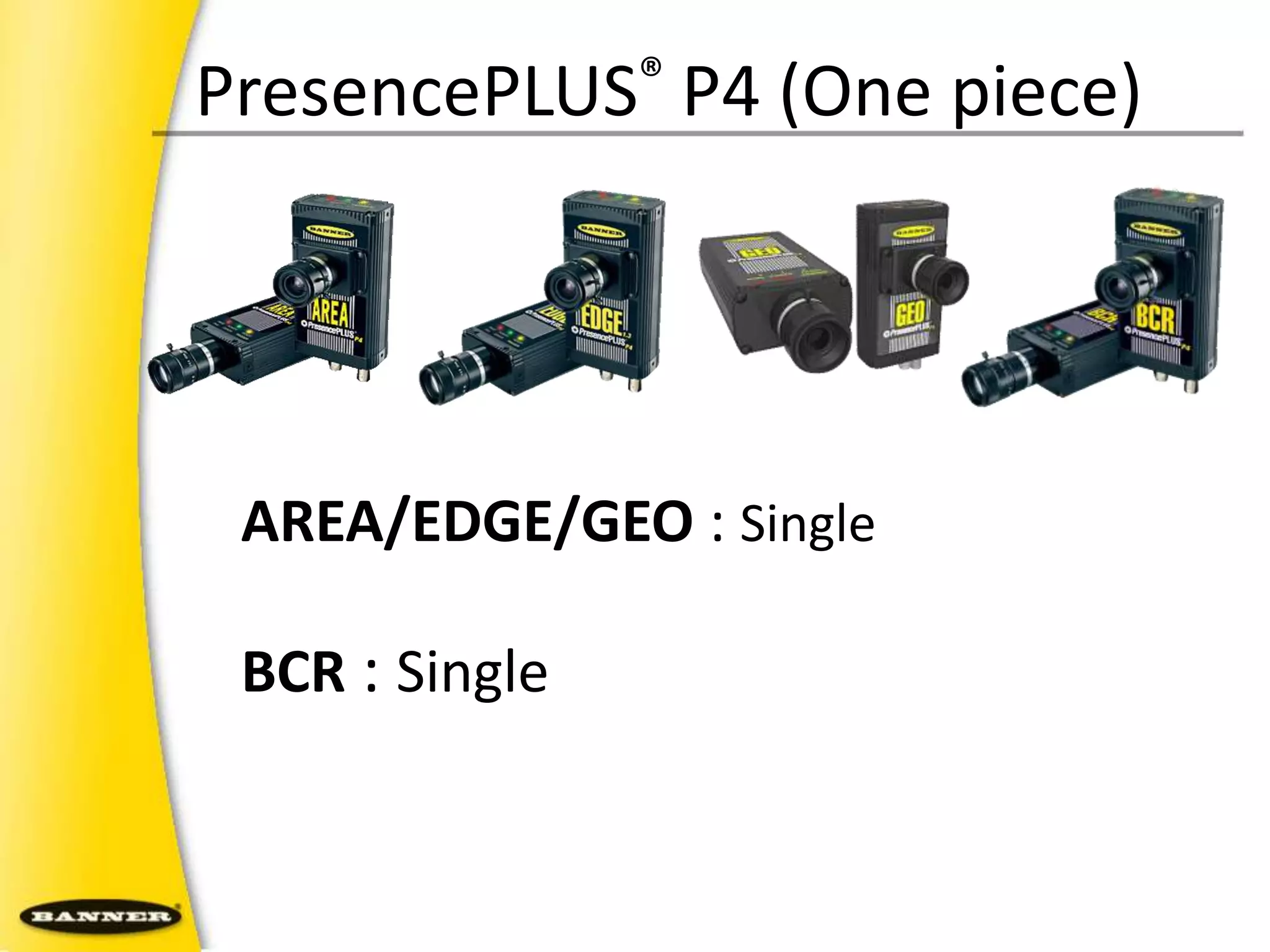

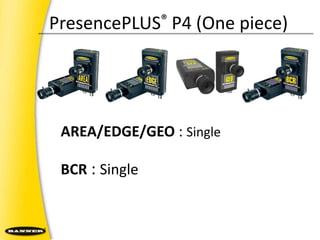

8. PresencePLUS® P4 (One piece)AREA/EDGE/GEO: Single BCR : Single

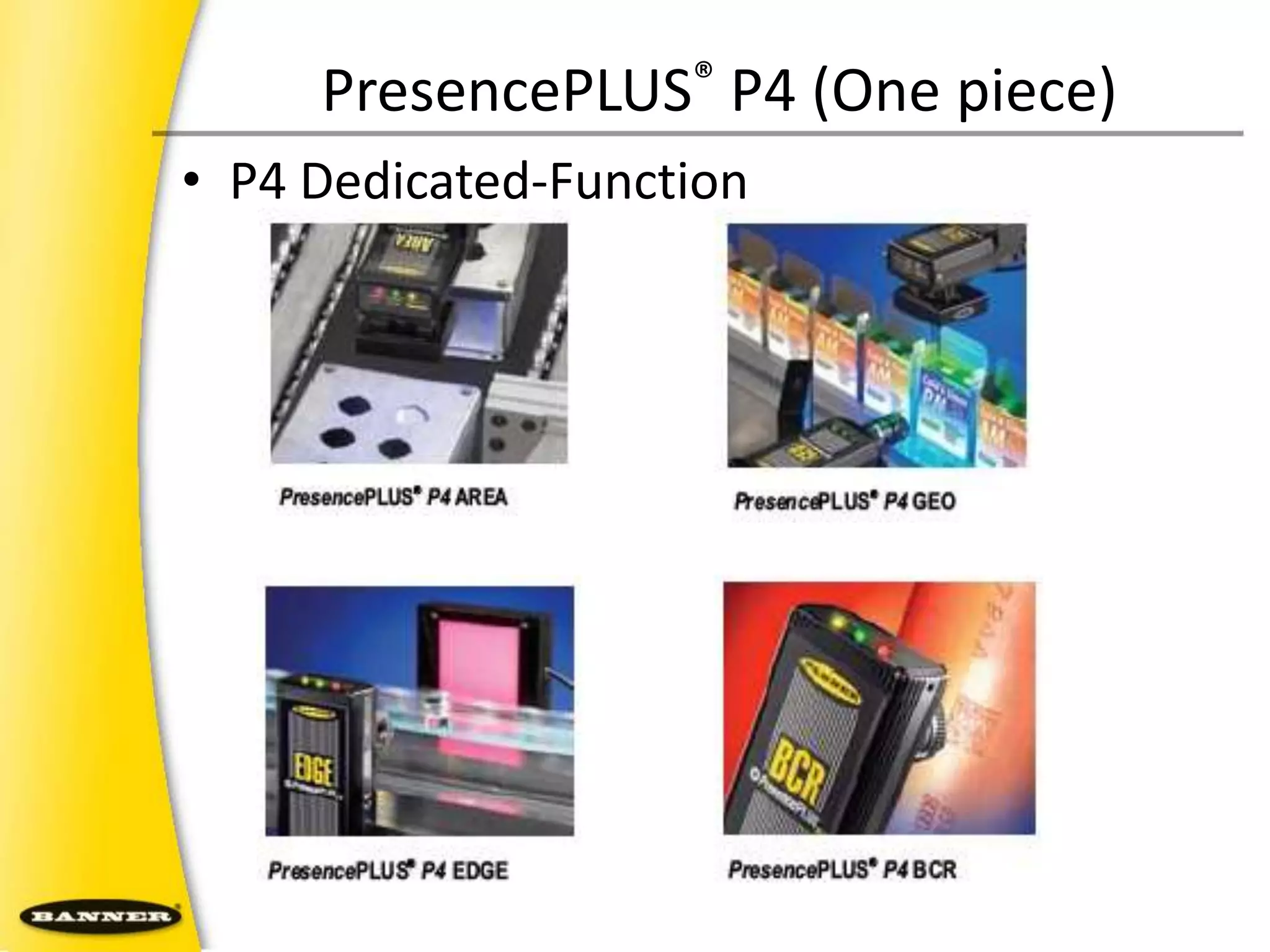

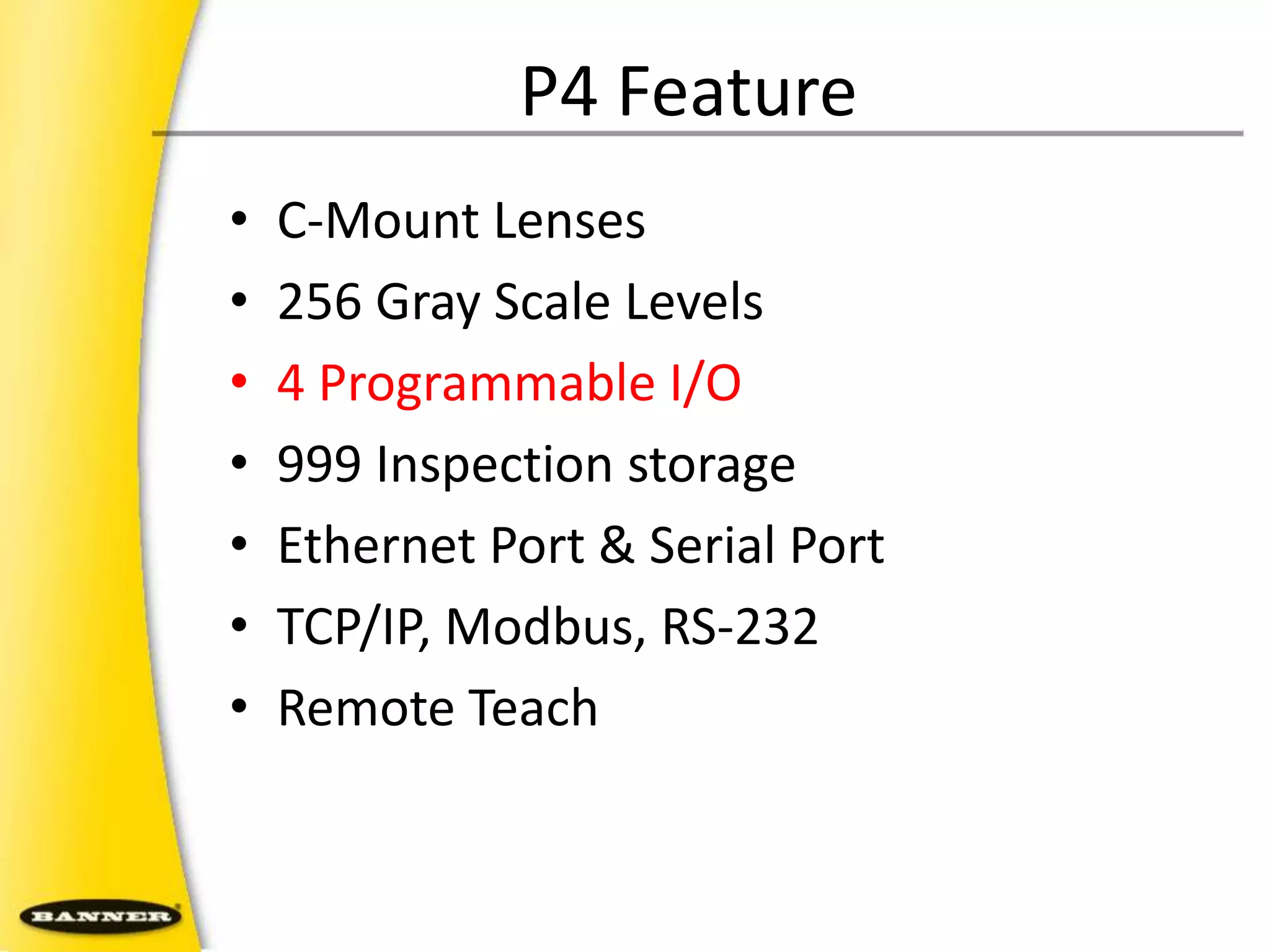

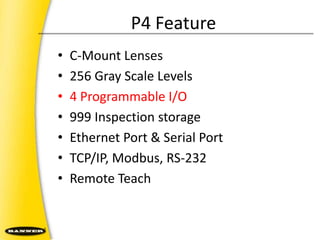

9. PresencePLUS® P4 (One piece)P4 Dedicated-FunctionPresencePLUS® P4 (One piece)OMNI: All function P4 FeatureC-Mount Lenses256 Gray Scale Levels4 Programmable I/O999 Inspection storageEthernet Port & Serial PortTCP/IP, Modbus, RS-232Remote Teach

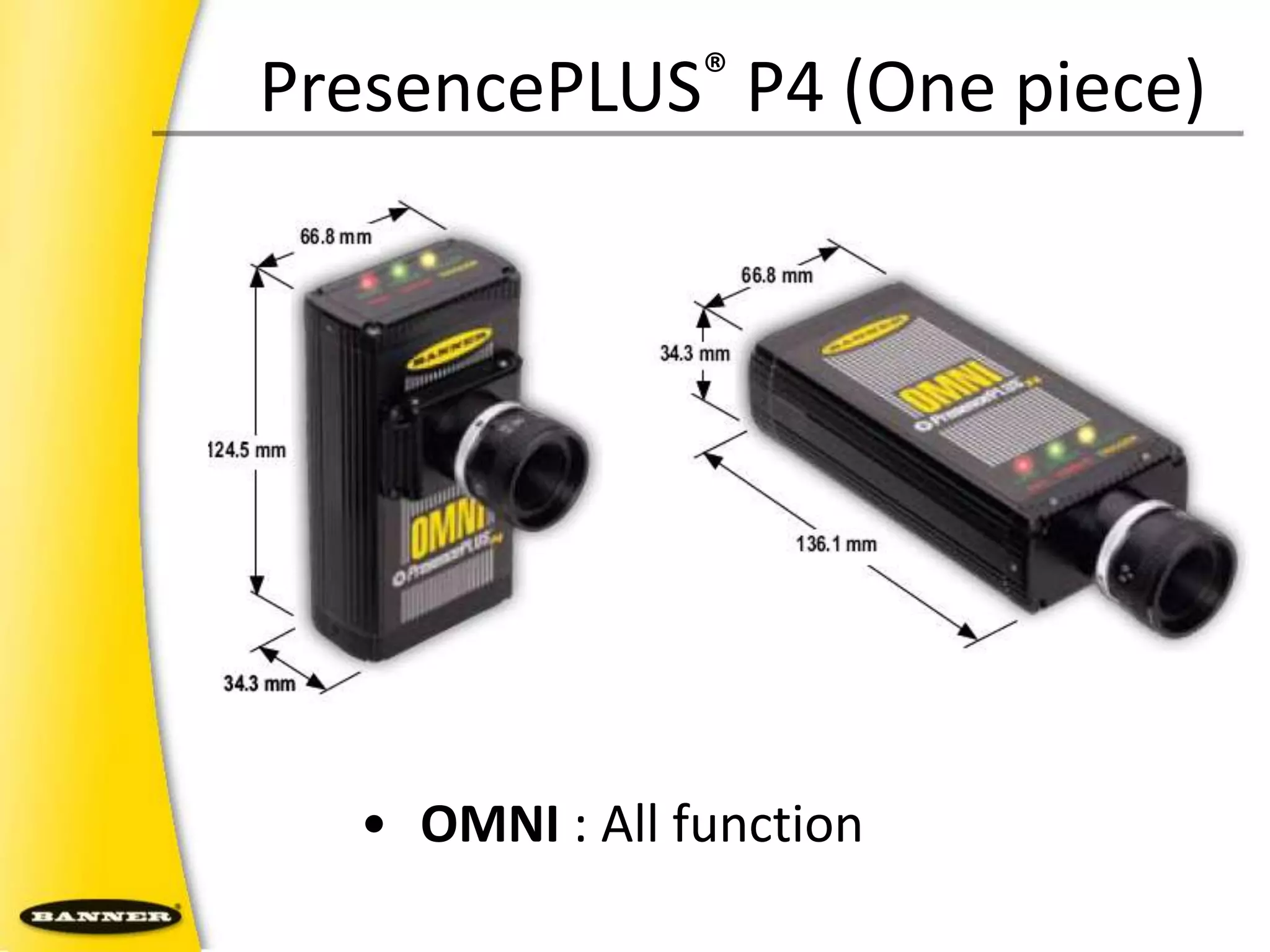

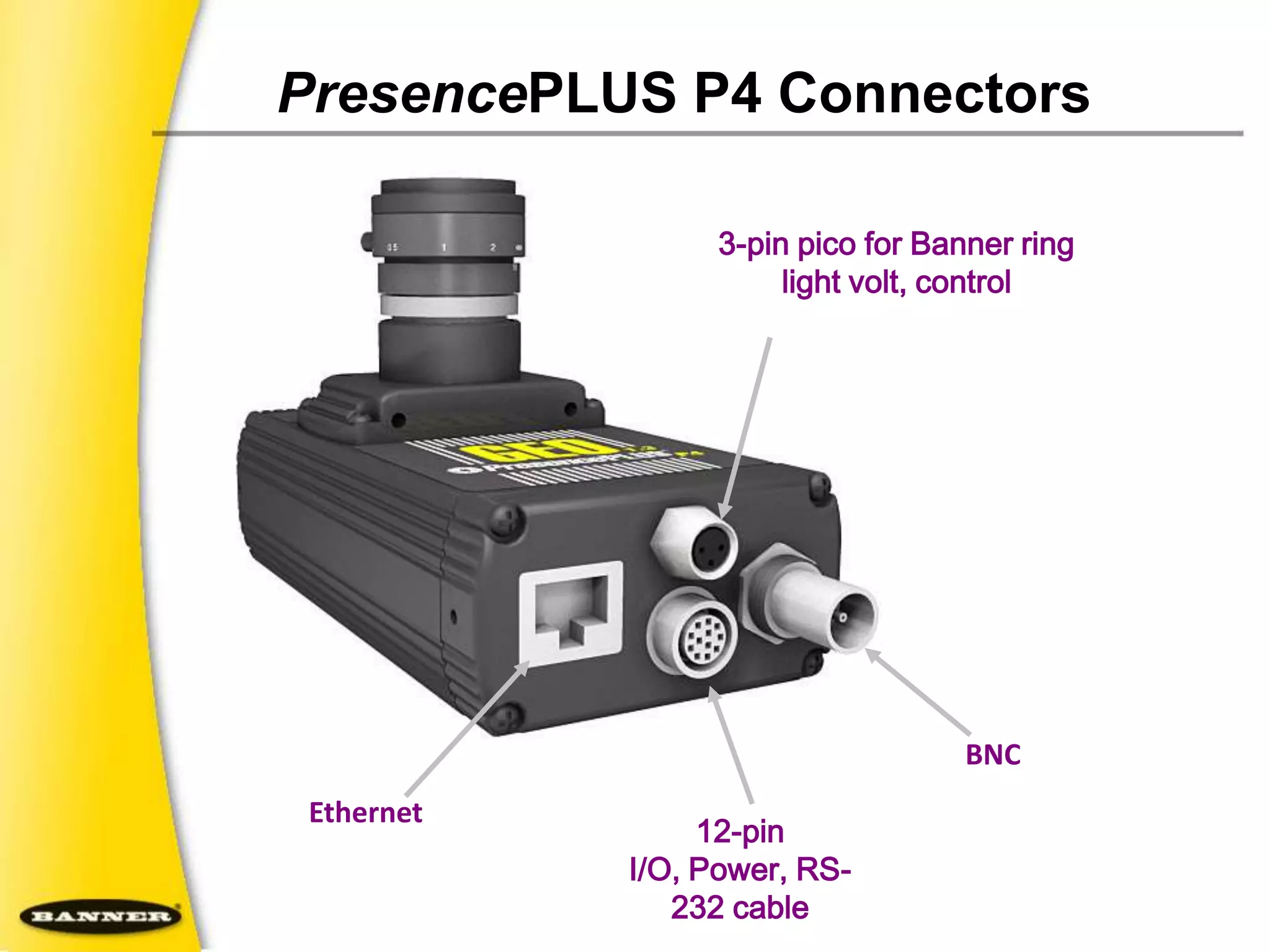

10. 3-pin pico for Banner ring light volt, controlBNC Ethernet12-pin I/O, Power, RS-232 cablePresencePLUS P4 Connectors

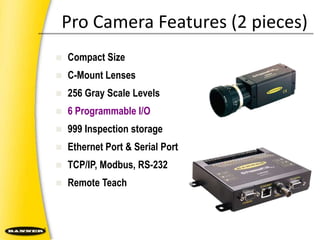

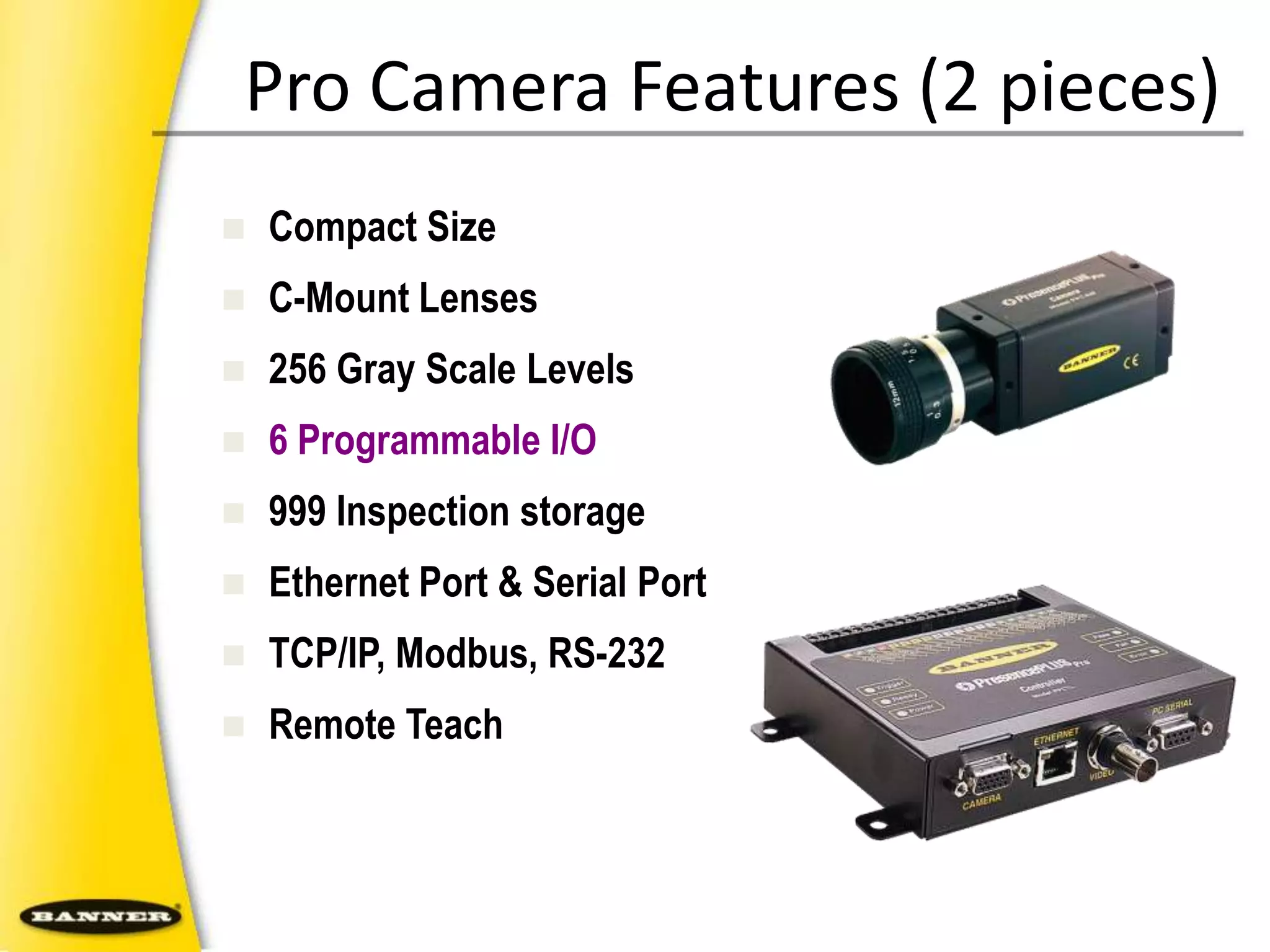

11. Pro Camera Features (2 pieces)Compact Size

12. C-Mount Lenses

13. 256 Gray Scale Levels

14. 6 Programmable I/O

15. 999 Inspection storage

16. Ethernet Port & Serial Port

17. TCP/IP, Modbus, RS-232

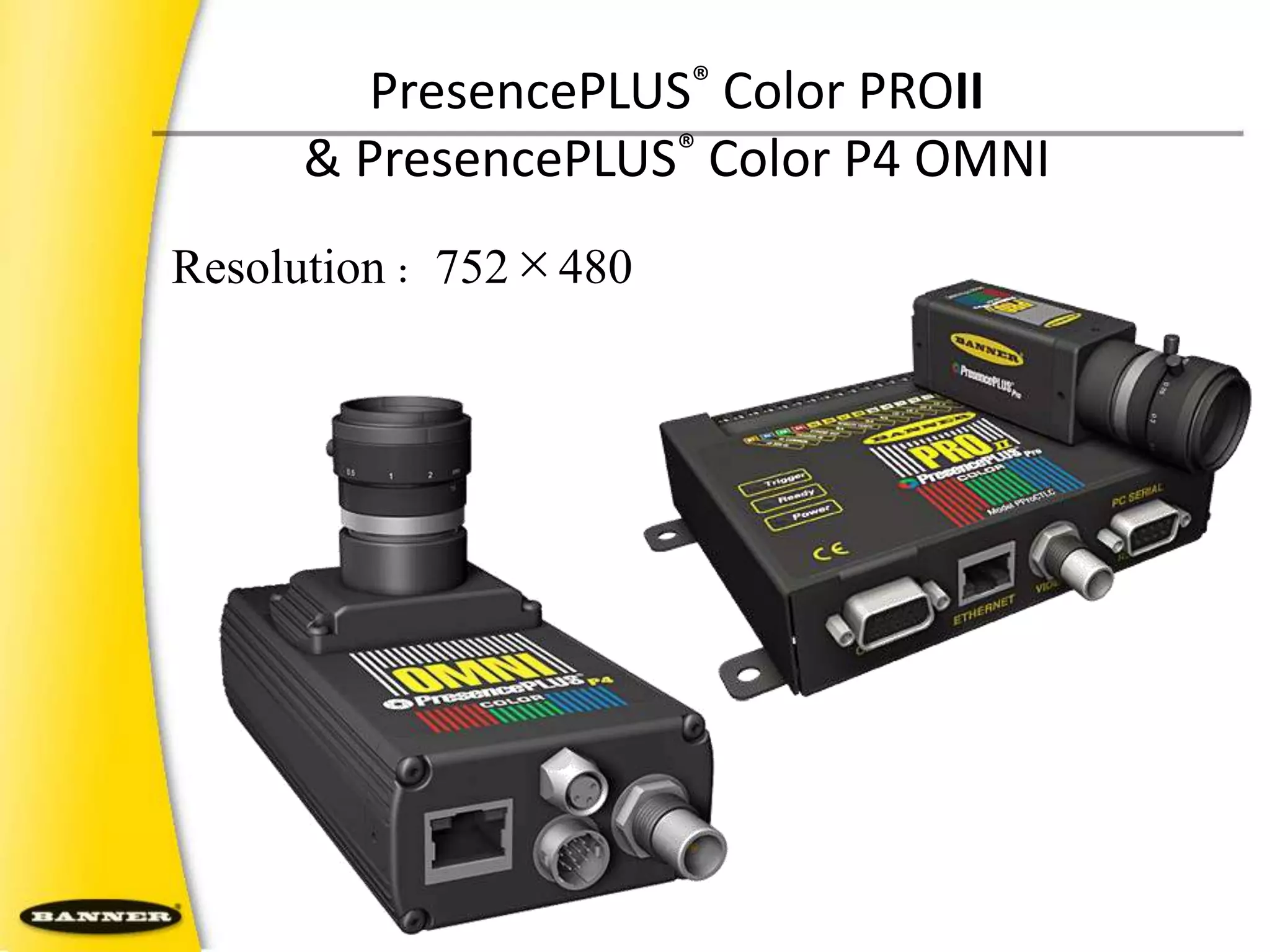

18. Remote TeachPresencePLUS® Color PROII& PresencePLUS® Color P4 OMNIResolution：752×480

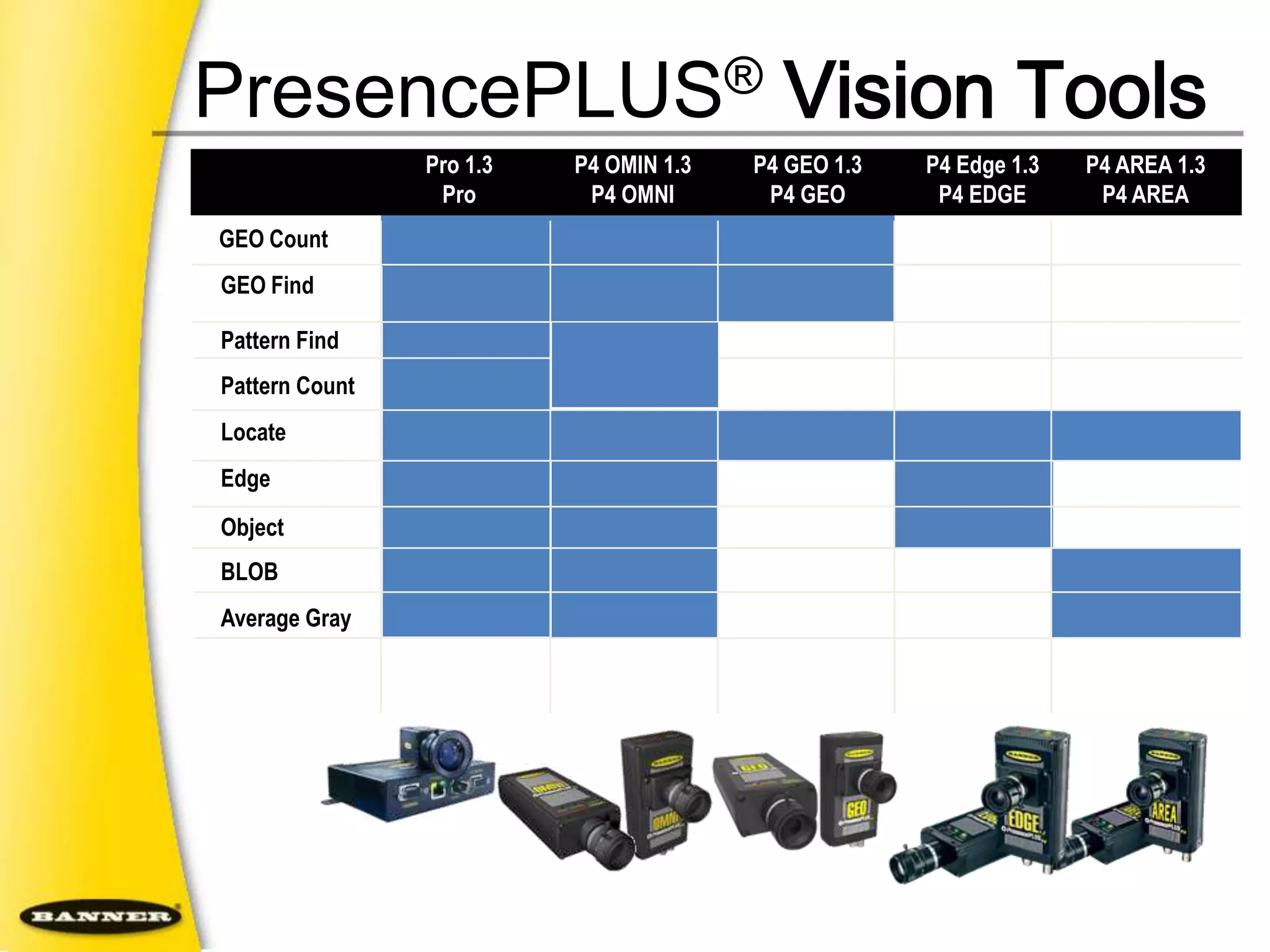

19. P4 AREA 1.3P4 AREAP4 Edge 1.3P4 EDGEP4 GEO 1.3P4 GEOP4 OMIN 1.3P4 OMNIPro 1.3ProPresencePLUS®Vision ToolsGEO CountGEO FindPattern FindPattern CountLocateEdgeObjectBLOBAverage Gray

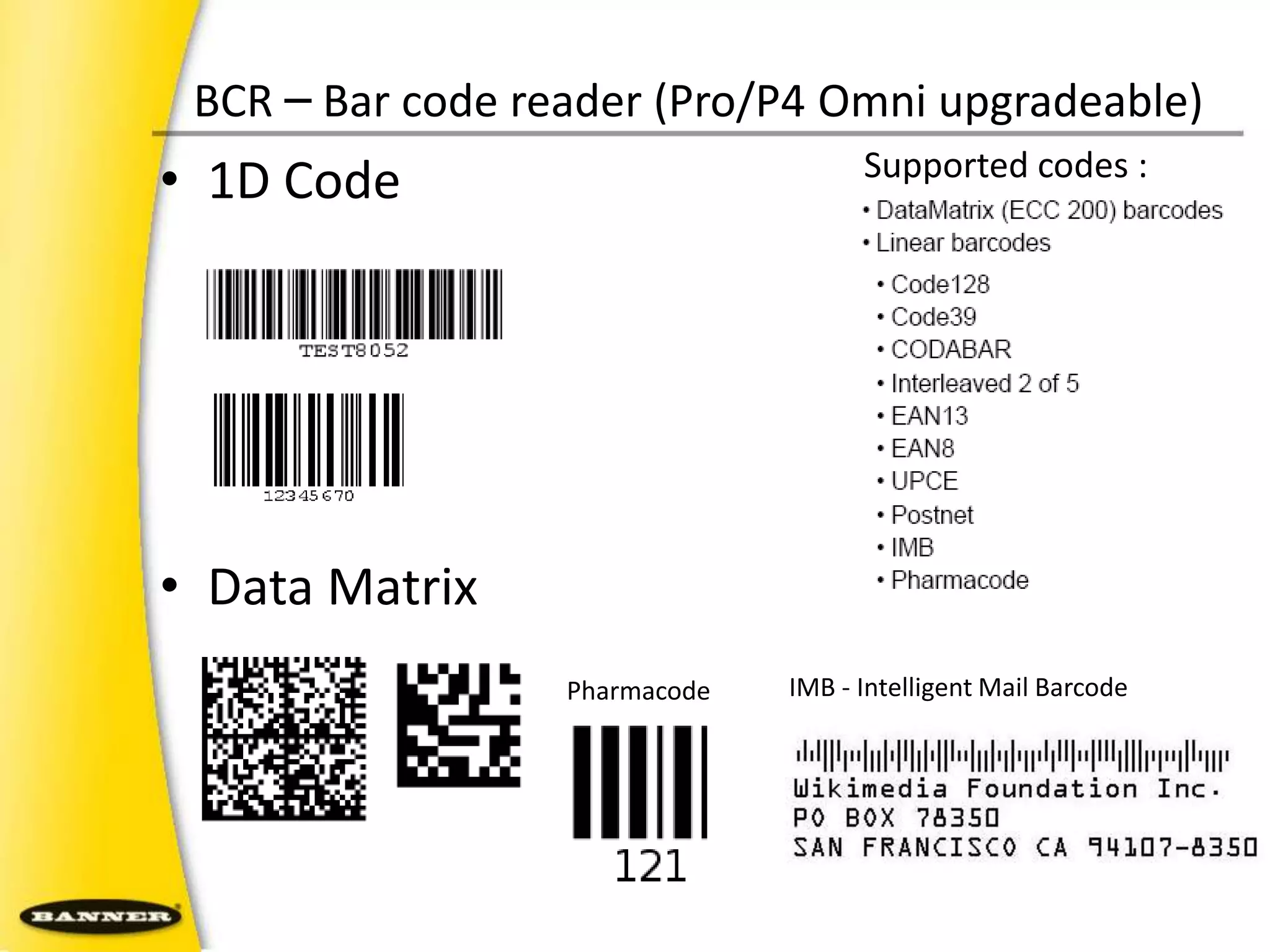

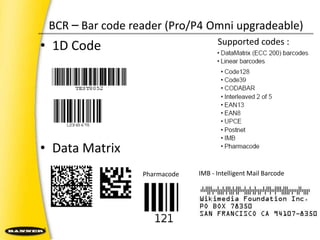

20. BCR – Bar code reader(Pro/P4 Omni upgradeable)Supported codes :1D CodeData MatrixIMB - Intelligent Mail BarcodePharmacode

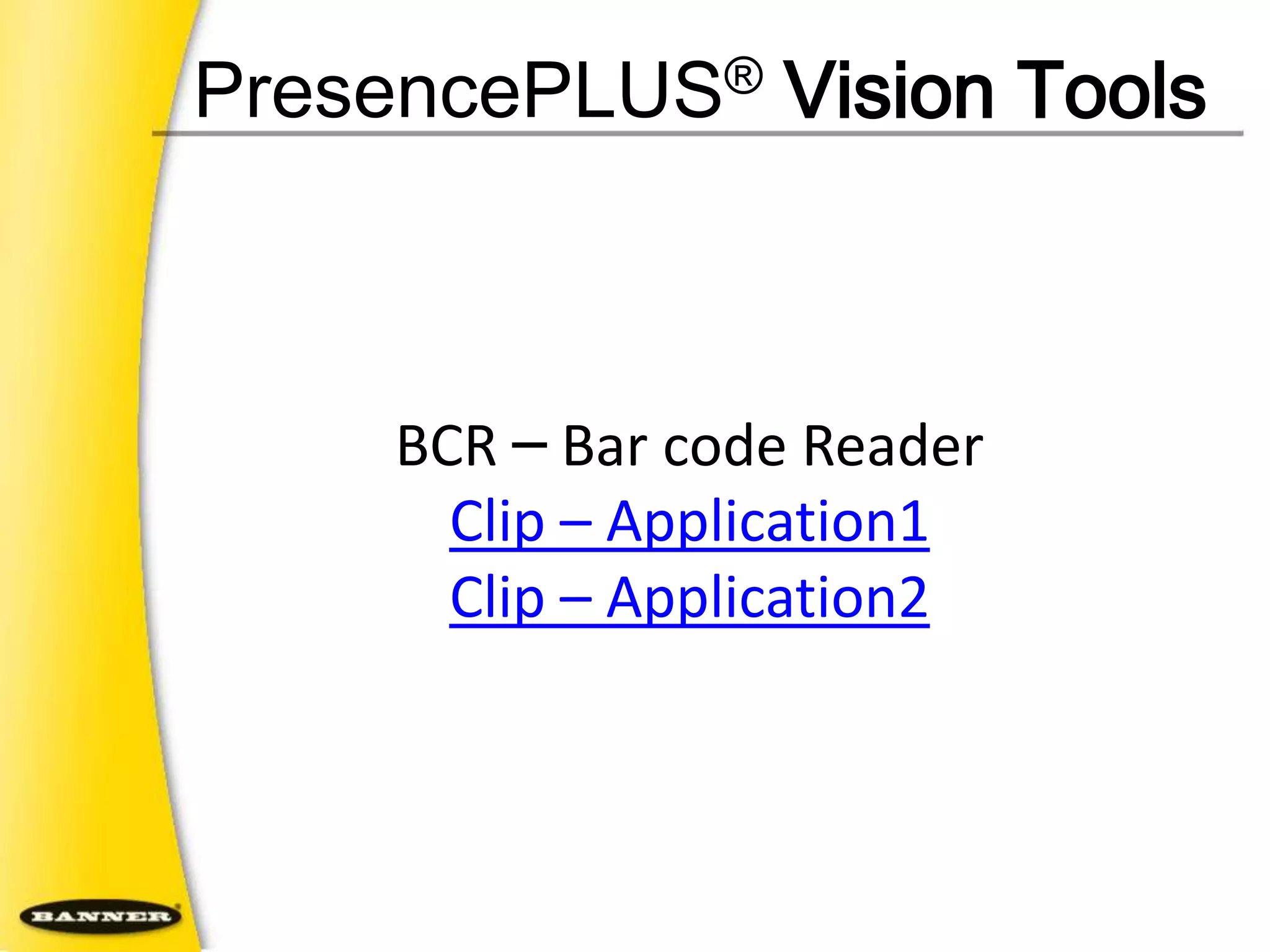

21. PresencePLUS®Vision ToolsBCR – Bar code ReaderClip – Application1Clip – Application2

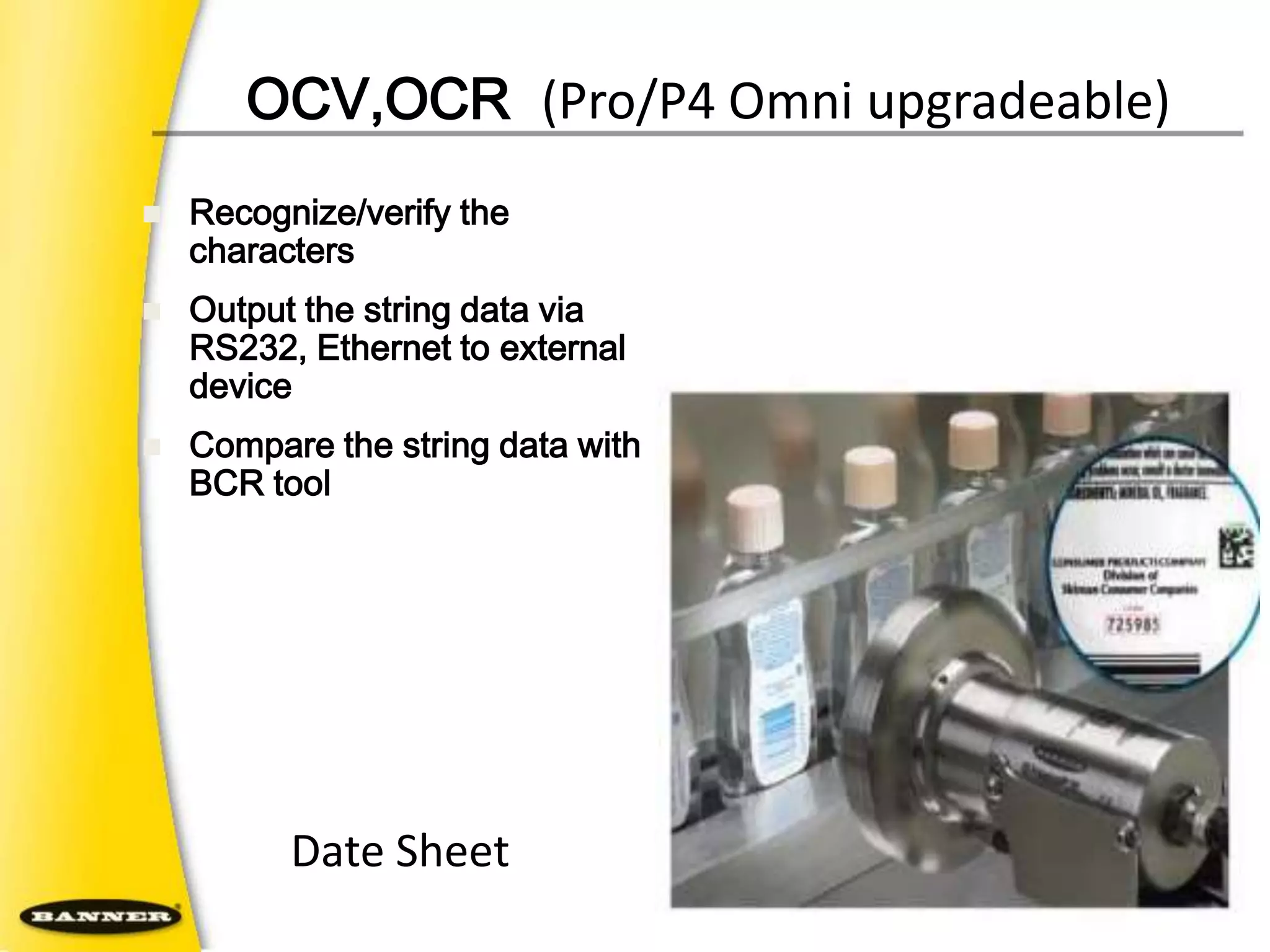

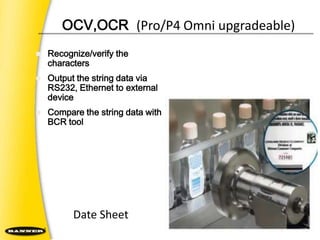

22. OCV,OCR (Pro/P4 Omni upgradeable)Recognize/verify the characters

23. Output the string data via RS232, Ethernet to external device

24. Compare the string data with BCR toolDate Sheet

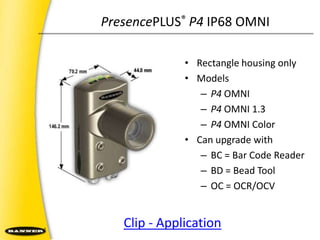

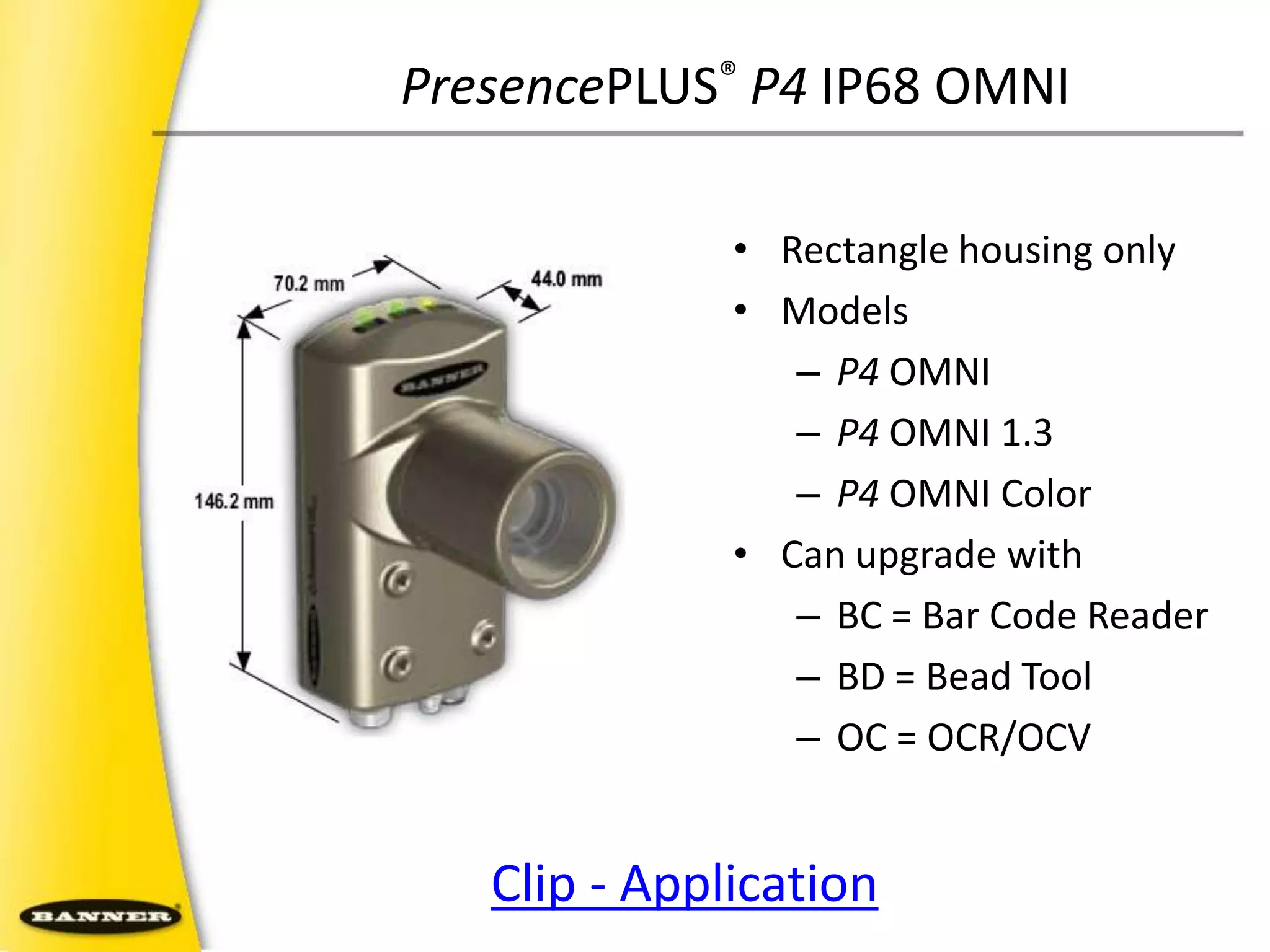

25. PresencePLUS®P4 IP68 OMNIRectangle housing onlyModelsP4 OMNI P4 OMNI 1.3 P4 OMNI Color Can upgrade withBC = Bar Code Reader BD = Bead Tool OC = OCR/OCV Clip - Application

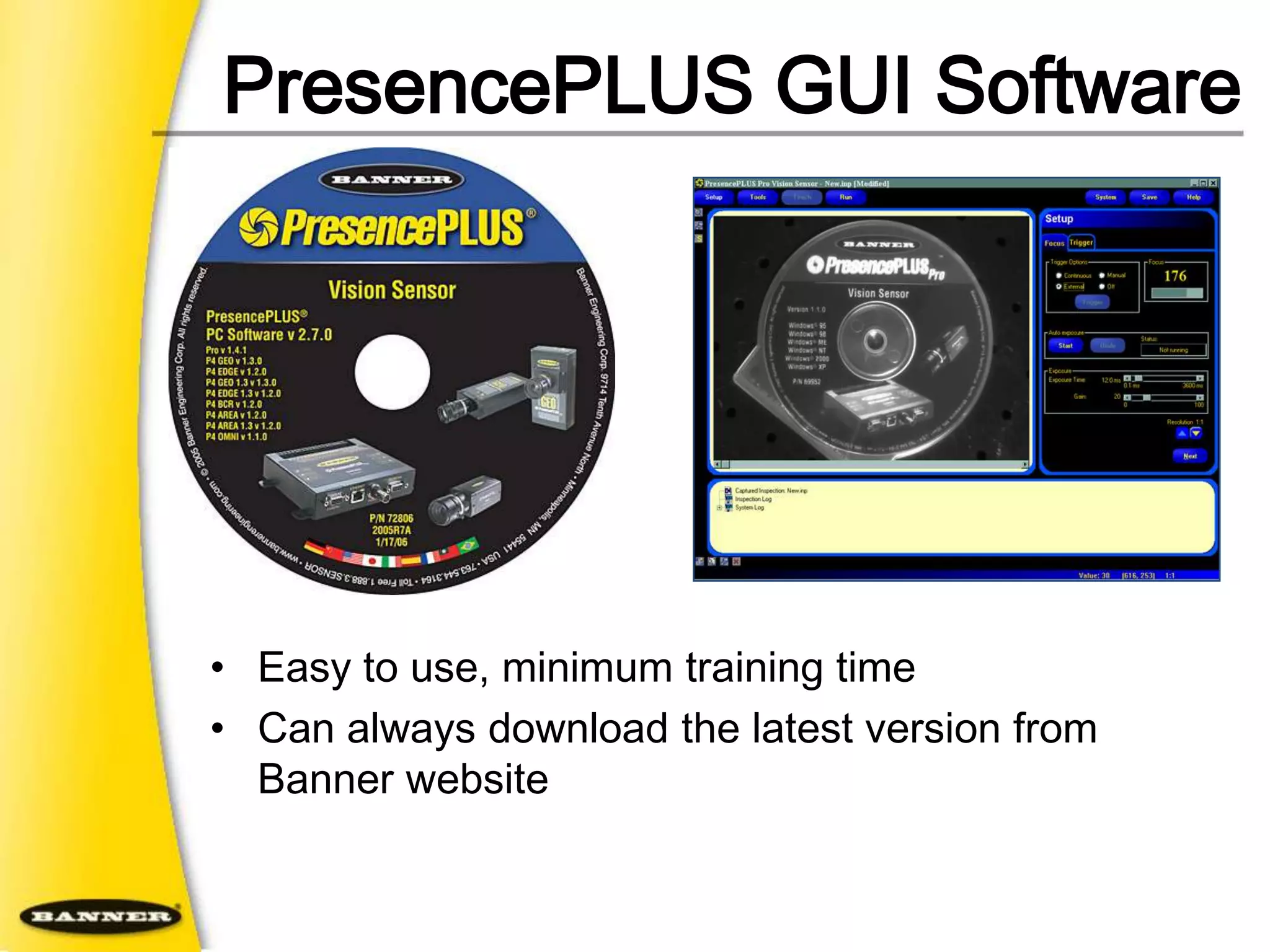

26. Easy to use, minimum training timeCan always download the latest version from Banner website PresencePLUS GUI Software

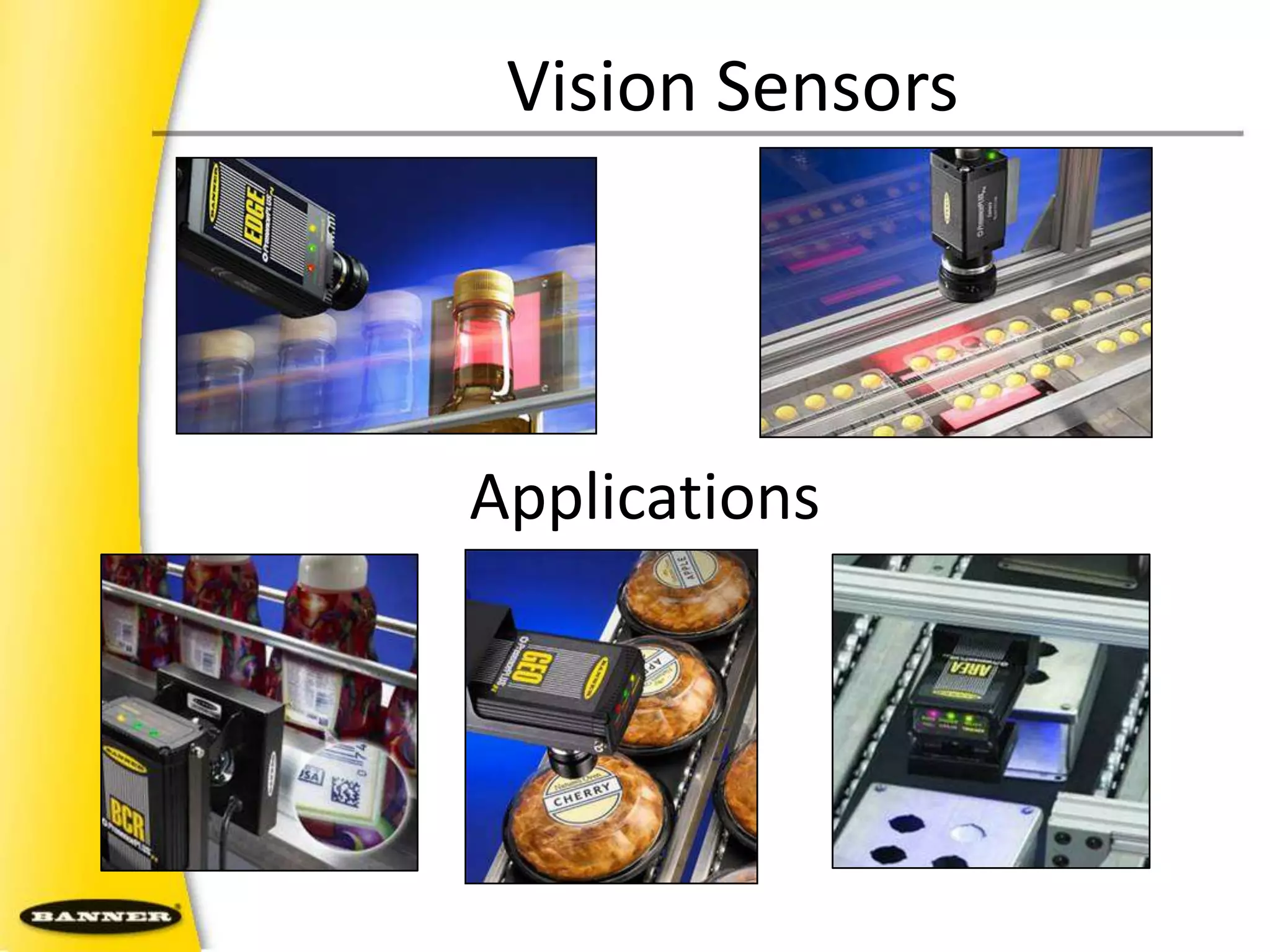

27. Vision SensorsApplications

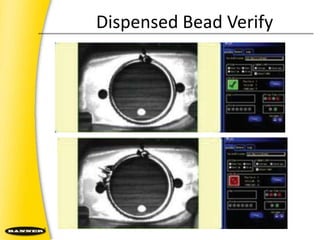

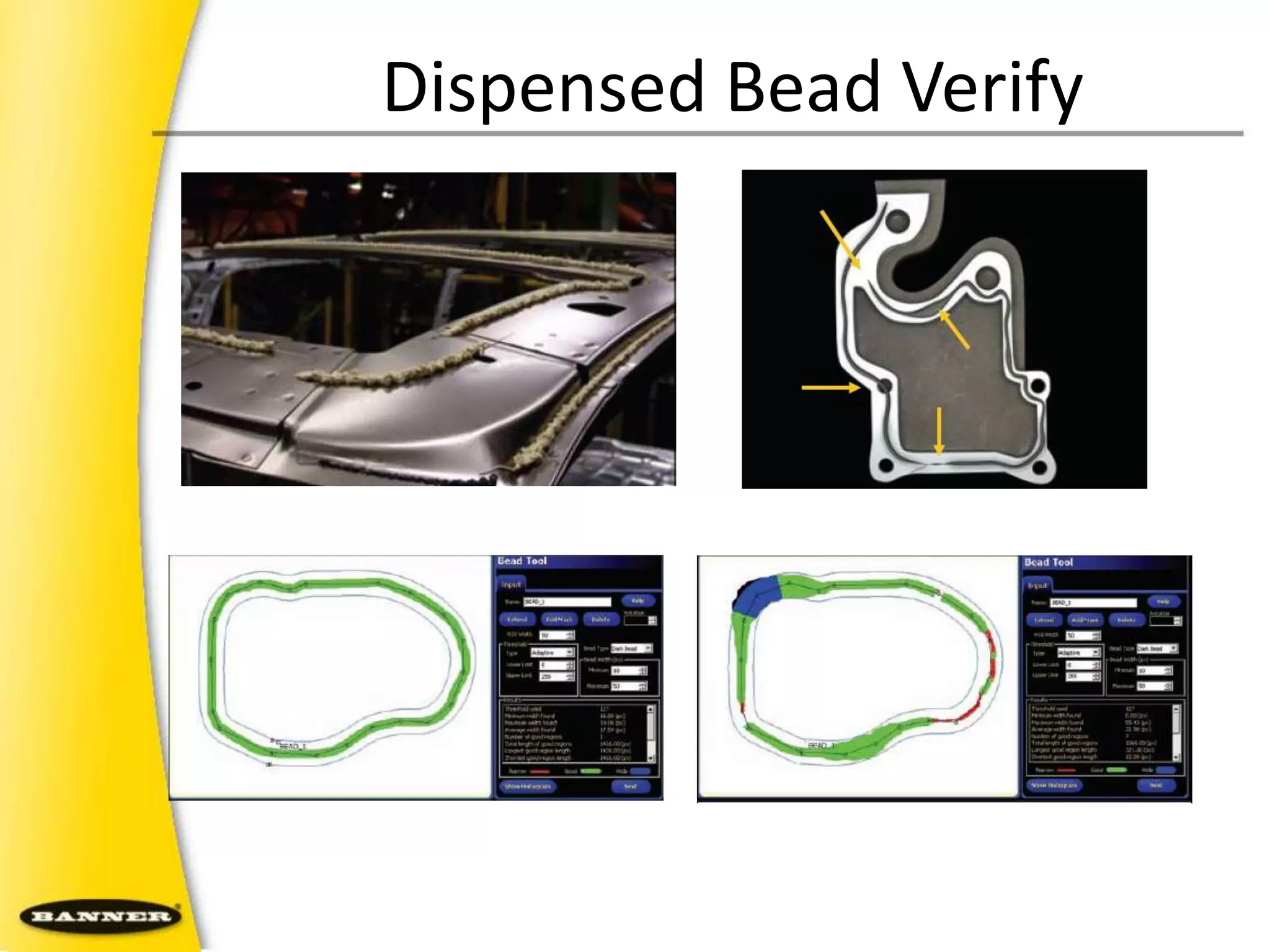

28. Dispensed Bead Verify

29. Dispensed Bead Verify

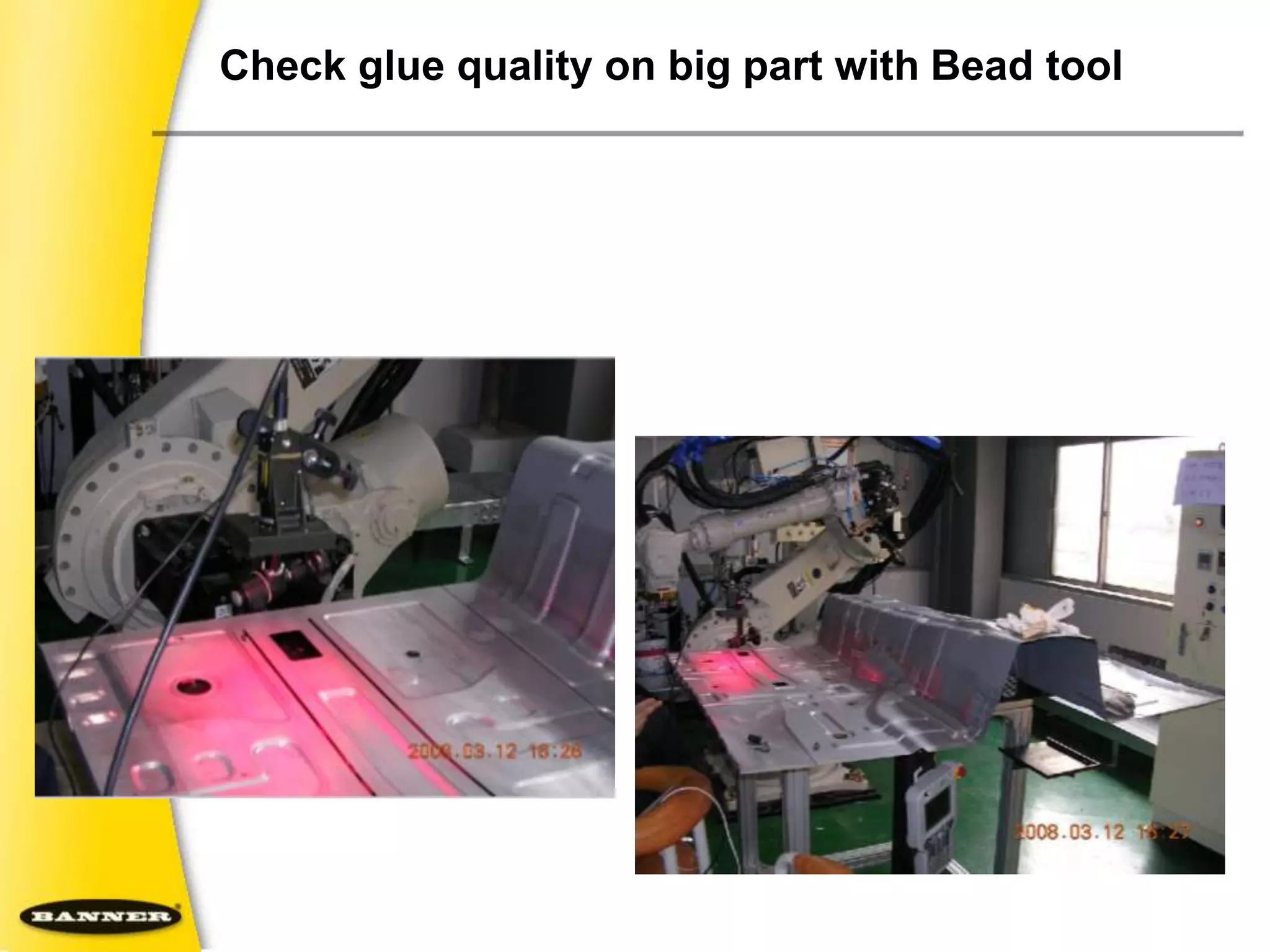

30. Check glue quality on big part with Bead tool

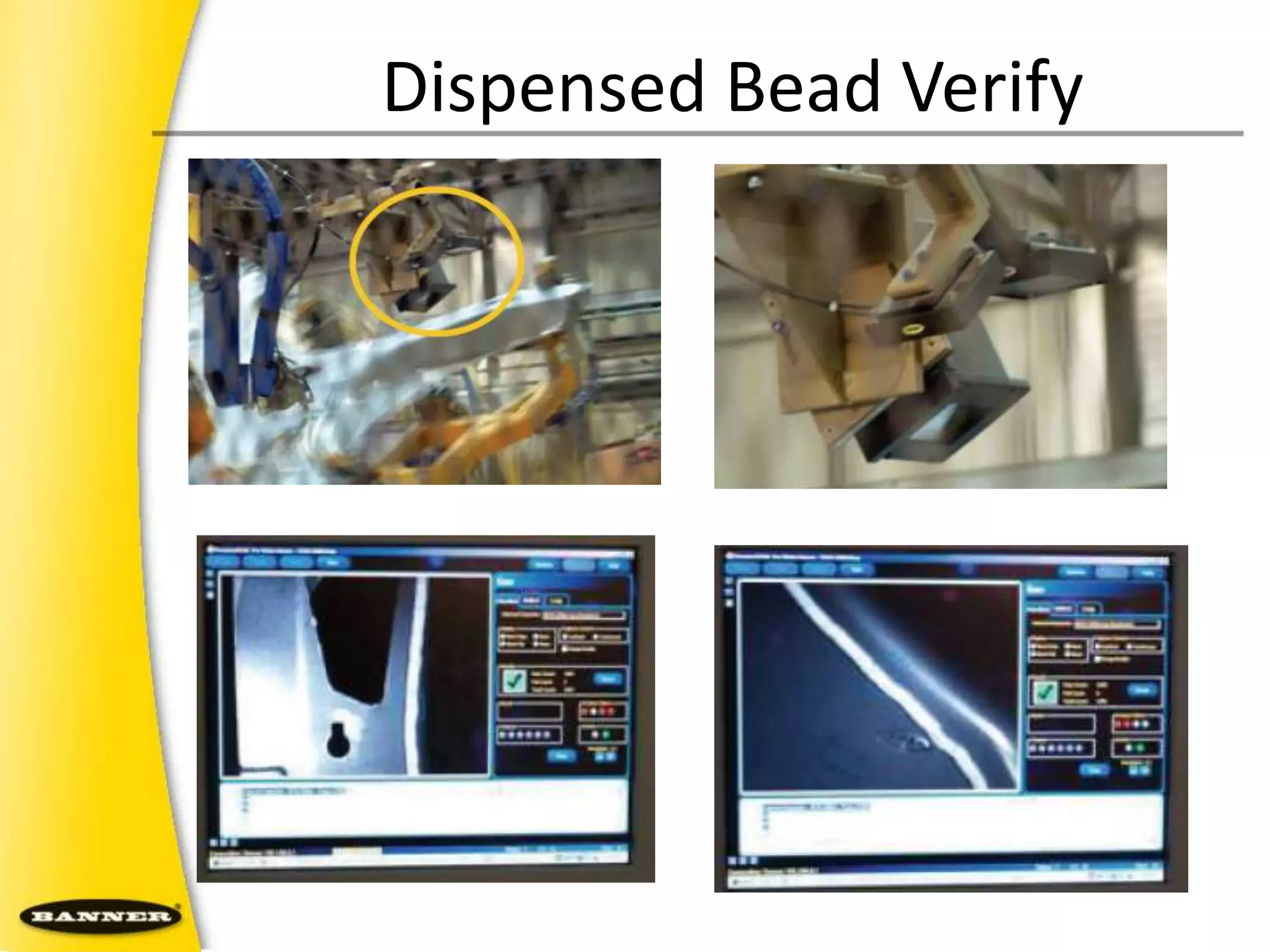

31. Dispensed Bead Verify

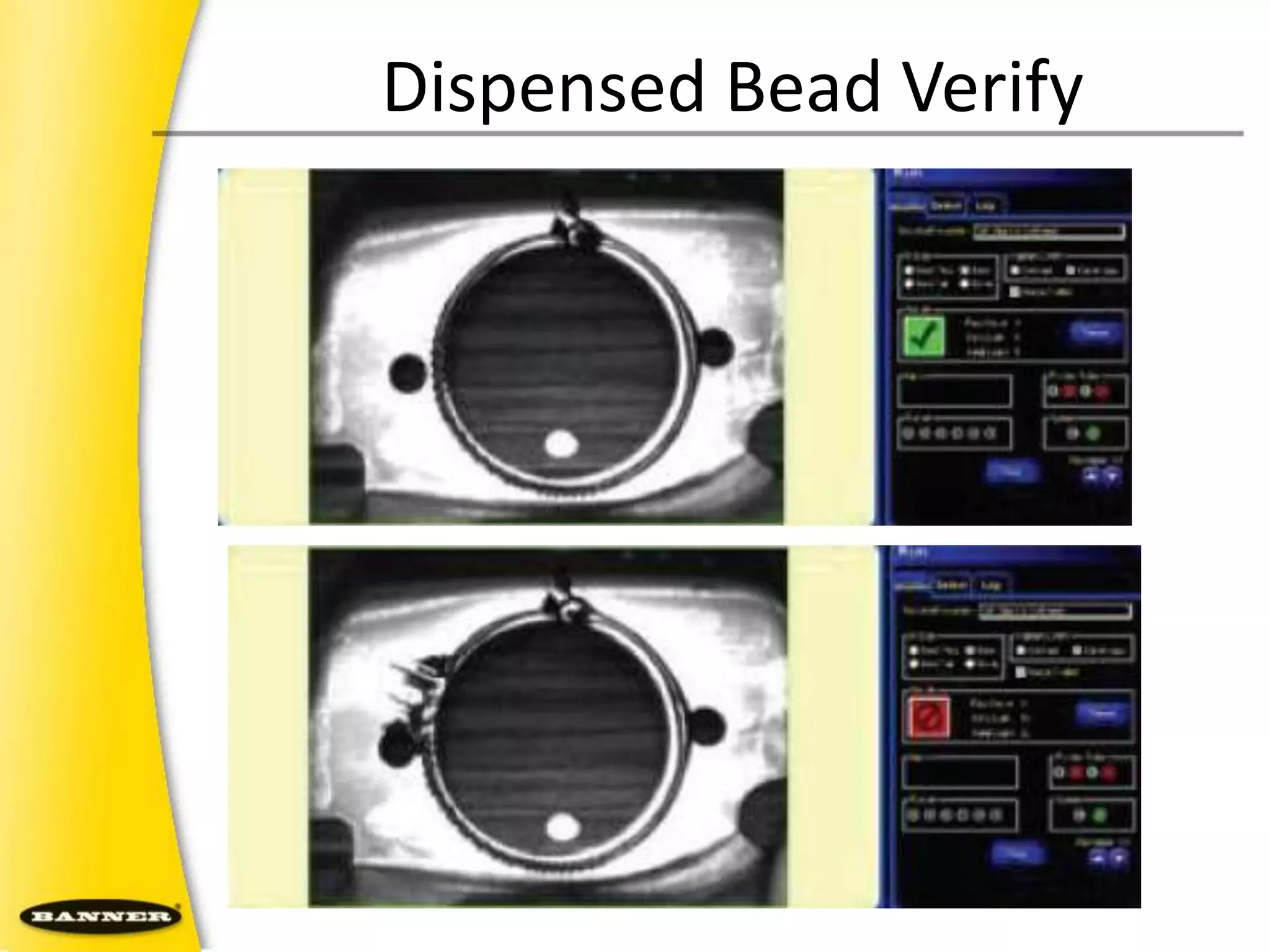

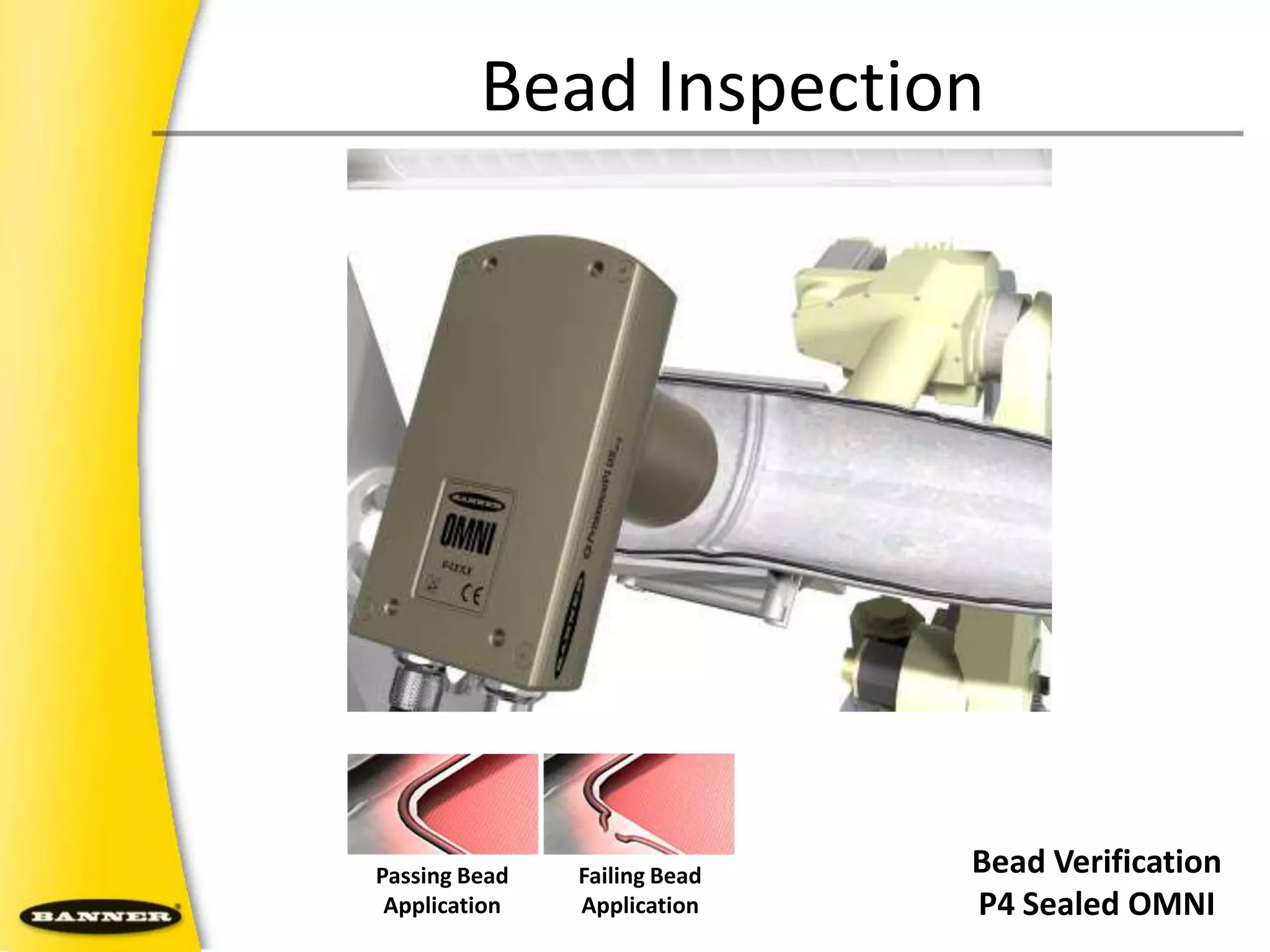

32. Bead InspectionPassing BeadApplicationFailing Bead ApplicationBead Verification P4 Sealed OMNI

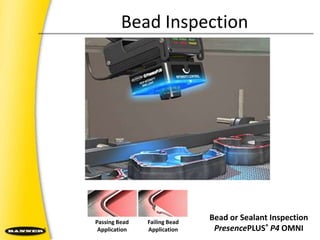

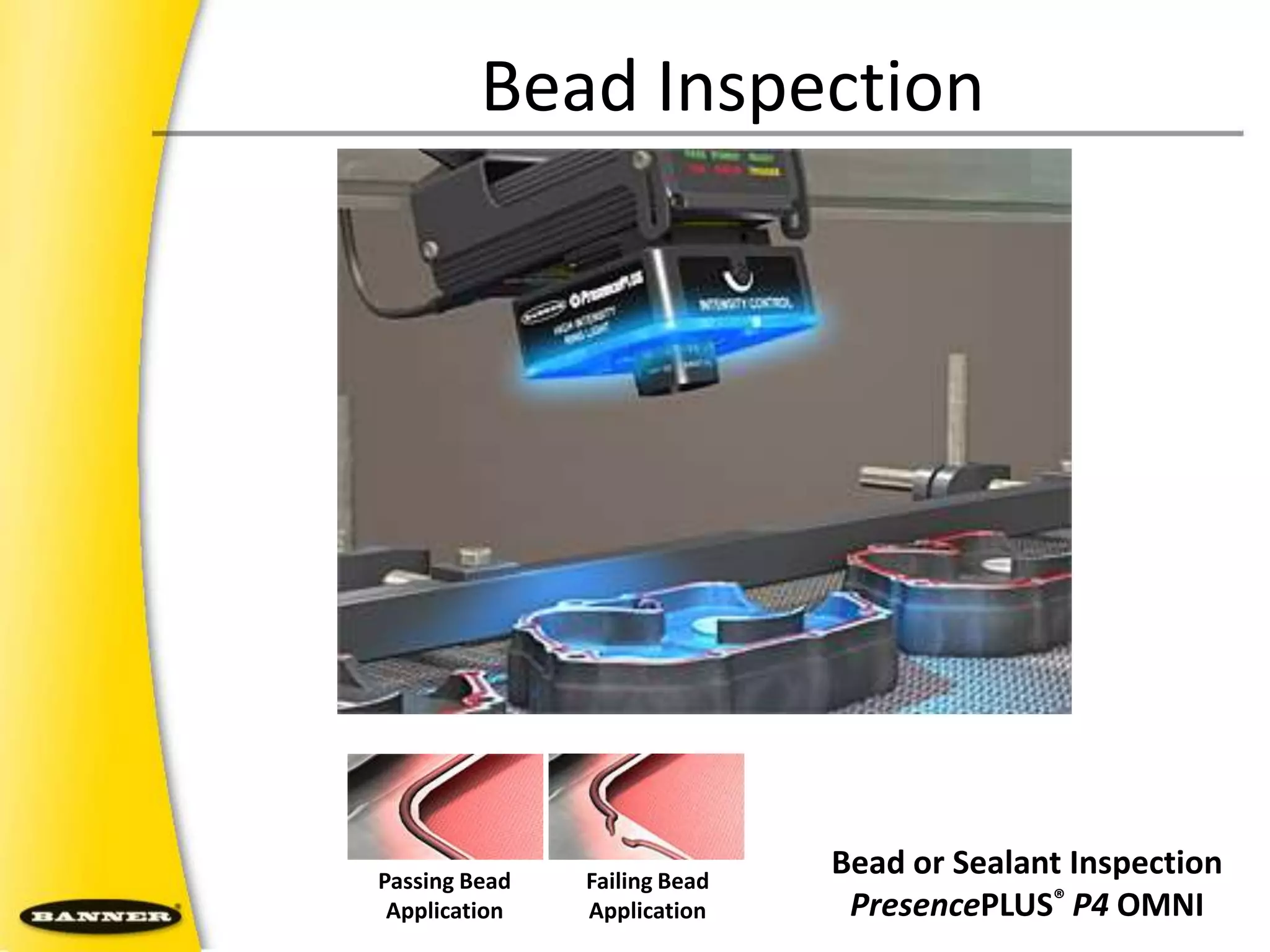

33. Bead InspectionPassing BeadApplicationFailing Bead ApplicationBead or Sealant Inspection PresencePLUS®P4 OMNI

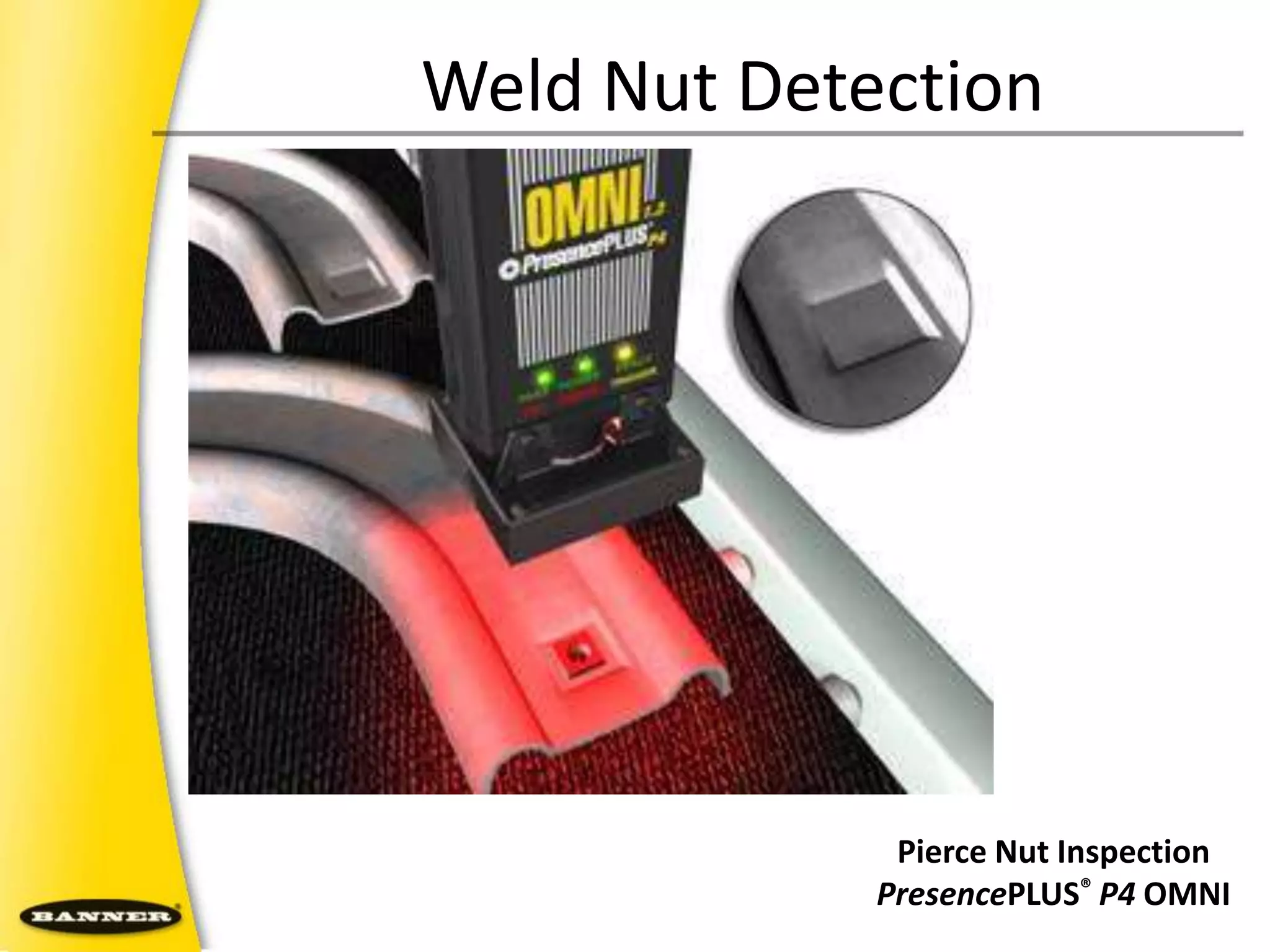

34. Weld Nut DetectionPierce Nut Inspection PresencePLUS®P4 OMNI

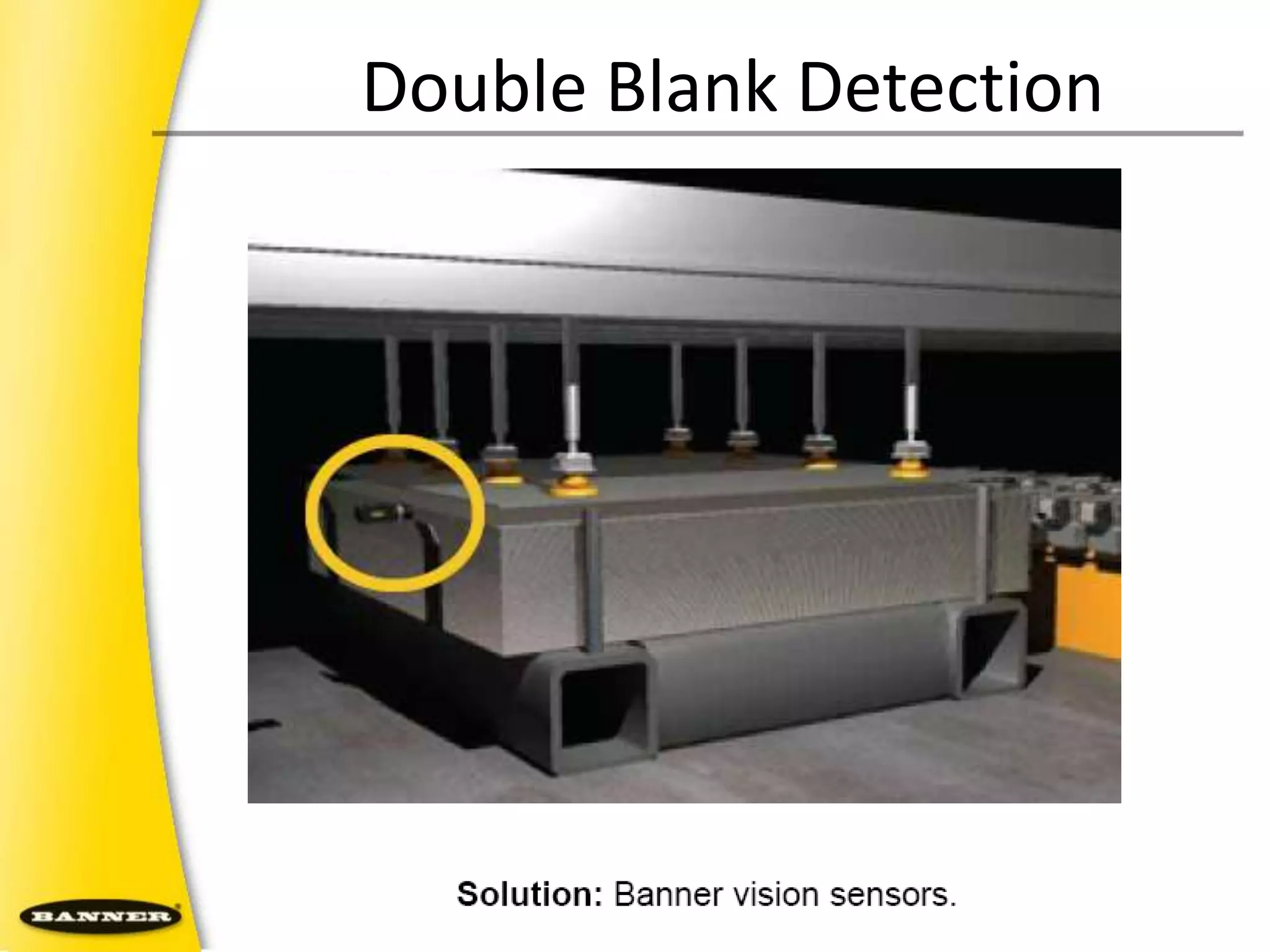

35. Double Blank Detection

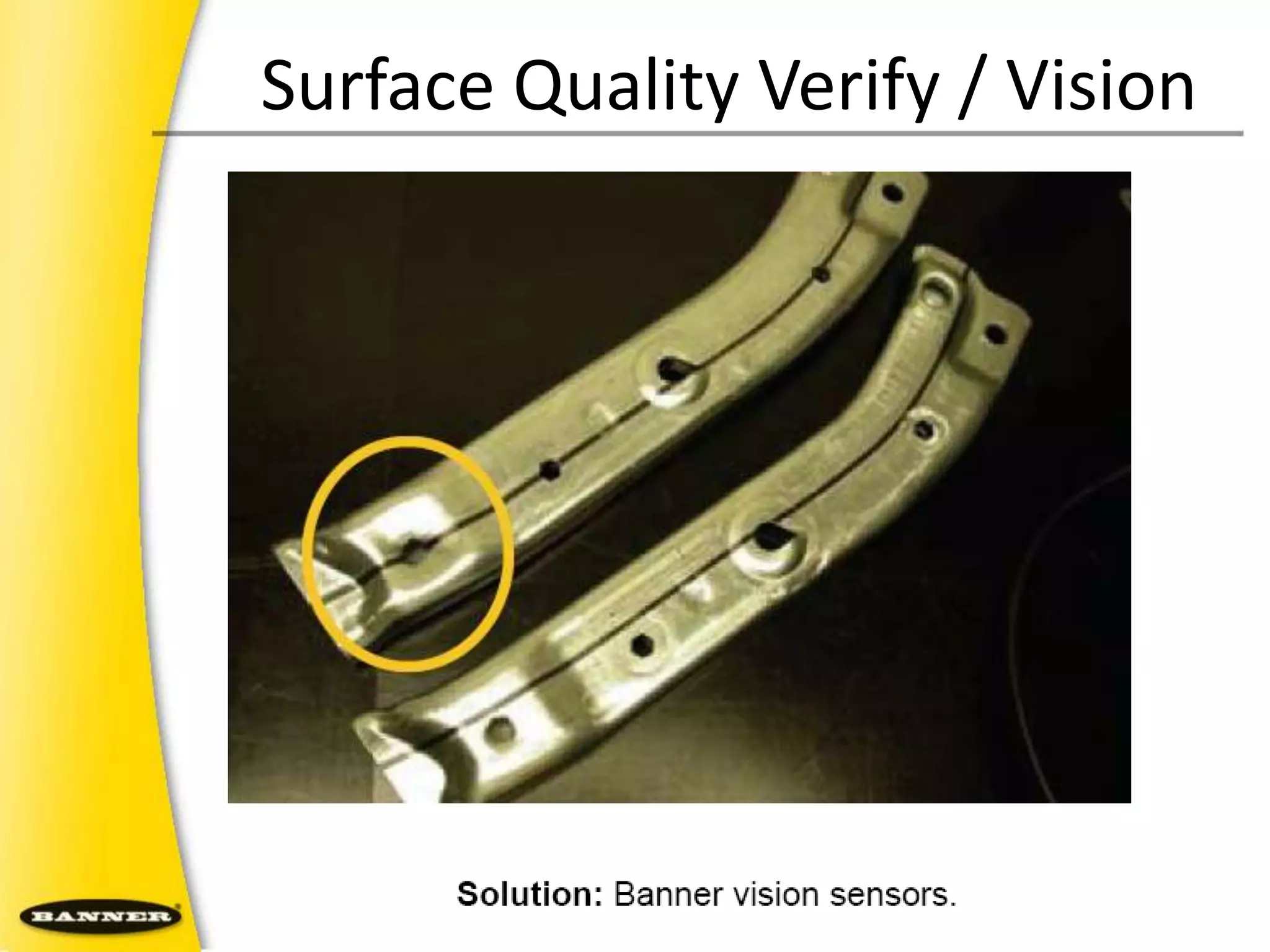

36. Surface Quality Verify / Vision

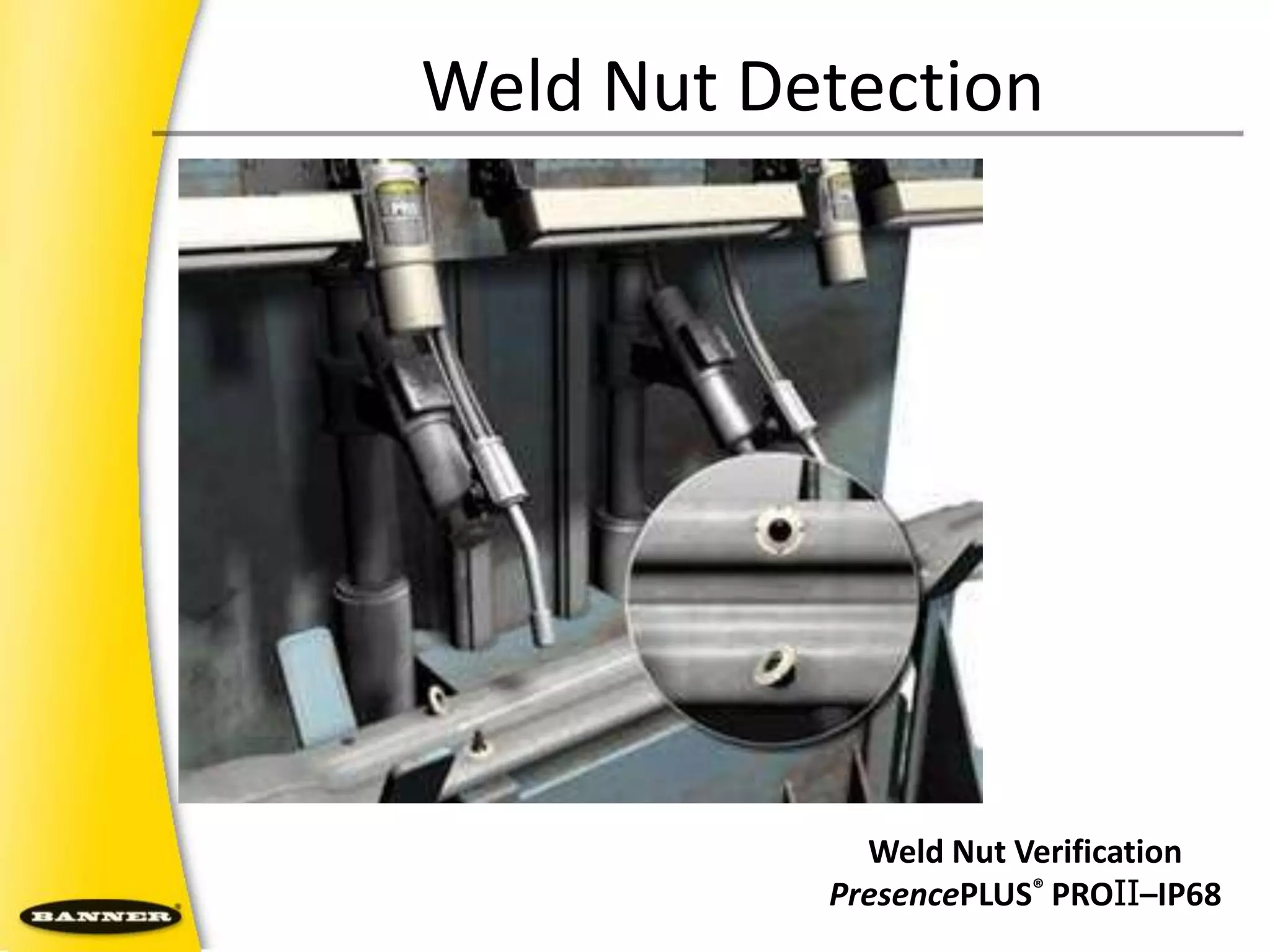

37. Weld Nut DetectionWeld Nut VerificationPresencePLUS® PROII–IP68

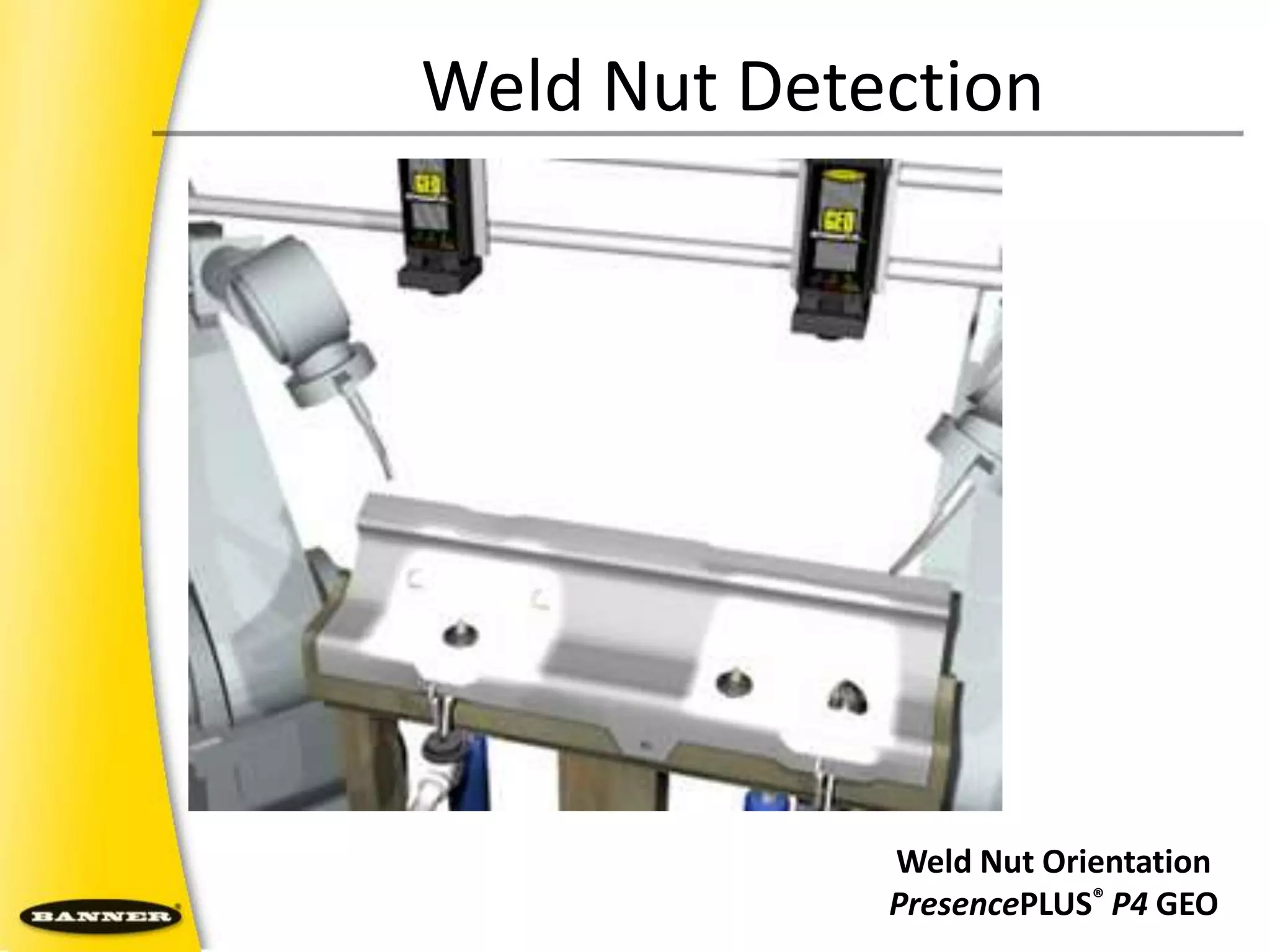

38. Weld Nut DetectionWeld Nut OrientationPresencePLUS®P4 GEO

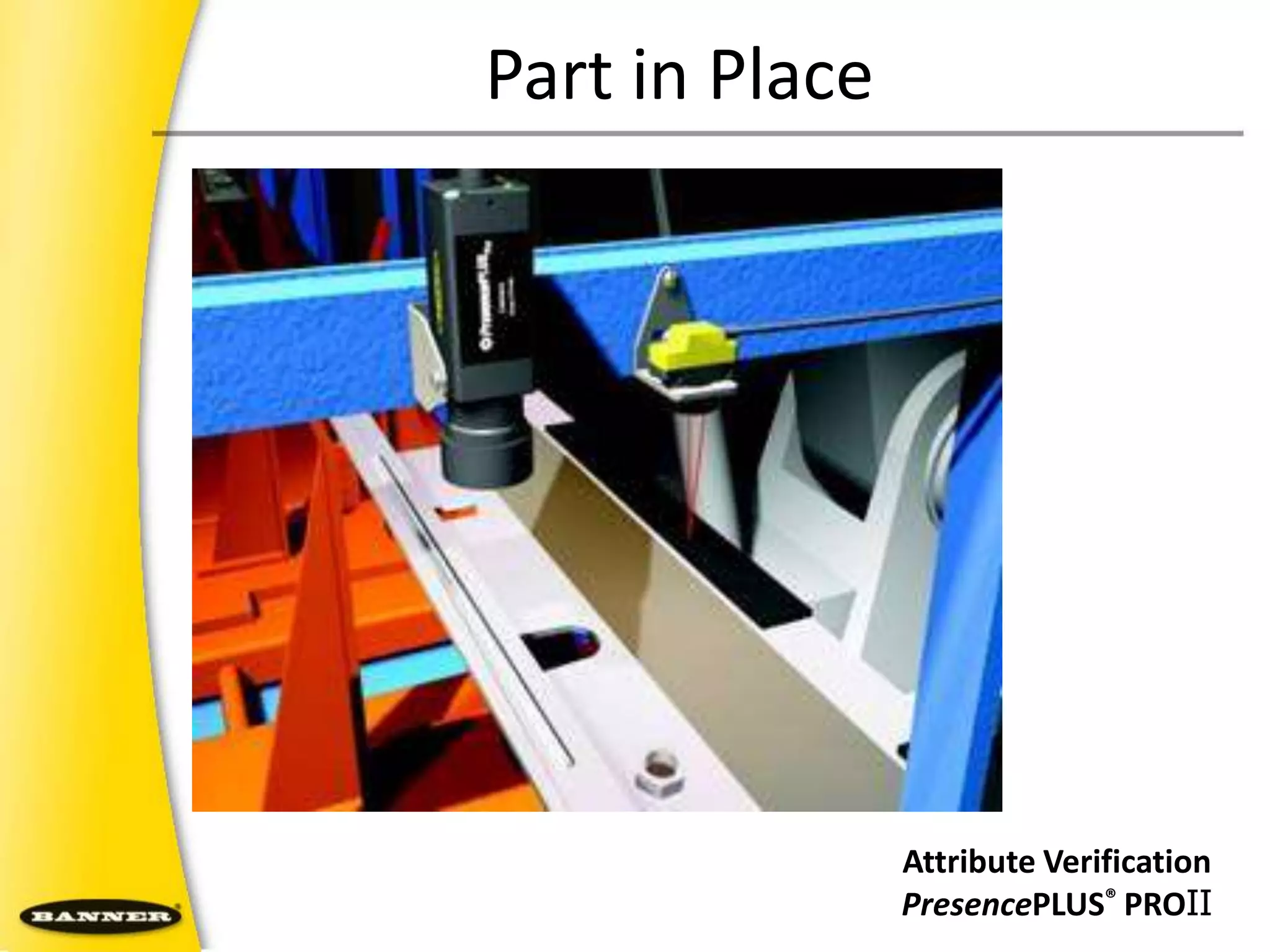

39. Part in PlaceAttribute VerificationPresencePLUS® PROII

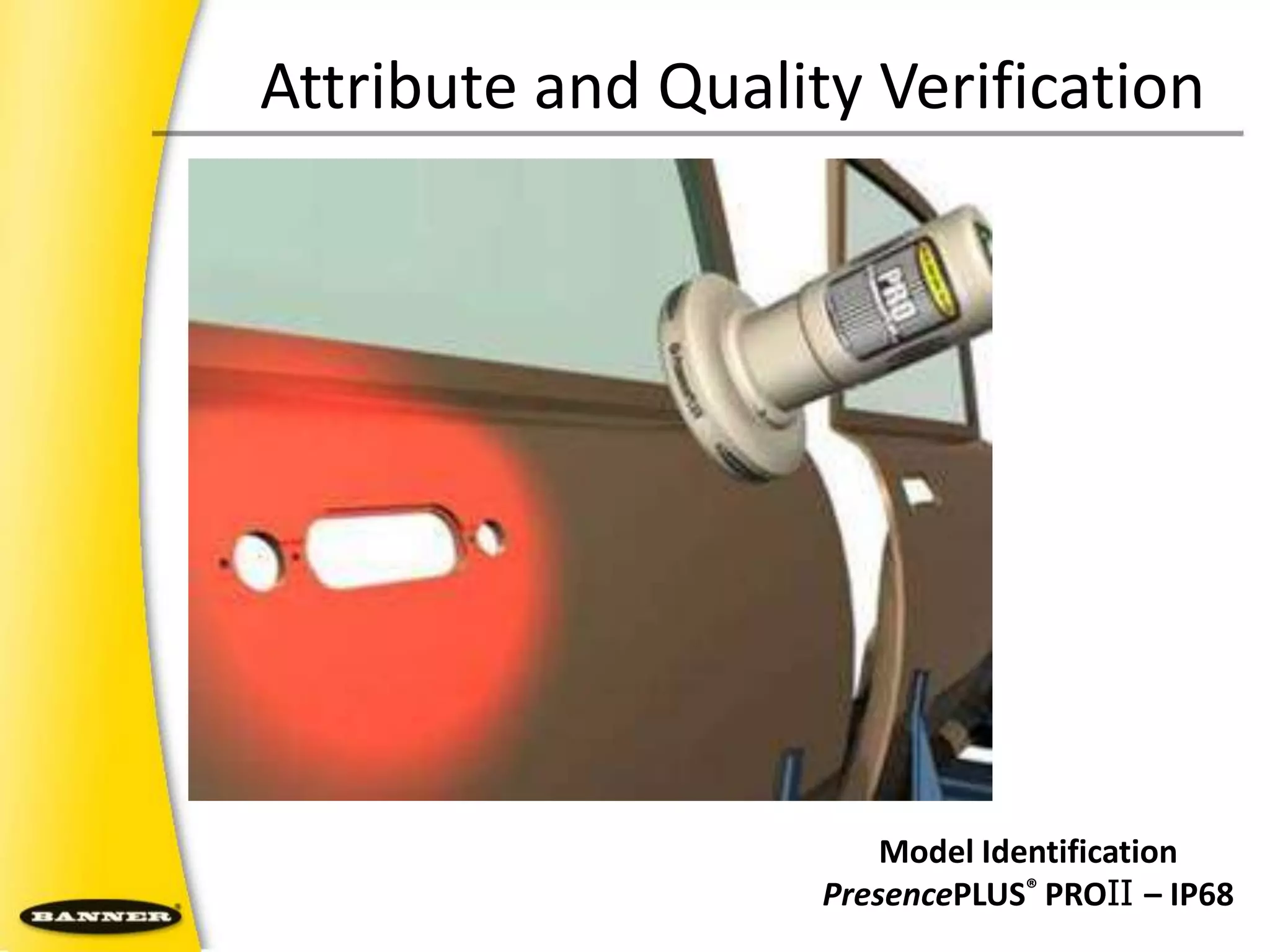

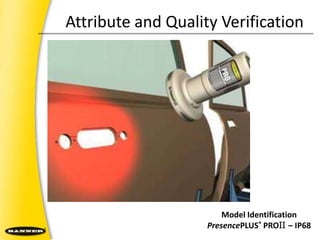

40. Attribute and Quality VerificationModel IdentificationPresencePLUS® PROII – IP68

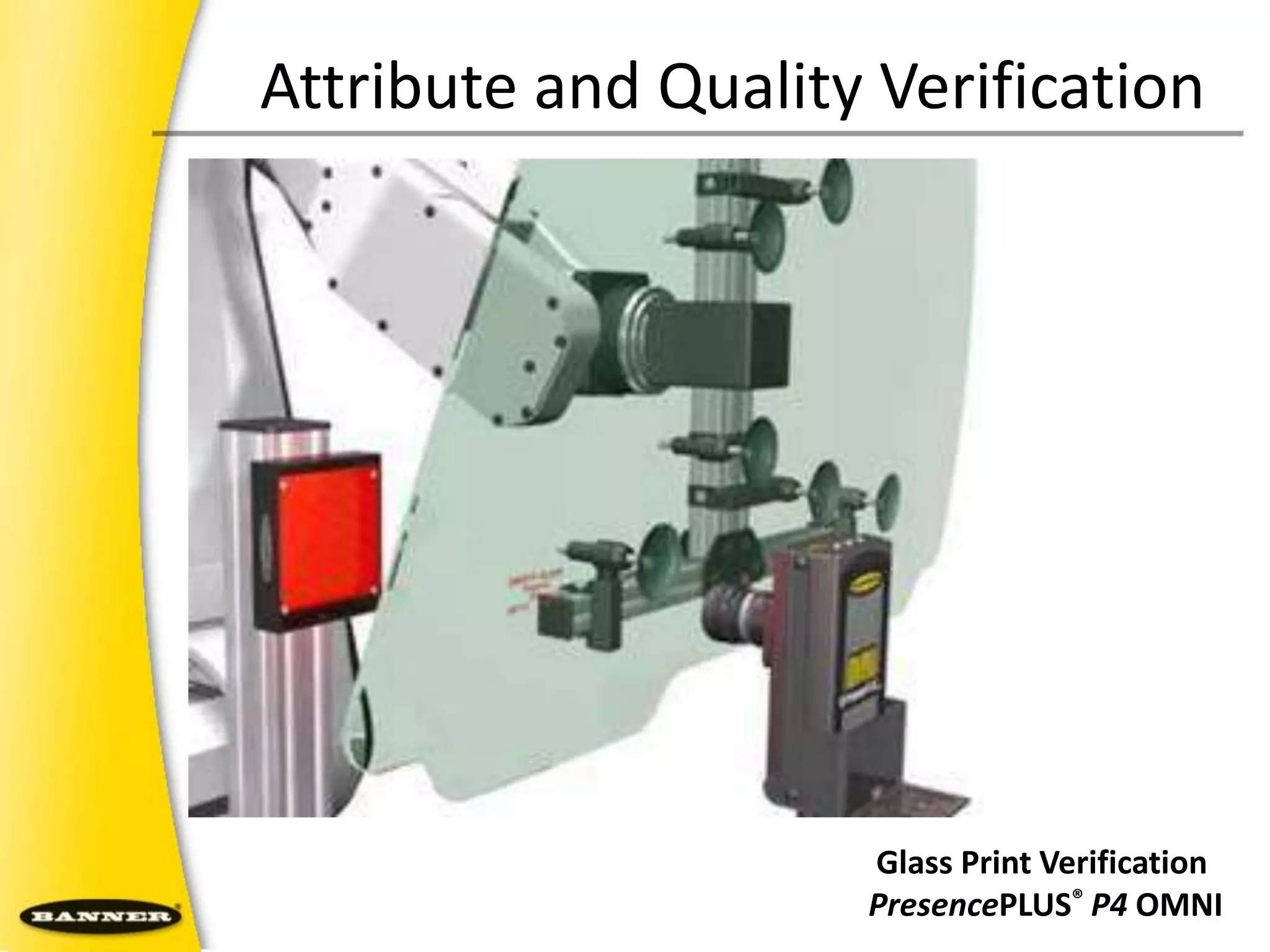

41. Attribute and Quality VerificationGlass Print VerificationPresencePLUS®P4 OMNI

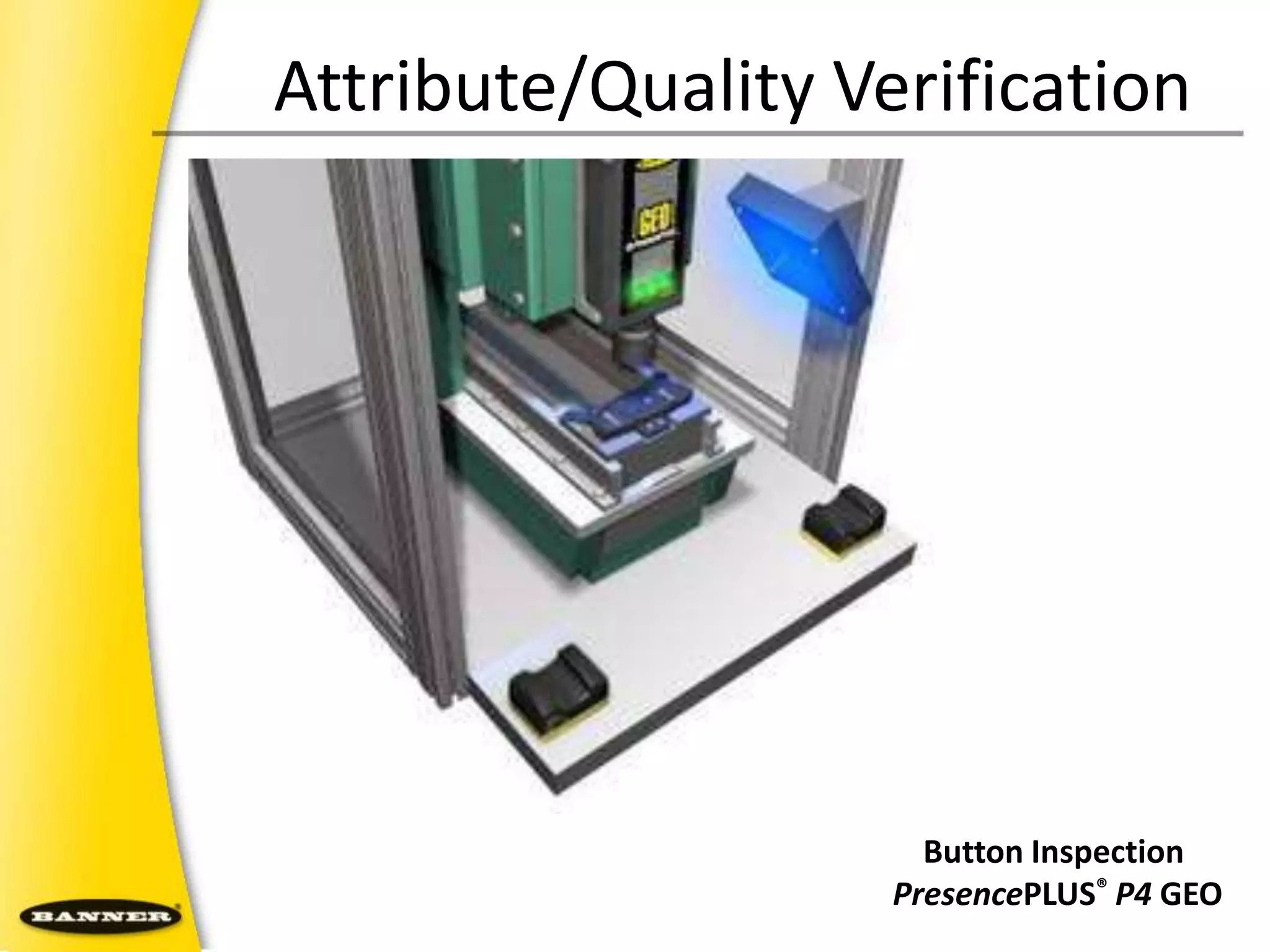

42. Attribute/Quality VerificationButton InspectionPresencePLUS®P4 GEO

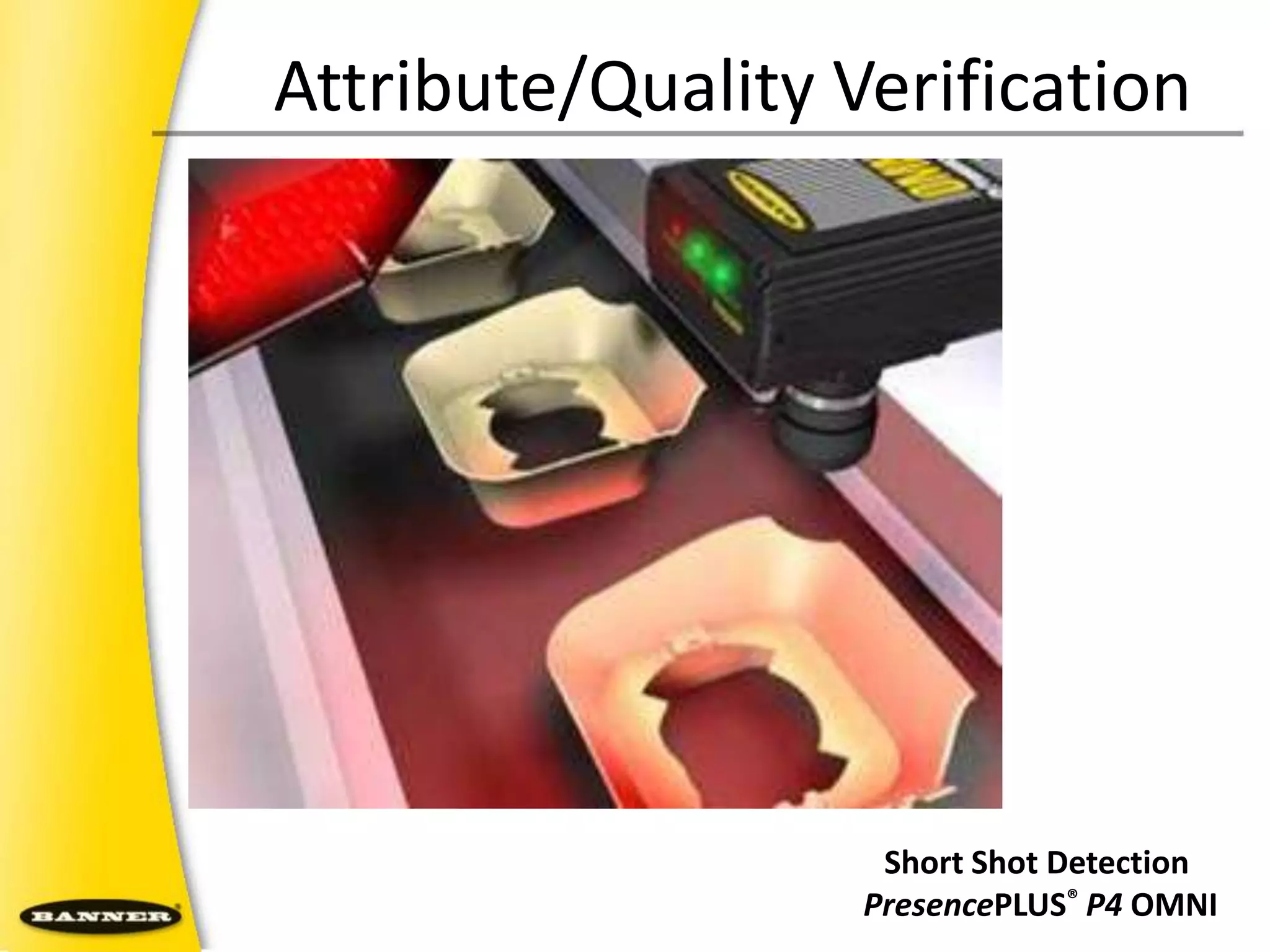

43. Attribute/Quality VerificationShort Shot DetectionPresencePLUS®P4 OMNI

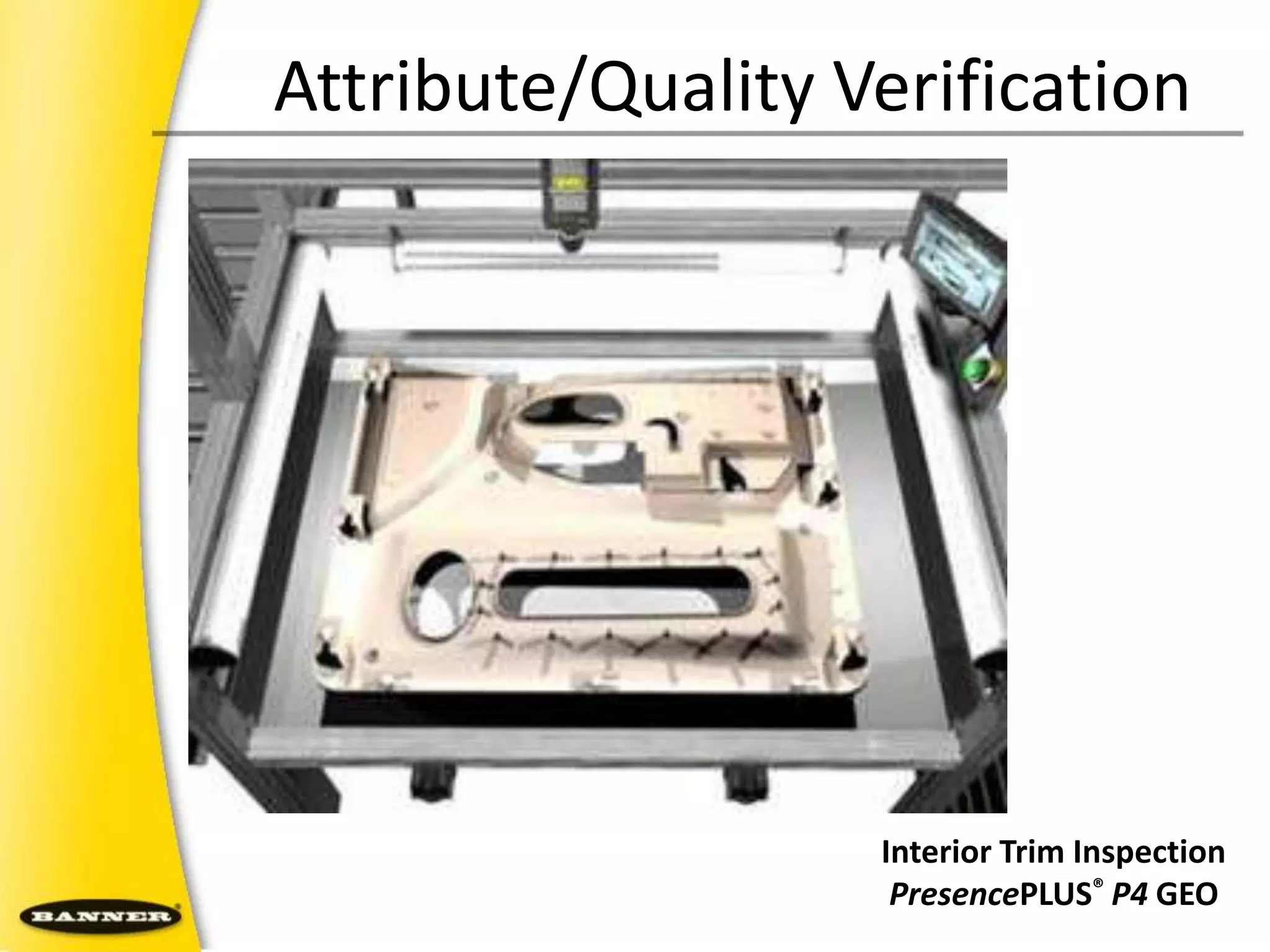

44. Attribute/Quality VerificationInterior Trim InspectionPresencePLUS®P4 GEO

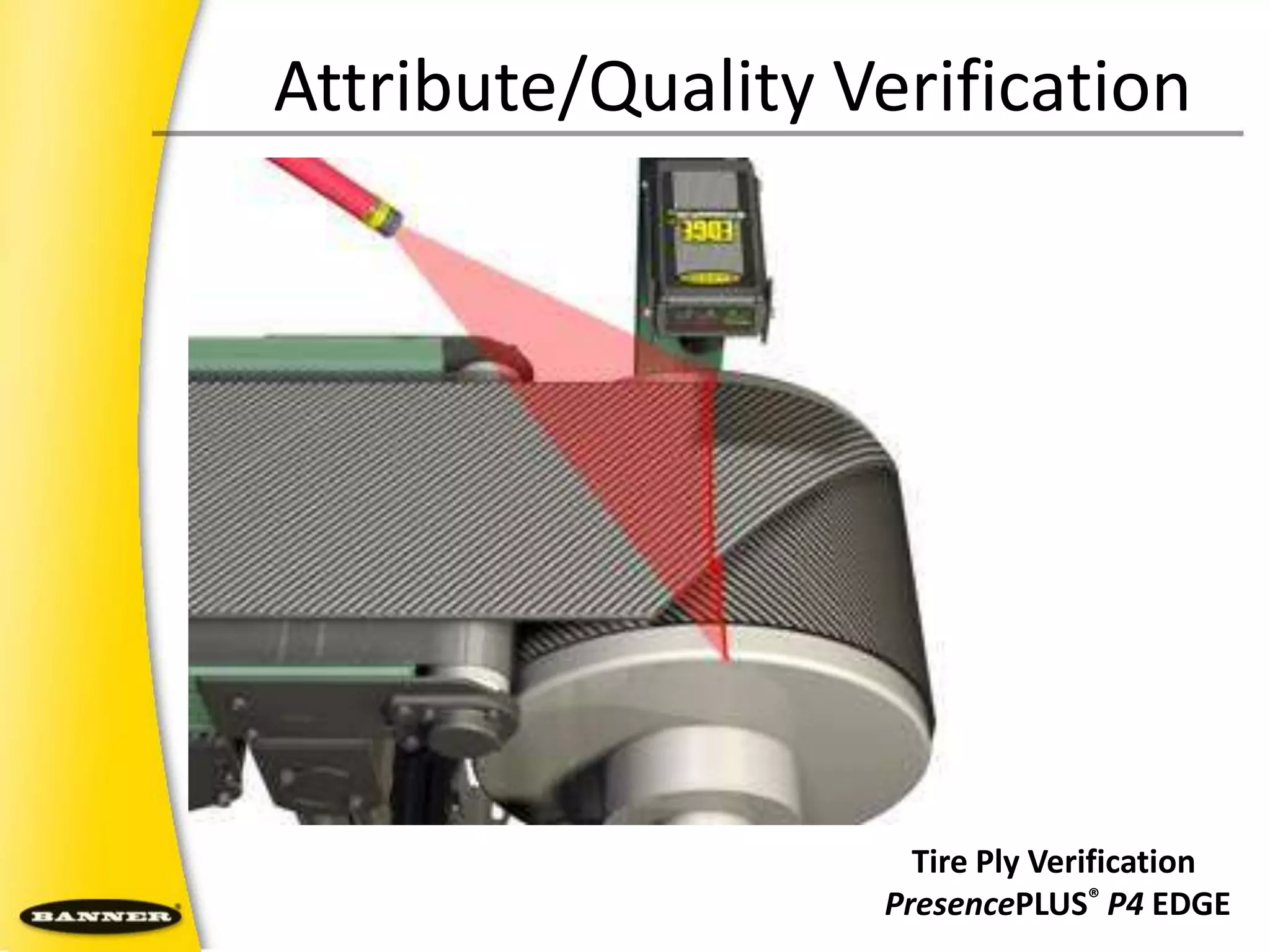

45. Attribute/Quality VerificationTire Ply Verification PresencePLUS®P4EDGE

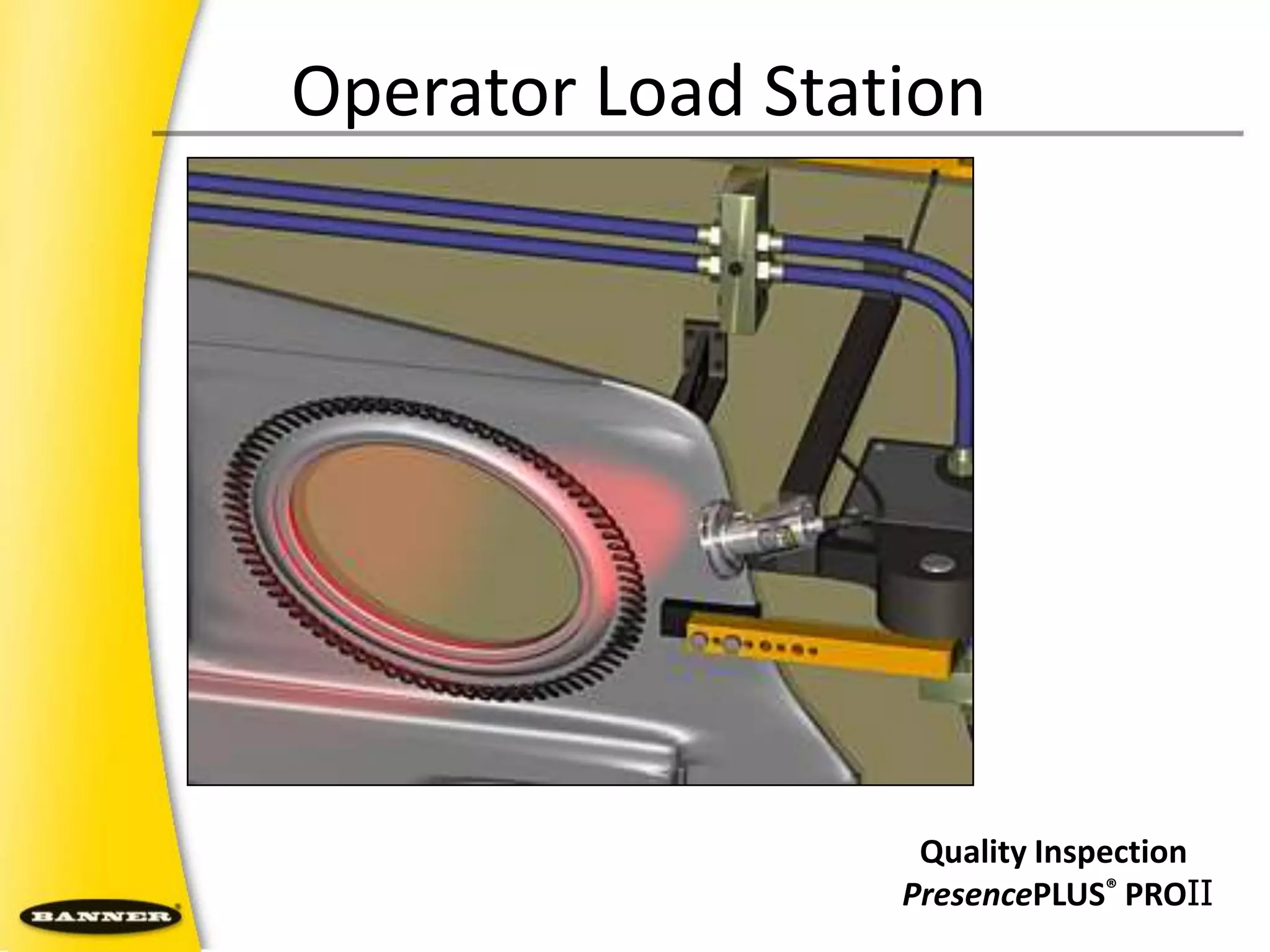

46. Operator Load StationQuality InspectionPresencePLUS® PROII

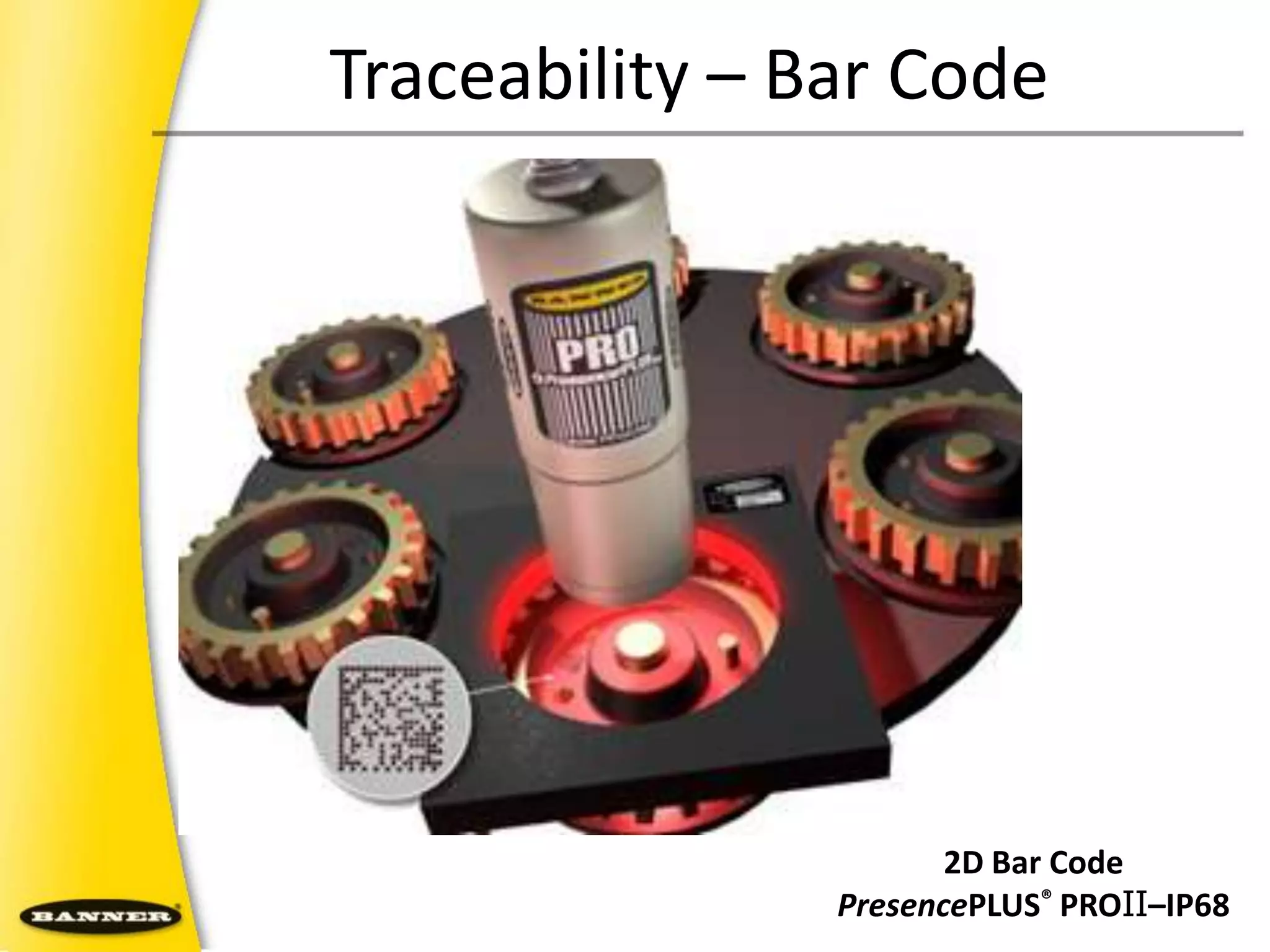

47. Traceability – Bar Code2D Bar CodePresencePLUS® PROII–IP68

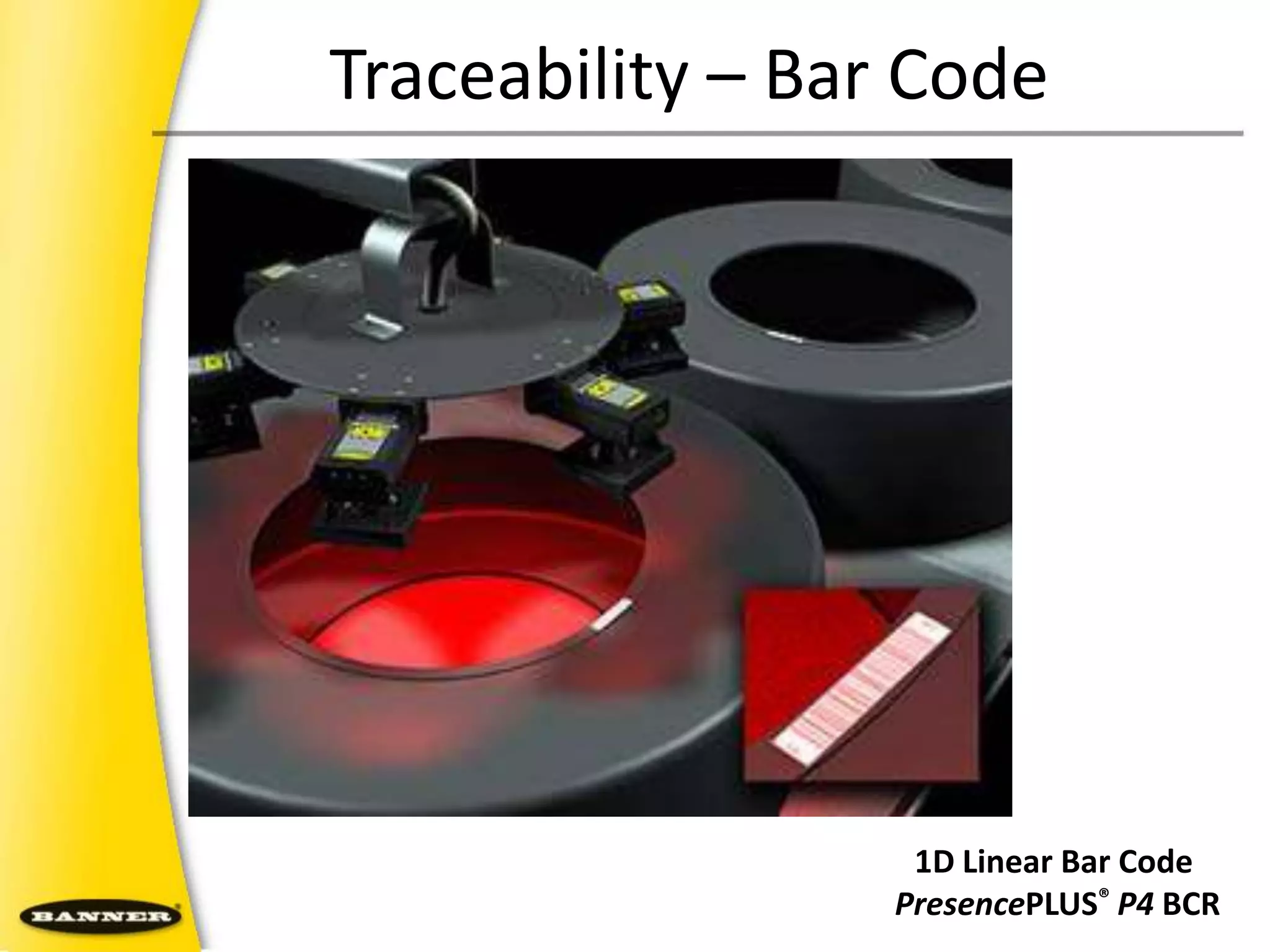

48. Traceability – Bar Code1D Linear Bar CodePresencePLUS®P4BCR

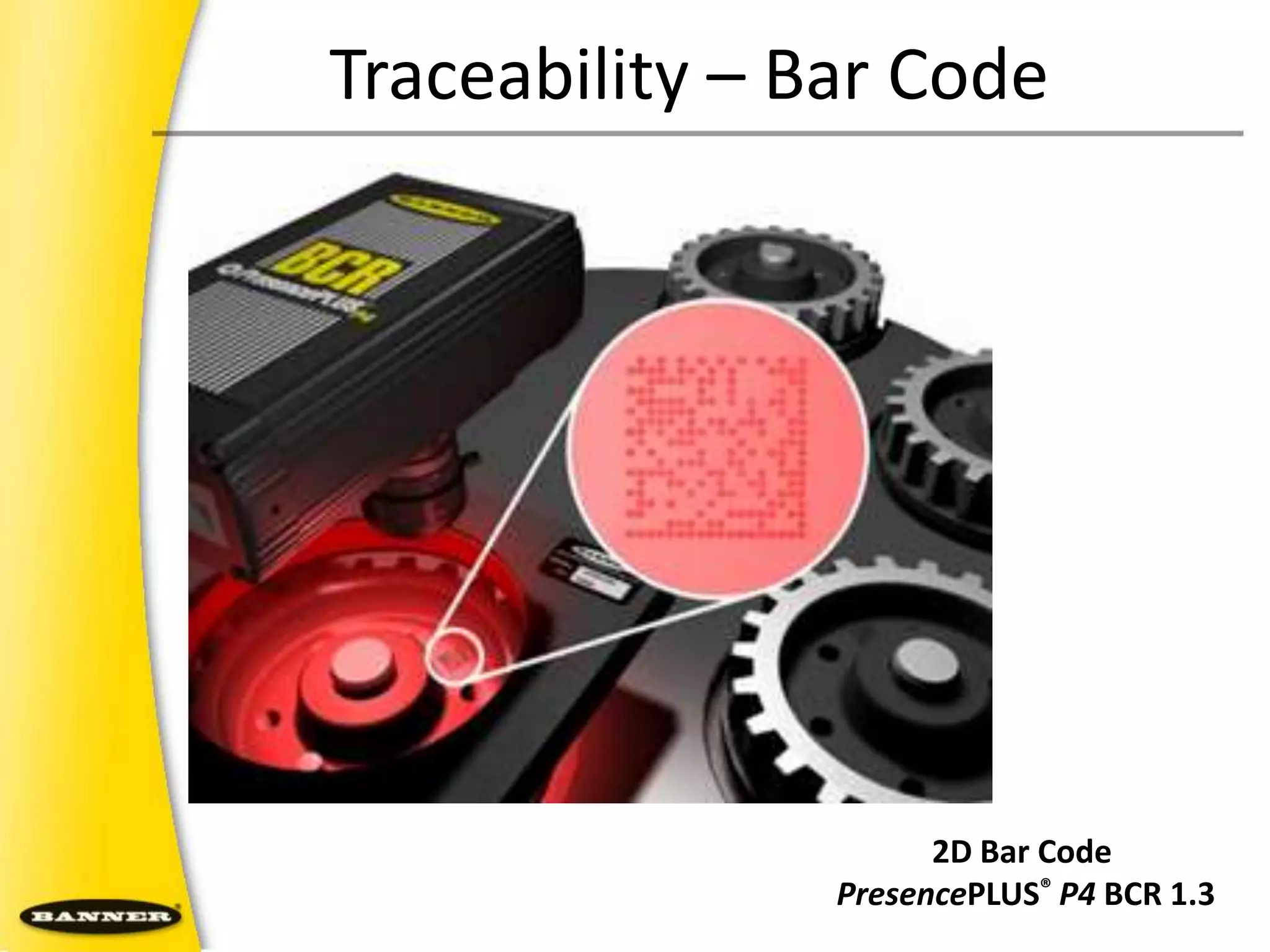

49. Traceability – Bar Code2D Bar CodePresencePLUS®P4BCR 1.3

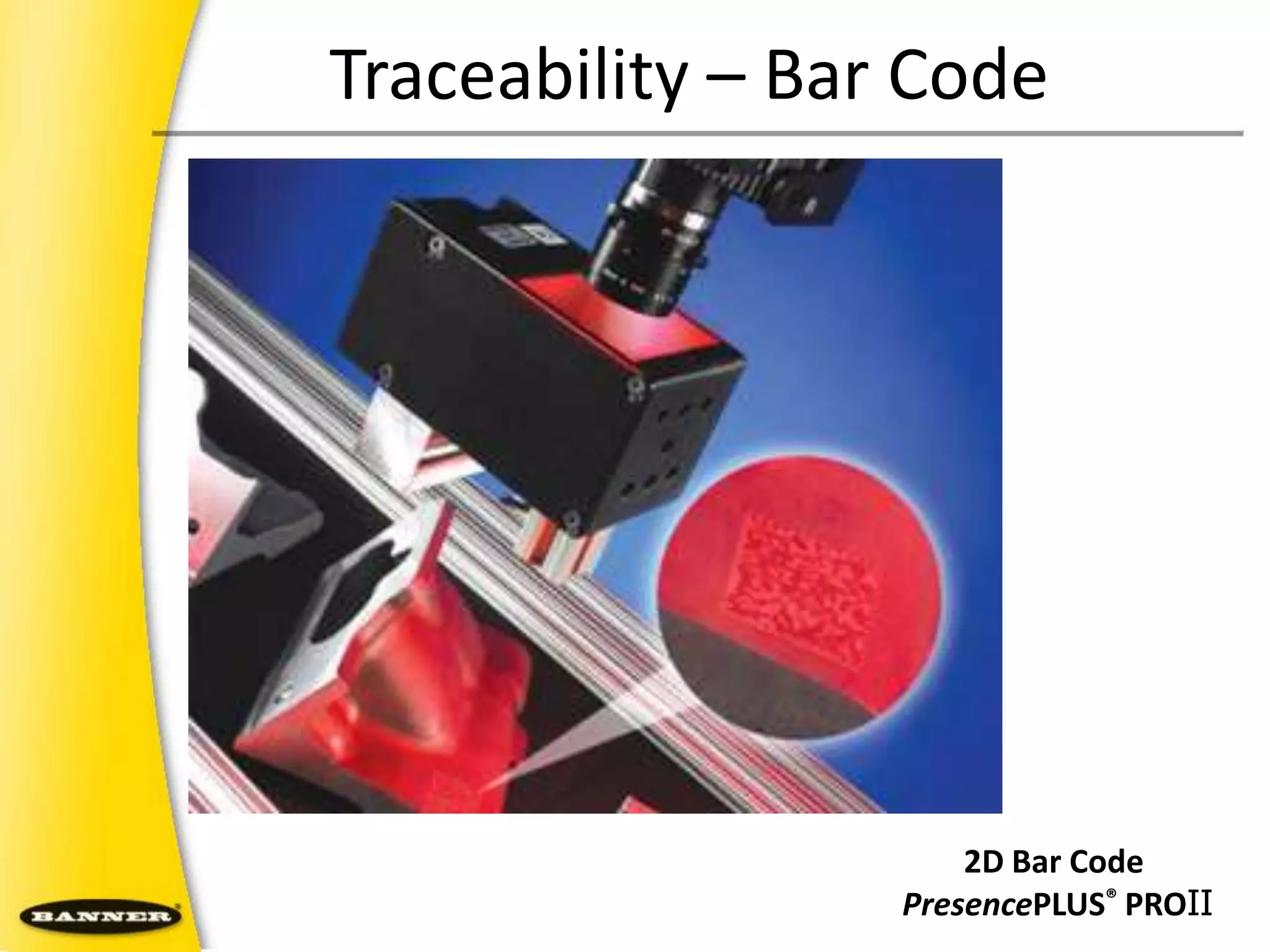

50. Traceability – Bar Code2D Bar Code PresencePLUS® PROII

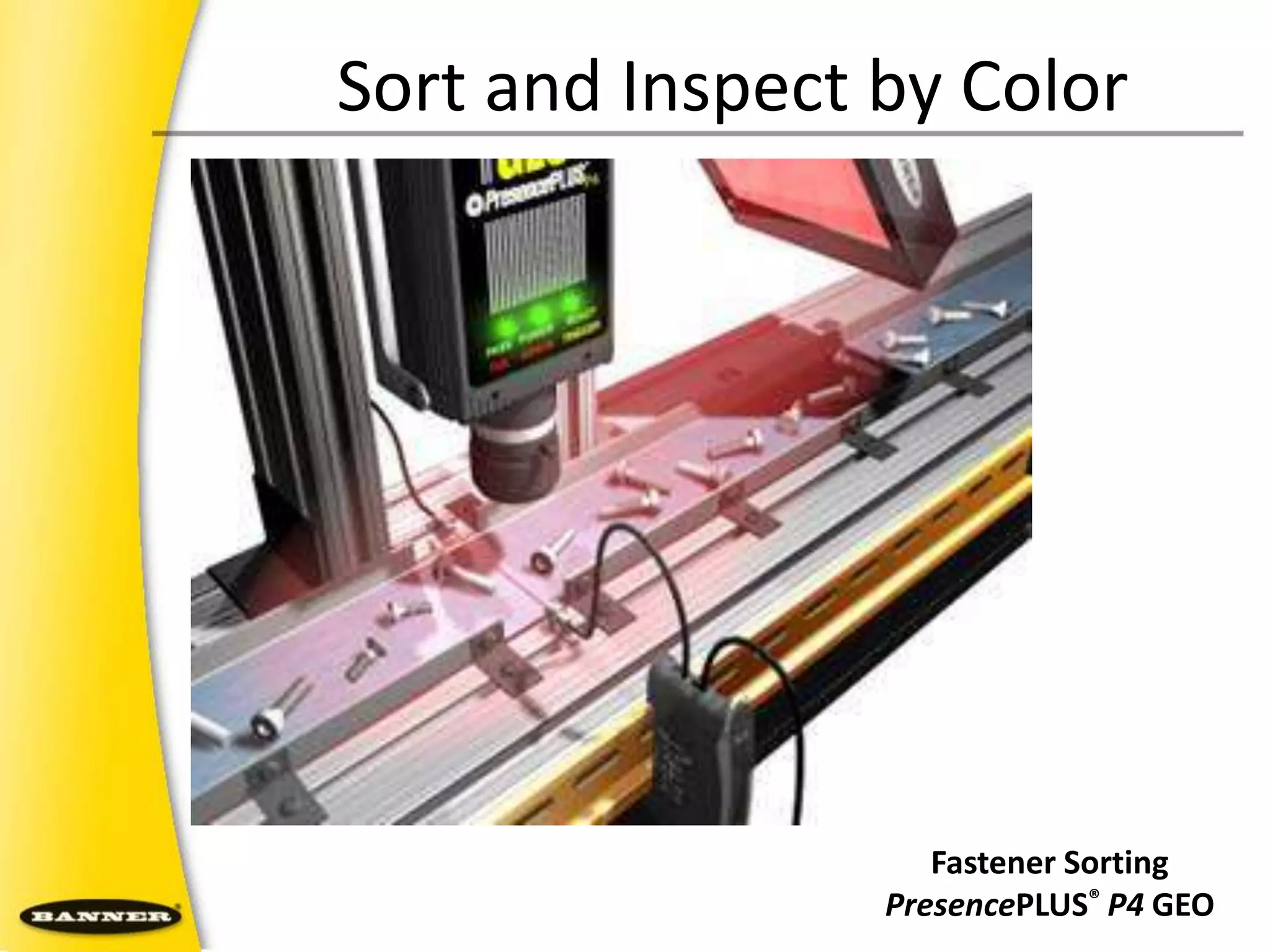

51. Sort and Inspect by ColorFastener SortingPresencePLUS®P4 GEO

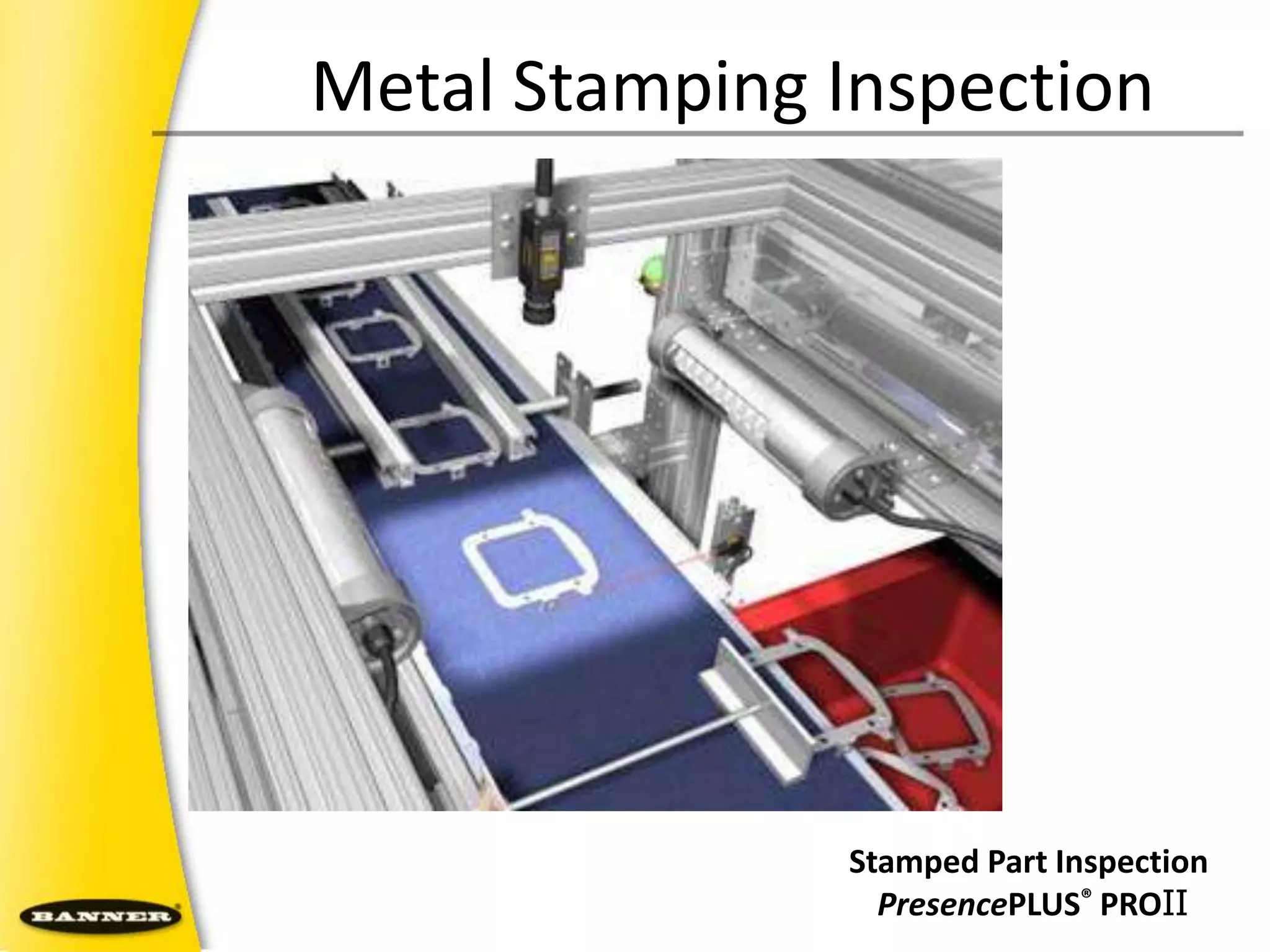

52. Metal Stamping InspectionStamped Part Inspection PresencePLUS® PROII

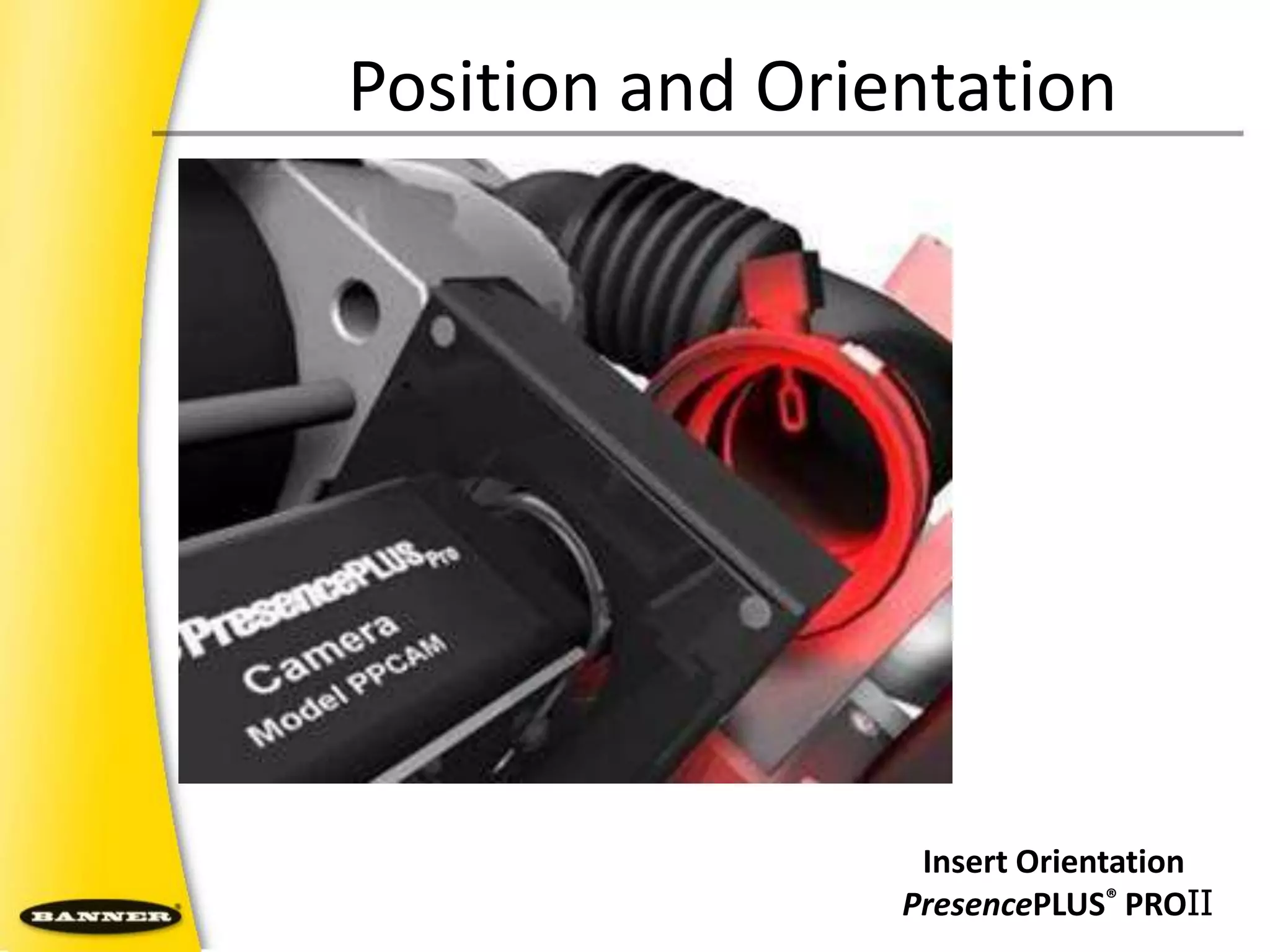

53. Position and OrientationInsert OrientationPresencePLUS® PROII

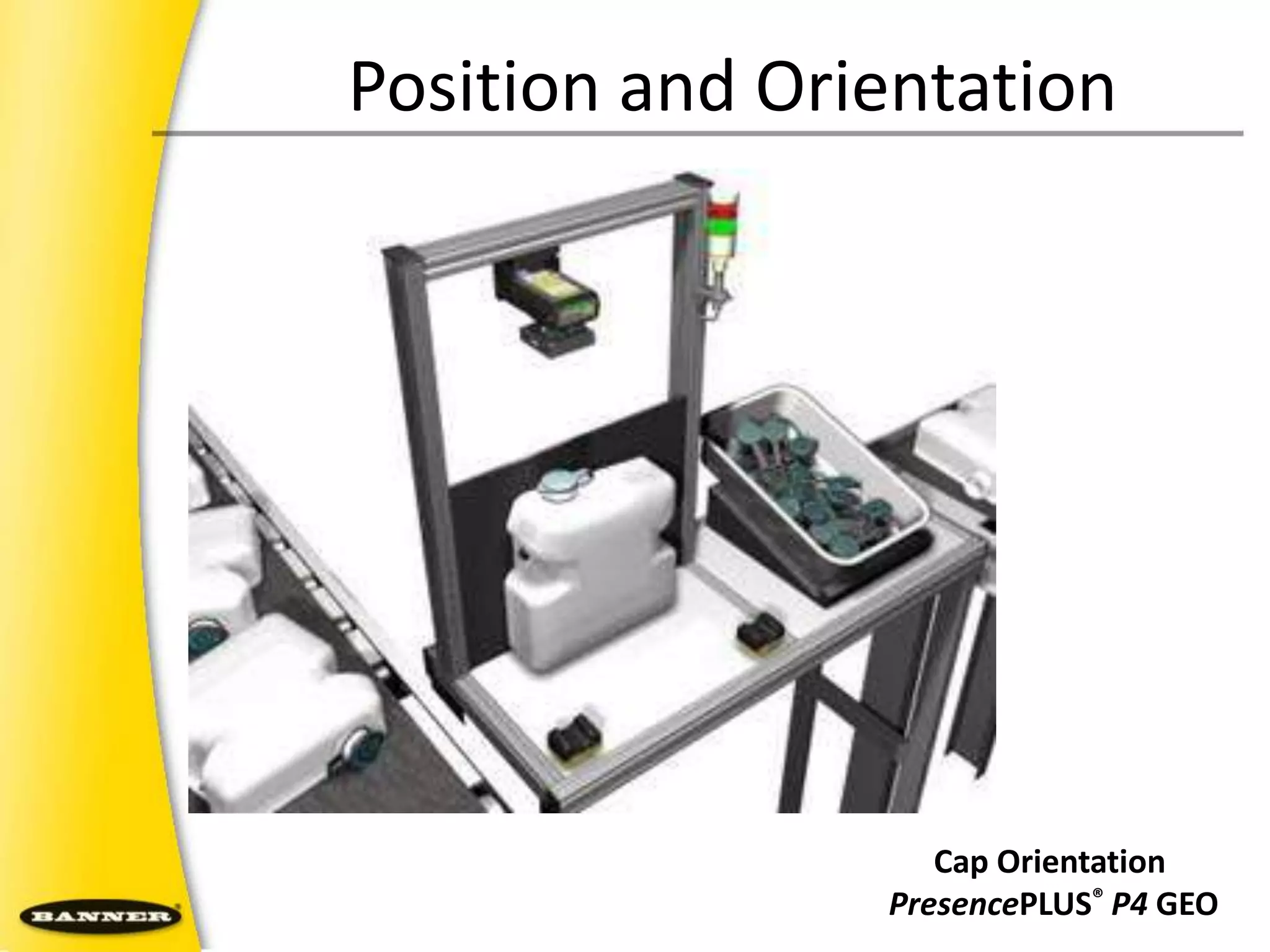

54. Position and OrientationCap OrientationPresencePLUS®P4GEO

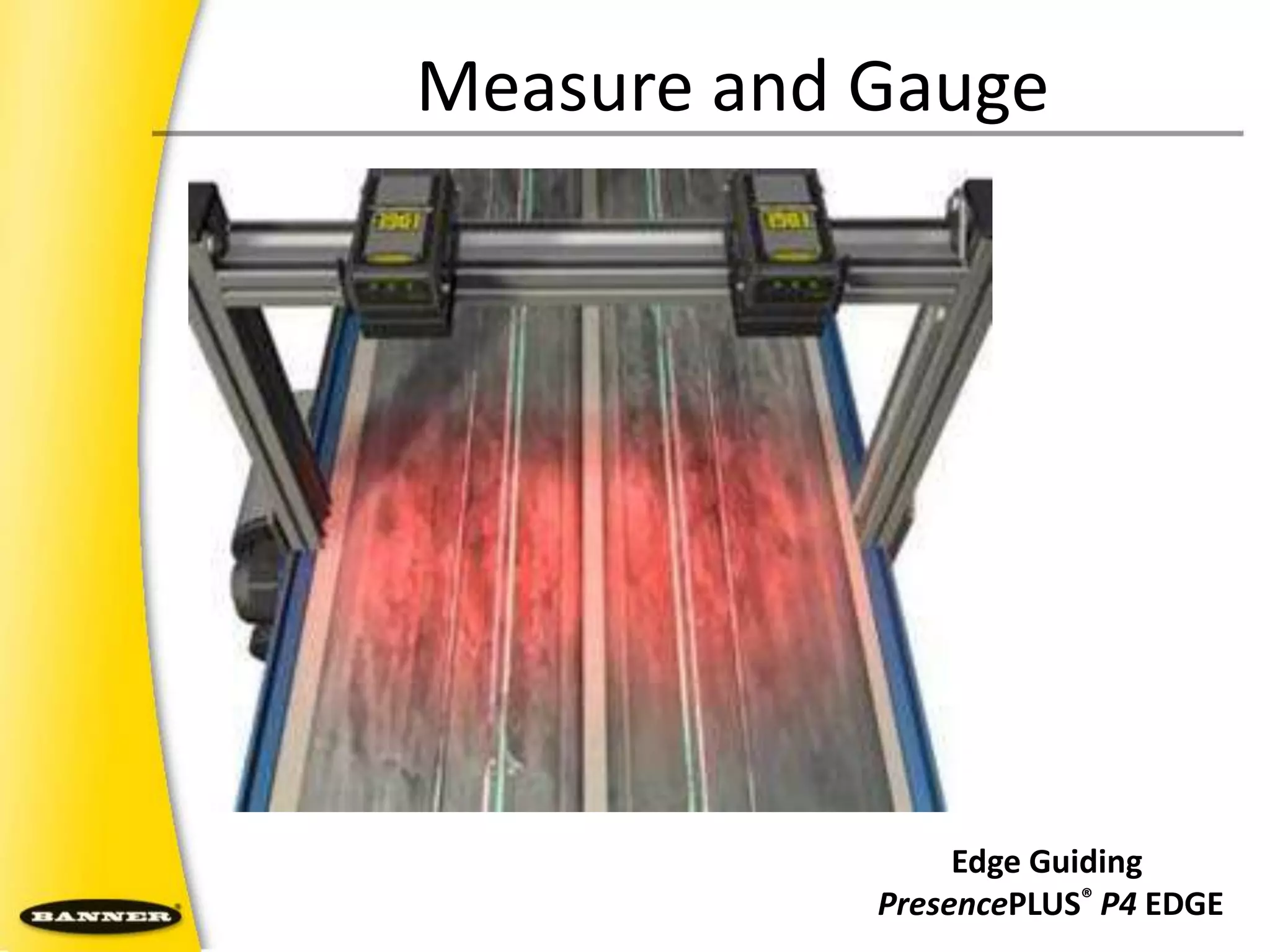

55. Measure and GaugeEdge GuidingPresencePLUS®P4EDGE

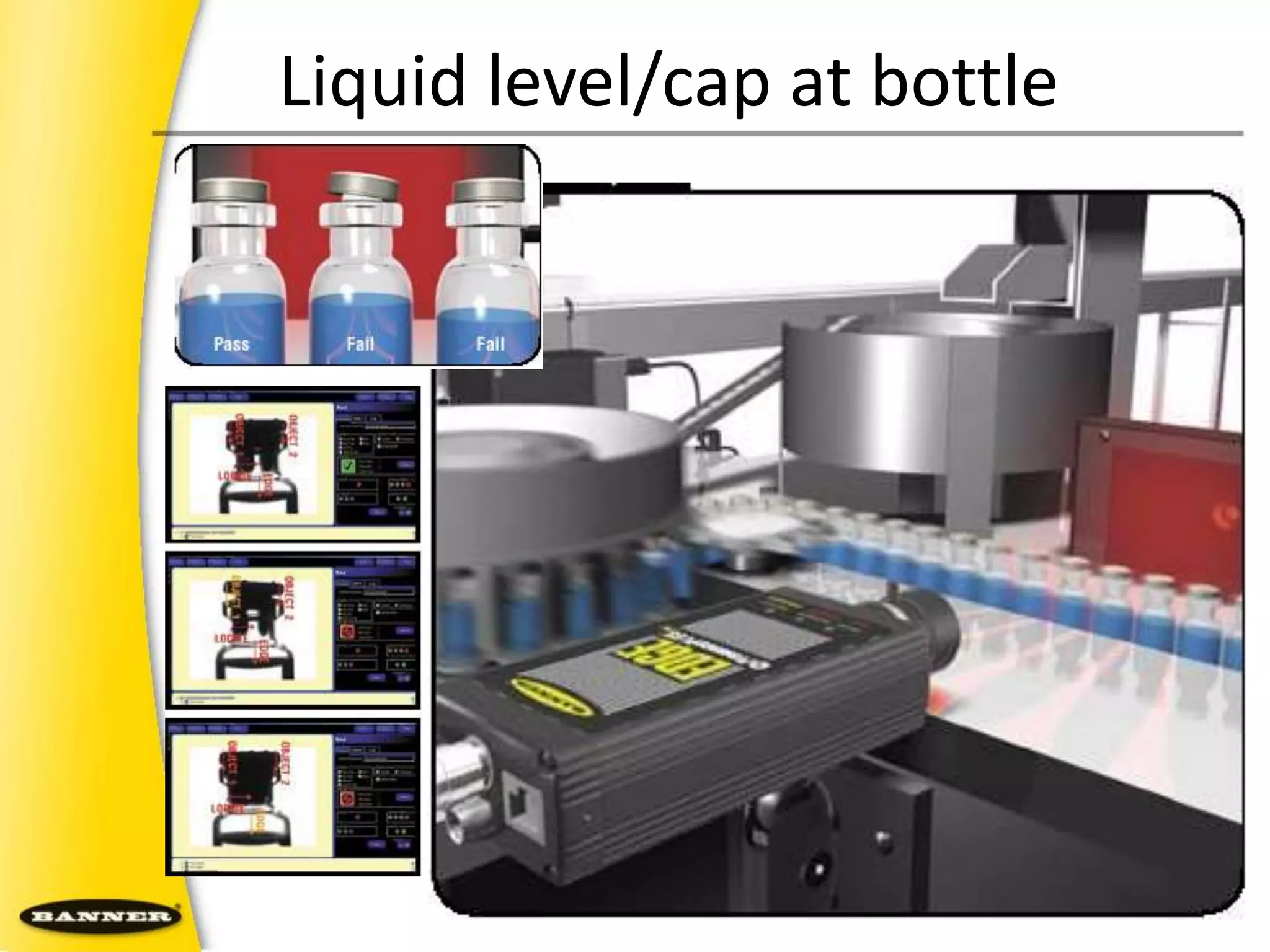

56. Liquid level/cap at bottle

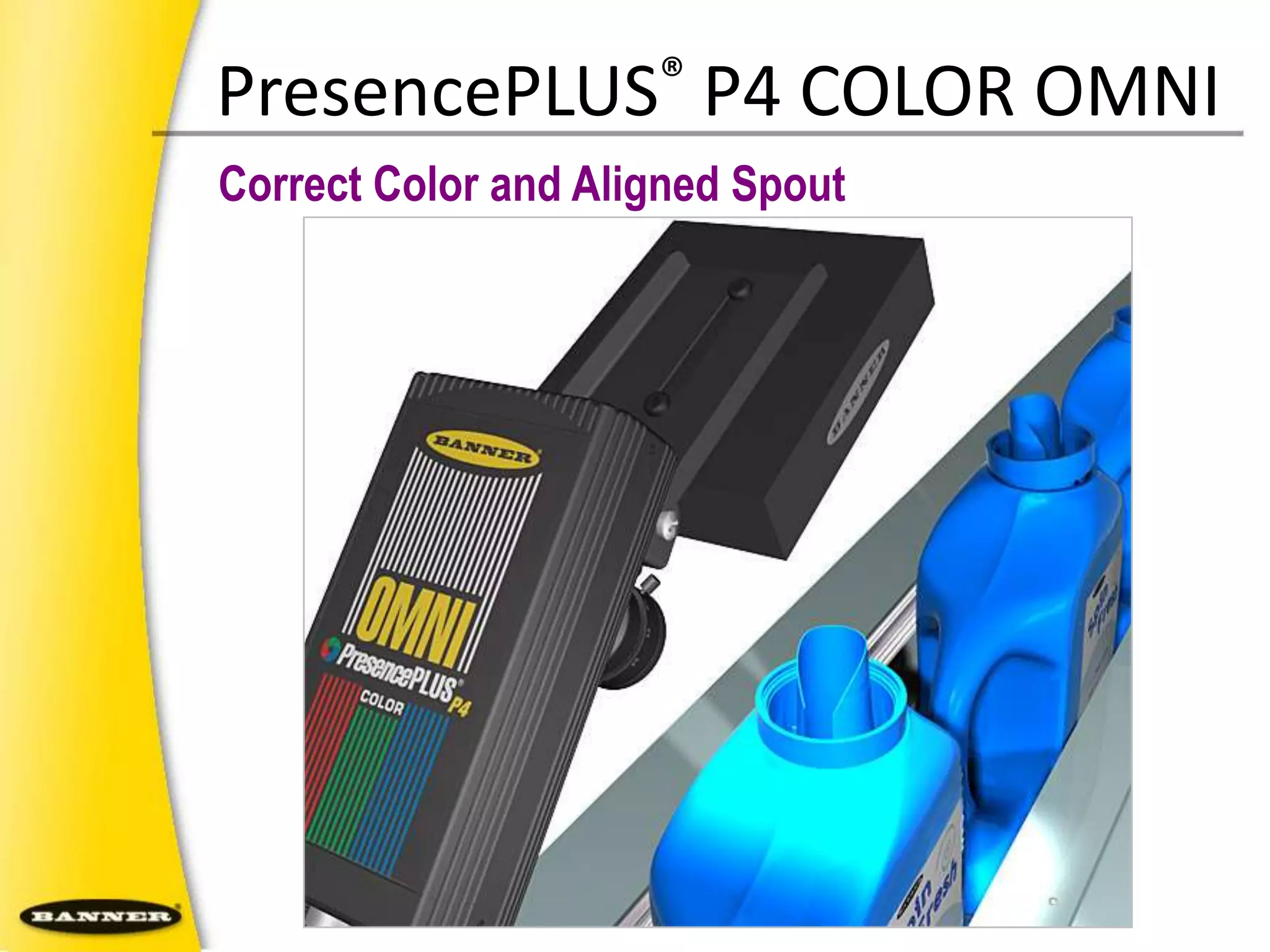

57. PresencePLUS® P4 COLOR OMNICorrect Color and Aligned Spout

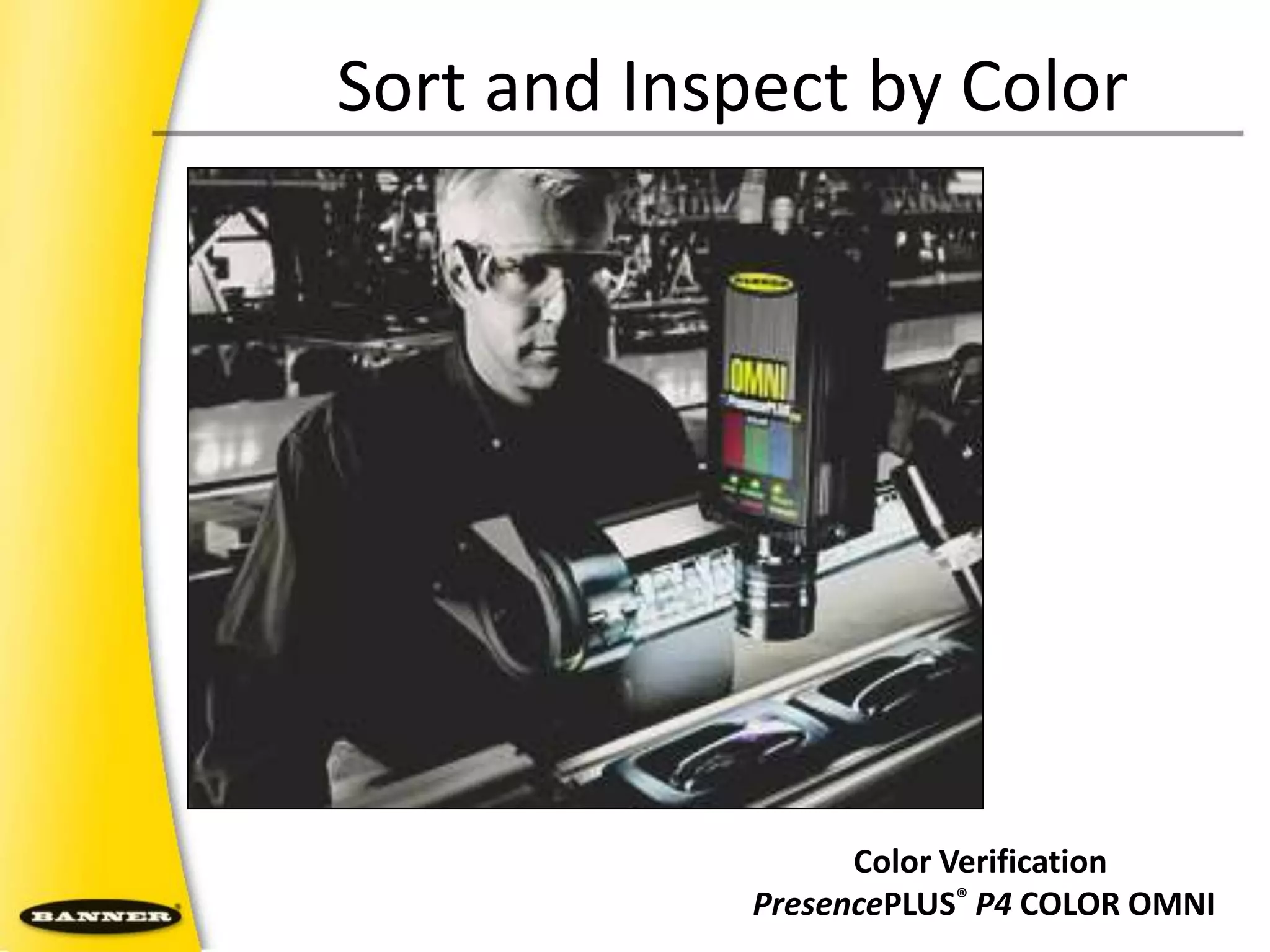

58. Sort and Inspect by ColorColor VerificationPresencePLUS®P4 COLOR OMNI

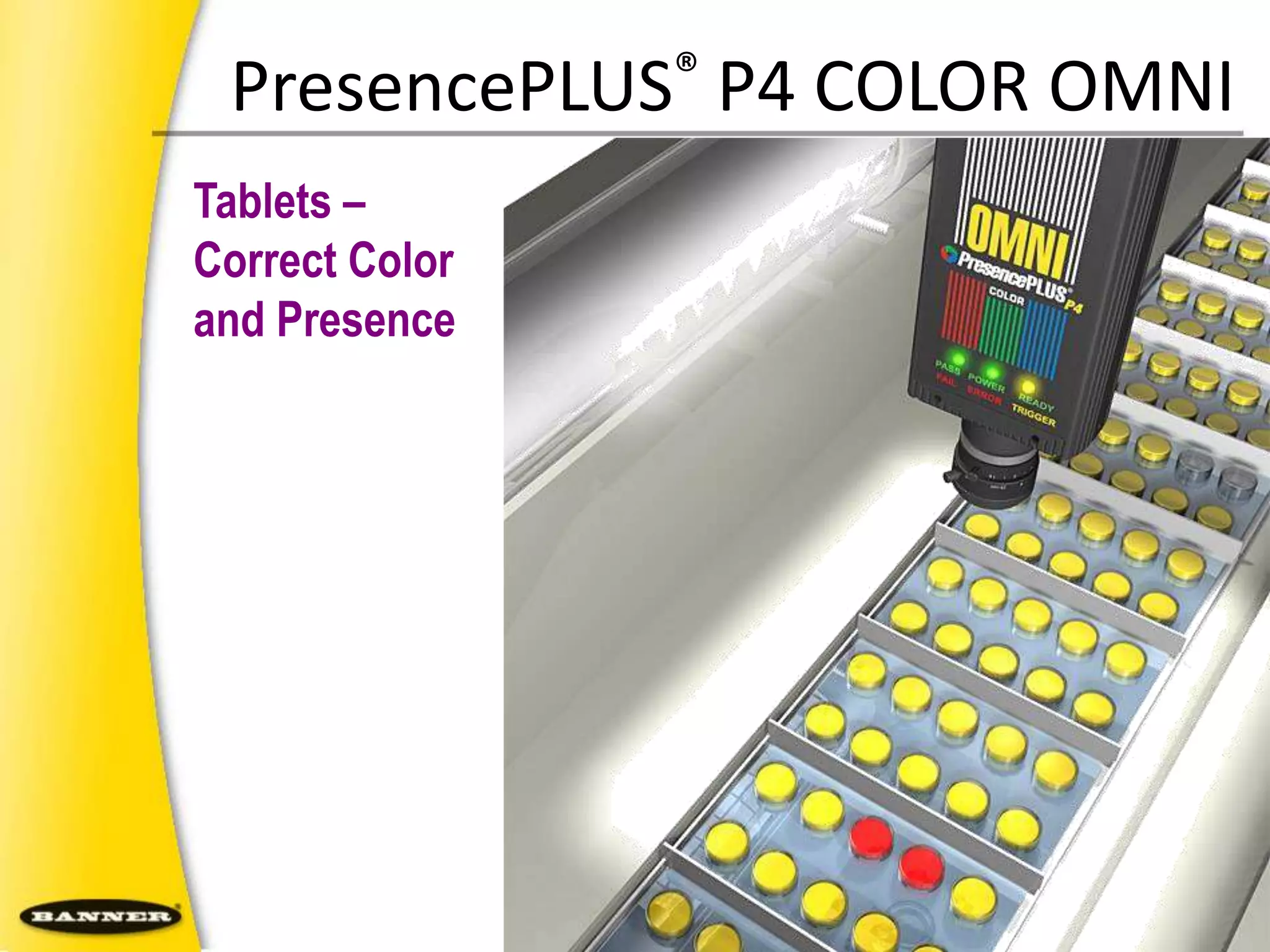

59. PresencePLUS® P4 COLOR OMNITablets – Correct Color and Presence

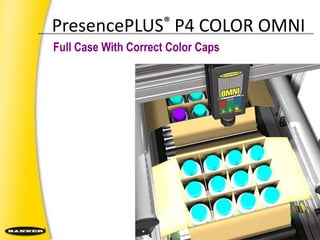

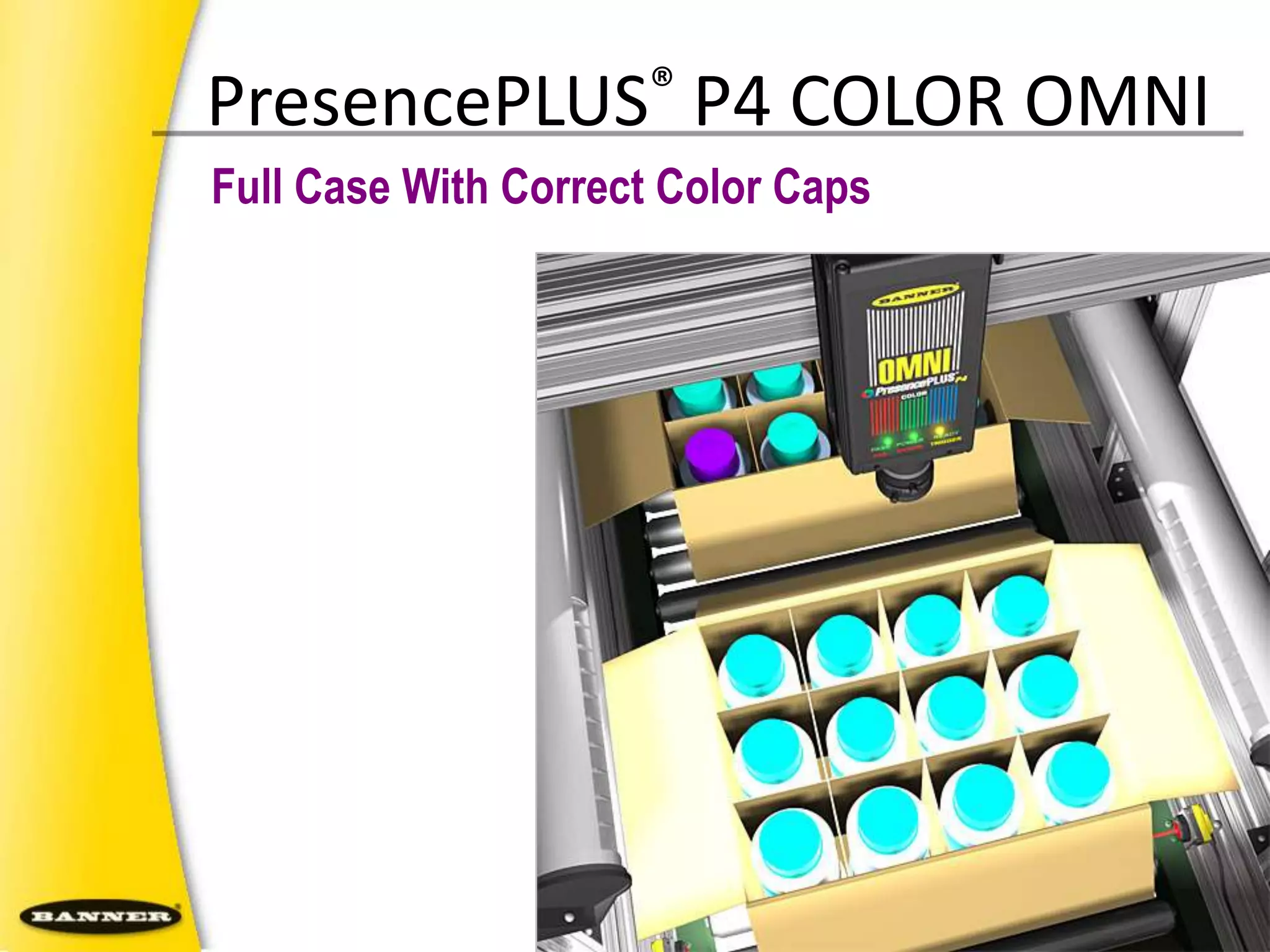

60. PresencePLUS® P4 COLOR OMNIFull Case With Correct Color Caps

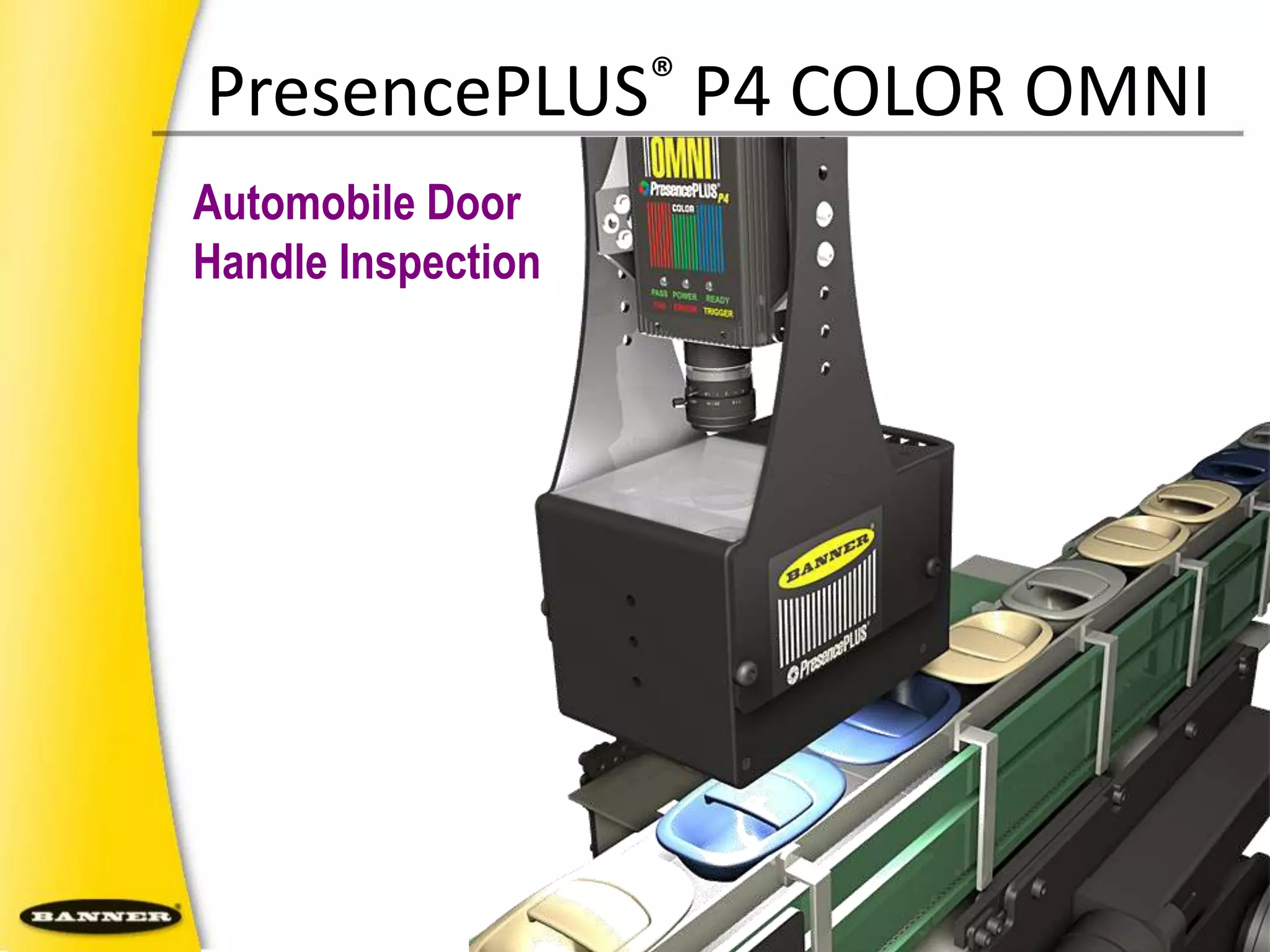

61. PresencePLUS® P4 COLOR OMNIAutomobile Door Handle Inspection

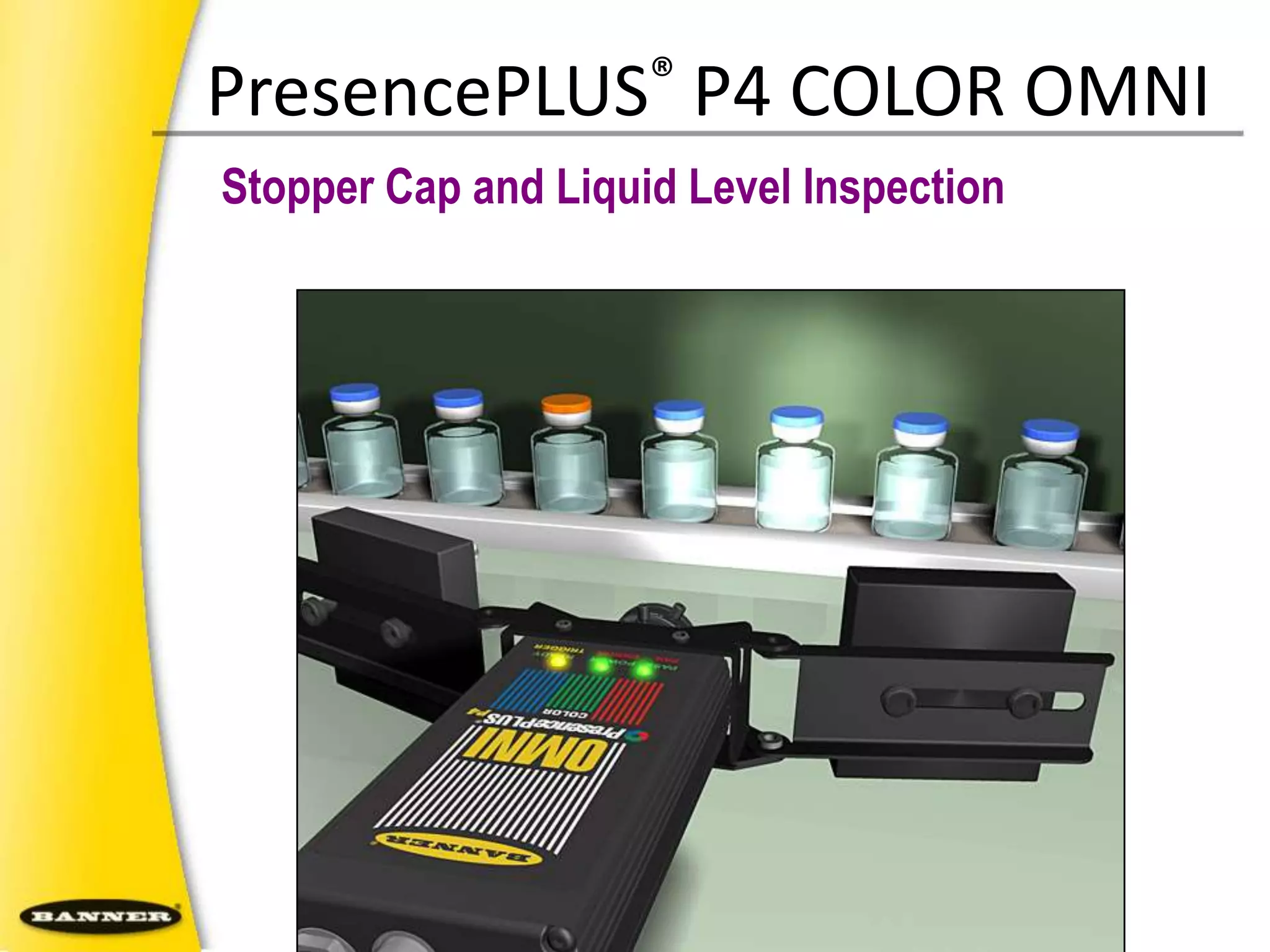

62. PresencePLUS® P4 COLOR OMNIStopper Cap and Liquid Level Inspection

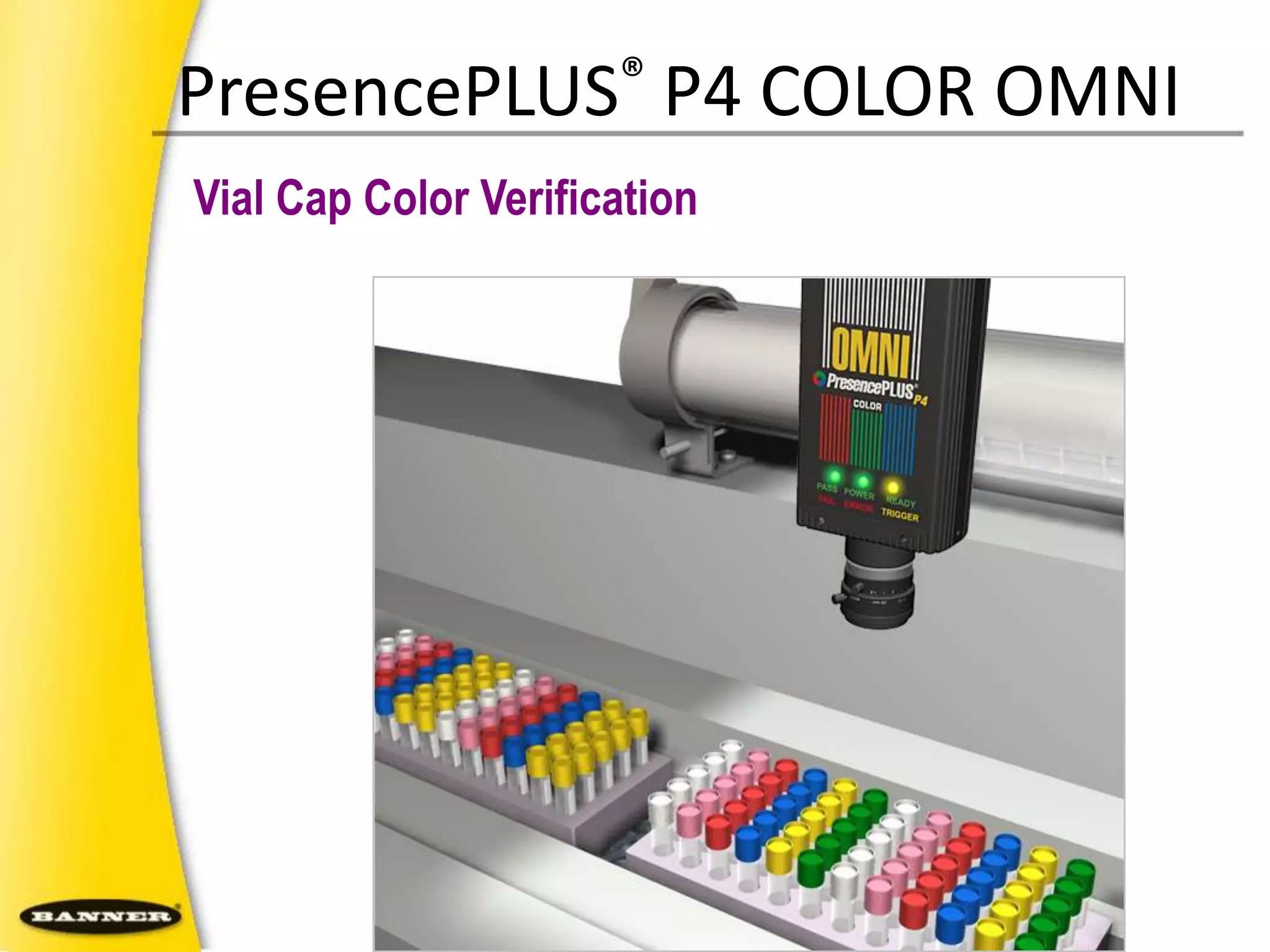

63. PresencePLUS® P4 COLOR OMNIVial Cap Color Verification

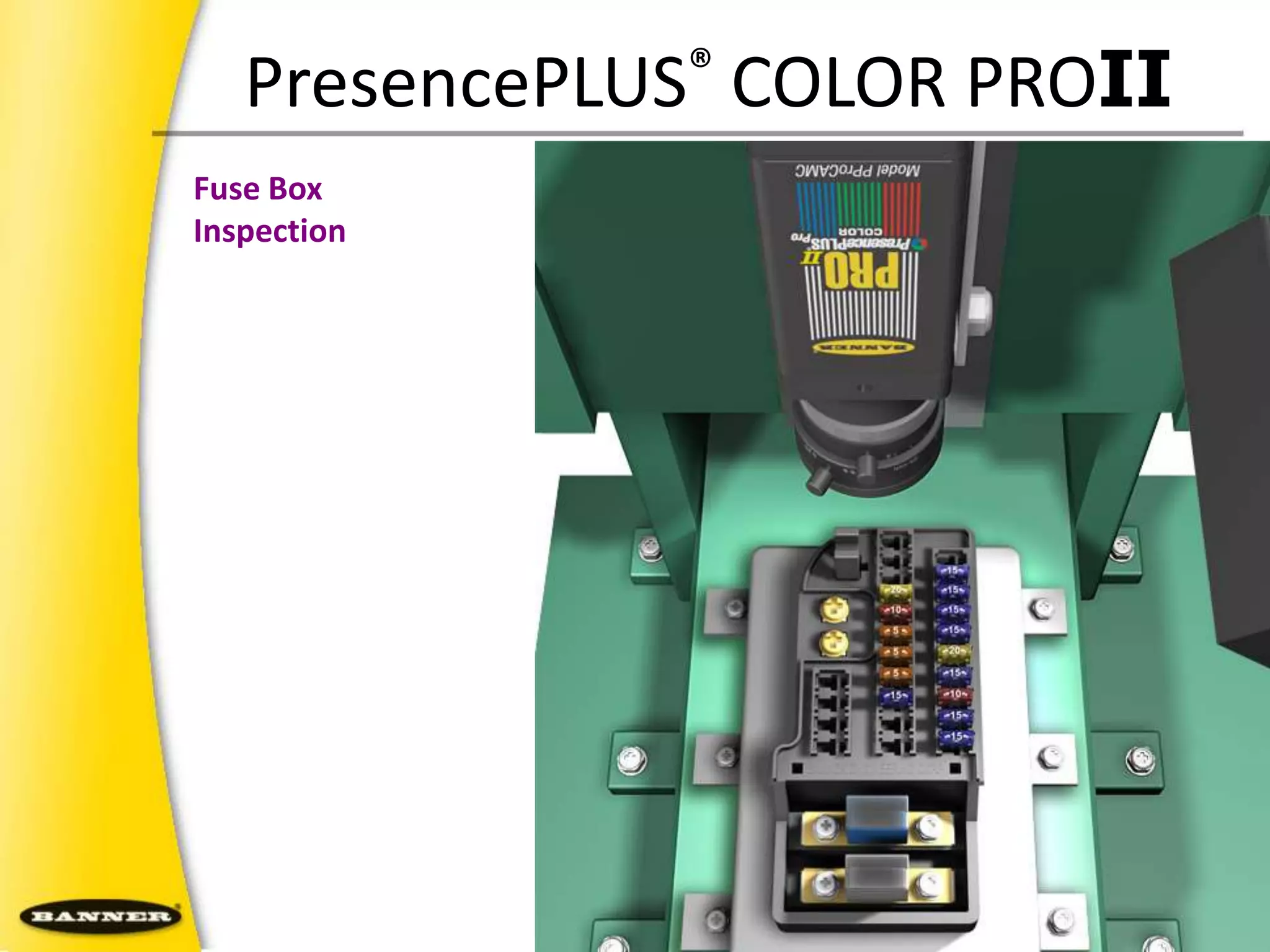

64. PresencePLUS® COLOR PROIIFuse Box Inspection
