Machine Learning on Microcontroller for Lora using uTensor

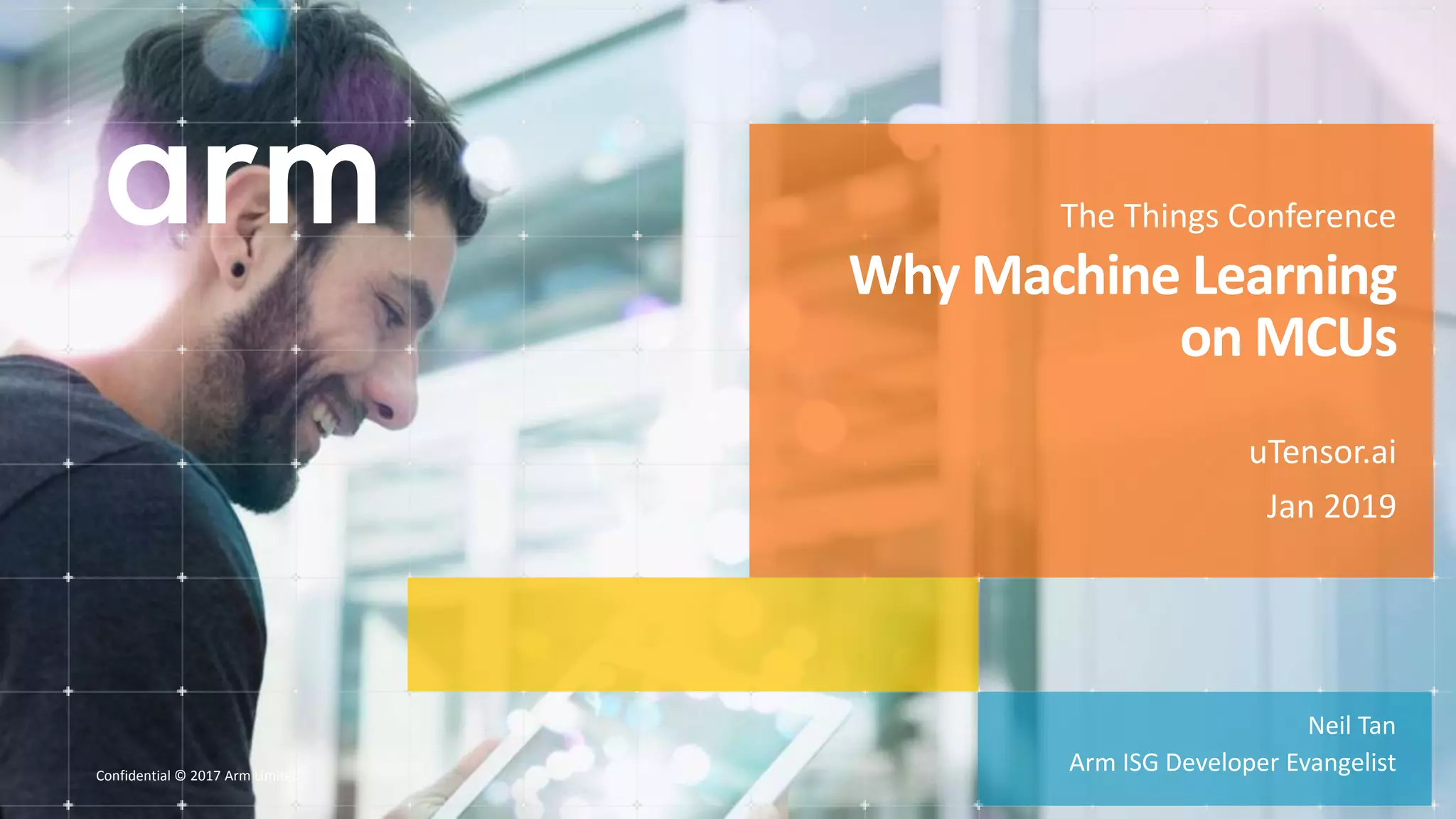

- 1. Confidential © 2017Arm Limited Neil Tan Arm ISG Developer Evangelist Why Machine Learning on MCUs The Things Conference uTensor.ai Jan 2019

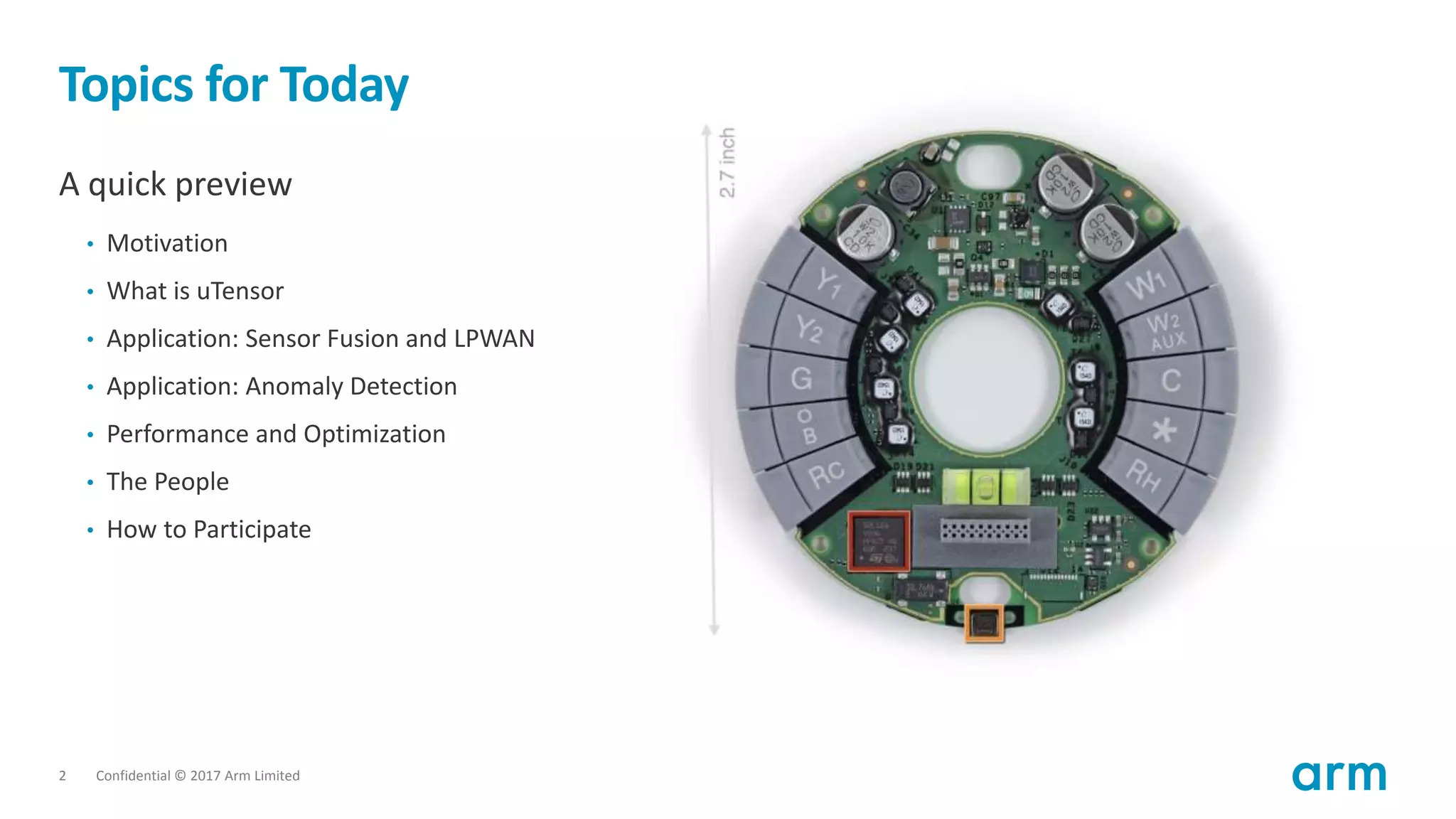

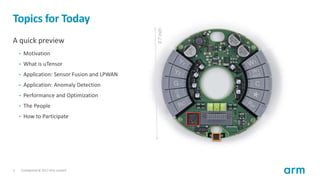

- 2. Confidential © 2017Arm Limited2 Topics for Today A quick preview • Motivation • What is uTensor • Application: Sensor Fusion and LPWAN • Application: Anomaly Detection • Performance and Optimization • The People • How to Participate
- 3. Confidential © 2017Arm Limited How it Started

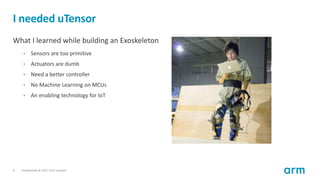

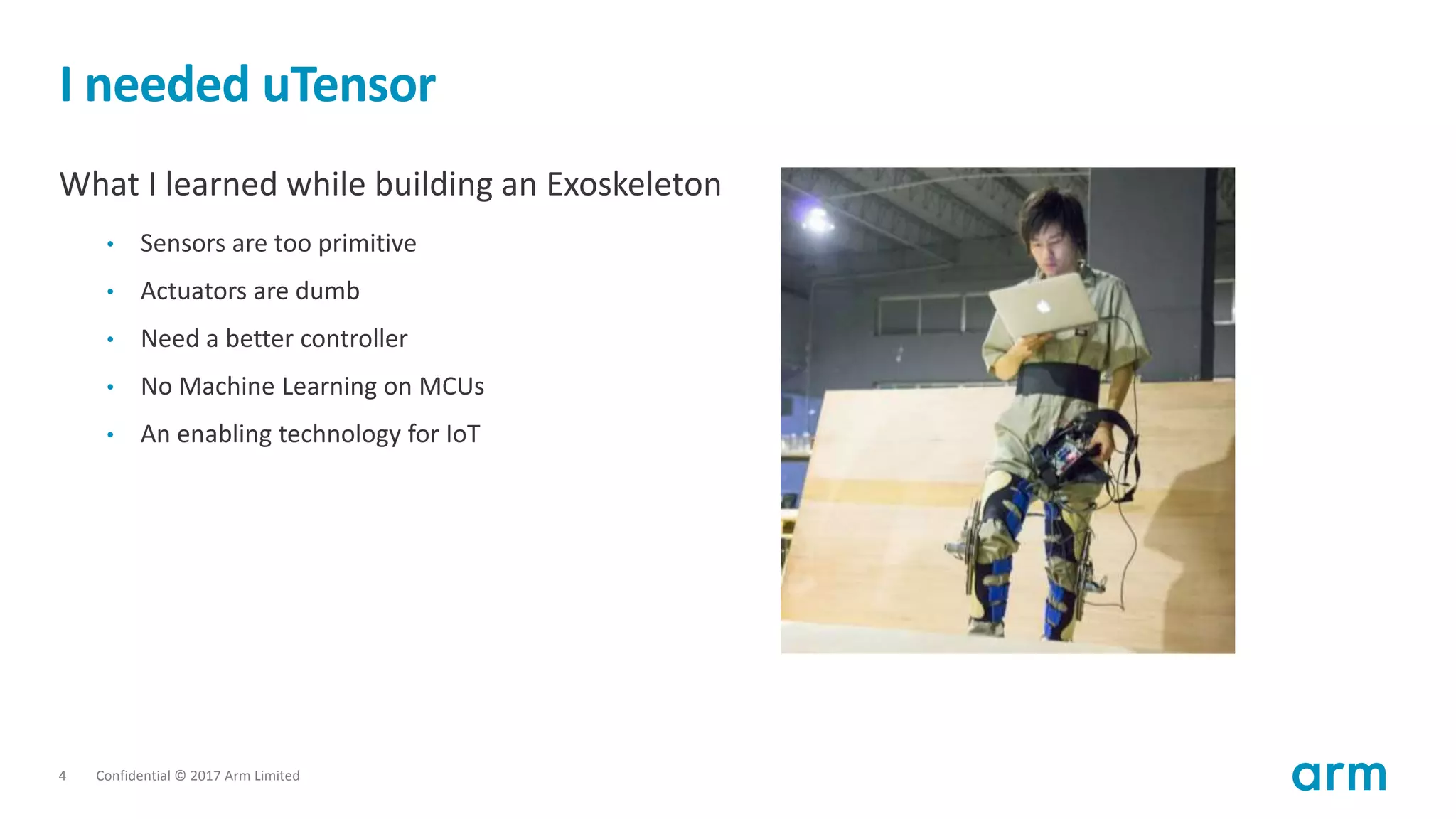

- 4. Confidential © 2017Arm Limited4 I needed uTensor What I learned while building an Exoskeleton • Sensors are too primitive • Actuators are dumb • Need a better controller • No Machine Learning on MCUs • An enabling technology for IoT

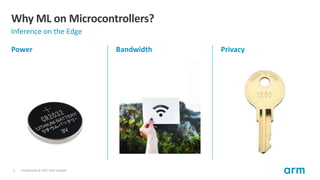

- 5. Confidential © 2017Arm Limited5 Why ML on Microcontrollers? Inference on the Edge Power Bandwidth Privacy

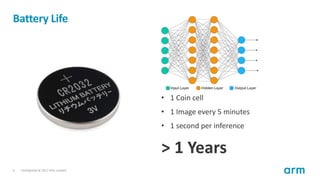

- 6. Confidential © 2017Arm Limited6 Battery Life • 1 Coin cell • 1 Image every 5 minutes • 1 second per inference > 1 Years
- 7. Confidential © 2017Arm Limited What is uTensor

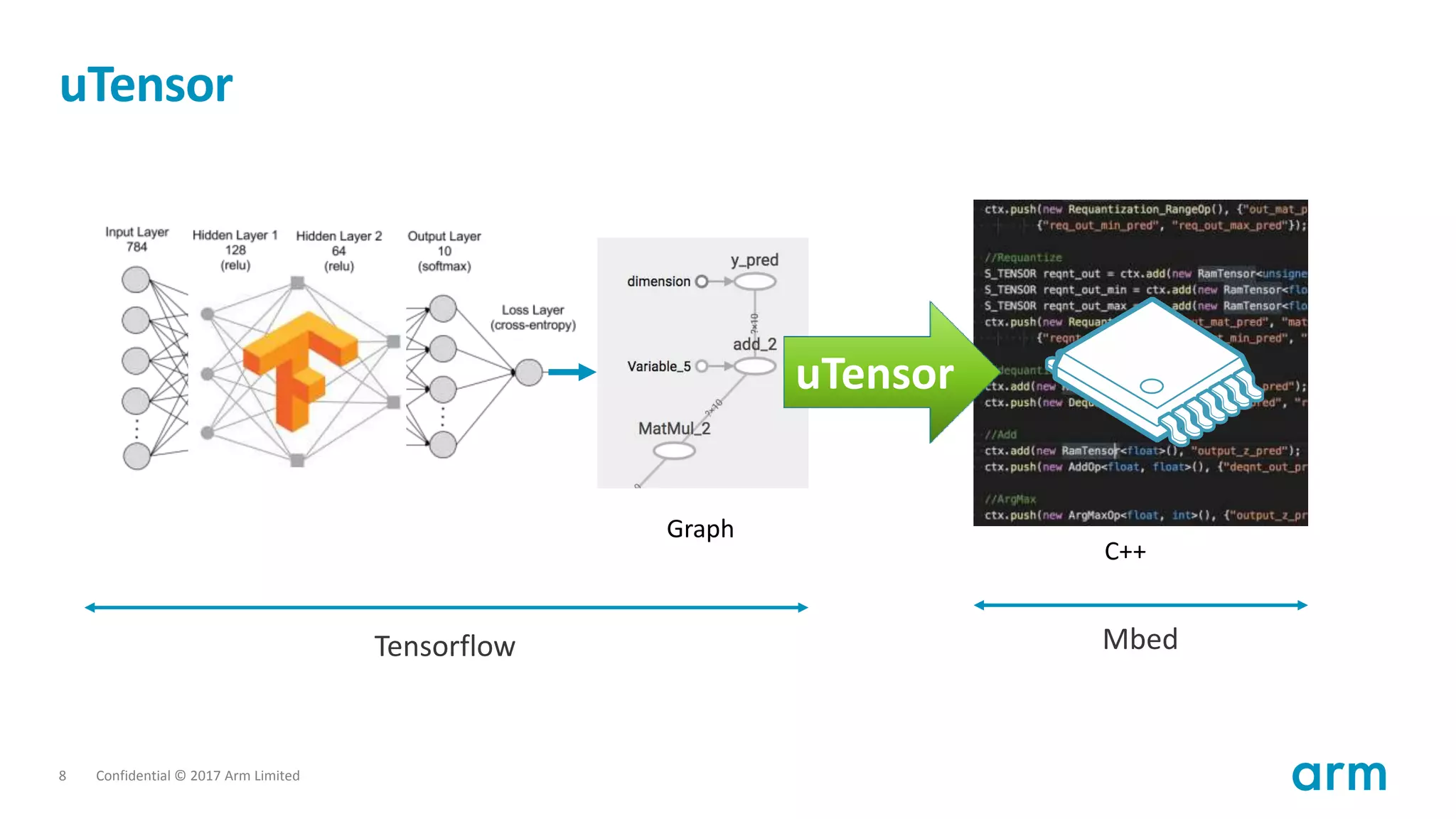

- 8. Confidential © 2017Arm Limited8 uTensor uTensor Graph C++ Tensorflow Mbed
- 9. Confidential © 2017Arm Limited9 This is a Neural Network © 2017 Arm Limited11 This is a Neural Network https://mxnet.incubator.apache.org/tutorials/python/mnist.html

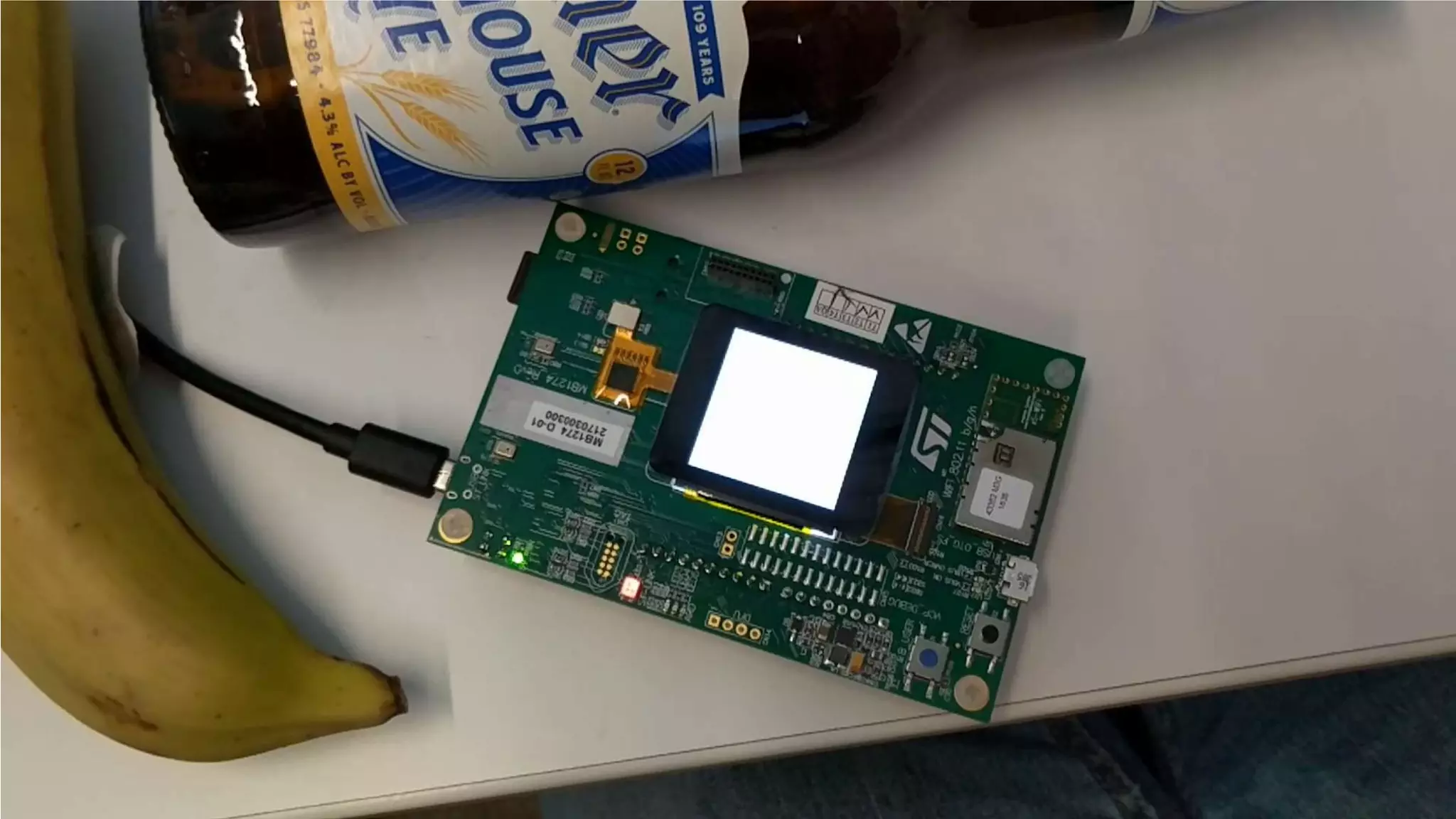

- 10. Confidential © 2017Arm Limited10

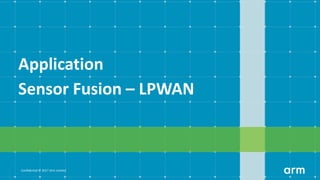

- 11. Confidential © 2017Arm Limited Application Sensor Fusion – LPWAN

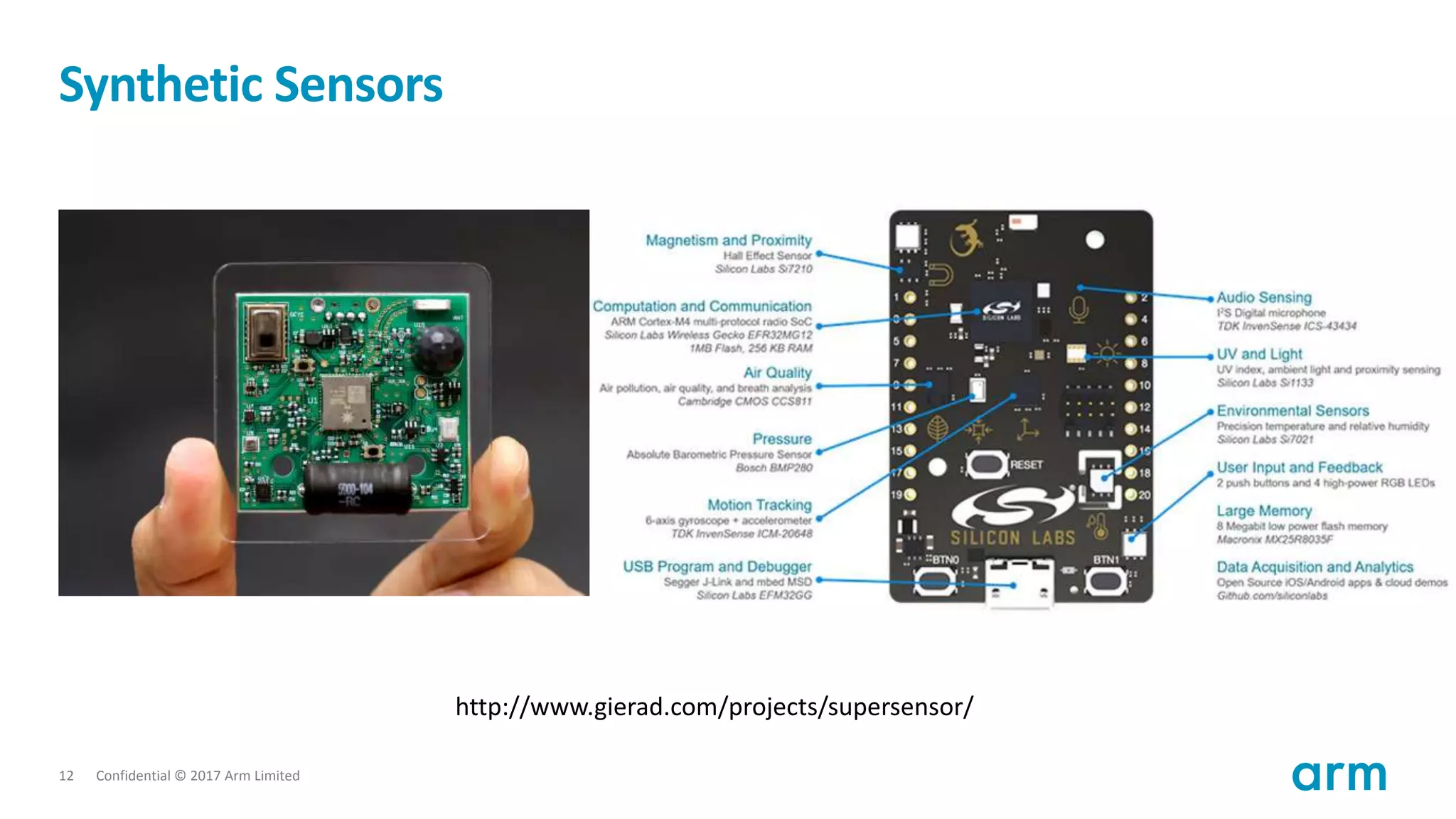

- 12. Confidential © 2017Arm Limited12 Synthetic Sensors http://www.gierad.com/projects/supersensor/
- 13. Confidential © 2017Arm Limited13 Sensor Fusion Gierad Laput
- 14. Confidential © 2017Arm Limited14 Sensor Fusion http://curiousily.com/data-science/2017/02/02/what-to-do-when-data-is-missing-part-2.html Grove - Accelerometer Grove - Sound Σ Device Cloud

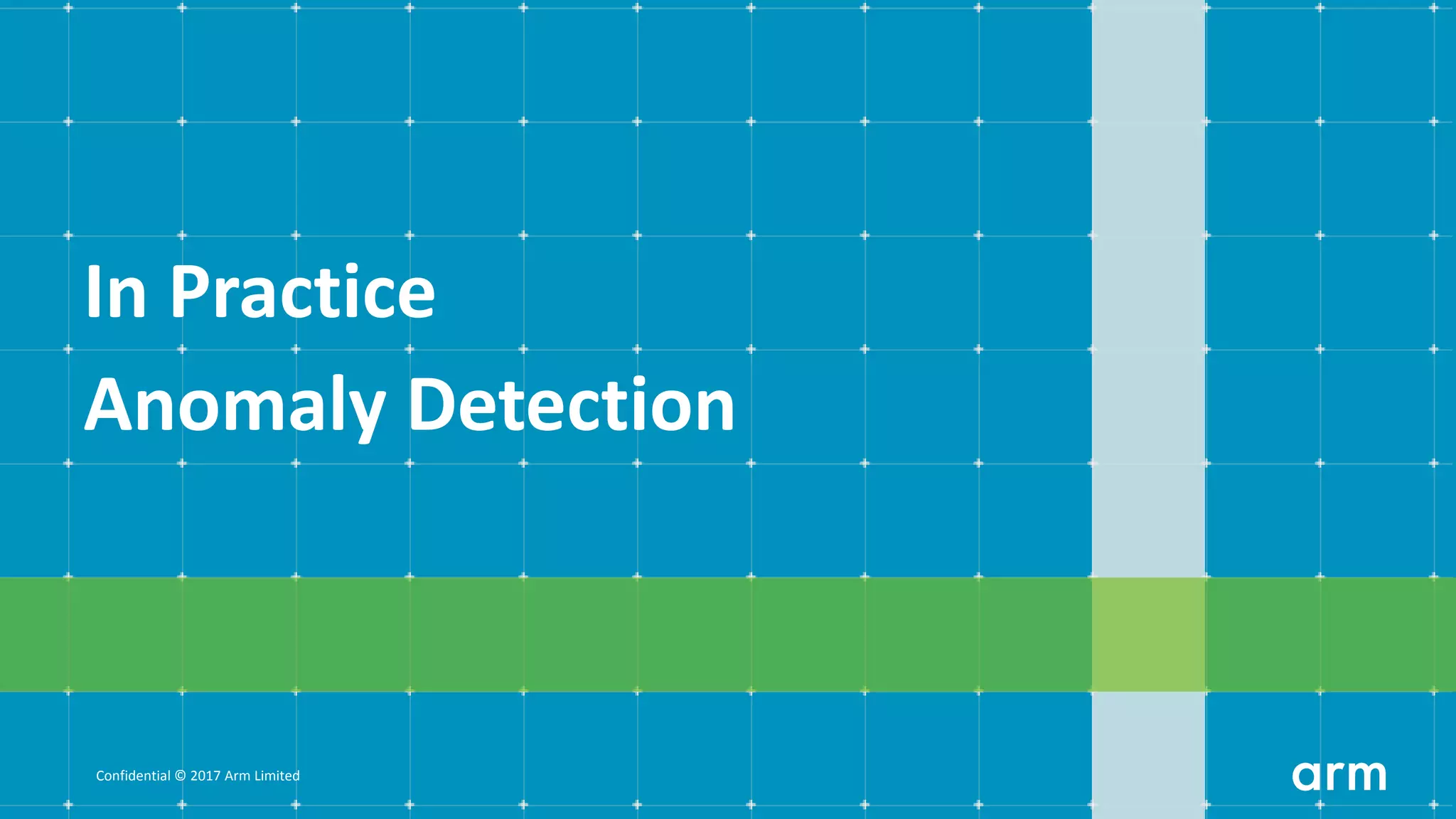

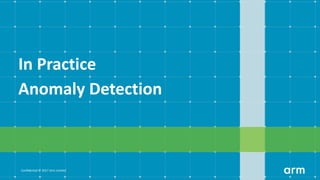

- 15. Confidential © 2017Arm Limited In Practice Anomaly Detection

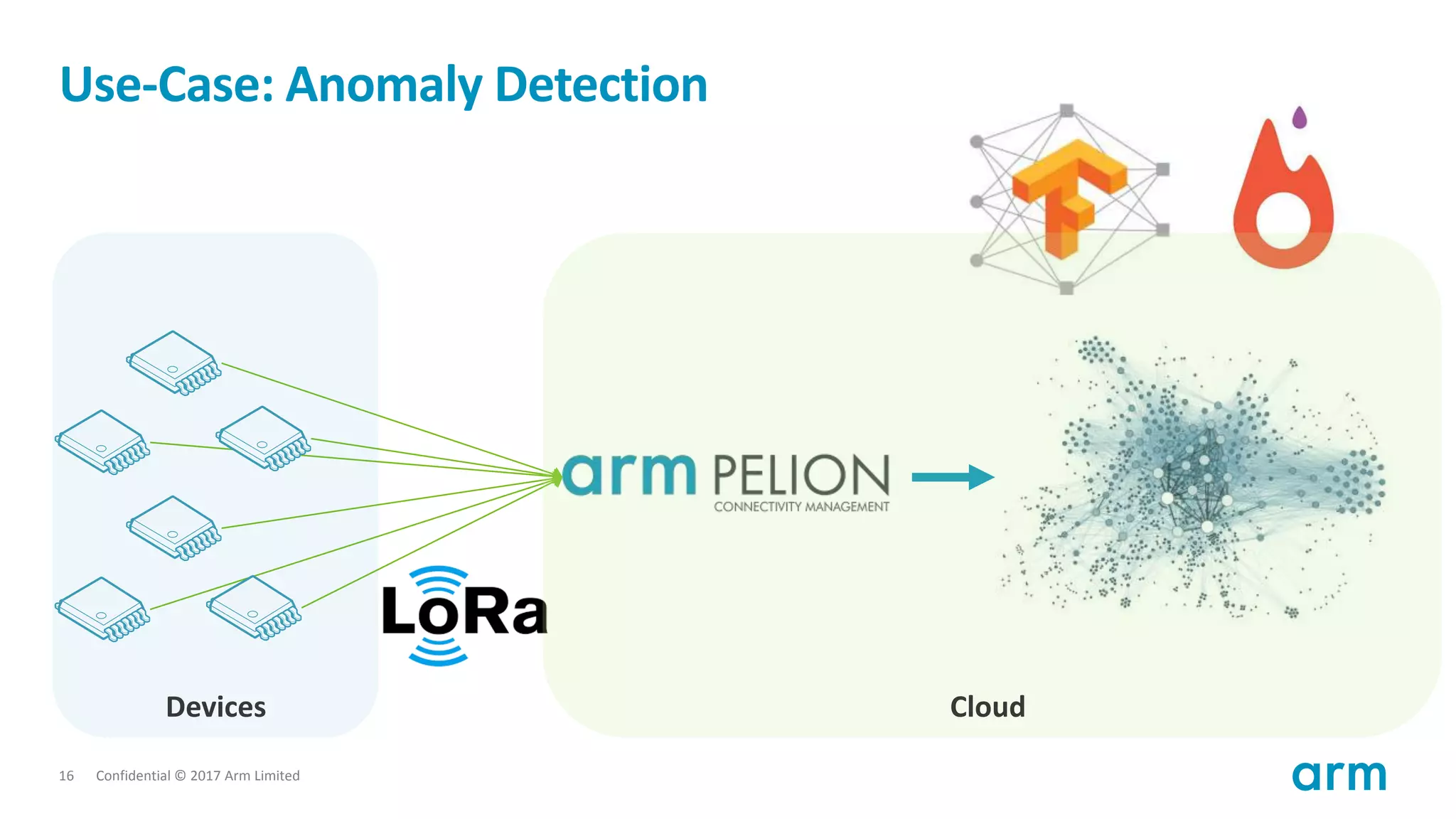

- 16. Confidential © 2017Arm Limited16 Use-Case: Anomaly Detection Devices Cloud

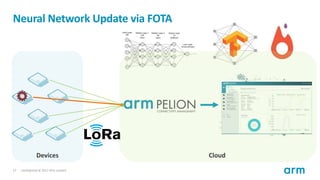

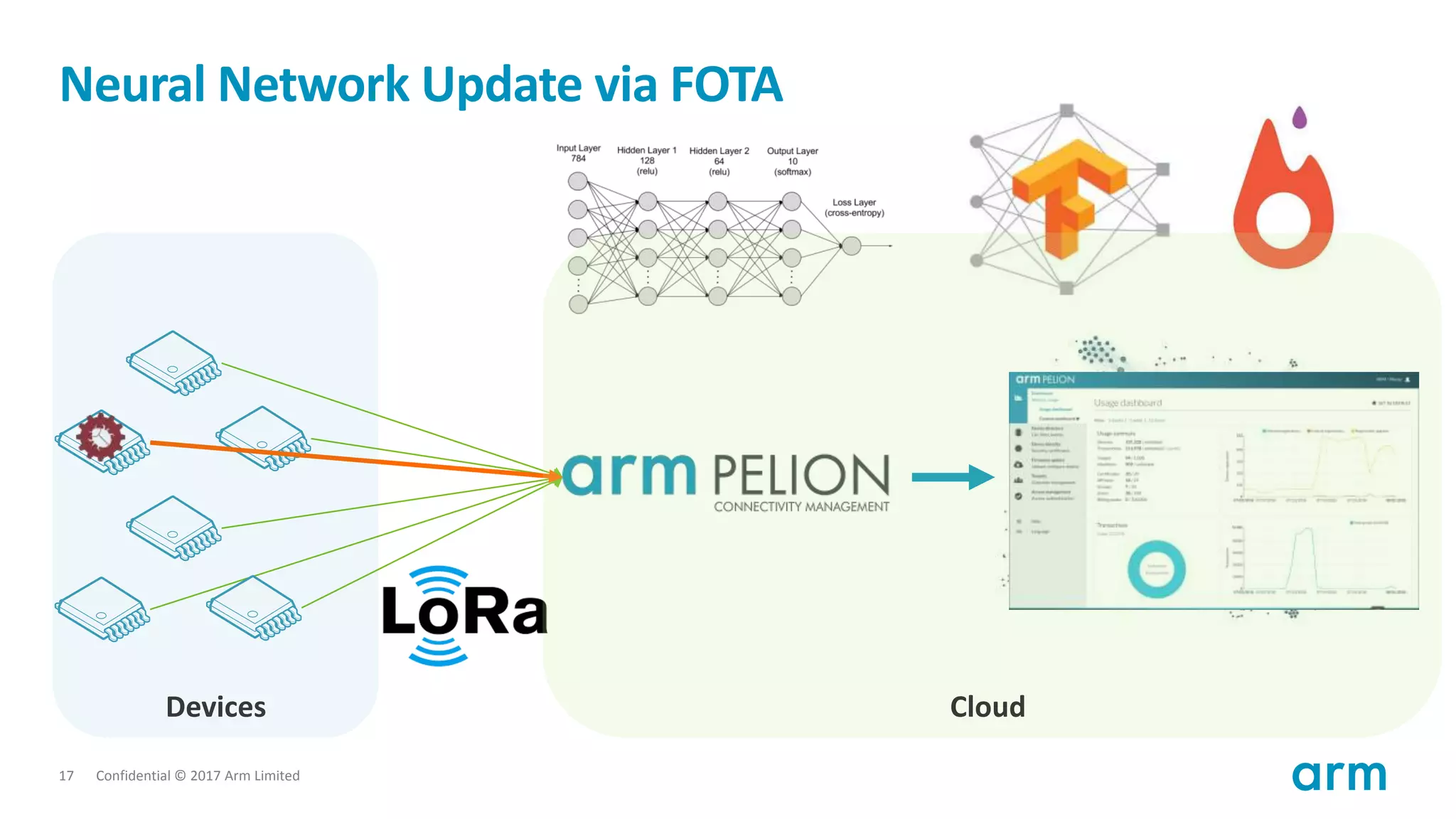

- 17. Confidential © 2017Arm Limited17 Neural Network Update via FOTA Devices Cloud

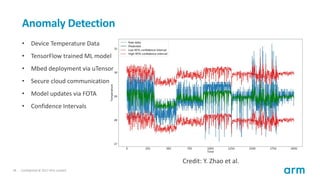

- 18. Confidential © 2017Arm Limited18 Anomaly Detection • Device Temperature Data • TensorFlow trained ML model • Mbed deployment via uTensor • Secure cloud communication • Model updates via FOTA • Confidence Intervals Credit: Y. Zhao et al.
- 19. Confidential © 2017Arm Limited Performance & Optimizations

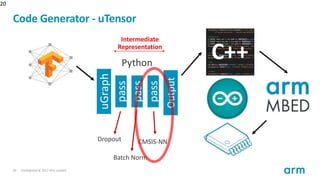

- 20. Confidential © 2017Arm Limited20 Code Generator - uTensor 20 uGraph pass pass pass Output C++ Dropout Batch Norm CMSIS-NN Python Intermediate Representation

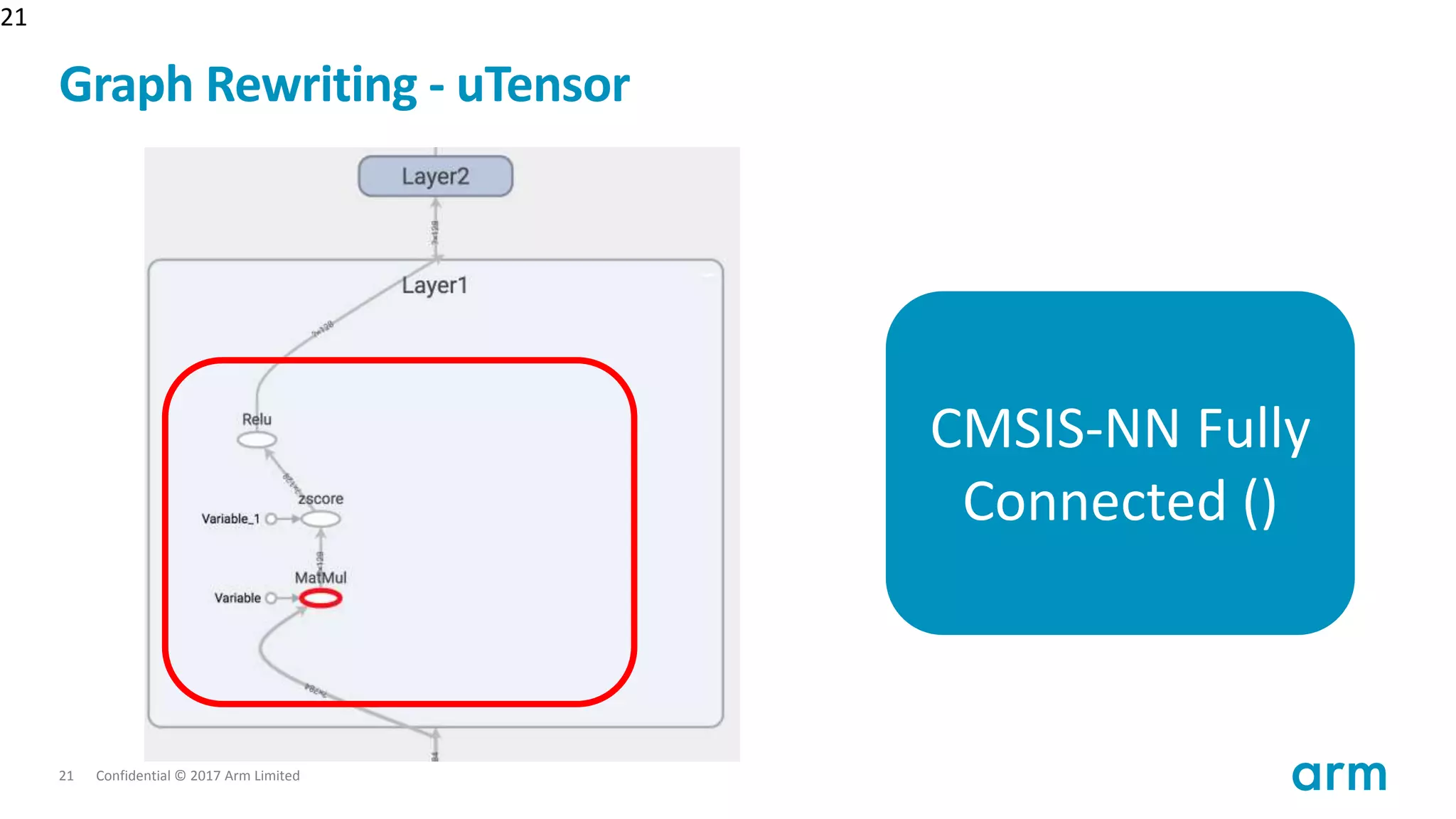

- 21. Confidential © 2017Arm Limited21 Graph Rewriting - uTensor 21 CMSIS-NN Fully Connected ()

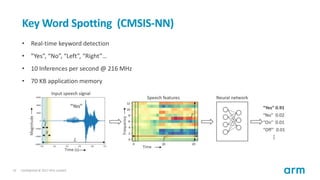

- 22. Confidential © 2017Arm Limited22 Key Word Spotting (CMSIS-NN) • Real-time keyword detection • ”Yes”, “No”, “Left”, “Right”… • 10 Inferences per second @ 216 MHz • 70 KB application memory

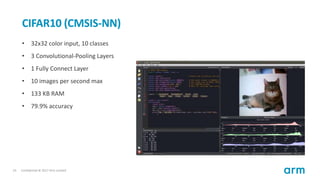

- 23. Confidential © 2017Arm Limited23 CIFAR10 (CMSIS-NN) • 32x32 color input, 10 classes • 3 Convolutional-Pooling Layers • 1 Fully Connect Layer • 10 images per second max • 133 KB RAM • 79.9% accuracy
- 24. Confidential © 2017Arm Limited What Else

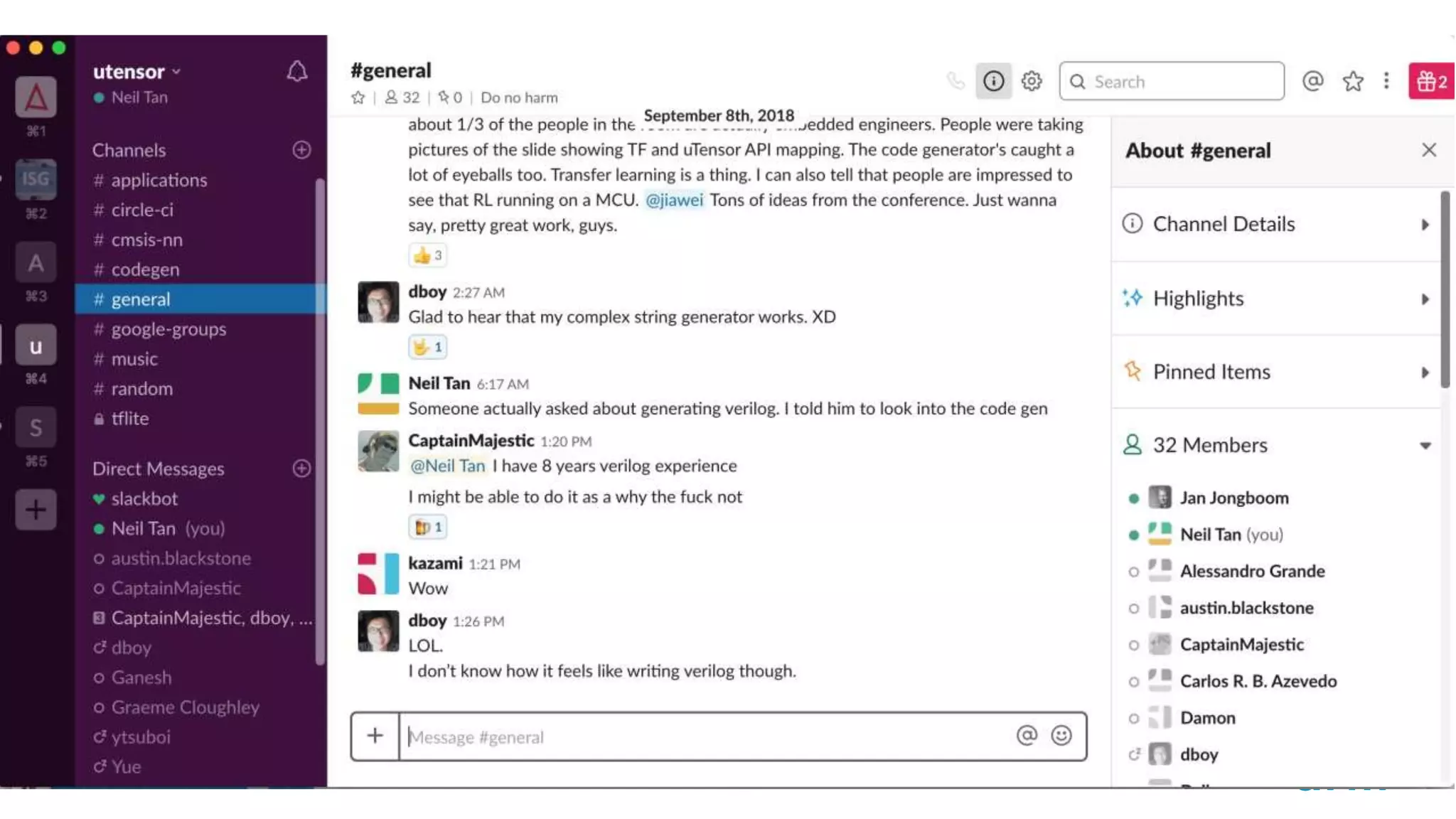

- 25. Confidential © 2017Arm Limited25 I needed uTensor We utilize bullet level one as plain text because it’s meant to be written in paragraph form. • Mbed Fest Japan – Austin introduces Michael Bartling – Talk next day • Two Friends in Taiwan • Received help across the organization • Slack Group

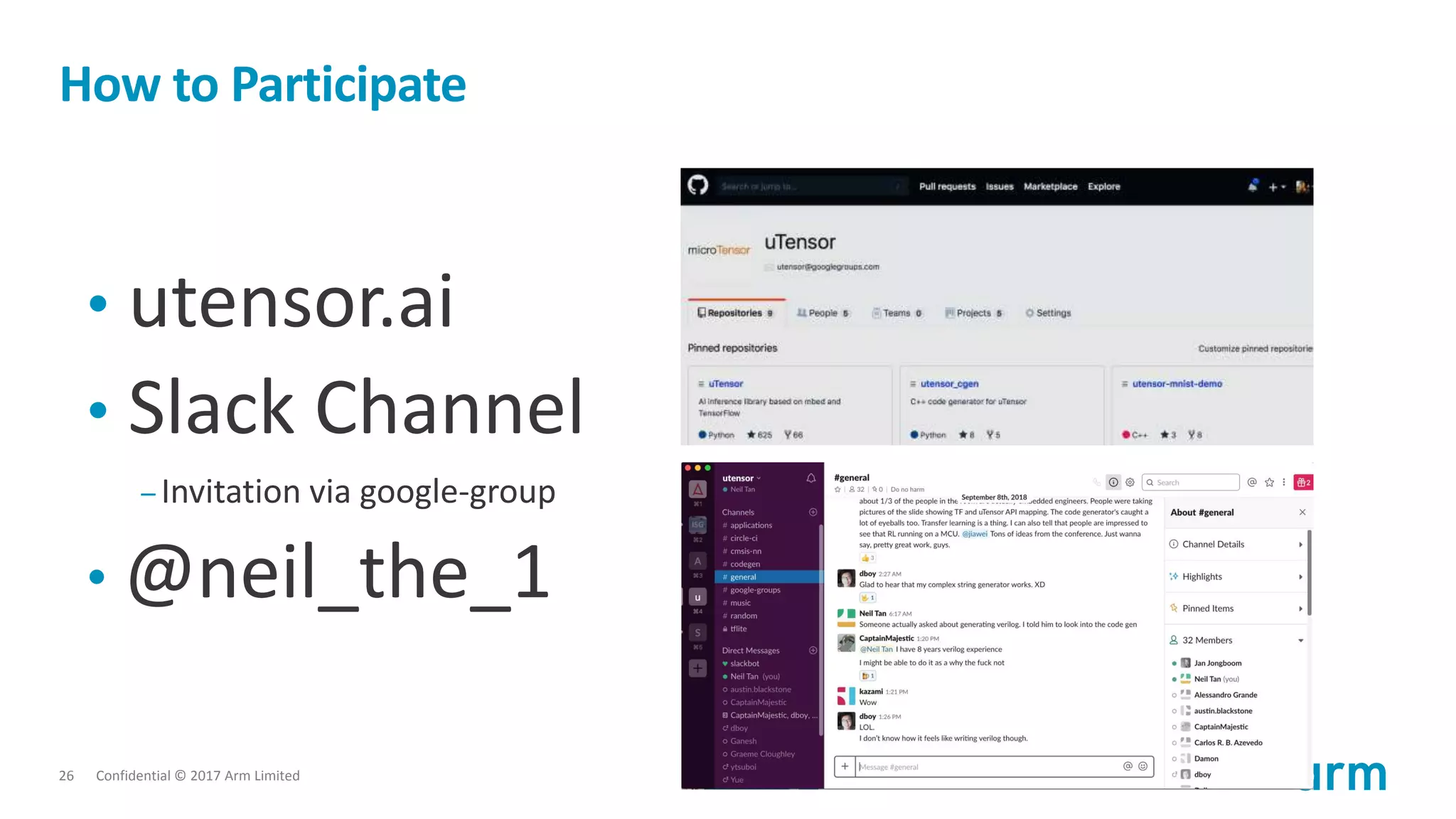

- 26. Confidential © 2017Arm Limited26 How to Participate • utensor.ai • Slack Channel – Invitation via google-group • @neil_the_1
- 27. Confidential © 2017Arm Limited27 Thank You!
Editor's Notes
- #6 From applications’ point of view -intelligence devices on batteries or no batteries -as more IoT systems demand more real-world data Wifi - Photo by rawpixel on Unsplash Rays - Photo by Christopher Burns on Unsplash Key - https://www.easykeys.com/63_Chicago_Lock_CompX_1250-1499_Lock_Keys.aspx
- #7 0.250 / (100e-6 * 32) * 60 * 5 / 24 Capacity / (uA per MHz * 32 Mhz) / 1 s * (60 * 5) / 24 https://www.sparkfun.com/products/338 https://www.st.com/en/microcontrollers/stm32-ultra-low-power-mcus.html?querycriteria=productId=SC2157
- #9 Take models trained in TF Look into the Math operations Convert to C++ Copy and Past Other than handwriting?
- #11 After 2 to 3 month Tensorflow on MCU 100x cheaper Handwritten
- #13 Gierad’s Super-sensor Everything but a Camera
- #14 Reading from multiple Sensors Vibration and Sound Simple device detect complex event
- #15 https://freerangestock.com/photos/39199/lightbulb-with-idea-concept-icon.html https://48projectsblog.wordpress.com/2015/12/22/3arduinogrove-sensors/ http://wiki.seeedstudio.com/Grove-3-Axis_Digital_Accelerometer-1.5g/ http://wiki.seeedstudio.com/Grove-Sound_Sensor/ https://www.thehouseshop.com/property-blog/will-home-ownership-remain-a-dream-for-most/2656/ https://uk.rs-online.com/web/p/processor-microcontroller-development-kits/1113738/ http://www.hortica.com/insurance-solutions/horticultural-solutions/greenhouse-growers/ https://demo.raratheme.com/the-minimal-pro/2016/03/01/eyes-on-the-street/
- #21 Assume Keep Probability = 1 during inference Batch Normalization -> assemble with smaller Ops to save space and easier to maintain CMSIS-NN for acceleration And, more!
- #22 Topological Order is not unique Compiler Technique Traverse the Graph – Associativity Node fusion quantization
- #28 Just do it Don’t do it alone
