This document discusses using Lambda layers to share reusable code across Lambda functions. It describes a case study of migrating a PDF generation service from EC2 to Lambda, which required non-standard dependencies like external binaries and system fonts. The implementation involved wrapping an Express app as a Lambda function, testing it locally by mimicking the Lambda runtime in Docker, and deploying with additional bundles. Lambda layers were then used to separate these dependencies and reduce bundle sizes, though it added complexity to local testing. In conclusion, layers provide benefits of code sharing and separation of concerns at the cost of some increased local testing overhead.

1. Peeling back the
lambda layers

2. Who am I
Javascript developer
Forsite -> Accordo
Now learning ML
Working from home

3. • Layers 🍰
• Lambda functions
• Containers
• Lambda Layers
• Case study: PDF generation on Lambda
• The problem
• The solution
• Adding more layers to the solution
• Conclusions 🤔

4. Faas: Functions as Service
• Pick a runtime
• Write your code
• Upload code + dependencies

5. The metaphor
Lambda functions have layers

8. Lambda function lifecycle
• Cold start
• Starts a new container
• AWS downloads your code & Extracts it to dir /var/task
• AWS bootstraps the runtime ( nodejs, python etc)
• Hot start
• Runs your handler code

9. Lambda Layers

10. Lambda Layers
• Another way to add code to your function

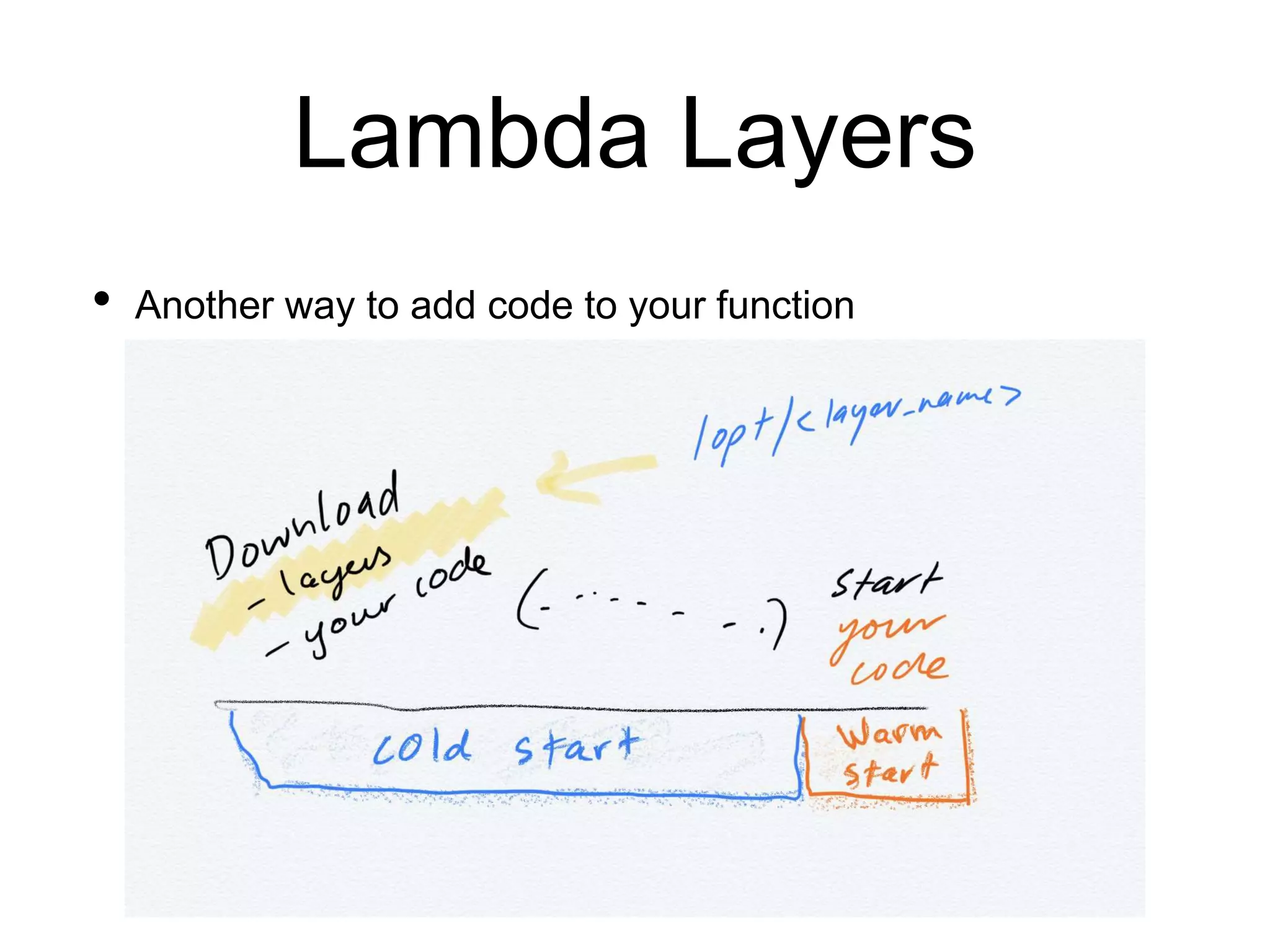

11. Lambda Layers
• Another way to add code to your function

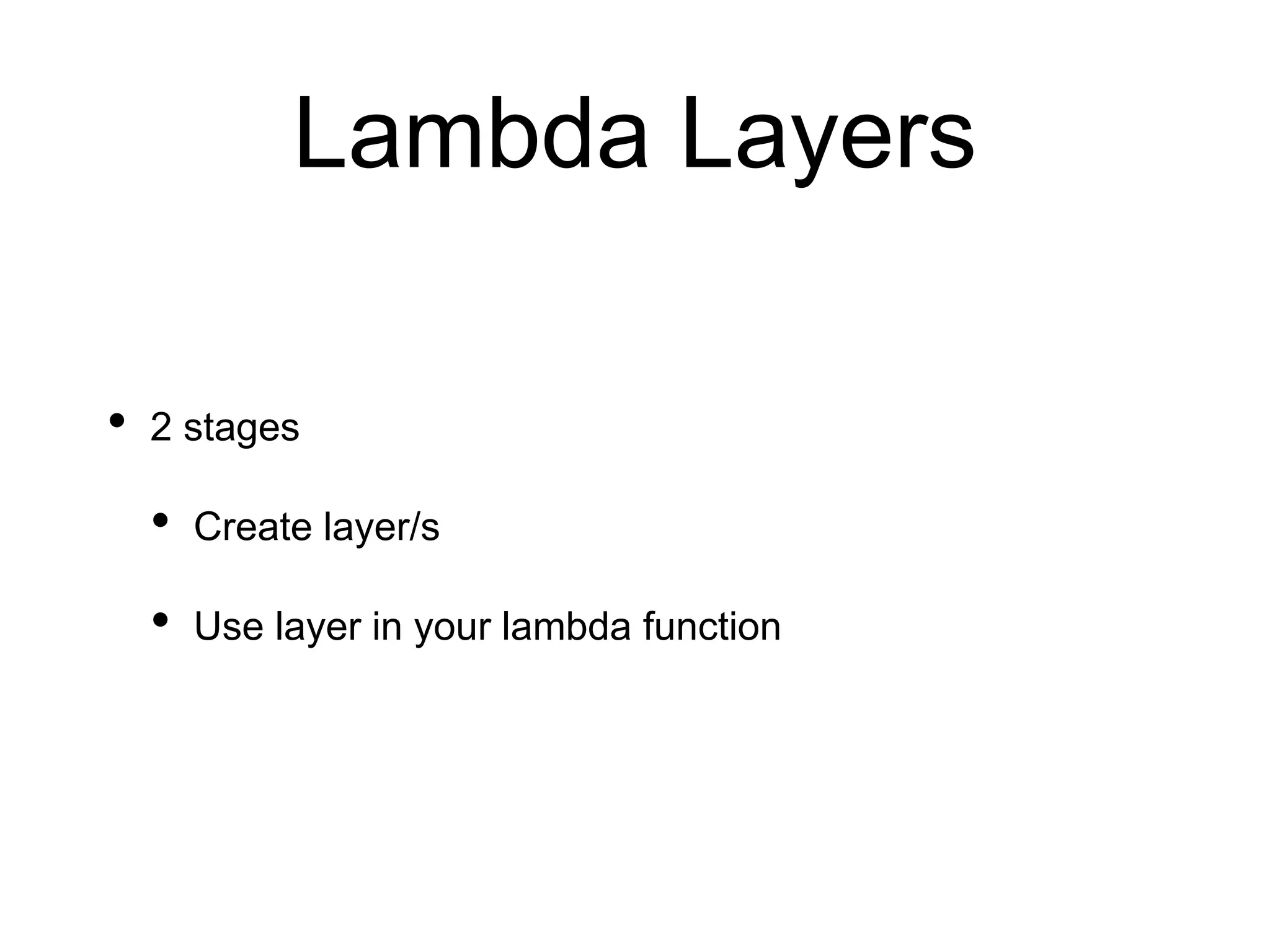

12. Lambda Layers
• 2 stages
• Create layer/s
• Use layer in your lambda function

13. Lambda Layers
• Upload a zip, just like a function bundle
• This creates a Layer ARN
• Create a layer

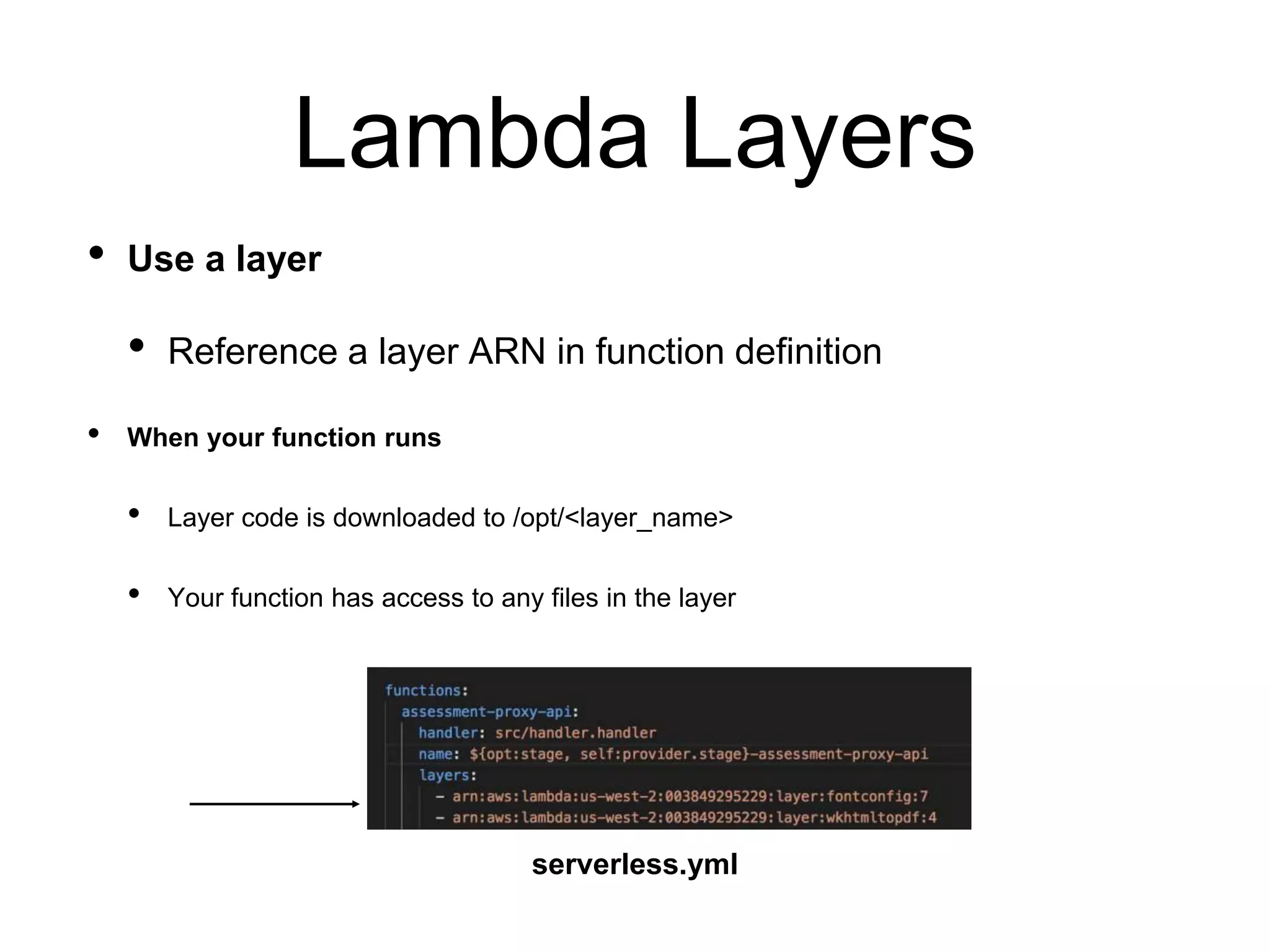

14. Lambda Layers
• Use a layer
• Reference a layer ARN in function definition
• When your function runs
• Layer code is downloaded to /opt/<layer_name>
• Your function has access to any files in the layer
serverless.yml

15. Lambda Layer
Limits
• Layers count toward max unzipped limit of 250mb
• Max 5 layers per function
• Layers are uploaded for a region and a runtime
• e.g us-west-2/node:8.11.1

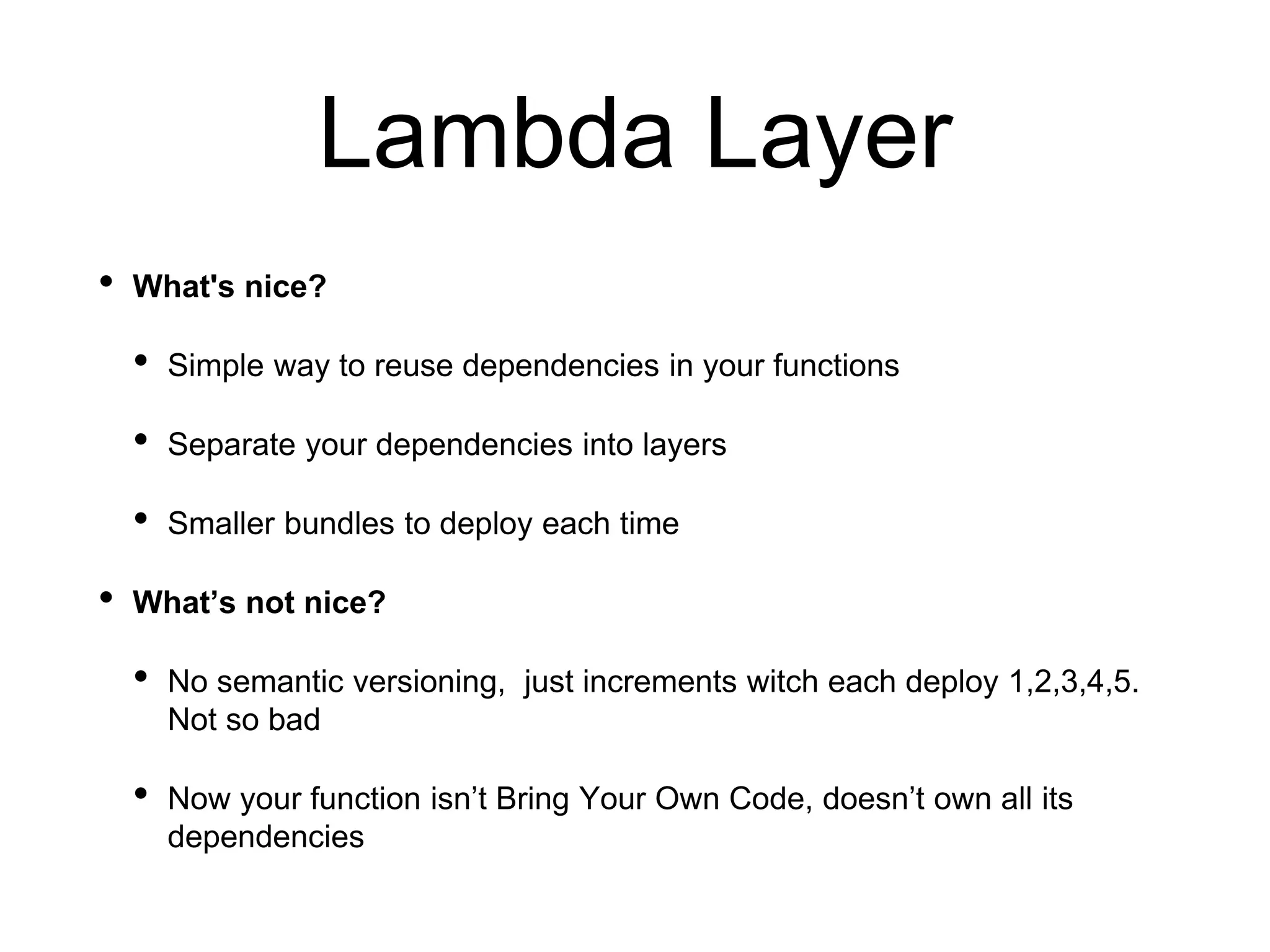

16. Lambda Layer
• What's nice?
• Simple way to reuse dependencies in your functions
• Separate your dependencies into layers
• Smaller bundles to deploy each time
• What’s not nice?
• No semantic versioning, just increments witch each deploy 1,2,3,4,5.
Not so bad
• Now your function isn’t Bring Your Own Code, doesn’t own all its
dependencies

17. Stepping outside the
Runtime

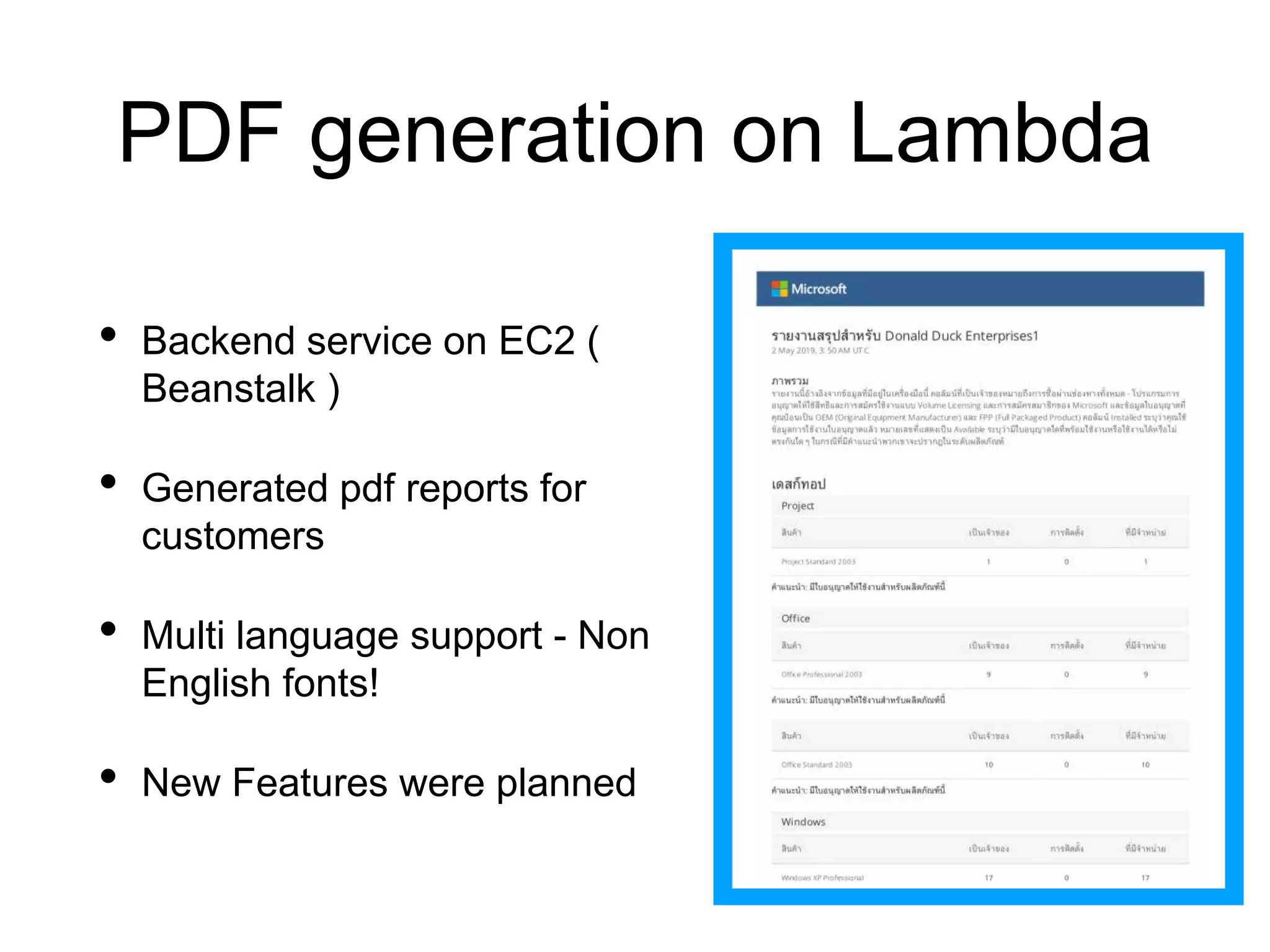

18. PDF generation on Lambda
• Backend service on EC2 (
Beanstalk )
• Generated pdf reports for
customers
• Multi language support - Non
English fonts!
• New Features were planned

19. PDF generation on Lambda
Original solution
• Node express app
• Non Node external lib for HTML -
> PDF generation: wkhtmltopdf
• Multi language fonts: Thai, Jap,
Korean
• To render fonts with wkhtmltopdf
we need to install system fonts
with fontconfig

20. PDF generation on Lambda
• Tech Debt to be paid
• Sometimes the EC2 instance would
restart and lose the font cache !
• To fix
• Ssh into live instance ( dev, uat,
prod ) 😰
• Manually install the fontconfig fonts
from the terminal 😭
• Non standard deployment model, only
EC2 instance

21. Migrate to Lambda
• New Features planned
• Good candidate
• It is stateless web-server
• Not too many requests, probably
save money
• Devops
• Doesn’t follow the standard
deployment model
• Teams know serverless

22. Migrate to Lambda
• What we need to solve:
• Node Express app -> handler function
• Wrap It with npm package
• don’t want to rewrite the whole thing
• External Binary: wkhtmltopdf
• Need to have the correct binary for lambda container OS!
• What distro is closest to amazon linux?
• System Fonts: Fontconfig
• Wkhtmltopdf relies on system fonts
• Linux uses fontconfig lib to render
• Need to build the correct font files!
• How will we test it?

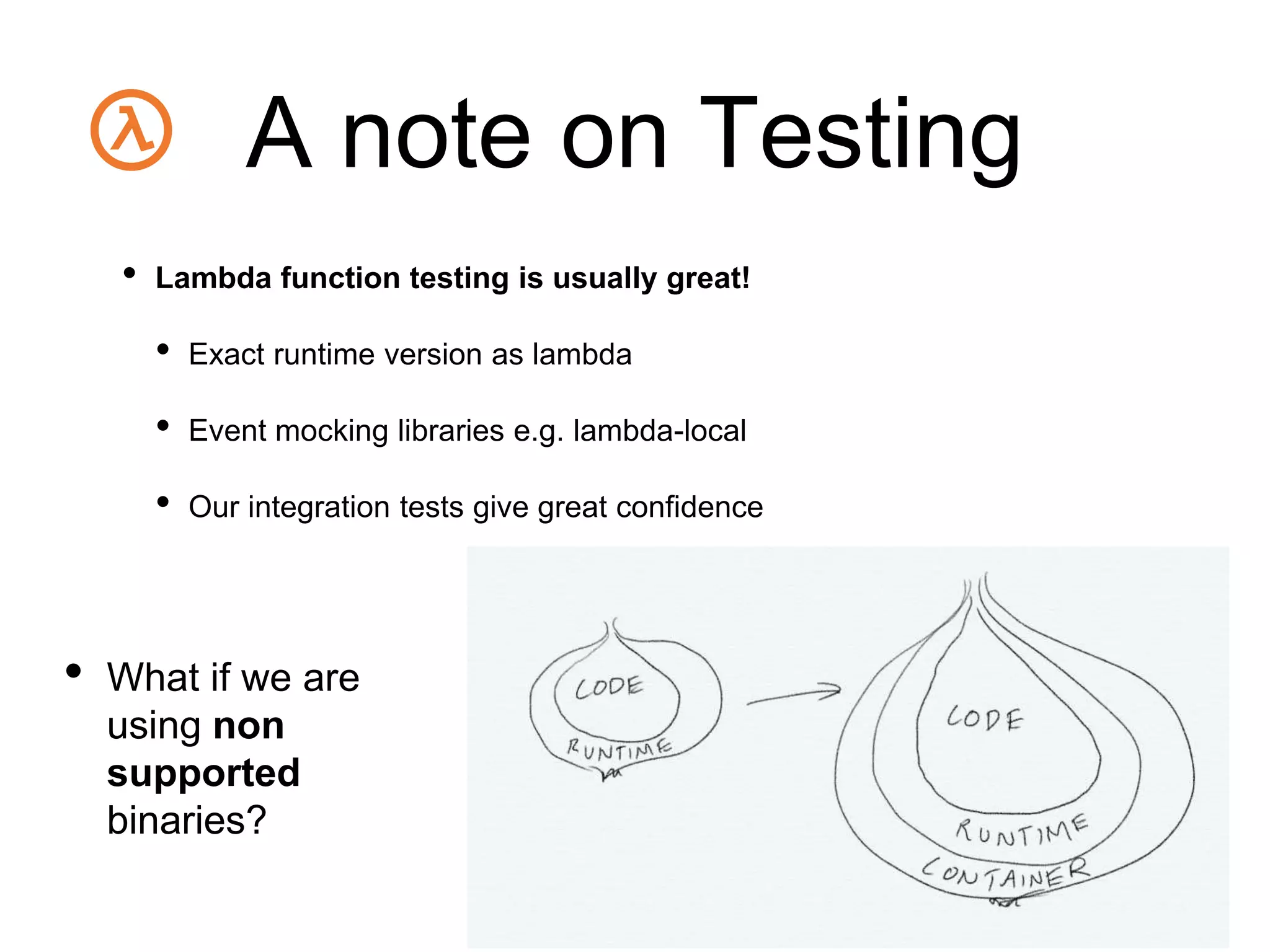

23. A note on Testing
• Lambda function testing is usually great!
• Exact runtime version as lambda
• Event mocking libraries e.g. lambda-local
• Our integration tests give great confidence
• What if we are
using non
supported
binaries?

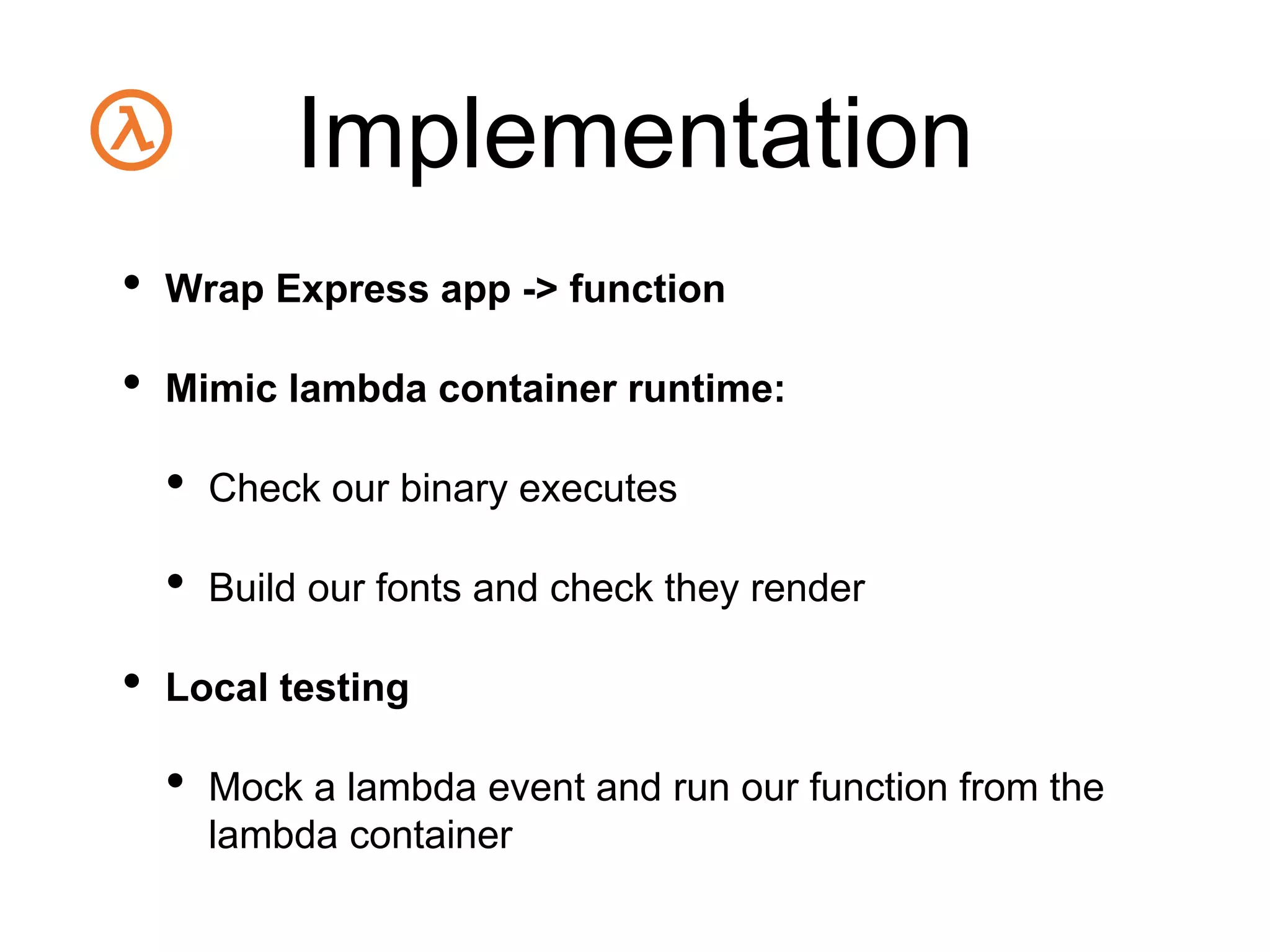

24. Implementation
• Wrap Express app -> function
• Mimic lambda container runtime:
• Check our binary executes
• Build our fonts and check they render
• Local testing
• Mock a lambda event and run our function from the
lambda container

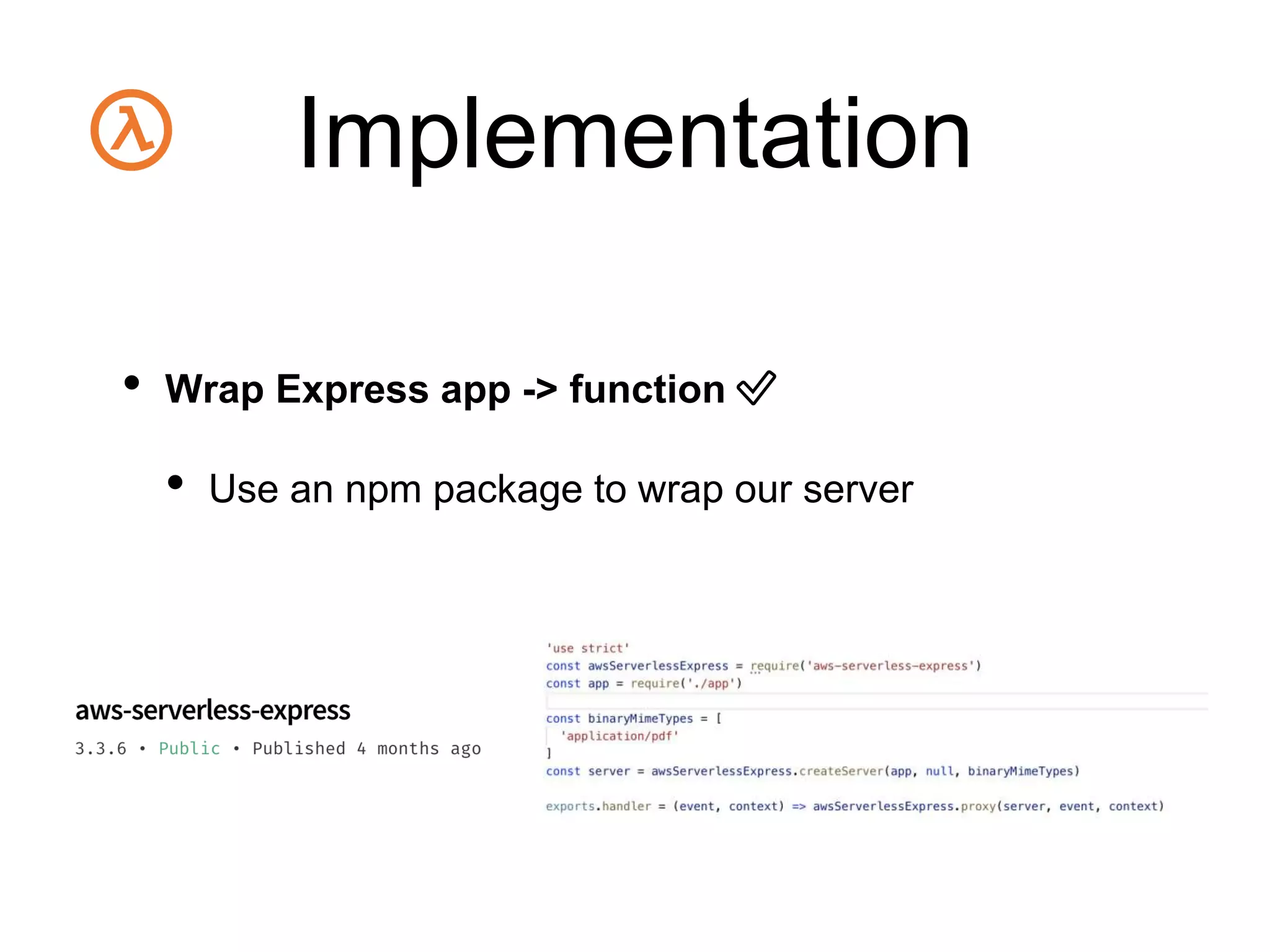

25. Implementation
• Wrap Express app -> function ✅
• Use an npm package to wrap our server

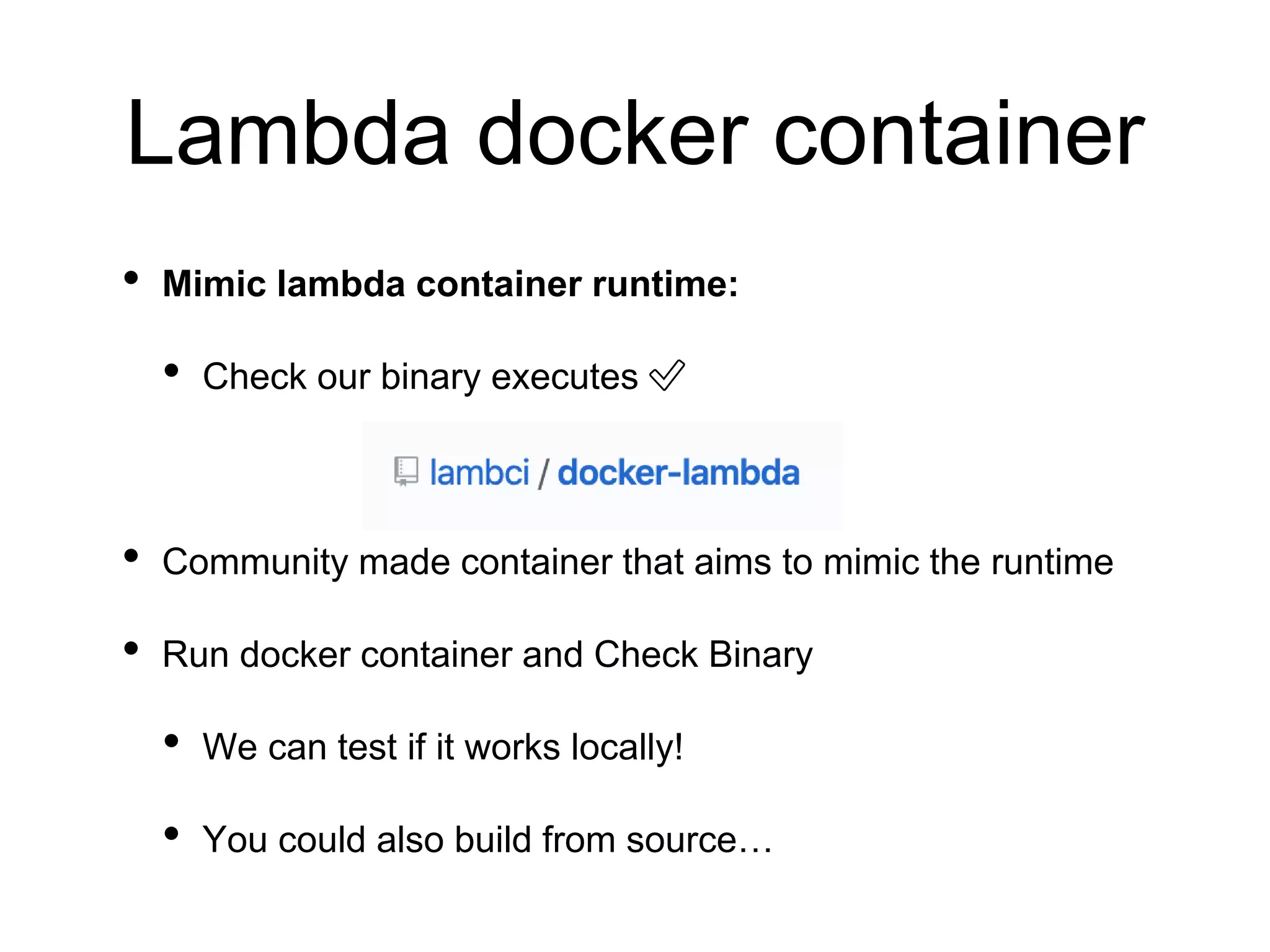

26. Lambda docker container
• Mimic lambda container runtime:
• Check our binary executes ✅
• Community made container that aims to mimic the runtime
• Run docker container and Check Binary
• We can test if it works locally!
• You could also build from source…

27. Implementation
• Mimic lambda container runtime:
• Build our fonts and check they render

28. Lambda docker container
• Build our fonts in this
container
• Way better than
manual
• Reproducible 🙌
• Reference the location
of our new fonts

29. Implementation
• Wrap Express app -> function ✅
• Mimic lambda container runtime:
• Check our binary executes ✅
• Build our fonts and check they render ✅
• Local testing
• Mock a lambda event and run our function from the
lambda container

30. Implementation
• Local testing
• Mount all our code, font files, dependencies in docker
container
• /var/task/
• Use lambda-local package to mock a lambda event
• it works 🌈 🌈 🌈 🌈 🌈 🌈 🌈 🌈 ( sorry no demo )

31. Deploy
• Our bundle
• Node Code
• Fontconfig files
• Binary: wkhtmltopdf
• Works in live
* Generated from lambda function 🙌

32. The end

33. What about Lambda Layers?
• It already works, we could stop here…
• We added a lot of complexity
• Could reuse these bespoke lambda dependencies
• They change infrequently just add to bundle size

34. What about Lambda Layers?
What our function
looks like now

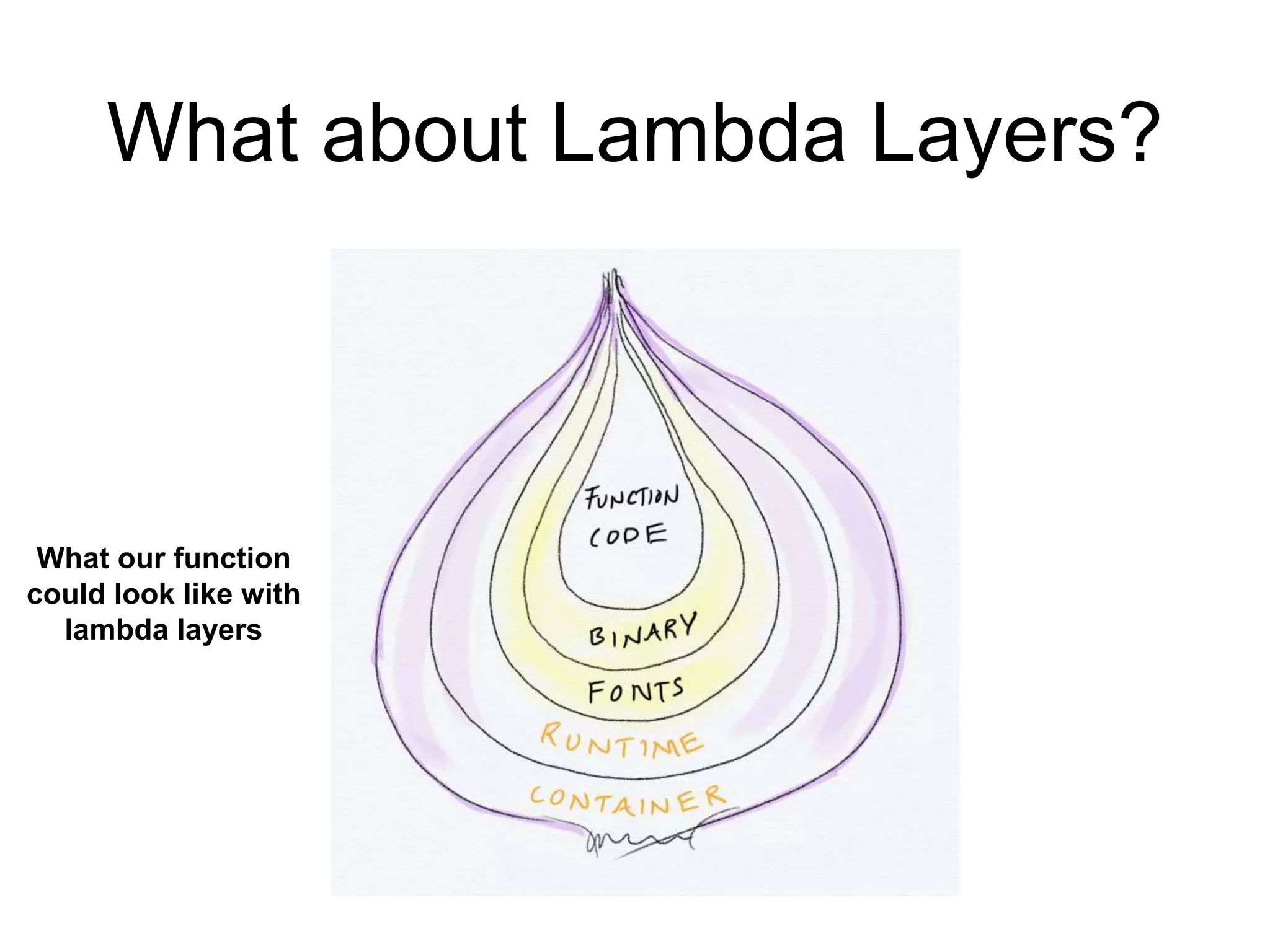

35. What about Lambda Layers?
What our function
could look like with
lambda layers

36. Build our layers
• build files
• Upload with
serverless

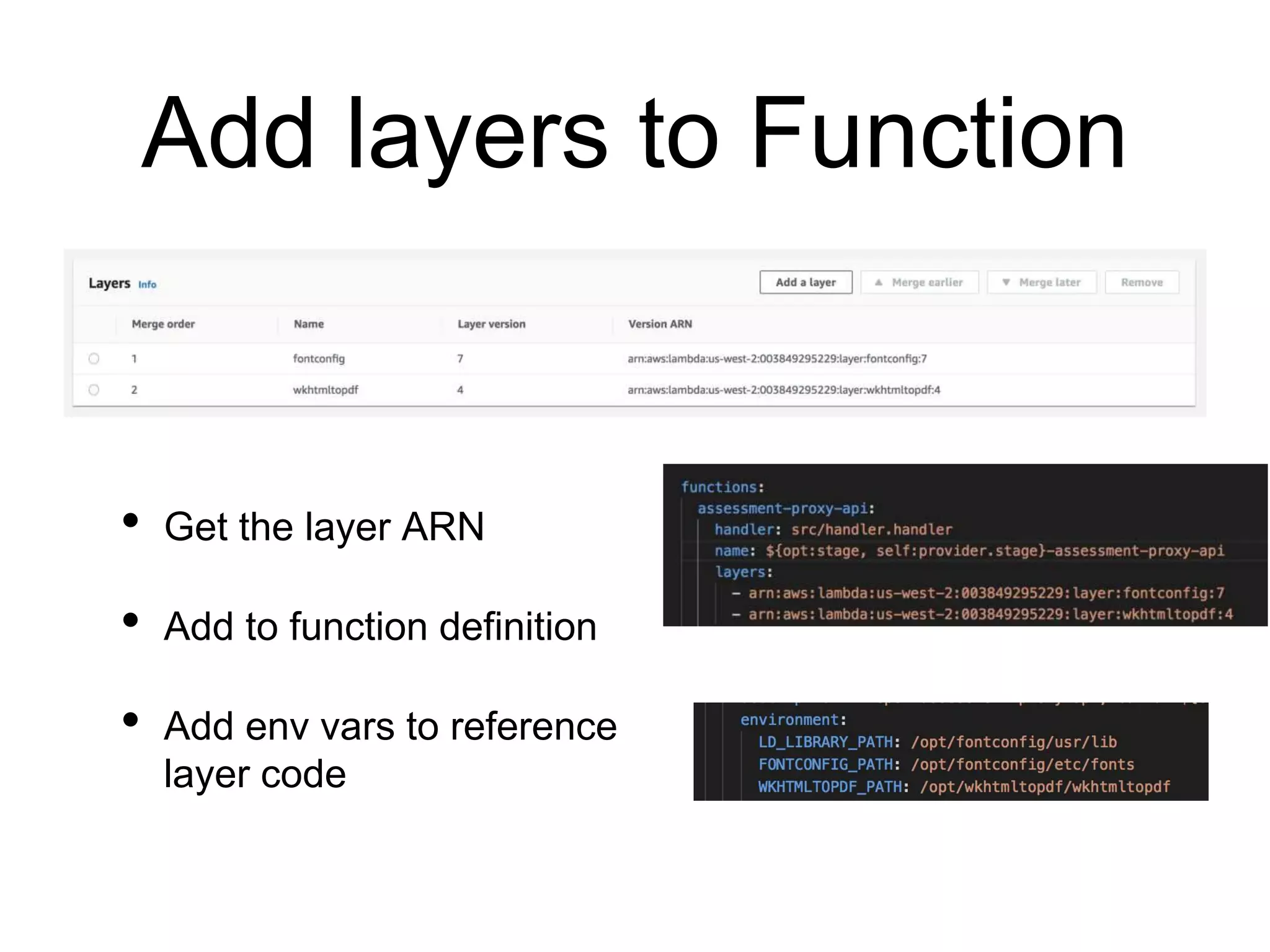

37. Add layers to Function
• Get the layer ARN
• Add to function definition
• Add env vars to reference
layer code

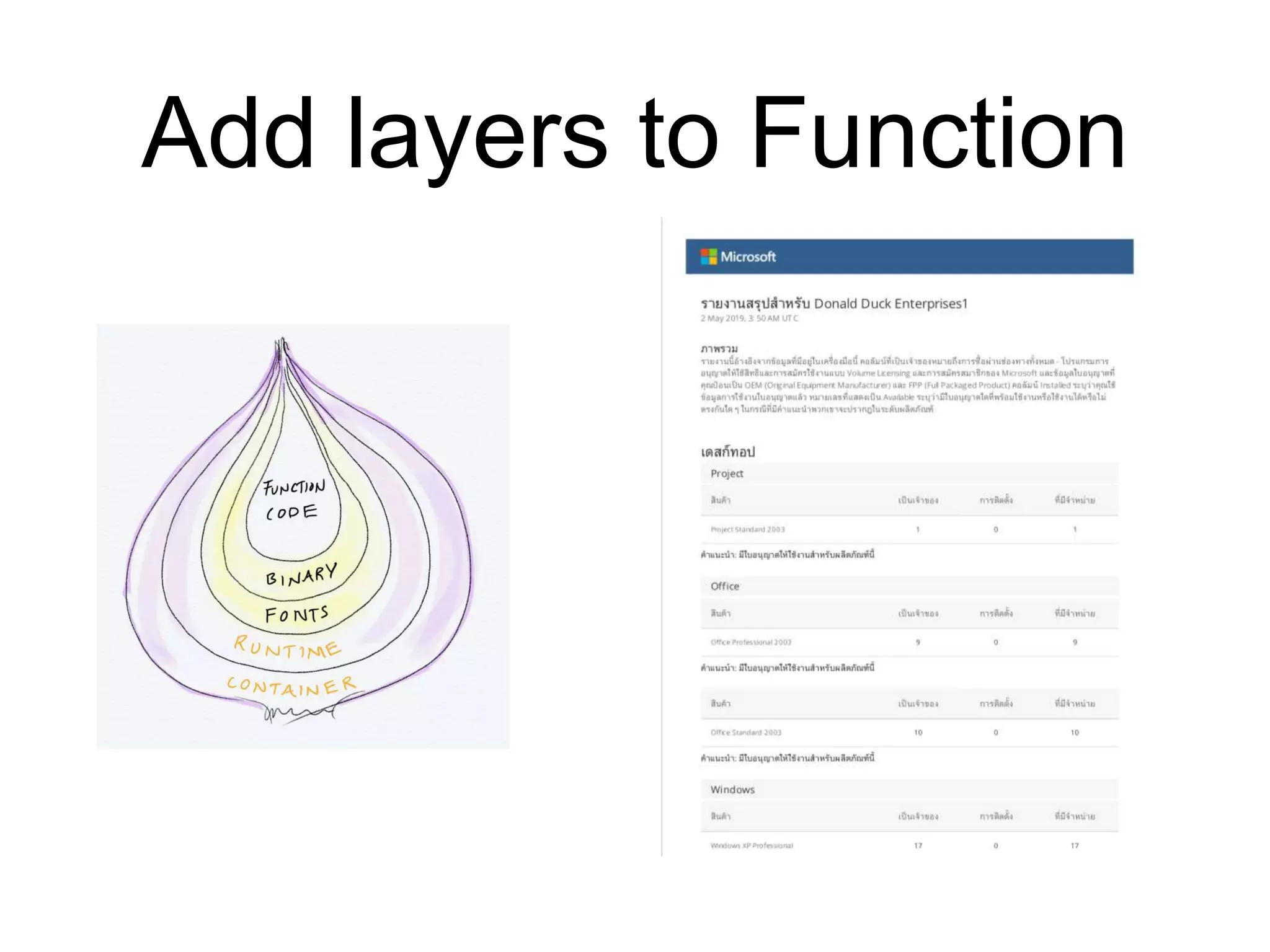

38. Add layers to Function

39. Separate

40. Local Testing

41. Local Testing
• Layers only accessible in LIVE
• Our function doesn’t include all its dependencies
locally
• Now our local testing doesn’t have the layer code??
• Local lambda mocking libraries support layers?

42. Local Testing
• We can hack a solution together
• download layers with aws-cli
• mount them in our local lambda container like AWS
does
• /opt/<layer_name>
• Run like before

43. CONCLUSIONS
Container to serverless
• Deployed non supported binary 🌈
• Replicated lambda env on our local for testing
• Possibilities infinite and bounded ( 250mb max size
unzipped)

44. CONCLUSIONS
• What did we achieve with lambda layers?
• Share our layer code
• Share to other functions super easy
• standard dependencies across services . e.g. standardised for security
• Separated our concerns
• Decreased our bundle size
• Added local testing overhead ( but already have
extra with non supported binaries )

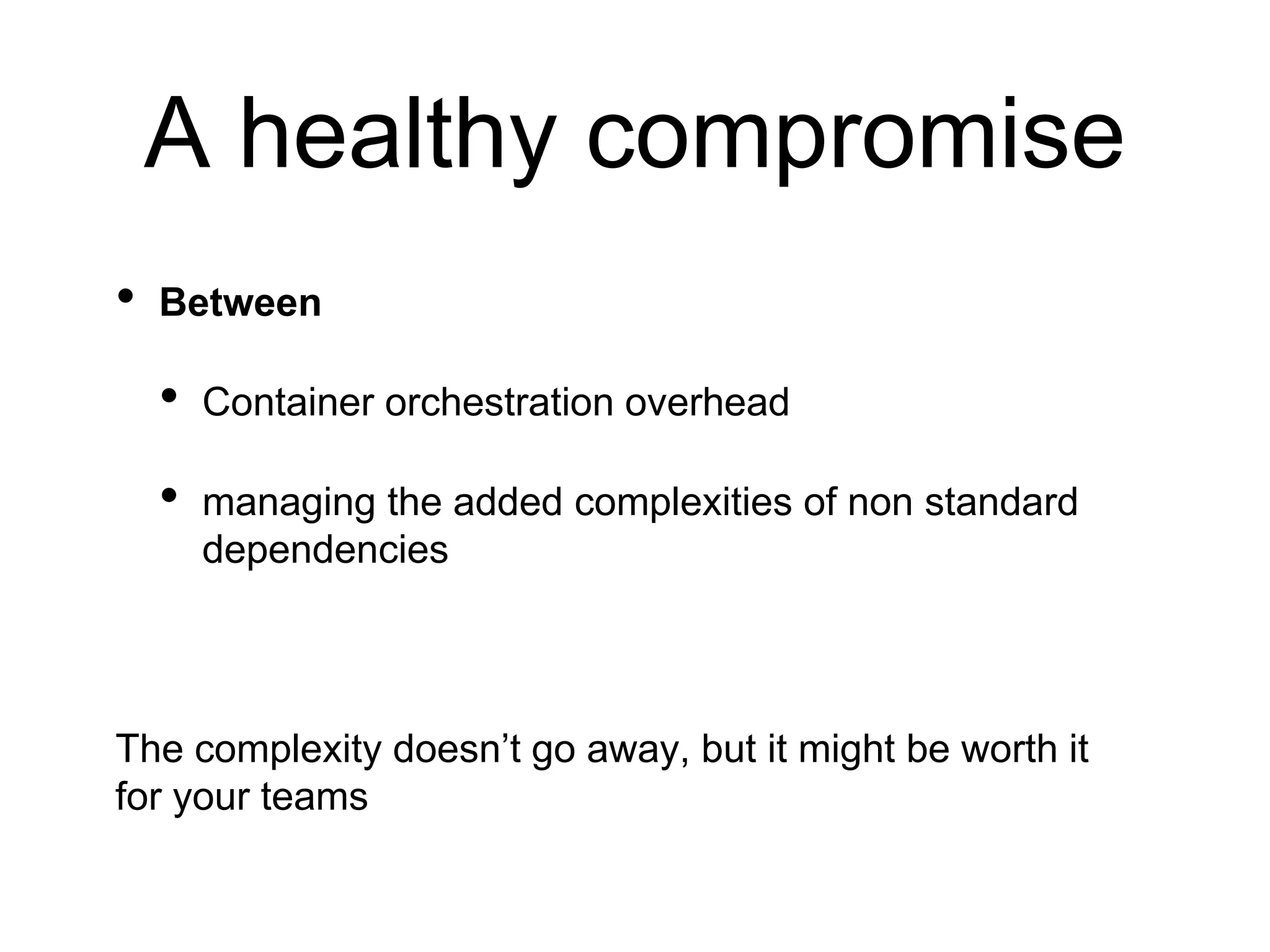

45. A healthy compromise
• Between
• Container orchestration overhead
• managing the added complexities of non standard
dependencies
The complexity doesn’t go away, but it might be worth it
for your teams

46. A healthy compromise
