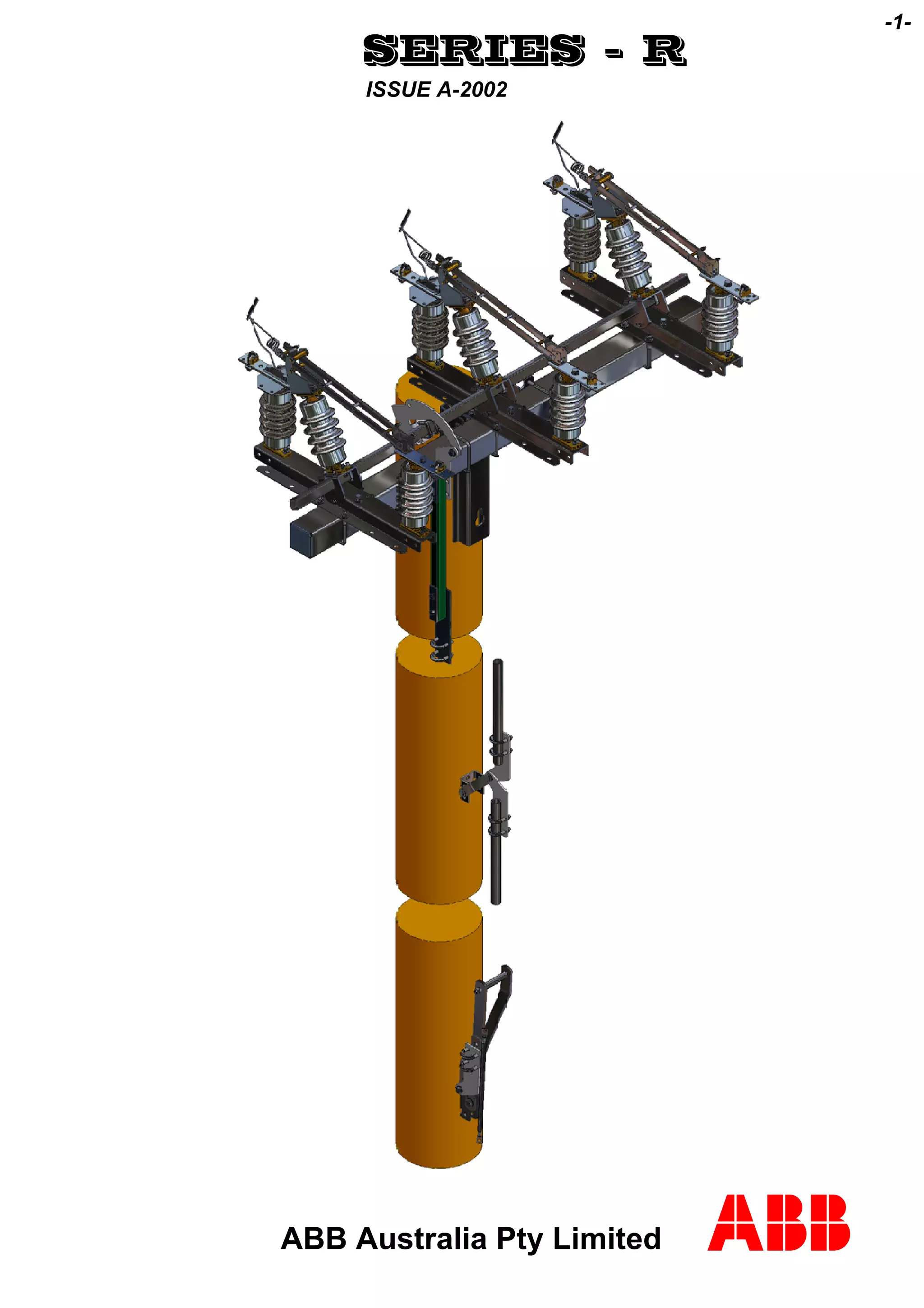

1. ABB Australia Pty Limited ABB
SERIES - R
ISSUE A-2002
-1-

2. Price List Numbering System
TYPE
rated voltage
(kV) BIL
rated current
(A)
crossarm
NO. Lenght
1.one or
2.two
x-arm
*standard lenght 2400mm
other lenght available
on request.
R X X 800 X 2400 X X X
D-disconnector
S-switch
mounting
H-horizontal
V-vertical
pole
1. single pole
2. twin pole
*see phase base option table
R
Please order as above:
-selection required
DESCRIPTION PRICE ($) X DESCRIPTION PRICE ($) X
Interphase Shaft
Cable Clamps Cable Clamp
OPTIONS
1. option for
40mm-193mm
cable
or
2. option for
15mm-323mm
cable.
Phase Base
OPTIONS
1. 12-24kV,150BIL
D-disconnector
2. 12-24kV,150BIL
S-switch
3.36kV,200BIL
D-disconnector
4.36kV,200BIL
S.switch
5.36kV,250BIL
D-disconnector
6.36kV,250BIL
S-disconnector
NOTE:select
only one option.
2400mm lenght
Material:galvanised
steel.
*OPTIONS:LENGHTS
available in 300mm
increments(1500-3000)mm.
NOTE:equipment based on 8m max pole height and
single crossarm-single pole configuration.
For other refer examples on next page.
X
Downrod
OPTIONS
1=2 off 4m 25NB or
2=2 off 24 NB pipe +
1 off 1m fibre glass
insulation section.
Mounting Bracket
&accessories
2 2
2 2
R - SERIES SELECTION
ABB Australia Pty Limited
D-phase base
S-phase base
Crossarm
Downrod
(select only one option)
set of 6
set of 6
-2-
E/cable
(1off)
Crank Assy
(1off)
Handle
(1off)
Intermidiate Support (1off)
(included when lenght
of the downrod
exceeds 3m.
Mounting Bracket
(1off)
U-bolt assembly
(8off)

3. ABB Australia Pty Limited
single crossarm on
single pole construction
(vertical or horizontal mounting)
SEE FOLLOWING OPTIONS FOR DIFFERENT
CONFIGURATION OF THE SWITCH-DISCONNECTOR
OPTION:
-stringing kit
(horizontal mounting only)
twin crossarm on
single pole construction
(vertical or horizontal mounting)
single crossarm on
twin pole construction
(vertical or horizontal mounting)
OPTION:
-outboard bearing
(vertical or horizontal mounting )
twin crossarm on
twin pole construction
(vertical or horizontal mounting)
OPTION:
-outboard bearing
(vertical or horizontal mounting)
R- SERIES E/SWITCH
(vertical or horizontal mounting)
R- SERIES powder filled fuse
(vertical mounting only)
R- SERIES EDO
(vertical mounting only)
OPTION:
-stringing kit
(horizontal mounting only)
-3-

4. R 24kV 150BIL 800A 1 2400 D V 1
EXAMPLE:
Rated Current: 800A ,1200A , 2000A
Rated Voltage: 12-24kV 36kV
Short Time
Withstand:
BIL: 125-150kV 200kV 250kV
Creepage: 380 660,1060 1370
20kA for 3s 25kA for 3s
25kA for 1s 31.5kA for 1s
ABBABB Australia Pty Limited
ABN 23 000 169 568
Bapaume Road
Moorebank,NSW 2170
Telephone: +61 (0) 2 9821 0111 FAX: +61 (0) 2 9601 2873
Internet : www.abbnet.com.au email : outdoor @ au.abb.com 7505968-1/2.IDW
2400,00
(customer spec.)(customer spec.)
NOTE:switches are supplied in kit form with assembly and
mounting instruction.
TECHNICAL DETAILS:
