Linux Kernel Security
      Overview
 Kernel Conference Australia
       Brisbane, 2009


         James Morris
       jmorris@namei.org
Introduction
Historical Background
●   Linux started out with traditional Unix security
    –   Discretionary Access Control (DAC)

●   Security has been enhanced, but is constrained
    by original Unix design, POSIX etc.

●   Approach is continual retrofit of newer security
    schemes, rather than fundamental redesign

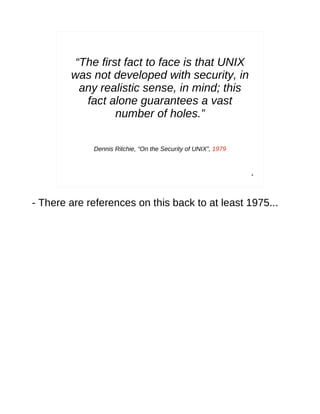

“The first fact to face is that UNIX
was not developed with security, in
  any realistic sense, in mind; this
   fact alone guarantees a vast
          number of holes.”

    Dennis Ritchie, “On the Security of UNIX”, 1979
DAC
●   Simple and quite effective, but inadequate for
    modern environment:
    –   Does not protect against flawed or malicious code

●   Linux implementation stems from traditional
    Unix:
    –   User and group IDs
    –   User/group/other + read/write/execute
    –   User controls own policy
    –   Superuser can violate policy
“It must be recognized that the mere
      notion of a super-user is a
   theoretical, and usually practical,
blemish on any protection scheme.”

                 Ibid.
Extended DAC
●   POSIX Capabilities (privileges)
    –   Process-based since Linux kernel v2.2
         ●   Limited usefulness
    –   File-based support relatively recent (v2.6.24)
         ●   May help eliminate setuid root binaries

●   Access Control Lists (ACLs)
    –   Based on abandoned POSIX spec
    –   Uses extended attributes API
Linux Namespaces
●   File system namespaces introduced in 2000,
    derived from Plan 9.
    –   Not used much until mount propagation provided
        more flexibility (e.g. shared RO “/”)
    –   Mounts private by default
●   Syscalls unshare(2) and clone(2) allow control
    over sharing of resources
●   Provides good isolation between processes
●   PAM integration
●   Used w/ SELinux in kiosk mode
Network Access Control
●   Netfilter
    –   Packet filtering and mangling framework
    –   API allows kernel applications to register by
        protocol and packet flow point

●   IPTables
    –   Extensible packet filter for IPv4/IPv6
    –   Connection tracking (stateful inspection)
    –   NAT
    –   Hundreds of contributed matches and targets
Missing Link
●   Seminal 1998 NSA paper: The Inevitability of
    Failure describes additional security
    requirements:
    –   Mandatory security
    –   Trusted / protected path
    –   Assurance

●   Difficult work, but we are getting there...

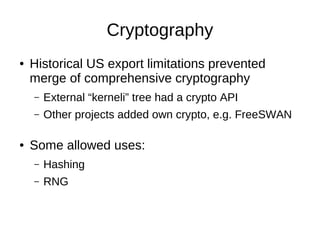

Cryptography
●   Historical US export limitations prevented
    merge of comprehensive cryptography
    –   External “kerneli” tree had a crypto API
    –   Other projects added own crypto, e.g. FreeSWAN

●   Some allowed uses:
    –   Hashing
    –   RNG
Cryptography
●   Crypto API developed rapidly for native IPSec
    implementation, made it into 2.6 kernel
●   Scatterlist API
●   Initially synchronous w/ support for basic cipher
    modes, digests and compressors
●   Dynamic crypto algorithm module loading
●   Now significantly evolved w/ async, hardware
    support, ASM, many algorithms & modes
Disk Encryption: DM-Crypt
●   Operates transparently at block layer

●   Key management with LUKS

●   Default is AES-128/SHA-256

●   Very nice integration in Fedora; try it!

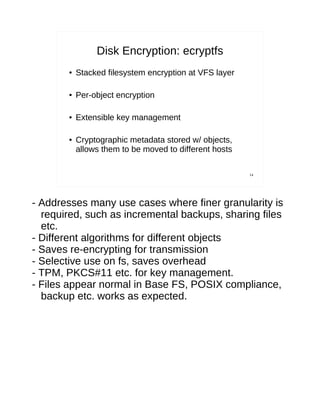

Disk Encryption: ecryptfs
●   Stacked filesystem encryption at VFS layer

●   Per-object encryption

●   Extensible key management

●   Cryptographic metadata stored w/ objects,
    allows them to be moved to different hosts
Network Encryption: IPSec
●   Supports IPv4 and IPv6
●   Implemented via generic transform (xfrm)
    framework:
    –   xfrm stack applied to packet based on policy db
●   xfrms include: ESP, AH, IPComp, MIP, IPIP
●   Utilizes native Netlink sockets for scalability
●   Also supports PF_KEY
Memory Protection
●   Address Space Layout Randomization (ASLR)
●   NX (No eXecute) bit support where available in
    hardware or via emulation
●   GCC stack smashing protector
●   /dev/mem & null pointer restrictions
●   MAC policy can be applied via SELinux:
    –   execheap, execmem, execmod, execstack
Kernel Vulnerabilities
●   Note that kernel vulnerabilities may allow
    attackers to bypass kernel-based security
    mechanisms.

●   See “Linux Kernel Heap Tampering Detection”,
    in Phrack 66 for a detailed discussion of the
    topic.
Linux Security Modules (LSM)
●   Framework for integrating access control
    schemes
●   Hooks located at security-critical points in the
    kernel, pass security-relevant information to
    LSM module, which can veto the operation
●   Avoids races when making security decisions
●   Restrictive interface: can only further confine
    access, not loosen it
SELinux
●   Flexible fine-grained MAC scheme w/ least
    privilege, confidentiality, integrity, isolation,
    information flow control; exploit containment
●   Composition of multiple security models under
    single analyzable policy
●   Currently ships with: Type Enforcement, RBAC
    and MLS/MCS
●   Clean separation of mechanism and policy to
    meet very wide range of usage scenarios
Simplified Mandatory Access
        Control Kernel (SMACK)

●   Simple labeling of subjects and objects to
    provide flexible MAC
●   System labels define hierarchical limits
●   Admin-defined labels can be any short string
●   Policy is written as triples:
      Subject Object [–rwxa]

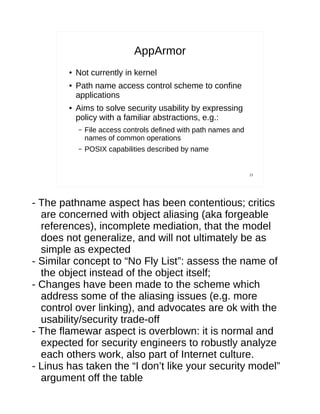

AppArmor
●   Not currently in kernel
●   Path name access control scheme to confine
    applications
●   Aims to solve security usability by expressing
    policy with a familiar abstractions, e.g.:
    –   File access controls defined with path names and
        names of common operations
    –   POSIX capabilities described by name
TOMOYO
●   Path-based MAC scheme developed by NTT
    research
●   Aims to solve security usability with automatic
    real-time policy generation
●   Enforces previously observed behavior in
    learning mode
●   Domains are trees of process invocation
●   Rules apply to domains
Labeled Networking
●   NetLabel
    –   CIPSO
         ●   Legacy labeling using IP options
    –   IPSec
         ●   Labeling of Security Associations
●   Secmark
    –   Utilizes iptables
    –   Generic labeling (SMACK & SELinux use it)
Network File Systems
●   Labeled NFS
    –   NFSv4 extension
    –   Prototype code
    –   Also need to extend RPC security
    –   IETF process ongoing
●   NFS ACLs
    –   Support for Linux ACLs and NFSv4 ACLS
         ●   See talk by Greg Banks at LCA

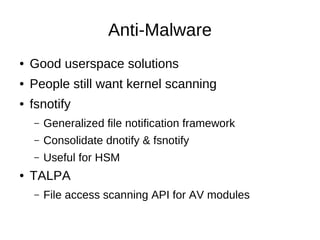

Anti-Malware
●   Good userspace solutions
●   People still want kernel scanning
●   fsnotify
    –   Generalized file notification framework
    –   Consolidate dnotify & fsnotify
    –   Useful for HSM
●   TALPA
    –   File access scanning API for AV modules
Integrity & Platform Security
●   TPM (Trusted Platform Module)
    –   Cryptographic processor, RNG, storage for keys
        and measurements
●   IMA (Integrity Measurement Architecture)
    –   Static integrity verification of code
●   TXT (Intel Trusted Execution Technology)
    –   DRTM (Dynamic Root of Trust Measurement);
        trusted launch, hardware security enhancements
●   VT-d (device virtualization)
    –   Needed to secure IO devices
Audit
●   Developed for certification (e.g. CAPP)
●   Audit framework generates events:
    –   User sessions & configuration changes
    –   Syscalls
    –   LSM decisions
●   Useful for forensics and deterrence
●   SELinux, SMACK et al use it for detailed
    reporting
●   Netlink API for audit daemon, IDS
Seccomp
●   Secure computing mode
    –   Extremely lightweight sandboxing for untrusted
        code
    –   Application enters mode with fixed set of restricted
        syscalls (read, write, exit, sigreturn)

●   Proposal to convert into generic syscall filter
    –   Historically problematic area

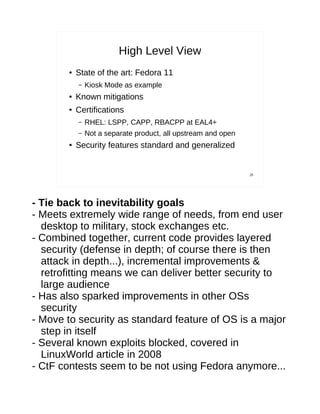

High Level View
●   State of the art: Fedora 11
    –   Kiosk Mode as example
●   Known mitigations
●   Certifications
    –   RHEL: LSPP, CAPP, RBACPP at EAL4+
    –   Not a separate product, all upstream and open
●   Security features standard and generalized
Future Directions
●   Continued refinement and hardening
    –   Working towards “Inevitability” goals

●   Extensible models
    –   Consistent policy for entire computing environment

●   Cloud Computing
Challenges
●   Multiple security models hindering adoption

●   Convincing people of the value of security:
    –   enable features
    –   report problems
    –   help improve usability
Resources

●   Linux Kernel Security Wiki

●   LSM Mailing List

●   LWN Security page
Questions?
Useful URLs
Kernel Security Wiki
    http://security.wiki.kernel.org/

LSM Mailing List
    http://vger.kernel.org/vger­lists.html#linux­security­module

LWN Security Page
    http://lwn.net/Security/

“The Inevitability of Failure: The Flawed Assumption of Security in Modern
Computing Environments”
    http://csrc.nist.gov/nissc/1998/proceedings/paperF1.pdf

LSM Usenix Paper
    http://www.usenix.org/event/sec02/wright.html

Kernel Memory Protection
    http://lwn.net/Articles/329787/

Linux Security Model Comparison
    http://tomoyo.sourceforge.jp/wiki­e/?WhatIs#comparison
Useful URLs ...
SELinux
    http://selinuxproject.org/
“Have You Driven an SELinux Lately?” (OLS paper on current state)
    http://namei.org/ols­2008­selinux­paper.pdf
“Anatomy of Fedora Kiosk Mode”
    http://namei.org/presentations/fedora­kiosk­mode­foss­my­2008.pdf
“SELinux Memory Protection Tests”
    http://people.redhat.com/drepper/selinux­mem.html
“A seatbelt for server software: SELinux blocks real­world exploits”
    http://www.linuxworld.com/news/2008/022408­selinux.html

SMACK
    http://schaufler­ca.com/

AppArmor
    http://en.opensuse.org/Apparmor

TOMOYO
    http://tomoyo.sourceforge.jp/

“POSIX file capabilities: Parceling the power of root”
    http://www.ibm.com/developerworks/library/l­posixcap.html

“POSIX Access Control Lists on Linux”
    http://www.suse.de/~agruen/acl/linux­acls/online/
Useful URLs ...
"Implementing Native NFSv4 ACLs in Linux"
    http://lca2009.linux.org.au/slides/79.tar.gz

“Applying mount namespaces”
    http://www.ibm.com/developerworks/linux/library/l­mount­namespaces.html

“Disk encryption in Fedora: Past, present and future”
    http://is.gd/16012

“Limiting buffer overflows with ExecShield” (2005)
    http://www.redhat.com/magazine/009jul05/features/execshield/

“Linux Kernel Heap Tampering Detection”
    http://phrack.org/issues.html?issue=66&id=15#article

“System integrity in Linux”
    http://lwn.net/Articles/309441/
“Linux kernel integrity measurement using contextual inspection” (LKIM)
    http://portal.acm.org/citation.cfm?id=1314354.1314362

Intel TXT Site
    http://www.intel.com/technology/security/

IBM TCPA Resources
    http://www.research.ibm.com/gsal/tcpa/tcpa_rebuttal.pdf

Invisible Things Labs
    http://theinvisiblethings.blogspot.com/
Linux Kernel Security
      Overview
 Kernel Conference Australia
       Brisbane, 2009


         James Morris
       jmorris@namei.org

                               1
Introduction




                                                2




- Discuss scope and purpose of talk:
 - Provide a high-level overview of Linux kernel security
 - Cover significant security subsystems
 - Historical background and rationale
 - Development model & (lack of) overall design
 - Security has been retrofitted
  - Pros and cons

 - Understanding of why, not just how
 - Build understanding of current system and directions
 - Useful for developers, admins, researchers etc. as a
   starting point
- Also only talking about in-tree unless otherwise noted
- The scope is kernel security: this does not cover
   general Linux security, which needs a large book!
Historical Background
        ●   Linux started out with traditional Unix security
            –   Discretionary Access Control (DAC)

        ●   Security has been enhanced, but is constrained
            by original Unix design, POSIX etc.

        ●   Approach is continual retrofit of newer security
            schemes, rather than fundamental redesign


                                                               3




- Llinux security constrained by these factors, can’t re-
  design / break userland
“The first fact to face is that UNIX
        was not developed with security, in
          any realistic sense, in mind; this
           fact alone guarantees a vast
                  number of holes.”

             Dennis Ritchie, “On the Security of UNIX”, 1979



                                                               4




- There are references on this back to at least 1975...
DAC
        ●   Simple and quite effective, but inadequate for
            modern environment:
            –   Does not protect against flawed or malicious code

        ●   Linux implementation stems from traditional
            Unix:
            –   User and group IDs
            –   User/group/other + read/write/execute
            –   User controls own policy
            –   Superuser can violate policy
                                                                    5




- Unix DAC has been very successful due to its
   simplicity (although still trips people up...).
- “root” is allowed to violate security policy
- Basically: all or self security w/ abbreviated ACLs
- Not good enough because:
       - ref: NSA paper “The Inevitability of a failure”
 - Consider that in practice, all software has bugs;
   some of those bugs may be security issues,
   therefore it is prudent (and historically accurate) to
   assume all software has security bugs; DAC simply
   cannot provide effective protection as the security
   policy is controlled by the flawed software!
- People assume MAC means “trusted systems” and
   that they don’t need it; MAC can and has been
   generalized....
“It must be recognized that the mere
             notion of a super-user is a
          theoretical, and usually practical,
       blemish on any protection scheme.”

                         Ibid.



                                             6




- This was recognized as a problem 30 years ago!
Extended DAC
        ●   POSIX Capabilities (privileges)
            –   Process-based since Linux kernel v2.2
                 ●   Limited usefulness
            –   File-based support relatively recent (v2.6.24)
                 ●   May help eliminate setuid root binaries

        ●   Access Control Lists (ACLs)
            –   Based on abandoned POSIX spec
            –   Uses extended attributes API

                                                                 7




- Let’s solve DAC by... adding more!
- Proc caps have had some use w/ sendmail & ntpd
- Useful as annotations, has had some limited use
  (sendmail, ntpd), also involved in security issue
- File caps much more useful, but still to see distro
  adoption
- ACLs much more fine-grained and powerful than Unix
  perms, also subtle and complex; many different
  implementations
- See paper by Andreas Grünbacher
  also LCA slides on NFS ACLs by Greg Banks
- Capabilities not sufficient fundamentally: don’t take
  object security into account; fixed security model re.
  Inheritance & propagation which hinders least
  privilege; don’t protect trustworthy app from
  untrusted input (no information flow control!)
- setuid becoming less of an issue now than DBUS,
  which needs MAC
Linux Namespaces
        ●   File system namespaces introduced in 2000,
            derived from Plan 9.
            –   Not used much until mount propagation provided
                more flexibility (e.g. shared RO “/”)
            –   Mounts private by default
        ●   Syscalls unshare(2) and clone(2) allow control
            over sharing of resources
        ●   Provides good isolation between processes
        ●   PAM integration
        ●   Used w/ SELinux in kiosk mode                        8




- Similar in concept to Solaris zones; also only provide
  isolation, which is useful, but also need to control
  sharing, provide protection inside container and
  manage entire system securely.
- bind mounts allow mount to appear in different places
  with different attributes, e.g. ro mount of /, private
  mount of $HOME & $TMP, with tmpfs.
- This can be managed manually, but is better done
  with PAM integration (e.g. pam_namespace)
- Was also developed/used for LSPP certification
  (MLDs / polyinstantantiation)
- Refer to kiosk mode anatomy slides
- Lots of ongoing work with namespaces and
  containers
- Demo kiosk mode?
Network Access Control
        ●   Netfilter
            –   Packet filtering and mangling framework
            –   API allows kernel applications to register by
                protocol and packet flow point

        ●   IPTables
            –   Extensible packet filter for IPv4/IPv6
            –   Connection tracking (stateful inspection)
            –   NAT
            –   Hundreds of contributed matches and targets
                                                                9




- Several generations of packet filtering prior to this:
   ipfw, ipchains
- Generalization, consolidation of packet flow
- Highly pluggable and extensible design
- Netfilter could support other packet filters, some
   efforts in this area, not mainlined
- Netfilter implemented at network layer, generic
   support for L3 protocols
- iptables plugins support many IP-based protocols,
   e.g. FTP + conntrack
- Also have bridging support with similar framework
- Firewalls are not enough alone: they’re too far from
   the host systems & very coarse granularity (see
   Inevitability paper).
Missing Link
        ●   Seminal 1998 NSA paper: The Inevitability of
            Failure describes additional security
            requirements:
            –   Mandatory security
            –   Trusted / protected path
            –   Assurance

        ●   Difficult work, but we are getting there...


                                                           10




- Trusted path is a mechanism which provides
  confidence that: user is interacting with trusted
  application (trusted as in, trusted to perform the
  desired function, e.g. login); trusted app is interaction
  with actual user; also requires protection of
  communication channel
- Protected path is a generalization of trusted path;
  where all endpoints communicate via mutually
  authenticated channels (this can be extended to the
  network); e.g. prevent impersonation of
  cryptographic token invocation & security bypass in
  general
- Mandatory security -> MAC (SELinux etc), MIC, MCP
  (cf. Gutmann)
- Assurance: the most difficult; can include
  certifications, code audit etc.; FOSS improves
  assurance by providing source to users for
  verification
Cryptography
        ●   Historical US export limitations prevented
            merge of comprehensive cryptography
            –   External “kerneli” tree had a crypto API
            –   Other projects added own crypto, e.g. FreeSWAN

        ●   Some allowed uses:
            –   Hashing
            –   RNG


                                                                 11




- The crypto export restrictions had the effect of
  preventing the merge; it would have caused
  enormous problems for linux distribution
- Hashing was not seen as being able to provide
  confidentiality, so has been present in the kernel for
  ages
- Changes to the laws allowed export with notification
- Note that crypto is not security (older common
  viewpoint); it is a component of security which
  requires a secure OS to function effectively
Cryptography
        ●   Crypto API developed rapidly for native IPSec
            implementation, made it into 2.6 kernel
        ●   Scatterlist API
        ●   Initially synchronous w/ support for basic cipher
            modes, digests and compressors
        ●   Dynamic crypto algorithm module loading
        ●   Now significantly evolved w/ async, hardware
            support, ASM, many algorithms & modes

                                                            12




- I developed a crypto API based on several open
   source projects including kerneli and Nettle
- Design input from Linus and Dave Miller
- Took about 5 weeks for the initial API to be merged,
   had basic support for ciphers (symmetric), digests
   (and HMAC), and compressors; used scatterlist
   (vectored) API to facilitate deep kernel integration
- Was necessary for IPSec & made it in for 2.6 kernel
- Handed maintenance to Herbert Xu, who has done
   great work extending the modes, algorithms, scope
- Herbert will be speaking on this at LPC in PDX.
- Are the T2 on-chip crypto specs available?
Disk Encryption: DM-Crypt
        ●   Operates transparently at block layer

        ●   Key management with LUKS

        ●   Default is AES-128/SHA-256

        ●   Very nice integration in Fedora; try it!



                                                       13




- There are many schemes available, these are some
  of the main ones in use.
- Linux Unified Key Setup-on-disk-format (LUKS)
- DM = device mapper, block layer plugins, allows also
  for things like software raid, integration with LVM
- Block layer crypto is good because it’s simple, allows
  encryption of RAID arrays, LVM volumes etc.
- Unmodified fs
- Swap support
- Lacks granularity
Disk Encryption: ecryptfs
       ●   Stacked filesystem encryption at VFS layer

       ●   Per-object encryption

       ●   Extensible key management

       ●   Cryptographic metadata stored w/ objects,
           allows them to be moved to different hosts

                                                        14




- Addresses many use cases where finer granularity is
  required, such as incremental backups, sharing files
  etc.
- Different algorithms for different objects
- Saves re-encrypting for transmission
- Selective use on fs, saves overhead
- TPM, PKCS#11 etc. for key management.
- Files appear normal in Base FS, POSIX compliance,
  backup etc. works as expected.
Network Encryption: IPSec
       ●   Supports IPv4 and IPv6
       ●   Implemented via generic transform (xfrm)
           framework:
           –   xfrm stack applied to packet based on policy db
       ●   xfrms include: ESP, AH, IPComp, MIP, IPIP
       ●   Utilizes native Netlink sockets for scalability
       ●   Also supports PF_KEY


                                                                 15




- Native IPsec stack made possible by crypto policy
  changes, designed and implemented by DaveM and
  Alexey; unorthodox design aimed at max.
  performance and utility
- By the time this became available, many people were
  using other non-kernel crypto, e.g. SSH, SSL,
  userland VPNs.
- This stack is used in commercial appliances, so you
  may be using it anyway...
Memory Protection
        ●   Address Space Layout Randomization (ASLR)
        ●   NX (No eXecute) bit support where available in
            hardware or via emulation
        ●   GCC stack smashing protector
        ●   /dev/mem & null pointer restrictions
        ●   MAC policy can be applied via SELinux:
            –   execheap, execmem, execmod, execstack


                                                             16




- Several schemes for resisting memory-based attacks,
  depending on which distro and hardware you use
- ASLR: randomizes various aspects of application
  address space: libraries, heap, stack, text; has been
  broken
- See ExecShield (may be dropped soon b/c not
  upstreamable & hw does it better), Mark Cox and
  Drepper’s docs
- Much of this work comes from grsecurity / pax /
  openwall
- Some of this is done in conjunction w/ userspace, e.g.
  glibc and elf hardening
- The usability/security tradeoff of the linux protections
  has come under criticism, some of it warranted
- Several external projects feed patches and help in,
  not always successfully
- nx emulation uses segment limits
- FORTIFY_SOURCE
Kernel Vulnerabilities
        ●   Note that kernel vulnerabilities may allow
            attackers to bypass kernel-based security
            mechanisms.

        ●   See “Linux Kernel Heap Tampering Detection”,
            in Phrack 66 for a detailed discussion of the
            topic.



                                                         17




- grsecurity folk have been working in this area; some
  of it is likely not upstreamable
- LKIM addresses this; see referenced ACM paper;
  code not currently available as open source
- A kernel vulnerability can arise from almost any
  kernel bug – it may not be recognizable as a security
  bug to even the most experienced kernel developer.
- One mechanism used by developers who suspect
  their bug is security related is to notify vendor-sec,
  which includes the security response folk from all of
  the major vendors, for analysis & coordination.
- Linus’ policy is to simply fix all bugs (“security is not
  special”) without fanfare; this is controversial but
  does have one clear benefit: the bug is fixed.
Linux Security Modules (LSM)
        ●   Framework for integrating access control
            schemes
        ●   Hooks located at security-critical points in the
            kernel, pass security-relevant information to
            LSM module, which can veto the operation
        ●   Avoids races when making security decisions
        ●   Restrictive interface: can only further confine
            access, not loosen it

                                                               18




- Developed in response to Linus’ initial reaction to
  SELinux, where he did not want to decide on a
  security model for the kernel, so make it pluggable
- AppArmor, SELinux, SGI etc. developers worked on
  it, then these were ported to LSM, some new LSMs
  developed
- Lots of controversy subsequently as SELinux
  remained the only significant user; Linus reiterated
  his position that as there was no consensus on
  security model, LSM remains; use Arjan protocol for
  reviewing new modules to avoid flamewars
- Drawbacks include weak semantics, lack of
  consistent security model for ISVs / admins etc.
- One benefit is diversity of ideas (D. Wagner)
- Related work: BSD MAC framework, XSM, XACE
SELinux
        ●   Flexible fine-grained MAC scheme w/ least
            privilege, confidentiality, integrity, isolation,
            information flow control; exploit containment
        ●   Composition of multiple security models under
            single analyzable policy
        ●   Currently ships with: Type Enforcement, RBAC
            and MLS/MCS
        ●   Clean separation of mechanism and policy to
            meet very wide range of usage scenarios
                                                                19




- Rationale:
  - “trusted” systems not viable / generally useful
  - Need whole-system approach (i.e. extend to
   network, database, virt, desktop...)
  - Mainstream MAC
- Targeted policy: limited confinement to network
   facing services and base OS: made it possible to
   enable by default
- Proven effectiveness, limits exploitation of vulns
- Usability addressed with high level abstractions, e.g.
   kiosk mode, svirt
- Related work: SEBSD, FMAC; interop desired
        - Kylin 3 (KACF), apparently “B2” class
- Certified LSPP/EAL4+, also shipping enabled by
   default in Fedora
- Low-level policy is complex; relies on high level
   abstractions for usability, like a spreadsheet on a PC.
- Customization is still a challenge; work to be done..
Simplified Mandatory Access
                Control Kernel (SMACK)

        ●   Simple labeling of subjects and objects to
            provide flexible MAC
        ●   System labels define hierarchical limits
        ●   Admin-defined labels can be any short string
        ●   Policy is written as triples:
              Subject Object [–rwxa]


                                                           20




- Developed by Casey, who has a long history with
   Trusted OSs and is aware of their drawbacks
- System labels: hat / floor are like system high/low
- Some of the simplification appears genuinely useful
   (e.g. for sockets), although overall it leads to coarser
   and thus less expressive policy foundation (perhaps
   something like CISC vs. RISC)
- Need more analysis of efficacy and practical
   demonstration to be able to evaluate, but should be
   able to achieve useful security goals
- Not aware of fielded systems using SMACK as yet
- Is it too simple to be generally useful ?
AppArmor
        ●   Not currently in kernel
        ●   Path name access control scheme to confine
            applications
        ●   Aims to solve security usability by expressing
            policy with a familiar abstractions, e.g.:
            –   File access controls defined with path names and
                names of common operations
            –   POSIX capabilities described by name


                                                                   21




- The pathname aspect has been contentious; critics
  are concerned with object aliasing (aka forgeable
  references), incomplete mediation, that the model
  does not generalize, and will not ultimately be as
  simple as expected
- Similar concept to “No Fly List”: assess the name of
  the object instead of the object itself;
- Changes have been made to the scheme which
  address some of the aliasing issues (e.g. more
  control over linking), and advocates are ok with the
  usability/security trade-off
- The flamewar aspect is overblown: it is normal and
  expected for security engineers to robustly analyze
  each others work, also part of Internet culture.
- Linus has taken the “I don’t like your security model”
  argument off the table
TOMOYO
       ●   Path-based MAC scheme developed by NTT
           research
       ●   Aims to solve security usability with automatic
           real-time policy generation
       ●   Enforces previously observed behavior in
           learning mode
       ●   Domains are trees of process invocation
       ●   Rules apply to domains

                                                             22




- R&D project from NTT; bosses told developers to
   make something new
- Attempts to solve usability with automated policy
   generation
- Pathnames are labels
- No MLS, no RBAC,
- “Task Oriented Management Obviates Your Onus on
   Linux”
- Aimed at average users and admins, not security
   professionals (according to their docs)
- Not clear how “status quo encapsulation” or
   “unobserved but valid code path execution” is
   addressed.
Labeled Networking
        ●   NetLabel
            –   CIPSO
                 ●   Legacy labeling using IP options
            –   IPSec
                 ●   Labeling of Security Associations
        ●   Secmark
            –   Utilizes iptables
            –   Generic labeling (SMACK & SELinux use it)


                                                            23




- This is quite a complicated area overall, and while the
  code is essentially complete and likely useful for
  advanced users, it will take time for suitable general
  purpose abstractions and applications to evolve
- Secmark is “local” labeling and does not require
  protocol support anywhere; NetLabel is “remote”
  labeling and requires protocol support at each end.
- Labeled networking ultimately is required to extend
  the trusted path concept over the network, and is as
  such an essential component of securing the
  networked systems of the future.
Network File Systems
       ●   Labeled NFS
           –   NFSv4 extension
           –   Prototype code
           –   Also need to extend RPC security
           –   IETF process ongoing
       ●   NFS ACLs
           –   Support for Linux ACLs and NFSv4 ACLS
                ●   See talk by Greg Banks at LCA


                                                       24




Labeling:
- Several closed / proprietary implementations
- No standard
- Best if open and standard, generalized

ACLs:
- Lots of variations, need interop
- NFSv3 has support for native ACLs
       - uses xattr APIs
- NFSv4 ACLs are implementation of Windows model,
  which is very different (see Greg’s slides)
- NFSv4 code partially implemented
- ZFS, GPFS has it
- Needed for NAS interop, windows clients etc.
Anti-Malware
       ●   Good userspace solutions
       ●   People still want kernel scanning
       ●   fsnotify
           –   Generalized file notification framework
           –   Consolidate dnotify & fsnotify
           –   Useful for HSM
       ●   TALPA
           –   File access scanning API for AV modules

                                                         25




- Problematic area; kernel devs not keen on in-kernel
   scanning, should mostly be done in userspace; but
   may have valid use-cases for network file servers
- AV companies not community oriented, often have
   proprietary kernel modules
- Eric Paris started working as intermediary, came up
   with fsnotify and TALPA
- TALPA; file access scanning API
- fsnotify merged, remaining status unclear
Integrity & Platform Security
        ●   TPM (Trusted Platform Module)
            –   Cryptographic processor, RNG, storage for keys
                and measurements
        ●   IMA (Integrity Measurement Architecture)
            –   Static integrity verification of code
        ●   TXT (Intel Trusted Execution Technology)
            –   DRTM (Dynamic Root of Trust Measurement);
                trusted launch, hardware security enhancements
        ●   VT-d (device virtualization)
            –   Needed to secure IO devices                      26




- This is part of the missing link: need to protect kernel!
- Linux is @ leading edge of this & continues to
   advance
- DRM controversial (see TCPA rebuttal: TCPA can
   implement DRM, but is not itself DRM).
- TPM can be very useful:
  - BitLocker
  - Sealing credentials for PGP, SSL, SSH etc.
  - Bring trusted environment up on untrusted system
- Remote attestation
- Static root of trust too difficult to work with
- Dynamic root of trust more promising
        - TXT; do not have to trust everything!
- Invisiblethings Lab blog very useful
- Integrity Measurement Architecture (IMA) from IBM;
   LKIM / contextual inspection next step (runtime...)
- VT-d necessary to e.g. properly virtualize DMA
Audit
       ●   Developed for certification (e.g. CAPP)
       ●   Audit framework generates events:
           –   User sessions & configuration changes
           –   Syscalls
           –   LSM decisions
       ●   Useful for forensics and deterrence
       ●   SELinux, SMACK et al use it for detailed
           reporting
       ●   Netlink API for audit daemon, IDS
                                                       27




- Arguably not a security feature
- Standard feature of C2 / CAPP
- Developed for CAPP certification
- syscall auditing has performance issue which gets
  blamed on SELinux
- Promising general use: IDS (in development)
- Also has filtering in kernel
Seccomp
        ●   Secure computing mode
            –   Extremely lightweight sandboxing for untrusted
                code
            –   Application enters mode with fixed set of restricted
                syscalls (read, write, exit, sigreturn)

        ●   Proposal to convert into generic syscall filter
            –   Historically problematic area


                                                                       28




- Andrea Archangeli originally developed this for a grid
  computing business
- syscall wrapping considered harmful: LSM is the right
  way to go; see Robert Watson paper "Exploiting
  Concurrency Vulnerabilities in System Call
  Wrappers"
       - problems with races mainly
- Google investigating for Chrome:
       - proves point that lack of consistent security API
  is a problem
- LSM is right solution for hook points:
       - still inconsistent between distros
High Level View
        ●   State of the art: Fedora 11
            –   Kiosk Mode as example
        ●   Known mitigations
        ●   Certifications
            –   RHEL: LSPP, CAPP, RBACPP at EAL4+
            –   Not a separate product, all upstream and open
        ●   Security features standard and generalized


                                                                29




- Tie back to inevitability goals
- Meets extremely wide range of needs, from end user
  desktop to military, stock exchanges etc.
- Combined together, current code provides layered
  security (defense in depth; of course there is then
  attack in depth...), incremental improvements &
  retrofitting means we can deliver better security to
  large audience
- Has also sparked improvements in other OSs
  security
- Move to security as standard feature of OS is a major
  step in itself
- Several known exploits blocked, covered in
  LinuxWorld article in 2008
- CtF contests seem to be not using Fedora anymore...
Future Directions
        ●   Continued refinement and hardening
            –   Working towards “Inevitability” goals

        ●   Extensible models
            –   Consistent policy for entire computing environment

        ●   Cloud Computing



                                                                     30




- This process will not end, refinement expected to be
  ongoing
- Computing environment evolving: virtualization, cloud
  etc. are just what we know about now... security
  needs to generalize in terms of technologies and
  use-cases
- As we can’t redesign the OS from the ground up w/
  security in mind, retrofit & refinement is the only
  option; so we need to work with that
Challenges
        ●   Multiple security models hindering adoption

        ●   Convincing people of the value of security:
            –   enable features
            –   report problems
            –   help improve usability




                                                          31




- ISV & user adoption: need to support multiple
   security models; no standard API (google chrome
   folk compare Apple dev vs. Linux...); not impossible,
   but extremely difficult (need to design flexibility into
   each layer, e.g. svirt, xace; then develop abstracted
   API....)
- Security is useless if nobody enables it...
- If people have problems, reporting the problems
   allows us to solve them!
- Core issue is getting people to understand the need
   for security (cf. Seat belts, bike helmets) and to then
   participate in the development cycle
- Some people still disable DAC by doing everything as
   root; we probably don’t have much hope of
   convincing them that MAC is worthwhile, but for the
   general user base, we can do a great deal, and we
   can also do a lot for specialist security users at the
   same time with the same codebase.
Resources

        ●   Linux Kernel Security Wiki

        ●   LSM Mailing List

        ●   LWN Security page




                                                  32




- These are the most important links; everything else
  can be found from these
- LSM list is for general kernel security development
  discussion
- Also, a list of URLs is given at the end of the slides
Questions?




                                           33




- Thanks to Stephen Smalley, Paul Moore and Dan
  Walsh for feedback on these slides
Useful URLs
      Kernel Security Wiki
          http://security.wiki.kernel.org/

      LSM Mailing List
          http://vger.kernel.org/vger­lists.html#linux­security­module

      LWN Security Page
          http://lwn.net/Security/

      “The Inevitability of Failure: The Flawed Assumption of Security in Modern
      Computing Environments”
          http://csrc.nist.gov/nissc/1998/proceedings/paperF1.pdf

      LSM Usenix Paper
          http://www.usenix.org/event/sec02/wright.html

      Kernel Memory Protection
          http://lwn.net/Articles/329787/

      Linux Security Model Comparison
          http://tomoyo.sourceforge.jp/wiki­e/?WhatIs#comparison


                                                                                    34




Note: this is not for display purposes really, but for
 people to use locally when looking for links.
Useful URLs ...
      SELinux
          http://selinuxproject.org/
      “Have You Driven an SELinux Lately?” (OLS paper on current state)
          http://namei.org/ols­2008­selinux­paper.pdf
      “Anatomy of Fedora Kiosk Mode”
          http://namei.org/presentations/fedora­kiosk­mode­foss­my­2008.pdf
      “SELinux Memory Protection Tests”
          http://people.redhat.com/drepper/selinux­mem.html
      “A seatbelt for server software: SELinux blocks real­world exploits”
          http://www.linuxworld.com/news/2008/022408­selinux.html

      SMACK
          http://schaufler­ca.com/

      AppArmor
          http://en.opensuse.org/Apparmor

      TOMOYO
          http://tomoyo.sourceforge.jp/

      “POSIX file capabilities: Parceling the power of root”
          http://www.ibm.com/developerworks/library/l­posixcap.html

      “POSIX Access Control Lists on Linux”
          http://www.suse.de/~agruen/acl/linux­acls/online/                   35




Note: this is not for display purposes really, but for
 people to use locally when looking for links.
Useful URLs ...
      "Implementing Native NFSv4 ACLs in Linux"
          http://lca2009.linux.org.au/slides/79.tar.gz

      “Applying mount namespaces”
          http://www.ibm.com/developerworks/linux/library/l­mount­namespaces.html

      “Disk encryption in Fedora: Past, present and future”
          http://is.gd/16012

      “Limiting buffer overflows with ExecShield” (2005)
          http://www.redhat.com/magazine/009jul05/features/execshield/

      “Linux Kernel Heap Tampering Detection”
          http://phrack.org/issues.html?issue=66&id=15#article

      “System integrity in Linux”
          http://lwn.net/Articles/309441/
      “Linux kernel integrity measurement using contextual inspection” (LKIM)
          http://portal.acm.org/citation.cfm?id=1314354.1314362

      Intel TXT Site
          http://www.intel.com/technology/security/

      IBM TCPA Resources
          http://www.research.ibm.com/gsal/tcpa/tcpa_rebuttal.pdf

      Invisible Things Labs                                                         36
          http://theinvisiblethings.blogspot.com/




Note: this is not for display purposes really, but for
 people to use locally when looking for links.

More Related Content

What's hot

Basic Linux Security
Basic Linux SecurityBasic Linux Security
Basic Linux Security
pankaj009

Linux Operating System Vulnerabilities
Linux Operating System VulnerabilitiesLinux Operating System Vulnerabilities
Linux Operating System Vulnerabilities
Information Technology


What's hot (20)

Basic Linux Security
Basic Linux SecurityBasic Linux Security
Basic Linux Security

Security and Linux Security
Security and Linux SecuritySecurity and Linux Security
Security and Linux Security

2009-08-11 IBM Teach the Teachers (IBM T3), Linux Security Overview
2009-08-11 IBM Teach the Teachers (IBM T3), Linux Security Overview2009-08-11 IBM Teach the Teachers (IBM T3), Linux Security Overview
2009-08-11 IBM Teach the Teachers (IBM T3), Linux Security Overview

Linux security
Linux securityLinux security
Linux security

XPDS16: XSM-Flask, current limitations and Ongoing work. - Anshul Makkar, Ct...
XPDS16:  XSM-Flask, current limitations and Ongoing work. - Anshul Makkar, Ct...XPDS16:  XSM-Flask, current limitations and Ongoing work. - Anshul Makkar, Ct...
XPDS16: XSM-Flask, current limitations and Ongoing work. - Anshul Makkar, Ct...

How Many Linux Security Layers Are Enough?
How Many Linux Security Layers Are Enough?How Many Linux Security Layers Are Enough?
How Many Linux Security Layers Are Enough?

Unix Security
Unix SecurityUnix Security
Unix Security

Linux Security
Linux SecurityLinux Security
Linux Security

Linux Operating System Vulnerabilities
Linux Operating System VulnerabilitiesLinux Operating System Vulnerabilities
Linux Operating System Vulnerabilities

Hacktivity2014: Virtual Machine Introspection to Detect and Protect
Hacktivity2014: Virtual Machine Introspection to Detect and ProtectHacktivity2014: Virtual Machine Introspection to Detect and Protect
Hacktivity2014: Virtual Machine Introspection to Detect and Protect

Hardening Linux and introducing Securix Linux
Hardening Linux and introducing Securix LinuxHardening Linux and introducing Securix Linux
Hardening Linux and introducing Securix Linux

31c3 Presentation - Virtual Machine Introspection
31c3 Presentation - Virtual Machine Introspection31c3 Presentation - Virtual Machine Introspection
31c3 Presentation - Virtual Machine Introspection

File System Implementation & Linux Security
File System Implementation & Linux SecurityFile System Implementation & Linux Security
File System Implementation & Linux Security

OffensiveCon2022: Case Studies of Fuzzing with Xen
OffensiveCon2022: Case Studies of Fuzzing with XenOffensiveCon2022: Case Studies of Fuzzing with Xen
OffensiveCon2022: Case Studies of Fuzzing with Xen

Cloud Security with LibVMI
Cloud Security with LibVMICloud Security with LibVMI
Cloud Security with LibVMI

Troopers15 Lightning talk: VMI & DRAKVUF
Troopers15 Lightning talk: VMI & DRAKVUFTroopers15 Lightning talk: VMI & DRAKVUF
Troopers15 Lightning talk: VMI & DRAKVUF

Linux Network Security
Linux Network SecurityLinux Network Security
Linux Network Security

Introduction To Linux Security
Introduction To Linux SecurityIntroduction To Linux Security
Introduction To Linux Security

Virtual Machine Introspection with Xen on ARM
Virtual Machine Introspection with Xen on ARMVirtual Machine Introspection with Xen on ARM
Virtual Machine Introspection with Xen on ARM

Virtual Machine Introspection in a Hyberid Honeypot Architecture
Virtual Machine Introspection in a Hyberid Honeypot ArchitectureVirtual Machine Introspection in a Hyberid Honeypot Architecture
Virtual Machine Introspection in a Hyberid Honeypot Architecture


Similar to Linux Kernel Security Overview - KCA 2009

Similar to Linux Kernel Security Overview - KCA 2009 (20)

Overview of NSA Security Enhanced Linux - FOSS.IN/2005
Overview of NSA Security Enhanced Linux - FOSS.IN/2005Overview of NSA Security Enhanced Linux - FOSS.IN/2005
Overview of NSA Security Enhanced Linux - FOSS.IN/2005

Mandatory Access Control Networking Update - Netonf 2006 Tokyo
Mandatory Access Control Networking Update - Netonf 2006 TokyoMandatory Access Control Networking Update - Netonf 2006 Tokyo
Mandatory Access Control Networking Update - Netonf 2006 Tokyo

Linux Container Brief for IEEE WG P2302
Linux Container Brief for IEEE WG P2302Linux Container Brief for IEEE WG P2302
Linux Container Brief for IEEE WG P2302

Hardening Linux, introducing Securix GNU/Linux
Hardening Linux, introducing Securix GNU/LinuxHardening Linux, introducing Securix GNU/Linux
Hardening Linux, introducing Securix GNU/Linux

Webinar: OpenEBS - Still Free and now FASTEST Kubernetes storage
Webinar: OpenEBS - Still Free and now FASTEST Kubernetes storageWebinar: OpenEBS - Still Free and now FASTEST Kubernetes storage
Webinar: OpenEBS - Still Free and now FASTEST Kubernetes storage

Lightweight Virtualization in Linux
Lightweight Virtualization in LinuxLightweight Virtualization in Linux
Lightweight Virtualization in Linux

Pristine rina-security-icc-2016
Pristine rina-security-icc-2016Pristine rina-security-icc-2016
Pristine rina-security-icc-2016

Automate Your Container Deployments Securely
Automate Your Container Deployments SecurelyAutomate Your Container Deployments Securely
Automate Your Container Deployments Securely

IBM Spectrum Scale Secure- Secure Data in Motion and Rest
IBM Spectrum Scale Secure- Secure Data in Motion and RestIBM Spectrum Scale Secure- Secure Data in Motion and Rest
IBM Spectrum Scale Secure- Secure Data in Motion and Rest

Securing Applications and Pipelines on a Container Platform
Securing Applications and Pipelines on a Container PlatformSecuring Applications and Pipelines on a Container Platform
Securing Applications and Pipelines on a Container Platform

2008-09-09 IBM Interaction Conference, Red Hat Update for System z
2008-09-09 IBM Interaction Conference, Red Hat Update for System z2008-09-09 IBM Interaction Conference, Red Hat Update for System z
2008-09-09 IBM Interaction Conference, Red Hat Update for System z

Linux container & docker
Linux container & dockerLinux container & docker
Linux container & docker

HiPEAC Computing Systems Week 2022_Mario Porrmann presentation
HiPEAC Computing Systems Week 2022_Mario Porrmann presentationHiPEAC Computing Systems Week 2022_Mario Porrmann presentation
HiPEAC Computing Systems Week 2022_Mario Porrmann presentation

운영체제론 Ch22
운영체제론 Ch22운영체제론 Ch22
운영체제론 Ch22

HiPEAC 2022_Marco Tassemeier presentation
HiPEAC 2022_Marco Tassemeier presentationHiPEAC 2022_Marco Tassemeier presentation
HiPEAC 2022_Marco Tassemeier presentation

Securing Applications and Pipelines on a Container Platform
Securing Applications and Pipelines on a Container PlatformSecuring Applications and Pipelines on a Container Platform
Securing Applications and Pipelines on a Container Platform

Containers and workload security an overview
Containers and workload security an overview Containers and workload security an overview
Containers and workload security an overview

Review of QNX
Review of QNXReview of QNX
Review of QNX

Devicemgmt
DevicemgmtDevicemgmt
Devicemgmt

UKC - Feb 2013 - Analyzing the security of Windows 7 and Linux for cloud comp...
UKC - Feb 2013 - Analyzing the security of Windows 7 and Linux for cloud comp...UKC - Feb 2013 - Analyzing the security of Windows 7 and Linux for cloud comp...
UKC - Feb 2013 - Analyzing the security of Windows 7 and Linux for cloud comp...


More from James Morris

More from James Morris (10)

sVirt: Hardening Linux Virtualization with Mandatory Access Control
sVirt: Hardening Linux Virtualization with Mandatory Access ControlsVirt: Hardening Linux Virtualization with Mandatory Access Control
sVirt: Hardening Linux Virtualization with Mandatory Access Control

OLPC Networking Overview
OLPC Networking OverviewOLPC Networking Overview
OLPC Networking Overview

Cryptographic Hardware Support for the Linux Kernel - Netconf 2004
Cryptographic Hardware Support for the Linux Kernel - Netconf 2004Cryptographic Hardware Support for the Linux Kernel - Netconf 2004
Cryptographic Hardware Support for the Linux Kernel - Netconf 2004

SELinux Project Overview - Linux Foundation Japan Symposium 2008
SELinux Project Overview - Linux Foundation Japan Symposium 2008SELinux Project Overview - Linux Foundation Japan Symposium 2008
SELinux Project Overview - Linux Foundation Japan Symposium 2008

Kernel Security for 2.8 - Kernel Summit 2004
Kernel Security for 2.8 - Kernel Summit 2004Kernel Security for 2.8 - Kernel Summit 2004
Kernel Security for 2.8 - Kernel Summit 2004

Better IPSec Security Association Resolution - Netconf 2006 Tokyo
Better IPSec Security Association Resolution - Netconf 2006 TokyoBetter IPSec Security Association Resolution - Netconf 2006 Tokyo
Better IPSec Security Association Resolution - Netconf 2006 Tokyo

The State of Security Enhanced Linux - FOSS.IN/2007
The State of Security Enhanced Linux - FOSS.IN/2007The State of Security Enhanced Linux - FOSS.IN/2007
The State of Security Enhanced Linux - FOSS.IN/2007

How and Why You Should Become a Kernel Hacker - FOSS.IN/2007
How and Why You Should Become a Kernel Hacker - FOSS.IN/2007How and Why You Should Become a Kernel Hacker - FOSS.IN/2007
How and Why You Should Become a Kernel Hacker - FOSS.IN/2007

SELinux Kernel Internals and Architecture - FOSS.IN/2005
SELinux Kernel Internals and Architecture - FOSS.IN/2005SELinux Kernel Internals and Architecture - FOSS.IN/2005
SELinux Kernel Internals and Architecture - FOSS.IN/2005

Anatomy of Fedora Kiosk Mode (FOSS.MY/2008)
Anatomy of Fedora Kiosk Mode (FOSS.MY/2008)Anatomy of Fedora Kiosk Mode (FOSS.MY/2008)
Anatomy of Fedora Kiosk Mode (FOSS.MY/2008)


Recently uploaded

Microsoft BitLocker Bypass Attack Method.pdf
Microsoft BitLocker Bypass Attack Method.pdfMicrosoft BitLocker Bypass Attack Method.pdf
Microsoft BitLocker Bypass Attack Method.pdf
Overkill Security

TrustArc Webinar - Unified Trust Center for Privacy, Security, Compliance, an...
TrustArc Webinar - Unified Trust Center for Privacy, Security, Compliance, an...TrustArc Webinar - Unified Trust Center for Privacy, Security, Compliance, an...
TrustArc Webinar - Unified Trust Center for Privacy, Security, Compliance, an...
TrustArc

Tales from a Passkey Provider Progress from Awareness to Implementation.pptx
Tales from a Passkey Provider  Progress from Awareness to Implementation.pptxTales from a Passkey Provider  Progress from Awareness to Implementation.pptx
Tales from a Passkey Provider Progress from Awareness to Implementation.pptx
FIDO Alliance


Recently uploaded (20)

Microsoft BitLocker Bypass Attack Method.pdf
Microsoft BitLocker Bypass Attack Method.pdfMicrosoft BitLocker Bypass Attack Method.pdf
Microsoft BitLocker Bypass Attack Method.pdf

Event-Driven Architecture Masterclass: Challenges in Stream Processing
Event-Driven Architecture Masterclass: Challenges in Stream ProcessingEvent-Driven Architecture Masterclass: Challenges in Stream Processing
Event-Driven Architecture Masterclass: Challenges in Stream Processing

Portal Kombat : extension du réseau de propagande russe
Portal Kombat : extension du réseau de propagande russePortal Kombat : extension du réseau de propagande russe
Portal Kombat : extension du réseau de propagande russe

Event-Driven Architecture Masterclass: Integrating Distributed Data Stores Ac...
Event-Driven Architecture Masterclass: Integrating Distributed Data Stores Ac...Event-Driven Architecture Masterclass: Integrating Distributed Data Stores Ac...
Event-Driven Architecture Masterclass: Integrating Distributed Data Stores Ac...

JavaScript Usage Statistics 2024 - The Ultimate Guide
JavaScript Usage Statistics 2024 - The Ultimate GuideJavaScript Usage Statistics 2024 - The Ultimate Guide
JavaScript Usage Statistics 2024 - The Ultimate Guide

Observability Concepts EVERY Developer Should Know (DevOpsDays Seattle)
Observability Concepts EVERY Developer Should Know (DevOpsDays Seattle)Observability Concepts EVERY Developer Should Know (DevOpsDays Seattle)
Observability Concepts EVERY Developer Should Know (DevOpsDays Seattle)

Intro to Passkeys and the State of Passwordless.pptx
Intro to Passkeys and the State of Passwordless.pptxIntro to Passkeys and the State of Passwordless.pptx
Intro to Passkeys and the State of Passwordless.pptx

How to Check GPS Location with a Live Tracker in Pakistan
How to Check GPS Location with a Live Tracker in PakistanHow to Check GPS Location with a Live Tracker in Pakistan
How to Check GPS Location with a Live Tracker in Pakistan

How to Check CNIC Information Online with Pakdata cf
How to Check CNIC Information Online with Pakdata cfHow to Check CNIC Information Online with Pakdata cf
How to Check CNIC Information Online with Pakdata cf

The Zero-ETL Approach: Enhancing Data Agility and Insight
The Zero-ETL Approach: Enhancing Data Agility and InsightThe Zero-ETL Approach: Enhancing Data Agility and Insight
The Zero-ETL Approach: Enhancing Data Agility and Insight

TrustArc Webinar - Unified Trust Center for Privacy, Security, Compliance, an...
TrustArc Webinar - Unified Trust Center for Privacy, Security, Compliance, an...TrustArc Webinar - Unified Trust Center for Privacy, Security, Compliance, an...
TrustArc Webinar - Unified Trust Center for Privacy, Security, Compliance, an...

State of the Smart Building Startup Landscape 2024!
State of the Smart Building Startup Landscape 2024!State of the Smart Building Startup Landscape 2024!
State of the Smart Building Startup Landscape 2024!

Event-Driven Architecture Masterclass: Engineering a Robust, High-performance...
Event-Driven Architecture Masterclass: Engineering a Robust, High-performance...Event-Driven Architecture Masterclass: Engineering a Robust, High-performance...
Event-Driven Architecture Masterclass: Engineering a Robust, High-performance...

How we scaled to 80K users by doing nothing!.pdf
How we scaled to 80K users by doing nothing!.pdfHow we scaled to 80K users by doing nothing!.pdf
How we scaled to 80K users by doing nothing!.pdf

Cyber Insurance - RalphGilot - Embry-Riddle Aeronautical University.pptx
Cyber Insurance - RalphGilot - Embry-Riddle Aeronautical University.pptxCyber Insurance - RalphGilot - Embry-Riddle Aeronautical University.pptx
Cyber Insurance - RalphGilot - Embry-Riddle Aeronautical University.pptx

2024 May Patch Tuesday
2024 May Patch Tuesday2024 May Patch Tuesday
2024 May Patch Tuesday

Microsoft CSP Briefing Pre-Engagement - Questionnaire
Microsoft CSP Briefing Pre-Engagement - QuestionnaireMicrosoft CSP Briefing Pre-Engagement - Questionnaire
Microsoft CSP Briefing Pre-Engagement - Questionnaire

Tales from a Passkey Provider Progress from Awareness to Implementation.pptx
Tales from a Passkey Provider  Progress from Awareness to Implementation.pptxTales from a Passkey Provider  Progress from Awareness to Implementation.pptx
Tales from a Passkey Provider Progress from Awareness to Implementation.pptx

AI mind or machine power point presentation
AI mind or machine power point presentationAI mind or machine power point presentation
AI mind or machine power point presentation

Continuing Bonds Through AI: A Hermeneutic Reflection on Thanabots
Continuing Bonds Through AI: A Hermeneutic Reflection on ThanabotsContinuing Bonds Through AI: A Hermeneutic Reflection on Thanabots
Continuing Bonds Through AI: A Hermeneutic Reflection on Thanabots


Linux Kernel Security Overview - KCA 2009

  • 1. Linux Kernel Security Overview Kernel Conference Australia Brisbane, 2009 James Morris jmorris@namei.org
  • 3. Historical Background ● Linux started out with traditional Unix security – Discretionary Access Control (DAC) ● Security has been enhanced, but is constrained by original Unix design, POSIX etc. ● Approach is continual retrofit of newer security schemes, rather than fundamental redesign
  • 4. “The first fact to face is that UNIX was not developed with security, in any realistic sense, in mind; this fact alone guarantees a vast number of holes.” Dennis Ritchie, “On the Security of UNIX”, 1979
  • 5. DAC ● Simple and quite effective, but inadequate for modern environment: – Does not protect against flawed or malicious code ● Linux implementation stems from traditional Unix: – User and group IDs – User/group/other + read/write/execute – User controls own policy – Superuser can violate policy
  • 6. “It must be recognized that the mere notion of a super-user is a theoretical, and usually practical, blemish on any protection scheme.” Ibid.
  • 7. Extended DAC ● POSIX Capabilities (privileges) – Process-based since Linux kernel v2.2 ● Limited usefulness – File-based support relatively recent (v2.6.24) ● May help eliminate setuid root binaries ● Access Control Lists (ACLs) – Based on abandoned POSIX spec – Uses extended attributes API
  • 8. Linux Namespaces ● File system namespaces introduced in 2000, derived from Plan 9. – Not used much until mount propagation provided more flexibility (e.g. shared RO “/”) – Mounts private by default ● Syscalls unshare(2) and clone(2) allow control over sharing of resources ● Provides good isolation between processes ● PAM integration ● Used w/ SELinux in kiosk mode
  • 9. Network Access Control ● Netfilter – Packet filtering and mangling framework – API allows kernel applications to register by protocol and packet flow point ● IPTables – Extensible packet filter for IPv4/IPv6 – Connection tracking (stateful inspection) – NAT – Hundreds of contributed matches and targets
  • 10. Missing Link ● Seminal 1998 NSA paper: The Inevitability of Failure describes additional security requirements: – Mandatory security – Trusted / protected path – Assurance ● Difficult work, but we are getting there...
  • 11. Cryptography ● Historical US export limitations prevented merge of comprehensive cryptography – External “kerneli” tree had a crypto API – Other projects added own crypto, e.g. FreeSWAN ● Some allowed uses: – Hashing – RNG
  • 12. Cryptography ● Crypto API developed rapidly for native IPSec implementation, made it into 2.6 kernel ● Scatterlist API ● Initially synchronous w/ support for basic cipher modes, digests and compressors ● Dynamic crypto algorithm module loading ● Now significantly evolved w/ async, hardware support, ASM, many algorithms & modes
  • 13. Disk Encryption: DM-Crypt ● Operates transparently at block layer ● Key management with LUKS ● Default is AES-128/SHA-256 ● Very nice integration in Fedora; try it!
  • 14. Disk Encryption: ecryptfs ● Stacked filesystem encryption at VFS layer ● Per-object encryption ● Extensible key management ● Cryptographic metadata stored w/ objects, allows them to be moved to different hosts
  • 15. Network Encryption: IPSec ● Supports IPv4 and IPv6 ● Implemented via generic transform (xfrm) framework: – xfrm stack applied to packet based on policy db ● xfrms include: ESP, AH, IPComp, MIP, IPIP ● Utilizes native Netlink sockets for scalability ● Also supports PF_KEY
  • 16. Memory Protection ● Address Space Layout Randomization (ASLR) ● NX (No eXecute) bit support where available in hardware or via emulation ● GCC stack smashing protector ● /dev/mem & null pointer restrictions ● MAC policy can be applied via SELinux: – execheap, execmem, execmod, execstack
  • 17. Kernel Vulnerabilities ● Note that kernel vulnerabilities may allow attackers to bypass kernel-based security mechanisms. ● See “Linux Kernel Heap Tampering Detection”, in Phrack 66 for a detailed discussion of the topic.
  • 18. Linux Security Modules (LSM) ● Framework for integrating access control schemes ● Hooks located at security-critical points in the kernel, pass security-relevant information to LSM module, which can veto the operation ● Avoids races when making security decisions ● Restrictive interface: can only further confine access, not loosen it
  • 19. SELinux ● Flexible fine-grained MAC scheme w/ least privilege, confidentiality, integrity, isolation, information flow control; exploit containment ● Composition of multiple security models under single analyzable policy ● Currently ships with: Type Enforcement, RBAC and MLS/MCS ● Clean separation of mechanism and policy to meet very wide range of usage scenarios
  • 20. Simplified Mandatory Access Control Kernel (SMACK) ● Simple labeling of subjects and objects to provide flexible MAC ● System labels define hierarchical limits ● Admin-defined labels can be any short string ● Policy is written as triples: Subject Object [–rwxa]
  • 21. AppArmor ● Not currently in kernel ● Path name access control scheme to confine applications ● Aims to solve security usability by expressing policy with a familiar abstractions, e.g.: – File access controls defined with path names and names of common operations – POSIX capabilities described by name
  • 22. TOMOYO ● Path-based MAC scheme developed by NTT research ● Aims to solve security usability with automatic real-time policy generation ● Enforces previously observed behavior in learning mode ● Domains are trees of process invocation ● Rules apply to domains
  • 23. Labeled Networking ● NetLabel – CIPSO ● Legacy labeling using IP options – IPSec ● Labeling of Security Associations ● Secmark – Utilizes iptables – Generic labeling (SMACK & SELinux use it)
  • 24. Network File Systems ● Labeled NFS – NFSv4 extension – Prototype code – Also need to extend RPC security – IETF process ongoing ● NFS ACLs – Support for Linux ACLs and NFSv4 ACLS ● See talk by Greg Banks at LCA
  • 25. Anti-Malware ● Good userspace solutions ● People still want kernel scanning ● fsnotify – Generalized file notification framework – Consolidate dnotify & fsnotify – Useful for HSM ● TALPA – File access scanning API for AV modules
  • 26. Integrity & Platform Security ● TPM (Trusted Platform Module) – Cryptographic processor, RNG, storage for keys and measurements ● IMA (Integrity Measurement Architecture) – Static integrity verification of code ● TXT (Intel Trusted Execution Technology) – DRTM (Dynamic Root of Trust Measurement); trusted launch, hardware security enhancements ● VT-d (device virtualization) – Needed to secure IO devices
  • 27. Audit ● Developed for certification (e.g. CAPP) ● Audit framework generates events: – User sessions & configuration changes – Syscalls – LSM decisions ● Useful for forensics and deterrence ● SELinux, SMACK et al use it for detailed reporting ● Netlink API for audit daemon, IDS
  • 28. Seccomp ● Secure computing mode – Extremely lightweight sandboxing for untrusted code – Application enters mode with fixed set of restricted syscalls (read, write, exit, sigreturn) ● Proposal to convert into generic syscall filter – Historically problematic area
  • 29. High Level View ● State of the art: Fedora 11 – Kiosk Mode as example ● Known mitigations ● Certifications – RHEL: LSPP, CAPP, RBACPP at EAL4+ – Not a separate product, all upstream and open ● Security features standard and generalized
  • 30. Future Directions ● Continued refinement and hardening – Working towards “Inevitability” goals ● Extensible models – Consistent policy for entire computing environment ● Cloud Computing
  • 31. Challenges ● Multiple security models hindering adoption ● Convincing people of the value of security: – enable features – report problems – help improve usability
  • 32. Resources ● Linux Kernel Security Wiki ● LSM Mailing List ● LWN Security page
  • 34. Useful URLs Kernel Security Wiki http://security.wiki.kernel.org/ LSM Mailing List http://vger.kernel.org/vger­lists.html#linux­security­module   LWN Security Page http://lwn.net/Security/ “The Inevitability of Failure: The Flawed Assumption of Security in Modern  Computing Environments” http://csrc.nist.gov/nissc/1998/proceedings/paperF1.pdf LSM Usenix Paper http://www.usenix.org/event/sec02/wright.html Kernel Memory Protection http://lwn.net/Articles/329787/ Linux Security Model Comparison http://tomoyo.sourceforge.jp/wiki­e/?WhatIs#comparison
  • 35. Useful URLs ... SELinux http://selinuxproject.org/ “Have You Driven an SELinux Lately?” (OLS paper on current state) http://namei.org/ols­2008­selinux­paper.pdf “Anatomy of Fedora Kiosk Mode” http://namei.org/presentations/fedora­kiosk­mode­foss­my­2008.pdf “SELinux Memory Protection Tests” http://people.redhat.com/drepper/selinux­mem.html “A seatbelt for server software: SELinux blocks real­world exploits” http://www.linuxworld.com/news/2008/022408­selinux.html SMACK http://schaufler­ca.com/ AppArmor http://en.opensuse.org/Apparmor TOMOYO http://tomoyo.sourceforge.jp/ “POSIX file capabilities: Parceling the power of root” http://www.ibm.com/developerworks/library/l­posixcap.html “POSIX Access Control Lists on Linux” http://www.suse.de/~agruen/acl/linux­acls/online/
  • 36. Useful URLs ... "Implementing Native NFSv4 ACLs in Linux" http://lca2009.linux.org.au/slides/79.tar.gz “Applying mount namespaces” http://www.ibm.com/developerworks/linux/library/l­mount­namespaces.html “Disk encryption in Fedora: Past, present and future” http://is.gd/16012 “Limiting buffer overflows with ExecShield” (2005) http://www.redhat.com/magazine/009jul05/features/execshield/ “Linux Kernel Heap Tampering Detection” http://phrack.org/issues.html?issue=66&id=15#article “System integrity in Linux” http://lwn.net/Articles/309441/ “Linux kernel integrity measurement using contextual inspection” (LKIM) http://portal.acm.org/citation.cfm?id=1314354.1314362 Intel TXT Site http://www.intel.com/technology/security/ IBM TCPA Resources     http://www.research.ibm.com/gsal/tcpa/tcpa_rebuttal.pdf Invisible Things Labs     http://theinvisiblethings.blogspot.com/
  • 37. Linux Kernel Security Overview Kernel Conference Australia Brisbane, 2009 James Morris jmorris@namei.org 1
  • 38. Introduction 2 - Discuss scope and purpose of talk: - Provide a high-level overview of Linux kernel security - Cover significant security subsystems - Historical background and rationale - Development model & (lack of) overall design - Security has been retrofitted - Pros and cons - Understanding of why, not just how - Build understanding of current system and directions - Useful for developers, admins, researchers etc. as a starting point - Also only talking about in-tree unless otherwise noted - The scope is kernel security: this does not cover general Linux security, which needs a large book!
  • 39. Historical Background ● Linux started out with traditional Unix security – Discretionary Access Control (DAC) ● Security has been enhanced, but is constrained by original Unix design, POSIX etc. ● Approach is continual retrofit of newer security schemes, rather than fundamental redesign 3 - Llinux security constrained by these factors, can’t re- design / break userland
  • 40. “The first fact to face is that UNIX was not developed with security, in any realistic sense, in mind; this fact alone guarantees a vast number of holes.” Dennis Ritchie, “On the Security of UNIX”, 1979 4 - There are references on this back to at least 1975...
  • 41. DAC ● Simple and quite effective, but inadequate for modern environment: – Does not protect against flawed or malicious code ● Linux implementation stems from traditional Unix: – User and group IDs – User/group/other + read/write/execute – User controls own policy – Superuser can violate policy 5 - Unix DAC has been very successful due to its simplicity (although still trips people up...). - “root” is allowed to violate security policy - Basically: all or self security w/ abbreviated ACLs - Not good enough because: - ref: NSA paper “The Inevitability of a failure” - Consider that in practice, all software has bugs; some of those bugs may be security issues, therefore it is prudent (and historically accurate) to assume all software has security bugs; DAC simply cannot provide effective protection as the security policy is controlled by the flawed software! - People assume MAC means “trusted systems” and that they don’t need it; MAC can and has been generalized....
  • 42. “It must be recognized that the mere notion of a super-user is a theoretical, and usually practical, blemish on any protection scheme.” Ibid. 6 - This was recognized as a problem 30 years ago!
  • 43. Extended DAC ● POSIX Capabilities (privileges) – Process-based since Linux kernel v2.2 ● Limited usefulness – File-based support relatively recent (v2.6.24) ● May help eliminate setuid root binaries ● Access Control Lists (ACLs) – Based on abandoned POSIX spec – Uses extended attributes API 7 - Let’s solve DAC by... adding more! - Proc caps have had some use w/ sendmail & ntpd - Useful as annotations, has had some limited use (sendmail, ntpd), also involved in security issue - File caps much more useful, but still to see distro adoption - ACLs much more fine-grained and powerful than Unix perms, also subtle and complex; many different implementations - See paper by Andreas Grünbacher also LCA slides on NFS ACLs by Greg Banks - Capabilities not sufficient fundamentally: don’t take object security into account; fixed security model re. Inheritance & propagation which hinders least privilege; don’t protect trustworthy app from untrusted input (no information flow control!) - setuid becoming less of an issue now than DBUS, which needs MAC
  • 44. Linux Namespaces ● File system namespaces introduced in 2000, derived from Plan 9. – Not used much until mount propagation provided more flexibility (e.g. shared RO “/”) – Mounts private by default ● Syscalls unshare(2) and clone(2) allow control over sharing of resources ● Provides good isolation between processes ● PAM integration ● Used w/ SELinux in kiosk mode 8 - Similar in concept to Solaris zones; also only provide isolation, which is useful, but also need to control sharing, provide protection inside container and manage entire system securely. - bind mounts allow mount to appear in different places with different attributes, e.g. ro mount of /, private mount of $HOME & $TMP, with tmpfs. - This can be managed manually, but is better done with PAM integration (e.g. pam_namespace) - Was also developed/used for LSPP certification (MLDs / polyinstantantiation) - Refer to kiosk mode anatomy slides - Lots of ongoing work with namespaces and containers - Demo kiosk mode?
  • 45. Network Access Control ● Netfilter – Packet filtering and mangling framework – API allows kernel applications to register by protocol and packet flow point ● IPTables – Extensible packet filter for IPv4/IPv6 – Connection tracking (stateful inspection) – NAT – Hundreds of contributed matches and targets 9 - Several generations of packet filtering prior to this: ipfw, ipchains - Generalization, consolidation of packet flow - Highly pluggable and extensible design - Netfilter could support other packet filters, some efforts in this area, not mainlined - Netfilter implemented at network layer, generic support for L3 protocols - iptables plugins support many IP-based protocols, e.g. FTP + conntrack - Also have bridging support with similar framework - Firewalls are not enough alone: they’re too far from the host systems & very coarse granularity (see Inevitability paper).
  • 46. Missing Link ● Seminal 1998 NSA paper: The Inevitability of Failure describes additional security requirements: – Mandatory security – Trusted / protected path – Assurance ● Difficult work, but we are getting there... 10 - Trusted path is a mechanism which provides confidence that: user is interacting with trusted application (trusted as in, trusted to perform the desired function, e.g. login); trusted app is interaction with actual user; also requires protection of communication channel - Protected path is a generalization of trusted path; where all endpoints communicate via mutually authenticated channels (this can be extended to the network); e.g. prevent impersonation of cryptographic token invocation & security bypass in general - Mandatory security -> MAC (SELinux etc), MIC, MCP (cf. Gutmann) - Assurance: the most difficult; can include certifications, code audit etc.; FOSS improves assurance by providing source to users for verification
  • 47. Cryptography ● Historical US export limitations prevented merge of comprehensive cryptography – External “kerneli” tree had a crypto API – Other projects added own crypto, e.g. FreeSWAN ● Some allowed uses: – Hashing – RNG 11 - The crypto export restrictions had the effect of preventing the merge; it would have caused enormous problems for linux distribution - Hashing was not seen as being able to provide confidentiality, so has been present in the kernel for ages - Changes to the laws allowed export with notification - Note that crypto is not security (older common viewpoint); it is a component of security which requires a secure OS to function effectively
  • 48. Cryptography ● Crypto API developed rapidly for native IPSec implementation, made it into 2.6 kernel ● Scatterlist API ● Initially synchronous w/ support for basic cipher modes, digests and compressors ● Dynamic crypto algorithm module loading ● Now significantly evolved w/ async, hardware support, ASM, many algorithms & modes 12 - I developed a crypto API based on several open source projects including kerneli and Nettle - Design input from Linus and Dave Miller - Took about 5 weeks for the initial API to be merged, had basic support for ciphers (symmetric), digests (and HMAC), and compressors; used scatterlist (vectored) API to facilitate deep kernel integration - Was necessary for IPSec & made it in for 2.6 kernel - Handed maintenance to Herbert Xu, who has done great work extending the modes, algorithms, scope - Herbert will be speaking on this at LPC in PDX. - Are the T2 on-chip crypto specs available?
  • 49. Disk Encryption: DM-Crypt ● Operates transparently at block layer ● Key management with LUKS ● Default is AES-128/SHA-256 ● Very nice integration in Fedora; try it! 13 - There are many schemes available, these are some of the main ones in use. - Linux Unified Key Setup-on-disk-format (LUKS) - DM = device mapper, block layer plugins, allows also for things like software raid, integration with LVM - Block layer crypto is good because it’s simple, allows encryption of RAID arrays, LVM volumes etc. - Unmodified fs - Swap support - Lacks granularity
  • 50. Disk Encryption: ecryptfs ● Stacked filesystem encryption at VFS layer ● Per-object encryption ● Extensible key management ● Cryptographic metadata stored w/ objects, allows them to be moved to different hosts 14 - Addresses many use cases where finer granularity is required, such as incremental backups, sharing files etc. - Different algorithms for different objects - Saves re-encrypting for transmission - Selective use on fs, saves overhead - TPM, PKCS#11 etc. for key management. - Files appear normal in Base FS, POSIX compliance, backup etc. works as expected.
  • 51. Network Encryption: IPSec ● Supports IPv4 and IPv6 ● Implemented via generic transform (xfrm) framework: – xfrm stack applied to packet based on policy db ● xfrms include: ESP, AH, IPComp, MIP, IPIP ● Utilizes native Netlink sockets for scalability ● Also supports PF_KEY 15 - Native IPsec stack made possible by crypto policy changes, designed and implemented by DaveM and Alexey; unorthodox design aimed at max. performance and utility - By the time this became available, many people were using other non-kernel crypto, e.g. SSH, SSL, userland VPNs. - This stack is used in commercial appliances, so you may be using it anyway...
  • 52. Memory Protection ● Address Space Layout Randomization (ASLR) ● NX (No eXecute) bit support where available in hardware or via emulation ● GCC stack smashing protector ● /dev/mem & null pointer restrictions ● MAC policy can be applied via SELinux: – execheap, execmem, execmod, execstack 16 - Several schemes for resisting memory-based attacks, depending on which distro and hardware you use - ASLR: randomizes various aspects of application address space: libraries, heap, stack, text; has been broken - See ExecShield (may be dropped soon b/c not upstreamable & hw does it better), Mark Cox and Drepper’s docs - Much of this work comes from grsecurity / pax / openwall - Some of this is done in conjunction w/ userspace, e.g. glibc and elf hardening - The usability/security tradeoff of the linux protections has come under criticism, some of it warranted - Several external projects feed patches and help in, not always successfully - nx emulation uses segment limits - FORTIFY_SOURCE
  • 53. Kernel Vulnerabilities ● Note that kernel vulnerabilities may allow attackers to bypass kernel-based security mechanisms. ● See “Linux Kernel Heap Tampering Detection”, in Phrack 66 for a detailed discussion of the topic. 17 - grsecurity folk have been working in this area; some of it is likely not upstreamable - LKIM addresses this; see referenced ACM paper; code not currently available as open source - A kernel vulnerability can arise from almost any kernel bug – it may not be recognizable as a security bug to even the most experienced kernel developer. - One mechanism used by developers who suspect their bug is security related is to notify vendor-sec, which includes the security response folk from all of the major vendors, for analysis & coordination. - Linus’ policy is to simply fix all bugs (“security is not special”) without fanfare; this is controversial but does have one clear benefit: the bug is fixed.
  • 54. Linux Security Modules (LSM) ● Framework for integrating access control schemes ● Hooks located at security-critical points in the kernel, pass security-relevant information to LSM module, which can veto the operation ● Avoids races when making security decisions ● Restrictive interface: can only further confine access, not loosen it 18 - Developed in response to Linus’ initial reaction to SELinux, where he did not want to decide on a security model for the kernel, so make it pluggable - AppArmor, SELinux, SGI etc. developers worked on it, then these were ported to LSM, some new LSMs developed - Lots of controversy subsequently as SELinux remained the only significant user; Linus reiterated his position that as there was no consensus on security model, LSM remains; use Arjan protocol for reviewing new modules to avoid flamewars - Drawbacks include weak semantics, lack of consistent security model for ISVs / admins etc. - One benefit is diversity of ideas (D. Wagner) - Related work: BSD MAC framework, XSM, XACE
  • 55. SELinux ● Flexible fine-grained MAC scheme w/ least privilege, confidentiality, integrity, isolation, information flow control; exploit containment ● Composition of multiple security models under single analyzable policy ● Currently ships with: Type Enforcement, RBAC and MLS/MCS ● Clean separation of mechanism and policy to meet very wide range of usage scenarios 19 - Rationale: - “trusted” systems not viable / generally useful - Need whole-system approach (i.e. extend to network, database, virt, desktop...) - Mainstream MAC - Targeted policy: limited confinement to network facing services and base OS: made it possible to enable by default - Proven effectiveness, limits exploitation of vulns - Usability addressed with high level abstractions, e.g. kiosk mode, svirt - Related work: SEBSD, FMAC; interop desired - Kylin 3 (KACF), apparently “B2” class - Certified LSPP/EAL4+, also shipping enabled by default in Fedora - Low-level policy is complex; relies on high level abstractions for usability, like a spreadsheet on a PC. - Customization is still a challenge; work to be done..
  • 56. Simplified Mandatory Access Control Kernel (SMACK) ● Simple labeling of subjects and objects to provide flexible MAC ● System labels define hierarchical limits ● Admin-defined labels can be any short string ● Policy is written as triples: Subject Object [–rwxa] 20 - Developed by Casey, who has a long history with Trusted OSs and is aware of their drawbacks - System labels: hat / floor are like system high/low - Some of the simplification appears genuinely useful (e.g. for sockets), although overall it leads to coarser and thus less expressive policy foundation (perhaps something like CISC vs. RISC) - Need more analysis of efficacy and practical demonstration to be able to evaluate, but should be able to achieve useful security goals - Not aware of fielded systems using SMACK as yet - Is it too simple to be generally useful ?
  • 57. AppArmor ● Not currently in kernel ● Path name access control scheme to confine applications ● Aims to solve security usability by expressing policy with a familiar abstractions, e.g.: – File access controls defined with path names and names of common operations – POSIX capabilities described by name 21 - The pathname aspect has been contentious; critics are concerned with object aliasing (aka forgeable references), incomplete mediation, that the model does not generalize, and will not ultimately be as simple as expected - Similar concept to “No Fly List”: assess the name of the object instead of the object itself; - Changes have been made to the scheme which address some of the aliasing issues (e.g. more control over linking), and advocates are ok with the usability/security trade-off - The flamewar aspect is overblown: it is normal and expected for security engineers to robustly analyze each others work, also part of Internet culture. - Linus has taken the “I don’t like your security model” argument off the table
  • 58. TOMOYO ● Path-based MAC scheme developed by NTT research ● Aims to solve security usability with automatic real-time policy generation ● Enforces previously observed behavior in learning mode ● Domains are trees of process invocation ● Rules apply to domains 22 - R&D project from NTT; bosses told developers to make something new - Attempts to solve usability with automated policy generation - Pathnames are labels - No MLS, no RBAC, - “Task Oriented Management Obviates Your Onus on Linux” - Aimed at average users and admins, not security professionals (according to their docs) - Not clear how “status quo encapsulation” or “unobserved but valid code path execution” is addressed.
  • 59. Labeled Networking ● NetLabel – CIPSO ● Legacy labeling using IP options – IPSec ● Labeling of Security Associations ● Secmark – Utilizes iptables – Generic labeling (SMACK & SELinux use it) 23 - This is quite a complicated area overall, and while the code is essentially complete and likely useful for advanced users, it will take time for suitable general purpose abstractions and applications to evolve - Secmark is “local” labeling and does not require protocol support anywhere; NetLabel is “remote” labeling and requires protocol support at each end. - Labeled networking ultimately is required to extend the trusted path concept over the network, and is as such an essential component of securing the networked systems of the future.
  • 60. Network File Systems ● Labeled NFS – NFSv4 extension – Prototype code – Also need to extend RPC security – IETF process ongoing ● NFS ACLs – Support for Linux ACLs and NFSv4 ACLS ● See talk by Greg Banks at LCA 24 Labeling: - Several closed / proprietary implementations - No standard - Best if open and standard, generalized ACLs: - Lots of variations, need interop - NFSv3 has support for native ACLs - uses xattr APIs - NFSv4 ACLs are implementation of Windows model, which is very different (see Greg’s slides) - NFSv4 code partially implemented - ZFS, GPFS has it - Needed for NAS interop, windows clients etc.
  • 61. Anti-Malware ● Good userspace solutions ● People still want kernel scanning ● fsnotify – Generalized file notification framework – Consolidate dnotify & fsnotify – Useful for HSM ● TALPA – File access scanning API for AV modules 25 - Problematic area; kernel devs not keen on in-kernel scanning, should mostly be done in userspace; but may have valid use-cases for network file servers - AV companies not community oriented, often have proprietary kernel modules - Eric Paris started working as intermediary, came up with fsnotify and TALPA - TALPA; file access scanning API - fsnotify merged, remaining status unclear
  • 62. Integrity & Platform Security ● TPM (Trusted Platform Module) – Cryptographic processor, RNG, storage for keys and measurements ● IMA (Integrity Measurement Architecture) – Static integrity verification of code ● TXT (Intel Trusted Execution Technology) – DRTM (Dynamic Root of Trust Measurement); trusted launch, hardware security enhancements ● VT-d (device virtualization) – Needed to secure IO devices 26 - This is part of the missing link: need to protect kernel! - Linux is @ leading edge of this & continues to advance - DRM controversial (see TCPA rebuttal: TCPA can implement DRM, but is not itself DRM). - TPM can be very useful: - BitLocker - Sealing credentials for PGP, SSL, SSH etc. - Bring trusted environment up on untrusted system - Remote attestation - Static root of trust too difficult to work with - Dynamic root of trust more promising - TXT; do not have to trust everything! - Invisiblethings Lab blog very useful - Integrity Measurement Architecture (IMA) from IBM; LKIM / contextual inspection next step (runtime...) - VT-d necessary to e.g. properly virtualize DMA
  • 63. Audit ● Developed for certification (e.g. CAPP) ● Audit framework generates events: – User sessions & configuration changes – Syscalls – LSM decisions ● Useful for forensics and deterrence ● SELinux, SMACK et al use it for detailed reporting ● Netlink API for audit daemon, IDS 27 - Arguably not a security feature - Standard feature of C2 / CAPP - Developed for CAPP certification - syscall auditing has performance issue which gets blamed on SELinux - Promising general use: IDS (in development) - Also has filtering in kernel
  • 64. Seccomp ● Secure computing mode – Extremely lightweight sandboxing for untrusted code – Application enters mode with fixed set of restricted syscalls (read, write, exit, sigreturn) ● Proposal to convert into generic syscall filter – Historically problematic area 28 - Andrea Archangeli originally developed this for a grid computing business - syscall wrapping considered harmful: LSM is the right way to go; see Robert Watson paper "Exploiting Concurrency Vulnerabilities in System Call Wrappers" - problems with races mainly - Google investigating for Chrome: - proves point that lack of consistent security API is a problem - LSM is right solution for hook points: - still inconsistent between distros
  • 65. High Level View ● State of the art: Fedora 11 – Kiosk Mode as example ● Known mitigations ● Certifications – RHEL: LSPP, CAPP, RBACPP at EAL4+ – Not a separate product, all upstream and open ● Security features standard and generalized 29 - Tie back to inevitability goals - Meets extremely wide range of needs, from end user desktop to military, stock exchanges etc. - Combined together, current code provides layered security (defense in depth; of course there is then attack in depth...), incremental improvements & retrofitting means we can deliver better security to large audience - Has also sparked improvements in other OSs security - Move to security as standard feature of OS is a major step in itself - Several known exploits blocked, covered in LinuxWorld article in 2008 - CtF contests seem to be not using Fedora anymore...
  • 66. Future Directions ● Continued refinement and hardening – Working towards “Inevitability” goals ● Extensible models – Consistent policy for entire computing environment ● Cloud Computing 30 - This process will not end, refinement expected to be ongoing - Computing environment evolving: virtualization, cloud etc. are just what we know about now... security needs to generalize in terms of technologies and use-cases - As we can’t redesign the OS from the ground up w/ security in mind, retrofit & refinement is the only option; so we need to work with that
  • 67. Challenges ● Multiple security models hindering adoption ● Convincing people of the value of security: – enable features – report problems – help improve usability 31 - ISV & user adoption: need to support multiple security models; no standard API (google chrome folk compare Apple dev vs. Linux...); not impossible, but extremely difficult (need to design flexibility into each layer, e.g. svirt, xace; then develop abstracted API....) - Security is useless if nobody enables it... - If people have problems, reporting the problems allows us to solve them! - Core issue is getting people to understand the need for security (cf. Seat belts, bike helmets) and to then participate in the development cycle - Some people still disable DAC by doing everything as root; we probably don’t have much hope of convincing them that MAC is worthwhile, but for the general user base, we can do a great deal, and we can also do a lot for specialist security users at the same time with the same codebase.
  • 68. Resources ● Linux Kernel Security Wiki ● LSM Mailing List ● LWN Security page 32 - These are the most important links; everything else can be found from these - LSM list is for general kernel security development discussion - Also, a list of URLs is given at the end of the slides
  • 69. Questions? 33 - Thanks to Stephen Smalley, Paul Moore and Dan Walsh for feedback on these slides
  • 70. Useful URLs Kernel Security Wiki http://security.wiki.kernel.org/ LSM Mailing List http://vger.kernel.org/vger­lists.html#linux­security­module   LWN Security Page http://lwn.net/Security/ “The Inevitability of Failure: The Flawed Assumption of Security in Modern  Computing Environments” http://csrc.nist.gov/nissc/1998/proceedings/paperF1.pdf LSM Usenix Paper http://www.usenix.org/event/sec02/wright.html Kernel Memory Protection http://lwn.net/Articles/329787/ Linux Security Model Comparison http://tomoyo.sourceforge.jp/wiki­e/?WhatIs#comparison 34 Note: this is not for display purposes really, but for people to use locally when looking for links.
  • 71. Useful URLs ... SELinux http://selinuxproject.org/ “Have You Driven an SELinux Lately?” (OLS paper on current state) http://namei.org/ols­2008­selinux­paper.pdf “Anatomy of Fedora Kiosk Mode” http://namei.org/presentations/fedora­kiosk­mode­foss­my­2008.pdf “SELinux Memory Protection Tests” http://people.redhat.com/drepper/selinux­mem.html “A seatbelt for server software: SELinux blocks real­world exploits” http://www.linuxworld.com/news/2008/022408­selinux.html SMACK http://schaufler­ca.com/ AppArmor http://en.opensuse.org/Apparmor TOMOYO http://tomoyo.sourceforge.jp/ “POSIX file capabilities: Parceling the power of root” http://www.ibm.com/developerworks/library/l­posixcap.html “POSIX Access Control Lists on Linux” http://www.suse.de/~agruen/acl/linux­acls/online/ 35 Note: this is not for display purposes really, but for people to use locally when looking for links.
  • 72. Useful URLs ... "Implementing Native NFSv4 ACLs in Linux" http://lca2009.linux.org.au/slides/79.tar.gz “Applying mount namespaces” http://www.ibm.com/developerworks/linux/library/l­mount­namespaces.html “Disk encryption in Fedora: Past, present and future” http://is.gd/16012 “Limiting buffer overflows with ExecShield” (2005) http://www.redhat.com/magazine/009jul05/features/execshield/ “Linux Kernel Heap Tampering Detection” http://phrack.org/issues.html?issue=66&id=15#article “System integrity in Linux” http://lwn.net/Articles/309441/ “Linux kernel integrity measurement using contextual inspection” (LKIM) http://portal.acm.org/citation.cfm?id=1314354.1314362 Intel TXT Site http://www.intel.com/technology/security/ IBM TCPA Resources     http://www.research.ibm.com/gsal/tcpa/tcpa_rebuttal.pdf Invisible Things Labs 36     http://theinvisiblethings.blogspot.com/ Note: this is not for display purposes really, but for people to use locally when looking for links.
